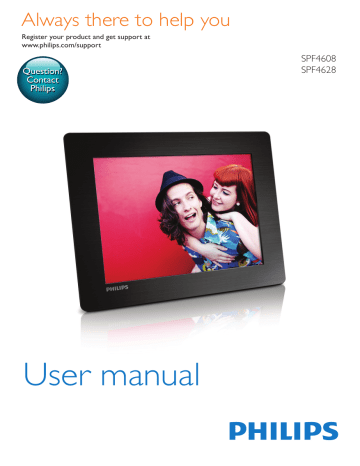

Always there to help you

Register your product and get support at www.philips.com/support

Contact

Philips

SPF4608

SPF4628

User manual

Contents

1 Important

2

Safety 2

Notice 2

Banned Substance Declaration 3

2 Your PhotoFrame

Introduction 4

What's in the box

Overview of your PhotoFrame

4

4

5

3 Get started

Install the stand

Connect power

Turn on the PhotoFrame

Transfer your media

Quick menu

Know these keypad icons

4 Play

Display photos

10

10

8

9

9

7

7

7

7

5 Browse

Browse albums and photos

Manage albums and media

6 Clock

Display the clock

Clock menu

7 Message

Create a message

Edit a message

View a created message

12

12

12

16

16

16

17

17

18

19

8 Settings

Select an on-screen language

Adjust brightness

Set time/date

Set SmartPower timer

Hibernate the PhotoFrame

Set auto orientation

Turn on/off button sound

Slideshow setting

22

22

23

23

21

21

21

21

23

View information of the PhotoFrame 25

Reset all settings to factory default 25

9 Upgrade the PhotoFrame

27

10 Product information

11 Frequently asked questions

12 Glossary

28

29

30

EN

1

1 Important

Safety

• Never touch, push, rub or strike the screen with hard objects as this may damage the screen permanently.

• When the product is not used for long periods, unplug it.

• Before you clean the screen, turn off and unplug the power cord. Only clean the screen with a soft, water-damp cloth.

Never use substances such as alcohol, chemicals or household cleaners to clean the product.

• Never place the product near naked flames or other heat sources, including direct sunlight.

• Never expose the product to rain or water. Never place liquid containers, such as vases, near the product.

• Never drop the product. When you drop the product, it will be damaged.

• Ensure that you install and use services or software only from trustworthy sources free of virus or harmful software.

• This product is designed for indoor use only.

• Use only power supplies listed in the user manual.

Notice

This product complies with the radio interference requirements of the European

Community.

The making of unauthorized copies of copyprotected material, including computer programs, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offence.

This equipment should not be used for such purposes.

• Your new product contains materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and to minimize the amount to be disposed of.

• Please find out about the local regulations on how to dispose your old monitor from your local dealer.

• (For customers in Canada and U.S.A.)

Dispose the old product in accordance to local-state and federal regulations.

For additional information on recycling contact www.eia.org (Consumer Education Initiative).

Recycling Information for Customers

Philips establishes technically and economically viable objectives to optimize the environmental performance of the organization's product, service and activities.

From the planning, design and production stages, Philips emphasizes the importance of making products that can easily be recycled. At

Philips, end-of-life management primarily entails participation in national take-back initiatives and recycling programs whenever possible, preferably in cooperation with competitors.

There is currently a system of recycling up and running in the European countries, such as The

Netherlands, Belgium, Norway, Sweden and

Denmark.

In U.S.A., Philips Consumer Lifestyle North

America has contributed funds for the

Electronic Industries Alliance (EIA) Electronics

Recycling Project and state recycling initiatives for end-of-life electronics products from

2

EN

household sources. In addition, the Northeast

Recycling Council (NERC) - a multi-state non-profit organization focused on promoting recycling market development - plans to implement a recycling program.

In Asia Pacific, Taiwan, the products can be taken back by Environment Protection Administration

(EPA) to follow the IT product recycling management process, detail can be found in web site www.epa.gov.tw.

Recycling

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When you see the crossed-out wheel bin symbol attached to a product, it means the product is covered by the European Directive

2002/96/EC:

Never dispose of your product with other household waste. Please inform yourself about the local rules on the separate collection of electrical and electronic products. The correct disposal of your old product helps prevent potentially negative consequences on the environment and human health.

Banned Substance

Declaration

This product complies with RoHS.

EN

3

2 Your

PhotoFrame

Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

Introduction

With Philips Digital PhotoFrame, you can

• display JPEG photos

• create gift messages.

What's in the box

• Philips Digital PhotoFrame

• Stand

• AC-DC power adaptor

PhotoFrame

Quick Start Guide

• User manual

4

EN

Overview of your PhotoFrame

a b c d e f a

MODE / POWER

• Press to turn on the PhotoFrame.

• Press and hold to turn off the

PhotoFrame.

• Press to switch modes: slideshow/ clock/calendar.

b

/ BACK / HOME

• Press to return to the previous step.

• Press and hold to go to the home screen.

g c OK (Joystick)

• Press to confirm a selection.

• Press to pause or resume play.

• Move up/down/left/right to select the upper/lower/right/left option.

d MENU

• Press to enter/exit the menu.

e

• Slot for a USB cable to PC h

EN k j i

5

f

SD/MMC/MS

• Slot for an SD/MMC/MS card g

Stand hole h

DC IN

• Socket for the AC-DC power adaptor i

Kensington lock j

Speaker k

Stand hole

6

EN

3 Get started

Always follow the instructions in this chapter in sequence.

If you contact the Consumer Care, you will be asked for the model and serial number of this apparatus. The model number and serial number are on the rear of the apparatus. Write the numbers here:

Model No. __________________________

Serial No. ___________________________

Install the stand

1

Place the PhotoFrame on a flat surface.

2

Insert the supplied stand to the stand hole of the PhotoFrame.

Connect power

Note

When you position the PhotoFrame, make sure that the power plug and outlet are easily accessible.

Connect the supplied power adaptor to:

• the DC IN socket of the PhotoFrame

• the AC outlet

»

A few seconds later, the PhotoFrame turns on automatically.

Turn on the PhotoFrame

Note

When you connect the PhotoFrame to a power supply, the PhotoFrame turns on automatically.

When the PhotoFrame is turned off and connected to the power supply, press and hold

to turn on the PhotoFrame.

For the first time you turn on the

PhotoFrame:

• The screen prompts you to select a language. Select a language, and then press

OK.

EN

7

Tip

• The screen prompts you to set time and date. Move the joystick to set time and date, and then press OK.

If the PhotoFrame is disconnected from the power supply for a long time, you need set time and date again after you turn on the PhotoFrame.

Turn off the PhotoFrame

Note

You can only turn off the PhotoFrame after all copy and save actions are complete.

• To turn off the PhotoFrame, press and hold

for about 2 seconds.

Transfer your media

Transfer photos from a storage device

Caution

Do not disconnect the storage device from the

PhotoFrame during media transfer.

The PhotoFrame supports most types of the following storage device:

• Secure Digital (SD)

8

EN

• Secure Digital High Capacity (SDHC)

• Multimedia Card (MMC)

• Memory Stick (MS)

1

Insert a storage device into the

PhotoFrame.

» An option menu is displayed.

[Play Photos]: Select it to play media on the storage device.

[Browse]: Select it to browse media on the storage device.

[Copy to PhotoFrame]: Select it to start transfer operation.

2

Select [Copy to PhotoFrame], and then press OK.

» A confirmation message is displayed.

3

Select [Yes], and then press OK.

• To remove a storage device, pull it out of the PhotoFrame.

Transfer photos from a computer

Caution

Do not disconnect the PhotoFrame from the computer during media transfer.

1

Connect a proper USB cable to this product and your computer.

• Ensure that the USB cable supports the data transfer.

• Ensure that the USB cable matches the

USB slot of this product (Mini USB slot

or Micro USB slot ).

»

You can drag and drop the media from the computer to an album on the

PhotoFrame.

2

When the transfer is complete, disconnect the USB cable from the computer and the

PhotoFrame.

Tip

You can transfer media from the PhotoFrame to a computer.

The transfer speed depends on the operating system and the software configuration of the computer.

1

In the home screen, press MENU.

»

The quick menu is displayed.

Quick menu

2

Select an option, and then press OK.

3

Follow the on screen instructions to adjust the brightness or view the status of the

PhotoFrame.

• To exit the quick menu, press MENU repeatedly.

Know these keypad icons

/

ABC aA

Input in English

Input in supported European languages

Input in Simplified Chinese

Input in Russian

Switch to select symbols, punctuations, alphabet or numbers

Switch between upper and lower case

Enter a blank space

Enter a line break

EN

9

10 EN

4 Play

Display photos

You can display JPEG photos in slideshow mode on the

PhotoFrame.

Note

Select [Play], and then press OK.

» Photos are displayed in slideshow mode.

• To select the previous/next photo, move the joystick to the left/right.

• To pause the slideshow, press OK.

• To resume the slideshow, press OK again.

Manage slideshow and photos

You can take the following steps to manage the photo in slideshow mode or change slideshow settings:

1

Press MENU.

» An option menu is displayed.

2

Select an option, and then press OK.

• [View Mode]: Select the view mode.

• [Add to Favorites]: Add the photo to the

[Favorites] album on the PhotoFrame.

• [Slideshow Settings]

• [Interval]: Set the time interval between consecutive photos.

• [Shuffle]: Play photos randomly or not.

• [Color Tone]: Select a color setting for the photo.

• [Transition Effect]: Select a transition effect.

• [Background Color]: Select a background color.

• [Rotate]: Select an orientation to rotate the photo.

• [Copy]: Copy the photo to another album.

• [Delete]: Delete the photo.

• [Zoom]: Zoom and crop the photo.

• [Brightness]: Move the joystick up/down to adjust the brightness of display.

Zoom and crop a photo

When the view mode is selected as single, you can zoom in a photo, crop it, and save it as a new photo as follows:

1

In slideshow mode, press MENU.

» An option menu is displayed.

2

Move the joystick downwards repeatedly to select [Zoom].

3

Press OK repeatedly to zoom in the photo

(or exit the zoom mode).

4

Move the joystick to pan the photo.

5

Press MENU.

6

Select [Crop and Save], and then press

OK.

»

A confirmation message is displayed.

7

Select [Yes], and then press OK.

• To cancel the operation, select [No] and then press OK.

8

Select an album or storage device to save the new photo, and then press OK.

» After the photo is saved, the

PhotoFrame goes back to the slideshow mode.

EN

11

12 EN

5 Browse

Browse albums and photos

You can browse and manage albums and media in wave mode or album mode.

• Wave mode:

• Album mode:

1

In the home screen, select [Browse] and then press OK.

» Albums are displayed in wave mode.

2

Press to switch between wave mode and album mode.

3

View photos.

• Press OK once: A photo is displayed in pause mode.

• Press OK twice: Slideshow is started.

Manage albums and media

PhotoFrame

1

Select [PhotoFrame].

2

Press MENU.

» An option menu is displayed.

3

Select an option, and then press OK to continue.

• [Add to Favorites]: Copy all photos from the [PhotoFrame] album to the

[Favorites] album

• [Create New Album]: Create an album

• [Copy]: Copy all photos from the

[PhotoFrame] album to another album

• [Move]: Move all photos from the

[PhotoFrame] album to another album

• [Delete]: Delete all photos from the

[PhotoFrame] album

• [Multiple-select]: Select multiple photos to manage

SD/MMC Card

1

Select [SD/MMC Card].

2

Press MENU.

»

An option menu is displayed.

3

Select an option, and then press OK to continue.

• [Add to Favorites]: Copy all photos from the card to the [Favorites] album

• [Copy]: Copy all photos from the card to another album

• [Move]: Move all photos from the card to another album

• [Delete]: Delete all photos from the card

Album

1

Select an album under [PhotoFrame].

2

Press MENU.

» An option menu is displayed.

3

Select an option, and then press OK to continue.

• [Add to Favorites]: Copy all photos from the album to the [Favorites] album

• [Create New Album]: Create an album

• [Copy]: Copy all photos from the album to another album

• [Move]: Move all photos from the album to another album

• [Delete]: Delete all photos from the album

• [Rename]: Rename the album

• [Multiple-select]: Select multiple photos to manage

Thumbnail

1

Select a thumbnail in album mode.

2

Press MENU.

» An option menu is displayed.

3

Select an option, and then press OK to continue.

• [Add to Favorites]: Copy the photo to the [Favorites] album

• [Copy]: Copy the photo to another album

• [Move]: Move the photo to another album or card

• [Delete]: Delete the photo from the album

• [Rotate]: Rotate the photo in the album

• [Color Tone]: Select a color setting for the photo

• [Multiple-select]: Select multiple photos to manage

Favorites

1

Select [Favorites].

2

Press MENU.

»

An option menu is displayed.

EN

13

3

Select an option, and then press OK to continue.

• [Copy]: Copy all photos from the album to another album

• [Delete]: Delete all photos in the album

Add media to the favorite album

To add a photo or all photos in an album to the [Favorites] album:

Select [Add to Favorites], and then press OK.

Create an album

1

Select [Create New Album], and then press OK.

2

To enter the name (about 24 characters), select an alphabet/number and then press

OK.

• To switch between uppercase and lowercase, select aA on the displayed keypad and then press OK.

3

When the name is complete, select and then press OK.

4

Press OK to start the saving process.

Copy media

1

Select [Copy], and then press OK.

2

Select a destination album, and then press

OK to start copy.

Move media

1

Select [Move], and then press OK.

2

Select a destination album, and then press

OK to start move.

Delete media

1

Select [Delete], and then press OK.

»

A confirmation message is displayed.

2

Select [Yes], and then press OK to start deletion.

• To cancel the operation, hold /

BACK / HOME.

Rename an album

1

Select [Rename], and then press OK to confirm.

» A keypad is displayed.

2

Move the joystick downwards twice to enter the keypad.

3

To enter the name (about 24 characters), select an alphabet/number and then press

OK.

• To switch between uppercase and lowercase, select aA on the displayed keypad and then press OK.

4

When the name is complete, select and then press OK.

Select multiple media to manage

1

Select [Multiple-select], and then press

OK.

2

Select media.

• To select all media in the album, press

OK.

• To select some of the media: Move the joystick and press OK to select a medium. Then repeat this step to select others.

• To de-select a medium, select it and then press OK again.

3

After selection is complete, press MENU to continue.

» An option menu is displayed.

14 EN

4

Select an option to continue.

• [Add to Favorites]: Add the selected photos to the [Favorites] album

• [Copy]: Copy the selected photos to another album

• [Move]: Move the selected photos to another album

• [Delete]: Delete the selected photos

• [Rotate]: Rotate the selected photos

• [Play Slideshow]: Play the selected photos in slideshow mode

Rotate photos

1

Select [Rotate], and then press OK.

2

Select an angle to rotate, and then press

OK.

EN

15

6 Clock

16 EN

In the home screen, select [Clock] and then press OK.

»

A clock/calendar is displayed.

Display the clock

When a clock/calendar is displayed, press

MENU to enter the clock menu.

Clock menu

• [Select Clock]: Move the joystick left/right to select another clock or calendar to be displayed.

• [Time and Date]: Move the joystick up/ down/left/right to set time/date or to select a time/date format. For details, see

"Settings" > "Set time and date".

Select a clock/calendar style

1

In the clock menu, select [Select Clock] and then press OK.

2

Move the joystick left/right to select a clock or calendar template, and then press OK.

• To go back to the home screen, hold

/ BACK / HOME.

7 Message

Create a message

1

In the home screen, select [Message] and then press OK.

2

Select [Add a message to your photo], and then press OK.

3

Move the joystick right or left to select a message template, and then press OK.

4

Select [Done].

»

The screen prompts you to schedule the message.

EN

17

18 EN

5

Schedule the message.

• [Message Name]: Enter the message name. For details, see "Enter the name of a message".

• [Repeat]: Select a repeat frequency

• [Set Date]: Set the date or day

• [Set Time]: Set the time

6

After you complete the message, select

[Done] and then press OK.

• To view the available messages, select

[View Message].

• To go back to the home screen, hold /

BACK / HOME.

Enter the name of a message

1

Select [Message Name], and then press

OK.

2

Move the joystick downward twice to enter the keypad.

3

To enter the name (about 24 characters), select an alphabet/number and then press

OK.

• To switch between uppercase and lowercase, select aA on the displayed keypad and then press OK.

4

When the name is complete, select and then press OK.

Edit a message

1

In the home screen, select [Message] and then press OK. Move the joystick to select one of the following options to edit a message.

2

Select [Add a message to your photo], and then press OK.

3

Move the joystick right or left to select a message template, and then press OK.

• [Change Image]: Change the photo of the message.

• [Edit Text]: Edit the text of message.

To change the photo of a message:

1

Select [Change Image], and then press OK.

2

Select a photo available on the

PhotoFrame, and then press OK.

To edit the text of a message:

1

Select [Edit Text], and then press OK.

2

Select a preset template, and then press

OK.

»

The keypad is displayed.

3

Move the joystick downwards twice to enter the keypad.

4

To enter the text, select an alphabet/ number and then press OK.

• Select an input method, see "Know these keypad icons".

• To switch between uppercase and lowercase, select aA on the displayed keypad and then press OK.

5

After you enter the text, select and then press OK.

6

Move the joystick up/down/right/left to position the text, and then press OK.

7

Move the joystick up/down/right/left to select the color or font of the text, and then press OK.

8

Move to , and then press OK.

9

Select [Done], and then press OK.

View a created message

1

In the home screen, select [Message] and then press OK.

2

Select [View Message], and then press OK.

EN

19

20 EN

3

Select a message template, and then press

OK.

»

A message template is displayed.

• To reschedule or delete the message, press MENU and then select an option to continue.

• To go back to the message browser screen, select [Done] and then press OK.

8 Settings

Select an on-screen language

1

In the home screen, select [Settings] and then press OK.

2

Select [Language], and then press OK.

3

Select a language, and then press OK.

Adjust brightness

You can adjust the brightness of the

PhotoFrame to achieve the best view.

In the home screen, select [Settings] and then press OK.

1

Select [Brightness], and then press OK.

Set time/date

2

Move the joystick up/down to adjust brightness, and then press OK.

1

In the home screen, select [Settings] and then press OK.

2

Select [Time and Date], and then press OK.

3

Select [Set Time] / [Set Date], and then press OK.

4

Move the joystick up/down/right/left to adjust minute/hour/day/month/year, and then press OK.

EN

21

22 EN

Set time/date format

1

In the home screen, select [Settings] and then press OK.

2

Select [Time and Date], and then press

OK.

3

Select [Select Time Format] / [Select Date

Format], and then press OK.

4

Select a format, and then press OK.

Set SmartPower timer

With the SmartPower timer, you can configure the time for the display of the PhotoFrame to turn on or turn off automatically. When the display automatically turns off, the PhotoFrame goes to standby (sleep) mode.

Note

Ensure that the current time of the PhotoFrame is set correctly.

1

In the home screen, select [Settings] and then press OK.

2

Select [SmartPower], and then press OK.

3

Select [Set On-Time] / [Set Off-Time], and then press OK.

» To switch off the SmartPower function, select [Off] and then press OK.

Tip

4

Move the joystick up/down/right/left to set time, and then press OK.

When the PhotoFrame is in standby (sleep) mode, you can press to wake up the PhotoFrame.

Hibernate the PhotoFrame

1

In the home screen, select [Settings] and then press OK.

2

Select [Hibernate], and then press OK.

3

Select an option, and then press OK.

» After the selected period, the

PhotoFrame hibernates.

• To disable the hibernation function, select

[Never] and then press OK.

• To wake up the PhotoFrame, press .

Set auto orientation

With the auto orientation function, you can play photos in the correct orientation depending on the horizontal/vertical orientation of the

PhotoFrame.

1

In the home screen, select [Settings] and then press OK.

2

Select [Auto-orientate], and then press

OK.

3

Select [On], and then press OK.

• To disable the auto orientation function, select [Off] and then press

OK.

Turn on/off button sound

1

In the home screen, select [Settings] and then press OK.

2

Select [Set Beep], and then press OK.

3

To turn on the button sound, select [On] and then press OK.

Slideshow setting

• To turn off the button sound, select

[Off] and then press OK.

Select slideshow interval

1

In the home screen, select [Settings] and then press OK.

2

Select [Slideshow], and then press OK.

3

Select [Interval], and then press OK.

4

Select a slideshow interval, and then press

OK.

EN

23

Select slideshow sequence

1

In the home screen, select [Settings] and then press OK.

2

Select [Slideshow], and then press OK.

3

Select [Shuffle], and then press OK.

4

To display slideshow randomly, select [On] and then press OK.

• To display slideshow in sequence, select [Off] and then press OK.

Select view mode for slideshow

1

In the home screen, select [Settings] and then press OK.

2

Select [Slideshow], and then press OK.

3

Select [View Mode], and then press OK.

4

Select a view mode for slideshow, and then press OK.

24 EN

Select transition effect

1

In the home screen, select [Settings] and then press OK.

2

Select [Slideshow], and then press OK.

3

Select [Transition Effect], and then press

OK.

4

Select a transition effect, and then press OK.

Select background color

You can select a background border color for photos that are smaller than the PhotoFrame display.

1

In the home screen, select [Settings] and then press OK.

2

Select [Slideshow], and then press OK.

3

Select [Background Color], and then press

OK.

4

Select [RadiantColor] / a background color/ [Auto-fit], and then press OK.

» If you select [RadiantColor], the

PhotoFrame extends the color on the edges of a photo that is smaller than the full screen to fill the screen without black bars or aspect ratio distortion.

» If you select a background color, the

PhotoFrame displays a photo with a background color.

»

If you select [Auto-fit], the

PhotoFrame extends a photo to fill the screen with picture distortion.

View information of the

PhotoFrame

You can find the model name, the firmware version of the PhotoFrame, and the memory status of the PhotoFrame and other storage device available on the PhotoFrame.

1

In the home screen, select [Settings] and then press OK.

2

Select [Info].

»

The information of the PhotoFrame is displayed on the screen.

Reset all settings to factory default

1

In the home screen, select [Settings] and then press OK.

2

Select [Default Settings], and then press

OK.

3

Select [Yes], and then press OK.

» A confirmation message is displayed.

EN

25

26 EN

• To cancel the operation, select [No] in the prompt message and then press OK.

4

Select [Yes], and then press OK.

»

All settings on the PhotoFrame are set to factory default.

9 Upgrade the

PhotoFrame

Caution

Do not power off the PhotoFrame during software upgrade.

If there is a software update, you can download the latest software from www.philips.com/ support to upgrade your PhotoFrame. The earlier software is unavailable on line.

1

Visit www.philips.com/support.

2

Search for your PhotoFrame and go to the software section.

3

Download the latest software onto the root directory of an SD card.

4

Insert the SD card into the PhotoFrame.

5

Turn on the PhotoFrame

» A confirmation message is displayed.

6

Select [Yes], and then press OK to confirm.

» When the upgrade is complete, the

PhotoFrame reboots.

EN

27

10 Product information

Note

Product information is subject to change without prior notice.

Picture/Display

• Viewing angle: @ C/R > 10, 140° (H)/120°

(V)

• Lifetime, to 50% brightness: 20000 hr

• Aspect ratio: 4:3

• Panel resolution: 800 x 600

• Brightness (typical): 160 cd/m²

• Contrast ratio (typical): 400:1

• Photo format support:

• JPEG photo (maximum: 8000 x 8000 pixel resolution)

• Progressive JPEG photo

(Up to 1024 x 768 pixels)

Storage media

• Internal memory capacity: 2 GB

• Memory Card Types:

• Secure Digital (SD)

• Secure Digital High Capacity (SDHC)

• Multimedia Card (MMC)

• Memory Stick (MS)

Connectivity

• USB: USB 2.0 Slave

Dimensions and weight

• Set dimensions without stand

(W x H x D): 211.6 x 171.3 x 21.4 mm

• Set dimensions with stand (W x H x D):

211.6 x 171.3 x 58 mm

• Weight withstand: 0.418 kg

Temperature range

• Operation: 0 °C - 40 °C

• Storage: -20 °C - 70 °C

Power

• Power mode supported: AC powered

• Efficiency level: V

28 EN

• Average consumption (system on): 4 W

• Power adaptor:

• Model number: ASUC12x-050100

(x = E, B, C, I)

• Input: AC 100-240V ~ 50-60Hz 0.3A

• Output : DC 5V 1 A

Adaptor Region

ASUC12E-050100 Europe, Russia, and

Singapore

ASUC12B-050100 U.K. and Hong Kong

ASUC12C-050100 Australia and New

Zealand

ASUC12I-050100 China

Accessories

• AC-DC adaptor

• User manual

11 Frequently asked questions

Is the LCD screen touch-enabled?

The LCD screen is not touch-enabled. Use the buttons on the back to control the PhotoFrame.

Can I use the PhotoFrame to delete photos on a memory card?

Yes, it supports operations to delete photos on an external device, such as a memory card.

Ensure that you enable the deletion function on a memory card available on the PhotoFrame.

Why does my PhotoFrame not show some of my photos?

• The PhotoFrame plays only JPEG photos

(maximum: 8000 x 8000 pixel resolution) and Progressive JPEG photo (Up to 1024 x 768 pixels).

• Ensure that these photos are not damaged.

Why does the PhotoFrame not go into autooff status after I set it?

Ensure that you set the real time, auto-off time, and auto-on time correctly. The PhotoFrame automatically turns off its display exactly at the auto-off time. If the time has already passed for the day, it starts to go into auto-off status at the specified time from the next day.

Can I increase the memory size to store more pictures on the PhotoFrame?

No. The internal memory of the PhotoFrame is fixed and cannot be expanded. However, you could switch between different photos by using different storage devices on the PhotoFrame.

EN

29

12 Glossary

A

Aspect ratio

Aspect ratio refers to the length to height ratio of TV screens. The ratio of a standard TV is 4:3, while the ratio of a high-definition or wide TV is 16:9. The letter box allows you to enjoy a picture with a wider perspective on a standard

4:3 screen.

J

JPEG

A very common digital still picture format. A still-picture data compression system proposed by the Joint Photographic Expert Group, which features small decrease in image quality in spite of its high compression ratio. Files are recognized by their file extension ‘.jpg' or '.jpeg.’

K

Kensington lock

A Kensington Security Slot (also called a K-Slot or Kensington lock). Part of an anti-theft system.

It is a small, metal-reinforced hole found on almost all small or portable computer and electronics equipment, particularly on expensive and/or relatively light ones, such as laptops, computer monitors, desktop computers, gaming consoles, and video projectors. It is used for attaching a lock-and-cable apparatus, in particular those from Kensington.

M

Memory Stick

Memory Stick. A flash memory card for digital storage on cameras, camcorders and other handheld devices.

MMC Card

MultiMedia Card. A flash memory card that provides storage for cellphones, PDAs and other handheld devices. The card uses flash memory for read/write applications or ROM chips (ROM-MMC) for static information, the latter widely used for adding applications to a

Palm PDA.

Motion JPEG

Motion JPEG (M-JPEG) is an informal name for multimedia formats where each video frame or interlaced field of a digital video sequence is separately compressed as a JPEG image. It is often used in mobile appliances such as digital cameras.

S

SD Card

Secure Digital Memory Card. A flash memory card that provides storage for digital cameras, cellphones and PDAs. SD Cards use the same

32 x 24mm form factor as the MultiMediaCard

(MMC), but are slightly thicker (2.1mm vs.

1.4mm), and SD Card readers accept both formats. Cards up to 4GB are available.

T

Thumbnail

A thumbnail is reduced-size versions of a picture that is used to make it easier to recognize an them. Thumbnails serve the same role for images as a normal text index does for words.

30 EN

Specifications are subject to change without notice.

2016 © Gibson Innovations Limited. All rights reserved.

This product has been manufactured by, and is sold under the responsibility of Gibson Innovations Ltd., and

Gibson Innovations Ltd. is the warrantor in relation to this product.

Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license from Koninklijke Philips N.V.

SPF4608/4628_12_UM_V4.0

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
