Bosch HCB50651UC Product Information

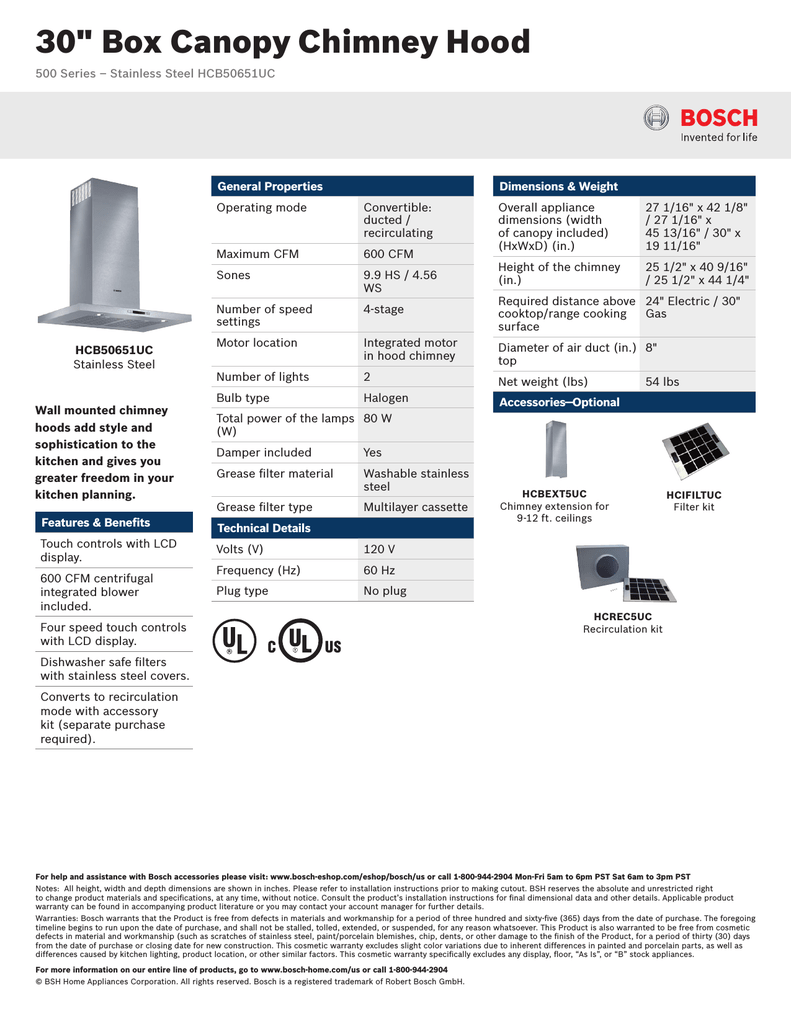

30" Box Canopy Chimney Hood
500 Series – Stainless Steel HCB50651UC
General Properties
HCB50651UC
Stainless Steel
Wall mounted chimney
hoods add style and
sophistication to the
kitchen and gives you
greater freedom in your
kitchen planning.
Dimensions & Weight
Operating mode
Convertible:
ducted /
recirculating
Overall appliance
dimensions (width
of canopy included)
(HxWxD) (in.)
27 1/16" x 42 1/8"
/ 27 1/16" x
45 13/16" / 30" x
19 11/16"
Maximum CFM
600 CFM
Sones
9.9 HS / 4.56
WS
Height of the chimney
(in.)
25 1/2" x 40 9/16"
/ 25 1/2" x 44 1/4"
Number of speed
settings
4-stage
Required distance above 24" Electric / 30"
cooktop/range cooking
Gas
surface
Motor location
Integrated motor
in hood chimney
Diameter of air duct (in.) 8"
top
Number of lights
2
Net weight (lbs)
Bulb type
Halogen
Accessories—Optional
54 lbs
Total power of the lamps 80 W
(W)
Damper included
Yes
Grease filter material
Washable stainless
steel
Grease filter type
Multilayer cassette
Features & Benefits
Technical Details
Touch controls with LCD
display.
Volts (V)
120 V
600 CFM centrifugal
integrated blower
included.
Frequency (Hz)
60 Hz
Plug type
No plug
Four speed touch controls
with LCD display.
HCBEXT5UC
Chimney extension for
9-12 ft. ceilings
HCIFILTUC
Filter kit
HCREC5UC
Recirculation kit
Dishwasher safe filters
with stainless steel covers.
Converts to recirculation
mode with accessory
kit (separate purchase
required).
For help and assistance with Bosch accessories please visit: www.bosch-eshop.com/eshop/bosch/us or call 1-800-944-2904 Mon-Fri 5am to 6pm PST Sat 6am to 3pm PST
Notes: All height, width and depth dimensions are shown in inches. Please refer to installation instructions prior to making cutout. BSH reserves the absolute and unrestricted right
to change product materials and specifications, at any time, without notice. Consult the product’s installation instructions for final dimensional data and other details. Applicable product
warranty can be found in accompanying product literature or you may contact your account manager for further details.
Warranties: Bosch warrants that the Product is free from defects in materials and workmanship for a period of three hundred and sixty-five (365) days from the date of purchase. The foregoing
timeline begins to run upon the date of purchase, and shall not be stalled, tolled, extended, or suspended, for any reason whatsoever. This Product is also warranted to be free from cosmetic
defects in material and workmanship (such as scratches of stainless steel, paint/porcelain blemishes, chip, dents, or other damage to the finish of the Product, for a period of thirty (30) days
from the date of purchase or closing date for new construction. This cosmetic warranty excludes slight color variations due to inherent differences in painted and porcelain parts, as well as
differences caused by kitchen lighting, product location, or other similar factors. This cosmetic warranty specifically excludes any display, floor, “As Is”, or “B” stock appliances.
For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904
© BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH.
30" Box Canopy Chimney Hood
500 Series – Stainless Steel HCB50651UC
Installation Details
A
A
B
C
D
Upper flue duct
Lower flue duct
Screws
Angle bracket
Ducted operation:
Min. / Max. 27 1/16" (687 mm) / 42 1/8" (1070 mm)
Recirculation mode:
Min. / Max. 27 1/16" (687 mm) / 45 13/16" (1164 mm)
measurements in inches (mm)
