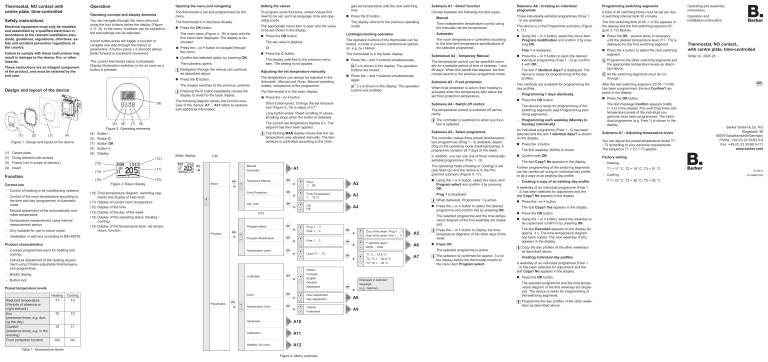

Page 1 Operating and assembly instructions Operation and

Page 1 Operating and assembly instructions Operation and
Thermostat, NO contact with
centre plate, time-controlled
Operation
Opening the menu and navigating
Setting the values
Operating concept and display elements
Safety instructions
You can navigate through the menu structure
using the four buttons below the display (Figure
2, 5 - 8). In the menu, functions can be set/activated and settings can be adjusted.
The thermostat is set and programmed via the
menu.
To program some functions, certain values first
need to be set, such as language, time and operating mode.
Electrical equipment must only be installed
and assembled by a qualified electrician in
accordance to the relevant installation standards, guidelines, regulations, directives, safety and accident prevention regulations of
the country.
Failure to comply with these instructions may
result in damage to the device, fire, or other
hazards.
These instructions are an integral component
of the product, and must be retained by the
end user.
A brief button-press will trigger a function or
navigate one step through the menus or
parameters. A button-press > 2 seconds allows
faster forward or backward movement.
The current thermostat status is displayed.
Display illumination switches on for as soon as a
button is pressed.
(3)
„„ Press the OK button.
Or
„„ Press the C button.
<< Confirm the selected option by pressing OK.
Navigation through the menus can continue
Adjusting the set temperature manually
as described above.
The temperature can always be adjusted in the
Automatic, Manual und Temp. Manual operating
modes, irrespective of the programme.
Centre plate
Fixing element with screws
Frame (not in scope of delivery)
Insert
(5)
(6)
(7)
(8)
(9)
(15)
(11)
-- Control of heating or air-conditioning systems
-- Control of the room temperature according to
the time and day (programme) in Automatic
mode
-- Manual adjustment of the automatically-controlled temperature
-- Temperature measurement using internal
measurement sensor
-- Only suitable for use in indoor areas
-- Installation in wall box according to DIN 49075
Figure 3: Basic display
Short button-press: Change the set temperature (Figure 3, 15) in steps of 0.1°.
Basic display
Manual
Automatic
(10)
(10)Time-temperature diagram, switching segments and display of help texts
(11) Display of current room temperature
(12)Display of the time
(13)Display of the day of the week
(14)Display of the operating status (heating /
cooling)
(15)Display of the temperature level, set temperature, function
Mode
OK
+

OK
+
Frost Protection
OK
ON / OFF
OK
Program select
Program
OK
A2
+
Frost Temperature
1 ... 10 °C

A3
+
ON
Off

+
Program Modification
OK
+
-- 3 preset programmes each for heating and
cooling
Temperature Level
OK
+
-- Individual adjustment of the heating requirement using 3 freely-adjustable time/temperature programmes
-- Backlit display
Language
-- Button lock
OK
+
Preset temperature levels
Reduced temperature
(Periods of absence or
night setback)
Eco
(presence times, e.g. during the day)
Comfort
(presence times, e.g. in the
evening)
Frost protection function
Cooling
T3
T2
T2
T3
T1
Yes
Table 1: Temperature levels
Parameters
OK
+
Clock
OK
Temperature Unity
OK
Hysteresis

A10
Calibration

A11
Heating / Air cond.

A12
No
+
+
Prog 1 ... 3
Free 1 ... 3
Free 1 ... 3
Level T1 ... T3
Submenu A3 - Frost protection
When frost protection is active, then heating is
activated when the temperature falls below the
set frost protection temperature.
When delivered, Programme 1 is active.
OK
OK
Day of the week: Prog 1 ... 3
Day of the week: Frei 1 ... 3

A5
+
7 identical days?
MON ... SUN

A6
+
OK
Hour adjustment
Day adjustment

A8
Celsius
Fahrenheit

A9
T1: 5 ... 18,9 °C
T2: 17,1 ... 20,9 °C
T3: 19,1 ... 35 °C
Displayed in selected
language.
(e.g.: German)

A7
Press the – or + button to display the time-
temperature diagrams of the other days of the
week.
„„ Press OK.
The selected programme is active.
The selection is confirmed for approx. 3 s on
the display before the thermostat reverts to
the menu item Program select.
A total of 48 switching times must be set per day.
A switching interval lasts 30 minutes.
The device is in the Programme submenu (Figure
4, 17).
„„ Using the – or + button, select the menu item
Program modification and confirm it by pressing OK.
„„ Press the OK - several times if necessary until the desired temperature level (T1 - T3) is
displayed for the first switching segment.
Free 1 is displayed.
„„ Press the – or + button to open the desired
individual programme (Free 1 - 3) an confirm
it with OK.
The text 7 identical days? is displayed. The
device is ready for programming of the day
profiles.
Two methods are available for programming the
day profiles.
-- Programming 7 days identically
„„ Press the OK button.
The device is ready for programming of the
switching segments (see Programming switching segments).
-- Programming each weekday (Monday to
Sunday) individually
An individual programme (Free 1 - 3) has been
selected and the text 7 identical days? is shown
on the display.
„„ Press the + button.
The first weekday (MON) is shown.
Further programming of the switching segments
can be carried out using an individual day profile
or as a copy of an existing day profile.
„„ Press the – or + button to select the desired
programme and confirm this by pressing OK.
Programming switching segments
The first switching time (0:00 -> 0:30) appears in
the display and the first switching segment (Figure 3, 10) flashes.
The operating mode (Heating or Cooling) is set
(see Start-up) and the device is in the Programme submenu (Figure 4, 17).
Prog 1 is displayed.
+
Three individually-settable programmes (Free 1
- 3) are available.
„„ Confirm with OK.
The selected programme and the time-temperature diagram of the first weekday are displayed.
OK
Submenu A6 - Creating an individual
programme
In addition, you can use one of three individuallysettable programmes (Free 1 - 3).
„„ Using the – or + button, select the menu item
Program select and confirm it by pressing
OK.
A4
Italiano
Français
English
Deutsch
Nederland
Figure 4: Menu overview
The temperature control can be specified manually for a settable period of time of between 1 and
99 days. When this period has elapsed, the thermostat reverts to the previous programme mode.
The controller makes three preset time/temperature programmes (Prog 1 - 3) available, depending on the operating mode (heating/cooling). A
programme contains all 7 days of the week.

+
Submanual A2 - Temporary Manual
Submenu A5 - Select programme
(17)
OK
The room temperature is controlled according
to the time and temperature specifications of
the selected programme.
tion is selected.
Days
1 ... 99
+
Time-independent temperature control using
the manually-set set temperature.
The controller is switched on when any func-
A1
Temporary Manual
-- Manual
The temperature control is switched off permanently.
(16)
OK
Choose between the following function types:
Submenu A4 - Switch off control
Long button-press: Rapid scrolling of values.
Scrolling stops when the button is released.
Product characteristics
Heating
T1
2 s is shown in the display. The operation
buttons are enabled.
temperature was adjusted manually. The temperature is controlled according to the chan-
(13)
Correct use
„„ Press the – and + buttons simultaneously
again.
The flashing MAN display shows that the set
(12)
Function
2 s is shown in the display. The operation
buttons are locked.
The current set temperature flashes 8 x. The
setpoint has then been applied.
(5) (6)
(7) (8)
Figure 2: Operating elements
Button Button C
Button OK
Button +
Display
(14)
„„ Press the – and + buttons simultaneously.
<< Press the - or + button.
The following diagram shows the function overview of the menus: A1 ... A11 refers to sections
with additional information.
Submenu A1 - Select function
-- Automatic
Locking/unlocking operation
The thermostat is in the basic display.
display to revert to the basic display.
(4)
The display returns to the previous operating
mode.
The thermostat is in the basic display.
The display switches to the previous menu
item. The setting is not applied.
The submenu opens.
„„ Press the C button.
The operation buttons of the thermostat can be
locked, in order to prevent unintentional operation, e.g. by children.
The set value is applied.
<< Press the – or + button to navigate through
the menu.
Pressing the C button repeatedly causes the
Figure 1: Design and layout of the device
(1)
(2)
(3)
(4)
The main menu (Figure 4, 16) is open and the
first menu item displayed. The display is illuminated.
The display switches to the previous contents.
(9)
(2)
The appropriate menu item is open and the value
to be set shown in the display.
„„ Press the OK button.
„„ Press the C button.
Design and layout of the device
(1)
The thermostat is in the basic display.
ged set temperature until the next switching
time.
The text Copy? No appears in the display.
-- Creating a copy of an existing day profile
A weekday of an individual programme (Free 1
- 3) has been selected for adjustment and the
text Copy? No appears in the display.
„„ Press the - or + button.
The text Copy? Yes appears in the display.
„„ Press the OK button.
„„ Using the – or + button, select the weekday to
be copied and confirm it by pressing OK.
The text Executed appears on the display for
approx. 3 s. The time-temperature diagram
has been copied. The next weekday (TUE)
appears in the display.
Copy the day profiles of the other weekdays
as described above.
-- Creating individual day profiles
A weekday of an individual programme (Free 1
- 3) has been selected for adjustment and the
text Copy? No appears in the display.
„„ Press the OK button.
The selected programme and the time-temperature diagram of the first weekday are displayed. The device is ready for programming of
the switching segments.
Programme the day profiles of the other weekdays as described above.
„„ Press the + button to select the next switching
segment.
Programme the other switching segments and
Operating and assembly
instructions
Operation and
installation instructions
Thermostat, NO contact,
with centre plate, time-controlled
Order no. 2045 20 ..
the appropriate temperature levels as described above.
All the switching segments must be run
through.
After the last switching segment (23:30 -> 0:00)
has been programmed, the text Confirm? appears in the display.
„„ Press the OK button.
The text message Confirm appears briefly
(< 3 s) in the display. The switching times and
temperature levels of the individual programme have been programmed. The individual programme (e.g. Free 1) is shown in the
display.
Submenu A7 - Adjusting temperature levels
You can adjust the preset temperature levels T1
- T3 according to your personal requirements.
The sequence T1 < T2 < T3 applies.
Berker GmbH & Co. KG
Klagebach 38
58579 Schalksmühle/Germany
Phone: + 49 (0) 23 55/90 5-0
Fax: + 49 (0) 23 55/90 5-111
www.berker.com
Factory setting
-- Heating:
T1 = 17 °C, T2 = 19 °C, T3 = 21 °C
-- Cooling:
T1 = 22 °C, T2 = 26 °C, T3 = 30 °C
07/2013
97-09940-000
Heating programmes
Cooling programmes
°C
Mon - Fri
Sat - Sun
22
21
20
Programme with switching times events and temperature setback to 17°C during the day on
weekdays (absence). Eco temperature for the
whole day during the weekend, Comfort temperature in the evening and then night setback.
Switching
time
1
2
3
4
5
6
19
18
17
16
06:00
08:00
10:00
12:00
14:00
16:00
18:00
20:00
22:00
Mon - Fri

 °C
Sat, Sun

 °C
6:00
8:00
17:00
18:00
22:00
23:00
6:00
17:00
21:30
22:00
19.0
21.0
19.0
17.0
19.0
17.0
19.0
21.0
19.0
17.0
°C
Mon - Fri
Sat - Sun
32
30
28
Switching
time
1
2
3
4
26
24
22
20
06:00
h
07:00
Mon, Tue, Thu, Fri
Wed, Sat, Sun
22
21
Switching times on Mon, Tue, Thu and Fri as
Programme 1. Switching time for Eco temperature for the whole day on Wed, Sat and Sun,
Comfort temperature in the evening and then
night setback.
20
19
18
17
16
06:00
07:00
08:00
09:00
10:00
11:00
12:00
13:00
14:00
15:00
16:00
17:00
18:00
19:00
20:00
08:00
09:00
10:00
11:00
12:00
13:00
14:00
15:00
16:00
17:00
18:00
19:00
20:00
21:00
22:00
Mon - Fri

 °C
Sat, Sun

 °C
8:00
16:00
17:30
23:00
8:00
23:00
26.0
30.0
30.0
26.0
22.0
26.0
h
Figure 4: Time-temperature diagram (day profile) for cooling programme 1
Figure 1: Time-temperature diagram (day profile) for heating programme 1
°C
Program with four switching times and reduced
temperature during the whole day on weekdays
(absence) and night-time Eco temperature. Comfort temperature in the evening. Eco temperature
for the whole day during the weekend, reduced
temperature in the evening.
21:00
22:00
h
Switching
time
1
2
3
4
5
6
Mon, Tue, Thu,
Fri

 °C
Wed, Sat, Sun

 °C
°C
Mon, Tue, Thu, Fri
Wed, Sat, Sun
32
30
28
Switching
time
1
2
3
4
26
24
6:00
8:00
17:00
18:00
22:00
23:00
19.0
17.0
19.0
21.0
19.0
17.0
7:30
18:00
23:00
19.0
21.0
17.0
Switching times on Mon, Tue, Thu and Fri as
Programme 1. Switching time for Comfort temperature for the whole day on Wed, Sat and Sun
(presence), Eco temperature at night.
22
20
06:00
07:00
Figure 2: Time-temperature diagram (day profile) for heating programme 2
08:00
09:00
10:00
11:00
12:00
13:00
14:00
15:00
16:00
17:00
18:00
19:00
20:00
21:00
22:00
Mon, Tue, Thu,
Fri

 °C
Wed, Sat, Sun

 °C
8:00
16:00
17:30
23:00
8:00
23:00
22.0
26.0
30.0
26.0
22.0
26.0
Mon - Sun
22
Programme with three switching times and night
setback to 17 °C every day. During the day, one
switching time for Eco temperature and Comfort
temperature in the evening.
21
Switching
time
1
2
3
20
19
18
17
16
Mon - Sun

 °C
19.0
21.0
17.0
Warranty
Installation and electrical connection
The thermostat can be set to heating or cooling
mode.
We reserve the right to make technical and
formal changes to the product in the interest of
technical progress.
DANGER!
-- Heating mode
Touching live parts can result in an electric shock.
An electric shock can be lethal.
Disconnect the connecting cables before working on the device and cover all
live parts in the area!
Installation location
Extraneous heat affects the control accuracy.
To enable optimum room temperature control
using the internal sensor, the installation location
selected should
-- allow free air circulation
-- not be behind curtains, cupboards, shelves,
etc.
-- not be subject to direct sunlight
-- not be subject to draughts
-- not be on outer walls
-- be approx. 1.5 m above the floor
Connecting and installing the device
L
N
°C
Mon - Sun
32
Programme with two switching times every day.
During the day, one switching time for Comfort
temperature and Eco temperature at night.
Switching
time
1
2
24
N L
1 2 3
08:00
09:00
10:00
11:00
12:00
13:00
14:00
15:00
16:00
17:00
18:00
19:00
20:00
Figure 3: Time-temperature diagram (day profile) for heating programme 3
21:00
22:00
h
06:00
07:00
08:00
09:00
10:00
11:00
12:00
13:00
14:00
15:00
16:00
17:00
18:00
19:00
20:00
Figure 6: Time-temperature diagram (day profile) for cooling programme 3
21:00
22:00
h
The temperature is displayed in either degrees
Celsius or Fahrenheit.
Submenu A9 - Setting the hysteresis
Adjusting the hysteresis prevents continuous
switching on and off of the thermostat. The setting is made in steps of 0.2 °C.
Recommendation:
- Small hysteresis value for systems with high
inertia torque (e.g. underfloor heating)
- Large hysteresis value for systems with low
inertia torque (e.g. fan convectors)
Use the Calibration menu to adjust the temperature determined by the internal measurement
sensor.
The thermostat requires approx. 2 days to
Mon - Sun

 °C
8:00
23:00
22.0
26.0
measure the room temperature with a reference thermometer and then calibrate the
thermostat.
Carrying out a reset
„„ Connection the thermostat according to the
connection diagram (Figure 5).
A reset causes the thermostat to revert to the
factory settings.
„„ Install the thermostat in a wall box (recommended: deep box). The connecting terminals
must be at the bottom.
„„ Press all 4 device buttons (-, C, OK and +)
simultaneously.
„„ Place the design frame (Figure 1, 3) on the
insert (Figure 1, 4).
„„ Confirm with OK within 3 s.
„„ Screw the frame with the insert via the fixing
element (Figure 1, 2).
Start-up
07:00
Submenu A8 - Selecting the unit of
temperature
Install a miniature circuit breaker of max. 10 A as
device protection.
20
06:00
The thermostat switches the relay contact as
soon as the temperature exceeds the set temperature. The
symbol appears in the display.
adjust to the room temperature. During this
period, there may be variations at the switching points.
„„ Place the centre plate (Figure 1, 1) over the
design frame in the correct position.
22
-- Cooling mode
Recommendation: 2 days after installation,
30
28
The thermostat switches the relay contact as
soon as the temperature falls below the set temsymbol appears in the display.
perature. The
Submenu A10 - Calibration
Figure 5: Connection diagram
26
7:00
18:30
23:00
Submenu A11 - Setting the operating mode
h
Figure 5: Time-temperature diagram (day profile) for cooling programme 2
°C
Information for electricians
CAUTION!
Malfunction of the heating system with
incorrect controller settings.
Reset? is displayed.
If there is no confirmation within 3 s, then the
display will revert to the basic display.
Appendix
Technical data
Rated voltage
AC 230 V~, ±10 %
Frequency
50 Hz
Switching current (cos φ 1)
8A
The heating system could get damaged.
Output Change-over, potential-bound
Only allow settings of the heating system to be carried out by a skilled specialist.
Room temperature setting range
Hysteresis, settable
10 - 30 °C
0 - 1.8 K
Number of switching times/day
48
Selecting the basic settings
Operating temperature
0 - +50 °C
In the case of start-up after a long period of inactivity (30 days) or a reset, the parameters to be
set are shown in the display in the following order: Language -> Hour -> Minute -> Day -> Operating mode (Heating / cooling).
Storage/transport temperature
0 - +60 °C
The thermostat has been connected and is
energised.
Protection type
„„ Set the parameters (see Setting values).
Temperature accuracy
±1 °C
Temperature adjustment range
Protection class
Connecting terminals
Mounting orientation
downwards
in 0.5 °C
increments
IP 21
II
1 x 2.5 mm²
Connecting terminals
Our products are under guarantee within the
scope of the statutory provisions.
If you have a warranty claim, please contact
the point of sale or ship the device postage free
with a description of the fault to the appropriate
regional representative.
Berker GmbH & Co. KG
Service-Center
Hubertusstrasse 17
D-57482 Wenden-Ottfingen
Telefon: +49 (0) 23 55 / 90 5-0
Telefax: +49 (0) 23 55 / 90 5-111
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
