Windows XP/Vista/7/8 and above, Linux and Unix

Windows XP/Vista/7/8 and above, Linux and Unix

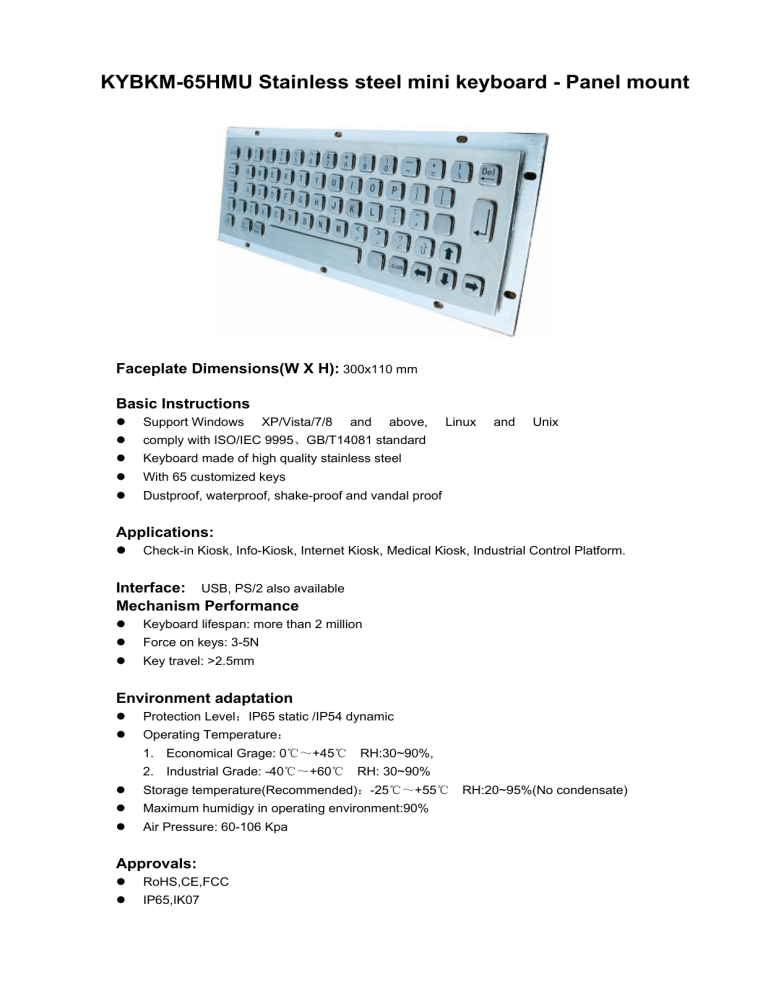

KYBKM-65HMU Stainless steel mini keyboard - Panel mount
Faceplate Dimensions(W X H): 300x110 mm
Basic Instructions
z
Support Windows
z
comply with ISO/IEC 9995、GB/T14081 standard
z
Keyboard made of high quality stainless steel
z
With 65 customized keys
z
Dustproof, waterproof, shake-proof and vandal proof
XP/Vista/7/8
and
above,
Linux
and
Unix
Applications:
z
Check-in Kiosk, Info-Kiosk, Internet Kiosk, Medical Kiosk, Industrial Control Platform.
Interface: USB, PS/2 also available
Mechanism Performance
z
Keyboard lifespan: more than 2 million
z
Force on keys: 3-5N
z
Key travel: >2.5mm
Environment adaptation
z
Protection Level:IP65 static /IP54 dynamic
z
Operating Temperature:
1. Economical Grage: 0℃~+45℃ RH:30~90%,
2. Industrial Grade: -40℃~+60℃ RH: 30~90%
z
Storage temperature(Recommended):-25℃~+55℃ RH:20~95%(No condensate)
z
Maximum humidigy in operating environment:90%
z
Air Pressure: 60-106 Kpa
Approvals:
z
RoHS,CE,FCC
z
IP65,IK07
