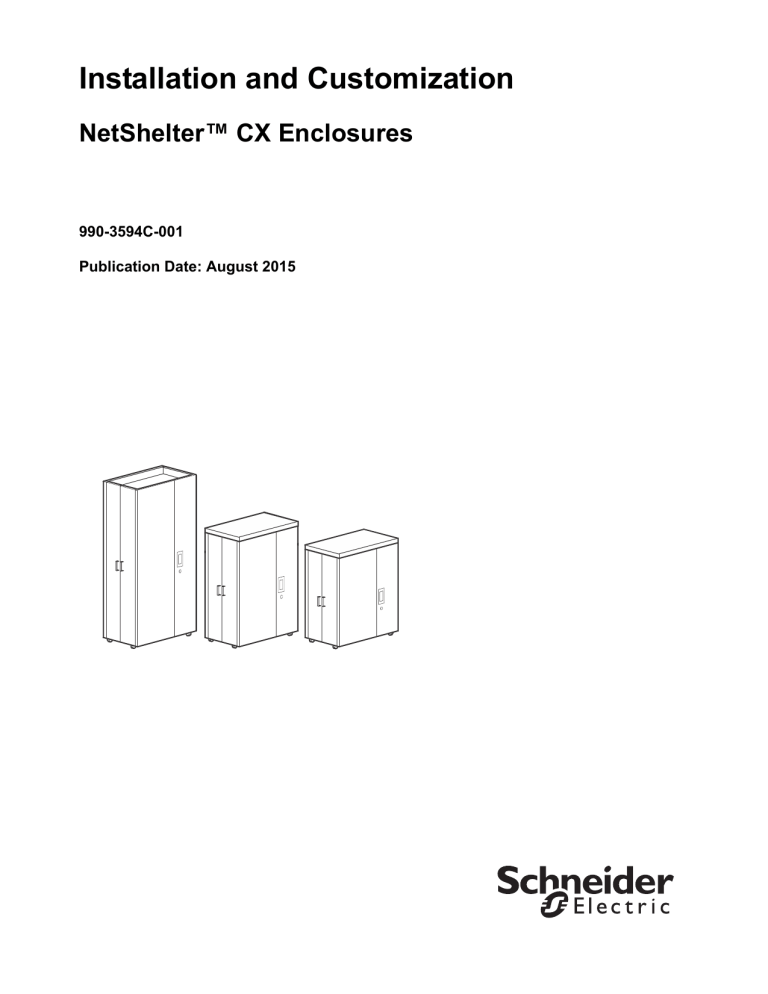

Schneider Electric NetShelter CX Quick Start Guide
Installation and Customization
NetShelter™ CX Enclosures
990-3594C-001
Publication Date: August 2015
Schneider Electric Legal Disclaimer
The information presented in this manual is not warranted by Schneider Electric to be authoritative, error free, or complete. This publication is not meant to be a substitute for a detailed operational and site specific development plan. Therefore, Schneider Electric assumes no liability for damages, violations of codes, improper installation, system failures, or any other problems that could arise based on the use of this
Publication.
The information contained in this Publication is provided as is and has been prepared solely for the purpose of evaluating data center design and construction. This Publication has been compiled in good faith by Schneider
Electric. However, no representation is made or warranty given, either express or implied, as to the completeness or accuracy of the information this Publication contains.
IN NO EVENT SHALL SCHNEIDER ELECTRIC, OR ANY PARENT, AFFILIATE OR SUBSIDIARY COMPANY
OF SCHNEIDER ELECTRIC OR THEIR RESPECTIVE OFFICERS, DIRECTORS, OR EMPLOYEES BE
LIABLE FOR ANY DIRECT, INDIRECT, CONSEQUENTIAL, PUNITIVE, SPECIAL, OR INCIDENTAL
DAMAGES (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS, CONTRACT,
REVENUE, DATA, INFORMATION, OR BUSINESS INTERRUPTION) RESULTING FROM, ARISING OUT,
OR IN CONNECTION WITH THE USE OF, OR INABILITY TO USE THIS PUBLICATION OR THE CONTENT,
EVEN IF SCHNEIDER ELECTRIC HAS BEEN EXPRESSLY ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES. SCHNEIDER ELECTRIC RESERVES THE RIGHT TO MAKE CHANGES OR UPDATES WITH
RESPECT TO OR IN THE CONTENT OF THE PUBLICATION OR THE FORMAT THEREOF AT ANY TIME
WITHOUT NOTICE.
Copyright, intellectual, and all other proprietary rights in the content (including but not limited to software, audio, video, text, and photographs) rests with Schneider Electric or its licensors. All rights in the content not expressly granted herein are reserved. No rights of any kind are licensed or assigned or shall otherwise pass to persons accessing this information.
This Publication shall not be for resale in whole or in part.
Table of Contents
NetShelter CX Enclosure Installation and Customization i
Adjusting the vertical mounting flanges on the side braces . . . . . . . . . . . . . . . .13
One U-space on the vertical mounting flange . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Cable management options for the enclosures . . . . . . . . . . . . . . . . . . . . . . . . .18
ii NetShelter CX Enclosure Installation and Customization
General Information
Important Safety Information
Read the instructions carefully and become familiar with the enclosure before trying to install or maintain it. The following special messages may appear throughout this manual or on the enclosure to warn of potential hazards or to call attention to information that clarifies or simplifies a procedure.
The addition of this symbol to a Danger or Warning safety label indicates that an electrical hazard exists which will result in personal injury if the instructions are not followed.
This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.
DANGER
DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING
WARNING indicates a potentially hazardous situation which, if not avoided, can result in death or serious injury.
CAUTION
CAUTION indicates a potentially hazardous situation which, if not avoided, can result in minor or moderate injury.
CAUTION
CAUTION (without alert symbol) indicates a potentially hazardous situation which, if not avoided,
can result in equipment damage.
NOTICE
NOTICE addresses practices not related to physical injury including certain environmental hazards, potential damage or loss of data.
About This Manual
This manual is intended for users of the specified Schneider Electric equipment. It contains important safety warnings and instructions and provides detailed information for proper use of the equipment.
Related Documents
Download technical publications and other technical information or look for updates to your manual at our website at www.schneider-electric.com.
User Comments
Contact www.schneider-electric.com/support. We welcome your comments about this document.
NetShelter CX Enclosure Installation and Customization 1
2
Safety
Important Safety Instructions
SAVE THESE INSTRUCTIONS
This manual contains important instructions that must be followed during installation, operation, and maintenance of the equipment.
Use caution when moving an empty enclosure on its casters. The enclosure may be unstable when pushed or pulled from the side. Push the enclosure from the front or back when moving it on its casters. For extra stability, load 158 kg (350 lbs) of equipment into the bottom of the enclosure before moving it on its casters.
DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
• Follow all local and national codes when installing the Rack PDU.
• Connect the Rack PDU to the UPS, if installed, or to a single-outlet dedicated circuit protected by a circuit breaker or fuse with the same current rating as the Rack PDU.
• Power off the UPS or Mains Supply before connecting the Rack PDU.
• The plug or inlet serves as the disconnect for the Rack PDU. Make sure the utility power outlet for the Rack PDU will be close to the Rack PDU and readily accessible.
Failure to follow these instructions will result in death or serious injury.
WARNING
TIP HAZARD
• Stabilize the enclosure before installing the components.
• Do not extend components on sliding rails out from the enclosure until you have installed three or more pieces of similar equipment, or the stabilizer plate or bolt-down brackets are installed.
• Do not extend more than one component from the enclosure at a time.
• Load the heaviest components first, and place them toward the bottom of the enclosure to prevent the enclosure from becoming top-heavy.
Failure to follow these instructions can result in death, serious injury, or equipment damage.
CAUTION
WEIGHT AND LEVERAGE HAZARD
• Doors and side panels are heavy. Removal or installation requires two people.
• Fan modules are heavy. Two people are recommended when removing the fan modules from the enclosures.
Failure to follow these instructions can result in injury.
NOTICE
To ensure adequate air movement, place the side of the enclosure no closer than six to eight inches to the wall.
NetShelter CX Enclosure Installation and Customization
Product Overview
Description
NetShelter CX enclosures are specialized enclosures with integrated cooling, noise dampening, and power distribution for server and network applications in office environments. The enclosures provide storage for industry-standard (EIA-310), 19 in. rack-mount hardware, which includes servers, voice, data, networking, internetworking, and Schneider Electric power protection equipment.
NetShelter CX Enclosures
Model
Voltage and
Connector Type
Rack
Mounting
Height
Rack
Mounting
Width mm (in.)
Rack
Mounting
Depth mm (in.)
External
Enclosure
Height mm (in.)
External
Enclosure
Width mm (in.)
External
Enclosure
Depth mm (in.)
AR4018A
AR4018X429
AR4018X431
AR4018X432
AR4018IA
AR4018IX429
AR4018IX431
AR4018IX432
AR4024A
AR4024X429
AR4024X431
AR4024X432
AR4024IA
AR4024IX429
AR4024IX431
AR4024IX432
AR4038A
AR4038X429
AR4038X431
AR4038X432
AR4038IA
AR4038IX429
AR4038IX431
AR4038IX432
100-120V
NEMA 5-15P
200-230V
IEC-320 C14
100-120V
NEMA 5-15P
200-230V
IEC-320 C14
100-120V
NEMA 5-15P
200-230V
IEC-320 C14
18 U
†
24 U
38 U
482
(19)
482
(19)
482
(19)
880
(34.6)
880
(34.6)
880
(34.6)
1015
(40)
1275
(50.2)
1950
(76.8)
750
(29.53)
750
(29.53)
750
(29.53)
1130
(44.5)
1130
(44.5)
1130
(44.5)
†
One U= 44.45 mm (1.75 in.). See “One U-space on the vertical mounting flange” on page 14.
NetShelter CX Enclosure Installation and Customization 3
Inventory
Enclosure components
4
Top cable access port
Fan module (3)
Side access panel (2)
Key (2)
†
Vertical OU accessory channel (4)
Bottom cable access port
Caster (4)
Leveling foot (6) †
Vertical mounting flange (4)
Front door (2)
Airflow opening
Fan module power supply (3)
Basic Rack PDU (1)
† The leveling feet, door keys, and rack PDU power cord (not shown) are not installed and can be found packed inside the enclosure.
NetShelter CX Enclosure Installation and Customization
Tools required (not provided)
Phillips screwdriver Utility knife Level Cage nut tool
Moving the enclosure
Casters:
The total load on the casters may not exceed 680 kg (1500 lbs) including the weight of the
enclosure. See the enclosure “Specifications” on page 22.
The front wheels have 360 degree rotation for maneuverability. Rear wheels have front-to-back motion for stability. Push the enclosure from the front or the back, not the sides. the enclosure may be unstable when pushed from the side. For greater stability, load 159 kg (350 lbs) or more of equipment into the enclosure before moving it on its casters.
WARNING
TIP HAZARD
• To prevent tipping, push the enclosure from the front or back, not the sides.
• For greater stability, load 159 kg (350 lbs) or more in the bottom of the enclosure before moving.
Failure to follow these instructions can result in death, serious injury, or equipment damage.
NetShelter CX Enclosure Installation and Customization 5
6
Configuration
Before installing the enclosure, plan the location and space needed to install equipment, and plan the ergonomics of keyboards and video monitors. Improper airflow could damage installed components.
Blanking panels
Use blanking panels to close up large open spaces in the CX but not to completely seal the rack. The NetShelter CX works best when air can travel not just through the equipment vents, but also above and below any equipment that generates thermal energy.
Schneider Electric offers modular, plastic
Airflow Management Blanking Panels that snap into place without tools (AR8136BLK).
Front doors and Side Panels
The front doors and side panels may be opened or removed to access the interior. Locking side panels offer additional security and assist with proper airflow within the enclosure. The locking side panel does not ship locked. To avoid personal injury or damage to the enclosure, one person should support the door or side panel while another person removes the door or side panel from its frame.
CAUTION
WEIGHT AND LEVERAGE HAZARD
Doors and side panels are heavy. Removal or installation requires two people.
Failure to follow these instructions can result in injury.
Hinges
Installation
Slide the hinge on the door or side panel into the front of the mounting plate attached to the inside of the enclosure.
Using finger pressure, press the hinge onto the mounting plate. The latch will secure with an audible click.
CLICK!
NetShelter CX Enclosure Installation and Customization
Three hinges are attached to their mountings in the enclosure to complete door installation. 38 and 24U enclosures have three (3) hinges per door. The 18U enclosures have two (2) hinges per door.
Removal
Press on the hidden latch under the side arm.
Lift the hinge arm off the mounting plate
Slide the latch and door away from the mounting plate.
When all hinges are detached from their mountings, the door can be removed.
NetShelter CX Enclosure Installation and Customization 7
Installation
Installation and Setup
If equipment mounting rails are adjusted from their standard factory installed positions to a deeper position, such as in a networking application, the leveling feet must be used.
NOTE:
The leveling feet are packaged separately and placed in the enclosure. Remove the package containing the leveling feet from the inside of the enclosure. Screw the leveling feet into the bottom of the enclosure.
Level the enclosure
Level the enclosure before installing equipment.
NOTICE
Leveling feet provide a stable base if the floor is uneven, but cannot compensate for a badly sloped surface.
Move the enclosure to a level location.
Turn each leveling foot clockwise to extend the leveling foot until it makes firm contact with the floor.
Use one or more levels (not provided) to adjust each foot until the enclosure is level and plumb.
8 NetShelter CX Enclosure Installation and Customization
Rack stabilization options
Lock the casters for additional stabilization.
NetShelter CX Enclosure Installation and Customization 9
Fan Module Removal and Installation
Unlock the fan module
Open the right hand side access panel.
Unscrew the thumbscrew on the right side of the fan module to unlock the fan module so it can be opened.
Lock the fan module
Open the right hand side access panel.
Install the thumbscrew on the right side of the fan module to lock the fan module in place.
Open the fan modules
The clips pull apart to release.
The module can then be swung open.
To open all the fan modules, start at the bottom.
1. Swing the fan module out on its hinges.
2. Disconnect the fan module power supply lead from the fan module.
3. Open the bottom module
Open the center module
Open the top module
10 NetShelter CX Enclosure Installation and Customization
Remove the fan modules
CAUTION
HEAVY EQUIPMENT HAZARD
Fan modules are heavy. Two people are recommended to remove the fan modules from the enclosures.
Failure to follow these instructions can result in injury, or equipment damage.
Note: Start at the top when removing the fan modules.
Lift the fan module from the hinges attached to the
NetShelter CX enclosure.
Remove the top fan module
Remove the center module
Remove the bottom fan module
Install the fan module
Reverse the removal procedure to install the fan module.
NetShelter CX Enclosure Installation and Customization 11
Rack PDU
The NetShelter CX Enclosure is provided with one Basic Rack PDU. The Rack PDU distributes power to devices in the enclosure.
AP9567 - NEMA
Outlets
The Rack PDU has fourteen (14) NEMA 5015R outlets.
Power cord
The 12 foot (3.66 meter) power cord terminates
with a NEMA 5-15P plug.
AP9568 - IEC
Outlets
The Rack PDU has fifteen (15) IEC-320-C13 outlets.
Power cord
The 6.5 foot (1.98 meter) power cord terminates
with a IEC-320-C14 plug.
Specifications
Electrical
Input connector
Output connectors
Nominal input voltage
Acceptable input voltage
Input frequency
AP9567 AP9568
NEMA 5-15P
(14 ) NEMA 5-15R outlets
IEC-320-C14 inlet
(15 ) IEC-320-C13 outlets
100-120 VAC 120 - 240 VAC
± 10 % of nominal voltage
50 / 60 Hz
Connect the Rack PDU
DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
• Follow all local and national codes when installing the Rack PDU.
• Never use extension cords with the Rack PDU.
• Connect the Rack PDU to the UPS, if installed, or to a single-outlet dedicated circuit protected by a circuit breaker or fuse with the same current rating as the Rack PDU.
• Power off the UPS or Mains Supply before connecting the Rack PDU.
• The plug or inlet serves as the disconnect for the Rack PDU. Make sure the utility power outlet for the Rack PDU will be close to the Rack PDU and readily accessible.
Failure to follow these instructions will result in death or serious injury.
Connect the Rack PDU to the UPS when a UPS is installed in the enclosure or connect it to the nearest local
Mains supply point.
12 NetShelter CX Enclosure Installation and Customization
Vertical Mounting Flanges
Vertical mounting flanges come factory-installed on the enclosure in the proper position for use with rack-mountable equipment having a depth of
800 mm (31.5 in.). The front mounting flanges are adjustable towards the rear of the enclosure to accommodate different rails or equipment with other depths. The rear mounting flanges are adjustable towards the front.
The flanges can be adjusted to be as close as 120 mm (4.7 in.) or as far as 880 mm (34.6 in.) apart in 40 mm (1.5 in.) increments.
NOTE: If the front accessory channel is removed from the enclosure, the front rails can be adjusted forward 8 cm (3.14 in.).
A common application for the enclosure is to move the flanges to a depth of 476 mm (18.75 in.) to accommodate networking and telecommunications equipment.
Adjusting the vertical mounting flanges on the side braces
Perform this procedure without any equipment installed on the mounting flanges.
1. Use a Phillips screwdriver (not provided) to remove the screws in the vertical mounting flange.
2. Move the pre-installed caged nuts to the desired
location, then reposition the vertical mounting flange to this position and install the screws.
NetShelter CX Enclosure Installation and Customization 13
Rack Mount Equipment Installation
This section provides information on how to install rack-mount equipment in the enclosure. The manufacturer’s instructions included with the equipment provide more detailed information.
One U-space on the vertical mounting flange
To install rack-mount equipment, locate the top and bottom of a U-space on the mounting flanges. Every third hole on the mounting flanges of a NetShelter enclosure is numbered to indicate the middle of a U-space.
A U-space consists of one of these numbered holes and one hole directly above and below it, as shown.
7
1 U 6
5
Cage nut installation
Schneider Electric offers a cage nut hardware kit (AR8100) for use with square holes.
CAUTION
HAZARD OF FALLING EQUIPMENT
Never install cage nuts vertically with the ears engaging the top and bottom of the square hole. This will result in insecure mounting for rack-mounted equipment.
Failure to follow these instructions can result in injury or equipment damage.
1. Install cage nuts on the interior of the vertical mounting flange. Install cage nuts horizontally, with the ears engaging the sides of the square hole. Insert the cage nut into the square hole by hooking one ear of the cage nut assembly through the far side of the hole.
2. Place the cage nut tool (not provided) on the other side of the cage nut and pull to snap it into position.
Cage nut removal
1. Remove any attached screw.
2. Grasp the cage nut and squeeze the sides to release it from the square hole.
14 NetShelter CX Enclosure Installation and Customization
Equipment Planning Guidelines
Please note the following guidelines for proper installation and operation of hardware in a NetShelter CX
Enclosure.
Avoid clustering hot-running equipment such as servers, dense redundant arrays of independent disks (RAID), and large voice-over-internetprotocol (VOIP) switches in one part of the enclosure. Distribute the thermal load evenly up and down the enclosure such that each fan module supports an equal amount of the thermal load.
Each fan module has a triangular metal section which protrudes slightly into the enclosure. This does not create an issue for installation of most equipment, but to allow for ample cabling space to the rear of the enclosure, deep servers should be installed in the enclosure space above and below these triangular metal protrusions.
NetShelter CX Enclosure Installation and Customization 15
Internal Enclosure Dimensions
The fan module creates a triangular protrusion which reduces the internal depth of the enclosure at that point.
The depth of your equipment should be considered to ensure room for cables and for adequate air circulation.
Deep servers should be moved above or below the protrusions.
18U 24U 38U
REAR
RACK
POSTS
REAR
RACK
POSTS
FRONT
RACK
POSTS
REAR
RACK
POSTS
FRONT
RACK
POSTS
RACK
UNITS
14 - 18
RACK
UNITS
20 - 24
RACK
UNITS
7 - 12
Dimension key
a. 840 mm (33.10 in.) b. 800 mm (31.5 in.) c. 934 mm (36.77 in.) d. 1001 mm (39.41 in.) e. Indicates soundproofed cable entry/exit pathway.
RACK
UNITS
33 - 38
RACK
UNITS
20 - 25
RACK
UNITS
7 - 12
FRONT
RACK
POSTS
16 NetShelter CX Enclosure Installation and Customization
Cable Management
The NetShelter CX enclosure has a cable access opening (cable port) at the rear of the enclosure. The 38U enclosure has an additional cable port at the top for cabling from above. Four vertical 0U accessory channels are factory installed in the enclosures.
A variety of other cable management accessories are available. Visit the website at www.schneider-
electric.com and go to the NetShelter CX product page for a full list of compatible cable management accessories.
Rear cable access port
The cable port is large enough to accommodate approximately 300-400 Cat
5e - Cat 6A ethernet cables and has a removable top cover. The design is such that pre-terminated data distribution panels can be installed effortlessly, with no need for de-termination and re-termination.
Unscrew and remove one of the two thumbscrews to swing open the port door.
Unscrew and remove the second
thumbscrew to fully remove the cable port door.
Vertical 0U accessory channels
The vertical 0U accessory channels provide toolless mounting capabilities for Schneider Electric Rack Power
Distribution Units, Schneider Electric cable containment brackets, and tie-off locations for cables. The standard position for the accessory channels is two located in the front of the enclosure and two in the rear of the enclosure.
Removal
Vertical 0U accessory channels can be removed completely from the enclosure. Loosen the fasteners that attach the vertical 0U accessory to the enclosure.
NetShelter CX Enclosure Installation and Customization 17
Cable management options for the enclosures
Product
19 in. horizontal cable organizers
SKU
AR8602 (1U)
AR8600 (2U)
AR8601 (2U double sided)
AR8603A (2U high density)
Description
Route patch cables horizontally at the front or rear of a
19 in. EIA enclosure.
Figure
18
Cable management rings
AR8113A Fastens cables to posts, mounting rails, or braces.
19 in. horizontal cable organizer
AR8425A (1U)
AR8426A (2U)
19 in. 2U patch cord organizer
AR8427A
Routes cables horizontally on the front or back of the
19 in. EIA rack.
Routes cables horizontally on the front or back of the
19 in. EIA rack.
19 in. 2U horizontal cable organizer pass-through
19 in. 1U cable pass-through with brush strip
AR8428
AR8429
Cable containment brackets
AR7710
Routes cables horizontally or frontto-rear.
Assists with containing air in the enclosure.
Contains cables along the vertical 0U accessory channel and is installed without tools.
Quantity of six.
NetShelter CX Enclosure Installation and Customization
Product
0U accessory mounting bracket
SKU
AR7711
Vertical Cable
Organizer for
NetShelter 0U
Channel
AR8442
Vertical fiber organizer and spools
AR8443A
Description
The bracket can be mounted in various locations throughout the enclosure for supporting small accessories and equipment.
Eliminates cable stress by organizing cable layout within the rear channels of the enclosure. Takes up 0U of space within the enclosure.
Consists of two pieces of equal size that, when connected, span the height of a 42U enclosure. Can be used in any
Schneider Electric enclosure.
The vertical fiber organizer and fiber organizer spools provide a method to manage fiber cabling within an enclosure and mount toollessly into the vertical 0U accessory channel of the enclosure.
Quantity of two.
Figure
Fiber organizer
(spools only)
AR8444 Can be mounted toollessly to the vertical fiber organizer or attached with screws to the mounting rails of
750 mm wide enclosures.
NetShelter CX Enclosure Installation and Customization 19
Product
1U cable ring
SKU
AR7707
Description
Fastens cables to posts, for use with
750 mm enclosure networking applications.
Figure
Toolless
Hook-and-
Loop Cable
Managers
AR8621
Fixed-shelf
(50 lb)
AR8105BLK
A toolless mount
hook-and-loop cable fastener for organizing data cable bundles.
Various mounting positions are available on the back panel of a vertical cable organizer. Quantity of ten.
Cantilever fixed shelf to enable the mounting of a monitor or other equipment into the rack environment or to allow cable passthrough from the front to rear of the enclosure.
20 NetShelter CX Enclosure Installation and Customization
Air Circulation
Enclosure placement
When placing the NetShelter CX in an open office environment:
• The rear of the unit can be pushed fully against a wall. Six to eight inches of clearance should be left on either side of the unit.
• Do not place the enclosure unit in direct sunlight or in a small non-air conditioned space.
• Place the enclosure close to ventilation or cool air ingress points in the room.
Air Paths
FRONT
PDU
REAR
NetShelter CX Enclosure Installation and Customization 21
Specifications
18, 24, 38U Enclosures
Measurements
Item
18U 24U 38U
Height
Width
Depth
Net weight enclosure
1015 mm (41 in.)
750 mm (29.53 in.)
1130 mm (44.5 in.)
131 kg (288.81 lb)
1275 mm (50.2 in.)
750 mm (29.53 in.)
1130 mm (44.5 in.)
154.5 kg (339.5 lb)
1950 mm (77 in.)
750 mm (29.53 in.)
1130 mm (44.5 in.)
202.5 kg (446.44 lb)
Net weight packaged
Clearance (for wiring between front door and vertical rail)
Maximum equipment Weight:
Static load
(4 casters + 6 leveling feet)
Maximum recommended thermal load
157.5 kg (347.2 lb)
60.96 mm (2.40 in.)
830 kg (1826 lb)
182 kg (401.24 lb)
60.96 mm (2.40 in.)
805 kg (1771 lb)
230 kg (507.1 lb)
60.96 mm (2.40 in.)
780 kg (1716 lb)
1.2 kW
(4,100 BTU/hr)
2.4 kW
(8,200 BTU/hr)
3.6 kW
(12,300 BTU/hr)
Power consumption 39 watts 68 watts 101 watts
Noise reduction
†
Up to 18.5 dB Up to 18.5 dB Up to 18.5 dB
†
18.5 dB equates to perceived drop in noise of 98.5%. The NetShelter CX generates 48.5 dB of noise during normal operation. This is below standard office ambient noise levels of approximately 50 dB.
22 NetShelter CX Enclosure Installation and Customization
Two-Year Factory Warranty
This warranty applies only to the products you purchase for your use in accordance with this manual.
Terms of warranty
Schneider Electric warrants its products to be free from defects in materials and workmanship for a period of two years from the date of purchase. Schneider Electric will repair or replace defective products covered by this warranty. This warranty does not apply to equipment that has been damaged by accident, negligence or misapplication or has been altered or modified in any way. Repair or replacement of a defective product or part thereof does not extend the original warranty period. Any parts furnished under this warranty may be new or factory-remanufactured.
Non-transferable warranty
This warranty extends only to the original purchaser who must have properly registered the product. The product may be registered at the Schneider Electric website, www.schneider-electric.com.
Exclusions
Schneider Electric shall not be liable under the warranty if its testing and examination disclose that the alleged defect in the product does not exist or was caused by end user’s or any third person’s misuse, negligence, improper installation or testing. Further, Schneider Electric shall not be liable under the warranty for unauthorized attempts to repair or modify wrong or inadequate electrical voltage or connection, inappropriate on-site operation conditions, corrosive atmosphere, repair, installation, exposure to the elements, Acts of God, fire, theft, or installation contrary to Schneider Electric recommendations or specifications or in any event if the
Schneider Electric serial number has been altered, defaced, or removed, or any other cause beyond the range of the intended use.
THERE ARE NO WARRANTIES, EXPRESS OR IMPLIED, BY OPERATION OF LAW OR OTHERWISE, OF
PRODUCTS SOLD, SERVICED OR FURNISHED UNDER THIS AGREEMENT OR IN CONNECTION
HEREWITH. SCHNEIDER ELECTRIC DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY,
SATISFACTION AND FITNESS FOR A PARTICULAR PURPOSE. SCHNEIDER ELECTRIC EXPRESS
WARRANTIES WILL NOT BE ENLARGED, DIMINISHED, OR AFFECTED BY AND NO OBLIGATION OR
LIABILITY WILL ARISE OUT OF, SCHNEIDER ELECTRIC RENDERING OF TECHNICAL OR OTHER
ADVICE OR SERVICE IN CONNECTION WITH THE PRODUCTS. THE FOREGOING WARRANTIES AND
REMEDIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES AND REMEDIES. THE
WARRANTIES SET FORTH ABOVE CONSTITUTE SCHNEIDER ELECTRIC’S SOLE LIABILITY AND
PURCHASER’S EXCLUSIVE REMEDY FOR ANY BREACH OF SUCH WARRANTIES. SCHNEIDER
ELECTRIC WARRANTIES EXTEND ONLY TO PURCHASER AND ARE NOT EXTENDED TO ANY THIRD
PARTIES.
IN NO EVENT SHALL SCHNEIDER ELECTRIC, ITS OFFICERS, DIRECTORS, AFFILIATES OR
EMPLOYEES BE LIABLE FOR ANY FORM OF INDIRECT, SPECIAL, CONSEQUENTIAL OR PUNITIVE
DAMAGES, ARISING OUT OF THE USE, SERVICE OR INSTALLATION, OF THE PRODUCTS, WHETHER
SUCH DAMAGES ARISE IN CONTRACT OR TORT, IRRESPECTIVE OF FAULT, NEGLIGENCE OR
STRICT LIABILITY OR WHETHER SCHNEIDER ELECTRIC HAS BEEN ADVISED IN ADVANCE OF THE
POSSIBILITY OF SUCH DAMAGES. SPECIFICALLY, SCHNEIDER ELECTRIC IS NOT LIABLE FOR ANY
COSTS, SUCH AS LOST PROFITS OR REVENUE, LOSS OF EQUIPMENT, LOSS OF USE OF
EQUIPMENT, LOSS OF SOFTWARE, LOSS OF DATA, COSTS OF SUBSTITUENTS, CLAIMS BY THIRD
PARTIES, OR OTHERWISE.
NO SALESMAN, EMPLOYEE OR AGENT OF SCHNEIDER ELECTRIC IS AUTHORIZED TO ADD TO OR
VARY THE TERMS OF THIS WARRANTY. WARRANTY TERMS MAY BE MODIFIED, IF AT ALL, ONLY IN
WRITING SIGNED BY AN SCHNEIDER ELECTRIC OFFICER AND LEGAL DEPARTMENT.
Warranty claims
Customers with warranty claims issues may access the Schneider Electric customer support network through the Support page of the Schneider Electric website, www.schneider-electric.com/support. Select your country from the country selection pull-down menu at the top of the web page. Select the Support tab to obtain contact information for customer support in your region.
NetShelter CX Enclosure Installation and Customization 23
Worldwide Customer Support
Customer support for this product is available at www.schneider-electric.com.
990-3594C-001
© 2015 Schneider Electric. All rights reserved.
8/2015
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
