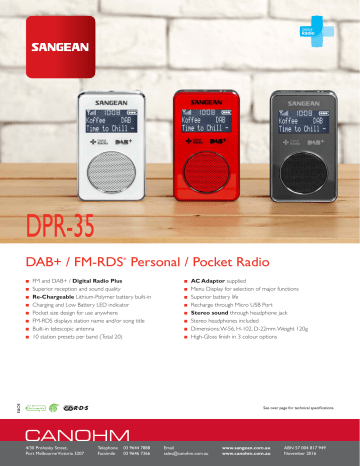

DPR-35 - Canohm
DPR-35
DAB+ / FM-RDS* Personal / Pocket Radio
■■
■■
■■
■■
■■
■■
■■
■■
■■
■■
■■
■■
■■
■■
■■
AC Adaptor supplied
Menu Display for selection of major functions
Superior battery life
Recharge through Micro USB Port
Stereo sound through headphone jack
Stereo headphones included
Dimensions: W-56, H-102, D-22mm. Weight 120g
High-Gloss finish in 3 colour options
E&OE
■■
FM and DAB+ / Digital Radio Plus
Superior reception and sound quality
Re-Chargeable Lithium-Polymer battery built-in
Charging and Low Battery LED indicator
Pocket size design for use anywhere
FM-RDS displays station name and/or song title
Built-in telescopic antenna
10 station presets per band (Total 20)
See over page for technical specifications.
4/30 Prohasky Street,
Port Melbourne Victoria 3207
Telephone 03 9644 7888
Facsimile 03 9646 7366
Email
sales@canohm.com.au
www.sangean.com.au
www.canohm.com.au
ABN 57 004 817 949
November 2016
SPECIFICATIONS
TunerDAB+
Band III (174 - 240)
FM
Frequency MHz
87.5 - 108
Stereo
Earphones
RDS
PS/PTY/CT/RT
Presets
20 (10 DAB+ / 10 FM)
Clock
Real time DAB / RDS
Alarm
No
Sleep
Yes
Display LCD / VFD
LCD
View area (mm)
42.2 x 23.2
Graphic / Character type
16 Characters x 2 Lines
Back light
Yes
AudioEQ
Tone control
No
Treble / Bass control
No
EQ (Sound effect selection) No
Amplifier
Speaker output (TYP)
0.15W
Earphones output
1 mW + 1 mW
Speaker
Size
1.4 inches
Impedance
32 ohms
I/O Sockets
AC/DC - in
DC Micro USB
Earphones
Yes – Stereo
Ext. Antenna
No
Colour Options
High Gloss
Black
Red
White
Power Supply
DC
5V / 0.5A
Batteries
Built-in lithium-polymer
3.7V / 1800mAH
Micro USB
Yes (charging only)
Accessories
AC Adapter
Dimensions
W x H x D (mm) 56 x 102 x 22
Weight (g)
120
Warranty
12 months
DPR-35
E&OE
*RDS (Radio Data System) is a system by which various
information sent by the radio station can be displayed on
the screen of an RDS equipped radio. Information can
include: Station identification (name – shown in place
of the frequency), program information, promotional
announcements, weather, time and more. RDS is intended
to provide an enhanced experience for the listener.
NOTE: RDS is not provided by all radio stations.
4/30 Prohasky Street,
Port Melbourne Victoria 3207
Telephone 03 9644 7888
Facsimile 03 9646 7366
Email
sales@canohm.com.au
www.sangean.com.au
www.canohm.com.au
ABN 57 004 817 949
November 2016
