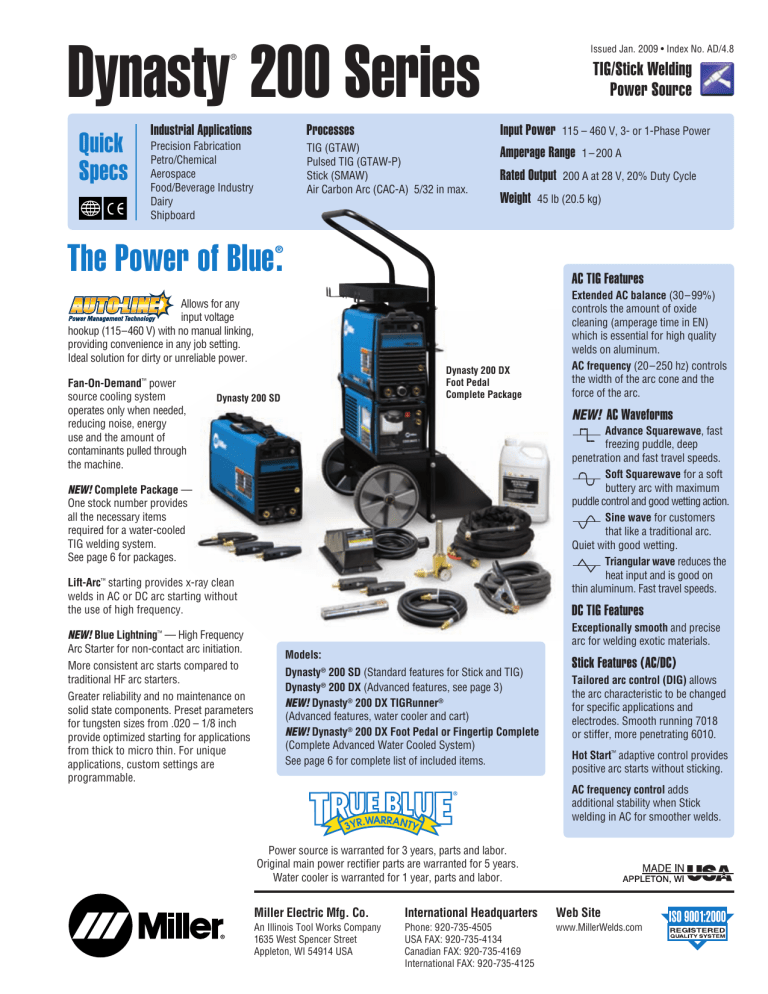

Dynasty 200 Series
Issued Jan. 2009 • Index No. AD/4.8
®
Quick
Specs
TIG/Stick Welding
Power Source
Industrial Applications
Processes
Input Power
Precision Fabrication
Petro/Chemical
Aerospace
Food/Beverage Industry
Dairy
Shipboard
TIG (GTAW)
Pulsed TIG (GTAW-P)
Stick (SMAW)
Air Carbon Arc (CAC-A) 5/32 in max.
Amperage Range
115 – 460 V, 3- or 1-Phase Power
Rated Output
Weight
1 – 200 A
200 A at 28 V, 20% Duty Cycle
45 lb (20.5 kg)
The Power of Blue .
®
AC TIG Features
Allows for any
input voltage
hookup (115–460 V) with no manual linking,
providing convenience in any job setting.
Ideal solution for dirty or unreliable power.
Fan-On-Demand™ power
source cooling system
operates only when needed,
reducing noise, energy
use and the amount of
contaminants pulled through
the machine.
Dynasty 200 DX
Foot Pedal
Complete Package
Dynasty 200 SD
NEW! AC Waveforms
Advance Squarewave, fast
freezing puddle, deep
penetration and fast travel speeds.
Soft Squarewave for a soft
buttery arc with maximum
puddle control and good wetting action.
Sine wave for customers
that like a traditional arc.
Quiet with good wetting.
Triangular wave reduces the
heat input and is good on
thin aluminum. Fast travel speeds.
NEW! Complete Package —
One stock number provides
all the necessary items
required for a water-cooled
TIG welding system.
See page 6 for packages.
Lift-Arc™ starting provides x-ray clean
welds in AC or DC arc starting without
the use of high frequency.
NEW! Blue Lightning™ — High Frequency
Arc Starter for non-contact arc initiation.
More consistent arc starts compared to
traditional HF arc starters.
Greater reliability and no maintenance on
solid state components. Preset parameters
for tungsten sizes from .020 – 1/8 inch
provide optimized starting for applications
from thick to micro thin. For unique
applications, custom settings are
programmable.
Extended AC balance (30–99%)
controls the amount of oxide
cleaning (amperage time in EN)
which is essential for high quality
welds on aluminum.
AC frequency (20–250 hz) controls
the width of the arc cone and the
force of the arc.
DC TIG Features
Exceptionally smooth and precise
arc for welding exotic materials.
Models:
Dynasty® 200 SD (Standard features for Stick and TIG)
Dynasty® 200 DX (Advanced features, see page 3)
NEW! Dynasty® 200 DX TIGRunner®
(Advanced features, water cooler and cart)
NEW! Dynasty® 200 DX Foot Pedal or Fingertip Complete
(Complete Advanced Water Cooled System)
See page 6 for complete list of included items.
Stick Features (AC/DC)
Tailored arc control (DIG) allows
the arc characteristic to be changed
for specific applications and
electrodes. Smooth running 7018
or stiffer, more penetrating 6010.
Hot Start™ adaptive control provides
positive arc starts without sticking.
AC frequency control adds
additional stability when Stick
welding in AC for smoother welds.
Power source is warranted for 3 years, parts and labor.
Original main power rectifier parts are warranted for 5 years.
Water cooler is warranted for 1 year, parts and labor.
Miller Electric Mfg. Co.
International Headquarters
Web Site
An Illinois Tool Works Company
1635 West Spencer Street
Appleton, WI 54914 USA
Phone: 920-735-4505
USA FAX: 920-735-4134
Canadian FAX: 920-735-4169
International FAX: 920-735-4125
www.MillerWelds.com
Specifications
Welding
Amperage
Range
Welding
Mode
TIG
(GTAW)
AC 5–150 A
DC 1–150 A
(120 VAC)
(Subject to change without notice.)
Max.
OpenCircuit
Voltage
Input
Power
Rated
Output
Amps Input at Rated Load Output, 50/60 Hz
120 V 230 V 400 V 460 V KVA KW
80 VDC
3-Phase
200 A at 18 V,
20% Duty Cycle
—
—
13.7 8.7
6.9
5.5
5.2
0.16* 0.24* 0.25* 0.06* 0.03*
150 A at 16 V,
60% Duty Cycle
—
—
9.4
6.0
4.7
3.8
3.6
0.16* 0.24* 0.25* 0.06* 0.03*
150 A at 16 V,
60% Duty Cycle
—
—
15.8 —
0.23* —
140 A at 15.6 V,
40% Duty Cycle
31.0 —
0.42* —
—
—
—
—
3.6
3.5
0.05* 0.03*
100 A at 14 V,
100% Duty Cycle
20.7 —
0.42* —
—
—
—
—
2.3
2.3
0.05* 0.03*
200 A at 28 V,
20% Duty Cycle
—
—
20.8 13.0 10.2 8.1
7.8
0.16* 0.24* 0.25* 0.06* 0.03*
130 A at 25.2 V,
60% Duty Cycle
—
—
12.3 7.6
6.0
4.8
4.6
0.16* 0.24* 0.25* 0.06* 0.03*
130 A at 25.2 V,
60% Duty Cycle
—
—
20.0 —
0.23* —
100 A at 24 V,
60% Duty Cycle
31.3 —
0.42* —
—
—
—
—
3.6
3.6
0.05* 0.03*
90 A at 23.6 V,
100% Duty Cycle
27.6 —
0.42* —
—
—
—
—
3.2
3.2
0.05* 0.03*
12 – 16**
AC 5–200 A
DC 1–200 A
(200–460 VAC)
Stick
(SMAW)
AC 5–105 A
DC 1–105 A
(120 VAC)
1-Phase
80 VDC
3-Phase
12 – 16**
AC 5–200 A
DC 1–200 A
(200–460 VAC)
1-Phase
7.9
3.6
3.6
0.25* 0.05* 0.02*
Dimensions
Net
Weight
H: 13-1/2 in
(343 mm)
W: 7-1/2 in
(191 mm)
D: 21-1/2 in
(546 mm)
45 lb
(20.5 kg)
with
with
TIGRunner®
TIGRunner®
H: 46-1/4 in
137 lb
(1,175 mm) (62.1 kg)
W: 23-1/2 in
(597 mm)
D: 22-1/4 in
(565 mm)
10.0 4.7
4.7
0.25* 0.05* 0.03*
*While idling. **Sense voltage for Stick and Lift-Arc ™ TIG. Note: Duty cycle limitations on units with 115 V input power are due to the input power cord supplied with the unit.
Certified by Canadian Standards Association to both Canadian and U.S. Standards.
All CE models conform to the applicable parts of the IEC 60974 series of standards.
Performance Data
DUTY CYCLE
110–120 V INPUT VOLTAGE
%
10 – 30%
40%
60%
100%
2
TIG
150 A
140 A
120 A
100 A
STICK
100 A
100 A
100 A
90 A
200–460 V INPUT VOLTAGE
%
10 – 20%
30%
40%
60%
100%
TIG
200 A
180 A
166 A
150 A
120 A
STICK
200 A
170 A
150 A
130 A
110 A
Control Panel
Dynasty 200 SD
Dynasty 200 DX
6
1
2
6
1
2
7
7
3
8
3
8
4
5
9
4
5
9
10
11
Control Panel Parameter Values
1. Voltmeter Display
Advanced features on the Dynasty DX only:
Additional Setup Parameter Values
2. Ammeter Display
10. Sequencer Control
Initial Amps
AC: 5 –200 A
DC: 1– 200 A
Initial Slope
0.0 – 25.0 Seconds
Final Slope
0.0– 25.0 Seconds
Final Amps
AC: 5 –200 A
DC: 1– 200 A
Preprogrammed Starts
.040 – 1/8 in Tungsten
3. Polarity
AC/DC
4. Process/
Arc Starting
TIG: HF Impulse, Lift Arc
STICK: Adaptive Hot Start
5. Output Control
Standard Remote,
2T Trigger Hold,
Output ON
6. Encoder Control
7. Amperage Control
8. AC Waveshape
Balance
AC Frequency
30– 99%
20– 250 Hz
11. Pulser Control
Pulses per Second DC: 0.1– 500 PPS
AC: 0.1–500 PPS
Peak Time
5 – 95%
Background Amps 5 – 95%
Programmable Starts
Amperage
AC: 5 – 200 A
DC: 1 – 200 A
Time
1– 200 Milliseconds
Ramp Time
1– 250 Milliseconds
Minimum Amperage 1– 20 A
Polarity
EP, EN
Additional Triggers 3T, 4T, Mini Logic,
4T Momentary
Waveshapes
Advance Squarewave,
Soft Squarewave, Sine
Wave, Triangular wave
Spot/Timer
0.1– 25.0 Seconds
OCV
Low OCV, Normal OCV
9. Gas/DIG Preflow 0.0 – 25.0 Seconds
Postflow
0–50 Seconds
DIG
0 – 100%
Stick Stuck Check On/Off
Lockouts
Four levels
Arc Timer
0.0– 9999 Hours
and 0–59 Min
Cycle Counter
0– 999,999 Cycles
3
TIG Upgrade Chart
Which Machine is Right for You?
Why Upgrade?
Syncrowave 200
Dynasty 200
Dynasty 200 Benefits
Maximum Thickness Capacity
1/4 in Aluminum
1/4 in Aluminum
Same material thickness capacity.
High Frequency Arc Starting
Continuous HF
UPGRADE
Start Only
Start Only limits HF interference issues.
Frequency Control
AC Output Control
Fixed at 60 Hz
UPGRADE
Variable 20–250 Hz
Higher frequencies provide better arc control
and faster travel speeds.
AC Waveforms
Soft Squarewave
UPGRADE
Advanced Squarewave
Soft Squarewave
Advanced Squarewave=Travel faster
Soft Squarewave= Maximum puddle control
Sine Wave
Triangular Wave
Sine Wave= Traditional characteristics
Triangular Wave= Reduced heat input
Weld Aluminum
with Pointed Tungsten
Waveshaping controls maintain the point. The
benefits are: reduced heat input into your part,
smaller weld beads, better starting and more
control of the arc.
UPGRADE
Portability
238 lb
UPGRADE
Manual Link
208–230 or 460– 575 V
Single-Phase
45 lb
Auto-Line™
120–460 V
Single-Phase or Three-Phase
Easier to move because of size and weight.
Auto-Line™ allows the unit to operate on any
voltage. Single- or three-phase. Even generators!
Power Draw at 150 Amps
54 A at 230 V
Single-Phase
15.8 A at 230 V
Single-Phase
Power requirement to operate is much less.
Smaller electrical service needed, smaller
breaker/fuses and power cord.
UPGRADE
Pulse TIG Controls
High Speed DC TIG-Pulse Controls
• PPS Pulses per second (Hz): DC = 0.1 – 500 PPS / AC = 0.1 – 500 PPS
• % ON – % Peak Time: 5 - 95% (Controls the amount of time during each pulse cycle at the PEAK amperage.)
• Background Amps: 5 – 99% (Sets the low-pulse amperage value as a % of the Peak Amps.)
CONVENTIONAL PULSED TIG
Peak
Amps
Peak Time %
Background
Amps
(% of Peak)
Peak
Amps
Peak Time %
Background
Amps
(% of Peak)
Pulse Cycle
Typically from 1 to 10 PPS. Provides a heating and cooling effect
on the weld puddle and can reduce distortion by lowering the
average amperage. This heating and cooling effect also produces a
distinct ripple pattern in the weld bead. The relationship between
pulse frequency and travel speed determines the distance between
the ripples. Slow pulsing can also be coordinated with filler metal
addition and can increase overall control of the weld puddle.
4
HIGH SPEED PULSED TIG
Pulse Cycle
In excess of 40 PPS, Pulsed TIG becomes more audible than visible —
causing increased puddle agitation for a better as-welded microstructure.
Pulsing the weld current at high speeds — between a high Peak and a
low Background amperage — can also constrict and focus the arc.
This results in maximum arc stability, increased penetration and
increased travel speeds (Common Range: 100 – 500 PPS).
AC Waveshape Controls
Feature
Waveform
AC Balance Control
Effect on Bead
Controls arc cleaning action. Adjusting the
% EN of the AC wave controls the width of
the etching zone surrounding the weld.
Amperage
51 – 99% EN
% EP
Narrow bead, with no
visible cleaning
Reduces balling
action and helps
maintain point
0
Bead
% EN
Note: Set the AC Balance control for adequate arc
cleaning action at the sides and in front of the weld
puddle. AC Balance should be fine tuned according to
how heavy or thick the oxides are.
Time (1 AC Cycle)
Deep, narrow
penetration
No Visible Cleaning
Amperage
30 – 50% EN
% EP
Wider bead and
cleaning action
Bead
% EN
60 Cycles per Second
AC Frequency Control
Amperage
Increases balling
action of the electrode
0
Time (1 AC Cycle)
Controls the width of the arc cone. Increasing
the AC Frequency provides a more focused arc
with increased directional control.
Effect on Appearance
% EP
Shallow
penetration
Cleaning
Wider bead,
good penetration —
ideal for buildup work
Wider bead and
cleaning action
0
Bead
% EN
Note: Decreasing the AC Frequency softens the arc
and broadens the weld puddle for a wider weld bead.
Time (1 AC Cycle)
Amperage
120 Cycles per Second
%
EP
0
%
EP
Cleaning
Narrower bead for
fillet welds and
automated applications
Narrower bead and
cleaning action
Bead
% EN
% EN
Time (1 AC Cycle)
Cleaning
AC Waveform Selection
Select from four different AC waveforms to optimize the arc characteristic for your application. Choose from:
ADVANCED SQUAREWAVE
SOFT SQUAREWAVE
Fast transitions for
responsive and
dynamic arc.
0
(–)
0
(–)
Time (1 AC Cycle)
Time (1 AC Cycle)
SINEWAVE
TRIANGULAR WAVE
0
(–)
Time (1 AC Cycle)
(+)
Amps
Square transitions
eliminate the need for
continuous HF, while
the sinewave peaks
soften the arc.
(+)
Amps
All the benefits of
advanced square,
fine tuned to provide
a smooth, soft arc
with maximum
puddle control and
good wetting action.
(+)
Amps
Amps
(+)
0
(–)
Time (1 AC Cycle)
Unconventional wave
provides the punch of
the peak amperage,
while reducing overall
heat input. Quick puddle
formation reduces weld
time — limiting heat
input and reducing weld
distortion, especially
on thin materials.
5
Packages and Torch Kits
Dynasty 200 SD Power Source
®
Dynasty® 200 SD #907 099 (CSA)
(Auto-Line™ 120–460 VAC)
Adjustable shoulder strap, 10 ft (3 m)
primary power cord, (2) international
(Dinse 50) connectors, (1) air-cooled TIG
torch adapter (#195 378)
Note: See page 7 for recommend Contractor Torch Kit
Dynasty 200 DX Power Sources
®
Dynasty® 200 DX #907 099-01-1 (CSA)
(Auto-Line™ 120–460 VAC)
Dynasty® 200 DX #907 356 (CE ROHS)
(Auto-Line™ 120–460 VAC)
Adjustable shoulder strap, 10 ft (3 m)
primary power cord, (2) international
(Dinse 50) connectors, (1) air-cooled TIG
torch adapter (#195 378)
Note: See page 7 for recommend Contractor Torch Kit
TIGRunner Package
®
Dynasty 200 DX TIGRunner®
#907 099-02-1 (CSA)
(Auto-Line™ 120–460 VAC)
Completely assembled.
Package includes:
Dynasty® 200 DX (#907 099-01-1)
Coolmate™ 1, 120 VAC (#300 360)
(2) international (Dinse 50) connectors
1 gallon of pre-mixed, low conductivity
Coolant (#043 810)
2-Wheel Trolley Cart (#300 480) with
the following features: easy to maneuver
single cylinder cart with cable and torch
holders. Easy to release and remove
welder from cart for even more portability.
Convenient tray for consumable storage
and filler rod holders.
Notes: TIG Torch Adapter must be ordered
separately. See page 7 for recommended 250 A
Water-Cooled Torch Kit (#300 185)
The Coolmate 1 requires a separate source for
electricity. The Dynasty 200 does not contain
auxiliary power.
Complete Packages
Dynasty 200 DX Foot Pedal Complete
#951 139 (CSA)
(Auto-Line™ 120–460 VAC)
Dynasty 200 DX
Fingertip Complete
Package
Dynasty 200 DX Fingertip Complete
#951 140 (CSA)
(Auto-Line™ 120–460 VAC)
Completely assembled.
Package includes:
Dynasty® 200 DX (#907 099-01-1)
Coolmate™ 1, 120 VAC (#300 360)
(2) international (Dinse 50) connectors
1 gallon of pre-mixed, low conductivity
Coolant (#043 810)
6
2-Wheel Trolley Cart (#300 480) with
the following features: easy to maneuver
single cylinder cart with cable and torch
holders. Easy to release and remove
welder from cart for even more portability.
Convenient tray for consumable storage
and filler rod holders.
Remote Foot Pedal (#194 744) or
Fingertip Control (#043 688)
250 A Water-Cooled Torch Kit and
Accessories (#300 185) See pg. 7 for more
details.
Note: The Coolmate 1 requires a separate source for
electricity. The Dynasty 200 does not contain
auxiliary power.
Genuine Miller Accessories
2-Wheel Trolley Cart
#300 480
Easy to maneuver
two-wheel cart features:
single-cylinder rack,
chain for cylinder,
straps (quick and easy
to detach and carry
machine), cable holders,
torch holder, storage
area, and filler rod
storage area. Works with Dynasty® or
Maxstar® 200 and Coolmate™ 1.
TIG Coolant #043 810
Sold in multiples of 4.
Pre-mixed low-conductivity
Miller coolant contains
ethylene glycol and
deionized water to protect
from freezing and boiling -37˚ to 227˚F (-38˚
to 108˚C). 1-gallon plastic recyclable bottles.
Water-Cooled Dinse
#195 377
Used to adapt WP20,
WP18, and CS310 to
dinse-style connector. Order from Miller Parts.
Contact you local distributor for filler material holders.
Universal Carrying
Cart and Cylinder
Rack #042 934
Holds power source,
and gas cylinder up
to 56 in (142.2 cm)
high measuring
6 to 9 in (15.2 to 22.8 cm) in diameter.
Coolmate™ 1
#300 360
120 VAC 60 Hz CSA
#300 360-00-1
120 VAC 60 Hz CE
#300 459 240 VAC 50/60 Hz CSA
#300 459-00-1 240 VAC 50/60 Hz CE
1-gallon water cooler designed for 200 amp
portable welders. Features include: Fin-andTube heat exchanger, back-lit power
switch, external filter, polyethylene tank
and coolant level sight gauge.
#195 054
kit shown.
Tungsten is 7 in length and available in pkgs of 10.
Order from Miller Parts
2% Ceriated (orange) for AC/DC applications
#WC040X7 .040 in, 10– 80 A
#WC116X7 1/16 in, 70– 150 A
#WC332X7 3/32 in, 140– 250 A
#WC018X7 1/8 in, 225– 400 A
#WC532X7 5/32 in, 300– 500 A
1.5% Lanthanum (gold) for AC/DC applications
#WL040X7 .040 in, 10– 80 A
#WL116X7 1/16 in, 70– 150 A
#WL332X7 3/32 in, 140– 250 A
#WL018X7 1/8 in, 225– 400 A
#WL532X7 5/32 in, 300– 500 A
Remote Controls and Switches
Contractor Kits
#195 054 Foot Pedal Kit
#195 055 Fingertip Kit
RFCS-14HD foot or RCCS-14 fingertip
control, protective carrying case, 150 Amp
WP17 25 ft (7.6 m) TIG Torch with adapter,
Smith® flow gauge regulator and 12 ft
(3.7 m) gas hose, AK2C Accessory Kit
(.040, 1/16, and 3/32 in cerium tungsten,
collets and cups), Stick electrode holder,
200 Amp, 15 ft (4.6 m) #4 cable, and work
clamp with 15 ft (4.6 m) #4 AWG cable.
200 Amp Air-Cooled
Torch
Order from Miller Parts
#WP2612RM (12 ft)
#WP2625RM (25 ft)
Torch body gas valve models are available
Note: Adapter #195 379 required for WP26.
250 A Water-Cooled Torch Kit #300 185
25 ft (7.6 m) Weldcraft® WP2025RM
torch
Torch cable cover
AK4C torch accessory kit includes
shielding cups, collets, collet bodies
and 2% cerium tungsten electrodes
(1/16, 3/32 and 1/8 in)
Smith® regulator/flowmeter HM2051A-580
12 ft (3.7 m) rubber gas hose (regulator
to machine)
Water-cooled Dinse torch adapter
15 ft (4.6 m) 1/0 weld lead with clamp
(work or ground lead) and Dinse connector
Tungsten
Air-Cooled Torch
Adapters
Order from Miller Parts
#195 378 WP17,
WP9, WP50, WP23
#195 379 WP26
TIG Welding Gloves
#227 813 Small
#227 815 Large
#227 814 Medium
#227 816 X-Large
Made from soft grain goatskin. Sewn with
Kevlar® thread. Order from Miller Parts.
Gas Tungsten Arc (TIG) Welding Book
#170 555
To order, distributors can call the Miller Literature
Distribution Center at 1-920-735-4356, or
FAX 1-920-735-4011.
Ron Covell TIG Welding Basics DVD
To order go to MillerWelds.com
RCCS-14 Remote
Contactor and
Current Control #043 688 14-pin plug
North/south rotary-motion fingertip control
fastens to TIG torch using two Velcro®
straps. Includes 26.5 ft (8 m) control cord.
RFCS-14 HD Foot Control
#194 744
Maximum flexibility is
accomplished with a
reconfigurable cord that can
exit the front, back or either side of the pedal.
Foot pedal provides remote current and
contactor control. Includes 20 ft (6 m) cord
and 14-pin plug.
RHC-14 Hand Control #129 340
Miniature hand control for remote current
and contactor control. Dimensions: 4 x 4 x
3-1/4 in (102 x 102 x 83 mm). Includes
20 ft (6 m) cord and 14-pin plug.
RMLS-14 Switch
#129 337
Momentary- and maintained-contact rocker
switch for contactor control. Push forward
for maintained contact and backward for
momentary contact. Includes 26.5 ft (8 m)
cord and 14-pin plug.
RMS-14 On/Off
Control #187 208
Momentary-contact switch for contactor
control. Rubber-covered pushbutton dome
switch ideal for repetitive on-off
applications. Includes 26.5 ft (8 m) cord
and 14-pin plug.
Extension Cords for 14-Pin Remote Controls
#122 973 25 ft (7.6 m)
#122 974 50 ft (15.2 m)
#122 975 75 ft (23 m)
7
Ordering Information
Equipment and Options
Stock No.
Dynasty 200 SD
#907 099
Auto-Line™ 120 – 460 VAC, 50/60 Hz, CSA. 10 ft primary cord
Dynasty® 200 DX
#907 099-01-1
Auto-Line™ 120 – 460 VAC, 50/60 Hz, CSA. 10 ft primary cord
Dynasty® 200 DX International
#907 356
Auto-Line™ 120 – 460 VAC, 50/60 Hz, CE ROHS. 10 ft primary cord
Dynasty® 200 DX TIGRunner ®
#907 099-02-1
Auto-Line™ 120 – 460 VAC, 50/60 Hz, CSA. 10 ft primary cord
Dynasty 200 DX Foot Pedal Complete
#951 139
Auto-Line™ 120 – 460 VAC, 50/60 Hz, CSA. 10 ft primary cord
Dynasty® 200 DX Fingertip Complete
#951 140
Auto-Line™ 120 – 460 VAC, 50/60 Hz, CSA. 10 ft primary cord
Weldcraft® 250 A Water-Cooled Torch Kit
#300 185
See page 7
Contractor Kit Foot Pedal (Air-Cooled)
#195 054
See page 7
Contractor Kit Fingertip (Air-Cooled)
#195 055
®
®
Description
Qty.
TIG Torch Kits
Consumables and Tungsten
See page 7
Distributor: See Miller Parts Catalog
Remote Controls
RCCS-14
#043 688
North/south fingertip control
RFCS-14 HD
#194 744
Heavy-duty foot control
RHC-14
#129 340
Hand control
RMLS-14
#129 337
Momentary/maintained rocker switch
RMS-14
#187 208
Momentary rubber dome switch
Extension Cords
#122 973
#122 974
#122 975
25 ft (7.6 m)
50 ft (15.2 m)
75 ft (22.9 m)
2-Wheel Trolley Cart
#300 480
See page 7
Universal Carrying Cart and Cylinder Rack
#042 934
See page 7
Coolmate™ 1
#300 360
#300 360-00-1
#300 459
#300 459-00-1
120 VAC, 60 Hz, CSA. Requires coolant
120 VAC, 60 Hz, CE. Requires coolant
240 VAC, 50/60 Hz, CSA. Requires coolant
240 VAC, 50/60 Hz, CE. Requires coolant
TIG Coolant
#043 810
Sold in multiples of 4. 1-gallon plastic bottles
Gas Tungsten Arc (TIG) Welding Book
#170 555
Order at MillerWelds.com/resources/tools
Accessories
Order at MillerWelds.com/resources/tools
Ron Covell TIG Welding Basics DVD
Water-Cooled Dinse
Order from Miller Parts
#195 377
Used to connect water-cooled torch to Dinse terminal machine.
For WP20, WP18 and SC310 (adapter included in Complete Package)
Air-Cooled Dinse
Order from Miller Parts
#195 378
#195 379
Used to connect WP17, WP9 and WP23 torch to Dinse terminal
Used to connect WP26 torch to Dinse terminal machine
Dinse Connector 50 mm (1 male)
#042 418
Used to connect weld lead to Dinse terminal machine
Dinse Connector 50 mm (1 male, 1 female)
#042 419
Used to extend weld cables
Tweco Terminal Adapter
#042 465
Male Dinse to female Tweco
Cam-Lok Terminal Adapter
#042 466
Male Dinse to female Cam-Lok
Miscellaneous
Stick Electrodes
Welding and Work Cables
Welding Gloves and Helmet
Date:
Total Quoted Price:
Distributed by:
Litho in USA
Price
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
