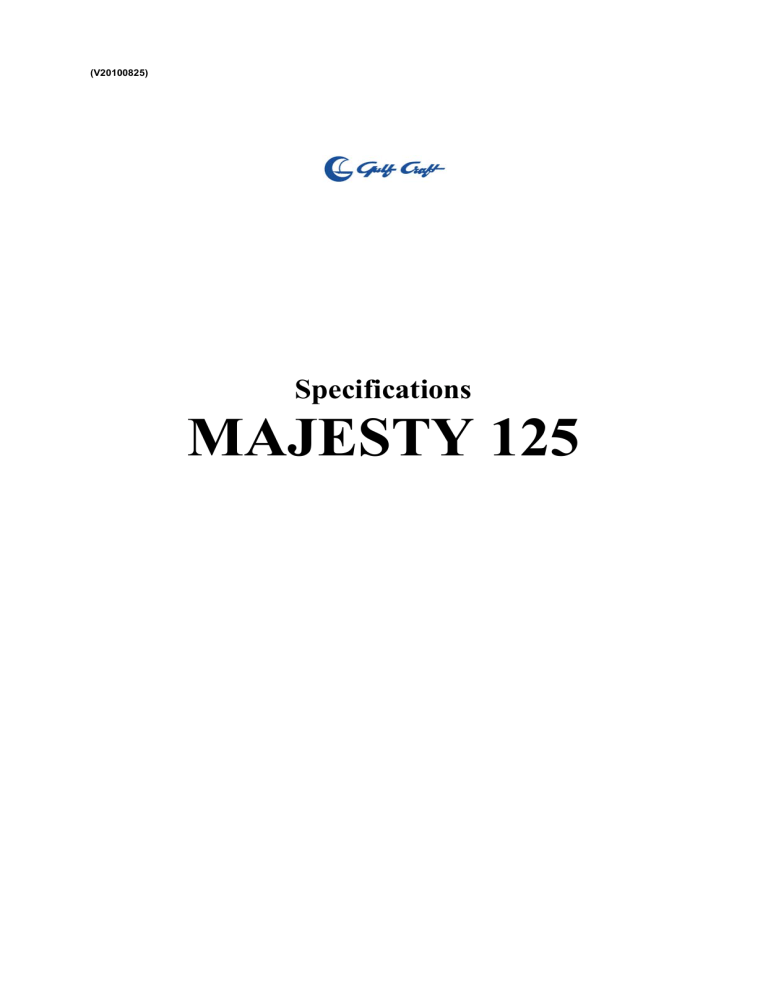

Specifications
MAJESTY 125
Technical Data
Length Overall
125’ (38.40 m)
Length Waterline
106’ 10” (32.56 m)
Maximum Beam
24’ 08” (7.55 m)
Draft
6’ 6” (2 m)
Fuel Capacity
7,595 US gal (28,750 L)
Water Capacity
1,500 US gal (5,678 L)
Black Tank capacity
400 US gal (1,515 L)
Gray Tank capacity
400 US gal (1,515 L)
Displacement
205 tons approx
Vessel Type
FRP
Cabins
5 Cabins + 3 Crew Cabins + 1 Captain's Cabin
Bath Rooms
9 + Day head
Generator
2 x Northern Lights 80kW, 50Hz
Propulsion
2 x MTU 16v 2,000 M93 2,400 HP each
OVERALL SPECIFICATIONS
Exclusive LED lighting throughout. Integrated A/V and ambiance system with central wireless controls.
High end anti-rattle hardware fittings. All drawers and lockers are provided with soft, self-closing
mechanism. Storm shutters on portholes throughout. All Cabin doors are mounted using 3-way adjustable
concealed hinges. IMO-compliant thermal lifejackets in all cabins. All lower deck Bathroom
compartments are completely sealed with fiberglass to prevent leaks and effects of humidity. Suspended
ceiling with sound dampener. Emergency lighting, hatches and fire hydrants provided throughout.
Seamless in-floor service hatches. Oversized 450 BTU air conditioning system. Pop-up deck cleats. Four
boarding gates (two each side), with boarding ladder. Four mooring fairleads on each sides. All carpets
are hand-tufted, 100% Japanese acrylic yarns with sound proofing double underlay. All exterior fabrics
are waterproofed, 100% solution-dyed and soil resistant velvet. Combination of White and Yellow Onyx
marble (with 10mm aluminum honeycomb sheets), Crema Marfil Marble, Black Portoro, Navona
Travertine, Black Absolute granite used through.
MAIN SALOON
Panoramic views. Open and modular furniture layout with sofa and side tables. Integrated central
audio/visual system, lighting and curtains with Crestron wireless handheld controller. Crema Marfil
Marble in-lay at flooring. Onyx marble tops on center tables. Stainless steel framed and curved sliding
door to cockpit with curtains. Fitted carpet and wood surround. Side windows with motorized curtains.
roman and pleated blinds. Decorative and cabinetry LED lighting. Duralite lighting switches and sockets.
Air conditioning with control switch. Telephone point. Oversized aft cabinet for bottles and glasses. Aft
storage lockers with shelves. Forward port and starboard side wall cabinets with shelves. Veneer, fabric
and leather wall panels. Custom-designed entertainment system with 52” revolving LCD TV (for viewing
from dining area), five flush mounted Sonance ceiling speakers, iPod docking station, satellite receiver,
access to central audio/video service.
DINING AREA
Designed as semi-private, with panoramic views. Crema Marfil Marble floor in-lay. Crystal cabinets.
Display cabinetry storage in between main saloon and dining. Built-in buffet counters with white onyx
marble tops. Integrated sound system. Extendable ten person oval dining table. Additional cabinets with
doors and drawers. Marble counter top lockers. LED decorative lighting. Duralite lighting switches and
sockets. Air conditioning with control switch. Wood floor with marble border. Access door to galley and
family dining. Veneer, fabric and leather wall panels. Access door to main deck lobby. Two flush
mounted Sonance ceiling speakers with powered subwoofer. Crestron wall mounted touch screen wireless
access point.
GALLEY & BREAKFAST AREA
Lockable water tight door leading to port side deck. Fire resistant vinyl flooring (Riven marble finish with
Urethane coating). Granite top with sinks. Overhead and under counter lockers and drawers. Commercial
grade exhaust grill and refrigerator and freezer with 1,200 liter capacity. Fully equipped kitchen with
built-in hob, fryer and grill, hood, oven and microwave, dish washer, wine cellar, waste disposal, and
trash compactor (all of which are Miele or Gaggenau). Mirror polished stainless steel sheet dado paneling
throughout the counters. LED decorative lighting. Duralite lighting switches and sockets. Air
conditioning with control switch. Attached breakfast / family area with six person dining table and excess
storage underneath. Entertainment system with 32” LCD TV and satellite receiver. Sub-distribution panel.
Windows with pleated blinds. Telephone point. Access door to crew stairs and main lobby. Sliding door
access to dining area.
MAIN DECK LOBBY
Distribution between dining area, dayhead, owner’s office and cabin, stairs to lower deck lobby, and stairs
to upper (panoramic) deck. Watertight side (pantograph) door leading to starboard side deck. Marble
flooring (Yellow Onyx with Black Absolute granite inlay & Crema Marfil Margins). LED decorative and
cabinetry lighting. Duralite lighting switches and sockets.Excess storage space. LED lighting on steps.
Veneer, fabric and leather wall panels. Glazed, disappearing sliding doors to dining area and to owner’s
office. Hidden door for crew access. Dedicated day head provided at main deck lobby.
DAY HEAD TOILET
Vanity locker with Marble counter top. Wash basin and tap. Complete set of sanitary accessories. Mirror.
Electric toilet. Extractor fan. Architectural Led decorative lighting. Cabinetry Led lighting. Duralite
lighting switches and sockets. Marble flooring. Towel storage and product shelf.
OWNER’S OFFICE
Spacious three meter by three meter office with writing table and chair. Sofa seat. Side table with White
Onyx marble tops. Storage locker and open shelves. French parquet floor with marble [Crema Marfil]
margin. Window with electric curtain. LED decorative and cabinetry lighting. Duralite lighting switches
and sockets. Air conditioning with control switch. Veneer, fabric and leather wall panels. Door to owner’s
cabin.
OWNER’S STATE ROOM
Full beam owner’s stateroom with 2 X 2.1 M double bed. Fitted carpet and wood surround. Bed side
touch sensitive lights. Bed side cabinets. Vanity desk. Custom entertainment system with 52” LCD TV,
five flush mounted Sonance ceiling speakers, 1000W Sunfire powered subwoofer, iPod docking station,
and satellite receiver. Handheld wireless Crestron touch panel. Writing table. 1.4 M wideWindows with
electric curtains. Storage cabinets and drawers. Storm shutter with storage. Four drawers under the bed.
LED decorative and cabinetry lighting. Reading lights. Duralite lighting switches and sockets. Air
conditioning with control switch. Telephone point. Veneer, fabric and leather wall panels. Carpet flooring
with solid wood margin. French veneer cabinetry. Walk-in wardrobe area. Dedicated escape hatch in
wardrobe area.
OWNER’S ENSUITE
Jacuzzi with hydro-massage system and integrated lighting. Two Duravit wash basins. Marble vanity top.
Mirror. Black Portoro vanity counter with drawers and open shelves. Storage cabinets and drawers. LED
decorative and cabinetry lighting. Nano step lighting in shower room. Duralite lighting switches and
sockets. Shower room with etched glass door. Dornbracht hot and cold water shower mixer with
thermostatic controls. Sky shower. Electric toilet. Complete set of sanitary accessories. Extractor Fan. 1.4
M Windows with blinds. Yellow Onyx marble flooring with black absolute inlay work. Navona travertine
paneled walls and floor margins.
OWNER’S WALK-IN- CLOSET
Three full height wardrobe lockers and one chest of drawers. 1.4 meter wide window with curtain. Fitted
carpet (Japanese acrylic yarn) with solid walnut wood margins. Triptique three sided mirror. LED
decorative and cabinetry lighting. Duralite lighting switches and sockets. Shelves and drawers. Veneer,
fabric and leather wall panels.
GUEST LOBBY
Distribution between stairs from main deck and four guest cabins. Sub distribution panel. Excess storage
below stair case. Storage locker below distribution panel. Solid Maple Wood With Crema Marfil Marble
MarginsLED decorative and cabinetry lighting. Veneer, fabric and leather wall panels
VIP CABIN
Large double bed 3.90 X 3.30 m .Twin bed side tables with White Onyx marble top. Sofa and
writing/dressing table. Entertainment system with 40” LCD TV and receiver. 1.9 meter wide openable
oval porthole with roman and pleated blinds. Storm shutter with storage. Full height wardrobe closet.
Ample shelves and storage lockers both sides of the desk. Fitted carpet and wood surround. LED
decorative and cabinetry lighting. Touch sensitive reading lights. Duralite Lighting switches and sockets.
Air conditioning with control switch. Veneer, fabric and leather wall panels. Telephone point. Wireless
centralized PABX intercom and telephone system. Storage drawers under the bed and side panels.
VIP ENSUITE
Vanity locker with Black Portoro marble counter top with honeyomb backing. Duravit wash basin.
Storage locker with shelves. Mirror. Towel storage. Marble flooring and wall paneling throughout.
Complete set of sanitary accessories. LED decorative and cabinetry lighting. Vanity lighting. Nano step
lighting in shower room. Duralite lighting switches and sockets. Electric toilet and bidet. Etched glass
door to shower room. Shower room with Dornbracht mixer, sky shower, and shelf. Openable porthole
with pleated blinds. Specially handcrafted sanitary fixtures.
TWIN GUEST ROOM
Two 90cm single beds with under bed storage drawers and hidden service access hatches. Storm shutter
with storage. Bed side table with White Onyx marble top. Entertainment system with 26” LCD TV and
satellite receiver. Wardrobe. LED decorative and cabinetry lighting. Touch sensitive reading lights. Air
conditioning with control switch. Duralite lighting switches and sockets. Fitted carpet and wood surround.
Veneer, fabric and leather wall panels. Porthole with roman and pleated blinds. Excess side panel storage.
Telephone point.
TWIN GUEST ENSUITE
Vanity locker with Black Portoro marble counter top. Duravit wash basin. Storage locker with shelves.
Mirror. Towel storage. LED decorative and cabinetry lighting. Vanity lighting. Nano step lighting in
shower room. Duralite lighting switches and sockets. Electric toilet and bidet. Complete set of sanitary
accessories. Shower room with etched glass door, sky shower, and shelf. Porthole with pleated blind.
Marble flooring and wall panels throughout.
UPPER DECK LOBBY
Distribution between panoramic saloon, upper deck day head, pantry, wheel house, and stairs to the main
deck. Marble flooring (Yellow Onyx marble with Crema Marfil margins) . Central Audio/Video server
storage locker. Excess storage locker. LED decorative lighting. Led lighting to steps. Duralite lighting
switches and sockets. Veneer, fabric and leather wall panels. Hidden pantry with wash basin, counter top,
overhead storage and fridge.
PANORAMIC SALOON
Modular open seating for up to 12 persons. Panoramic views through large windows and sliding patio
door for alfresco dining. Shivakashi granite tops on coffee tables. Sofa side table with Shivakashi Granite
counter top. Solid maple wood floor with boarder. Integrated central audio/visual system, lighting and
curtains with Crestron wireless handheld controller. Wall mounted Crestron touch panel. Entertainment
system with 42” LCD TV, five flush mounted Sonance ceiling speakers, Sunfire subwoofer, and satellite
receiver. Bar counter with French parquet, marble top, sink, three bar stools, storage lockers for glass,
bottles, and excess, and drawers and fridge. LED decorative lighting. Duralite lighting switches and
sockets. Air conditioning with control switch. Veneer, fabric and leather wall panels. Electric curtains.
Roman and pleated blinds. Telephone point
RAISED WHEEL HOUSE
Spacious 4.3 by 4.8 meter helm with 270 degree panoramic view and direct access to deck through
pantograph door. Helm seat with fore, aft, height and lumber adjustment. Two person couch, desk and
chair. PABX intercom and telephone system. Comprehensive console with full instrumentation as well as
integrated alarm system monitoring over 80 alarms, dedicated power management system, Knob nut
system with dual redundancy. Zero speed stabilizer. Hidden service hatches. Air conditioning with control
switch. LED decorative lighting. Sonance ceiling speakers. Wall mounted Crestron touch panel. Sub
distribution panel.
CAPTAIN’S CABIN & ENSUITE
Large 4.2 by 2 meter cabin with double bed and under bed drawer. Attached to the wheelhouse. Fully
veneered. Fitted carpet. Telephone point. Black portoro marble finished bathroom. Marble counter top
locker. Storage lockers and shelves. Wardrobe. Windows with pleated blinds. 26” LCD TV. LED
decorative and cabinetry lighting. Reading lights. Duralite lighting switches and sockets. Air conditioning
with control switch. Duravit wash basin with Black Portoro marble vanity top. Electric toilet. Storage
lockers and wardrobe. Porthole with curtain. Mirror. Complete set of sanitary accessories. Extractor fan.
LED decorative and cabinetry lighting. Sky shower. Black Portoro marble flooring.
CREW GALLEY & LOUNGE
Separate galley and dining area for crew with their own fridge, freezer, washer/dryer, and microwave
oven. Corian counter top. Overhead and under counter storage lockers with shelves. Open shelves.
Stainless steel sink. Air conditioning with control switch. LED decorative lighting. Porthole with pleated
blinds. “U” shaped sofa seat and table. Storage lockers above the sofa. Fire proof Vinyl flooring (Riven
marble finish with Urethane coating). 32” LCD TV with Satellite receiver. Veneer, fabric and leather wall
panels. Vimar lighting switches and Sockets. Alarm monitoring system. Openable 450mm portholes on
both sides. Telephone point.
CREW CABINS & ENSUITES
Three cabins placed forward in the yacht, each with two beds, en-suite, and 32” LCD TV. Openable
450mm portholes on both sides with pleated blinds. Wardrobes. Air conditioning with control switch.
LED decorative lighting. Fire proof Vinyl flooring (Riven marble finish with Urethane coating). Alarm
monitoring system. Reading lights. Vimar lighting switches and sockets. Lockable water tight entrance
door to crew lounge. Veneer, fabric and leather wall panels. Vanity with corian counter top and sink.
Storage locker. LED decorative lighting. Mirror. Electric toilet. Sky shower. Complete set of sanitary
accessories. Vimar lighting switches and sockets
DECK FITTINGS
Side pantograph door on Port and Starboard side. Two hydraulic anchor windlass with hand controls.
Stainless steel bow guard and anchor pockets. Two 150 meter chains for anchors (U2 grade of 16mm
diameter). Two capstans and pop-up cleats located in aft cockpit. Four stainless cleats on bow. Two
stainless steel deck cleats on swim plat form. Eight hawser pipes. Two Anchors (138kg each). Deck hatch
access to chain locker. Fresh water deck wash outlets at forward, aft and upper deck and mid ship.
Stainless steel guard rails. Safety glass side windows and wind screen with stainless steel trims. Wind
screen wipers with fresh water washing system. Teak wood fitted on swim platform, cockpit and side
decks. Self draining fender baskets. Lighting around the side decks. Stainless steel guard railing at main
deck gunnel, and upper deck gunnel. Fuel and water fillers and black tank overboard discharge. Name
board with lighting. Stainless steel flagpole on upper deck aft. Twelve under water lights. Unique and
customized oval design handrails. 12 fenders.
UPPER DECK FORWARD SEATING
Waterproofed, 100% solution-dyed and soil resistant velvet sofa with storage underneath. Ten person
capacity seating with two round wooden tables.
MAIN DECK AFT COCKPIT & SWIM PLATFORM
Waterproofed, 100% solution-dyed and soil resistant velvet sofa and cockpit table with capacity for 10
persons. Cockpit lighting. Stainless steel handrails. Self Draining, stainless steel framed sliding door to
Saloon. Storage within aft seat molding. Integral stairway to upper deck with Teak treads. Stairs to swim
platform. Stairs to garage and engine room. Two marine grade outdoor speakers connected to main saloon
entertainment system. Two pop-up cleats and two capstans. Stainless steel transom doors with 125
signage. Port and starboard side bulwark doors at aft and mid ship. Fire damper pull cables. Emergency
fuel shutoff valve. Engine room fire cylinder pull cable. Fire hydrant and fire hose reel with nozzle. Deck
wash at forward. aft and upper deck. Television and telephone connections. 3-Phase, 125Amps dock side
connection with 30 meter length cable and cable master system. Fresh water input and outlet. Two pop-up
cleats on bathing platform. Multi purpose Transformer (used as passarella, submerged swim platform, or
tender lift). Hot/Cold water hand shower.
STERN GARAGE
Stern garage with hydraulic lifting door and housing one tender and two jet skis mounted on sliders.
Lockable gas and water tight door to engine room. Stairs to side deck. Diving suits and cylinders. Diving
compressor. Power steering pack. Trim tab hydraulic pump. Transformer hydraulic pump. Fire hydrant
valve with hose reel and nozzle. Portholes port and starboard. Storage locker. Fluorescent ceiling lighting.
Shore power connection box (200Amp, 415V, 3PN, 50Hz). Garage door control box. Washer/Dryer. Sink
and tap with hot and cold water supply. Two 67 liter capacity water heaters. Shore power cable and drum.
Battery charger. Telescoping ceiling crane with 500kg capacity. Access to engine room.
UPPER DECK COCKPIT
Plentiful lounge seating surrounding the cockpit upholstered in waterproofed, 100% solution-dyed and
soil resistant velvet. Retractable electric sun shader. Stainless steel railing all round. Two liferafts (16
person capacity each). Outdoor dining table with seating for ten. Entertainment system with 32” LCD TV,
flush mounted Rockford ceiling speakers and subwoofer, and satellite receiver. Teak decking. Corian
counter top, sink, fridge and Ice maker.
FLYBRIDGE
Seating capacity for 15 persons, additional sunpads and 6 person Jacuzzi. Stainless steel framed wind
deflector screen. Fiberglass hard top with under side lighting. Custom-designed entertainment system
with waterproof TV with integrated audio/visual system, four flush mounted Rockford marine grade
speakers and two subwoofers. Handheld Crestron wireless touch panel. Excess storage space under
sunpads. External LED flood lightings. Fully-fitted wet bar with corian top, sink, fridge, ice maker.
Dining table with “U” shaped sofa seating. Port and starboard side sofa seats and tables facing the helm.
All seating upholstered with waterproofed, 100% solution-dyed and soil resistant velvet. Electric
barbeque. Storage under the sofa seats. Port and starboard side navigation lights. MF/HF Radio antenna.
FLYBRIDGE HELM
Helm seat with fore and aft adjustment system. Instruments console with engine instruments and fuel
gauges. Dual stations instruments and controls at flybridge helm. Steering wheel. Engine throttle. Trim
tab gauge. Two navigation displays. Port and starboard side engine RPM gauges. Rudder angle gauge.
Wind displays. Auto pilot. Port and starboard side engine controls. Bow thruster control. Windlass
controls. Trim tab switches. Light switches. VHF Radio and hand set. Two MCU 001 Key board controls.
MAST
Platform for radar and aerials. Lightning arrestor. Anchor light. Mast head light. Sailor telephone. Two
GPS Antennas. FAX 30 (2.6M Whip antenna). MF/HF Radio (2.6M Whip antenna). Two VHF Antenna.
Satellite compass. FWD Search light. Not Under Command light 1. Not Under Command light 2. Flir
camera. Pan tilt camera. AFT Search light. Open array 4kw scanner. Open array 6kw scanner. Thuraya
satellite phone. NX 7H Antenna. GVA- 100 combine antenna (AIS). Satellite TV.
ENGINE ROOM
Twin MTU 16V 2000 M93 2400HP, 2450RPM. ZF Marine gearboxes with 2.52:1 reduction ratio. Two
generators (80kW, 50Hz, 3-phase, 380V) with synchronization and load sharing system. Stabilizers
system with PTO pumps driven from each gear box. Hydraulic pumps for stabilizer/bow thruster and
Anchor winch. Oil exchange system for engines/gearboxes/generators. Intakes for air circulation. Two
extractor fans. Temperature sensor on exhaust jackets. Flexible mountings for generators/engines.
Engines/Generators equipped with water-injected exhaust pipes. Fire extinguishing system is installed
with necessary nozzles. Siren is operating automatically when fire alarm is activated. Light work bench is
installed in engine room. Vice of Forged steel. Storage space for spare parts list. Flooring system is rattle
free. Stainless steel guard railings fitted around the main engines. Fluorescent lights. Fresh lube oil
storage tank of 120 Gallons. Dirty lube oil storage tank of 120 gallons. Bilge alarm system. Camera
monitoring system. Water cooling system for generators/engines. Sewerage treatment plant. Fuel transfer
manifold. Port and starboard side chillers control boxes. Two water makers with 1800 liters per day
capacity. Horn compressor. Fuel drain manifold. Battery bank and battery bank key switch panel. Lube
oil manifold. Chlorine tank. Two battery chargers. Two oil/water separator filters. Two commercial
prefilters. Water maker control panel. Fuel centrifuge (maximum 2000 liters per hour, 3 bar operating
pressure). Port and starboard oil pressure, engine temperature. DC voltage. Engine hours gauges and
auto/manual engine controls. Port and starboard side exhaust fans (3- phase) with fan control boxes. Fresh
water inlet connection. Stern garage control boxes. Telephone point. Horn compressor relay box.
FUEL SYSTEM
Fuel capacity of 7,595 US gallons. Five Integrated fuel tanks and one integrated daytank. Isolation valves
to fuel manifold. All valves are ball type. All tanks provided with manholes and fill pipes, ventilation pipe
and connection pipes to manifold. Fuel shutoff valve. Fuel filters for engines/generators. Fuel manual
pump. Electric fuel transfers pump 380v/3-phase. Fuel lines are made of stainless steel. Fuel pipe
connections to engines/generators and auxiliary by flexible hoses
FIRE AND BILGE SYSTEM
Bilge alarm system. Fire line manifold system is installed in engine room. Mechanical pump with bypass
valves for fire purpose. Mechanical pump with bypass valves for bilge purpose. Hand operated bilge
pump with bypass valves for suction of the bilges in each water tight compartment. Automatic bilge
pumps fitted in each compartment (2,000GPH). Suction lines are connected to mechanical pump. Suction
lines are from: Double guest cabin, Rudder room bilge, Garage cabin starboard side, Garage cabin port
side, Manifold outlet, Bilge pump inlet, Bow thruster, Twin guest cabin. Engine room forward starboard
side, Engine room forward port side. Engine room bilge shutoff valve. Fresh water line is connected to
manifold for priming and cleaning. Fuel lines are CuNiFer/Stainless steel pipes. Alarm functions
monitored include: Bilge, General alarm, Day tank level high and low, Sewage tank level high, Fresh
water low level, Fuel oil storage tank low level, Fire alarm with schematic position indication.
FIRE EXITINGUISHING SYSTEM
Fire alarm with central monitoring in wheel house and smoke sensors in all cabins. Portable fire
extinguishers are installed in all cabins and FM 200 fire extinguishing system for engine room. Fire
hydrant outlets with fire hose and nozzles at main deck aft cockpit port side, main deck galley, upper deck
aft cockpit port side, forward area port side, lower deck stair case down side, and stern garage.
UNDERWATER GEAR
Direct shaft drive through tunnels. Two propellers (5-bladed, AB2 material) Two p-brackets. Two
Rudders. Two stainless steel tail shafts. Hydraulic 50 HP bow thruster. Stabilizing system. Seawater
strainers: 2 for main engines, 2 for generators. Two hydraulic trim tabs. Cathodic protection provided by
zinc anodes. All seacocks under the water line are grounded.
ELECTRICAL SYSTEM
Electrical system of the boat is 3-phase, 380/415V, 50Hz (limiting fluctuations in shore power voltage to
+/- 4%). Main shore power supplied by two generators (80kw), 3-phase dockside connection (125Amp)
with Cable master system. Telephone and television dockside connection. Power management and load
sharing protection system. Battery isolation switches. Two Batteries (24V, 200Amp) each for port and
starboard side engines, generator, service, machinery, and emergency bank. Batteries are charged by five
battery chargers. Service and Machinery battery charger 24V, 100Amp. Port and Starboard engine battery
charger 24V, 100Amp. Emergency battery charger 24V. 80Amp. Generator battery charger 24V, 30Amp.
MF/HF Radio battery charger 24V, 50Amp. Main switch board system equipped with magnetic
contactors. overload protection and short circuit protection. 380/415V panel is equipped with the
following apparatus for each generator: Volt meter with select switch, Watt meter, Frequency indicato,
Ampere meter with current transformers, Signal light on, Signal light alarm, Signal light disconnect. For
shore connections: Volt meter with select switch, Ampere meter with current transformers, Phase
sequence meter, Signal light connect, Signal light disconnect, Signal light shore energized. For 24V
system: Voltmeter for general service battery, Voltmeter with change over switch for the starting
batteries, Ampere meter, Outgoing circuits protected by circuit breakers. All motors are 220V, single
phase and 380/415V, 3-phase, 50 Hz. All cables are color coded. Protection to the phase line sequence.
Secondary distribution panels are placed at: Main deck (Pantry), Lower deck (Lobby), Wheel house (AC
panel), Wheel house (Navigation DC panel). Main panel in wheelhouse contain following: Navigation
lights, Deck lighting, Navigation equipment. All the lighting systems are 2-pole installed 24V DC and
220V AC. 220V AC power outlets in all cabins. Navigation lights according to international regulations.
Emergency lighting for all cabins.
SANITARY SYSTEM
Tecma toilet system with 24V DC pump discharging to black water tank. Black water tank with level
indication at monitoring panel. Manual tank over board discharge. Washbasins and showers draining to
main grey water tank. Air conditioning units draining to grey water tank. Grey and Black water tank with
automatic/manual pump out and tank full warning light at monitoring panel. Grey and Black water pumps
are 380/415V, 3-phase.
FRESH WATER AND HOT WATER SYSTEM
Two fresh water pumps (230V, 50Hz). Pressurized hot and cold water system. Four Marine standard
electric water heaters (67 liter capacity each). Water heated by 240V immersion heater. GF piping
throughout supplying all outlets. Filling and ventilations to side deck. Filters are installed at suctions
side. Dock connection for shore water supply on aft swimming platform with pressure reducer. One
handheld shower with hot and cold water supply on swimming platform. Two water makers with 1,800
liters per day capacity, 380/415V, 3 phase, 50 Hz.
AIR CONDITIONING
Chilled water type air conditioning system with 400,000 BTU capacity. All compressors on 380/415V
and handlers on 220V. Two seawater pumps and strainers for chillers. Two chiller water pumps. All
plumbing lines are PVC pipes. All plumbing lines are well insulated. Chillers cooling pipe lines are made
of CuNiFer/stainless steel. A/C remote control unit in all cabins. A/C blowers are installed in all cabins.
Cooling capacity of 16,000 BTU each in the VIP guest cabins, and twin guest cabins. 24,000 BTU in the
port side of the engine room. Forward crew area port and starboard side each 16,000BTU. Forward crew
cabin number 1 and number 2 each with 7,0000 BTU. Crew cabin number 3 with 16,000 BTU. Galley
16,000 BTU and 12,000 BTU. Main Saloon supplied by five A/C units of 16,000 BTU capacity each.
Owner’s office supply with 16,000 BTU. Panoramic Saloon port side with 24000BTU. Panoramic saloon
starboard side with 24,000 BTU. Upper deck day head ceiling area with 12,000 BTU. Upper deck captain
cabin with 10,000 BTU. Wheel house electrical room and ceiling area each with 24,000 BTU. Owner
cabin starboard side with 16,000 BTU. Owner cabin port side with 16,000 BTU and 7,000 BTU.
MACHINERY SYSTEM
In addition to above mentioned machinery: Dedicated filling station for fuel with dual access for fast
filling. Alpha-Laval fuel treatment plant. Dedicated independent hydraulic pump for the independent
hydraulic steering system. Redundant air conditioning chiller system port and starboard. Central hydraulic
system for bow thruster, stabilizer and anchor windlasses with backup electric power plant.
SAFETY AND OTHER ITEMS
24 Solas Life jackets for adults and children. Six Life rings. Two life rafts (16 persons each). Two first aid
kits. Two fire blankets. Mooring lines. Two boat hooks. Owner’s manuals.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
