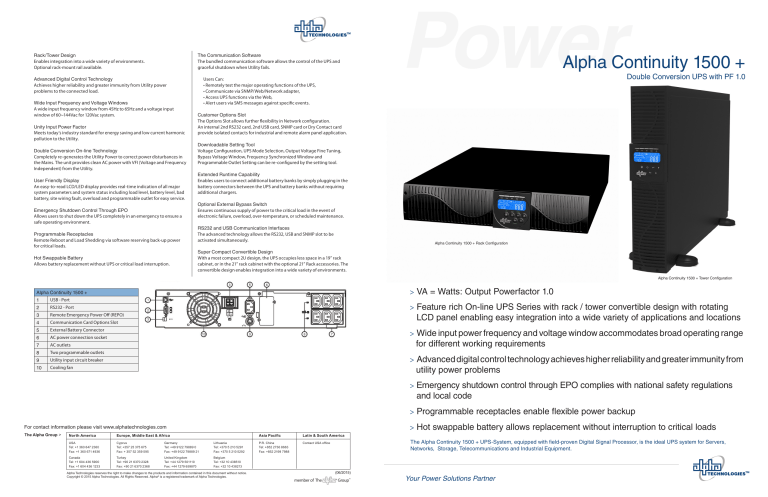

Alpha Continuity 1500 +
Rack/Tower Design
Enables integration into a wide variety of environments.
Optional rack-mount rail available.
Alpha Continuity 1500 +
The Communication Software
The bundled communication software allows the control of the UPS and
graceful shutdown when Utility fails.
Wide Input Frequency and Voltage Windows
A wide input frequency window from 45Hz to 65Hz and a voltage input
window of 60~144Vac for 120Vac system.
Unity Input Power Factor
Meets today’s industry standard for energy saving and low current harmonic
pollution to the Utility.
Double Conversion On-line Technology
Completely re-generates the Utility Power to correct power disturbances in
the Mains. The unit provides clean AC power with VFI (Voltage and Frequency
Independent) from the Utility.
User Friendly Display
An easy-to-read LCD/LED display provides real-time indication of all major
system parameters and system status including load level, battery level, bad
battery, site wiring fault, overload and programmable outlet for easy service.
Emergency Shutdown Control Through EPO
Allows users to shut down the UPS completely in an emergency to ensure a
safe operating environment.
Programmable Receptacles
Remote Reboot and Load Shedding via software reserving back-up power
for critical loads.
Hot Swappable Battery
Allows battery replacement without UPS or critical load interruption.
Double Conversion UPS with PF 1.0
Users Can:
• Remotely test the major operating functions of the UPS,
• Communicate via SNMP/Web/Network adapter,
• Access UPS functions via the Web,
• Alert users via SMS messages against specific events.
Advanced Digital Control Technology
Achieves higher reliability and greater immunity from Utility power
problems to the connected load.
Customer Options Slot
The Options Slot allows further flexibility in Network configuration.
An internal 2nd RS232 card, 2nd USB card, SNMP card or Dry Contact card
provide isolated contacts for industrial and remote alarm panel application.
Downloadable Setting Tool
Voltage Configuration, UPS Mode Selection, Output Voltage Fine Tuning,
Bypass Voltage Window, Frequency Synchronized Window and
Programmable Outlet Setting can be re-configured by the setting tool.
Extended Runtime Capability
Enables users to connect additional battery banks by simply plugging in the
battery connectors between the UPS and battery banks without requiring
additional chargers.
Optional External Bypass Switch
Ensures continuous supply of power to the critical load in the event of
electronic failure, overload, over-temperature, or scheduled maintenance.
RS232 and USB Communication Interfaces
The advanced technology allows the RS232, USB and SNMP slot to be
activated simultaneously.
Alpha Continuity 1500 + Rack Configuration
Super Compact Convertible Design
With a most compact 2U design, the UPS occupies less space in a 19” rack
cabinet, or in the 21” rack cabinet with the optional 21” Rack accessories. The
convertible design enables integration into a wide variety of environments.
Alpha Continuity 1500 + Tower Configuration
> VA = Watts: Output Powerfactor 1.0
Alpha Continuity 1500 +
1
USB - Port
2
RS232 - Port
3
Remote Emergency Power Off (REPO)
4
Communication Card Options Slot
5
External Battery Connector
6
AC power connection socket
7
AC outlets
8
Two programmable outlets
9
Utility input circuit breaker
10
Cooling fan
> Feature rich On-line UPS Series with rack / tower convertible design with rotating
LCD panel enabling easy integration into a wide variety of applications and locations
> Wide input power frequency and voltage window accommodates broad operating range
for different working requirements
> Advanced digital control technology achieves higher reliability and greater immunity from
utility power problems
> Emergency shutdown control through EPO complies with national safety regulations
and local code
> Programmable receptacles enable flexible power backup
> Hot swappable battery allows replacement without interruption to critical loads
For contact information please visit www.alphatechnologies.com
The Alpha Group >
North America
Europe, Middle East & Africa
USA
Tel: +1 360 647 2360
Fax: +1 360 671 4936
Cyprus
Tel: +357 25 375 675
Fax: + 357 52 359 595
Germany
Tel: +49 9122 79889 0
Fax: +49 9122 79889 21
Lithuania
Tel: +370 5 210 5291
Fax: +370 5 210 5292
Canada
Tel: +1 604 436 5900
Fax: +1 604 436 1233
Turkey
Tel: +90 21 6370 2328
Fax: +90 21 6370 2368
United Kingdom
Tel: +44 1279 501110
Fax: +44 1279 659870
Belgium
Tel: +32 10 438510
Fax: +32 10 438213
Alpha Technologies reserves the right to make changes to the products and information contained in this document without notice.
Copyright © 2015 Alpha Technologies. All Rights Reserved. Alpha® is a registered trademark of Alpha Technologies.
Asia Pacific
Latin & South America
P.R. China
Tel: +852 2736 8663
Fax: +852 2199 7988
Contact USA office
The Alpha Continuity 1500 + UPS-System, equipped with field-proven Digital Signal Processor, is the ideal UPS system for Servers,
Networks, Storage, Telecommunications and Industrial Equipment.
(06/2015)
member of The
Group™
Your Power Solutions Partner
Alpha Continuity 1500 +
Specifications
Model
Model
Alarms
Continuity 1500 +
Input
160 - 280Vac
Voltage Window
50/60+/-5% (Auto Sensing)
Frequency
Single, Line + Neutral + Ground
Phase/Wire
>0.99 (Full Load)
Power Factor
200/208/220/240Vac
Voltage
Voltage Regulation
Capacity
Frequency Regulation
Transfer Time
Computer Interface
Standard RS232 and USB Interfaces
Communication Slots
Relay contact board or SNMP card
0 m sec
Agency Compliance
ISO9001 Certified Company
Quality Assurance
EN62040-3 complied
Safety Standard
EN62040-3 complied
Performance
EN62040-2, EN61000-3-2, EN61000-3-3, FCC Class A
EMC Standard
CE, FCC
Marks
Sealed Lead Acid Maintenance Free
Capacity
7Ah
Quantity
4
Voltage
48Vdc
4 hours to 90%
Recharge Time
1,5A
Built-in Charger (max. Charging Current)
Display
Battery Pack
Model
BP Continuity 1500 +
9Ah
Battery Type
8 (2 strings)
Maximum Quantity
48Vdc
Output Voltage
25kg
Weight With Batteries
LED
Normal, Battery, Bypass, Programmable Outlet 1, Programmable Outlet 2, Self-Test, Battery Weak & Bad,
Site Wiring Fault , Fault, Overload, and Load/Battery Level conditions.
Key
On button / Off button (Test / Alarm silence button)
Upon Power On and Software Control
Self-Diagnostics
Protection
Your Power Solutions Partner
<50dB (at 1 meter)
Noise
Interface Type
Yes
Type
Noise Suppression
0-40°C
Operating Temperature
3Hz or 1Hz (Setting by software)
Battery
Battery
18kg
Net Weight
90% RH Maximum, Non-Condensing
3min at 100% (1500W) load / 4min at 80% (1200W) load
DC Start
EPO
6 x IEC320-C13
Humidity
up to 92%
Efficiency
Battery Low
440W x 88H x 475D
1500VA/1500W
3:1
Crest Factor
Overheat
mm
Outlets 230Vac
0~2000m up to 40°C , 3000m up to 35°C
±0.1% unless synchronized to line
Frequency Stability
Short Circuit
Dimensions
Altitude
Sine Wave, THD<3% (no load to full load)
Wave Form
Bypass Mode
Mechanical
<±0.1% until low battery warning
1.0
Power Factor
Overload AC Mode
& Backup Mode
(delay before switching to bypass)
Line Failure, Battery Low, Overload, System Fault Conditions
Audible and Visual
Environment
Output
Autonomy (Built-in Battery)
Continuity 1500 +
<105% continuously.
>106%~120% for 30 seconds transfer to bypass
>121%~150% for 10 seconds transfer to bypass
>150% immediately transfer to bypass
Buzzer continuously alarms
<105% continuously.
>106%~120% for 250 seconds shut down
>121%~130% for 125 seconds shut down
>131%~135% for 50 seconds shut down
>136%~145% for 20 seconds shut down
>146%~148% for 5 seconds shut down
>149%~157% for 2 seconds shut down
>158%~176% for 1 seconds shut down
>177%~187% for 0.32 seconds shut down
>188% for 0.16 seconds shut down
Buzzer continuously alarms
Hold Whole System
AC Mode: Switch to Bypass; Backup Mode: UPS shuts down immediately
Alarm and Switch Off
UPS shuts down immediately
Advanced Battery Discharge Management (ABDM)
300 Joules
Dimensions
mm
Battery Charger
(Specifications are subject to change without prior notice)
440W x 88H x 650D
External Charger 200W / 3A (optional)
