Canon POWERSHOT A620, A610, POWERSHOT A610 Owner's manual

Canon POWERSHOT A620, A610, POWERSHOT A610 Owner's manual
Wide Converter
Conversion Lens Adapter
Supplied with Camera
Interface Cable IFC-400PCU*1
High-Power Flash
Wrist Strap
SD Memory Card
PowerShot A620: SDC-32M
PowerShot A610: SDC-16M
USB Card
Compact Photo Printer*3
(SELPHY CP series)
Canon Digital Camera
Solution Disk
AA Alkaline
Batteries (x4)
Direct Interface
Direct Print Compatible
Bubble Jet Printer (PIXMA
series/SELPHY DS series)
AV Cable AVC-DC300*1
Soft Case
Battery and Charger Kit
USB Port
AC Adapter Kit
• Windows
• Macintosh
SD Memory Card*4
• SDC-128M
• SDC-512MSH
Waterproof Case
Waterproof Case
Weight WW-DC1
PC Card
• Battery Charger CB-4AH/
• AA-size NiMH batteries NB-2AH
• NiMH Battery NB4-200 (set of 4
AA-size) also available separately
*1 Also available for purchase separately.
*2 See the user guide supplied with the Bubble Jet printer for
more information on the printer and interface cables.
*3 This camera can also be connected to the Card Photo
Printer CP-10/CP-100/CP-200/CP-300.
*4 Not sold in some regions.
Video In Terminal
• Compact Power Adapter CA-PS500
• Power Cord
Audio In Terminal
© 2005 CANON INC.
Confirming the Package Contents
Optional Accessories
Direct Print Compatible Printers
Your camera package includes all of the following
items. If any of these items are missing, please
contact the dealer for assistance.
The following camera accessories are sold separately. Some accessories are not sold in some regions.
● Conversion Lens Adapter LA-DC58F
Digital Camera
Wrist Strap WS-200
AA Alkaline Batteries (x4)
SD Memory Card
PowerShot A620: SDC-32M
PowerShot A610: SDC-16M
Interface Cable IFC-400PCU
AV Cable AVC-DC300
Canon Digital Camera Solution Disk
Basic Camera User Guide
Advanced Camera User Guide
Direct Print User Guide
Software Starter Guide

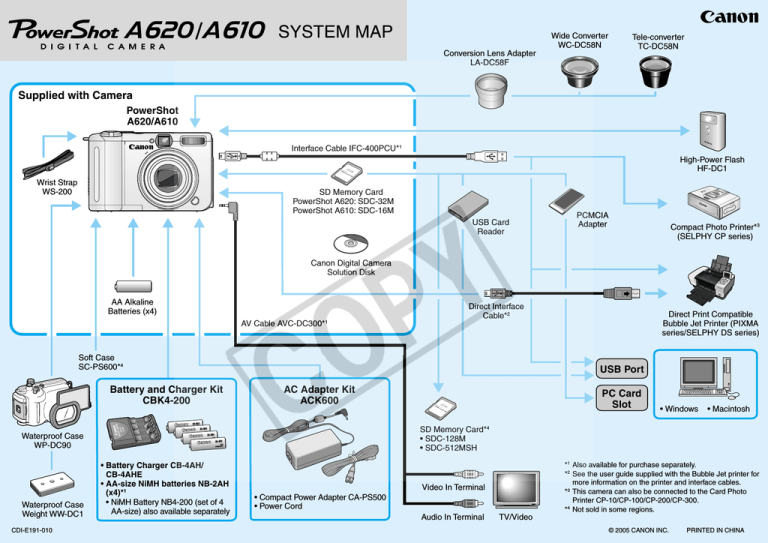

System Map (this sheet)
Warranty Card
“For Windows® XP and Mac OS X Users”
“Canon Customer Support” Leaflet
Lenses, Lens Adapter
This adapter is required for mounting the
wide converter and tele-converter to the
● Wide Converter WC-DC58N
Converts the focal distance of the body lens
by a factor of approximately 0.7 (35mm film
equivalent at maximum wide angle:
approximately 25 mm) when attached.
● Tele-converter TC-DC58N
Converts the focal distance of the body lens
by a factor of approximately 1.75 (35mm film
equivalent at maximum telephoto:
approximately 245 mm) when attached.
Connection Accessory
This connection accessory can be used with
computers equipped with genuine built-in USB
interfaces and running the following operating
Windows: Systems running preinstalled Windows 98
Second Edition (SE), Windows Me,
Windows 2000 Service Pack 4, or Windows
XP (including Service Pack 1 and Service
Pack 2)
Macintosh: Mac OS X (v10.2 – v10.3)
● Interface Cable IFC-400PCU
Use this cable to connect the camera to a
computer, Compact Photo Printer (SELPHY
series) or to a Bubble Jet printer (refer to
your Bubble Jet printer user guide).
● High-Power Flash HF-DC1
This attachable supplementary flash can be
used to capture the photographic subjects
that are too distant for the built-in flash to
Power Supplies
● AC Adapter Kit ACK600
This kit lets you power the camera from any
standard household power outlet.
Recommended to power a camera for an
extended period of time or when connecting
to a computer.
● Battery and Charger Kit CBK4-200
This dedicated battery charger kit includes
both a charger unit and four rechargeable
AA-size NiMH (nickel metal hydride)
batteries. Convenient when taking or playing
back large numbers of images.
● NiMH Battery NB4-200
A set of four rechargeable AA-size NiMH
Other Accessories
● SD Memory Card
SD memory cards are used to store images
recorded by the camera. Canon brand cards
are available in 128 MB and 512 MB
● AV Cable AVC-DC300
Use this cable to connect the camera to a TV
● Waterproof Case WP-DC90
You can use this case to take underwater
shots at depths of up to 40 meters (130 feet),
and of course it’s ideal for taking worry-free
pictures in the rain, at the beach, or on the
ski slopes.
● Soft Case SC-PS600
Protects the camera from dust and
Canon offers the following separately sold
printers for use with the camera. You can
produce photo quality prints quickly and easily
by connecting them to the camera with a single
cable and operating the camera’s controls.
● Compact Photo Printers
(SELPHY series)
● Bubble Jet Printers
For more information, visit your nearest Canon
