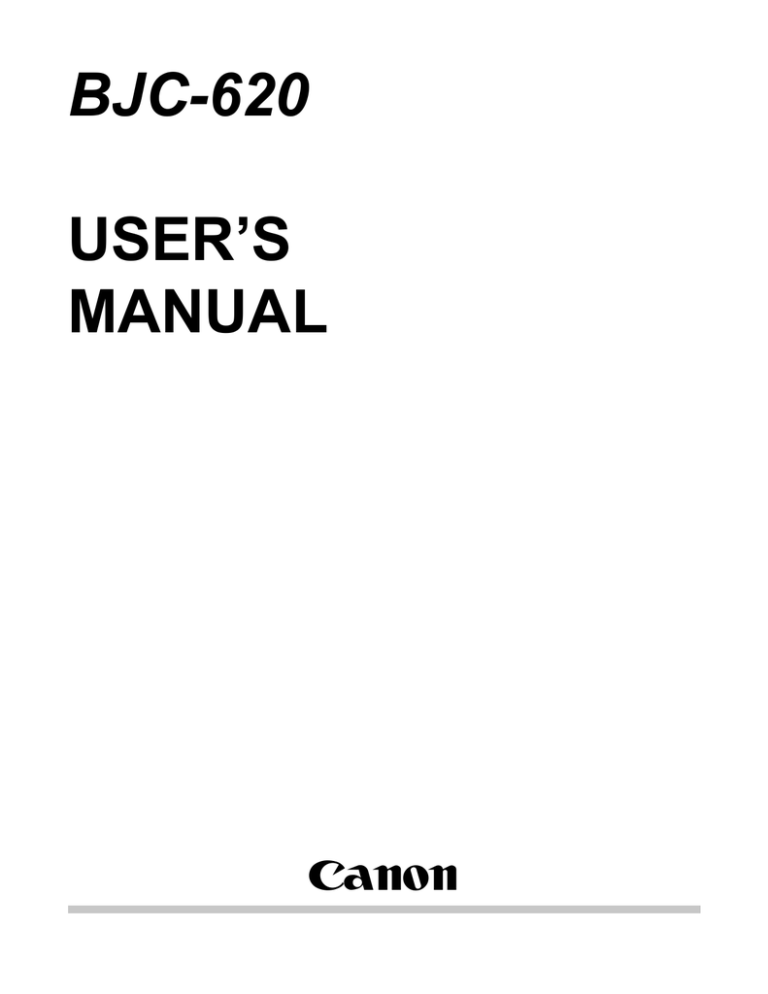

BJC-620
USER’S
MANUAL
Canon
BJC-620 Table of Contents
1–1
1–2
1–2
1–2
1–3
1–4
1.
Introduction
Supplies and Accessories
Ink Tanks
Canon Specialty Papers
Getting Help From Canon
Servicing the Printer
2.
Using the Microsoft Windows Printing System
Understanding the Microsoft Windows Printing System
Checking the Computer Requirements
Printing With the Microsoft Printing System
Using On-Line Help
Using the Microsoft Windows Printing System Program Group
The Microsoft Windows Printing System Dialog Boxes
Opening the Microsoft Windows Printing System Dialog Boxes
Overview of the Microsoft Windows Printing System
Microsoft Windows 95
Microsoft Windows 3.1 or Microsoft Windows for Workgroups 3.1
Checking the Status of a Print Job
Using the Status Window
Opening the Status Window
Using the Toolbar
Using the Status Window as an Icon
Messages Displayed in the Status Window
Customizing the Status Window
Customizing Display Options
Maintaining the Printer From the Status Window
The Printer Options Dialog Box
2–1
2–2
2–2
2–3
2–4
2–5
2–6
2–6
2–8
2–8
2 – 11
2 – 13
2 – 14
2 – 14
2 – 15
2 – 15
2 – 17
2 – 18
2 – 18
2 – 19
2 – 20
3.
Paper Handling
Selecting Paper Types
Paper Guidelines
Before Loading Paper
Setting the Paper Thickness Lever
Setting the Paper Selection Lever and the Paper Support
Printer Settings for Various Print Media
Automatically Feeding Paper
Auto Feed Guidelines
Manually Feeding Paper
Printing on Envelopes
Preparing Your Software
Loading Envelopes
Using Canon Specialty Paper
3–1
3–2
3–4
3–5
3–5
3–6
3–8
3–9
3 – 13
3 – 15
3 – 18
3 – 18
3 – 19
3 – 22
Canon’s High Resolution Paper HR-101
Fabric Sheets FS-101
3 – 22
3 – 24
4.
Maintaining the Printer
Printer Guidelines
Cleaning the Printer
Cleaning the Print Head Unit
Using the Microsoft Windows Printing System
Using the Operator Panel
Ink Tank Guidelines
Replacing an Ink Tank
Replacing the Print Head Unit
Print Head Unit Guidelines
Removing the Used Print Head Unit
Installing a New Print Head Unit
Transporting the Printer
4–1
4–1
4–3
4–4
4–5
4–5
4–7
4–8
4 – 12
4 – 12
4 – 13
4 – 14
4 – 18
5.
Troubleshooting
Using Canon’s Support Services
Identifying Your Printer Problem
General Problems
Initialization Errors
Clearing Paper Jams
Ink Problems
Ink Tanks Continually Run Out of Ink
Ink Tank Incorrectly Installed
Troubleshooting the Microsoft Windows Printing System
Technical Notes
Bios Setups for Various Systems
5–1
5–1
5–2
5–3
5–3
5–5
5–6
5–6
5–7
5–7
5 – 11
5 – 11
Appendix
Specifications
A
Appendix
Using the BJC-620 in a Network Environment
B
Glossary
Index
FCC Regulations
Warranty
A–1
B–1
G–1
I–1
FCC –
1
W–1
,QWURGXFWLRQ
Congratulations on your purchase of the Canon BJC-620 Color Bubble Jet Printer. We appreciate
your choosing this printer to meet your printing needs.
Your printer features the Microsoft Windows Printing System, which makes printing from
Microsoft Windows faster and easier than ever before. With the Microsoft Windows Printing
System, your printer is able to print faster than traditional approaches. As soon as the Microsoft
Windows Printing System accepts a document for printing, you can return to your application.
You receive instant notification of printer information and you can see the printer's status on your
computer screen.
The BJC-620 offers exceptionally high print quality and fast print speed using both color and
black inks. We are certain you will be satisfied with its advanced Bubble Jet technology.
This chapter:
z Lists the supplies and accessories you can purchase for the printer
z Describes Canon's customer support services
,QWURGXFWLRQ
Chapter 1
6XSSOLHV DQG $FFHVVRULHV
Your BJC-620 printer supports excellent and unique print media options that will allow
you to produce dazzling, professional, and fun presentations. All of these print media
are specially designed and manufactured to work with your Canon color printer so you
can produce the finest output possible.
Canon has an extensive dealer network equipped to offer you supplies as you need
them. To find a dealer near you, call the Canon Referral Service at 1-800-848-4123.
If supplies are not available from your local dealer, you can order directly from Canon
by calling 1-800-671-1090.
,QN 7DQNV
Your BJC-620 comes with the following ink tanks:
z Canon Ink Tank BJI-201 Bk HC (black, high capacity)
z Canon Ink Tank BJI-201 C (cyan)
z Canon Ink Tank BJI-201 M (magenta)
z Canon Ink Tank BJI-201 Y (yellow)
&DQRQ 6SHFLDOW\ 3DSHU
Canon manufactures various specialty papers, including:
z Bubble Jet Paper LC-301 (water resistant)
z Coated Paper LC-101
z High Resolution Paper HR-101
z Transparency CF-102
z Back Print Film BF-102
z High Gloss Film HG-101
z Fabric Sheet FS-101
z T-Shirt Tranfers TR-101
z Greeting Cards GC-101
z Brochure Paper BP-101
See Chapter 3, Paper Handling, for details on Canon's specialty papers.
,QWURGXFWLRQ
Chapter 1
*HWWLQJ +HOS )URP &DQRQ
Canon provides experienced support personnel to help you in every way
2QOLQH 6XSSRUW 6HUYLFHV
You can easily contact Canon on the World Wide Web. Our address is:
http://www.ccsi.canon.com
Canon provides a bulletin board service (BBS), which is useful for obtaining newly
developed third-party drivers. Call 1-757-420-2000. The protocol for the BBS is up to
28,800 bps, eight data bits, one stop bit, and no parity.
If you use CompuServe®, You can access the Canon Peripherals Forum. This allows
you to talk with other users, send a message to Canon, or download printer drivers.
Just type GO CANON at any CompuServe prompt.
z If you have a modem, you can connect to Canon through the Web, its BBS, or
Compuserve. Through these on-line services, you can retrieve general
information about specific products.
z If you are looking for information about any Canon printer driver for a unique
situation, you can contact one of the Canon on-line services.
z You can retrieve information from the on-line services at any hour of the day or
night.
)D[ 5HWULHYDO 6\VWHP
Canon provides a 24-hour, toll-free Fax Retrieval System. You can use this service to
get helpful documents faxed directly to your fax machine. These documents contain
useful information to assist you in the operation of your Canon printer. To access this
service, call 1-800-526-4345.
z One of the first things you may want to do after setting up your printer is call the
Canon Fax Retrieval System and request an index of the documents available to
you through this service. Documents will be faxed directly to your fax machine.
z The Fax Retrieval System offers up-to-date information about specific products.
By reviewing the index, you can determine what information would be beneficial
to your installation.
,QWURGXFWLRQ Chapter 1
&XVWRPHU &DUH &HQWHU
Canon provides customer support and service for all Canon printer products. If you
have any questions regarding your new printer, call the Canon Computer Systems
Customer Care Center at 1-800-423-2366. Support is available from 6 A.M. to 12
MIDNIGHT Eastern Standard Time. (EST) Seven days a week except holidays.
z If you seem to have an operational problem, try to solve it by using the Super
Solver. If you cannot quickly resume normal operation, contact Canon's
experienced support personnel at the Customer Care Center.
6HUYLFLQJ WKH 3ULQWHU
The Canon BJC-620 Color Bubble Jet Printer is designed with the latest technology to
provide trouble-free operation. The warranty information at the back of the manual
describes Canon's limited one-year warranty for its Bubble Jet printers. Be sure to read
the warranty information to find out about the different service options available to
you.
Save your sales receipt for proof of purchase. In the event that your printer needs
service, you will need your proof of purchase to obtain warranty service.
If you feel your BJC-620 Color Bubble Jet Printer needs servicing, contact Canon on
the World Wide Web to locate the Canon Authorized Service Facility (ASF) nearest
you or to find out about the exclusive Canon Instant Exchange warranty program. If
you do not have access to the Web, call the Customer Care Center.
,QWURGXFWLRQ
Chapter 1
8VLQJ WKH 0LFURVRIW
:LQGRZV 3ULQWLQJ
6\VWHP
This chapter introduces you to the Microsoft Windows Printing System
for the BJC-620. It includes:
z Understanding the Microsoft Windows Printing System
z Printing with the Microsoft Windows Printing System
z Using the Microsoft Windows Printing System program group
z The Microsoft Windows Printing System dialog boxes
z Overview of the Microsoft Windows Printing System
z Checking the status of a print job
z Using the Status Window
z Customizing display options
z Maintaining the printer from the Status Window
,QWURGXFWLRQ
Chapter 2
8QGHUVWDQGLQJ WKH 0LFURVRIW :LQGRZV
3ULQWLQJ 6\VWHP
The Microsoft Windows Printing System manages the communications between your
computer and printer. It divides the work between the two, helping the printer and
computer work together to optimize performance.
The Microsoft Windows Printing System processes documents from Microsoft Windows
applications faster than traditional methods, and lets you quickly see the status of your
print job. If you install the included sound files, your computer will actually tell you
verbally what your printer is doing.
&KHFNLQJ WKH &RPSXWHU 5HTXLUHPHQWV
Your Quick Start Guide describes how to install the Microsoft Windows Printing
System. To use the system, make sure your computer system has the following minimum
configuration:
z 386SX 16MHz personal computer
z 10 MB of physical and virtual memory combined, of which at least 4 MB must be
physical RAM
z VGA or super VGA color graphics monitor
z 6 MB of available disk space for full installation of Microsoft Windows Printing
System
z Microsoft Windows 95, Microsoft Windows 3.1, or Microsoft Windows for
Workgroups 3.1
z Parallel printer port with bi-directional communication capability
The printer may not print some pages at high resolution with the system above. In this
case, the following are suggested.
z 486SX 25MHz personal computer
z 16 MB of physical and virtual memory combined, of which at least 8 MB must be
physical RAM
You need a sound card to play sounds with the Microsoft Windows Printing System
messages.
8VLQJ WKH 0LFURVRIW :LQGRZV 3ULQWLQJ 6\VWHP
Chapter 2
3ULQWLQJ :LWK WKH 0LFURVRIW :LQGRZV
3ULQWLQJ 6\VWHP
One-way communication from computer to printer has been the standard for years.
The Microsoft Windows Printing System offers dynamic two-way communication.
With the Microsoft Windows Printing System, your computer knows what your
printer is doing.
To take advantage of the dynamic two-way communication, one end of a bidirectional parallel cable connects to the printer and the other end connects directly
to your computer
You must use a bi-directional cable for proper operation. Also, your computer's
interface must have bi-directional capability. If your computer tells you that it cannot
find the BJC-620 printer, but the printer is plugged in, turned on, and connected to
the computer, see the Technical Notes starting on page 5-11.
Every time you print, the Microsoft Windows Printing System displays the Status
Window. This window shows you the paper moving through the printer, how long it
will take to print the document, and how much of the document has printed. From
the Status Window you can pause, resume, force, or delete the print job, print the
self test, or clean the print heads.
8VLQJ WKH 0LFURVRIW :LQGRZV
3ULQWLQJ 6\VWHP
Chapter 2
If a printing problem occurs, the Status Window automatically opens and tells you
what the problem is.
Before using the Microsoft Windows Printing System, make sure you have selected it
as your current Microsoft Windows printer driver. The Setup program makes the
Microsoft Windows Printing System the default printer driver. If you have not
changed drivers since running the Setup program, you are ready to print.
To verify that the Microsoft Windows Printing System is your printer driver, use the
Printers option in the Microsoft Windows Control Panel. The highlighted driver is the
current printer driver. Change drivers by clicking on the one you want.
8VLQJ 2QOLQH +HOS
The Microsoft Windows Printing System includes extensive on-line help that
describes the printer and its basic operation. You can get on-line help as follows.
0LFURVRIW :LQGRZV z In the Properties dialog box:
{ Use the right mouse button to click an item on the screen.
{ Click the ? button (on the upper right corner of the screen) and then click
an item.
{ Press F1.
Select Programs from the Start menu, then click on Canon BJC-620 Help in the
Microsoft Windows Printing System folder.
0LFURVRIW :LQGRZV z Choose the Help button or press F1 while in the Setup dialog box.
z Double-click on the Canon BJC-620 Help icon in the Microsoft Windows
Printing System group.
8VLQJ WKH 0LFURVRIW :LQGRZV
3ULQWLQJ 6\VWHP
Chapter 2
8VLQJ WKH 0LFURVRIW :LQGRZV 3ULQWLQJ
6\VWHP 3URJUDP *URXS
When you install the Microsoft Windows Printing System, you create the
Microsoft Windows Printing System program group, from which you can select
the following:
&DQRQ %-& ,QVWDOODWLRQ
Starts the installation program for the Microsoft Windows Printing
System. You can use this program to add features to the Microsoft
Windows Printing System that you did not originally install.
&DQRQ %-& 5HDG0H
Provides you with the latest information about using the Microsoft
Windows Printing System with your printer.
3ULQWHUV )ROGHU
Opens the BJC-620 Properties dialog boxes, which you can use to
set the printing options for Microsoft Windows 95.
&DQRQ %-& 6WDWXV :LQGRZ
Displays the Status Window so you can check the status of a print
job.
&DQRQ %-& +HOS
Selects the Canon BJC-620 Help file for the
Microsoft Windows Printing System.
3ULQWHU 6HWXS
Selects the Printer Setup dialog box, which
you can use to set the printing options in
Microsoft Windows 3.1 or Microsoft Windows for
Workgroups 3.1.
3ULQW 0DQDJHU
Selects the Microsoft Windows Print
Manager for Microsoft Windows 3.1 or
Microsoft Windows for Workgroups 3.1.
&DQRQ %-& 8QLQVWDOODWLRQ
Starts the program to uninstall the Microsoft
Windows Printing System.
8VLQJ WKH 0LFURVRIW :LQGRZV 3ULQWLQJ 6\VWHP
Chapter 2
)URP 0LFURVRIW :LQGRZV From the Microsoft Windows 95 Printer folder:
1. Click the Start button, point to Settings, and then click Printers.
2. Click the icon for the printer you are using.
3. On the File menu, click Properties to open the Properties dialog box.
)URP 0LFURVRIW :LQGRZV Use the Control Panel or Print Manager:
1. Open the Control Panel, then double-click on the Printers icon to open the
Printers dialog box. Or open the Print Manager, then choose the Printer
Setup... command from the Options menu to open the Printers dialog box.
You can open the Control Panel or the Print Manager by doubleclicking on the
Control Panel or Print Manager icons in the Main group of the Program
Manager.
2. In the Printers dialog boxes, make sure BJC-620 on LPTl is highlighted and
then choose the Setup... button to open the Setup dialog box.
You can open the Printer Setup dialog box, Print Manager, or Printers folder from
the Microsoft Windows Printing System group.
The way you get to the dialog boxes determines how long the printing options remain
in effect:
z If you start from an application's Print... command, your choices apply only to
that print job. The next time you print, you have to choose the print settings
again.
z If you start from an application's Print Setup... command, the application stores
your choices with the document.
z If you start from the Control Panel or Print Manager, the settings apply to all
Microsoft Windows applications and remain in effect until you change those
settings.
8VLQJ WKH 0LFURVRIW :LQGRZV
3ULQWLQJ 6\VWHP
Chapter 2
Many applications do not follow the above Microsoft Windows
guidelines. Until you are familiar with how your Microsoft Windows
application uses the Microsoft Windows Printing System settings, it's a
good idea to verify the settings each time you print.
2YHUYLHZ RI WKH 0LFURVRIW :LQGRZV
3ULQWLQJ 6\VWHP
The Microsoft Windows Printing System dialog boxes, where you
select printing options, differ depending on whether you are using
Microsoft Windows 95 or Microsoft Windows 3.1 or Microsoft
Windows for Workgroups 3.1.
0LFURVRIW :LQGRZV You select printing options with the following tabs.
z
*HQHUDO
Prints a test page and a separator page.
8VLQJ WKH 0LFURVRIW :LQGRZV 3ULQWLQJ 6\VWHP
Chapter 2
z
'HWDLOV
Specifies printer port settings and timeout settings.
z
&RSLHV 0HWKRGV
Specifies multiple copies, collated or not, and the print orientation.
8VLQJ WKH 0LFURVRIW :LQGRZV
3ULQWLQJ 6\VWHP
Chapter 2
z
6L]H 6RXUFH
Chooses the paper source and paper size.
z
*UDSKLFV &RORU
Chooses the paper source and paper size.
8VLQJ WKH 0LFURVRIW :LQGRZV 3ULQWLQJ 6\VWHP
Chapter 2
z
4XDOLW\
Chooses the resolution setting, print media, and print quality. The resolution
settings are Draft (180 x 180 dpi), Normal (360 x 360 dpi), and Best (720 x
720 dpi).
For detailed information on the Microsoft Windows Printing System
printer options settings, refer to the on-line help.
0LFURVRIW :LQGRZV RU 0LFURVRIW :LQGRZV IRU :RUNJURXSV You select printing options in the following dialog boxes.
z
3ULQWHU 6HWXS GLDORJ ER[
This is the first dialog box you open from your application
program. You can select multiple copies, collated or not collated,
paper orientation, paper source, and paper size.
8VLQJ WKH 0LFURVRIW :LQGRZV 3ULQWLQJ 6\VWHP
Chapter 2
You open the Quality and Graphics dialog boxes from the Printer Setup dialog box.
z 4XDOLW\ GLDORJ ER[
Selects media type. printer resolution, and print quality. The resolution
settings are Draft (180 x 180 dpi), Normal (360 x 360 dpi), and Best (720 x
720 dpi).
z *UDSKLFV GLDORJ ER[
Selects the haiftoning method, adjusts brightness. contrast, and saturation,
enables gray scale printing, and disables the Microsoft Windows Printing
System color matching
8VLQJ WKH 0LFURVRIW :LQGRZV 3ULQWLQJ 6\VWHP
Chapter 2
For detailed information on the Microsoft Windows Printing System printer options
settings, refer to the on-line Help by pressing the Help button or by pressing Fl.
z When your computer is connected to a network, you can also open the
Sharing tab.
z For optimum print quality when you select 720 x 720 dpi, choose Smooth
haiftoning from the Graphics dialog box or Graphics & Color tab. We also
recommend using Canon High Resolution Paper (HG-101).
&KHFNLQJ WKH 6WDWXV RI D 3ULQW -RE
With the Microsoft Windows Printing System, you can keep track of and control
your print jobs using the Status Window. It tells you exactly what is happening with
the current print job. You can use the Status Window to pause, resume, or delete
the current print job, and you can access on-line help for the Microsoft Windows
Printing System.
While you are working in the Status Window, remember that you can get on-line
help at any time by choosing commands from the Microsoft Windows Help menu or
by pressing Fl.
z When you install the Microsoft Windows Printing System into Microsoft
Windows 3.1 or Microsoft Windows for Workgroups 3.1, the Print Manager
helps you control and manage all print jobs in a queue for all printers installed
for Microsoft Windows.
z When your computer is connected to a network printer, the "Status Not
Available Network Printer" message always appears in the Status Window.
That is, you cannot check the status of the printer or control the printer,
except to print a test page. The Status Window for the network printer
appears on the network printer server, which is connected locally to the
printer.
8VLQJ WKH 0LFURVRIW :LQGRZV 3ULQWLQJ 6\VWHP
Chapter 2
8VLQJ WKH 6WDWXV :LQGRZ
The Status Window uses animated 3-D graphics to illustrate the printer and the
document being printed.
2SHQLQJ WKH 6WDWXV :LQGRZ
The Status Window opens automatically in the following cases:
z When you print with the Microsoft Windows Printing System-unless you
previously turned off the Display Printer Status While Printing option (see
page 2-18).
z When the Microsoft Windows Printing System encounters an alert that
requires your intervention before you continue printing (see page 2-17).
The Status Window always opens the way you left it last, either full size or as an
icon that indicates the general condition of the printer (printing, idle, and so on).
When you install the Microsoft Windows Printing System into Microsoft Windows
3.1 or Microsoft Windows for Workgroups 3.1, the Print Manager is enhanced and
you can open the Status Window by clicking the printer info button on the toolbar
in the Print Manager.
8VLQJ WKH 0LFURVRIW :LQGRZV 3ULQWLQJ 6\VWHP
Chapter 2
8VLQJ WKH 7RROEDU
The toolbar has six buttons:
3DXVH 3ULQWLQJ
To temporarily halt printing the current
document, click this button. The Microsoft
Windows Printing System finishes printing the
current page, but will not print the remaining
pages until you click the Resume Printing button.
5HVXPH 3ULQWLQJ
To continue printing after a pause, click this
button.
)RUFH 3ULQWLQJ
To force printing of the current print job, click
this button. The Microsoft Windows Printing
System forces printing on a paper size that is
different from the one originally selected for the
document.
&DQFHO 3ULQWLQJ
To cancel printing the current print job, click this
button.
3ULQW 7HVW 3DJH
To print the test page, click this button.
4XLFN &OHDQ
To clean the print head unit, click this button.
The printer performs Quick Cleaning. See
Chapter 4, Maintaining the Printei; for details.
8VLQJ WKH 6WDWXV :LQGRZ DV DQ ,FRQ
You can make the Status Window appear as an icon by clicking on the Minimize
button in the upper right corner of the window. The icon tells you all you want to
know about the print job.
A progress bar appears above the icon when a document is printing. When the job is
finished, the icon changes to show a stack of printed pages. Other icons indicate
when the printer is idle, when the Microsoft Windows Printing System has detected a
condition that requires either your eventual or immediate attention, and when the
status of the printer is not available.
8VLQJ WKH 0LFURVRIW :LQGRZV 3ULQWLQJ 6\VWHP
Chapter 2
3ULQWHU 5HDG\
When the printer is ready, the icon looks like it does during printing,
but without the progress bar.
3ULQWLQJ 'RQH
When the printing has finished, a stack of pages appears on the
printer.
3ULQWLQJ 3DXVHG
When printing is paused, the icon shows a II mark.
3ULQWHU :DUPLQJ 8S
When the printer is preparing for printing, the icon shows an
hourglass.
,QIRUPDWLRQ
When the Microsoft Windows Printing System has an information
message, the icon shows a large (i) and blinks to get your attention.
To read the text of the message, restore the Status Window to its full
size.
$WWHQWLRQ 5HTXLUHG
When the Status Window displays an alert, the window automatically
opens to its full size. You can, however, minimize the window to an
icon showing the exclamation mark (!) that identifies an alert.
Even if you minimize the alert, you will not be able to resume printing
until you take the action specified in the full-size window.
8VLQJ WKH 0LFURVRIW :LQGRZV 3ULQWLQJ 6\VWHP
Chapter 2
0HVVDJHV 'LVSOD\HG LQ WKH 6WDWXV :LQGRZ
The Microsoft Windows Printing System gives you complete
information about your print job and the printer itself. There are three
categories of messages:
Information messages notify you of a condition that does not
I require immediate action.
Alerts require your intervention before printing can proceed.
During operations such as print head cleaning, messages
inform you that the printer is preparing for printing. When
these messages appear, wait for a moment.
Other messages, such as Printer Ready, appear to keep you informed
about your printer.
The messages are easy to understand and the solution to the problem is
generally straightforward.
For on-line help, you can always press Fl or use the Help menu.
If you installed the sound files, the Microsoft Windows Printing System
accompanies each message with a distinctive sound or spoken message.
You can turn the sounds off by using the Display Options dialog box
(see the Customizing Display Options section on page 2-18).
8VLQJ WKH 0LFURVRIW :LQGRZV 3ULQWLQJ
6\VWHP
Chapter 2
&XVWRPL]LQJ WKH 6WDWXV :LQGRZ
The Status Window always displays job information. However, the
View menu allows you to set the four components (Toolbar, Printer
animation, Progress bar, and Status bar) to display in the Status
Window.
You cannot resize the Status Window, but you can make more room on
the screen by showing fewer components. For example, you could limit
the Status Window to the Toolbar and the Progress bar.
&XVWRPL]LQJ 'LVSOD\ 2SWLRQV
Use the Status Options dialog box to control when the Microsoft
Windows Printer System displays the Status Window and whether
sound accompanies each message.
8VLQJ WKH 0LFURVRIW :LQGRZV 3ULQWLQJ 6\VWHP
Chapter 2
z You can open the Status Options dialog box from the Option menu in the
Status Window.
z You can use the Microsoft Windows Control Panel to turn individual sounds
on or off.
z You can change display options even as a document prints, but the changed
settings will not take effect until the next print job.
0DLQWDLQLQJ WKH 3ULQWHU IURP WKH 6WDWXV :LQGRZ
You can perform the following operations for maintaining the printer
from the Status Window:
z 3ULQW D 7HVW 3DJH
You can print the same test page as that printed out when
installing the Microsoft Windows Printing System. You can check
the printer and software operation by printing a test page. You
can also check the condition of the print head.
Since the test page is printed with the currently selected printing
options, such as Dots Per Inch or Print ~uality, you can verify the
output with the settings.
z $OLJQ WKH 3ULQW +HDG 8QLW
You can align the print head unit. Print head alignment is
necessary when you have print quality problems with the initial
printing after installing or replacing the print head unit.
z &OHDQ WKH 3ULQW +HDG 8QLW
You can clean the print head unit with three kinds of cleaning
procedures: Thorough, quick, and Custom.
You can print a test page with the Print Test Page button and perform
the quick cleaning with the quick Clean button on the Toolbar in the
Status Window.
You can also perform the above operations in the Printer Options dialog
box, which can be opened from the Status Window.
8VLQJ WKH 0LFURVRIW :LQGRZV 3ULQWLQJ 6\VWHP
Chapter 2
7KH 3ULQWHU 2SWLRQV 'LDORJ %R[
You can perform the printer maintenance operations from the Printer Options dialog
box.
To display the Printer Options dialog box, open the Status Window and then select
Printer Options... from the Options menu.
8VLQJ WKH 0LFURVRIW :LQGRZV 3ULQWLQJ 6\VWHP
Chapter 2
3DSHU+DQGOLQJ
This chapter describes how to use the printer for all your printing operations. It
includes:
z Selecting paper
z Setting the paper thickness lever
z Setting the paper selection lever and the paper support
z Summary of printer settings for various print media
z Automatically feeding paper
z Manually feeding paper
z Printing on envelopes
z Using Canon's specialty papers
To ensure the best performance of your printer, you'll want to select the best
paper and load it correctly. You can stack paper in the sheet feeder to load it
automatically, or you can manually feed one sheet at a time. The path that the
paper travels through the printer is the same for automatic and manual feeding.
3DSHU +DQGOLQJ
Chapter 3
6HOHFWLQJ 3DSHU 7\SHV
One of the most important things you can do to assure the best possible print
quality from your Bubble Jet printer is to select the correct paper. Your printer
produces letter quality output on most plain bond papers, including cotton bond
and photocopying papers; it does not require special ink jet papers. However, the
print quality varies with different paper types. Be sure to test a type of paper
before you purchase a large quantity.
3ODLQ 3DSHU
The printer supports paper sizes of letter, legal, and A4 in portrait orientation. You
can use regular copier paper, cotton bond papers, and typical letterhead. Always
use paper without curls, folds, staples, or damaged edges.
%XEEOH -HW 3DSHU ZDWHU UHVLVWDQW
The Canon Bubble Jet Paper LC-301 has been developed for high quality printing
with minimal or no smearing or running when in contact with water or damp
surfaces, making it a good choice for damp or rainy environments. The paper is
specially coated and printable on both sides.
&RDWHG 3DSHU
Canon's Coated Paper LC-1O1 is specially designed for your BJC-620 printer,
which will produce sharp and vivid color output on this high grade matte paper.
The coating used on this paper is a unique formula that ensures full compatibility
with your Canon color inks. Use this paper for your printer output that requires
crisp color rendering on a high quality, nonglossy paper.
3DSHU +DQGOLQJ
Chapter 3
+LJK 5HVROXWLRQ 3DSHU
The Canon High Resolution Paper HR-1O1 is designed to produce photographic
quality print output with sharp and vivid graphics.
7UDQVSDUHQFLHV
Transparency CF-102 from Canon is recommended. These transparencies produce
excellent contrast, sharpness, and color.
%DFN 3ULQW )LOP
Canon Back Print Film BF-102 has been specially developed for Canon Color Bubble
Jet printers. The film is designed to deliver brilliant, high intensity color images
suitable for business presentations, design work, or professional reports. Back print
film is printed on the back (nonglossy) side of the film in mirror image and then
viewed from the front or glossy side using a backlighting device. For more details,
ask a Canon Authorized Dealer for information or refer to the manual supplied with
the film.
+LJK *ORVV )LOP
The Canon High Gloss Film HG-1O1 features a bright white finish that lends striking
visual power to charts, graphs, and photographic images. Use this film to make your
presentation materials and graphics look professional.
)DEULF 6KHHW
Use Fabric Sheet FS-1O1 for Canon Bubble Jet printers to print banners, pillow
covers, scarves, flags, and other textile items. Use these sheets for applique and other
craft and sewing projects. Fabric sheets are 9.5 x 14 inches.
76KLUW 7UDQVIHUV
Use Canon's popular T-Shirt Transfers TR-1O1 to create and personalize T-shirts,
sweatshirts, aprons, tablecloths, napkins, tote bags, and anything else your
imagination allows! Use on any cotton or cotton/poly blend fabric. Your image is
printed in mirror image (when you use T-Shirt Transfer mode through the BJC-620
Printer Driver) so when you iron it onto the T-shirt, the image is viewed correctly.
*UHHWLQJ &DUGV
Get the most out of your Canon Creative or other card-making software with Canon
Greeting Cards GC-1O1. These cards give your unique, personalized cards the look
and feel of professional cards. You can create cards, invitations, announcements, and
more.
3DSHU +DQGOLQJ
Chapter 3
%URFKXUH 3DSHU
Canon's Brochure Paper BP-1O1 is specifically designed for creating high quality
brochures on glossy paper. Combined with Design Essentials from Canon
Creative, you have everything you need to create professional half-fold, tn-fold,
and full sheet brochures. Each glossy sheet is coated on both sides to allow manual
duplex printing.
If you are printing in an application outside Windows, your software application or
printer driver must support mirror image printing in order to use Back Print Film
or T-Shirt Transfers.
3DSHU *XLGHOLQHV
When selecting or loading paper, keep these guidelines in mind.
z Attempting to print on damp, curled, wrinkled, or torn paper can cause
paper jams and poor print quality.
z Use cut-sheet paper only. You cannot use multipart paper.
z If the print density of your page is very high, light paper stock may curl
slightly due to the large amount of ink. If you need to print heavy graphics,
try printing on a heavier stock.
z Do not use thicker paper than meets the specifications for this printer.
Printing with a paper that is thick enough to come in contact with the print
head nozzles may damage the print head unit.
z For the best printing results, follow the instructions included with the paper.
3DSHU +DQGOLQJ
Chapter 3
%HIRUH /RDGLQJ 3DSHU
To ensure trouble-free paper handling, you'll want to set the paper thickness lever and the
paper selection lever before loading paper.
6HWWLQJ WKH 3DSHU 7KLFNQHVV /HYHU
You use the paper thickness lever to adjust the distance between the print head and the
paper to accommodate different paper thicknesses. This distance is called the print gap.
Set the lever according to the thickness of the paper you are using:
z Down is for printing on plain paper and normal weight (such as 20 lb) print media.
z Up is for printing on heavier-weight print media (such as fabric sheets) and envelopes
(See page 3-8 for details).
Paper Thickness Lever
Always set the paper thickness lever before and after printing on heavier-weight print media
or envelopes.
If you are printing documents with high density graphics or ink and the printed pages are
smudged, try setting the paper thickness lever to the up position. This moves the print head
unit further from the paper. Print quality may diminish slightly but the smudges should go
away.
3DSHU +DQGOLQJ
Chapter 3
6HWWLQJ WKH 3DSHU 6HOHFWLRQ /HYHU
DQG WKH 3DSHU 6XSSRUW
Set the paper selection lever and the paper support to their proper
positions before loading paper.
z When automatically loading a stack of paper, set the paper
selection lever to the back position and extend the paper support.
z When automatically loading a stack of envelopes, set the paper
selection lever to the front position and extend the paper support.
3DSHU +DQGOLQJ
Chapter 3
z When manually feeding any type of print media, set the paper
selection lever to the front position and lower the paper support.
z Do not move the paper selection lever after loading paper in the
sheet feeder.
z This lever is different than the lever on a typewriter or dot matrix
printer. You need not pull it forward to load paper. You set the
paper selection lever to the front position only when loading
envelopes or when manually feeding paper. If it is set to the front
position when you are automatically feeding stacks of normal
paper, the printer may feed multiple sheets or jam.
When the paper selection lever is in the back position, a lever inside the
printer prevents the paper from advancing into the printer. When you
move the paper selection lever to the front position, the lever inside the
printer moves so that the single sheet being manually fed can advance
into the printer.
3DSHU +DQGOLQJ
Chapter 3
3ULQWHU 6HWWLQJV IRU 9DULRXV 3ULQW 0HGLD
The following table summarizes the printer settings for the various types of print media:
Paper
Paper
Paper
thickness
selection
Paper
Loading
Stack
type
lever
lever
support
method
(sheets)
Plain paper
Bubble Jet
Paper
(LC-301)
Coated Paper
(LC-101)
High
Resolution
Paper (HR101)
Transparency
(CF-102)
Back Print
Film
(BF-102)
High Gloss
Film
(HG-101)
Fabric Sheet
(FS-101)
T-Shirt
Transfers
(TR-101)
Greeting
Cards
(GC-101)
Brochure
Paper
(BP-101)
Other heavier
weight print
media
Envelopes
Stacked
Single
Down
Back
Up
Automatic
100
Down
Back
Up
Automatic
100
Down
Back
Up
Automatic
80
Down
Back
Up
Automatic
80
Down
Back
Up
Automatic
50
Up
Back
Up
Automatic
50
Down
Front
Down
Manual
1
Up
Back
Up
Automatic
1
Up
Front
Down
Manual
1
Up
Front
Down
Manual
1
Up
Front
Down
Manual
1
Up
Front
Down
Manual
1
Up
Up
Front
Front
Up
Down
Automatic
Manual
15
1
3DSHU +DQGOLQJ
Chapter 3
$XWRPDWLFDOO\)HHGLQJ3DSHU
You can place approximately 100 sheets of plain paper or Bubble Jet
paper (17 lb or 64 g/m2) in the sheet feeder at a time.
You can stack approximately 50 sheets of transparency film, back print
film, or high resolution paper in the sheet feeder. However, these
special print media may not advance correctly under unusual
environmental conditions (such as extreme temperatures and humidity).
If you have trouble with special papers becoming skewed or feeding
multiple sheets, do not stack them in the sheet feeder. Load them
manually as described later in the chapter (page 3-15).
To automatically feed plain paper, follow these steps:
0DNH VXUH WKH
SDSHU WKLFNQHVV
OHYHU LV GRZQ
IRU SULQWLQJ RQ
SODLQ SDSHU
Paper Thickness Lever
3DSHU +DQGOLQJ
Chapter 3
0DNH VXUH
WKH SDSHU
VHOHFWLRQ OHYHU
LV VHW WR WKH
EDFN SRVLWLRQ
([WHQG WKH
SDSHU VXSSRUW
DQG SDSHU
RXWSXW WUD\
3DSHU +DQGOLQJ
z Pull the paper support up until it stops. The paper support keeps
paper straight and limits the possibility of jams.
z Extend the paper output tray.
Chapter 3
4
)DQ WKH SDSHU
z For best results, fan the paper before loading it.
z Always fan a stack of paper along the edge that will feed into the
printer first.
5
6OLGH WKH VWDFN
RI SDSHU LQWR
WKH VKHHW
IHHGHU XQWLO
LW VWRSV
3DSHU +DQGOLQJ
z Align the edge of the paper with the right edge of the sheet
feeder.
z Do not force the paper into the printer.
z Insert the paper so that the side you want to print on is facing
you. If you are using a preprinted stock, such as letterhead, insert
the top of the paper into the sheet feeder first.
z Make sure the stack of paper does not exceed the paper limit
mark on the right side of the sheet feeder.
Chapter 3
6
$GMXVW WKH
SDSHU JXLGH
WR WKH VWDFN
z This keeps the paper feeding straight into the printer and reduces
skewing.
z Be sure there is no gap between the paper guide and the edge of
the stack of paper.
RI SDSHU
NO GAP
HERE
7
6WDUW SULQWLQJ.
3DSHU +DQGOLQJ
z Make sure the printer is turned on and on-line.
z Start your print operation.
Chapter 3
$XWR )HHG *XLGHOLQHV
When automatically feeding stacks of paper, follow these guidelines.
z Do not leave paper stacked in the printer for long periods of time;
longer sheets of paper may become bent or curled over time. This
may cause the paper to misfeed or jam.
z If your printed page contains lots of graphics, the ink on the page
may be damp due to the print density. Remove the page right away
and allow the ink to dry.
z The capacity of the paper output tray is 20 sheets of paper. To
reduce paper jams, remove paper from the output tray before the
count reaches 20.
z If paper curls after printing, remove it immediately; otherwise, paper
jams may occur.
z The platen (a roller on the inside of the printer) may become inked if
you print data beyond the width of the page. If this happens, clean
the platen with a soft cloth. (For details on cleaning the platen, see
Chapter 4, Maintaining the Printer.)
z Depending on the density of your printed pages, the ink may need
time to dry. Within two to three seconds, the ink becomes smudge
resistant.
z Do not try to load paper into the sheet feeder beyond the paper limit
mark on the right side of the sheet feeder; stacking too much paper
may cause paper feeding or printing problems.
Limit Mark
3DSHU +DQGOLQJ
Chapter 3
z Make sure there are no gaps between the stack of paper and the
paper guide nor the right edge of the sheet feeder.
NO GAP
HERE
z When automatically feeding transparencies or back print film,
z
z
z
z
3DSHU +DQGOLQJ
remove each sheet after it is delivered. Do not allow film sheets
to stack up in the paper output tray.
Place at least one sheet of plain paper in back of a stack of
transparencies or back print film to avoid paper jams and
misfeeds.
Let the printed sheets of film dry completely before storing them.
The complete drying time required for color printing on Canon's
transparencies or back print film is approximately 15 minutes. The
complete drying time required for solid black printing on this
media is approximately 30 minutes. You may be able to reduce
the drying time if you reduce the density setting in your
application before printing.
If printing at 720 x 720 dpi in black on back print film appears
blurred, switch to 360 x 360 dpi or reduce the density setting in
your application.
If printing in black on transparencies is not as crisp as you
expected, reduce the density setting in your application.
Chapter 3
z When a sheet of film has dried completely, cover its printed side with a
sheet of plain (not coated) paper before storing it; this is recommended
even if you place the sheets of film in a clear file.
For best results when printing on special papers, follow the instructions that
come with the paper.
0DQXDOO\ )HHGLQJ 3DSHU
You use the manual feed function when printing on heavier-weight print media
(24 lb to 28 lb or 91 g/m2 to 105 g/m2) or high gloss film.
To manually feed a single sheet, follow these steps:
0DNH VXUH
z The POWER, ON LINE, and PRINT MODE lights are on.
WKH SULQWHU LV
WXUQHG
RQ DQG RQOLQH.
3DSHU +DQGOLQJ
Chapter 3
2SHQ WKH WRS
FRYHU DQG FKHFN
WKH SDSHU
WKLFNQHVV OHYHU.
z If you are manually feeding heavier-weight print media, set the
paper thickness lever to the up position. (See page 3-8 for
details).
z If you are printing normal weight (20 ib) print media, set the lever
down.
PAPER THICKNESS LEVER
6HW WKH SDSHU
z Make sure the paper support is lowered.
VHOHFWLRQ OHYHU
WR WKH IURQW
3DSHU +DQGOLQJ
Chapter 3
,QVHUW WKH
VLQJOH VKHHW
z Slide in the paper until it stops inside the sheet feeder.
z Align the sheet with the right edge of the sheet feeder.
z Adjust the paper guide to the sheet.
5
6WDUW SULQWLQJ
z Be sure to select Manual Feed in the Setup dialog box of the Microsoft
Windows Printing System.
z Make sure the printer is on-line.
z Start your print operation.
z After printing on heavier-weight print media or envelopes, set the paper
thickness lever (inside the printer) to the down position before printing
on normal paper.
z After manually feeding a sheet of paper or an envelope, set the paper
selection lever to the back position.
3DSHU +DQGOLQJ
Chapter 3
3ULQWLQJ RQ (QYHORSHV
You can stack up to 15 envelopes in the sheet feeder or you can manually feed
envelopes one at a time.
U.S. Commercial number 10 (COM 10) envelopes and European DL envelopes are
recommended. You may be able to stack envelopes of other sizes in the sheet feeder;
however, Canon cannot guarantee consistent performance on envelope sizes other
than COM10 and DL.
The following envelopes are not recommended because they may cause jams or
smears, or may damage your printer.
z Envelopes with windows, holes, perforations, cutouts, and double flaps.
z Envelopes made with special coated paper or deeply embossed paper
z Envelopes using peel-off sealing strips.
z Envelopes in which letters have been enclosed.
3UHSDULQJ <RXU 6RIWZDUH
How you create envelopes within your software application depends on the
application. See your application's documentation for details.
If you are using the Microsoft Windows Printing System, change the Paper Size
setting to #10 or DL.
3DSHU +DQGOLQJ
Chapter 3
Check your software to see if it prints envelopes in portrait or landscape
orientation. It's a good idea to print on a sheet of paper before printing on an
envelope to check the orientation.
Printing on envelopes in portrait orientation results in faster printing. However,
several software packages, such as WordPerfect® and Word for Windows,
default to landscape orientation. This requires adjustments in the software to
correctly print on envelopes with this printer. See your software documentation
for details.
/RDGLQJ (QYHORSHV
When you are ready to print on envelopes, follow these steps to stack envelopes
in the sheet feeder. (You can also manually feed envelopes one at a time.)
1
6HW WKH
JUHHQ SDSHU
WKLFNQHVV
OHYHU
WR WKH XS
SRVLWLRQ.
z The lever points upward.
PAPER THICKNESS LEVER
3DSHU +DQGOLQJ
Chapter 3
6HW WKH
SDSHU VHOHFWLRQ
OHYHU WR
z Make sure the paper support is extended.
z Move the paper guide to the left to match the width of the
envelopes.
WKH IURQW
3UHSDUH WKH
HQYHORSHV
z Arrange the stack of envelopes on a firm surface and press down
firmly on the edges to make the folds crisp.
z Press around the envelopes to remove any curls and expel air
from inside the envelopes.
z Press firmly on the area that corresponds to the edges of the flap.
3DSHU +DQGOLQJ
Chapter 3
,QVHUW WKH
HQYHORSHV
z Slide a stack of envelopes into the sheet feeder until it stops
z Align the stack of envelopes with the right edge of the sheet
feeder.
$GMXVW WKH SDSHU
JXLGH WR
WKH VWDFN RI
HQYHORSHV.
6WDUW SULQWLQJ
3DSHU +DQGOLQJ
z Make sure the printer is on-line.
z Start your print operation.
Chapter 3
When printing on COM10 envelopes, move the paper guide all the way to the left.
Depending on the size and shape of your interface connector, the paper guide may
touch it. If this causes the envelopes to misfeed, use an interface cable with a
smaller connector.
8VLQJ &DQRQ
V 6SHFLDOW\ 3DSHUV
This section describes how to use the cleaning sheet that comes with the Canon
High Resolution Paper and how to use the Fabric Sheets for Canon Printers.
&DQRQ
V +LJK 5HVROXWLRQ 3DSHU +52
Canon's High Resolution Paper HR-101 is designed for high quality printing. This
paper is specially coated to produce delicate color output. After using a package of
High Resolution Paper (200 sheets), you need to use the cleaning sheet enclosed
with the paper to remove paper dust from the printer's rollers; this will help prevent
paper feed problems.
8VLQJ WKH &OHDQLQJ 6KHHW
6HW XS
WKH
SULQWHU
z Make sure the paper thickness lever (inside the printer) is down-for normal
paper.
z Make sure the paper selection lever is to the front and the paper support is
lowered-for manual feed.
z Make sure the paper output tray is extended.
3DSHU +DQGOLQJ
Chapter 3
,QVHUW WKH
FOHDQLQJ VKHHW
)HHG WKH
FOHDQLQJ VKHHW
z Remove the two pieces of tape from the sheet.
z Insert the sheet with the sticky side out (toward you) and down
(going into the sheet feeder).
z Adjust the paper guide to the edge of the cleaning sheet.
z Turn off the printer by pressing the POWER button.
z Press and hold the FF and PRINT MODE buttons and press the
POWER button until the printer beeps.
z The printer advances the cleaning sheet and starts cleaning.
z The printer feeds the sheet and then ejects it.
z Use a cleaning sheet once only.
3DSHU +DQGOLQJ
Chapter 3
)DEULF 6KHHWV )62
Fabric sheets FS-101 for Canon printers come with a booklet that describes special
handling procedures. Be sure to look through this booklet for special information
regarding the Fabric Sheets. This section describes specific steps for using Fabric
Sheets with the BJC-620.
Be sure to follow these guidelines.
z To avoid paper jams, smearing, and other problems, do not open the printer's
cover during printing.
z Use the fixing agent that comes with the Fabric Sheets FS-101.
z Do not touch newly printed fabric sheets until the ink is completely dry. This
takes about one hour.
3ULQWLQJ 2Q D )DEULF 6KHHW
6HW XS
WKH
SULQWHU
z Make sure the paper thickness lever (inside the printer) is up for heavier-
weight print media.
z Make sure the paper selection lever is to the front and the paper support is
lowered for manual feed.
z Make sure the paper output tray is extended.
3DSHU +DQGOLQJ
Chapter 3
0DLQWDLQLQJWKH
3ULQWHU
This chapter covers the care and maintenance required for your
Canon BJC-620 Color Bubble Jet Printer. It includes:
z Printer guidelines
z Cleaning the printer
z Cleaning the print head unit
z Replacing an ink tank
z Replacing the print head unit
z Transporting the printer
3ULQWHU *XLGHOLQHV
Follow these guidelines to avoid damage to your printer and
harm to you or others:
z Set the printer on a stable surface. Do not use an angled
printer stand. Avoid setting the printer in direct sunlight.
z Keep the front cover closed when printing.
z Do not set anything on top of the printer.
z Always use a three-wire, grounded power receptacle
(electrical wall outlet with three holes) for your printer’s
power cord. Do not modify the cord or remove the
ground pin.
z Make sure the power is off any time you connect or
disconnect the power cord or interface cable.
z When unplugging the power cord, always remove it by
holding the plug and not the cord.
0DLQWDLQLQJ WKH 3ULQWHU
Chapter 4
z Do not unplug the printer unnecessarily. The printer may clean
the print head nozzles and consume a small amount of ink when
you plug it into an AC outlet or a power strip.
z Never unplug the printer or turn off a power strip to which the
printer is attached when the printer’s power is turned on. This
may prevent the print head unit from returning to the home
position. Once in the home position, the print head unit and the
ink tanks are capped, which prevents them from damage or
drying out. This is critical. If left uncapped, the print head unit
may clog and may need to be replaced.
z For reliable data communications between your computer and the
printer, use a short cable, six feet or less in length. The cable must
be bi-directional.
z Do not move the mechanism that holds the print head unit and ink
tanks. Attempting to move the carriage may damage delicate
mechanical parts.
z Do not touch the print head nozzles on the print head unit. Ink
may leak out and cause stains. Also, you may permanently
damage your print head unit, which would require you to
purchase a replacement.
z Do not touch the white padding inside the ink tank. Ink may leak
out and you may damage the tank.
0DLQWDLQLQJ WKH 3ULQWHU
Chapter 4
&OHDQLQJWKH3ULQWHU
Your printer requires little routine maintenance. Perform the following
maintenance, as necessary, to keep your printer in good operating condition.
Be very careful when cleaning the printer. Make sure the printer is turned off;
then unplug it.
&OHDQ WKH
SODWHQ DQG
LWV
VXUURXQGLQJ
DUHD LQVLGH
WKH SULQWHU
z
z
z
z
Use a soft cloth to remove any ink mist or paper debris.
Do not rub the gear wheels.
Do not use any oil or cleanser inside the printer.
When cleaning inside the printer, avoid the area near the print head unit and
ink tanks. Do not touch the print head nozzles. Ink may leak out and cause
stains.
z Do not move the print head unit from the home position.
z Do not use paper products (such as paper towels or tissues) to clean the
inside of the printer. They may leave paper particles inside the printer.
0DLQWDLQLQJ WKH 3ULQWHU
Chapter 4
&OHDQ WKH
H[WHULRU RI
WKH
SULQWHU
z Use a soft cloth moistened with water.
z Clean any smudges or dust.
z Do not clean the exterior of the printer with volatile liquids such as
thinners, benzine, or any spray-type or chemical cleaners; doing so will
damage the surface of the printer.
&OHDQLQJWKH3ULQW+HDG8QLW
The print head unit contains nozzles through which color ink is propelled onto
the paper. The print head nozzles must be free from paper particles and dust in
order to maintain a high level of print quality.
The printer has an automatic cleaning function that clears away paper particles
and dust when you turn on the printer after it has been turned off for a certain
period of time.
You need to activate the print head cleaning procedure whenever you replace the
print head unit or individual ink tanks, or when your print quality is poor. There
are three types of print head cleaning:
z 7KRURXJK FOHDQLQJ RI DOO SULQW KHDG QR]]OHV
A new print head unit needs to be cleaned to ensure the best possible print
quality. Also, you must perform a thorough cleaning if you insert the ink
tanks in the wrong slots or if quick cleaning does not solve your print
quality problems. This procedure takes about three minutes.
z Quick cleaning of all nozzles
Use this method to improve print quality. This cleaning takes about two
minutes.
z Custom cleaning of selective print head nozzles
Use this method to clean the print head nozzles of a new ink tank or if one
color is not printing as clearly as you think it should. This cleaning takes
about one minute.
0DLQWDLQLQJ WKH 3ULQWHU
Chapter 4
8VLQJ WKH 0LFURVRIW :LQGRZV 3ULQWLQJ 6\VWHP
When you use the Microsoft Windows Printing System, perform the print head
cleaning from the Printer Options dialog box. See page 2-20 for details.
8VLQJ WKH 2SHUDWRU 3DQHO
If you are not using Microsoft Windows, you can select the print head cleaning
method from the printer's operator panel. When you press the PRINT MODE button
repeatedly, you cycle through the cleaning types as follows:
0DLQWDLQLQJ WKH 3ULQWHU
Chapter 4
6WDUW FOHDQLQJ
Make sure the printer is turned on.
3UHVV WKH
35,17 02'(
DQG
EXWWRQV DW WKH
VDPH WLPH
3UHVV WKH
EXWWRQV XQWLO WKH
lig
z Hold these buttons until the printer beeps and the INK and
z Press the PRINT MODE button until the appropriate lights are o
z The printer starts the selected print head cleaning procedure.
z When the print head cleaning procedure is complete, the indicator
SULQWHU EHHSV
To cancel the print head cleaning selection process, press the PRINT M
are off. Then press the button.
0DLQWDLQLQJ WKH 3ULQWHU
Chapter 4
,QN 7DQN *XLGHOLQHV
Use only the BJI-201 ink tanks with this printer.
To ensure excellent print quality and to avoid spilling ink, always follow these
guidelines:
z Be sure to install all four ink tanks. Attempting to print without one or more
of the ink tanks in place causes the ERROR and INK lights to come on and
the printer does not operate.
z Always install the ink tanks in the correct slots. If you install an ink tank in
the wrong slot, the color inks may mix with each other in the printer and the
new ink tank may be spoiled.
z Do not remove an ink tank until it is empty or six months after opening it,
whichever comes first.
z Do not attempt to move the mechanism that houses the print head unit and
ink tanks.
z Each ink tank has a sponge portion, and the top of the sponge is always
white. This is normal and does not indicate a partially full tank.
z The ink inside the tanks appears much darker than the color that prints on a
sheet of paper.
The contents of an ink tank may leak. Spilled ink may permanently stain any surface
or object. Open ink tank packages carefully; follow all instructions on package and
use all necessary precautions.
0DLQWDLQLQJ WKH 3ULQWHU
Chapter 4
To avoid spilling ink, follow these precautions:
z
z
z
z
Do not attempt to disassemble or refill an ink tank.
Do not vigorously shake an ink tank while handling it.
Do not stick anything into the opening on the ink tank.
Do not unpack an ink tank until you are ready to install it.
Canon's limited warranty does not cover damage that is attributable to
the use of third party parts or supplies, including inks. The limited
warranty remains in effect for its life once that particular damage has
been properly repaired.
5HSODFLQJ DQ ,QN 7DQN
Canon makes numerous ink tanks; the BJI-201 ink tanks are designed
specifically for the BJC-620 Color Bubble Jet Printer and are the only
ones Canon recommends that you use.
0DNH VXUH
WKH SULQWHU
z Press and hold the ON LINE button until the printer beeps.
z This caps the print head unit.
LV WXUQHG RQ
DQG RQOLQH
0DLQWDLQLQJWKH 3ULQWHU
Chapter 4
2SHQ WKH
SULQWHUV
z Grasp each side and lift up.
FRYHU
Do not open the print head unit compartment cover inside the printer. You can
easily remove and install the ink tanks with this cover closed.
5HPRYH WKH
ROG
LQN WDQN
z Lift up the front of the old ink tank and slide it out of its slot.
z Dispose of it properly. You may want to place it in a plastic bag to keep
from spilling any ink.
If the ink tank appears to contain ink, reinstall it making sure it is seated
correctly. Perform the single-head cleaning procedure for the ink tank. If the
ERROR and INK lights still come on, replace the ink tank.
0DLQWDLQLQJ WKH 3ULQWHU
Chapter 4
2SHQ WKH QHZ LQN
WDQN E\ IROORZLQJ
WKH LQVWUXFWLRQV
z Carefully remove the new ink tank.
z Be very careful--if you spill any ink, it may be very difficult to
remove.
RQ LWV SDFNDJH.
6OLGH WKH
QHZ LQN WDQN
LQWR LWV VORW
3UHVV GRZQ RQ
WKH WRS RI WKH
LQN WDQN
Do not attempt to move the mechanism that houses the print head unit
and ink tanks
0DLQWDLQLQJ WKH 3ULQWHU
Chapter 4
&KHFN HDFK
LQN WDQN
3HUIRUP WKH
FXVWRP FOHDQLQJ
SURFHGXUH IRU WKH
z Make sure each ink tank is correctly seated in its respective slot.
z Close the printer's cover.
z Press ON LINE to set the printer back on-line.
z If you are using the Microsoft Windows Printing System, see
page 2-20.
z If you are not using the Microsoft Windows Printing System, see
page 4-5 for details.
QHZ LQN WDQN \RX
MXVW LQVWDOOHG
Be sure all four ink tanks are properly installed. If you attempt to print
without one or more of the ink tanks in place, the ERROR and INK
lights come on and the printer does not operate.
When you turn off the printer, the print head unit moves to the home
position on the right and caps each ink tank. This keeps the ink tanks
from drying out. The print head nozzles will not be properly capped and
the print head unit may clog or be permanently damaged in the
following cases.
z If you unplug the printer while it is printing.
z If you turn off a power strip to which the printer is attached while
it is printing.
z If you move the print head unit from the home position.
If, after installing a new ink tank, the printer seems to be printing but
one or more of the ink colors does not appear, stop the print operation.
Make sure the ink tanks are seated properly in the correct slots. If
necessary, clean the print head unit as described earlier in this chapter.
0DLQWDLQLQJ WKH 3ULQWHU
Chapter 4
5HSODFLQJ WKH 3ULQW +HDG 8QLW
With proper use, the print head unit should last the life of the printer. Eventually,
however, as the print head unit wears out, the print quality will deteriorate and you
will see irregular or missing dots on printouts. If this occurs and print quality does not
improve with repeated print head cleanings, contact the Canon Computer Systems
Customer Care Center to find out your service options (see page 1-3).
3ULQW +HDG 8QLW *XLGHOLQHV
The most important thing you can do to extend the life of your BJC-620 and to
ensure optimum print quality is to take care of the print head unit. To avoid damaging
the print head unit, follow these precautions:
z Do not touch the print head nozzles on the print head unit or the sharp edges
around them.
z Do not place the print head unit on a table with the print head nozzles facing
down. Make sure the filters are facing up if you must set the print head unit
down.
z Install the print head unit immediately after you open it.
z Replace an empty ink tank as soon as possible. Do not attempt to print a color
for which the ink tank is empty.
z Do not use heavier-weight print media than meet the specifications for this
printer. (See Appendix A, Specifications, for details.) Printing with a paper that
is thick enough to come in contact with the print head nozzles may damage the
print head unit.
0DLQWDLQLQJ WKH 3ULQWHU
Chapter 4
5HPRYLQJ WKH 8VHG 3ULQW +HDG 8QLW
Remove the print head unit only when you have a new one available (otherwise
your ink tanks may dry out). To remove the used print head unit, follow these
steps:
7XUQ RII WKH
SULQWHU
z Open the printer’s cover.
z Remove the four ink tanks and set them aside for now.
{ Be sure to set them upright on a level surface with their number
labels facing up.
{ Do not remove the print head yet.
z Close the cover
z Press and hold down the FF, PRINT MODE and
7XUQ RQ WKH
SULQWHU
buttons and press the
button until the printer beeps. This empties the ink from the print
head unit.
z Open the printer’s cover.
POWER
2SHQ WKH Press in on the tabs on the sides of the cover and lift it up.
FRPSDUWPHQW
FRYHU
0DLQWDLQLQJ WKH 3ULQWHU
Chapter 4
Do not touch the terminals on the inside of the compartment cover.
5HPRYH WKH SULQW
KHDG XQLW.
z Dispose of it properly.
z Follow local guidelines for disposal.
,QVWDOOLQJ D 1HZ 3ULQW +HDG 8QLW
Make sure the power cord is attached and the power is off.
7DNH WKH QHZ
SULQW KHDG XQLW
RXW RI LWV
SURWHFWLYH
SDFNDJLQJ
0DLQWDLQLQJ WKH 3ULQWHU
Chapter 4
5HPRYH WKH
ZKLWH WDSH
IURP WKH
SULQW KHDG XQLW
,QVHUW WKH SULQW
KHDG XQLW
z Do not remove the gray-padded material around the silver filters.
z Avoid touching the terminals, print head nozzles, and silver filters
on the print head unit.
z The print head unit contains a clear liquid preservative that is
harmless; if it leaks onto your hand, wash it off.
z Gently place the print head unit into the compartment with the
print head nozzles down, the terminals up, and the silver filters
facing the front of the printer.
z You don’t need to press on the print head unit. When you close
the compartment cover, the print head unit becomes secure.
0DLQWDLQLQJ WKH 3ULQWHU
Chapter 4
&ORVH WKH
FRPSDUWPHQW
FRYHU
5HLQVWDOO WKH
z Press down firmly on the two white dots on the top of the cover
until it snaps securely closed.
z You actually hear two distinct clicks as the cover engages with
the compartment base.
z Make sure the sides of the gray compartment cover touch the
black base of the print head compartment.
z Be sure to insert the tanks into the correct slots.
LQN WDQNV \RX
UHPRYHG HDUOLHU
0DLQWDLQLQJ WKH 3ULQWHU
Chapter 4
&ORVH WKH
SULQWHU·V FRYHU
DQG WXUQ RQ WKH
SULQWHU
&RPSOHWH
LQVWDOODWLRQ
z Perform the thorough print head cleaning procedure.
{ If you are using the Microsoft Windows Printing System,
see page 2-20.
{ If you are not using the Microsoft Windows Printing
System, see page 4-5 for details.
z Print the test page to check the nozzle pattern.
{ If you are using the Microsoft Windows Printing System,
see page 2-20.
z Print the alignment page to select the best horizontal registration
for printing.
{ If you are using the Microsoft Windows Printing System,
see page 2-20.
z If you turn on the printer and the orange ERROR light flashes, see
the Initializaton Error section on page 5-3 for details.
0DLQWDLQLQJ WKH 3ULQWHU
Chapter 4
7UDQVSRUWLQJWKH3ULQWHU
z While the BJC-620 Color Bubble Jet Printer is small and
compact, it is not a portable printer and you need to take care
when transporting it. The printer’s components, such as the sheet
feeder, may become damaged if subjected to severe vibration
during transportation. Also, your print head unit may dry out
during travel (and become unusable) if it is not capped correctly
and the ink tanks may spill if they are not taped correctly.
z The printer is intended for use with a 120V power source only.
Canon does not recommend using the printer with any other
power source or with a transformer.
If you plan to move the printer from one location to another, or if you
want to store it, follow these steps.
3UHVV WKH 32:(5
EXWWRQ WR WXUQ RII
WKH SULQWHU
z Open the cover and make sure that the print head unit is in the
home position.
z If the carriage does not return to the home position because of a
printer error, manually move it to the home position.
0DLQWDLQLQJ WKH 3ULQWHU
Chapter 4
z Wrap the ink tanks individually with clear plastic wrap or a
LQN WDQNV
similar material.
z Then, pack them together in a plastic bag to avoid spilling any
ink.
&ORVH WKH
z Press and hold the FF, PRINT MODE, and
5HPRYH DOO IRXU
SULQWHU·V FRYHU.
6HFXUH WKH
FDUWULGJH KROGHU WR
buttons and press the
button until the printer beeps. This empties the ink from the
print head unit.
z Remove any paper from the sheet feeder.
z Detach the interface cable and the power cord.
z Open the printer’s cover again.
POWER
z Use tape strong enough not to detach or break during
transportation.
WKH SULQWHU ZLWK
WDSH
0DLQWDLQLQJ WKH 3ULQWHU
Chapter 4
5HWXUQ WKH SDSHU
VXSSRUW DQG SDSHU
RXWSXW WUD\ WR WKHLU
RULJLQDO SRVLWLRQV
6HFXUH WKH WRS
z Replace the piece of plastic that protects the sheet feeder.
FRYHU SDSHU
JXLGH DQG WKH
SDSHU VXSSRUW
ZLWK WDSH
0DLQWDLQLQJ WKH 3ULQWHU
Chapter 4
5HSDFN WKH
z Store the ink tanks in the box with the printer.
SULQWHU LQ LWV
RULJLQDO SDFNLQJ
PDWHULDOV
0DLQWDLQLQJ WKH 3ULQWHU
Chapter 4
7URXEOHVKRRWLQJ
Due to today's rapidly changing personal computer environment, we have placed
troubleshooting information in a variety of places to ensure that the most accurate
information possible is available. The best way to find current information is through
our on-line support services and through our Fax Retrieval System. On-line services
include the World Wide Web, our BBS, and Compuserve.
This chapter contains very basic information to help solve printer problems. It
describes how to use Canon's various support services, covers a few basic problems,
and describes how to clear a paper jam. It also includes troubleshooting information
regarding the Microsoft Windows Printing System.
8VLQJ &DQRQ
V 6XSSRUW 6HUYLFHV
This section describes where to look for help. For information on the numbers for
these services, see Getting Help from Canon in Chapter 1 (page 1-3).
z If you have an operational problem:
{ Look through the Windows Printing System on-screen Help for related
information.
z If you have a need for a unique printer driver:
{ Contact Canon through the Web, its BBS, or CompuServe.
z If you are an MS-DOS user (and do not have Windows):
{ Use Canon's Fax Retrieval System to obtain information regarding how
to use the printer with your MS-DOS applications.
z If you have a hardware problem:
{ Call the Customer Care Center.
7URXEOHVKRRWLQJ
Chapter 5
,GHQWLI\LQJ <RXU 3ULQWHU 3UREOHP
Before contacting Canon, identify your printer problems and make sure you have
the following information:
z Product name - BJC-620
z Serial number
z Place of purchase
z Nature of problem
z Steps you have taken to solve the problem and the results
The serial number is located on the label on the back of the printer:
Attempting to repair the printer yourself may void the limited warranty as to that
repair. See the limited warranty information at the back of this manual for details.
7URXEOHVKRRWLQJ
Chapter 5
*HQHUDO 3UREOHPV
The most basic problems you may encounter are "the printer does not
print" and "your print quality is not satisfactory."
z
,I WKH SULQWHU GRHV QRW SULQW
{ Check all your cable connections
{ Check your Microsoft Windows Printing System setup
{ Check your computer configuration
z
,I \RXU SULQW TXDOLW\ LV QRW VDWLVIDFWRU\
{ Clean the print head unit
{ Clean the print head unit five times
{ Replace the ink tanks
,QLWLDOL]DWLRQ (UURU
The first time you turn on the printer, it performs an initialization
process and flushes the print head unit to make sure the nozzles are
clear. This takes approximately three minutes. It is done only once - the
first time you turn on the printer.
As the printer flushes the print head unit, various lights flash and then
stay on. These lights indicate where the printer is in the cleaning
process.
If a print head unit error occurs when you turn in the printer, the orange
ERROR light and one or more PRINT MODE lights flash. Follow
these steps:
7XUQ RII
WKH SULQWHU
7URXEOHVKRRWLQJ
z Press the POWER button to turn off the printer.
z Unplug the printer.
{ Wait ten seconds and then reattach the power cord.
z Remove the ink tanks.
Chapter 5
5HPRYH DQG
UHLQVWDOO WKH
z Open the compartment cover
{ Press in on the tabs on both sides of the compartment
cover.
SULQW KHDG XQLW
z Remove the print head unit.
z Reinstall the print head unit in the compartment.
z Close the compartment cover.
{ See page 4-16 for details
7XUQ WKH SULQWHU
z Replace the ink tanks in the correct order.
z Press the POWER button to turn on the printer
EDFN RQ
Do not unplug the printer during the initialization. If you do, the printer
will not be initialized correctly and may not print properly. Wait until
the POWER light stops flashing and the printer goes on-line before
performing any other print operations.
7URXEOHVKRRWLQJ
Chapter 5
&OHDULQJ3DSHU-DPV
When a paper jam occurs, the ERROR light comes on and the printer
goes off-line. If you are using the Microsoft Windows Printing System,
you see this Status Window:
*HQWO\ SXOO WKH
SDSHU RXW ZLWK
z Press ON LINE or click the Resume Printing button in the Status
Window to continue printing.
RQH KDQG ZKLOH
KROGLQJ GRZQ WKH
SULQWHU ZLWK WKH
RWKHU KDQG
7URXEOHVKRRWLQJ
Chapter 5
,I WKH SDSHU
WHDUV RII
LQVLGH WKH
SULQWHU
IROORZ
WKHVH VWHSV
z
z
z
z
Turn off the printer.
Open the printer’s cover.
Remove the paper left inside the printer.
Press the POWER button to turn the printer back on. The printer is now
ready for printing.
z If the platen is soiled, wipe it clean with a dry cloth. See Cleaning the
Printer on page 4-3 for details.
,QN3UREOHPV
,QN 7DQNV &RQWLQXDOO\ 5XQ 2XW RI ,QN
If your ink tanks seem to run out of ink before you think they should, make sure
you are following these guidelines.
z Turn off the printer only when the print head unit is in the home position.
When in the home position, the print head unit is capped; this protects the
print head nozzles and ink cartridges from damage or drying out.
z Only transport the printer when the print head unit is in the home position
z Never unplug the printer or turn off a power strip to which the printer is
attached when the printer’s power is turned on.
z Try not to clean the print head unit unnecessarily. The print head cleaning
procedure consumes a small amount of ink.
z Do not unplug the printer unnecessarily. The printer performs the print
head cleaning operation, which uses a small amount of ink, every time
you plug it in.
z Do not print documents with solid background colors. This consumes an
excessive amount of ink.
7URXEOHVKRRWLQJ
Chapter 5
,QN 7DQNV ,QFRUUHFWO\ ,QVWDOOHG
If you find that the ink tanks are installed in the wrong slots, follow these
steps:
5HPRYH HDFK
LQN WDQN WKDW
z Examine each tank to see if another color of ink has come into the tank
and mixed with its ink.
z If this has happened, replace the ink tank with a new one.
LV LQ DQ
LQFRUUHFW VORW
z Execute the custom cleaning again for each of the colors that were
,QVWDOO WKH LQN
WDQNV LQ WKH
FRUUHFW VORWV
installed incorrectly.
z You can repeat the custom cleaning procedure several times if the colors
do not seem accurate.
z If the problem persists, replace the ink tanks with new ones.
7URXEOHVKRRWLQJ 7KH 0LFURVRIW :LQGRZV 3ULQWLQJ
6\VWHP
When a problem occurs, the Status Window displays the printer error message.
To resolve the problem, press Fl to view the on-line help and then follow the
instructions.
The following table contains additional information to help you solve any BJC620 printer operation problems that may occur with the Microsoft Windows
Printing System.
7URXEOHVKRRWLQJ
Chapter 5
3UREOHP
&DXVH
6ROXWLRQ
The Microsoft
Windows
Printing
System does not
work correctly
The Microsoft
Windows Printing
System for the
BJC-620 may not
be set as the
default printer,
Set the Canon BJC-620 as the default printer as
follows.
When using Microsoft Windows 95:
1. Open the Printers folder and select the BJC-620.
2. On the File menu, click Set As Default.
When using Microsoft Windows 3.1 or Microsoft
Windows for Workgroups 3.1:
1. Double-click on the Printer Setup icon in the
Microsoft Windows Printing System group.
2. Select the BJC-620.
3. Click on Set As Default Printer.
The Microsoft
Windows Printing
System may not be
properly installed,
Print the Microsoft Windows Printing System test page
to make sure that the Microsoft Windows Printing
System is installed correctly and the printer works
correctly. To print the test page, press the Print Test
Page button in the Status Window.
Note: If the same port has been selected for the BJC620 and another Microsoft Windows Printing System
printer, connect the other Microsoft Windows Printing
System printer to a different port (such as File). Then,
restart Microsoft Windows.
Output looks
too light
The print quality
selection does not
match your
document.
Output appears
jagged
The resolution
Changing the resolution to 360 x 360 dpi or higher
selected via the
should correct this problem.
Microsoft
Windows Printing
System may be 180
x 180 dpi.
5-8 Troubleshooting
If you select the High Speed (Text & Graphics) print
quality, output tends to be light. Try High Quality Text
or High Quality Graphics.
Chapter 5
3UREOHP
&DXVH
6ROXWLRQ
Blurred or smudged
ink
The printing option
settings do not match
your media.
Make sure you select a Media type
appropriate for your media. If black ink is
blurred on back print film or other kinds of
paper when you select a high resolution (such
as 720 x 720 dpi), select Photographic
Quality as Print Quality in the Quality dialog
box/tab. If black ink is still blurred, try to
increase the brightness of black in the
Graphics dialog box or Graphics & Color tab.
Color output looks
rough
The Halftoning method
selected via the
Microsoft Windows
Printing System may be
Solid.
If you print graphics or scanned images, such
as photographs, selecting Solid haiftoning
loses details on the output. If you print
graphics, selecting Patterned is
recommended. If you print scanned images,
select Smooth halftoning. When you select
720 x 720 dpi, use Smooth halftoning for
optimum print quality.
Prints only in black
Gray Scale Printing may
be selected, which
prints all documents in
black and white.
Make sure Gray Scale Printing is not
selected. If it is not selected, see your
application’s printing option settings. If there
is a color printing option, make sure it is
enabled.
Color output is not
what you expect
The printing option
settings do not match
your document.
The following printing option settings take
effect on output:
Media type—Be sure to select the media
type that corresponds to your media.
Resolution—Select a higher resolution for
higher quality output and a lower resolution
for lower quality output.
Print Quality—Select High Speed (Text &
Graphics) for draft printing, High Quality
Text for text printing, and High Quality
Graphics for graphics printing.
Halftoning—Select Solid for text and simple
graphics printing, Patterned for printing
graphics that contain large solid color, or
Smooth for printing scanned images.
See the on-line help for details.
3UREOHP
&DXVH
6ROXWLRQ
High gloss film is
Black ink on high gloss
soiled with black ink film does not dry easily,
at a high resolution
When you print solid black areas at a high
resolution (720 x 720 dpi)—such as in
reversed characters—on high gloss film,
black ink may adhere to the printed lines. If
this happens, select Photographic Quality as
Print Quality in the Quality dialog box/tab. If
this does not solve the problem, try to
increase the brightness of black in the
Graphics dialog box or Graphics & Color tab.
Printing is slow
Try to set all printing options to their default:
360 x 360 dpi, High Quality Text.
Printing options may
be too complicated,
These print options affect the printing speed
as follows:
Dots per Inch—Printing at a lower resolution
(180 x 180 dpi) is faster and at a higher
resolution (720 x 720 dpi) is slower.
Print Quality—High Speed (Text &
Graphics) is the fastest, and High Quality
Graphics is the slowest.
Try changing these settings.
Paper does not feed
correctly
You may not have
selected the Paper
Source that is suitable
for your media type.
7URXEOHVKRRWLQJ
When you print High Gloss Film or heavierweight print media, be sure to select Manual
Feed as the paper source.
Chapter 5
7HFKQLFDO1RWHV
If you have connected the BJC-620 to your computer and have turned it on, but your
computer says it cannot find the printer, you may need to modify your BIOS setup.
This section describes the BIOS setups for several computer configurations. Our online services are updated with this type of information as it becomes available. If you
are having a unique problem and do not see your computer here, be sure to use our
on-line services (Web, BBS, CompuServe). See Getting Help From Canon in Chapter
1 (page 1-3) for details.
%,266HWXSV IRU 9DULRXV 6\VWHPV
$&(5 9LHZ '
• Press CTRL ALT ESC
• Use Arrow Key to Go to Advanced
• Select Peripheral Configuration
• Cursor to Parallel Port Mode
• Press Enter
• Select ECP
• Press FlO to Save and Exit
$77 *OREDO\VW 73&
• Hit F2 to Enter Setup
• Hit up Arrow Key to Go to Advanced
• Cursor Down to Integrated Peripherals
• Cursor Down to Parallel Port Mode
• Use Gray Plus Key to Select ECP
• Press Escape Twice
• Cursor Over to Exit
• Select Save Changes and Exit
7URXEOHVKRRWLQJ
Chapter 5
&RPSDT %,26
• Go to Device manager
• Click on the + Sign By Ports
• Double-click on the ECP Printer Port
• Select Resource Tab, and Make a Note of the Resources Settings
• Cancel Out of the LPT Port Properties
• Remove the ECP Printer Port From Device Manager
• Restart the Computer and Press the FIO Key (at 2 beeps or any other appropriate
prompt)
• Press Enter, and Enter Again to Acknowledge Openings Messages
• Select Setup
• Select Communications
• Go to the LPT Port and Select the Resource Group that Matches the one Noted in
Device Manager (setup 4) ***but without the dma***
• Exit and Save, the System will reboot, and should detect and configure a "NON
ECP" Printer Port including the Printer
&203$4 3UHVDULR &'6 • While Rebooting, Hit FlO to Enter Setup
• Click on Communications Section
• Click on LPT PORT MODE
• Select Bi-directional
• Click (or Hit) Exit
• When it asks you if you want to save, Hit "Y" for Yes
'HOO 'LPHQVLRQ 3
• Press Delete to Enter Setup
• Press Delete to Enter Setup
• Press ALT P
• Cursor to Parallel Mode
• Change to PS/2 or ECP by Using Arrow Keys
• Pressing Escape will Exit and Save Changes
7URXEOHVKRRWLQJ
Chapter 5
'LJLWDO %,26 ,QVWUXFWLRQV
• Press F2 to Enter Setup
• Use up Arrow Key to Go to Top Toolbar
• Use Right Arrow Key to Go to Advanced
• Hit Enter on Advanced
• 3rd Item is Parallel Port Mode
• Use Plus Key to Change From Compatible to Bi-directional
• Hit Escape to Go to Main Menu
• Select Save Changes and Exit
• Notice Changes and Have Been Saved (continue)
*DWHZD\ 3
• Reboot Press F 1
• Select Advanced Setup
• Select Peripheral Configuration
• Cursor to Parallel Port Mode
• Press Enter
• Select "ECP"
• Press F10 to Save and Exit
*DWHZD\ 3HQWLXP %,26 6HWXS
• Press Fl to Enter Setup
• Cursor Over to Peripheral Configuration
• Hit Enter
• Cursor Down to Parallel Port Mode and Hit Enter
• Select ECP-EPP Mode
• Hit Enter
• Press Escape
• Press F10 to Save and Exit
• Select "Save Settings and Exit"
• Hit Enter
*(1,6<6 3HQWLXP 6 %,26
• After Rebooting, Press DEL to Enter Setup
• Cursor Down to Chipset Features and Hit Enter
• Cursor Down to Onboard Parallel Mode
• Use PageUp key to Select ECP Mode
• Press Escape
• Press F10 to Save Settings and Exit
• Press "Y" for Yes
• Hit Enter
,%0 $SWLYD
• Fl to Enter Setup
• Advanced Options
• Select Input/Output Options
• Press Enter
• Highlight Parallel Printer Options
• Select Using the Right and Left Arrow Keys
,%0 7KLQNSDG %,26 ,QVWUXFWLRQV
• Hold Fl Down While Turning on Computer
• Cursor Over to Config Icon
• Press Enter
• Cursor Over to Parallel
• Hit Enter
• Cursor Over to Bi-directional and Hit Enter
• Go to Bottom and Hit OK
• Go to Bottom and Hit OK
• Cursor Over to Restart and Hit OK
0,&521 7 Z3KRHQL[ %,26
• Press F2 to Enter BIOS
• Cursor to Advanced System Setup and Hit Enter
• Cursor to Integrated Peripherals and Hit Enter
• Cursor to LPT MODE: (AT)
• Use Gray Plus Key to Select ECP
• Hit Escape Twice
• Cursor to Exit and Hit Enter
• Answer "Yes" to Save Settings
3DFNDUG %HOO &3
• Press Fl to enter Setup.
• Hit Right Arrow Key until you get to Advanced.
• Cursor to Peripheral Configuration
• Hit Enter
• Cursor Down to Parallel Port Mode (will say Bi-directional)
• Hit Enter
• Cursor Down to ECP and Hit Enter
• Press Escape
• Hit FlO to Save and Exit
• Hit Enter
3DFNDUG %HOO &'7:
• Press Fl to Enter Setup
• Arrow to Integrated Peripherals
• Change PARALLEL PORT MODE to AUTO
• Press Escape Twice
• Save and Exit
3DFNDUG %HOO ([FHO 3OXV
• Press CTRL ALT S to Enter Setup
• Select ADVANCED SYSTEM Setup
• Hardware Configuration
• Change Parallel Port Mode to "OUTPUT ONLY"
3DFNDUG %HOO ([FHO • Press F2 to Enter Setup
• Select Submenu
• Select Integrated Peripherals
• Press Enter
• Tab to LPT MODE will say "Bi-directional" press +1- to change value to
"OUTPUT ONLY"
• Press Escape Twice
• Save Changes and Exit
3DFNDUG %HOO /HJHQG &3
• Press F2 to Enter Setup
• Hit Right Arrow Key to Go to Advanced
• Hit Enter
• Screen Shows Integrated Peripherals, Hit Enter
• Cursor Down to LPT Mode: Output Only
• Hit Plus Key to Go to ECP Mode
• Hit Escape
• Hit Escape
• Select Save Changes and Exit
• Hit Enter
7URXEOHVKRRWLQJ
Chapter 5
Packard Bell Legend 822 CD
• Press Fl to Enter Setup
• Hit Right Arrow Key to Go to Advanced
• Hit Enter
• Screen Shows Integrated Peripherals, Hit Enter
• Cursor Down to LPT Mode: Compatible
• Hit Enter
• Hit Arrow Key to Go to ECP Mode
• Hit Enter
• Hit Escape Hit F10
• Select Save Changes and Exit
• Hit Enter
7URXEOHVKRRWLQJ
Chapter 5
6SHFLILF
3ULQWLQJ 0HWKRG
Bubble jet ink on-demand
3DSHU +DQGOLQJ
Automatic feed
Manual feed
6KHHW )HHGHU &DSDFLW\
Maximum thickness of stacked paper:
Plain paper
Bubble Jet paper
Coated paper
High resolution paper
Transparencies
Back print film
High gloss film
Fabric sheets
T-shirt Transfers
Greeting cards
Brochure paper
Thick paper
Envelopes
0.35 in (9 mm)
Approximately 100 sheets
Approximately 100 sheets
Approximately 80 sheets
Approximately 80 sheets
50 sheets
50 sheets
1 sheet
1 sheet
1 sheet
1 sheet
1 sheet
1 sheet
15 envelopes (U.S. Commercial number Envelopes 10 or
3DSHU 6L]H
Letter
Legal
A4
B5
U.S. Commercial number 10 envelope
European DL envelope
$ 6SHFLILFDWLRQV
8.5 in x 11 in
8.5 in x 14 in
210mm x 297mm
182mm x 257mm
9.5 in x 4.1 in
220 mm x 110 mm
Appendix A
5HFRPPHQGHG 3DSHU 7\SHV
Coated paper
High resolution paper
Transparencies (OHP film)
Back print film
High gloss film
T-shirt transfers
Fabric sheets
Greeting cards
Brochure paper
Envelopes
3DSHU :HLJKW
Canon Coated Paper LC-101
Canon High Resolution Paper HR-101
Canon Transparencies CF-102
Canon Back Print Film BF-102
Canon High Gloss Film HG-101
Canon T-Shirt Transfers TR-101
Fabric Sheet FS-101
Canon Greeting Cards GC-101
Canon Brochure Paper BP-101
U.S. Commercial number 10 or European
17 to 24 lb (64 to 90 g/m2) with automatic feed
17 to 28 lb (64 to 105 g/m2) with manual feed
3DSHU 7KLFNQHVV
Less than 0.008 in (0.2 mm)
3ULQW 6SHHG
High Speed (Text & Grahics) mode
High Quality Text mode
High Speed (Text & Graphics) mode
3ULQW :LGWK
Maximum
300 cps at 10 cpi
205 cps at 10 cpi
Approximately 0.7 to 1.3 ppm
(8 x 10 inch full coverage of printable are
8 inches (203.2 mm)
/LQH )HHG 6SHHG
Approximately 100 ms per line at 1/6-in line
3ULQWLQJ 'LUHFWLRQ
Bi-directional
A-2 Specifications
Appendix A
3ULQWDEOH $UHD³3DSHUV
The shaded portion in the following figure shows the printable area for papers.
0DUJLQV
,QFKHV
PP
Right
Left
Top
Bottom
0.25 in
0.25 in
0.33 in
0.28 in
3.4 mm
3.4 mm
8.5 mm
7.11 mm
3ULQWDEOH $UHD³(QYHORSHV
The shaded portion in the following figure shows the printable area for envelopes.
$ 6SHFLILFDWLRQV
0DUJLQV
,QFKHV
PP
Right
Left
Top
Bottom
0.25 in
1.24 in
0.l2 in
0.28 in
6.4 mm
10.4 mm
3.0mm
7.11 mm
Appendix A
3ULQW +HDG 8QLW
Type:
64 nozzles for each color
,QN 7DQNV
Black
Type:
Ink color:
Number of characters
printed:
Color
Type:
Ink color:
Number of characters
printed:
$ 6SHFLILFDWLRQV
BJI-201 Bk HG
Black
Approx. 450 pages in High Quality Text mode (5% coverage)
Approx. 800 pages in High Speed (Text & Graphics) mode (5%
coverage)
BJI-201 C, M, Y
Cyan (C), Magenta (M), Yellow (Y)
Approx. 210 pages in High Quality Text mode (7.5% coverage
for each color)
Approx. 300 pages in High Speed (Text & Graphics) mode (7.5%
coverage for each color)
Appendix A
OQWHUIDFH
8-bit parallel
To receive information regarding the interfa
call Canon’s toll-free Fax Retrieval System
4345 and request the BJC-620 Interface Sp
$FRXVWLF 1RLVH /HYHO 3HU ,62 Under 45 dB(A) in High Quality and High Speed modes
2SHUDWLQJ (QYLURQPHQW
Temperature
Humidity
6WRULQJ (QYLURQPHQW
Temperature
Humidity
3RZHU 6RXUFH
USA/Canada
41º F to 95º F (5º C to 35º C)
10% to 90% RH (no condensation)
32º F to 95º F (0º C to 35º C)
5% to 95% RH (no condensation)
AC 120 V, 60 Hz, 0.5A
Canon recommends that the printer be used
source only.
3RZHU &RQVXPSWLRQ
11 watts standby
29 watts maximum printing
'LPHQVLRQV
16.1 in (410 mm) W x 9.96 in (253 mm) D x 7.2 in (184 mm) H
:HLJKW
Approx. 9.9 lb (4.5 kg)
$ 6SHFLILFDWLRQV
Appendix A
2SHUDWRU3DQHO
$ 6SHFLILFDWLRQV
Appendix A
8VLQJ WKH %-&2LQ D
1HWZRUN (QYLURQPHQW
You can use the BJC-620 that is connected locally to your computer a
your network.
6KDULQJD3ULQWHU
You can share the BJC-620 in a Microsoft Windows 95 or Microsoft
Workgroups 3.1 environment as described in this appendix.
0LFURVRIW :LQGRZV 1. In the Printers folder, select the BJC-620 you want to share.
2. Choose Properties from the File menu.
3. Open the Sharing tab and select Share As. Enter a share name o
in the appropriate box, and then click OK.
For details, see the Microsoft Windows 95 documentation and consul
administrator for specific information about your network.
0LFURVRIW :LQGRZV )RU :RUNJURXSV 1. In the Printers folder, select the BJC-620 you want to share.
2. On the toolbar, click the button, or choose Share Printer As f
3. In the Share Printer dialog box, enter a share name and click on
box. Then click OK.
For details, see the Microsoft Windows for Workgroups 3.1 documen
your network administrator for specific information about your netwo
% 8VLQJ WKH %-&2 LQ D 1HWZRUN (QYLURQPHQW
Appendix B
&RQQHFWLQJ WR D 1HWZRUN 3ULQWHU
When you install the Microsoft Windows Printing System without connecting to a l
program asks whether you want to redirect the selected port to a network printer or
Windows Printing System without a printer. After you select a port, you see this scr
6HOHFW
1HWZRUN
z If you want to connect your computer to a network printer that is being share
The Network Printer Resources dialog box appears.
% 8VLQJ WKH %-& LQ D 1HWZRUN
(QYLURQPHQW
Appendix B
6SHFLI\
1HWZRUN
z Select the network printer by selecting the network printer’s path.
3ULQWHU
&KRRVH
2.
z The network printer is connected to the selected port.
z Choose OK to continue installation.
You can connect to a network printer after installing the Microsoft Windows
For details, see the Microsoft Windows 95 or Microsoft Windows for Workg
documentation
% 8VLQJ WKH %-& LQ D 1HWZRUN
(QYLURQPHQW
Appendix B
Download PDF

advertising
