CHDK
Extra Features
®
For Canon
Point and Shoot Cameras
User Quick Start Guide
CHDK
Canon® Hack Development Kit
User Quick Start Guide
2010
V.1.8.6
For Canon® Cameras with CHDK
loaded and operational
For installation instructions go to:
http://chdk.wikia.com/wiki/CHDK
1
CONTENTS
Acknowledgements…………. 2
CHDK Introduction…………...3
Using CHDK…………………...4
OSD Display diagram………..7
Main Menu……………………..8
Extra Photo Operations……….8
Video Parameters…………….15
RAW Parameters……………...16
Edge overlay…………………..19
Custom curves………………...20
Histogram Parameters……….21
Zebra Parameters………….….24
OSD Parameters……………….26
Visual Settings…………………35
Scripting Parameters………...36
Miscellaneous stuff…………..38
History of CHDK…………… 47
Stereo Data Maker………….48
KAP……………..………...…. 49
Bracketing notes………..….49
RAW notes……………...…...50
Bad pixel notes……………. .51
USB Remote notes…….…..52
Grids notes…………...……. 53
Curves notes ……………….54
Scripting notes……………..54
Flash notes……………..….. 58
Examples……………..…….. 58
FAQs and Facts………..…...62
Miscellaneous info…………64
Links……………..…….……. 66
Legal Notes……..……..…. . .67
INDEX...…………..…..……...68
2
Acknowledgements
CHDK has to be one of the most innovative improvements to any camera that has ever come along since
the beginning of photography. Started out by some people who only wanted RAW out of their rawcrippled cameras, it has now grown into one of the most adaptable, flexible, and full-featured operating
systems of any cameras ever made. We are all extremely grateful for the work that everyone has put into
this arena of discovery, implementation, coding, sharing, camera testing, (especially with the unknown,
and possibly high risk), and those that provide all the information on the Wiki pages (and elsewhere in
the world). Those who have contributed to this great stride in the world of photography deserve a huge
vote of thanks.
Many thanks go to the original developers vitalyb, and GrAnd, ewavr, owenjm, Harvester, jeff666,
[mr.anon], MX3, Fingalo, Allbest, CHDKLover, BarneyFife, also to Jucifer and PhyrePhoX, to
cosmograph for the excellent CHDK logo, and to all the others mentioned or not, in History of CHDK
on page 47
Other contributors include, acseven (the forum), achurch, acid2000, ADamb, ArtDen, Atnas, auj,
awdark,, barberofcivil, Basq, Bg~, bondo, bperrybap, brabl2, brake, cail, chdkj, chr, cormac,
cppasm, cyril42e, danielmewes, Darkness, DataGhost, diablo, Divalent, ehmu, elecktro255,
ERR99, fantomas4o, fboesch, fbonomi, fe50, fishpepper, fudgey, Grin, Hacki, HarpoMa,
hiker_jon, h-v-n, iax, ihar, Intrnst, image13, Keoeeit, KevB m2tk, ma_jk, MartinBudden,
mattkime, Microfunguy, mkmenuts, mproko, mrblack51, MrSpoon, msl, mweerden, nandoide,
neszt, nimrod, nirschi, Novex, oldgit, pedropaislopes, peregrine, pev69, pixeldoc2000,
PlasmaHH, quietschi, RaduP, revivery, reyalp, Rorschach, rudi, sharky, shenty, Smartkiller, snc,
stift, stevetm2, Thorwak, tillo, toinech, TPC, tr1stan, uvvv, Velo, viulian, vit40, whim, whoever,
wontolla, Yarvieh, Yossar, zeno, zfeet,
and more to come…….
Many thanks.
And to all the firmware dumpers - Many thanks.
Thanks to Graystar for the Allbest 50 manual, and to the writers of the online Morebest manual, (these
pages are based upon those), and everyone else who has contributed however small or large to CHDK and
the Wiki pages.

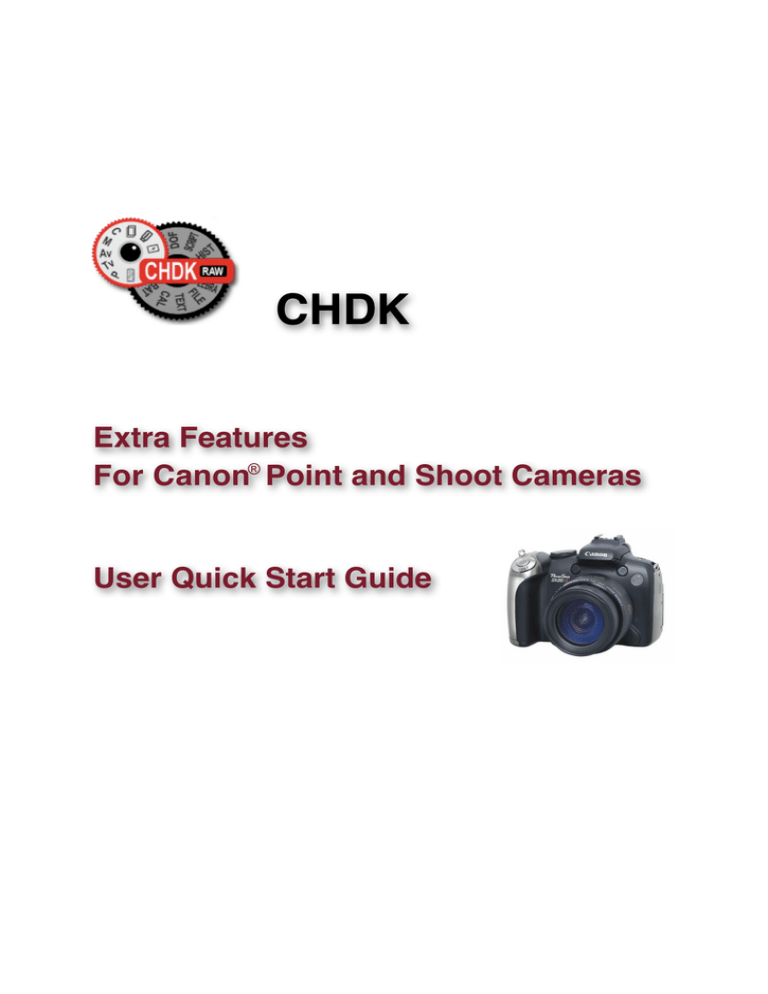

Front cover photo – Canon® Powershot SX20 IS
3
CHDK Introduction
Welcome to CHDK, for usersof Canon
® Point and Shoot Cameras
Q. What is the CHDK program?
A. CHDK enhances the capabilities of your camera in a non-destructive, non-permanent way.
After loading of CHDK program your camera will have the following extra functionality:
•
Shutter-priority (Tv) exposure - via shutter value override feature
•
Aperture-priority (Av) exposure - via aperture value override feature
Shooting in RAW, with RAW Average, RAW Sum, and RAW Develop features,
•
save as .DNG (Digital Negative for wider compatibility)
•
Live histogram (RGB, blended, luminance and for each RGB channel)
•
Zebra mode (a live view of over and under-exposed areas of your picture)
Depth-of-field (DOF)-calculator, Hyperfocal-calculator with instant Hyperfocal and
•
Infinity focus-set, and more
•
Battery indicator
•
RAW and Video space-remaining gauges with custom low-limit alerts
•
USB cable and wireless remote shutter release
Motion-detection trigger - automatically fires camera on motion detection. (Able to
•
capture lightning strikes.)
•
Customizable high-speed continuous (burst) Shutter-based (Tv), aperture-based (Av) and
ISO-based exposure bracketing (unlimited shots)
•
Focus bracketing (unlimited shots)
•
Adjustable Video quality and size (compression) adjustable while recording
•
Elimination of 1 GB video-size limit (for many DigicII cameras)
•
Zoom during video function (for cameras without this feature)
•
Shutter, Aperture, and ISO Overrides
•
Ultra-long shutter speeds - up to 64 seconds (much longer for supported cameras)
•
Ultra-fast shutter speeds - up to 1/10,000" and higher
•
High-speed Flash Sync at all speeds up to 1/64,000 of a second
•
Custom user-editable visible Grids for framing, cropping, and alignment
•
File browser
•
Text reader
•
Calendar
•
Games •
Fully customizable CHDK display, info placement, user-colors, fonts in menus, etc.
•
Custom CHDK User Menu (for instant recall of up to 10 favorite functions)
•
Scripts execution - including exposure bracketing, focus bracketing, intervalometer, etc
•
And other features too numerous to mention here.
4
These features work on all camera models supported by CHDK. The camera does not need to have
"related" or "inherent" features already present - CHDK will add the required functionality. New features
are accessed through CHDK-specific menus, rather than the default camera menus.
As CHDK is continually evolving, new features are often added. This means some of the listed features
depend on you using a version of CHDK that has those features.
Check out the Downloads page for information on finding the right build for your needs.
Go to:- http://chdk.wikia.com/wiki/Downloads
----------------------------------------------------------------------------------------------
Using CHDK
To Start – Auto load method
Cameras that have an SD card that has been prepared as bootable and is locked (write protected,
with the slide tab on the side of the card), will load CHDK automatically when turned on. This
is usually called the “Autoload” method, using a camera version specific file “DISKBOOT.BIN”
The card lock is bypassed by CHDK and photos and video are able to be saved as normal.
– Manual load method
When the SD card has a camera specific file, which for some versions is “PS.FIR”, and others
“PS.FI2”, the card is left unlocked and then:
1. Switch the camera on in Play mode, not Record mode,
2. Press the MENU button, then press UP once (or scroll down the menu list)
3. An option to update the firmware appears, Select that option. (press FUNC.SET)
4. Confirm the update, (OK-press FUNC.SET)
See:- http://chdk.wikia.com/wiki/Bootable_SD_card
for instructions to make memory card bootable, and information on the loading process.
The CHDK splash screen will appear for about 2 seconds, confirming that CHDK is now running on
your camera. (The splash screen can be disabled in Main Menu > Miscellaneous stuff)
Splash screen
5
CHDK will now be running in the background. Some features are enabled by default, for example,
battery and memory indicators. However, most features are disabled by default.
To make changes to how CHDK operates, you start by entering <ALT> mode.
<ALT> Mode
When <ALT> mode is enabled the function of certain buttons on your camera will
change, allowing you to start accessing CHDK features. For example, pressing the FUNC.SET
button will display the CHDK Script menu, rather than the usual function associated with
FUNC.SET.
There are different ways to enter <ALT> mode, depending on the style of camera.
A Series – Press the Direct Print button (A momentary short press)
G Series – Press the Shortcut button *
S Series – Press the Shortcut button *
SD Series – Press the Direct Print button
*
See note on page 6 about Shortcut button.
Also, while in <ALT> mode the following buttons are reassigned:
A Series Exposure/Erase(+/-) – Toggles RAW capture mode
G Series AF Frame Selector/Erase – Toggles RAW capture mode S Series FUNC.SET – Toggles RAW capture mode
SD / IXUS Series DISP – Toggles RAW capture mode
SX200 “ “ “ “ “
SX10 AF Frame Selector/Erase – Toggles RAW capture mode
Common to most cameras
• MENU – Displays the main CHDK menu
• FUNC.SET – Display the Script menu
• DISPLAY Button -- Return to previous menu
• Full Shutter press – Executes the selected Script, or pauses the running script
The following functions are available any time CHDK is loaded.
Common to most cameras
• Half Shutter + Left – Toggle Zebra on/off
• Half Shutter + Right – Toggle OSD on/off
• Half Shutter + Up – Toggle Histogram on/off (on recent versions Half shoot+down).
• Half Shutter + Down – Toggle Overrides (Half Shutter + Left on a few models ? )
...(Contd. P6)
6
More keys and shortcuts:
In manual focus mode - (with <ALT>)
Up – Set MF to infinity
Down – to set MF distance to hyperfocal distance (based on f/stop and zoom focal-length).
Left – Decrease Value Factor,
Right – Increase Value Factor.
Zoom-in / Zoom-out – can be assigned to manual focus in Main Menu > Miscellaneous stuff.
On the IXUS series the DISP. button is used to instantly set MF (manual focus) distance to infinity.
See:- Extra Photo Operations Page 9.
In OSD layout editor –
Display – Change the number of pixels the OSD (on-screen display) elements are moved by.
In File Browser –
Right – make selection
Left – Open context menu.
Zoom-in / Zoom-out – Scroll-By-page in File Browser and File Reader modes.
Half-shoot – Scroll one page forward in File Reader mode.
Menu numerical units –
Zoom-in / Zoom-out – To enter numerical values in menus the zoom lever / switch is used to
change the unit value, ie: 1, 10, 100. The unit value is indicated in the top LH corner of the OSD.
When doing this, first select the menu item to be changed, then change the unit value with the zoom
lever / switch, then change the selected menu item.
SX10 (And certain other models with separate playback and record buttons ) - To turn the camera on
directly into record mode, hold the On /Off button for approx. one second. When switched on,
pressing the shutter button full or half will switch to record mode from playback mode.
* Cameras with a Shortcut button
can be configured in Miscellaneous stuff to use either, –
Shortcut, Flash, Timer, ISO, or Video buttons to enter <ALT> mode, the Shortcut button is the default,
press the button with a short momentary press, and for the original Canon function, press and hold
slightly longer.
When you enter <ALT> mode, the indicator “ <ALT> ” will appear at the bottom middle of the OSD. In
<ALT> mode you can now use CHDK Scripts, and also enter the CHDK Main Menu. When you have
finished customizing how CHDK operates, and/or using scripts, press the <ALT> mode button to exit
<ALT> mode. You can now use the camera to take photos or video, and it’s operation will be changed by
the options you set in CHDK.
7
On-Screen Display (OSD) Map
4a
3
10
4b
9
8
7
2
6
1
11
5
1
<ALT> Mode indicator
6
Live Histogram
2
Mini Console - Current Script info.
7
RAW shots remaining Indicator
3
Battery Indicators
8
Miscellaneous Values
4a
File-Space Indicators - icon/text
9
Extra Photo Operations - Overrides
4b
File-Space Indicator - vertical bar
10
Temperature Indicator
5
Clock
11
Fast EV Switch Indicator
See OSD Parameters on Page 26 for display settings.
8
Main Menu
The Main Menu is the top-level menu from which
all CHDK functions are enabled and customized.
To access the Main Menu, set the camera to
<ALT> mode and press the Menu button.
In <Alt> mode press camera menu button.
Use
to navigate Menu.
Extra Photo Operations
Like Canon’s menus, pressing the
FUNC.SET button will select the
highlighted menu option. Pressing
the Display button will move back
one menu level. Pressing the Menu
button will exit the current operation.
< Main Menu
Disable Overrides
Allows the use of a half-press + DOWN button press to quickly
toggle any override settings on and off. The status of your
overrides will appear where your normal override settings are
displayed in the OSD - in your chosen warning color.
(See "Visual Settings") • Off - Turns off the "Disable Overrides" shortcut option.
• On - Starts out with any override settings DISABLED. In the OSD you will see "NO OVERRIDES"
• Disable - Starts out with any override settings enabled.
The "On" and "Disabled" options allow you to use this feature in your User Menu (P27)
as your quick override toggle instead of using any shortcut key. Some cameras may not have
the shortcut feature available.
• Include AutoISO & Bracketing
Enable [•] / Disable [ ]
Includes AutoISO and Bracketing settings in the "Disable Override" settings. If not enabled then
your AutoISO and Bracketing settings will not be turned on or off by the "Disable Override"
shortcut button.
9
Override shutter speed [0 – 100] <Extra Photo Operations < Main Menu
TV in the OVERRIDES display in the OSD. This feature allows you to override the camera’s
shutter speed in all auto and manual modes with the speed you select. This feature allows shutter
speeds as long as 64 seconds, (or longer if your camera has CHDK Extra Long Exposure
support) and as short as 1/100,000th of a second, in 1/3rd EV steps. This setting is affected by the
“Value factor” and the “Shutter speed enum type” settings below. Please note that the actual
speeds available are dependent on the camera used and other conditions such as the aperture
setting.
• Value factor
[Off , 1,10,100] or [Off, 1/100k – 100]
Enables the Override shutter speed and sets the Value factor, the use of which is described
below.
• Shutterspeed enum type [Ev Step , Factor]
Select the method of determining the override shutter speed.
Ev Step – The method most of us will use. Enables the first set of options above.
The Override shutter speed is shown in seconds. Select the desired shutter speed and
set the Value factor to 1 to enable the override function.
Factor – This method will enable the second set of options above.
The shutter speed is determined by multiplying the selected value factor with the
selected shutter speed. This method is useful in analytical and research photography.
ND filter state (For cameras with a ND Filter)
When your camera detects a really bright scene, it will swing the ND filter inline with the lens
and sensor. This makes the scene look darker and will affect the exposure (but not depth of field
like a real aperture / iris would). With the ND filter in, the camera can select a slower shutter
speed without over-exposing the entire scene. Also, with the ND filter swung in, the camera will
capture an image with an aperture of f/8 - This is an artificial aperture value caused by the ND
filter swung in. With CHDK, you can choose to keep the ND filter out, and just select a faster
shutter speed to compensate. To do this, use:
Main Menu > Extra Photo Operations > ND filter state
Select one of the options from: [ Off / In / Out]
▪ 'Off' means the camera will automatically control the ND filter state.
▪ 'In' means the ND filter is swung in.
▪ 'Out' means the ND filter is kept out.
Override Aperture
[Off , 2.77 – 16.00] <Extra Photo Operations < Main Menu
For cameras with an actual aperture / iris. mechanism (IXUS / SD models have ND filter).
AV in the OSD. This feature allows you to override the camera’s aperture settings. Simply
select the desired aperture setting and the camera will use that setting in all auto and manual
modes. Please note that the actual aperture values available depend on the camera.
Override Subj. Dist. Valu
[0 – 65535]
SD in the OVERRIDES display in the OSD. This feature allows you to specify, to the millimeter,
the manual focus distance. To focus the camera at the override distance you must half-press the
shutter.
10
• Value factor (mm)
[Off, 1, 10, 100, 1000]
FACTOR in the OVERRIDES display in the OSD. The Value factor is used to enable the
“Override Subj. Dist Valu” (OSDV), and also to quickly set the focus distance. When updating
the “Override Subj. Dist. Valu” with the left/right buttons, the value will be changed by the
amount set in the “Value factor.” So “1” changes the OSDV by 1mm, “10” changes by 10mm,
and so forth. In this way the OSDV can be updated faster than trying to change the override from
1 to 450mm by pressing the rocker 449 times.
For cameras without Manual Focus, (IXUS series, and some A series) SD Overrides can be used
to manage focusing, either by entering values in a menu, or by using shortcut keys. In <ALT>
mode, go to Main Menu > Extra Photo Operations > Override Subj. Dist. Valu, > Value Factor enter a choice of unit value, either 1, 10, 100, or 1000, this will change the Subj. Dist. Value by
the unit value you entered, ie: if the Value factor is 10, and the Subj. Dist. is 10 then the focus
will be 10 x 10 = 100mm from the lens.
These Manual Focus adjustments can also be achieved with shortcut keys. In <ALT> mode,
using the Left / Right keys to adjust the Value Factor and the Zoom lever to adjust the Subject
Distance, (or on cameras without a zoom lever use the Display button) Infinity is immediately
selected by pressing the Up key, and for Hyperfocal adjustment based on current F-stop and
zoom focal length, press the Down key.
The subject distance values are displayed as part of OVERRIDES on the OSD.
Remember to exit <ALT> mode to shoot pictures with these adjustments applied. Also
remember to uncheck "clear overrides @ start" setting if you want to continue with the current
settings.
Override ISO value
[0 – {ISO max for camera}]
ISO:.. in the OVERRIDES display in the OSD. This feature allows you to override the camera’s
ISO setting. Select the desired ISO setting and the camera will use that setting in all auto and
manual modes.
• Value factor
[Off, 1, 10, 100]
The factor is used to enable the ISO override, and to set a multiplier against the “Override ISO
value” set above. So if you want to use an ISO of 1200, you would set the “Override ISO value”
to 12, and the “Value factor” to 100. This arrangement exists to speed the setting of a custom
ISO.
See:- OSD Parameters on Pages 26, and 27 for “Show State Displays” of overrides in the OSD.
11
Bracketing in continuous mode < Extra Photo Operations < Main Menu
Bracketing is the practice of making several exposures of a scene, with each
exposure differing from the next by predetermined steps in exposure or focus
settings. Bracketing is used to easily capture a range of exposures so that the
best exposure can be selected at a later time. Bracketing is also used to create
a series of exposures which will be combined using methods such as HDR
processing.
The bracketing features are enabled when the camera drive mode
is set to continuous, and custom timer with some models.
Usage Tip: If you wish to fire off individual frames and still have
bracketing for each one, after the first shot lightly let-up on the
shutter button to a half- press position. The next full-press will
give you another bracketed shot. This process may be repeated
for as many bracketing steps as you need. Giving you finer
control over the number of bracketed exposures you may require.
Set camera Custom Timer in Canon® Menu
See Bracketing notes: Page 49.
• TV bracketing value
[Off, 1/3 – 4 Ev]
Set this value to bracket via exposure time. A value of 1 will
double or halve the exposure time for the following exposures.
• AV bracketing value
[Off, 1/3 – 4 Ev]
Set this value to bracket via aperture. A value of 1 will open or
close the aperture by 1 stop for the following exposures.
• Subj. Dist. Bracket Value
[0 – 100]
Set this value to enable focus bracketing. This feature is only
enabled during manual focus mode. This feature allows you to specify the manual focus distance
in millimeters. This value is multiplied by the Value factor below to arrive at the final value.
• Value factor (mm)
[Off, 1, 10, 100, 1000]
Used as a multiplier for Distance bracketing value.
12
• ISO bracketing value
[0 – 100]
Set this value to bracket via ISO. This value is multiplied by the Value factor below to arrive at
the final ISO value that will be used for bracketing. A value of 2, with a Value factor of 10, will
increase or decrease the ISO by 20 for following exposures.
• Value factor
[Off, 1, 10, 100]
Used as a multiplier for the ISO bracketing value.
• Bracketing type
[+/-, –, +]
With all bracketing types the first exposure uses the current exposure settings of the camera. On
following exposures the exposure settings are adjusted as described below.
+/This bracketing type will alternatively apply the bracketing value by first subtracting then
adding. The sequence goes like this…
0 Ev, -1Ev, +1Ev, -2Ev, +2Ev, -3Ev, +3Ev, etc. Bracketing will continue until you release the
shutter. So for example lets say you set the TV bracketing to “2 Ev”, and when you half-press
the shutter you notice an exposure time of 1 second. When you fully depress the shutter you will
get exposures at these times: 1 sec, ¼ sec, 4 sec, 1/15 sec, 15 sec, 1/60 sec, 15 sec, 1/250 sec, 15
sec, etc.
–
This bracketing type works as above but will only reduce the exposure value. Using the above
example, the exposure times would be 1 sec, ¼ sec, 1/15 sec, 1/60 sec, 1/250 sec, etc.
+
This bracketing type works as above but will only increase the exposure value. Using the above
example, the exposure times would be 1 sec, 4 sec, 15 sec. Once the camera’s limit is reached,
subsequent exposures will occur at the maximum (or minimum) setting.
• Clear Bracket Values on Start
Enable [•] / Disable [ ]
Enable this option to turn off bracketing when the camera is turned off.
• Add raw-suffix
Enable [•] / Disable [ ]
In bracketing mode you now have the option to add a suffix to the raw filename, so that later you
can easily identify the RAWs that were created during bracketing, it is disabled at default.
Custom Auto ISO
< Extra Photo Operations < Main Menu
This feature has 2 purposes: Allow the user to define the exact ranges of ISO used in
AutoISO and Auto-HI. As an example: Expand the AutoISO range from 80-200 to 50-400.
Give additional information to the camera to allow it to select the optimal shutter speed (to avoid
blur or get the right artistic exposure) and ISO instead of some sub-optimal default...
As an example: Use a faster shutter and higher ISO when shooting sports, but go for a slower
shutter and minimal ISO when shooting still landscapes) Method: The camera will try to
maintain lowest ISO as long as shutter speed is no-slower than user defined (more below).
Custom AutoISO will kick-in whenever ISO HI/AutoISO is chosen. This allows a quick manual
override by choosing a specific ISO value.
13
Example: Camera set ISO 100 at 1/8s. AutoISO configured to ISO50-400 at
1/15s: AutoISO will shift to ISO200 to maintain 1/15s shutter speed.
This feature is available in all modes except for Shutter priority (Tv). It is also
disabled in stitch assist to prevent using different settings for each panorama part.
•
Enable Custom Auto ISO Enable [•] / Disable [ ]
This is the master switch for this feature.
• Minimal Shutter Speed [Auto 1/8 -etc]
Here you have basically two options:
1. Auto - This is for use when photographing still-life,
landscapes, etc. It will use the factors below to prevent
camera shake, but will assume the subject holds still.
2. Numerical setting - hint to the camera what the optimal shutter speed is for the subject
you are photographing.
The camera will try to use this value or a faster one as much as possible (to prevent blur),
e.g.
1/8s - 1/30s - Slow moving subjects.
1/60s - 1/125s - Kids, Pets, general movement
1/250s - 1/1000s - Sports, Fast action
• User Factor (1/FL/factor)
This setting accounts for the user’s ability to hold the camera steady. It is based on the old rule
that your shutter speed should be no less than 1/focal-length. Start by dividing the effective focal
length of the lens by the actual focal length. The answer is generally somewhere around 6. Then
increase or reduce this amount by a self-assessed value of your steadiness. If you think your
hands are steadier than average then decrease by 20%. If you think you’re shaky then increase
by 20%.
• IS Factor (Tv*factor)
In determining the ISO setting, the effectiveness of the IS system will be taken into account.
Use a setting of 4 if your IS is effective enough to give you a two-stop reduction in shutter
speed. Use a setting of 2 if the IS isn’t very effective, or 8 if the IS is very effective.
• Max ISO HI (x10)
Sets the maximum “HI” ISO that the camera can select.
• Max ISO Auto (x10)
Sets the maximum “Auto” ISO that the camera can select.
• Min ISO (x10)
Sets the minimum “Auto” ISO that the camera can select.
Clear override values@start
Enable [•] / Disable [ ]
Extra Photo Operations overrides will be cleared for the next time the camera is started.
14
Enable Fast EV Switch?
Enable [•] / Disable [ ]
Warning: This feature is not properly workable on all cameras yet.
See: http://chdk.setepontos.com/index.php/topic,2595.msg24211.html#msg24211
and: http://chdk.setepontos.com/index.php/topic,2501.msg23321.html#msg23321
Turns your UP and DOWN buttons into quick EV compensation buttons. You no longer have to
press your FUNC./SET or MENU buttons to adjust your EV settings while shooting. By pressing
or DOWN buttons the EV increased
or decreased.
There is also a screen display❶
UP
showing your chosen EV-compensation settings by whatever step-size you have chosen (see
Step Size
EV override
(1EV)?)
below).
It is advisable
to move your
OSD
display❷over your
camera's own to prevent confusion.
You will see a real-time change in your EVF/LCD as you change your EV values with this shortcut. It also works while the Zebra Mode is engaged. You can fine-tune the Zebra alert just by
pressing the UP and DOWN buttons with half shoot.
When used in conjunction with the Curves "Auto DR" Mode you should never miss another
blown highlight or dropped shadow again.
One drawback: If using your up and down buttons during a half-press to see your Zebra
alerts while changing your EV setting, it will toggle your "Disable Overrides" on and off if you
have that feature engaged as well. A small price to pay for the ability to have these amazing
features. One work-around, set your EV step-size to 1/2 what you normally would use, then the
"Disable Overrides" shortcut will always toggle back to your original ON (or OFF) on every 2nd
EV +/- press, effectively resetting it where you wanted it in the first place.
Note also: This change is not saved between camera power-downs. If you would always like to
start out with a small negative preset EV value to avoid blown highlights, then use Canon's own
EV compensation setting for your startup EV value. This Fast EV Switch will reflect that value
on startup.
❶: Enabled when Fast EV Switch is enabled.
❷: Use OSD parameters > OSD layout editor to move display.
• Step Size (1EV)? [1/6 Ev, 1/3 Ev, 1/2 Ev, 2/3 Ev, 5/6 Ev, 1Ev, and on - ]
When using the Fast EV shortcut feature you can adjust how much you want to change your EV
compensation with each UP or DOWN keypress. Step size is increments. A major improvement
over the adjustment levels and steps in the original firmware.
Enable [•] / Disable [ ]
For optional control over camera flash output, use with Power of flash [ 0, 1, 2 ] to give 3
separate steps up in flash output power.
Force manual flash
• Power of flash
[ 0, 1, 2 ]
Used with Force manual flash to adjust flash output.
0 = Low, 1 = Medium, 2 = Very High
More at:- Flash notes, and Force flash pics. on page
58
Quality override [ Superfine, Fine, Normal, off ]
For recent camera versions without Canon Superfine setting (SX200, SX20, etc)
Canon setting is used when “off” is selected, settings are saved in CCHDK.CFG
15
Video Parameters
< Main Menu
[ Bitrate or Quality ]
Video compression modes.
Video Mode
Bitrate – dictates a constant data rate.
Video compression (and hence, video quality) expands or
contracts as necessary to maintain the data rate constant.
Quality – Sets a constant compression level, ensuring a defined level of quality regardless of
how much data that level requires.
Note: Excess Bitrate and Quality settings can cause memory buffer overload, and stop
recording, a red ! will show on the OSD.
[ 0.25, 0.5, 0.75, 1, 1.25, 1.5, 1.75, 2, 2.5, 3 ]
The compression factor for Bitrate compression. 0.25 is the most compressed / least quality and
3 is the least compressed/best quality.
Video Bitrate
[ 1 - 99 ] < Video Parameters < Main Menu
The compression factor for Quality compression. 1 is the most compressed / least quality and 99
is the least compressed / best quality.
Video Quality
Clear Video Params on Start?
Enable [•] / Disable [ ]
When enabled this will clear all your custom video compression settings back to the camera's
own defaults on startup.
Enable [•] / Disable [ ] < Video Parameters
Only a few cameras are supported. Pause and unpause video by pressing LEFT / RIGHT while
recording. Note: When using this function the remaining video-record time calculation is reset,
so the change is shown immediately in the OSD.
Fast Video Control
Enable [•] / Disable [ ]
When enabled, using the UP / DOWN button will increase or decrease video quality or
bit-rate (depends on which one is enabled in the Video Mode override) - While you are
recording.
Video Quality Control ? Enable Optical Zoom
Enable [•] / Disable [ ] < Video Parameters
This feature allows you to use the camera’s optical zoom during video recordings. Mute During Zooming
Enable [•] / Disable [ ]
To eliminate focus mechanism noise. Please note that the zoom mechanism sound is very loud in
video, which is probably why it was disabled by the manufacturer.
AF key
< Video Parameters < Main Menu
(Shutter button - half press, or FUNC.SET button) During video recording: camera makes a
single autofocus scan.
16
Show Remaining Videotime [ Don’t, hh:mm:ss, KB/s, both ]
< Video Parameters
Displays a positionable OSD element to show the video bit-rate, and the remaining video
recording-time, on your SD card,…
No display of remaining recording time and/or video data-rate.
• hh:mm:ss - Display a clock of remaining video-recording time left.
• KB/s - Display video recording bandwidth (data-rate) in Kilobytes per Second.
• Both - Display remaining video-recording time in both hours/mins/secs, and video
data-rate in Kilobytes per Second.
•
Don't -
• Refresh Rate (~sec)
< Video Parameters < Main Menu
Due to the nature of video's variable bit-rate and compression methods, subject dependent,
the "Show Remaining Videotime" has to be updated regularly by re-polling the card-space
and the bit-rate to calculate a fairly accurate time-remaining estimate. Choose, in seconds,
how often that you want this Video-Recording time-remaining to be updated. Shorter periods
of time are less accurate from each on-screen update to the next.
RAW Parameters
Save Raw
< Main Menu
Enable [•] / Disable [ ]
Enables the saving of RAW files. Enabling RAW does not
disable JPEG, both are saved. Also required for saving DNG.
Exceptions < Raw parameters < Main Menu
Enable [•] / Disable [ ]
• Disable @ Video Record?
Some cameras, the S-Series in particular, have a dedicated "Video Record" button where you can
engage that and also shoot individual still-frames during video recording. It was found that
RAW file-saving can interfere in this process. Turning this option on will ensure that you don't
miss a shot or your video.
• Disable RAW @ Sports
Enable [•] / Disable [ ]
Disable RAW saving when the Mode-Dial is turned to Sports Mode. This ensures that fast action
sequences won't be missed due to RAW file-saving time, when forgetting to disengage the RAW
feature.
• Disable RAW @ Burst
Enable [•] / Disable [ ]
Disable RAW file-saving when using burst mode. Again, a handy override for when RAW is not
needed during fast burst-sequence shots (RAW enabled would certainly increase time between
shots)
• Disable RAW @ Timer
Enable [•] / Disable [ ]
Disable RAW file-saving when using your camera's Custom Timer mode (similar to the safety
feature for the burst mode).
17
• Disable RAW @ EV Bracketing
Enable [•] / Disable [ ]
Disable RAW file-saving when you are using any of the high-speed bracketing features.
• Disable RAW @ Edgeoverlay
Enable [•] / Disable [ ]
Disable RAW saving while using Edgeoverlay.
• Disable RAW @ Auto
Enable [•] / Disable [ ]
Disable RAW saving while using Auto shoot mode.
• Warn when Exception?
Enable [•] / Disable [ ]
Displays a "RAW Disabled" OSD warning in a selectable color when any of the RAW FileSaving Exceptions are enabled and RAW file-saving is turned on.
Dark Frame Subtraction
< Raw parameters < Main Menu
Controls the application of the Dark Frame Subtraction feature of your Camera onto the RAW
file. Dark Frame Subtraction is a function used to reduce the effects of sensor noise when the
exposure time is 1.3 seconds or longer.
• Auto – Performs a DFS on exposures 1.3 seconds or longer.
• Off – Never performs a DFS.
• On – Always performs a DFS.
By always performing a dark-frame subtraction the noise caused by the hot-pixels will be
removed from any image. There will be a slight increase in processing time.
Only First RAW in Series
Enable [•] / Disable [ ]
When shooting in continuous mode, this will only create a RAW
capture for the first image. Subsequent images will not have
RAW captures. This allows rapid continuous shooting.
RAW File in Dir with JPEG Enable [•] / Disable [ ]
Saves RAW files in the same folder as the JPEG files. If disabled
then RAW files are always saved in the 100CANON folder.
RAW File Prefix [CRW_, SND_, IMG_]
< Raw parameters < Main Menu
CHDK lets you name your raw files with any combination of the standard prefixes IMG_,
CRW_, SND. If you are going to process the RAW files with DNG4PS-2 then setting a prefix of
IMG_ will allow DNG4PS-2 to retrieve EXIF data from the accompanying JPEG.
[.CRW, .CR2, .THM, .WAV, .JPG]
Set the extension to be used on RAW files. so the files are visible when you connect the camera
via USB.
RAW File Extension
[.CRW, .CR2, .THM, .WAV, .JPG]
Using more than one extension with the same prefix can cause a problem with USB listing.
RAW subtract extension
See:http://chdk.setepontos.com/index.php/topic,2045.msg18862.html#msg18862 Thanks reyalp.
18
RAW develop < Raw parameters < Main Menu
This feature is for RAW files created with CHDK, not the Canon native RAW of some cameras.
Use this feature to process a RAW file and create a JPEG from it. When selected, a file browser
window is displayed. Select a RAW file and press Set. Press Set again to clear the message, then
press the <ALT> button to exit <ALT> mode. Finally, press the shutter. The RAW file will then
be processed into a JPEG. The interesting aspect of this feature is that the processing will occur
with the camera’s current settings. So you can use the MyColors settings to create Vivid and
Sepia versions of the same image, or simply tweak the sharpness or contrast settings. Normally,
you would have to set MyColors before the image is taken, and you would get only one image.
Bad pixel removal [ Off, Average, RAWconv ] < Raw parameters < Main Menu
To remove defective pixels in a DNG image. Once you have generated a list with all the "bad"
pixels for your camera, CHDK can remove them automatically.
See:- Bad pixel Notes on page:
51.
and also:- Badpixel removal at http://chdk.wikia.com/wiki/Badpixel_removal
DNG format
Enable [•] / Disable [ ]
Automatic conversion of RAW image in the DNG format, in the camera. This format can be read
by many image editing programs. Also includes meta data like EXIF and whitebalance / color
matrix information. For this feature to be activated, the CHDK file directory badpixel.bin is
required, it can be generated either on a Windows PC (see Badpixel_removal for more
information), or directly in the camera with a script. This file contains specific information on
camera-pixel errors. The DNG files created have the same file extension as described in RAW,
and can be reset manually to DNG. There is also an automatic function to rename for most
cameras.
‘DNG’ file extension
Enable [•] / Disable [ ]
To distinguish DNG from RAW files. The DNG RAW image files will be stored as
<filename>.DNG with this option enabled, otherwise the extension from the "RAW file
extension" menu entry is used.
RAW buffer cached
Enable [•] / Disable [ ]
When enabled, saves the DNG file using the RAW buffer, which is a quicker method.
More about RAW
To get the RAW files onto your computer you must use a flash card
reader. The most versatile way to work with RAW is to first convert
the RAW files to the Adobe DNG format (Adobe Digital NeGative.)
This conversion can now be done in camera. See DNG format above.
Once the RAW files are converted, the resulting DNG files can be
processed with Photoshop® or any other popular photo processing
software.
See also:- Raw notes on page
50
19
Edge Overlay
< Main Menu
Enable edge overlay Enable [•] / Disable [ ]
Creates and overlays a high-contrast outline of the edges in
the last half-press or shot that you took. Valuable for those
that want to align features for panorama stitching or for doing
stop-frame animations. Similar to an "onion-skinning" mode
in animation software. During shoot mode half or full press
this feature adds an overlay based on the image edges,
additionally a grid that matches the Canon grid is added.
Use the left, right, up or down buttons to shift the overlay (use it in <ALT> mode to avoid
changing the camera options). The edge overlay is frozen when taking a shot. The frozen edges
are displayed from then on when the shutter gets half-pressed, FROZEN is shown in the OSD.
When you shoot again it goes back to the original behavior: showing the edges of the current
image on half-press. This behavior is useful when shooting stereo pairs. For panoramas you
would want to freeze the edges after every full press.
Zebra mode should be disabled when using the Edge Overlay.
Save Edge Overlay < Edge Overlay < Main Menu
After creating an overlay, navigate to this menu item and Press Func./Set to save.
Load+Set Zoom
Enable [•] / Disable [ ] < Edge Overlay < Main Menu
When this function is activated, the zoom position is stored to the current edge-overlay loaded .
Lock Edge Overlay Enable [•] / Disable [ ]
Enable this to ensure the edge-overlay you loaded or just created is not overwritten in the
OSD at half-press. Note:- This checkbox is overwritten on each camera startup.
Edge overlay threshold
[ 0 - 255 ] < Edge Overlay < Main Menu
Set the edge-overlay sensitivity. Lower values create edges along lower contrast / lowerbrightness edges. Higher values only create edges on the highest contrast / brightest boundaries,
and therefore fewer, finer, and more well defined lines. Adjust to suit your preference.
Edge overlay color < Edge Overlay < Main Menu
When selected press SET to display the standard color selection palette, to choose your edgeoverlay highlighting color. Choose your color then press FUNC.SET again to register that color
with this function.
Enable in Play
Enable [•] / Disable [ ] < Edge Overlay < Main Menu
Enables edge-overlay to be displayed in playback mode.
Free internal Memory < Edge Overlay < Main Menu
Clears the items saved in the Save Edge Overlay menu.
Load Edge Overlay < Edge Overlay < Main Menu
Press Func./Set takes you to Edge folder, choose an edge overlay to load.
20
Custom Curves
< Main Menu
Enables the use of custom "curve" profiles to adjust the exposure of
your RAW and JPG images. (Cameras with 12 bit sensors are not yet
supported-Dec09).
Difference between CV and CVF curves:
CV curves are the standard RGB curves.
CVF curves are special versions of the curves which intends to
avoid color shift side effect of the RGB curves. They are an
approximation of the luminance curves.
Except the SYSCURVES.CVF file it is recommended to put the curves files in the
\curves directory.
See:- http://chdk.setepontos.com/index.php/topic,932.0.html
Enable Curve [ None, Custom, +1EV, +2Ev, Auto DR]
• None - No curve profile is applied.
• Custom - Your custom curve profile is applied as-is.
The following three options require that you have a SYSCURVES.CVF file in your /CHDK
folder, this file is included in the "complete" CHDK packages. It is also contained in a file at
http://chdk.setepontos.com/index.php?action=dlattach;topic=932.0;attach=1816 which also
contains the editor.
Due to the limitation to short 8.3 file names in the file browser of current DryOS-based
cameras the file "SYSCURVES.CVF" should be placed on the memory card by a card reader;
in the CHDK file browser the file name is shown in shortened format as "SYSCUR~1.CVF".
• +1EV - Increases shadow detail by 1EV step.
• +2EV - Increases shadow detail by 2EV steps.
• Auto DR (auto dynamic range):
Auto DR with Zebra is intended to be used for the direct application of the curves to the shot
- and not for post processing (the feature is just mimic of the Fuji S100 +200, +400 Dynamic
Range). The flow is:
1. - Activate Zebra display
2. - Activate Auto DR
3. Use the camera EV negative compensation to reduce the Zebra overblown highlights
shown on screen. You can use the (+/-) button on the back of the camera.
4. Take the shot. You will directly get the JPG without post processing. The luminance of the
darker areas will be raised while the highlight is compressed.
During the RAW develop process, you need to set the EV comp. to the value that you used to
reduce the highlight blown out when you took the RAW. Care should be taken with in camera
develop since it is a tricky art there (for White Balance issues in particular).
If the scene does not require you to reduce exposure to avoid blown highlights, the Auto DR
feature does not do anything.
Load Curve Profile
Load your choice of curve profile from your \CHDK\CURVES folder. All curve profile files
except for SYSCURVES.CVF should be in this folder.
See also:- Curves on page 54.
21
Histogram parameters
< Main Menu
Enables and customizes the Live Histogram feature.
Histogram Anatomy
The horizontal component of a histogram runs from 0 to 255. What is
important to understand is the “0” and “255” are not values…they are
labels representing a color value. When you see a line in the middle
of the histogram (label “127”) it’s saying “this is how many ‘127’s there
are in the image.”
The vertical component of a histogram is the count of pixels at a given level. The bottom is zero and the
top represents the largest count of values for a label. So if you have a 7MP image and every color is
“127”, then the top of the histogram represents 7 million pixels.
RGB Histogram
RGB histograms simply count pixels at each level. The RGB histogram of an image of three boxes (red,
green, and blue) where every color has a value of 127 would be a single line in the middle of the
histogram (at label “127”.)
Luminance (Y) Histogram
Luminance histograms attempt to factor in the perceived brightness of colors. A luminance histogram of
an image of three boxes (red, green, and blue) where every color has a value of 127 will show three lines
at labels “38” (red- x 0.3), “75” (green x 0.59), and “14” (blue x .11).
Show live histogram [Donʼt, Always, Shoot]
< Histogram parameters < Main Menu
Don’t show histogram on LCD.
• Donʼt –
• Always – Always show the histogram on the LCD.
• Shoot – Only show the histogram when shutter is half-pressed.
Histogram layout
[RGB, Y, RGB Y, R G B, RGB all, Y all, Blend, Blend Y]
• RGB – Displays the RGB histogram only.
Displays the luminance histogram only.
• Y–
• RGB Y – Displays RGB above luminance.
• R G B – Displays three histograms, one for each color.
• RGB all – Displays all 5 variations of histograms with RGB on top.
Displays all 5 variations of histograms with luminance on top.
• Y all –
•
•
Blend – Combines the three histogram of the R G B display into one.
Blend Y – Same as Blend but with the addition of luminance below.
22
Histogram Screenshots
RGB
RGB Y
RGB Y
RGB
RGB all
Y all
Blend
Blend Y
• Histogram mode [Linear, Log] < Histogram parameters < Main Menu
Determines how the Y-axis (vertical) of the histogram will be scaled. Log is useful for
scenes with a large amount of a single color, such as an overcast sky (lots of gray.)
23
In this example the image is both over and
under exposed (the scene has a very wide
dynamic range)
A 10 MP camera might have its Y-axis scaled like this...
Linear
Log
10,000,000 pixels
1,000,000
“
100,000
“
10,000
“
1,000
“
100
“
10
“
1
“
10,000,000 pixels
7,500,000
“
6,250,000
“
5,000,000
“
3,750,000
“
2,500,000
“
1,250,000
“
1
“
Enable [•] / Disable [ ]
Show histogram over/under EXP
EXP in on-screen display. If parts of a scene are over or under exposed, then this setting will
display “EXP” above the histogram, and a red dot at the end that is exceeding exposure limits.
Ignore boundary peaks [0 – 32]
Another tool for controlling the scaling of the histogram. If you know that your scene will
contain large amounts of black or white (e.g a moon shot) you can set how many levels from the
left or right edges of the histogram to ignore, if those levels peak in the histogram. This will
increase the visibility of the smaller portion of the histogram.
Auto magnify
Enable [•] / Disable [ ]
N.NNx in on-screen display. Another tool for controlling the scaling of the histogram. This
option will magnify the Y-axis (vertical) if less than 20% of the histogram area is filled. The
purpose of this function is to make the histogram easier to read when there are very tall peaks.
This function lies somewhere between the Linear and Log options above. A red dot over a peak
indicates that it’s been clipped due to the magnification. The amount of magnification applied is
displayed over the histogram.
No Magnification
With Magnification
!
24
Show Histo Ev Grid Enable [•] / Disable [ ]
< Histogram parameters < Main Menu
Adds 4 or 5 vertical lines to the histogram dividing the histogram by full stops.
Zebra parameters
EV Grid Enabled
< Main Menu
Zebra is a feature that indicates over and under
exposed areas of the scene. When the shutter is halfpressed, the areas of the scene that are under or over
exposed will turn red. The zebra effect can also be
applied to existing images by half-pressing the shutter
during playback mode.
Draw Zebra
Enable [ • ] / Disable [ ]
Enables the drawing of over/under exposure indicators.
Zebra mode
[Blink 1, Blink 2, Blink 3, Solid, Zebra 1, Zebra 2]
Determines how the over/under exposed areas will be indicated.
• Blink 1 – Solid coverage, blinks every ½ second.
• Blink 2 – Solid coverage, blinks every second.
• Blink 3 – Solid coverage, blinks every two seconds.
• Solid – Solid coverage, no blinking.
• Zebra 1 – Striped coverage, thin diagonal lines.
• Zebra 2 – Striped coverage, thick diagonal lines.
Zebra Solid
Zebra 1
Zebra 2
25
UnderExposure threshold [0 – 32]
Controls the sensitivity of exposure indication. 0 is less sensitive and 32 is very sensitive.
OverExposure threshold [0 – 32]
Controls the sensitivity of exposure indication. 0 is less sensitive and 32 is very sensitive.
Restore original screen
Enable [ • ] / Disable [ ]
This option only applies to Zebra Blink modes.
When exposure indicators are visible, all of the original Canon indicators are erased. When this
option is enabled, the original Canon screen items (such as exposure) are redrawn between
blinks.
Restore OSD Enable [ • ] / Disable [ ]
This option only applies to Zebra Blink modes.
When exposure indicators are visible, all of the CHDK half-shutter indicators are erased. When
this option is enabled, the CHDK half-shutter indicators (such as DOF calculator) are redrawn
between blinks.
Draw over zebra [Histo, OSD, Nothing]
This option applies to all Zebra modes.
When exposure indicators are visible, nothing else is displayed on the screen. This option
specifies which additional indicators will be drawn.
Histo – Only the live histogram is drawn with the exposure indicators.
OSD – The entire CHDK OSD is drawn with the exposure indicators.
Nothing – Nothing else is drawn with the exposure indicators.
RGB zebra (overexp. Only)
Enable [ • ] / Disable [ ]
Overexposed areas are indicated by the color of the channel that is overexposed. Underexposed
areas are ignored.
Black – All channels are overexposed.
Red – Red channel is overexposed.
Green – Green channel is overexposed.
Blue – Blue channel is overexposed.
Cyan – Green and blue channels are overexposed.
Magenta – Red and blue channels are overexposed.
Yellow – Red and green channels are overexposed.
Solid
Zebra
26
OSD Parameters
Show OSD
< Main Menu
Enable [•] / Disable [ ]
The CHDK On Screen Display.
• Hide OSD? [ Donʼt, In Play, On Display, both ]
• Don't - always shows the OSD icons/elements
• In Play - hides them in playback
• On Display - hides them when you toggle the CANON icons on/off with the display button
(does not work for the evf)
• both - hides OSD in both playback and by "display button cycling", Helpful to those who
were bothered by seeing the battery and other indicators in their playback screens.
Center Menu
Enable [•] / Disable [ ]
A cosmetic adjustment to your CHDK Menu screens to evenly place them on the screen.
Auto Select 1st Entry @ Menu
Enable [•] / Disable [ ]
Quickly position your menu-selection cursor on the first entry in any CHDK menu. Instead of
having to press DOWN once to enter the menu options it will now start out already on the first
menu option.
Enable Symbols
Enable [•] / Disable [ ]
To display Menu Symbols
With Symbols
Without Symbols
27
User Menu
< OSD parameters < Main Menu
Add frequently used menu items to make a custom easy access
menu.
User Menu Enable
< OSD parameters < Main Menu
[ Off, On, On Direct, Edit ]
• Off - Disables use of the User Menu
• On - Enables the User Menu when in <ALT> mode and pressing [HALF-PRESS] + MENU.
• On Direct - When entering <ALT> mode your User Menu will be automatically displayed
without having to press the MENU button. You may reach the main menu by scrolling to the
bottom or using a [HALF-PRESS] + MENU shortcut keys.
• Edit - Enters the editing mode for your User Menu.
To copy other menu-items to build your custom User Menu (Up to 10 entries)...
Still in OSD parameters, select User Menu Enable [ Edit], now browse to any menu and
select the item you want to add to the User Menu, then press +/- button or the equivalent
button on your camera. The item has now been added to your User Menu. Each new item is
added as the lowest on the menu. To delete an item, in Edit mode, select the item and press
+/- button (or equivalent). When editing is complete remember to set the User Menu Enable
option back from "Edit" to either "On" or "On Direct".
Customizing hint / reminder: Some CHDK features require 2 or more options that work
together. An example, "Override Shutter Speed" might also need its associated "Value Factor"
selection and the "Shutter Speed Enum Type" if you frequently change that too. Be sure to
copy any related menu items together so they are still available where you need them in your
custom menu.
User Menu as Root
Enable [•] / Disable [ ] < OSD parameters < Main Menu
Toggles the behavior of the Menus when the User Menu is turned ON. When this option is set
then the User Menu will be the first one to be seen, and the main menu may be reached by using
the [HALF-PRESS] + MENU shortcut keys, or just selecting the top entry “Main Menu”.
Show State Displays
Enable [•] / Disable [ ] < OSD parameters < Main Menu
Displays your Override, Bracketing, and Override Disabled settings in their own positionable
information area.
Show Temperature
< OSD parameters < Main Menu
• Off - No display of camera component temperatures.
• Optical - Displays the temperature of your optical elements (most assume this is used for the
IS mechanism and Zoom/Focus motors). When the camera is first turned on this will most
accurately reflect the environmental temperature.
28
• CCD - Display the temperature of the CCD. Let's you know when it might be getting too
warm. Or when it's cold enough to take lower-noise images.
• Battery - Displays the temperature of the battery compartment.
NOTE: 3rd party LI-ION battery packs may always report a constant temperature, e.g.
25°C or 28°C.
• all - Displays all 3 values.
in Fahrenheit - Enable [•] / Disable [ ]
Default is Centigrade, check this for Fahrenheit.
Note: Not all models have a separate temperature sensor for each component, and due to
differences in design, values reported by different models may not be directly comparable.
OSD layout editor
< OSD parameters < Main Menu
The OSD items can be rearranged to suit personal preferences and to avoid the Canon items on
the display.
Enter Layout Editor
Histogram selected
DOF calculator selected
When a feature is selected you can use the rocker switch to move it around. A red highlight
displays giving the name of the feature being moved and its position in X, Y format.
• FUNC.SET button - Switch between display features.
• 4-Direction switch/rocker – moves the selected feature.
• Display button – Toggles between 1 pixel per move or 10 pixels per move.
29
Grid
< OSD parameters < Main Menu
Opens the Grid Lines menu. This menu allows you to select and display a custom defined grid.
See the grid tutorial in the CHDK Wiki.
Show grid lines
Enable [•] / Disable [ ]
Enables the display of custom grids.
Load grid from file…
Displays the file selection screen. Use the directional
controls to select a grid file and press Set to select it.
…………...Current grid.…………….
The name of the currently loaded grid.
Rulers Grid
Override grid colors
Enable [•] / Disable [ ]
This setting will override the grid colors defined in the grid file. It will not override the
grid colors of the grid selected from the Canon menu.
Line color
Select a color for the grid lines
Fill color
Press the Set key to bring up the color selection table.
Press the Set key to select a color.
Also see:- Grids notes on page
Miscellaneous Values
53.
< OSD parameters < Main Menu
Show misc values [Don’t, Always, Shoot]
• Donʼt – Don’t show misc values on LCD.
• Always – Always show the misc values on the LCD.
• Shoot – Only show the misc values when shutter is half-pressed.
Show values in video
Enable [•] / Disable [ ]
Displays the Miscellaneous values when the camera is in video mode.
Show Zoom
Enable [•] / Disable [ ]
Z:n/n.nx in Micscellaneous Values. Displays the current Zoom position of the lens.
Z:n = zoom position, from 1 to 14
• Show Zoom value as [X, FL, EFL]
Method of displaying the Zoom position of the lens
X – as a multiple of the shortest focal length, as in 6X.
FL – as the actual focal length of the lens, as in 34.8mm.
EFL – as the effective focal length, (35mm Equivalent, as in 210mm.
30
Adaptor Lens Scale, 100=1x [0 – 1000]
Adjusts the zoom value above by a multiplier, which is based on the converter lens that is
installed on the camera. For a 0.7x wide converter use 70. For a 1.75x tele converter use
175.
Show ‘real’ Aperture
Enable [•] / Disable [ ]
Av in Miscellaneous Values. This is the actual aperture setting after any override aperture
adjustments have been applied.
Show ‘real’ ISO Enable [•] / Disable [ ]
I-R in Miscellaneous Values. Displays the actual ISO value after overrides or bracketing have
been applied.
Show ‘market’ ISO
Enable [•] / Disable [ ]
I-M in Miscellaneous Values. Displays Canon’s ISO value, which is not always the same as
the actual ISO value.
• Show ISO only in Autoiso mode
Enable [•] / Disable [ ]
Display the ISO value only when the camera is in Auto ISO mode.
Show Set Exposure Ev (Tv+Av) Enable [•] / Disable [ ]
Evs in Miscellaneous Values.
Show camera exposure value based on the values of shutter speed and aperture.
Show Measured Ev (Bv+Sv) Enable [•] / Disable [ ]
(brightness value + scene sensitivity set in a camera)
Show Set Bv (Brightness Value) Enable [•] / Disable [ ]
Bvs in Miscellaneous Values.
Internal-brightness scenes through recalculation of the parameters established in the camera. Just
Av-Sv + Tv.
Show Measured Bv Enable [•] / Disable [ ]
Displays the measured brightness value, as written in the Exif data.
Show Overexp. Value (No Flash!)
Enable [•] / Disable [ ]
Indicates a calculated overexposure value. Av-Bv-Sv + Tv
Show Canon overexp. Value Enable [•] / Disable [ ]
Indicates the overexposure value calculated by the camera.
Show Scene luminance (cd/m2) Enable [•] / Disable [ ]
B in Miscellaneous Values.
Run average in standard illumination scenes candelas per square meter… calculated from a ratio
to Bv = 12.5.
31
DOF Calculator
< OSD parameters < Main Menu
The Depth Of Field Calculator displays 5 distances in meters…
•
•
•
•
SD – Distance to the subject (Near Limit + DOF*0.33). Also called the Focal Plane.
NL – Near Limit. The distance where acceptable sharpness begins.
FL – Far Limit. The distance where acceptable sharpness ends.
DOF – the Distance between the Near Limit and the Far Limit.
• HYP - Hyperfocal distance. Depending on the aperture and zoom settings, the hyperfocal
distance reflects the optimal distance for an object to be photographed, i.e. the sharpness of
that object will be the sharpest at this specific distance.
• Show DOF calculator [Don't, Separat, In Misc]
• Donʼt – Disables display of the DOF calculator
• Separate – Displays the DOF values apart from the Misc values.
• In Misc – Displays the DOF values with the Misc values.
Canon Subj. Dist. as Near Limit Enable [•] / Disable [ ]
Enabling this value affects the way the subject distance is calculated.
Use EXIF subj. Dist. (Propcase #65)
Enable [•] / Disable [ ]
Enabling this value affects the way the subject distance is calculated.
Experimentation may be required to clarify these 2 preceding settings, they will effect script
commands that establish focus, and some other camera behavior, such as focus bracketing.
The following 5 settings will determine which DOF values will appear in the OSD. When the
“Show DOF calculator” is set to “Separat”, all 5 values are always displayed. When it is set to
“In Misc” then only the enabled values below are displayed as part of the Miscellaneous Values.
Show Subj. Dist. in Misc.
Enable [•] / Disable [ ]
Enable to show in Miscellaneous values on OSD.
Show Near Limit in Misc.
Enable [•] / Disable [ ]
Enable to show in Miscellaneous values on OSD.
Show Far Limit in Misc.
Enable [•] / Disable [ ]
Enable to show in Miscellaneous values on OSD.
Show Hyperfocal Dist. in Misc.
Enable [•] / Disable [ ]
Enable to show in Miscellaneous values on OSD.
Show Depth of Field in Misc.
Enable [•] / Disable [ ]
Enable to show in Miscellaneous values on OSD.
Subject distance from lens
Enable [•] / Disable [ ]
When enabled, distances displayed are measured from the front of the lens rather than the
sensor. This is useful for macro photography.
32
Raw
< OSD parameters < Main Menu
Show RAW state Enable [•] / Disable [ ]
“RAW” in OSD. Enables the display of the RAW indicator.
Show RAW shoot remain Enable [•] / Disable [ ]
Calculates how many RAW captures will fit in the current free memory and displays that
number next to the RAW indicator.
Warning threshold [0 – 200]
Turns the RAW indicator red when the number of RAW shots remaining drops below the
threshold value.
Battery
< OSD parameters < Main Menu
Hooray for the battery indicator!!
Controls the display of the battery indicators on the LCD
Change Battery Min.
& Max. Volts
Set Show Battery
Percentage
Showing Yellow
Battery Icon
Set the maximum and minimum voltages to match fully charged and discharged batteries,
the battery icon fill color will reduce as voltage lowers and will change to red color close
to minimum voltage.
Filespace
< OSD parameters < Main Menu
Show Filespace Icon
Enable [•] / Disable [ ]
Displays a small SD card shaped icon on your screen to show how much filespace is left on your
SD card. Opaque means remaining free space. Transparent means that space has been used. Use
the OSD Layout Editor to position the icon anywhere on your screen.
33
Show Space Bar [ Donʼt, Horizon, Vertical ] < Filespace < OSD parameters
Displays a thin SD capacity remaining "fuel-gauge" icon on your screen. Location is
positionable in your OSD Layout Editor.
• Don't - Turn off this feature.
• Horizon - Displays the bar-graph gauge in a horizontal orientation.
• Vertical - Displays the bar-graph gauge in a vertical orientation.
• Size on Screen < Filespace < OSD parameters
Changes the display size of your "Space Bar" SD-capacity gauge.
1/4 - the bar-graph only goes 1/4th the width or height of your EVF/LCD display.
1/2 - the bar-graph goes 1/2 the width or height of your EVF/LCD display.
1 - the bar-graph goes the full width or height of your EVF/LCD display.
• Width/Height < Filespace < OSD parameters
Change the width (for vertical space-bar) or height (for horizontal space-bar) in 1-pixel
increments.
Show Filespace in Percent
Enable [•] / Disable [ ]
Display your SD card space left in percentage of its total capacity. (Toggles between this and
the MB option.) OSD display element positionable in your OSD Layout Editor.
Show Filespace in MB
Enable [•] / Disable [ ]
Displays your SD-card space-remaining in Megabytes. Toggles between this and the
percentage option. (see above).
Warning Unit < Filespace < OSD parameters
Don't - Don't display a warning when your free SD-card space is getting low.
Percent - Change your space remaining display to the warning color when the percentage
reaches or goes below your selected "% Threshold" (see below).
MB - Change your space remaining display to the warning color when the Megabytes reaches
or goes below your selected "MB Threshold (see below).
• % Threshold
< Filespace < OSD parameters
Setting used in conjunction with above "Warning Unit" feature. Set the amount of SD-card
space percentage remaining when you want that OSD element to turn to your chosen warning
color.
• MB Threshold < Filespace < OSD parameters
Setting used in conjunction with the above "Warning Unit" feature. Set this to how many
megabytes when your space remaining feature turns to your chosen warning color.
Note: may be used in conjunction with a handy script if you need to ration the amount of
photos you take on a long vacation.
See this:
http://chdk.wikia.com/wiki/UBASIC/Scripts:_Photo_Rations script.
34
Clock
< OSD parameters < Main Menu
• Show Clock
Displays an OSD real-time clock.
• Don't - No clock display.
• Normal - Displays HH:MM
• Seconds - Displays HH:MM:SS
• Clock Format
12-hour or 24-hour format toggle. When 12-hour format is used then
the chosen 12-Hour Clock AM/PM indicators are enabled.
Also influences the temperature format. 12h - Fahrenheit.
• 12h Clock Indicator
• PM - Displays AM or PM suffix on the OSD Clock
• P - Shorthand version of A or P for AM and PM on the OSD Clock (to save real-estate space).
Ultra-shorthand version of AM or PM. Displays a simple "." after the time to indicate PM,
no character is displayed for AM. Examples: 10:30 = 10:30 AM, 11:15. = 11:15 PM
(note the small period after the 15).
• @ Shutter Half-press Show
Shows your OSD clock during a half-press of your shutter button.....
• Don't - No clock display on a half-press.
• Full - Shows full clock time during half-press.
• Seconds - Only counts off the seconds in the clock display during a half-press. Helpful when
doing manual timings between consecutive shots without having to quickly call up some
intervalometer script.
Show OSD in Review Mode
< OSD parameters < Main Menu
Displays your OSD when in REVIEW mode. Do not confuse this with Playback mode. Review
mode is when your last taken photo is temporarily being displayed as you hold down the shutterbutton (and press SET to lock it into Review Mode) or when you have your Canon's Menu
"Review" options turned on. This allows you to keep your on-screen grid and other settings
visible when reviewing the photo to see if you got the framing or other settings as you had
intended.
35
Visual Settings < Main Menu
Use this menu to make changes to the appearance of all CHDK
menus, texts, backgrounds, etc., choose font types, sizes, colors, etc.
Language
Lets you choose another language if you have the
appropriate .lng-file in the CHDK/LANG/ folder of
your SD card.
OSD codepage
Choose the Codepage. [ Win1250 - 1257 ]
Menu RBF font
Choose another font (RBF format) for the CHDK menus. If you have chosen a RBF font but
want to switch back to the original built-in font, just choose an "illegal" RBF font (Try to load a
uBASIC script as a RBF font, for example).
…………………….....Colors……………………....
Change any of the display colors for all your text and icons. If
you don't change them they will remain as their defaults.
There are opaque colors and transparent colors, and also some
"special effect" colors. Note that record mode and playback
mode use different color tables. So it may happen that you pick
a nice color in playback mode, and in record mode it will look
totally different. But there are also colors which will stay the
same in both modes. Some examples for A-series cams:
0x11(white), 0xFF(black), 0x22(red), 0x55(green), 0x44 (transparent light grey).
Also see:- Draw palette, Page 43.
Green Menu Text
Green Cursor Background
Pink Menu Background
36
Scripting Parameters
< Main Menu
Load Script from File...
Enter <ALT> mode, press FUNC.SET to go to the SCRIPTS
Folder, select a script, press FUNC.SET again to load it, set
any required parameters to suit your needs (such as in this
screenshot, “Times to Repeat”, “Display Delay” - see the
script’s documentation), then press menu to finish. Stay in
<ALT> mode, press the Shutter button to run the script. To
interrupt a running script press the Shutter button. To return to normal shooting, exit <ALT>
mode. CHDK saves your last user-selected script parameters from one session to the next.
The default script is the one you load when you don't need a script.
New scripts can be added to the SCRIPTS folder as they become available.
Script shoot delay (.1s)
After an image is captured, indicates how long to delay the execution of the next script
command. A value of 0 executes immediately. A value of 10 executes the next script command
one second after capture.
Mainly used to minimize camera movement before script starts.
Script Autostart
[Off, On, Once]
When enabled, the script listed under “current script” will execute immediately the camera is
turned on, remember this when you see your camera operating by itself after it is turned on.
Remote Parameters
• Enable Remote
Enable [•] / Disable [ ]
Toggles your remote USB cable detection state, both scripted and scriptless.
When this is enabled you may use your camera normally without any script and still use your
USB-Remote cable to trigger the shutter. Have your camera in normal record mode and not
in <ALT> mode. This is the same as if you pressed the shutter manually in all normal camera
operations.
Note on scriptless usage: You may first perform a half-press to auto-focus and set exposure
with a short press of your USB-Remote trigger, The second press will then perform a full
shutter-press. If you want to trigger a full shutter-press immediately just hold down your
USB-Remote button a little longer. Or more precisely explained by the author of this: "... if
USB remote is enabled, pressing / releasing remote button is equivalent to pressing / releasing
the shutter halfway. To take a shot, do a "reversed click", i.e. momentarily release and again
depress the remote button within 0.5s, which will "push" the shutter all the way.
Note: On some cameras the scriptless USB Remote trigger may be used to advance (in
reverse order) from frame to frame in Playback mode. Now when giving a slide-show lecture
you can stand away from the camera and just click the photo change button. 37
...................................synchable remote........................................
• Enable Synchable Remote
Enable [•] / Disable [ ]
Enables synchable scriptless remote code originally used in Stereo Data Maker.
• Enable
Synch
Enable [•] / Disable [ ]
Used to synchronize 2 or more cameras when all hooked to the same USB-Remote signal.
• Enable Synch Delay
Enable [•] / Disable [ ]
Allows you to fine-tune your USB-Remote triggering speed to
match that of other cameras when using more than 1 camera. (For
stereo imagery, multi-frame stop-action matrix effects, etc.) Rate
of delay is adjusted with the settings below.
• Sync Delay 0.1ms
USB-Remote Sync delay in 0.1ms increments (1/1000th of a second).
• Sync Delay 0.1s
USB-Remote Sync delay in 0.1s increments (1/10th of a second).
• Enable Remote Zoom
Enable [•] / Disable [ ]
To enable the zoom by remote control function.
• Zoom Time-out 0.1s
[
2 - 10 ]
Set a value for time-out, 0.1s x 2 up to 10.
Load Default Param Values
CHDK normally saves your last user-selected script parameters from one session to the next.
Press FUNC.SET when your menu cursor is on this option resets them to the default parameters
as programmed into the script when first ran. A simple way to go back to a script's defaults after
you've gotten hopelessly lost in many changes or just need a quick way to return to base settings.
Parameters Set
Allows for the selection of 0 to 9 (ten) optional parameter sets for each script. If you select a
new Parameter Set and then change your user-setting script parameters, CHDK will now
remember your settings for each set. (The script parameter sets are saved in a CHDK/DATA/
directory named by the script in use at the time.) Now you can have up to 10 favorite settings for
any one script. The next time you load the same script your favorite defaults can be called-up by
just selecting numbers 0 to 9.
Save params
Enable [•] / Disable [ ]
Save current parameter settings.
See USB Remote notes, page
52.
38
.......................................Default Script................................................…
The name of the currently loaded script is displayed in the Mini Console area at the bottom
of the LCD on the left hand side.
The Mini Console area is where script information is displayed, messages included by diligent
script authors to keep users informed of the progression of a script, and to direct input from the
user for setting script parameters. Messages are defined by the “print” command in scripts.
• Times to Repeat
[ 5 ]
Set a number for times for script to repeat.
• Display Delay
[
3]
In seconds
More at: Scripting Notes, page
Miscellaneous stuff
54 and How do I use scripts? page
63.
< Main Menu
File browser
Use
to navigate
Browse files in the various CHDK folders.
Use Up /Down key to highlight, FUNC.SET to select a folder,
Right key to select file, Left key for pop up menu for Cut, Copy, Delete,
Select Inverse, RAW sum, RAW average, Purge RAW, Sub from marked,
DNG -> CHDK RAW.
• RAW Merge
When selecting (highlighting) files in the file browser mode, by using your RIGHT navigational
button, you now have 2 functions available on the LEFT navigational button menu.
If after using either of these features and you would like to see the resulting image without
having to load them into a computer and using RAW viewing software, use the "RAW Develop"
feature on the "RAW Parameters" menu to create a JPG file for playback in the camera.
When using either of these options the resulting new RAW file will use whatever last filename
was selected for merging as the prefix to the new RAW filename, and a WAV suffix will be
added to it so you know which last-of-a-sequence files were used for merging. This also
circumvents any confusion later when using utilities like DNG4PS with trying to merge
corresponding JPG EXIF data with the original RAW data, where filenames could get drastically
out of order by creating new JPG filename numbers.
39
• RAW Sum
Using the selected RAW files, this will combine them into one file. Working on an additive
principle. Meaning, if you take five 65-second exposures, then RAW Sum them together, the
resulting image will be equivalent to the brightness level of a 5 minute, 25 second exposure.
• RAW Average
This RAW Merge feature will, as it says, average all the frames together. Very convenient if
taking several identical frames at high ISOs at high shutter speeds. This will merge them
together, effectively obliterating any noise, as the noise gets averaged out. The more frames
used, the less noise visible.
• Purge RAW
With this function the RAW files can be deleted in 3 different ways...
< File Browser < Miscellaneous Stuff
Caution ! Erasing files in the camera is an irreversible operation !
Backup important images first, the data on your SD card may get damaged or
deleted !
The first step is to delete the JPG outtakes in playback mode (using Canon's
interface).
The 3 options for the Purge RAW function and erase the
corresponding RAW files:
1) Delete all RAW files in DCIM folder including
subfolders
Useful when:
You keep a separate folder for RAW files.
You set up the camera to create a new folder everyday
(several days trek, holidays etc).
You want to erase the occasional mischievous RAW file stored in a different folder.
Go to CHDK File Browser, select DCIM folder, push the left button to display the popup menu
and select "Purge RAW" (See image above). A warning will ask you to confirm (See image next
page) and voila! You have regained some SD space.
This feature will search through all the folders in DCIM looking for a RAW file (CRW/CR2
prefix or file extension) and if it finds one then will look for its JPG partner anywhere inside
DCIM (comparing the 4 digit number assigned by the camera). If it is not found, the RAW file is
erased.
40
2.) Delete all RAW files in a selected folder
Useful when:- You keep RAW files in the same folder as JPG
files, You only want to get rid of some RAW files. (Very
important shots in some other folder). You know which folder
has a lot of out-takes. Go to CHDK File Browser and inside
DCIM folder select the folder you want (E.g. "102CANON")
and push the left button to display the popup menu. Select
"Purge RAW". A warning will ask you to confirm and all the
RAW files in ONLY that folder will be erased. This option
works like the previous one but only on the selected Canon folder, the rest are untouched.
3.) Delete some or all RAW files in a list.
Useful when You want to protect specific RAW files (to use them later for HDR)
Go to CHDK File Browser, enter DCIM folder, enter a sub folder (E.g. "102CANON") push the
left button to display the popup menu. Select "Purge RAW" . A warning will ask you to confirm
and all the RAW files will be gone.
Now the useful thing of this option is that you can mark the RAW files you DON'T want to erase
(protect files). The Purge RAW function will erase the rest of the RAW files ignoring the marked
ones.
See:- http://chdk.setepontos.com/index.php/topic,557.msg4454.html#
Calendar
< Miscellaneous Stuff
Yes, a calendar!
Select Year - Up / Down
Select Month - Left / Right
Use MENU button to exit.
41
Text file reader
< Miscellaneous Stuff < Main Menu
This utility can be used to read a text file stored on the SD
card. (Very convenient!, you can keep onboard instructions.)
• Open new file…
Displays a file browser window, opened to the CHDK/
BOOKS directory. You can select a txt file to view. Press
Func./Set to open the file.
• Open last opened file
Will display the most recent text file that was viewed.
• Select RBF font
Open the file browser in the CHDK/FONTS directory. Allows you to select a different font for
displaying text.
• Codepage [Win1251, DOS]
Select the text file format.
Change Font
Change Color
Yellow Text Color
As with other menus, fonts and colours can be changed to suit all preferences.
• Wrap by words Enables word-wrap.
Enable [•] / Disable [ ]
• Enable autoscroll Enable [•] / Disable [ ]
When enabled the text file will scroll automatically.
• Autoscroll delay (sec) [ 0 – 60 ]
Determines how long the system waits before scrolling the text file.
Use MENU button to exit.
42
Games
< Miscellaneous Stuff < Main Menu
Yes, games! Choose your favourite!
Switch to Playback mode for games.
Arrow buttons - move
FUNC.SET - choose level (Moves counter should be 0).
Erase / +/- – restart current level
Display - show 'about' info
Zoom rocker - undo / redo moves
Use MENU button to exit. Reversi Sokoban
Mastermind
Connect 4
If colours are not displayed properly, try entering and exiting Canon menus before entering <ALT> mode.
Flash-light
For Cameras with fold out LCD. Turns the LCD panel into a flashlight! When in Record Mode
and the LCD panel is swiveled facing forward, the LCD display turns all-white so you can see
your way around in the dark, or to illuminate some close object while setting up to take a
photograph.
Show splash screen on load
Startup sound
Use zoom buttons for MF
Enable [•] / Disable [ ]
Mostly personal preference, shows build info,
also indicates CHDK is loading. Camera startup will be
slightly faster if splash screen is disabled.
Enable [•] / Disable [ ]
Might be handy to know if someone else is using your camera.
Enable [•] / Disable [ ]
For a more precise adjustment of manual focus.
43
<ALT> Mode button
Cameras with a shortcut button can assign from a number of buttons to use as the <ALT>
button, choose from PRINT, SHORTCUT, FLASH, TIMER, ISO, or VIDEO buttons.
Display button on A570, A590, A720, Face button on SX100, ISO button on A650,
Disable LCD Off
[ No, Alt, Script, ]
No: LCD disabled, Alt: LCD on, Script: LCD on during script execution.
<ALT> mode. For long intervals you should disable the Power Saving options of your camera.
This can be done in the <ALT> menu. In the Miscellaneous Stuff menu item set the Disable
LCD Off value to Script, so the display won't turn off while in <ALT> mode or while a script
is running.
Draw palette
Allows inspection of colours and transparencies by (almost) full screen. Use the numbers of
the desired colours to select them in Visual Settings menu. Use arrows to navigate palette,
press Func./Set to select a color, press MENU to exit.
Show build info
Displays the current version of CHDK in use, ie: 0.9.9 - 910, date May 07 2010.
Show memory info
Displays free RAM available, also CHDK size and load address.
Make card bootable...
Option to enable auto load of CHDK at startup. Memory cards must have FAT12 or FAT16
format for the bootable partition. Large cards formatted in camera will be FAT32.
Swap partitions
For cameras with multi partition support. To access each partition on a multi partition
memory card, (in computer OS's that only read one partition) Press SET to change to the
currently inactive partition. Also see:- Page 45 "Create card with two partitions"
Reset options to default…
Reset all functions and displays back to CHDK default values.
Note:- By this operation you will lose all your personal settings.
Debug Parameters
< Miscellaneous Stuff < Main Menu
In this menu internal data on the functioning of CHDK is available.
• Debug data display
< Debug parameters < Miscellaneous Stuff
Shows debug data on the OSD, values are: [None, Props, Params, Tasks]
Show http://chdk.wikia.com/wiki/PropertyCase variables
The values are generally shown unsigned - that's because the propcase viewer doesn't
know whether a value is supposed to be signed or unsigned, and treats everything as
unsigned. "65152" is just the same value as "-384" when considered as an unsigned
short rather than a signed short.
Shows the task list, only on VxWorks cameras.
44
• PropCase / ParamsData page
< Debug parameters < Miscellaneous Stuff
[ 0 -128 ] Search pages, each page shows 10 values
Property cases (PropertyCase or PropCase) are basically variables in the camera's RAM
that we can read and write from CHDK by using uBasic commands get_prop and set_prop.
"Under the hood" some other uBasic commands work by changing propcases, making it
possible to use them in a portable way. Some propcases are read only. Often writing to a
propcase will have a different effect than pressing the corresponding buttons on the camera's
user interface. Typically this means that while you may change something like the shutter
speed and your change will be effective in your photo, it may not be updated to the camera's
on-screen display.
To find out which Property case a function changes see:
http://chdk.setepontos.com/index.php/topic,2666.new.html#new
Property cases are different for Digic II and Digic III cameras.
EXAMPLE: A570IS ISO is at #149, not #21 like on the S3IS, and the white
balance control is #268, not #206. Furthermore, some Digic III cameras (G7,
SD800IS, SD900) use the Digic II property set.
You are advised to confirm that these properties are appropriate for your
camera before you attempt to change them.
• Task list start < Debug parameters < Miscellaneous Stuff < Main Menu
Where to display from. If you set this to more than there are tasks running on the camera,
it will show the last twelve, adjusting on the fly as tasks get created and then deleted.
• Show misc values
Enable [•] / Disable [ ]
Displays various values for service and programming purposes.
• Memory browser < Debug parameters < Miscellaneous Stuff < Main Menu
Similar role as previous.
• Benchmark < Debug parameters < Miscellaneous Stuff < Main Menu
Test write and read speed of the camera and SD cards. To compare memory cards.
Since this function during the first pass provides inaccurate values a 2nd run should always
be carried out, only the values of this 2nd run are meaningful.
Example next page...
45
A720IS
Memory Card Benchmarks Example
(Guide only, many variables to be considered)
SD-card model, size
Canon, 16MB (bundled)
A-DATA Speedy, 2GB (FAT16)
Kingston, 2GB Ultimate
Transcend, SD 4GB, Standard (FAT16 fresh format)
Transcend, SD 2GB, 80x
Transcend, microSD 2GB, Standard speed, MLC
ByteStor, SD 1GB, 50x
SanDisk, SD 1GB, Ultra II 60x
SanDisk, SD 2GB, Ultra II 60x (fresh format)
SanDisk, SDHC 4GB, Ultra II 60x (FAT16 fresh)
Sandisk, SD 2GB, Extreme III 133x (fresh format)
EMTEC, SD 2GB, 60x (FAT16 fresh)
Speed (Kb/s)
Write Write Write Read
(RAW) (Mem) (64k) (64k)
2254
2254
2254
2254
2254
2254
2254
2254
2254
2254
2254
2254
1859
3164
10326
3980
7629
5358
8060
8840
9600
8718
10686
8073
1754
2532
7692
3623
5505
5468
6132
5591
7123
5627
7594
7407
3508
5572
6742
5930
6476
9153
7021
6606
8445
6715
8316
8672
• Create card with two partitions
BEWARE: This may DELETE ALL data on the card !
This feature is used with SDHC cards larger than 4GB, on supported cameras (needs
multi partition support) it will create a small FAT16 partition with a size of 2MB for CHDK
and a larger partition formatted as FAT32 to store the images. On such a prepared card
the camera boots up CHDK from the small partition, then the partitions are automatically
swapped, this way the full capacity of the FAT32 partition can be used. The partitions are not
shown correctly under MS Windows, only one of the two partitions is shown, to access the other
partition without a special system driver, the partitions should be swapped with "Swap partitions"
This option creates a 2 MB FAT partition on the SD card, that's fixed on the code for now. Copy the
CHDK firmware extensions to this partition and load them, (The DISKBOOT.BIN and PS.FI2 files).
Then select "Make card bootable" in "Main Menu > Miscellaneous stuff", so it does not complain when
you write-protect the card.
Next step is to select "Swap partitions" in "Main Menu > Miscellaneous stuff", this will hide this small
partition and make the larger FAT32 one visible. We need to format it, and copy CHDK files
DISKBOOT.BIN and PS.FI2 to it too, so we can perform "swap partitions" again. So format it in FAT32,
copy CHDK, insert it on the camera and load CHDK using "Firmware Update", Select "Swap partitions"
and "Make card bootable", write-protect the SD card, (lock with slider on side of SD card) and powercycle the camera. It should now load CHDK from the small 2 MB partition, but have access to the larger
FAT32 partition to store pictures, video and the CHDK folders.
46
The size of the 1st partition is fixed to 2MB in the code (not changeable in the CHDK menu),
but you can change it there and compile your own build, if you know how, using whim’s CHDK
Shell, http://drop.io/gcc_for_chdkshell
Normally the creation of a partition deletes all data on the card, the swap command should not
delete any data, but you should test this first!
The partitions can also be created manually with a card reader on a computer, the 1st partition
must be less than 4GB and formatted with FAT16. Note: as the CHDK download files grow in
size with later versions it may be necessary to partition with a computer anyway - to make the
1st partition larger than 2MB to accommodate the larger file size.
To prepare SD cards, and make them bootable for auto starting of CHDK,
the applications Cardtricks, or SDMInst.exe, are used on Windows OS, and
SDMInst for Mac OS. For installation information and instructions, see the
supplement to this User Guide : CHDK Installation Guide or http://drop.io/chdk_new_UserGuide_booklet_pdf
• ALT +/- debug action < Debug parameters < Miscellaneous Stuff < Main Menu
Action for the +/- key (on IXUS series DISP is used instead)values are [None],
[Dmp RAM] -> a complete memory (RAM) dump will be written to the SD card
[Page] in this mode the page shown in the propcase viewer can be changed (double-press
changes the paging direction (up/down))
• Show saving time < Debug parameters < Miscellaneous Stuff
Remote parameters < Miscellaneous stuff < Main Menu
See Page 36
DNG visible via USB
Enable [•] / Disable [ ]
This feature enables the display of DNG files on your computer, via USB connection.
47
History of CHDK
From Stereo Data Maker site:- http://stereo.jpn.org/eng/sdm/chdk.htm :
http://stereo.jpn.org/eng/index.html
During the second half of 2006, programmer 'VitalyB' studied a disassembly of the firmware update for an
IXUS camera in order to understand the Canon® firmware-update procedure.
With that knowledge, he was able to write his own program that installed itself and then downloaded a
copy of the Canon® firmware by blinking an LED.
The program was installed in playback mode via the standard 'Firmware Update' option.
The hack copies the original initialization firmware and modifies it so that less ram is available to the OS.
A custom process is then run in an area of ram that is not accessible to the OS.
After studying the camera firmware, he developed the "RAW enabler" that allowed A610 users to save
uncompressed 10-bit RAW images as well as the JPG images.
Adam Dunkel's uBASIC interpreter was included to allow support for scripting and Pablo d'Angelo
improved the parser to replace line-numbers with labels.
The initial builds provided a 'live' histogram, scripting, three-exposure-bracketing and, to the irritation of
many users, displayed "hello world" on the screen.
Support for A620, A630 and A710is quickly followed.
Log/linear histograms were added followed by RGB histograms and a layout editor for the on-screen
displays (OSD) allowed the user to move them to the most convenient locations.
Future development would rely on cameras and their firmware dumps being available.
It was published on a Russian website and when 'discovered' in mid December, a poster on DP Review
forum 'Canon Talk' said "sounds very interesting. surprised no interest in it."
That would soon change ... in February 2007 'DP Review' reported another programmer 'GrAnd' had
added display of miscellaneous values (focal distance, zoom step and factor, hyper-focal distance) and a
battery meter.
Users were initially wary that this 'hack' may damage their cameras but after others had tested it they
became enthusiastic about each new feature.
GrAnd added shadow and highlight-clipping warnings to the histogram, a DOF calculator (based on the
real aperture-value) displayed on shutter half-press and percentage-capacity indication for the battery
with adjustable min/max voltage.
A file-browser and text-reader followed together with 'flash-light', choice of prefix, extension and savelocation for RAW files.
Instead of loading each time the camera was turned-on, CHDK was next made auto-loading by using a
'locked' SD card containing a DISKBOOT.BIN file.
After booting, the file DISKBOOT.BIN is 'hidden' so that the camera is not in a permanent boot-state.
A calendar and clock were added together with text-reader auto-scroll, support of RBF fonts and initial
support for the S3IS.
The DOF calculator for the S3IS was based on interpolation of the lens focal-lengths.
By request, GrAnd started an English-language WIKI and also provided a very convenient, ready-to-use
Windows environment for would-be CHDK developers.
GrAnd also developed all the essential tools and functions that we now regard as the basic CHDK.
This major innovation made it possible for relatively inexperienced programmers to develop their own
specialized builds.
The first was SDM in June 2007, followed in September by MX3's motion-detection and then Fingalo's
enhanced uBasic scripting commands.
Other people provided downloads of firmware and ports of the basic CHDK to additional camera models.
48
The A640, A700, A710, G7, IXUS700, A570 (by Rossig/MX3) and IXUS800 were soon supported and
new video features added.
Tv bracketing in continuous-shooting mode, long-exposure feature by Fingalo and A560 support
followed. The first cameras to be supported were all based on the Canon® Digic II® processor using the
VxWorks® operating system. Later 'hacks' included Digic III® cameras with VxWorks® or DRYOS®
operating system. Richard Lemieux investigated the limited accuracy of the camera's distance reading.
ewavr (aka 'Zosim') had already discovered how to read the memory-mapped hardware registers that the
camera's keys, SD card status and USB-connection status were connected to.
On certain cameras, it was then possible for the software to prevent the camera going into download
mode when a voltage (+3 to +5V) was applied to the USB connection (by plugging into the PC, for
example). The USB status could be read like any key on the camera. This feature was included in the
SDM and Fingalo builds and this release of SDM takes the concept further by allowing two cameras to be
highly synchronized for stereo photography. New cameras were ported, the original WIKI transferred to
the current one and in November 2007 a CHDK forum opened to continue discussion outside of 'DP
Review'. At the end of December 2007, discussion transferred to the 'CHDK Forum'.
Stereo Data Maker (SDM)
Yahoo StereoData Maker Group : - http://tech.groups.yahoo.com/group/StereoDataMaker
A customized CHDK with features designed for making 3D-Stereo images. (As well as numerous
features for 2D photography). It provides on-screen (EVF/LCD) stereo information and can save the
accompanying stereo-image’s data to different file-types. See:- http://stereo.jpn.org/eng/index.html for a
myriad of support programs for creating and displaying stereo images made with SDM-CHDK (Stereo
Data Maker CHDK). MX3's Motion Detection feature (see below) is also included together with script
commands for controlling the LEDs, all of Fingalo's build 124 features, ewavr’s Video Compression and
USB 'cable release'. A560, A570,G7, IXUS700 (SD500) and IXUS800 (SD700) builds are also provided.
all the features of Fingalo 128 and selected features from the AllBest builds.
The website includes a design for electronics that enables full-speed continuous-mode synchronized
stereo shooting with external flash at shutter speeds up to 1/1000 sec.
Other features are :Drift-free synchronization at up to 1/20,000 sec with twinned-cameras for virtually no additional cost.
No hardwiring required and no vulnerable external equipment.
Single-shot, delayed single-shot and full-speed continuous-mode synchronized-shooting with external
flash at shutter-speeds up to 1/1000 sec.
Synchronizing of any number of multiple cameras with fixed or progressive flash-delay.
Overriding of shutter-speed to provide values from 65 seconds to 1/40,000 sec in 1/3EV increments.
On-screen-display options include two 'Rangefinder' modes that allow you to set the near and far-point
distance by using the lens telephoto setting as a rangefinder.
The resulting scene-deviation is then displayed as a horizontal bar-graph .. coloured red if it exceeds your
maximum-permissible deviation and required-aperture is indicated.
<ALT> + <FuncSet> then moves lens to calculated optimum-focus for the subject-range.
'Get image-stack' in continuous-shooting mode acquires images at varying focus positions for creating
extended depth-of-field images. 'Show SDM Configuration' for quick overview of settings.
On-screen displays individually enabled and all enabled displays toggled on/off by shutter half-press +
key_right.
Thanks to David - Microfunguy 49
KAP
Kite aerial photography (KAP) is a hobby and a type of photography. A camera is lifted using a
kite and is triggered either remotely or automatically to take aerial photographs. The camera rigs can
range from the extremely simple, consisting of a trigger mechanism with a disposable camera, to
complex apparatuses using radio control and digital cameras. On some occasions it can be a good
alternative to other forms of aerial photography. (From Wikipedia - http://en.wikipedia.org/wiki/
Main_Page)
----------------------------------------------------------------------------------------------
Bracketing notes
"Bracketing" is the taking of a series of shots with an incremental, usually subtle change in a variable
between each one. Bracketing can be done with changes in shutter speed, ISO, aperture value, focus, etc,
and though a bit challenging, several variables can be bracketed in combination, as well. Usually
bracketing is done in order to cover a range of the variable values in an effort to capture the best of
several shots. In such cases, bracketing can be done hand held, "on the fly" so to speak, and is most likely
done in "Continuous shooting" mode, also in Custom Timer mode if the camera can take multiple shots in
that mode. Usually, the photos are viewed after download side by side as thumbnails (or further
scrutinized in a browser), the "pick(s) of the bunch" is kept, and the rest are discarded.
(Note: When using Custom Timer mode for bracketing, the shutter button requires just one press, not
held down as in Continuous mode)
Focus Bracketing is the taking of a series of photographs where the point of focus is moved incrementally
between each shot. This is usually applied to macro applications where depth of field is notoriously
shallow. But there's something much more fun we can do with a handful of focus bracketed shots!
"DoF Stacking" (Depth of Field Stacking) is where we combine a selection of focus bracketed photos in a
similar manner to the way that three or more images are combined to make single HDR photos.
Presumably, the term "stacking" most likely comes from the physical stacking of different negatives to
obtain a desired effect of a photo during processing in a darkroom. (-Anybody remember those?) The
resulting image from DoF stacking can have usually paradoxical qualities; the superb detail of a macro
shot with the depth of field of a landscape shot. CHDK makes it possible.
See: http://chdk.wikia.com/wiki/DoF_Stacking
----------------------------------------------------------------------------------------------
50
RAW notes
It may be said that CHDK owes it's existence to the desire for saving RAW in RAW barren Powershot
cameras. By inspired work on the Firm update procedure with these cameras, it was discovered that
RAW was actually a disabled function of the original firmware, and with further genius, enabling RAW
saving and other functions saw the beginnings of the CHDK.
The name RAW actually suggests that this is a file without any changes straight from the camera's
sensor, and with CHDK this is the case. In some cameras this is not the case, some have had some
kind of processing such as sharpening, adding of a header file, Exif data, compression, and even white
balance, it could be suggested even unknown processing (except to the manufacturer).
The belief that the RAW file will contain more depth or digital information is the motivator for saving
RAW, so that in processing, more digital information is available to work with.
Most RAW enabled cameras save as 12 bits per pixel or 14 bits per pixel whereas CHDK is 10 or
12 bpp, depending on the camera model, this is still far more than the 8 bit JPEG depth, This means you
can make a wider range of adjustments without compromising picture quality.
RAW is therefore a powerful option that most advanced digital cameras make available to photographers
who do not want the camera to apply any in-camera processing to the captured RAW data, preferring to
do that themselves in post-processing. Shooting with RAW still has a fundamental principle to apply
though - it won't correct mistakes that are made in the shooting procedure, exposure and other parameters
are still required to be correct at shoot time for a high quality image. You cannot take a grossly
underexposed or overexposed picture in RAW, and expect to be able to "correct your mistakes".
RAW data takes longer to write to a memory card and there is a need to post-process every single picture.
These two requirements might be a major hindrance depending on the type of photography you do. If
you need to take pictures in rapid succession, and your digital camera does not provide a large enough
RAW buffer, you will be hampered by the extra amount of time it takes to write a large RAW image file
to the memory card. Camera RAW files are typically 2–6 times larger than JPEG files. While use of RAW
formats avoids the compression artifacts inherent in JPEG, fewer images can fit on a given memory card.
Post-processing every single image is also a chore that not many amateur photographers (and some
professional photographers) enjoy doing. This means that, for most practical purposes, amateur
photographers will find that saving in RAW is not an interesting option, and that shooting in JPEG is
more than sufficient.....Unless...You are unsure of the white balance to use or need accurate colour
reproduction of a subject, or you want optimum control over sharpness, contrast, saturation;
Many photographers are finding that they do want the control that RAW gives them.
With some cameras, and also with CHDK, you can have the advantage of saving RAW and JPEG, this
means having the option to just keep the RAWs that you need for optimum processing, or otherwise just
keeping the JPEGs if you are pleased with the camera's processing.
For many, saving in JPEG is more than adequate. JPEG files are compressed, and, compared to RAW,
they are smaller, save faster, and more images can fit on a memory card. Many professional
photographers shoot at the highest JPEG image quality. Remember also RAW can be disabled for
certain shooting conditions, see the RAW parameters menu for “Disable RAW @ burst” etc.
There is no single RAW format; formats can be similar or radically different. Different manufacturers use
their own proprietary and typically undocumented formats, which are collectively known as RAW
format. The DNG (Adobe) format has been put forward as a possible universal standard.
Processing CHDK RAW is possible using a number of available applications, particularly DNG4PS-2,
free software created for CHDK, others are listed at the CHDK Wiki.
Recently it has been recommended to use the in camera DNG conversion, producing a widely compatible
DNG image file, recognized by the popular image editors. Using the DNG format also has the advantage
of downloading over USB, including the Exif data from the corresponding JPEG.
51
Sources, and for further study :–
http://encyclopedia2.thefreedictionary.com/bit%20depth
http://www.cambridgeincolour.com/tutorials/camera-sensors.htm
http://designorati.com/articles/t1/photoshop
http://encyclopedia2.thefreedictionary.com/bit%20depth
http://www.wildtramper.com/sw/crw/crw.html
http://www.howtofixcomputers.com/forums/digital-photo/bitdepth-chdk-raw-files-powershot-79781.html
http://en.wikipedia.org/wiki/RAW_image_format
http://www.photoxels.com/tutorial_raw.html
http://insights.betterphoto.com
http://chdk.setepontos.com/index.php?
PHPSESSID=7973386aacdc6fb7e1b409702af56bbb&board=15.0
----------------------------------------------------------------------------------------------
Raw Develop
Main Menu > RAW Parameters > RAW Develop
Another feature from ewavr. This allows you to select any RAW file on your SD card and then process it
into a JPG file so that you may view it in your camera. Exceptionally handy after using any of the RAW
Merge features so you can see the result without the need of a computer and extra RAW processing
software.
Choose "RAW Develop" and you will be presented with a file-browser display. Navigate to the RAW file
that you want to process into a JPG file. After pressing SET to select your file, you will be asked to
"Switch Camera to Record Mode and take one shot." Press SET again to back out of this menu, then use
your <ALT> toggle button to exit <ALT> mode. Press the shutter button.
Instead of taking an image, it will take that selected RAW file and now make a JPG file from it. It will be
named according to whatever last JPG filename is in that folder and increment it by 1.
Keep in mind that the EXIF data on this new JPG file will not reflect the original RAW file. It will use
whatever camera settings were available at the time that you take the RAW Developing Shot for the
resulting EXIF data.
Note: RAW file-saving must be turned ON for this feature to work. If RAW is not turned on, or you select
a JPG file for "developing", then no action will take place.
----------------------------------------------------------------------------------------------
Bad pixel Notes
Bad, or hot pixels affect DNG images especially for long exposures. In the RAW parameters menu (Main
Menu) is “Bad pixel removal”. Once you have generated a list with all the "bad" pixels for your camera*,
CHDK can remove them automatically. To obtain this list of hot-pixel coordinates you need to capture a
"dark frame" by shooting an image with your lens completely capped. For shutter speeds longer than 1 to
10 seconds, it's wise to keep a collection of dark-frames on hand for each exposure length that you will be
using in the future, as more warm and hot-pixels show up with extended shutter speeds. After that you
can use this program: http://ewavr.nm.ru/chdk/show_bad.zip
Contd…
52
Instructions for BADPIXEL.LUA...
* Q. When I select the script with Func./Set, nothing happens, How do I run it?
A. From fe50-
Thanks fe50
Ok, then follow me...
- power your camera on, half-press the shutter, to go to record mode
- press PRINT, then press FUNC/SET
- select "Load script from file", go 2 steps down to the TEST/ folder, press FUNC/SET
- select "BADPIXEL.LUA", press FUNC/SET
- start the script with the SHUTTER !
- wait until you see "press SET to save....."
- press FUNC/SET to store the badpixel.bin automatically in the right place
- press PRINT to leave the <ALT> mode, press PRINT again to enter <ALT> mode
- press MENU, go to the "RAW parameters", enter it with FUNC/SET
- enable the settings "Save RAW" , "DNG format" and "DNG file extension"
- press PRINT to leave the <ALT> mode again
Now RAW saving in DNG format is enabled, transfer the DNG files with a card reader...
See:- http://chdk.wikia.com/wiki/Badpixel_removal
and:- http://chdk.wikia.com/wiki/CHDK_firmware_usage/AllBest#Hot-Pixel_Removal_.
28Build_100-16_and_later.29
----------------------------------------------------------------------------------------------
USB Remote Notes
Enable built-in CHDK remote support
First, ensure you are running a reasonably up-to-date CHDK build. Some early builds did not support
remote shutter release control via USB.
Now enable remote support via the CHDK menu: Main Menu > Miscellaneous Stuff > Remote
Parameters > Enable Remote
Note. If you enable the "Sync Delay" then the shutter will release after you stop the voltage to the USB
port. This was done because it was found they could sync the shutters on 2 cameras for stereo imagery
much better as the voltage dropped. (It can also be useful if your switch uses poor-quality contacts, in
which case the rise in voltage when it closes may not occur quickly enough to trigger CHDK's remote
function.) Under most single-camera circumstances, however, you won't need this unless you need to
sync the shutter release more accurately to your voltage trigger signal for specialized reasons.
USB Remote Cable
Using a USB cable, a low voltage power supply, and a push button switch, you can construct a device
that will allow you to remotely trigger the shutter of your CHDK-enabled camera. Remote triggers are
most often used in low-light situations when pressing the shutter button on the camera could introduce
picture spoiling camera shake, but may also be useful in other circumstances - for instance if you wish to
trigger the shutter with your foot, or with an electronic signal from another device.
In order to trigger your CHDK camera remotely, you will need to: connect a suitable triggering device to
the USB socket of your camera; ensure "Enable remote" to have been selected in CHDK; run a suitable
53
script; place your camera in shoot mode (i.e. not playback mode, movie mode, alt mode, etc) with CHDK
still running; operate the trigger!
Triggering devices
Your triggering device should incorporate a power supply - a battery, for instance - that has its negative
(or ground) terminal connected to pin 4 of a mini-USB cable and its positive terminal connected to pin 1
of a mini-USB cable via a momentary push-to-make switch. The power supply should provide a voltage
that is no greater than 5V (or you may damage your camera), but which must be greater than or equal to
the minimum voltage specified on the Camera-Features page,
See:- http://chdk.wikia.com/wiki/CameraFeatures
Homemade USB remote cable
A popular method for remotely triggering CHDK-enabled cameras involves constructing a simple
triggering device from a 3V CR2032 coin battery, a USB extension cable, and a push switch. The
camera's USB cable is then attached to the camera at one end and to the triggering device by the other
end. Below is a circuit diagram of such a switch.
If you are cutting up a commercially-made USB extension cable,
then wires 1 and 4 are red and black, respectively, according to
the USB standard. It seems that even cheaply made USB cables
follow this standard.
Note that the 3V CR2032 battery might not be enough to trigger
your camera; if not, you may need to use a different power
source, e.g. three 1.5V AAA cells connected in series.
----------------------------------------------------------------------------------------------
Grids Notes
Grids are an overlay for your EVF/LCD display that can help you with composition, cropping, subject /
image alignment, and other novel things. Normally most cameras only offer you one simple option, a
"Rule of Thirds" composition grid, but with CHDK the sky is now the limit on what you want displayed
on your viewfinder for these handy photographer's tools.
You may Load and run your Grid files from the CHDK <ALT> + Menu path of: "OSD Parameters" >
"Grid" > "Load Grid from File..." When not in <ALT> mode you may quickly turn your Grid Overlay (and
all other CHDK OSD elements) on or off with a simple Half-Shutter-Press + Right-Navigation button
combination.
Or put the "Grid" > "Show Grid Lines" menu toggle on your fast-access Custom User-Menu if not wishing
to turn off all of CHDK displays.
See:- Grid Tutorial & User Contributions See also: Grids Pics - Page
61.
54
Curves Notes
Custom Curves
Enables the use of custom "curve" profiles to adjust the exposure of your RAW and JPEG images. Please
read this long thread - Custom processing for JPEG (Tone curve, CA ...) :http://chdk.setepontos.com/index.php/topic,932.0.html at the CHDK Forum, for its full functions and use.
As well as downloading a custom-curve editor (PC) to create your own profiles. (You may have to login
there to download any attachments in the posts.) For those of you new to curve adjustments to exposures
there's a nice little overview to what they do and how they might affect an image in this Curve
Anthology:
http://www.curvemeister.com/support/curvemeister2/help/Articles/CurveMoves.htm
Difference between CV and CVF curves: CV curves are the standard RGB curves. CVF curves are
special versions of the curves which intends to avoid color shift side effect of the RGB curves. They are
an approximation of the luminance curves. Except the SYSCURVES.CVF file, it is recommended to put
the curves files in the \curves directory.
----------------------------------------------------------------------------------------------
Scripting Notes
Well! where do we start, it is well known that Scripts and Scripting deserves a manual of it’s own, but
for this limited size User Guide we will have to be content with a very brief overview.
Definition of a Script: A simple program in a utility language, another term for macro or batch file.
In computer programming, a computer script is a list of commands, or instructions, that are
executed by a certain program or scripting engine. They are usually just text documents that contain
instructions written in a certain scripting language (ie: uBASIC, Lua). This means most scripts can
be opened and edited using a basic text editor. However, when opened by the appropriate scripting
engine, the commands within the script are executed.
In CHDK, scripts are used to automate a command or multiple commands to the camera in order to
have the camera perform certain actions, ie: to hold the shutter open for a particular length of time,
or to force a particular Av or ISO setting, (and many more actions). Nearly anything you can do by
pressing buttons on your camera with your own fingers, you can also do automatically with these
script commands. Note also that many scripts are universal for all relevant cameras, while others
are camera model specific.
Inventive script programmers, the experienced, and the not so experienced, have been active from
the beginning of CHDK, with many short and simple, and also the more complex scripts being
made freely available to the CHDK community. Scripts such as: motion detect, time lapse, USB
remote.
55
Example Scripts:
UltraIntervalometer (Time Lapse)
Script Code (save as "ult_intrvl.bas" to your /SCRIPTS/ folder)
---------------------------------------------------------------------------------------------------------------------------------------------------rem Author - Keoeeit
rem Written for S-Series
rem Should be okay on others
rem Use Endless mode with caution
rem See documentation for important info
@title Ultra Intervalometer
@param a Delay 1st Shot (Mins)
@default a 0
@param b Delay 1st Shot (Secs)
@default b 0
@param c Number of Shots
@default c 5
@param d Interval (Minutes)
@default d 0
@param e Interval (Seconds)
@default e 0
@param f Interval (10th Seconds)
@default f 5
@param g Endless? No=0 Yes=1
@default g 0
p=a*60000+b*1000
t=d*60000+e*1000+f*100
if c<1 then let c=5
if t<100 then let t=100
if g<0 then let g=0
if g>1 then let g=1
if p<0 then let p=0
z=t*c
y=p+z
print "1 Cycle Time:", y/60000; "min", y%60000/1000; "sec"
goto "interval"
:interval
if p>0 then gosub "pause"
print "Shot 1 of", c
shoot
if c=1 then end
for n=2 to c
sleep t
print "Shot", n, "of", c
shoot
next n
if g=1 then goto "interval" else end
:pause
n=(a*60)+b
for m=1 to n
56
q=n-m
print "Intvl Begins:", q/60; "min", q%60; "sec"
sleep 930
next m
return
----------------------------------------------------------------------------------------------------------------------------------------------------
http://chdk.wikia.com/wiki/UBASIC/Scripts:_Ultra_Intervalometer
___________________________________________________________________________
UBASIC/Scripts: Lightning script -- Fudgey
Written for/on: Powershot S5 IS
Also works on: A540, A550, A590 so far.
Doesn't work on: A720 IS and some others.
This is basically a very fast and responsive motion detection script. This will definitely solve your
problems if you want to catch lightning, (thus the title) or anything fast, however some objects will blur
when the light conditions are insufficient. Enjoy this script!
Script Code (save as "Lightning script.bas" to your /CHDK/SCRIPTS/ folder)
---------------------------------------------------------------------------------------------------------------------------------------------------rem Author: fudgey - based on BarneyFife's MD Lightning6 and MLuna's Motion Detect
scripts
rem Tested on A570IS, Allbest build 16
rem For bursts, set the camera in continuous shooting mode and set j>0
rem If j>0 in single shot mode, you will see your shot for j seconds on screen.
@title Fast MD with Burst/Preview 080205
@param a Columns
@default a 6
@param b Rows
@default b 4
@param c Threshold (0-255)
@default c 10
@param d Compare Interval (ms)
@default d 1
@param e Trigger Delay (0.1 sec)
@default e 42
@param f Rows to Exclude
@default f 0
@param g Pix-Step(speed/accuracy adj)
@default g 8
@param h Reg Mode(0-no,1-incl,2-excl)
@default h 0
@param i Measure Mode (1-Y,0-U,2-V)
@default i 1
@param j Burst/Preview (sec,0=off)
@default j 0
if a<1 then a=1
if b<1 then b=1
if c<0 then c=0
if g<1 then g=1
if f<1 then f=1
if j<0 then j=0
e=e*100
57
j=j*1000
print ">[";a;",";b;"] threshold: ";c
x=30000
if j>0 then goto "md_burst"
:md_singleshot
press "shoot_half"
t=0
do
md_detect_motion a, b, i, x, d, c, 1, t, h, 1, 1, a, f, 0, g, e
until t>0
click "shoot_full"
goto "md_singleshot"
:md_burst
press "shoot_half"
t=0
do
md_detect_motion a, b, i, x, d, c, 1, t, h, 1, 1, a, f, 0, g, e
until t>0
press "shoot_full"
let X=get_tick_count
:contloop
let U=get_tick_count
let V=(U-X)
if V<j then goto "contloop"
release "shoot_full"
goto "md_burst"
----------------------------------------------------------------------------------------------------------------------------------------------------
http://chdk.wikia.com/wiki/UBASIC/Scripts:Lightning_script_--_Fudgey
Also see:- FAQ-How do I use scripts? Page 63
and:- Scripting Tutorial Page - http://chdk.wikia.com/wiki/UBASIC/TutorialScratchpad
also:- http://chdk.wikia.com/wiki/UBASIC/Scripts (Excellent)
Tip: For using intervalometer, and long exposure scripts - to save battery and LCD use a piece of ⅛
round plastic in the camera video transfer port and LCD will be off, although not as much saving as when
display is turned off (Which may not be possible with some other settings).
----------------------------------------------------------------------------------------------
58
Flash Notes
Notes on Force flash: From PhyrePhoX, for strobists: an option to manually override flash (for all
cameras). even for IXUS cams. no need for a script anymore. Important: when enabled, this will not
only override flash power, but also enable the CHECK if flash is needed. in other words: your camera will
use flash even in bright sunlight and even if you disabled the flash. of course the flash will not fire on
cameras with popup flashes when the flash is not popped up. there are three values for the flash to be set:
low, middle and POWERFUL. be careful, don’t flash at home, kids….This feature more or less created
by ewavr, thanks.
For cameras with dedicated movie buttons, there is an extra menu item: Force flash only in moviemode
When this is checked, the Force flash feature will be enabled for taking photos when recording a video.
Note: It appears that there is another advantage by using force flash - On cameras with adjustable flash
intensity there will not be a pre-flash when the intensity is set manually, which will help greatly when
using slave flashes.
See:– http://chdk.setepontos.com/index.php/topic,1365.msg39384.html#msg39384
and:- Force flash pics. - below
----------------------------------------------------------------------------------------------
Examples
Force flash pics
Manual flash: low power (0) Thanks to walqas
Manual flash: medium power (1)
Manual flash: high power (2)
Manual flash: Camera
59
HDR
HDR from a single RAW
Note: The examples above are copyright ©, they remain the property of their respective owners and
are not for commercial use. Thanks to the owners for use in this User Guide.
See:- http://www.flickr.com/groups/hdr/pool/
HDR (High Dynamic Range) is a popular branch of photography gaining acceptance over the last few
years particularly. CHDK has made this much easier for the low end because of RAW capture (HDR from
a single RAW), and bracketing (Multiple shots with stepped Av, etc).
There are
now many applications
that have been
written
for HDR processing,
and Photoshop
® can
process HDR as well.
60
HDR Panorama
The British Columbia Parliament Buildings in Victoria, BC located at 48°25′13.4″N, 123°22′11.1″W]]
This file is licensed under Creative Commons Attribution 2.5 License
In short: you are free to distribute and modify the file as long as you attribute it’s author(s) or licensor(s).
Attribute to Ryan Bushby
Source:
http://commons.wikimedia.org/wiki/Image:British_Columbia_Parliament_Buildings_-_Pano_-_HDR.jpg
This image was created by stitching together 20 sets of HDRI images each created from 3 exposures.
This makes for a total of 60 photographs used to create this image. I used CHDK to allow for the taking
of several bracketed shutter speed exposures without re-metering in between.
The final image is 35 mega-pixels. The whole process is described here:http://wiki.highinbc.yi.org/index.php/OffTopic:Photography/BC_Parliament_Buildings_HDR_mosaic
Motion Detect
Fast Shutter
From GrAnd
Courtesy of kittenmoon
61
Grids pi
cs
Golden Ratio Rulers
Diagonal Method
Stereo Data Maker
Photos courtesy of Stereo Data Maker http://stereo.jpn.org/eng/sdm/index.htm
KAP
(Kite Aerial Photography)
Courtesy Tom Benedict
62
FAQs and Facts
Q. Can CHDK damage your camera ?
A. Short answer: It is unlikely, but theoretically possible. CHDK comes with no warranty for any
use; you use it at your own risk. CHDK is created by reverse engineering an undocumented system
that directly controls hardware. Because of this, it is impossible to be certain that it is completely
safe.
Long answer: It is very unlikely that CHDK will permanently harm your camera. There have been no
reports of CHDK damaging a camera, and both the original firmware and the CHDK developers do
their best to avoid situations where this could happen. There are at least two ways in which CHDK
could theoretically do damage:By commanding physical hardware to do something it was not designed to do. For example, it is
possible to command the lens hardware to move when the lens is closed. (1) It is also possible to move
lens hardware beyond limits allowed by Canons firmware, using scripts or overrides. See UBASIC/
Scripts:_Tele-Macro-Mode (2) and Talk:UBASIC/Scripts#Tele-Super-Macro_Mode_Comments (3).
It's worth noting that neither of these cases have resulted in actual damage, and both required direct
input from the user.
By overwriting the internal flash ROM where the Canon® firmware is kept, rendering the camera unbootable. Since CHDK does not ever intentionally write to internal flash, it would take an extremely
unlikely sequence of events to make this happen.
If you are concerned about this, you can minimize your risk by avoiding untested development builds
(such as the autobuilds, or test builds posted on the forum) and being careful about what scripts you
run.
1. http://chdk.setepontos.com/index.php/topic,2335.0.html
2. http://chdk.wikia.com/wiki/UBASIC/Scripts:_Tele-Macro-Mode
3. http://chdk.wikia.com/wiki/Talk:UBASIC/Scripts#Tele-Super
See: http://chdk.wikia.com/wiki/FAQ
Q. When I switch off my camera and then switch it on again, the CHDK program does not work,
What's wrong?
A. When you update your camera with CHDK, it doesn't actually change the firmware. Because it is just
a memory-resident program, it only remains in the camera's memory until the camera is turned all the
way off. So, if something goes wrong and camera does not respond, you can always switch the
camera off (or remove the battery, and perhaps delete it from the memory card) to return to the
original firmware.
See:- http://chdk.wikia.com/wiki/FAQ Q. Does using the CHDK program void your warranty?
A. Please bear in mind that CHDK comes with no warranty for any use; you use it at your own risk.
What follows is just a few thoughts, and is not a legal opinion. Many believe that using the CHDK
does not harm your warranty, since it is said to be loaded into the memory only temporarily (turn off
the cam and it's gone completely) and that it leaves the original camera firmware untouched.
Canon® Tech Support *says: "Unfortunately, any upgrades to the software of the camera not
63
performed by an authorized Canon Repair Facility, would void the warranty." ... and ... In further
discussion with Canon® about this specific hack, their response is: "If it is not Canon® firmware the
warranty would be void."
Is it an "upgrade" of the camera firmware when the firmware remains untouched? It's up to you to
decide. Don't use it if you are not willing to take the slightest chance. Many many people have used
CHDK on their cameras (including some very experimental versions) and there is no report of any
permanent malfunction. Thus, CHDK appears to be quite safe to use as long as you make sure that it's
the CHDK and not a real firmware update (A real firmware update which is not an official Canon®
update could alter or completely screw up the camera and will void the warranty). Addressing their
second comment (i.e. "if it is not Canon® firmware"): CHDK is NOT firmware. By very definition,
FIRMware is software that remains in the memory of the device when it is not using any power
source.
However, this is not a legal opinion and the user accepts all risk of using it. And as a practical matter, if
you send your camera in for warranty service, and Canon® says your warranty is void because they
found evidence of CHDK on your memory card, there is not much you can really do (what are you
going to do? Spend thousands of dollars suing them to get your camera repaired?) However, you can
just wipe or remove the card. ;)
See:- http://forums.dpreview.com/forums/readflat.asp?forum=1010&thread=23168653&page=2
More at: - http://chdk.wikia.com/wiki/FAQ
Q. How do I use scripts?
A. CHDK allows you to automate your camera by running "scripts", small and simple programs
written in a short-hand version of BASIC, or Lua. You can use some pre-made scripts like bracketing,
intervalometer etc., or write your own scripts using the scripting language. To use a script, you have
to do this:
1 - Put the script you want to use into the CHDK/SCRIPTS-folder on your SD card
2 - Load the script (main menu>scripting parameters>load script from file) and adjust script
parameters as needed...
3 - To run the script, press the shutter button while in <ALT> mode. You can also stop it by pressing the
shutter button again.
If your script does not work properly, try to increase the "script shoot delay" parameter, which is a
small time-delay after a shot is taken, before the next line of the script is executed. Some scripts also may
require certain camera settings. For example the generic bracketing script: go to menu>review and switch
it to "off". Use P, Tv, Av or M mode and activate the camera function where you want to have bracketing.
For example: Activate the focus slider when you want to have focus bracketing. Activate the exposure
compensation slider in P mode when you want to have exposure bracketing, and so on.
For more, go to:- Scripting notes Page 54,
and http://chdk.wikia.com/wiki/UBASIC/TutorialScratchpad
Q. May I suggest a new feature?
A. Yes you certainly can, although not every wish can be fulfilled. Please note that the CHDK is not
able to change any standard behavior of the camera, because it does not modify the original
firmware. CHDK can just "extend" current functionality.
64
Q. What’s the future for CHDK ?
A. There’s no doubt that clever people will continue to develop more features, scripts, etc., and more
cameras will be ported, CHDK will be refined, until it is released as v1.0, and perhaps beyond, which
seems to be very close, so the future looks good for CHDK. This User Guide has been written up to
May 2010. For further firmware revisions refer to the changelog.
See;- http://chdk.wikia.com/wiki/Changelog
Want to have a say?, then go to :- http://chdk.wikia.com/wiki/Talk:CHDK (Discussion at the CHDK
wiki, or go to :- http://chdk.setepontos.com/ (The official CHDK forum).
----------------------------------------------------------------------------------------------
Miscellaneous info.
CHDK supported cameras might not always perform as a menu entry might imply, because you can
enter a parameter does not mean the camera can necessarily perform the task, the cameras have hardware
limits that restrict them. (some have less than others)
Extra long exposure capability is not yet available on all CHDK cameras, the cameras listed below are
supported at this time. (May 2010)
A30, A540, A550, A560, A570, A590, A630, A710, G9
IXUS70/SD1000, IXUS80/SD1100, IXUS870/SD880, IXUS90/SD790, IXUS950/SD850,
IXUS970/SD890, S3, S5, SX1, SX10, SX200.
Extra long exposure means these cameras are capable of exposure times of up to 2000 seconds, handy
for Astrophotography and other specialized applications.
CHDK Cameras without standard manual focus, can take advantage of the CHDK focus override,
All of the IXUS series (except IXUS980/SD990), and these others at this time - (May 2010) - A450,
A460, A470, A480, A550, A560, A2000, TX1.
Cameras without an actual aperture/iris mechanism use the ND (neutral density) filter to achieve an
exposure method similar to an actual aperture. CHDK provides control of the ND filter for users to
make their own shutter speed adjustments. The CHDK supported cameras listed below have an ND filter
only, and no actual aperture/iris mechanism.
A450, A460, A470, A480, A530, A550, A560, A2000, TX1.
Some high end Powershot cameras, such as the G series, have both an aperture and an ND filter.
Commonly seen when checking the camera version with the VERS.REQ method, is the E18 error,
this means sometime during the camera’s life it has encountered a possible malfunction of the lens
assembly, if the camera is working ok there is no concern.
65
Experimental development is being done on the PTP feature for CHDK cameras, this will provide
computer control of a camera similar to Canon’s EOS Utility and Remote Capture, but with CHDK
capability such as remote script control.
As at May 2010 so far the supported cameras are: (for experimental use)
A480-100b, A540-100b, A590-100e, A610-100e and 100f, A650-100d, A710-100a, A720-100c,
SX1-201a, SX10-101a and 102b, SX200-100c, IXUS700/SD500-101a.
See:- http://chdk.setepontos.com/index.php/topic,4338.0.html (PTP Interface thread at forum)
A photography Motto - Be Prepared for Anything and Everything.
66
Links
FAQ
http://chdk.wikia.com/wiki/FAQ
CHDK for Dummies The Very First
Steps
http://chdk.wikia.com/wiki/CHDK_for_Dummies
Cardtricks (Memory card formatting)
http://chdk.setepontos.com/index.php/topic,964.0.html
User Manual at Wiki
http://chdk.wikia.com/wiki/CHDK_User_Manual
Guide
http://chdk.setepontos.com/index.php/topic,1167.0.htmlß
Hi-Speed Shutter & Flash-Sync
http://chdk.wikia.com/wiki/Samples:_High-Speed_Shutter_
%26_Flash-Sync
"DoF Stacking" using CHDK Focus
Bracketing
http://chdk.wikia.com/wiki/DoF_Stacking
Grids
http://chdk.wikia.com/wiki/Grids
Software Overview / Link list
http://chdk.wikia.com/wiki/Software
UBASIC
http://chdk.wikia.com/wiki/UBASIC
Lua Scripting
http://chdk.setepontos.com/index.php/board,35.0.html
Download page for latest builds etc
http://chdk.wikia.com/wiki/Downloads
How To Test Your Camera
http://chdk.wikia.com/wiki/CameraFeatures
ALTMENGD.ZIP Text files
http://chdk.setepontos.com/index.php/topic,
instructions for in camera
1214.msg28449.html#msg28449
Curve Anthology
http://www.curvemeister.com/support/curvemeister2/help/
Articles/CurveMoves.htm
USB Remote Cable
http://chdk.wikia.com/wiki/USB_Remote_Cable
Sample photos, videos, etc.
http://wikia.com/wiki/Samples:_HDR
GPL License
http://www.gnu.org/copyleft/gpl.html
DOF Calculator
http://chdk.wikia.com/wiki/CHDK_firmware_usage/
AllBest#Quick-Set_Hyperfocal_.
26_Infinite_Manual_Focus_Distances
RAW Samples
http://chdk.wikia.com/wiki/Samples:_RAW
Image processing & other software
http://chdk.wikia.com/wiki/Software#CHDK_related
CHDK on Flickr
http://www.flickr.com/groups/chdk/pool/
CHDK on Twitter
http://twitter.com/CHDKnews
CHDK on Facebook
http://www.facebook.com/group.php?gid=71065475036
67
Legal Notes
This User Guide is Copyright © under the terms of the GNU General Public License, Free
Documentation License, as published by the Free Software Foundation.
This User Guide is not for resale, it is a free distribution. distributed in the hope that it will be useful but
WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or
FITNESS FOR A PARTICULAR PURPOSE.
GPL:
* This file is part of CHDK.
* Copyright © 2008 The CHDK Team
* CHDK - CHDK Wiki
* This program is free software; you can redistribute it and/or modify
* it under the terms of the GNU General Public License as published by
* the Free Software Foundation; either version 2 of the License, or
* (at your option) any later version.
* This program is distributed in the hope that it will be useful,
* but WITHOUT ANY WARRANTY; without even the implied warranty of
* MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the
* GNU General Public License for more details.
* You should have received a copy of the GNU General Public License
* along with this program; if not, write to the Free Software
* Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA,
02110-1301 USA
Canon is a registered ® ™ Trademark of Canon Inc.
PowerShot is a registered ® ™Trademark of Canon Inc.
Mac, Macintosh, and Mac logo are registered ® ™ Trademarks of Apple Computer Inc.
registered in the U.S. and other countries.
Photoshop® is a registered ® ™ Trademark of Adobe Systems Incorporated,
Windows is a registered ® ™Trademark of Microsoft Corp.
68
INDEX
A
Acknowledgements
2
Adaptor lens scale 30 AF Key 15
<ALT> mode 5, 6, 7, 8, 18, 19, 27,
E
Edge overlay 19
Extra Photo Operations 8, 13
Ev 9, 14, 17, 20, 24, 30, 48
Examples 58
-Fast shutter 60
-Force flash
58
-Grids 61
-HDR 59, 60
-KAP 61
-Motion detect 60
-SDM 61
Extra Long Exposure 9
36, 42, 48, 51, 52, 53, 63
<ALT> mode button 43
ALT +/- debug action 46
Aperture 9, 11, 30, 47, 48, 49, 64
Auto magnify 23
Auto select 1st entry @ menu 26
Autoscroll delay 41
Av 9, 11, 30, 54, 63
B
F
Bad pixel notes 51
Bad pixel removal
18, 51
Battery indicator 7, 26, 32
Benchmark 44, 45
Bracketing in continuous mode
41)
Filespace 32, 33
Fill color 29
Flashlight 42
Flash notes 58
Force flash in moviemode 58
Force manual flash 14
Force flash pics 61
Free internal memory 19
11, 48
Bracketing notes 49
Bv 30
C
Calendar 40
Canon overexp. value 30
CHDK Shell (compiler) 46
Clear override values at start 13
Clear video params at start 15
Clock
34, (7, 16, 47)
Colors
18, 21, 29, 35, 43
Create card with 2 partitions 45
Current Script 7, 36
Custom Auto ISO
12, 13
Custom curves 20
Custom timer 11, 17
Curves notes 54
G
Games
42
Grid 19, 29, 34, 53, 60
Grids notes 53
Grids pics 60
H
HDR
11, 40, 49, 58, 59
Histogram illustrations 22, 23, 24
Histogram parameters 21
History of CHDK
47
Hyperfocal 31, (6, 10)
D
Dark frame subtraction 17
Debug parameters
43
Defaults 15, 35, 37
Depth of field 9, 31, 49
Disable LCD 42
Disable Overrides 8, 14
Display button 5, 8, 26, 28
DNG
18, 38, 46, 50, 51 52
DOF calculator 25, 28, 31, 47, 65
Draw palette
43
Fast EV Switch 7, 14
Fast Video Control 15
FAQ 62
File browser
38, (6, 18. 20, 40,
I
Introduction
3
ISO 8, 10, 12, 13, 30, 54
J
JPEG 17, 18, 54
K
KAP (Kite Aerial
Photography) 49, 61
69
L
Language 35
Legal notes 66
Line color 29
Links 65
Load curve profile
Load grid from file
RAW sum 39, (38)
RBF font 35, 41, 47
Record mode 4, 6, 35, 36, 42, 51, 52
Remote parameters 36
Remote zoom
37
Reset options to default 43
20
29, 53
S
M
Save RAW 16
Scene luminance 30
Scripting notes 54
Scripting parameters 36
SD card 15, 32, 33, 35, 39, 40, 43,
Main menu 8
Make card bootable 43, 45
Manual focus 10, 64,
Menu in OSD
26
Memory browser 44
Memory (Filespace) indicators 7
Memory info-show
43
Mini Console
38
MF (Manual Focus) 6, 9, 10, 42
Miscellaneous info
64
Miscellaneous stuff 38
Miscellaneous values 7, 29, 31, 47
Mute during zooming 15
44, 45, 46, 63
SD (Subject Distance) 9, 10
SDM (Stereo Data Maker) 48, 60
Show misc values
29, 44
Show OSD 26, 34
Shutter speed
9, 12, 13, 30, 39,
49, 51, 59
Shortcut button(s)
5, 6, 8
Splash screen 4, 42
Subj. dist. 9, 11, 31
Swap partitions 43, 45 Symbols 26
N
ND filter state 9, 64
Notes 49
Noise 17, 28, 39
Numerical Units 6
T
Text file reader 41
Tv 9, 11, 12, 13, 30, 63
O
Optical zoom
15
OSD (On Screen Display) 7
OSD in review mode 34
OSD layout editor
28, (6, 14,
U
USB remote
36, 52, 53
USB remote notes 52
User menu 27, (8)
Using CHDK
4
28, 32, 33)
OSD parameters 26, (14, 53)
Overexp. value 30
Override aperture 9, 30
Override shutter speed 9, 27
V
Value factor 6, 9, 10, 12, 27
Video parameters 15
-Video bitrate 15
-Video quality 15
Video Quality Control 15
Visual settings 35
Volts max. 32
Volts min. 32
P
Pause Video 15
Power of flash 14
Propcase / Params data page 43
PTP interface 64
Purge RAW
38, 39, 40
R
RAW indicator 7, 32
RAW average
38, (39)
RAW develop
18, 20, 38, 51
RAW merge
38, 39, 51
RAW notes 50
RAW parameters 16, 38, 51
W
Warning threshold
32
Z
Zebra parameters 24
Zoom 6, 15, 19, 29, 30, 37
Zoom value 29, 30
✎Notes
✎Notes
✎Notes
✎Notes
CHDK
Canon® Hack Development Kit
User Quick Start Guide
2010
V.1.8.6
© CHDK User Quick Start Guide Aug 2010 V1.8.6 An0n
Download PDF

advertising
