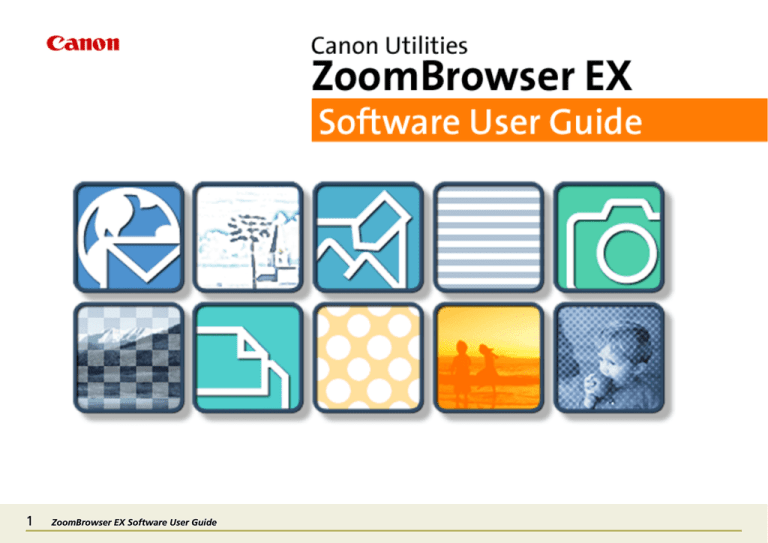

ZoomBrowser EX Software User Guide
Table of Contents (1/2)
Chapter 1 Try It! ZoomBrowser EX
Starting ZoomBrowser EX ........................................................ 4
Downloading Images to a Computer ....................................... 9
Printing Images ....................................................................... 11
Supplementary Information .................................................... 13
Chapter 2 What is ZoomBrowser EX?
What Can ZoomBrowser EX Do? ............................................. 14
Finding Images and Folders ..................................................... 16
Camera Window ..................................................................... 18
Main Window ......................................................................... 20
Using the Right-Click in Operations ......................................... 25
Chapter 3 Viewing Images
Selecting Folders - Folder Area ................................................ 26
Selecting Folders - Browsing Area ........................................... 27
Opening Images ...................................................................... 31
Zooming .................................................................................. 32
Editing Images ......................................................................... 33
Editing Images with Other Programs ...................................... 37
2
ZoomBrowser EX Software User Guide
Chapter 4 Organizing Images
Creating Folders ...................................................................... 38
Selecting Images ...................................................................... 39
Moving or Copying Images ..................................................... 40
Deleting Images ...................................................................... 44
Rotating Images ...................................................................... 46
Renaming Images .................................................................... 47
Sorting Images ........................................................................ 48
Refreshing Folders ................................................................... 49
Deleting Folders ...................................................................... 50
Renaming Folders .................................................................... 51
Finding Folder Locations ......................................................... 52
Viewing Image Properties ....................................................... 53
Chapter 5 Using the Camera Window
Opening the Camera Window ................................................ 54
Downloading Images .............................................................. 55
Deleting Images in the Camera ............................................... 58
Rotating Images ...................................................................... 59
Copying Computer Images to the Camera ..............................60
Checking and Modifying the Camera Settings ........................62
Using the Task Buttons ............................................................ 63
Other Functions of the Camera Window ................................. 65
Table of Contents (2/2)
Chapter 6
Using Supplementary Features
Sending Images by E-mail ........................................................ 66
Downloading Images .............................................................. 68
Copying Computer Images to the Camera ..............................69
Exporting Images .................................................................... 71
Running a Slide Show .............................................................. 73
Adding Sounds to Images ........................................................ 75
Saving the “My Camera Settings” to the Camera ....................76
Creating a My Camera Sound .................................................. 83
Printing Images - PhotoRecord ................................................ 85
Stitching Panoramic Images - PhotoStitch ............................... 91
Operating the Camera Shutter from the Computer - RemoteCapture .. 92
Converting RAW Images - File Viewer Utility ...........................94
Index
Index ..................................................................................... 112
Appendices
Supported File Formats ........................................................... 96
Setting ZoomBrowser EX to Start Automatically .....................97
Customizing Preferences ....................................................... 101
Playing Movies ...................................................................... 104
Setting up Slide Shows on the Camera .................................. 105
Print Settings ......................................................................... 106
Troubleshooting .................................................................... 108
NOTE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• This manual uses Windows XP screen shots and procedures in
the explanations. The screen shots and procedures may appear
slightly different if you are using another version of Windows.
• “Memory card” in this guide is used as the general term for CF
cards, PC cards, SD memory cards and multimedia cards.
3
ZoomBrowser EX Software User Guide
○
Chapter 1
Try It! ZoomBrowser EX
Starting ZoomBrowser EX (1/5)
Starting by Clicking an Icon or Menu
This chapter covers the ZoomBrowser EX basics, such as starting the
program, downloading images from the camera and printing them. It
begins with the procedures for starting the program.
Use the following method to start ZoomBrowser EX under
Windows XP.
IMPORTANT
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
REFERENCE
• This guide assumes that all the relevant software programs and
drivers have been correctly installed on your computer. If they
have not been installed yet, read the guides that accompanied
your camera and install them before proceeding further.
○
ZoomBrowser EX can be started two ways: Starting by Clicking
an Icon or Menu or Starting by Connecting the Camera to the
Computer.
ZoomBrowser EX can be started by clicking an icon or menu as
explained to the right. However, it is more convenient from the
second time onward to start the program by connecting the
camera to the computer, as explained in the subsequent pages.
■ Windows 2000/Windows Me/Windows 98
Either starting method can be used, but it is most convenient to
start the program by connecting the camera to the computer.
4
ZoomBrowser EX Software User Guide
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• ZoomBrowser EX can also be started from an icon or menu
under the following circumstances. This applies to all Windows
versions.
- When using a memory card reader
- When starting ZoomBrowser EX without a camera connected
- When restarting ZoomBrowser EX after closing it once
Starting Methods
■ Windows XP
○
■ The Icon Method
1
Double-click the [ZoomBrowser EX] icon on
the desktop.
ZoomBrowser EX will start and open its main
window.
2
To open the Camera Window, click [Camera &
Memory Card].
○
Chapter 1
Try It! ZoomBrowser EX
Starting ZoomBrowser EX (2/5)
This will open the Camera Window.
Main Window
3
Click [Browse & Download Images] in the next menu.
Camera Window
IMPORTANT
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• Ensure that you have connected the camera to the computer
and prepared it to transfer data before using the above
procedures. See the guides that accompanied your camera for
instructions for connecting the camera to the computer.
5
ZoomBrowser EX Software User Guide
○
○
IMPORTANT
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• If a dialog similar to that below appears when you connect the
camera to the computer, start ZoomBrowser EX by selecting
[Canon ZoomBrowser EX] and clicking [OK].
○
○
Chapter 1
Try It! ZoomBrowser EX
Starting ZoomBrowser EX (3/5)
REFERENCE
■ The Menu Method
1.
○
ZoomBrowser EX will start and open its main window.
To open the Camera Window, click [Camera &
Memory Card].
3
Click [Browse & Download Images] in the next menu.
IMPORTANT
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• Ensure that you have connected the camera to the computer
and prepared it to transfer data before using the above
procedures. See the guides that accompanied your camera for
instructions for connecting the camera to the computer.
This will open the Camera Window.
6
ZoomBrowser EX Software User Guide
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• The following dialog for selecting devices will appear before the
Camera Window opens if you have more than one memory card
reader or both a camera and a memory card reader connected
and loaded with memory cards at the same time. Select the
desired device and click [OK].
Click the Windows [Start] menu and select [All Programs],
followed by [Canon Utilities], [ZoomBrowser EX] and
[ZoomBrowser EX].
2.
○
○
Chapter 1
Try It! ZoomBrowser EX
Starting ZoomBrowser EX (4/5)
Starting by Connecting the Camera to the Computer
A dialog like the one below (Events dialog) will appear. If it does
not, read the Troubleshooting section in the Appendices.
You can start ZoomBrowser EX with this method by attaching
the camera to the computer and preparing it to transfer data.
This method works with Windows 2000, Windows Me or
Windows 98.
Your camera model name or “Canon Camera”
will appear here.
IMPORTANT
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• This method can only be used when the camera is connected to
the computer via a USB cable. (The program may not start
automatically with some camera models.)
• To start ZoomBrowser EX when a memory card reader is being
used, see Starting by Clicking an Icon or Menu in Starting
ZoomBrowser EX (1/5).
1.
Attach the camera to the computer with the USB
cable.
Read the guides that accompanied your camera for instructions
to connect the camera to the computer. Some models cannot
connect with the computer unless you set it to a particular
mode, such as the Replay mode. As described in the guides for
these models, set the camera to the correct mode to transfer
data.
7
ZoomBrowser EX Software User Guide
IMPORTANT
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• Under Windows XP, this dialog may not appear the first time a
connection is established after the computer is started up. It will,
however, appear from the second time onward. Accordingly,
start ZoomBrowser EX the first time using the Starting by
Clicking an Icon or Menu method. Thereafter, you will find it
convenient to start the program using the connection method.
• The Events dialog only appears when the camera and computer
are connected via a USB cable. It will not appear when
ZoomBrowser EX is started from its desktop icon or the Start
menu.
Chapter 1
Try It! ZoomBrowser EX
2.
Starting ZoomBrowser EX (5/5)
• If the Scanners and Cameras Wizard displays, close it and start
ZoomBrowser EX from its desktop icon or the Start menu. See
Starting by Clicking an Icon or Menu in Starting ZoomBrowser
EX (1/5).
• You can set it so that ZoomBrowser EX automatically starts
when you connect via the USB cable. See Setting ZoomBrowser
EX to Start Automatically in the Appendices.
Select [Canon ZoomBrowser EX] and click [OK].
ZoomBrowser EX will start, open its Camera Window and
display images from the camera as thumbnails (tiny versions).
Camera Window
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• If you have both a camera and a memory card reader connected
at the same time, a dialog allowing you to select the camera
model will display. Confirm that your camera model name or
“Canon Camera” is selected and click [OK].
8
ZoomBrowser EX Software User Guide
○
Chapter 1
Try It! ZoomBrowser EX
Downloading Images to a Computer (1/2)
This topic explains how to download the images from your camera to a
computer.
If you are using a memory card reader instead of the
camera, first start ZoomBrowser EX and then click [Camera
& Memory Card], followed by [Browse & Download Images]
in the next menu.
Camera Window
A Camera Window similar to this will open when you connect
your camera to the computer and start ZoomBrowser EX.
Downloading Images from the Camera
These procedures copy images from the camera to the computer.
Images from the camera display in order.
1.
Click on the image(s) in the Camera Window that you
wish to download.
The background color of the selected image(s) will change to orange.
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• More than one image can be selected by clicking on successive
images. To deselect an image, click it a second time.
2.
Click [Download image].
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• The main window will open instead of the Camera Window if
you start ZoomBrowser EX from its desktop icon or the Start
menu. Check the camera to ensure that it is ready to transfer
data then click [Camera & Memory Card] at the left of the
window, followed by [Browse & Download Images] in the next
menu. This will open the Camera Window.
A dialog will appear allowing you to specify the folder on the
computer into which the image(s) are placed.
9
ZoomBrowser EX Software User Guide
○
○
Chapter 1
Try It! ZoomBrowser EX
3.
Downloading Images to a Computer (2/2)
Confirm or change the destination folder and click [OK].
To resume downloading images, click [Camera & Memory Card]
in the main window, followed by [Browse & Download Images]
in the next menu. Repeat steps 2-3 above when the Camera
Window opens.
The image(s) will download. When downloading is complete,
the Camera Window will close and the main window will open.
The downloaded image(s) will appear in the main window.
After you have successfully downloaded several images, try
your hand at printing them next.
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• The detailed use of the Camera Window is discussed in Chapter 5.
10
ZoomBrowser EX Software User Guide
○
Chapter 1
Try It! ZoomBrowser EX
Printing Images (1/2)
This procedure is for printing images that have been
downloaded to a folder on your computer. It makes use of the
PhotoRecord printing utility.
1.
3.
Click on the image(s) you wish to print and click the
[Next] button at the bottom right of the window.
The background color of the selected image(s) will change to orange.
Click [Print].
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• More than one image can be selected by clicking on successive
images. To deselect an image, click it a second time.
4.
2.
11
Click [Layout Print] in the next menu.
ZoomBrowser EX Software User Guide
Place a check mark in the boxes of the data you wish to
include with the print (multiple selections are possible)
and click [Finish].
Chapter 1
Try It! ZoomBrowser EX
Printing Images (2/2)
PhotoRecord will start and open the PhotoRecord Print Modes
window.
5.
Confirm that the [Artwork/Layout album] option is
selected and click [Next].
6.
7.
Click [Next] when the Page Setup dialog appears.
Confirm that the [Automatic layout] option is selected
and click [Finish].
The PhotoRecord Layout window will appear and automatically
arrange the images in a layout. For the purposes of this
example, you will now print it without further modification.
8.
Click [PRINT].
The Print dialog will appear.
Set the various print settings and initiate printing.
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• More information on using PhotoRecord is included in Printing
Images in Chapter 6.
12
ZoomBrowser EX Software User Guide
○
○
Chapter 1
Try It! ZoomBrowser EX
Supplementary Information
In this section, we explain information that you should know to use
ZoomBrowser EX.
If You Have a Problem
ZoomBrowser EX comes with a Help file. Use it when you want
to learn how to do an operation, or when you want to know
about the features of the program.
You can access Help from the [Help] menu or the [?] (Help)
button.
What to Do if a Connection Message Appears
With certain camera models, a message asking whether you
wish to remain connected may appear if the camera’s Auto
Power Down function is set to On, the connection between the
camera and computer is open and the camera is idle for a set
period of time (usually 5 minutes).
Help menu
This feature is designed to help conserve camera battery power. If
you want to stay connected, click [Yes]. To break the connection,
click [No]. If you do not respond to the message in about one
minute, the connection is automatically broken.
Help button
Exiting ZoomBrowser EX
You can exit ZoomBrowser EX by clicking
(Close button) on
the Browser Window. Alternatively, select [Exit] from the [File]
menu.
13
ZoomBrowser EX Software User Guide
After a connection is broken, use the following procedures to
reconnect.
Prepare your camera to transfer data (set it to the Replay mode
on some models). This will cause ZoomBrowser EX’s Camera
Window to open and allow you to proceed. If the Camera
Window is already open, you can also click its [Set] menu and
select [Reconnect] in the next menu to reopen the connection.
Chapter 2
What is ZoomBrowser EX?
What Can ZoomBrowser EX Do? (1/2)
This chapter explains the basic skills required to master ZoomBrowser EX.
Let’s begin with an overview of the main features.
Connect the camera to your computer to:
• View a list of images stored in the camera.
• Download images from the camera to your computer.
• View information (shooting date and camera settings) about
images stored in the camera.
• Use your computer to set up slide shows or DPOF print
settings (not available on some models).
• Save computer images onto your camera.
Use the file management features to:
• Categorize, sort and manage image files on your computer
with easy procedures.
• Move or copy images.
• Perform simple editing such as cropping images or adjusting
their colors.
• Run a slide show displaying the images in sequence in the
full-screen mode.
14
ZoomBrowser EX Software User Guide
Use the My Camera Settings function to:
• Save the My Camera Settings in the computer to the camera
or vice versa (only on camera models supporting the My
Camera Settings function).
• Handle newly created images and sounds as My Camera
Settings.
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• The start-up image, start-up sound, shutter sound, operating
sounds and self-timer sound are collectively called the My
Camera Settings.
• The Canon CD-ROM supplied with your product contains several
prepared My Camera Settings files (only supported by models
compatible with the My Camera Settings function). These files
are automatically copied to your computer when you install
ZoomBrowser EX.
Chapter 2
What is ZoomBrowser EX?
What Can ZoomBrowser EX Do? (2/2)
By using other programs:
ZoomBrowser EX gives you additional power when you use it
together with the following programs. (You can start these
programs from within ZoomBrowser EX.)
■ PhotoRecord
• You can use this program to create and print beautiful
layouts consisting of multiple images.
• You can select frames and backgrounds with a variety of
designs.
• You can add text to images or pages.
• You can create original image albums.
■ PhotoStitch
• You can stitch multiple images (which were split and shot
individually using functions like the camera’s Stitch Assist
mode) together to form a single, large size, panoramic picture.
• You can stitch images horizontally or vertically.
• If you shoot the surroundings in 360 degrees, you can later
stitch the images to form a 360-degree cylinder. By saving
this stitched image in QuickTime VR format, you can then get
a virtual view of the various parts of the image.
■ RemoteCapture
• You can use the computer to operate the shutter of a camera
connected to it via a USB cable.
• You can specify the shooting interval and number of images
to be taken, then take images using interval timer shooting.
15
ZoomBrowser EX Software User Guide
■ File Viewer Utility
• You can convert RAW format images (some models may not
offer this format).
• You can adjust the image quality and color when converting
RAW images.
Chapter 2
What is ZoomBrowser EX?
Finding Images and Folders (1/2)
It is important to understand how folders are used in ZoomBrowser EX
to store images.
Where Are Images Stored?
The images that you downloaded in Chapter 1, Downloading
Images to a Computer, should be contained in the My Pictures
folder. As you will note, the folders mentioned above also
appear at the left of the ZoomBrowser EX window.
Use the following procedures to find out where image files are
stored on your computer when they are downloaded from the
camera.
1.
Click the Windows [Start] menu and select [My
Pictures].
Windows 2000/Windows Me/Windows 98 users should click
the [Start] menu, select [My Documents] and double-click [My
Pictures].
If you double-click the folders appearing in the Windows screen
shot at the left, you will find image files and folders with the
same names as those displayed in the ZoomBrowser EX
window.
As this demonstrates, when you open a particular folder in
ZoomBrowser EX and download images to it, or move images
between folders, these changes are also happening in the
corresponding folders shown by the Windows operating
system.
16
ZoomBrowser EX Software User Guide
Chapter 2
What is ZoomBrowser EX?
Finding Images and Folders (2/2)
Folders in the Browsing Area and Folder Area
Folders within Folders
Image thumbnails (tiny versions) are shown in the right-hand
side of the ZoomBrowser EX window. This area is called the
Browsing Area. The area in the middle, called the Folder Area,
shows the folder directory much as it is shown in Windows
Explorer.
You can create folders within folders, adding successive levels
to provide detailed categories that make it easy to find and use
your images.
The Folder Area shows all the folders on the computer. The
orange colored folder is the currently selected folder. The
images inside this folder are what are shown in the Browsing
Area.
Example of folders within folders
for categorizing images
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• Instructions for creating folders are included in Chapter 4.
IMPORTANT
○
Folder Area
17
ZoomBrowser EX Software User Guide
Browsing Area
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• In ZoomBrowser EX 4, image files in folders within the Program
Files folder (saved using ZoomBrowser EX 2 or 3) will not display.
To display these images, follow the procedures in If You Were
Using ZoomBrowser EX Version 2 or 3 of the Troubleshooting (2/
4) section.
Chapter 2
What is ZoomBrowser EX?
Camera Window (1/2)
The Camera Window is used to view images contained in the camera
(memory card) and to download them to the computer.
Camera Window Components
Close button
Click to switch back to the
main window.
Task Area and Task Buttons
The Task Area contains the four task buttons: Download
images, Print, View as slideshow and Connect to internet. Click
one of these buttons to perform the related task.
■ Download Images
Downloads the selected images to the computer.
■ Print
After the selected images have been
downloaded to the computer, this button starts
the printing process. A submenu like the one to
the right appears when you click this button.
■ View Slideshow
After the selected images have been downloaded to the
computer, this button starts an automated slide show.
Task Area
Contains buttons for
frequently used tasks.
18
Function Buttons
Buttons that perform various functions on the
images in the Camera Window.
ZoomBrowser EX Software User Guide
■ Connect to Internet
After the selected images have been
downloaded to the computer, this button starts
the process for creating e-mail attachments. A
submenu like the one to the right appears when
you click this button.
Chapter 2
What is ZoomBrowser EX?
Camera Window (2/2)
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• To switch from one task to another, click the appropriate icon
at the right of the task button.
Function Buttons
The following buttons are available in the Camera Window.
Set Button
Sets various settings, such as those for connecting to a
camera. The following items are included in the
submenu.
○
Deselect Button
Deselects a selected image.
Rotate Button
Rotates the selected image. Choose between 90° left,
90° right or 180°.
Delete Button
Deletes the selected image from the camera (memory
card).
Properties Button
Displays information about the selected image.
Help Button
Displays the help dialog.
Select Button
Selects images for further processing with other
functions. Various selection methods can be chosen
from the submenu.
19
ZoomBrowser EX Software User Guide
Chapter 5 explains more about the task and function buttons.
Chapter 2
What is ZoomBrowser EX?
Main Window (1/5)
This window is designed for managing images downloaded to the
computer. It can also be used for various functions, such as printing and
uploading images to the Internet.
Main Window Components
Switching to the Camera Window
To switch to the Camera Window, click the [Camera & Memory
Card] task button, followed by [Browse & Download Images] in
the next menu.
Path of the selected folder (word string
describing the location)
Task Area
Contains the buttons for
frequently used tasks.
Folder Area
Displays all the folders in
the computer. Use this area
to select folders that
contain images.
20
ZoomBrowser EX Software User Guide
Function Buttons
Buttons that perform various
functions on the images in the
Browser Area.
Browsing Area
Displays the image thumbnails (tiny
versions) and folders contained
within the folder selected in the
Folder Area.
Chapter 2
What is ZoomBrowser EX?
Main Window (2/5)
Task Area and Task Buttons
The Task Area contains the four task buttons: Camera &
Memory Card, Print, View & Modify and Internet. Click one of
these buttons to perform the related task.
■ Camera & Memory Card
Click this to open the Camera Window or start RemoteCapture.
■ Print
Click this to print images.
■ View & Modify
REFERENCE
○
Click this to display images in a slide show or edit them.
■ Internet
Click this to attach images to e-mail messages.
When you click one of these buttons, the corresponding
submenu to the right displays.
21
ZoomBrowser EX Software User Guide
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• To return to the main window, click [Return to Main Menu] at
the bottom of the menu.
• To switch from one task to another, click the appropriate icon
to the right of the task button.
○
○
Chapter 2
What is ZoomBrowser EX?
Main Window (3/5)
Using the Task Windows
■ Gray Buttons
Tasks that are selectable at the time are colored gray. The button
turns dark gray when the mouse cursor is placed over it. You
can switch between tasks by clicking another task button.
However, if you have already finished selecting an image and you
switch to the [Select Captions for Printing] task, you must click
[Select Images] again to reselect the image.
When you select a task from the menu, all of the steps in that
task display in the task area.
■ Orange Button
This color marks the current step. Follow the instructions in the
right-hand side of the window to proceed. When you have
completed the step, click the [Next] or [Finish] button at the
bottom right of the window to proceed to the next step.
■ Grayed Out Buttons
Grayed out buttons indicate tasks that are not available at the
time. When you finish the task underway, the buttons will once
again become selectable.
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• Click [Previous] to return to the prior step.
22
ZoomBrowser EX Software User Guide
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• See the Troubleshooting section in the Appendices if a message
such as “No camera was found” appears.
○
Chapter 2
What is ZoomBrowser EX?
Main Window (4/5)
Function Buttons
The following buttons are available in the main window.
Zoom-In Button (zoom mode only)
Zooms in on images or folders in the Browser Area.
Zoom-Out Button (zoom mode only)
View Mode Button
Switches between the zoom mode and the scroll mode.
Zooms out from images or folders in the Browser Area.
Up Button
Thumbnail Size Button (scroll mode only)
Advances one step up from a lower level folder.
Selects the size of images displayed in the Browser
Area.
Select All Button
Selects all the images and folders in the Browser Area.
View Image Button
Displays the selected image at a larger size in the View
window.
Properties Button
Displays information about the selected image.
Rotate Button
Rotates the selected image. Choose between 90° left,
90° right or 180°.
Delete Button
Deletes the selected image from the computer.
23
ZoomBrowser EX Software User Guide
Clear All Button
Deselects any images or folders selected in the Browser
Area.
Chapters 3 and 4 explain more about the task and function
buttons.
Chapter 2
What is ZoomBrowser EX?
Main Window (5/5)
Changing the Display
■ Hiding the Folder Area
Click the
button in the upper right of the Folder Area to
hide it and make the Browsing Area larger. Click the
button
to redisplay the Folder Area.
You can hide the Task Area and Folder Area to make the
Browsing Area larger.
■ Hiding the Task Area
Click the
button in the upper right of the Task Area to hide
it and make the Browsing Area larger. Click the
button to
redisplay the Task Area.
REFERENCE
○
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• You can also hide the Task Area by clicking the [View] menu,
selecting [Task Area] and removing the check mark beside it.
24
ZoomBrowser EX Software User Guide
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• You can also hide the Folder Area by clicking the [View] menu,
selecting [Folder Area] and removing the check mark beside it.
• Both the Task Area and Folder Area can be hidden at the same
time.
○
○
Chapter 2
What is ZoomBrowser EX?
Using the Right-Click in Operations
With ZoomBrowser EX you can access many useful functions by using
the right mouse button (right-click).
For example, if you right-click a thumbnail, the following
shortcut menu appears.
Right-click anywhere on the image to display a shortcut menu.
A shortcut menu is a convenient collection of the most
common window buttons and menu commands that apply to a
given situation.
25
ZoomBrowser EX Software User Guide
The right-click allows you to use ZoomBrowser EX more
efficiently. After you become familiar with ZoomBrowser EX, try
right-clicking in many situations and you will be impressed with
its convenience.
Note that, in general, this manual does not cover operations
using the right-click. (This is because explaining many shortcut
menu variations would take too many pages of this manual.)
However, there are a few operations that are only accessible by
right-clicking. These operations are described on the
corresponding pages.
Chapter 3
Viewing Images
Selecting Folders - Folder Area
This chapter explains how to view and edit images in ZoomBrowser EX.
In this section, you will learn how to use the Folder Area to select
folders with images that you wish to view.
Collapsing and expanding a folder
If a folder contains subfolders, you can use the and
buttons to collapse or expand the folder. When you click the
button to collapse the folder, its subfolders are hidden. When
you click the button to expand the folder, its subfolders are
displayed.
Selecting Folders
Click a folder in the Folder Area to view its contents in the
Browsing Area.
Click
Selected folder
26
Images from the selected folder display (if there
are folders within the selected folder, those
folders and their images are shown within a
folder-shaped border).
ZoomBrowser EX Software User Guide
to collapse a folder. Click
to expand a folder.
Chapter 3
Viewing Images
Selecting Folders - Browsing Area (1/4)
This section explains how to use the Browsing Area to open folders and
search and view images.
■ Zoom Mode
Zoom mode displays all the images in subfolders as well as the
selected image folder.
Selecting a Display Mode
The Browsing Area features two display modes: the zoom
mode and the scroll mode. The zoom mode is the default
mode. To switch between modes, click
(View Mode) and
choose [Scroll Mode] or [Zoom Mode] from the menu.
Images within nestled
folders also display (a
folder-shaped border
indicates a subfolder).
■ Scroll Mode
Scroll mode only displays the images in the selected image folder
to show them at a larger size. A scroll bar will appear on the right
side of the Browsing Area if all the images do not fit at once. If the
image folder contains subfolders, only their icons display.
Select [Scroll Mode] or [Zoom Mode].
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• You can also switch between display modes by clicking the
[View Mode] menu and selecting [Scroll Mode] or [Zoom Mode].
• In scroll mode, you can change the image thumbnail size by
clicking the
(Thumbnail Size button) (or by clicking the
[View] menu and selecting [Thumbnail Size]) and selecting a size
from the menu.
Scroll Bar
Images in subfolders
do not display.
27
ZoomBrowser EX Software User Guide
Chapter 3
Viewing Images
Selecting Folders - Browsing Area (2/4)
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• It can be difficult to find a particular image when you have a
multitude of folders and images. In this situation, you can use
the Zoom mode to find a particular image by viewing all the
folders and picking the most likely one to contain it.
■ Zoom Mode
In the Browsing Area, double-click an area where there is no
image inside the folder you wish to see. The contents of the
folder are displayed in the Browsing Area.
○
By repeating this step, you can go deeper and deeper into the
folder hierarchy.
■ Scroll Mode
In the Browsing Area, double-click the icon of a displayed folder
to view its images and subfolders.
If a folder icon is not shown on the
screen, click the scroll bar to display it.
Double-click a folder
to view its contents.
Double-click inside the
desired folder to zoom
in on its contents.
28
ZoomBrowser EX Software User Guide
By repeating this step, you can go deeper and deeper into the
folder hierarchy.
Chapter 3
Viewing Images
Selecting Folders - Browsing Area (3/4)
Returning to a higher level in the folder hierarchy
■ Scroll Mode
When you are deep in the folder hierarchy, you can use the
(Up) button to go back to a higher level.
This button can be used in both the Zoom and Scroll modes.
■ Zoom Mode
Click this button to
return to a folder
one tier higher in
the hierarchy.
Click this button
to go back to
higher levels.
29
ZoomBrowser EX Software User Guide
Chapter 3
Viewing Images
Selecting Folders - Browsing Area (4/4)
In Zoom mode, you can do this
■ Right-Clicking to Zoom In or Out
There are more convenient ways to use the Zoom mode.
■ Zooming in by skipping levels
You can zoom in directly on a subfolder displayed in the Browsing
Area without going through each successive level by doubleclicking within the folder (on a point containing no images).
Right-click on any clear area in the Browsing Area to display a
menu like that below. You can zoom an image or folder in or
out by selecting the respective [Zoom In] or [Zoom Out] option
from this menu.
Double-click this area to
skip the Samples folder
and zoom in directly on
the Flower folder.
REFERENCE
○
■ Using the Zoom-In or Zoom-Out Cursor
Click
in the function buttons to change the mouse cursor
into a magnifying glass. You can then zoom in on a folder or
image in the Browsing Area by clicking it with this cursor. Click
the
button to zoom out.
30
ZoomBrowser EX Software User Guide
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• You can get the same result by using the [View] menu. Click a
folder. Then, on the [View] menu, click [Zoom In] or [Zoom Out].
○
Chapter 3
Viewing Images
Opening Images
This section explains how to open images displayed in the Browsing Area.
REFERENCE
○
How to open an image
In the Browsing Area, double-click the image that you want to
open. The image appears in a new window.
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• After selecting an image, you can click
(View Image) to open
the image.
• You can also open an image by selecting it, clicking the [View]
menu and selecting [View Image].
Opening multiple images
Double-click the image
you want to see.
Continue to double-click successive images or hold down the
[Shift] key while you click on successive images. Then click
(View Image) to open all the images simultaneously.
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• A confirmation dialog will display if you attempt to open more
than five images at one time.
Closing an image
Click
(Close button) on the image window to close the
image.
31
ZoomBrowser EX Software User Guide
○
○
Chapter 3
Viewing Images
Zooming
This section explains how to zoom an image.
Scaling to the window size
How to select a zoom ratio
Click the
at the bottom of the window to open a submenu
and click an option to change the display to that zoom ratio.
You can scale the image to fit the window size. From the zoom
ratio list, click [Scale to Fit]. The image is adjusted to the size of
the window.
The mouse cursor changes to an arrow when you place
it here. Click and drag in this state to change the
window size.
Typing a zoom ratio
You can type a zoom ratio that is not on the list. Directly in the
zoom ratio box, type a zoom ratio (percentage) and press the
[Tab] key. The image is displayed using the new zoom ratio.
Choose a zoom ratio from
the list.
32
ZoomBrowser EX Software User Guide
Chapter 3
Viewing Images
Editing Images (1/4)
This section explains how to edit an open image.
Edit Panel Features
Using the edit panel, you can perform the following editing
operations.
■ Crop
An edit panel for revising images displays beneath images that
have been opened.
Crop the image, cutting out parts that are not needed.
■ Color, Brightness, Contrast
Change the image appearance by adjusting color density,
brightness, and contrast.
■ Undo, Redo
Undo or redo the previous editing operation. This allows you to
try various changes until you are satisfied with the image.
■ Save As
After you have modified an image, you may want to save it
under a different name. This function allows you to do so.
See the following pages for detailed descriptions of these
functions.
Edit Panel
33
ZoomBrowser EX Software User Guide
Chapter 3
Viewing Images
Editing Images (2/4)
REFERENCE
■ Crop
○
Use this function to extract only part of an image, leaving out
unneeded portions.
Place the mouse pointer within the image you want to crop.
Click and drag to form a rectangular frame. Then, click
(Crop) to extract the area within the frame.
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• You can drag any of the anchor points ■ located along the
frame to adjust the size of the area for cropping. Also, if you
want to change the position of the whole frame, place the
mouse pointer within the frame and drag it.
A Drag to frame the area
for cropping.
Drag the anchor points
■ to adjust the size of
the area for cropping.
B Click this
button.
34
ZoomBrowser EX Software User Guide
Drag within the frame
to adjust position of
the frame.
○
Chapter 3
Viewing Images
Editing Images (3/4)
Color, Brightness and Contrast
REFERENCE
○
You can adjust the color (saturation), brightness or contrast by
dragging the respective slider in the edit panel.
35
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• You can also use any of the three text boxes to the right of the
sliders to type a value. Then press the [Tab] key.
Decrease color saturation
Increase color saturation
Decrease brightness
Increase brightness
Decrease contrast
Increase contrast
ZoomBrowser EX Software User Guide
○
○
○
Chapter 3
Viewing Images
Editing Images (4/4)
Undo, Redo
Overwriting the original image
After you edit an image, the result may not satisfy you and you
may want to go back to the previous step. In this case, click
(Undo) to cancel the operation and return to the previous step.
Keep clicking
(Undo) to continue going back. If you feel
that you have undone too many steps, you can reverse it by
clicking
(Redo).
After you have modified an image file, you can save it under
the same file name (overwriting the original image). In this
case, click [Save As]. When the Save As dialog box appears,
type the same name as the one of the original image. (To find
out the name of the original image, check the title bar of the
image window.)
REFERENCE
Save As
○
After you have modified an image, you can save it under a
different name so that the original image remains intact.
Click [Save As] to display the Save As dialog. Type a new name
and specify the kind of file and the image quality. Then, click
[Save].
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• After you have modified an image, if you click
(Close button)
without saving the changes, a message appears to prompt you
to save the edited image.
To save the changes, click [Yes]. When the Save As dialog box
appears, type a name and specify the kind of file and the image
quality. Then, click [Save].
If you do not want to save the changes, click [Cancel].
Click this button.
36
ZoomBrowser EX Software User Guide
○
Chapter 3
Viewing Images
Editing Images with Other Programs
From ZoomBrowser EX, you can edit images using a different image
editing program that you have registered. This section explains how to
perform this operation.
How to edit an image with other programs
Click [View & Modify] in the main window, followed by [Edit
Image] in the next menu.
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
A Select an image.
• You cannot select this function if the image editing software
supplied with your product has not been installed. Please install
the software to use this function.
• If you use Adobe Photoshop LE as the image editing program, it will
start automatically when you follow the procedures to the right.
• If you use ArcSoft PhotoStudio or ArcSoft PhotoImpression as
the image editing program, click the [Tools] menu and select
[Preferences] and in the [Image Editor] category, add the
program name to the [Edit images using the program below:]
section. The method for adding programs is explained in the
Image Editor Tab topic in Customizing Preferences (2/3) in the
Appendices.
• The image editing software shipped with the camera varies
according to the model. (Some models may not be shipped with
an image editing program.)
B Click this.
This will start the image editing program and open the selected
image in it.
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• You can also open an image after you have selected it by
clicking the [Edit] menu and selecting [Edit Image].
37
ZoomBrowser EX Software User Guide
○
○
○
○
○
Chapter 4
Organizing Images
Creating Folders
This chapter explains how to manage images effectively with
ZoomBrowser EX. It starts with the method for creating a new folder
within an existing one.
Creating Folders
1.
Select a folder in the Folder Area.
2
Click the [File] menu and select [New Folder].
38
You will be creating a new folder within the folder selected
here.
ZoomBrowser EX Software User Guide
3.
Type a name for the new folder and click [OK].
You have created a new folder.
Chapter 4
Organizing Images
Selecting Images
Selecting All the Images
This section explains how to select images in the Browsing Area.
Selecting a Single Image
Click
(Select All) at the top of the Browsing Area to
select all the images in a single step. You can also click the
[Edit] menu and choose [Select All].
Click on an image to select it. The background color of the
selected image(s) will change to orange.
REFERENCE
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• To deselect an image, click it again.
Selecting Multiple Images
To select more than one image, continue clicking on successive
images. You can select a series of adjoining images in one step
by holding down the [Shift] key while you click the first and last
images.
39
ZoomBrowser EX Software User Guide
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• Click
(Clear All) at the top of the Browsing Area to
deselect all the images at once.
• You can also deselect all the images at once by clicking the [Edit]
menu and choosing [Clear All].
• You can change the selection methods to standard Windows
selection methods. See the Selection Tab topic in Customizing
Preferences (2/3) in the Appendices.
Chapter 4
Organizing Images
Moving or Copying Images (1/4)
This section explains how to move or copy images between folders.
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• Moving or copying images in ZoomBrowser EX affects the actual
location in which those images are stored on your PC.
Moving an image in the Browsing Area
You can move an image in the Browsing Area simply by using a
drag-and-drop operation.
B Drop it at the
desired location.
A Drag the image you
want to move.
40
ZoomBrowser EX Software User Guide
Chapter 4
Organizing Images
Moving or Copying Images (2/4)
Copying an image within the Browsing Area
To copy an image, before you drop the image you are dragging,
press and hold the [Ctrl] key and release the mouse button,
while still holding the key.
A Drag the image you
want to copy.
41
ZoomBrowser EX Software User Guide
B While holding down the [Ctrl] key,
drop it at the desired location.
Chapter 4
Organizing Images
Moving or Copying Images (3/4)
Moving or Copying an Image from the Browsing Area to the
Folder Area
Copying by Dragging a File Icon from a Windows Window
You can also copy an image by dragging its file icon from an
open Windows window and dropping it onto the ZoomBrowser
EX window.
You can move or copy images between different folders by
dragging them from the Browsing Area to the Folder Area and
dropping them in the target folder.
A Drag the image you wish to move.
A Drag the image
you wish to move.
B Drop it in the target folder.
B Drop it in the target folder.
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• To copy an image from the image folder you are in at the
moment to a different image folder, proceed the same way.
Hold down the [Ctrl] key before dropping the image and release
the mouse button while holding the key over the target library.
42
ZoomBrowser EX Software User Guide
○
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• On the other hand, when you drag an image from the Browsing
Area of ZoomBrowser EX to Windows Explorer, the image is
automatically copied.
○
Chapter 4
Organizing Images
Moving or Copying Images (4/4)
Additional ways of moving or copying images
■ Moving or copying many images at once
You can select several images by clicking them in succession.
You can also select a series of adjoining images in one step by
holding down the [Shift] key while you click the first and last
images.
Once the images are selected, you can move or copy them all
together with standard drag and drop procedures.
■ Moving or copying a complete folder
In addition to moving or copying individual images, you can
move or copy an entire folder. In the Zoom display mode, select
the folder by clicking inside it where there are no images. Then
move the folder by dragging and dropping it, or copy the folder
by first pressing down and holding the Ctrl key, and then
dragging and dropping the folder.
Display modes and folder selection procedures are explained in
Selecting Folders - Browsing Area in Chapter 3.
43
ZoomBrowser EX Software User Guide
■ Copying from the menu
Select one or more images, click the [Edit] menu and select
[Copy]. Next, select the target folder in the Folder Area, click
the [Edit] menu and select [Paste].
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• You can select all the folders or images displayed in the Browsing
Area at once by clicking
(Select All) at the top of the
Browsing Area or by clicking the [Edit] menu and selecting [Select
All].
○
Chapter 4
Organizing Images
Deleting Images (1/2)
This section explains how to delete images that you no longer need.
Click [Yes] when a confirmation dialog like the one below
appears.
How to delete an image
Click the image you want to delete, and click
(Delete).
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• If you accidentally delete a required image, double-click the
[Recycle Bin] icon on the Windows desktop to open it. Select the
image and, in the Recycle Bin Tasks section, click [Restore this
item]. (With Windows 2000/Windows Me/Windows 98 in web
page view mode, select the image and then click [Restore this
item back to its original location] at the left side of the window.)
When you switch back to ZoomBrowser EX and click the [View]
menu and select [Refresh Current Folder], the image will
reappear in its original location.
A Click an image.
44
ZoomBrowser EX Software User Guide
B Click [Delete].
Chapter 4
Organizing Images
Deleting Images (2/2)
Other ways of deleting images
■ Deleting multiple images
You can select several images by clicking them in succession or
by holding down the [Shift] key while you click the first and last
images in a series. When you have selected all the images that
you want to delete, clicking
deletes all of the selected
images at once.
■ Deleting images from the File menu
Click an image. Then, click [Delete] on the [File] menu to delete
the image.
■ Deleting an Entire Folder of Images
This procedure is explained later in this chapter in the Deleting
Folders topic.
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• To completely delete images from the computer after
completing the procedures above, double-click the [Recycle Bin]
on the Windows desktop to open it and, in the Recycle Bin Task
section, click [Empty the Recycle Bin]. (With Windows 2000/
Windows Me/Windows 98 in web page view mode, click [Empty
Recycle Bin] at the left side of the window.)
45
ZoomBrowser EX Software User Guide
Chapter 4
Organizing Images
Rotating Images
This section explains how to rotate images to the desired orientation.
This is useful for images taken by holding the camera sideways.
REFERENCE
○
IMPORTANT
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• Rotating an image in ZoomBrowser EX changes (rotates) the
image in the file on your PC.
How to rotate an image
Select an image and click
rotation in the next menu.
(Rotate). Select the direction of
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• 90-degrees left is a counterclockwise rotation and 90-degrees
right is a clockwise rotation.
• There are 2 ways of rotating an image. As default, the original image
is left untouched, and a copied image is rotated. These copied image
files will contain “_r1”, “_r2”, etc. within its file names.
• To set the rotation settings, refer to Rotate Tab of the
Customizing Preferences (3/3) section.
Other ways of rotating images
■ Rotating multiple images
You can select several images by clicking them in succession or
by holding down the [Shift] key while you click the first and last
images in a series. When you have selected all the images you
want to rotate, select a rotate option to rotate all the selected
images at once.
■ Using the Menu to Rotate Images
You can also rotate an image by selecting it, clicking the [Edit]
menu, selecting [Rotate Image] and choosing the direction of
rotation.
Select an image to rotate and click to specify the direction.
46
ZoomBrowser EX Software User Guide
○
Chapter 4
Organizing Images
Renaming Images
This section explains how to rename images.
A dialog similar to that below will appear.
IMPORTANT
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
Renaming an image in ZoomBrowser EX renames the actual file
on your PC.
How to rename an image
Select an image, click the [File] menu and select [Rename].
The Rename Image dialog box appears.
A Click an image to rename.
Type the new name and click [OK] to change the name of the
image. You can also rename a sound that is attached to an
image.
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• Because an extension (indicating the type of the file) is
automatically assigned, do not include an extension in the
name. (In the file named [xxx.jpg], for example, the [.jpg]
portion is called the file name extension.)
B Click [Rename].
47
ZoomBrowser EX Software User Guide
○
○
○
○
○
Chapter 4
Organizing Images
Sorting Images
This section explains the procedures for changing the image order.
Sorting Images
To change the image order in the Browsing Area, click the
[View] menu, select [Arrange] and then one of the sorting
options.
48
ZoomBrowser EX Software User Guide
Chapter 4
Organizing Images
Refreshing Folders
This section explains how to refresh or update a folder.
What Does It Mean to Refresh a Folder
Refreshing Folders
Click the [View] menu and select [Refresh Current Folder]. This
will update ZoomBrowser EX’s information about all the folders.
Adding, moving, copying or editing an image or a folder within
ZoomBrowser EX ensures that it is updated and appears
correctly in the Browsing Area.
However, the information ZoomBrowser EX possesses and the
actual file contents can be different when an image file is
moved or copied using Windows functions or edited with a
separate program.
In this case, the “current state of the folders” has to be
checked and updated. This is what is meant by refreshing a
folder.
Click [Refresh Current Folder].
49
ZoomBrowser EX Software User Guide
Chapter 4
Organizing Images
Deleting Folders
This section explains the procedures for deleting folders.
Click [Yes] in the confirmation dialog to proceed.
Deleting Folders
Select a folder to delete and click
(Delete).
Alternative Method
■ Using the Menu to Delete
You can also delete a folder by selecting it, clicking the [File]
menu and selecting [Delete].
REFERENCE
○
Select the folder and click [Delete].
50
ZoomBrowser EX Software User Guide
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• If you accidentally delete a required folder, double-click the
[Recycle Bin] icon on the Windows desktop to open it. Select the
folder and, in the Recycle Bin Task section, click [Restore this
item]. (With Windows 2000/Windows Me/Windows 98 in web
page view mode, select the folder and then click [Restore this
item back to its original location] at the left side of the window.)
When you switch back to ZoomBrowser EX and click the [View]
menu and select [Refresh Current Folder], the folder will
reappear in its original location.
• To completely delete folders from the computer after
completing the procedures above, double-click the [Recycle Bin]
on the Windows desktop to open it and, in the Recycle Bin Task
section, click [Empty the Recycle Bin]. (With Windows 2000/
Windows Me/Windows 98 in web page view mode, click [Empty
Recycle Bin] at the left side of the window.)
Chapter 4
Organizing Images
Renaming Folders
This section explains the procedures for renaming folders.
A dialog similar to that below will appear.
IMPORTANT
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• When you use ZoomBrowser EX to change a folder name, the
name of the folder on the computer disk also changes to that
name.
Renaming Folders
Select a folder to rename, click the [File] menu and select
[Rename].
After you select the folder, click [Rename].
51
ZoomBrowser EX Software User Guide
Input a new file name and click [OK] to set the name.
Chapter 4
Organizing Images
Finding Folder Locations
This section explains methods for finding out which disks and folders
contain your image folders.
A window similar to that below will appear.
You can check the location of the saved folder by looking at the
categories below.
Viewing Folder Properties
Select the folder and click
(Properties).
Click the
(Close button) to close the window once you have
checked it.
Alternative Method
■ Using the Menu to View Folder Properties
Select the folder and click [Properties].
52
ZoomBrowser EX Software User Guide
You can also find out where a folder is located by selecting the
folder, clicking the [View] menu and selecting [Properties].
Chapter 4
Organizing Images
Viewing Image Properties
This procedure is for viewing various information about the selected image.
Viewing Image Properties
Select the image in the Browsing Area and click
(Properties)
to open the Image Properties window. If you click on another
image in the Browsing Area while this window is open, the
displayed data will switch to that of the new image.
This window can be used to check the date an image was
revised, the file size, the image size, the file type, the file location,
the shooting date and time and other detailed information. You
can also use it to change the file name and type in comments. To
close the Image Properties window, click its
(Close button).
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• You can select several images by clicking them in succession or
by holding down the [Shift] key while you click the first and last
images in a series. Then you can click
(Properties) to view
the properties of each image in succession. Use the [Previous]
and [Next] buttons to switch between the information for each
image.
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• When an image taken by the camera is modified and saved by
another program, the information about the camera settings
might be lost.
Alternative Method
■ Using the Menu to View Properties
Click this button.
The information in this area will vary
according to your camera model.
53
ZoomBrowser EX Software User Guide
You can also view image properties by selecting the image,
clicking the [View] menu and selecting [Properties].
○
○
○
Chapter 5
Using the Camera Window
Opening the Camera Window
This chapter explains how to use ZoomBrowser EX’s Camera Window.
It starts with the procedures for opening the window.
If you are using a memory card reader, you can also open
the Camera Window with the Using the Camera & Memory
Card Button method.
IMPORTANT
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• Check that you have connected the camera to the computer
with the USB cable and prepared it to transfer data before
performing these procedures.
Using the Camera & Memory Card Button
Click [Camera & Memory Card] in the main window, followed
by [Browse & Download Images] in the next menu. The main
window will close and the Camera Window will open.
○
Opening the Camera Window Automatically
When you connect the camera to the computer with the USB
cable and prepare the camera to transfer data, a dialog
allowing you to select an application to start will appear. If you
select ZoomBrowser EX and click [OK], ZoomBrowser EX will
start and open the Camera Window. You can also use the same
procedure to open it when ZoomBrowser EX is already running.
IMPORTANT
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• With Windows XP, the dialog allowing you to select the
application will not appear the first time the camera is
connected after booting up the computer. (It will appear
thereafter). In this case, you should start ZoomBrowser EX by
double-clicking its desktop icon and then open the Camera
Window.
Click here.
Main Window
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• See the Troubleshooting section in the Appendices if a
message such as “No camera was found” appears.
54
ZoomBrowser EX Software User Guide
○
○
○
Chapter 5
Using the Camera Window
Downloading Images (1/3)
This section explains the procedures for downloading images from a
camera (memory card) to a computer disk.
Specifying the Image File Destination
Specify the location to which your image files are downloaded
on the computer.
Downloading Images
Select the image(s) and click [Download image].
Select the image(s).
Specify the folder to
which images are saved.
Select this option to stick
the downloaded images
in a new folder created
within the one specified
above. Then select a
naming option for the
new folder to the right.
Click here.
If you selected the [Set as new] option,
type in a folder name here.
If this option is left unselected, the image file name follows the pattern [XXXXXXX.JPG], where the Xs represent numbers. If the option is selected, the
pattern of the image file name becomes [NAME+XXXX.JPG], where you supply
the root name in place of NAME.
55
ZoomBrowser EX Software User Guide
Chapter 5
Using the Camera Window
Downloading Images (2/3)
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• The My Pictures folder is set as the default destination. (With
Windows 98/Windows Me, the My Documents folder is the
default destination.)
Click [OK] to start downloading. When the download is
complete, the Camera Window will close and the main window
will open.
The Camera Window after Downloading
Alternative Method
■ Downloading Multiple Images
You can select several images by clicking them in succession.
Once the images are selected, you can download them all
together in a single step.
■ Selecting Images for Downloading
Click
(Select) to open the selection menu, which contains
the following options.
Images that have been downloaded are marked with a
“downloaded” symbol like that below.
This symbol indicates that the image has been downloaded.
• Select All
Selects all the images in the camera (memory card).
• Select New
Selects only the images that have not yet been downloaded
to the computer.
• Select Print mark
Selects only the images that have be marked with print
settings by the camera.
56
ZoomBrowser EX Software User Guide
Chapter 5
Using the Camera Window
Downloading Images (3/3)
• Select Send mark
Selects only the images that have been marked with transfer
order settings by the camera.
• If an image is taken in the RAW mode (some camera models do
not come with this feature), it appears in the Camera Window as
follows:
• Select Slide Show mark
Selects only the images that have been marked with slide
show settings by the camera.
Mark indicating
an image taken in
the RAW mode
• Invert selection
Deselects selected images and selects the previously
unselected images.
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• If an image is taken in the Stitch Assist mode (some camera
models do not come with this feature), it appears in the Camera
Window as follows:
○
• If an image is taken in the Movie mode (some camera models do
not come with this feature), it appears in the Camera Window as
follows:
Mark indicating
Movie
Mark indicating an
image taken in the
Stitch Assist mode
(You can start
PhotoStitch by
clicking the line with
arrow heads.)
• If an image has a sound memo attached (some camera models do
not come with this feature),it appears in the Camera Window as
follows:
Mark indicating a
sound memo
57
ZoomBrowser EX Software User Guide
Chapter 5
Using the Camera Window
Deleting Images in the Camera
Other ways of deleting images
This section describes how to delete images from the camera (memory
card).
■ Deleting multiple images
IMPORTANT
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• Please note that deleting an image in the Camera Window
deletes the actual image from the memory card. Since deleted
images cannot be recovered, be extremely careful when using
this function.
How to delete an image in the camera
(Delete) to
A Select an image.
B Click here.
When a message appears, click [OK]. The image is deleted.
ZoomBrowser EX Software User Guide
○
You can select several images by clicking them in succession.
When you have selected all the images to be deleted, perform
the deletion. All the selected images are deleted.
■ Selecting images for deletion
Click
(Select) to display the selection menu, which can be
used to select the images for deletion.
Select the image you want to delete and click
delete it.
58
○
Chapter 5
Using the Camera Window
Rotating Images
This section explains how to rotate the display of images stored in the
camera to the desired orientation.
How to rotate an image
In the Camera Window, select the image you want to rotate.
Click
(Rotate) to display a menu. On the menu, click the
rotation angle that you want to use.
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• 90-degrees left is a counterclockwise rotation and 90-degrees
right is a clockwise rotation.
• The Rotate function affects only the image displayed in the
Camera Window. The image stored on the camera is not
changed at all. However, when you download the image, two
files are sent to the computer, one version with the image
rotated and a second version with the original orientation.
A Select an image.
Other ways of rotating images
■ Rotating multiple images
You can select several images by clicking them in succession.
When all the images are selected, perform the rotation
operation. All the selected images are rotated at once at the
same rotation angle.
B Click here.
59
ZoomBrowser EX Software User Guide
○
○
Chapter 5
Using the Camera Window
Copying Computer Images to the Camera (1/2)
This section explains the procedures for copying images from the
computer disk to the camera (memory card).
A dialog box appears. In the dialog box, select an image you
want to copy to the camera and click [Open].
IMPORTANT
○
○
○
○
○
○
○
○
○
○
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• Check that you have connected the camera to the computer
with the USB cable and prepared it to transfer data before
performing these procedures.
• If you are using a memory card reader, ensure that the card is
loaded into the reader before performing these procedures.
How to copy an image to the camera
Click
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• You can upload multiple images in the same operation.
If a dialog similar to that below appears, select an option as
required and click [Add]. This will upload the image to the
camera.
(Set) and select [Add Image(s)] from the next menu.
Select this to upload the
image to the camera
without resizing.
Click here.
Select this to resize the image before uploading it to the camera.
Select the image size in the list box beneath. (With a memory
card reader, the image size is input as numerical values. If [VGA
Size] is selected, 640 and 480 appear automatically.)
60
ZoomBrowser EX Software User Guide
○
○
Chapter 5
Using the Camera Window
Copying Computer Images to the Camera (2/2)
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• You can select the [Add image as is] option only when
uploading JPEG images based on the DCF standard. Select [Add
image after adjusting size] for all other images.
• JPEG format images can be uploaded to the camera.
• RAW format images and movie files (AVI format) cannot be
uploaded to the camera.
• File formats are explained in more detail in the Supported File
Formats topic in the Appendices.
61
ZoomBrowser EX Software User Guide
○
Chapter 5
Using the Camera Window
Checking and Modifying the Camera Settings
You can check camera settings from the computer.
How to check or modify the camera settings
Type the name of the owner of the camera here.
Use this button to synchronize the
camera clock and your PC clock.
Click
(Set) to display a menu. On the menu, click
[Camera Settings].
Click this button to
synchronize the camera’s
date and time settings
with the computer.
Click [Set] and click [Camera Settings].
Click this button to
format the camera’s
memory card (not
supported by some
camera models).
The Camera Settings dialog box appears. Use it to change the
settings, as shown in the figure on the right.
After you have checked the camera settings and made the
necessary changes, click [OK].
62
ZoomBrowser EX Software User Guide
Chapter 5
Using the Camera Window
Using the Task Buttons (1/2)
This section explains the tasks that can be performed with the task
buttons that weren’t mentioned in the downloading topic.
Task Buttons
Select a task from the four buttons available.
Download Destination Dialog
When you select an image in the Camera Window and click a
task button, a dialog like the one below will appear. Specify the
destination folder to proceed with the next part of the task.
Downloading Images (1/3) in this chapter explains how to
specify a download destination.
IMPORTANT
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• The selected images are downloaded to the computer each time
a task button is selected in the Camera Window and then the
tasks are performed on them.
63
ZoomBrowser EX Software User Guide
○
Chapter 5
Using the Camera Window
Using the Task Buttons (2/2)
Selectable Tasks
The procedures after a download destination has been specified
are the same as below.
■ Download Image
These procedures are explained in Downloading Images in
this chapter.
■ Print
• Layout Print
• Index Print
These procedures are explained in Printing Images in Chapter
6.
■ View as Slideshow
• These procedures are explained in Running a Slide Show in
Chapter 6.
■ Connect to Internet
• Send Images in E-mail
These procedures are explained in Sending Images by E-mail
in Chapter 6.
64
ZoomBrowser EX Software User Guide
Chapter 5
Using the Camera Window
Other Functions of the Camera Window
This section explains the additional functions of the Camera Window
that you can use.
Click here to deselect images.
You can reconnect the camera after its connection to the
computer has been interrupted by selecting [Reconnect]
from the [Setup Oprions] menu. *
Click this button to check Image
Properties information.
On the [Set] menu, select [My Camera] to display the [My Camera]
dialog, which can be used to change the start-up image, shutter sound
and other camera settings (these procedures are explained in Saving the
“My Camera Settings” to the Camera section in Chapter 6). *
You can play a slide show using the camera or set the
DPOF print settings by selecting [Slide/DPOF] from the
Setup Options menu. (These procedures are explained in
Setting Up Slide Shows on the Camera and Print Settings
in the Appendices.) *
* Some camera models do not support this button.
65
ZoomBrowser EX Software User Guide
Chapter 6
Using Supplementary Features
Sending Images by E-mail (1/2)
This chapter explains how you can use images stored in ZoomBrowser EX
in various situations. First, let’s begin with how you can send images in
e-mail.
4.
Use this option if you do not want
to reduce the size of the image.
IMPORTANT
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
To use this function, your e-mail program must be set up as a
MAPI client. For detailed information on how to set up your email program, refer to the documentation that comes with it.
Set the image size and image quality settings.
○
Specify the reduction ratio relative to
the original size of the image.
Normally, we recommend
that you select this option.
How to send an image by e-mail
1.
2.
3.
Click [Internet] in the main window.
Click [Email Images] in the next menu.
In the Browsing Area, select the images you wish to
send and click [Next].
You can select multiple images or a folder and have the images
in the folder included in the e-mail attachment.
The window will change to the image size and image quality
settings window.
Specify the image quality.
(The lower the quality, the rougher
the image becomes, but the size of
the file also becomes smaller.)
Use it to check the file size when you
actually compress the image. (The
file is displayed in the “Total size of
chenged images” category.)
Use it to check the image quality as it will appear
when compressed. (A preview image will display.)
66
ZoomBrowser EX Software User Guide
Chapter 6
Using Supplementary Features
5.
6.
Sending Images by E-mail (2/2)
7.
Click [Next].
Select whether to create an e-mail message or save
the images.
Click [Finish].
• If You Selected [Create a new email]:
Your e-mail program will start and the selected images will
appear as an attachment in the message window. Input the
address, subject and your comments and send the message.
Start the e-mail program and send
the e-mail immediately.
• If You Selected [Save the images in a folder to send through
an email program]:
The images will be saved to the specified destination. To send
the images by e-mail, start your e-mail program and attach
the saved image files to a message.
REFERENCE
○
Save the image on
the disk first.
67
ZoomBrowser EX Software User Guide
If you selected [Save the images in a
folder to send through an email
program], click [Browse] to specify a
destination.
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• You can also send images by e-mail by clicking the [Internet]
menu and selecting [Send Images by Email].
• Some e-mail programs might not be able to start automatically
(those without MAPI support). In this case, save the image to the
disk, start the e-mail program and attach the image to an e-mail
message.
○
Chapter 6
Using Supplementary Features
Downloading Images
Adding Images to the Camera
This section explains the procedures for downloading images from the
camera (memory card) to a computer disk. It describes the procedures
to use when the main window is open. The procedures when the
Camera Window is already open are explained in Downloading Images
in Chapter 5.
1.
2.
IMPORTANT
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
Click [Camera & Memory Card] in the main window.
Click [Browse & Download Images] in the next menu.
The main window will close and the Camera Window will open.
• Check that you have connected the camera to the computer
with the USB cable and prepared it to transfer data before
performing these procedures.
• If you are using a memory card reader, ensure that the card is
loaded into the reader before performing these procedures.
The subsequent procedures are the same as those listed in
Downloading Images in Chapter 5.
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• You can also download images by clicking the [File] menu and
selecting [Import Images].
68
ZoomBrowser EX Software User Guide
○
○
Chapter 6
Using Supplementary Features
Copying Computer Images to the Camera (1/2)
This section explains the procedures for copying images from the
computer’s disks to the camera (memory card).
IMPORTANT
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• Check that you have connected the camera to the computer
with the USB cable and prepared it to transfer data before
performing these procedures.
• If you are using a memory card reader, ensure that the card is
loaded into the reader before performing these procedures.
Adding Images to the Camera
1.
2.
3.
Click [Camera & Memory Card] in the main window.
4.
Resize the image as required and click [Add].
Click [Upload Images] in the next menu.
Select this to upload the
image to the camera
without resizing.
Select this to resize the image before uploading it to the camera.
Select the image size in the list box beneath. (With a memory
card reader, the image size is input as numerical values. If [VGA
Size] is selected, 640 and 480 appear automatically.)
The Camera Window will open and the specified images will be
added to the camera (memory card).
In the Browsing Area, select images and click [Finish].
You can select multiple images or a folder and have the images
in the folder included.
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• If multiple images have been selected, then the selected resizing
option will affect all the selected images.
69
ZoomBrowser EX Software User Guide
○
Chapter 6
Using Supplementary Features
Copying Computer Images to the Camera (2/2)
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• You can select the [Send image as is] option only when
uploading JPEG images based on the DCF standard. Select [Add
image after adjusting size] for all other images.
• JPEG format images can be uploaded to the camera.
• RAW format images and movie files (AVI format) cannot be
uploaded to the camera.
• File formats are explained in more detail in the Supported File
Formats topic in the Appendices.
70
ZoomBrowser EX Software User Guide
○
Chapter 6
Using Supplementary Features
Exporting Images (1/2)
This section explains how to change the size, resolution and file format
of ZoomBrowser EX images and write them to another file.
4.
Click [Next].
How to export an image
5.
Specify the size and resolution of the image.
1.
In the Browsing Area, select the image that you want
to export.
You can select multiple images or a folder and have the images
in the folder included.
2.
On the [File] menu, click [Export].
3.
Type a file name and specify a file format.
The Choose Output Size dialog box appears.
Specify the width and
height of the image.
Select the units of measurement for
the width and height of the image.
Clear the check box if you do not want
to fix the width and height ratio.
The Choose Output File Name and Format dialog box appears.
You can click this button to open the Save dialog
box and specify a location and a file name.
Select a file format.
71
ZoomBrowser EX Software User Guide
Specify the resolution of the
image (fineness of the image).
Select the units for
the resolution.
Chapter 6
Using Supplementary Features
Exporting Images (2/2)
6.
Click [Next].
7.
Specify the number of colors and the quality of the
image.
The format settings dialog box appears.
Select “Grey scale (black & white)” if you want to turn the
image to grayscale (like a black and white picture).
Specify the image quality.
Depending on the file format
selected, this can be different
or absent.
72
If the file format selected is
“Windows Wallpaper”, then the
button displays Next.
Follow the instructions on the screen.
ZoomBrowser EX Software User Guide
8.
Click [Finish].
The image is exported.
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• JPEG, TIFF and Windows bitmap (includes the Windows Wallpaper) are the three file formats in which images can be saved.
For detailed information on file formats, see the Supported File
Formats section in the Appendices.
○
Chapter 6
Using Supplementary Features
Running a Slide Show (1/2)
This section explains how to run a slide show displaying images in
sequence in the full-screen mode.
4.
Set the display settings for the slide show and click
[Finish].
Setting and Starting a Slide Show
1.
2.
3.
Click [View & Modify] in the main window.
Click [View as a Slide Show] in the next menu.
In the Browsing Area, select images and click [Next].
Specify whether to stop the slide
show (upper button) or continue
running it (lower button) when
it comes to the end.
Select the transition effect to be used
when moving from one slide to another
(When you click an effect, you can get a
preview of how the effect looks)
If you want the transition effects to be
randomly assigned, select [?].
You can select multiple images or a folder and have the images
in the folder included.
Select the Image Size option to
be used when displaying the
images.
Selects the display methods for
image information, such as the
file name and titles, and the
control panel (explained on
the next page).
Select [On clicking the left mouse button] to have the slides
proceed manually, not automatically.
Select [Every X seconds] to have the slides advance
automatically and set an interval in seconds with the slider.
73
ZoomBrowser EX Software User Guide
When you have completed the slide
show settings, click [Finish].
Chapter 6
Using Supplementary Features
Running a Slide Show (2/2)
The slide show starts.
While running a slide show, you can use the control buttons at
the bottom right of the window to control the show.
Click this button to return
to the previous image.
Click this button to move
to the next image.
Click this button to pause the show
(Clicking the button again resumes
the show).
Click this button to end the
show.
The file name and control panel will display if the
[Show information] option was selected in the
[Image Information] section shown in the settings
on the previous page.
NOTE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• You can also start a slide show by clicking the [View] menu and
selecting [View as a Slide Show].
74
ZoomBrowser EX Software User Guide
○
Print Settings Button
During the slide show, if you like an image and want to print it,
click this button (The button color will change to orange).
When the slide show ends, the PhotoRecord print utility will
automatically start and display the selected image in a print
window.
Chapter 6
Using Supplementary Features
Adding Sounds to Images
The following mark appears when an image is accompanied by
a sound.
You can add sounds to your images and play them later as necessary.
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• To use a sound file with images, it must be of one of the following formats:
WAVE (with WAV extension)
MIDI (with MID or MIDI extension)
This mark
indicates an
image with
a sound.
How to add a sound to an image
In the Browsing Area, select an image, click the [Edit] menu and
select [Add/Remove Sound].
The following dialog box appears.
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• To remove a sound from an image, select the image, click the
[Edit] menu and select [Add/Remove Sound], then click [Remove].
• When you add a sound to an image, the sound file is copied to
the same folder as the image.
How to play a sound added to an image
Select an image with a sound attachment, click the [Edit] menu
and select [Play Sound].
Click [Add]. In the file dialog box, select a sound file and click
[Open]. Next, click [OK] to add the sound to the image that you
selected.
75
ZoomBrowser EX Software User Guide
○
Chapter 6
Using Supplementary Features
Saving the “My Camera Settings” to the Camera (1/7)
This section explains how to save the “My Camera Settings” on your
computer to the camera or vice versa. (These procedures only work on
models supporting the My Camera Settings.)
What are the My Camera Settings?
The start-up image for the camera and sounds such as the
start-up sound, the shutter sound, operating sounds and the
self-timer sound are collectively referred to as the My Camera
Settings. You can add your favorite images and sounds from
your computer to the My Camera Settings in the camera.
Displaying the My Camera Settings
ZoomBrowser EX comes with some My Camera Settings already
prepared. Start by displaying this data.
1.
Connect the camera to the computer, prepare the
camera to transfer data and open the Camera Window.
2.
Click
(Set) in the Camera Window and select [My
Camera] in the next menu.
Click here.
The My Camera dialog displays.
Try switching between the [Setup as a theme] and [Set Individually]
tabs, and in the [Set Individually] tab, try changing options in the
Data Type category. The My Computer list displays the image files
and sounds that were previously prepared. The Camera list displays
the My Camera Settings currently in the camera (only the editable
settings are shown).
Switches between theme
sets and individual settings.
Changes the type
of data.
You can also open the My Camera window from the main
window by clicking [Camera & Memory Card], followed by [My
Camera Settings] in the next menu.
My Camera Settings that are
already on your computer display
here.
76
ZoomBrowser EX Software User Guide
My Camera Settings
in your camera
display here.
Chapter 6
Using Supplementary Features
Saving the “My Camera Settings” to the Camera (2/7)
Saving the My Camera settings to the camera
You can save the files that appear in this list as My Camera
Settings to your camera.
This topic explains how to save the previously recorded My
Camera Settings files to the camera.
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• Theme settings are a collection of My Camera Settings with
something in common.
• You can change all of the My Camera Settings—the start-up
sound, the start-up image, the shutter sound, the operating
sounds, and the self-timer sound—on the camera in one easy
step by selecting the [Setup as a theme] tab and saving the
desired theme set to the camera.
• You can also add new files as My Camera Settings to the
Computer list (the procedure is explained later in this section).
• Pre-prepared My Camera Settings can be found on the disk on
which ZoomBrowser EX was installed. Open the following
sequence of folders: [Program Files], [Canon], [CameraWindow]
and [MyCameraFiles].
• You can also open the My Camera dialog by clicking the [Edit]
menu and selecting [My Camera Setings].
77
ZoomBrowser EX Software User Guide
○
1.
Select the [Setup as a theme] tab in the My Camera window.
To set the My Camera Settings individually, click the [Set
Individually] tab instead and select the respective settings, such
as the start-up sound or image, in the Data Type category.
Select the [Setup as a theme] tab.
Chapter 6
Using Supplementary Features
2.
Saving the “My Camera Settings” to the Camera (3/7)
In the My Computer list, select a setting you would
like to add to the camera.
When you select a start-up image, it will be displayed in the
preview area to the right.
When you select a sound file, it will automatically be played.
When you select a theme, it will be displayed in the preview
area to the right and the start-up sound, shutter sound,
operating sounds and self-timer sound will be played in
succession.
3.
Select the settings file you would like to replace in the
Camera list and click [Save to Camera].
The settings file in the Camera list will be replaced by the
settings file from the My Computer list. If the settings file has
the same name, it will be overwritten.
A Select the setting you want to replace.
B Click this.
Repeat Steps 1-3 to replace all the settings files with those you
wish to save to the camera. Up to this stage, only the settings
in the Camera list change, not those in the camera itself.
78
ZoomBrowser EX Software User Guide
Chapter 6
Using Supplementary Features
4.
Saving the “My Camera Settings” to the Camera (4/7)
Adding New Files to the My Camera Settings
Click the [Close] button to close the dialog.
This concludes the procedure for adding settings to the camera.
Next, you will have to change the settings on the camera itself to
use the new start-up image and sounds. See the guide supplied
with your camera for instructions for changing the settings.
Create the new files before adding them
IMPORTANT
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• Never detach the USB cable, turn off the camera power, or
disconnect the camera from the computer while the My Camera
Settings is being saved to the camera.
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• To delete settings files in the Camera list, select the file and click
the [Delete] button.
• You can check a sound file in the camera by clicking [Play].
Click here to delete a file from the list.
Click here to check a sound file in the
camera.
Displays the camera settings when
an image file is selected.
79
ZoomBrowser EX Software User Guide
Start by creating the image file or sound file that will be used as
a My Camera Settings file and save it to the computer.
IMPORTANT
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
Files that do not meet the conditions listed on the next page
cannot be saved to the camera.
REFERENCE
○
Create a new image or sound file and save it to the computer
and then add that file as a My Camera Settings file.
○
○
○
○
Chapter 6
Using Supplementary Features
Saving the “My Camera Settings” to the Camera (5/7)
■ Adding the new file as My Camera Settings to the
dialog
■ Creating a Start-Up Image File
Create an image file using an image editing program, such as
Adobe Photoshop LE, ArcSoft PhotoStudio or ArcSoft
PhotoImpression. The file should be in the JPEG format, 320 x
240 pixels, and less than 20KB.
Once you have created the settings file and saved it to the
computer, use the following procedures to add it to the My
Camera dialog.
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
1.
• See the manual and help facility for the editing program for a
detailed explanation of how to use it.
Click the [Set Individually] tab in the My Camera window
and switch the Data Type.
Click the [Set Individually] tab in the My
Camera window and switch the Data Type.
■ Creating a Sound File
Record a sound using My Camera Sound Maker, which is
commonly bundled with Windows. Record the sound as an
11.025 kHz or 8.000 kHz, 8 Bit, Mono sound in the WAV format.
Sound files that can be added to the camera should conform to
these guidelines.
Type
Duration in Seconds
11.025 kHz
8.000 kHz
Start-Up Sound
1.0 sec. or less
1.3 sec. or less
Operating Sound
0.3 sec. or less
0.4 sec. or less
Self-Timer Sound
2.0 sec. or less
2.0 sec. or less
Shutter Sound
0.3 sec. or less
0.4 sec. or less
2.
Click [Add File].
Click [Add File].
80
ZoomBrowser EX Software User Guide
Chapter 6
Using Supplementary Features
3.
Saving the “My Camera Settings” to the Camera (6/7)
In the Open dialog, select the file you created and
click [Open].
The selected file will appear in the Computer list.
This concludes the process for adding the new settings.
You can save the newly created settings to the camera using
the procedures described in the Saving the My Camera Settings
to the Camera section.
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• To delete a settings file, select it and click the [Delete] button
beneath the My Computer list.
• Previously created settings can also be added as My Camera
Settings to the dialog with the same procedures as above, but
have to comply with the specifications listed in the Create the
new files before adding them section.
81
ZoomBrowser EX Software User Guide
○
○
Chapter 6
Using Supplementary Features
Saving the “My Camera Settings” to the Camera (7/7)
Saving the Settings to the Computer
You can copy the My Camera Settings from the camera to the
computer.
1.
3.
Click [Save to PC].
4.
Assign a name to the settings file and click [OK].
Click the [Setup as a theme] tab in the My Camera
window.
To set the My Camera Settings individually, click the [Set
Individually] tab instead and select the respective settings, such
as the start-up sound or image, in the Data Type category.
2.
Select the setting you would like to copy from the
Camera list.
If you selected the Theme tab in Step 1, the preview image will
display in the area to the right and the start-up sound, the
shutter sound, the operation sound and the self-timer sound
will play in order.
If you selected the Set Individually tab and the start-up image in
the Data Type category in Step 1, the start-up image will display
in the area to the right. If you selected a sound, it will
automatically play.
The settings file will copy to the computer disk. If there is a
settings file with the same name, it will be over-written.
Repeat steps 1-4 as required to save the settings files you wish
to copy to the computer.
5.
Click [Close] to close the My Camera window.
This completes the copying process.
IMPORTANT
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• Do not detach the USB cable, shut off the camera’s power or
break the connection while the settings files are being copied.
82
ZoomBrowser EX Software User Guide
○
○
Chapter 6
Using Supplementary Features
Creating a My Camera Sound (1/2)
The following section introduces the [My Camera Sound Maker]
function, which allows you to record and edit the start-up sound,
shutter sound, operation sound and self-timer sound.
Click [Camera & Memory Card] in the main window, followed by [Set
My Camera Settings]. In the My Camera window, click the [Set
Individually] tab and click [Create Sound]. The My Camera Sound Maker
window will appear.
Recording and Editing Sounds
Use these tabs to switch between sound files for recording and editing.
Click here to record sounds.
Ends the recording.
Click here to open sound files.
Displays the Help menu.
Change the file format.
Cuts out unnecessary sound portions.
Click [Create Sound].
IMPORTANT
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• The [Create Sound] button cannot be clicked from the My
Camera window summoned from the Camera Window. Ensure
that you open the My Camera window from the main window.
• The My Camera Sound Maker window will not appear if
QuickTime is not installed.
Sets the blue and
red switches.
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• For detailed information on how to use this function, please
refer to the Help file (open it with the [?] button).
83
ZoomBrowser EX Software User Guide
○
○
○
Volume
Shows from where the
sound starts to play.
Plays sounds.
The blue and red switches designate the sound
range. (You can delete useless sections by
clicking the [Cut] button after having selected
the desired sound portion with the switches)
Chapter 6
Using Supplementary Features
Creating a My Camera Sound (2/2)
IMPORTANT
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• The “Sound time” will display in red if the sound file exceeds
the time limit.
If this happens, select the desired sound portion using the blue
and red switches and select [Cuts both switches, before blue
and after red] from the [cut] menu to delete unnecessary sound
portions.
In addition, when you select [Limits blue and red switch within
limit time], the switches can no longer be moved outside of the
time limit width.
Saving a Sound
Click here to save a sound (A window allowing you to name the file will display).
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• The Volume switch setting affects the volume of the sound file
to be saved. In other words, if you turn down the volume of a
sound you recorded on the computer because it is too loud
when you play it, the sound will have a low volume when you
upload it to the camera. So when the playback volume is too
loud on the computer, turn down the volume of the speakers.
Select the sound to be saved.
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• Each sound file is automatically given an extension according to
the type of sound.
• The actual file name is composed of the name of your choice in
the first part, followed by characters specifying the sound type
(_OP01 or _SS01) and the extension (.WAV) in the latter part.
• When a number of different types of sounds are saved at the
same time, the first part of their file name will be the same.
84
ZoomBrowser EX Software User Guide
○
Chapter 6
Using Supplementary Features
Printing Images - PhotoRecord (1/6)
The following sections explain how to run programs from ZoomBrowser EX.
The first program we will look at is PhotoRecord, which you can use to
print images.
The first program we will look at is PhotoRecord, which is used for
printing.
After you select a print mode, click [Next] to display a dialog
that allows you to adjust detailed settings for the page setup
and print mode. After these settings are complete, the
PhotoRecord Layout window is opened. After you finish
adjusting these settings, the selected images will automatically
be laid out in the PhotoRecord Layout window.
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• For detailed information on how to use PhotoRecord, use the
program’s Help (accessible from the [Help] menu).
PhotoRecord
Layout Window
Opening PhotoRecord
Click [Print] in the main window, followed by [Layout Print] in
the next menu. Select images and click [Next], then select the
text you would like to include with the print and click [Finish].
This will open the PhotoRecord Print Modes window.
PhotoRecord opens and displays its Layout window with the
selected images already laid out.
Click here.
Click here.
NOTE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• You can also start PhotoRecord by clicking the [File] menu and
selecting [Print] followed by [Layout Print].
85
ZoomBrowser EX Software User Guide
○
○
Chapter 6
Using Supplementary Features
Printing Images - PhotoRecord (2/6)
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• If you do not wish the PhotoRecord Print Mode dialog to appear
when you start PhotoRecord, remove the check mark from the
[Show this wizard on startup] option.
○
Using the album control panel
This section explains the functions of the PhotoRecord album
control panel.
Selects whether images are
laid out automatically,
manually or as an index.
Changes the Image Size.
Starts printing.
Remove this check mark.
• To redisplay the PhotoRecord Print Mode dialog again, click
(Print Modes) in the PhotoRecord Layout window.
• The Index Print Settings dialog displays if you click [Print] in the
main window, followed by [Index Print] in the next menu. Set
the thumbnail and paper size and click [OK] to start the index
print. You can also start the index print by clicking the [File]
menu and selecting [Print], followed by [Index Print].
86
ZoomBrowser EX Software User Guide
Displays a dialog
box for specifying
whether or not to
add page artwork,
the position of
images, paper
orientation, and
other settings (see
the next page for
more details).
Displays a
dialog box
for adding
images.
Displays a
dialog box for
selecting page
artwork.
Undoes the
previous
operation or
redoes it.
Chapter 6
Using Supplementary Features
Printing Images - PhotoRecord (3/6)
■ Choosing an album design and a print layout
Click
(Print Modes) on the album control panel. A dialog
box similar to the following appears. Use it to set the album
design and print layout.
The paper type and size
options will correspond to
the selected print mode.
Use the preview
to check the
print layout.
Artwork/Layout album
Select this if you want to create an album
with a colorful and fun design.
Fixed photo size printing
Select this if you want to squeeze
pictures (such as standard photo or
business card size) into the paper size for
printing.
Borderless printing (Tiled photo)
Select this to have the program lay out
and print the specified number of images
per page with no gaps between images
on the page.
Canon perforated paper printing
Select this option to print on Canon
perforated paper (this option does not
appear if your printer does not support
Canon perforated paper media).
87
ZoomBrowser EX Software User Guide
Click [Next] once you have
selected a print mode.
Click [Next] once you
have finished with
the page setup.
Chapter 6
Using Supplementary Features
Printing Images - PhotoRecord (4/6)
Using the album page layout window
You can use this window to set up the image’s print layout.
If you click [Save As] on the [File] menu, you
can save the laid out page as an album.
You can drag the images to move them to
new positions. Also, you can right-click the
image, and on the displayed shortcut menu,
click [Change Photo Frame] when you want
to change the frame and other artwork.
Use these buttons to change how the images
are aligned.
Click this button to
display a layout
menu as shown on
the left.
To change the artwork for the entire page,
click on the left side of the window and
select [Change Page Artwork] on the menu
that appears.
Page title
To change the page title, click on the
window’s left side and select [Title], followed
by [Edit] from the next menus.
Text box
To add text to the page, click on the left side
of the window and on the menu that appears,
click [Add Text] and type what you want.
Also, if you right-click the text box, you can
click [Change Text Frame] on the shortcut
menu and change its frame or other artwork.
Image caption
To change the image caption, right-click the
image and select [Caption], followed by [Edit].
You can have the date or file name appear as
the caption automatically if you set this
information to print in the printer settings.
88
ZoomBrowser EX Software User Guide
Chapter 6
Using Supplementary Features
Printing Images - PhotoRecord (5/6)
■ Changing the size or rotation angle of an image
■ Changing the number of images on a page
Place your mouse pointer over the image that you want to
change, then use the following operations to change its size or
angle.
Drag these to change
the size of the image.
You can change the number of images on one page. On the
[Edit] menu, click [Preferences] and specify the number of
images you want to have on one page of the album.
Drag this to rotate the image.
Set the number
of images on
one page here.
Use this button to display a menu that
helps you manipulate the image.
Use this button to switch between
the size and rotation options.
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• You cannot alter the size or rotation angle if you selected [Fixed
photo size printing] or [Canon perforated paper printing] as the
print mode.
89
ZoomBrowser EX Software User Guide
○
Also, you can add images directly to a page. You simply need to
drag the image that you want from the Browsing Display Area
of ZoomBrowser EX to a page in PhotoRecord.
Chapter 6
Using Supplementary Features
Printing Images - PhotoRecord (6/6)
Printing for Better Results
PhotoRecord supports the Exif 2.2 (nicknamed Exif Print)
standard. This feature can generate better print results because
it automatically corrects images.
In the following window, place a check mark in the [Exif Print]
or [Photo Optimizer Pro] box and click [Close]. Corrections will
be applied to the selected image.
To use this feature, right-click on the image you wish to print
and select [Clip/Correct Photo].
Print the image after completing the settings.
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• Images captured by cameras that support the Exif 2.2 standard
have the shooting settings data, such as the shooting conditions
and shooting mode, embedded in them. The Exif Print function
uses this data to more accurately reflect the conditions at the
time of shooting when it corrects the image.
90
ZoomBrowser EX Software User Guide
○
Chapter 6
Using Supplementary Features
Stitching Panoramic Images - PhotoStitch
If you have several images of the same scene with only slight differences,
you can use PhotoStitch to connect the images together to make a
panoramic image. This section explains how to use this program to stitch
images.
Then, follow the instructions on the upper part of the
PhotoStitch window, and stitch your images together.
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• For detailed information on how to use PhotoStitch, refer to
PhotoStitch Help (accessible from the [Help] menu).
• If the camera has the Stitch Assist mode, you can use this mode
to take pictures that can later be stitched together more easily.
Decide the order
in which the
images should be
stitched.
Opening PhotoStitch
Click [View & modify] in the main window, followed by [Stitch
Photos] in the next menu.
Perform stitching.
In the Browsing Area, select the images you would like to
merge and click [Finish].
Save the image.
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• You can also start PhotoStitch by clicking an image with the
Stitch Assist mode mark (a line with arrows) in the Camera
Window.
91
ZoomBrowser EX Software User Guide
○
○
○
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• You can also start PhotoStitch by clicking the [Tools] menu and
selecting [Stitch Photos].
○
○
Chapter 6
Using Supplementary Features
Operating the Camera Shutter from the Computer - RemoteCapture (1/2)
This section introduces RemoteCapture, a program that enables you to
control, from your PC, the shutter of the camera connected to your PC.
Click [Connect] if a connection confirmation message appears.
REFERENCE
○
IMPORTANT
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• You can only use RemoteCapture if the lens cover or cap is open,
the camera is connected via the USB cable to the computer and
the camera is ready to transfer data. (Some models may not
support this program.)
• Close the Camera Window before opening RemoteCapture.
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• You can also start RemoteCapture by clicking the [Tools] menu
and selecting [Remote Shooting].
RemoteCapture Features
The Save - RemoteCapture Window
Displays a list of
pictures taken.
REFERENCE
○
○
○
• For detailed information on how to use RemoteCapture, read
the RemoteCapture Help (accessible from the [Help] menu).
Click to display the
image in enlarged
form.
Opening RemoteCapture
Check to make sure that the camera is attached to the
computer and ready to transfer data, then click [Camera &
Memory Card] in the main window, followed by [Remote
Shooting] in the next menu.
Image information
displays here.
The image selected in the
list above displays here.
92
ZoomBrowser EX Software User Guide
Chapter 6
Using Supplementary Features
Operating the Camera Shutter from the Computer - RemoteCapture (2/2)
The Shooting - RemoteCapture Window
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• You can select whether or not to save the image to the camera
by clicking the [File] menu in the Save - RemoteCapture window
and selecting [Preferences].
Click the triangle to the left of [Detail Setting] to
open the Detail Setting window.
Click to release
the shutter (the
captured image is
automatically
saved to the
computer).
Click here to
change more
detailed camera
settings (not
supported by some
camera models).
Click [Viewfinder On] to display the image seen
through the camera’s viewfinder (not supported
by some models).
93
ZoomBrowser EX Software User Guide
• You can select whether or not to display the viewfinder contents
in the camera’s LCD monitor by clicking the [Camera] menu in
the Shooting - RemoteCapture window and selecting [Camera
Display Settings]. (This feature may not work with some camera
models.)
The viewfinder contents will also
display in the camera’s LCD monitor
when you select [Camera LCD monitor]
here and [Viewfinder On] is selected in
the Shooting - RemoteCapture
window.
Chapter 6
Using Supplementary Features
Converting RAW Images - File Viewer Utility (1/2)
Opening the File Viewer Utility
You can obtain high-quality images if your camera supports RAW
format files. However, since most programs cannot open RAW images
in their native format, you must first convert them.
This section explains that process.
Use the File Viewer Utility to convert RAW images.
Click [View & Modify] in the main window, followed by [Process
RAW Images] in the next menu.
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• The RAW format yields very high quality images with no degradation
during compression.
• See the help file (click the [Help] menu) for assistance with File
Viewer Utility operations.
Select RAW images in the Browsing Area and click [Finish] to
display the list of the selected RAW images in the window that
is shown on the next page.
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• You can also start Viewer Utility by clicking the [Tools] menu and
selecting [Process RAW Images].
94
ZoomBrowser EX Software User Guide
○
Chapter 6
Using Supplementary Features
Converting RAW Images - File Viewer Utility (2/2)
File Viewer Utility Features
Preferences Button
Sets the processing methods for RAW images
and the application programs to which
converted images are sent.
Save File Button
Converts and saves the image.
Select Image Button
Selects the image selection method.
Click the [File] menu and select [Save File], followed by [Convert
and save in file] to open the Save File window. Adjust the
settings as required and click [OK] to start the conversion.
Select this to save the converted image
to the same folder as the original.
If you selected [Save in following
specified folder], click the [Browse]
to specify a destination folder.
Select this to choose a different
destination for the converted image.
Model Specific Processing Mode List Box
Selects the model of camera on which
the image was recorded.
Sets the conditions for converting RAW images.
They display when a RAW image is selected and a
camera model is selected in the Model Specific
Processing Mode List Box.
95
ZoomBrowser EX Software User Guide
List of RAW images for
conversion.
To change the name of the converted
file, remove the check mark from [Do
not Modify] and type a root name and/
or specify the numbering settings.
Sets the format and
compression ratio of the
converted file.
Appendices
Supported File Formats
The following is a list of file formats supported by ZoomBrowser EX.
Readable files
ZoomBrowser EX can read the following file formats.
■ JPEG files (.jpg)
Most cameras use this file format. It compresses at very high
ratios, taking advantage of the characteristics of the human
eye. However, because it is an irreversible compression method
(part of the data is lost during compression), if you process and
save an image repeatedly using this method, the image may
become rougher.
■ RAW files (.crw)
This format is a proprietary file format provided by Canon. It
saves the output of the image pixels from a digital camera
without any deterioration in the quality of the image. Some
cameras might not support this file format.
■ Windows bitmap files (.bmp)
This format comes standard with Windows. Most Windows
programs support it.
■ TIFF files (.tif)
This is a relatively popular format. It is widely supported by nonWindows programs (such as Macintosh).
96
ZoomBrowser EX Software User Guide
■ PhotoCD files (.pcd)
This is the format used by KODAK Photo CDs.
Each image contains several copies at different resolutions.
■ Video clip files (.avi)
This is a standard Windows video file format. The file appears
as a thumbnail and movie icon (or sometimes as a large movie
icon only) in the Browsing Area of ZoomBrowser EX. When you
click the thumbnail or movie icon, QuickTime Player starts and
plays the video clip. (You must install QuickTime Player before
you can use it.)
■ QuickTime files (.mov)
This is a movie file format. The file appears as a movie mark in
the Browsing Area of ZoomBrowser EX. When you click the
movie mark, QuickTime Player starts and plays the movie. (You
must install QuickTime Player before you can use it.)
Setting ZoomBrowser EX to Start Automatically (1/4)
Appendices
This section explains how to set ZoomBrowser EX to start automatically
when you connect the camera to the computer.
4.
Select your camera model or [Canon Camera], and in the
“Imaging Tasks“ category, select [View device properties].
5.
6.
Click the [Event] tab.
7.
In the Actions category, click [Start this program] and select
[Canon ZoomBrowser EX] in the column to the right.
IMPORTANT
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• Ensure that the camera is connected and ready to transfer data
to the computer before setting the auto start.
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• This function cannot be used with a memory card reader with
any operating system except Windows XP.
Windows XP (Method 1)
Please jump to Method 2 on the next page if you are using a
memory card reader or a camera that appears as “Removable
Disk” in Windows Explorer.
1.
Click the [Start] menu and select [Control Panel].
2.
Click [Printers and Other Hardware].
3.
Click [Scanners and Cameras].
97
The Control Panel window will display.
ZoomBrowser EX Software User Guide
In the “Select an event” category, select [Device
Connected] or [Camera connected].
Setting ZoomBrowser EX to Start Automatically (2/4)
Appendices
8.
Windows XP (Method 2)
Click [OK] to close the settings window.
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
The following window will automatically display if you are using
a memory card reader.
○
• Use the following procedures if you wish the Scanners and
Cameras Wizard to start when a connection is opened to the
camera.
- In the “Select an event” category, select [Device Connected]
or [Camera connected]. Then in the “Start this program”
option in the “Actions” category, select [Microsoft Scanners
and Cameras Wizard].
1.
Click [Download / View Images using ZoomBrowser EX],
followed by [OK] to close the dialog.
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• If the window above does not display automatically, click the
Windows [Start] menu and select [My Computer]. Right-click the
memory card reader drive icon and select [Properties]. Click the
[Auto Play] tab to display the window on the next page.
98
ZoomBrowser EX Software User Guide
Appendices
Setting ZoomBrowser EX to Start Automatically (3/4)
3.
Make sure that your camera’s model name or [Canon
Camera] is selected and click [Properties].
4.
5.
Click the [Events] tab.
In the program list, select “Canon ZoomBrowser EX”.
When you select “Canon
ZoomBrowser EX”,
ZoomBrowser EX is set to
automatically start when you
connect a camera to your PC.
After you select [Pictures] as the content type, select [Download
/View Images using ZoomBrowser EX] in the “Select an action
to perform” category.
Windows 2000/Windows 98
1.
On the [Start] menu, point to [Settings], and click
[Control Panel].
Control Panel appears.
2.
99
Double-click the [Scanners and Cameras] icon.
ZoomBrowser EX Software User Guide
6.
Click [OK] to finish.
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• If you do not want ZoomBrowser EX to start when you connect a
camera to your PC, select the “Disable device events” check box.
○
Appendices
Setting ZoomBrowser EX to Start Automatically (4/4)
Windows Me
1.
Click the [Start] menu and select [Settings], followed
by [Control Panel].
5.
Select [Device Connected] in the Select Event category.
6.
Click [Start this program] in the Actions category, and
select [Canon ZoomBrowser EX] in the list box to its
right.
7.
Click [OK] to close the dialog.
The Control Panel will display.
2.
Double-click the [Scanners and Cameras] icon.
3.
Select your camera’s model name or [Canon Camera],
right-click and select [Properties].
REFERENCE
○
4.
Click the [Events] tab.
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• Use the following procedure to open the Scanner and Camera
Wizard when a connection has already been established.
- Select [Device Connected] in the “Select an event” category.
Then for the [Start this program:] option in the Actions
category, select [Scanner and Camera Wizard].
100
ZoomBrowser EX Software User Guide
○
Customizing Preferences (1/3)
Appendices
General Tab
ZoomBrowser EX provides a variety of preference settings that you can
customize to make the program work the way you like. This section
introduces some of the major preference settings you can change.
Sets the thumbnail settings for the Browsing Area and the
zoom options.
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• ZoomBrowser EX offers a wide variety of preference settings that
you can customize. Therefore, before you modify an option,
access Help from the [Help] menu or the [?] (Help) button to see
a description of the option.
○
Sets the thumbnail
settings for the Browsing
Area.
Opening the Preferences dialog box
Click the [Tools] menu and select [Preferences] to open the
Preferences dialog.
101
ZoomBrowser EX Software User Guide
This group box controls
the way the zoom
operations react in the
Browsing Area (Moving
the slider to the right
increases the image
display speed).
Customizing Preferences (2/3)
Appendices
Image Editor tab
Selection Tab
This tab selects the application program when a program other
than ZoomBrowser EX is used to edit images.
This tab sets the image selection methods and the image
selection steps used with the task buttons.
Sets the image selection
method.
Selects the program to
start when you click the
[View & Modify] menu in
the main window and
select [Edit Image].
Remove this check mark to streamline the image
selection steps when a task button is used.
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• “Edit images using the default editor below” has a list containing an image editing program that is detected automatically. If
you want to use a specific program other than the default, click
“Edit images using the program below” and use the [Browse]
button to locate the program.
102
ZoomBrowser EX Software User Guide
○
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• With [Windows standard selection], the first image is deselected
when a second image is clicked. Multiple selections can be
made by holding down the [Ctrl] and [Shift] keys while clicking
on successive images.
○
Appendices
Customizing Preferences (3/3)
Rotate Tab
This tab sets the rotation settings.
Place a check mark here
to have the original
image rotated as well
when a JPEG image is
rotated in the Browsing
Area.
Place a check here to have the original image left
untouched and the rotation applied to a copy
when a JPEG image is rotated.
103
ZoomBrowser EX Software User Guide
Appendices
Playing Movies
If your camera is designed for recording movies onto the memory card,
you can use ZoomBrowser EX to handle the movies.
The thumbnail and mark appear
when a movie is imported using
the Camera Window.
When you connect a camera with movie files on it to the
computer and open the Camera Window, a thumbnail of the
first image of each movie file will display with a movie camera
symbol on it.
You can import movie files in the Browsing Area the same way
you do images. In this case, a thumbnail and a movie mark
appear in the Browsing Area. When you double-click the
thumbnail, QuickTime Player starts and plays the movie.
QuickTime Player window
Use this button to
play the movie.
104
ZoomBrowser EX Software User Guide
Setting up Slide Shows on the Camera
Appendices
If the camera comes with a slide show feature, you can use
ZoomBrowser EX to edit slide shows.
From the image list on the left, drag images to the right area
and arrange their sequence for the slide show.
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• For detailed information on how to use a slide show and
display images, refer to the documentation that comes with
the camera.
How to set up a slide show
Click
(Set) in the Camera Window and select [Slide/DPOF]
in the next menu.
Click here.
When the following window appears, select the “Slide Show”
option that appears on the top left part of the window. Then
use the list below to select a slide show number.
From the image list on the left, drag images to
the right area and then arrange their sequence
for the slide show.
When you are done arranging the slide sequence, click [Save to
Camera] to save the slide show setup.
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• If you want to change the sequence of some images, just drag
them to the right place in the area on the right.
• If you want to remove an image from the slide show, select the
image. On the [Edit] menu, click [Clear].
Select a slide show number.
105
ZoomBrowser EX Software User Guide
○
Print Settings (1/2)
Appendices
When the following window appears, select the “Print Order
(DPOF)” option that appears on the upper left part of the
window. Then from the list below, select the print type.
If your camera supports the DPOF feature, you can use
ZoomBrowser EX to add the print settings, such as the image
selection and number of copies, to a memory card (some
models do not support this feature).
IMPORTANT
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• This feature does not work with unconverted RAW images. If
you want to print RAW images, convert them first, copy them to
the camera and perform this operation.
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• DPOF is a standardized format for recording print settings, such
as the image selection and number of copies. After DPOF print
settings have been set, you can take a CF card or PC card to a
camera store or developing laboratory and have the images
printed according to the settings.
• For details on DPOF, refer to the documentation that comes with
your camera.
How to make DPOF print settings
Click
(Set) in the Camera Window and select [Slide/DPOF]
in the next menu.
Select the print type.
■ Standard Print
Prints the specified number of copies of the images that you
selected.
■ Index Print
Prints only thumbnails of the images that you selected.
■ Both (Standard/Index)
Prints the specified number of copies and thumbnails of the
images that you selected.
REFERENCE
○
Click here.
106
ZoomBrowser EX Software User Guide
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
You can also click [Edit] and then click [Include in index print] to
include the image date and file number in the prints.
○
Print Settings (2/2)
Appendices
Standard printing
Index printing
The number under each image indicates the number of copies
to print. Use the arrows next to the boxes to select the number
of copies you want.
The standard print icon displays when
a number of copies is specified.
To include images in an index print, select the check box under
the image. Clearing the check box excludes the image from the
index print.
Specify number of
copies to print.
The index print icon displays when a
check mark is added to the image.
When you are done with your selections, click [Save to Camera]
to save the information.
REFERENCE
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• The procedure explained above also applies when the print type
is “Both (Standard/Index)”.
107
ZoomBrowser EX Software User Guide
○
Select the check box to include
the image in the index print.
When you are done with your selections, click [Save to Camera]
to save the information.
Appendices
Troubleshooting (1/4)
This section explains how to troubleshoot problems.
The event dialog box does not appear
In either case, confirm the status of each of the following items
in order.
IMPORTANT
○
The dialog below fails to appear even though the camera is
correctly connected to the computer via the USB cable and
ready to transfer data…
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• This dialog will not appear in Windows XP the first time a
camera is connected to the computer after boot-up. (It will
display subsequently.) Start ZoomBrowser EX manually by
double-clicking the [ZoomBrowser EX] desktop icon.
■ Check your Computer
Ensure that your computer meets the following requirements.
ZoomBrowser EX will not operate on computers failing to meet
these requirements.
• Built-in USB ports on a computer pre-installed with Windows XP,
Windows 2000, Windows Me, or Windows 98 (First or Second
Edition).
■ Check the Connection between the Camera and Computer
Confirm that the camera is correctly attached to the computer
with a USB cable. For information on the connection, refer to
the documentation that comes with the camera.
Or, a message, such as “No camera was found”, appears when
you attempt to download images from the camera…
108
ZoomBrowser EX Software User Guide
Troubleshooting (2/4)
Appendices
If You Were Using ZoomBrowser EX Version 2 or 3
■ Check the Camera Status
Confirm that the camera is on and in the correct mode to
transfer data. Because the procedures for preparing the camera
for communication differ among camera models, refer to the
documentation that accompanied your camera for more
information.
■ Images Were Assigned Titles or Comments
Use the following procedures to display titles and comments
previously input in ZoomBrowser EX Ver. 2/3.
1.
■ Check the battery level
If the camera is running on batteries, make sure that the
batteries have enough power left. You are recommended to
use an AC adapter when connecting the camera to a computer.
If the problem does not rest in the four areas above, the driver
may not be properly installed. Uninstall the driver and then
reinstall it. For instructions for this task, refer to the Software
Starter Guide.
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
• The Events dialog will not display when a memory card reader is
used.
109
ZoomBrowser EX Software User Guide
(With Windows 2000/Windows Me/Windows 98, right-click the
[My Computer] icon and select [Explore] from the popup
menu.)
2.
REFERENCE
○
Start Windows Explorer by clicking the [Start] menu
and selecting [All Programs], followed by [Accessories]
and [Windows Explorer].
Open the [Program] folder
inside the folder into which
ZoomBrowser EX 4 was
installed.
For example, open the folder to the
right if the following path is correct:
[C:\Program Files\Canon\ZoomBrowser
EX\Program].
Appendices
Troubleshooting (3/4)
3.
Double-click the [dbconverter.exe] or [dbconverter]
file in that folder.
4.
Select the database file that was used with the
previous version of the program and click [Start].
For example, select the following database file if it was used
previously: [C: \Program Files\Canon\ZoomBrowser
EX\Database\My Database.zbd].
5.
Click [OK] if the following dialog appears.
6.
Click [Close] when the dialog in Step 4 appears.
This will display in ZoomBrowser EX 4 the titles and comments
input in version 2 or 3. The titles and comments will appear
together in the Comments section of ZoomBrowser EX 4.
Titles and comments as they appear
in ZoomBrowser EX 4
Titles and comments input
in ZoomBrowser EX 2/3
110
ZoomBrowser EX Software User Guide
Appendices
Troubleshooting (4/4)
■ Image Files Were Saved Below the Program Files
Folder in a Previous Version
In ZoomBrowser EX 4, image files in folders within the Program
Files folder will not display. To display these images, perform the
procedures below after you have followed steps 1-6 on the
previous page.
1.
IMPORTANT
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
When you select the copied folder in ZoomBrowser EX 4, the
images will now display.
Use Windows Explorer to copy the image folders
within the Program Files folder and paste them in
another folder higher in the directory hierarchy.
Click the copied folder to display its images in the
Browsing Area.
ZoomBrowser EX Software User Guide
○
• Do not copy just the images from within the folder, copy the
folder itself to a location higher in the directory hierarchy.
For example, if a folder called the [Library (1)] folder is in the
Program Files folder, move it to a higher location, such as the
[C:\] drive.
111
○
○
Index
A
B
112
Index (1/3)
Adding Images to the Camera 60 , 69
Album Control Panel 86
Artwork/Layout Album 87
Brightness 35
Browsing Area 17 , 20 , 27
Selecting Folders 27
Buttons
Browse & Download Images 5 , 6 , 20
Camera & Memory Card 4 , 6 , 10 , 20 , 21 , 54
Clear All 23
Close 13 , 36
Connect to Internet 18
Delete 19 , 23
Deselect 19
Download Image 9 , 18 , 55
Function Buttons 18 , 19
Help 13 , 19
Internet 21
Print 11 , 12 , 18 , 21
Properties 19 , 23
Return to Main Menu 21
Rotate 19 , 23 , 46
Save As 36
Select 19
Select All 23 , 39
Set 19 , 62
Task Buttons 18 , 22
Thumbnail Size 23 , 27
Up 23 , 29
View & Modify 21
View Image 23 , 31
View Mode 23 , 27
ZoomBrowser EX Software User Guide
View Slideshow 18
Zoom-In 23
Zoom-Out 23
C
D
Camera Settings 62
Camera Window 5 , 8 , 9 , 18 , 54
Opening 20
Captions 88
Changing the Display 24
Close Box 18
Closing
ZoomBrowser EX 13
Color 35
Connection Message 13
Contrast 35
Converting RAW Images 94
Copying Images 40
Crop 34
Deleting
Camera Images 58
Images 44
Folders 50
Deselect Image 39
DPOF 106
Displaying
Changing the Display 24
Images 31
Display Mode 27
Downloading Images 9 , 55
E
F
Editing
Images 33
Sounds 83
Edit Panel 33
E-Mail 66
Events Dialog 7 , 109
Exif 2.2 (Exif Print) 90
Exit 13
Export 71
Exporting Images 71
File Viewer Utility 15 , 94
Finding
Folders 16 , 52
Images 16
Fixed Photo Size Printing 87
Folder 17
Creating 38
Finding 52
Opening 26
Properties 52
Refreshing 49
Renaming 51
Selecting 26 , 27
Folder Area 17 , 20 , 26
Selecting Folders 26
Format 62 , 65
Function Buttons
Camera Window 18 , 19
Main Window 20 , 23
Index (2/3)
Index
H
I
Help 13
Images
Adding to the Camera 68
Captions 88
Copying 69
Deselecting 39
Displaying 31
Downloading 9 , 55
Editing 33
Exporting 71
Opening 31
Properties 53
Renaming 47
Rotating 46
Saving 16
Selecting 39
Sorting 48
Include in Index Print 106
Index Print
DPOF 106
Image 86
J
JPEG Format 96
L
Layout Print 85
113
ZoomBrowser EX Software User Guide
M
N
O
P
Main Window 20
Menu
Edit 37
File 47
Help 13
Set 13
View 24
Movies 57 , 104
Moving Images 40
My Camera Settings 76
Creating Files 79
Saving to the Camera 81
My Camera Sound Maker 83
My Camera Sounds 83
My Camera Window 76
My Pictures Folder 16
New Folder 38
Opening Images 31
Owner’s Name 62
Page Title 88
PhotoCD Format 96
PhotoRecord 15 , 85
PhotoStitch 15, 91
Play 75
Preferences 101
Printing 11 , 85
Borderless (Tiled Photo) 86
Canon Perforated Paper 86
Print Mode 87
Print Settings 106
Properties
Image 53
Folder 52
Q
R
QuickTime Format 96
QuickTime Player 104
RAW Format 94 , 96
RAW Image Conversion 94
RAW Mode 57
Reconnect 65
Recording Sounds 83
Redo 36
RemoteCapture 15 , 92
Renaming
Images 47
Folders 51
Right Click 25
Rotate
Camera Image 59
Image 46
Index
S
114
Index (3/3)
Save As 36
Save Destination 16
Saving Images 16
Save As 36
Scanners and Cameras Wizard 8
Scroll Mode 27
Starting ZoomBrowser EX Automatically 97-100
Select All Button 39
Selecting
Display Mode 27
Images 39
Set Button 19, 62
Shooting Information 53
Slide Show
Camera 105
Computer 73
Sorting Images 48
Sound 75
File Length 80
Saving Sounds 84
Sound Memo 57
Standard Print 106
Starting ZoomBrowser EX 4
Stitch Assist Mode 57, 91
Switching between Windows 18
ZoomBrowser EX Software User Guide
T
Task Area
Camera Window 18
Main Window 20
Using the Task Windows 22
Task Buttons
Camera Window 18 , 63
Main Window 21
Text Box 88
Theme 77
Thumbnails 17
Selecting Sizes 27
TIFF Format 96
U
Undo 36
V
Video Clip Files 96
W
Windows Bitmap Format 96
Windows
Camera Window 5 , 8 , 9 , 18 , 20 , 54
Main Window 9 , 18 , 20
Switching Between 18
Z
ZoomBrowser EX
Automation Wizard 97
Closing 13
Starting 4
Zoom In/Out 30
Zooming 32
Zoom Mode 27
ZoomBrowser EX Software User Guide
Disclaimer
• While every effort has been made to ensure that the information contained in this guide is accurate and complete, no liability
can be accepted for any errors or omissions. Canon reserves the right to change the specifications of the hardware and software
described herein at any time without prior notice.
• No part of this guide may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language
in any form, by any means, without the prior written permission of Canon.
• Canon makes no warranties for damages resulting from corrupted or lost data due to a mistaken operation or malfunction of
the camera, the software, the CompactFlash™ cards (CF cards), personal computers, peripheral devices, or use of non-Canon CF
cards.
Trademark Acknowledgments
• Canon and PowerShot are trademarks of Canon Inc.
• Adobe and Photoshop are trademarks of Adobe Systems Incorporated.
• ArcSoft, the ArcSoft logo, ArcSoft PhotoStudio, ArcSoft PhotoImpression and ArcSoft VideoImpression are trademarks
or registered trademarks of ArcSoft, Inc.
• CompactFlash is a trademark of SanDisk Corporation.
• Quick Time is trademark of Apple Computer Inc., registered in the United States and other countries.
• Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States
and/or other countries. Microsoft® Windows® 98, Microsoft® Windows® 2000, Microsoft® Windows® Millenium Edition,
and Microsoft® Windows® XP are referred to in this guide, respectively, as Windows 98, Windows 2000, Windows Me,
and Windows XP, or as Windows.
• Netscape and Netscape Navigator are trademarks or registered trademarks of Netscape Communications Corporation in the United
States and other countries. Netscape Communicator is a trademark of Netscape Communications Corporation.
• Other names and products not mentioned above may be registered trademarks or trademarks of their respective companies.
CDP-E021-010
115
ZoomBrowser EX Software User Guide
© 2003 CANON INC.
Download PDF

advertising
