CLS-EXP-DIMU

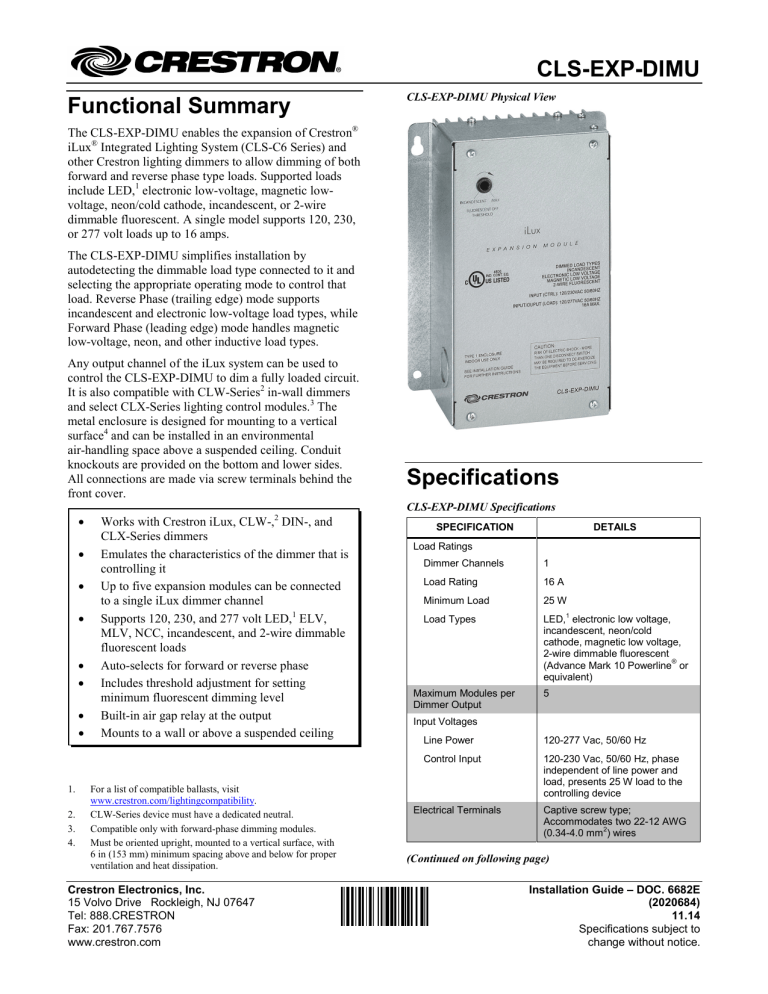

Functional Summary
CLS-EXP-DIMU Physical View
The CLS-EXP-DIMU enables the expansion of Crestron®
iLux® Integrated Lighting System (CLS-C6 Series) and
other Crestron lighting dimmers to allow dimming of both
forward and reverse phase type loads. Supported loads
include LED,1 electronic low-voltage, magnetic lowvoltage, neon/cold cathode, incandescent, or 2-wire
dimmable fluorescent. A single model supports 120, 230,
or 277 volt loads up to 16 amps.
The CLS-EXP-DIMU simplifies installation by
autodetecting the dimmable load type connected to it and
selecting the appropriate operating mode to control that
load. Reverse Phase (trailing edge) mode supports
incandescent and electronic low-voltage load types, while
Forward Phase (leading edge) mode handles magnetic
low-voltage, neon, and other inductive load types.
Any output channel of the iLux system can be used to
control the CLS-EXP-DIMU to dim a fully loaded circuit.
It is also compatible with CLW-Series2 in-wall dimmers
and select CLX-Series lighting control modules.3 The
metal enclosure is designed for mounting to a vertical
surface4 and can be installed in an environmental
air-handling space above a suspended ceiling. Conduit
knockouts are provided on the bottom and lower sides.
All connections are made via screw terminals behind the
front cover.
•
•
•
•
•
•
•
•
1.
2.
3.
4.
Works with Crestron iLux, CLW-,2 DIN-, and
CLX-Series dimmers
Emulates the characteristics of the dimmer that is
controlling it
Up to five expansion modules can be connected
to a single iLux dimmer channel
Supports 120, 230, and 277 volt LED,1 ELV,
MLV, NCC, incandescent, and 2-wire dimmable
fluorescent loads
Auto-selects for forward or reverse phase
Includes threshold adjustment for setting
minimum fluorescent dimming level
Built-in air gap relay at the output
Mounts to a wall or above a suspended ceiling
For a list of compatible ballasts, visit
www.crestron.com/lightingcompatibility.
CLW-Series device must have a dedicated neutral.
Compatible only with forward-phase dimming modules.
Must be oriented upright, mounted to a vertical surface, with
6 in (153 mm) minimum spacing above and below for proper
ventilation and heat dissipation.
Crestron Electronics, Inc.
15 Volvo Drive Rockleigh, NJ 07647
Tel: 888.CRESTRON
Fax: 201.767.7576
www.crestron.com
Specifications
CLS-EXP-DIMU Specifications
SPECIFICATION
DETAILS
Load Ratings
Dimmer Channels
1
Load Rating
16 A
Minimum Load
25 W
Load Types
LED,1 electronic low voltage,
incandescent, neon/cold
cathode, magnetic low voltage,
2-wire dimmable fluorescent
(Advance Mark 10 Powerline® or
equivalent)
Maximum Modules per
Dimmer Output
5
Input Voltages
Line Power
120-277 Vac, 50/60 Hz
Control Input
120-230 Vac, 50/60 Hz, phase
independent of line power and
load, presents 25 W load to the
controlling device
Electrical Terminals
Captive screw type;
Accommodates two 22-12 AWG
(0.34-4.0 mm2) wires
(Continued on following page)
Installation Guide – DOC. 6682E
(2020684)
11.14
Specifications subject to
change without notice.
iLux Universal Dimmer Expansion Module
Crestron CLS-EXP-DIMU
CLS-EXP-DIMU Specifications (Continued)
SPECIFICATION
2
Enclosure
DETAILS
Surface mount module with (2)
integral mounting flanges,
galvanized steel with gray matte
powder coat front panel,
extruded aluminum heat sink, (4)
1/2 in (13 mm) and 3/4 in
(19 mm) conduit knockouts
provided on bottom and lower
left and right sides
Environmental
Temperature
32° to 104°F (0° to 40°C)
Humidity
10% to 90% RH
(non-condensing)
Heat Dissipation
200 Btu/h at maximum load, 16 A
Dimensions
Height
8.82 in (224 mm)
Width
6.39 in (163 mm)
Depth
3.18 in (81 mm)
Weight
3.3 lbs (1.5 kg)
Compatible Control
Devices
1.
2.
CLS(I)-C6 Series
iLux Integrated Lighting System
CLW-DIM Series
Wall Dimmers
CLW-DIMXRF Series
infiNet™ Wall Dimmers
CLX(I)-1DIM4
Four Channel Dimmer Module,
Single Feed
CLX-1DIM8
Eight Channel Dimmer Module,
Single Feed
CLX(I)-2DIM2
Two Channel Dimmer Module,
Two Feeds
CLX(I)-2DIM8
Eight Channel Dimmer Module,
Two Feeds
DIN-Series Dimmers
DIN Rail Universal Dimmer
For a list of compatible ballasts, visit
www.crestron.com/lightingcompatibility.
Must be oriented upright, mounted to a vertical surface, with
6 in (150 mm) minimum spacing above and below for proper
ventilation and heat dissipation.
2 • iLux Universal Dimmer Expansion Module: CLS-EXP-DIMU
Installation Guide – DOC. 6682E
Crestron CLS-EXP-DIMU
iLux Universal Dimmer Expansion Module
Regulatory Compliance
This product is Listed to applicable UL Standards and requirements by Underwriters Laboratories Inc.
Federal Communications Commission (FCC) Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions:
(1) This device may not cause harmful interference and (2) this device must accept any interference received,
including interference that may cause undesired operation.
CAUTION: Changes or modifications not expressly approved by the manufacturer responsible for
compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
•
Reorient or relocate the receiving antenna
•
Increase the separation between the equipment and receiver
•
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
•
Consult the dealer or an experienced radio/TV technician for help
Installation Guide – DOC. 6682E
iLux Universal Dimmer Expansion Module: CLS-EXP-DIMU • 3
iLux Universal Dimmer Expansion Module
Crestron CLS-EXP-DIMU
Application
The following diagram shows a CLS-EXP-DIMU module in a typical application.
CLS-EXP-DIMU Module in a Lighting Application
Optional
4 • iLux Universal Dimmer Expansion Module: CLS-EXP-DIMU
Installation Guide – DOC. 6682E
iLux Universal Dimmer Expansion Module
Connectors, Controls, and Indicators
This section provides information on the connections,
controls, and indicators available on the
CLS-EXP-DIMU.
#
CONNECTORS,
CONTROLS,
AND
INDICATORS
1
FLUORESCENT
OFF
THRESHOLD
(1) Recessed screwdriveradjustable trim pot behind
removable cap, adjusts minimum
brightness level
2
PHASE LED
(1) Yellow LED behind front
panel, illuminates when operating
in Reverse Phase mode
3
STATUS LED
(1) Red LED behind front panel,
illuminates when load output is on
4
POWER LED
(1) Green LED behind front panel,
indicates power is applied to the
HOT terminal
5
S2
(1) Two-position DIP switch
behind front panel, enables or
disables zero cross detection filter
For more information, refer to
“Zero Cross Detection Filter” on
page 7.
CLS-EXP-DIMU Overall Dimensions
5.79 in
(147 mm)
4.99 in
(127 mm)
Ø 0.19 in
(Ø 5 mm)
3.18 in
(81 mm)
3.07 in
(78 mm)
8.31 in
(211 mm)
8.82 in
(224 mm)
ON
7.31 in
(186 mm)
1.64 in
(42 mm)
6
S1
7
CTRL INPUT
120-230VAC –
CTRL
ON
0.50 in
(13 mm) 1.56 in 2.02 in
(40 mm) (52 mm)
Ø 0.25 in
(Ø 7 mm)
6.39 in
(162 mm)
ZERO CROSS MODE
SW1 OFF=AUTO
SW1 ON=BASIC
1.64 in
(42 mm)
1 2
Physical Description
1 2
Crestron CLS-EXP-DIMU
CLS-EXP-DIMU (Cover Removed)
4
5
6
S1
7
9
8
12
10
HOT
IN
CTR L INPU T 120-230
VAC
OUTPU T LOAD 120-277
(1) Two-position DIP switch
behind front panel;
Selects Forward, Reverse, or
Autodetect mode
For more information, refer to
“Dimming Mode” on page 7.
(1) Captive screw terminal,1
control input from
CLS(I)-C6 Series,
CLW-DIM Series,2
CLX(I)-DIM Series, GLX-DIM6,
GLXX-2DIM8, or DIN-Series
dimmers
NOTE: Presents a 25 W load to
the controlling dimmer;
A maximum of five
CLS-EXP-DIMU modules may be
connected to the controlling
dimmer, which cannot be wired to
control any other loads besides
the CLS-EXP-DIMU modules.
S2
POWER
PHASE
3
S TA TUS
2
1
DESCRIPTION
11
(1) Captive screw terminal,1
neutral connection for control input
8
CTRL INPUT
120-230VAC–
NEUT
9
OUTPUT LOAD
120-277VAC–
DIM OUT
(1) Captive screw terminal,1
dimmed load output
10
OUTPUT LOAD
120-277VAC –
HOT IN
(1) Captive screw terminal,1 line
power input
11
OUTPUT LOAD
120-277VAC –
NEUT
(1) Captive screw terminal,1
neutral connection for line power
input and load
12
Ground
(1) 3-terminal chassis ground bus
bar
VAC
1. Captive screw terminals accept up to two 22 to 12 AWG (0.34 to
4.0 mm2) wires per terminal.
2. CLW-Series device must have a dedicated neutral.
Installation Guide – DOC. 6682E
iLux Universal Dimmer Expansion Module: CLS-EXP-DIMU • 5
Crestron CLS-EXP-DIMU
iLux Universal Dimmer Expansion Module
Setup
Hardware Hookup
Important Notes
WARNING: RISK OF SERIOUS PERSONAL
INJURY. Turn off power at the circuit breaker(s) prior to
installation. Installing with the power on can result in
serious personal injury and damage to the device.
Read before installation.
Use copper conductors only – rated 75°C or greater.
1.
Installation
Use a #2 Phillips screwdriver to remove the
cover screws, as shown in the following
diagram, and remove the cover.
Remove Cover Screws
The CLS-EXP-DIMU can be installed vertically on a wall
and it can also be installed in a space used for
environmental air as defined in NEC® Article 300.22(C).
Refer to the following diagram when installing a
CLS-EXP-DIMU module.
Module Installation
Cover Screws
(x4)
Mounting Surface
CLS-EXP-DIMU Module
Mounting Screw,
Qty 4 (Not
Supplied)
2.
Adhere to the following instructions to ensure proper
ventilation:
•
Install the device vertically on a vertical surface.
NOTE: To prevent potential heat damage to
drywall, do not mount the CLS-EXP-DIMU
directly onto drywall. Mount a 1/2 in (13 mm)
piece thick (minimum) plywood between the
CLS-EXP-DIMU and the drywall.
•
Install the device with 6 in (152 mm) of
clearance from the top and bottom of the device.
6 • iLux Universal Dimmer Expansion Module: CLS-EXP-DIMU
Depending on the module’s application, select
the appropriate configuration from one of the
wiring diagrams on the next page and connect
the CLS-C6 and load(s) as shown.
•
Do not connect wires of differing gauge to a
single terminal.
•
Strip wires to 7/16 in (11 mm).
•
Tighten terminal screws to 7 in-lbs
(0.79 Nm).
NOTE: Dimmers controlling one or more
CLS-EXP-DIMU modules must not be wired to
control any other type of load.
NOTE: While these diagrams show a CLS-C6
as the controlling source, other Crestron products
such as CLW-Series wall dimmers (Cresnet® and
infiNET™), DIN-Series, and CLX-Series
dimming modules can be used as well. Refer to
the specific dimmer’s installation guide for
detailed information.
NOTE: When using a CLW-Series wall
dimmer, the wall dimmer must be wired with a
dedicated neutral wire.
Installation Guide – DOC. 6682E
Crestron CLS-EXP-DIMU
iLux Universal Dimmer Expansion Module
Switch Settings for the S1 DIP Switch
CLS-EXP-DIMU Wiring with Dual Feeds
HOT IN
(120 to 277 Vac)
SW. 1 SW. 2
NEUTRAL
NEUTRAL
DIM OUT
Lighting
Loads
L O AD 3
HOT
(120 (230) Vac)
L O AD 2
L O AD 1
HO T
IN
CLS(I)-C6
CTR L INPU T120-230
VAC
OUTPU T LOAD 120-277
VAC
DIMMING MODE
Off
All
Autodetect
(Default, Recommended)
On
Off
Reverse Phase
Incandescent,
electronic low voltage
On
On
Forward Phase
Magnetic low voltage,
NCC, 2-wire
dimmable fluorescent
HOT
NEUTRAL
NEUTRAL
Multiple CLS-EXP-DIMU Modules
HOT IN
(120 to 277 Vac)
CLS-EXP-DIMU
Zero Cross Detection Filter
NEUTRAL
NEUTRAL
DIM OUT
HO T
IN
CTR L INPU T120-230
HOT IN
(120 to 277 Vac )
VAC
OUTPU T LOAD 120-277
VAC
CLS-EXP-DIMU
Lighting
Loads
DIM OUT
HOT
(120 (230) Vac )
NEUTRAL
3.
4.
LOAD2
LOAD1
Lighting
Loads
HO T
IN
CLS(I)-C6
CTR L INPU T120-230
VAC
OUTPU T LOAD 120-277
WARNING: RISK OF SERIOUS PERSONAL
INJURY. Turn off power at the circuit breaker(s) prior to
changing any switch settings. Changing settings with the
power on can result in serious personal injury and damage
to the device.
VAC
HOT
NEUTRAL
Apply power to the line or load and turn on the
controlling device. The power indicator LED
lights, indicating that power is being supplied to
the module.
The function of the zero cross detection filter is set using
the S2 DIP switch. Refer to the following table when
setting the zero cross detection filter.
Replace the cover and cover screws.
Switch Settings for the S2 DIP Switch
Dimming Mode
The CLS-EXP-DIMU is capable of automatically
detecting the attached load type and setting itself for
Forward Phase (leading edge) or Reverse Phase (trailing
edge) dimming mode accordingly. In addition, the unit
can be forced to perform forward or reverse phase
dimming by overriding the automatic detection.
Disabling the Autodetect mode should not be
necessary and is not recommended unless suggested by
a Crestron technical support representative.
WARNING: RISK OF SERIOUS PERSONAL
INJURY. Turn off power at the circuit breaker(s) prior to
changing any switch settings. Changing settings with the
power on can result in serious personal injury and damage
to the device.
The dimming mode can be changed by adjusting the S1
DIP switches as detailed in the table in the following
column.
Installation Guide – DOC. 6682E
The CLS-EXP-DIMU filters to compensate for noise on
the incoming ac line. This filtering is useful for
eliminating flickering of the load caused by line noise. If
necessary, this filtering can be disabled.
Disabling the zero cross detection filter should not be
necessary and is not recommended unless suggested by
a Crestron technical support representative.
NEUTRAL
NEUTRAL
LOAD3
LOAD TYPES
Off
SW. 1
SW. 2
DESCRIPTION
Off
Off
Enables zero cross detection filter
(default, recommended), which
provides maximum filtering under
various line noise conditions
On
Off
Disables zero cross detection filter;
Allows rapid tracking of the ac line;
Suitable when using generators for ac
line power
Minimum Dimming Level
Certain types of loads can flicker when dimmed too low.
Adjust the FLUORESCENT OFF THRESHOLD to
prevent the CLS-EXP-DIMU from attempting to dim the
load below a certain level.
NOTE: Some fluorescent ballasts may require that
voltage levels be maintained above a specified minimum
level to prevent premature lamp failure. Be sure to set the
minimum dim level so that the minimum voltage is met at
all times when the load is on. Consult the ballast
manufacturer’s documentation for details.
iLux Universal Dimmer Expansion Module: CLS-EXP-DIMU • 7
iLux Universal Dimmer Expansion Module
Do the following to adjust the minimum dimming level:
1.
Using a flat-head screwdriver, turn the
FLUORESCENT OFF THRESHOLD
adjustment counter-clockwise until it stops.
3.
Set the CLS-C6 so that the light output is on but
is below the desired minimum level.
4.
Turn the FLUORESCENT OFF THRESHOLD
adjustment clockwise until the light output is at
the desired minimum level.
5.
CLS-EXP-DIMU Troubleshooting (Continued)
Remove the cap from the FLUORESCENT OFF
THRESHOLD adjustment from the inside of the
cover (requires removing the cover as shown on
page 6).
2.
Crestron CLS-EXP-DIMU
TROUBLE
POSSIBLE
CAUSE(S)
CORRECTIVE
ACTION
The controlling
unit is either not a
dimmer or has
been set to
non-dim.
Verify that the
dimmer is
compatible with the
CLS-EXP-DIMU
(refer to
“Specifications” on
page 1). Verify that
the controlling
channel has not
been programmed
as non-dim.
The
FLUORESCENT
OFF
THRESHOLD has
been set too high.
Refer to “Set the
Minimum Dimming
Level” on page 7.
The lights flicker
at certain
dimming levels.
Some types of
loads cannot be
dimmed below a
certain level.
Refer to “Set the
Minimum Dimming
Level” on page 7.
The lights do not
dim properly.
An incompatible
dimmer is being
used.
Make sure that the
dimmer is one of
those listed in
“Specifications” on
page 1.
There is audible
noise while
dimming.
The load is being
dimmed in the
wrong mode.
Refer to the list of
load types in the
table at the top of
page 7. Check the
PHASE LED to
ensure that the load
is being dimmed in
the proper way for
the attached load
type. If the unit is set
to Autodetect, and
the improper mode
is being used, follow
the instructions on
page 7 to override
the Autodetect
setting and force the
unit to the proper
mode.
There is a large
incandescent
load.
Some incandescent
loads can make
noise when dimmed
due to the size of the
filament. Try a
different lamp
manufacturer.
The
FLUORESCENT
OFF
THRESHOLD has
been set too high.
Refer to “Set the
Minimum Dimming
Level” on page 7.
The load turns
on and off but
does not dim.
Replace the cap.
Troubleshooting
The following table provides corrective action for
possible trouble situations. If further assistance is
required, please contact a Crestron customer service
representative.
CLS-EXP-DIMU Troubleshooting
TROUBLE
The load does
not turn on.
POSSIBLE
CAUSE(S)
CORRECTIVE
ACTION
The controller is
not working.
Make sure the
controller is
powered on and is
one of the
compatible dimmers
listed in
“Specifications” on
page 1.
No power is
applied to the
HOT terminal.
Check the circuit
breaker. Check that
the green POWER
LED on the inside of
the unit is lit.
(Continued in following column)
The lights cannot
be dimmed
below a certain
level.
8 • iLux Universal Dimmer Expansion Module: CLS-EXP-DIMU
Installation Guide – DOC. 6682E
Crestron CLS-EXP-DIMU
iLux Universal Dimmer Expansion Module
Further Inquiries
To locate specific information or resolve questions after
reviewing this guide, contact Crestron's True Blue
Support at 1-888-CRESTRON [1-888-273-7876] or, for
assistance within a particular geographic region, refer to
the listing of Crestron worldwide offices at
www.crestron.com/offices.
To post a question about Crestron products, log onto
Crestron’s Online Help at www.crestron.com/onlinehelp.
First-time users must establish a user account to fully
benefit from all available features.
Future Updates
As Crestron improves functions, adds new features, and
extends the capabilities of the CLS-EXP-DIMU,
additional information may be made available as manual
updates. These updates are solely electronic and serve as
intermediary supplements prior to the release of a
complete technical documentation revision.
Check the Crestron website periodically for manual
update availability and its relevance. Updates are
identified as an “Addendum” in the Download column.
Product warranty can be found at www.crestron.com/warranty.
The specific patents that cover Crestron products are listed at
patents.crestron.com.
Crestron, the Crestron logo, Cresnet, iLux, and infiNET are either
trademarks or registered trademarks of Crestron Electronics, Inc. in the
United States and/or other countries. Mark 10 Powerline is either a
trademark or registered trademark of Koninklijke Philips Electronics
N.V. in the United States and/or other countries. NEC is either a
trademark or registered trademark of National Fire Protection
Association in the United States and/or other countries. UL and the UL
logo are either trademarks or registered trademarks of Underwriters
Laboratories, Inc. in the United States and/or other countries. Other
trademarks, registered trademarks, and trade names may be used in this
document to refer to either the entities claiming the marks and names or
their products. Crestron disclaims any proprietary interest in the marks
and names of others. Crestron is not responsible for errors in
typography or photography.
This document was written by the Technical Publications department at
Crestron.
©2014 Crestron Electronics, Inc.
Installation Guide – DOC. 6682E
iLux Universal Dimmer Expansion Module: CLS-EXP-DIMU • 9
iLux Universal Dimmer Expansion Module
Crestron CLS-EXP-DIMU
This page is intentionally left blank.
10 • iLux Universal Dimmer Expansion Module: CLS-EXP-DIMU
Installation Guide – DOC. 6682E
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
