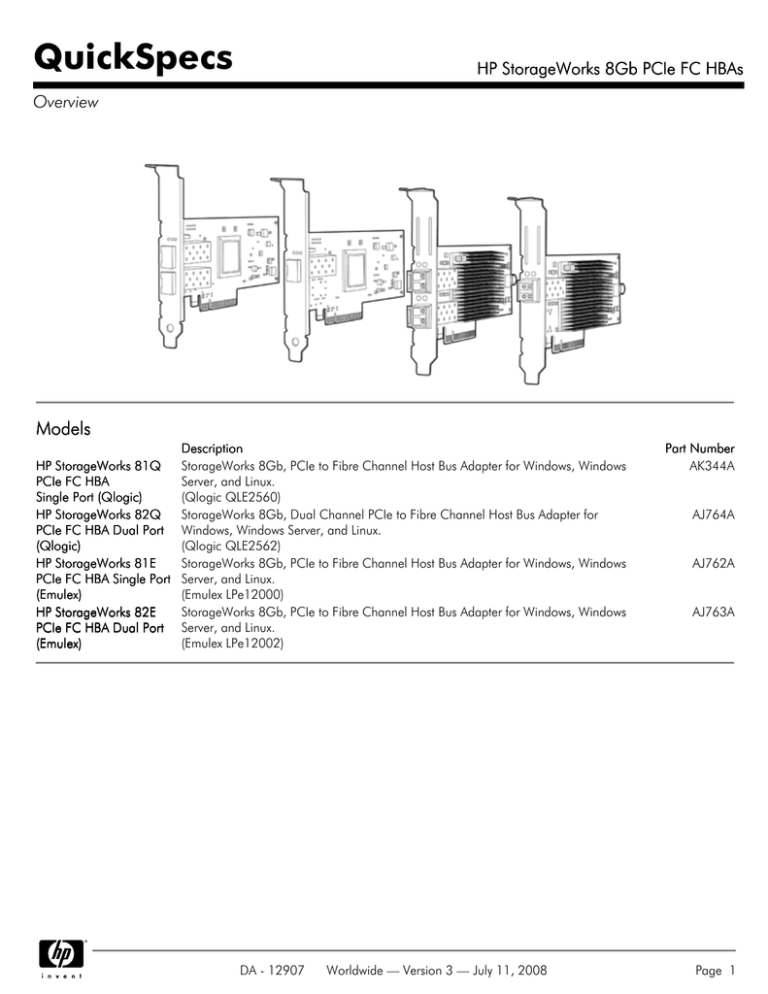

QuickSpecs
HP StorageWorks 8Gb PCIe FC HBAs
Overview
Models
HP StorageWorks 81Q
PCIe FC HBA
Single Port (Qlogic)
HP StorageWorks 82Q
PCIe FC HBA Dual Port
(Qlogic)
HP StorageWorks 81E
PCIe FC HBA Single Port
(Emulex)
HP StorageWorks 82E
PCIe FC HBA Dual Port
(Emulex)
Description
StorageWorks 8Gb, PCIe to Fibre Channel Host Bus Adapter for Windows, Windows
Server, and Linux.
(Qlogic QLE2560)
StorageWorks 8Gb, Dual Channel PCIe to Fibre Channel Host Bus Adapter for
Windows, Windows Server, and Linux.
(Qlogic QLE2562)
StorageWorks 8Gb, PCIe to Fibre Channel Host Bus Adapter for Windows, Windows
Server, and Linux.
(Emulex LPe12000)
StorageWorks 8Gb, PCIe to Fibre Channel Host Bus Adapter for Windows, Windows
Server, and Linux.
(Emulex LPe12002)
DA - 12907
Worldwide — Version 3 — July 11, 2008
Part Number
AK344A
AJ764A
AJ762A
AJ763A
Page 1
QuickSpecs
HP StorageWorks 8Gb PCIe FC HBAs
Overview
Product Description
The introduction of the HP StorageWorks 8Gb PCIe Fibre Channel Host Bus Adapters brings datacenter infrastructure components to
a higher level of performance and efficiency. The HP StorageWorks 8Gb PCIe FC Host Bus Adapters are priced only slightly higher
than equivalent 4 Gb HBAs, yet, they have the ability to deliver twice the I/O performance. In addition, an 8 Gb FC HBA purchased
today will protect your investment longer than if you were to purchase an equivalent 4 Gb HBA. If you are using storage intensive
applications, such as rich media, the increased performance of the 8 Gb infrastructure allows you to store and retrieve critical
information faster.
The virtualization of servers has become an important capability for most datacenters. The ability to improve overall server utilization,
resulting in significant cost savings, has made server virtualization a "must-have" for most enterprises. By having an HBA that supports
and maximizes your server virtualization efforts, you are protecting your significant investments in virtualization technology.
Since most of today's datacenters are required to be available 24 X 7, it is critical that infrastructure components have failover
capabilities. By installing redundant HBAs into your servers, you can feel confident that your servers will remain connected to
mission-critical stored data.
Finally, today's enterprises are becoming more and more sensitive to the power consumption within the datacenter. The 8 Gb PCIe
FC Host Bus Adapters provide a number of features that work together to reduce power consumption, thus delivering a "green"
benefit within the server.
DA - 12907
Worldwide — Version 3 — July 11, 2008
Page 2
QuickSpecs
HP StorageWorks 8Gb PCIe FC HBAs
Features and Benefits
Key Features - 81Q PCIe FC HBA (AK344A) and 82Q PCIe FC HBA (AJ764A)
First step into the 8 Gb
future
Advanced embedded
support for virtualized
environments
Redundant HBAs for high
availability
Reduced power
consumption
Better performance at a competitive price
Well positioned for the future with 8 Gb technology
Enhanced for storage intensive applications
Supports virtualized servers for overall effective server utilization
Allows multiple logical (virtual) connections to share the same physical port
256 queue pairs for intensive virtualization
Prioritization of queues prevents conflicts between multiple queues
Failover of HBAs to prevent single point of failure
Two single port cards are more reliable than one dual port card
Latest generation technology saves power
Reduced number of components on each FC HBA reduces overall power consumption
Lower power consumption means HBA requires lower airflow
Key Features - 81E PCIe FC HBA (AJ762A) and 82E PCIe FC HBA (AJ763A)
First step into the 8 Gb
future
Advanced embedded
support for virtualized
environments
Redundant HBAs for high
availability
Enhanced Security and
Performance
Better performance at a competitive price
Well positioned for the future with 8 Gb technology
Enhanced for storage intensive applications
Comprehensive virtualization capabilities with support for N-Port ID Virtualization (NPIV) and
Virtual Fabric
Virtualized server environments benefiting from industry-leading CPU offload
Scaled up NPIV configurability (255 VPorts, larger RPI count - 4000)
Support for large number of simultaneous transactions/exchanges (XRI count - 4000)
Host to Fabric FC-SP authentication
Failover of HBAs to prevent single point of failure
Two single port cards are more reliable than one dual port card
Protection against corruption (BlockGuard/T10 dif) and unauthorized intrusion (FC-SP)
Support for Message Signaled Interrupts extended (MSI-X), improves host utilization & enhances
application performance
Complete data and code parity protection
Data parity and ECC protection
Overlapping end-to-end data protection
DA - 12907
Worldwide — Version 3 — July 11, 2008
Page 3
QuickSpecs
HP StorageWorks 8Gb PCIe FC HBAs
Features and Benefits
Benefits At a Glance
Get better performance at The 8 Gb series of fibre channel host bus adapters are priced only slightly higher than equivalent 4 Gb
a competitive price
HBAs, yet they have the ability to deliver twice the I/O performance.
Be well positioned for the Since 4 Gb technology will be considered "old" soon, customers have the opportunity to move to 8 Gb
future with 8 Gb
technology, which is backward compatible with 4 Gb and 2 Gb and will serve them for a much longer
technology
period than 4 Gb technology.
Enhanced for storage
intensive applications
When using storage intensive applications like backup/restore, database transactions, and rich media,
the improved I/O performance allows you to store and retrieve data much faster
Supports virtualized
Today, the average server operates at approximately 25% of its capacity and IT administrators are being
servers for overall effective challenged to increase server utilization and reduce operational costs. The 8Gb HBA support for
server utilization
virtualized servers will assist IT administrators in their adoption of server virtualization.
Evolving HBA technology . The new 8Gb Fibre Channel technology is a natural complement to the PCIe 2.0 bus architecture and
keeps pace with the
will provide servers with ample bandwidth and throughput performance.
effective bandwidth of
server busses.
Redundant HBAs for high Failover of HBAs to prevent single point of failure. Two single port cards have higher data availability
availability
than one dual port card.
Latest generation
technology saves power
Eliminating unnecessary internal activity results in reduced power consumption and waste.(Qlogic)
DA - 12907
Worldwide — Version 3 — July 11, 2008
Page 4
QuickSpecs
HP StorageWorks 8Gb PCIe FC HBAs
Service and Support, HP Care Pack and Warranty Information
Warranty
3-0-0 Three-year parts exchange warranty. Additional Warranty protection can be purchased.
HP Global Services provides a three-year, limited warranty, fully supported by a worldwide network of resellers and service providers
toll-free 7 x 24 hardware technical phone support for the duration of the warranty. In addition, available service offerings include a
full range of HP Care Pack packaged hardware and software services.
NOTE: Certain restrictions and exclusions apply. Consult the HP Customer Support Center for details.
Software Product Services Stand-alone telephone support
Rights to new license version
Media and documentation updates
Hardware Product
Services
Installation services
On-site maintenance (includes warranty support)
Response time upgrades during the warranty period
Post-warranty coverage
RAID setup and performance consulting via statement of work
For additional hardware installation and maintenance information, please refer to the URL listed below:
http://www.hp.com/hps/hardware/.
Warranty Upgrade
Options
Response - Upgrade on-site response from next business day to same day 4 hours
Coverage - Extend hours of coverage from 5 days x 9 hours to 7 days x 24 hours
Duration - Select duration of coverage for a period of 1, 3, or 5 years
Additional Warranty protection and/or HP Installation packages can be purchased.
HP Care Pack Information Sample part numbers:
3 years, uplift to 5 x 9, Next Day Response
FM-**XHW-36
3 years, uplift to 5 x 9, 4-hour Response
FM-**4HR-36
3 years, uplift to 7 x 24, 4-hour Response
FM-**724-36
Hardware Installation
FM-**INS-IN
** Represents a two-digit, product-specific code
HP Care Pack is defined as an upgrade to the product warranty attribute, available for a specific
duration and hours of coverage.
HP Care Pack is not available for less than the product's warranty duration.
HP Care Pack is available for sale anytime during the warranty period for most products, but the
commencement date will be the same as the Warranty Start Date (delivery date to end user customer).
Proof of purchase may be required.
HP Care Pack services are prepaid.
If ordering this HBA for a non-HP server, manually add package band 8D4 and Installation HA113A1
band 527. If ordering this HBA as an add-on to an existing HP server, manually add Installation
HA113A1 band 527.
DA - 12907
Worldwide — Version 3 — July 11, 2008
Page 5
QuickSpecs
HP StorageWorks 8Gb PCIe FC HBAs
Service and Support, HP Care Pack and Warranty Information
For additional HP Care Pack (hardware & software) information, as well as orderable part numbers,
please refer to the URL: http://www.hp.com/hps/carepack/
NOTE: Certain restrictions and exclusions apply. Consult the HP Customer Support Center for details.
DA - 12907
Worldwide — Version 3 — July 11, 2008
Page 6
QuickSpecs
HP StorageWorks 8Gb PCIe FC HBAs
Technical Specifications
82E PCIe
82Q PCIe
81Q PCIe
Dual Port
Dual Port
Number of channels
Single
Dual
Single
Dual
Port Speed
8 Gb
8 Gb
8 Gb
8 Gb
Slot type supported
PCI Express 2.0 to Fibre PCI Express 2.0 to Fibre PCI Express 2.0 to Fibre PCI Express 2.0 to Fibre
Channel
Channel
Channel
Channel
OS Supported
Microsoft Windows Server Microsoft Windows Server Microsoft Windows Server Microsoft Windows Server
2003 (x86 and 64-bit
2003 (x86 and 64-bit
2003 (x86 and 64-bit
2003 (x86 and 64-bit
Extended)
Extended)
Extended)
Extended)
Microsoft Windows Server Microsoft Windows Server Microsoft Windows Server Microsoft Windows Server
2008
2008
2008
2008
Linux
Linux
Linux
Linux
Red Hat Enterprise Linux Red Hat Enterprise Linux Red Hat Enterprise Linux Red Hat Enterprise Linux
4.5/4.6 & 5.1 / 5.2
4.5/4.6 & 5.1/ 5.2
4.5/4.6 & 5.1/ 5.2
4.5/4.6 & 5.1 /5.2
(x86, AMD64, EM64T) (x86, AMD64, EM64T) (x86, AMD64, EM64T) (x86, AMD64, EM64T)
SUSE Linux Enterprise
SUSE Linux Enterprise
SUSE Linux Enterprise
SUSE Linux Enterprise
Server 9 &10 SP1 (x86, Server 9 & 10 SP1 (x86, Server 9 & 10 SP1 (x86, Server 9 & 10 SP1 (x86,
AMD64, EM64T)
AMD64, EM64T)
AMD64, EM64T)
AMD64, EM64T)
Servers Supported
HP ProLiant
HP ProLiant
HP ProLiant
HP ProLiant
Array Platforms Supported
EVA4x00,
EVA4x00,
EVA4x00,
EVA4x00,
EVA4400
EVA4400
EVA4400
EVA4400
EVA6x00,
EVA6x00,
EVA6x00,
EVA6x00,
EVA8x00,
EVA8x00,
EVA8x00,
EVA8x00,
MSA1000
MSA1000
MSA1000
MSA1000
MSA1500
MSA1500
MSA1500
MSA1500
MSA2000
MSA2000
MSA2000
MSA2000
XP128/1024
XP128/1024
XP128/1024
XP128/1024
XP10000/12000
XP10000/12000
XP10000/12000
XP10000/12000
XP20000/24000
XP20000/24000
XP20000/24000
XP20000/24000
What's Included in the
8 Gb HBA with standard 8 Gb HBA with standard 8 Gb HBA with standard 8 Gb HBA with standard
Box?
bracket, one 8 Gb SFP, bracket, one 8 Gb SFP, bracket, one 8 Gb SFP, bracket, one 8 Gb SFP,
low-profile bracket,
low-profile bracket,
low-profile bracket,
low-profile bracket,
Quick-Install Guide
Quick-Install Guide
Quick-Install Guide
Quick-Install Guide
Environmental 32° to 131° F
32° to 131° F
32° to 131° F
32° to 131° F
Operating Temperature
(0° to 55° C)
(0° to 55° C)
(0° to 55° C)
(0° to 55° C)
Environmental - Storage
-20° to 158° F
-20° to 158° F
-20° to 158° F
-20° to 158° F
Temperature
(-40° to 70° C)
(-40° to 70° C)
(-40° to 70° C)
(-40° to 70° C)
Environmental - Relative
5% to 95% non5% to 95% non10% to 90% non10% to 90% nonHumidity - Operating
condensing
condensing
condensing
condensing
6.60 x 2.71 in
6.60 x 2.71 in
6.60 x 2.54 in
6.60 x 2.54 in
Product Dimensions
(167.64mm x 2.71 mm) (167.64mm x 2.71 mm) (167.64 mm x 64.4 mm) (167.64 mm x 64.4 mm)
(HxW)
Media
Multi-mode Optic (SFP+) Multi-mode Optic (SFP+) Multi-mode Optic (SFP+) Multi-mode Optic (SFP+)
Connector
Short wave laser with LC Short wave laser with LC Short wave laser with LC Short wave laser with LC
type connector
type connector
type connector
type connector
PCIe Connector
PCIe x8
PCIe x8
PCIe x8
PCIe x8
Max x4 lanes Gen2
Max x4 lanes Gen2
Max x4 lanes Gen2
Max x4 lanes Gen2
Max x8 lanes Gen1
Max x8 lanes Gen1
Max x8 lanes Gen1
Max x8 lanes Gen1
Auto-negotiation
8 Gb/4 Gb/2 Gb
8 Gb/4 Gb/2 Gb
8 Gb/4 Gb/2 Gb
8 Gb/4 Gb/2 Gb
81E PCIe
DA - 12907
Worldwide — Version 3 — July 11, 2008
Page 7
QuickSpecs
HP StorageWorks 8Gb PCIe FC HBAs
Technical Specifications
Brackets
Shipped with both ½
height and full-height
brackets
Shipped with both ½
height and full-height
brackets
Shipped with both ½
height and full-height
brackets
Shipped with both ½
height and full-height
brackets
© Copyright 2008 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
DA - 12907
Worldwide — Version 3 — July 11, 2008
Page 8
Download PDF

advertising
