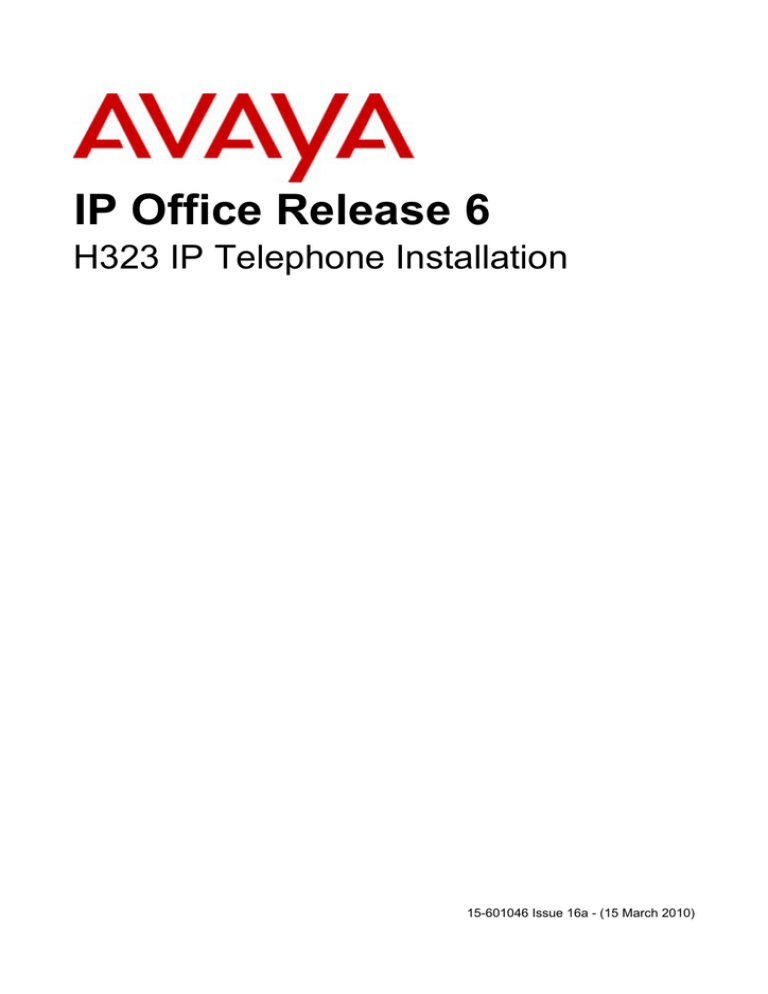

IP Office Release 6
H323 IP Telephone Installation
15-601046 Issue 16a - (15 March 2010)
© 2010 AVAYA All Rights Reserved.
Notices
While reasonable efforts have been made to ensure that the information in
this document is complete and accurate at the time of printing, Avaya
assumes no liability for any errors. Avaya reserves the right to make changes
and corrections to the information in this document without the obligation to
notify any person or organization of such changes.
Documentation disclaimer
Avaya shall not be responsible for any modifications, additions, or deletions
to the original published version of this documentation unless such
modifications, additions, or deletions were performed by Avaya.
End User agree to indemnify and hold harmless Avaya, Avaya's agents,
servants and employees against all claims, lawsuits, demands and judgments
arising out of, or in connection with, subsequent modifications, additions or
deletions to this documentation, to the extent made by End User.
Link disclaimer
Avaya is not responsible for the contents or reliability of any linked Web sites
referenced within this site or documentation(s) provided by Avaya. Avaya is
not responsible for the accuracy of any information, statement or content
provided on these sites and does not necessarily endorse the products,
services, or information described or offered within them. Avaya does not
guarantee that these links will work all the time and has no control over the
availability of the linked pages.
Warranty
Avaya provides a limited warranty on this product. Refer to your sales
agreement to establish the terms of the limited warranty. In addition, Avaya’s
standard warranty language, as well as information regarding support for this
product, while under warranty, is available to Avaya customers and other
parties through the Avaya Support Web site: http://www.avaya.com/support.
Please note that if you acquired the product from an authorized Avaya reseller
outside of the United States and Canada, the warranty is provided to you by
said Avaya reseller and not by Avaya.
Licenses
THE SOFTWARE LICENSE TERMS AVAILABLE ON THE AVAYA WEBSITE,
HTTP://SUPPORT.AVAYA.COM/LICENSEINFO/ ARE APPLICABLE TO ANYONE
WHO DOWNLOADS, USES AND/OR INSTALLS AVAYA SOFTWARE,
PURCHASED FROM AVAYA INC., ANY AVAYA AFFILIATE, OR AN AUTHORIZED
AVAYA RESELLER (AS APPLICABLE) UNDER A COMMERCIAL AGREEMENT
WITH AVAYA OR AN AUTHORIZED AVAYA RESELLER. UNLESS OTHERWISE
AGREED TO BY AVAYA IN WRITING, AVAYA DOES NOT EXTEND THIS
LICENSE IF THE SOFTWARE WAS OBTAINED FROM ANYONE OTHER THAN
AVAYA, AN AVAYA AFFILIATE OR AN AVAYA AUTHORIZED RESELLER, AND
AVAYA RESERVES THE RIGHT TO TAKE LEGAL ACTION AGAINST YOU AND
ANYONE ELSE USING OR SELLING THE SOFTWARE WITHOUT A LICENSE. BY
INSTALLING, DOWNLOADING OR USING THE SOFTWARE, OR AUTHORIZING
OTHERS TO DO SO, YOU, ON BEHALF OF YOURSELF AND THE ENTITY FOR
WHOM YOU ARE INSTALLING, DOWNLOADING OR USING THE SOFTWARE
(HEREINAFTER REFERRED TO INTERCHANGEABLY AS “YOU” AND “END
USER”), AGREE TO THESE TERMS AND CONDITIONS AND CREATE A
BINDING CONTRACT BETWEEN YOU AND AVAYA INC. OR THE APPLICABLE
AVAYA AFFILIATE (“AVAYA”).
Avaya grants End User a license within the scope of the license types
described below. The applicable number of licenses and units of capacity for
which the license is granted will be one (1), unless a different number of
licenses or units of capacity is specified in the Documentation or other
materials available to End User. "Designated Processor" means a single
stand-alone computing device. "Server" means a Designated Processor that
hosts a software application to be accessed by multiple users. "Software"
means the computer programs in object code, originally licensed by Avaya
and ultimately utilized by End User, whether as stand-alone products or
pre-installed on Hardware. "Hardware" means the standard hardware
originally sold by Avaya and ultimately utilized by End User.
H323 IP Telephone Installation
IP Office Release 6
License types
Designated System(s) License (DS). End User may install and use each copy
of the Software on only one Designated Processor, unless a different number
of Designated Processors is indicated in the Documentation or other materials
available to End User. Avaya may require the Designated Processor(s) to be
identified by type, serial number, feature key, location or other specific
designation, or to be provided by End User to Avaya through electronic means
established by Avaya specifically for this purpose.
Copyright
Except where expressly stated otherwise, no use should be made of materials
on this site, the Documentation(s) and Product(s) provided by Avaya. All
content on this site, the documentation(s) and the product(s) provided by
Avaya including the selection, arrangement and design of the content is
owned either by Avaya or its licensors and is protected by copyright and other
intellectual property laws including the sui generis rights relating to the
protection of databases. You may not modify, copy, reproduce, republish,
upload, post, transmit or distribute in any way any content, in whole or in
part, including any code and software. Unauthorized reproduction,
transmission, dissemination, storage, and or use without the express written
consent of Avaya can be a criminal, as well as a civil, offense under the
applicable law.
Third Party Components
Certain software programs or portions thereof included in the Product may
contain software distributed under third party agreements ("Third Party
Components"), which may contain terms that expand or limit rights to use
certain portions of the Product ("Third Party Terms"). Information regarding
distributed Linux OS source code (for those Products that have distributed the
Linux OS source code), and identifying the copyright holders of the Third
Party Components and the Third Party Terms that apply to them is available
on the Avaya Support Web site: http://support.avaya.com/Copyright.
Preventing toll fraud
"Toll fraud" is the unauthorized use of your telecommunications system by an
unauthorized party (for example, a person who is not a corporate employee,
agent, subcontractor, or is not working on your company's behalf). Be aware
that there can be a risk of toll fraud associated with your system and that, if
toll fraud occurs, it can result in substantial additional charges for your
telecommunications services.
Avaya fraud intervention
If you suspect that you are being victimized by toll fraud and you need
technical assistance or support, call Technical Service Center Toll Fraud
Intervention Hotline at +1-800-643-2353 for the United States and Canada.
For additional support telephone numbers, see the Avaya Support Web site:
http://support.avaya.com
Suspected security vulnerabilities with Avaya products should be reported to
Avaya by sending mail to: securityalerts@avaya.com.
Trademarks
Avaya and Aura are trademarks of Avaya, Inc.
The trademarks, logos and service marks (“Marks”) displayed in this site, the
documentation(s) and product(s) provided by Avaya are the registered or
unregistered Marks of Avaya, its affiliates, or other third parties. Users are
not permitted to use such Marks without prior written consent from Avaya or
such third party which may own the Mark. Nothing contained in this site, the
documentation(s) and product(s) should be construed as granting, by
implication, estoppel, or otherwise, any license or right in and to the Marks
without the express written permission of Avaya or the applicable third party.
Avaya is a registered trademark of Avaya Inc. All non-Avaya trademarks are
the property of their respective owners.
Downloading documents
For the most current versions of documentation, see the Avaya Support Web
site: http://www.avaya.com/support
Contact Avaya Support
Avaya provides a telephone number for you to use to report problems or to
ask questions about your product. The support telephone number is
1-800-242-2121 in the United States. For additional support telephone
numbers, see the Avaya Web site: http://www.avaya.com/support
Page 2
15-601046 Issue 16a (15 March 2010)
Contents
Contents
7. Alternate DHCP Server Setup
.....................................................................
71
7.1 Using a Windows
DHCP Server
7.2 Alternate Options
..................................................................... 74
1. IP Office H323 IP Phones
1.1 What is New..................................................................... 8
10
1.2 Supported .....................................................................
Phones
1.3 System Capacity
..................................................................... 11
1.4 Phone Firmware
..................................................................... 12
1.5 Simple Installation
..................................................................... 13
14
1.6 Installation .....................................................................
Requirements
1.7 Licenses ..................................................................... 15
1.8 Network Assessment
..................................................................... 16
1.9 Voice Compression
..................................................................... 17
..................................................................... 19
1.10 QoS
1.11 Potential VoIP
Problems
.....................................................................
19
1.12 User PC Connection
..................................................................... 20
1.13 Power Supply
.....................................................................
Options
21
.....................................................................
23
1.14 File Server
Options
1.15 File Auto Generation
..................................................................... 24
1.16 Control Unit
.....................................................................
Memory Card
25
8. WML Server Setup
8.1 Testing 4620
.....................................................................
WML Browsing Using Xitami
77
8.2 Setting the .....................................................................
Home Page
79
8.3 Apache Web
.....................................................................
Server WML Configuration
80
.....................................................................
80
8.4 Microsoft IIS
Web Server WML Configuration
8.5 Open URL .....................................................................
Entry
81
Index
...............................................................................83
2. Installation
2.1 Adding Licenses
.....................................................................
2.2 Creating/Editing
the Settings File
.....................................................................
2.3 Manually Creating
.....................................................................
Extensions
2.4 Phone Connection
.....................................................................
.....................................................................
2.5 Static Address
Installation
2.6 Phone Registration
.....................................................................
2.7 Extension &.....................................................................
User Setup
2.8 Phone Security
.....................................................................
.....................................................................
2.9 Backup Restore
2.10 Listing Registered
Phones
.....................................................................
2.11 Error Messages
.....................................................................
30
31
33
34
35
36
37
37
38
41
42
3. Other Installation Options
3.1 VPN Remote
.....................................................................
Phones
44
3.2 VLAN and IP
Phones
.....................................................................
47
4. Static Administration Options
4.1 QOS Option
.....................................................................
Settings
4.2 Secondary Ethernet (Hub)/IR Interface
Enable/Disable.....................................................................
4.3 View Details
.....................................................................
4.4 Self-Test Procedure
.....................................................................
4.5 Resetting a.....................................................................
Phone
4.6 Site Specific
.....................................................................
Option Number
4.7 Automatic Gain
.....................................................................
Control
55
55
56
57
58
59
60
5. Restart Scenarios
5.1 Boot File Needs
.....................................................................
Upgrading
63
5.2 No Application File or Application File Needs
Upgrading
..................................................................... 63
5.3 Correct Boot File and Application File Already
Loaded
..................................................................... 63
6. Infrared Dialling
6.1 Enabling the
.....................................................................
IR Port
67
.....................................................................
67
6.2 Dialling Phone
Numbers
6.3 Beaming Files
.....................................................................
During a Call
68
H323 IP Telephone Installation
IP Office Release 6
Page 3
15-601046 Issue 16a (15 March 2010)
Chapter 1.
IP Office H323 IP Phones
H323 IP Telephone Installation
IP Office Release 6
Page 5
15-601046 Issue 16a (15 March 2010)
IP Office H323 IP Phones:
1. IP Office H323 IP Phones
This documentation provides notes for the installation of supported Avaya 1600, 4600 and 5600 IP 10 phones onto IP
Office phone systems. It should be used in conjunction with the existing installation documentation for those series of
phones, especially the following:
· 9600 Series IP Telephones Administrator Guide (16-300698)
· 4600 Series IP Telephone LAN Administrator Guide (555-233-507).
· 1600 Series IP Telephones Administrators Guide (16-601443).
· DHCP versus Static IP Installation
Though static IP installation of H323 IP phones is possible, installation using DHCP is strongly recommended. The
use of DHCP eases both the installation process and future maintenance and administration. For static installations,
following a boot file upgrade, all static address settings are lost and must be re-entered.
· Network Assessment
High quality voice transmission across an IP network requires careful assessment of many factors. Therefore:
· We strongly recommend that IP phone installation is only done by installers with VoIP experience.
· The whole customer network must be assessed for its suitability for VoIP, before installation. Avaya may refuse
to support any installation where the results of a network assessment cannot be supplied. See Network
Assessment 16 for further details.
H323 IP Telephone Installation
IP Office Release 6
Page 7
15-601046 Issue 16a (15 March 2010)
1.1 What is New
IP Office Release 6
The following changes specific to Avaya H323 IP phone support have been made as part of the IP Office 5.0 release.
· Avaya IP Phone Licenses
On IP500 and IP500 V2 systems, Avaya 1600, 4600, 5600, 9600, IP DECT, DECT R4, T3 IP, Spectralink and VPN
phones are licensed by Avaya IP Endpoint licenses. These licenses are consumed by each phone as it registers
with the IP Office system. Existing VCM channel resources and VCM Channel licenses enable a number of unlicensed
phone registrations.
· Existing VPN Remote licenses are no longer used. Phones using VPNremote client software require an Avaya IP
Phones license.
· Licenses are used on a first come first served basis as phones register with the IP Office system. Phones that
register but cannot get a license will only be able to make emergency calls. Through the IP Office configuration,
it is possible to pre-allocate available license capacity to selected extensions.
· 9600 Series Phones
IP Office Release 6 supports a number of phones from the 9600 Series of phones. Supported phones are the 9620L,
9620C, 9630G, 9640, 9640G, 9650 and 9650C.
IP Office Release 5
The following changes specific to Avaya H323 IP phone support have been made as part of the IP Office 5.0 release.
· Embedded Memory Card Usage
In order to simplify H323 phone installation and maintenance, a number of changes have been made, employing
the Embedded Voicemail memory card supported by IP406 V2 and IP500 control units.
· Automatic File Loading
Using the Embedded File Management option within IP Office Manager, the option File | Upload Phone Files
will transfer all necessary phone firmware files required for phones supported by IP Office 5.0 to the memory
card. Those files are then available to the phones if the IP Office is configured as the HTTP/TFTP server for
phones.
· Auto-Generated File Operation 24
If the IP Office is configured as the HTTP/TFTP file server for H323 phones, the Embedded Voicemail memory
card is used as the file store. The file server normally requires copies of various .scr and .txt files to be present.
For IP Office 5.0, if those files are not present on the memory card, the IP Office will auto-generate a suitable
file when it is requested by a phone.
· Extension Quality of Service Measurement
Through the IP Office configuration, H323 IP phones (1600 Series, 4600 Series and 5600 Series) can be enabled to
send QoS information to the IP Office system. For other types of extension, when their call involves a VCM channel,
QoS information is available. The QoS information is round trip delay, jitter and packet loss. This information is
used in a number of ways.
· QoS Display
Within the IP Office System Status Application (SSA), the current QoS measurements are shown for calls. This
is in addition to the QoS measurement already displayed by SSA for IP trunks.
· QoS Alarms
QoS alarms thresholds can be set within the IP Office configuration. On calls where a threshold is exceeded, an
alarm is generated at the end of the call. The alarm will contain the maximum value of all the QoS
measurements. QoS alarms are shown in SSA. They can also be specified for output as alarms via SNMP,
Syslog and/or email.
· Resilience
IP Office 5.0 includes support for a number of 'resilience' features within an IP Office Small Community Network.
This includes support for registered H323 phones and their users if the IP Office with which they are registered
should not be available on the network. For details of resilience operation refer to the IP Office 5.0 Manager
manual.
· VLAN Setting
This option within the IP Office configuration (System | LAN1/LAN2 | VoIP) is applied to H323 phones using the IP
Office for DHCP support. If set to Disabled, the L2Q value indicated to phones in the DHCP response is 2
(disabled). If set to Not Present, no L2Q value is included in the DHCP response.
H323 IP Telephone Installation
IP Office Release 6
Page 8
15-601046 Issue 16a (15 March 2010)
IP Office H323 IP Phones: What is New
IP Office 4.2
The following changes specific to H323 IP phone support have been made as part of the IP Office 4.2 release.
· Support for 1600 Series Phones
IP Office 4.2 Q4 2008+ supports the 1603, 1608, 1616 IP phones.
· HTTP Server Support
For Avaya IP phones using IP Office DHCP, the address of the HTTP server from which those phones should
download their software and settings files can now be specified in the IP Office configuration. 4600 Series and 5600
Series phones attempt to load files via HTTPS and then HTTP before falling back to TFTP. 1600 Series IP phones
only support HTTPS or HTTP.
· HTTP-TFTP Relay
The IP Office control unit supports HTTP-TFTP relay for HTTP file requests from phones.
· HTTP-TFTP Using an Embedded Memory Card
For IP Office 4.2, using the Embedded Voicemail memory card is also supported for HTTP file requests for
up to 50 IP phones. This is done by setting the TFTP Server IP Address and HTTP Server IP Address
to the control unit IP address. This method is supported for up to 50 IP phones.
· HTTP-TFTP Using IP Office Manager
For the IP Office 4.2 Q4 2008 maintenance release, HTTP-TFTP Relay is support using IP Office Manager as
the TFTP server. This is done by setting the TFTP Server IP Address to the address of the Manager PC
and the HTTP Server IP Address to the control unit IP address. This method is supported for up to 5 IP
phones.
· HTTP User Backup and Restore
The HTTP file support methods detailed in this manual are for the download of phone firmware, settings and
language files to phones. HTTP support for phone user settings backup and restore requires a separate HTTP
server, the address of which is defined with the phone settings files rather than through the DHCP server
configuration settings.
· Secondary Site Specific Options Number
A Site Specific Option Number (SSON) is used by Avaya IP phones when requesting phone specific settings from a
DHCP server. When the IP Office is acting as the DHCP server, the matching number must be set in the IP Office
configuration. IP Office 4.2 now provides two fields for settings SSON numbers in order to support Avaya 4600 and
5600 Series IP Phones (which use a default SSON of 176) and Avaya 1600 Series phones (which use a default
SSON of 242).
· IP Phone Restart using System Status Application
Individual Avaya IP phones or groups of phones can be selected and then restarted remotely using the System
Status Application. This allows individual phones or groups of phones to be restarted in order to upgrade their
firmware.
· IP500 DHCP Enhancements
The scope of DHCP support on IP500 has been enhanced in a number of areas.
· Full Avaya IP Phone Support
Previous only a maximum of 5 IP phones have been supported if using the IP Office for DHCP and TFTP
functions. An external DHCP server is required to support more than 5 Avaya IP Phones. For IP Office 4.2+, the
IP500 supports the fill extension capacity of the IP500 control unit.
· Multiple DHCP IP Address Pools
On each IP Office LAN interface, up to 8 DHCP address ranges (called 'pools') can be specified. These pools do
not have to be on the same subnet as the IP Office itself. This allows devices being supported by IP Office
DHCP to be given addresses on a different subnet than the IP Office.
· DHCP for Avaya IP Phones Only
The DHCP pools provided by the IP Office can be restricted for use by Avaya IP phones only. The IP Office will
then not respond to DHCP request from other devices.
· Embedded Card File Management
For systems with a compact flash memory card installed, the contents of the card can be viewed through Manager.
This mode is accessed through the File | Advanced | Embedded File Management option. This view can also
be used to add and remove files from the card. This may be useful when the memory card is being used to store
music on hold files and or phone firmware files.
· IP500 VCM Controls
For IP Office 4.2+, the VCM controls for echo and comfort noise supported in the IP Office configuration (System |
VCM) are now also applied to IP500 VCM cards.
H323 IP Telephone Installation
IP Office Release 6
Page 9
15-601046 Issue 16a (15 March 2010)
1.2 Supported Phones
This documentation provides installation notes for the following Avaya IP phone supported by IP Office. Other Avaya IP
phones, for example 3600 Series and IP DECT are covered by separate installation documentation.
H323 IP
Phones
1600
Series
4600
Series
5600
Series
Supported
Models
PC Port IP Office
Core
Software
Class
Idle
1603
2
4.4W
1603SW
2
4.4W
1608
2
3.7W
1616
2
2.7W
4601
2
4602
1
4602SW
2
3.5W
4606
0
4.1W
Up to 3.2.
4610SW[1]
2
4.0W
3.0+.
4612
0
4.1W
Up to 3.2.
4620
3
4.0W
4620SW
2
–
4621SW[1]
2
5.75W
4624
0
4.1W
4625
3
6.45W
5601
2
3.5W
–
5602
1
–
–
2
4.1W
2
3.1W
5620
3
3.6W
5621SW[1]
2
–
9620L
1
2.0W
9620C
2
3.9W
9630G
2
4.6W
9640
2
3.9W
9640G
2
3.9W
9650
2
4.7W
9650C
2
3.7W
5602SW
5610SW
9600
Series
802.3af PoE
Class
[1]
–
4.2 Q4 2008
+.
3.5W
–
3.0+
–
–
2.1+.
–
2.0+.
3.0+.
Up to 3.2.
3.2+
3.0+.
3.2+.
6+
1. VPNremote Support
These phones can also be used with VPNremote firmware.
2. 1603/1603SW
These phones require a PoE Splitter unit in order to user PoE.
H323 IP Telephone Installation
IP Office Release 6
Page 10
15-601046 Issue 16a (15 March 2010)
IP Office H323 IP Phones: Supported Phones
1.3 System Capacity
System capacity can be separated into two aspects; the number of configurable phone extensions and the number of
simultaneous IP phone calls.
Extension Capacity
The maximum number of H323 IP phones supported by an IP Office system is based on that system's maximum capacity
for extensions of any type as listed in the table below. To find the capacity for IP phones remove the number of physical
non-IP extensions installed on the system, ie. extension ports on the IP Office control unit and any external expansion
modules.
IP Office Unit
Maximum
Extensions
Maximum VCM
Channels
IP406 V2
190
30
IP412
360
60
IP500
384
128
IP500 V2
384
148
Call Capacity
There are a number of situations where the IP Office system needs to provide a voice compression channel in order for an
IP phone to make calls. These channels are provided by Voice Compression Modules (VCMs) installed in the IP Office
system. The number of VCM channels required and how long the channel is required will depend on a number of factors.
For further details see Voice Compression 17 .
A simple summary is:
· A VCM channel is required during call setup.
· The VCM channel is released if the call is to/from another IP device using the same compression codec (the
supported VCM codecs are G711, G729 and G723a).
· The VCM channel is used for the duration of the call when the call is to/from/via a non-IP device (extension or trunk
line).
· It should be remembered that VCM channels are also used for calls from non-IP devices to IP lines if those are
configured in the IP Office system (IP, SIP and SES lines).
· Calls from IP phones to the IP Office voicemail server use a VCM channel.
· Note that on Small Office Edition systems with Embedded Voicemail, an additional channel is used for every call
to voicemail.
H323 IP Telephone Installation
IP Office Release 6
Page 11
15-601046 Issue 16a (15 March 2010)
1.4 Phone Firmware
The firmware in Avaya IP phones is upgradeable and different releases of firmware are made available via the Avaya
support website. However H323 IP phones used on an IP Office system must only use the IP Phone software supplied with
the IP Office Manager application. Other versions of IP Phone software may not have been tested with IP Office and so
should not be used unless IP Office support is specifically mentioned in their accompanying documentation.
The phone firmware files are installed as part of the IP Office Manager application and are found in the applications
installation directory. By default this is c:\Program Files\Avaya\IP Office\Manager.
For IP Office 4.2+, they firmware files are also available on the IP Office Administrator Applications CD from which IP
Office Manager is installed. The files are located in the \program files\Avaya\IP Office\Manager folder of the
installation files. This makes it easier to locate all the files needed for IP phone installation though it also includes the .bin
files used for IP Office control and external expansion units.
H323 IP Telephone Installation
IP Office Release 6
Page 12
15-601046 Issue 16a (15 March 2010)
IP Office H323 IP Phones: Phone Firmware
1.5 Simple Installation
The diagram below shows a simple installation scenario that can be supported by all IP Office systems running IP Office
Release 6.
This type of installation uses the following equipment:
· IP Office
The IP Office control unit is performing a number of roles for the phones:
· DHCP Server
The IP Office unit is acting as the DHCP server for the Avaya IP phones. Key settings such as the file server
address are entered into the IP Office configuration and then provided to the phones in addition to their IP
address.The IP Office DHCP server can be configured to provide DHCP addresses only in response to requests
from Avaya IP phones. This allows an alternate DHCP server to be used for other devices that use DHCP.
· The IP Office control unit can provide DHCP support for up to 272 phones. Alternatively a separate DHCP
server can be used.
· H323 Gatekeeper
IP phones require an H323 gatekeeper to which they register. The gatekeeper then controls connecting calls to
the phone. In this scenario the IP Office control unit acts as the H323 Gatekeeper.
· File Server
During installation the IP phones need to download software and settings files for a file server. If the IP Office
control unit is fitted with a memory card (mandatory on IP500 v2 control units), that card can be used as the
file source.
· The IP Office control unit with memory card can act as the file server for up to 50 phones. Alternatively a
3rd-party HTTP server can be used.
· Switch
The IP Office control units have limited numbers of LAN connection ports. They are intended to be connected to a
LAN switch with port capacity for the customers network equipment.
· Power Supplies
Each H323 IP phone requires a power supply.
· Individual Power Supply Units
An individual power supply unit can be used with each phone. This will require a power supply socket at each
phone location. Note that for phones using a button module add-on, for example a EU24 or BM32, an individual
power supply unit is a requirement.
· Power over Ethernet Supply
Most Avaya IP phones can be powered from an 802.3af Power over Ethernet (PoE) power supply. The IP Office
system does not provide PoE ports so a separate PoE switch or PoE injector devices will be required to power a
phone using PoE.
H323 IP Telephone Installation
IP Office Release 6
Page 13
15-601046 Issue 16a (15 March 2010)
1.6 Installation Requirements
To install an IP phone on IP Office, the following items are required:
· o Extension Number and User Details
A full listing of the planned extension number and user name details is required. The planned extension number
must be unused and is requested by the phone during installation.
· o Power Supplies
Each phone requires a power supply. Avaya IP phones do not draw power from the IP Office. A number of options
exist for how power is supplied to the phones. See Power Supply Options 21 .
· o LAN Socket
An RJ45 Ethernet LAN connection point is required for each phone.
· o Category 5 Cabling
All LAN cables and LAN cable infrastructure used with H323 IP phones should use CAT5 cabling. Existing CAT3
cabling may be used but will be limited to 10Mbps (maximum).
· o LAN Cables
Check that an RJ45 LAN cable has been supplied with the IP phone for connection to the power supply unit. You will
also need an additional RJ45 LAN cable for connection from the power unit to the customer LAN.
· A further RJ45 LAN cable can be used to connect the user's PC to the LAN via the IP phone [not supported on
4601, 4602, 5601 and 5602 H323 IP phones].
· o Voice Compression Channels
The IP Office Unit must have voice compression channels installed. Channels are required during the connection if
calls involving IP phones and may also be required during the call. See Voice Compression Channels 17 for full
details.
· For Small Office Edition units, either 3 or 16 voice compression channels are pre-built into the unit.
· For IP400 control units, voice compression channels are provided by fitting a Voice Compression Module
17
.
· For IP500 control units, channels are installed using a IP500 VCM base card and licenses or using IP400 VCM
modules on an IP500 Legacy Card.
· o DHCP Server
The IP Office Unit can perform this role for up to 5 IP phone devices. If another DHCP server already exists, this
may be able to do DHCP for the H323 IP phones, see Alternate DHCP Servers 70 . Static IP addressing can also be
used, if required, but is not recommended.
· For IP500 IP Office 4.2+ systems, up to 272 IP phones are supported using the IP Office Manager.
· o HTTP/TFTP File Server
A PC running the IP Office Manager application can perform this role for up to 5 H323 IP phones. An IP Office
control unit with a memory card can use that memory card as the source for up to 50 phones. Otherwise an
alternate HTTP file server is required.
· o H323 Gatekeeper
The IP Office Unit performs this role.
· o IP Office Manager PC
A PC running Manager is required for IP Office Unit configuration changes. This PC should have a static IP address.
· o IP Telephone Software
The software for IP phone installation is installed into the IP Office Manager program folder during Manager
installation.
· o Licence Keys
For IP Office Release 6, licenses Avaya IP Endpoint licenses are required on IP500 and IP500 V2 systems. Refer to
Licenses.
H323 IP Telephone Installation
IP Office Release 6
Page 14
15-601046 Issue 16a (15 March 2010)
IP Office H323 IP Phones: Installation Requirements
1.7 Licenses
The following licensing rules apply to the support of Avaya H323 IP phones on IP Office Release 6 systems.
IP500 and IP500 V2 IP Office Systems
On IP500 and IP500 V2 systems, Avaya IP Endpoint license are these licenses are required for Avaya H323 IP phones.
This includes all 1600, 4600, 5600, 9600, IP DECT, DECT R4, T3 IP, Spectralink and VPN phones supported by IP Office
Release 6.
· The system will automatically license 12 Avaya IP phones for each IP500 VCM 32 or VCM 64 card installed in the
system without requiring additional licenses to be added to the configuration.
· Additional Avaya IP phones are licensed either by the addition of Avaya IP Endpoints licenses above or the
conversion of legacy IP500 VCM Channels licenses to Channel Migration licenses (see below).
· By default licenses are consumed by each Avaya IP phone that registers with the IP Office in the order that they
register. The license is released if the phone unregisters. However, it is possible to reserve a license for particular
phones in order to ensure that they phones always obtain a license. This is done through the Reserve Avaya IP
Endpoint Licence setting of each IP extension.
· Avaya IP phones without a license will still be able to register but will be limited to making emergency calls only
(Dial Emergency short code calls). The associated user will be treated as if logged off and the phone will display
"No license available". If a license becomes available, it will be assigned to any unlicensed DECT handsets first and
then to any other unlicensed Avaya IP phone in the order that the phones registered.
· For existing IP500 systems being upgraded to IP Office Release 6, the existing VCM channels and IP500 VCM
Channels license are treated as follows:
· For each IP400 VCM card installed in the system, each VCM channel supported by the card allows support for 3
Avaya IP phones.
· For each IP500 VCM32 and IP500 VCM64 card installed in the system, the 4 unlicensed VCM channels
previously provided by each card are converted to allow unlicensed support of 12 Avaya IP phones.
· For each legacy IP500 VCM Channels license, the license are converted Channel Migration licenses
supporting 3 Avaya IP phones. See the Channel Migration license below.
· The IP500 VCM 32 and IP500 VCM 64 cards will provide their full capacity of VCM channels, ie. providing up to
32 or 64 channels depending on the card type and the codecs being used.
Other IP Office Systems
On other IP Office systems, licenses are only required for phones using VPNremote firmware.
H323 IP Telephone Installation
IP Office Release 6
Page 15
15-601046 Issue 16a (15 March 2010)
1.8 Network Assessment
·
WARNING: A Network Assessment is Mandatory
When installing H323 IP phones on an IP Office system, it is assumed by Avaya that a network assessment has
been performed. If a support issue is escalated to Avaya, Avaya may request to see the results of the network
assessment and may refuse to provide support if a suitable network assessment was not performed.
Current technology allows optimum network configurations to deliver VoIP with voice quality close to that of the public
phone network. However, few networks are optimum and so care should be taken assessing the VoIP quality achievable
across a customer network.
Not every network is able to carry voice transmissions. Some data networks have insufficient capacity for voice traffic or
have data peaks that will impact voice traffic on occasion. In addition, the usual history of growing and developing
networks by integrating products from many vendors makes it necessary to test all the network components for
compatibility with VoIP traffic.
A network assessment should include a determination of the following:
· A network audit to review existing equipment and evaluate its capabilities, including its ability to meet both current
and planned voice and data needs.
· A determination of network objectives, including the dominant traffic type, choice of technologies and setting voice
quality objectives.
· The assessment should leave you confident that the network will have the capacity for the foreseen data and voice
traffic, and can support H323, DHCP, TFTP and jitter buffers in H323 applications.
The network assessment targets are:
· Latency: Less than 180ms for good quality. Less than 80ms for toll quality.
This is the measurement of packet transfer time in one direction. The range 80ms to 180ms is generally acceptable.
Note that the different audio codecs used each impose a fixed delay caused by the codec conversion as follows:
· G711: 20ms.
· G723a: 80ms.
· G729: 40ms.
· Packet Loss: Less than 3% for good quality. Less than 1% for toll quality.
Excessive packet loss will be audible as clipped words and may also cause call setup delays.
· Jitter: Less than 20ms.
Jitter is a measure of the variance in the time for different packets in the same call to reach their destination.
Excessive jitter will become audible as echo.
· Duration: Monitor statistics once every minute for a full week.
The network assessment must include normal hours of business operation.
H323 IP Telephone Installation
IP Office Release 6
Page 16
15-601046 Issue 16a (15 March 2010)
IP Office H323 IP Phones: Network Assessment
1.9 Voice Compression
Calls to and from IP devices can require conversion to the audio codec format being used by the IP device. For IP Office
systems this conversion is done by voice compression channels. These support the common IP audio codecs G711, G723
and G729a.
For IP400 control units channels can be added by fitting IP400 Voice Compression Modules (VCMs). For the IP500 control
units, channels can be added using IP500 VCM cards, IP500 Combination Cards and or IP400 Voice Compression Modules.
The voice compression channels are used as follows:
Call Type
Voice Compression Channel Usage
IP Device to Non-IP
Device
These calls require a voice compression channel for the duration of the call. If no channel is
available, busy indication is returned to the caller.
IP Device to IP Device
Call progress tones (for example dial tone, secondary dial tone, etc) do not require voice
compression channels with the following exceptions:
· Short code confirmation, ARS camp on and account code entry tones require a voice
compression channel.
· Devices using G723 require a voice compression channel for all tones except call
waiting.
When a call is connected:
· If the IP devices use the same audio codec no voice compression channel is used.
· If the devices use differing audio codecs, a voice compression channel is required for
each.
Non-IP Device to NonIP Device
No voice compression channels are required.
Music on Hold
This is provided from the IP Office's TDM bus and therefore requires a voice compression
channel when played to an IP device.
Conference Resources
and IP Devices
Conferencing resources are managed by the conference chip which is on the IP Office's TDM
bus. Therefore, a voice compression channel is required for each IP device involved in a
conference. This includes services that use conference resources such as call listen, intrusion,
call recording and silent monitoring.
Page Calls to IP Device
IP Office 4.0 and higher only uses G729a for page calls, therefore only requiring one channel
but also only supporting pages to G729a capable devices.
Voicemail Services and
IP Devices
Calls to the IP Office voicemail servers are treated as data calls from the TDM bus. Therefore
calls from an IP device to voicemail require a voice compression channel.
Fax Calls
These are voice calls but with a slightly wider frequency range than spoken voice calls. IP
Office only supports fax across IP between IP Office systems with the Fax Transport option
selected. It does not currently support T38.
T38 Fax Calls
IP Office 5.0+ supports T38 fax on SIP trunks and SIP extensions. Each T38 fax call uses a
VCM channel.
Within a Small Community Network, a T38 fax call can be converted to a call across an H323
SCN lines using the IP Office Fax Transport Support protocol. This conversion uses 2 VCM
channels.
In order use T38 Fax connection, the Equipment Classification of an analog extension
connected to a fax machine can be set Fax Machine. Additionally, a new short code feature
Dial Fax is available.
Note: T3 IP devices must be configured to 20ms packet size for the above conditions to apply. If left configured for 10ms
packet size, a voice compression channel is needed for all tones and for non-direct media calls.
H323 IP Telephone Installation
IP Office Release 6
Page 17
15-601046 Issue 16a (15 March 2010)
Measuring Channel Usage
The IP Office System Status Application can be used to display voice compression channel usage. Within the Resources
section it displays the number of channel in use. It also displays how often there have been insufficient channels available
and the last time such an event occurred.
The IP500 VCM cards, the level of channel usage is also indicated by the LEDs (1 to 8) on the front of the IP500 VCM
card.
Installing VCM Cards
Refer to the IP Office Installation manual.
H323 IP Telephone Installation
IP Office Release 6
Page 18
15-601046 Issue 16a (15 March 2010)
IP Office H323 IP Phones: Voice Compression
1.10 QoS
When transporting voice over low speed links it is possible for normal data packets (1500 byte packets) to prevent or
delay voice packets (typically 67 or 31 bytes) from getting across the link. This can cause unacceptable speech quality.
Therefore, it is vital that all traffic routers and switches in the network to have some form of Quality of Service (QoS)
mechanism. QoS routers are essential to ensure low speech latency and to maintain sufficient audible quality.
IP Office supports the DiffServ (RFC2474) QoS mechanism. This is based upon using a Type of Service (ToS) field in the IP
packet header. On its WAN interfaces, IP Office uses this to prioritize voice and voice signalling packets. It also fragments
large data packets and, where supported, provides VoIP header compression to minimize the WAN overhead.
Note
· IP Office does not perform QoS for its Ethernet ports including the WAN Ethernet port on the Small Office Edition.
1.11 Potential VoIP Problems
It is likely that any fault on a network, regardless of its cause, will initially show up as a degradation in the quality of VoIP
operation. This is regardless of whether the fault is with the VoIP telephony equipment. Therefore, by installing a VoIP
solution, you must be aware that you will become the first point of call for diagnosing and assessing all potential customer
network issues.
Potential Problems
· End-to-End Matching Standards
VoIP depends upon the support and selection of the same voice compression, header compression and QoS
standards throughout all stages of the calls routing. The start and end points must be using the same compression
methods. All intermediate points must support DiffServ QoS.
· Avoid Hubs
Hubs introduce echo and congestion points. If the customer network requires LAN connections beyond the capacity
of the IP Office Unit itself, Ethernet switches should be used. Even if this is not the case, Ethernet switches are
recommended as they allow traffic prioritization to be implemented for VoIP devices and for other device such as
the Voicemail Server PC.
· Power Supply Conditioning, Protection and Backup
Traditional phone systems provide power to all their attached phone devices from a single source. In a VoIP
installation, the same care and concern that goes into providing power conditioning, protection and backup to the
central phone system, must now be applied to all devices on the IP network.
· Multicasting
In a data only network, it is possible for an incorrectly installed printer or hub card to multicast traffic without that
fault being immediately identified. On a VoIP network incorrect multicasting will quickly affect VoIP calls and
features.
· Duplicate IP Addressing
Duplicate addresses is a frequent issue.
· Excessive Utilization
A workstation that constantly transmits high traffic levels can flood a network, causing VoIP service to disappear.
· Network Access
An IP network is much more open to users connecting a new device or installing software on existing devices that
then impacts on VoIP.
· Cabling Connections
Technically VoIP can (bandwidth allowing) be run across any IP network connection. In practice, Cat5 cabling is
essential.
H323 IP Telephone Installation
IP Office Release 6
Page 19
15-601046 Issue 16a (15 March 2010)
1.12 User PC Connection
To simplify the number of LAN connections from the user's desk, it is possible to route their PC Ethernet LAN cable via
some H323 IP phones. The LAN cable should be connected from the PC to the socket with a PC symbol ( ) at the back of
the IP phone. The PC's network configuration does not need to be altered from that which it previously used for direct
connection to the LAN.
Except for phones with a G suffix this port supports 10/100Mbps ethernet connections. Phones with a G suffix also support
1000Mbps Gigabit connections. For other phones a separate Gigabit Adapter (SAP 700416985) must be used. This device
splits the data and voice traffic before it reaches the phone, providing a 10/100Mbps output for the phone and a
10/100/1000Mbps output for the PC. The adapter is powered from the phone's existing PoE supply or 1151 type power
supply unit. Refer to the "Gigabit Ethernet Adapter Installation and Safety Instructions" (16-601543).
H323 IP Telephone Installation
IP Office Release 6
Page 20
15-601046 Issue 16a (15 March 2010)
IP Office H323 IP Phones: User PC Connection
1.13 Power Supply Options
Each H323 IP phone requires a power supply. They do not draw power from the IP Office phone system. Listed below are
the power supply options that can be used.
Spare Wire Power Options
The following power supplies use the normally unused pin 7 & 8 connections in the CAT3 or CAT5 network cable. This is
referred to as "spare wire" or "mid-span" power supply units. They can be used with 4600 Series and 5600 Series IP
phones.
· Avaya 1151D1 Power Supply Unit (PSU)
A power supply unit for a single IP phone. Has a LINE port for the LAN cable from the IP Office, and a PHONE port
for the LAN cable to the IP phone. Power into the PSU requires a 90 to 264V AC, 47 to 63HZ mains supply. A green
LED indicates when power is available.
· Avaya 1151D2 Power Supply Unit
Same as the 1151C1 above but with integral battery backup. When AC mains supply is removed, the battery will
power the IP phone for between 8 hours at light load (2 Watts) and 15 minutes at full load (20 Watts). A green LED
indicates when power is available. A yellow LED indicates when the backup is charging. The green LED flashes when
the phone is running from the backup battery.
Dedicated Plug-Top Power Supply Units
1600 Series IP phones can be powered using plug-top PSU's. Different models of PSU exist for various power outlet
sockets. These connect to the phone using a barrel connector.
H323 IP Telephone Installation
IP Office Release 6
Page 21
15-601046 Issue 16a (15 March 2010)
802.3af Power over Ethernet (PoE) Options
IEEE 802.3af is a standard commonly known as Power over Ethernet (PoE). It allows network devices to receive power via
the network cable using the same wires as the data signals. All the H323 IP phones supported on IP Office also support
this standard. Note that for phones being used with an add-on unit such as an EU24, EU24BL or BM32, an individual power
supply must be used rather than PoE.
· Exceeding the Class limit of a PoE port or the total Class support of a PoE switch may cause incorrect operation.
· Avaya 1152A1 Power Distribution Unit (Mid-Span Power Unit)
This is a 1U high 19-inch rack mountable unit. It is available in models to support 6, 12 or 24 PoE devices including
H323 IP phones. For each device, it provides a RJ45 data in ports and a matching RJ45 data and power out port. It
can support a maximum of 200 Watts or a peak of 16.8 Watts per port.
· Power of Ethernet (POE) Switch
The Avaya P333T-PWR Switch is a Ethernet LAN switch which also provides PoE input for up to 24 devices including
H323 IP phones.
· IP Phone Inline Adaptor
This adaptor allows 4602, 4602SW, 4620, 4621 and 4625 H323 IP phones and 5600 Series equivalents to be
powered from a Cisco Catalyst power blade. Using these adaptors, up to 24 H323 IP phones can be supported on a
single power blade. The phones do not provide the Catalyst switch with information on their power requirements
and future changes to Catalyst switch software may affect operation.
H323 IP Telephone Installation
IP Office Release 6
Page 22
15-601046 Issue 16a (15 March 2010)
IP Office H323 IP Phones: Power Supply Options
1.14 File Server Options
During installation and maintenance, the phones download software and settings files. In order to do this a phone first
request files for an HTTPS server. If it gets no response it then tries to obtain the files from an HTTP server. 4600 and
5600 Series phones will then try TFTP. The address of the server to use is provided through DHCP or entered during static
phone installation.
· The phones will check the file server every time they are restarted. However if they do not find it they will continue
by using the existing files they have. Therefore there is no requirement for the file sever to be permanently
available. The file server is only required during phone installation and maintenance.
The following options are available for the file server for IP phones being installed on an IP Office system.
File Server
Description
IP Office Manager When running, the IP Office Manager acts as a
HTTP/TFTP server for file requests from
phones.
Up to X
Phones
HTTP
HTTPS
5
–
–
IP Office Unit
Memory Card
For IP Office control units fitted with an
additional memory card, that card can be used
to provided the software files. Various other
files can be auto-generated 24 by the IP
Office if not present on the memory card.
50
3rd Party
Software
3rd Party HTTP and TFTP file server software is
available from many sources including Avaya.
–
H323 IP Telephone Installation
IP Office Release 6
TFTP
Page 23
15-601046 Issue 16a (15 March 2010)
1.15 File Auto Generation
For IP Office 5.0+, for systems configured to use the IP Office control unit's memory card as the file server source, the IP
Office is able to auto-generate the necessary file in response to a phone request if the specific file is not present on the
card. This operation is supported for the following files:
· 16xxupgrade.txt
This file will list the the firmware files for 1600 Series series phones supported by the IP Office. The last line will
contain the filename 46xxsettings.txt.
· 46xxupgrade.scr
This file will list the firmware files for 4600 Series and 5600 Series phones supported by the IP Office. The last line
will contain the filename 46xxsettings.txt.
· 96xxupgrade.txt
This file will list the the firmware files for 1600 Series series phones supported by the IP Office. The last line will
contain the filename 46xxsettings.txt.
· For both the files above, the appropriate .bin files must be manually copied to the memory card. The IP Office
5.0 Manager application provides controls for this.
· The contents of the files above are System Locale dependant as different firmware files are required to
support certain language locales (for example Russia).
· 46xxsettings.txt
This file will match the file supplied with the IP Office 5.0+ Manager application except as follows:
· The BRIURI value will be set to indicate the IP Office memory card as location for backup and restore actions.
· The LANG1FILE to LANG4FILE values for 1600 Series phone non-English language files will be determined
from the best match to the system locale and the most common user locales. Languages supported are Dutch,
French, French (Canadian), German, Italian, Latin Spanish, Portuguese, Russian, Spanish.
· 1600 Series Language files
If the 46xxsettings.txt file is auto-generated, the matching 1600 Series phone languages specified in that file will
also be auto-generated.
· <ext>_16xxdata.txt
If the 46xxsettings.txt file is auto-generated, it will specify the IP Office memory card as the location for phones
to backup and restore user settings. If no file exists for a user, a file will be auto-generated.
H323 IP Telephone Installation
IP Office Release 6
Page 24
15-601046 Issue 16a (15 March 2010)
IP Office H323 IP Phones: File Auto Generation
1.16 Control Unit Memory Card
The memory card used with IP406 V2, IP500 and IP500 V2 systems can be used to store files including those used by
Avaya IP Phones.
· Non-Avaya supplied Compact Flash memory cards can be used for this type of file storage. However, they will not
support embedded voicemail.
· If an Avaya supplied memory card is used, any files stored in this way will reduce the message storage capacity of
the Compact Flash memory card.
· The IP500 V2 control unit requires a System SD card at all times and this card normally holds a full set of IP Office
firmware files including those used by Avaya IP phones.
Transferring Files Using IP Office Manager
IP Office 4.2+ allows the contents of the memory card in a system to be viewed and updated. This is done using IP Office
Manager and requires the same user name and password access as used for configuration changes.
1. Within IP Office Manager, select File | Advanced | Embedded File Management.
2. The Select IP Office discovery menu is shown. Select the IP Office systems whose memory card you want to view
and click OK.
3. Enter a user name and password for configuration access to that system.
· TFTP: Received TFTP Error "Not Found" in the Manager status bar indicates that no card was detected in
the selected system. To select another system use File | Open File Settings. To return Manager to normal
configuration mode select File | Configuration.
4. The contents of the card are shown in Manager.
· For IP Office 5.0+, all the phone firmware files can be transferred by selecting File | Upload Phone Files or
for IP500 V2 systems File | Upload System Files. This will automatically select the phone firmware files that
Manager has available and transfer them to the memory card.
· New files can be drag and dropped to the Files section of the currently selected folder or transferred using File
| Upload File.... The transfer is serial and can be interrupted by other activities on the IP Office system.
Therefore it is recommended that files are transferred in small batches.
· Existing files can be deleted by right-clicking on the file and selecting Delete.
· Files can be downloaded from the card by right-clicking on the file and selecting Download. The file is
downloaded to the Manager applications working directory.
5. When transfers have been completed, to select another system use File | Open File Settings. To return Manager
to normal configuration mode select File | Configuration.
H323 IP Telephone Installation
IP Office Release 6
Page 25
15-601046 Issue 16a (15 March 2010)
Chapter 2.
Installation
H323 IP Telephone Installation
IP Office Release 6
Page 27
15-601046 Issue 16a (15 March 2010)
2. Installation
Check the following before beginning installation:
1.o IP Office Manager PC
Check that the applications for configuring and monitoring an IP Office system are available and able to connect to
that system.
· o Check that IP Office Manager and IP Office System Status Application (SSA) or System Monitor are installed
and can be used to connect to the IP Office system.
· o Verify that you can receive the configuration from the system and send it back to the IP Office.
· o Ensure that the Manager PC has been given a static IP address.
2.o Voice Compression Channels
The IP Office Unit must be fitted with a voice compression channels 17 . Use either SSA or System Monitor
application to verify that the voice compression channels are available. SSA list the VCM channels on the
Resources screen. The initial lines of Monitor output include the item VCOMP= which will state the number of
channels installed in the control unit.
3.o Avaya IP Endpoint Licenses
If installing onto an IP500 or IP500 V2 system, each phone requires a license.
4.o File Server Settings
Using Manager, receive the configuration from the IP Office. Select System and then select the System tab. Check
the following:
· o System Name
On the System tab ensure that a Name for the IP Office Unit has been entered.
· o TFTP Server IP Address
If using TFTP to download software file to the phones, enter the TFTP server address here. This address is used
by the IP phones (excluding 1600 Series) being supported by IP Office DHCP. If another DHCP server is being
used, that address must be set via the DHCP settings on that server, see Alternate DHCP Setup 70 .
· The default 0.0.0.0 will cause the phones to broadcast for any TFTP server available on the same subnet
as themselves.
· To use the memory card installed in the system, enter the LAN1 IP address of the IP Office system (the
address is shown on the LAN1 tab). To use this option the card must be loaded with the IP phone software
files, see Control Unit Memory Card 25 .
· If a 3rd-party TFTP server is being used, set the IP address to the address of the PC running that
software.
· o HTTP Server IP Address
IP Office 4.2+ supports the use of HTTP for file requests from IP phones. This is necessary for 1600 Series
phones and is supported by all other Avaya IP phones. This address is used by the IP phones being supported
by IP Office DHCP. If another DHCP server is being used, that address must be set via the DHCP settings on
that server, see Alternate DHCP Setup 70 .
· The default 0.0.0.0 disables HTTP support.
· For IP Office 4.2, using the Embedded Voicemail memory card is also supported for HTTP file requests for
up to 50 IP phones. This is done by setting the TFTP Server IP Address and HTTP Server IP Address
to match the control units IP address. This is supported for up to 50 IP phones.
· If a 3rd-party HTTP server is being used, set the IP address to the address of the PC running that
software.
5.o H323 Gatekeeper Settings
Select System and then select the LAN1 tab. Select the Gatekeeper sub tab. Check the following settings:
· o H323 Gatekeeper Enabled
Ensure that this option is enabled.
· o H323 Auto-created Extn
This installation process assumes that this option is enabled until after installation of the phones has been
completed. If not enabled the you must manually add extensions to the IP Office configuration before
installation. See Manually Creating Extensions 33 .
· o H323 Auto-create User
This installation process assumes that this option is enabled until after installation of the phones has been
completed. If not enabled the you must manually add users to the IP Office configuration before installation.
· o Primary Site Specific Option Number
Devices being supported by DHCP can request device specific information using a site specific option number
(SSON). This method is used for Avaya IP phones to request phone specific information from a DHCP server.
For IP phones beign supported by IP Office DHCP, the SSON set here should match that being used by the
phones. By default Avaya 4600 and 5600 Series IP phones use the 176 as their SSON.
H323 IP Telephone Installation
IP Office Release 6
Page 28
15-601046 Issue 16a (15 March 2010)
Installation:
· Secondary Site Specific Option Number (IP Office 4.2+)
This field allows a second SSON to be specified for use by IP phones. By default Avaya 1600 Series IP phones
use 242 as their SSON.
6.o DHCP Server
If not using the IP Office for DHCP, check that the alternate DHCP server has been configured for the IP phones. It
will need to include details of the files server and gateway settings. See Alternate DHCP Setup 70 . If using the IP
Office for DHCP, select System and then the LAN1 or LAN2 tab.
· o DHCP Mode
Check that the IP Office is set as Server. This allows it to respond to DHCP requests on its subnet.
· o Number of DHCP IP Addresses
Set this to a number sufficient for all the IP devices, including phones, that will be supported by the IP Office
DHCP.
· o Advanced/DHCP Pools (IP500 4.2+)
For IP Office 4.2+ on IP500 systems, multiple ranges of IP addresses can be configured for use by IP Office
DHCP. In addition, the IP Office DHCP can be restricted to Avaya IP phones only by selecting Apply to Avaya
IP Phones Only.
7.o IP Phone Software and Settings Files
The software for IP phone installation is supplied on the IP Office Administrator Applications CD. Those files must be
placed on the file server. The files are automatically installed as part of the IP Office Manager application and so are
already present if IP Office Manager is used as the file server.
· If another source is used as the file server, the software and settings files must be copied to that server. For
pre-IP Office 4.2 system the files must be copied from the Manager application folder. For IP Office 4.2+ the
files can be copied from the location program files\Avaya\IP Office\Manager on the installation CD.
· If it does not exist already an additional file, 46xxsettings.txt, is also required. See Creating a 46xxsettings.
txt File 31 .
8.o Extension Number and User Name Details
A full listing of the planned extension number and user name details is required. The planned extension number
must be unused and is requested by the phone during installation.
H323 IP Telephone Installation
IP Office Release 6
Page 29
15-601046 Issue 16a (15 March 2010)
2.1 Adding Licenses
On IP500 and IP500 V2 systems, each Avaya IP phone requires a license. This includes all 1600, 4600, 5600, 9600, IP
DECT, DECT R4, T3 IP, Spectralink and VPN phones supported by IP Office Release 6.
· The system will automatically license 12 Avaya IP phones for each IP500 VCM 32 or VCM 64 card installed in the
system without requiring additional licenses to be added to the configuration.
· Additional Avaya IP phones are licensed either by the addition of Avaya IP Endpoints licenses above or the
conversion of legacy IP500 VCM Channels licenses to Channel Migration licenses (see below).
· By default licenses are consumed by each Avaya IP phone that registers with the IP Office in the order that they
register. The license is released if the phone unregisters. However, it is possible to reserve a license for particular
phones in order to ensure that they phones always obtain a license. This is done through the Reserve Avaya IP
Endpoint Licence setting of each IP extension.
· Avaya IP phones without a license will still be able to register but will be limited to making emergency calls only
(Dial Emergency short code calls). The associated user will be treated as if logged off and the phone will display
"No license available". If a license becomes available, it will be assigned to any unlicensed DECT handsets first and
then to any other unlicensed Avaya IP phone in the order that the phones registered.
· For existing IP500 systems being upgraded to IP Office Release 6, the existing VCM channels and IP500 VCM
Channels license are treated as follows:
· For each IP400 VCM card installed in the system, each VCM channel supported by the card allows support for 3
Avaya IP phones.
· For each IP500 VCM32 and IP500 VCM64 card installed in the system, the 4 unlicensed VCM channels
previously provided by each card are converted to allow unlicensed support of 12 Avaya IP phones.
· For each legacy IP500 VCM Channels license, the license are converted Channel Migration licenses
supporting 3 Avaya IP phones. See the Channel Migration license below.
· The IP500 VCM 32 and IP500 VCM 64 cards will provide their full capacity of VCM channels, ie. providing up to
32 or 64 channels depending on the card type and the codecs being used.
H323 IP Telephone Installation
IP Office Release 6
Page 30
15-601046 Issue 16a (15 March 2010)
Installation: Adding Licenses
2.2 Creating/Editing the Settings File
During installation, the H323 IP phones request software by downloading and following instructions within the
46xxupgrade.scr file. This file is provided as part of the IP Office Manager software and should not normally be
changed.
The last lines of the 46xxupgrade.scr file instruct the phone to request the file 46xxsettings.scr or 46xxsettings.txt.
If present, that file is downloaded and used to set customer site specific options for the H323 IP phones. It is this
46xxsettings file that is used to contain site specific options for phones and should be edited to meet the customer
requirements before installation of the phones.
File Auto-Generation
For IP Office 5.0+, when using the IP Office's memory card for file serving, a number of files including the 46xxsettings.txt
file can be auto-generated 24 .
Manually Editing the File
1. Using Windows Notepad or any other plain text editing tool, open the 46xxsettings.txt file.
2. Edit the file as required. The file contains numerous comments and notes. Further details of the various settings are
contained in the 4600 Series IP Telephone LAN Administrator Guide. For some specific options see the notes below.
· A # character at the start of a line comments out the command on that line. Note however that for some
options the phones will assume a default value if the option in the 46xxsettings.txt file is commented out. For
example if SET PHNOL is commented out, the phones will assume the addition of a dial 9 prefix to numbers.
3. Place this file in the same folder as the 4600 Series IP Phone software files including the 46xxupgrade.scr file.
Normally this is the same folder as the Manager application.
4. Ensure that you have a copy of the edited file.
Dialing Prefix
For IP Office systems the addition or removal of dialing prefixes is normally done by the IP Office system rather than
individual phones or applications. For IP Office operation the following changes are recommended in the ENHANCED LOCAL
DIALING RULES section of the 46xxsettings.txt file.
· Change ## SET ENHDIALSTAT 0 to ENDIALSTAT 0.
· Change ## SET PHNOL 9 to SET PHNOL "".
802.1Q Tagging
Unless specifically required for the customer network, for IP Office operation it is recommended that ## SET L2Q 0 is
changed to SET L2Q 2.
WML Web Server Setup
If a WML web site has been setup for viewing by phone users, see WML Server Setup 76 , the site address is set through
the 46xxsettings file. Change ## WMLHOME http://..... to WMLHOME followed by the required address.
H323 IP Telephone Installation
IP Office Release 6
Page 31
15-601046 Issue 16a (15 March 2010)
1600/9600 Series Phone Languages
In addition to English, the 1600 and 9600 phones can support up to 4 language other languages. This is done by the
phones downloading languages files specified in the 46xxsettings.txt file. Currently 9 non-English language files are
provided as part of the IP Office Manager installation.
Language
1600 File
9600 File
Dutch
French Canadian
French
German
Italian
mlf_dutch.txt
mlf_french_can.txt
mlf_french_paris.txt
mlf_german.txt
mlf_italian.txt
mlf_9600_dutch.txt
mlf_9600_french_can.txt
mlf_9600_french_paris.txt
mlf_9600_german.txt
mlf_9600_italian.txt
Latin Spanish
mlf_spanish_latin.txt
mlf_9600_spanish_latin.txt
Portuguese
mlf_portuguese.txt
mlf_9600_portuguese.txt
Russian
mlf_russian.txt
mlf_9600_russian.txt
Spanish
mlf_spanish.txt
mlf_9600_spanish.txt
The files to download to the phones are defined in the # SETTINGS1603, # SETTINGS1608 and # SETTINGS1616 sections of
the 46xxsettings.txt file. To have the phone download a language file, remove the ## in front of one of the SET options
and change the file name to match the required language.
Backup/Restore
Phones can use an HTTP server as a location to which the user's phone settings are backed up and restore when they log
on or off the phone. See Backup Restore 38 for full details.
H323 IP Telephone Installation
IP Office Release 6
Page 32
15-601046 Issue 16a (15 March 2010)
Installation: Creating/Editing the Settings File
2.3 Manually Creating Extensions
If installing without auto-create extensions enabled, then VoIP extensions and associated users must first be created in IP
Office Manager.
The procedure below covers the minimum required to create a VoIP extension and associated user. Further customization
is as per any extension and user.
1. In Manager, receive the system's configuration.
2. To display the list of existing extensions, click
panel and select New.
Extension in the left-hand panel. Right-click on the right-hand
3. In the Extn tab, set the following:
· Extension ID
For non-VoIP extension this number is assigned automatically. For a VoIP extension, enter any number so long
as it is unique, i.e. not already used by another extension.
· Base Extension
Enter the extension number to assign to the phone. Again, this must be unique.
4. In the VoIP tab, the required IP Address and/or MAC Address can be set if required for additional phone security.
See Phone Security 37 .
5. To add the new extension, click OK.
6. To display the list of existing users, click
select New.
User in the left-hand panel. Right-click on the right-hand panel and
7. In the User tab set the following:
· Name
Enter a name for the extension user. The name must be unique. If voicemail is in use, this name will be used
as the basis for a new mailbox with matching name.
· Extension
This must match the extension number set in the VoIP extension created above.
8. Click on the Button Programming tab.
9. For the first three buttons, you must click on the Action field and select Appearance | Appearance.
10.Click on OK.
11.When all new IP phone extension being added have been setup, send the new configuration back to the system.
Set the Reboot Mode to Immediate or When Free as Extension changes cannot be merged.
H323 IP Telephone Installation
IP Office Release 6
Page 33
15-601046 Issue 16a (15 March 2010)
2.4 Phone Connection
In this process the phone is connected to its power source and the ethernet LAN. As soon as the phone is powered up it
will start to request information.
1. Follow the steps in Preparation 28 . If these steps are not followed, installation will fail. Ensure that the selected file
server is running and that the required files are present. Check that the DHCP server is running.
2. Connect the network LAN cable to the data-in socket of the power supply being used for the phone.
· On 1151 power supply units, the socket is marked LINE.
· On the 1152 power supply units, the lower sockets are data-in.
3. Connect the LAN cable supplied with the IP phone from the power supplies data and power out socket to the socket
with a LAN port symbol ( ) at the back of the IP phone.
· On 1151 power supply units, the socket is marked PHONE.
· On the 1152 power supply units, the upper sockets are data and power.
4. The phone's message indicator should glow red for a few seconds. The phone will then begin its software loading.
5. After a short delay, the phone displays Initializing and then Loading…. The loading phase may take a few
minutes.
6. If the phone has an existing software boot file (ie. it has been previously installed), it will load that file and then
display Starting....
7. If the phone displays No Ethernet, check the connection to the LAN.
8. The phone displays DHCP and a timer as it attempts to request an IP address and other information from a DHCP
server. On 4601 and 5601 phones, initially all lamps will be on as the phone initializes. All lamps on (with the
button a lamp flashing) indicates attempting DHCP.
· To switch to static address installation
Press * whilst DHCP is shown if you want to enter static address installation. See Static Address Installation
. This is not recommended for 4601 and 5601 IP phones.
35
9. After a few seconds, DHCP negotiation should be completed. If the timer reaches more than 60 seconds, it could
indicate an error in either the network or DHCP server configuration.
10.Once DHCP has completed successfully, the phone will display HTTP or TFTP as it request files from the file server
indicated by the DHCP settings. The first file requested is the 46xxupgrade.scr file. This file contains details of the
other files that the phone should load.
· The phones will go through a sequence of loading files, restarting and loading further files until the files on the
phone match those listed for it in the 46xxupgrade.scr file. For phones with some files already installed, the
sequence may vary depending on whether the existing files match those specified in the 46xxupgrade.scr
file.
· On 4601 and 5601 phones, all lamps will be on with both the button a and button b lamps flashing whilst file
loading is attempted and occurring.
11.The phone now requests additional files according to the instructions it found in the 46xxupgrade.scr file. The
phone will go through a cycle of requesting files, loading files and then transferring the files into its flash memory.
12.Following file loading, the phone displays Ext. =. See Phone Registration
H323 IP Telephone Installation
IP Office Release 6
36
.
Page 34
15-601046 Issue 16a (15 March 2010)
Installation: Phone Connection
2.5 Static Address Installation
Static addressing is only necessary when a DHCP server is unavailable or not desired. For ease of maintenance and
installation, it is strongly recommended that a DHCP server is installed and that static addressing is avoided. Following a
boot file upgrade, static address information must be reinstalled. This process is not supported on 4601 and 5601 phones.
1. Follow the steps in Phone Connection 34 until DHCP is shown on the phone display. Press * at this point to switch
the phone to static address installation.
· Existing installed phones can be made to start static address installation using the following key sequence.
While the phone is on-hook and idle, press MUTE 2 3 3 7 # (MUTE A D D R #).
2. The phone will display a sequence of settings and the existing value for each of those settings. To accept the
current value, press # or enter a value and then press #.
3. While entering data in the following actions it may sometimes be necessary to backspace. The method for doing this
varies according to the phone type:
· 4602, 5602:
· 4606:
Speaker key.
Conference key.
· 4612 & 4624:
Previous key.
· 4610, 4620, 4625, 5610, 5620: Left-most key.
4. The settings shown for static address installation are:
· Phone=
This is the phone's IP address. To accept the current value, press # or enter a value and then press #. If
entering a new value, press the * key to enter a '.' character between digits.
· CallSv=
This is the address of the H323 gatekeeper. For IP Office systems this is the IP address of the IP Office LAN1.
· CallSvPort=
This is the Gatekeeper transport layer port number. For Avaya IP phones the value used should be 1719. To
accept the current value, press # or enter a value and then press #.
· Router=
This is the address of the phone's default IP gateway. For IP Office this is typically the IP address of the IP
Office LAN1. To accept the current value, press # or enter a value and then press #.
· Mask=
This is the phone's IP Mask (also called the subnet mask). The mask is used with the IP address to indicate the
phone's subnet. This should match the IP mask set for the IP Office Unit.
· FileSv=
This is the address of the file server from which the phone should request software and settings files. Enter the
address of the TFTP or HTTP configured with the Avaya IP phone software file set.
· 802.1Q=
To change the setting press *. Press # to accept the value.
· VLAN ID=
For details of VLAN configuration see VLAN and IP Phones
47
.
5. If you go through without changing anything the phone displays No new values. Press #.
· If the phone displays Enter command power off and on again.
6. Once all the values have been entered or the existing values accepted the phone will display Save new values?.
To save the values press #. The phone will save the values and then restart using those values.
· If a new boot program is downloaded from the TFTP server after you enter static address information, you will
need to re-enter your static address information.
H323 IP Telephone Installation
IP Office Release 6
Page 35
15-601046 Issue 16a (15 March 2010)
2.6 Phone Registration
For new phones and phones that have been reset 58 , the phone will request an extension number. If auto-create is
enabled the extension number used, if free, will create new extension and user entries in the IP Office configuration. If
auto-create is not enabled, the extension number used must match a VoIP extension entry within the IP Office
configuration, see Manually Creating Extensions 33 .
1. Following file loading the phone will request extension information:
· Ext. =
Enter the extension number the phone should use and press #. Wrong Set Type is displayed if you try to use
the extension number of an existing non-IP extension.
· On 4601 and 5601 phones, this stage is indicated by the lamp at the top of the phone and on the
MESSAGES button flashing 0.5 seconds on/off.
· Password =
The password used is as follows:
· If using auto-create for a new user and extension, just enter any number and press #. Any digits entered
for a password here are not validated or stored.
· If not using auto-create extension for a new extension, enter the user's Login Code as set in the IP Office
configuration.
· During subsequent phone restarts, even though the password is requested, it will only be validated if the
phone's extension number is changed.
2. Test that you can make and receive calls at the extension.
H323 IP Telephone Installation
IP Office Release 6
Page 36
15-601046 Issue 16a (15 March 2010)
Installation: Phone Registration
2.7 Extension & User Setup
If installing using auto-create extensions, you can now use IP Office Manager to open the IP Office unit's configuration and
alter the extension and user settings for the phone.
The following process covers the minimum extension and user setup required.
1. In Manager, receive the system's configuration.
2. To display the list of existing extensions, click
Extension.
icon indicates VoIP extensions. A new extension will have been created matching the extension number
3. The
entered above. In the extension's VoIP tab, the Compression Mode default is Automatic Selection.
4. To display the list of existing users, click
the VoIP extension number above.
User. In the list of users, a new user will have been created matching
5. Double-click on the IP phone extension user to display their settings.
6. In the User tab, set the user Name and Full Name as required.
7. Click the Digital Telephony tab.
8. For the first three buttons, you must click on the Action field and select Appearance | Appearance.
9. Click OK.
10.When all new IP phone extension have been setup, send the new configuration back to the system. Set the Reboot
Mode to Immediate or When Free as extension changes cannot be merged.
2.8 Phone Security
There are a number of methods by which additional security can be implemented to ensure that an IP phone does not
adopt the identity of another.
· Disable Auto-Create Extension
Following installation, disabling Auto-Create Extn Enabled in the IP Office Manager System | Gatekeeper tab
stops new IP devices from assigning themselves as new extensions.
· Restrict the IP Address
Entering a value for this field in the extension's VoIP tab will restrict usage to devices configured with that address.
· Set a User Login Code
If a user Login Code is set, then any other IP device trying to log on as that extension must also enter the correct
login code. If a login code is set, the user can use hot desk to log off and log on elsewhere.
H323 IP Telephone Installation
IP Office Release 6
Page 37
15-601046 Issue 16a (15 March 2010)
2.9 Backup Restore
1600 Series H323 IP Telephones support using a HTTP server as the location to which they can backup and restore user
specific data. These options are used if the location of the HTTP server for backup/restore has been specified in the phone
46xxsettings file.
· The address of the HTTP server for backup/restore operation is separate from the address of the HTTP server used
for phone firmware files downloads.
· The HTTP server being used for backup/restore will require configuration changes to allow the phones to send files
to it.
· For IP Office 5.0, the IP Office memory card can be used as the location for backup/restore of user settings. That
includes file auto generation 24 . When using auto-generation, some settings within the restore file are based on
the user's IP Office settings.
Backup is used when the phone user logs out of the phone. During the log out process, the phone creates a file containing
the user specific data and sends that to the BRURI location. The file is named with the user's extension number and
_16xxdata.txt, for example 299_16xxdata.txt.
Restore is used when a user logs in at the phone. The phone sends a file request for the appropriate file based on the
users extension number. If the file is successfully retrieved the phone will import the settings and, after a "Retrieval OK"
message, continue as normal. If the file cannot be retrieved, a "Retrieval failed" message is displayed and the phone will
continues with its existing settings.
Specifying the BRURI Value
1. Open the 46xxsettings.txt file.
2. Locate the line containing the SET BRURI value.
3. If the line is prefixed with # characters, remove those and any space.
4. After SET BRURI, enter a space and then the address of the HTTP backup server, for example SET BRURI
http://192.168.0.28. If necessary you can specify the path to a specific server directory and or include a specific
port number, for example SET BRURI http://192.168.0.28/backups:8080.
HTTP Authentication
HTTP authentication can be supported. If set it will be used for both the backup and the restore operations. The
authentication credentials and realm are stored in the phone's reprogrammable non-volatile memory, which is not
overwritten when new telephone software is downloaded.
Both the authentication credentials and realm have a default values of null. If the HTTP server requires authentication, the
user is prompted to enter new credentials using the phone. If the authentication is successful, the values used are stored
and used for subsequent backup and restore operations.
Manual Backup/Restore Control
Users can request a backup or restore using the Advanced Options Backup/Restore screen as detailed in the user guide for
their specific telephone model.
H323 IP Telephone Installation
IP Office Release 6
Page 38
15-601046 Issue 16a (15 March 2010)
Installation: Backup Restore
1600 Series Phone Backup File
The following is an example of a backup/restore file for a 1600 Series phone user.
ABKNAME001=Extn201
ABKNUMBER001=201
ABKNAME002=Extn201ad
ABKNUMBER002=201
ABKNAME003=Extn203
ABKNUMBER003=203
Redial=0
Call Timer=0
Visual Alerting=1
Call Log Active=1
Log Bridged Calls=1
Log Line Calls=1
Log Calls Answered by Others=0
Audio Path=2
Personalized Ring=7
Handset AGC=1
Headset AGC=1
Speaker AGC=1
Error Tone=1
Button Clicks=0
Display Language=English
The table below lists entries that may be found in the backup file. Note that values are not written unless the setting has
been changed by the user. For IP Office 5.0+, those items indicated as IP Office are controlled by values stored and
supplied by the user's IP Office settings.
Field
Description
IP
Office
User
ABKNAMEmmm
These paired entries are used for personal contacts entered into the phone. The mmm
ABKNUMBERmmm value in each pair in replace by a 3 digit number starting with 001. The first line of the
pair stores the contact name, the second line stores the phone number for the contact.
LANGUSER
Display language. The language name is stored.
LOGACTIVE
Call log active on (1) or off (0).
LOGBRIDGED
Log bridged calls on (1) or off (0).
LOGLINEAPPS
Log line calls on (1) or off (0).
LOGOTHERANS
Log calls answered by others on (1) or off (0).
OPTAGCHAND
Handset Automatic Gain Control on (1) or off (0).
–
OPTAGCHEAD
Headset Automatic Gain Control on (1) or off (0).
–
OPTAGCSPKR
Speaker Automatic Gain Control on (1) or off (0).
–
OPTAUDIOPATH
Audio Path
–
OPTCLICKS
Button Clicks on (1) or off (0).
OPTERRORTONE
Error Tone on (1) or off (0).
PERSONALRING
Personalized Ring. A numeric value (1 to 8) for the selected ring is stored.
PHNREDIAL
Redial
PHNSCRONCALL
Go to call screen on calling on (1) or off (0).
–
PHNSCRONALERT
Go to call screen on ringing on (1) or off (0).
–
PHNTIMERS
Call Timer on (1) or off (0).
PHNVISUALALERT Visual alerting on (1) or off (0).
H323 IP Telephone Installation
IP Office Release 6
Page 39
15-601046 Issue 16a (15 March 2010)
HTTP Server Configuration for Backup/Restore
For IIS Web Servers
Create a backup folder under the root directory of your web server. All backup files will be stored in that directory.
For example, if your backup folder is C:/Inetpub/wwwroot/backup, the 46xxsettings.txt file should have a line similar
to SET BRURI http://www.website.com/backup/.
1. Go to Start | Settings | Control Panel | Administrative Tools and select, depending on the Windows version,
Internet Information Services Manager or Internet Information Services.
2. Right click on the folder created for backup or right click on Default Web Site if there is no specific backup
directory.
3. Select Properties.
4. In the Directory tab, make sure the Write box is checked.
5. Additional step for IIS 6.0:
1. Go to Start | Settings | Control Panel | Administrative Tools.
2. Below Default Web Site, select Web Services Extension.
3. Make sure the WebDAV option is set to Allowed.
For Apache Web Servers
Create a backup folder under the root directory of your Web server. Make the folder writable by everyone. All backup files
will be stored in that directory.
For example, if the backup folder is C:/Program Files/Apache Group/Apache2/htdocs/backup, the 46xxsettings.txt
file should have a line similar to SET BRURI http://www.website.com/backup/.
1. Edit your Web server configuration file httpd.conf.
2. Uncomment the two LoadModule lines associated with DAV:
LoadModule dav_module modules/mod_dav.so
LoadModule dav_fs_module modules/mod_dav_fs.so
· Note: If these modules are not available on your system, typically the case on some Unix/Linux Apache
servers, you have to recompile these two modules (mod_dav & mod_dav_fs) into the server. Other ways
to load these modules might be available. Check your Apache documentation at
http://httpd.apache.org/docs/ for more details.
3. Add the following lines in the httpd.conf file:
#
# WebDAV configuration
#
DavLockDB "C:/Program Files/Apache Group/Apache2/var/DAVLock"
<Location />
Dav On
</Location>
4. For Unix/Linux Web servers the fourth line might look more like: DavLockDB/usr/local/apache2/var/DAVLock
5. Create the var directory and make it writable by everyone. Right click Properties | Security | Add | Everyone |
Full Control.
H323 IP Telephone Installation
IP Office Release 6
Page 40
15-601046 Issue 16a (15 March 2010)
Installation: Backup Restore
2.10 Listing Registered Phones
Using TFTP, a list can be obtained from the IP Office system of all the registered RAS users which includes H323 IP
phones. For example:
Extn2602,2602,192.168.42.2,1720
ains600,2600,192.168.42.10,1026
Extn2601,2601,192.168.42.4,1720
New,2702,192.168.42.200,1720
1. In Windows, select Start | Run and enter cmd for the Windows command line interpreter.
2. If necessary, use cd commands to select the directory into which you want the list placed as the current directory.
3. Enter tftp -i xxx.xxx.xxx.xxx get nasystem/h323_ras_list yyyyyyyy.txt where:
· xxx.xxx.xxx.xxx is the IP address of the IP Office unit.
· yyyyyyy.txt is the name of a text file that does not already exist in that directory.
4. The TFTP command will confirm when the file has been successfully transferred.
5. To close the command line interpreter window, type exit.
6. Open the text file using Wordpad or a similar tool.
The IP Office Monitor application (Sysmon) can also show how many phones have registered and how many are currently
waiting to register. The System | Print trace filter option must be selected to see these messages. This appears as lines of
the form:
792ms PRN: GRQ from c0a82c15 --- RAS reaches the maximum capacity of 10; Endpoints registered 41
H323 IP Telephone Installation
IP Office Release 6
Page 41
15-601046 Issue 16a (15 March 2010)
2.11 Error Messages
The 4600 Series H323 IP phones issue error messages in English only.
· Checksum error
Downloaded application file was not downloaded or saved correctly. The phone automatically resets and attempts to
re-initialize.
· DHCP: CONFLICT
At least one of the IP addresses offered by the DHCP server conflicts with another address. Review DHCP server
administration to identify duplicate IP addresses.
· Failed to set phone IP address
The IP phone was originally installed on one switch with Static Addressing and has subsequently been installed on
another switch with an active DHCP server assigning dynamic IP addresses. Reset the phone.
· File too large cannot save file
The phone does not have sufficient room to store the downloaded file. Verify the proper filename is administered in
the TFTP script file and that the proper application file is located in the appropriate location on the TFTP server.
· Hardware failure
Hardware failure prevented downloading of application file. Replace the phone.
· IP Address in use by another
The phone has detected an IP address conflict. Verify administration to identify duplicate IP addresses.
· No Ethernet
When first plugged in, the IP phone is unable to communicate with the Ethernet. Verify the connection to the
Ethernet jack, verify the jack is Category 5, verify power is applied on the LAN to that jack, etc.
· No file server address
The TFTP server IP address in the IP phone's memory is all zeroes. Depending on the specific requirements of your
network, this may not be an error. If appropriate, either administer the DHCP server with the proper address of the
TFTP server, or administer the phone locally using the ADDR option.
· Resetting on URQ
Restarting following a reboot of the IP Office Unit.
· System busy
The resource being called upon should be checked for its availability. If it appears operational and properly linked to
the network, verify addressing is accurate and a communication path exists in both directions between the phone
and the resource.
· Timeout Error
Protocol timeout error. Retry. If failure continues, check network congestion, addresses, etc. to identify cause of
timeout.
· TFTP Error
Request for file from TFTP server timed out. Check that IP Office Manager or the indicated TFTP source within the IP
Office configuration are running and that the 4600 Series phone software files are available.
· Wrong Set Type
Another device is already assigned to the extension number of the IP phone.
H323 IP Telephone Installation
IP Office Release 6
Page 42
15-601046 Issue 16a (15 March 2010)
Chapter 3.
Other Installation Options
H323 IP Telephone Installation
IP Office Release 6
Page 43
15-601046 Issue 16a (15 March 2010)
3. Other Installation Options
3.1 VPN Remote Phones
Avaya IP Office VPNremote firmware can be used to connect IP phones at remote locations to the IP Office via IPSec VPN
tunnels. IP Office 4.1 and higher supports this with some 4600 Series and 5600 Series IP phones. IP Office Release 6 also
supports VPNremote on 9600 Series phones supported by IP Office.
Key components are:
1.IP Office VPNremote Phone Firmware
This firmware is provided on the IP Office Administrator Applications DVD for IP Office 4.1 and higher. IP Office
VPNremote firmware is provided for the 4610SW, 4621SW, 5610SW and 5621SW phones and 9600 Series phones
only. Other VPNremote phones are not supported.
2.TFTP Server
During installation a HTTP server is required to load the firmware onto the phones. The same TFTP server as being
used for internal IP phone extensions can be used.
3.IP Office VPNremote Phone Licenses
The operation of VPNremote phones with IP Office is licensed using VPN IP Extension licenses entered into the IP
Office's configuration. The licenses control the number of VPNremote phones supported by the IP Office.
· For IP Office Release 6 this does not apply to IP500 and IP500 V2 control units which license all Avaya IP
phones including VPN ones using Avaya IP Endpoint licenses.
4.VPN Security Gateway
VPNremote phones uses VPN protocols not directly supported by the IPSec VPN tunnels that can be provided by IP
Office control units. Therefore the VPN tunnel from the VPNremote phones must end at a compatible VPN gateway
device. The device being used must support one of the following methods:
· Avaya Gateways
Avaya security gateway devices (SG and VSU) use an Avaya proprietary protocol called CCD.
Avaya SG Series (4.6 firmware or higher).
Avays VSU Series (3.2 firmware or higher).
· Non-Avaya Gateways
Non-Avaya VPN gateways with IKE Extended Authentication (Xauth) with Preshared Key (PSK). Installation
notes exists for the following listed below. This does not imply any recommendation of those devices by Avaya
or preclude other devices. Note that Avaya cannot guarantee support for services through non-Avaya devices.
Cisco VPN 300 Series Concentrators.
Netgear FVS338 VPN Router.
Cisco PIX 500 Series Security Appliances.
Kentrox Q2300 VPN Router.
Juniper Networks NetScreen Series VPN Devices.
Adtran Netvanta 3305 VPN Router.
Juniper Networks Secure Services Gateway 500 Series.
Sonicwall Tz170 VPN Router.
Juniper Networks Integrated Security Gateway (ISG) Series.
Netgear FVX538 VPN Router.
H323 IP Telephone Installation
IP Office Release 6
Page 44
15-601046 Issue 16a (15 March 2010)
Other Installation Options: VPN Remote Phones
Installation Documentation
This document only covers notes and differences specific to installation of VPNremote phones with IP Office. The
installation and configuration of Avaya VPNremote phones is covered in a number of existing documents available from the
Avaya support website (http://support.avaya.com).
Product Section
Title
Doc Reference
VPNremote Phone
VPNremote for the 4600 Series IP Telephones Administrators Guide
19-600753
Application Notes for Configuring Avaya VPNremote Phone with Juniper
Secure Services Gateway using Policy-Based IPSec VPN and XAuth
Enhanced Authentication
317687
Configuring Cisco PIX Security Appliance using Cisco Adaptive Security
Device Manager (ASDM) VPN Wizard to Support Avaya VPNremote Phones
317678
Configuring Cisco PIX Security Appliance with Microsoft Internet
Authentication Service and Active Directory using RADIUS to Support
Avaya VPNremote Phones
317675
Configuring Cisco VPN Concentrator to Support Avaya VPNremote Phones
317672
VPNremote for 4600 Series IP Telephone User Installation and
Configuration Quick Start - Pre-Deployment
19-601708
VPNremote for 4600 Series IP Telephone User Installation and
Configuration Quick Start - Self Installer
19-602363
Technical Tip 184 - Configuring a VPN Remote IP Phone with a Netgear
FVS338 VPN Router.
322690
Technical Tip 185 - Configuring a VPN Remote IP Phone with a Kentrox
Q2300 VPN Router.
322702
Technical Tip 186 - Configuring a VPN Remote IP Phone with an Adtran
Netvanta 3305 VPN Router.
322714
Technical Tip 190 - Configuring a VPN Remote IP Phone with a Sonicwall
Tz170 VPN Router
325830
Technical Tip 196 - Configuring a VPN Remote IP Phone with a Netgear
FVX538 VPN Router.
327056
IP Office
Supported VPNremote Phone Firmware
Unless otherwise advised, only the firmware provided on the IP Office Administrator Applications DVD should be used for
VPNremote phones connected to an IP Office. That firmware is tested with the IP Office release represented by the DVD
for correct operation. The firmware is located in a zip file in the folder \bin\VPN Phone.
Whilst other VPNremote firmware releases may be made available by Avaya for download, those firmware release may not
have been specifically tested with IP Office.
H323 IP Telephone Installation
IP Office Release 6
Page 45
15-601046 Issue 16a (15 March 2010)
Configuring the IP Phone for VPNremote
In addition, a VPN Phone Allowed checkbox option is present on the Extension | VoIP settings tab of IP extensions. This
checkbox is used to indicate to the IP Office, which IP extensions are VPNremote and therefore require use of a license.
1. Using IP Office Manager, receive the current configuration from the IP Office system.
2. Click on
Extension and select the entry for the IP extension.
3. Select the VoIP tab.
4. Enable VPN Phone Allowed.
5. Click OK.
6. Repeat this for any other existing IP extensions that are going to be converted to VPN connection.
7. Save the configuration back to the IP Office system.
Configuring 4600 Series VPN Remote Phones for IP Office Licensing
By default, 5600 Series phones running VPNremote firmware use licenses available from the IP Office to which they
connect. However 4600 Series phones running VPNremote can be licensed in a number of ways and so need to be
instructed to use the IP Office for licensing.
In order to inform that 4600 Series VPNremote phones to use IP Office licensing, the following line must be added to the
46vpnsettings.txt file:
· SET SMBLIC 1
H323 IP Telephone Installation
IP Office Release 6
Page 46
15-601046 Issue 16a (15 March 2010)
Other Installation Options: VPN Remote Phones
3.2 VLAN and IP Phones
This section describes the configuration of an VLAN networking infrastructure for use with Avaya IP Office and 4600 Series
IP Phones. In this example an HP Procurve Ethernet 2626 PWR Ethernet switch is used to manage the VLAN’s. A basic
understanding of the IEEE 802.2p/q standard is required.
The use of VLAN allows separate collision domains to be created on Ethernet switches. In the case of IP Office and IP
Phones the advantages are:
1. It allows PC’s to continue in the same IP subnet while IP Phones can use a new and separate IP addressing scheme.
2. Broadcast traffic is not propagated between the PC data network and the IP Phones voice network. This helps
performance as otherwise broadcast traffic must be evaluated by all receivers.
3. VLAN networking and traffic prioritisation at layer 2 are closely bound together in the same 802.2 standard. It is
therefore easier to maintain L2 QOS when using a VLAN.
The table below shows the three ways in which VLAN can be deployed with an Ethernet Switch. The first two methods
require only elementary configuration and as this document assumes both PC and IP Phones share the same Ethernet
port, the focus will be the third method (overlapping).
Type
Description
Advantages
Disadvantages
No VLAN
Both Voice and Data occupy the
same collision domain
Simple configuration
PC broadcast traffic adverse effect on
Voice traffic.
Requires two ports per user (one for IP
Phone and one for PC).
Physical VLAN
Separate VLAN for data and voice Simple configuration
Overlapping
VLAN
A single port on the switch
carrying both the IP Phones as
well as the PC traffic.
H323 IP Telephone Installation
IP Office Release 6
Requires two ports on switch (one for
IP phone and one for PC.
Requires only a single port Complex configuration.
for both PC and IP Phone.
PC broadcast traffic cannot
adversely effect Voice
traffic.
Page 47
15-601046 Issue 16a (15 March 2010)
VLAN and DHCP
The use of VLAN has implications on DHCP if DHCP is being used for support of IP phones and or PC’s. The table below
details the available options when using a single port for PC and IP Phones on a VLAN enabled network.
DHCP Option
Description
None (Static addressing)
Manual configuration of each IP Phone.
Separate DHCP Servers
Two PCs, one for each VLAN.
Multihomed DHCP Server
A single PC with two NIC Cards; one for each VLAN.
DHCP Relay
The option must be supported by the Ethernet switch.
If using DHCP, when the IP Phone starts it will first perform a DHCP discovery without a VLAN tag. If the DHCP reply
contains a new VLAN setting (scope option 176), the Phones will release all existing IP parameters and then perform a
new DHCP discovery using the supplied VLAN ID. If the IP Phone does not get a new VLAN ID, the phone will continue with
the settings provided in the original DHCP reply.
The VLAN ID can also be passed to the phones through the 46xxsettings file. Again if this method is used the IP phone will
release all its existing IP parameters and perform a new DHCP discovery on the supplied VLAN ID.
A potential error loop condition can occur if the DHCP server and 46setting files have conflicting VLAN values. This is
because the IP Phones release all their IP parameters and restart if their VLAN ID is changed. Another way this error loop
can occur is if two DHCP servers are used; The Avaya 4600 IP Phone would repost this condition if it occurs.
As stated, when an IP phone is given a new VLAN ID, via TFTP or DHCP, it will immediately releases its current IP
parameters and issue a new DHCP request using the new VLAN ID. In this way, when the IP Phones are first a DHCP reply
from the DHCP server on the data VLAN, it contains the VLAN ID of the voice VLAN. The phone will release the data VLAN
settings and send a new DHCP request tagged for the voice VLAN.
Data VLAN DHCP Settings
Option
Data VLAN DHCP Settings
Voice VLAN DHCP Settings
IP Address
192.168.43.x
192.168.202.x
Mask
255.255.255.0
255.255.255.0
3: Router
192.168.43.1
192.168.202.1
176
L2Q=1, L2QVLAN=202,
VLANTEST=0
MCIPADD=192.168.202.1, MCPORT=1719, TFTPSRVR=192.168.202.X
VLANTEST=0
The VLANTEST parameter is the length of time the IP Phone is to continue DHCP requests in a VLAN (0 means unlimited
time).
H323 IP Telephone Installation
IP Office Release 6
Page 48
15-601046 Issue 16a (15 March 2010)
Other Installation Options: VLAN and IP Phones
Example setup - Overview
The network is devised to allow the user PC to connect to the switch port of the IP Phone. A single cable then connects PC
and IP Phone to the Ethernet Switch. For the purpose of this example VLAN 209 is used for voice traffic and VLAN 210 for
data traffic. The LAN1 interface of the IP Office control unit resides on the voice VLAN while the LAN2 interface resides in
the data VLAN. Communications between the voice and data VLAN’s is facilitated by the IP Office control unit’s router
function.
HP-Switch - Configuration
Shown below are the web and CLI configuration output from the HP Procurve Switch.. These where obtained using the
configuration guidelines which can found below.
Figure 1 HP Procurve Web Configuration
H323 IP Telephone Installation
IP Office Release 6
Page 49
15-601046 Issue 16a (15 March 2010)
HP Procurve CLI output
; J8164A Configuration Editor; Created on release #H.08.60
hostname "AvayaLabs"
snmp-server community "public" Unrestricted
vlan 1
name "Native"
untagged 1-2,4,7-26
ip address 192.168.202.201 255.255.255.0
no untagged 3,5-6
exit
vlan 209
name "Red [Voice]"
untagged 5
tagged 3
exit
vlan 210
name "Blue [Data]"
untagged 3,6
exit
gvrp
spanning-tree
The table below summaries the HP configuration for ports and VLAN’s.
Port
VLAN 209
Voice
VLAN 210
Data
Description
3
Tagged
Untagged
This port was added to both VLAN 209 and VLAN 210. However there is an
important difference between adding to these VLAN’s. When adding port 3 to
VLAN 209 the Mode option must be tagged but untagged when adding to VLAN
210.
5
Untagged
–
This port is included only in VLAN 209 and not included in VLAN 210. The Mode
option must be set to Untagged for port 5 in this VLAN.
6
–
Untagged
Port 6 is included only in VLAN 210 and not included in VLAN 209. The Mode
option MUST be set to Untagged in this VLAN.
The operation of this network is dependant on the functionality defined in HP documentation. Specifically HP refers to this
type of VLAN operation as Overlapping VLAN. The configuration relies also on that fact that Avaya 4600 IP Phones support
VLAN operation .
H323 IP Telephone Installation
IP Office Release 6
Page 50
15-601046 Issue 16a (15 March 2010)
Other Installation Options: VLAN and IP Phones
Example System Overview
IP Office Configuration
The table below details the configuration for IP Office. Additional
configuration is not required by IP Office in support 802.1 Tagging.
Option
Value
Option
Value
IP Address LAN1
192.168.202.1
IP Address
192.168.202.50
IP Mask LAN1
255.255.255.0
IP Mask
255.255.255.0
IP Address LAN2
192.168.43.1
Router
192.168.202.1
IP Mask LAN2
255.255.255.0
Call Server
192.168.202.1
Router
192.168.202.1
VLANID
209
Call Server
192.168.202.1
VLAN Switch Configuration
The table below summaries the HP configuration for ports and
VLAN’s.
Port
VLAN 209 Voice
VLAN 210 Data
3
Tagged
Untagged
5
Untagged
–
6
IP Phone- Configuration
For this example the IP phone was configured with
fixed IP addressing as shown below:
–
Untagged
The PC –Configuration
Shown below is the IP configuration of the PC1; no
option in support of 802.1p or 802.1q is enabled on
the PC.
Option
Value
IP Address
192.168.43.22
IP Mask
255.255.255.0
Router
192.168.43.1
Summary
On the port on which the PC and IP phone resides two types of Ethernet frames can be received (i.e. sent from Phone or
PC).
1. Tagged Packets are sent by IP Phone
2. Untagged packets are sent by PC
When an untagged packet is sent by the PC attached to the IP Phone port it will be propagated only to VLAN 210. This is
because when we added the port 3 to VLAN 210 the Mode option was specified as untagged. While for the other VLAN
(210) the option Tagged was select for port 3 in VLAN 209. Therefore tagged packets will go to VLAN 209 while the
untagged will go to 210.
When a packet is originated from an IP Phone it is tagged. Because the option un-tagged is selected for port 5 in VLAN
209 then the 802.1 tag is removed before the switch forwards the packet to this port. Similarly when an untagged packet
is originated and sent by IPO the switch will tag the packet before forwarding LAN port 3.
H323 IP Telephone Installation
IP Office Release 6
Page 51
15-601046 Issue 16a (15 March 2010)
Chapter 4.
Static Administration
Options
H323 IP Telephone Installation
IP Office Release 6
Page 53
15-601046 Issue 16a (15 March 2010)
4. Static Administration Options
A number of settings can be altered through the phone after installation.
· Values assigned through static administration override any set through the 46xxsettings.txt file. They will remain
active for the IP phone until a new boot file is downloaded.
These procedures should only be used if you are using static address installation. Do not use these procedures if you are
using DHCP.
· To set parameters for all H323 IP phones on a system, you can edit the 46XXsettings.scr script file.
Hold vs Mute
Many of the static administration features are accessed using key sequences that begin by pressing either MUTE or HOLD
. In recent firmware releases preferences has been given to using MUTE and some phones, for example the 1600 Series,
will only support MUTE.
Entering Data for Administrative Options
This section describes how to enter data for the administrative options.
1. All local procedures are started with the phone idle. Then dialling MUTE and then a sequence of up to 7 numbers
followed by #.
2. After the MUTE button is pressed, a 6-second timeout is in effect between button presses. If a valid button is not
pressed within 6 seconds of the previous button, the collected digits are discarded and no administrative option is
started.
3. Attempts to enter invalid data are rejected and the phone emits an error beep.
4. If a numeric digit is entered for a value or for a field of an IP address or subnet mask after only a zero has been
entered, the new digit will replace the zero.
5. To go to the next step, press #.
6. To backspace within a field depends upon the phone type:
· 4601, 4602, 5601, 5602:
· 4606:
Speaker key.
Conference key.
· 4612 & 4624:
Previous key.
· 4610, 4620, 4625, 5610, 5620: Left-most key.
H323 IP Telephone Installation
IP Office Release 6
Page 54
15-601046 Issue 16a (15 March 2010)
Static Administration Options:
4.1 QOS Option Settings
Administering QoS options is not mandatory, but it is highly recommended. Use the following procedure to set Quality of
Service (QoS) options.
1. While the phone is on-hook and idle, press the following sequence: MUTE 7 6 7 # (MUTE Q O S #).
2. The current 802.1Q settings are shown in sequence:
· L2 audio=
This is the phone's current 802.1 audio parameter. To accept the current value, press # or enter a value
(between 0 and 7) and then press #.
· L2 signaling=
This is the phones 802.1 signaling parameter. To accept the current value, press # or enter a value (between 0
and 7) and then press #.
· L3 audio=
This is the phone's Differential Services audio parameter. To accept the current value, press # or enter a value
(between 0 and 63) and then press #.
· L3 signaling=
This is the phone's Differential Services signaling parameter. To accept the current value, press # or enter a
value (between 0 and 63) and then press #.
3. If no new values were entered during this procedure, No new values is displayed. To end the procedure, press #.
4. If new values were entered during this procedure, Save new values? is displayed. To end the procedure or save
the new values, press #. New values being saved is displayed and the phone returns to normal operation.
4.2 Secondary Ethernet (Hub)/IR Interface Enable/Disable
Use the following procedure to enable or disable the hub interface found on some H323 IP phones (usually marked with a
symbol). The default for the hub interface is enabled.
The same procedure can also be used to enable or disable the IR port found on some H323 IP phones, see Infrared
Dialling 66 .
1. While the phone is on-hook and idle, press the following sequence: MUTE 4 6 8 # (MUTE I N T #). The phones
port settings are shown in sequence. The option vary between different models of phone.
· PHY2=
This is the PC connection LAN socket marked as
interface respectively. To continue, press #.
on the phone. Press 1 or 0 to enable or disable the hub
· IR=
This is the infrared (IR) port located on the front of some H323 IP phones. Press 1 or 0 to enable or disable the
hub interface respectively. To continue, press #.
2. If you changed the setting, Save new values? is displayed. To end the procedure or save the new values, press #.
If you press #, New values being saved is displayed and then returns to normal operation.
H323 IP Telephone Installation
IP Office Release 6
Page 55
15-601046 Issue 16a (15 March 2010)
4.3 View Details
You can use the following procedure to view a number of phone details. These are in addition to the other static address
and local administration options which can also be used to review settings.
1. While the phone is on-hook and idle, press the following sequence: MUTE 8 4 3 9 # (MUTE V I E W #).
· To display the set of details, press * at any time during viewing.
· To end the procedure and restore the user interface to its previous state, press #.
2. A sequence of values are displayed. The values available may vary between phone models and the level of IP phone
software installed on the phone. To display the next value press *. To exit the information display press #.
· Model
Shows the phones model number; for example, 4624D02A.
· Market
Shows 1 for export or 0 for domestic (US). Not displayed on all phone types.
· Phone SN
Shows the phone's Serial Number.
· PWB SN
Shows the phone's Printed Wiring Board Serial Number.
· PWB comcode
Shows the PWB's comcode.
· MAC address
Shows the phone's MAC address as paired hexadecimal numbers.
· L2 tagging
Indicates whether L2 tagging is on, off or set to auto.
· VLAN ID
The VLAN ID used for the phone. The default is 0.
· IP address
The IP address assigned to the phone.
· Subnet mask
The subnet mask assigned to the phone.
· Router
The router address assigned to the phone.
· File server
The address of the file server assigned to the phone.
· Call server
The address of the phone's H323 Gatekeeper.
· 802.1X
The current setting for 802.1X operation if being used.
· Group
This displays the group value set on the phone. Group values can be used to control which options (both
firmware and settings) a phone downloads. Refer to the 4600 Series Phones LAN Administrator Guide.
· Protocol
Display Default.
· filename1
Shows the name of the phone application file in the phone's memory. These are values from within the boot file
loaded and not the actual file name.
· 10MBps Ethernet or 100Mbps Ethernet
Shows the speed of the detected LAN connection.
· filename2
Shows the boot file name and level. These are values from within the boot file loaded and not the actual file
name.
H323 IP Telephone Installation
IP Office Release 6
Page 56
15-601046 Issue 16a (15 March 2010)
Static Administration Options: View Details
4.4 Self-Test Procedure
1. To start the IP phone self-test procedures, press the following sequence: MUTE 8 3 7 8 # (MUTE T E S T #). The
phone does the following:
· Each column of programmable button LED's is lit for half a second from left to right across the phone, in a
repeating cycle. The Speaker/Mute LED and the message waiting LED are also lit in sequence.
· Buttons (other than #) generate a click if pressed.
· Phones with displays show Self test #=end for 1 second after self-test is started. Then a block character (all
pixels on) is displayed in all display character locations for 5 seconds. Display of the block character is used to
find bad display pixels.
2. One of the following is finally displayed:
· If self-test passes:
Self test passed
#=end
· If self-test fails:
Self test failed
#=end
3. To end the self-test, press #. The phone returns to normal operation.
H323 IP Telephone Installation
IP Office Release 6
Page 57
15-601046 Issue 16a (15 March 2010)
4.5 Resetting a Phone
Resetting a Phone
Resetting a phone clears the phones user settings but retains system settings such as the DHCP and file server addresses.
1. While the phone is on-hook and idle, press the following sequence: MUTE 7 3 7 3 8 # (MUTE R E S E T #). Reset
values? is displayed.
2. To cancel this procedure press *. To continue press #.
· WARNING
As soon as you press #, all static information will be erased without any possibility of recovering the data.
3. Whilst the system values are reset to their defaults, Resetting values is displayed.
4. Once the system values are reset, Restart phone? is displayed.
· To end the procedure without restarting the phone, press *.
· To restart the phone, press #. The remainder of the procedure then depends on the status of the boot and
application files. See Restart Scenarios 62 .
Clearing a Phone
Clearing a phone removes all data values including settings such as the DHCP and file server addresses. This returns the
phone to almost its original out-of-box state. The phone will still retain the firmware files it has downloaded.
1. While the phone is on-hook and idle, press the following sequence: MUTE 2 5 3 2 7 # (MUTE C L E A R #). Clear
all values? is displayed.
2. To cancel this procedure press *. To continue press #.
· WARNING
As soon as you press #, all static information will be erased without any possibility of recovering the data.
3. Whilst the system values are reset to their defaults, Clearing values is displayed.
4. Once all values are cleared, the phone will restart as if a new phone.
H323 IP Telephone Installation
IP Office Release 6
Page 58
15-601046 Issue 16a (15 March 2010)
Static Administration Options: Resetting a Phone
4.6 Site Specific Option Number
The Site Specific Option Number (SSON) is used by IP phones to request information from a DHCP server that is
specifically for the phones and not for other IP devices being supported by the DHCP server. This number must matched
by a similarly numbered 'option' set on the DHCP server that define the various settings required by the phone.
The default SSON used by Avaya 4600 and 5600 Series IP phones is 176. The default SSON used by Avaya 1600 Series IP
phones is 242. For phones being supported by IP Office DHCP, the SSON used by the phone must be matched by the site
specific option numbers set in the IP Office configuration (System | LAN | Gatekeeper).
· WARNING
Do not perform this if using static addressing. Only perform this procedure if using DHCP addressing and the DHCP
option number has been changed from the normal default (176).
Setting the SSON on an IP Phone:
1. While the phone is on-hook and idle, press the following sequence: Mute 7 7 6 6 # (Mute S S O N #). SSON= is
displayed followed by the current value.
2. Enter the new setting. This must be a number between 128 and 255.
3. To cancel this procedure, press * or press # to save the new value.
Setting the SSON on IP Office
Note that changing the IP Office SSON settings requires the system to be rebooted.
1. In IP Office Manager, receive the system's current configuration.
2. Double-click
System.
3. Click the LAN tab.
4. Select the Gatekeeper sub tab.
5. Set the Site Specific Option Number (SSON) fields to the required numbers. For IP Office 4.2+ two SSON field
are available.
6. Click OK.
7. Send the configuration back to the system. Select Immediate or When Free as the Reboot Mode.
H323 IP Telephone Installation
IP Office Release 6
Page 59
15-601046 Issue 16a (15 March 2010)
4.7 Automatic Gain Control
Automatic Gain Control (AGC) raises the volume when a caller is speaking quietly and lowers the volume when the caller is
loud. AGC can be separately switched on or off for the phone handset, headset and speaker.
The AGC settings for all H323 IP phones can also be set through the 46xxsetting.txt file. On some phones it can also be
switched on or off through the phone's user menus.
Switching automatic gain control on/off:
1. While the phone is on-hook and idle, press either MUTE 2 4 2 # (MUTE A G C #). The current AGC settings are
displayed. Note that these may vary depending on the headset/speaker support provided by the phone model.
· Handset AGC =
Press the indicated key for the required setting (0 = off and 1 = on) and then press #.
· Headset AGC =
Press the indicated key for the required setting (0 = off and 1 = on) and then press #.
· Speaker AGC =
Press the indicated key for the required setting (0 = off and 1 = on) and then press #.
2. The phone should return to it normal idle state.
H323 IP Telephone Installation
IP Office Release 6
Page 60
15-601046 Issue 16a (15 March 2010)
Chapter 5.
Restart Scenarios
H323 IP Telephone Installation
IP Office Release 6
Page 61
15-601046 Issue 16a (15 March 2010)
5. Restart Scenarios
The sequence of the restart process depends on the status of the boot and application files on the TFTP server and those
already downloaded to the phone. This appendix explains the different scenarios possible.
All of the following start-up processes involve the same initial steps as the phone negotiates with the DHCP and the TFTP
server.
· After power is applied the phone displays Restarting….
· Initializing is then displayed.
· When either the application file (if there is one) or the boot code is uncompressed into RAM, Loading is displayed.
Since this takes a while, asterisks, then periods, then asterisks are displayed on the second line to indicate that
something is happening.
· When control is passed to the code in RAM, Starting is displayed.
· The phone detects and displays the speed of the Ethernet interface in Mbps (that is 10 or 100). The message No
Ethernet means the LAN interface speed cannot be determined.
· The Ethernet speed indicated is the LAN interface speed for both the phone and any attached PC.
· DHCP is displayed whilst the phone obtains an IP address and other information from the LAN's DHCP server. The
number of elapsed seconds is incremented until DHCP successfully completes.
· If the phone has been setup using static addressing (by pressing * when DHCP is shown), it will skip DHCP and
use the static address settings it was given.
· Note that uploading a new boot file at any time erases all static address information.
· TFTP is displayed whilst waiting for a response from the TFTP server. 46XXUPGRADE.SCR is displayed whilst
downloading the upgrade script TFTP server.
· TFTP Error: Timed Out is displayed if the phone cannot locate TFTP server or upgrade script file. If the phone
has been previously installed it will continue with the existing files in its memory.
· After the upgrade script is loaded, the sequence depends on the status of the files currently held in the phones
memory, compared to those listed in the upgrade script.
· Boot File Need Upgrading
63
.
· No Application File or Application File Needs Upgrading
63
· Correct Boot File and Application File Already Loaded
.
H323 IP Telephone Installation
IP Office Release 6
63
.
Page 62
15-601046 Issue 16a (15 March 2010)
Restart Scenarios:
5.1 Boot File Needs Upgrading
Having processed the upgrade script file, the software determines that the name of the boot code file in the phone does
not match that in the upgrade script. The script specifies the name of the new file to load.
· The phone displays the file name and the number of kilobytes loaded.
· The phone displays Saving to flash while the new boot file is stored in its flash memory. The percentage of the file
stored and the number of seconds that have elapsed are shown. This will usually take longer than it took to
download the file.
· The phone displays Restarting as it prepares to reboot using the new boot file.
· The phone displays Initializing.
· While the new boot file is uncompressed into RAM, the phone displays Loading. Since this takes a while, asterisks,
then periods, then asterisks are displayed on the second line to indicate that something is happening.
· When control is passed to the software that has just loaded, the phone displays Starting.
· The phone displays Clearing whilst the flash memory is erased in preparation for rewriting the code. The
percentage of memory erased and number of elapsed seconds are also shown.
· Updating is displayed whilst the boot code is rewritten. The percentage of boot code rewritten and number of
elapsed seconds are also shown.
· When the new boot code has been successfully written into the flash memory, the phone resets so that the status
of the phone application files can be checked.
Continue with the next procedure; No Application File or Application File Needs Upgrading
63
.
5.2 No Application File or Application File Needs Upgrading
This happens with normal application file upgrades. Having processed the upgrade script file, the software determines that
the name of the boot file in the phone is the correct version. It next determines that the name of the application file does
not match that stored in the phone.
· The phone displays the required file name as it downloads the file from the TFTP server. It also displays the number
of kilobytes downloaded.
· Saving to flash is displayed. The percentage of file stored and the number of seconds that have elapsed is also
displayed. This will usually take longer than it took to download the file.
· The phone is reset so that the new system-specific application file can be executed.
· Continue with the next procedure; Correct Boot File and Application File Already Loaded
63
.
5.3 Correct Boot File and Application File Already Loaded
This happens with most normal restarts. Having processed the upgrade script file, the software determines that the name
of the boot file in the phone and the phone application file match those specified in the upgrade script.
· System-specific registration with the switch is started. The phone requests the extension number it should use and
the password.
· By default, the phone displays the last extension number it used. To accept, press #.
· Whilst a password request is shown, password verification is not performed except if the user changes the
extension number.
· The password checked against is the user's Login Code stored in IP Office Manager.
· Upon completion of registration, a dial-tone is available on the phone.
H323 IP Telephone Installation
IP Office Release 6
Page 63
15-601046 Issue 16a (15 March 2010)
Chapter 6.
Infrared Dialling
H323 IP Telephone Installation
IP Office Release 6
Page 65
15-601046 Issue 16a (15 March 2010)
6. Infrared Dialling
Some H323 IP phones include an infrared (IR) port at the front of the phone. This includes the 4606, 4612, 4624 and
4620 phone. The port appears as a dark plastic window on the front edge of the phone, just below the normal dialling
keys.
You can use the IR port in the following ways:
· Dial a Number to Start a Call
This can be done by beaming the contact information held in a personal organizer address book.
· Swap Text Files During a Call
If calling another IP phone extension that has an IR port, text files can be beamed between extensions.
When using infrared beaming, the following must be remembered:
· The device beaming or receiving must be IrDA compatible. This is the case for most computer and personal
organizer IR ports.
· The range of transmission is typically a maximum of 5 feet (1.5 meters) and with a 5° degree spread (this is unlike
IR devices used for remote controls which typically beam over a long range and much wider angle spread).
· For details of enabling and using IR beaming from your personal organizer or PC, refer to the manufacturer's
information.
Note
· Some personal organizers can be set to beam to modems and mobile phones which use different transmission
formats. The personal organizer may need to be set to beaming to another PC/personal organizer for dialling to
work.
· These features have been tested with several devices as indicated. However, this is not a commitment to
continually test or support those devices against future levels of software.
H323 IP Telephone Installation
IP Office Release 6
Page 66
15-601046 Issue 16a (15 March 2010)
Infrared Dialling:
6.1 Enabling the IR Port
By default, where fitted the IR port on H323 IP phones is enabled. If necessary, it can be disabled.
1. With the phone on-hook and idle, press MUTE 4 6 8 # (MUTE I N T #). PHY2= and the current status is
displayed. This is the setting for the phone's pass-through Ethernet port.
2. To continue, press #. IR=. The current status is displayed.
3. Change the status if required by following the displayed prompts and then press #. The phone will restart.
6.2 Dialling Phone Numbers
You can use the IR port to receive phone numbers beamed from an IR enabled PC or pocket organizer device. Any device
that can beam contacts in the VCard format (.vcf) can be used.
If you are unsure of the file format used by your IR device, you can try beaming a contact anyway. The display on the IP
phone will show the name of the file it received. If that ends in .vcf, then the phone should dial the number in the VCard
file.
You will need to remember the following:
· The phone will only dial the first phone number in the VCard file.
· If your IP Office system has been setup to need a prefix for external dialling, that prefix must be in the VCard
phone number.
In addition to dialling the phone number digits, the following additional characters can be included in the phone number:
· m = Mute
· c = Conference
· h = Hold
· t = Transfer
· , (comma) = 2-second pause
The following sections contains examples of dialling contacts by beaming from various different devices.
Palm Organizer
The following was tested using a Palm Vx and M505. The connection setting (Prefs | Connection) must be Ir to PC/
Handheld.
1. To enter the address book, click on the phone button or icon.
2. Locate the person or organization that you want to dial.
3. To go to Address View, click on the entry.
4. On the letters area of the graffiti pad, make a sweep from the bottom-left to the top-right. A set of icons should
appear. Click on the beam icon. Alternatively, click on the menu icon and select Beam Address.
Windows Pocket PC
The following was tested using a Compaq iPAQ Pocket PC:
1. In Contacts, select the entry you want to dial.
2. Click Tools and then select Beam Contact. The Pocket PC will search for and then display the IR enabled devices
found. The IP phone should appear on the list.
3. Select the IP phone and the contact information will be beamed to it.
H323 IP Telephone Installation
IP Office Release 6
Page 67
15-601046 Issue 16a (15 March 2010)
6.3 Beaming Files During a Call
During a call between two IR enabled extensions on the same system, you can also beam files between IR devices at each
end.
The types of file sendable and receivable will depend on those supported by the devices sending and receiving, as if they
were face to face.
VCard files can be exchanged without being interpreted as a number to dial.
Palm Organizer
The following was tested using a Palm Vx and M505.
1. Inform the caller that you want to beam them a file and to have their Palm positioned in front of their extensions IR
port ready to receive.
2. Locate the file that you want to send.
3. On the letters area of the graffiti pad, make a sweep from the bottom-left to the top-right. A set of icons should
appear. Click on the beam icon. Alternatively, click on the Menu icon and select the displayed Beam option. The
phones should display the first eight characters and the file extension of the file being transferred.
H323 IP Telephone Installation
IP Office Release 6
Page 68
15-601046 Issue 16a (15 March 2010)
Chapter 7.
Alternate DHCP Server Setup
H323 IP Telephone Installation
IP Office Release 6
Page 69
15-601046 Issue 16a (15 March 2010)
7. Alternate DHCP Server Setup
The recommended installation method for H323 IP phones uses a DHCP server. When 5 or less H323 IP phones are being
supported, the DHCP can be performed by the IP Office Unit itself. However, if more than 5 H323 IP phones are being
supported, a separate DHCP server must be used.
· For IP Office 4.2+ running on an IP500 IP Office system, the full IP extension capacity is supported using the IP
Office for DHCP.
This document outlines, as an example, the basic steps for using a Windows server as the DHCP server for IP phone
installation. However, the principles of defining a scope is applicable to most DHCP servers.
You will need the following information from the customer's network manager:
· The IP address range and subnet mask the H323 IP phones should use.
· The IP Gateway address.
· The DNS domain name, DNS server address and the WINS server address.
· The DHCP lease time.
· The IP address of the IP Office unit.
· The IP address of the PC running Manager (this PC acts as a file server for the H323 IP phones during installation).
H323 IP Telephone Installation
IP Office Release 6
Page 70
15-601046 Issue 16a (15 March 2010)
Alternate DHCP Server Setup:
7.1 Using a Windows DHCP Server
1. Checking for DHCP
1. On the server, select Start | Program | Administrative Tools | Computer Management.
2. Under Services and Applications in the Computer Management Tree, locate DHCP.
3. If DHCP is not present then you need to install the DHCP components. Refer to the Microsoft documentation.
2. Windows DHCP Setup for H323 IP Phones
2a. Creating the Scope
A DHCP scope defines the IP addresses that the DHCP server can issue in response to DHCP requests. Different scopes
may be defined for different types of devices.
1. Select Start | Programs | Administrative Tools | DHCP.
2. Right-click on the server and select New | Scope.
3. The scope creation wizard will be started, click Next.
4. Enter a name and comment for the scope and click Next.
5. Enter the address range to use, for example from 200.200.200.1 to 200.200.200.15 (remember the host part
cannot be 0).
6. Enter the subnet mask as either the number of bits used or the actual mask, for example 24 is the same as
255.255.255.0 and click Next.
7. You can specify addresses to be excluded. You can do this either entering a range (e.g. 200.200.200.5 to
200.200.200.7) and clicking Add, or entering a single address and clicking Add.
· Note: You should exclude the IP Office from this range, as the DHCP Options in the IP Office should be
disabled. This is only a recommendation. You can also accomplish this by leaving available addresses outside of
the scopes range.
8. Click Next.
9. You can now set the lease time for addresses. If set too large, addresses used by devices no longer attached will
not expire and be available for reuse in a reasonable time. This reduces the number of addresses available for new
devices. If set too short, it will generate unnecessary traffic for address renewals. The default is 8 days. Click Next.
10.The wizard gives the option to configure the most common DHCP options. Select Yes and then click Next.
11.Enter the address of the gateway and click Add. You can enter several. When all are entered, click Next.
12.Enter the DNS domain (eg. example.com) and the DNS server addresses. Click Next.
13.Enter the WINS server addresses and click Add and then click Next.
14.You will then be asked if you wish to activate the scope. Select No and then click Next.
15.Click Finish. The new scope will now be listed and the status is Inactive.
H323 IP Telephone Installation
IP Office Release 6
Page 71
15-601046 Issue 16a (15 March 2010)
2b. Adding a 242 Option
In addition to issuing IP address information, DHCP servers can issue other information in response to requests for
different specific DHCP option numbers. The settings for each option are attached to the scope.
1600 Series H323 IP phones request option 242 from the DHCP server. The option should include defining the address of
the phone's H323 gatekeeper (the IP Office) and the address of the HTTP file server.
1. Right-click on the DHCP server.
2. From the pop-up menu, select Predefined options.
3. Select Add.
4. Enter the following information:
· Name: 16xxOptions
· Data type: String
· Code: 242
· Description: IP Phone settings
5. Click OK.
6. In the string value field, enter the following:
MCIPADD=xxx.xxx.xxx.xxx,MCPORT=1719,HTTPSRVR=yyy.yyy.yyy.yyy,HTTPDIR=z, VLANTEST=0
where:
·
MCIPADD= is the H323 Gatekeeper (Callserver) address. Normally, this is the IP Office Unit's LAN1 address.
You can enter several IP addresses, separating each by a comma with no space. This allows specification of a
fallback H323 gatekeeper.
· Note: The phones will wait 3 minutes before switching to the fallback and will not switch back when the
first server recovers, until the phone is rebooted.
· MCPORT= is the RAS port address for initiating phone registration. The default is 1719.
· HTTPSRVR= is the HTTP file server IP address. .
· HTTPDIR= is the HTTP file directory where the IP phone files are located. This entry is not required if those
files are in the server's root directory.
· VLANTEST= is the number of minutes phones should attempt to register on a specific VLAN before defaulting
back to VLAN 0. This field is optional. A setting of 0 disables the fallback to registering on VLAN 0.
· The maximum string length is 127 characters. To reduce the length the TFTP Server address can be specified
through attaching an Option 66 entry to the Scope. See Alternate Options 74 .
7. Click OK.
8. Expand the server by clicking on the [+] next to it.
9. Click on the scope you just created for the 1600 phones.
10.In the right-hand panel, right-click on the scope and select Scope Options.
11.In the general tab, make sure 242 is checked.
12.Verify the String value is correct and click OK.
H323 IP Telephone Installation
IP Office Release 6
Page 72
15-601046 Issue 16a (15 March 2010)
Alternate DHCP Server Setup: Using a Windows DHCP Server
2c. Adding a 176 Option
4600 and 5600 Series H323 IP phones use option 176 rather than option 242 as above.
The option 176 can be setup to use the same HTTP file server as the 1600 Series phones. However some older 4600
Series H3232 IP phones only support TFTP. Therefore the options for a TFTP scope are shown below.
1. Right-click on the DHCP server.
2. From the pop-up menu, select Predefined options.
3. Select Add.
4. Enter the following information:
· Name: 46xxOptions
· Data type: String
· Code: 176
· Description: IP Phone settings
5. Click OK.
6. In the string value field, enter the following:
MCIPADD=xxx.xxx.xxx.xxx,MCPORT=1719,TFTPSRVR=yyy.yyy.yyy.yyy,TFTPDIR=z, VLANTEST=0
where:
·
MCIPADD= is the H323 Gatekeeper (Callserver) address. Normally, this is the IP Office Unit's LAN1 address.
You can enter several IP addresses, separating each by a comma with no space. This allows specification of a
fallback H323 gatekeeper.
· Note: The phones will wait 3 minutes before switching to the fallback and will not switch back when
the first server recovers, until the phone is rebooted.
· MCPORT= is the RAS port address for initiating phone registration.
· TFTPSRVR= is the TFTP Server IP Address. Normally, this is the IP address of the PC running Manager.
· TFTPDIR= is the TFTP Server directory where the IP phone files are located. This entry is not required if those
files are in the TFTP server's default directory.
· VLANTEST= is the number of minutes phones should attempt to register on a specific VLAN before defaulting
back to VLAN 0. This field is optional. A setting of 0 disables the fallback to registering on VLAN 0.
7. The maximum string length is 127 characters. To reduce the length the TFTP Server address can be specified
through attaching an Option 66 entry to the Scope. See Alternate Options 74 .
8. Click OK.
9. Expand the server by clicking on the [+] next to it.
10.Click on the scope you just created for the 4600 phones.
11.In the right-hand panel, right-click on the scope and select Scope Options.
12.In the general tab, make sure 176 is checked.
13.Verify the String value is correct and click OK.
2d. Activate the Scope
The scope can be manually activated by right clicking on the scope, select All Tasks and select Activate. The activation is
immediate.
You should now be able to start installing H323 IP phones using DHCP. If Manager is being used as the HTTP or TFTP
server ensure that it is running on the specified PC.
H323 IP Telephone Installation
IP Office Release 6
Page 73
15-601046 Issue 16a (15 March 2010)
7.2 Alternate Options
In this document, all IP phone information is issued through the Scope and the Option 176 settings. Depending on the
DHCP server, other options may have to be used within the scope.
· Option 1 - Subnet mask
· Option 3 - Gateway IP Address
If using more than one address, the total list can contain up to 255 total ASCII characters. You must separate IP
addresses with commas with no intervening spaces.
· Option 6 - DNS server(s) Address
If using more than one address, the total list can contain up to 127 total ASCII characters. You must separate IP
addresses with commas with no intervening spaces. At least one address in Option 6 must be a valid, non zero,
dotted decimal address.
· Option 15 - DNS Domain Name
This string contains the domain name to be used when DNS names in system parameters are resolved into IP
addresses. This domain name is appended to the DNS name before the IP telephone attempts to resolve the DNS
address. Option 15 is necessary if you want to use a DNS name for the HTTP server.
· Option 51 - DHCP Lease Time
If this option is not received, the DHCP offer is not be accepted. Avaya recommends a lease time of six weeks or
greater. If this option has a value of FFFFFFFF hex, the IP address lease is assumed to be infinite as per RFC 2131,
Section 3.3, so that renewal and rebinding procedures are not necessary even if Options 58 and 59 are received.
Expired leases cause Avaya IP Telephones to reboot.
· Avaya recommends providing enough leases so an IP address for an IP telephone does not change if it is
briefly taken offline.
· DHCP standard states that when a DHCP lease expires, the device should immediately cease using its assigned
IP address. If the network has problems and the only DHCP server is centralized, the server is not accessible to
the given telephone. In this case the telephone is not usable until the server can be reached.
· Avaya recommends, once assigned an IP address, the telephone continues using that address after the DHCP
lease expires, until a conflict with another device is detected. The 1600 Series IP Telephone customizable
parameter DHCPSTD allows an administrator to specify that the telephone either:
· Comply with the DHCP standard by setting DHCPSTD to 1
· Continue to use its IP address after the DHCP lease expires by setting DHCPSTD to 0. This is the default. If
used, after the DHCP lease expires the telephone sends an ARP Request for its own IP address every five
seconds. The request continues either forever, or until the telephone receives an ARP Reply. After
receiving an ARP Reply, the telephone displays an error message, sets its IP address to 0.0.0.0, and
attempts to contact the DHCP server again.
· Option 52 - Overload Option
If this option is received in a message, the telephone interprets the sname and file fields in accordance with IETF
RFC 2132, Section 9.3, listed in Appendix B: Related Documentation.
· Option 53 - DHCP Message Type
Value is 1 (DHCPDISCOVER) or 3 (DHCPREQUEST).
· Option 55 - Parameter Request List
Acceptable values are: 1 (subnet mask), 3 (router IP address[es]), 6 (domain name server IP address[es]), 15
(domain name), NVSSON (site-specific option number)
· Option 57 - Maximum DHCP Message Size
· Option 58 - DHCP Lease Renew Time
If not received or if this value is greater than that for Option 51, the default value of T1 (renewal timer) is used as
per IETF RFC 2131, Section 4.5.
· Option 59 - DHCP Lease Rebind Time
If not received or if this value is greater than that for Option 51, the default value of T2 (rebinding timer) is used as
per IETF RFC 2131, Section 4.5
Note
· The H323 IP phones, any Option 66 settings will be overridden by any TFTP entry in Option 176. Using Option 66 as
part of the Scope is useful if alternate Gatekeeper addresses are required in the Option 176 settings whilst keeping
within the 127 character limit.
H323 IP Telephone Installation
IP Office Release 6
Page 74
15-601046 Issue 16a (15 March 2010)
Chapter 8.
WML Server Setup
H323 IP Telephone Installation
IP Office Release 6
Page 75
15-601046 Issue 16a (15 March 2010)
8. WML Server Setup
The 4610SW, 4620, 4620SW, 5610SW, 5620 and 5620 phones can act as WAP (Wireless Access Protocol) browsers. This
allows them to view WML (Wireless Markup Language) pages. WML is a page coding language similar to HTML but
intended for phone devices with small screens and no full keyboard.
To do WAP browsing, the phones need to be configured to access a home page. That home page can contain links and
information appropriate to the customer installation.
This section looks at the setting up and configuration of a simple test system. The aim is to introduce the basic principles
of WAP browsing operation.
· For testing and demonstration purposes Avaya host a set of WML files at http://support.avaya.com/elmodocs/
avayaip/4620/home.wml.
· Most PC web browsers cannot display .wml files. However Opera is able display WML pages which makes it a useful
tool with which to test WML access and operation.
What WML is Supported
The phones are WML 1.2 compliant WAP browsers. However, they do not support all WML 1.2 tags.
For details of those WML 1.2 tags supported, refer to the 4600 Series IP Telephone LAN Administrator's Guide.
WTAI (Wireless Telephony Application Interface) links are supported to allow numbers embedded in WML pages to be
dialed from phones.
H323 IP Telephone Installation
IP Office Release 6
Page 76
15-601046 Issue 16a (15 March 2010)
WML Server Setup:
8.1 Testing 4620 WML Browsing Using Xitami
1. Introduction
Xitami is a small and simple web server application. It is used here to configure one of our LAN PC's as a web server able
to provide .wml pages is response to requests from an IP phone.
· Web Server PC
Any Windows PC on the IP Office LAN. Ideally this PC should have a fixed IP address.
· Server Software
Xitami can be obtained from http://www.imatix.com. A copy is available on the IP Office Documentation CD. If
an alternate Apache or IIS web server is available refer to the section on configuring Apache 80 or IIS 80 for WML
files.
· Sample WML Pages
A number of sample pages can be downloaded from http://support.avaya.com/japple/css/japple?
PAGE=ProductArea&temp.productID=107755.
2. Installing the Web Server
For this test we used a web server called Xitami. It is a simple, small and flexible web server for use on Windows based
PC's.
1. On the server PC, run Xitami.exe to start installation of the web server.
2. Accept the various defaults.
3. When asked for a User Name and Password, note the details entered.
4. When finished, select Run. The Xitami server appears as an
5. To display the web servers basic properties, double-click
icon.
. Note the IP addresses.
6. To close the window without stopping the web server, click Close.
7. Open the PC's web browser and enter http://<server IP address>. You should see the default Xitami web
pages.
If there are other PC's on the IP Office LAN they should also be able to browse the web server's IP address.
3. Configuring the Xitami Web Server for WAP
Basic web browsing consist of requests to the web server for .htm and .html text pages and .gif and .jpg images which are
then displayed by a browser program. WAP browsing uses different file types, wml for text and .wbmp for images.
The web server needs to be configured to recognize those file types, and several others, as files that might be requested
by a WAP browser program. This is done by adding what many web servers refer to as MIME types.
1. On the web server PC, open the folder C:\Xitami.
2. Using a plain text editor such as Notepad or WordPad, open the file Xitami.cfg.
3. Scroll down the file to the section [MIME]. You will see that it is a list of settings for different text, image and
application files types.
4. Scroll the end of the file and add the following new set of MIME type for files that are supported by H323 IP phones
with a WAP browser.
# WAP MIME types
wml=text/vnd.wap.wml
5. Save the file.
H323 IP Telephone Installation
IP Office Release 6
Page 77
15-601046 Issue 16a (15 March 2010)
4. Installing Sample WML Pages
Download the sample pages from Avaya (see the link above).
1. On the web server PC, open the folder c:\Xitami\webpages. For Apache and IIS use the appropriate root folder.
2. Create a new sub-folder called 4620.
3. Copy the sample .wml pages into this folder.
4a. Creating a Simple WML Page
As an alternative to using the sample pages provided, you can create a simple .wml page using an editor such as Notepad.
1. Start Notepad.
2. Add the following text:
<?xml version="1.0"?>
<!DOCTYPE wml PUBLIC "-//WAPFORUM//DTD WML 1.1//EN"¿ "http://www.wapforum.org/DTD/wml_1.2.xml"
<wml>
<card id="card1" title="Hello World!">
<p>Hello world!</p>
</card>
</wml>
3. Save the file as index.wml. Notepad may save the file as index.wml.txt. If this happens, rename the file back to
index.wml.
4. Copy the file into the folder c:\Xitami\webpages\4620.
4b. Dialling from a WML Page
WTAI (Wireless Telephony Application Interface) allows numbers contained in a WML page to be dialed.
An example WTAI link is shown below:
<a href="wtai://wp/mc;200" title="Reception">Call Reception</a>
This example link displays as Call Reception and have an adjacent phone icon. Pressing the adjacent display key on the
phone will dial the number contained in the link.
H323 IP Telephone Installation
IP Office Release 6
Page 78
15-601046 Issue 16a (15 March 2010)
WML Server Setup: Testing 4620 WML Browsing Using Xitami
8.2 Setting the Home Page
WAP capable H323 IP phones display a key option labeled Web when setup with a home page (press PHONE/EXIT if in
any other menu).
To access the home page, press the adjacent display key. The home page is set by editing the 46XXsetting.scr file found
in the IP Office Manager applications program folder.
· For testing and demonstration purposes Avaya host a set of WML files at http://support.avaya.com/elmodocs/
avayaip/4620/home.wml.
· Most PC web browsers cannot display .wml files. However Opera is able display WML pages which makes it a useful
tool with which to test WML access and operation.
1. Locate the 46XXsettings.txt file that has been previously downloaded to the phones. This will contain any custom
settings for the Avaya IP phones being supported on the system.
· If only the file 46XXsettings.scr is present rename it as 46XXsettings.txt.
2. Double-click on 46XXsettings.txt. The file will open in Notepad. The section relating to WML browsing is towards the
end of the file. It will look similar to the following:
################ SETTINGS FOR AVAYA 4620 IP PHONE ###################
## 4620 Web Launch page in WML - Default: Avaya hosted
SET WMLHOME http://192.168.42.200/4620/index.wml
## The Proxy server used for your LAN - IP address or human readable name (check your browser settings).
# SET WMLPROXY nj.proxy.avaya.com
## The http proxy server port (check your browser settings).
SET WMLPORT 8000
## Exceptions: You must use an IP address not a DNS name
# Example: SET WMLEXCEPT 111.222.333.444
## Text coding for the web pages defaulted to ASCII.
SET WMLCODING ASCII
##################### END OF AVAYA 4620 IP PHONE ####################
3. Edit SET WMLHOME to be the address of the sample index.wml file on the web server. In this example;
http://192.168.42.200/4620/index.wml.
4. If DNS is being used to access the web server by IP name, the SET DOMAIN and SET DNSSRVR lines at the start of
the 46XXsettings.scr file should be edited to match the LAN settings. The preceding #'s should be removed from the
lines to make them active.
5. Close and save the file.
6. Restart the phones. Once the phone has restarted it should display Web as one of the screen option.
H323 IP Telephone Installation
IP Office Release 6
Page 79
15-601046 Issue 16a (15 March 2010)
8.3 Apache Web Server WML Configuration
Apache is an open-source web server that is available on many platforms. Basic familiarity with Unix is necessary to
configure it. The following is a step-by-step guide for configuring Apache Web-server:
1. To set MIME types in Apache, a plain text file called httpd.conf is used.
2. The location for this file varies depending on the individual setup, but the most usual path is /etc/httpd/conf/
httpd.conf. If the operating system is Windows, then look for a folder called conf under where Apache is installed.
3. Using a text editor, open httpd.conf.
4. Scroll down to the AddType section (usually at the bottom of the file) and add the following line: AddType text/
vnd.wap.wml wml
5. Save the file.
8.4 Microsoft IIS Web Server WML Configuration
Microsoft Internet Information Server (IIS) is configured through the Internet Service Manager.
The following step-by-step guide can be used to set up MIME types necessary for WML:
1. Select Start | Control Panel | Administrative Tools | Internet Services Manager.
2. Right-click on Server and select Properties.
3. In the Computer MIME Map section, click Edit.
4. Click New Type and create a new file type using the parameters below:
· Associated extension: wml
· Content type: text/vnd.wap.wml
5. Click OK.
6. Stop and restart the web server so that the newly added MIME types are picked up.
H323 IP Telephone Installation
IP Office Release 6
Page 80
15-601046 Issue 16a (15 March 2010)
WML Server Setup: Microsoft IIS Web Server WML Configuration
8.5 Open URL Entry
This document provides sample WML code on how to develop WML pages implementing a text box-based go to a URL
function. This code allows a user to enter a URL into a text entry area and link to that site.
Please note that these are examples, not an exhaustive list. All WML code is presented in italics.
Case 1. Input Box Followed by an Anchor Tag
Description: The user enters a URL into the text entry box and clicks on the URL to retrieve it.
<input name="url" title="Name" />
<anchor title="get it">
Go Get It
<go method="get" href="$(url)">
</go>
</anchor>
Case 2. Input Box Followed by an A Tag
<input name="url" title="Name" />
<a href="$(url)">Go Get It</a>
Case 3. Input Box Followed by a Submit Button
<input name="url" title="Name" />
<do type="submit" name ="submit" label = "Submit">
<go method="get" href="$(url)">
</go>
</do>
Case 4. Input Box Followed by an Anchor Tag Where the Anchor Tag Already Displays
HTTP://
This method displays http so that the user only has to type in the URL at the end of http://.
<input name="url" title="Name" value="http://" />
<anchor title="GET">
Go Get it
<go method="get" href="$(url)">
</go>
</anchor>
H323 IP Telephone Installation
IP Office Release 6
Page 81
15-601046 Issue 16a (15 March 2010)
Index
Index
1
100Mbps Ethernet 56
10Mbps 14
10MBps Ethernet 56
1151C1 21
1151C1/1151C2 34
1151C2 21
1152A1 34
150ms 16
1719,TFTPSRVR 71
176 option 71
192.168.202.x 47
192.168.202.X VLANTEST 47
192.168.42.200/4620/index.wml 79
192.168.43.x 47
19-inch 21
1b 31
1U 21
1W 21
2
25ms 17
264V AC 21
2a 71
2b 71
2c 71
2-second 67
3
3.5W 21
30A Switch Upgrade Base 21
3600 7
3616 7
3b 35
3-party
configuring 13
4
4.0W 21
4.1W 21
4.6W 21
4.9W 21
45-days 44
4600 7, 31, 42, 44, 47, 70, 76
created 71
4600 Series IP Telephone LAN Administrator's Guide 44
refer 76
see 70
4600 Site Specific Settings 31
4601dape1_82.bin 23
4601dbte1_82.bin 23
4602dape1_82.bin 23
4602dbte1_82.bin 23
4602sape1_82.bin 23
4602sbte1_82.bin 23
4602SW 7, 20, 21
4606 7, 20, 21
includes 66
4610SW 7, 20, 21, 44, 76
4620 7, 21, 31, 66, 76, 77
relating 79
4620IP 20
4620SW 7, 20, 44, 76
4621SW 7, 44
applies 21
4622
H323 IP Telephone Installation
IP Office Release 6
support 7
4624D 21
4624D01 21
4624D02A 56
4625SW 21, 44
46setting files 47
46vpnsettings.txt file 44
46xx
VPNremote 44
46xxOptions 71
46XXsetting.scr 79
46XXsetting.scr file
editing 79
46xxsetting.txt file 60
46xxsettings file 47
46XXsettings.scr 31
back 79
edit 54
46XXsettings.scr file
46XXsettings.txt 79
start 79
46XXsettings.txt 28, 31
46XXsettings.scr file 79
46xxsettings.txt file
Creating 31
46XXupgrade.scr 62
46xxupgrade.scr file
lines 31
46xxupgrade.scr file instruct
phone 31
47
63HZ 21
4a 77
4b 77
5
5.0W 21
5.9W 21
5601ape1810.bin 23
5601bte1810.bin 23
5602dape1806.bin 23
5602dbte1806.bin 23
5602sape1806.bin 23
5602sbte1806.bin 23
5602SW 7, 20, 21
5610SW 7, 20, 44, 76
5620SW 7, 20
5621SW phones 44
6
6.0W 21
6.45W 21
63HZ
47 21
64ms 17
6k3 17
7
7.7W 21
792ms PRN 41
8
8.0W 21
801.11b 7
802.11a/b/g 7
802.11b 7
802.1p 47
802.1Q 35, 47, 55
802.3af 21
Page 83
15-601046 Issue 16a (15 March 2010)
8k 17
9
9.9W 21
90
PSU requires
21
A
a10d01b2_2.bin 23
a20d01a2_2.bin 23
a20d01b2_2.bin 23
AC 21
access point 7
Access Points 7
Action 33, 37
Activate
Scope 71
Active Directory using RADIUS 44
Add 21, 33, 44, 47, 77, 80
clicking 71
ADDR 42
address 14, 19, 23, 35, 37, 42, 47, 58, 59, 62, 66, 67, 70,
71, 74, 77, 79
PC 28
address programming 35
Address View 67
AddType 80
AddType text/vnd.wap.wml wml 80
Administrative 56, 71, 80
Administrative Details 56
administrative options 54, 56
Administrative Tools 71, 80
Adtran Netvanta 3305 VPN Router 44
Advanced 79
AGC 60
ains600,2600,192.168.42.10,1026 41
All LAN 14
All Tasks 71
Alternate 13, 28, 70, 74
Alternate DHCP Servers 13, 28
Avaya IP 70
Alternate Options 74
Anchor Tag 81
Anchor Tag Already Displays HTTP
Anchor Tag Where 81
Anchor Tag Where
Anchor Tag Already Displays HTTP 81
Apache 80
Apache Web Server 80
Apache Web-server 80
Apache-Tomcat 44
Appearance 33, 37
Appendix 62
appendix explains 62
application file 42, 56, 62, 63
Application File Already Loaded 63
Application File Needs Upgrading 63
Application Notes
Configuring 44
Applications 16, 23, 42, 44, 56, 58, 62, 63, 71, 77, 79
applies 19, 36, 42, 62
4621SW 21
ASCII
defaulted 79
ASDM 44
attaching
Option 66 71
H323 IP Telephone Installation
IP Office Release 6
Audio 55
Auto-create Extn Enable 28, 37
Automatic Gain Control 60
Automatic Selection 37
auto-negotiated 17
autorun 23
autorun during PC 23
Avaya 20, 21, 25, 44, 47, 70, 79
escalated 16
including 23
number 7
Avaya 1151C1 21
Avaya 1151C2 21
Avaya 1152A1 Power Distribution Unit 21
Avaya 30A Switch Upgrade Base
fitting 20
Avaya 4622SW IP Telephone 44
Avaya Gateways 44
Avaya H.323 IP 7
Avaya IP 44, 47
Alternate DHCP Servers 70
Avaya IP Office 44, 47
Avaya P333T-PWR Switch 21
Avaya SG Series 44
Avaya Voice Priority Processor 7
Avaya VSU Series 44
Avaya WebLM 44
Avaya WebLM Software 44
AvayaLabs 47
Avays VSU Series 44
Avoid Hubs 19
AVPP 7
B
b10d01b2_2.bin 23
b20d01a2_2.bin 23
b20d01b2_2.bin 23
back 35, 71
46XXsettings.scr 79
index.wml 77
IP 20, 34
Manager PC's 25
back spacing 35
backlight 21
Backup 19, 21
bbla0_83.bin 23
Beam Address 67
Beam Contact 67
Beaming
Files During 68
beaming files 68
bin/VPN Phone 44
Blue 47
boot 7, 35, 54, 56, 58, 62, 63
Boot File 7, 35, 54, 56, 62, 63
Boot File Needs Upgrading 63
Browsing Using Xitami 77
Button Programming 33
C
c0a82c15 41
cabling 14
Connections 19
Call 7, 14, 17, 19, 31, 36, 37, 42, 44, 47, 77, 80
During 68
subnet 35
Swap Text Files During 66
Page 84
15-601046 Issue 16a (15 March 2010)
Index
call answering 7
Call Reception 77
Call Server 47
call signalling 17
called 46xxsettings.txt 31
called CCD 44
Callserver 71
CallSv 35
CallSvPort 35
card1 77
cat 5 14
CAT3 21
Existing 14
CAT5 14, 19, 21
CAT5 cabling 14
Catalyst
changes 21
provide 21
Category 14, 42
cause 19
timeout 42
CD 23, 44, 77
CD/DVD 44
changes 14, 23, 25, 28, 31, 33, 35, 36, 37, 47, 54, 55, 59,
63, 67
Catalyst 21
checkbox 44
Cisco
Configuring 44
Cisco Adaptive Security Device Manager 44
Cisco Catalyst 21
Cisco PIX 500 Series Security Appliances 44
Cisco PIX Security Appliance
Configuring 44
Cisco VPN 300 Series Concentrators 44
Cisco VPN 3000 Series Concentrators 44
Clearing 63
CLI configuration 47
clicking
Add 71
Close 16, 41, 77, 79, 80
cmd
Windows 41
codecs 17
Compact Flash 25
Compaq iPAQ Pocket PC 67
Compression Mode 37
Computer Management 71
Computer Management Tree 71
Computer MIME Map 80
Concentrator 44
conf 80
configuration 7, 14, 16, 20, 23, 28, 33, 37, 42, 44, 47, 59,
70, 76, 79, 80
file source 25
Microsoft IIS 80
configuration back 25, 33, 37, 44, 59
Configuration Quick Start 44
configuring
3-party 13
Application Notes 44
Cisco 44
Cisco PIX Security Appliance 44
File Source 25
VPN Remote 44
CONFLICT 42
H323 IP Telephone Installation
IP Office Release 6
Connect 14, 17, 19, 20, 44, 47
LAN 34
Connections 14, 20, 21, 34, 42, 44, 55, 56, 67
Cabling 19
Contacts 66, 67
Control Panel 80
Control Unit Memory Card
Using 25
Control Unit Settings 28
Correct Boot File 63
Creating 47
4600 71
46xxsettings.txt File 31
Scope 71
Simple 77
Currently VPNremote Phone 44
D
Data 16, 17, 19, 20, 21, 34, 35, 47, 58, 71
Data occupy 47
data VLAN’s 47
Data/Common/WML/samples 77
def06r1_8_3.bin 23
def24r1_8_3.bin 23
Default 17, 35, 37, 44, 55, 58, 59, 63, 67, 71, 77
ASCII 79
defaults 58
defines 47, 59, 70
IP 71
Definity 70
Deployment Guide 44
DHCP 13, 14, 16, 23, 35, 42, 47, 54, 58, 59, 62, 74
alternate 70
connection 34
introduction 7
preparation 28
windows 71
DHCP Address Installation 34, 35
DHCP addressing 59
DHCP Options 47, 59, 71
DHCP Relay 47
DHCP Server 13, 14, 23, 28, 34, 35, 42, 47, 59, 70, 71, 74
DHCP server assigning 42
DHCP Settings 47
DHCP Setup
H.323 IP Phones 71
dialling 66, 67, 77
dialling contacts 67
Dialling Phone Numbers 67
DiffServ 19
IP Office supports 19
DiffServ QoS 19
Digital Telephony 37
Direct Media 17
Disable Auto-Create Extension 37
display 28, 33, 34, 35, 36, 37, 55, 56, 57, 58, 59, 60, 62,
63, 67, 68, 77, 79, 81
IR 67
displayed Beam option 68
displays Clearing 63
displays Initializing 34, 63
displays Loading 63
DNS 70, 71, 74, 79
DNS Domain Name 70, 74
DNS Server Address 70, 74
Doc Reference 44
DOCTYPE wml PUBLIC 77
Page 85
15-601046 Issue 16a (15 March 2010)
Documentation CD 77
Double-click System 59
Duplicate IP Addressing 19
during
Call 68
Manager 14
DVD 44
Avaya 30A Switch Upgrade Base
following
H.323 IP 7
form 25, 28, 41
Quality 19
Full Name 37
E
G.711 17
G.723 17
G.729a 17
G.729b 17
gatekeeper 13, 14, 28, 35, 37, 59, 71, 74
Gatekeeper Enabled 28
Gatekeeper Settings 28
GEN
phone 21
GEN1 21
GEN1 4612 21
GET 81
Get It 81
Get It</a 81
gif 77
GRQ 41
gvrp 47
Edit SET WMLHOME 79
editing 80
46XXsetting.scr file 79
46XXsettings.scr 54
Embedded Voicemail Memory 23
END OF AVAYA 4620 IP PHONE 79
END OF FILE 31
Endpoints 41
End-to-End Matching Standards 19
English 42
Enter 14, 23, 25, 28, 33, 34, 35, 36, 37, 41, 44, 55, 59, 67,
74, 77, 79, 81
subnet 71
WINS 71
Enter cmd 25, 41
Enter tftp 41
entered during 55
error messages 42
escalated
Avaya 16
etc/httpd/conf/httpd.conf 80
Ethernet 19, 42, 47, 62, 67
Power 21
Ethernet LAN 21
Ethernet Switch 47
EU24 21
EU24BL 21
Example setup - Overview 47
Excessive Utilization 19
Existing
CAT3 14
Ext 36
extension 37
Extension ID 33
Extension Number 14, 28, 33, 36, 37, 63
IP phone 42
extensions 7, 14, 17, 28, 33, 36, 37, 42, 44, 66, 68, 79, 80
phone requests 63
user changes 63
Extn 33, 37
Extn2601,2601,192.168.42.4,1720 41
Extn2602,2602,192.168.42.2,1720 41
F
file 23, 25, 28, 31, 36, 41, 42, 44, 47, 56, 58, 62, 63, 66,
67, 68, 71, 77, 79, 80
phone displays 63
File Source
Configuring 25
File Writer
set 25
filename1 56
filename2 56
Files During
Beaming 68
FileSv 35
Find 57
Finish 71, 77
fitting
H323 IP Telephone Installation
IP Office Release 6
20
G
H
H.08.60 47
H.232 20
H.323 7, 13, 14, 16, 17, 20, 21, 23, 28, 31, 41, 42, 54, 55,
59, 60, 66, 67, 70, 71, 74, 77, 79
H.323 Gatekeeper 13
H.323 IP 14, 17, 20, 23, 28, 31, 41, 42, 54, 55, 59, 60, 66,
67, 70, 74, 77, 79
following 7
including 21
installing 16, 71
number 7
provide 13
H.323 IP phone requires 21
H.323 IP phones 7, 13, 14, 17, 20, 21, 23, 28, 31, 41, 55,
60, 67, 70, 74, 77, 79
DHCP Setup 71
H323 Gatekeeper 14, 71
Hello World 77
Hold 35, 55, 56, 57, 58, 60, 67
home page 31, 76, 79
hostname 47
HP 47
HP Procurve 47
HP Procurve CLI 47
HP Procurve Ethernet 2626 PWR Ethernet 47
HP Procurve Switch 47
HP-Switch 47
href 77, 81
htm 77
HTML 76, 77
httpd.conf 80
I
i10c01a2_2.bin 23
i10d01a2_2.bin 23
i20d01a2_2.bin 23
IEEE 802.2p/q
understanding 47
IEEE 802.3af 20, 21
IIS 80
IIS 5.0 80
Page 86
15-601046 Issue 16a (15 March 2010)
Index
IIS Admin Service’ 80
IKE Extended Authentication 44
Immediate 33, 37, 71
Important Note 66
Inactive 71
includes 13, 16, 28, 41, 47, 67, 77
4606 66
Avaya 23
H.323 IP 21
PC 20
WAN Ethernet 19
index.wml 79
back 77
index.wml file 79
index.wml.txt 77
Infrared Dialling 66
Initializing 34, 63
Input Box Followed 81
installation 19, 23, 28, 31, 34, 37, 44, 54, 58, 70, 76, 77,
79
DHCP 7
requirements 14
small 13
static address 35
Installation Documentation 44
Installation Requirements 14
installing
H.323 IP 16, 71
IP 14
Sample 77
VCM 17
Web Server 77
Internet 44, 80
Internet Authentication Service 44
Internet Service Manager 80
Introduction 7, 77
IP 13, 16, 17, 19, 23, 25, 28, 31, 33, 36, 37, 41, 42, 44, 47,
54, 58, 59, 62, 63, 66, 70, 74, 76, 77, 79
back 20, 34
defines 71
install 14
match 35
power 21
Select 67
start 57
use 7
IP address 14, 19, 23, 25, 28, 33, 34, 35, 37, 41, 42, 47,
62, 70, 71, 74, 77, 79
ip address 192.168.202.201 255.255.255.0 47
IP Address and/or MAC Address 33
IP Address LAN2 47
IP Gateway 70
IP Mask 35, 47
IP Mask LAN1 47
IP Mask LAN2 47
IP Office 7, 13, 14, 16, 17, 19, 21, 23, 25, 28, 31, 33, 35,
36, 37, 41, 42, 44, 47, 58, 59, 63, 67, 70, 71, 77, 79
IP Office Administration CD 28
IP Office Administrator 23, 44
IP Office Administrator Applications CD 23
IP Office Documentation CD 77
IP Office Embedded Voicemail 23
IP Office Engineers 77
IP Office Engineers Toolkit 77
IP Office IP Endpoint 7
IP Office LAN 77
H323 IP Telephone Installation
IP Office Release 6
IP Office Licensing 44
IP Office Manager 7, 13, 14, 23, 31, 33, 36, 37, 42, 44, 59,
63, 79
IP Office Manager application 7, 13, 14, 23
IP Office Manager PC 14
IP Office Manager System 37
IP Office Monitor application 28, 41
IP Office supports 7
DiffServ 19
IP Office System 7, 13, 16, 17, 25, 41, 44, 58, 67
IP Office Unit 7, 13, 14, 17, 19, 23, 25, 28, 35, 41, 42, 70,
71
IP Office Unit configuration 14
IP Office Unit Memory Card 23
IP Office Unit's LAN1 71
IP Office's configuration 44
IP Office's data 17
IP Office's LAN1 23, 28
IP Office's TDM 17
IP phone 7, 13, 14, 20, 21, 23, 28, 33, 34, 37, 44, 47, 54,
57, 59, 66, 67, 70, 71, 74, 77, 79
extension number 42
IP Phone Inline Adaptor 21
IP Phone Software 7, 23, 28
IP Phone Software Version 7
IP Softphone Fails To Register With 44
IP Telephone 14, 44, 70, 76
IP Telephone LAN Administrator's Guide 70, 76
IP Telephone R2.3 LAN Administrator Guide 44
IP Telephone Software 14
IP Telephones Administrators Guide 44
IP400 44
IP403 7, 17
IP406 7, 17, 23, 25, 28
IP406 V1 7, 17
IP406 V2 7, 17, 23, 25, 28
IP412 7, 17
IPO 44, 47
IPO LIC 44
IPSec VPN 44
IPSets Firmware 23
IPSets Firmware/4601dbtel1_82.bin 25
IR 55, 66, 67, 68
display 67
PC/Handheld 67
IR beaming 66
IR Interface Enable/Disable 55
IR port 55, 66, 67, 68
IR port ready 68
IrDA 66
ISG 44
J
J8164A Configuration Editor 47
Java 44
jpg 77
JRE 44
Juniper Networks Integrated Security Gateway 44
Juniper Networks NetScreen 44
Juniper Networks NetScreen Series VPN 44
Juniper Networks Secure Services Gateway 500 Series 44
Juniper Secure Services Gateway using Policy-Based 44
K
Kentrox Q2300 VPN Router 44
L
L2 47, 55
Page 87
15-601046 Issue 16a (15 March 2010)
L2 QOS 47
L2 signaling 55
L2Q 47
L2QVLAN 47
L3 55
L3 signaling 55
LAN 19, 20, 21, 42, 44, 47, 55, 56, 62, 70, 76, 77
Connect 34
match 79
PC 14
LAN Administrator's Guide 70, 76
LAN Cables 14, 20, 21, 34, 79
LAN PC's 77
LAN Socket 14, 55
LAN1 25, 28, 35, 47, 71
LAN2 47
LAN's DHCP 62
Leave Manager 28
LED 21
waiting 57
Licence Keys 14
license key 14
LINE 21, 34
lines 41, 44, 62, 63, 77, 79, 80
46xxupgrade.scr file 31
Monitor 28
Listing
Registered 41
Loading 62, 63
Loading… 34
login 37
Login Code 36, 37
M
M505 67, 68
MAC 37, 44, 56
MAC Address 37, 44, 56
Maintenance Manual 7
manage
VLAN’s 47
Manager 13, 23, 25, 28, 31, 33, 35, 37, 44, 70, 71, 79, 80
during 14
Manager application 13, 23, 28, 31, 35
Open 79
Manager Installation 7, 14
Manager PC 25, 28, 79
Manager PC's
back 25
Manager's TFTP Log 28
Mandatory 16, 55
Manually Creating Extensions 33
match 19, 33, 37, 59, 63
IP 35
LAN 79
RJ45 21
May 2007 7
Mbps 62
MCIPADD 47, 71
MCPORT 47, 71
Menu icon 67, 68
MESSAGES button 36
MESSAGES button flashing 0.5 36
MG 7
Microsoft 44, 74, 80
Refer 71
Microsoft DHCP 74
Microsoft IIS Web Server 80
H323 IP Telephone Installation
IP Office Release 6
Microsoft Internet Information Server 80
Microsoft Windows 2000/server 80
Microsoft Windows NT 80
Microsoft Windows XP 80
Mid-Span Power Unit 21
MIME 80
set 77
Minimum Assessment Target 16
Minimum Firmware 44
MMC 80
Mode option 47
Mode option MUST 47
Monitor 16
lines 28
multicast 19
Multicasting 19
Multihomed 47
MultiVantage 70
N
Name 14, 20, 23, 28, 33, 37, 41, 44, 47, 56, 63, 67, 71, 74,
77, 79, 81
Name Details 28
nasystem/h323_ras_list yyyyyyyy.txt 41
Native 47
Netgear FVS338 VPN Router 44
Network Access 19
network assessment 7, 16
New 19, 28, 33, 35, 36, 37, 47, 54, 55, 59, 62, 63, 71, 77,
80
New Type 80
New,2702,192.168.42.200,1720 41
Next 63, 71
NIC Cards 47
No Ethernet 34, 42, 62
No new 55
Non-Avaya 25, 44
Non-Avaya Gateways 44
non-IP 17, 36
number 7
non-IP extension 36
non-VoIP extension 33
Notepad 77, 79, 80
NT 4.0 80
Number 14, 17, 20, 21, 28, 33, 35, 36, 37, 44, 54, 56, 59,
62, 63, 67, 68, 71, 76, 77
Avaya 7
H.323 IP 7
non-IP 7
Start 66
VCM 7
O
OK 25, 33, 37, 44, 59, 71, 80
on/off 36, 60
onthe phone button 67
Open 19, 28, 37, 41, 80, 81
Manager application 79
PC's 77
Open URL Entry 81
operate 80
Option 14, 21, 23, 31, 41, 42, 44, 47, 54, 55, 56, 59, 68,
71, 74, 79, 80
Option 15 74
Option 176 74
requesting 71
Option 66 74
attaching 71
Page 88
15-601046 Issue 16a (15 March 2010)
Index
Option Settings 55
options exist 14
OR 79
Other H.323 IP 7
Overlapping VLAN 47
P
p>Hello world!</p 77
Packet Loss 16
page coding 76
Pages 76, 77, 79, 80, 81
pages implementing 81
Palm 67, 68
Palm Organizer 67, 68
Palm Vx 67, 68
part 23, 31, 44, 71
Scope 74
Password 36, 63, 77, 79
PC 7, 23, 25, 35, 44, 47, 55, 62, 66, 67, 70, 77, 79
address 28
include 20
LAN 14
running 71
PC Ethernet LAN 20
PC Port 20
PC Softphone 7
PC/Handheld
Ir 67
PC/personal 66
PC’s 47
PC1 47
PCs 47
PC's 20
Open 77
PC's web 77
phone 7, 13, 14, 16, 17, 19, 20, 23, 28, 33, 35, 37, 42, 44,
47, 54, 55, 56, 57, 58, 59, 60, 62, 63, 67, 68, 70, 71, 74,
76, 77, 79
46xxupgrade.scr file instruct 31
connection 34
dialling 67
GEN 21
infrared dialling 66
registration 36, 41
security 37
Phone Connection 34
phone displays 36, 63, 79
file 63
phone during installation 14, 28, 70
Phone Manager 7
Phone Manager Pro PC Softphone 7
phone obtains 62
phone requests 31, 44, 79
extension 63
phone requires 14
phone returns 55, 57
Phone Security 33, 37
Phone SN 56
PHONE/EXIT 79
phone's Differential 55
phone's Differential Services 55
phone's IP Mask 35
phones look 13
phones need 71, 76
Phones share 47
PHY2 55, 67
Pocket PC 67
H323 IP Telephone Installation
IP Office Release 6
PoE 21
PoE input 21
Potential Problems 19
Potential VoIP Problems 19
power 14, 19, 20, 34, 36, 42, 62
Ethernet 21
IP 21
power conditioning 19
power over ethernet 20, 21
Power over Ethernet Options 21
power supply 14, 19, 21, 34
Power Supply Conditioning 19
Power Supply Options 21
Power Supply Unit 14, 21, 34
Predefined 71
Pre-Deployment 44
Preferences 28
Prefs 67
preinstalled 28
preparation 28, 63
Preshared Key 44
Press Web 79
Print 37, 41, 56
Printed Wiring Board 56
Printed Wiring Board Serial Number 56
prioritisation 47
prioritization 19
Product Section 44
Program 14, 23, 35, 71, 77, 79
Program Files/Avaya/IP Office/Manager 79
Program Files/Avaya/IP
Office/Toolkit/Data/Common/WML/samples 77
Properties 77, 80
Protection 19
Protocol timeout 42
provide switching 20
provides 14, 16, 17, 19, 20, 23, 31, 44, 47, 77, 81
Catalyst 21
H.323 IP 13
RJ45 21
Proxy 79
PSK 44
PSU 21
PSU requires
90 21
PWB comcode
Shows 56
PWB SN 56
Q
QoS 19, 55
QoS Option Settings 55
Quality 7, 16, 19
form 19
Service 55
R
RAM 62, 63
RAS 41, 71
RAS users 41
Reboot 25, 33, 37, 59, 63, 71, 79
Restarting following 42
Reboot Mode 59
Set 33, 37
Reception">Call Reception</a 77
Red 34, 47
refer 7, 21, 44, 47, 66, 77
Page 89
15-601046 Issue 16a (15 March 2010)
refer 7, 21, 44, 47, 66, 77
4600 Series IP Telephone LAN Administrator's Guide
76
Microsoft 71
Registered 44, 71
Listing 41
registration 36, 63, 71
relating
4620 79
Release 2.0 Administrator Guide 44
Release 4.3 Administration Guide 44
repost 47
requesting
Option 176 71
Reset System Values 58
reset sytem values 58
Resetting 58
restart 13, 23, 36, 42, 47, 58, 62, 63, 67, 79, 80
Restart Scenarios 62
Restarting following
reboot 42
Restarting… 62
RFA Name 44
RFC2474 19
RJ45 14
matching 21
provides 21
RJ45 Ethernet LAN 14
RJ45 LAN 14
Run 7, 13, 14, 19, 21, 23, 25, 28, 35, 41, 42, 44, 70, 77,
79, 80
PC 71
S
Sample 79, 81
Installing 77
SAP Code 44
Save 35, 42, 44, 55, 59, 63, 77, 79, 80
savilltech.com 71
Scope 47, 70
Activate 71
Creating 71
part 74
Scope Options 47, 71
scr 79
scr extension 79
Screen OS 5.1.0 44
script file 42, 54, 62, 63
Secondary Ethernet 55
see 13, 14, 16, 28, 31, 33, 34, 35, 36, 41, 54, 55, 58, 60,
71, 77, 79
4600 Series IP Telephone LAN Administrator's Guide
70
select 25, 33, 36, 37, 41, 44, 47, 59, 68, 71, 77, 79, 80
IP 67
System 28
Select Add 71
select All Tasks 71
Select File 28, 79
Select Immediate 59
Select No 71
Select Start 25, 41, 71, 80
Select View 28, 79
Select Yes 71
Self Installer 44
self test 57
Self-Test Procedure 57
H323 IP Telephone Installation
IP Office Release 6
sendable 68
Serial Number 56
Series 7, 21, 31, 42, 44, 47, 70, 76
Series H.323 IP phones 42
Series IP Phone 31
Series phone 42
Server 13, 23, 25, 42, 44, 47, 62, 70, 71, 74, 77, 79, 80
Service 19, 23, 44, 71, 80
Quality 55
Type 19
Services signaling 55
Set 16, 23, 28, 31, 35, 36, 37, 42, 47, 54, 55, 56, 60, 66,
67, 68, 71, 74, 76, 79, 80
File Writer 25
MIME 77
Reboot Mode 33, 37
SSON 59
SET DNSSRVR 79
SET DOMAIN 79
SET L2Q 31
SET SMBLIC 44
SET WMLCODING ASCII 79
SET WMLEXCEPT 111.222.333.444 79
SET WMLHOME 79
SET WMLPORT 8000 79
SET WMLPROXY nj.proxy.avaya.com 79
SETTINGS FOR AVAYA 4620 IP PHONE 79
Setup 33, 37, 47, 58, 62, 67, 79, 80
Several H.323 IP phones 66
SG 44
Shows 13, 19, 41, 47, 57, 67
PWB's comcode 56
Simple 47, 76
Creating 77
site specific option number 59
Site Specific Settings 31
Small Installation 13
Small Office Edition 7, 14, 17, 19, 23, 25, 28
snmp-server 47
Spare Wire 21
Spare Wire Power Options 21
Speaker/Mute LED 57
Specifically HP 47
SSON
Setting 59
Start 19, 25, 28, 35, 41, 44, 47, 62, 63, 71, 77, 80
46XXsettings.scr file 79
IP 57
Number 66
start installing 71
Start Manager 79
Start Notepad 77
static address 7, 23, 28, 34, 42, 54, 56, 62
installation 35
Static Administration Options 54
Static IP 7, 14, 28
Static IP Installation 7
Step 34, 35, 62, 70
stores 25, 36, 42, 63
String
Verify 71
Submit Button 81
subnet 47, 70
called 35
Enter 71
subnet mask 35, 70, 71
Page 90
15-601046 Issue 16a (15 March 2010)
Index
support.avaya.com 44
Supported 13, 14, 16, 17, 19, 21, 23, 25, 34, 35, 44, 47,
66, 68, 70, 74, 76, 77
4622 7
SV 7
SW 20
Swap Text Files During
Call 66
Sysmon 41
System 7, 14, 19, 21, 23, 25, 33, 37, 41, 42, 47, 54, 58,
59, 68, 70, 76, 79, 80
select 28
System | System 23
System Name 28
System Overview 47
system-specific 63
System-specific registration 63
T
Tag 47, 76, 81
Tagged Packets 47
Technical Tip No 44
text/vnd.wap.wml 77, 80
TFTP 13, 16, 35, 41, 42, 44, 47, 58, 62, 63, 70, 71, 74, 79
control unit memory card 25
installation 14
introduction 23
preparation 28
timeout waiting 23
TFTP Error 42, 62
TFTP Introduction 23
TFTP Log 23, 28, 79
TFTP Server 13, 14, 23, 25, 28, 35, 42, 44, 58, 62, 63, 70,
71, 74, 79
TFTP Server Name 74
TFTP Server Options 14
TFTPDIR 71
TFTPLog 28
TFTPSRVR 47, 71
These 7, 17, 21, 23, 34, 37, 41, 47, 54, 56, 66, 81
These require
VPNremote 7
Third-TFTP Software 23
Timed Out 42, 62
timeout 23
cause 42
Timeout Error 42
timeout waiting
TFTP 23
Tomcat 44
toolkit 77
Tools 23, 31, 41, 67, 71, 80
ToS 19
Trial 44
txt file 31
Type 7, 13, 16, 17, 21, 25, 41, 47, 68, 71, 77, 80, 81
Service 19
U
Under Services 71
understanding
IEEE 802.2p/q 47
unit’s 47
Unix 80
Unrestricted 47
Untagged 47
upgrading
application file 63
H323 IP Telephone Installation
IP Office Release 6
boot file 63
URL
user enters 81
URQ 42
US 56
use 13, 14, 19, 21, 25, 33, 36, 37, 41, 42, 44, 47, 54, 55,
56, 58, 62, 63, 66, 67, 70, 71, 77, 79
IP 7
VCM 17
user 14, 19, 20, 28, 33, 36, 37, 41, 44, 47, 56, 60, 63, 77,
80, 81
user changes
extension 63
User Details 14
user enters
URL 81
User Name Details 28
User PC Connection 20
User Setup 37
user's Login Code 36, 37, 63
Using 7, 17, 19, 21, 23, 28, 31, 36, 37, 41, 42, 44, 47, 54,
59, 62, 63, 66, 67, 68, 70, 71, 74, 77, 80
Control Unit Memory Card 25
Using Manager 25
Using Option 66 74
Using Windows 2000 Server 71
V
VCard 67, 68
VCard file 67
VCard phone 67
vcf 67
VCM 28
installing 17
number 7
use 17
VCM 10 17
VCM 16 17
VCM 20 17
VCM 24 17
VCM 30 17
VCM Channels 7, 17
VCOMP 28
Verify 42
String 71
View 23, 28, 56, 76
View Administrative Details 56
VLAN 35, 47, 71
vlan 209 47
vlan 210 47
VLAN ID 35, 47
VLAN networking 47
VLAN Switch Configuration 47
VLAN’s
manage 47
VLANID 47
VLANTEST 47, 71
Voice 7, 14, 16, 17, 19, 20, 28, 47
voice compression 19, 28
channels 17
installation 14
Voice Compression Channel Capacity 17
Voice Compression Channels 17, 28
Voice Compression Module 14, 28
voice signalling 19
voice traffic 16, 20, 47
voicemail 19, 25, 33
Page 91
15-601046 Issue 16a (15 March 2010)
Voicemail Server PC 19
VoIP 7, 14, 16, 19, 33, 36, 37, 44
VPN 44
VPN Devices 44
VPN Phone Allowed 44
VPN Phone Allowed checkbox option 44
VPN Phone Unlimited 44
VPN phones 44
VPN Remote
Configuring 44
VPN Remote Phones 44
VPN Security Gateway 44
VPN Security Gateway Device 44
VPN Wizard 44
VPNremote
46xx 44
These require 7
VPNremote Phone 44
VPNremote Phone Firmware 44
VPNremote Phone License File 44
VPNremote Phone Licenses 44
VSU 44
W
waiting
LED 57
WAN 19
WAN Ethernet
including 19
WAP 76, 79
Web Server 77
WAP browsing 76
WAP browsing uses 77
WAP MIME 77
WAPFORUM//DTD WML 1.1//EN"¿ 77
WARNING 16, 35, 58, 59
