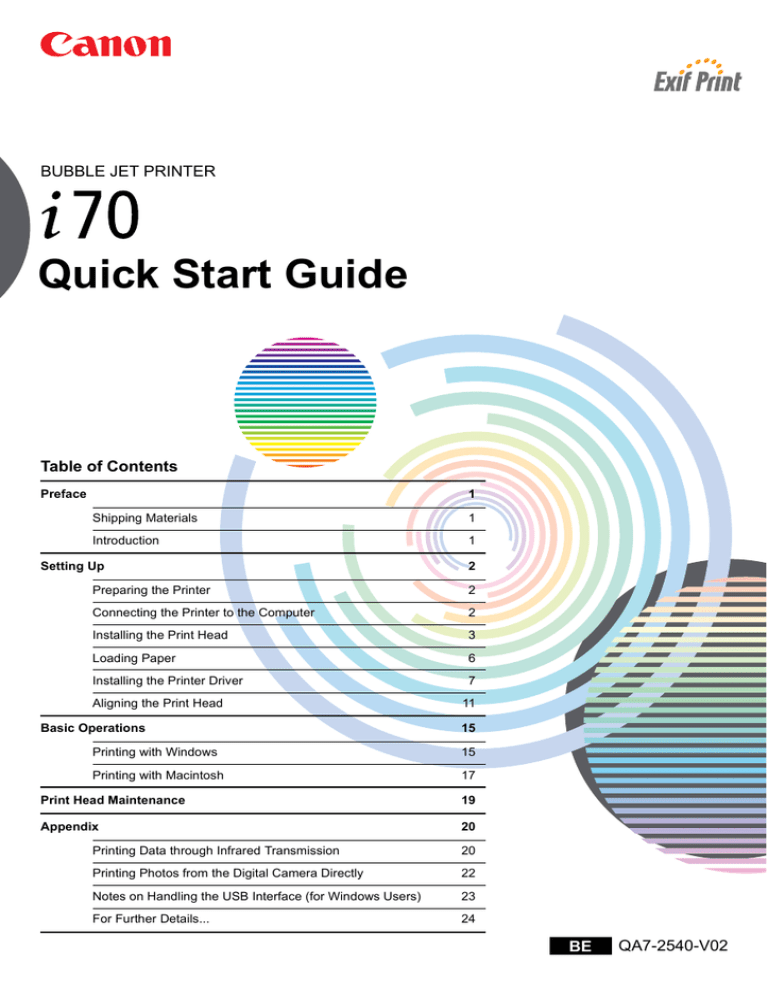

BUBBLE JET PRINTER
Quick Start Guide
Table of Contents
Preface
1
Shipping Materials
1
Introduction
1
Setting Up
2
Preparing the Printer
2
Connecting the Printer to the Computer
2
Installing the Print Head
3
Loading Paper
6
Installing the Printer Driver
7
Aligning the Print Head
Basic Operations
11
15
Printing with Windows
15
Printing with Macintosh
17
Print Head Maintenance
Appendix
Printing Data through Infrared Transmission
19
20
20
Printing Photos from the Digital Camera Directly
22
Notes on Handling the USB Interface (for Windows Users)
23
For Further Details...
24
BE
QA7-2540-V02
Exif Print
This printer supports Exif 2.2 (also called “Exif Print”).
Exif Print is a standard for enhancing the communication between digital cameras and printers. By
connecting to an Exif Print-compliant digital camera, the camera’s image data at the time of shooting is
used and optimized, yielding extremely high quality prints.
Canadian Radio Interference Regulations
This digital apparatus does not exceed the Class B limits for radio noise emissions from a digital
apparatus as set out in the interference-causing equipment standard entitled “Digital Apparatus,”
ICES-003 of the Industry Canada.
Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils
numériques de Classe B prescrites dans la norme sur le matériel brouilleur NMB-003 d'Industrie
Canada intitulée « Appareils numériques ».
International ENERGY STAR® Program
As an ENERGY STAR® Partner, Canon Inc. has determined that this product meets the ENERGY
STAR guidelines for efficiency.
The International ENERGY STAR® Office Equipment Program is a global program
that promotes energy saving through the use of computer and other office equipment.
The program backs the development and dissemination of products with functions
that effectively reduce energy consumption. It is an open system in which business
can participate voluntarily. The targeted products are office equipment such as computers, monitors, printers, faxes and copiers.
Their standards and logos are uniform among participating nations.
Power Requirements
Never use a power supply voltage other than that supplied in the country of purchase. Using the incorrect voltage could cause a fire or electric shock. The correct power supply voltages and frequencies are
as follows:
AC 100-127 V, 50/60 Hz
AC 220-240 V, 50/60 Hz
This product emits low level magnetic flux.
If you use a cardiac pacemaker and feel abnormalities, please keep away from this product in use and
consult your doctor.
Printer Model: K10222 (i70)
Preface
Shipping Materials
Thank you for purchasing a Canon Bubble Jet Printer.
Check that all the following items are in the box. If anything is missing or is damaged, contact your Canon
Authorized Dealer or Sales Representative.
‰ Printer
‰ Setup Software & User’s Guide CD-ROM
‰ Quick Start Guide
‰ Print Head
‰ BCI-15 Black and BCI-15 Color Ink Tanks
‰ Universal AC Adapter
‰ Power Cord
* A USB cable should be purchased separately according to your computer. For details on cable
specifications, refer to page 2.
Introduction
This Quick Start Guide uses the following symbols to indicate important information. Always observe the
instructions indicated by these symbols.
Instructions that, if ignored, could result in death or serious personal injury caused by incorrect
operation of the equipment. These must be observed for safe operation.
Instructions that, if ignored, could result in personal injury or material damage caused by incorrect
operation of the equipment. These must be observed for safe operation.
Also read the Safety Precautions in the User’s Guide. Observe the warnings and cautions to avoid
personal injury or damage to the printer.
Trademark Notices
• Canon® is a registered trademark of Canon Inc.
• BJ™ is a trademark of Canon Inc.
• Microsoft® and Windows® are registered trademarks of Microsoft Corporation in the U.S. and other
countries.
• Apple, Mac, Macintosh are trademarks of Apple Computer, Inc., registered in the U.S. and other
countries.
• All other trademarks and registered trademarks appearing in this Quick Start Guide are the property of
their respective owners.
Copyright ©2003 CANON INC.
All rights reserved. No part of this publication may be transmitted or copied in any form whatsoever
without the express written permission.
1
Setting Up
1 Preparing the Printer
1 Place the printer on a flat surface.
2 Remove the tape from the printer.
The tape position is subject to change.
2 Connecting the Printer to the Computer
USB cable
Recommended: Canon or
other computer manufacturer
cable, up to 5 meters in length
Universal AC adapter
Power cord
The power cord shape defers
with countries.
• Never attempt to plug the power cord into the power outlet or unplug the power cord when your
hands are wet.
• Never damage, modify, stretch, or excessibly bend or twist the power cord. Do not place heavy
objects on the power cord.
• Never use any power supply other than the standard power supply available in the country of
purchase. Using the incorrect voltage and frequency could cause a fire or electric shock.
• Always push the plug all the way into the power outlet.
• If using Windows 95, you can print only via infrared transmission.
• If your computer has an infrared transmission feature, you can print data without connecting a USB
cable. After connecting the universal AC adapter, proceed to “Installing the Print Head” on page 3.
• If your computer has an earth connection, ensure that this is attached.
• If you do not intend to use the printer for a long period of time, unplug the power cord from the
power outlet after turning off the printer.
2
Follow the steps below to install the printer driver
correctly.
1 Ensure the printer and the computer are
switched off.
2 Connect the cable.
3 Plug the power cord into the Universal
AC adapter.
4 Plug the DC plug into the printer.
5 Plug the power cord into the power
outlet.
If the Add New Hardware Wizard or Found New Hardware Wizard screen appears when carrying out
the following operations, click Cancel and turn off the computer. For details, refer to page 7.
3 Installing the Print Head
„ Installing the Print Head
ON
1 Open the paper rest.
2 Turn on the printer. Do NOT turn on the
computer yet.
The POWER lamp flashes and the printer begins to
operate. Wait until the POWER lamp remains fully lit.
print head cover
3 Open the print head cover.
The print head holder moves to the center.
print head holder
3
4 Press the lock button, then raise the
lock lever.
Do not touch internal parts other than the lock lever.
lock button
5 Remove the protective cap from the
print head.
• Do not touch the print
head nozzles.
• Do not attempt to
reattach the protective
cap once it has been
removed.
6 Place the print head in the holder
print head
aligning the
print head holder
4
print head
nozzles
mark with the
mark.
7 Lock the print head into place by
lowering the lever.
Press down the lock button until it clicks.
Do not touch the lock lever once the print head has been
installed.
„ Installing the Ink Tanks
• For safety reasons, store ink tanks out of the reach of small children.
• Do not drop or shake ink tanks as this may cause the ink to leak out and stain your clothes and hands.
1 Take out the black ink tank.
protective cap
2 Hold the ink tank as shown in the
diagram and remove the protective cap.
ink port
• Do not touch the ink port.
• Do not attempt to reattach the
protective cap once it has
been removed.
3 Insert the black ink tank slant into the
back slot aligning the
mark.
4 Press the
mark with the
until it clicks into place.
5
5 Use the same procedure to install the
color ink tank in the front slot.
6 Close the print head cover.
Wait until the preparatory operation is complete: it
takes about 2 minutes.
4 Loading Paper
„ Loading A4 (Letter) Size Plain Paper
1 Open the paper rest and the paper
output slot cover as shown.
2 Ensure the paper thickness lever to the
right position.
Set the paper thickness lever to the right when using
plain paper, to the left when using thick paper. Refer
to the User’s Guide for infomation on loading
envelopes and other media.
print side
load limit mark
3 To avoid paper jams, fan the stack to
remove static cling, then align the
edges of the stack by tapping it on a flat
surface.
4 Load the paper, aligning it with the right
side of the sheet feeder.
You can load up to 30 sheets of plain paper. Do not load
exceeding the load limit mark.
5 Slide the paper guide against the left
side of the stack of paper.
You now need to install the printer driver:
Windows:
Go to page 7
Macintosh:
Go to page 9
6
5 Installing the Printer Driver
„ Installing the Printer Driver – Windows
• When performing infrared transmission, requirements for using the computer must be satisfied.
Refer to “Printing Data through Infrared Transmission” on page 20 before installing the printer driver.
• Do not disconnect the cable or remove the CD-ROM during the installation. The driver cannot be
correctly installed.
• The screens below refer to Windows XP installation. Screen may differ depending on the operating
system you are using.
• When installing the printer driver in Windows XP or Windows 2000, log on to the system as a
member of the Administrators group.
• The Setup Software & User’s Guide CD-ROM contains the application software to import, edit,
and print image data. If you want to install the application software, click Install on step 7.
Internet Explorer 4.0 or later must be installed for Easy-PhotoPrint.
Internet Explorer 5.5 or later must be installed for Easy-WebPrint.
If the following screen appears automatically, click Cancel and follow steps 1 to 8 to install the printer
driver.
Special Notes for Windows 98 or Windows Me USB Users
Click Cancel to quit the screen and turn off the printer. Next, remove and replace the USB cable
connected to your computer.
OFF
1 Ensure the printer and computer are
switched off.
When printing via IrDA, align the infrared port of
the computer to that of the printer.
2 Turn on the computer and start
Windows. If any applications
automatically run, quit them.
Disable any virus detection programs.
Do NOT turn the printer on at this stage.
7
3 Place the Setup Software & User’s
Guide CD-ROM in the CD-ROM drive.
• If the CD-ROM does not run automatically, click
Start and select My Computer, then double-click
the CD-ROM icon. For non-XP Windows, doubleclick My Computer in the Windows screen, then
double-click the CD-ROM icon.
• If the language selection screen appears, select a
language, then click the Next button.
4 Follow the instructions displayed on
screen. When the screen shown on the
left is displayed, click Install.
5 When the screen shown on the left
appears, turn the printer on.
If the printer is recognized, the printer driver will be
automatically installed.
ON
• If the USB connection is not recognized, refer to
“Notes on Handling the USB Interface (for
Windows Users)” on page 23.
• If the computer is not recognized when you use
infrared transmission, carry out the following
operations:
1. Click Manual selection.
2. Select the port from Selected Port:
· Windows XP/Windows 2000o[IR]
· Windows Me/Windows 98/Windows 95o[LPT3]
then click Next.
* Some computers may allocate port number for
infrared ports differently.
6 Click OK.
Before you use the printer, you must carry out print head
alignment on page 11.
8
7 If you want to install the application
software, click Install.
Follow the instructions on screen to install the
application software. When the message “Software
installation is completed.” appears, click OK.
8 Click Exit.
• To view the User’s Guide, please refer to “How to
View the User’s Guide” on page 24.
• If a message prompting you to restart the
computer appears, click Yes.
• For further information of applications and how to
start them, refer to “Applications Included in the
CD-ROM Package” on page 24.
„ Installing the Printer Driver – Macintosh
• Do not remove or insert the USB cable during installation, as this may result in the computer or
printer not operating normally.
• Before installing the driver, disable all virus detection programs and automatically loading
programs or remove them from your system folder.
• The Setup Software & User’s Guide CD-ROM contains the application software, ImageBrowser, to
import and print image data. If you want to install ImageBrowser, double-click the application
folder, then double-click the ImageBrowser folder and then Installer.
1 Turn on the Mac.
2 Place the Setup Software & User’s
Guide CD-ROM in the CD-ROM drive.
3 Double-click the Mac OS 8.6-9.x folder.
4 Double-click the printer driver folder,
then select a language.
5 Double-click Installer.
6 Read the Licence Agreement and click
Accept to continue.
9
7 Click Install.
Wait for the installation to finish.
If the above message appears, check that there are
no unsaved documents, then click Continue. If a
document needs to be saved, click Cancel then save
the document. After saving the document, begin
again from step 4.
8 Click Restart.
The computer restarts.
9 Select Chooser in the Apple menu.
10 Click the icon for the printer you are
using and close Chooser.
Before you use the printer, you must carry out print head
alignment on page 13.
Refer to the User’s Guide when using this printer as
a network printer.
10
6 Aligning the Print Head
This operation must be carried out when using the printer for the first time. Aligning the print head positions
allows you to print without shifts in the color registration.
„ Aligning the Print Head – Windows
1 Click Start and select Control Panel,
Printers and Other Hardware, and
then Printers and Faxes.
For non-XP Windows, click Start, then select
Settings, Printers.
2 Click the icon for your printer.
3 Open the File menu and select:
• Windows XP/Windows 2000 o
[Printing Preferences...]
• Windows Me/Windows 98 o [Properties]
to open the setting screen.
4 Click OK.
5 Click the Maintenance tab, and click
Print Head Alignment.
11
6 Check that paper is loaded in the printer
and click OK. If a message warning you
not to perform other operations
appears, click OK.
It takes about 60 seconds to start printing.
7 After the pattern is printed, click Yes.
If the pattern is not printed successfully, open the print
head cover and ensure that the ink tanks are correctly
installed.
8 Look at the print out. From the patterns
in Column A, select the most even, least
irregular pattern and enter the number.
9 In the same way, one by one, select the
most even patterns printed with the
least irregularities from each of
Columns B to F, enter their numbers,
and click OK.
If it is difficult to pick the best pattern on Column F, pick
the setting that produces the least noticeable vertical
white stripes.
Less noticeable
white stripes
More noticeable
white stripes
10 Click OK.
This completes the printer setup. The printer is now
ready to use.
12
„ Aligning the Print Head – Macintosh
1 Select Page Setup in the File menu.
2 Click Utilities.
3 Select Test Print from the menu and
click Print Head Alignment.
4 Check that paper is loaded in the printer
and click OK.
It takes about 60 seconds to start printing.
If the pattern is not printed successfully, open the print
head cover and ensure that the ink tanks are correctly
installed.
5 Look at the print out. From the patterns
in Column A, select the most even, least
irregular pattern and enter the number.
13
6 In the same way, one by one, select the
most even patterns printed with the
least irregularities from each of
Columns B to F, enter their numbers
and click Send.
If it is difficult to pick the best pattern on Column F, pick
the setting that produces the least noticeable vertical
white stripes.
Less noticeable
white stripes
More noticeable
white stripes
7 Click Close.
8 Click OK.
This completes the printer setup. The printer is now
ready to use.
14
Basic Operations
• If you detect smoke, unusual smells or strange noises around the printer, immediately switch the
printer off and always unplug the printer. Contact your local Canon service representative.
• To avoid injury, never put your hand or fingers inside the printer while it is printing.
Printing with Windows
Adjusting the print settings according to your needs allows you to produce better quality prints.
In this section, we will use WordPad for the purpose of explanation. The procedures you use and the screens
that appear on your computer may differ according to the application that you use.
„ Printing
1 Print the document from the application.
On the File menu, click Print.
Check the application’s user’s manual for the actual
procedures.
2 Ensure your printer is selected, then
click:
• Windows XP o[Preferences]
• Windows Me/Windows 98 o [Properties]
• Windows 2000 o[Main] tab
3 Specify the required settings and click
OK.
If you use anything other than plain paper, please
refer to “Basic Print Settings” on page 16.
4 To start printing, click OK.
Printing will start in a few moments.
15
„ Basic Print Settings
For the best print quality, specify the minimum requirement settings in the Main tab. To get the best
results, ensure you select the type of media loaded in the printer when printing on paper other than plain
paper.
(6)
(1)
(2)
(3)
(4)
(5)
(1) Media Type
Select the type of media loaded in the printer.
(2) Print Quality
Select one option from High, Standard and Draft. Select Custom to
set the print quality manually.
(3) Color Adjustment
If you wish to control the color adjustment settings in more detail,
select Manual.
(4) Preview before printing
Select this to check the layout before printing.
(5) Help
Click this for a more detailed explanation of the functions in the tab.
(This may not appear when using Windows XP or Windows 2000. If
this happens, click Start then select All Programs (or Programs) Canon i70 - Guide).
(6) ?
Click this to change the cursor shape to ?. By clicking on the item’s
name with this ? cursor, an explanation will be displayed.
• Clicking Print Advisor allows you to change to the most appropriate print settings simply by
answering questions when prompted.
• Use the application to set the paper size and paper orientation. Before printing, open the printer
properties dialog box and check that Page Size in the Page Setup tab is the same as that specified
within application.
• Refer to the User’s Guide for more information about printer driver functionality.
16
Printing with Macintosh
Adjusting the print settings according to your needs allows you to produce better quality prints.
„ Printing
1 Open the Page Setup dialog box in
your application.
On the File menu, click Page Setup. Check the
application’s user’s manual for the actual procedures.
2 Specify the page setup.
For details, refer to “Page Setup” on page 18.
3 Open the Print dialog box in your
application to print the document.
On the File menu, click Print. Check the application’s
user’s manual for the actual procedures.
4 Specify the print settings according to
your requirements.
For details, refer to “Basic Print Settings” on page 18.
5 Click Print.
Printing will start in a few moments.
17
„ Page Setup
Use the Page Setup dialog box to specify the paper size settings.
Select paper size
you wish to use.
„ Basic Print Settings
For the best print quality, specify the minimum requirement settings in the Print dialog box. To get the
best results, ensure you select the type of media loaded in the printer when printing on paper other than
plain paper.
(3)
(1)
(2)
(1) Media Type
Select the type of media loaded in the printer.
(2) Print Mode
Select the type of document you want to print.
To specify more detailed settings for the print quality or color, select
Manual and click Details.
(3) Print
Click this to start printing.
• See Balloon Help for more information about other printer driver functions.
Select Show Balloons in the Help menu for an explanation of each of the items in the setting
screen. To see the explanation, point to the item with the mouse.
• Refer to the User’s Guide for more information about printer driver functionality.
18
Print Head Maintenance
„ If Blurring Occurs or If a Specific Color Does Not Print
Perform print head cleaning to improve the print quality. Ensure that the printer is turned on and follow
the instructions below.
• Windows
Open the printer properties dialog box and click the Maintenance tab. Click Cleaning.
For details on how to open the printer properties dialog box, refer to “Aligning the Print Head – Windows”
on page 11.
• Macintosh
Open the Page Setup dialog box and click Utilities. Click Cleaning.
„ When the Printer Runs out of Ink
Replace the empty ink tank with a new one.
Specify the following ink tanks when purchasing.
Ink Tank BCI-15 Color
Ink Tank BCI-15 Black
1 Open the print head cover and remove
the empty ink tank.
Do not touch the lock lever.
black
color
2 Install the new ink tank.
Close the print head cover when finished.
When you enable the low ink warning, reset the ink
counter of the ink tank installed.
Refer to the User’s Guide for more detailed
procedures and information about maintenance.
19
Appendix
Printing Data through Infrared Transmission
If you have a computer or PDA with an infrared port for wireless data transmission, you can print data with
a cordless connection with the printer. You can also print an address book, schedule, or memo received from
a PDA (Personal Digital Assistants) in a fixed format through infrared transmission.
„ Requirements for Infrared Transmission with the Computer
Printing through infrared transmission can be performed under Windows XP, Windows Me, Windows
2000, Windows 98, Windows 95. In order to use infrared transmission, your computer must satisfy the
following requirements:
Computer
IBM PC/AT or compatible machine
CPU
Intel Pentium or higher
IrDA
IrDA 1.1 compliant
Baud rate (transmission speed)
Max. 4 Mbps
Infrared transmisssion devices
• Infrared transmission port incorporated in the computer
• Infrared port (OBEX compliant) of the PDA (Personal Digital
Assistants)
• When using Windows Me or Windows 98, it must have been pre-installed in your computer.
• When using Windows 98 or Windows 95, check whether the infrared transmission driver has been
installed. To activate the infrared port, carry out the following operation:
1. Click Start, then click Settings and Control Panel sequentially.
2. Check whether the Infrared icon is displayed in the window.
If this icon is displayed, the required infrared driver has already been installed. If this icon is not
displayed, change the BIOS setting to activate (turn on) the infrared port. For the procedure,
refer to your computer manual.
3. Double-click the Infrared icon.
4. Check whether the Enable infrared communication check box (Windows 98) or Enable
infrared on check box (Windows 95) is selected. If the check box is not selected, select it.
• When using Windows 95, IrDA 1.0 (baud rate: max. 115.2 kbps) is used for data transmission. In
this case, Microsoft Infrared Communications Driver Version 2.0 must have been installed in your
computer.
For how to install, refer to your computer manual.
20
„ Performing Infrared Transmission
When performing infrared transmission, also refer to your computer or PDA manual.
1 Ensure that the universal AC adapter is connected securely.
When using an optional battery, ensure that it has been charged.
2 Open the paper rest and turn on the printer.
3 Load the paper on the paper rest.
4 Align the infrared port of the computer or PDA to that of the printer at a
distance of less than 80 cm.
The effective angle of the infrared port of the printer is about 10° from the central axis in both vertical
and horizontal directions.
The allowable distance of communication with the printer depends on the computer or PDA you use.
For this distance, refer to your computer or PDA manual.
Do not place any obstacle between the infrared ports of the printer and PDA or computer. Data
cannot be transmitted between them.
80 cm
10°
10°
• Before printing data or using a maintenance function of the printer driver, ensure that the name of
the printer is displayed by placing the mouse pointer on the Wireless Link icon (For Windows 98
or Windows 95, click the Infrared Monitor icon) on the Control Panel.
• During printing, be careful not to interrupt infrared transmission with the printer. If it is interrupted,
turn off the printer and cancel printing on the computer or PDA. Double-clicking the Wireless
Link icon (For Windows 98 or Windows 95, click the Infrared Monitor icon) on the Control
Panel allows you to check whether IrDA transmittion has been interrupted.
• When using Windows XP or Windows 2000, BJ Status Monitor is not displayed.
21
Printing Photographs Directly from a Digital Camera
Connecting a Canon digital camera with the Bubble Jet Direct function to the printer allows you to print
recorded images directly without using a computer. Connect the USB cable that came with your digital
camera.
„ Media Types for Digital Camera
When you connect a digital camera, you can use the following media:
Digital Camera Setting
Media Type
Card #1
Photo Paper Pro 4" x 6" / 101.6 ×152.4 mm
Card #2
Photo Paper Plus Glossy 4” × 6” / 101.6 × 152.4 mm
Card #3
Photo Paper Plus Glossy 5” × 7” / 127.0 × 177.8 mm
LTR
Photo Paper Pro or Photo Paper Plus Glossy Letter
A4
Photo Paper Pro or Photo Paper Plus Glossy A4
„ Printing from a Digital Camera
1 Ensure that the universal AC adapter is connected securely.
When using an optional battery, ensure that it has been charged.
2 Open the paper rest and turn on the printer.
3 Load the paper on the paper rest.
4 Ensure the digital camera is switched off.
5 Connect the digital camera and printer with the USB cable that came with
the digital camera.
The digital camera will automatically turn on.
If not, manually turn it on.
6 Start printing using the print function of the digital camera.
22
• For the digital camera operation method and troubleshooting, refer to your digital camera manual.
For print error messages, refer to the User’s Guide.
• By operating the digital camera, you can make the following prints:
• You can make a standard print from the image displayed in the single display mode or in the
index display mode.
• You can print specified numbers of images, or make an index print by editing the DPOF.
• For the images taken with an Exif 2.2-compatible digital camera, the Photo Optimizer PRO
function can be used.
• If date printing is set from the operation panel of the digital camera, the date when the
photograph was taken is to be printed (excluding the index print).
• Images will be scaled automatically according to the image size set on the digital camera and
the size of the media set on the printer.
• The digital camera does not support the following functions:
• Print quality setting
• Maintenance
* The print head position cannot be adjusted by operating the digital camera. Connect the printer to
the computer, then align the print head position. If the print head position has not been adjusted,
reduce the printing speed (one-way printing) for better print quality.
• Images other than Exif may not be index printed.
Notes on Handling the USB Interface (for Windows Users)
If installation of the printer driver does not proceed as instructed in this Quick Start Guide, there may be a
problem with the USB driver installation.
Try reinstalling the printer driver.
„ Reinstalling
If you cannot proceed beyond the Printer Port screen:
1 Click Cancel.
2 When the Terminate Installation screen is
displayed, click OK.
3
4
5
6
Click Exit, then remove the CD-ROM.
Turn the printer off.
Restart the computer.
Reinstall the printer driver (see page 7).
23
For Further Details...
For more information, place the Setup Software & User’s Guide CD-ROM in the CD-ROM drive.
„ User’s Guide Contents
The “User’s Guide” is an HTML manual you can browse through on your computer.
Contents
• Printer parts and their functions
• Further printing techniques
• Routine maintenance
• Printing media
• Troubleshooting
• Specifications
„ How to View the User’s Guide
For Windows
(1) Load the CD-ROM in your computer.
(2) Click Documentation at left of the screen.
(3) Click View Documents.
(4) When a message appears, click
• Yes – to install the User’s Guide
• No – only to browse the User’s Guide
(5) Select User’s Guide and click OK.
Follow the instructions on screen.
For Macintosh
(1) Load the CD-ROM in your computer.
(2) Double-click the Manual folder.
(3) Select a language folder.
(4) Double-click the User’s Guide folder.
(5) Double-click the icon for the
i70_UG_ENG.htm file.
„ Applications Included in the CD-ROM Package
For detailed description of the various features of photo applications and instructions on their use,
refer to the Photo Application Guide include on the Setup Software & User’s Guide CD-ROM.
Easy-PhotoPrint (Windows)
You can make a Borderless Printing easily and quickly, just by selecting a photograph taken with a digital
camera and the paper type on which to print. You can also use simple editing features such as trimming and
image rotation.
It is Exif Print (Exif 2.2) compatible.
When starting Easy-PhotoPrint, click Start and select All Programs (or Programs) - Canon
Utilities - Easy-PhotoPrint - Easy-PhotoPrint.
ImageBrowser (Macintosh)
You can import photographs taken with a digital camera into the computer, edit and caption them. You can
also make a Borderless Printing or Index Print without difficulty.
It is Exif Print (Exif 2.2) compatible.
24
When starting ImageBrowser, double-click the Canon ImageBrowser icon (alias) on the desktop.
Easy-WebPrint (Windows)
You can easily print homepages displayed on Internet Explorer or pages from User’s Guide (HTML manual
of this printer) in full size.
Easy-WebPrint automatically adjusts the layout when printing a screen.
This feature enables you to print a screen without its right end being cut.
This application is a plug-in for Internet Explorer, and its toolbar is automatically added to Internet Explorer
after installation.
Easy-WebPrint requires Windows XP, Windows Me, Windows 2000, or Windows 98.
„ BJ Printer Driver Systems Requirements
For Windows
• Use a computer on which Windows XP, Windows 2000, Windows Me, Windows 98 or Windows
95*1 can operate.
• USB*2 interface
• Available hard-disk space for printer driver installation
Windows XP/Windows 2000: 50MB
Windows Me/Windows 98:
15MB
*1
When using Windows 95, you can print through infrared transmission only.
*2
USB operation can only be guaranteed on a PC with pre-installed Windows XP, Windows 2000,
Windows Me, or Windows 98. (This includes Windows XP, Windows 2000, or Windows Me
upgraded from pre-installed Windows 98 or later)
For Macintosh
(Macintosh 8.6-9.x)
• Use a Macintosh series computer equipped with USB interface on which Mac OS 8.6-9.x can
operate.
• 30MB of available hard-disk space for printer driver installation
(Macintosh OS X)
• Use a Macintosh series computer equipped with USB interface on which Mac OS X v10.1 or
later can operate. (The Setup Software & User's Guide CD-ROM cannot be read in Mac OS X
v10.0.x)
• 100MB of available hard-disk space for printer driver installation
• The following functions are not supported:
- Borderless printing (will be supported with Mac OS X v10.2 or later version)
- Shared printer in the network (will be supported as an OS function with MAC OS X v10.2 or
later)
- Duplex Printing
- Photo Optimizer PRO
- Printing on nonstandard size paper (will be supported with Mac OS X v10.2 or later)
• If you want to use an application, first install the application contained in the Mac OS X folder.
Additional Systems Requirements for User’s Guide
• Pentium® 75 MHz equivalent or higher processor (Pentium® 133MHz equivalent or higher
processor recommended)
• 2x or higher CD-ROM drive (4x or higher recommended)
• 10 MB of available hard-disk space (when installing the User’s Guide)
• Microsoft Internet Explorer 5.0 or later
25
QA7-2540-V02
©CANON INC.2003
PRINTED IN VIETNAM
Download PDF

advertising
