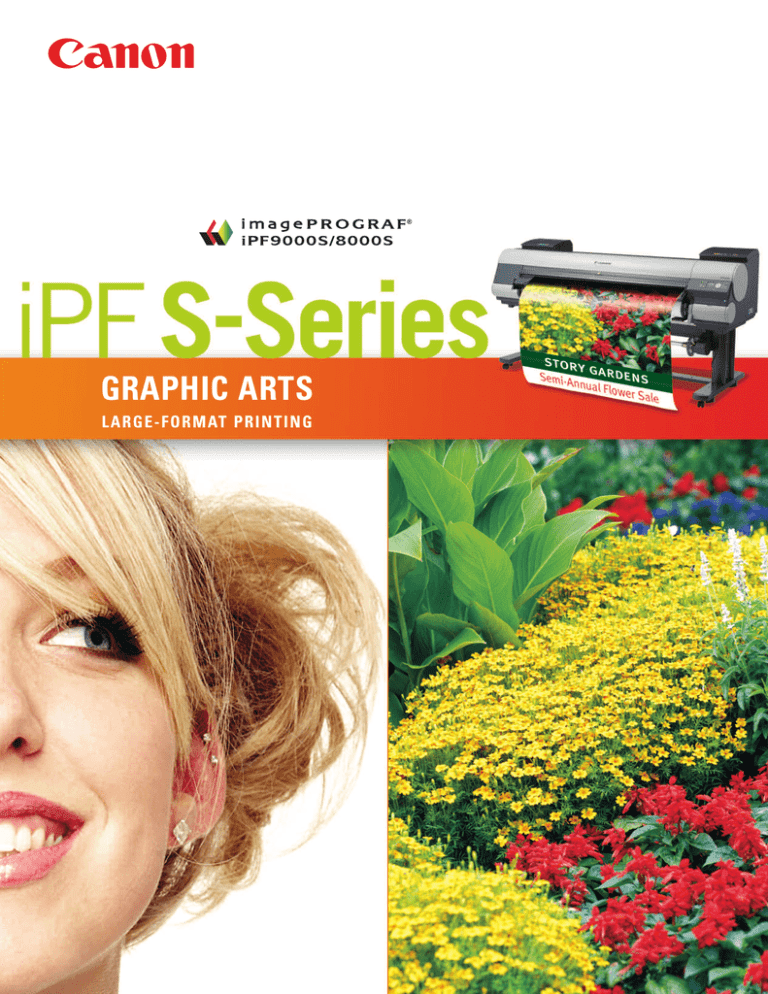

GRAPHIC ARTS
LARGE- FO R M AT P R I N T I N G
Canon imagePROGRAF S-Series
large-format printers
A new breed of high-speed
production-grade printers
Announcing the imagePROGRAF S-Series
large-format printers – two powerful new
print engines built specifically to meet
the demands of the highly competitive
production printing marketplace.
Available in two sizes – the 60” iPF9000S
and the 44” iPF8000S –the imagePROGRAF
S-Series production printers are ideal for
professional print service providers who
need to produce more output in less time.
With the introduction of these new printers,
Canon has significantly expanded the range of
performance options available to production print
centers and graphics professionals. Now more
than ever, Canon imagePROGRAF printers have
the right solution for you.
Poster Samples
F E AT U R ES
The iPF9000S 60” large-format printer and iPF8000S 44” large-format printer are production-grade
workhorses that sacrifice nothing when it comes to print quality or performance.
MAXIMUM PRODUCTIVITY
• Fast throughput speeds
• Built-in 80GB hard drive
• Two 1.07” print-heads,
with a total of
30,720 nozzles
• High-speed L-COA
image processor
for fast, high-quality print optimization
• Borderless
printing–reduces finishing
requirements
• Large 330ml
or 700ml ink tanks
that can be replaced on-the-fly
LUCIA™ PIGMENT INKS
• An 8-color ink set provides
a wide gamut for production
print applications.
• Durable,
light-fast color images
resist scratching and fading
INTELLIGENT QUALITY CONTROL
• The built-in calibration feature
helps ensure consistently
superior results.
Two print-heads
ensure fast output
• Canon’s
EXCELLENT PRINT QUALITY
output, up to
2400 x 1200 dpi
• High-resolution
• Superfine 4-picoliter
ink droplets
produce delicate color gradation
and high-definition expression.
breakthrough Kyuanos
color matching engine
• Roll
media detection and
management help prevent
misprints.
L-COA Image Processor
LOW-COST OPERATION
• A new print mode reduces ink
consumption 10% to 20%.
• Low-maintenance,
long-life
print-heads are built to last!
• Low
operating power requirements
reduce overhead costs.
8-color inks for
ultra-high-quality imaging
Print more in less time: it’s a winning formula
Advanced technologies are seamlessly integrated into a single, exceptionally efficient
production printing system engineered to
produce more high-quality work, at a lower
cost and in less time.
BUILT-IN 80GB HARD DRIVE
Increased hard drive storage space at the
printer increases productivity by relieving
workload from the host PC while providing
more capacity for print job data storage
and retrieval.
NEW PRINT MODE–REDUCES INK
CONSUMPTION
The new Economy Print Mode produces
1200 x 1200 dpi output at 211 ft.2/hr.* on
coated and uncoated paper stocks while
reducing ink consumption by 10% to 20%!
This new feature regulates the use of Photo
Cyan and Photo Magenta inks to produce
high-quality output at a lower total cost!
DURABLE LUCIA PIGMENT INKS
Each of the S-Series printers feature eight
colors of LUCIA ink (Cyan, Photo Cyan,
Magenta, Photo Magenta, Yellow, Black,
Matte Black, and Gray) for a dynamic color
gamut with a depth and tone that’s ideal
for production graphics applications.
BORDERLESS PRINTING
Borderless printing reduces trimming and
offline finishing requirements. Output
that’s ready to use straight from the printer
means that more jobs can be completed
in less time.
HIGH-SPEED IMAGE PROCESSING
Driving data to the iPF9000S and iPF8000S
printers and optimizing print functions is
Canon’s advanced L-COA processor. This
intelligent, high-speed processor manages
the high-volume data required for displayquality, large-format graphics and directs
the print engine with speed and accuracy.
UNINTERRUPTED PRINTING
Large-capacity 330ml or 700ml ink tanks
and a sub-tank system that feeds the
print-heads mean long print runs can be
completed without interruption, and inks
can be replenished on-the-fly without
stopping printing.
EXCEPTIONAL QUALITY WITH
UNPRECEDENTED SPEED
Two large, 1.07-inch high-density print-heads
eject tiny 4pl ink droplets through 30,720
nozzles to produce high-quality output–up to
2400 x 1200 dpi–with unprecedented speed.
An innovative ink channel configuration
accelerates print efficiency by distributing
the eight colors of ink across the two printheads for better ink coverage with each
pass–and greater productivity–without sacrificing image quality.
C
PC
M
LOW TOTAL COST OF OPERATION
Engineered for efficiency and reliability,
imagePROGRAF S-Series printers draw
only 190 watts of power during use. These
low-maintenance workhorses are equipped
with self-cleaning, long-life print-heads that
reduce the total cost of operation.
PM
Y
BK
MBK
GY
*OS: Windows® XP SP2, CPU: Pentium® 4 3.2GHz, RAM: 1GB, Application: Adobe® Photoshop® 7.0, Interface: USB 2.0 Hi-Speed, Data used:
ISO/JIS SCID No.5, Output image size: A0 (827 x 1033.8mm). Measured by Canon Inc. Each print time does not include data transfer time.
The print speed may vary depending on the data volume and size, PC, application, software, and interface.
Intelligent quality control
There’s little room for error in the highly
competitive production printing marketplace.
That’s why S-Series printers come equipped
with some of the most advanced quality
control functions available in the industry.
BUILT-IN CALIBRATION FOR PRECISION,
CONTROL, AND SUPERIOR RESULTS
When it comes to producing accurate
reprints or managing output across multiple
printers, the S-Series’ built-in calibration
function helps to ensure that you’ll get
the results you expect.
Unlike the complex and time-consuming
color calibration normally required in professional settings, a single process enables
easy reset back to original, optimal factory
settings across all the printer’s media types–
in just minutes. This easy-to-use feature
helps compensate for adverse environmental
conditions while providing a predictable
platform for color management and consistent color reproduction.
KYUANOS: CANON’S NEXT-GENERATION
COLOR MATCHING PLATFORM
Once again at the forefront of the industry,
Canon has developed Kyuanos, a new highprecision color matching engine. This underlying technology enables new functionality,
such as Ambient Light Adjustment, and
supports richer color expression across a
wider spectrum of input and output formats.
MEDIA ROLL DETECTION SYSTEM
Avoid mismatching media types or running
out in the middle of a job. The media roll
detection system verifies the media type
loaded and tracks how much is remaining
on the roll. Media information is automatically printed (in text and bar code) directly
on the roll before it’s removed from the
printer. The next time the roll is loaded, the
system will read the bar code and apply
the information.
iPF S-Series
Equipped to maximize your productivity
Created in PosterArtist 2007
The imagePROGRAF S-Series printers are
intelligently designed systems featuring an
integrated set of applications that streamline
workflow, improve efficiency, and expand the
versatility of output options. All S-Series
printers come equipped with the following
workflow solutions* to help you do more,
in less time–more easily.
Printer Driver 2007 intuitive operation with Easy and Advanced settings
• Canon
Plug-in for Adobe® Photoshop® for
enhanced image processing
• Print
• Print
Plug-in Digital Photo Professional
to facilitate printing from digital cameras
Photo Front-Access** displays file
images and provides a link to applications
• Digital
for easy point-and-click access
to applications and information
OPTIONS THAT EXPAND
YOUR CAPABILITIES
Canon imagePROGRAF printing systems
provide a foundation on which to build
sophisticated, value-added large-format
graphics services.
• Web-Link
PosterArtist 2007*(Optional): An easyto-use poster creation tool (for PCs only)
includes print-ready clip-art, royalty-free
images, and over 180 professionally
designed templates that can be quickly
customized and output to a variety of media.
PosterArtist 2007 significantly expands the
range and sophistication of graphic services
that you can provide by enabling:
Design: Select a style, images, and
text. A dynamic layout engine will automatically generate multiple drafts based on the
specified content elements.
• Auto
Data Printing: Integrate variable
data into posters and retail displays and
other large-format graphics.
• Variable
Light Adjustment: Use this function to compensate for perceived color
changes in various lighting environments.
• Ambient
Canon Alliance Partners: A wide range of
compatible third-party RIPs and software
solutions are available from approved Canon
Alliance Partners to provide advanced functionality for high-end prepress and graphics
applications.
*Please see specifications page for OS compatibility.
**PC only
imagePROGRAF S-Series– giving
you the competitive advantage
Canon imagePROGRAF S-Series printers
are fully integrated systems engineered to
produce high-value large-format printing
applications with maximum efficiency.
turnaround time means you can
meet tight deadlines with high-speed
throughput of high-resolution graphics.
• Faster
• Increase
your production capacity
and take on bigger projects. These highly
productive workhorses are built to produce
more work in less time.
• Prints
that look great, even close up,
with high-resolution output up to
2400 x 1200 dpi and a tiny 4pl droplet
of ink.
ist 2007
Created
Art
in Poster
• Produce
posters, POP displays, backlits,
and more on a wide range of media, including photo-gloss, coated papers, and film.
Data Printing with the optional
PosterArtist 2007 software package can
add value to posters and retail displays
by enabling you to customize prints by
location, market segment, or other datadriven criteria.
• Variable
trimming and finishing with borderless printing. The durable LUCIA pigment
inks means output can be used straight
from the printer.
• Less
per-print costs by using less ink
with the new Economy Print Mode.
• Reduce
Created in PosterArtist 2007
Faster production of more high-value, largeformat graphics at a lower cost per print–
now that’s a real competitive advantage!
iPF S-Series
SPECIFICATIONS
Print-Head
PF-03 (2)
Technology
FINE (Full-lithography Inkjet Nozzle Engineering)
Configuration
Two Print-Heads
Print-Head (L) PC/C/PM/GY/BK/GY
Print-Head (R) Y/MBK/M/PM/C/PC
Number of Nozzles
2,560 per Color (M/Y/BK/MBK)
5,120 per Color (C/PC/PM/GY)
30,720 Total
Droplet Size
Uniform 4 Picoliter for All Colors
Nozzle Pitch (Head Resolution)
1,200 dpi
Print Head Swath
1.07 inch
Borderless Printing Width (Roll Media Only)
10”, 14”, 16”, 24”, 36”, 42”
B2 (20.28”/515mm), A1 (23.38”/594mm)
A0 (33.11”/841mm), B0 (40.55”/1030mm)
Media Cutter
User-replaceable Durable Rotary
Blade (CT-06)
Media Thickness
0.07mm–0.8mm (2.8mil–31.4mil)
Media Core Sizes
2” (3” Core with Optional 3” Core Spool)
Printable Margins
Manual Feed (Top/Front)
Leading and Left/Right Edges: 0.20” (5mm),
Trailing Edge: 0.90” (23mm)
Roll Feed
All Sides: 0.20” (5mm) or 0” for Borderless
Maximum Media Roll Outer Diameter
5.9” (150mm)
Print Resolution (Max)
2400 x 1200 dpi
Ink Type
LUCIA Ink (Pigment-based)
Replacement Ink Tank
PFI-701 (700ml) or PFI-301 (330ml)
Colors
Cyan, Photo Cyan, Magenta, Photo Magenta, Yellow,
Black, Matte Black, Gray
Ink Tank Shipped with the Printer
PFI-301 x 8 Colors (Full 330ml Each Color)
Bundled Software
Printing Software
Printer Driver 2007, Print Plug-in for Photoshop®,**
Print Plug-in for Digital Photo Professional, Printer Driver
Extra Kit† (Free Layout, imageRUNNER® Linking Function)
User-Replaceable Items
Ink Tank PFI-301/PFI-701
Print-Head (PF-03)
Maintenance Cartridge (MC-08)
Durable Rotary Media Cutter (CT-06)
Applications
Digital Photo Front-Access,‡
PosterArtist 2007 (Optional)‡
Options
IEEE1394 Expansion Board (EB-05)
Basket (BU-01)
PosterArtist 2007
Media Take-up Unit
iPF9000S: 2” Core Roll Holder (RH2-63)
iPF9000S: 3” Core Roll Holder (RH3-63)
iPF8000S: 2” Core Roll Holder (RH2-43)
iPF8000S: 3” Core Roll Holder (RH3-43)
Nozzle Recovery System
Non-firing Nozzle Detection and Compensation
Printer Language
GARO (Canon Proprietary)
Media Feed
Roll Feed
One Roll, Front Loading, Front Output
Cut Sheet
One Sheet, Front Loading, Front Output
Media Width
(Cut Sheet) 8” – 44”
– 60”
(Roll Feed) 10” – 44”
– 60”
(iPF8000S)
(iPF9000S)
(iPF8000S)
(iPF9000S)
Minimum Media Length
8” (203mm)
Maximum Print Length
Manual Feed
63” (1.6m)
Roll Feed
59 Feet (18m)*
Operating System Windows® 2000/XP/Windows Vista®
Macintosh® OS 9/X
Interface
Standard
USB 2.0
10/100Base-T/TX
Optional
IEEE1394 (FireWire®)
Acoustic Noise
Operation
51dB or Less
Standby
35dB or Less
* The maximum printable length varies depending on
the application, OS, and RIP used. The maximum
printable length from Printer Driver 2007 is 50 feet.
** For Adobe Photoshop 6, 7, CS, CS2, running on
Windows 2000/XP/Windows Vista 32-bit or Macintosh
OS 9.1 or OS X
† Windows 2000/XP/Windows Vista
‡ Windows 2000/XP/Windows Vista 32-bit
For imagePROGRAF Printer Driver 2007. For printing
from PostScript applications such as Adobe Illustrator®
or QuarkXPress™, please use a PostScript compatible
RIP package. For a list of Canon recommended RIP
packages, please consult with Canon Alliance and
Industry Market program list of RIP vendors.
Acoustic Power (Operation and Standby)
6.7 Bels or Less
Power Supply
AC 100–240V (50-60Hz)
Power Consumption
Maximum
190W or less
Standby (100-120V)
5W or less
Power Off (Standby, 100-120V)
Less than 1W (Compliant with Executive Order)
As an ENERGY STAR® Partner, Canon U.S.A., Inc. has determined that these products meet the ENERGY STAR
guidelines for energy efficiency. ENERGY STAR and the ENERGY STAR mark are registered U.S. marks. CANON
and IMAGEPROGRAF are registered trademarks and LUCIA is a trademark of Canon Inc. in the United States and
may also be registered trademarks or trademarks in other countries. IMAGEANYWARE is a trademark of Canon.
All referenced product names and other marks are trademarks of their respective owners. Some items may not
be available at this time; please check for availability.
Specifications and availability subject to change without notice.
All output images are simulated.
©2010 Canon U.S.A., Inc. All rights reserved.
0114W785
0710R-9000S/8000S-PDF-IH
Dimensions with Stand (H x W x D)
iPF9000S:
45" x 90.5" x 30.2" (1144mm x 2299mm x 766mm )
iPF8000S:
45" x 74.5" x 38.4" (1144mm x 1893mm x 975mm)
Weight with Stand
iPF9000S: Approx. 357 lb. (162kg)
iPF8000S: Approx. 309 lb. (140kg)
Utilities
GARO Status Monitor with SMTP e-mail Printer Status
Notification, Media Configuration Tool, Remote UI
Printer Memory
iPF9000S: 640MB
iPF8000S: 384MB
Operational Environment
Temperature
59–86 F° (15–30 C°)
Relative Humidity
10–80% (No Condensation)
Built-in Hard Disk Capacity
80GB
Ink Supply Method
Tubing System with Sub-Tanks for Continuous Ink Supply
Printer Controller
L-COA Controller
Certifications
Electrical Safety Regulations
UL (USA), C-UL (Canada), S mark
(Argentina), CB certification (Others)
Electromagnetic Interface Regulations
FCC Class B (USA), IC Class B (Canada)
Environmental Certifications
ENERGY STAR® (World Wide), RoHS
Directive, WEEE, Executive Order (USA)
1-800-OK-CANON
www.usa.canon.com
Canon U.S.A., Inc.
One Canon Plaza
Lake Success, NY 11042
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
