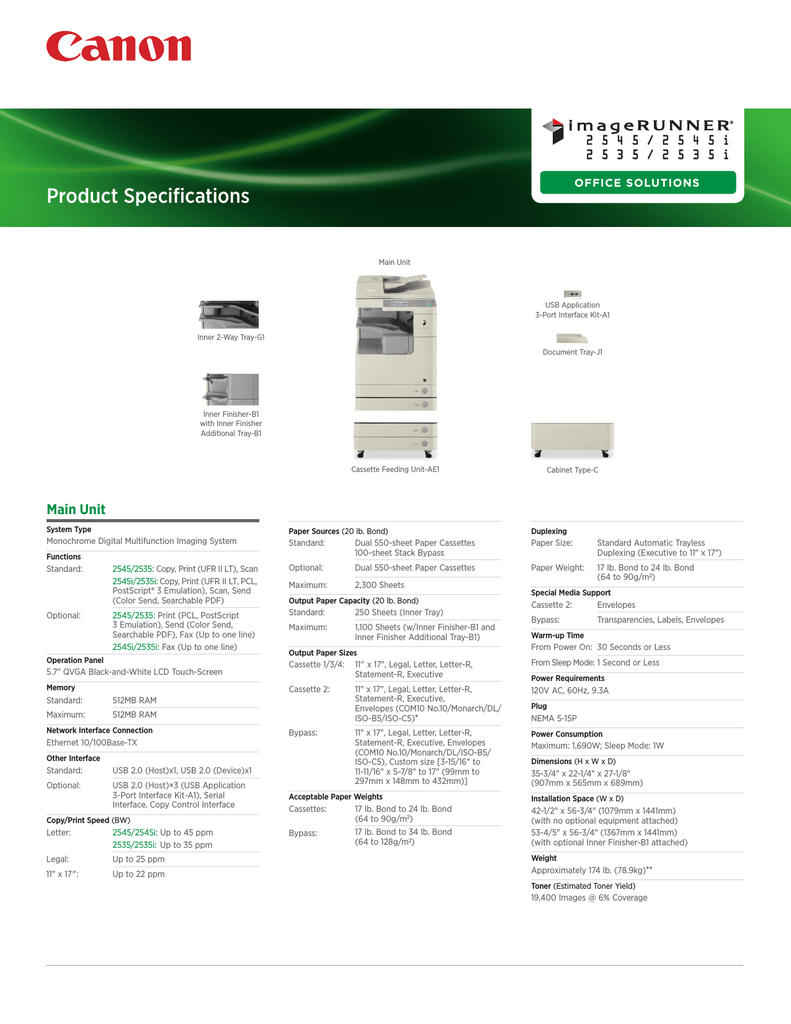

OFFICE SOLUTIONS

Product Specifications

Main Unit

Inner 2-Way Tray-G1

USB Application

3-Port Interface Kit-A1

Document Tray-J1

Inner Finisher-B1 with Inner Finisher

Additional Tray-B1

Cassette Feeding Unit-AE1

Main Unit

System Type

Monochrome Digital Multifunction Imaging System

Functions

Standard: 2545/2535: Copy, Print (UFR II LT), Scan

2545i/2535i: Copy, Print (UFR II LT, PCL,

PostScript® 3 Emulation), Scan, Send

(Color Send, Searchable PDF)

Optional: 2545/2535: Print (PCL, PostScript

3 Emulation), Send (Color Send,

Searchable PDF), Fax (Up to one line)

2545i/2535i: Fax (Up to one line)

Operation Panel

5.7" QVGA Black-and-White LCD Touch-Screen

Memory

Standard:

Maximum:

512MB RAM

512MB RAM

Network Interface Connection

Ethernet 10/100Base-TX

Other Interface

Standard:

Optional:

USB 2.0 (Host)x1, USB 2.0 (Device)x1

USB 2.0 (Host)×3 (USB Application

3-Port Interface Kit-A1), Serial

Interface, Copy Control Interface

Copy/Print Speed (BW)

Letter: 2545/2545i: Up to 45 ppm

2535/2535i: Up to 35 ppm

Legal:

11" x 17":

Up to 25 ppm

Up to 22 ppm

Paper Sources (20 lb. Bond)

Standard: Dual 550-sheet Paper Cassettes

100-sheet Stack Bypass

Optional: Dual 550-sheet Paper Cassettes

Maximum: 2,300 Sheets

Output Paper Capacity (20 lb. Bond)

Standard: 250 Sheets (Inner Tray)

Maximum: 1,100 Sheets (w/Inner Finisher-B1 and

Inner Finisher Additional Tray-B1)

Output Paper Sizes

Cassette 1/3/4: 11" x 17", Legal, Letter, Letter-R,

Statement-R, Executive

Cassette 2:

Bypass:

11" x 17", Legal, Letter, Letter-R,

Statement-R, Executive,

Envelopes (COM10 No.10/Monarch/DL/

ISO-B5/ISO-C5)*

11" x 17", Legal, Letter, Letter-R,

Statement-R, Executive, Envelopes

(COM10 No.10/Monarch/DL/ISO-B5/

ISO-C5), Custom size [3-15/16" to

11-11/16" x 5-7/8" to 17" (99mm to

297mm x 148mm to 432mm)]

Acceptable Paper Weights

Cassettes: 17 lb. Bond to 24 lb. Bond

(64 to 90g/m 2 )

Bypass: 17 lb. Bond to 34 lb. Bond

(64 to 128g/m 2 )

Cabinet Type-C

Duplexing

Paper Size: Standard Automatic Trayless

Duplexing (Executive to 11" x 17")

Paper Weight: 17 lb. Bond to 24 lb. Bond

(64 to 90g/m 2 )

Special Media Support

Cassette 2: Envelopes

Bypass: Transparencies, Labels, Envelopes

Warm-up Time

From Power On: 30 Seconds or Less

From Sleep Mode: 1 Second or Less

Power Requirements

120V AC, 60Hz, 9.3A

Plug

NEMA 5-15P

Power Consumption

Maximum: 1,690W; Sleep Mode: 1W

Dimensions (H x W x D)

35-3/4" x 22-1/4" x 27-1/8"

(907mm x 565mm x 689mm)

Installation Space (W x D)

42-1/2" x 56-3/4" (1079mm x 1441mm)

(with no optional equipment attached)

53-4/5" x 56-3/4" (1367mm x 1441mm)

(with optional Inner Finisher-B1 attached)

Weight

Approximately 174 lb. (78.9kg)**

Toner (Estimated Toner Yield)

19,400 Images @ 6% Coverage

Main Unit

(continued)

Document Feeder

Scan Method

Duplexing Automatic Document Feeder

Acceptable Originals

Paper Size:

11" x 17", Legal, Letter, Letter-R, or Statement

Paper Weight: BW Originals: 13 lb. Bond to

34 lb. Bond (50 to 128g/m 2 )

Color Originals: 17 lb. Bond to

34 lb. Bond (64 to 128g/m 2 )

Scan Speed (BW/Color; Letter)

2545/2545i: Copy: 45 ipm (600 dpi)

Scan: 45/34 ipm (300 dpi)

2535/2535i:

Copy: 35 ipm (600 dpi)

Scan: 45/34 ipm (300 dpi)

Paper Capacity (20 lb. Bond)

100 Sheets

Copy Specifications

First-Copy-Out Time (Letter)

3.9 Seconds

Multiple Copies

1 to 999

Copy Exposure

Automatic or Manual (9 Levels)

Magnification

25% - 400% (1% Increments)

Preset Reductions

25%, 50%, 64%, 73%, 78%

Preset Enlargements

121%, 129%, 200%, 400%

Basic Copy Features

Preset R/E Ratios by Area, Finishing, Two-sided,

Exposure Adjustment, Original Type Selection

Special Copy Features

ID Card Copy, Two-page Separation, Image

Combination, Frame Erase, Different Size Original,

Sharpness, Mode Memory, Booklet

Print Specifications

Processor

Canon Custom Processor (Shared)

Memory

Standard:

Maximum:

512MB RAM

512MB RAM

Engine Resolution

1200 dpi x 1200 dpi (Maximum)

PDL Support

Standard:

Optional:

UFR II LT

PCL 5e/6, PostScript 3 Emulation

(Standard on “i” Models)

Print Driver Supported OS

UFR II LT,

PostScript 3

Emulation

Windows® (Windows 2000/XP/Vista®/

Windows 7/Server 2003/Server 2008),

Citrix Presentation Server 4.0/4.5,

Citrix XenApp 5.0, XenDesktop

2.0/2.1/3.0, Macintosh® (OS X 10.6.1),

SAP (PS3 Only)

PCL 5e/6 Windows (Windows 2000/XP/Vista/

Windows 7/Server 2003/Server 2008),

Citrix Presentation Server 4.0/4.5,

Citrix XenApp 5.0, XenDesktop

2.0/2.1/3.0, SAP

Print Features

Watermark, Page Border, Header/Footer, Page Layout,

Two-sided Printing, Collating, Booklet Printing, Grouping,

Mixed Paper Sizes/Orientations, Offsetting, Printing on

Transparencies, Front/Back Covers, Toner Reduction,

Poster Printing, Generic PCL 6 Driver

Scan Specifications

Network TWAIN Scan

Standard

Network Scan Utility

Color Network ScanGear

Color Send Specifications

(Standard on “i” Models Only)

Sending Method

E-Mail, I-Fax, File Server (FTP, SMB), Super G3 Fax

(Optional)

Color Mode

Color, BW

Scan Resolution (dpi)

600 x 600, 400 x 400, 300 x 300, 200 x 400,

200 x 200, 200 x 100, 150 x 150, 100 x 100

Address Book Capacity

Max. 500 Destinations (Includes 200 One-Touch Buttons)

Communication Protocol

File: FTP (TCP/IP), SMB (TCP/IP)

E-Mail/I-Fax: SMTP, POP3, I-Fax (Simple)

File Formats

TIFF, JPEG, PDF, PDF (Compact), PDF (OCR)***

I-Fax Data Format

TIFF (MH)

Fax Specifications

(Optional)

Number of Connection Lines

1 (Maximum)

Modem Speed

Super G3:

G3:

33.6 Kbps

14.4 Kbps

Compression Method

MH, MR, MMR, JBIG

Resolution (dpi)

400 x 400, 200 x 400, 200 x 200, 200 x 100

Sending/Recording Size

Statement-R to 11" x 17"

Fax Features

Job Forwarding, Different Size Originals, Sharpness,

Delayed Send, Finished Stamp, Two-sided Original

Security Specifications

Department ID Management, User ID Management,

IPv6, Restricting Features (Restricting the Send

Function, Restricting New Addresses on Address

Book, Address Book Password, Allow Fax Driver TX,

Restrict Recall, Confirm Entered Fax Numbers, Restrict

Sequential Broadcast), SNMPv1, MAC/IP Address

Filtering, SMTP Authentication, POP Authentication before SMTP

Environmental Information

• ENERGY STAR® Qualified

• RoHS Compliant

• Ecomark

• Blue Angel

• WEEE Directive

Optional Accessories

Paper Supply Options

Cassette Feeding Unit-AE1 †

Paper Capacity: 550 Sheets x 2 Cassettes

(20 lb. Bond)

Acceptable

Paper Weight:

Acceptable

Paper Size:

Acceptable

Paper Type:

Power Source/

Consumption:

17 lb. Bond to 24 lb. Bond

(64 to 90g/m 2 )

11" x 17", Legal, Letter, Letter-R,

Statement-R, Executive

Plain, Recycled, Color (17 lb. Bond to 20 lb. Bond [64 to 80g/m 2 ]),

Pre-Punched

From the Main Unit/

Approximately 13.3W (Maximum)

Dimensions

(H x W x D):

Weight:

9-3/4" x 22-1/4" x 26-3/4"

(97mm x 565mm x 680mm)

Approximately 52.9 lb. (24.0kg)

Envelope Feeder Attachment-D1 ††

Paper Capacity: 50 Sheets (or 30mm in height)

Acceptable

Envelope Size:

Print Speed:

COM10 No.10, Monarch, DL, ISO-B5,

ISO-C5

Up to 12 ppm

Output Options

Inner Finisher-B1 †††

Number of

Trays:

Up to 2 Trays (w/Inner Finisher

Additional Tray-B1)

Total Output

Capacity:

Without Inner Finisher Additional Tray-B1:

1,000 Sheets

With Inner Finisher Additional Tray-A1:

Upper Tray: 100 Sheets (Letter)

Lower Tray: 1,000 Sheets (Letter)

Acceptable

Paper Weight:

Acceptable

Paper Size:

17 lb. Bond to 34 lb. Bond

(64 to 128g/m 2 )

11" x 17", Legal, Letter, Letter-R,

Statement, Statement-R, Executive

Acceptable

Paper Type:

Plain, Recycled, Color (17 lb. Bond to 21 lb. Bond), Pre-Punched, Heavy

Paper 1 (22 lb. Bond to 24 lb. Bond),

Heavy Paper 2 (24 lb. Bond to 28 lb.

Bond), Heavy Paper 3 (28 lb. Bond to 34 lb. Bond)

Staple Positions: Corner Stapling: 11" x 17", Legal, Letter,

Letter-R

Double Stapling: 11" x 17", Legal, Letter,

Letter-R

Stapling

Capacity (Max.):

50 Sheets (Letter)

30 Sheets (11" x 17", Legal, Letter-R)

(17 lb. Bond to 21 lb. Bond)

Paper Capacity of Staple Mode:

Top Tray: 15 Sets (or 3/8" in height)

Lower Tray: 30 Sets (or 4-7/8" in height)

Type of Staple: Staple-J1 (5,000 x 3)

Power Source/

Consumption:

From the main unit/Approximately

43.9W (Maximum)

Dimensions

(H x W x D):

Weight:

11-3/5" x 27-3/4" x 21-7/8"

(295mm x 703mm x 554mm)

(When the auxiliary tray is extended)

Approximately 27.6 lb. (12.5kg)

Inner 2-Way Tray-G1 †††

Number of Trays:

2

Total Capacity: Upper Tray: 100 Sheets (Letter)

Lower Tray : 250 Sheets (Letter)

Acceptable

Paper Weight:

Acceptable

Paper Size:

Acceptable

Paper Type:

17 lb. Bond to 34 lb. Bond

(64 to 128g/m 2 )

11" x 17", Legal, Letter, Letter-R,

Statement-R, Executive

Plain, Recycled, Color (17 lb. Bond to 21 lb. Bond), Pre-Punched, Heavy

Paper 1 (22 lb. Bond to 24 lb. Bond),

Heavy Paper 2 (24 lb. Bond to 28 lb.

Bond), Heavy Paper 3 (28 lb. Bond to 34 lb. Bond)

Dimensions

(H x W x D):

Weight:

4-1/4" x 16-3/4" x 16-1/4"

(109mm x 426mm x 413mm)

Approximately 1.3 lb. (0.6kg)

Other Optional Accessories

• Cabinet Type-C†

• Inner Finisher Additional Tray-B1

• Document Tray-J1

• PCL Printer Kit-AF1

▲

• PS Printer Kit-AF1

▲

• Barcode Printing Kit-B1

▲▲

• Color Send Kit-Y1

• Searchable PDF Kit-C1

▲▲▲

• Super G3 Fax Board-AG1

• Card Reader-E1

■

◆

• Card Reader Attachment-D3

• ADF Access Handle-A1

• Braille Label Kit-F1

• USB Application 3-Port Interface Kit-A1

• USB Keyboard (Cherry)

• Copy Control Interface Cable-A1 ◆

* The optional Envelope Feeder Attachment-D1 is required.

** Includes consumables.

*** The optional Searchable PDF Kit-C1 is required for

Base models.

† The Cassette Feeding Unit-AE1 and Cabinet Type-C

cannot be installed at the same time.

†† Installs on the second paper cassette.

††† The Inner Finisher-B1 and Inner 2-Way Tray cannot be

installed at the same time.

▲

Optional for Base models; standard on “i” models.

▲▲

Requires PCL Printer Kit-AF1.

▲▲▲

Requires Color Send Kit-Y1.

■

Requires the Card Reader Attachment-D3 for installation.

◆

Card Reader-E1 and Copy Control Interface Cable-A1

cannot be installed at the same time.
