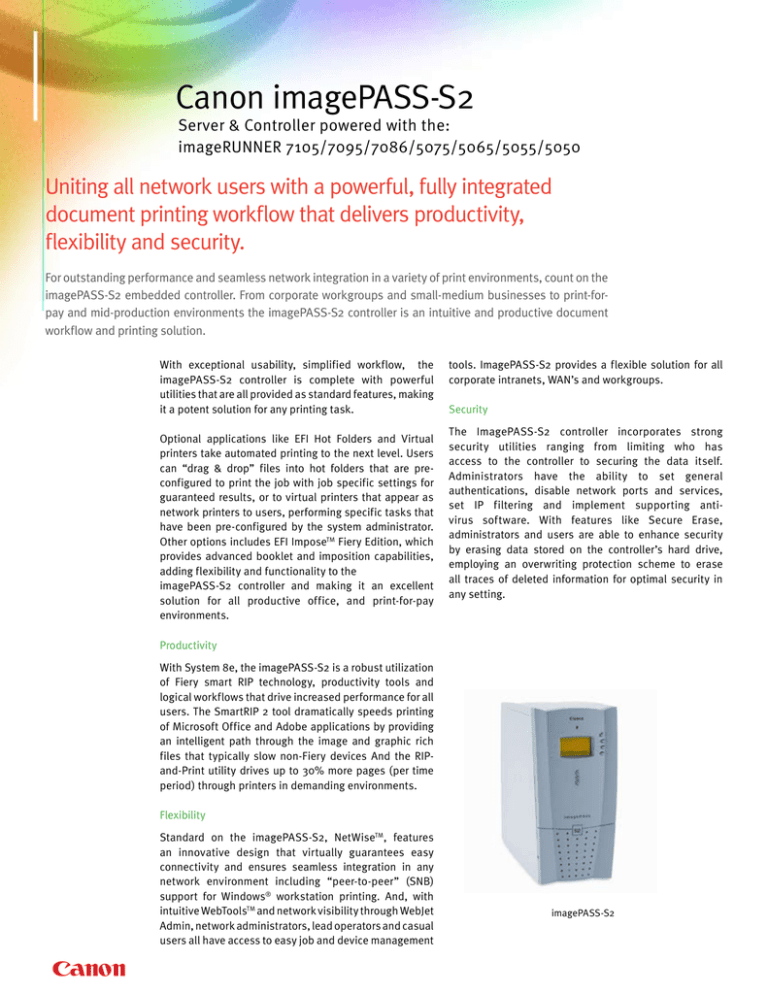

Canon imagePASS-S2
Server & Controller powered with the:
imageRUNNER 7105/7095/7086/5075/5065/5055/5050
Uniting all network users with a powerful, fully integrated
document printing workflow that delivers productivity,
flexibility and security.
For outstanding performance and seamless network integration in a variety of print environments, count on the
imagePASS-S2 embedded controller. From corporate workgroups and small-medium businesses to print-forpay and mid-production environments the imagePASS-S2 controller is an intuitive and productive document
workflow and printing solution.
With exceptional usability, simplified workflow, the
imagePASS-S2 controller is complete with powerful
utilities that are all provided as standard features, making
it a potent solution for any printing task.
Optional applications like EFI Hot Folders and Virtual
printers take automated printing to the next level. Users
can “drag & drop” files into hot folders that are preconfigured to print the job with job specific settings for
guaranteed results, or to virtual printers that appear as
network printers to users, performing specific tasks that
have been pre-configured by the system administrator.
Other options includes EFI ImposeTM Fiery Edition, which
provides advanced booklet and imposition capabilities,
adding flexibility and functionality to the
imagePASS-S2 controller and making it an excellent
solution for all productive office, and print-for-pay
tools. ImagePASS-S2 provides a flexible solution for all
corporate intranets, WAN’s and workgroups.
The ImagePASS-S2 controller incorporates strong
security utilities ranging from limiting who has
access to the controller to securing the data itself.
Administrators have the ability to set general
authentications, disable network ports and services,
set IP filtering and implement supporting antivirus software. With features like Secure Erase,
administrators and users are able to enhance security
by erasing data stored on the controller’s hard drive,
employing an overwriting protection scheme to erase
all traces of deleted information for optimal security in
any setting.
With System 8e, the imagePASS-S2 is a robust utilization
of Fiery smart RIP technology, productivity tools and
logical workflows that drive increased performance for all
users. The SmartRIP 2 tool dramatically speeds printing
of Microsoft Office and Adobe applications by providing
an intelligent path through the image and graphic rich
files that typically slow non-Fiery devices And the RIPand-Print utility drives up to 30% more pages (per time
period) through printers in demanding environments.
Standard on the imagePASS-S2, NetWiseTM, features
an innovative design that virtually guarantees easy
connectivity and ensures seamless integration in any
network environment including “peer-to-peer” (SNB)
support for Windows® workstation printing. And, with
intuitive WebToolsTM and network visibility through WebJet
Admin, network administrators, lead operators and casual
users all have access to easy job and device management
Canon imagePASS-S2
Server & Controller powered with the
imageRUNNER 7105/7095/7086/5075/5065/5055/5050
SNMP Printing Support
• Intel Celeron Processor
• 2.8 GHz
• 80GB Hard Drive
• Fiery SmartRIP® 2
• AppleTalk
• Pserver
• SMB (peer-to-peer)
Fiery System 8e Utilities
• CE Mark
• UL
• CB Scheme
• RoHS
• EFI Driver
• Command WorkStation
• Windows Edition
• Macintosh Edition
• Fiery WebToolsTM
EFI Video Interface Card
• Fiery RIPChipsTM
• ECT Compression for flexible compression ratios and visually lossless image quality
Operating System
• Linex
Fiery System 8e Options
• EFI Hot Folders/Virtual Printers
• EFI ImposeTM Fiery Edition
• Simultaneous Autoswitching Protocols
• EtherTalk II
• Novell IPX
Autosensing Ports
• RJ45 for on-board 10/100/1000 Base-T
and 10/100 Base-T
• Automatic IP configuration
Canon U.S.A.
One Canon Plaza
Lake Success, NY 11042
• EN55022 Part B (CE marked)
• FCC Class B
Power Supply and Consumption
• Auto Switching 90-135/180-265VAc,47- 63Hz
• 6A @ 115Vac; 3A @ 230Vac
• 393.7mm (H) x 190.5mm (W) x 406.4mm (D)
