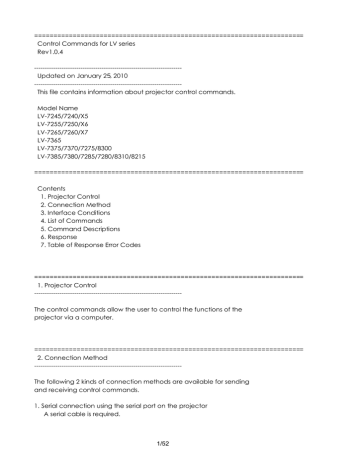

Control Commands for LV series
Rev1.0.4
---------------------------------------------------------------------Updated on January 25, 2010
---------------------------------------------------------------------This file contains information about projector control commands.
Model Name
LV-7245/7240/X5
LV-7255/7250/X6
LV-7265/7260/X7
LV-7365
LV-7375/7370/7275/8300
LV-7385/7380/7285/7280/8310/8215
======================================================================
Contents
1. Projector Control
2. Connection Method
3. Interface Conditions
4. List of Commands
5. Command Descriptions
6. Response
7. Table of Response Error Codes
======================================================================
1. Projector Control
---------------------------------------------------------------------The control commands allow the user to control the functions of the
projector via a computer.
======================================================================
2. Connection Method
---------------------------------------------------------------------The following 2 kinds of connection methods are available for sending
and receiving control commands.
1. Serial connection using the serial port on the projector
A serial cable is required.
1/52
2. LAN connection using the LAN port on the projector
A LAN cable is required.
Status of supported connection
+---------------------------+------------+--------------+
|
| (1) |
(2)
|
|
| Serial | Wired
|
|
| port | LAN port |
+---------------------------+------------+--------------+
| LV-7245/7240
|
|
|
| LV-7255/7250
| Yes | No
|
| LV-7265/7260
|
|
|
| LV-7365
|
|
|
+---------------------------+------------+--------------+
| LV-7375/7370/
|
|
|
|
7275/8300
|
|
|
| LV-7385/7380/
| Yes | Yes |
|
7285/7280/ |
|
|
|
8310/8215
|
|
|
+---------------------------+------------+--------------+
Yes: Supported
No : Not supported
* The serial cable and LAN cable are separately sold.
( CAUTION ) (!1)
Before making connections, be sure to select [Normal] for [Standby mode].
Setting method : From the projector's menu, select [Setup] --> [Options(2)] -->
[Standby mode] --> [Normal].
Supplement:
(!1) LV-7375/7300/7275/8300/7385/7380/7285/7280/8310/8215 only
======================================================================
3. Interface Conditions
---------------------------------------------------------------------Serial connection
---------------------------------------------------------------------The communications method conforms to the RS-232C standard.
Baud rate:
19200 bps
Data length:
8 bits
Parity bit:
No parity
Stop bits:
1 bit
Communications mode: Full duplex
2/52
The control connector is described below.
[ LV-7365/7265/7260/7255/7250/7245/7240 ]
The SERVICE PORT is a mini DIN 8-pin port.
1
2
3
4
5
6
7
8
To TxD of PC
To GND of PC
To RxD of PC
* 2, 3, 5, 6, and 8 are used inside the projector.
[ LV-7385/7380/7285/7280/8310/8215/7375/7370/7275/8300 ]
The SERVICE PORT is a D-SUB 9-pin port.
1
2
3
4
5
6
7
8
9
To TxD of PC
To RxD of PC
To GND of PC
To CTS of PC
To RTS of PC
LAN connection(!1)
---------------------------------------------------------------------[ Wired LAN port ]
LAN interface
Communication speed : Auto setting (10/100Mbps)
Certified standard : IEEE802.3 (10BASE-T)
IEEE802.3u (100BASE-TX, Auto-Negotiation)
A LAN connector (8 male RJ-45 connector)
1 TD+
Transmit data (+)
2 TDTransmit data (-)
3 RD+
Receive data (+)
4
Not used
5
Not used
6 RDReceive data (-)
7
Not used
8
Not used
3/52
[Port Number]
The TCP port number used is "7142".
Supplement:
(!1) LV-7385/7380/7285/7280/8310/8215/7375/7370/7275/8300 only
======================================================================
4. List of Commands
---------------------------------------------------------------------* Example for command
---------------------------------------------------------------------Command name
---------------------------------------------------------------------001. POWER ON
002. POWER OFF
003. INPUT SELECT COMPUTER(*5)
004. INPUT SELECT VIDEO
005. INPUT SELECT S-VIDEO
006. BLANK ON (NO SHOW ON)
007. BLANK OFF (NO SHOW OFF)
008. SOUND MUTE ON
009. SOUND MUTE OFF
010. ONSCREEN MUTE ON
011. LAMP INFORMATION REQUEST
012. MUTE CONTROL
013. VOLUME ADJUST
014. BASE MODEL TYPE REQUEST
015. PROJECTOR INFORMATION REQUEST
016. ERROR STATUS REQUEST
017. INFORMATION REQUEST
018. FILTER COUNTER INFORMATION REQUEST
019. LAMP INFORMATION REQUEST 3
020. TEMP INFORMATION REQUEST
021. REMOTE KEY CODE
022. FREEZE CONTROL
023. IMAGE FLIP H/V SET
024. AUTO PC EXECUTE2
025. RUNNING SENSE
026. COMMON DATA REQUEST
027. IMAGE ADJUST
028. KEYSTONE ADJUST
029. DISPLAY SETTINGS ADJUST
030. LAMP INFORMATION REQUEST 2
031. GAIN PARAMETER REQUEST 2
4/52
Example
02H 00H 00H 00H 00H 02H
02H 01H 00H 00H 00H 03H
02H 03H 00H 00H 02H 01H <DATA> CKS
02H 03H 00H 00H 02H 01H 06H 0EH
02H 03H 00H 00H 02H 01H 0BH 13H
02H 10H 00H 00H 00H 12H
02H 11H 00H 00H 00H 13H
02H 12H 00H 00H 00H 14H
02H 13H 00H 00H 00H 15H
02H 14H 00H 00H 00H 16H
03H 8CH 00H 00H 00H 8FH
02H 1AH 00H 00H 02H <DATA> CKS
03H 10H 00H 00H 05H 05H <DATA> CKS
00H BFH 00H 00H 01H 00H CKS
00H BFH 00H 00H 01H 02H CKS
00H 88H 00H 00H 00H 88H
03H 8AH 00H 00H 00H 8DH
03H 95H 00H 00H 00H 98H
03H 96H 00H 00H 02H <DATA> CKS
03H 99H 00H 00H 01H <DATA> CKS
02H 0FH 00H 00H 02H <DATA> CKS
01H 98H 00H 00H 01H <DATA> CKS
03H B1H 00H 00H 02H 0AH 00H C0H
03H BAH 00H 00H 01H <DATA> CKS
00H 81H 00H 00H 00H 81H
00H C0H 00H 00H 00H C0H
03H 10H 00H 00H 05H DATA1 to 5 CKS
03H 10H 00H 00H 05H 15H FFH DATA3 to 5 CKS
03H 10H 00H 00H 05H DATA1 to 5 CKS
03H 94H 00H 00H 00H 97H
03H 04H 00H 00H 03H DATA1 to 3 CKS
032. SETTING REQUEST
033. RUNNING STATUS REQUEST
034. INPUT STATUS REQUEST
035. MUTE STATUS REQUEST
036. MODEL NAME REQUEST
037. INFORMATION STRING REQUEST
038. LAMP MODE REQUEST
039. LAMP MODE SET
040. POWER MANAGEMENT SET
041. AUTO KEYSTONE SET
042. OTHER ADJUST
043. SET PROJECTOR NAME
044. CLOSED CAPTION REQUEST
045. FAN MODE REQUEST
046. WXGA MODE SETTING REQUEST
047. CLOSED CAPTION SET
048. FAN MODE SET
049. WXGA MODE SETTING SET
050. LAMP INFORMATION REQUEST 4
051. CARBON SAVINGS INFORMATION REQUEST
00H 85H 00H 00H 01H 00H CKS
00H 85H 00H 00H 01H 01H CKS
00H 85H 00H 00H 01H 02H CKS
00H 85H 00H 00H 01H 03H CKS
00H 85H 00H 00H 01H 04H CKS
00H D0H 00H 00H 03H 00H 00H 00H CKS
03H B0H 00H 00H 01H 07H BBH
03H B1H 00H 00H 02H 07H 00H BDH
03H B1H 00H 00H 02H 17H 00H CDH
03H B1H 00H 00H 01H 93H DATA02 CKS
03H 10H 00H 00H 05H DATA1 to 5 CKS
03H 8BH 00H 00H 32H DATA1 to 50 CKS
03H B0H 00H 00H 01H DATA1 CKS
03H B0H 00H 00H 01H DATA1 CKS
03H B0H 00H 00H 01H DATA1 CKS
03H B1H 00H 00H 02H DATA1 to 2 CKS
03H B1H 00H 00H 02H DATA1 DATA2 CKS
03H B1H 00H 00H 02H DATA1 DATA2 CKS
03H 9BH 00H 00H 03H DATA1 to DATA3 CKS
03H 9AH 00H 00H 01H DATA1 CKS
* Availability by Model
---------------------------------------------------------------------Model No.
------------------------01 : LV-7255/7245/7240/X5
02 : LV-7250/X6
03 : LV-7265/7260/X7
04 : LV-7365
05 : LV-7375/7370/7275/8300
06 : LV-7385/7380/7285/7280/8310/8215
Meaning of Symbol
----------------------------------------------------* : Supported
! : Available depending on the model's version
- : Not supported
Availability by Model
---------------------------------------------------------------------Command Name
01 02 03 04 05 06
---------------------------------------------------------------------001. POWER ON
* * * * * *
002. POWER OFF
* * * * * *
003. INPUT SELECT COMPUTER(*5)
* * * * * *
004. INPUT SELECT VIDEO
* * * * * *
005. INPUT SELECT S-VIDEO
* * * * * *
006. BLANK ON (NO SHOW ON)
* * * * * *
007. BLANK OFF (NO SHOW OFF)
* * * * * *
5/52
008. SOUND MUTE ON
009. SOUND MUTE OFF
010. ONSCREEN MUTE ON
011. LAMP INFORMATION REQUEST
012. MUTE CONTROL
013. VOLUME ADJUST
Volume
Bass
Treble
Balance
014. BASE MODEL TYPE REQUEST
015. PROJECTOR INFORMATION REQUEST
016. ERROR STATUS REQUEST
017. INFORMATION REQUEST
018. FILTER COUNTER INFORMATION REQUEST
019. LAMP INFORMATION REQUEST 3
020. TEMP INFORMATION REQUEST
021. REMOTE KEY CODE
022. FREEZE CONTROL
023. IMAGE FLIP H/V SET
024. AUTO PC EXECUTE2
025. RUNNING SENSE
026. COMMON DATA REQUEST
027. IMAGE ADJUST
028. KEYSTONE ADJUST
029. DISPLAY SETTINGS ADJUST
030. LAMP INFORMATION REQUEST 2
031. GAIN PARAMETER REQUEST 2
032. SETTING REQUEST
033. RUNNING STATUS REQUEST
034. INPUT STATUS REQUEST
035. MUTE STATUS REQUEST
036. MODEL NAME REQUEST
037. INFORMATION STRING REQUEST
038. LAMP MODE REQUEST
039. LAMP MODE SET
040. POWER MANAGEMENT SET
041. AUTO KEYSTONE SET
042. OTHER ADJUST
043. SET PROJECTOR NAME
044. CLOSED CAPTION REQUEST
045. FAN MODE REQUEST
046. WXGA MODE SETTING REQUEST
047. CLOSED CAPTION SET
048. FAN MODE SET
049. WXGA MODE SETTING SET
050. LAMP INFORMATION REQUEST 4
051. CARBON SAVINGS INFORMATION REQUEST
6/52
*
*
*
*
*
-
*
*
*
*
*
*
*
*
*
*
-
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
-
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
-
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
-
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
======================================================================
5. Command Descriptions
---------------------------------------------------------------------Description of Terms:
(*1) Control ID
This refers to the Control ID.
Model Name : LV—7385/7380/7285/7280/8310/8215/7375/7370/7275/8300/7365/7265/7260/X7
(*2) Model code : "xxH" inscription
In case of LV series 40H
(*3) Checksum : "CKS" inscription
This is the value of the lower 1 byte (8 bits) of the resulting amount from
adding all the data up to the immediately preceding data in terms of bytes.
Example)
20H 81H 01H 60H 01H 00H CKS
20H + 81H + 01H + 60H + 01H + 00H = 103H
CKS = 03H
(*4) Response error number
This is the value of the error number at the time of an error.
See "NAK" of "6. Table of Response Error Codes".
(*5) Term "RGB", "DVI" and "COMPUTER"
The term "RGB connector" and "DVI connector" have been changed to
"COMPUTER".
001. POWER ON
**********************************************************************
Function:
This command switches on the main power of the projector.
Command:
02H 00H 00H 00H 00H 02H
Response : At the time of a success
22H 00H 01H xxH 00H CKS
(*1) (*2)
(*3)
Response : At the time of a failure
A2H 00H 01H xxH 02H DATA01 DATA02
(*1) (*2)
(*4)
Supplement:
7/52
CKS
(*3)
The projector does not accept the other command during power on
processing.
002. POWER OFF
**********************************************************************
Function:
This command switches off the main power of the projector.
Command:
02H 01H 00H 00H 00H 03H
Response : At the time of a success
22H 01H 01H xxH 00H CKS
(*1) (*2)
(*3)
Response : At the time of a failure
A2H 01H 01H xxH 02H DATA01 DATA02
(*1) (*2)
(*4)
CKS
(*3)
Supplement:
-This command will fail during switching input signal. (NAK will be returned)
-The projector doesn't accept the other command during power
off processing. (It contains a cooling period.)
003. INPUT SELECT COMPUTER (*5)
**********************************************************************
Function:
This command switches the input terminal or input signal to RGB (*5).
Command:
02H 03H 00H 00H 02H 01H DATA01
CKS
(*3)
Data Portion Contents
------------------------------------------------------------------DATA01
Terminal number
+----------------+-----------------------------------------+-----+-----+-----+
| Terminal | Terminal
| | |
|
| number | name
|( 1)|( 2)|( 3)|
+----------------+-----------------------------------------+-----+-----+-----+
|
01H | Computer(*5)
| *| x| x|
|
01H | Computer1(*5)
| x| *| *|
|
02H | Computer2(*5)
| x| *| x|
|
02H | Computer2(Analog) (*5) | x | x | * |
8/52
|
1AH | Computer2(Digital)(*5)
| x| x| *|
+----------------+-----------------------------------------+-----+-----+-----+
* : Supported
x : Not supported
( 1) LV-X6/7260/X7
( 2) LV-7240/7245/X5/7250/7255
( 3) LV-7265/7365/7375/7370/7275/8300/7385/7380/7285/7280/8310/8215
Response : At the time of a success
22H 03H 01H xxH 01H DATA01
(*1) (*2)
CKS
(*3)
Data Portion Contents
------------------------------------------------------------------DATA01
Results
00H : Normal
FFH : Error (Signal select was not executed)
Response : At the time of a failure
A2H 03H 01H xxH 02H DATA01 DATA02
(*1) (*2)
(*4)
CKS
(*3)
004. INPUT SELECT VIDEO
**********************************************************************
Function:
This command switches the input terminal or input signal to VIDEO.
Command:
02H 03H 00H 00H 02H 01H 06H 0EH
Response : At the time of a success
22H 03H 01H xxH 01H DATA01
(*1) (*2)
CKS
(*3)
Data Portion Contents
------------------------------------------------------------------DATA01
Results
00H : Normal
FFH : Error (Signal select was not executed)
Response : At the time of a failure
A2H 03H 01H xxH 02H DATA01 DATA02
(*1) (*2)
(*4)
9/52
CKS
(*3)
005. INPUT SELECT S-VIDEO
**********************************************************************
Function:
This command switches the input terminal or input signal to S-VIDEO.
Command:
02H 03H 00H 00H 02H 01H 0BH 13H
Response : At the time of a success
22H 03H 01H xxH 01H DATA01
(*1) (*2)
CKS
(*3)
Data Portion Contents
------------------------------------------------------------------DATA01
Results
00H : Normal
FFH : Error (Signal select was not executed)
Response : At the time of a failure
A2H 03H 01H xxH 02H DATA01 DATA02
(*1) (*2)
(*4)
CKS
(*3)
006. BLANK ON (NO SHOW ON)
**********************************************************************
Function:
This command mutes a picture.
Command:
02H 10H 00H 00H 00H 12H
Response : At the time of a success
22H 10H 01H xxH 00H CKS
(*1) (*2)
(*3)
Response : At the time of a failure
A2H 10H 01H xxH 02H DATA01 DATA02
(*1) (*2)
(*4)
CKS
(*3)
Supplement:
* BLANK function (Picture Mute) is cancelled for the following:
Input connector switching
Video signal switching
10/52
007. BLANK OFF (NO SHOW OFF)
**********************************************************************
Function:
This command cancels the picture muting.
Command:
02H 11H 00H 00H 00H 13H
Response : At the time of a success
22H 11H 01H xxH 00H CKS
(*1) (*2)
(*3)
Response : At the time of a failure
A2H 11H 01H xxH 02H DATA01 DATA02
(*1) (*2)
(*4)
CKS
(*3)
008. SOUND MUTE ON
**********************************************************************
Function:
This command mutes the sound.
Command:
02H 12H 00H 00H 00H 14H
Response : At the time of a success
22H 12H 01H xxH 00H CKS
(*1) (*2)
(*3)
Response : At the time of a failure
A2H 12H 01H xxH 02H DATA01 DATA02
(*1) (*2)
(*4)
CKS
(*3)
Supplement:
* Sound mute is cancelled for the following:
Input connector switching
Video signal switching
Volume adjustment
009. SOUND MUTE OFF
**********************************************************************
Function:
This command cancels the sound muting.
Command:
02H 13H 00H 00H 00H 15H
11/52
Response : At the time of a success
22H 13H 01H xxH 00H CKS
(*1) (*2)
(*3)
Response : At the time of a failure
A2H 13H 01H xxH 02H DATA01 DATA02
(*1) (*2)
(*4)
CKS
(*3)
010. ONSCREEN MUTE ON
**********************************************************************
Function:
This command mutes the on-screen display.
Command:
02H 14H 00H 00H 00H 16H
Response : At the time of a success
22H 14H 01H xxH 00H CKS
(*1) (*2)
(*3)
Response : At the time of a failure
A2H 14H 01H xxH 02H DATA01 DATA02
(*1) (*2)
(*4)
CKS
(*3)
Supplement:
* This is available only during on-screen display.
011. LAMP INFORMATION REQUEST
**********************************************************************
Function:
This command acquires the lamp information of projector.
Command:
03H 8CH 00H 00H
00H 8FH
Response : At the time of a success
23H 8CH 01H xxH 10H DATA01 to DATA16 CKS
(*1) (*2)
(*3)
Data Portion Contents
------------------------------------------------------------------DATA01 to 04 Lamp counter (Normal mode) (second)
DATA05 to 08 Reserved
DATA09 to 12 Lamp Use Warning Starting Time (Normal mode) (second)
12/52
DATA13 to 16
Lamp Use Prohibited Time (Normal mode) (second)
Response : At the time of a failure
A3H 8CH 01H xxH 02H DATA01 DATA02
(*1) (*2)
(*4)
CKS
(*3)
Supplement:
Example for acquiring remaining lamp time
(in terms of Normal mode values)
: Lamp Hour Meter (Normal mode)
DATA01 DATA02 DATA03 DATA04
30H
2AH
00H
00H
:
10800 second
: Starting time for lamp usage warning message
(in terms of Normal mode values)
DATA09 DATA10 DATA11 DATA12
00H
DDH
6DH
00H
: 7200000 second
Lamp remaining time (in terms of Normal mode values)
= (7200000 - 10800) / 3600 = 1997 hour
012. MUTE CONTROL
**********************************************************************
Function:
This command controls the mute of picture, sound and on-screen.
Command:
02H 1AH
00H 00H
02H
DATA01
DATA02
CKS
(*3)
Data Portion Contents
------------------------------------------------------------------DATA01
Setting Items
00H : Picture
01H : Sound
02H : OSD (DATA2 can be specified only for "On")
DATA02
Setting Value
00H : Off
01H : On
Response : At the time of a success
22H 1AH 01H xxH 01H DATA01
(*1) (*2)
CKS
(*3)
Data Portion Contents
-------------------------------------------------------------------
13/52
DATA01
Results
00H : Normal
01H : Error
Response : At the time of a failure
A2H 1AH 01H xxH 02H DATA01 DATA02
(*1) (*2)
(*4)
CKS
(*3)
Supplement:
* Mute is cancelled in the following cases:
Input connector switching
Video signal switching
Volume adjustment
013. VOLUME ADJUST
**********************************************************************
Function:
This command sets the volume.
Command:
03H 10H 00H 00H 05H
DATA01 to DATA05
CKS
(*3)
Data Portion Contents
------------------------------------------------------------------DATA01
05H fixed
DATA02
Setting items
00H : Volume
01H : Bass
02H : Treble
03H : Balance
DATA03
Setting mode
00H : Absolute value specification
01H : Relative value specification
DATA04
Setting Value ( Lower ranking 8 bits )
DATA05
Setting Value ( Upper ranking 8 bits )
Response : At the time of a success
23H 10H 01H xxH 02H DATA01
(*1) (*2)
DATA02
Data Portion Contents
------------------------------------------------------------------DATA01 to 02 Results
0000H : Normal
0000H Other : Error
Response : At the time of a failure
14/52
CKS
(*3)
A3H 10H 01H xxH 02H
(*1) (*2)
DATA01 DATA02
(*4)
CKS
(*3)
Supplement:
Command example:
* Setting Volume to "10"
03H 10H 00H 00H 05H 05H 00H 00H 0AH
00H 27H
014. BASE MODEL TYPE REQUEST
**********************************************************************
Function:
This command acquires the projector type.
Command:
00H BFH 00H 00H 01H 00H C0H
Response : At the time of a success
20H BFH 01H xxH 10H DATA01 to DATA16
(*1) (*2)
CKS
(*3)
Data Portion Contents
------------------------------------------------------------------DATA01
00H fixed
DATA02 to 03 Projector type
See DATA13 to 14
DATA04 to 12 Model name (NULL termination character string)
DATA13 to 14
Projector type
+-------------+-------------+-------------+-------------+----------------| DATA02 | DATA03 | DATA13 | DATA14 |
+-------------+-------------+-------------+-------------+----------------|
01H |
03H |
00H |
06H | LV-7250/X6
+-------------+-------------+-------------+-------------+----------------|
01H |
03H |
00H |
07H | LV-7265/7260/X7
+-------------+-------------+-------------+-------------+----------------|
01H |
10H |
00H |
08H | LV-7365
+-------------+-------------+-------------+-------------+----------------|
FFH |
10H |
05H |
09H | LV-7375
+-------------+-------------+-------------+-------------+----------------|
FFH |
10H |
06H |
09H | LV-7370
+-------------+-------------+-------------+-------------+----------------|
FFH |
10H |
07H |
09H | LV-8300
+-------------+-------------+-------------+-------------+----------------|
FFH |
10H |
08H |
09H | LV-7275
+-------------+-------------+-------------+-------------+----------------|
FFH |
10H |
0AH |
10H | LV-7385
+-------------+-------------+-------------+-------------+----------------|
FFH |
10H |
0BH |
10H | LV-7380
15/52
+-------------+-------------+-------------+-------------+----------------|
FFH |
10H |
0CH |
10H | LV-7285
+-------------+-------------+-------------+-------------+----------------|
FFH |
10H |
0DH |
10H | LV-7280
+-------------+-------------+-------------+-------------+----------------|
FFH |
10H |
0EH |
10H | LV-8310
+-------------+-------------+-------------+-------------+----------------|
FFH |
10H |
0FH |
10H | LV-8215
+-------------+-------------+-------------+-------------+----------------DATA15 to 16 Reserved
Response : At the time of a failure
A0H BFH 01H xxH 02H DATA01 DATA02
(*1) (*2)
(*4)
CKS
(*3)
015. PROJECTOR INFORMATION REQUEST
**********************************************************************
Function:
This command acquires basic operation states of projector.
Command:
00H BFH 00H 00H 01H 02H C2H
Response : At the time of a success
20H BFH 01H xxH 10H DATA01
(*1) (*2)
to
DATA16
CKS
(*3)
Data Portion
Contents
------------------------------------------------------------------DATA01
02H fixed
DATA02
Projector Processing Status
00H : Idle
04H : Power On
05H : Cooling
06H : Idle(Error Standby)
Other : Not Supported
Other than above : (nondisclosure)
internal use of code during a state transition period
DATA03
Indicate Contents
00H : Picture signal displaying
01H : No Signal
02H : Viewer displaying
03H : Test Pattern displaying
04H : LAN displaying
05H : Test Pattern (User) displaying
16/52
10H : Signal selection in progress
Other : Not Supported
DATA04
Select source input type 1
01H : 1
02H : 2
03H : 3
04H : 4
05H : 5
Other : Not Supported
DATA05
Select source input type 2
01H : COMPUTER (RGB)
02H : VIDEO
03H : S-VIDEO
04H : COMPONENT
05H : Reserved
06H : DIGITAL
07H : VIEWER
08H : SLOT1
09H : SLOT2
0AH : SLOT3
0BH : SLOT4
0CH : DIGITAL2
0DH : SCART
10H : AUTO
FFH : Not Source Input
Other : Not Supported
DATA06
Indication signal type
(Effective only when Select source input type 2 is 02H or 03H)
x0H : NTSC3.58
x1H : NTSC4.43
x2H : PAL
x3H : PAL60
x4H : SECAM
x5H : B/W60
x6H : B/W50
x7H : PALNM
x8H : NTSC3.58 LBX
x9H : NTSC3.58 SQZ
xAH : COMPONENT(60Hz)
xBH : COMPONENT(50Hz)
xCH : Unknown
xDH : NTSC
xEH : PAL-M
xFH : PAL-N
FFH : Not Video Input
Other : Not Supported
17/52
* "x" means indefinite
DATA07
BLANK (Picture Mute)
00H : OFF
01H : ON
DATA08
Sound Mute
00H : OFF
01H : ON
DATA09
On-screen mute
00H : OFF
01H : ON
DATA10
FREEZE(!1)
00H : OFF
01H : ON
DATA11 to DATA16
Reserved
Response : At the time of a failure
A0H BFH 01H xxH 02H DATA01 DATA02
(*1) (*2)
(*4)
CKS
(*3)
Supplement:
(!1) LV-7385/7380/7285/7280/8310/8215/7375/7370/7275/8300 only
016. ERROR STATUS REQUEST
**********************************************************************
Function:
This command acquires the error information occurring with the
projector.
Command:
00H 88H 00H 00H 00H 88H
Response : At the time of a success
20H 88H 01H xxH 0CH DATA01 to DATA12
(*1) (*2)
Data Portion Contents
------------------------------------------------------------------* A "0" bit means normal and "1" means error.
* "None" means the bit is fixed to "0".
DATA01
Error Status(1)
bit0 : Lamp cover error
18/52
CKS
(*3)
bit1 : Temperature error(Bimetal)
bit2 : None
bit3 : Fan error
bit4 : Fan error
bit5 : Power error
bit6 : Lamp(or Lamp1) error
bit7 : Lamp(or Lamp1) has reached its end of life
DATA02
Error Status(2)
bit0 : Lamp(or Lamp1) has been used beyond its limit
bit1 : Formatter error
bit2 : Lamp2 error
bit3 : None
bit4 : None
bit5 : None
bit6 : None
bit7 : None
DATA03
Error Status(3)
bit0 : None
bit1 : FPGA error
bit2 : Temperature error(Sensor)
bit3 : Lamp(or Lamp1) housing error (!)
bit4 : Lamp(or Lamp1) data error (!)
bit5 : Mirror cover error
bit6 : Lamp2 has reached its end of life
bit7 : Lamp2 has been used beyond its limit
DATA04
Error Status(4)
bit0 : Lamp2 housing error
bit1 : Lamp2 data error
bit2 : High temperature due to dust pile-up
bit3 : A foreign object sensor error
bit4 : None
bit5 : Ballast Communication Error
bit6 : Iris Calibration Error
bit7 : None
DATA05 to 12 Reserved
Response : At the time of a failure
A0H 88H 01H xxH 02H DATA01 DATA02
(*1) (*2)
(*4)
CKS
(*3)
017. INFORMATION REQUEST
**********************************************************************
Function:
19/52
This command acquires the projector information.
Command:
03H 8AH
00H 00H
00H 8DH
Response : At the time of a success
23H 8AH 01H xxH 62H DATA01 to DATA98 CKS
(*1) (*2)
(*3)
Data Portion
Contents
------------------------------------------------------------------DATA01 to 49
Projector name (NULL termination character string)
DATA50 to 82
Reserved
DATA83 to 86
Lamp counter (second) (!)
DATA87 to 90
Filter counter (second)
DATA91 to 94
Panel usage (second)
DATA95 to 98
Projector usage (second)
Response : At the time of a failure
A3H 8AH 01H xxH 02H DATA01 DATA02
(*1) (*2)
(*4)
CKS
(*3)
Supplement:
(!) Lamp counter
This is the timer for normal lamp mode conversion.
Lamp Timer Acquisition Examples
DATA83 DATA84 DATA85 DATA86 :
00H
00H
00H
00H
:
C0H
65H
52H
00H
:
00H
E4H
57H
00H
:
Lamp Timer
Total 0 seconds
Total 5400000 seconds = 1500 hours
Total 5760000 seconds = 1600 hours
* The projector's hours of use is not converted to Normal mode values.
The projector's hours of use is truncated after decimal point.
018. FILTER COUNTER INFORMATION REQUEST
**********************************************************************
Function:
This command acquires the information about the projector's filter.
Command:
03H 95H 00H 00H 00H 98H
Response : At the time of a success
23H 95H 01H xxH 08H DATA01 to DATA08
(*1) (*2)
20/52
CKS
(*3)
Data Portion
Contents
----------------------------------------------------------------DATA01 to 04
Filter counter
(second) (!)
DATA05 to 08
Starting time for filter usage warning message (second)(!)
Response : At the time of a failure
A3H 95H 01H xxH 02H DATA01 DATA02
(*1) (*2)
(*4)
CKS
(*3)
Supplement:
(!) If the model does not have filter, "-1" will be sent.
019. LAMP INFORMATION REQUEST 3
**********************************************************************
Function:
This command acquires the information on the projector lamp.
Command:
03H 96H 00H 00H 02H
DATA01
DATA02 CKS
(*3)
Data Portion Contents
----------------------------------------------------------------DATA01
Target
00H : Lamp1
01H : Lamp2
DATA02
Item
00H : Lamp counter (in terms of Normal mode values) (second)(!3)
01H : Lamp counter (second)(!4)
04H : lamp remaining amount until lamp warning message
( 100% to -X%(!2) )
05H : Lamp counter (Normal mode) (second)
06H : Lamp counter (Quiet mode) (second)
08H : Remaining time until lamp warning message starts
to appear (in terms of specified values)
09H : Remaining time until lamp warning message starts
to appear (in terms of Normal mode values)
0AH : Remaining time until lamp warning message starts
to appear (in terms of Quiet mode values)
10H : Remaining time until inhibition of lamp usage
(in terms of specified values)
11H : Remaining time until inhibition of lamp usage
(in terms of Normal mode values)
12H : Remaining time until inhibition of lamp usage
(in terms of Quiet mode values)
Response : At the time of a success
23H 96H 01H xxH 06H DATA01 to DATA06
21/52
CKS
(*1)
(*2)
(*3)
Data Portion
Contents
----------------------------------------------------------------DATA01
same values as DATA01 of the command
DATA02
same values as DATA02 of the command
DATA03 to 06
Acquired information(!1)
Response : At the time of a failure
A3H 96H 01H xxH 02H DATA01 DATA02
(*1) (*2)
(*4)
CKS
(*3)
Supplement:
* In case of acquiring lamp counter
03H 96H 00H 00H 02H 00H 01H 9CH
Example of acquisition
DATA03
DATA04
50H
46H
DATA05
00H
DATA06 : lamp counter
00H
: 18000 seconds
Lamp counter = 18000 / 3600 = 5 hour
* In case of acquiring the remaining time until lamp warning
message starts to appear (in terms of specified values)
03H 96H 00H 00H 02H 00H 08H A3H
Example of acquisition
DATA03
DATA04
40H
7EH
DATA05
05H
DATA06 :
00H
:
Remaining time
360000 seconds
Remaining time until lamp warning message starts to appear
= 360000/ 3600 = 100 hours
(!1) If "time" is specified for "Options for acquisition",
values in seconds will be returned.
But, the value to acquire is updated only by the minute unit.
(!2) X = 100 - ((Lamp Use Prohibited Time * 100) / Lamp Use Warning Starting Time)
Example) The case of Lamp Use Prohibited Time 2100[H],
Lamp Use Warning Starting Time 2000[H] Model.
X = 100 - ((2100 * 100) / 2000) = -5[%]
(!3) Lamp counter (in terms of Normal mode values)
This is the timer for normal lamp mode conversion.
(!4) Lamp counter
This is the lamp total usage. It is displayed in the projector's menu.
020. TEMP INFORMATION REQUEST
**********************************************************************
22/52
Function:
This command acquires the information about temperature inside
the projector.
Command
03H 99H 00H 00H 01H
DATA01 CKS
(*3)
Data Portion Contents
----------------------------------------------------------------DATA01
Target sensor
00H : Intake (outside air) temperature
01H : Exhaust (Lamp) temperature
02H or later reserved
Response : At the time of a success
23H 99H 01H xxH 05H DATA01 to DATA05
(*1) (*2)
CKS
(*3)
Data Portion
Contents
----------------------------------------------------------------DATA01
Setting Items
( Same as DATA01 of the transmit data )
DATA02 to 05
Temperature information
(0.1 degree Celsius/32.18 degrees
Fahrenheit: 0 degree Celsius/32 degrees Fahrenheit
or less will be returned as 0 degree Celsius/32
degrees Fahrenheit)
Response : At the time of a failure
A3H 99H 01H xxH 02H DATA01 DATA02
(*1) (*2)
(*4)
Supplement:
Example for Temp
DATA02
DATA03
CBH
01H
DATA04
00H
CKS
(*3)
DATA05
00H
: 45.9 degrees Celsius/
114.6 degrees Fahrenheit
021. REMOTE KEY CODE
**********************************************************************
Function:
This command sends remote control key codes of projector.
Command:
02H 0FH 00H 00H 02H
DATA01
DATA02 CKS
(*3)
23/52
Data Portion Contents
------------------------------------------------------------------DATA01 to 02 Remote control key code (Word type)
Key number
DATA01 DATA02 Key name
-------------------------------------------1
01H
00H
POWER(!1)
2
02H
00H
POWER ON(!1)
3
03H
00H
POWER OFF(!1)
4
04H
00H
INPUT (AUTO)(!1)
5
05H
00H
AUTO PC
6
06H
00H
MENU
7
07H
00H
UP
8
08H
00H
DOWN
9
09H
00H
RIGHT
10
0AH
00H
LEFT
11
0BH
00H
OK
12
0CH
00H
BACK
13
0DH
00H
INFO.
15
0FH
00H
D.ZOOM UP(!1)
16
10H
00H
D.ZOOM DOWN(!1)
19
13H
00H
BLANK(!1)
41
29H
00H
IMAGE(!1)
59
3BH
00H
KEYSTONE(!1)
75
4BH
00H
COMPUTER1(*5)(!1)
76
4CH
00H
COMPUTER2(*5)(!1)
79
4FH
00H
VIDEO1(!1)
81
51H
00H
S-VIDEO1(!1)
132
84H
00H
VOLUME UP(!1)
133
85H
00H
VOLUME DOWN(!1)
134
86H
00H
KEYSTONE UP(!1)
135
87H
00H
KEYSTONE DOWN(!1)
138
8AH
00H
FREEZE(!1)
163
A3H
00H
ASPECT(!1)
215
D7H
00H
SEQSOURCE(input search)(!1)
Response : At the time of a success
22H 0FH 01H xxH 01H DATA01 CKS
(*1) (*2)
(*3)
Data Portion Contents
------------------------------------------------------------------DATA01
Results
00H : Normal
FFH : Error
Response : At the time of a failure
A2H 0FH 01H xxH 02H DATA01 DATA02
(*1) (*2)
(*4)
24/52
CKS
(*3)
Example:
Example for acquiring AUTO PC key code
02H 0FH 00H 00H 02H 05H 00H 18H
Supplement:
(!1) LV-7385/7380/7285/7280/8310/8215/7375/7370/7275/8300 only
022. FREEZE CONTROL
**********************************************************************
Function:
This command controls the freeze.
Command:
01H 98H 00H 00H 01H
DATA01 CKS
(*3)
Data Portion Contents
----------------------------------------------------------------DATA01
Target
01H : Freeze ON
02H : Freeze OFF
Response : At the time of a success
21H 98H 01H xxH 01H DATA01 CKS
(*1) (*2)
(*3)
Data Portion Contents
----------------------------------------------------------------DATA01
Results
00H : Normal
01H : Error
Response : At the time of a failure
A1H 98H 01H xxH 02H DATA01 DATA02
(*1)
(*2)
(*4)
CKS
(*3)
023. IMAGE FLIP H/V SET
**********************************************************************
Function:
This command sets the Image flip H/V of the projector.
Command:
03H B1H 00H 00H 02H
DATA01
DATA02
25/52
CKS
(*3)
Data Portion Contents
----------------------------------------------------------------DATA01
0AH fixed
DATA02
Setting Value
00H : None
01H : Rear, Ceiling mounted
02H : Rear
03H : Ceiling mounted
Response : At the time of a success
23H B1H 01H xxH 02H DATA01
(*1) (*2)
DATA02
CKS
(*3)
Data Portion Contents
----------------------------------------------------------------DATA01
0AH fixed
DATA02
Results
00H : Normal
01H : Error
Response : At the time of a failure
A3H B1H 01H xxH 02H DATA01 DATA02
(*1) (*2)
(*4)
CKS
(*3)
024. AUTO PC EXECUTE2
**********************************************************************
Function:
This command executes the AUTO PC function.
Command:
03H BAH 00H 00H
01H
DATA01 CKS
(*3)
Data Portion Contents
----------------------------------------------------------------DATA01
Setting Items
00H fixed
Other : Reserved
Response : At the time of a success
23H BAH 01H xxH 01H DATA01
(*1) (*2)
CKS
(*3)
Data Portion Contents
----------------------------------------------------------------DATA01
Setting Items
26/52
( Same as DATA01 of the transmit data )
Response : At the time of a failure
A3H BAH 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
(*4)
(*3)
025. RUNNING SENSE
**********************************************************************
Function:
This command acquires the operation mode of the projector.
Command:
00H 81H 00H 00H 00H 81H
Response: At the time of a success
20H 81H 01H xxH 01H DATA01
(*1) (*2)
(*3)
CKS
Data Portion
Contents
----------------------------------------------------------------DATA01
Status of operation
Bit 7 : Power On/Off processing
0 = No execution(Normal condition)
1 = During execution
Bit 6 : Selecting signal processing
0 = No execution(Normal condition)
1 = During execution
Bit 5 : Cooling processing
0 = No execution(Normal condition)
1 = During execution
Bit 4 : Reserved
Bit 3 : No power-off period
0 = Power-off possible (Normal condition)
1 = Power-off Impossible
Bit 2 : Reserved
Bit 1 : Projector status
0 = Idling
1 = Power On
Bit 0 : Reserved
Response: At the time of a failure
A0H 81H 01H xxH 02H DATA01
(*1) (*2)
(*4)
DATA02
(*3)
026. COMMON DATA REQUEST
27/52
CKS
**********************************************************************
Function:
This command acquisition of the detailed conditions of the projector.
Command:
00H C0H 00H 00H
00H C0H
Response: At the time of a success
20H C0H 01H xxH 80H DATA01 to DATA128
(*1) (*2)
(*3)
CKS
Data Portion
Contents
----------------------------------------------------------------DATA01
Projector type
See DATA70 to 71
DATA02
Control ID
1 to 254
FFH : Not Support
DATA03
Reserved
DATA04
Projector status
00H : Idling
01H : Power On
FFH : Not Support
DATA05
Cooling processing
00H : No execution(Normal condition)
01H : During execution
FFH : Not Support
DATA06
Indication signal number(Entry list number - 1)
FFH : Not Support
DATA07
Type 1 of input terminal to be selected (!1)
01H : 1
02H : 2
03H : 3
04H : 4
05H : 5
FFH : Not Support
DATA08
Type 2 of input terminal to be selected (!1)
01H : COMPUTER (RGB)
02H : VIDEO
03H : S-VIDEO
04H : COMPONENT
05H : Reserved
06H : DIGITAL
07H : VIEWER
08H : SLOT1
09H : SLOT2
FFH : Not Support
DATA09
Indication signal type
* Valid only when Type 2 of input terminal is 02H or 03H
28/52
DATA10 to 12
DATA13 to 20
DATA21 to 28
DATA29
DATA30
DATA31
DATA32
DATA33 to 34
DATA35 to 50
DATA51 to 65
DATA66
x0H : NTSC3.58
x1H : NTSC4.43
x2H : PAL
x3H : PAL60
x4H : SECAM
x5H : B/W60
x6H : B/W50
x7H : PALNM
x8H : NTSC3.58 LBX
x9H : NTSC3.58 SQZ
xDH : NTSC
xEH : PAL-M
xFH : PAL-N
* x: undefined
Reserved (undefined)
Horizontal frequency of the indication signal(string)
( "000" kHz + NULL(0)+ NULL(0))
All NULL(0) : Not Support
Vertical frequency of the indication signal(string)
( "000" Hz + NULL(0)+ NULL(0))
All NULL(0) : Not Support
Picture mute
00H : OFF
01H : ON
FFH : Not Support
Sound mute
00H : OFF
01H : ON
FFH : Not Support
Reserved
FREEZE(!2)
00H : OFF
01H : ON
FFH : Not Support
Test pattern display
DATA33 : Test pattern display 1
00H : No display(Normal condition)
DATA34 : Test pattern display 2
Bit 2 : BLUE pattern
FFH = No display
Bit 1 : GREEN pattern
FFH = No display
Bit 0 : RED pattern
FFH = No display
Reserved
User registration name ( 14 characters + NULL )
All NULL(0) : Not Support
Forced On-screen mute
FFH : Not Support
29/52
DATA67
DATA68
DATA69
DATA70 to 71
DATA72
DATA73
DATA74
DATA75 to 82
DATA83
DATA84
DATA85
DATA86 to 128
On-screen display
FFH : Not Support
Selecting signal processing
00H : No execution(Normal condition)
01H : During execution
Status of operation
00H : Idling
04H : Power On
05H : Cooling
06H : Idling(Error occurrence)
FFH : Not Support
internal use of code during a state transition period
Projector type
-------------++-------------+--------------+-----------------DATA01 || DATA70 | DATA71 |
-------------++-------------+--------------+-----------------03H ||
00H |
06H | LV-7250/X6
03H ||
00H |
07H | LV-7265/7260/X7
10H ||
00H |
08H | LV-7365
10H ||
05H |
09H | LV-7375
10H ||
06H |
09H | LV-7370
10H ||
07H |
09H | LV-8300
10H ||
08H |
09H | LV-7275
10H ||
0AH |
10H | LV-7385
10H ||
0BH |
10H | LV-7380
10H ||
0CH |
10H | LV-7285
10H ||
0DH |
10H | LV-7280
10H ||
0EH |
10H | LV-8310
10H ||
0FH |
10H | LV-8215
PC Card insertion
FFH : Not Support
USB Mouse connection
FFH : Not Support
Entry list type
FFH : Not Support
Reserved
On-screen mute
FFH : Not Support
Reserved
Indicate Contents
00H : Picture signal displaying
01H : No Signal
02H : Viewer displaying
03H : Test pattern displaying
04H : LAN displaying
10H : Signal selection in progress
FFH : Not Support
Reserved
30/52
Response: At the time of a failure
A0H C0H 01H xxH 02H DATA01
(*1) (*2)
(*4)
DATA02
(*3)
CKS
Supplement:
(!1)LV-7365/7375/7370/7275/8300/7385/7380/7285/7280/8310/8215
+------------------------------------+-------------------+-----------------------| Selected input terminal |
DATA07 |
DATA08
+------------------------------------+-------------------+-----------------------| Computer1
|
1 (01H) | COMPUTER (01H)
| Computer2(Analog) |
2 (02H) | COMPUTER (01H)
| Computer2(Digital)
|
2 (01H) | COMPUTER (06H)
| Video
|
1 (01H) | VIDEO
(02H)
| S-Video
|
1 (01H) | S-VIDEO (03H)
+------------------------------------+-------------------+-----------------------(!2) LV-7385/7380/7285/7280/8310/8215/7375/7370/7275/8300 only
027. IMAGE ADJUST
**********************************************************************
Function:
This command adjusts the Image adjustment.
Command:
03H 10H 00H 00H 05H
DATA01 to DATA05 CKS
(*3)
Data Portion
Contents
----------------------------------------------------------------DATA01
Adjustment items
00H : Brightness
01H : Contrast
02H : Color level
03H : Color balance
04H : Sharpness
DATA02
FFH fixed
DATA03
Adjustment mode
00H : Absolute value specification
01H : Relative value specification
DATA04
Adjustment value ( Lower ranking 8 bits )
DATA05
Adjustment value ( Upper ranking 8 bits )
Response: At the time of a success
23H 10H 01H xxH 02H DATA01
(*1) (*2)
DATA02
(*3)
31/52
CKS
Data Portion
Contents
----------------------------------------------------------------DATA01 to 02 Results
0000H : Normal
0000H Other : Error
Response: At the time of a failure
A3H 10H 01H xxH 02H DATA01
(*1) (*2)
(*4)
DATA02
(*3)
Supplement:
Command example:
* Setting Brightness to 10
03H 10H 00H 00H 05H 00H FFH 00H 0AH
CKS
00H 21H
* Setting Brightness to -10
03H 10H 00H 00H 05H 00H FFH 00H F6H FFH 0CH
028. KEYSTONE ADJUST
**********************************************************************
Function:
This command adjusts the Keystone.
Command:
03H 10H 00H 00H 05H 15H 01H DATA03 to DATA05
(*3)
Data Portion
Contents
----------------------------------------------------------------DATA01
15H fixed
DATA02
01H fixed
DATA03
Adjustment mode
00H : Absolute value specification
01H : Relative value specification
DATA04
Adjustment value ( Lower ranking 8 bits )
DATA05
Adjustment value ( Upper ranking 8 bits )
Response: At the time of a success
23H 10H 01H xxH 02H DATA01
(*1) (*2)
DATA02
(*3)
Data Portion
Contents
----------------------------------------------------------------DATA01 to 02
Results
0000H : Normal
0000H Other : Error
32/52
CKS
CKS
Response: At the time of a failure
A3H 10H 01H xxH 02H DATA01
(*1) (*2)
(*4)
DATA02
(*3)
Supplement:
Command example:
* Setting Keystone to 10
03H 10H 00H 00H 05H 15H 01H 00H 0AH
CKS
00H 38H
* Setting Keystone to -10
03H 10H 00H 00H 05H 15H 01H 00H F6H FFH 23H
029. DISPLAY SETTINGS ADJUST
**********************************************************************
Function:
This command adjusts the Display settings.
Command:
03H 10H 00H 00H 05H
DATA01 to DATA05 CKS
(*3)
Data Portion
Contents
----------------------------------------------------------------DATA01 to 02 Adjustment items
+-------------+-------------+--------------------------| DATA01 | DATA02 | Adjustment items
+-------------+-------------+--------------------------| 18H | 00H | Aspect
+-------------+-------------+--------------------------DATA03
Adjustment mode
00H fixed(Only absolute value specification)
DATA04
Adjustment value (Lower ranking 8 bits)
DATA05
Adjustment value (Upper ranking 8 bits)
Response: At the time of a success
23H 10H 01H xxH 02H DATA01
(*1) (*2)
DATA02
(*3)
CKS
Data Portion
Contents
----------------------------------------------------------------DATA01 to 02
Results
0000H : Normal
0000H Other : Error
Response: At the time of a failure
A3H 10H 01H xxH 02H DATA01
(*1) (*2)
(*4)
DATA02
(*3)
33/52
CKS
Supplement:
Command example:
* Setting the Aspect to Wide zoom
03H 10H 00H 00H 05H 18H 00H 00H 01H 00H 31H
Adjustment items Adjustment value
Aspect
0000H : Normal / Auto
0001H : Wide zoom
0002H : Cinema / 16:9
0003H : True size
0004H : 4:3
0005H : 15:9
0006H : 16:10
0007H : Letterbox
030. LAMP INFORMATION REQUEST 2
**********************************************************************
Function:
This command acquires lamp remaining amount.
Command:
03H 94H 00H 00H 00H 97H
Response: At the time of a success
23H 94H 01H xxH 05H DATA01 to DATA05
(*1) (*2)
(*3)
CKS
Data Portion
Contents
----------------------------------------------------------------DATA01 to 04
Reserved
DATA05
lamp remaining amount (100% to -X%) (!1)
Response: At the time of a failure
A3H 94H 01H xxH 02H DATA01
(*1) (*2)
(*4)
DATA02
(*3)
CKS
(!1) X = 100 - ((Lamp Use Prohibited Time * 100) / Lamp Use Warning Starting Time)
Example) The case of Lamp Use Prohibited Time 2100[H],
Lamp Use Warning Starting Time 2000[H] Model.
X = 100 - ((2100 * 100) / 2000) = -5[%]
031. GAIN PARAMETER REQUEST 2
**********************************************************************
Function:
34/52
This command acquires the adjustment values.
Command:
03H 04H 00H 00H 03H
DATA01 to DATA03 CKS
(*3)
Data Portion
Contents
----------------------------------------------------------------DATA01 to 02
Acquirement items (!)
DATA03
00H fixed
Response: At the time of a success
23H 04H 01H xxH 0DH DATA01 to DATA13
(*1) (*2)
(*3)
CKS
Data Portion
Contents
----------------------------------------------------------------DATA01
Adjustment status
00H : Displaying impossible
01H : Adjustment impossible
02H : Adjustment possible
FFH : Selected gain is not available.
DATA02
Maximum adjustment value (Lower ranking 8 bits)
DATA03
Maximum adjustment value (Upper ranking 8 bits)
DATA04
Minimum adjustment value (Lower ranking 8 bits)
DATA05
Minimum adjustment value (Upper ranking 8 bits)
DATA06
Default adjustment value (Lower ranking 8 bits)
DATA07
Default adjustment value (Upper ranking 8 bits)
DATA08
Current value (Lower ranking 8 bits)
DATA09
Current value (Upper ranking 8 bits)
DATA10 to 13
Reserved
Response: At the time of a failure
A3H 04H 01H xxH 02H DATA01
(*1) (*2)
(*4)
DATA02
(*3)
CKS
Supplement:
(!1) See the "Acquirement items" for further information about Acquirement items.
[Acquirement items]
+--------+--------+--------------------------------------+
| DATA01 | DATA02 | Acquirement name
+--------+--------+--------------------------------------+
|
00H |
00H | Image adjustment / Brightness
|
01H |
00H | Image adjustment / Contrast
|
02H |
00H | Image adjustment / Color level
|
03H |
00H | Image adjustment / Color balance
|
04H |
00H | Image adjustment / Sharpness
|
05H |
00H | Volume
35/52
|
|
|
|
|
|
|
|
05H |
01H | Sound / Bass
|
05H |
02H | Sound / Treble
|
05H |
03H | Sound / Balance
|
15H |
01H | Keystone V
|
18H |
00H | Aspect
|
97H |
00H | Screen color
|
9FH |
00H | Auto iris
+--------+--------+--------------------------------------+
|
|
|
|
|
|
|(!1)
Command example:
In case of acquiring Image adjustment - Brightness.
03H 04H 00H 00H 03H 00H 00H 00H 0AH
(!1) LV-7285/7280 only
032. SETTING REQUEST
**********************************************************************
Function:
This command acquires the function information of projector.
Command:
00H 85H 00H 00H 01H 00H 86H
Response: At the time of a success
20H 85H 01H xxH 20H DATA01 to
(*1) (*2)
DATA32
(*3)
CKS
Data Portion
Contents
----------------------------------------------------------------DATA01 to 03
Projector type
-------------++--------------+-------------+-----------------DATA01 || DATA02 | DATA03 |
-------------++--------------+-------------+-----------------03H ||
00H |
06H | LV-7250/X6
03H ||
00H |
07H | LV-7265/7260/X7
10H ||
00H |
08H | LV-7365
10H ||
05H |
09H | LV-7375
10H ||
06H |
09H | LV-7370
10H ||
07H |
09H | LV-8300
10H ||
08H |
09H | LV-7275
10H ||
0AH |
10H | LV-7385
10H ||
0BH |
10H | LV-7380
10H ||
0CH |
10H | LV-7285
10H ||
0DH |
10H | LV-7280
10H ||
0EH |
10H | LV-8310
10H ||
0FH |
10H | LV-8215
-------------++--------------+-------------+------------------
36/52
DATA04
DATA05
DATA06 to 32
Sound function
00H : Not available
01H : Available
Calendar function
00H
: No function
01H or 03H : Timer function, sleep timer function
function
02H
: Sleep timer function
Reserved
Response: At the time of a failure
A0H 85H 01H xxH 02H DATA01
(*1) (*2)
(*4)
DATA02
(*3)
CKS
033. RUNNING STATUS REQUEST
**********************************************************************
Function:
This command acquires the status of the projector operation.
Command:
00H 85H 00H 00H 01H 01H 87H
Response: At the time of a success
20H 85H 01H xxH 10H DATA01 to
(*1) (*2)
DATA16
(*3)
CKS
Data Portion
Contents
----------------------------------------------------------------DATA01 to 02
Reserved
DATA03
Projector status
00H : Idling
01H : Power On
FFH : Not Support
DATA04
Cooling processing
00H : No execution(Normal condition)
01H : During execution
FFH : Not Support
DATA05
Power On/Off processing
00H = No execution(Normal condition)
01H = During execution
FFH : Not Support
DATA06
Status of operation
00H : Idling
04H : Power On
05H : Cooling
06H : Idling(Error occurrence)
FFH : Not Support
37/52
DATA07
DATA08
DATA09 to 16
internal use of code during a state transition period
PC Card insertion
FFH : Not Support
USB Mouse connection
FFH : Not Support
Reserved
Response: At the time of a failure
A0H 85H 01H xxH 02H DATA01
(*1) (*2)
(*4)
DATA02
(*3)
CKS
034. INPUT STATUS REQUEST
**********************************************************************
Function:
This command acquires the status of input signal of the projector.
Command:
00H 85H 00H 00H 01H 02H 88H
Response: At the time of a success
20H 85H 01H xxH 10H DATA01 to
(*1) (*2)
DATA16
(*3)
CKS
Data Portion
Contents
----------------------------------------------------------------DATA01
Selecting signal processing
00H : No execution(Normal condition)
01H : During execution
FFH : Not Support
DATA02
Signal number(Entry list number - 1)
FFH : Not Support
DATA03 to 04
Selected input terminal
+--------------------------------+------------+-------------+
| Terminal name
| DATA03 | DATA04 |
+--------------------------------+------------+-------------+
| Computer1
|
01H |
01H |
| Computer2(Analog) |
02H |
01H |
| Computer2(Digital) |
01H |
06H |
| Video
|
01H |
02H |
| S-Video
|
01H |
03H |
+---------------------------------+------------+-------------+
DATA05
Entry list type
FFH : Not Support
DATA06
Test pattern display
00H : No display(Normal condition)
01H : Displaying
FFH : Not Support
38/52
DATA07 to 08
DATA09
DATA10 to 16
Reserved
Indicate Contents
00H : Picture signal displaying
01H : No signal
02H : Viewer displaying
03H : Test pattern displaying
04H : LAN displaying
FFH : Not Support
Reserved
Response: At the time of a failure
A0H 85H 01H xxH 02H DATA01
(*1) (*2)
(*4)
DATA02
(*3)
CKS
035. MUTE STATUS REQUEST
**********************************************************************
Function:
This command acquires the status of the mute of projector.
Command:
00H 85H 00H 00H 01H 03H 89H
Response: At the time of a success
20H 85H 01H xxH 10H DATA01 to
(*1) (*2)
DATA16
(*3)
CKS
Data Portion
Contents
----------------------------------------------------------------DATA01
Picture mute
00H : OFF
01H : ON
FFH : Not Support
DATA02
Sound mute
00H : OFF
01H : ON
FFH : Not Support
DATA03
On-screen mute
FFH : Not Support
DATA04
Forced on-screen mute
FFH : Not Support
DATA05
On-screen display
FFH : Not Support
DATA06 to 16
Reserved
Response: At the time of a failure
A0H 85H 01H xxH 02H DATA01
(*1) (*2)
(*4)
DATA02
(*3)
39/52
CKS
036. MODEL NAME REQUEST
**********************************************************************
Function:
This command acquires the model name of the projector.
Command:
00H 85H 00H 00H 01H 04H 8AH
Response: At the time of a success
20H 85H 01H xxH 20H DATA01 to
(*1) (*2)
DATA32
(*3)
CKS
Data Portion
Contents
----------------------------------------------------------------DATA01 to 32
Model name (NULL termination character string)
Response: At the time of a failure
A0H 85H 01H xxH 02H DATA01
(*1) (*2)
(*4)
DATA02
(*3)
CKS
037. INFORMATION STRING REQUEST
**********************************************************************
Function:
This command acquires information character string displayed from
projector.
Command:
00H D0H 00H 00H
03H
DATA01 to DATA03 CKS
(*3)
Data Portion
Contents
----------------------------------------------------------------DATA01
Resource language selection
00H : English fixed
DATA02
Classification by information type (!1)
DATA03
Selection for character string to be acquired
01H : Acquisition of information character string
Response: At the time of a success
20H D0H 01H xxH ??H DATA01 to DATA??
(*1) (*2)
(*3)
Data Portion
Contents
-----------------------------------------------------------------
40/52
CKS
DATA01
Classification by information type (!1)
( Same as DATA02 of the transmit data )
DATA02
Character string types
( Same as DATA03 of the transmit data )
DATA03
String length of label / information
( not including NULL character )
DATA04 to DATAxx Character string of label / information
( NULL termination character string )
Response: At the time of a failure
A0H D0H 01H xxH 02H DATA01
(*1) (*2)
(*4)
DATA02
(*3)
CKS
Supplement:
(!1)Information
type Number
Title
Description
----------------------------------------------------------------3 (03H)
Horizontal Frequency
4 (04H)
Vertical Frequency
038. LAMP MODE REQUEST
**********************************************************************
Function:
This command acquires the setting of the lamp mode of projector.
Command:
03H B0H 00H 00H 01H 07H BBH
Response: At the time of a success
23H B0H 01H xxH 02H DATA01
(*1) (*2)
DATA02
(*3)
CKS
Data Portion
Contents
----------------------------------------------------------------DATA01
07H fixed
DATA02
Setting Value
00H : Normal
01H : Quiet
Response: At the time of a failure
A3H B0H 01H xxH 02H DATA01
(*1) (*2)
(*4)
DATA02
(*3)
CKS
039. LAMP MODE SET
**********************************************************************
41/52
Function:
This command sets the lamp mode of projector.
Command:
03H B1H 00H 00H 02H
DATA01
DATA02
(*3)
CKS
Data Portion
Contents
----------------------------------------------------------------DATA01
07H fixed
DATA02
Setting Value
00H : Normal
01H : Quiet
Response: At the time of a success
23H B1H 01H xxH 02H DATA01
(*1) (*2)
DATA02
(*3)
CKS
Data Portion
Contents
----------------------------------------------------------------DATA01
07H fixed
DATA02
Results
00H : Normal
01H : Error
Response: At the time of a failure
A3H B1H 01H xxH 02H DATA01
(*1) (*2)
(*4)
DATA02
(*3)
CKS
040. POWER MANAGEMENT SET
**********************************************************************
Function:
This command sets the power management of projector.
Command:
03H B1H 00H 00H 02H
DATA01
DATA02
(*3)
Data Portion
Contents
----------------------------------------------------------------DATA01
17H fixed
DATA02
Setting Value
00H : OFF
01H : 0:05
02H : 0:10
03H : 0:20
04H : 0:30
42/52
CKS
Response: At the time of a success
23H B1H 01H xxH 02H DATA01
(*1) (*2)
DATA02
(*3)
CKS
Data Portion
Contents
----------------------------------------------------------------DATA01
17H fixed
DATA02
Results
00H : Normal
01H : Error
Response: At the time of a failure
A3H B1H 01H xxH 02H DATA01
(*1) (*2)
(*4)
DATA02
(*3)
CKS
041. AUTO KEYSTONE SET
**********************************************************************
Function:
This command sets the Auto keystone.
Command:
03H B1H 00H 00H 02H
DATA01
DATA02
(*3)
CKS
Data Portion
Contents
----------------------------------------------------------------DATA01
93H fixed
DATA02
Setting Value
00H : On
01H : Off
Response: At the time of a success
23H B1H 01H xxH 02H DATA01
(*1) (*2)
DATA02
(*3)
CKS
Data Portion
Contents
----------------------------------------------------------------DATA01
93H fixed
DATA02
Results
00H : Normal
01H : Error
Response: At the time of a failure
A3H B1H 01H xxH 02H DATA01
(*1) (*2)
(*4)
DATA02
(*3)
43/52
CKS
042. OTHER ADJUST
**********************************************************************
Function:
This command adjusts the various gains.
Command:
03H 10H 00H 00H 05H
DATA01 to DATA05 CKS
(*3)
Data Portion
Contents
----------------------------------------------------------------DATA01
Target gain
53H : Image mode
97H : Screen color
9FH : Auto iris (!1)
DATA02
FFH fixed
DATA03
Adjustment mode specification
00H fixed(Only absolute value specification)
DATA04
Adjustment value (Lower ranking 8 bits)
DATA05
Adjustment value (Upper ranking 8 bits)
Response: At the time of a success
23H 10H 01H xxH 02H DATA01
(*1) (*2)
DATA02
(*3)
CKS
Data Portion
Contents
----------------------------------------------------------------DATA01 to 02
Results
0000H : Normal
0000H Other : Error
Response: At the time of a failure
A3H 10H 01H xxH 02H DATA01
(*1) (*2)
(*4)
Supplement:
Command example:
Target gain
Image mode
Wall color
DATA02
(*3)
Adjustment value
----------------------------------0000H : Standard
0001H : Presentation
0002H : Cinema
0003H : Video
0004H : sRGB
0000H : Off
0001H : Light blue
0002H : Pink
44/52
CKS
0003H : Light rose
0004H : Light yellow
0005H : Light green
0006H : Sky blue
0007H : Greenboard
0008H : Greenboard(Gray)
0009H : Whiteboard
(!1) LV-7285/7280 only
043. SET PROJECTOR NAME
**********************************************************************
Function:
This command sets projector name.
Command:
03H 8BH 00H 00H 32H 00H DATA01
to
DATA49
(*3)
CKS
Data Portion
Contents
----------------------------------------------------------------DATA01 to 16
Projector name (NULL termination character string)
DATA17 to 49
Reserved
Response: At the time of a success
23H 8BH 01H xxH 02H 00H DATA01
(*1) (*2)
(*3)
CKS
Data Portion
Contents
----------------------------------------------------------------DATA01
Results
00H : Normal
01H : Error
02H : Error( Length over )
Response: At the time of a failure
A3H 8BH 01H xxH 02H DATA01
(*1) (*2)
(*4)
DATA02
(*3)
CKS
044. CLOSED CAPTION REQUEST
**********************************************************************
Function:
This command acquires the setting of the closed caption of projector.
Command:
45/52
03H B0H 00H 00H 01H 09H BDH
Response: At the time of a success
23H B0H 01H xxH 02H DATA01
(*1) (*2)
DATA02
(*3)
CKS
Data Portion
Contents
----------------------------------------------------------------DATA01
09H fixed
DATA02
Setting Value
00H : Off
01H : Caption 1
02H : Caption 2
03H : Caption 3
04H : Caption 4
05H : Text 1
06H : Text 2
07H : Text 3
08H : Text 4
Response: At the time of a failure
A3H B0H 01H xxH 02H DATA01
(*1) (*2)
(*4)
DATA02
(*3)
CKS
045. FAN MODE REQUEST
**********************************************************************
Function:
This command acquires the setting of the fan mode of projector.
Command:
03H B0H 00H 00H 01H 1AH CEH
Response: At the time of a success
23H B0H 01H xxH 02H DATA01
(*1) (*2)
DATA02
(*3)
CKS
Data Portion
Contents
----------------------------------------------------------------DATA01
1AH fixed
DATA02
Setting Value
00H : Auto
01H : High
02H : High altitude
Response: At the time of a failure
A3H B0H 01H xxH 02H DATA01
(*1) (*2)
(*4)
DATA02
(*3)
46/52
CKS
046. WXGA MODE SETTING REQUEST
**********************************************************************
Function:
This command acquires the setting of the WXGA mode of projector.
Command:
03H B0H 00H
00H 01H C3H 77H
Response: At the time of a success
23H B0H 01H xxH 02H DATA01
(*1) (*2)
DATA02
(*3)
CKS
Data Portion
Contents
----------------------------------------------------------------DATA01
C3H fixed
DATA02
Setting Value
00H : Off
01H : On
Response: At the time of a failure
A3H B0H 01H xxH 02H DATA01
(*1) (*2)
(*4)
DATA02
(*3)
CKS
047. CLOSED CAPTION SET
**********************************************************************
Function:
This command sets the closed caption of projector.
Command:
03H B1H 00H 00H 02H
DATA01
DATA02
(*3)
Data Portion
Contents
----------------------------------------------------------------DATA01
09H fixed
DATA02
Setting Value
00H : Off
01H : Caption 1
02H : Caption 2
03H : Caption 3
04H : Caption 4
05H : Text 1
06H : Text 2
07H : Text 3
47/52
CKS
08H : Text 4
Response: At the time of a success
23H B1H 01H xxH 02H DATA01
(*1) (*2)
DATA02
(*3)
CKS
Data Portion
Contents
----------------------------------------------------------------DATA01
09H fixed
DATA02
Results
00H : Normal
01H : Error
Response: At the time of a failure
A3H B1H 01H xxH 02H DATA01
(*1) (*2)
(*4)
DATA02
(*3)
CKS
048. FAN MODE SET
**********************************************************************
Function:
This command sets the fan mode of projector.
Command:
03H B1H 00H 00H 02H
DATA01
DATA02
(*3)
CKS
Data Portion
Contents
----------------------------------------------------------------DATA01
1AH fixed
DATA02
Setting Value
00H : Auto
01H : High
02H : High altitude
Response: At the time of a success
23H B1H 01H xxH 02H DATA01
(*1) (*2)
DATA02
(*3)
CKS
Data Portion
Contents
----------------------------------------------------------------DATA01
1AH fixed
DATA02
Results
00H : Normal
01H : Error
Response: At the time of a failure
A3H B1H 01H xxH 02H DATA01
DATA02
48/52
CKS
(*1) (*2)
(*4)
(*3)
049. WXGA MODE SETTING SET
**********************************************************************
Function:
This command sets the WXGA mode of projector.
Command:
03H B1H 00H 00H 02H
DATA01
DATA02
(*3)
CKS
Data Portion
Contents
----------------------------------------------------------------DATA01
C3H fixed
DATA02
Setting Value
00H : Off
01H : On
Response: At the time of a success
23H B1H 01H xxH 02H DATA01
(*1) (*2)
DATA02
(*3)
CKS
Data Portion
Contents
----------------------------------------------------------------DATA01
C3H fixed
DATA02
Results
00H : Normal
01H : Error
Response: At the time of a failure
A3H B1H 01H xxH 02H DATA01
(*1) (*2)
(*4)
DATA02
(*3)
CKS
050. LAMP INFORMATION REQUEST 4
**********************************************************************
Function:
This command acquires the information on the projector lamp.
Command:
03H 9BH 00H 00H 03H
DATA01
DATA02
Data Portion
Contents
----------------------------------------------------------------DATA01
Target
00H : Lamp1
49/52
DATA03
(*3)
CKS
DATA02
DATA03
01H : Lamp2
Unit (!4)
00H : Second
01H : Reserved
02H : Hour
Item
00H : Lamp counter (!2)
01H : Lamp counter (!3)
04H : lamp remaining amount until lamp warning message
( 100% to -X%(!1) )
05H : Lamp counter (Normal mode)
06H : Lamp counter (Eco mode)
08H : Remaining time until lamp warning message starts
to appear (in terms of specified values)
09H : Remaining time until lamp warning message starts
to appear (in terms of Normal mode values)
0AH : Remaining time until lamp warning message starts
to appear (in terms of Eco mode values)
10H : Remaining time until inhibition of lamp usage
(in terms of specified values)
11H : Remaining time until inhibition of lamp usage
(in terms of Normal mode values)
12H : Remaining time until inhibition of lamp usage
(in terms of Eco mode values)
Response: At the time of a success
23H 9BH 01H xxH 07H DATA01 to DATA07
(*1) (*2)
(*3)
CKS
Data Portion
Contents
----------------------------------------------------------------DATA01
same values as DATA01 of the command
DATA02
same values as DATA02 of the command
DATA03
same values as DATA03 of the command
DATA04 to 07
Acquired information
Response: At the time of a failure
A3H 9BH 01H xxH 02H DATA01
(*1) (*2)
(*4)
DATA02
(*3)
CKS
Supplement:
* In case of acquiring lamp's use of hours
03H 9BH 00H 00H 03H 00H 00H 01H CKS
Example of acquisition
DATA04 DATA05 DATA06 DATA07 : lamp's use of hours
50H
46H
00H
00H
: 18000 seconds
Lamp Usage = 18000 / 3600 = 5 hour
50/52
(!1) X = 100 - ((Lamp Use Prohibited Time * 100) / Lamp Use Warning Starting Time)
Example) The case of Lamp Use Prohibited Time 2100[H]、
Lamp Use Warning Starting Time 2000[H] Model.
X = 100 - ((2100 * 100) / 2000) = -5[%]
(!2) Lamp counter (in terms of Normal mode values)
This is the timer for normal lamp mode conversion.
(!3) Lamp counter
This is the lamp total usage. It is displayed in the projector's menu.
(!4) This setting is ignored, if the Item's unit is not time.
051. CARBON SAVINGS INFORMATION REQUEST
**********************************************************************
Function:
This command acquires the Carbon Saving values on the projector.
Command:
03H 9AH
00H 00H
01H
DATA01 CKS
(*3)
Data Portion
Contents
------------------------------------------------------------------DATA01
Acquirement items
00H : Total Carbon Savings
01H : Carbon Savings during operation
Response: At the time of a success
23H 9AH 01H xxH 09H DATA01 to DATA09
(*1) (*2)
(*3)
CKS
Data Portion
Contents
------------------------------------------------------------------DATA01
Same as DATA01 of the transmit data
DATA02 to 05
Carbon Savings (Kilogram Maximum: 99999[kg])
DATA06 to 09
Carbon Savings (Milligram Maximum:999999[mg])
Response: At the time of a failure
A3H 9AH 01H xxH 02H DATA01
(*1) (*2)
(*4)
DATA02
(*3)
Supplement:
Example for Total Carbon Savings
DATA02 DATA03 DATA04 DATA05 : Kilogram
9CH
09H
00H
00H : 2460 [kg]
DATA06
06H
DATA07
F9H
DATA08 DATA09 : Milligram
00H
00H : 63750 [mg]
51/52
CKS
Total Carbon Savings
= (2460 * 1000) + (63750 / 1000) = 2460063.75 [g]
= 2460 + (63750 / 1000 / 1000) = 2460.06375 [kg]
======================================================================
6. Response
---------------------------------------------------------------------* At the time of a success:
This returns ACK without adding data portion to the command that does
not request data.
This returns ACK with adding data to the data portion for the command
that requests data.
* At the time of a failure:
This adds a cause of not accepting the command to data portion to
return it.
(Example) Power On
Command:
02H 00H 00H 00H 00H CKS
Response:
A2H 00H 01H 40H 02H
DATA01
DATA02
CKS
======================================================================
7. Table of Response Error Codes
---------------------------------------------------------------------+-------------------+--------------------+-------------------------------------| DATA01
| DATA02
|
|
| Error
|
| Error types | description | Error contents
+-------------------+--------------------+-------------------------------------|
00H
|
00H
| Unknown command
|
00H
|
01H
| Unsupported command
|
01H
|
00H
| Invalid values specified.
|
01H
|
01H
| Specified terminal is unavailable or cannot be selected.
|
02H
|
03H
| Setting not possible
|
02H
|
0DH
| Power Off inhibited
+------------+------------+--------------------------------------
52/52
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
