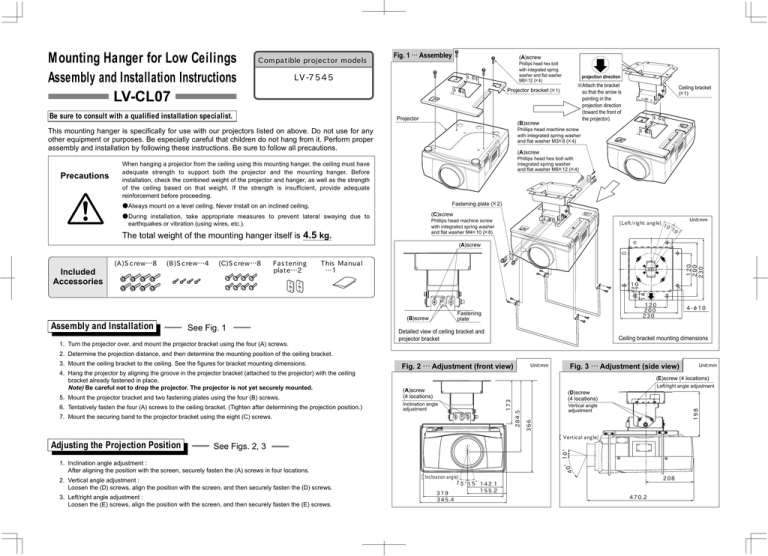

Mounting Hanger for Low Ceilings
Assembly and Installation Instructions
LV-CL07
Compatible projector models
Fig. 1 … Assembley
(A)screw
Phillips head hex bolt
with integrated spring
washer and flat washer
M6×12 (×4)
LV-7545
Be sure to consult with a qualified installation specialist.
Projector bracket (×1)
Projector
Ceiling bracket
so that the arrow is
pointing in the
projection direction
(toward the front of
the projector).
(B)screw
(×1)
Phillips head machine screw
with integrated spring washer
and flat washer M3×8 (×4)
This mounting hanger is specifically for use with our projectors listed on above. Do not use for any
other equipment or purposes. Be especially careful that children do not hang from it. Perform proper
assembly and installation by following these instructions. Be sure to follow all precautions.
Precautions
projection direction
※Attach the bracket
(A)screw
Phillips head hex bolt with
integrated spring washer
and flat washer M6×12 (×4)
When hanging a projector from the ceiling using this mounting hanger, the ceiling must have
adequate strength to support both the projector and the mounting hanger. Before
installation, check the combined weight of the projector and hanger, as well as the strength
of the ceiling based on that weight. If the strength is insufficient, provide adequate
reinforcement before proceeding.
Fastening plate (×2)
●Always mount on a level ceiling. Never install on an inclined ceiling.
(C)screw
●During installation, take appropriate measures to prevent lateral swaying due to
earthquakes or vibration (using wires, etc.).
Phillips head machine screw
with integrated spring washer
and flat washer M4×10 (×8)
The total weight of the mounting hanger itself is 4.5 kg.
Unit:mm
[Left/right angle] 1
0°1
0
°
(A)screw
120
200
230
10
14
Included
Accessories
(A)Screw…8 (B)Screw…4 (C)Screw…8 Fastening This Manual
plate…2
…1
(B)screw
Assembly and Installation
See Fig. 1
1. Turn the projector over, and mount the projector bracket using the four (A) screws.
120
200
230
Fastening
plate
Detailed view of ceiling bracket and
projector bracket
4-φ10
Ceiling bracket mounting dimensions
2. Determine the projection distance, and then determine the mounting position of the ceiling bracket.
Fig. 2 … Adjustment (front view)
Unit:mm
Fig. 3 … Adjustment (side view)
Left/right angle adjustment
Inclination angle
adjustment
7. Mount the securing band to the projector bracket using the eight (C) screws.
Vertical angle
adjustment
198
6. Tentatively fasten the four (A) screws to the ceiling bracket. (Tighten after determining the projection position.)
(D)screw
(4 locations)
366
5. Mount the projector bracket and two fastening plates using the four (B) screws.
(A)screw
(4 locations)
[Vertical angle]
See Figs. 2, 3
° 10°
40
Adjusting the Projection Position
1. Inclination angle adjustment :
After aligning the position with the screen, securely fasten the (A) screws in four locations.
2. Vertical angle adjustment :
Loosen the (D) screws, align the position with the screen, and then securely fasten the (D) screws.
3. Left/right angle adjustment :
Loosen the (E) screws, align the position with the screen, and then securely fasten the (E) screws.
Unit:mm
(E)screw (4 locations)
284.5
4. Hang the projector by aligning the groove in the projector bracket (attached to the projector) with the ceiling
bracket already fastened in place.
Note) Be careful not to drop the projector. The projector is not yet securely mounted.
173
3. Mount the ceiling bracket to the ceiling. See the figures for bracket mounting dimensions.
[Inclination angle]
208
15°15°142.1
319
345.4
155.2
470.2
