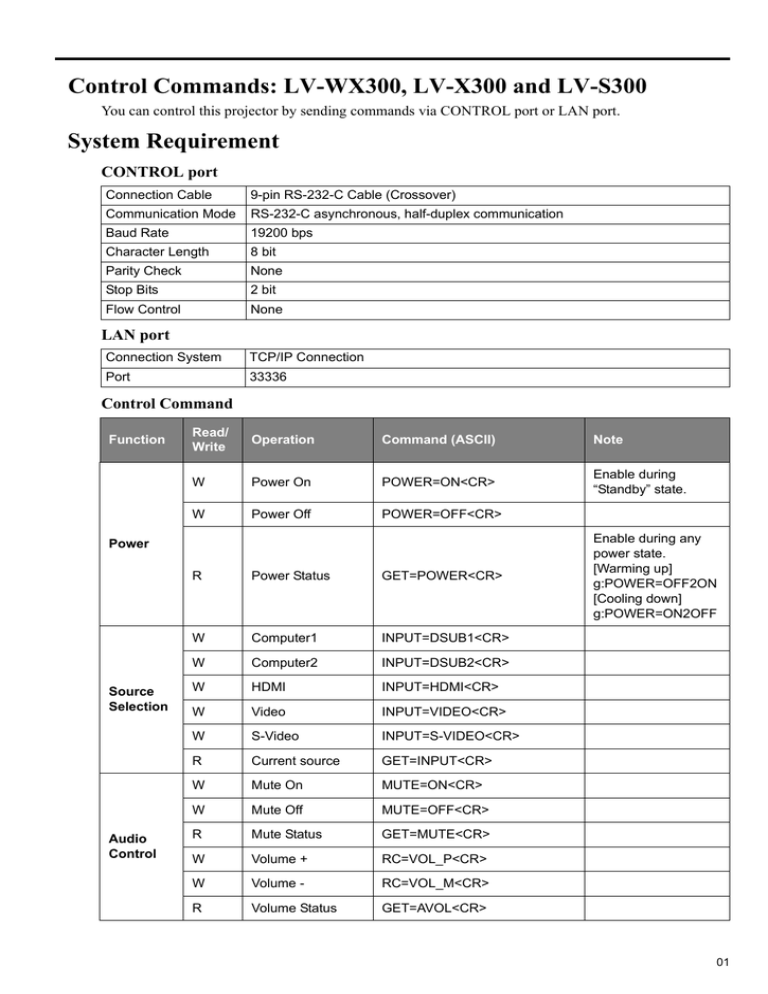

Control Commands: LV-WX300, LV-X300 and LV-S300
You can control this projector by sending commands via CONTROL port or LAN port.
System Requirement
CONTROL port
Connection Cable
9-pin RS-232-C Cable (Crossover)
Communication Mode
RS-232-C asynchronous, half-duplex communication
Baud Rate
19200 bps
Character Length
8 bit
Parity Check
None
Stop Bits
2 bit
Flow Control
None
LAN port
Connection System
TCP/IP Connection
Port
33336
Control Command
Function
Read/
Write
Operation
Command (ASCII)
Note
W
Power On
POWER=ON<CR>
Enable during
“Standby” state.
W
Power Off
POWER=OFF<CR>
Power
Source
Selection
Audio
Control
R
Power Status
GET=POWER<CR>
W
Computer1
INPUT=DSUB1<CR>
W
Computer2
INPUT=DSUB2<CR>
W
HDMI
INPUT=HDMI<CR>
W
Video
INPUT=VIDEO<CR>
W
S-Video
INPUT=S-VIDEO<CR>
R
Current source
GET=INPUT<CR>
W
Mute On
MUTE=ON<CR>
W
Mute Off
MUTE=OFF<CR>
R
Mute Status
GET=MUTE<CR>
W
Volume +
RC=VOL_P<CR>
W
Volume -
RC=VOL_M<CR>
R
Volume Status
GET=AVOL<CR>
Enable during any
power state.
[Warming up]
g:POWER=OFF2ON
[Cooling down]
g:POWER=ON2OFF
01
Mode
Aspect
Flip H/V
Auto
Search
W
Presentation
IMAGE=PRESENTATION<CR>
W
Standard
IMAGE=STANDARD<CR>
W
sRGB
IMAGE=SRGB<CR>
W
Movie
IMAGE=MOVIE<CR>
W
User1
IMAGE=USER_1<CR>
W
User2
IMAGE=USER_2<CR>
R
Image Mode
GET=IMAGE<CR>
W
Aspect 4:3
ASPECT=4:3<CR>
W
Aspect 16:9
ASPECT=16:9<CR>
W
Aspect Auto
ASPECT=AUTO<CR>
W
Aspect Real
ASPECT=TRUE<CR>
W
Aspect 16:10
ASPECT=16:10<CR>
R
Aspect Status
GET=ASPECT<CR>
W
Front Table
IMAGEFLIP=NONE<CR>
W
Rear Table
IMAGEFLIP=REAR<CR>
W
Front Ceiling
IMAGEFLIP=CEILING<CR>
W
Rear Ceiling
IMAGEFLIP= REAR_CEIL<CR>
R
Image flip H/V
Status
GET=IMAGEFLIP<CR>
W
Auto search
QAS=ON<CR>
W
Auto search
QAS=OFF<CR>
R
Auto search status
GET=QAS<CR>
R
Lamp Hour
GET=LMPT<CR>
W
Lamp Mode
Normal
LAMP=NORMAL<CR>
W
Lamp Mode
Economic
LAMP=ECO<CR>
R
Lamp Mode Status
GET=LAMP<CR>
Lamp
02
Operation
High
Altitude
Blank On
BLANK=ON<CR>
W
Blank Off
BLANK=OFF<CR>
R
Blank Status
GET=BLANK<CR>
W
Freeze On
FREEZE=ON<CR>
W
Freeze Off
FREEZE=OFF<CR>
R
Freeze Status
GET=FREEZE<CR>
W
Menu On
MENU=ON<CR>
W
Menu Off
MENU=OFF<CR>
W
Auto PC
RC=AUTOPC<CR>
W
Up
RC=UP<CR>
W
Down
RC=DOWN<CR>
W
Right
RC=RIGHT<CR>
W
Left
RC=LEFT<CR>
W
OK
RC=OK<CR>
W
High Altitude
mode On
HIGHALT=ON<CR>
W
High Altitude
mode Off
HIGHALT=OFF<CR>
R
High Altitude
mode status
GET=HIGHALT<CR>
ENGLISH
W
Control Response
Read/
Write
Condition
Response
Example
W
Success
i:OK<CR>
< BLANK=ON<CR>
> i:OK<CR>
W
Illegal format : Don't
exist command or
structure
e:0002
INVALID_COMMAND<CR>
< INVALID=ON<CR>
> e:0002
INVALID_COMMAND<CR>
W
Unsupported item:
this command
parameter can't
support
e:000A
INVALID_PARAMETER<CR>
< BLANK=INVALID<CR>
> e:000A
INVALID_PARAMETER<CR>
W
Block item: Current
state can't use.
e:1011
FUNCTION_NOT_AVAILABL
E<CR>
< ASPECT=AUTO<CR>
> e:1011
FUNCTION_NOT_AVAILABLE<CR>
R
Success
g:XXX=YYY<CR>
XXX=Command Name,
YYY=Parameter Name
< GET=BLANK<CR>
> g:BLANK=ON<CR>
03
R
04
Unsupported item:
this command
parameter can't
support
e:000A
INVALID_PARAMETER<CR>
< GET=INVALID<CR>
> e:000A
INVALID_PARAMETER<CR>
•
If the projector didn’t receive <CR> to finish a command within 5 seconds, it will timeout and
you need to resend the command.
•
