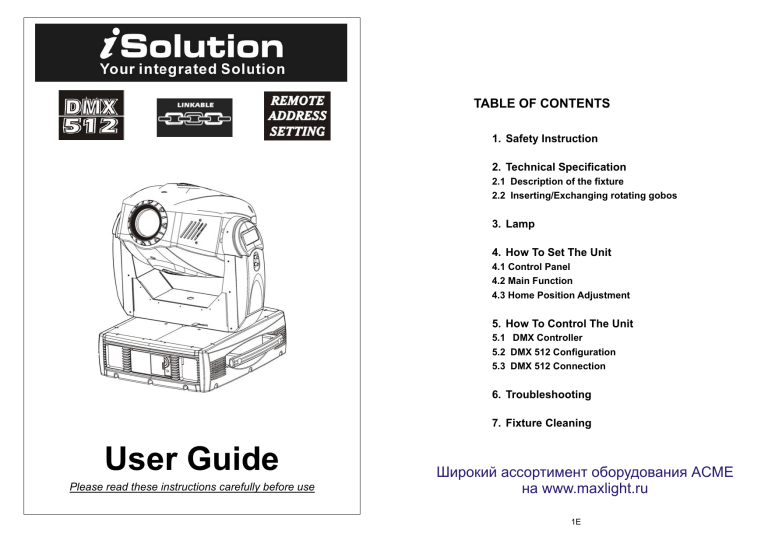

iMove 1200S

iMove 1200S

User Guide

Please read these instructions carefully before use

TABLE OF CONTENTS

1. Safety Instruction

2. Technical Specification

2.1 Description of the fixture

2.2 Inserting/Exchanging rotating gobos

3. Lamp

4. How To Set The Unit

4.1 Control Panel

4.2 Main Function

4.3 Home Position Adjustment

5. How To Control The Unit

5.1 DMX Controller

5.2 DMX 512 Configuration

5.3 DMX 512 Connection

6. Troubleshooting

7. Fixture Cleaning

Широкий ассортимент оборудования ACME на www.maxlight.ru

1E

1. Safety Instruction

WARNING

Please read carefully the instruction, which includes important information about the installation, usage and maintenance.

be sure that they also receive this instruction booklet. power requirements of the unit. not use any other type of lamp. shock. adjacent surfaces. Be sure that no ventilation slots are blocked. hazard. always by taking its base. higher than this. during its operation, and allow about 15 minutes to cool down before replacing bulb or serving, as the unit could be very hot. repair the unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please contact the nearest authorized technical assistance center.

Always use the same type spare parts.

2E

Warning

moisture. damaged.

Caution

There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs by yourself. In the unlikely event your unit may require service, please contact your nearest dealer.

Installation

The unit should be mounted via its mounting system ( as shown below ) on the bottom of the base. Use clamps to fix the unit to truss. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating. Always ensure that the structure to which you are attaching the unit is secure and is able to support a weight of 50 kgs for each unit.

3E

2. Technical Specification

Power supply

- AC 230V ~ 50Hz

Lamp

- MSI 1200W/S / HMI 1200/S K SFc10-4

Optical system

- High efficiency optical system

- High quality optical lens and dichroic colors

- Beam angle: 17°

Shutter/Dimmer

- Blackout, 0~100% smooth dimming and strobe speed variable(1~12 flashes per second).

Color wheel

- Color wheel 1: 8 dichroic colors + open.

- Color wheel 2: 3200k + 5600k + 4-color + UV + Pink + Light blue +open.

- Rainbow effect in both directions.

- Color module for easy assembly and maintenance.

- Magnetic Color wheels home positioning for easy calibration and easy maintenance.

Gobo wheel

- Independent 2 gobo wheels with 4 rotations each, replaceable gobos plus open.

- Magnetic Gobo wheels home positioning for easy calibration and easy maintenance.

- Gobo module for easy assembly and maintenance.

Effect Wheel

- Prism/Rotating Prism

Movement

- Pan: 540° in 2.8 second.

- Tilt: 270° in 1.6 second.

- Pan/Tilt resolution:8/16-bit.

- Automatic Pan/Tilt correction.

- Electronic sensor Pan/Tilt home positioning for easy calibration and easy maintenance.

- Pan/Tilt position lock for transporting protection.

Focus

- Automatic focus by DMX controls.

Iris

- Motorized iris for different beam diameters.

- Iris Speed control.

Frost: Frost effect

4E

DMX Channels

- Standard DMX512 signal addressing and can be controlled by any universal DMX controller or DMX Tester.

22 Channels:

Channel 1 = Pan

Channel 2 = Tilt

Channel 12 = Prism

Channel 13 = Prism Rotation

Channel 3 = Pan/Tilt Speed selection Channel 14 = Focus

Channel 4 = Dimmer Channel 15 = Iris

Channel 5 = Shutter/Shaking

Channel 6 = Color 1

Channel 7 = Color 2

Channel 8 = Gobo 1

Channel 16 = Special functions

Channel 17 = Pan 16 bit

Channel 18 = Tilt 16 bit

Channel 19 = Macro

Channel 9 = Gobo 1 Rotation

Channel 10 = Gobo 2

Channel 11 = Gobo 2 Rotation

16 Channels:

Channel 20 = Iris Effect

Channel 21 = Frost Macro

Channel 22 = Dimmer Macro

Channel 1 = Pan

Channel 2 = Tilt

Channel 9 = Gobo 1 Rotation

Channel 10 = Gobo 2

Channel 3 = Pan/Tilt Speed selection Channel 11 = Gobo 2 Rotation

Channel 4 = Dimmer Channel 12 = Prism/Frost

Channel 5 = Shutter/Shaking

Channel 6 = Color 1

Channel 7 = Color 2

Channel 8 = Gobo 1

Dimension: 490 x 517 x 708 mm

Weight: 45 kg

Channel 13 = Prism Rotation

Channel 14 = Focus

Channel 15 = Iris

Channel 16 = Special functions

5E

Luminous intensity:

2.1. Description of the fixture

1. Yoke

2. Front panel

3. Moving head

4. Tilt lock button (red)

5. Tilt unlock button (green)

6. Pan lock/unlock lever

7. Handle

8. Base

The head can be locked for transportation-the tilt lock button (4) is pushed and the pan lock/unlock lever (6) is lock position. To unlock the head, press the tilt unlock button (5) and move the pan lock/unlock lever (6) to unlock position.

Caution: The head and yoke must be unlocked before operation! Check the pan/tilt locks!

2.2. Inserting/Exchanging rotating gobos

DANGER!

Install the gobos with the device switched off only.

Unplug from mains before changing gobos!

Open the cover by loosening the fastening screw at the sides of the cover.

If you wish to use other forms and patterns as the standard-gobos, or if the gobos are to be exchanged, remove the fixation ring with an appropriate tool. Remove the gobo and insert the new gobo. Press the fixation-ring together and insert it in the front of the gobo.

6E

CAUTION!

Never unscrew the screws of the rotating gobo as the ball bearing

will otherwise be opened!

3. Lamp

WARNING

In case of replacement of the lamp or maintenance, do not open the fixture within 15 minutes until the unit cools down after switchin g off.

Because of its high internal pressure, there might be a risk that the Discharge lamp would explode during operation. The lamp emits intense UV radiation which is harmful to the eyes and skin. The high luminance of the arc can cause severe damage to the retina if looks directly at the lamp.

MSI 1200W/S / HMI 1200/S K SFc 10-4

1. Always switch off the main supply and never handle the lamp or luminaire when it is hot.

2. Do not touch the bulb with bare hands. If this happens, clean the lamp with denatured alcohol and wipe it with a lint free cloth before installation.

3. The lamp generates UV radiation. Never operate the lamp without appropriate shielding.

4. When burning, the lamp operates at high pressure and there is a slight risk of arc tube rupture. The risk increases with age, temperature and improper handling of the lamp. Do not use the lamp any longer than its lifespan.

5. Make sure the lamp is located in the center of the reflector for the best spot.

7E

6. If changing the lamp, remove old lamp from lamp socket. Hold the new lamp only by its ceramic base. Never touch the glass bulb. Insert the new lamp in the lamp socket.

7. Please turn the head in horizontal position. Hinge must be on the upper side of the head.

Turn screws left and remove plastic cover. Loosen head screw and open the lamp cover

8. With the nipple of the lamp facing the back insert one end of the lamp into the socket. Pull up the spring of the other side of the socket and snap the other end of the lamp into place.

Make sure it fits correctly into the socket. Please refer to the diagram to know how to put the lamp in correct position.

4. How To Set The Unit

4.1. Control Panel

8E

MONITOR

To show the various menus .

LED

DMX On

Button

DMX input present

ESC

ENTER

To go back to the previous functions

To confirm the selected functions

JOG WHEEL To select the given functions

On/Off

Turns On/Off the power

Fuse

To replace the fuse

Power

To connect the power plug

DMX input/output

For DMX 512 operation, use 3/5-pin XLR plug cable to link the unit together

9E

4.2. Main Function

To select any of the pre-set functions, press the ENTER button and turn jog wheel up to when the required one is shown on the monitor. Select the function by ENTER button. Use the jog wheel to change the mode. Once the required mode has been selected, press the

ENTER button to setup or it will automatically return to the main functions without any change after idling 10 seconds. To go back to the previous functions without any change press the ESC button. The main functions are shown below:

DMX 512 Address Setting

Press the ENTER button and turn jog wheel up to when the DMX Address is shown on the monitor. Pressing ENTER button and the display will blink. Use jog wheel to change the DMX 512 address. Once the address has been selected, press the ENTER button to setup or automatically return to the main functions without any change after 10 seconds. To go back to the previous functions without any change press the ESC button.

10E

Channel Mode

Press the ENTER button and turn jog wheel up to when the Channel Mode is shown on the monitor. Pressing ENTER button and the display will blink. Use jog wheel to select the (16 Channel ) or (22 Channel) mode. Once the mode has been selected, press the

ENTER button to setup or automatically return to the main functions without any change after 10 seconds. To go back to the previous functions without any change press the ESC button.

Pan Inversion

Press the ENTER button and turn jog wheel up to when the Pan Inversion is shown on the monitor. Pressing ENTER button and the display will blink. Use jog wheel to select the (Normal) or (Inversion) mode. Once the mode has been selected, press the ENTER button to setup or automatically return to the main functions without any change after 10 seconds. To go back to the previous functions without any change press the ESC button.

Tilt Inversion

Press the ENTER button and turn jog wheel up to when the Tilt Inversion is shown on the monitor. Pressing ENTER button and the display will blink. Use jog wheel to select the

(Normal) or (Inversion) mode. Once the mode has been selected, press the ENTER button to setup or automatically return to the main functions without any change after 10 seconds.

To go back to the previous functions without any change press the ESC button.

Test

Press the ENTER button and turn jog wheel up to when the Test is shown on the monitor. Pressing ENTER button and the display will blink. select option and the unit will run self-test by built-in program. To go back to the main functions press the ESC button twice.

Manual Mode

Press the ENTER button and turn jog wheel up to when the Manual Mode is shown on the monitor. Pressing ENTER button and the display will blink. Use jog wheel to select the (Pan) or (Tilt) or (Gobo)or ……mode. Once the mode has been selected, press the

ENTER button and use jog wheel to select the 0~255 value. Once the value has been selected, press the ENTER button to setup or automatically return to the main functions without any change after 10 seconds. To go back to the previous functions without any change press the ESC button.

Lamp Temperature

Press the ENTER button and turn jog wheel up to when the Lamp Temperature is shown on the monitor. Pressing ENTER button and the ambient temperature of lamp will show on the monitor. To go back to the main functions press the ESC button twice.

11E

Lamp Hours

Press the ENTER button and turn jog wheel up to when the Lamp Hours is shown on the monitor. Pressing ENTER button and the monitor will show the number of working hours of the unit. To go back to the main functions press the ESC button twice.

Lamp On/Off

Press the ENTER button and turn jog wheel up to when the Lamp On/Off is shown on the monitor. Pressing ENTER button and the display will blink. Use jog wheel to select the

(Lamp on) or (Lamp off) mode. Once the mode has been selected, press the ENTER button to setup or automatically return to the main functions without any change after 10 seconds.

To go back to the previous functions without any change press the ESC button.

Lamp On/Power On

Press the ENTER button and turn jog wheel up to when the

Lamp On/Power On

is shown on the monitor. Pressing ENTER button and the display will blink. Use jog wheel to select the (on) or (off ) mode. Once the mode has been selected, press the ENTER button to setup or automatically return to the main functions without any change after 10 seconds. To go back to the previous functions without any change press the ESC button.

Software Version

Press the ENTER button and turn jog wheel up to when the

Software Version

is shown on the monitor. Pressing ENTER button and the display will blink. Use jog wheel to select the (A) or (B) or (C) or (D) mode. Once the mode has been selected, press the

ENTER button to setup or automatically return to the main functions without any change after 10 seconds. To go back to the previous functions without any change press the ESC button.

Reset

Press the ENTER button and turn jog wheel up to when the Reset is shown on the monitor. Pressing ENTER button and the display will blink. Use jog wheel to select the (Yes) or (No) mode. select (Yes) option and all channels of the unit will return to their standard position. To go back to the main functions press the ESC button twice.

12E

4.3. Home Position Adjustment

Press ENTER button into main function, and then press ENTER button for at least 12 seconds into offset mode to adjust the home position, when you want to adjust gobo and color home position, you should be run Adjust Focus mode first , the functions are shown below:

Adjust Focus

Press the ENTER button for at least 12 seconds into offset mode, turn jog wheel up to when the Adjust Focus is shown on the monitor. Pressing ENTER button and the display will blink. the unit will focus on tilt 135°, and then the unit will focus on tilt 45°, pan

90°, pan 180°, pan 270° in every pressing ENTER button. Once the focus has been selected, use jog wheel to adjust this settings only for offset mode to adjust home position. To go back to the previous functions without any change press ESC button.

13E

Pan offset

Press the ENTER button for at least 12 seconds into offset mode, turn jog wheel up to when the Pan offset is shown on the monitor. Pressing ENTER button and the display will blink. Use jog wheel to adjust the pan home position. Once the position has been selected, press the ENTER button to setup or automatically return to the offset functions without any change press the ESC button. To go back to the main functions without any change after 10 seconds.

Tilt offset

Press the ENTER button for at least 12 seconds into offset mode, turn jog wheel up to when the Tilt offset is shown on the monitor. Pressing ENTER button and the display will blink. Use jog wheel to adjust the tilt home position. Once the position has been selected, press the ENTER button to setup or automatically return to the offset functions without any change press the ESC button. To go back to the main functions without any change after 10 seconds.

Dimmer offset

Press the ENTER button for at least 12 seconds into offset mode, turn jog wheel up to when the Dimmer offset is shown on the monitor. Pressing ENTER button and the display will blink. Use jog wheel to adjust the dimmer home position. Once the position has been selected, press the ENTER button to setup or automatically return to the offset functions without any change press the ESC button. To go back to the main functions without any change after 10 seconds.

Color 1 offset

Press the ENTER button for at least 12 seconds into offset mode, turn jog wheel up to when the Color 1 offset is shown on the monitor. Pressing ENTER button and the display will blink. Use jog wheel to adjust the color 1 home position. Once the color has been selected, press the ENTER button to setup or automatically return to the offset functions without any change press the ESC button. To go back to the main functions without any change after 10 seconds.

Color 2 offset

Press the ENTER button for at least 12 seconds into offset mode, turn jog wheel up to when the Color 2 offset is shown on the monitor. Pressing ENTER button and the display will blink. Use jog wheel to adjust the color 2 home position. Once the color has been selected, press the ENTER button to setup or automatically return to the offset functions without any change press the ESC button. To go back to the main functions without any change after 10 seconds.

14E

Gobo 1 offset

Press the ENTER button for at least 12 seconds into offset mode, turn jog wheel up to when the Gobo 1 offset is shown on the monitor. Pressing ENTER button and the display will blink. Use jog wheel to adjust the gobo 1 home position. Once the gobo has been selected, press the ENTER button to setup or automatically return to the offset functions without any change press the ESC button. To go back to the main functions without any change after 10 seconds.

R-Gobo 1 offset

Press the ENTER button for at least 12 seconds into offset mode, turn jog wheel up to when the R-Gobo 1 offset is shown on the monitor. Pressing ENTER button and the display will blink. Use jog wheel to adjust the R-gobo 1 home position. Once the R-gobo has been selected, press the ENTER button to setup or automatically return to the offset functions without any change press the ESC button. To go back to the main functions without any change after 10 seconds.

Gobo 2 offset

Press the ENTER button for at least 12 seconds into offset mode, turn jog wheel up to when the Gobo 2 offset is shown on the monitor. Pressing ENTER button and the display will blink. Use jog wheel to adjust the gobo 2 home position. Once the gobo has been selected, press the ENTER button to setup or automatically return to the offset functions without any change press the ESC button. To go back to the main functions without any change after 10 seconds .

R-Gobo 2 offset

Press the ENTER button for at least 12 seconds into offset mode, turn jog wheel up to when the R-Gobo 2 offset is shown on the monitor. Pressing ENTER button and the display will blink. Use jog wheel to adjust the R-gobo 2 home position. Once the R-gobo has been selected, press the ENTER button to setup or automatically return to the offset functions without any change press the ESC button. To go back to the main functions without any change after 10 seconds.

Focus offset

Press the ENTER button for at least 12 seconds into offset mode, turn jog wheel up to when the Focus offset is shown on the monitor. Pressing ENTER button and the display will blink. Use jog wheel to adjust the focus home position. Once the focus has been selected, press the ENTER button to setup or automatically return to the offset functions without any change press the ESC button. To go back to the main functions without any change after 10 seconds.

15E

Prism offset

Press the ENTER button for at least 12 seconds into offset mode, turn jog wheel up to when the Prism offset is shown on the monitor. Pressing ENTER button and the display will blink. Use jog wheel to adjust the prism home position. Once the prism has been selected, press the ENTER button to setup or automatically return to the offset functions without any change press the ESC button. To go back to the main functions without any change after 10 seconds.

R-Effect offset

Press the ENTER button for at least 12 seconds into offset mode, turn jog wheel up to when the R-Effect offset is shown on the monitor. Pressing ENTER button and the display will blink. Use jog wheel to adjust the R-Effect home position. Once the R-effect has been selected, press the ENTER button to setup or automatically return to the offset functions without any change press the ESC button. To go back to the main functions without any change after 10 seconds.

5. How To Control The Unit

You can operate the unit by universal DMX controller:

No need to turn the unit off when you change the DMX address, as new DMX address setting will be effected at once. Every time you turn the unit on, it will show “IM-1200S resetting…” on the monitor and move all the motors to their ‘home’ position and you may hear some noises for about 20 seconds. After that the unit will be ready to receive DMX signal.

5.1. DMX Controller

If you use a universal DMX controller to control the units, you have to set DMX address from 1 to 512 channel so that the units can receive DMX signal.

Press the ENTER button up to when the DMX address is shown on the monitor.

Pressing ENTER button and the monitor will blink. Use jog wheel to change the DMX512 address. Once the address has been selected, press the ENTER button to setup or automatically return to the main functions without any change after 10 seconds. To go back to the previous functions without any change press the ESC button.

Please refer to the following diagram to address your DMX512 channel for the first 4 units.

Mode

16 CH

22 CH

Fixture 1

1

1

Fixture 2

17

23

Fixture 3

33

45

Fixture 4

49

67

16E

5.2. DMX 512 Configuration

i.) To activate CH-16 functions, stop in DMX value for at least 5 seconds.

17E

18E i.) To activate CH-16 functions, stop in DMX value for at least 5 seconds.

19E

5.3. DMX512 Connection

The DMX 512 is widely used in intelligent lighting control, with a maximum of 512 channels.

1. If you use a controller with 5 pins DMX connector, you need to use a 5 to 3 pin adapter.

2. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120-ohm

1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the last unit.

3. Connect the unit together in a “daisy chain” by XLR plug cable from the output of the unit to the input of the next unit. The cable cannot be branched or split to a “Y” cable. DMX

512 is a very high-speed signal. Inadequate or damaged cables, soldered joints or corroded connectors can easily distort the signal and shut down the system.

4. The DMX output and input connectors are pass-through to maintain the DMX circuit, when power is disconnected to the unit.

5. Each lighting unit needs to have a DMX address to receive the data by the controller. The address number is between 0-511 (usually 0 & 1 are equal to 1).

6. The end of the DMX 512 system should be terminated to reduce signal errors.

7. 3 pin XLR connectors are mo re popular than 5 pins XLR.

3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)

5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)

20E

6. Troubleshooting

Following are a few common problems that may occur during operation. Here are

some suggestions for easy troubleshooting:

A. The unit does not work, no light and the fan does not work

1. Check the connect power and main fuse.

2. Measure the mains voltage on the main connector.

3. Check the power on LED.

B. Not responding to DMX controller

1. DMX LED should be on. If not, check DMX connectors, cables to see if link properly.

2. If the DMX LED is on and no response to the channel, check the address settings and DMX polarity.

3. If you have intermittent DMX signal problems, check the pins on connectors or on PCB of the unit or the previous one.

4. Try to use another DMX controller.

5. Check to see if the DMX cables run near or run alongside to high voltage cables that may cause damage or interference to DMX interface circuit.

C. No response to the sound

1. Make sure the unit is not receiving DMX signal.

2. Check microphone to see if it is good by tapping the microphone.

D. One of the channels is not working well

1. The stepper motor might be damaged or the cable connected to the PCB is broken.

2. The motor’s drive IC on the PCB might be out of condition.

E. The lamp is cutting out intermittently

1. The lamp is not working well. Check the main voltage either too high or too low.

2. Internal temperature may be too high. Check and if necessary replace the fan on the head.

21E

F. If The pan belt is broken

1. Turn off the main power.

2. Unscrew all the screws (A) and open the base-housing cover (B).

3. Unplug all the connect wires that upon belt.

4. Loose the screws (D).

5. Change a new belt (C) , put the belt around the axis gear and motor gear.

6. Screwed the screws (D), install the new belt and adjust the belt tension properly.

Note: do not fix the belt too tight as it is easy to rupture.

7. Plug all the connect wires back that upon belt.

8. Screw all the screws (A) .

A

B

A

C

D

22E

G. If The tilt belt is broken

1. Turn off the main power.

2. Unscrew all the screws (A) and open the right arm cover (B).

3. Unscrew the screws (C) that fix the bridge.

4. Loose the screws (D).

5. Change a new belt (E). Please adjust the tension of the belt properly. Note: do not fix the belt too tight as it is easy to rupture.

6. Reverse the procedures from point 3 to 2 .

E

C

B

D

A

23E

Pay attention to the belt tension when install the belt.

Please refer to the photos below:

Photo 1

Photo 2

24E

7. Fixture Cleaning

The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit’s optics.

30/60 days.

EC Declaration of Conformity

We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the

Electromagnetic Compatibility (EMC) Directive 89/336/EEC.

EN55014-2: 1997 A1:2001, EN61000-4-2: 1995; EN61000-4-3:2002;

EN61000-4-4: 1995; EN61000-4-5: 1995, EN61000-4-6:1996,

EN61000-4-11: 1994.

&

Harmonized Standard

EN 60598-1: 2004

IEC 60598-1:2003+ corrigendum 2004

Part 1:General requirements and test

Following the provisions of the low voltage directive 73/23/EEC and 93/68/EEC

Innovation, Quality, Performance

25E

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
