Canon PIXMA MX7600 Instructions
2

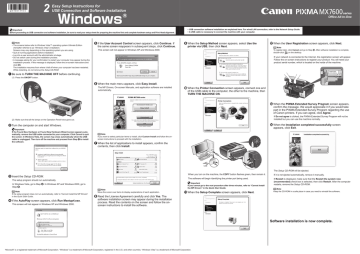

Easy Setup Instructions for
USB Connection and Software Installation
Office All-In-One
Important
Before proceeding to USB connection and software installation, be sure to read your setup sheet for preparing the machine first and complete hardware setup and Print Head alignment.
Note
• The screens below refer to Windows Vista™ operating system Ultimate Edition
(hereafter referred to as “Windows Vista”) installation.
Screens may vary depending on the operating system you are using.
• Quit all running applications before installation.
• Log into a user account with the administrator privilege.
• Do not switch users during the installation process.
• A message asking for your confirmation to restart your computer may appear during the
installation process. If this message is displayed, follow the on-screen instructions and
click OK.
The installation resumes from where it left off when your computer has been restarted.
While restarting, do not remove the Setup CD-ROM.
eIf the User Account Control screen appears, click Continue. If
the same screen reappears in subsequent steps, click Continue.
• USB connection software installation are explained here. For wired LAN connection, refer to the Network Setup Guide.
• A USB cable is necessary to connect the machine with your computer.
iWhen the Setup Method screen appears, select Use the
printer via USB, then click Next.
This screen will not appear in Windows XP and Windows 2000.
lWhen the User Registration screen appears, click Next.
Note
To register later, click Cancel and go to Step m. After software installation is complete,
double-click
on the desktop.
If your network is connected to the Internet, the registration screen will appear.
Follow the on-screen instructions to register your product. You will need your
product serial number, which is located on the inside of the machine.
aBe sure to TURN THE MACHINE OFF before continuing.
(1) Press the ON/OFF button.
fWhen the main menu appears, click Easy Install.
The MP Drivers, On-screen Manuals, and application software are installed
automatically.
jWhen the Printer Connection screen appears, connect one end
of the USB cable to the computer, the other to the machine, then
TURN THE MACHINE ON.
mWhen the PIXMA Extended Survey Program screen appears,
confirm the message. We would appreciate it if you would take
part in the PIXMA Extended Survey Program regarding the use
of Canon printers. If you can agree, click Agree.
If Do not agree is clicked, the PIXMA Extended Survey Program will not be
installed but you can use the machine normally.
(2) Make sure that all the lamps on the Operation Panel have gone out.
nWhen the Installation completed successfully screen
bTurn the computer on and start Windows.
Important
If the Found New Hardware or Found New Hardware Wizard screen appears automatically, remove the USB cable connected to your computer. Click Cancel to quit
the screen. In Windows Vista, the screen may close automatically when the USB
cable is unplugged. Then turn off the machine and proceed from Step c to install
the software.
appears, click Exit.
Note
If you want to select particular items to install, click Custom Install and follow the onscreen instructions to proceed with the installation.
gWhen the list of applications to install appears, confirm the
contents, then click Install.
USB
The Setup CD-ROM will be ejected.
cInsert the Setup CD-ROM.
The setup program should run automatically.
In Windows Vista, go to Step d. In Windows XP and Windows 2000, go to
Step f.
Note
If the setup program does not run automatically, refer to “Cannot Install the MP Drivers”
in the Quick Start Guide.
dIf the AutoPlay screen appears, click Run Msetup4.exe.
This screen will not appear in Windows XP and Windows 2000.
Note
Move the cursor over items to display explanations of each application.
When you turn on the machine, the COPY button flashes green, then remain it.
If it is not ejected automatically, remove it manually.
The software will begin identifying the printer port being used.
If Restart is displayed, make sure that the Restart the system now
(recommended) check box is selected, then click Restart. After the computer
restarts, remove the Setup CD-ROM.
Important
If you cannot go to the next procedure after three minutes, refer to “Cannot Install
the MP Drivers” in the Quick Start Guide.
kWhen the Setup Complete screen appears, click Next.
Note
Keep the CD-ROM in a safe place in case you need to reinstall the software.
hRead the License Agreement carefully and click Yes. The
software installation screen may appear during the installation
process. Read the contents on the screen and follow the onscreen instructions to install the software.
Software installation is now complete.
“Microsoft” is a registered trademark of Microsoft Corporation. “Windows” is a trademark of Microsoft Corporation, registered in the U.S. and other countries. “Windows Vista” is a trademark of Microsoft Corporation.
2
Easy Setup Instructions for
USB Connection and Software Installation
Office All-In-One
Important
Before proceeding to USB connection and software installation, be sure to read your setup sheet for preparing the machine first and complete hardware setup and Print Head alignment.
Note
• Since Mac® OS 9, Mac OS X Classic environments, or Mac OS X v.10.3.8 or earlier are
not supported, do not connect the machine to these.
• The screens below refer to Mac OS X v.10.4.x installation. Screens may vary
depending on the operating system you are using.
• Log on as an Administrator.
• Quit all running applications before installation.
eWhen the main menu appears, click Easy Install.
The MP Drivers, On-screen Manuals, and application software are installed
automatically.
• USB connection software installation are explained here. For wired LAN connection, refer to the Network Setup Guide.
• A USB cable is necessary to connect the machine with your computer.
iWhen the User Registration screen appears, click Next.
Note
To register later, click Cancel and go to Step j. After software installation is complete,
double-click
on the desktop.
kWhen the Canon IJ Network Tool screen appears, select USB
connection, then click OK.
If your network is connected to the Internet, the registration screen will appear.
Follow the on-screen instructions to register your product. You will need your
product serial number, which is located on the inside of the machine.
aConnect one end of the USB cable to the computer and the
other to the machine.
Note
Make sure the machine is turned on.
Note
When using Mac OS X v.10.3.9, before using the Operation Panel on the
machine to save scanned originals to the computer, it is necessary to select MP
Navigator EX as the launch application on Image Capture under Applications.
For details, refer to “Scanning Images” in the User’s Guide on-screen manual.
Note
If you want to select particular items to install, click Custom Install and follow the onscreen instructions to proceed with the installation.
fWhen the list of applications to install appears, confirm the
contents, then click Install.
jWhen the Installation completed successfully screen
appears, click Restart.
After the computer restarts, remove the Setup CD-ROM.
Software installation is now complete.
USB
bTurn on your Mac and insert the Setup CD-ROM.
Note
If the CD-ROM folder does not open automatically, double-click the CD-ROM icon
the desktop.
on
cDouble-click the Setup icon.
Note
Move the cursor over items to display explanations of each application.
gRead the License Agreement carefully and click Yes. The
software installation screen may appear during the installation
process. Read the contents on the screen and follow the onscreen instructions to install the software.
hWhen the Setup Complete screen appears, click Next.
When the computer restarts, the Canon IJ Network Tool will start up
automatically.
Note
Keep the CD-ROM in a safe place in case you need to reinstall the software.
When using Mac OS X v.10.3.9:
Restarting the computer while connected to the machine may cause the
machine not to be detected. To resolve this, either unplug the USB cable then
plug it back in again, or turn the machine off then back on again.
Note
XXX FAX (where “XXX” is your machine’s name) is shown in the Printer Name list
(Product list in Mac OS X v.10.3.9), but you cannot add XXX FAX. You cannot send
faxes from your computer via the machine.
dWhen the Authenticate screen appears, enter your
administrator name and password. Click OK.
If you do not know your administrator name or password, click
the on-screen instructions.
, then follow
Part no. QT5-0073-V01 © 2008 Canon Inc. “Macintosh” and “Mac” are trademarks of Apple Inc., registered in the U.S. and other countries.
XXXXXXXX Printed in THAILAND
