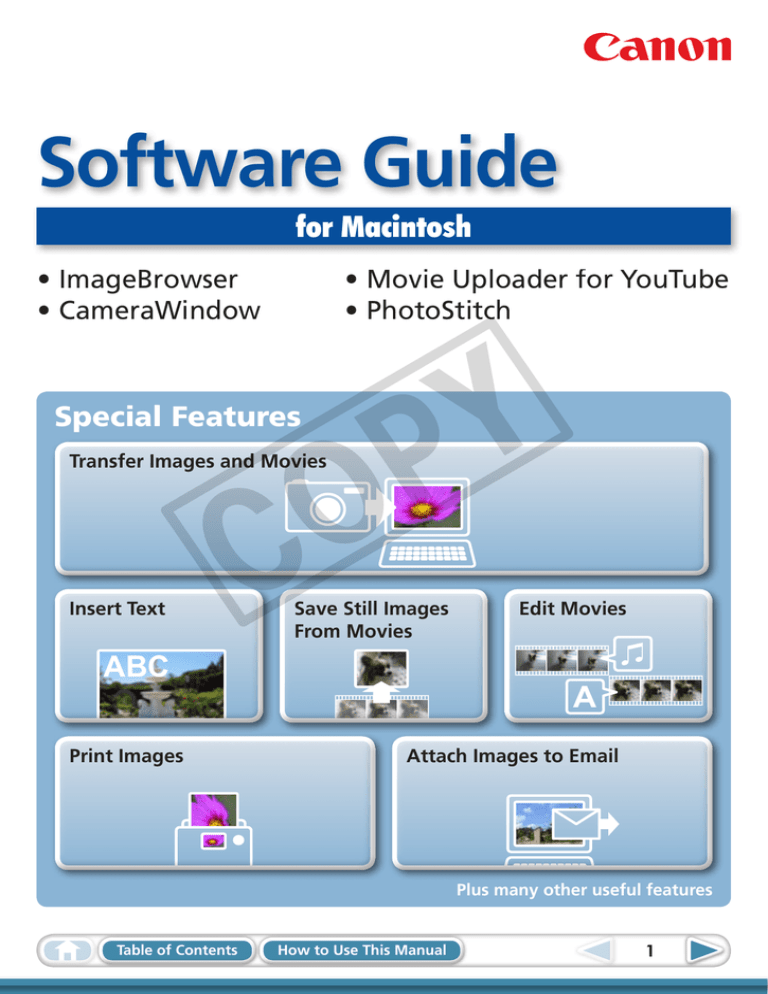

Software Guide for Macintosh
• ImageBrowser
• CameraWindow
• Movie Uploader for YouTube
• PhotoStitch
Special Features
Transfer Images and Movies
Save Still Images
From Movies
Y
Insert Text
Edit Movies
Print Images
Attach Images to Email
Plus many other useful features
1
About this Manual
Notation Conventions
The contents of this manual are classified according to the following symbols.
IMPORTANT
• The “Important” sections contain operating precautions or important topics.
Ensure that you read them.
HINT
• The “Hint” sections contain procedural suggestions and tips for your convenience. Read them as necessary.
Operating Environment
COP
Y
• This manual uses Mac OS X v10.5 screen shots and procedures in the explanations.
The screen shots and procedures may appear slightly different if you are using another version of Mac OS.
• The displayed screens and procedures may also differ slightly from the examples depending upon the camera or printer model in use.
• The explanations in this guide are based on the premise that a Canon compact digital camera will be used with the software.
• Some functions may not be available depending on the camera model.
Word Searches
This document is provided as an Adobe Reader document. Use Adobe Reader’s Search functions to find specific words or phrases that you recall but cannot find. To access this function, in Adobe Reader click the [Edit] menu and select the [Search] option.
If you are using Adobe Reader 8 or later, you can also perform searches with the [Find] function right on the toolbar.
Input search text here
2
Precautions for Connecting the Camera to the Computer
• When connecting the camera to the computer with an interface cable, make sure to connect the cable directly to the computer’s USB port. The connection may not operate correctly if you attach the camera to the computer via a USB hub.
• The connection may not operate correctly if you are using other USB devices, excluding
USB mice or keyboards, at the same time as the camera. If this occurs, disconnect the other devices from the computer and try reconnecting the camera.
• Do not connect two or more cameras at the same time to the same computer. The connections may not operate correctly.
• Do not allow the computer to go into sleep (standby) mode while a camera is connected via the USB interface cable. If this does happen, do not disconnect the interface cable. Try to awaken the computer with the camera in the connected state. Some computers will not awaken properly if you disconnect the camera while they are in sleep (standby) mode. Please refer to your computer manual for instructions regarding the sleep (standby) mode.
screen.
Y
IMPORTANT
• You are recommended to use an AC adapter (sold separately) when connecting to a computer. Ensure that you use fully charged batteries if you cannot use an
AC adapter.
• See the Camera User Guide for procedures on connecting the camera to the computer.
COP
3
Table of Contents
Things to Remember ............................................................................................ 6
Mastering the Basics ............................................................................................ 9
More Advanced Techniques .............................................................................. 24
4
Appendices ......................................................................................................... 53
5
CameraWindow and ImageBrowser
CameraWindow and ImageBrowser
The following two windows are the main ones used for CameraWindow and
ImageBrowser procedures.
CameraWindow
This is software that communicates with the camera.
You can use it to transfer images to and from the camera, organize images on the camera, and upload movies on the camera to web services.
The menu screen at the right will appear when the camera is connected to a computer.
After the images are transferred from the camera, the screen changes when CameraWindow is closed.
ImageBrowser
COP
This is software that manages images transferred to a computer.
You can use it to view, edit and print images on a computer. If you close CameraWindow after transferring images, the window at the right will appear.
Y
You can also open the window by clicking the
[ImageBrowser] icon in the dock.
HINT
Use the Help Function
The (Help) button or Help menu is available in most CameraWindow and ImageBrowser windows. It is there for when you are unsure how to proceed.
6
ImageBrowser’s Browser Window
How to Display Browser Window
ImageBrowser’s Browser Window will appear after the camera images are transferred and CameraWindow closes. You can also display it by clicking the ImageBrowser icon in the Dock (the bar at the bottom of the desktop).
• If the ImageBrowser icon is not displayed in the Dock, double-click the [Applications] folder, followed by the [Canon Utilities] folder,
[ImageBrowser] folder and the [ImageBrowser] icon.
Names of the Browser Window Parts
Display Modes
Y
Browser Area
Icons that indicate image properties display around thumbnail images, as shown on the bottom left.
Menu Bar
Displays the last images transferred.
Last Acquired Images COP
Folder Area
Selects a folder to display.
Control Panel Display Control Panel
Properties Icon (Displays Image Properties)
: Image recorded using the camera’s Stitch Assist mode
: RAW image
: Movie
: Super Slow Motion Movie
: Movies recorded with Movie Digest mode
: Image with sound memo attached
: Protected image
: Image recorded using the camera’s AEB function
: Rotated image (rotated in display only)
7
How to Perform Tasks
Selecting and Using Functions
Many ImageBrowser functions can be accessed by selecting them from the Control
Panel and following the instructions in the guidance section of the new window. For further details on the functions, refer to
in the appendix.
1
Select a function from the Control Panel or a menu.
COP
Y
2
Follow the instructions to perform the task.
8
Transferring Images
Transferring Images by Connecting the Camera to a Computer
Transfer the camera images to the computer.
IMPORTANT
• The instructions in this software manual assume that you have correctly installed the software. See the
Y
User Guide. Please also refer to “Precautions for Connecting the Camera to the
.
• If CameraWindow fails to open when you connect the camera, click the
Camera
1
[CameraWindow] icon in the Dock (the bar at the bottom of the desktop).
COP
Connect the camera to the computer with the supplied interface cable.
2
Turn on the camera power, set it to playback mode and prepare it to communicate with the computer.
3
Click [Import Images from
Camera] and then click [Import
Untransferred Images].
Only images that have not yet been transferred will start to transfer.
CameraWindow (Menu Screen)
9
After you click [OK] in the dialog that indicates the transfer is complete and close the CameraWindow screen, the transferred images will display in the
Browser Window.
You can select the newly transferred images by their shooting dates or My
Category (select models only) classification.
: Folders containing newly acquired images
Y
• Images from memory cards with large numbers of images (more than 1,000) may not transfer correctly. If this happens, please use a memory card reader to transfer. For details on transferring images from a memory card reader, refer to
“Transferring Images Using a Memory Card Reader” .
• Movie files take time to transfer since the files are large.
HINT
COP
The default settings save transferred images into the
[Pictures] folder. To change the destination folder, click the button shown on the right in Step 3 as described on the previous page, then click the [Import] button. In
[Folder Settings], click [Browse] to complete settings in the screen currently displayed.
Changing the software that displays after images have been transferred
You can choose the software that displays after images have been transferred. Click in the upper right corner of CameraWindow, then click [Import] in the screen that appears and choose the [After Import] tab. After making your settings, press [OK] and close the [Preferences] screen.
10
HINT
Select Images to Import
To transfer only a selection of images from the camera, click [Import Images from Camera] in
CameraWindow (menu screen), [Select Images to Import], then select images in the image transfer screen, and click the (Import) button. For details, refer to
.
Import All Images
To transfer all images on the camera, click [Import Images from Camera] in
CameraWindow (menu screen) then, [Import
All Images].
Automatically Transferring Images on
CameraWindow Start-Up
To automatically transfer images when
CameraWindow starts up, click the button shown on the right in CameraWindow (menu
COP
Y screen), then click the [Import] button, and the [Auto Import] tab. Add a checkmark to [Start importing images automatically when this software is launched.].
ImageBrowser will start when you insert a memory card into the memory card reader, and display the following window. Use this window to perform the transferring procedures.
Transfers all images.
Allows you to select and transfer images.
Prints images.
Configures the transfer folder and other settings.
11
Printing
Printing a Single Image on a Single Page
Prints one image per page.
HINT
Printing Movies been saved. For details on how to save still images from movies, refer to
“Extracting Stills from Movies” .
1
Select images for printing.
COP
Y
2
Click [Print & Share], and
[Photo Print].
12
3
Set the categories as desired.
Sets the printer, paper size and borderless printing settings.
Sets the shooting date/time imprint settings.
4
Click [Print].
Print window will display.
Click here to crop and print
COP
Y
Click here to insert text onto an image and print.
5
Click [Print].
Printing will start.
HINT
Laying Out and Printing
You can also select multiple images, add captions and print freely composed layouts on a single page.
Click [Print & Share] in the Control Panel and select [Layout Print]. The shooting date will automatically appear when you perform a layout print if you click the [ImageBrowser] menu, followed by [Preferences] and [Layout Print], and place a check mark beside [Shooting Date].
13
Index Print
Prints an index of the images.
1
Select images for printing.
COP
Y
2
Click [Print & Share], and
[Index Print].
14
3
Set the categories as desired.
Sets the printer, paper size and number of print copies settings.
Select an image to rotate or trim.
Sets the number of rows or columns.
Configures the printing of the shooting information, comments, headers, footers or page numbers. COP
Y
Rotates selected images.
Click here to crop a portion of the selected image and print it.
4
Click [Print].
Print window will display.
5
Click [Print].
Printing will start.
15
How to Use CameraWindow
First Menu Screen to Open
This screen appears when the camera is connected to your computer.
Click each button to display the available options.
Displays in-camera memory card information.
Displays camera information.
COP
Y
Starts operations for transferring images from the camera to your computer.
Starts operations for protecting, rotating, and deleting images on the camera. Also transfers images from your computer to the camera.
Starts operations for uploading movies on the camera to web services.
Starts operations for setting the camera start-up screen, start-up sound, and various camera sounds. For details,
Techniques”. This menu may not appear depending on your camera model.
HINT
Customizing CameraWindow Functions
If you click the button as shown in the upper right of the screen, you can customize various functions to make CameraWindow easier to use. You can change the automatic transfer settings, the start-up screen that appears when starting CameraWindow, and the transfer destination folder.
16
Image Transfer Screen
This screen appears when you click [Import Images from Camera] on the Menu screen, then click [Select Images to Import]. Select the image you want to transfer and click the button to transfer the image to your computer.
Viewer Window (Thumbnail Display)
Closes CameraWindow.
Returns to the Menu screen.
Turns the shooting date and folder name below the thumbnails on and off (when in thumbnail display).
Changes thumbnail size
(when in thumbnail display).
Images on the camera that match the selected filter display in the area to the right.
Rotates chosen images
90° to the left or right.
COP
Y Switches between window display modes.
Thumbnail display
Preview display
Full screen display
Double-clicking an image switches to preview display when a single image is selected.
This mark appears on images that have not yet been transferred.
Transfers the image chosen in Viewer Window to your computer.
Cancels image selection.
Selects all images.
The background of chosen images turns blue.
IMPORTANT
• The functions (buttons) that display will differ depending on the camera model.
17
Organize Images Screen
This screen appears when you click [Organize Images on Camera] on the Menu screen, then click [Organize Images]. Clicking a folder on the left will display all images within the folder as thumbnails (small images) on the right of the screen.
Viewer Window (Thumbnail Display)
Closes CameraWindow.
Returns to the Menu screen.
Turns the shooting date and folder name below the thumbnails on and off (when in thumbnail display).
Changes thumbnail size
(when in thumbnail display).
Images on the camera that match the selected filter display in the area to the right.
Rotates chosen images
90° to the left or right.
COP
Y Switches between window display modes.
Thumbnail display
Preview display
Full screen display
Double-clicking an image switches to preview display when a single image is selected.
This mark appears on images that have not yet been transferred.
Deletes the image chosen in Viewer Window.
Protects/cancels protection for the image chosen in
Viewer Window.
Transfers images on your computer to the camera.
The background of chosen images turns blue.
IMPORTANT
• The functions (buttons) that display will differ depending on the camera model.
• Clicking the (Delete) button will delete the image from the camera. Exercise adequate caution, as you cannot retrieve the deleted images.
18
How to Use ImageBrowser’s Browser Window
Browser Window
This is the main window for performing tasks in ImageBrowser.
Last Acquired Images
You can check images by shooting date or My Category.
Display Mode
Selects a display mode for the Browser Area.
Image Information Panel
When in Preview Mode: Displays information about the selected image.
When in List Mode: Displays image information if you click the [File] menu and select [Get Info].
Canon Camera
Displays CameraWindow.
View Image
Displays the selected image in the
Viewer Window.
Slide Show
Displays the selected images in succession in the window.
Folder Area
Selects a folder to display.
• You can register folders you use often as Favorite Folders ( ). Register by clicking [Add]. To delete a folder in the
Favorite Folders area, select a folder and click the [Remove] button.
COP
Y
Browser Area
• Displays the images in the selected folder.
Display Control Panel
Configures the settings for displaying images in the Browser Area.
Send to Trash
Deletes selected images or folders.
• Deleted images are placed in the Trash.
• If you mistakenly send an image to the Trash, click the [Trash] icon in the Dock and restore the image to its original folder in the Finder.
Print & Share
Prints the selected image(s), creates an image attachment for email, or uploads movies to
YouTube.
Rotate Image
• To rotate images, click the [Edit] menu and select [Rotate Image].
• To rotate the original image in the displayed direction, click the
[Edit] menu and select [Rotate According to Rotation Information].
19
Display Modes
Select a browser area display mode to fit your purposes.
Preview Mode: allows the image information to be read while viewing the image.
List Mode: allows thumbnails to be viewed at a size suited for easy viewing.
Y
Display Control Panel
This panel adjusts the display settings for the Browser Area.
COP in the Browser Area.
Selection Menu
Click this to select/deselect all images in the Browser Area.
Filter Tool Menu
Displays only images that correspond to specific conditions.
Hide Buttons
Left: Hides the Folder Area and the Last
Acquired Images.
Middle: Hides the control panel.
Right: Hides the Show Shooting Information panel in the [Preview] display mode.
20
Browser Area Tasks
Functions Used in the Browser Area
Create New Folder
To create a new folder in the Browser Area, click the
[File] menu and select [New Folder].
Select Images
Clicking an image in the Browser Area selects that image. To select multiple images, hold down the
[shift] key or [ ] (Command) key while clicking images, or hold down the [option] and [shift] key together and click a starting and ending image to select a range of adjacent images.
Change the Display Size
You can change the size of the thumbnails.
HINT
Display Images
Double-clicking an image in the Browser Area (or
Y
), displays it in
Move, Copy Images
To move an image between folders, drag it over the destination folder and release the mouse button.
Show Window
You can switch between showing/hiding the Folder
COP To copy an image, hold the [option] key while releasing the mouse button as above.
Right-Click Context Menus
Right-clicking (or [Control] key and clicking) over a window or image displays contextual menus. These menus contain the functions available in the current context as well as other convenient functions. Use the context menus to increase your efficiency.
21
File Information Window
The File Information Window displays when you select an image in the Browser Area, select [List Mode], and then click the [File] menu and select [Get Info].
File Name
You can change file names.
Switches between showing and hiding detailed information.
Switches between showing and hiding detailed information for the category.
Lock
Prevents an image from being overwritten or deleted.
Rating / My Category
Sets the rating for an image.
COP
Y An icon will display if a My
Category is set (certain models only).
Comment
You can type a comment here.
Keyword
Sets the keywords used in searches.
Brightness Histogram
A graph of the highlights and shadows distribution in an image.
Shooting Information
Displays detailed information, such as the shutter speed and exposure compensation setting. The camera model will determine what information is displayed.
Image Selector Buttons
When multiple images are selected, you can switch between images that display information in the File Information Window.
22
Viewer (View Image) Window
Double-clicking a thumbnail image in the Browser Window displays it in this window.
Shooting information
Set the Rating.
Change the display magnification.
Zooming in displays the Navigator window to show the relative position on the image.
Save an image.
Edit an image.
You can configure the information display by clicking the [ImageBrowser] menu and selecting [Preferences].
Display multiple images side by side.
• The following window will appear when a movie is displayed.
COP
Display at full screen size.
You can control movie playback and sound volume.
You can extract stills from movies.
You can cut portions at either end of a movie clip.
• A bar for changing the playback speed, and (real-time playback) will appear when a Super Slow Motion
Movie is displayed. If you click , the movie will play back at the actual speed it was shot at.
23
Editing Images
IMPORTANT
• The original image will be overwritten after an image is edited unless the file name is changed before saving it. To preserve the original image intact, change the file name when saving the edited image.
• This section introduces the procedures for starting from the [Edit] button in the Viewer Window, but you can also start the same process by clicking the [Edit] menu and selecting [Edit still image].
Trimming – Cropping a Portion of an Image
Use this to delete unnecessary portions of the image and leave only the necessary portions.
Y
Procedures
1 Double-click an image.
2 [Edit] and [Trim].
COP
Color/Brightness Adjustment
• You can also input values or an aspect ratio to specify the trim area.
• Movies and RAW images cannot be edited.
Adjusts the images’ RGB values (red, green, blue) and the saturation and brightness.
Saturation,
Brightness
Procedures
1 Double-click an image.
2 [Edit] and [Color/
Brightness
Adjustment].
• Movies and RAW images cannot be edited.
RGB Adjustment
24
Red Eye Correction
Restores eye appearance to the original color when light reflected from the flash makes them appear red.
• Click [Start] when Auto Mode is selected.
• Switch to Manual Mode if Auto Mode cannot correct the image, and select the location of the eye to correct.
Procedures
1 Double-click an image.
2 [Edit] and [Red Eye
Correction].
• Movies and RAW images cannot be edited.
• If a message appears that recommends installation of additional software when using Mac OS X v10.6, follow the message to install the software.
Y
Inserting Text
You can freely adjust the font, size, color and text attributes.
HELLO
Procedures
1 Double-click an image.
2 [Edit] and [Insert
Text].
• Placing a checkmark in the [Antialias] box causes the text edges to blend in with the underlying image.
• Movies and RAW images cannot be edited.
25
Correcting Levels
You can adjust the highlights (brightest portions), shadows (darkest portions) and midtone levels of an image while viewing its histogram.
Level Adjustment
Procedures
1 Double-click an image.
2 [Edit] and [Level
Adjustment].
• Movies and RAW images cannot be edited.
Y
Correcting Tone Curves
COP
Procedures
Tone Curve Adjustment
1 Double-click an image.
2 [Edit] and [Tone
Curve Adjustment].
• Movies and RAW images cannot be edited.
26
Adjusting Sharpness – Emphasizing Outlines
Makes images appear sharper by emphasizing the outlines of subjects, such as people and objects.
Sharpen
Procedures
1 Double-click an image.
2 [Edit] and
[Sharpness].
• Movies and RAW images cannot be edited.
Y
Auto Adjustment
COP
Procedures
1 Double-click an image.
2 [Edit] and [Auto
Adjustment].
• Movies and RAW images cannot be edited.
27
Using Other Editing Software
If you register another image editing program with ImageBrowser in advance, you can use that software to edit an image selected in ImageBrowser.
Registering an Editing Program
Procedures Register the program so it can be started from within ImageBrowser.
1
ImageBrowser
Other Image
Editing Program
2 [Register Application]
Editing Images with a Registered Editing Program
Y
Procedures
COP
[ImageBrowser] and
[Preferences].
1 Double-click an image.
2 [Edit] and [Edit with Registered
Application].
• The shooting information may be lost from images recorded with the camera and then processed and saved with another image editing program.
• Movies and RAW images cannot be edited.
28
Attaching Sounds
You can add sound to images and play back the sounds.
Adding Sound
Procedures
1 Select an image.
2
[File], [Sound] and [Record].
Symbol displayed on image thumbnails to which sound files have been added.
• ImageBrowser’s Sound Recorder uses the Mac OS X recording function. If required, prepare such equipment as a
Y
• To delete a recorded sound, click the
[File] menu and select [Sound], followed
COP
• Sounds cannot be attached to movies.
by [Send to Trash].
IMPORTANT
• To record a new sound for an image that already has one associated with it, click the [File] menu and select [Sound], followed by [Record].
Playing an Image Sound File
Procedures
1 Select an image.
2
[File], [Sound] and [Play].
• You can also play sounds in the Preview
Mode and the File Information Window.
29
Creating Panoramic Images – PhotoStitch
You can create wide panoramic images by moving the camera slightly when recording a series of images and merging them into one image.
Procedures
1 Select the images that you want to stitch together.
2
[Edit] and [PhotoStitch].
HINT
Use the PhotoStitch program to create panoramic images.
• Movies and RAW images cannot be edited. Y
Using the Stitch Assist Mode
If you use the camera’s Stitch Assist mode to record the images, PhotoStitch can automatically detect the image order and merge direction, making it easier to merge the images. (Some camera models may not feature the Stitch Assist mode.)
IMPORTANT
COP
• If a message appears, notifying you that the computer has insufficient memory, try one of the following methods to solve the problem.
• Close all other applications other than PhotoStitch.
• Reduce the size or number of images to combine.
• In the [Save] tab, select [Adjust image...], then in “Saved Image Size“ reduce the size.
30
Editing Movies
You can create original movies by linking movie clips and still images.
You can even add titles and other text, background music and various special effects to the movie.
ABC Procedures
1 Select an image (movie or still image).
2
[Edit] and [Movie Edit].
HINT
Recordable Movie Length message will appear if you try to save a longer movie.
Reduce the length or size of the movie if this happens.
• The length of movies you can save is shown at right. A COP
Movie and Saving it as a New File
• Click [Slow] in step 1 to change the playback speed (only with Super Slow Motion Movies).
for editing movies by clicking the
[MovieEdit Task] menu and selecting
• You can configure the default settings Y
Movie Size
1920x1080
1280x720
640x480
320x240
Max. Length
Under 10 minutes
Under 20 minutes
Under 30 minutes
Under 60 minutes
IMPORTANT
• Movies edited with this function cannot be transferred back to the camera.
• Saving movies takes time, especially MOV type movies selected with [Save image type] takes a considerable amount of time.
• There is a file number limit when editing MOV type movies.
To edit and save an MOV movie with a size of 1920 x 1080 at the same size and file type, set the number of files to 20 or less. Likewise, with 1280 x 720 MOV movies, the number of files should be set to 40 or less, and with 640 x 480 MOV movies, 80 or less.
31
Converting RAW Images – Digital Photo Professional
You can convert RAW images to JPEG and TIFF images.
Digital Photo Professional’s Main Window
Procedures
1 Select a RAW image.
2
[File] and [Process RAW Images by Digital Photo Professional].
Selects folders containing images.
Digital Photo Professional’s Tool Palette levels together or separately with the
Tone Curve.
COP
Reduces noise that occurs when
3 Click
(Edit image window).
4 Adjust the image brightness
Y and white balance in the tool palette.
• The modified contents (the information for image processing requirements) are saved along with the image as a “recipe”.
• With Digital Photo Professional, you can adjust images to achieve the best results for your desired scene or subject by specifying a picture style.
• The items available to be modified differ depending on the camera shooting night time scenery, or model.
when shooting at a high ISO speed.
5
Adjusts the brightness, white balance and picture style.
[File] and [Convert and save].
• After setting the file type, size, and destination folder, click [Save].
• Only RAW images compatible with Digital
Photo Professional can be processed.
• Ensure that you use the RAW image conversion software included with your camera.
Adjusts attributes such as the contrast, color tone and color saturation.
32
To print, using Digital Photo Professional, select an image in the Main Window, then click the [File] menu and select the print function. Digital Photo Professional offers the following printing methods.
Printing Method
Single Print
Detailed Setting
Contact Sheet
Description
Automatically sets the layout for printing a single image on a single page.
Gives you the freedom to set the layout, add titles, or print with shooting information.
Prints a line-up of multiple images on one page (also allows you to select the number of images, layout, and add titles).
IMPORTANT
• RAW images can only be captured on certain camera models that list “RAW” as one of the data types included in the “Specifications” section of the Camera User Guide.
• Only RAW images compatible with Digital Photo Professional can be processed. Check the “Data Type” item of the “Specifications” section of the Camera User Guide for compatibility.
•
Y
HINT
About RAW Images they contain raw data that differs from the usual JPEG images by not having any image adjustment or compression processing performed in the camera, they can be converted on a computer with a lossless process.
RAW images contain the data captured by the camera’s image sensor without modification. Since
Processing in the Camera
COP
Processing by Computer
Image Adjustment
Standard Image
Capture Compression JPEG Image
• Can be used with general programs.
• Image is subject to degradation when adjusted because it has been compressed.
Image sensor data from shutter release
Image adjustment
& compression automatically performed
Digital Photo Professional
RAW Image Processing
RAW Image
Capture RAW Image
Image Adjustment
Compression
JPEG Image,
TIFF Image
• You can view the image while making adjustments without worrying about quality loss.
• Processing with Digital Photo Professional is required to view the images with general programs.
33
Exporting
Changing Image (Stills) Sizes and Types
You can change an image’s size and format when exporting it so that it can be published on the Internet or attached to an email message.
Procedures
1 Select an image.
2
.bmp .jpg .tif
Y
[File] and [Export Image].
3 [Edit and Save Image]
4 [Next >]
• You will lose the shooting information if you save images as a type other than
JPEG.
Exporting Shooting Information
COP
Procedures
1 Select an image.
2
[File] and [Export Image].
3 [Export Shooting Properties]
4 [Next >]
Ascertain the causes of failed photos or compare the settings for several images.
34
Creating Computer Screen Saver Images
You can export images to serve as computer screen savers.
Procedures
1 Select an image.
2
[File] and [Export Image].
3 [Export as a Screensaver]
4 [Next >]
Y
Creating Computer Wallpaper Images
COP
Procedures
1 Select an image.
2
[File] and [Export Image].
3 [Export an Image as
Wallpaper]
4 [Next >]
35
Extracting Stills from Movies
You can extract and save stills from your favorite frames recorded in a movie.
Procedures
1 Select an image.
2
[Edit] and [Extract frames from a movie].
Extract your best shots as stills
COP
Y
36
Uploading Movies to YouTube
Uploading to YouTube – Movie Uploader for YouTube
You can upload movies you have shot to YouTube. You can upload movies saved on the camera or a computer.
Procedures
HINT
1 Connect the camera to a computer to start
CameraWindow.
• For details, refer to steps 1- 2 in
Y
2 [Upload Images from
Camera]
3 [Upload Movies to YouTube]
4 Select movies.
5 Click (Next).
6 Input a title and description, then click (Upload).
COP
7 Enter your YouTube username and password, and sign in.
Uploading Movies Saved on a Computer
Select a movie from the Browser Window, then click [Print & Share] in the Control Panel and select [Upload movies to YouTube]. The selected movie will be added to the list that appears on the screen. Set a title and explanation for the movie, then click the (Upload) button.
IMPORTANT
• Depending on YouTube specifications, or future changes to specifications, this function cannot be guaranteed.
• The maximum length for uploadable movies is less than 10 minutes, and the maximum file size is less than 1 GB.
• Movies that have been edited on a computer cannot be uploaded.
• Internet access is required to upload movies (You must already have an account with an Internet service provider (ISP), browser software installed and an
Internet connection).
• Any ISP account charges and access fees must be paid separately.
37
Attaching Images to Email
You can send images as email file attachments.
You can configure the image size and quality settings.
Procedures
1 Select images.
2 [Print & Share] and
[Create Image for
Email].
• You can configure how the email program automatically starts up by opening the [Applications] folder, and double-clicking the [Mail] icon to start
Y
• Images in the [Email Images] folder can be found by opening the [Users] folder
IMPORTANT
COP on the startup disk, followed by the [User
Login Name], [Library], [Preferences],
[ImageBrowserUserData] and [Mail] folder.
• If the e-mail software does not start automatically, start your e-mail software to attach and send the images.
38
Slide Shows
Viewing Images in Slide Shows
A multiple selection of images can be shown at full size on the screen in succession as a slide show.
You can freely configure the transition effects, information displayed and display time settings.
Procedures
1 Select images.
2 [SlideShow]
• You can configure the slide show display method by clicking the [View] menu and selecting [Slide Show Options].
Y
HINT
Slide Show Button Functions
COP
The following buttons appear at the bottom of the screen while a slide show is playing.
You can set the Rating Rewind Pause Forward for an image while it is displayed. Go to first image Advance to last frame
After the slide show, the images you clicked during the show remain selected.
After the slide show, the images you clicked during the show appear in a printing window.
Stops the slide show.
39
Image Management
Changing File Names in Batches
You can change the file names of multiple images in one procedure.
Procedures
1 Select an image.
Shooting Date + Name + Number
Change randomly numbered images and received images into consecutively numbered images.
2
Name + Number
Shooting Date + Number
Name + Shooting Date + Number
[File], [Organize Image] and
[Rename].
• You can change individual file and folder names by clicking on the file
Y
• Changing the image name in xxx_01 xxx_02 xxx_03
ImageBrowser also changes the actual file name on the disk. xxx_04 xxx_05
COP
You can sort images into folders by their shooting dates.
200x/05/15
200x/05/16
200x/05/17
Procedures
1 Select an image.
2
[File], [Organize Image] and
[Sort Images].
3 [The files will be separated into folders for each shooting date.]
4 [Next >] Images predating your use of ImageBrowser can also be managed together.
40
Sorting Images into Ratings Folders
You can sort images according to their Ratings into separate folders.
Procedures
1 Select an image.
2
COP
[File], [Organize Image] and
[Sort Images].
3 [The files will be organized by rating.]
4 [Next >] Y
41
Configuring Image Information Settings
Setting Ratings
There are seven rating levels for images: , , , , , Unrated and Reject.
By using ratings, you can group your images for viewing or searching.
Procedures
1 Select an image.
2
Switch to [Preview Mode].
3 Set [Rating].
• Ratings can also be set with the
Y setting function of the Viewer Window.
IMPORTANT
- The camera’s [Tag as Favorite] function
(excluding movies).
• If you overwrite your previous installation when installing the software, existing
COP rating settings may change. Refer to the
Help function for details.
• The only cameras that can be used to rate images will list “Favorites” in the
“Playback Menu” table of the “Menus” section at the end of the Camera User Guide.
Inserting Comments
You can freely insert your choice of text as Comments.
Endless white sandy beaches
Relaxing snooze
Procedures
1 Select an image.
2
Switch to [Preview Mode].
3 Insert [Comment].
• Comments can also be managed in the
File Information Window.
42
Assigning Keywords
You can set Keywords for use in image searches.
Procedures
1 Select an image.
Family, Animals
Family, Trips
Friends, Holidays
2
Switch to [Preview Mode].
3 Set [Keyword].
Select keywords
• Keywords can also be managed from the
[Edit] menu or File Information Window.
HINT
• To add keywords, click the [Edit] menu Y
This chart shows the information other than shooting information that can be added to images.
About Image Information and select [Manage] from the [Keyword] submenu.
Content
Information Type My Category
Categories such as People,
Scenery, etc.
Ratings COP adding stars ( ).
Comments
Text input without restriction regarding the shooting circumstances or associated memories.
Keywords
Selections are made from a list (editable) of keywords, such as the photographic subject, place or action.
Configuration
Method
Camera
—
ImageBrowser,
Digital Photo Professional,
Camera (Favorite)
O O
ImageBrowser
O Used in Searches
Used as Filter
Criteria
Display beneath
Thumbnail
O O — —
O O O —
Categories displayed beneath thumbnails can be selected from the [View] menu and [View Settings] submenu.
43
Searching, Filtering and Sorting Images
Searching Images
You can search images using parameters extracted from the information associated with them.
Favorite photo
Keyword
Procedures
1
[File] and [Search].
Date
Comment
COP
• After a search, the correlated images display in the [Search Results] folder. Y
HINT
Tasks Related to Search Results
You can select images in the [Search Results] folder and perform operations on them, such as printing or copying them to other folders.
IMPORTANT
• Please note that deleting an image from the [Search Results] folder deletes the original image. Use caution in deleting items from this folder.
44
Filtering Images
You can use filters to display only images meeting the selected parameters in the
Browser Area.
Procedures
1
[Filter Tool]
This section is used to specify the filter criteria.
Ratings My Category
Y
Sorting Images
D
File Modification Date
File Size
C A E B
File Name
Ascending/
Descending
Order
Shooting Date/Time
Type
1
Procedures
[View] and [Sort].
A B C D E
45
Comparing Images
Comparing Multiple Images
When a good photo opportunity arises, you can shoot the same subject using different shutter speeds and exposures. In ImageBrowser, it is easy to compare images so that minute differences can be detected.
Procedures
1 Select several images to compare.
2
3
Y [View Image]
Select a view method from
[Number of
Displays].
[Synchronize]
COP
4
• Selecting [Synchronize] causes actions such as increasing/reducing the magnification level or scrolling around the image to apply to all of the selected images in lock step, making it easy to check minute details of focus, coloring and other image characteristics.
Actions performed on an image, such as scrolling or changing the magnification, are performed on the other image as well.
46
My Camera Settings
Changing the Shutter Sound and Start-Up Image
You can select from dedicated screens to register to the start-up screen that appears when turning the camera on, and dedicated sounds to register to various camera operation sounds (My Camera Settings).
My Camera Settings
• Start-up Image
• Start-up Sound
• Operation Sound
• Selftimer Sound
• Shutter Sound
COP
Procedures
1 Connect the camera to a computer to start
Y
CameraWindow.
• For details, refer to steps 1- 2 in
2 [Camera Settings]
Select the desired item from the following and make settings.
u [Set Start-up Image] u [Set Sounds] u [Set Theme]
IMPORTANT
• My Camera Settings are only available on certain models, when [Camera
Settings] displays in CameraWindow.
47
My Camera Settings registered in the camera.
My Camera Settings
You can register the start-up image, start-up sound, shutter sound, operation sound and self-timer sound collectively if you select
[Theme].
Y
Select a My Camera Settings file to replace in the right-hand list and click this button to register it in the camera. If multiple My
HINT
Camera Settings files are displayed in the left-hand list, choose the file you want to replace first, then register it in the camera.
COP
Downloading My Camera Settings Files
You can also download various files to use in My Camera Settings from CANON iMAGE GATEWAY.
48
Transferring Images
Transferring Images to a Camera
Images transferred once to a computer can be transferred back to the camera.
Procedures
Show favorite images to friends or connect a TV to show them on a large screen.
1 Connect the camera to a computer to start
CameraWindow.
• For details, refer to steps 1- 2 in
Y
2 [Organize Images on
Camera]
3 [Organize Images]
4 (Upload)
5 Select images.
COP • If ImageBrowser’s Browser Window is open when the camera is connected
(directly after transferring for instance), open the CameraWindow (menu screen) by clicking the [CameraWindow] icon in the Dock (the bar at the bottom of the desktop).
IMPORTANT
• Cameras that use the “MOV” data type can play back movies transferred back to the camera if movies were taken with that camera. Refer to the “Data Type” item in “Specifications” near the end of the Camera User Guide to see if the camera uses the “MOV” data type. You may not be able to play back movies taken with another camera.
• Only still images compliant with Design rule for Camera File system standards can be transferred to your camera’s memory card.
• You may not be able to transfer images back to the camera if they have been edited on a computer, or if the image information has been modified.
49
CANON iMAGE GATEWAY
About CANON iMAGE GATEWAY (for U.S.A. customers only)
CANON iMAGE GATEWAY is an online photo service for the purchasers of this product.
Registering online allows you to use the various services.
IMPORTANT
• Internet access is required to use CANON iMAGE GATEWAY (You must already have an account with an Internet service provider (ISP), browser software installed and an Internet connection).
• See the homepage for information regarding browser versions (Safari, etc.) and settings to best connect to CANON iMAGE GATEWAY online photo services.
• Any ISP account charges and access fees must be paid separately.
Registering
Y
First, register as a CANON iMAGE GATEWAY member.
Register COP
1
Procedures
[CANON iMAGE
GATEWAY] and
[Register/Add
Product].
• You can register online using the supplied CD-ROM. To do this, in the installer panel, click [Register] underneath
CANON iMAGE GATEWAY.
50
Available Services
CANON iMAGE GATEWAY offers a variety of convenient and useful services.
Upload and share images
1
Procedures
[CANON iMAGE
GATEWAY]
Select the desired item from the following and make settings.
Create your own photo album on CANON iMAGE GATEWAY u [Register/Add Product]
E-mail notifications of album uploads
Friends and family can freely browse images
Access even from mobile phones
COP
Y u [Top Page] u [Upload Images] u [View Online Photo
Album] u [Download My Camera
Contents]
Order prints
My Camera Settings Files on
CANON iMAGE GATEWAY
Download files for My Camera
Settings (certain models only)
Also, you get the latest customer support information, just for registering your product
51
Preference Settings
Customizing ImageBrowser
You can configure ImageBrowser and CameraWindow to your preferences.
1
Procedures
ImageBrowser
• Overall coloring, such as window appearances
• Processing methods for images shot with the camera on end
• Categories of shooting information displayed
• Show/hide messages
• Print settings
• Registering applications
COP
[ImageBrowser] and
[Preferences].
CameraWindow
1
Y
Click (Preferences).
52
List of Available Functions
CameraWindow Functions
Function Names
Import Images from Camera
CANON iMAGE
GATEWAY
Description of Function
Only transfers images from the camera that have not yet been transferred.
Only transfers chosen images from the camera.
Transfers all images from the camera.
Protect, rotate, and delete images on the camera. Also transfers images back to the camera from your computer.
Organize Images on Camera
Upload Images
Preferences
Import (
Uploads movies on the camera to YouTube.
from Camera
Camera Settings
starts.
Sets the camera start-up screen.
Sets camera sound effects (start-up sound, shutter sound, operation sounds, self-timer sound).
Y
Import)
/After Sets the automatic transfer settings and destination folder.
COP
Control Panel Functions
Function Names Description of Function
When a Camera is
Connected
Canon Camera
Connects to the camera to open CameraWindow (menu screen), and use
CameraWindow functions.
Transfers images from a memory card. You can also select images on the memory card and print them.
Displays the selected image or movie in the Viewer Window.
Starts a slide show of the selected images. Click the [View] menu and select [Slide Show Options] to set the slide show settings.
Connects to CANON iMAGE GATEWAY and opens the registration page.
Connects to CANON iMAGE GATEWAY and goes to the top of the page.
Connects to CANON iMAGE GATEWAY and uploads images.
Connects to CANON iMAGE GATEWAY and displays albums created.
Connects to CANON iMAGE GATEWAY and downloads images and sounds for use with My Camera Settings.
53
Function Names
Print & Share
Send to Trash
Description of Function
Prints one image per page. You can print “photos” easily.
Lines up small versions of the images in rows and prints.
Allows you to freely arrange multiple images on a single page and print.
You can also insert captions and titles.
Converts the selected images to the appropriate size for transmission by e-mail. You can also use it to automatically start an e-mail program after conversion.
Uploads movies saved on the computer to YouTube.
Sends the selected images or folders to the Trash.
Functions Selected from Menus
Search Images
Function Names Menu
[File] menu,
[File] menu, [Export
Image]
Description of Function comments.
Searches for images based on such criteria as Ratings, dates, keywords or Y
Allows you to change the file type or size and export the file.
Allows you to export the shooting properties as a text file.
Export Images
[File] menu, [Organize
Exports the image as a screen saver file.
COP
[File] menu, [Organize
Sorts images according to criteria such as the shooting date or Rating and saves them into a specified folder.
Changes the files names of multiple images in a single pass.
Organize Images
Convert RAW
Images
Writing to
Memory Card
Merge
Panoramas
Edit Movie
Extract frames from a movie
Display Settings
[File] menu,
[File] menu, [Rewrite
Image to Memory
Card]
[Edit] menu,
[Edit] menu, [Extract frames from a movie]
Converts RAW images into JPEG or TIFF images. You can adjust the image brightness, contrast and color balance among other attributes during conversion.
Transfers images from the computer to the memory card.
Merges multiple images and creates a single large panoramic image .
Edits movies or still images strung together. You can add text as titles, or background music, and apply various effects.
Extracts still images from movies over a specified interval and saves them as image files.
Hides or shows image information beneath the thumbnail, such as the file name or the shooting date and time.
Arranges image order in the Browser Area according to criteria such as the filename, file modification date, file size or shooting date.
Sort Images
54
Supported Image Types
The following is a list of image types supported by ImageBrowser.
JPEG
Most cameras use this image type. It compresses at very high ratios, taking advantage of the characteristics of the human eye. However, because it is an irreversible compression method (part of the data is lost during compression), if you process and save an image repeatedly using this method, the image may become rougher.
Exif JPEG is an image type that adds information such as shooting data to a JPEG image.
RAW
This is a proprietary image type provided by Canon. It allows the output of the image pixels from a digital camera without any deterioration in the quality of the image.
Some cameras might not support this image type.
Y
PICT
This is the standard image type for Macintosh. This image type is supported by most
Macintosh software.
TIFF
This is a relatively popular image type. It is widely supported by non-Macintosh programs (such as Windows).
COP
BMP (Windows Bitmap)
This image type comes standard with Windows. Most Windows programs support it.
AVI (.AVI)
Standard Windows movie type. The movie icon appears in ImageBrowser’s Browser
Area.
MOV (.MOV)
Movie type. The movie icon appears in ImageBrowser’s Browser Area.
55
Uninstalling the Software
The procedures for uninstalling the software are only required when you wish to delete the programs from your computer or when reinstallation is required to fix corrupted files.
IMPORTANT
• Computer administrator status is required to perform the following operation.
• Please be careful not to accidentally delete any folders with downloaded images that may be contained within the application folder.
1
Move all of the application folders from the installation destination folder to the trash.
2
Empty the trash.
Y
COP
56
Memory Card Folder Structure
Images on the memory card are in either the [DCIM] folder’s [xxx___mm] folder, or the
[xxx_mmdd] folder (xxx: numbers 100 to 999, mm: shooting month, dd: shooting day).
DCIM xxx___mm or xxx_mmdd
IMG_xxxx.CR2 (RAW images)
_MG_xxxx.CR2 (RAW images recorded in the Adobe RGB color space)
MVI_xxxx.MOV* 1 (Movies)
MVI_xxxx.AVI, MVI_xxxx.THM* 2 (Movies)
CANONMSC
MDG_xxxx.MOV (Movies recorded with Movie Digest mode)
The folder that holds the settings files for images in the DCIM folder.
Y
The folder created when DPOF settings are set.
It holds the DPOF settings files.
MISC
• * 1 Some camera models create thumbnail image files for index display (MVI_xxxx.
from a computer.
COP
* 2 Thumbnail image files for index display.
• The “xxxx” in file names represent four-digit numbers.
• Each successive file shot in Stitch Assist mode is assigned a letter starting from “A,” which is inserted as the third digit in the name. i.e. [STA_0001.JPG], [STB_0002.JPG],
[STC_0003.JPG]...
• All folders except the “xxx__mm” or “xxx_mmdd“ folders contain image settings files. Do not open or delete them.
• Depending on the camera, some data types cannot be recorded.
57
Troubleshooting
Please read this section if you encounter a problem using the software.
Start by Checking This
Investigate the following points first if you encounter a problem.
Does your computer satisfy the requirements listed in the System
Requirements section?
See “System Requirements” in the Camera User Guide.
Is the camera correctly connected to the computer?
See the Camera User Guide for the correct connection procedures. Also check to ensure that you are using the correct cable and that it is securely attached at both ends.
Y
Are the camera and computer in the correct modes to transfer data?
Some models require the camera to be set to the playback mode to transfer data. See the Camera User Guide for details.
Check the battery charge if you are powering the camera with a battery. You are recommended to use an AC adapter (sold separately) to power the camera when it is connected to a computer.
Problems
You can’t find transferred images.
Refer to “Changing the Transfer Destination Folder” to confirm where the destination
folder is.
58
COP
Y
Software Guide Macintosh
Disclaimer
• Reprinting, transmitting, or storing in a retrieval system any part of this guide without the permission of Canon is prohibited.
• Canon reserves the right to change the contents of this guide at any time without prior notice.
• Illustrations and screenshots in this guide may differ slightly from the actual products.
• The above items notwithstanding, Canon accepts no liability for damages due to mistaken operation of the products.
CDP-E115-020
© CANON INC. 2011
59
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Key Features
- Compact camera 12.1 MP CMOS Black
- Image sensor size: 1/2.3"
- Image stabilizer
- Optical zoom: 5x Digital zoom: 4x
- TTL
- Fastest camera shutter speed: 1/2000 s Slowest camera shutter speed: 15 s ± 2EV (1/3EV step)
- Video recording 1920 x 1080 pixels Full HD
- PictBridge
- Lithium-Ion (Li-Ion)
Related manuals
advertisement
Table of contents
- 2 About this Manual
- 3 Precautions for Connecting the Camera to the Computer
- 6 Things to Remember
- 6 CameraWindow and ImageBrowser
- 6 CameraWindow and ImageBrowser
- 7 ImageBrowser’s Browser Window
- 7 How to Display Browser Window
- 7 Names of the Browser Window Parts
- 8 How to Perform Tasks
- 8 Selecting and Using Functions
- 9 Mastering the Basics
- 9 Transferring Images
- 9 Transferring Images by Connecting the Camera to a Computer
- 12 Printing
- 12 Printing a Single Image on a Single Page
- 14 Index Print
- 16 How to Use CameraWindow
- 16 First Menu Screen to Open
- 17 Image Transfer Screen
- 18 Organize Images Screen
- 19 How to Use ImageBrowser’s Browser Window
- 19 Browser Window
- 20 Display Modes
- 20 Display Control Panel
- 21 Browser Area Tasks
- 22 File Information Window
- 23 Viewer (View Image) Window
- 24 More Advanced Techniques
- 24 Editing Images
- 24 Trimming – Cropping a Portion of an Image
- 24 Color/Brightness Adjustment
- 25 Red Eye Correction
- 25 Inserting Text
- 26 Correcting Levels
- 26 Correcting Tone Curves
- 27 Adjusting Sharpness – Emphasizing Outlines
- 27 Auto Adjustment
- 28 Using Other Editing Software
- 29 Attaching Sounds
- 30 Creating Panoramic Images – PhotoStitch
- 31 Editing Movies
- 32 Converting RAW Images – Digital Photo Professional
- 34 Exporting
- 34 Changing Image (Stills) Sizes and Types
- 34 Exporting Shooting Information
- 35 Creating Computer Screen Saver Images
- 35 Creating Computer Wallpaper Images
- 36 Extracting Stills from Movies
- 37 Uploading Movies to YouTube
- 37 Uploading to YouTube – Movie Uploader for YouTube
- 38 Email
- 38 Attaching Images to Email
- 39 Slide Shows
- 39 Viewing Images in Slide Shows
- 40 Image Management
- 40 Changing File Names in Batches
- 40 Sorting Images into Folders by Shooting Date
- 41 Sorting Images into Ratings Folders
- 42 Configuring Image Information Settings
- 42 Setting Ratings
- 42 Inserting Comments
- 43 Assigning Keywords
- 44 Searching, Filtering and Sorting Images
- 44 Searching Images
- 45 Filtering Images
- 45 Sorting Images
- 46 Comparing Images
- 46 Comparing Multiple Images
- 47 My Camera Settings
- 47 Changing the Shutter Sound and Start-Up Image
- 49 Transferring Images
- 49 Transferring Images to a Camera
- 50 CANON iMAGE GATEWAY
- 50 About CANON iMAGE GATEWAY (for U.S.A. customers only)
- 50 Registering
- 51 Available Services
- 52 Preference Settings
- 52 Customizing ImageBrowser
- 53 Appendices
- 53 List of Available Functions
- 55 Supported Image Types
- 56 Uninstalling the Software
- 57 Memory Card Folder Structure
- 58 Troubleshooting
