Canon | Powershot SD30 | System Map | Canon PowerShot SD30 System Map

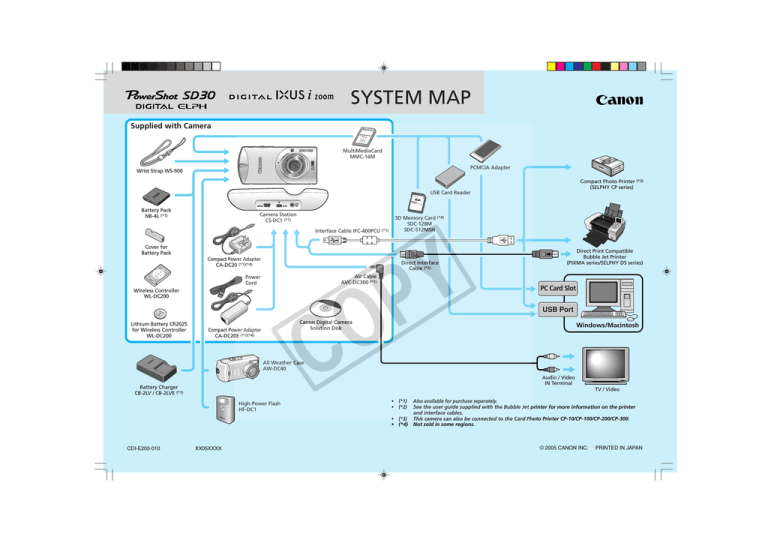

SYSTEM MAP
Supplied with Camera
MultiMediaCard
MMC-16M
PCMCIA Adapter
Wrist Strap WS-900
Compact Photo Printer (*3)
(SELPHY CP series)
USB Card Reader
Battery Pack
NB-4L (*1)
Camera Station
CS-DC1 (*1)
Interface Cable IFC-400PCU (*1)
SD Memory Card (*4)
SDC-128M
SDC-512MSH
Cover for
Battery Pack
Compact Power Adapter
CA-DC20 (*1)(*4)
Direct Interface
Cable (*2)
Direct Print Compatible
Bubble Jet Printer
(PIXMA series/SELPHY DS series)
AV Cable
AVC-DC300 (*1)
Power
Cord
PC Card Slot
Wireless Controller
WL-DC200
USB Port
Lithium Battery CR2025
for Wireless Controller
WL-DC200
Canon Digital Camera
Solution Disk
Compact Power Adapter
CA-DC20E (*1)(*4)
Windows/Macintosh
All Weather Case
AW-DC40
Audio / Video
IN Terminal
Battery Charger
CB-2LV / CB-2LVE (*1)
TV / Video
High-Power Flash
HF-DC1
• (*1)
• (*2)
• (*3)
• (*4)
CDI-E200-010
XX05XXXX
Also available for purchase separately.
See the user guide supplied with the Bubble Jet printer for more information on the printer
and interface cables.
This camera can also be connected to the Card Photo Printer CP-10/CP-100/CP-200/CP-300.
Not sold in some regions.
© 2005 CANON INC.
PRINTED IN JAPAN
Confirming the Package Contents
Your camera package includes all of the
following items. If any of these items are missing,
please contact the dealer for assistance.
• Digital Camera
• Camera Station CS-DC1
• Wrist Strap WS-900
• Battery Pack NB-4L
• Cover for Battery Pack
• MultiMediaCard MMC-16M
• Compact Power Adapter
CA-DC20/CA-DC20E
• Interface Cable IFC-400PCU
• AV Cable AVC-DC300
• Canon Digital Camera Solution Disk
• Wireless Controller WL-DC200
• Lithium Battery CR2025
for Wireless Controller WL-DC200
• Basic Camera User Guide
• Advanced Camera User Guide
• Direct Print User Guide
• Software Starter Guide
• System Map (this sheet)
• Warranty Card
• “For Windows® XP and Mac OS X Users” Leaflet*
• “Canon Customer Support” Leaflet*
• “Use of Genuine Canon Accessories
Recommended“ Leaflet*
* These leaflets are printed together on one
sheet of paper. Please separate them before
reading.
Optional Accessories
Direct Print Compatible Printers
The following camera accessories are sold separately.
Some accessories are not sold in some regions.
Flash
• High-Power Flash HF-DC1
This attachable supplementary flash can be
used to capture photographic subjects
that are too distant for the built-in flash to
illuminate.
Power Supplies
• Compact Power Adapter CA-DC20/20E
An adapter for supplying power to operate
the camera.
• Battery Charger CB-2LV/CB-2LVE
An adapter for charging Battery Pack NB-4L.
• Battery Pack NB-4L
Rechargeable lithium-ion battery.
Connection Accessory
This connection accessory can be used with
computers equipped with genuine built-in USB
interfaces and running the following operating
systems.
Windows: Systems running preinstalled
Windows 98 Second Edition (SE),
Windows Me, Windows 2000 Service
Pack 4, or Windows XP (including
Service Pack 1 and Service Pack 2).
Macintosh: Mac OS X (v10.2 – v10.3)
• Interface Cable IFC-400PCU
Use this cable to connect the camera station to
a computer, Compact Photo Printer (SELPHY
series), or to a Bubble Jet printer (refer to your
Bubble Jet printer user guide).
Other Accessories
• SD Memory Card
SD memory cards are used to store images
recorded by the camera.
Canon brand cards are available in 128 MB
and 512 MB capacities.
• Camera Station CS-DC1
Use this to charge the battery, play back
images, or connect to a TV set, computer or
printer.
• AV Cable AVC-DC300
Use this cable to connect the camera station
to a TV set.
• All Weather Case AW-DC40
You can use this case to take underwater
shots at depths of up to 3 meters (10 feet),
and of course it’s ideal for taking worry-free
pictures in the rain, at the beach, or on the
ski slopes.
Canon offers the following separately sold
printers for use with the camera. You can
produce photo quality prints quickly and easily
by connecting them to the camera with a
single cable and operating the camera’s
controls.
• Compact Photo Printers (SELPHY series)
• Bubble Jet Printers
For more information, visit your nearest Canon
retailer.
