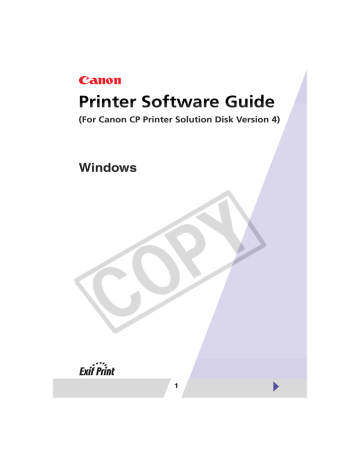

Printer Software Guide
(For Canon CP Printer Solution Disk Version 4)
Windows
1
Contents
Safety Precautions ....................................................................................3
Read This First ..........................................................................................4
About the Manuals ............................................................................4
Printing Flow Diagram .......................................................................5
Printing .......................................................................................................6
Starting ZoomBrowser EX and PhotoRecord ...................................7
Printing with Standard Sheets or Full Size Label Sheets ................10
Printing on 8-Label Sheets ..............................................................14
Merging Images to Print a Panorama .............................................15
Printing Part of an Image (Trimming) ..............................................17
Adjusting Color and Brightness (Image Quality Adjustment) ..........19
Appendices ..............................................................................................20
About the Print Area and Pixels ......................................................20
Print Area ...................................................................................20
Number of Pixels .......................................................................22
Troubleshooting ..............................................................................23
Error Messages ...............................................................................26
2
Safety Precautions
The precautions noted within this guide are intended to instruct you in the safe and
correct use of the products and to prevent injuries or damage to yourself, other
persons and property. Please read and ensure that you understand them before
proceeding to other sections of the guide.
Warning
This symbol indicates topics that could lead to death or serious injury if ignored
or handled incorrectly.
Warning
Do not play the supplied CD-ROM(s) in any CD player that does not support data CD-ROMs. Playing the
CD-ROM(s) in an audio CD player (music player) could damage the speakers. It is also possible to suffer
from hearing loss from listening with headphones to the loud sounds of a CD-ROM played on a music CD
player.
Disclaimer
• While every effort has been made to ensure that the information contained in this guide is accurate and
complete, no liability can be accepted for any errors or omissions. Canon reserves the right to change
the specifications of the hardware and software described herein at any time without prior notice.
• No part of this guide may be reproduced, transmitted, transcribed, stored in a retrieval system, or
translated into any language in any form, by any means, without the prior written permission of Canon.
• Canon makes no warranties for damages resulting from corrupted or lost data due to a mistaken
operation or malfunction of the camera, the software, memory cards, personal computers, peripheral
devices, or use of non-Canon memory cards.
Trademark Acknowledgments
• Microsoft® and Windows® are either registered trademarks or trademarks of Microsoft Corporation in the
United States and/or other countries.
• Other names and products not mentioned above may be registered trademarks or trademarks of their
respective companies.
Copyright © 2005 Canon Inc. All rights reserved.
Symbols Used in This Document
Indicates important items or prohibited actions that should always be observed when
operating the machine. These should always be read to avoid damage to the
machine or improper operation.
Indicates items for reference or supplementary information that should be noted by
users.
3
Read This First
About the Manuals
These user guides describe how to connect the printer to a computer and
print images.
Printer User Guide
Contains the information necessary to print from your
computer, including printer preparation and handling
notes, names of parts, installation of necessary software
and the printer driver, and connection of the printer to
your computer. Please read before using the printer.
Describes how to print using the software provided on the
supplied CD-ROM (Canon CP Printer Solution Disk).
This user guide
Screen shots from Windows XP are used for illustration, but the procedure is the
same with Windows 98 Second Edition (SE)/Windows Me/Windows 2000.
Detailed explanations of operating procedures are given in the [Help]
accompanying each software application.
If a problem occurs, refer to the following:
• Trouble with the printer itself:
• Printing problems:
See the Printer User Guide.
See this user guide.
4
Printing Flow Diagram
Follow the steps outlined below to prepare the printer and install the
necessary software on your computer to enable printing.
Prepare the printer.
Insert the paper cassette and ink cassette into the printer.
See the Printer User Guide.
Install the software and printer driver on your
computer.
Install the necessary software and printer driver on your
computer from the CP Printer Solution disk.
See the Printer User Guide.
Connect the printer to your computer.
Connect the printer with a commercially available USB cable,
and then turn on the printer.
See the Printer User Guide.
Printing.
Print in a variety of layouts.
See
Printing with Standard Sheets or Full Size Label Sheets (➡ p.10),
Printing on 8-Label Sheets (➡ p.14)
in this user guide.
5
Printing
This section describes how to use the printing software, PhotoRecord, to
print the images displayed in ZoomBrowser EX. ZoomBrowser EX and
PhotoRecord are applications included on the Canon CP Printer Solution
Disk. These applications simplify the printing process.
Before printing, verify that the printer is on, and that the printer is properly
connected to your computer with a USB cable.
• Printers and computer displays use different color reproduction methods,
and lighting conditions and display settings affect the appearance of
colors on your computer’s display. Therefore, the colors in prints may
differ from what you see on the screen. This is not a printer problem.
• Do not change the spool settings. The status monitor may not function
correctly.
• For information on how to install ZoomBrowser EX and PhotoRecord, see
the Printer User Guide.
• PhotoRecord allows you to attach various decorative embellishments to
images. This is useful for creating greeting cards and so on.
6
Starting ZoomBrowser EX and PhotoRecord
1
Double-click the [ZoomBrowser EX] icon on the desktop to start
the program.
If the [ZoomBrowser EX] icon does not appear on the desktop, click the [Start]
menu and select [Programs] or [All Programs], followed by [Canon Utilities],
[ZoomBrowser EX] and [ZoomBrowser EX].
2
Click [Print].
Browser area
7
3
Click [Layout Print].
4
When [1. Select Images] appears, select an image.
The selected image is highlighted in blue.
8
5
Click [2. Select Captions for Printing], and then place a check mark
beside the information you want to print with the image.
For example, if you place a check mark beside [Date and Time],
the date and time the picture was taken is also printed.
6
Click [3. Open Layout Print].
The PhotoRecord printing utility will start, displaying the selected image.
Follow this order to print.
For details about PhotoRecord, see the descriptions displayed in the
PhotoRecord [Help] menu.
9
Printing with Standard Sheets or Full Size
Label Sheets
This example prints a single image, fit to a whole postcard size sheet, with
no borders.
1
Click [2. Select Printer & Album Type] and then select your printer
model name from [Printer]. Next, select [Album Type] to check the
print image.
The print image is displayed.
When you select this check box,
the image is automatically
adjusted to fit the album type.
There are several types of albums. Select the one that suits your needs.
Album Type
Description
One Photo Per Sheet
Prints one image per sheet.
Free Form
Allows free layout of the image for printing.
Contact Sheet
Prints thumbnails and Shooting information.
8-Sticker Label
Prints on 8 label sheets. (➡ p.14)
Fixed Size Photo
Prints the image at the specified image ratio.
Mosaic
Prints a specified number of arranged images.
10
2
Click [3. Select Paper], and select the paper size and print
orientation.
• Clicking [Decorate Album] allows you to change image design
features such as the border or background. To change the design,
click the border or background you want to change.
• Clicking [Add Title & Captions] allows you to attach text such as a title
or caption to an image.
• To make copies of an image, right-click the image and select [Make
Copies]. Then, input the number of copies you want to make and click
[OK] to create the specified number of image copies.
• To add different images, click the [Fetch Photos] button in step
[1. Fetch Photos] on the left of the window, and then select the image.
11
3
Click [4. Print], check print settings such as the number of copies,
and then click [Print].
If you stop printing while printing is in progress, paper is ejected to the
paper handling slot and a printing error may occur. This is not a
malfunction, but a mechanism for protecting the print head.
If you interrupt printing while it is in progress, be sure to check the
printer status.
• If the indicator lights green:
You can continue to print.
• If the indicator lights red:
Temporarily remove paper from the paper handling slot. Turn the
printer off and then back on again. Confirm that the indicator
lights green before printing again.
Note that when printing is interrupted, one print’s equivalent of the ink
cassette's ink sheet is used.
12
4
When printing is finished, click the
window to close PhotoRecord.
on the upper right of the
To save the album, click [Yes]. If you don’t want to save it, click [No].
The ZoomBrowser EX screen returns after the album is saved.
• Camera information such as scene and photographic conditions are
embedded in images captured with cameras compatible with Exif 2.2
(referred to as Exif Print).
• PhotoRecord allows you to print clearer, better-looking images,
because it automatically optimizes print quality (as the default setting)
for images captured with cameras that support Exif 2.2, as well as
other images.
13
Printing on 8-Label Sheets
1
2
In [2. Select Printer & Album Type], select “8-Sticker Label” from
[Album Type].
Select an image.
To make copies of an image, right-click over the screen and select [Make
Copies]. Then, input the number of copies you want to make and click [OK] to
create the specified number of image copies.
To add different images, click the [Fetch Photos] button in [1. Fetch Photos] on
the left of the window, and then select the image.
Loads different
images
Copies images
3
Click [4. Print], check print settings such as the number of copies,
and then click [Print].
14
Merging Images to Print a Panorama
You can create panoramic images by merging multiple images, and then
printing them on wide paper. This operation is performed using the
PhotoStitch software.
When you use images captured with a Canon digital camera in Stitch Assist
mode, PhotoStitch determines the order and direction of the composition
automatically, facilitating the composition process.
1
Click [Edit] in the ZoomBrowser EX main window, and then click
[Stitch Photos].
Browser area
2
When [1. Select Images] appears, select the continuous images
you want to combine from the browser area.
3
Click [2. Open PhotoStitch].
PhotoStitch starts.
15
4
Merge the images following the instructions in the guidance panel
at the top of the PhotoStitch window.
Instructions
5
Save your panoramic image, and then click the
PhotoStitch.
6
Print the panoramic image.
to close
To print the merged images, see step 2 in Starting ZoomBrowser EX
and PhotoRecord (➡ p.7).
16
Printing Part of an Image (Trimming)
You can select and then print a portion of an image. This is useful when you
only want to print part of an image, or if the part you are most interested in is
not at the center of the image.
Since a 1 - 3 mm border is trimmed from the image during printing, we
recommend that you select an area that is slightly larger than the part of
the image you want to print.
1
Double-click the image.
Double-click the
The Photo Viewer Control Panel appears.
17
2
Select the area you want to print.
Trimming area
(The area for printing)
[Clip] button
• In [2. Select Printer & Album Type], when [8-Sticker Label] is selected for
[Album Type], or the [Automatic Clipping] check box is selected
The trimming area is set automatically, and the area aspect ratio cannot be
modified or the trimming frame removed.
You can drag the edge of the trimming frame to change its size, or drag inside
the frame to move it.
• Cases other than those above
Click the [Clip] button, and then hold down the left mouse button and drag to
select the trimming area.
You can drag the edge of the trimming frame to change its size, or drag inside
the frame to move it.
3
After making the settings, click the [Close] button to close the
Photo Viewer Control panel.
18
Adjusting Color and Brightness
(Image Quality Adjustment)
1
After selecting the printer in [2. Select Printer & Album Type], click
[Properties].
2
Click the [Image Adjustment] tab and adjust the color and
brightness for printing.
For more details, click [?] or [Help] to display [Help].
Adjust the color of print results.
Adjust the brightness and
contrast of print results.
3
When you have made the settings, click [OK] to close the
[Properties] dialog.
19
Appendices
About the Print Area and Pixels
Print Area
The shaded area (
) in the following diagrams indicates the maximum
printable area.
Note that because the print area is larger than the actual paper size, a
border is trimmed from the image when it is printed.
(shown in millimeters)
Postcard size sheet
3.1
2.1
100.0
2.1
3.1
148.0
20
L size sheet
2.7
2.0
89.0
2.0
2.7
119.0
Credit card size sheet (Standard sheets, full-size label sheets and
8-label sheets are available)
2.1
1.3
54.0
1.3
2.1
86.0
With 8-label sheets, the images are laid out to fit the page. The borders
around each label are trimmed when printing, so verify the preview
image(s) on the screen before printing.
21
Wide size sheet
2.0
2.0
100.0
2.0
2.0
200.0
Number of Pixels
Total number of
pixels (dots)*
Effective number of
pixels (dots)
Postcard size sheet
1232 × 1823
approx. 1180 × 1748
L size sheet
1100 × 1471
approx. 1050 × 1406
Credit card size sheet
(Standard sheets, full-size
label sheets and 8-label
sheets are available)
669 × 1066
approx. 638 × 1016
Wide size sheet
1232 × 2416
approx. 1180 × 2362
Paper Type
* Number of pixels of print area for borderless printing. This also includes
the border that is trimmed from around an image during printing.
22
Troubleshooting
This section describes how to troubleshoot problems.
If the problem still exists after trying these solutions, restart your computer.
If the problem still persists, uninstall the printer driver and then install it
again.
The printer cannot be selected.
Cause :
The printer driver is not installed.
Correction : Follow the procedure in the Printer User Guide to install the printer
driver. Reinstall it if you suspect that it was not installed correctly.
Printing does not start.
Cause :
No power is supplied to the printer.
Correction : Turn the printer on.
Cause :
The USB cable is not connected correctly.
Correction : Check the USB cable to make sure it is connected correctly.
Cause :
The printer is offline.
Correction : Try the following procedure.
Windows 98 SE/Windows Me/Windows 2000
1. Click the [Start] button and select [Settings], and [Printers].
2. Right-click the printer icon. If “Use Printer Offline” is selected, clear
it.
Windows XP
1. Click the [Start] button and select [Control Panel],
[Printers and Other Hardware], and [Printers and Faxes].
2. If your printer is offline, right-click the printer icon, and then click
“Use Printer Online”.
23
Printing stops while it is in progress.
Cause :
Power to the printer goes off while printing is in progress.
Correction : Turn the printer on.
Cause :
The USB cable is not connected correctly.
Correction : Check the USB cable to make sure it is connected correctly.
Cause :
A USB hub is being used for the connection.
Correction : Be sure to use the USB cable to connect the printer directly to your
computer. If you connect via a USB hub, the printer may not function
properly.
Cause :
There is a problem with the printer’s spool settings.
Windows 98 SE/Windows Me/Windows 2000
1. Click the [Start] button and select [Settings], and [Printers].
2. Right-click the printer icon and select [Properties].
3. Click the [Details] tab. Click the [Spool Settings] button and then click the
[Restore defaults] button.
Windows XP
1. Click the [Start] button and select [Control Panel], [Printers and Other Hardware],
and [Printers and Faxes].
2. Right-click the printer icon and select [Properties].
3. Click the [Advanced] tab and then select “Start printing immediately”.
Cause :
To protect the print head from high temperatures, printing is
suspended until the print head has cooled down.
Correction : This is not a malfunction. When the print head cools, printing will
automatically resume.
When the print head gets too hot, usually a message is displayed. However,
this message is not displayed if “Notification messages are displayed” is not
selected in the [Utilities] tab in the printer driver properties.
24
The color of an image seen on the screen is different from that
seen in prints.
Cause :
Printers and computer displays use different color reproduction
methods, and lighting conditions and display settings affect the
appearance of colors on your computer’s display.
Correction : You can adjust color using [Image Adjustment] (➡ p.19).
25
Error Messages
If an error occurs while printing is in progress, an error message appears on
the screen of your computer.
This section contains a list of error messages as well as the information on
how to troubleshoot them.
• If the error does not go away after you have tried the recommended
solutions, consult your nearest Canon Customer Support Help Desk.
• Use the information in this section in conjunction with the Printer User
Guide.
■ Errors where printing can resume
If any of the following messages appear, printing can still resume. After
using the recommended solution to clear the error, click the [Continue]
button to resume printing.
Paper-feed error.
Check that paper is correctly loaded in the paper cassette, and
that the paper cassette is correctly installed.
Press [Resume] to resume, or [Cancel] to stop.
Cause :
The paper cassette is not inserted correctly.
Correction : Remove the paper cassette, and then insert it back into the printer
correctly.
Cause :
Paper is not inserted correctly in the paper cassette.
Correction : Remove the paper, and then insert it back into the paper cassette
correctly.
Cause :
There is no paper in the paper cassette.
Correction : Add more paper to the paper cassette.
26
Ink cassette is empty and must be replaced.
Press [Resume] to resume, or [Cancel] to stop.
Cause :
There is no more ink in the ink cassette.
Correction : Replace the ink cassette with a new one.
In the following cases, the number of prints specified for the installed
Color Ink/Paper Set may not be obtained:
• If printing has been interrupted in progress
• If the ink sheet has been wound too tightly (while removing slack
from the ink sheet)
Ink cassette not installed.
You must insert an ink cassette before printing.
Press [Resume] to resume, or [Cancel] to stop.
Cause :
The ink cassette is not inserted into the printer.
Correction : Insert the ink cassette into the printer.
The printer is not ready for printing.
Check the printer power and printer connections.
Cause :
No power is supplied to the printer.
Correction : Turn the printer on.
Cause :
The USB cable is not connected correctly.
Correction : Check the USB cable to make sure it is connected correctly.
No Paper Cassette has been found.
Insert an appropriate one.
Press [Resume] to resume, or [Cancel] to stop.
Cause :
The paper cassette is not inserted.
Correction : Insert the paper cassette into the printer.
27
Wrong type of paper.
Replace with the right type.
Press [Resume] to resume, or [Cancel] to stop.
Cause :
The paper is not suitable for the print settings.
Correction : Replace the paper with the correct size.
The paper cassette differs from the setup.
Please check the paper cassette.
Press [Resume] to resume, or [Cancel] to stop.
Cause :
The paper cassette in the printer is not suitable for the print
settings.
Correction : Insert the correct paper cassette.
The specified Ink Cassette cannot be found.
Replace the Ink Cassette with the specified one.
Press [Resume] to resume, or [Cancel] to stop.
Cause :
The ink cassette in the printer is not suitable for the print
settings.
Correction : Insert the correct ink cassette.
The specified Ink Cassette and Paper cannot be found.
Replace the Ink Cassette and Paper with the specified one.
Press [Resume] to resume, or [Cancel] to stop.
Cause :
The ink cassette and paper in the printer are not suitable for the
print settings.
Correction : Insert the correct ink cassette and paper.
The battery capacity of the printer is insufficient.
Please connect AC adapter and press [Resume] to resume, or click
[Cancel] to stop printing and replace the battery.
Cause :
The printer’s battery charge is running low. The printer will not
work.
Correction : Use a new or fully charged battery pack, or use the printer with the
AC adapter (compact power adapter) connected.
28
■ Errors where printing is canceled
If any of the following messages appear, printing is canceled. After using the
recommended solution to clear the error, you need to start the print job over
again.
Paper jammed in printer.
Clear the jam as follows, then try printing again.
1. Remove the paper that caused the error.
2. Turn printer off and back on.
Cause :
Paper is jammed inside the printer while printing, or there is
paper still inside the printer before printing starts.
Correction : After closing the dialog, turn the printer off and then back on again.
Paper is automatically ejected from the print receptacle or the paper
handling slot. Remove the paper and then turn the printer off and
back on again a second time, and start the print job over.
Problem with ink cassette.
Correct as follows, then try printing again.
1. Check the state of the ink cassette.
2. Turn printer off and back on.
3. Remove the paper that caused the error.
Cause :
There is a problem with the ink cassette.
Correction : Take out the ink cassette from the printer. Remove any slack from the
ink sheet and then insert the ink cassette back into the printer. If the
problem still continues, replace the ink cassette with a new one.
29
Error occurred during communication.
Check the printer power and printer connections.
Cause :
Power to the printer goes off while printing is in progress.
Correction : Turn the printer on.
Cause :
The cable came loose or was disconnected while printing was in
progress.
Correction : Check to make sure the USB cable is connected correctly.
If the USB cable is not properly connected, communication problems may
occur. Make sure that the printer is connected to your computer’s root hub
port with suitable USB cable, and then try printing again.
Problem with the printer.
Turn printer off and back on.
Cause :
The printer unit was not initialized successfully.
Correction : Turn the printer off and back on again. Start the print job over.
Cause :
There is too much paper in the paper cassette.
Correction : Remove paper from the paper cassette, and then make sure to load
the correct amount of paper in the paper cassette.
For messages caused by errors related to the operating environment of your
computer, follow the messages on the screen.
CDP-E041
© 2005 CANON INC.
30
Download PDF

advertising
