Canon

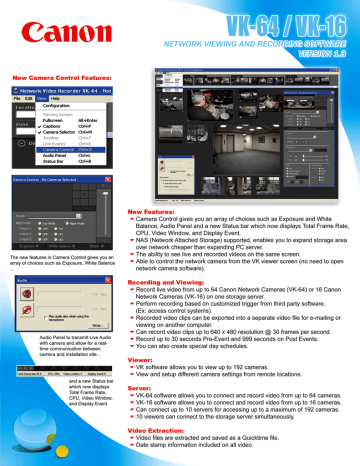

New Camera Control Features:
— Network Video Recorder VK-64 - Not
ocatin Configuration
| Viewing Screen
| Fullscreen Alt+Enter
Sits v Captions Ctrl+P
| v Camera Selector Ctrl+M
Timeline CErl+T
Bi Live Events Ctri+E
Camera Control
Audio Panel
Status Bar
Camera Control - No Cameras Selected
LE Me
The new features in Camera Control gives you an
array of choices such as Exposure, White Balance
is Audio Panel to transmit Live Audio
with camera and allow for a real-
time communication between
camera and installation site...
Total framerate:35.0 CPU: 25% — Video vindow:7 Display event:5
and a new Status bar
which now displays
Total Frame Rate,
CPU, Video Window,
and Display Event.
e
TEE CC en
CE ea, WEEE
‘| Jun | Le =
1 TELA
A LET]
AVI,
RET THEE
E
МЕ.
AUK
NETWORK VIEWING AND RECORDING SOFTMARE
VERSIONHE3,
Tora Ama Ar 1% бы — Deia E
New Features:
+ Camera Control gives you an array of choices such as Exposure and White
Balance, Audio Panel and a new Status bar which now displays Total Frame Rate,
CPU, Video Window, and Display Event.
NAS (Network Attached Storage) supported, enables you to expand storage area
over network cheaper than expanding PC server.
+ The ability to see live and recorded videos on the same screen.
+ Able to control the network camera from the VK viewer screen (no need to open
network camera software).
Recording and Viewing:
+ Record live video from up to 64 Canon Network Cameras (VK-64) or 16 Canon
Network Cameras (VK-16) on one storage server.
+ Perform recording based on customized trigger from third party software.
(Ex: access control systems).
* Recorded video clips can be exported into a separate video file for e-mailing or
viewing on another computer.
+ Can record video clips up to 640 x 480 resolution @ 30 frames per second.
+ Record up to 30 seconds Pre-Event and 999 seconds on Post Events.
+ You can also create special day schedules.
Viewer:
+ VK software allows you to view up to 192 cameras.
+ View and setup different camera settings from remote locations.
Server:
+ VK-64 software allows you to connect and record video from up to 64 cameras.
+ VK-16 software allows you to connect and record video from up to 16 cameras.
+ Can connect up to 10 servers for accessing up to a maximum of 192 cameras.
+ 10 viewers can connect to the storage server simultaneously.
Video Extraction:
+ Video files are extracted and saved as a Quicktime file.
Date stamp information included on all video.
E
Ea
Lac aa
BN KTGOYPVK-16
NEWORK VIEWING AND RECORDING SOFTWARE
VERSION 1.3
VK-64 | VK-16 Ver 1.3
Viewer
CPU
Operating System
Memory
Hard Disk
Display
Sound
Minimum Operating Environment
Pentium 4, 2.2 GHz or greater
Windows 2000 Server (with SP4)
Windows 2000 Professional (with SP4)
Windows XP Professional (with SP2)
Windows Server 2003 Standard Edition
(with SP1)
Windows Server 2003 Standard Edition
(with R2)
1GB RAM or greater
2GB HDD or greater
1024 x 768 or high resolution
Color display of 16 bits or more
A high performance video card Is
desirable. With PCI video cards, display
performance may be reduced
Audio Playback support is neccessary for
event notification alert sounds
PRODUCT CODE | VK-64 Software, PRODUCT CODE |VK Viewer (1) license
ITEM CODE | 9513A028 ITEM CODE | 9513A030
| 013803064964
UPC CODE UPC CODE | 013803064988
(PRODUCT CODE | VK-16 Software |\PRODUCT CODE VK Viewer (5) license
ITEM CODE | 95134029 [ITEM CODE | 9513A031
UPC CODE | 013803064971, UPC CODE | 013803064995
VHK-64 / VK-16 Ver 1.3
Storage Server
CPU
Operating System
Memory
Hard Disk
Minimum Operating Environment
Pentium 4, 2.2 GHz or greater
Windows 2000 Server (with SP4)
Windows 2000 Professional (with SP4)
Windows XP Professional (with SP2)
Windows Server 2003 Standard Edition
(with SP1)
Windows Server 2003 Standard Edition
(with R2)
1GB RAM or greater
*For more that 48 Camera Servers, 1.5G or
greater required
20GB HDD or greater, SCSI or IDE, NTFS
formatted
Number Image
of Size
Cameras
320 x 240
1
640 x 480
320 x 240
10
640 x 480
Frame | Network Traffic | Storage Volume
Size
Frames/ | Traffic |1 Day |1 Month
Second | Capacity
15KB 1fps | 120kbps | 1GB 37GB
5fps |600kbps| 6GB | 187GB
50KB 1fps |420kbps| 4GB 122GB
5fps | 2Mbps | 20GB | 608GB
15KB 1fps |1.2Mbps| 12GB | 373GB
5fps | 6Mbps | 62GB |1,866GB
50KB 1fps | 4Mbps | 41GB |1,216GB
5fps | 20Mbps | 203GB |6,081GB
Specifications are subject to change without notice. Weight and dimensions are approximate, Canon and
IMAGEANYWARE are registered trademarks of Canon Inc. in the United States and may also be
registered marks in other countries, Microsoft and Windows are either registered trademarks or trademarks
of the Microsoft Corporation in the United States and/or other countries. Other names and products not
mentioned above may be registered trademarks or trademarks of their respective companies. Errors and
omissions excepted. Weight and dimensions are approximate. Specifications subject to change without
notice. Images simulated
Waming: Unauthonzed recording of copyrighted materials may infringe on the rights of copyright owners
and be contrary to copyright laws
Canon
image ANYWARE
1-800-OK-CANON
www.usa.canon.com
Canon U.S.A., Inc.
One Canon Plaza
Lake Success, NY 11042 U.S.A.
Canon Canada, Inc.
6390 Dixie Road
Mississauga, Ontario L5T 1P7 Canada
Canon Mexicana, S. de R.L. de CV.
Blvd. Manuel Avila Camacho
No. 138, Piso 17
Col. Lomas de Chapultepec
C.P. 11000 México, D.F. México
