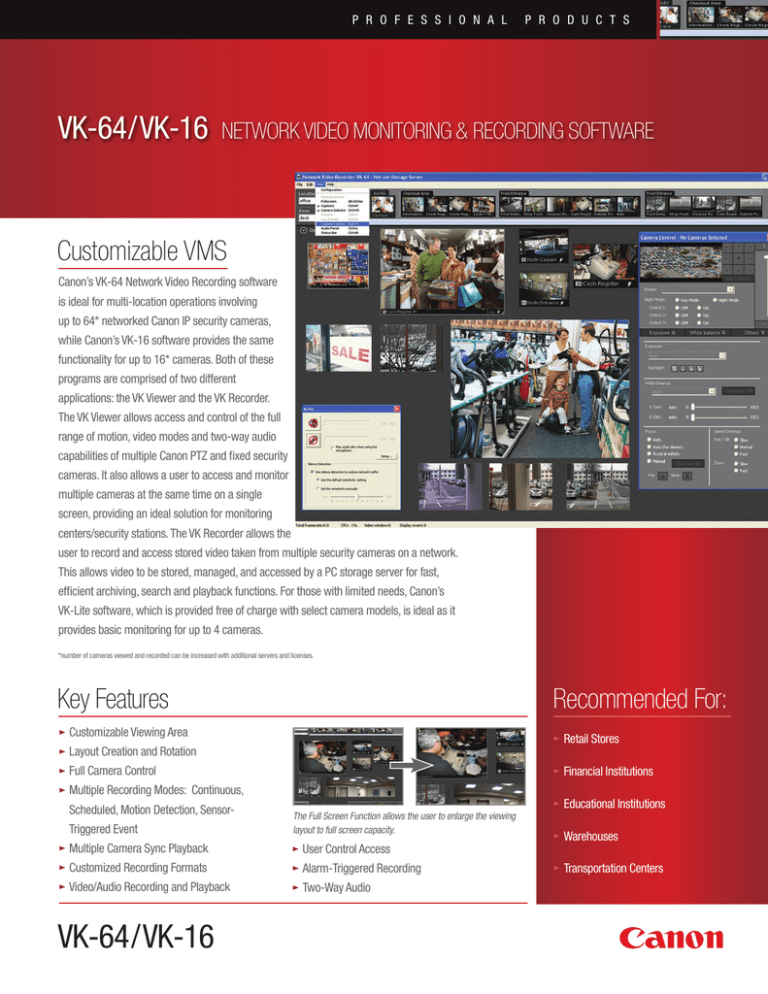

P R O F E S S I O N A L
VK-64 / VK-16
P R O D U C T S
NETWORK VIDEO MONITORING & RECORDING SOFTWARE
Customizable VMS
Canon’s VK-64 Network Video Recording software
is ideal for multi-location operations involving
up to 64* networked Canon IP security cameras,
while Canon’s VK-16 software provides the same
functionality for up to 16* cameras. Both of these
programs are comprised of two different
applications: the VK Viewer and the VK Recorder.
The VK Viewer allows access and control of the full
range of motion, video modes and two-way audio
capabilities of multiple Canon PTZ and fixed security
cameras. It also allows a user to access and monitor
multiple cameras at the same time on a single
screen, providing an ideal solution for monitoring
centers/security stations. The VK Recorder allows the
user to record and access stored video taken from multiple security cameras on a network.
This allows video to be stored, managed, and accessed by a PC storage server for fast,
efficient archiving, search and playback functions. For those with limited needs, Canon’s
VK-Lite software, which is provided free of charge with select camera models, is ideal as it
provides basic monitoring for up to 4 cameras.
*number of cameras viewed and recorded can be increased with additional servers and licenses.
Key Features
Recommended For:
•C
ustomizable Viewing Area
• Retail Stores
• L ayout Creation and Rotation
• F ull Camera Control
• Financial Institutions
•M
ultiple Recording Modes: Continuous,
Scheduled, Motion Detection, SensorTriggered Event
The Full Screen Function allows the user to enlarge the viewing
layout to full screen capacity.
•M
ultiple Camera Sync Playback
•U
ser Control Access
•C
ustomized Recording Formats
• Alarm-Triggered
Recording
• V ideo/Audio Recording and Playback
• Two-Way
Audio
VK-64 / VK-16
• Educational Institutions
• Warehouses
• Transportation Centers
P R O F E S S I O N A L
P R O D U C T S
VK-64 / VK-16 / VK-LITE
PRODUCT NAME: VK-64 ITEM CODE: 4075B001 UPC CODE: 013803117455
VK-16 ITEM CODE: 4075B002 UPC CODE: 013803117462
SPECIFICATIONS
CAMERA
CONNECTION
FUNCTION
MAXIMUM NUMBER OF
CAMERA CONNECTIONS
CAMERAS THAT CAN BE
REGISTERED AUTOMATIC CAMERA SEARCH
VIDEO RECORDING
MAX. RECORDING FRAME RATE
VK LITE
64 / 16
4
VB-C60, VB-C300, VB-C50 Series, VB-C10/R, VB-150
VB-C60, VB-C300, VB-C50 Series
√
√
JPEG, MPEG-4
JPEG only
30 fps*1
5 fps
Scheduled Recording,
Schedule Special Recording,
Sensor Recording,
Motion Detection Recording
Configurable from 32 to 1024MB, 1 to 24 hours
Fixed at 1 day, 1GB (1024 MB)
MAXIMUM STORAGE PERIOD
999 weeks
12 weeks (90 days)
AUDIO RECORDING AND PLAYBACK
√
√
RECORDING TO NAS SERVER™
√––
LIVE VIDEO SUPPORT
VIEWER
Constant Recording,
Scheduled Recording
MAXIMUM FILE SIZE SETTING
OTHER LIMITATIONS
Full Camera Control
Constant Recording
VIDEO RECORDING MODES
STORAGE
SERVER
VK-64 / VK-16
The VK-64 and VK-16 version 2.2 software allows for complete control
over each of the cameras on a network. The camera can be controlled
directly from the live video window, allowing the user to easily pan, tilt
and zoom.
The following functions cannot be used:
• Sending mail when an event occurs
• Customizing priorities of events
• Connection via an HTTP proxy
JPEG, MPEG-4
JPEG, MPEG-4
MAXIMUM FRAME RATE DISPLAY
30 fps*1
30 fps*1
MAXIMUM NUMBER OF
VIDEO WINDOWS THAT CAN
BE DISPLAYED
No Limit
Recommended 8 or Less
SEND AND RECEIVE AUDIO
√
√
REGISTER A MASTER
STORAGE SERVER*2
√
––
AUTO SWITCHING FUNCTION
√––
The following function cannot be used
OTHER LIMITATIONS
––
• Connection via HTTP proxy
*1 Operational limits apply depending on the number of camera servers, the PC performance and hard disk capacity, and the amount
of network traffic.
*2 In case of using VK-64/VK-16 with multiple storage servers, you can unify management of camera servers registered to each storage
server and the recorded data, if you set one master storage server. When connecting to each storage server using VK-Lite viewer,
you need to switch connection one by one.
*3 Layout Sequences is a function to switch displayed viewer windows at set intervals.
Layout Rotation
Easily fine-tune adjustments to the focus method and the pan/
tilt/zoom speed with the convenient camera control panel located
next to each camera window. In addition, the control panel can be
used to set cameras to react quickly to difficult, low-light conditions
by activating Night Mode. Settings for exposure, white balance,
and Smart Shade Control can also be adjusted to optimize the video
capturing environment.
©2011 Canon U.S.A., INC. Specifications and availability are subject to change without notice.
Weight and dimensions are approximate. All images and effects are simulated. Canon is a
registered trademark of Canon Inc. in the United States and may also be a registered trademark
in other countries. IMAGEANYWARE is a trademark of Canon. Other names and products not
mentioned above may be registered trademarks or trademarks of their respective companies.
Warning: Unauthorized recording of copyrighted materials may infringe on the rights of copyright
owners and be contrary to copyright laws.
The VK-16 and VK-64 version 2.2 software allows users to setup different layouts of cameras, and use
the auto switch feature to display those layouts at set intervals. This is a useful function for efficiently
checking videos on multiple cameras. Layouts can also be shared with different users.
