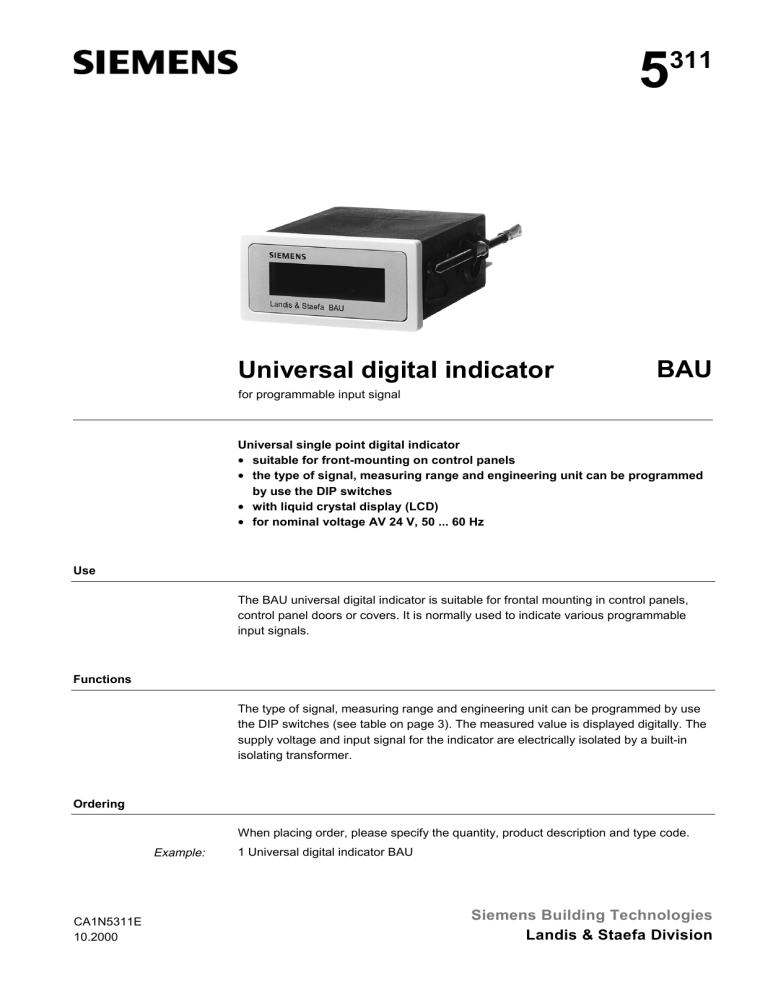

Universal digital indicator
BAU
for programmable input signal
Universal single point digital indicator
• suitable for front-mounting on control panels
• the type of signal, measuring range and engineering unit can be programmed
by use the DIP switches
• with liquid crystal display (LCD)
• for nominal voltage AV 24 V, 50 ... 60 Hz
Use
The BAU universal digital indicator is suitable for frontal mounting in control panels,
control panel doors or covers. It is normally used to indicate various programmable
input signals.
Functions
The type of signal, measuring range and engineering unit can be programmed by use
the DIP switches (see table on page 3). The measured value is displayed digitally. The
supply voltage and input signal for the indicator are electrically isolated by a built-in
isolating transformer.
Ordering
When placing order, please specify the quantity, product description and type code.
Example:
CA1N5311E
10.2000
1 Universal digital indicator BAU
Siemens Building Technologies
Landis & Staefa Division
Mechanical design
Multi-part synthetic housing, comprising:
− LCD digital display, 3½ digits (max. display 1999)
− Electronic PCB with connection terminals and DIP switches
− Front plate (frame)
Mounting and installation notes
Mounting instructions are enclosed with each device.
The BAU universal digital indicator is suitable for frontal mounting in control panels,
control panel doors or covers. It is inserted into required cut-out from the front, and
secured from the rear with the two side clips on the indicator housing.
Disposal
Seperate and recycle the printes circuit board, housing and (LCD) display.
Commissioning notes
Refer to the table (page 3) to programme the indicator for the required input signal.
Technical data
Supply voltage
Max. voltage tolerance
Power consumption
Measurement input:
Input DC 0 ...10 V
T1 supply voltage
External reference voltage
Display
Out-of-range indication
Electrical connection
Protection class
Protection standard
Ambient temperature:
Operation
Storage
Ambient humidity
Mounting position
Maintenance
Weight (incl. packaging)
AC 24 V, 50 ... 60 Hz
+10 / –15 %
≤ 0.8 VA
Input resistance ≥10 MΩ
10 kΩ (pull-up) resistance from +15 V ref.
Input resistance approx. 100 kΩ
(for KLIMO bridge voltage 5.4 ... 6.4 V)
Digital, 3½ digit display, with
one character for engineering unit
Display flashes, frequency approx. 2 s
2
6 terminals 2.5 mm
III to EN60730
IP42 to IEC529 (when installed)
0 ... 45 °C
−25 ... 85 °C
20 ... 95 %rH, non-condensing
Any
None required
0.21 kg
2/4
Siemens Building Technologies
Landis & Staefa Division
BAU
Universal digital indicator
CA1N5311E
10.2000
Setting table
DIP-switches
1 2 3 4 5 6 7 8
1
0
OPEN
Type
F..-T1
F..-T1
F..-T1
F..-H2
F..-Q1
CO2
V2
P1
P2
P3
FDPA
FDPA
FDPA
FDPA
FPA
FPA
FPA
FPA
FPA
FPA
T30
T35
T120
H90
V1
S100
P1
P2
P3
FDPE
FDPE
FDPE
FDPE
FPE
FPE
FPE
FPE
FPE
FPE
0 ... 15 V
A-U1
E-U1
T105
T40
T38
T20
x –50_50
x 0_100
x –100_100
x 0_500
x –50_150
x 0_200
x 100_0
y 0_100
m 0_100
xx 0_100
FT-P40
FT-PM9
FT-P4
FKA-P1
FKA-P1
FKA-P3
x 0_50
x –35_35
Sensor
Interface
T1
T1
T1
0 ... 10 V
0 ... 10 V
0 ... 10 V
0 ... 10 V
0 ... 10 V
0 ... 10 V
0 ... 10 V
0 ... 10 V
0 ... 10 V
0 ... 10 V
0 ... 10 V
0 ... 10 V
0 ... 10 V
0 ... 10 V
0 ... 10 V
0 ... 10 V
0 ... 10 V
KLIMO
KLIMO
KLIMO
KLIMO
KLIMO
KLIMO
KLIMO
KLIMO
KLIMO
KLIMO
KLIMO
KLIMO
KLIMO
KLIMO
KLIMO
KLIMO
KLIMO
KLIMO
KLIMO
0 ... 10 V
0 ... 10 V
KLIMO
KLIMO
KLIMO
KLIMO
KLIMO
0 ... 10 V
0 ... 10 V
0 ... 10 V
0 ... 10 V
0 ... 10 V
0 ... 10 V
0 ... 10 V
2 ... 10 V
4 ... 8 V
0 ... 1 V
0 ... 10 V
0 ... 10 V
0 ... 10 V
0 ... 10 V
0 ... 10 V
0 ... 10 V
0 ... 10 V
0 ... 10 V
DIP switches
12345678
11111111
11111101
11111110
11111100
01111111
01111101
01111110
01111100
10111111
10111101
10111110
10111100
00111111
00111101
00111110
00111100
11011111
11011101
11011110
11011100
01011111
01011101
01011110
01011100
10011111
10011101
10011110
10011100
00011111
00011101
00011110
00011100
11101111
11101101
11101110
11101100
01101111
01101101
01101110
01101100
10101111
10101101
10101110
10101100
00101111
00101101
00101110
00101100
11001111
11001101
11001110
11001100
01001111
01001101
01001110
01001100
10001111
10001101
10001110
10001100
00001111
00001101
00001110
00001100
Unit
°C
°F
°F
%rH
AQU
ppm
m/s
Pa
Pa
Pa
kPa
kPa
kPa
kPa
bar
bar
bar
bar
bar
bar
°C
°C
°C
%rH
m/s
%
Pa
Pa
Pa
kPa
kPa
kPa
kPa
bar
bar
bar
bar
bar
bar
V
%
%
°C
°C
°C
°C
°C
°C
°C
°C
°C
°C
%
%
%
%
bar
bar
bar
"wc
"wc
"wc
°C
°C
Range
Display
−50 ...
150
−58 ...
302
−58 ...
200
0 ...
100
0 ...
10
0 ... 1999
0 ...
15
0 ...
100
0 ...
300
0 ... 1000
0 ...
10
0 ...
20
0 ...
50
0 ...
100
0 ...
1
0 ...
2
0 ...
5
0 ...
10
0 ...
16
0 ...
25
−6 ...
35
−35 ...
38
10 ...
120
30 ...
85
0 ...
15
0 ...
100
0 ...
100
0 ...
300
0 ... 1000
0 ...
10
0 ...
20
0 ...
50
0 ...
100
0 ...
1
0 ...
2
0 ...
5
0 ...
10
0 ...
16
0 ...
25
0 ...
15
0 ...
100
0 ...
100
20 ...
105
12 ...
42
–32 ...
40
15 ...
20
–50 ...
50
0 ...
100
–100 ...
100
0 ...
500
−50 ...
150
0 ...
199
100 ...
0
0 ...
100
0 ...
100
0 ...
100
0 ...
40
−1 ...
9
0 ...
4
0 ...
0,4
0 ...
1,2
0 ...
400
0 ...
50
−35 ...
35
V ref.
int
int
int
int
int
int
int
int
int
int
int
int
int
int
int
int
int
int
int
int
ext
ext
ext
ext
ext
ext
ext
ext
ext
ext
ext
ext
ext
ext
ext
ext
ext
ext
ext
int
int
ext
ext
ext
ext
ext
int
int
int
int
int
int
int
int
int
int
int
int
int
int
int
int
int
int
1 = closed = on
0 = open = off
3/4
Siemens Building Technologies
Landis & Staefa Division
BAU
Universal digital indicator
CA1N5311E
10.2000
Connection terminals
940245e n
32
31
30
29
28
27
NS
AC 24 V
LS
SNGD
Input DC 0 ...10 V
Supply for T1 sensor (if no controller connected)
Vref. ext. (for 6 V bridge voltage for KLIMO signals only
Connection diagrams (examples)
40246Aen
Sensor and controller
NS
LS
SGND
AC 24 V supply
To controller
T1
Input 0 ... 10 V
T1 sensor
without controller
32
31
30
29
28
27
A
10 kohm
int.
D
Vref.ext.
40399Aen
NS
LS
AC 24 V supply
SGND
32
31
30
T1
Input 0 ... 10 V
T1 supply
With KLIMO sensor
29
28
27
A
10 kohm
int.
D
Vref.ext.
40247Aen
RDK...
RDF...
NS
LS
SGND
AC 24 V supply
4
32
31
30
T30
0 ... 10 V
5
T1 supply
3
Vref.ext.
29
28
27
A
10 kohm
int.
D
Vref.ext.
Dimensions
40244
98
72
36
All dimensions in mm
5.5
4/4
Siemens Building Technologies
Landis & Staefa Division
ã 2000 Siemens Building Technologies Ltd.
BAU
Universal digital indicator
33+0.6
84
68+0.7
Subject to changes
CA1N5311E
10.2000
