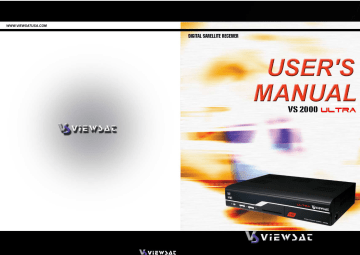

Viewsat 2000 Ultra Manual

Viewsat 2000 Ultra Manual
Table of Content
Table of Contents
1. SAFETY PRECAUTIONS
1.A. ACCESSORIES
2. GENERAL FEATURES
3. HOW TO CONNECT YOUR RECEIVER
4. HARDWARE DESCRIPTION
5. SYSTEM SET-UP
6. MENU STRUCTURE
7. MENU OPERATION
1. INSTALLATION
2. USER SETTING
3. CANNEL ORGANIZATION
4. SYSTEM INFORMATION
5. GAMES
6. CHANNEL LIST
7. CHANNEL GUIDE
8. AUDIO
9. ZOOM FUNCTION
10. MULTI PICTURE
11. COLOR SETTING MENU
8. TROUBLE SHOOTING
9. TECHNICAL SPECIFICATIONS
10. PROGRAMING THE REMOTE CONTROL
11. WARRANTY CARD
4
5
6
7
9
12
14
15
15
19
22
26
28
28
29
29
30
30
31
32
33
35
39
Declaration of Conformity
Important Safety Instruction
Important Safety Instruction
Declaration of Conformity
FCC Rule : TESTED TO COMPLY WITH FCC PART 15, CLASS B
OPERATING ENVIRONMENT : FOR HOME OR OFFICE USE.
FCC COMPLIANCE STATEMENT :
This device complies with part 15 of the FCC rules. Operation is subject to
the following conditions :
1) This device may not cause harmful interference, and
2) This device must accept any interference received, including interference
that may cause undesired operation.
INFORMATION TO USER:
This equipment has tested and found to comply with the limits of a Class B
digital device, pursuant to part 15 of the FCC Rules. These limit are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, user and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation, if this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
1. Reorient / Relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit difference from that to
which the receiver is connected.
4. Consult the dealer or an experience Radio / TV technician for help.
CAUTION : Changes or modifications not expressly approved by
manufacturer responsible for compliance could void the user's
authority to operate the equipment.
2
3
Safety Precautions
1. SAFETY PRECAUTIONS
This receiver has been manufactured to satisfy the
international safety standards.
Please read the following recommended safety precautions carefully.
1.A. ACCESSORIES
Check the following accessories when you open the box.
MAIN SUPPLY : AC 95V~240V 50 / 60 Hz
LOCATION : Locate the receiver indoor.
Locate receiver away from potential hazards such as houseplants, lighting, raining and direct sunlight.
OVERLOADING : Do not overload wall outlets, extension cords or adapters as this
can result in fire or electrical shock.
LIQUIDS : Keep liquids away from the receiver.
CLEANING : Before cleaning, disconnect the receiver from the wall socket.
Use a cloth lightly dampened with water (no solvents) to clean the exterior.
User s manual
RCU
VENTILATION : Do not block the receiver ventilation holes. Ensure that free airflow is
maintained around the receiver.
Never set the receiver on soft furnishings or carpets. Do not use or store the receiver
where it is exposed to direct sunlight, or near heater.
Never stack other electronic equipment on top of the receiver.
Place the receiver at least 30mm from the wall.
RCA cable
ATTACHMENTS : Do not use any attachment that is not recommended by the manufacturer,
as it may cause a hazard or damage the equipment.
CONNECTION TO THE SATELLITE DISH LNB : The LNB connector cable has a
voltage in its center core. It is therefore recommended that the receiver is disconnected from
the mains power before connecting or disconnecting this cable.
FAILURE TO DO SO COULD DAMAGE THE LNB.
Serial cable
SERVICING : Do not attempt to service this product yourself. Any attempt to do so will
make the warranty invalid.Refer all servicing to a qualified service agent.
The device, packaing material and batteries must never be disposed of with household.
LIGHTNING : If the receiver is installed in an area subject to intense lighting activity,
protection devices for the receiver mains connector and modem telephone line are essential.
The individual manufacturer’
s instruction for safeguarding other equipment, such as TV set,
Hi-Fi, etc., connected to the receiver, must also be followed during lighting storms.
DiSEqC S/W
Batteries
Please obtain appropriate information about regulations in your community, and dispose of all in
accordance with regulations at the separate locations provided.
GROUNDING : The ground of the LNB cable must be directly connected to the system
ground for the satellite dish. The grounding system must comply with local regulations.
4
5
How to Connect your Receiver
General Features
2. GENERAL FEATURES
Fully MPEG-2 & DVB Compliant
Input Frequency 950�2150MHz
Supports EPG, PIG
Supports SCPC & MCPC from C / Ku-band
1 LNB Input Tuner with Loop Through IF Signal
Tuner Symbol Rate : 1�45MS/s
Fast Booting & Auto Scan
Quick Channel Changing
Max. 4000 Channels(TV & Radio) Programmable
User Friendly 256 Colors OSD & Easy GUI
A lot of OSD Language supported
Radio Channel Background Display
Favorite Channel List Programmable
Master PIN Code Function & Parental Lock Function
100 Steps Volume Control
Automatic Detection of Forward Error Correction
Window based S/W Download Program Supported
by RS232 Serial Port
Set to Set Download (Main Program, Channel Data)
4:3, 16:9, Letter Box
7 Segment-4 Digit Display
5 Keys on the Front Panel (Power On/Off, Channel Up/Down, Volume Up/Down)
Various LNB Polarity Control
�22KHz Switching Control
3 RCA Output for Video, Audio L/R
3 RCA Output for Component (Y, Pb, Pr)
USB Host Interface (Only for USB Memory Stick)
S/W Upgrade Supported by USB Port
7 Days EPG (Electronic Program Guide) Support
S/PDIF Output for Digital Audio
S-VIDEO Output
RF-Modulator Output
Zoom function
Multi Picture
Blind Scan
USALS
X Crypt CAS Embedded
6
3. HOW TO CONNECT YOUR RECEIVER
Please DO NOT plug in the main power supply cord until you have finished
all the connections.
1) LOCATION OF THE RECEIVER
Your receiver should be placed under proper ventilation.
Don’
t put in completely enclosed cabinet that will restrict the flow of air, Resulting overheating.
The location should be safeguarded from direct sunlight, excess moisture,
rough handling or household pets.
Avoid stacking other electronic components on the top of the receiver.
The location should be safely accessible by the cable from your antenna system.
2) CONNECTING THE RECEIVER WITH DISH SYSTEM
After installing your dish system, connect the coaxial cable from LNB of your dish antenna to
“DISH IN”terminal marked at the rear of the receiver.
All cable connectors should be finger tightened ; do not use any kind of wrench
on the cable over connectors.
The cable should be 75Ϊ impedence coaxial twisted at the end with a“F”type connector.
3) CONNECTING THE RECEIVER TO TV
To connect the receiver with your television, you can follow three method ;
through RF cable, RCA cable, COMPONENT cable and S-Video cable.
Connect the RF cable to the terminal marked“OUT TO TV”at the rear panel of the
receiver and its other end to the TV RF input socket.
4) CONNECTING EXTERNAL AUDIO HI-FI SYSTEM
To connect any external Audio Hi-Fi system, the receiver has been provided with
S/PDIF connector at the back of the receiver.
5) CONNECTING YOUR ANALOG RECEIVER
To facilitate the user using analog receiver to view analog channels,
the receiver has been provided with a loop through terminal marked as
“LOOP OUT”
.
7
Hardware Description
4. HARDWARE DESCRIPTION
Connect the coaxial cable from this terminal to the IF input terminal of your analog receiver. Now by
keeping the receiver in standby, you will be able to tune and view analog channels from your analog
receiver.
4. A. FRONT PANEL
1) POWER : This key is used to turn the receiver on and off (stand by).
2) CH : These keys are used to change the channels.
3) VOL : These keys are used to increase and decrease the volume
level manually.
4) INFRARED SENSOR : This is to receive the IR commands from the RCU. Do not block the
view of the sensor.
5) 7 SEGMENT DISPLAY : This SEGMENT display will show the current channel number. While
the receiver is in stand by mode, the display will
show the current time.
6) SMART CARD INTERFACE SLOTS : To watch scrambled
channels you should insert a smart card into Smart Card Interface issued
the service provider whom you subscribes to. Therefore you can watch
only a specific range of channels with entitlements in smart card. The
smart card includes information to decipher parameters necessary for descrambling the program.
Please note that the gold chip on the smart
card should face down and inward when you insert it into Smart Card Interface.
7) USB : Firmware upgade using USB flash drive.
8
9
4.C. REMOTE CONTROL UNIT
4. B. REAR PANEL
1) DISH IN : This port is to connect the coaxial cable from LNB of your Dish. The IF input is provided
through this port and the input frequency range is 950�2150MHz. Also the voltage switching
13V and 18V is passed through this port.
2) LOOP OUT : To enable the connection of an analog receiver, the receiver is provided with this port.
Connect this port to DISH IN(LNB IN) port of the other receiver via RF Cable.
3) SERIAL PORT : This is used to connect your receiver with computer through a serial cable.
This port can be used for upgrading software.
4) S/PDIF DIGITAL OUTPUT : This port is for the connection to the extenal Hi-Fi system which has a
optical S/PDIF input interface.
5) VIDEO, AUDIO R/L, COMPONENT( Y ,Pb, Pr ): These RCA connectors are used to connect any
external video and audio.
6) IN FROM ANT/CATV : This is used to connect your local RF channels to your TV through Loop.
7) OUT TO TV : This is used to connect your TV through RF cable.
8) POWER INPUT : This is to plug in the AC main power cord.
The input AC volts range is 95V~240V, 50/60Hz supply.
9) S-VIDEO : This is used to connect your TV through S-Video Cable.
10) CH 3,4 : The switch select RF 3,4 channel number.
11) POWER SWITCH : This is a swith to turn on and off the AC main power.
10
11
System Set-up
5. SYSTEM SET-UP
You can automatically detect and save all TV and Radio channels
of a satellite as follows :
System Connection
■ Connect the receiver to all peripheral devices.
�
Power On
■ Turn on the power of the receiver and other
devices.
�
�
Antenna Configuration Setting
■ Select Main Menu/Installation / Antenna Setup
using CH ▲∙▼ & OK keys.
■ Select the satellite which you want to search
using VOL ◀∙▶ keys.
■ Insert all information of your antenna.
�
Main Menu / Installation / Auto Scan
12
You can automatically search and save all TV and Radio channels of
a transponder as follows :
Main Menu / Installation/
Channel Scan
■ Select Menu/Installation/ Channel Scan.
■ Select the satellite which you want to search.
Antenna Configuration Setting
■ Insert all information of your antenna.
�
Main Menu / Installation /
Antenna Setup
5. B. Manual channel search for a transponder
�
5.A. Automatic channel search for a satellite
Manual Channel Search
■ Select the transponder from transponder list
which you want to search.
If you cannot find it from transponder list, you
should insert all the transponder information
(i.e., Frequency, Symbol Rate, Polarity and FEC).
■ Press OK key, and the receiver will automatically
search for all channels contained in the selected
transponder.
■ Press OK key, and the receiver will automatically
search for all TV/Radio channels from a satellite.
13
Manu Structure
6. MENU STRUCTURE
Manu Operation
7. MENU OPERATION
The main menu is classified into several sub menus which will carry out the
various operation individually.
MAIN MENU
After installing your dish system and receiver with appropriate connectors, plug in the AC main
power and turn on the receiver.
Press the MENU key of the RCU. You will see the
“Main Menu”on the TV screen as follow.
You can move into the desired submenu using the
“up/down”keys (▲∙▼) or numeric keys.
Press“OK”key to confirm your selection. If the“Main
Menu”is locked, note that you should enter the PIN
code in order to move into the corresponding submenu
in case of“Channel Organization”menu,“User
Setting”menu and“Installation”menu.
The default factory PIN code is“0000”
.
Press the“menu”key or“exit”key to return to previous
menu.
1. INSTALLATION
“Installation”
menu helps you to setup a variety of
parameters necessary for receiving signal, and add
new service.
Select“Installation”menu in main menu, and you
will be asked to enter your PIN code.
You can find the following“Installation”screen by
entering it.
14
15
1.A. ANTENNA SETUP
1. A. 1 USALS
Your receiver includes the preprogrammed information of transponders contained in various
satellites.
You can update the transponder list preprogrammed
for a satellite by adding a new transponder to it or
modifying the information of the existing transponder.
(Refer to the Channel Scan described in section 1.B)
Select“Antenna Setup”menu in“Installation”
menu
and the following screen will be displayed.
Select the desired satellite using the“left/right”
keys(◀∙▶). Set“LNB Power”
“LNB
,
Type”
“LNB
,
Freq”
“22KHz”
,
, and“DiSEqC 1.0”fields to the
appropriate value using the left/right keys(◀∙▶) at
each field.
LNB Power
LNB Type
LNB Freq.
22KHz
DiSEqC 1.0
Motor
16
: Depending on the user’
s antenna LNB, you can supply either LNB power by
setting“ON”or not by setting“OFF”
. Normally set this to“ON”
.
: You can select the LNB type.
: You can select the predefined LNB frequency or manually enter a specific
frequency in MHz unit by pressing numeric keys.
: In case you are using two antennas connected to a 22KHz tone switch box,
you can supply either 22KHz by setting“ON”or off by setting“OFF”to select
antenna.
: If you have DiSEqC box, you can choose port by selecting port number.
Otherwise, choose“none”
.
: If you have a DiSEqC 1.2 motorised system, then you can take advantage of the
DiSEqC 1.2 functions available. Choose Installer as Motor and press “OK” key.
After that, adjust antenna direction using browse keys.
Please go to Antenna Setup and select USALS
from motor.
Press the “OK” key then Pop-up will be appeared.
Press arrow button to write Longitude
Press arrow button to write Latitude, then OK to
work.
1. B. CHANNEL SCAN
It will be more convenient to use“Channel Scan”procedure when you want to search
channel for a specified transponder offered from the satellite. As in“Antenna Setup”
,
“Channel Scan”also searches all channels broadcasted over a specific transponder
using its predefined information. You can add a new transponder if you cannot find it on
the predefined transponder list.
Select“ Channel Scan”menu in“Installation”menu, and the following screen will be
displayed.
1. B. 1 Channel Scan
Select the desired satellite using the“left/right”keys (◀∙▶).
Select the“Antenna Configuration”icon using the browse keys(▲∙▼ ,◀∙▶).
Press“OK”key, and set“LNB Power”,“LNB
Type”
“LNB
,
Freq”
,“22KHz”
, and“DiSEqC 1.0”
fields to the appropriate value using the“left/right”
keys(◀∙▶) at each field. Check the signal strength
and press“Exit”key.
Select the“Search/Edit TP”icon using the“left/right”
keys(◀∙▶). Press“OK”key, and select the
desired transponder using the“up/down”keys (▲∙
▼). Press“OK”key to start the manual searching for
selected transponder.
17
You can see the progressive status of channel searching.
1. C Automatic Scan
If you cannot find the desired transponder from the transponder list, you can add it by inputting
appropriate parameter values for a new transponder using the“F1”key. When you want to
change the parameter of an existent transponder, select the parameter using the“F1”key,
change its value and press the“Exit”key. Correctly set various parameters.
Freq.
S/R
PoI.
FEC
Check the signal strength. Press“OK”key to
start the scan procedure.You can see the
progressive status of channel searching.
Please note that the scan procedure may take a
few minutes.
Press the“menu”key or“exit”key to return to
previous menu.
: Input the frequency of the transponder you want to find manually.
: Inputs the symbol rate of the transponder you want to find.
: Select the polarization of the transponder you want to find. In the case of
horizontal,18V and in the case vertical, 13V are output through LNB line.
: Select the FEC of the transponder you want to find. You can select the value of 1/2,
2/3, 3/4, 5/6, 7/8 or auto.
1. D Blind Scan
1. B. 2 Add Satellite
Blind Scan search the channel when you don’t
know the transponder information.
Press the “OK” key to start the blind scan
procedure and the following screen will be
displayed.
Please note that the scan procedure may take a
few minutes.
Press the “menu” key or “exit” key to return to
previous menu.
You can add a new satellite. Select the“Add Satellite”icon using the“left/right”keys (◀∙▶),
and press the“OK”key.
Select the“Search/Edit TP”icon using the“left/right”key (◀∙▶). Press the“OK”key and add
a new transponder using the“F1”key. You should set various parameters of the transponder.
The default name of the added satellites is“UserSAT-No.”
1. B. 3 Rename Satellite
You can also change the satellite name. Select the“Rename Satellite”icon using the“left/right”
keys (◀∙▶).
Press“OK”key and select the character which you want to edit using the browse
keys (▲∙▼,◀∙▶). Press the“OK”key to confirm. Save the character currently renamed using
the“F2”key.
1. B. 4 Delete Satellite
You can also delete the user satellite. Select the satellite that you want to delete from the satellite list.
Select the“Delete Satellite”icon using the browse keys (▲∙▼,◀∙▶).
Press the“OK”key, and the selected satellite will disappear.
18
2. USER SETTING
This menu helps you to set up System. Select “User Setting” menu in “Main Menu”, and
you will be asked to enter your PIN Code.
19
2. A. PARENTAL CONTROL
2. B. TIME SETTING
You can change the time of your receiver and also
switch on/off the timer function in this menu.
This function prevents children or unauthorized
persons from watching programs.
Also you can change PIN(Personal Identification
Number) code.
Select“Parental Control”menu in“User Setting”
menu, and the following screen will be displayed.
Select “Time Setting” item in the “ User Setting” menu
and the following screen will be displayed.
2.A.1 Receiver Lock
To lock receiver, select“Receiver Lock”in the“Parental Control”menu and change it to“On”
mode using the“left/right”keys (◀∙▶).
2.A.2 Menu Lock
To lock the Main Menu, select“Menu Lock”in the“Parental Control”menu and change it to
“On”mode using the“left/right”keys (◀∙▶).
2.A.3 Maturity Rate
You can set the maturity rate of the receiver. If program rate is higher than the receiver,
PIN code window will appare.
Time Mode
Time Adjustment
Current time
Summer Time
On time
Off time
: Select the time mode of your receiver. In Auto mode, your receiver will
use the information from the satellite as time reference. In manual
mode, you can set the time of your receiver manually.
: Set the time offset from the UTC (GMT).
Useful in auto mode only.
: Set the current time manually. Useful in manual mode only.
: Enable or disable the Summer Time. Useful in auto mode only.
: Set the time when the receiver will be automatically turned on
: Set the time when the receiver will be automatically turned off.
2.A.4 Change PIN Code
You can change your PIN code from factory default value“0000”as follow:
Select“Change PIN Code”in the“Parental Control”
.
Press“OK”key. Then you will be asked for a new PIN code.
Once you enter a new PIN code, the receiver will ask you to enter it in again.
After you enter a new PIN code twice, the PIN code is changed permanently.
If you forget the PIN code, you have to contact the distributor to find out it.
20
2.C. SYSTEM SETTINGS
This menu helps you to Set up mode, Ianguage,
and screen type Select“System Settings”menu
in “User Setting”.
21
Screen Type
Channel Mode
Menu Transparency
Menu Language
Audio Language
Information timeout
Beep for scanning
Sort By SID
:
:
:
:
:
:
:
:
You can choose either 4:3 or 16:9 according to the TV type.
You can select the channel mode when channel is changed.
You can select the transparency of the menu.
You can select the menu language.
You can select the audio language.
You can select the timeout of the “Channel Information menu”.
If this is “on” , receiver will beep out the signal status.
If this is “on” , channel list will sort by service ID.
Press the“OK”key to confirm your selection.
Also, you can use the“
”key to select either TV channel list or Radio channel list.
Once the channel is locked, every time you try to watch the program, you will be asked to enter PIN
code. Press the“menu”key or“exit”key to return to previous menu.
3. A.2 Delete Channel
Select the“Delete Channel”icon using the“left/right”keys(◀∙▶). Select the channel that you
want to delete from the channel list using the“up/down”keys(▲∙▼) and the“page up/down”
keys( ▲
). Press the“OK”key to confirm your selection. Also, you can use the
“
”key to
▲
select either TV channel list or Radio channel list.
Press the“menu”key or“exit”key to return to previous menu.
▲
▲
Press the“menu”key or“exit”key to return to previous menu.
3. A.3 Move Channel
3. CHANNEL ORGANIZATION
Select the“Move Channel”icon using the“left/right”keys(◀∙▶). Select the channel that you
want to move from the channel list using the“up/down”keys(▲∙▼) and the“page up/down”
keys( ▲
). Press“OK”key to confirm your selection.
▲
Move it to the position where you want to place it using the“up/down”keys(▲∙▼) and the“page
up/down”keys( ▲
). Press the“OK”key to confirm. Also, you can use the
“
”key to select
▲
either TV channel list or Radio channel list.
Press the“menu”key or“exit”key to return to previous menu.
▲
▲
This is to restore the factory set values in case the user has encountered some problems after
changing any new values of channel data and others which may be in error.
Select“Factory Default”menu in“User Setting”menu and press“OK”key.
If you want to continue, select option
“Yes”
.The receiver will be reset to settings automatically.
Please note that the“Factory Default”procedure may take a few minutes.
▲
▲
2. D. FACTORY DEFAULT
3. A.4 Edit Channel Name
This menu helps you to edit the favorite Channel List and Channels.
Select “Chanel Organization” menu in “Main Menu”, and the following Screen will be displayed.
Select the“Edit Channel Name”icon using the
“left/right”keys(◀∙▶). Select the channel that you
want to edit from the channel list using the“up/down”keys(▲∙▼) and the“page up/down”keys
(▲
). Press“OK”key to confirm your selection.
▲
Select the character which you want to edit using the browse keys(▲∙▼,◀∙▶). Press“OK”key
to confirm. Save the character currently selected using the“F2”key. Also, you can use the
“
”
key to select either TV channel list or Radio channel list. Press the“menu”key or“exit”key to
return to previous menu.
▲
▲
3.A. EDIT CHANNELS
You can edit channels on various channel lists - channel
lock, delete channel, move channel, edit the name of a
channel, and sort the channel list.
Select“Edit Channels”menu in “Channel Organization”,
and you will be asked to enter your PIN code. You can
find the following“Edit Channels”screen by entering it.
3. A.1. Channel Lock
3. A.5 Sort Channel List
Select the“Sort Channel List”icon using the
“left/right”keys(◀∙▶). Press“OK”key to confirm.
Select the sort type which you want to sort using the“up/down”keys(▲∙▼). Press the“OK”key
to confirm. Also, you can use the
“
”key to select either TV channel list or Radio channel list.
Press the“menu”key or“exit”key to return to previous menu.
Select the“Channel Lock”icon using the left/right
keys (◀∙▶). Select the channel that you want to lock
or unlock from the channel list using the“up/down”keys (▲∙▼) and the“page up/down”keys
(▲
).
▲
▲
▲
22
23
3.B.3. Move Favorite Channel
Select“Edit Favorites”menu in “Channel Organization”, and you will be asked to enter your PIN
code.
You can find the following“Edit Favorite”screen by entering it.
3. B.1 Add Favorite Channel
You can choose TV channel list or Radio channel list in an alternative way by pressing the“
”
key on the RCU.
By pressing“FAV”key on the RCU, you can choose
your favorite channel group out of 8 favorite groups.
Select the“Add Channel”icon using the“left/right”
keys(◀∙▶). Select a channel that you want to add
into the favorite channel list using the
“up/down”
keys(▲∙▼) and the“page up/down
“ keys ( ▲
).
▲
Press the“OK”key, and the selected channel will be
added to the favorite channel list. Press the“menu”key
or“exit”key to return to previous menu.
You can choose TV channel list or Radio channel list in an alternative way by pressing the“
”
key on the RCU.
By pressing“FAV”key on the RCU, you can choose your favorite channel group out of 8 favorite
groups.
Select the“Move Channel”icon using the“left/right”keys(◀∙▶).
Select a channel that you want to move using the“up/down”keys(▲∙▼) and the“page
up/down”keys(▲
▲ ). Press“OK”key to confirm your selection. Move it to the position where you
want to place it using the“up/down”keys(▲∙▼) or, and the“page up/down” keys(▲
).
▲
Press the“OK”key to confirm.
Press the“menu”key or“exit”key to return to previous menu.
▲
▲
You can edit the favorite channel list, such as add/delete a channel or move its position, which
facilitates you to easily find your favorite channel from the favorite channel list.
The favorite channel is classified into one of 8 favorite categories depending on its genre.
▲
▲
3.B. EDIT FAVORITES
3.B.4. Rename Favorite Group
You can choose TV channel list or Radio channel list in an alternative way by pressing the“
”
key on the RCU.
By pressing“FAV”key on the RCU, you can choose your favorite channel group out of 8 favorite
groups.
Select the“Rename Favorite Group”icon using the“left/right”keys(◀∙▶).
Press the“OK”key and select the character which you want to edit using the browse keys(◀∙▶,
▲∙▼).
Press the“OK”key to confirm.
Save the character currently renamed using the“F2”key.
Press the“menu”key or“exit”key to return to previous menu.
▲
▲
3. B.2. Delete Favorite Channel
You can choose TV channel list or Radio channal list in an alternative way by pressing the“
”
key on the RCU.
By pressing“FAV”key on the RCU, you can choose your favorite channel group out of 8 favorite
groups.
Select the“Delete Channel”icon using the“left/right”keys(◀∙▶).
Select a channel that you want to delete from the favorite channel list using the“up/down”
keys(▲∙▼) and the“page up/down”keys( ▲
). Press the“OK”key, and the selected channel
▲
will disappear from the favorite channel list.
Press the“menu”key or“exit”key to return to previous menu.
▲
▲
24
3.B.5. Sort Channel List
You can choose TV Channel list or Radio channel list in an alternative way by pressing the“
”
key on the RCU.
By pressing“FAV”key on the RCU, you can choose your favorite channel group out of 8 favorite
groups.
Select the“Sort Favorite List”icon using the“left/right”keys(◀∙▶). Press“OK”key to confirm.
Select the sort type which you want to sort using the“up/down”keys(▲∙▼).
Press the“OK”key to confirm.
Press the“menu”key or“exit”key to return to previous menu.
25
4. SYSTEM INFORMATION
Select the firmware upgade file and press OK.
Distributor supports you useful information and new software for the receiver.
4. A. RECEIVER INFORMATION
This menu displays the information of S/W version.
4. B. RECEIVER UPGRADE
You can upgrade the software of this receiver through
serial port or USB port when the new software is
released.
Please contact the distributor for receiver upgrade.
When file transfer is complered, the receiver will
be automatically rebooted.
4. B.1. USB
Firmware upgrade using USB flash drive.
Copy the firmware upgrade file to a USB flash drive.
Connect the USB flash drive to USB port in a receiver.
Go to “System Information” then select “ Receiver
Upgrade” Select USB and press OK button.
26
27
5. GAMES
7. CHANNEL GUIDE
Press“GUIDE”key, and the following screen will be
displayed. It will give the titles of the current and next
programmes on different channels.
The information may include : current time / channel
name, name of the current and next programme, the
start and total time of the current programme, the start
and total time of the next programme.
Programme information will be available only when it is
included in the transmission.
When you press the
“
”key, you can alternatively
select TV or radio channel guide.
Press the“menu”key or“exit”key to return to previous
menu.
This menu helps you play game called Tetris. In this
game you can choose level from 1 or 9. Once you
choose game menu from main menu, you can choose
OK to start a game.
6. CHANNEL LIST
This menu helps you to easily select the channel that you
want to watch. The channel list is separately constructed
for each satellite. Press“OK”key, and the following
screen will be displayed. You can get the information of
channel number, channel name, and whether the
program is scrambled or locked.
To watch a specific channel, first select it by pressing the
“up/down”keys (▲,▼) and the“page up/down”keys
(▲
▲ , ). Then, press“OK”key. This enables you to move
into that specific channel.
You can also select a specific satellite using the“SAT”
key. When you press the
“
”key, you can
alternatively select TV or radio channel list. When you press Press the“menu”key or“exit”key to
return to previous menu.
When you press
“GUIDE” key again, Daily Guide will be
displayed. You can see all events for selected chanel.
▲
▲
8. AUDIO
Press“AUDIO”key.
Select the audio mode which you want using the“left / right”keys(◀,▶).
Some programs are broadcasted with one or more alternative language soundtracks.
You can select the preferred audio language for soundtrack using the“up/down”keys (▲,▼).
28
29
9. ZOOM FUNCTION
11. COLOR SETTING MENU
You can adjust the color seting to take the enhenced
TV screen. Press “COLOR (F2 , TEXT)” key then
below screen will display.
On the live TV screen or paused TV screen, you can magnify some region of TV screen.
Press “F4” key and the ZOOM box will be display.
You can use following keys.
- Up/Down/Left/Right keys (▲∙▼,◀∙▶) : Move the ZOOM box
- Page Up/Page Down keys ( ▲
▲ , ) : Increase or decrease the ZOOM box
- OK key ( OK ) : Watch the ZOOM box to full screen or return to ZOOM box
- Exit key ( EXIT ) : Return to the live screen
▲
▲
10. MULTI PICTURE
You can use the Multi-picture Function using F1 key.
You can watch four, six or nine pictures at the same
time using this function. And select the number of
pictures using (▲,▼) keys and press OK. After that,
you can see the Multi-Picture Screen. Also you can
select the channel using(◀,▶ ▲,▼) keys and OK
key in the Multi-picture Screen. The channel of your
selection is only live signal when you selected one
channel of the several channels. The channels of
which is not selected are just the pictures.
4 Picture
30
6 Picture
Mode
: You can select this to “Default” or “User”
When “Mode” is “User” , you can change each color value.
Brightness
Contrast
Saturation
Sharpness
: If your receiver connected to TV by using “VIDEO” or “S-VIDEO”
Connector , these items will change the color setting of TV
screen.
M_B_Y
M_G_U
M_R_V
: If your receiver connected to TV by using “Component cable”
“(Y-Pb-Pr)” , these three items will change the color setting of TV
screen.These options are for XTREME model only.
9 Picture
31
Trouble Shooting
Technical Specifications
9. TECHNICAL SPECIFICATIONS
8. TROUBLE SHOOTING
Problem
Solution
About the Receiver
Does not display LED on the
- Connect the power cord to the power outlet
front panel or the receiver has no power.
properly.
- Check if the receiver is in standby mode.
- Check if the video output port is firmly
connected to the TV.
- Check if you have selected the correct
channel or video output on your TV.
No pictures on the screen
No sound
- Connect the audio cords properly.
- Check the volume level of the TV.
- Press“MUTE”key.
Remote Control does not operate
- Point remote control directly towards the
receiver.
- Check and replace Alkaline batteries.
Poor picture quality
- Check the signal strength in the“Antenna
Setup”menu.
- If this is low, try adjusting the alignment of
your dish.
On - Screen Error Messages
Searching Signal
32
- Connect the antenna cable properly.
- Check the LNB. Please replace LNB if
necessary.
- Check the position of the dish. Please realign
dish if necessary.
- Check the signal strength in the“Antenna
Setup”menu.
Unrecognized smartcard
- Check the smartcard.
Please insert your smartcard
- Insert the smartcard.
1. Power Supply
Type
Input Voltage
Fuse Rating
: SMPS
: AC 95V~240V 50Hz / 60Hz
: 250V/T2A
2. Tuner
Input Frequency
Input Signal Level
Input Impedance
Connector Type
LNB Power Supply
22KHz Tone
DiSEqC
Channel Selection
: 950�2150MHz
: -65�-25dBm
: 75Ϊ Unbalanced
:‘F’Type Female
: 13V/18V, Max 500mA with Short Circuit Protection
: Frequency 22± 4KHz, Amplitude 0.6±0.2Vpp
: 1.0 & 1.2 Version Compatible
: PLL Frequency Synthesizer
3. Demodulator
Type
Symbol Rate
Inner FEC
Outer FEC
: QPSK Demodulation(DVB-S)
: 1�45 MS/s
: Viterbi Convolutional Coding
Rate 1/2, 2/3, 3/4, 5/6, 7/8
: Reed Solomon Coding(204,188) T=8
4. Video Decoder
System Decoding
Profile and Level
Data Rate
Video Formats
:
:
:
:
MPEG-2 ISO/IEC 13818-2
MPEG-2 [email protected]
1�15 MB/s
4:3(Normal) & 16:9(Widescreen)
33
Programing The Remote Control
10. PRORAMING THE REMOTE CONTROL
5. Audio Decoder
System Decoding
Audio Mode
Sampling Frequency
: MPEG-1 ISO/IEC 11172-3
Layer I & II
: Mono, Dual, Stereo, Joint Stereo
: 32, 44.1, 48 KHz
6. Audio/Video Output
Audio Output
Video Output
Digital Audio
S-Video
COMPONENT
:2
:1
:1
:1
:3
RCA Cinch
RCA Cinch
S/PDIF (Optical)
S-VIDEO
RCA Cinch
7. RF Modulator
Modulator Output
Video Type
Output Connector
Ant. IN Connector
: CH3~4
: NTSC
: “F” Type Female
: “F” Type Female
8. Serial Data Interface
Signal
Connector Type
: RS-232, Max. 115200 bps
: 9 Pin D-Sub(male)
9. USB Interface
USB
Data rate
: USB Host Port
: 12M bps
10. Embedded Descramble
X Crypt Conditional Access System
34
35
36
37
Warranty Card
11. WARRANTY CARD
38
39
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
