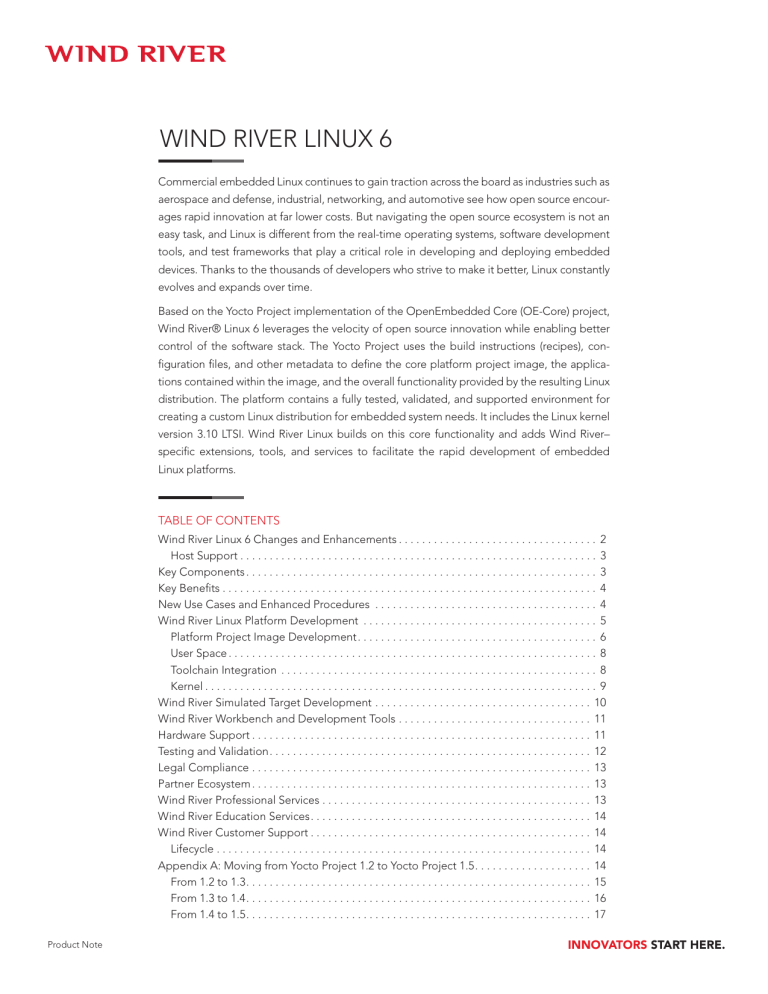

WIND RIVER LINUX 6
Commercial embedded Linux continues to gain traction across the board as industries such as
aerospace and defense, industrial, networking, and automotive see how open source encourages rapid innovation at far lower costs. But navigating the open source ecosystem is not an
easy task, and Linux is different from the real-time operating systems, software development
tools, and test frameworks that play a critical role in developing and deploying embedded
devices. Thanks to the thousands of developers who strive to make it better, Linux constantly
evolves and expands over time.
Based on the Yocto Project implementation of the OpenEmbedded Core (OE-Core) project,
Wind River® Linux 6 leverages the velocity of open source innovation while enabling better
control of the software stack. The Yocto Project uses the build instructions (recipes), configuration files, and other metadata to define the core platform project image, the applications contained within the image, and the overall functionality provided by the resulting Linux
distribution. The platform contains a fully tested, validated, and supported environment for
creating a custom Linux distribution for embedded system needs. It includes the Linux kernel
version 3.10 LTSI. Wind River Linux builds on this core functionality and adds Wind River–
specific extensions, tools, and services to facilitate the rapid development of embedded
Linux platforms.
TABLE OF CONTENTS
Wind River Linux 6 Changes and Enhancements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Host Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Key Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Key Benefits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
New Use Cases and Enhanced Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Wind River Linux Platform Development . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Platform Project Image Development. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
User Space. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Toolchain Integration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Kernel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Wind River Simulated Target Development. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Wind River Workbench and Development Tools. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Hardware Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Testing and Validation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Legal Compliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Partner Ecosystem. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Wind River Professional Services. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Wind River Education Services. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Wind River Customer Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Lifecycle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Appendix A: Moving from Yocto Project 1.2 to Yocto Project 1.5. . . . . . . . . . . . . . . . . . . . . 14
From 1.2 to 1.3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
From 1.3 to 1.4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
From 1.4 to 1.5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Product Note
INNOVATORS START HERE.
Wind River Linux 6
Wind River Linux 6 supports:
• Straightforward platform project configuration, build, and deployment that simplifies Yocto
Project development
• A range of popular board support packages (BSPs) to support most embedded hardware
platforms
• An enhanced command-line interface (CLI) to the system
• A developer-specific layer for platform project development and management
• Platform project portability to copy or move platform projects, or create a stand-alone
platform project
• A custom USB image tool for platform project images
WIND RIVER LINUX 6 CHANGES AND ENHANCEMENTS
Wind River Linux supports all Yocto Project build commands, but also offers simplified configure and build commands. This functionality greatly reduces the learning curve, so users can
start using the technology much more quickly. It also simplifies the development process by
offering configurations that have been tested and options that have already been proven to
work. Wind River Linux provides development environments for a number of host platforms
and supports a large and ever-growing set of targets.
Wind River Linux 6 comes with a set of new and enhanced features:
• BSP cloning: Developers can clone BSPs for added testing and development convenience.
• SDK support: Wind River Linux includes a software development kit (SDK) for application
development on a Windows® host. In addition, a new installer helps simplify the importing
of Linux SDKs.
• Kernel module debugging: Wind River Linux includes a debugging and analysis tool set.
Kernel debugging can be done with KGDB using gdb from the command line.
• Quilt integration for patch management: Wind River Linux uses the quilt program for
managing the application of patch files. For each package being patched, quilt keeps the
patch files in a specified directory and a rollback database in another specified directory.
• Late boot-time optimization: The time between launching the init process and completing the execution of the last start-up script has been optimized for faster boot times.
• Creating multiple platform project images from a single build: Developers can create
multiple platform project images from a single build project by specifying the image type
at project configuration.
• Creating initramfs-based project images: Wind River Linux expands on the initramfs support in the Yocto Project by providing the ability to specify the contents of the image and
also bundle the image with a kernel image.
• Creating and configuring a preemptible kernel: Wind River Linux provides a conditional
real-time kernel type, preempt-rt, for certain board and file system combinations.
• Creating ISO images, and creating and burning project images directly to a USB
device: Using the enable-bootimage option, developers can create a single, bootable
image from which to boot a target device.
• Creating and deploying KVM host and guest platforms: Developers can create and
deploy a Kernel Virtual Machine (KVM) guest image from a KVM host, and configure
MacVTap and Virtio to enable networking between the host and guest.
2 | Product Note
Wind River Linux 6
Host Support
Wind River Linux can support a variety of modern Linux host operating systems. For
convenience, Wind River pre-validates Wind River Linux on a subset of them (defined as
validated hosts).
Table 1: Validated Hosts for Wind River Linux 6 and Workbench 3.3.5
Operating System
Architecture
Red Hat Enterprise Linux Workstation 5, Update 9
x86 32-bit, x86 64-bit
Red Hat Enterprise Linux Workstation 6, Update 4
x86 32-bit, x86 64-bit
OpenSUSE 12.3
x86 32-bit, x86 64-bit
Novell SUSE Linux Enterprise Desktop 11 SP3
x86 32-bit, x86 64-bit
Fedora 19
x86 32-bit, x86 64-bit
Ubuntu Desktop 12.04
x86 32-bit, x86 64-bit
KEY COMPONENTS
Figure 1 is an overview of the components of Wind River Linux. The product consists of
source code and a build system that generates an optimized run-time image suitable for
embedded devices. The components of the product are referenced by the developer to
Migration and Design Services
Wind River Global Support
create a defined run-time image.
Export
Compliance
Controls
Open Source
License Compliance
Controls and
SPDX Disclosures
Development
Lifecycle Solution
Wind River
Workbench
Partner
Software
Ecosystem
Yocto Project Tools
Yocto Project Run-Time
Wind River Simics
(optional add-on)
Commercial Grade Linux Optimized
Cross-Architecture Run-Time
Figure 1: Major components of Wind River Linux
Wind River Linux contains the following components:
• Application packages: Hundreds of software packages that operate in protected Linux
user mode
• Kernel source: The 3.10 Linux kernel with many fixes and feature enhancements
• BSPs: Hardware enablement components
• Tools: Software development tools, including the award-winning, Eclipse-based
Wind River Workbench development suite, or Wind River Simics®, an optional product
offered by Wind River, that creates a high-performance virtual environment supporting virtually any target platform
3 | Product Note
Wind River Linux 6
• Build system: Yocto Project build system, which is used by the developer to compile and
assemble these components
• Toolchain: Wind River GCC 4.8 toolchain based on OE-Core
• Profiles: Pre-configured profiles for market-specific device types
Platform development creates a bootable Wind River Linux system for a target, including
kernel, file system, and libraries.
KEY BENEFITS
The following are some of the competitive advantages of Wind River Linux:
• Commercial product quality with extensive testing and quality assurance, reliable service
packs, and security patches with standard software product lifecycle support
• Yocto Project compatibility
• Lower costs due to the elimination of the need to build, support, and maintain the customer’s own Linux distribution, allowing them to focus on differentiating applications rather
than on maintaining Linux itself
• Industry-specific profiles to support market requirements
• Rich tools and development environment support based on the Eclipse framework
• Extensive hardware and software ecosystem support
• Lower total cost of ownership (TCO), with each Wind River Linux release bringing patches
(monthly maintenance releases) and security vulnerability management
• Commercial grade intellectual property (IP) compliance review and disclosure
documentation
• World-class global support coverage to address immediate and long term support needs
for the lifetime of customer devices
• Predictable roadmap for long-term product planning
• Best-in-class embedded Linux professional services and education offerings
• Complete and detailed documentation of software package license information
NEW USE CASES AND ENHANCED PROCEDURES
Wind River Linux 6 is a flexible and expandable development environment that allows customers to configure, build, and customize Linux target distributions, and then develop applications and packages tailored to their distribution. In addition, an extensive set of debug and
analysis tools allows customers to optimize their results to produce a quality final product.
New use cases and procedures are supported in Wind River Linux 6, including the following:
• Package Manager: This feature allows developers to list dependencies and modify package lists so they can scale a platform project to add or exclude functionality by adding and
removing packages. The Wind River front end of the Yocto Project/BitBake build system
implements the concept of templates and individual packages that can be added to (and in
some cases excluded from) a project, in addition to the packages specified in the BitBake
recipes in the various layers that make up the project. Using these features, users can customize a platform project configuration, and as a result, scale their file system to include the
minimal set of components for their application.
4 | Product Note
Wind River Linux 6
• Platform project portability: Wind River Linux uses variables to define the platform project’s location, making it possible to copy or move a platform project on the same build host
to another location, or create a standalone project.
• Self-hosted support: To create a platform project image that users can develop on,
Wind River Linux 6 includes a template that adds most of the native packages to the target
file system, providing a target system with the ability to build itself.
• Automated package revision and new build history feature: Using the Package Revision
server, Wind River Linux 6 enables the package build history feature to aid in packagerelated debugging.
• Shared state cache server: A remote shared state cache server helps customers accelerate builds in a shared development environment.
• Improved optimization options: Available script options will help minimize build environment disk space.
• Improved platform project image password and group file management: Users can
modify the password and group file construction process to produce custom password
and group files.
• Ptest validation support: Wind River Linux includes a validated version of ptest to use as
a basis for validating the packages that comprise the platform project image
• New glibc_tiny file system: glibc_tiny is a minimal file system, providing a small footprint
of approximately 4 MB, that can be used as a starting point for developing very small distributions for resource-constrained devices.
WIND RIVER LINUX PLATFORM DEVELOPMENT
Wind River Workbench
Graphical User
Interface
Host Shell
Wind River
Developer Network
Eclipse Framework
Project
Editor
Build
Source Code
Analyzer
Analysis
Data
Compiler
Debugger
Memory
Perform
Coverage
Trace
System
Viewer
Third-Party
CM
Unit and
Integration
Testing
Alternate
Editor
Diagnostics
Third-Party
Tool
Target Agent and On-Chip
Debugging Connectivity
VxWorks
Simulator
Wind River Linux
Figure 2: Working environment for developing Wind River Linux
5 | Product Note
VxWorks
Wind River Linux 6
With Wind River Linux, users can configure and build a platform project image to develop it
according to their needs. There are a large number of options for the board, kernel configuration, user space configuration, and so on. Or the profile option may be used to select the
kernel and user space configuration automatically, based on the selected BSP and profile
combination.
Platform Project Image Development
Users start by creating a project using either Wind River Workbench scripts or in-line commands. The build environment includes a combination of Yocto Project (BitBake build system—layers, recipes, and templates) and Wind River Linux components.
The build system uses metadata to define all aspects of the platform project image and
its applications, packages, and features. Metadata resides in the development and build
environments. From a build system perspective, metadata includes input from the following
sources:
• Recipe (.bb) files: Wind River Linux 6 uses over 800 recipes to organize metadata.
• Recipe appends (.bbappends): These allow changing recipe behavior from one or more
layers in an easily maintained way.
• Class (.bbclass) files: These common build instructions are used by the recipes and build
system to control the build process.
The build system uses this metadata as one source of input for platform project image
creation.
Configuration and Build
The Yocto Project BitBake build system with Wind River Linux allows users to create multiple
builds, customized builds, and a strict version control system, while keeping the development environment pristine and intact.
There are four basic file systems available in Wind River Linux:
• glibc core: Smaller-footprint version of the glibc standard file system, including all packages necessary to create a smaller file system that is not based on BusyBox
• glibc standard: Full file system, with glibc but without Carrier Grade Linux–relevant packages or extensions
• glibc small: Much smaller, BusyBox-based file system, with glibc
• glibc standard Sato: Full file system with glibc, optimized for the Sato interface (Sato is
part of Poky, the Yocto Project platform builder)
6 | Product Note
Wind River Linux 6
Upstream
Project
Releases
Local
Projects
SCMs
(Optional)
Source Materials
User
Configuration
Metadata
(.bb + patches)
Machine BSP
Configuration
Policy
Configuration
Source
Fetching
Patch
Application
Config/
Compile/
Autoconf
as Needed
OpenEmbedded Architecture Workflow
Upstream Source
Metadata/Inputs
Build System
.deb
Generation
Output
Analysis for
Package
Splitting plus
Package
Relationships
QA
Tests
.rpm
Generation
.ipk
Generation
Output Packages
Process Steps (Tasks)
Output Image Data
Package Feeds
Generation
Images
SDK
Generation
Application
Development
SDK
Figure 3: Architecture workflow
Layers
Layers provide a mechanism for separating functional components of the development
environment. They are multiple independent collections of recipes, templates, code, configuration files, and packages, typically contained in a layer directory. Multiple layers may
be included in a single project, and each layer can provide any combination of features,
ranging from kernel patches to new user space packages.
A layer allows the addition of new files, such as the recipes that define a specific package or
packages, and machine configuration files that define a board for a new BSP, without modifying the original development environment. Users can create their own layers and organize
the content to better suit their development needs, and include or exclude the layers from
the project configure and build.
In Wind River Linux, layers reside in the installation (development) environment and the
build environment. When users configure and build a platform project image, the layers
in the installation provide configuration information depending on their platform project
configuration.
Recipes
If users want to include applications or packages in their platform project build, they must
have a recipe file associated with them. The build options make it possible to copy and
modify an existing recipe file, or create one from scratch.
Templates
Wind River Linux provides feature and kernel templates to simplify development. Once
users configure a platform project, templates are added to their platform project directories.
7 | Product Note
Wind River Linux 6
File System Layout Feature
The file system layout feature has been designed to allow users to view the contents of
the target file system in Workbench as it will be generated by the platform project build
system. Users have better control of the build by checking file meta-properties, adding files
and directories to the file system, viewing and removing packages, adding devices to /dev
and changing their ownership, viewing files and directories that have been “touched” or
accessed on the target, and so on.
Because the file system layout feature makes the changes to the file system image after
package dependency resolution, it has full power to redo the final image without having to
alter the original packages (and their often complex and unyielding dependency graphs).
User Space
Customers can use the Wind River Linux SDK to develop applications and cross-compile
them for the intended target.
The Wind River Linux SDK is a development environment that provides all the necessary
tools to cross-compile and deploy user applications on the intended target. The SDK is
generated from a working Wind River Linux platform project and is therefore associated
with the particular architecture and build options of the project.
In a typical scenario, users cross-compile their application and run it to verify its core functionality. This can be done on the target or on an emulator as well, such as QEMU. Any further testing may require deploying the applications on a real target, and finally integrating
the binaries with the build system so that they are automatically deployed on the target’s
image.
Users can even export the SDK they created on a different host (e.g., Windows for application development). Once tested, applications can be added to an existing platform project image or to a root file system using changelist.xml. Additionally, applications can be
imported using the Package Importer tool. This Workbench tool will add application packages in various forms to the user’s platform project image.
Toolchain Integration
Users compile packages from source packages to binaries using the Wind River toolchain.
The Wind River Linux toolchain, a GCC version 4.8, offers a number of additional features
and modifications to the upstream projects, making exact version numbers non-comparable, but the core utilities are gcc 4.8, binutils 2.23, eglibc 2.18, and gdb 7.6. Additional
support for specific embedded processors and extended functionality are included in the
toolchain.
Among the new features are the following:
• binutils 2.23.2: Added support for various architectures and processors
• GCC 4.8.1: Improved language implementation (C++)
• eglibc 2.18: Optimized functions and various other improvements
• gdb 7.6: Added support for integrated python helpers and new targets
8 | Product Note
Wind River Linux 6
Kernel
Following are highlights of the new kernel features:
• ARM64 and ARM KVM preliminary
• ARM big.LITTLE preliminary
• Full user namespace
• Uprobe (x86 and PowerPC)
• More perf functionality
The code base of the Wind River Linux kernel supports many features that are available for
specific applications but not necessarily suitable for all. Wind River provides predefined
kernel styles that are specific to these applications.
Customizing the Linux kernel to better fit the particular details of a hardware implementation is almost always a required step in an embedded software development cycle. Users
can add or remove options to the Linux kernel by applying patches directly to the source
code.
Kernel customization can take the form of simply enabling or disabling kernel configuration
options, typically to enable specific drivers and to shrink the final kernel image and runtime load by removing unneeded functionality. Customization can also come in the form of
patches, either in-house or third-party, applied to the source code to modify specific areas
of kernel behavior.
Unlike other packages in the build system, the kernel is not single-purposed or targeted at a
particular piece of hardware. It must perform the same tasks and offer the same APIs across
many architectures and different pieces of hardware.
The key to managing a feature-based patching of the Linux kernel is to remove both the
distributed control of the patches (subdirectory-based patches.list files) and the hand editing of the patch files.
Replacing these two characteristics with script-based patch list generation and a method
to control and describe the desired patches with a top-down approach eases the management of kernel patching complexity. Additionally, direct mapping between BSPs and profiles is easy and increases maintainability. The scc script has been implemented to control
the process of patch list generation and feature-based patching.
Wind River provides predefined kernel styles that are specific to users’ applications. The
kernel styles shipped with the product are described here:
Tiny
Wind River Linux 6 introduces a new type of kernel. Inherited from the Yocto Project, Tiny
is the most basic kernel configuration for bringing up the target, and has a small footprint.
This option is only valid when using the corresponding glibc-tiny file system. As opposed to
the standard configuration, it is intended to be a very small device starting point, and not a
general purpose configuration.
9 | Product Note
Wind River Linux 6
preempt_rt
Wind River Linux provides a conditional real-time kernel type, preempt-rt kernel from the
Yocto Project, for certain board and file system combinations. To enable the preemptible
real-time feature, users must simply configure their project with the preempt-rt kernel
option.
Highlights of this option include:
• Support on four architecture families: Intel®, ARM®, PPC, MIPS
• Upstream 3.10 –rt11 base
• Extra defect fixes from Wind River
WIND RIVER SIMULATED TARGET DEVELOPMENT
Embedded systems are typically configured, programmed, and built on a host system and
then deployed to a target system. If you have a physical target system or board, you will test
your platform and application on that target. Your target might have a network interface
and on-board tools through which you can deploy software.
You may not have the actual target available at all times, so it may be more convenient to
use a target simulator on your host. Wind River Linux provides simulated target development with QEMU and Wind River Simics, in addition to supporting a range of hardware target BSPs. Refer to the Wind River Linux Release Notes for information on supported BSPs.
QEMU provides a simulated deployment environment for testing platform projects and
applications. It supports many development boards, and does not require actual target
board hardware or networking preliminaries. QEMU deployment offers a suitable environment for application development and architectural level validation. User-space and kernel
binaries are compatible with the real hardware. QEMU provides a means to rapidly test and
debug platform projects and applications using Wind River Workbench or the command
line.
Simics creates a high-performance virtual environment in which any electronic system—
from a single board to complex, heterogeneous, multi-board, multiprocessor, multi-core
systems—can be defined, developed, tested, and deployed. Simics removes hardware
dependencies that slow product prototyping, facilitates hardware and software co-development, and makes it possible to test early and test often, improving product quality and
eliminating late-in-the-game integration testing. Teams using Simics experience dramatic
cost savings throughout the development lifecycle, reach market 18 months faster, cut a
year’s time from ecosystem enablement, and produce higher-quality products. Simics also
speeds and simplifies development on cutting-edge multi-core hardware. For more information, visit www.windriver.com/products/simics/.
10 | Product Note
Wind River Linux 6
WIND RIVER WORKBENCH AND DEVELOPMENT TOOLS
Wind River Workbench is a development suite that facilitates creating and building projects, establishing and managing host-target communications, and developing, debugging,
and monitoring operating system kernels as well as device software applications running on
a real or simulated target.
Workbench and Wind River Linux make a number of analysis tools available to the developer. Some are enhanced versions of open source tools related to profiling and memory
usage, and some are specifically developed by Wind River:
• Performance analysis: Wind River Workbench Performance Profiler analyzes how a CPU
is spending its cycles by providing a detailed function analysis that shows how individual
routines within the processes consume those cycles. This feature is based on the open
source tool OProfile, with additional visualization and integration in Workbench.
• Memory analysis: Wind River Workbench Memory Analyzer is a dynamic memory analysis tool that helps prevent and fix such problems as memory leaks, excessive numbers of
memory allocations, and excessive memory allocation sizes. Memory Analyzer uses the
open source tool mpatrol, with additional visualization in Workbench.
• Boot-time analysis: Wind River Linux uses the ftrace tool to provide lightweight function
tracing and includes dynamic ftrace and early-ftrace for boot-time analysis.
• Code execution coverage: The code coverage analyzer feature of Workbench determines the percentage of source code executed by a user’s software test case, and points
to the sections of code that have not been fully tested.
• Valgrind: By running an application in a virtual machine, Valgrind tracks memory management problems and threading bugs.
• LTTng: This tool provides tracing capabilities for both kernel and user space.
• System viewer: Wind River System Viewer supports visualization of multi-core systems;
per-core filter and search facilities; the recording of a number of custom events, which
use a printf-like format string; and graphical and tabular representations of various types
of log file analyses such as CPU usage (aggregate and per core), system load, and percore ready and running states. System Viewer also supports a host-driven upload method
for log files, resulting in log transfer without interference from task CPU use. It also allows
transfer of multiple logs, in addition to transfer without requiring users to call target
functions.
HARDWARE SUPPORT
Wind River Linux BSPs are hardware enablement components that contain elements such
as drivers and settings needed to make Wind River Linux support specific hardware.
BSPs are separable configuration components that can be created and added to Wind River
Linux at any time. In addition to the BSPs Wind River Linux ships with, boards are added
continually according to customer demand and hardware availability. Such additional BSPs
are available through the online Wind River Support Network to customers under an active
platform subscription. Also, Wind River Professional Services can create customer specific
BSPs for hardware that is not covered.
11 | Product Note
Wind River Linux 6
A typical BSP includes board-specific configuration files that overwrite or add configuration
options defined by the common platform templates. Additional kernel patches included
in the BSP can add new device drivers or apply necessary changes to existing Linux code.
BSPs can also contain additional user space components or other files.
Wind River has validated proper operation of the Linux run time for each supported reference board. The supported features are board-specific and depend on the availability and
maturity of the code in the open source community.
Wind River Linux ships with a wide range of BSPs covering ARM, Intel, x86, MIPS, and
PowerPC target processors.
BSPs are also created and shipped asynchronously, after the product is released. Contact
Wind River to get an up-to-date supported BSP list with detailed descriptions of supported
peripherals.
TESTING AND VALIDATION
Wind River is committed to providing quality products for both proprietary and opensource-based technologies. Our quality policies include formal code inspections, peer
reviews, project reviews, program audits, and traceable requirements change management.
Wind River Linux was created following a methodical process to thoroughly test key features on every supported reference configuration (defined by development host, kernel and
package configurations, and supported board).
Wind River has developed a robust, scalable, and automated build and test infrastructure
with more than 4,000 test cases and 140,000 test runs. More than 30 million lines of code
were tested using this Test Automation Framework, which supports many processor architectures and uses a combination of commercial, open source, and proprietary tests, including LTP Core, LTP Network, LSB, TAHI, and Open POSIX. Wind River uses coverage tools,
such as gcov and lcov, to optimize test development and close gaps in existing test suites.
Testing of Wind River Linux 6 includes the following:
• Sanity testing
• Feature testing
• Regression testing
• Complete build testing
• Full run-time testing
• Documentation testing
• Fix verification
• Out-of-box experience (OOBE) testing
• Benchmark/performance testing
• Compliance testing (LSB, IPv6, IPsec, etc.)
12 | Product Note
Wind River Linux 6
LEGAL COMPLIANCE
Wind River performs thorough legal reviews of the compilation and documentation of
the General Public License (GPL) and other licenses that control each major release of
Wind River Linux. Combining human legal expertise and proprietary automated tools,
Wind River examines each open source package that comes into the product to identify
and resolve potential intellectual property issues before the product is released. Customers
receive extensive documentation to assist them in the protection of their intellectual
property.
Using Linux Foundation’s standard format for recording and exchanging licensing information of a software package, Wind River uses the data generated by the software compliance review process and delivers Software Package Data Exchange® (SPDX®) information.
Wind River supports the SPDX project in various ways:
• Actively contributes to the SPDX technical, legal, and business working groups
• Utilizes SPDX data in software IP compliance review
• Provides a free cloud service where anyone can create SPDX files
PARTNER ECOSYSTEM
The world-class Wind River partner ecosystem ensures tight integration between our core
technologies and those of the premier hardware and software companies chosen to build
out our solutions. Our partners help extend the capabilities of Wind River Linux by offering
out-of-the-box integration and support for key technologies in a number of fast-moving
markets. Our team is trained to troubleshoot partner technologies in use with Wind River
products, making ours the best-supported ecosystem in the embedded and mobile software industry.
The Wind River partner ecosystem is constantly expanding. Contact us for more details or
visit www.windriver.com/partners/.
WIND RIVER PROFESSIONAL SERVICES
A CMMI Level 3–certified organization, Wind River Professional Services offers a unique
mix of embedded and vertical market expertise. We offer consultative thought leadership,
deep technical capabilities, and innovative industry solutions to help you overcome your
most strategic and pressing development challenges.
As part of our comprehensive solutions, Wind River offers a Linux Services Practice, with
focused offerings that help customers meet strict market deadlines while keeping development costs down. Our industry-specific offerings span the entire project lifecycle, including
architecture, design, development, porting, integration, and maintenance services; and we
leverage our state-of-the-art platform simulation and test tools to accelerate deliverables
and provide valuable reporting and documentation. Our global organization provides flexible engagement options for consulting, training, and support that will meet your project resourcing requirements and budget. For more information, visit www.windriver.com/
services.
13 | Product Note
Wind River Linux 6
WIND RIVER EDUCATION SERVICES
With more than 30 years of embedded software experience, Wind River provides education
services in every region of the world. We offer flexible training options to meet your business and learning needs, including public, private, and custom courses. For your specific
project challenges, Wind River Mentoring provides coaching by experienced engineers
to help you integrate Wind River solutions into your environment. And when you’re too
busy to attend a whole class, our on-demand learning options provide around-the-clock
access to advanced and specialized topics. All of our education services are led by expert
engineers who are closely connected to the Wind River technical community for access to
specific expertise. For Wind River Linux we offer deeply technical hands-on courses, including RTOS to Linux Migration Essentials, Wind River Linux Application Development, Wind
River Linux BSP Development, and many more. For more information, visit www.windriver.
com/education.
WIND RIVER CUSTOMER SUPPORT
Wind River Linux is backed by our award-winning global support organization. With six
major support centers, 21 additional support hubs, and more than 150 experts worldwide,
you can get the help you need in the language and time zone that work best for you. Our
online Wind River Support Network provides multifaceted self-help options, including an
active Q&A Forum. Optional premium services, including designated support engineers
and hosting of customer-specific environments, offer the fastest possible time-to-resolution. We are proud to have achieved Service Capability and Performance certification,
recognized as the gold standard for delivering world-class customer support. For more
information, visit www.windriver.com/support.
Lifecycle
Every major version of Wind River Linux is maintained and supported over several years.
When customers want to continue running legacy versions of Wind River linux and wish
to continue receiving maintenance and technical support services, Wind River Linux Long
Term Support offers an extension of the product lifecycle. It includes e-Support, which provides continuous access to the Wind River Support Network; Enterprise Support, which
adds live support and maintenance; and customer-specific maintenance. For more information, contact your local account team or [email protected]
APPENDIX A: MOVING FROM YOCTO PROJECT 1.2 TO YOCTO PROJECT 1.5
The first Yocto Project Compatible Wind River Linux was Wind River Linux 5. This commercial Linux was based on the Yocto Project 1.2 release.
Based on the Yocto Project 1.5 release, Wind River Linux 6 represents a leap in this category.
It incorporates six different components from the Yocto Project community, OE-Core being
the biggest. The change from the 1.2 release to the 1.5 release translates into almost 6,000
commits. The most common modifications apply to recipes and classes, but also to additional files like scripts and configurations, as can be seen below. Many of the features have
also been back-ported into Wind River Linux 5.
14 | Product Note
Wind River Linux 6
The design of the Yocto Project BitBake build system offers several important advantages.
• If a pre-built kernel and file system are satisfactory for deployment or current testing
and development, customers can build a complete run-time file system in minutes using
prebuilt kernel and file system binaries.
• Customers can build specific parts from source files, saving time by building only the
file system, or only the kernel, or a specific package—whichever element is of current
interest.
• Builds cannot contaminate the original packages, layers, recipes, templates, and configuration files, because the development environment is kept separate from the build
environment. All project changes are included in the projectDir/layers/local directory to
simplify development.
• By using custom layers and templates, users can add packages, modify file systems, and
reconfigure kernels for repeatable, consistent builds, yet still keep their changes confined
for easy removal, replacement, or duplication.
• These last two features allow multiple builds, customized builds, and a strict version control system, while keeping the development environment pristine and intact.
• Users can create the build environment as regular users with the configure script. It
is in this environment that users build (make) their Wind River Linux run-time system,
either default or customized, using software copied or linked from the development
environment.
From 1.2 to 1.3
• sstate directory: The shared state cache (sstate-cache), as pointed to by SSTATE_DIR,
by default now has two-character subdirectories to prevent issues rising from too many
files in the same directory. Also, native sstate-cache packages will go into a subdirectory
named using the distro ID string.
• meta-yocto layer: This layer now consists of two parts that correspond to the Poky
reference distribution and the reference hardware BSPs, respectively: meta-yocto and
meta-yocto-bsp.
• Python function white space: All Python functions must now use four spaces for indentation. Previously, an inconsistent mix of spaces and tabs existed, which made extending
these functions using _append or _prepend complicated, given that Python treats white
space as syntactically significant.
• SRC_URI: Any use of proto= in SRC_URI needs to be changed to protocol=. In particular,
this applies to the following URIs: svn://, bzr://, hg://, osc://.
• nativesdk: The suffix nativesdk is now implemented as a prefix, which simplifies a lot of
the packaging code for nativesdk recipes.
• Task recipes: These recipes are now known as “package groups,” and have been
renamed from task-*.bb to packagegroup-*.bb.
• New “splash” IMAGE_FEATURES: Image recipes should include “splash” in IMAGE_
FEATURES in order to enable the boot-up splash screen.
15 | Product Note
Wind River Linux 6
• Removed recipes: These recipes were removed: libx11-trim, xserver-xorg-lite, xserverkdrive, mesa-xlib, galago, gail, eggdbus, libgsmd, contacts, data, tasks, eds-tools. In
addition, the meta-demoapps directory has also been removed because the recipes in it
were not being maintained, and many had become obsolete or broken.
• Linux kernel naming: The naming scheme for kernel output binaries has been changed
to now include PE as part of the filename.
From 1.3 to 1.4
• BitBake: If a comment ends with a line continuation (\) character, then the next line must
also be a comment. Any instance where this is not the case now triggers a warning. Other
changes are triggered by the package name overrides. The run-time package-specific
variables RDEPENDS, RRECOMMENDS, RSUGGESTS, RPROVIDES, RCONFLICTS,
RREPLACES, FILES, ALLOW_EMPTY, and the pre, post, install, and uninstall script functions pkg_preinst, pkg_postinst, pkg_prerm, and pkg_postrm should always have a package name override.
• sstate: This no longer populates the sysroot if it was not required to complete the task,
such as BitBake –c rootfs image.
• SRC_URI: This now uses FILESOVERRIDES instead of OVERRIDES for directory names.
• Proxies and fetching sources: A new oe-git-proxy script has been added to replace
previous methods of handling proxies and fetching source from Git.
• Custom Interfaces file: Custom/network/interfaces previously appened to ‘netbase’
recipe, now need to be appended to ‘init-ifupdown- recipe instead.
• Remote debugging: Support for remote debugging with the Eclipse integrated development environment is now separated into an image feature (eclipse-debug) that corresponds to the packagegroup-core-eclipse-debug package group.
• SANITY_TESTED_DISTROS: This variable now uses a distribution ID, which is composed
of the host distributor ID followed by the release.
• SRC_URI: The PN, PF, P, and FILE_DIRNAME directories have been dropped from the
default value of the FILESPATH variable, which is used as the search path for finding files
referred to in SRC_URI.
• Target package management: “smart” replaces zipper.
• Recipes: The following were moved out of OE-Core: clutter-box2d, evolution-dataserver, gthumb, gtkhtml2, gupnp, gypsy, libcanberra, libgdata, libmusicbrainz, metacity,
polkit, zerconf, evieext, Gtk+ DirectFB, libxfontcache/xfontcacheproto, libxp/libxprintapputil/libxprintutil/printproto, libxtrap/xtrapproto, linux-yocto 3.0 kernel, matchboxstroke, matchbox-wm-2/matchbox-theme-sato-2, mesa-xlib, mutter, orinoco-conf,
update-modules, web, xf86bigfontproto, xf86rushproto, zypper /libzypp/sat-solver.
The following were renamed: lsbsetup was renamed to lsbtest, meta-dri was renamed
to mesa.
16 | Product Note
Wind River Linux 6
From 1.4 to 1.5
• Requirements on the host system: The OpenEmbedded build system requires Python
2.7.3+, Tar 1.24+, Git 1.7.5+, patched version of Make if using 3.82 (or buildtools-tarball).
• atom-pc BSP: atom-pc was replaced by genericx86 BSP. Additionally, a generic x86-64 BSP
has been added for 64-bit systems.
• BitBake: BitBake now supports _remove operator, so variables may no longer contain
“_remove” in their names. BitBake no longer uses a global method pool (i.e., each recipe
now has its own namespace). Additionally, P and PF are no longer automatically in the
PROVIDES.
• Removed: The following were removed: “none” server backend and bitbake-runtask script
• QA warnings: There is an additional QA check for /usr/share/info/dir.
• Build history: The build history enables checks for versions going “backward.” Additionally,
it is now written to the “build” directory rather than TMPDIR.
• SDK installer: Output SDK installer files are now named to include the image name and
tuning architecture through the SDK_NAME variable. Image and related files are now
installed into a directory containing the machine name.
• Pkgdata: The pkgdata directory produced as part of the packaging process has been collapsed into a single machine-specific directory. This directory is located under sysroots and
uses a machine-specific name (i.e., tmp/sysroots/<machine>/pkgdata).
• Shortened git SRCREV values: BitBake will now shorten git revisions from 40 chars down
to 10.
• IMAGE_FEATURES: Now there is validation; invalid features will cause errors. Deprecated
“apps-console-core” was removed. The image core-image-minimal no longer adds
remove_packaging_data_files to ROOTFS_POSTPROCESS_COMMAND. When “package-management” is not in IMAGE_FEATURES “package-management,” this is done automatically. Images will also be rebuilt only when changes occur, and not at each compilation.
• Task recipes: task.bbclass has been removed (it was previously replaced by packagegroup.
bbclass).
• BusyBox: BusyBox is now split into two binaries, one that is suid root for those components
that need it, and another for the rest of the components.
• Automated image testing: The testing framework has been added through the testimage*.bbclass class. This framework replaces the older imagetest-qemu framework.
• Build history: installed-package-sizes for an image now records the size of the files
installed. Dependency graphs now use action package names, and buildhistory-diff and
buildhistory-collect-srcrevs utilities have improved commands.
• Udev: It no longer automatically includes udev-extraconf, pciutils-ids, or usbutils-ids.
• Removed packages: The following packages were removed: linux-yocto 3.2, tinylogin,
web-webkit, imake, transfig-native, anjuta-remote-run.
• Renamed packages: The following were renamed: libtool-nativesdk was renamed
nativesdk-libtool and external-python-tarball was renamed buildtools-tarball.
• /run: The /run directory from the Filesystem Hierarchy Standard 3.0 has been introduced.
Wind River is a world leader in embedded software for intelligent connected systems. The company has been pioneering computing inside embedded devices since 1981, and its technology is
found in more than 1 billion products. To learn more, visit Wind River at www.windriver.com
©2013 Wind River Systems, Inc. The Wind River logo is a trademark of Wind River Systems, Inc., and Wind River and VxWorks are registered trademarks of Wind River Systems, Inc. Rev. 12/2013
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
