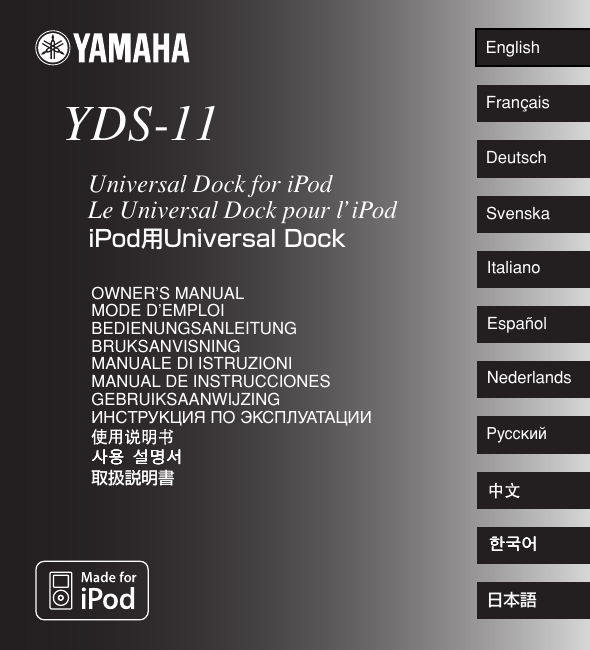

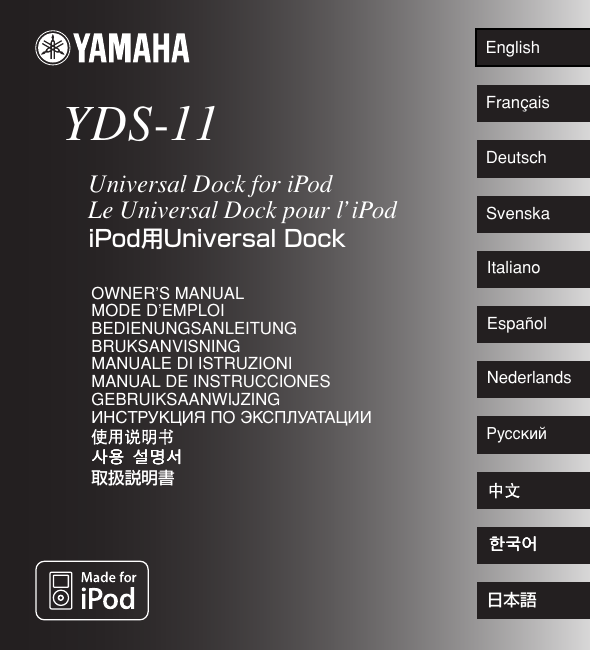

Yamaha YDS-11 Owner Manual

English
YDS-11
Français
Deutsch
Universal Dock for iPod
Le Universal Dock pour l’iPod
Svenska
iPod用Universal Dock
Italiano
OWNER’S MANUAL
MODE D’EMPLOI
BEDIENUNGSANLEITUNG
BRUKSANVISNING
MANUALE DI ISTRUZIONI
MANUAL DE INSTRUCCIONES
GEBRUIKSAANWIJZING
ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ
Español
Nederlands
Русский
=
=
取扱説明書
日本語
FCC INFORMATION (for US customers only)
1. IMPORTANT NOTICE : DO NOT
MODIFY THIS UNIT!
This product, when installed as indicated in
the instructions contained in this manual,
meets FCC requirements. Modifications not
expressly approved by Yamaha may void your
authority, granted by the FCC, to use the
product.
2. IMPORTANT : When connecting this
product to accessories and/or another product
use only high quality shielded cables. Cable/
s supplied with this product MUST be used.
Follow all installation instructions. Failure to
follow instructions could void your FCC
authorization to use this product in the USA.
3. NOTE : This product has been tested and
found to comply with the requirements listed
in FCC Regulations, Part 15 for Class “B”
digital devices. Compliance with these
requirements provides a reasonable level of
assurance that your use of this product in a
residential environment will not result in
harmful interference with other electronic
devices.
This equipment generates/uses radio
frequencies and, if not installed and used
according to the instructions found in the
users manual, may cause interference harmful
to the operation of other electronic devices.
Compliance with FCC regulations does not
guarantee that interference will not occur in all
installations. If this product is found to be the
source of interference, which can be
determined by turning the unit “OFF” and
“ON”, please try to eliminate the problem by
using one of the following measures:
Relocate either this product or the device
that is being affected by the interference.
Utilize power outlets that are on different
branch (circuit breaker or fuse) circuits or
install AC line filter/s.
In the case of radio or TV interference,
relocate/reorient the antenna. If the antenna
lead-in is 300 ohm ribbon lead, change the
lead-in to coaxial type cable.
If these corrective measures do not produce
satisfactory results, please contact the local
retailer authorized to distribute this type of
product. If you can not locate the appropriate
retailer, please contact Yamaha Electronics
Corp., U.S.A. 6660 Orangethorpe Ave, Buena
Park, CA 90620.
The above statements apply ONLY to those
products distributed by Yamaha Corporation of
America or its subsidiaries.
COMPLIANCE INFORMATION STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions:
1) This device may not cause harmful interface, and
2) This device must accept any interference received including interference that may cause undesired
operation of this device.
See user manual instructions if interference to radio reception is suspected.
En
■ Precautions
Read this before using this unit.
• To assure the finest performance, please read this manual carefully. Keep it in a safe place for future
reference.
• Install this unit in a cool, dry, clean place away from windows, heat sources, and sources of excessive
vibration, dust, moisture and cold. Avoid sources of humming (transformers, motors, etc.). To
prevent fire or electrical shock, do not expose this unit to rain or water.
• To prevent the enclosure from warping or discoloring, do not place this unit where it will be exposed
to direct sunlight or excessive humidity.
• Do not place this unit where foreign objects such as water drips may fall. It may cause a fire, or
damage to this unit.
• Do not attempt to clean this unit with chemical solvents as this may damage the finish. Use a clean,
dry cloth.
• Do not attempt to modify or fix this unit. Contact qualified Yamaha service personnel when any
service is needed. The cabinet should never be opened for any reasons.
Secure placement or installation is the owner’s responsibility.
Yamaha shall not be liable for any accident caused by improper placement or installation of this
unit.
En
■ Introduction
This product enables you to connect an iPod with Yamaha dock-compatible device and play the files
recorded on the device. The method of operating the iPod using this product as well as the usable
functions depends on the dock-compatible device or iPod you are using. For details, refer to the
operating instructions of the dock-compatible device or iPod. (Dock-compatible device: Device to which
the YDS-11 is connected.)
The types of iPods compatible with this product are listed below. (As of March 2008)
• iPod (Click Wheel, including iPod classic)
• iPod nano
• iPod mini
• iPod touch
iPod™
“iPod” is a trademark of Apple Inc., registered in the U.S. and other countries.
■ Checking the package contents
Check that the following items are included in the package. (iPod is not included.)
YDS-11 (Main unit)
Dock cable (2 m (6.5 ft))
iPod dock adapters (
iPod with color display
(20 GB or 30 GB) or U2
Special Edition
,
,
)
iPod with color display
(40 GB or 60 GB) or iPod
(40 GB)
iPod mini (4 GB
or 6 GB)
* The iPod Dock adapter is an adapter for use with iPods with which no adapter is included.
* When using an iPod that comes with an adapter, use the adapter included with the iPod.
* The mark ( , , or
) is shown on the back of each iPod dock adapter.
1 En
■ Controls and functions
3
1
2
Upper side
1 iPod connector terminal
Connects your iPod.
2 Slits
Hold an iPod dock adapter.
3 Adapter holder
Holds an iPod dock adapter.
4 Dock cable terminal
Connects the supplied dock cable.
4
Back side
■ Inserting an iPod dock adapter
Insert the iPod dock adapter supplied with your iPod into the slot of the main unit. Depending on the
type of your iPod, you may need to insert one of the iPod dock adapters supplied with this unit. See page
1 for details about the iPod dock adapter.
1.
Insert the stoppers of the iPod dock
adapter into the slits on the slot of
this unit.
Stoppers
Insert the iPod dock adapter until it
snaps into the slot of this unit.
Slit
Slits
2 En
2.
When you remove
the iPod dock
adapter from this
unit, insert one of
your finger nails
into the slit on the
iPod dock adapter
and pull it up.
■ Connecting the dock cable
1.
Connect one of the plugs of the dock
cable to the dock cable terminal of
this unit firmly.
3.
Connect the other plug of the dock
cable to the DOCK terminal of the
universal dock compatible
component.
DOCK
Connect the plug
with the side with
the release button
facing upward.
2.
Make sure the power of the universal
dock compatible component is turned
off.
Note
Be sure to connect the plugs of the dock cable
firmly to both the dock cable terminal of this unit
and the DOCK terminal of the universal dock
compatible component. When the connection is
loose, this unit may output some unwanted noise.
Note
Connecting the dock connection cable while the
dock-compatible device’s power is on could
result in damage.
3 En
■ Connecting your iPod
Insert the dock connector port of your iPod
into the iPod connector terminal of this
unit firmly.
4 En
Notes
• Make sure that the output level of the
universal dock compatible component is
set to minimum.
• To protect the dock connector from damage,
do not twist or sway back and forth your iPod
when inserting or taking it off from this unit,
and be careful not to knock over this unit
when your iPod is inserted.
• Use this unit with the iPod dock adapter
(supplied with your iPod or with this unit)
appropriate for your iPod. If you use this unit
without using an appropriate iPod dock
adapter, loose connection may result.
• Do not take off your iPod from this unit when
you play back the music, photo, or movie
stored on your iPod with the universal dock
compatible component.
• Connect your iPod without any other iPod
accessories (such as headphones, a wired
remote control, an FM transmitter etc.)
connected.
• It is recommended that you update your iPod
software before using it with this unit. The
updater for the iPod software is available at
the Apple website.
■ Disconnecting the dock cable
■ Troubleshooting
1.
Refer to the items listed below when this unit
does not function properly.
2.
Make sure the power of the universal
dock compatible component is turned
off.
Press and hold the release button and
then pull off the plug of the dock
cable.
• Connect your iPod to this unit firmly.
• Connect the dock cable to the universal dock
compatible component firmly.
• Connect the dock cable to this unit firmly.
• Update the software of your iPod to the latest
version.
If the instructions above do not help, refer to the
instructions of your iPod or universal dock
compatible component.
Release button
■ Specifications
Dimensions (W x H x D) ........ 80 x 33 x 70 mm
(3.1 x 1.3 x 2.8 in)
Weight ....................................................... 135 g
(4.8 oz)
Note
Disconnecting the dock connection cable while
the dock-compatible device’s power is on could
result in damage.
* Specifications are subject to change without
notice.
5 En
©2008
All rights reserved.
YAMAHA ELECTRONICS CORPORATION, USA 6660 ORANGETHORPE AVE., BUENA PARK, CALIF. 90620, U.S.A.
YAMAHA CANADA MUSIC LTD. 135 MILNER AVE., SCARBOROUGH, ONTARIO M1S 3R1, CANADA
YAMAHA ELECTRONIK EUROPA G.m.b.H. SIEMENSSTR. 22-34, 25462 RELLINGEN BEI HAMBURG, GERMANY
YAMAHA ELECTRONIQUE FRANCE S.A. RUE AMBROISE CROIZAT BP70 CROISSY-BEAUBOURG 77312 MARNE-LA-VALLEE CEDEX02, FRANCE
YAMAHA ELECTRONICS (UK) LTD. YAMAHA HOUSE, 200 RICKMANSWORTH ROAD WATFORD, HERTS WD18 7GQ, ENGLAND
YAMAHA SCANDINAVIA A.B. J A WETTERGRENS GATA 1, BOX 30053, 400 43 VÄSTRA FRÖLUNDA, SWEDEN
YAMAHA MUSIC AUSTRALIA PTY. LTD. LEVEL 1, 99 QUEENSBRIDGE STREET, SOUTHBANK, VIC 3006, AUSTRALIA
=
= EF==
=
== !"= = =NRUJV= !=UcLVc
ヤマハ株式会社 〒430-8650 静岡県浜松市中区中沢町10ｰ1
Printed in China
WP03260
