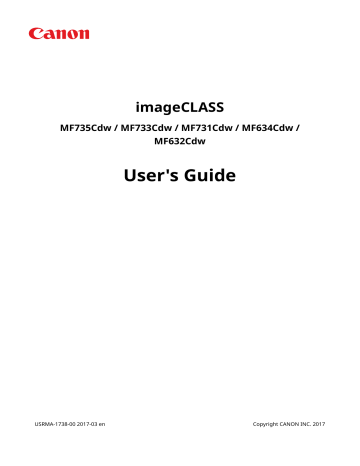

imageCLASS

MF735Cdw / MF733Cdw / MF731Cdw / MF634Cdw /

MF632Cdw

User's Guide

USRMA-1738-00 2017-03 en Copyright CANON INC. 2017

Contents

Setting Up

............................................................................................................................................................ 3

Main Functions

......................................................................................................................................................... 4

Preparations Required Before Use

............................................................................................................................. 5

Preventing Unauthorized Access

................................................................................................................................ 7

Setting Up Using the Setup Guide

.............................................................................................................................. 9

Setting the Date/Time

............................................................................................................................................. 11

Setting Up the Network Environment

...................................................................................................................... 13

Selecting Wired LAN or Wireless LAN

..................................................................................................................... 15

Connecting to a Wired LAN

.................................................................................................................................. 16

Connecting to a Wireless LAN

............................................................................................................................... 17

Setting Up Connection Using WPS Push Button Mode

....................................................................................... 19

Setting Up Connection Using WPS PIN Code Mode

........................................................................................... 21

Setting Up Connection by Selecting a Wireless Router

....................................................................................... 23

Setting Up Connection by Specifying Detailed Settings

...................................................................................... 26

Checking the SSID and Network Key

............................................................................................................... 29

Setting IP Addresses

........................................................................................................................................... 30

Setting IPv4 Address

..................................................................................................................................... 31

Setting IPv6 Addresses

.................................................................................................................................. 34

Viewing Network Settings

.................................................................................................................................... 37

Configuring Settings for Communication with a Computer

...................................................................................... 39

Configuring Printing Protocols and WSD Functions

........................................................................................... 40

Configuring Printer Ports

............................................................................................................................... 43

Setting Up Print Server

.................................................................................................................................. 47

Configuring the Machine for Your Network Environment

......................................................................................... 50

Configuring Ethernet Settings

........................................................................................................................ 51

Changing the Maximum Transmission Unit

...................................................................................................... 53

Setting a Wait Time for Connecting to a Network

.............................................................................................. 54

Configuring DNS

.......................................................................................................................................... 55

Configuring SMB

.......................................................................................................................................... 59

Configuring WINS

......................................................................................................................................... 61

Registering LDAP Servers

.............................................................................................................................. 63

Monitoring and Controlling the Machine with SNMP

......................................................................................... 68

Other Network Settings

................................................................................................................................. 72

Installing Drivers

.................................................................................................................................................... 77

Configuring Initial Settings for Fax Functions

........................................................................................................... 78

Deciding Which Fax Receive Mode to Use

.............................................................................................................. 79

Registering the Fax Number and Unit Name

.......................................................................................................... 80

Selecting the Receive Mode

.................................................................................................................................. 81

Connecting the Telephone Line

............................................................................................................................ 82

Configuring Scan Settings

....................................................................................................................................... 83

Preparing to Use the Machine as a Scanner

........................................................................................................... 84

Procedure for Setting to Send E-Mail/Send and Receive I-Fax

................................................................................... 85

Configuring Basic E-Mail Settings

.................................................................................................................... 86

I

Configuring E-Mail/I-Fax Communication Settings

............................................................................................ 89

Procedure for Setting a Shared Folder as a Save Location

........................................................................................ 93

Setting a Shared Folder as a Save Location

....................................................................................................... 94

Procedure for Setting a FTP Server as a Save Location

............................................................................................. 97

Basic Operations

........................................................................................................................................ 100

Parts and Their Functions

...................................................................................................................................... 103

Front Side

........................................................................................................................................................ 104

Insert a USB Memory Device

........................................................................................................................ 106

Back Side

......................................................................................................................................................... 108

Interior

........................................................................................................................................................... 109

Feeder

............................................................................................................................................................ 110

Multi-Purpose Tray

........................................................................................................................................... 111

Paper Drawer

................................................................................................................................................... 112

Operation Panel

............................................................................................................................................... 114

Turning ON the Machine

....................................................................................................................................... 116

Turning OFF the Machine

................................................................................................................................... 117

Powering OFF at a Fixed Time

...................................................................................................................... 118

Using the Operation Panel

.................................................................................................................................... 120

Basic Screens

................................................................................................................................................... 121

Home Screen

............................................................................................................................................. 122

<Status Monitor> Screen

............................................................................................................................. 125

Message Display

......................................................................................................................................... 127

Basic Operation

................................................................................................................................................ 128

Entering Text

................................................................................................................................................... 131

Logging in to the Machine

..................................................................................................................................... 133

Placing Originals

................................................................................................................................................... 135

Loading Paper

....................................................................................................................................................... 139

Loading Paper in the Paper Drawer

.................................................................................................................... 141

Loading Paper in the Multi-Purpose Tray

............................................................................................................. 149

Loading Envelopes

............................................................................................................................................ 154

Loading Preprinted Paper

.................................................................................................................................. 157

Specifying Paper Size and Type

.......................................................................................................................... 159

Specifying Paper Size and Type in the Paper Drawer

....................................................................................... 160

Specifying Paper Size and Type in the Multi-Purpose Tray

................................................................................ 162

Registering Default Paper Settings for the Multi-Purpose Tray

......................................................................... 164

Registering a Custom Paper Size

.................................................................................................................. 166

Limiting the Paper Sizes Displayed

................................................................................................................ 168

Automatically Selecting an Appropriate Paper Source for Each Function

............................................................ 169

Customizing the Display

........................................................................................................................................ 170

Customizing the Home Screen

........................................................................................................................... 171

Registering Frequently Used Settings

.................................................................................................................. 174

Changing the Default Settings for Functions

.......................................................................................................... 176

Setting Sounds

...................................................................................................................................................... 178

Entering Sleep Mode

............................................................................................................................................. 180

II

Registering Destinations

....................................................................................................................................... 182

Registering Destinations in the Address Book

...................................................................................................... 184

Registering Multiple Destinations as a Group

................................................................................................. 187

Editing the Registered Destinations in the Address Book

................................................................................. 189

Copying

.............................................................................................................................................................. 191

Copy Basic Features Screen

................................................................................................................................... 193

Basic Copy Operations

........................................................................................................................................... 195

Canceling Copies

.............................................................................................................................................. 200

Checking the Copying Status and Log

................................................................................................................. 201

Enhancing and Adjusting Copy Quality

................................................................................................................... 203

Selecting the Type of Original for Copying

........................................................................................................... 204

Adjusting Sharpness for Copying (Sharpness)

...................................................................................................... 205

Erasing Dark Borders When Copying (Erase Frame)

............................................................................................... 206

Adjusting the Color

........................................................................................................................................... 207

Useful Copy Functions

........................................................................................................................................... 208

Copying Multiple Documents onto One Sheet (N on 1)

.......................................................................................... 209

Collating Copies by Page

................................................................................................................................... 210

Making ID Card Copies

...................................................................................................................................... 211

Faxing

.................................................................................................................................................................. 213

Fax Basic Features Screen

...................................................................................................................................... 216

Basic Operations for Sending Faxes

....................................................................................................................... 217

Canceling Sending Faxes

................................................................................................................................... 225

Receiving Faxes

.................................................................................................................................................... 226

Useful Functions When Sending

............................................................................................................................. 230

Recalling Previously Used Settings for Sending (Recall Settings)

............................................................................. 231

Sending a Fax after a Phone Call (Manual Sending)

............................................................................................... 234

Saving a Copy of a Sent Original

......................................................................................................................... 236

Various Receiving Methods

.................................................................................................................................... 237

Saving Received Documents into the Machine (Memory Reception)

........................................................................ 238

Forwarding the Received Documents Automatically

............................................................................................... 240

Checking Status and Log for Sent and Received Documents

.................................................................................... 242

Sending Faxes from Your Computer (PC Fax)

.......................................................................................................... 244

Sending PC Faxes

............................................................................................................................................. 245

Using Internet Fax (I-Fax)

...................................................................................................................................... 247

Sending I-Faxes

................................................................................................................................................ 248

Receiving I-Faxes

.............................................................................................................................................. 255

Printing

.............................................................................................................................................................. 257

Printing from a Computer

..................................................................................................................................... 258

Canceling Prints

............................................................................................................................................... 261

Checking the Printing Status and Log

.................................................................................................................. 263

Various Printing Methods

...................................................................................................................................... 265

III

Printing a Document Secured by a PIN (Secure Print)

............................................................................................ 266

Printing via Secure Print

.............................................................................................................................. 267

Printing from a USB Memory Device (Memory Media Print)

.................................................................................... 270

Scanning

........................................................................................................................................................... 279

Scan Basic Features Screen

.................................................................................................................................... 281

Basic Operations for Scanning Originals

................................................................................................................ 284

Scanning and Saving to a Computer

.................................................................................................................... 285

Saving Data to a USB Memory Device

.................................................................................................................. 287

Sending Data by E-Mail/Saving Data to a Shared Folder or FTP Server

..................................................................... 291

Canceling Sending Documents

........................................................................................................................... 300

Checking Status and Log for Scanned Originals

.................................................................................................... 301

Scanning Clearly

................................................................................................................................................... 303

Adjusting Image Quality

.................................................................................................................................... 304

Adjusting Density

............................................................................................................................................. 305

Adjusting Sharpness When Scanning (Sharpness)

................................................................................................. 306

Useful Scanning Functions

.................................................................................................................................... 308

Enhancing the Security of Electronic Files

............................................................................................................ 309

Adjusting Balance between File Size and Image Quality

......................................................................................... 312

Recalling Previously Used Settings for Sending/Saving (Recall Settings)

................................................................... 313

Specifying E-Mail Settings

.................................................................................................................................. 316

Using Your Computer to Scan (Remote Scan)

.......................................................................................................... 319

Scanning Documents from an Application

........................................................................................................... 320

Using ScanGear MF

........................................................................................................................................... 322

Linking with Mobile Devices

............................................................................................................ 324

Connecting with Mobile Devices

............................................................................................................................ 325

Connecting via a Wireless LAN Router (LAN Connection)

........................................................................................ 326

Connecting Directly (Access Point Mode)

............................................................................................................. 328

Utilizing the Machine through Applications

........................................................................................................... 332

Using AirPrint

....................................................................................................................................................... 333

Printing with AirPrint

........................................................................................................................................ 338

Scanning with AirPrint

....................................................................................................................................... 341

Faxing with AirPrint

.......................................................................................................................................... 343

If AirPrint Cannot Be Used

................................................................................................................................. 345

Using Google Cloud Print

....................................................................................................................................... 346

Managing the Machine by the Remote Control

....................................................................................................... 348

Managing the Machine

........................................................................................................................ 351

Setting Access Privileges

....................................................................................................................................... 353

Setting the System Manager ID and PIN

.............................................................................................................. 354

Setting the Department ID Management

............................................................................................................. 356

Setting a Remote UI PIN

.................................................................................................................................... 362

LDAP Server Authentication

............................................................................................................................... 364

IV

Configuring the Network Security Settings

............................................................................................................ 368

Restricting Communication by Using Firewalls

..................................................................................................... 370

Specifying IP Addresses for Firewall Settings

.................................................................................................. 371

Specifying MAC Addresses for Firewall Settings

.............................................................................................. 374

Changing Port Numbers

.................................................................................................................................... 377

Setting a Proxy

................................................................................................................................................. 378

Configuring the Key and Certificate for TLS

.......................................................................................................... 380

Generating the Key and Certificate for Network Communication

...................................................................... 383

Generating a Key and Certificate Signing Request (CSR)

................................................................................... 386

Registering the Key and Certificate for Network Communication

...................................................................... 389

Configuring IPSec Settings

................................................................................................................................. 391

Configuring IEEE 802.1X Authentication Settings

.................................................................................................. 398

Restricting the Machine's Functions

...................................................................................................................... 402

Restricting Access to Address Book and Sending Functions

.................................................................................... 404

Restricting Use of the Address Book

............................................................................................................. 405

Limiting Available Destinations

..................................................................................................................... 407

Restricting the Fax Sending Functions

........................................................................................................... 409

Restricting Printing from a Computer

.................................................................................................................. 411

Restricting USB Functions

.................................................................................................................................. 412

Disabling HTTP Communication

......................................................................................................................... 414

Disabling Remote UI

......................................................................................................................................... 415

Increasing the Security of Documents

.................................................................................................................... 416

Generating a Device Signature Key

..................................................................................................................... 417

Managing the Machine from a Computer (Remote UI)

............................................................................................ 418

Starting Remote UI

........................................................................................................................................... 419

Checking the Status and Logs

............................................................................................................................ 422

Setting Up Menu Options from Remote UI

........................................................................................................... 427

Registering Destinations from Remote UI

............................................................................................................ 430

Importing/Exporting the Setting Data

................................................................................................................. 434

Updating the Firmware

......................................................................................................................................... 437

Initializing Settings

............................................................................................................................................... 439

Setting Menu List

...................................................................................................................................... 442

<Preferences>

....................................................................................................................................................... 443

<Display Settings>

............................................................................................................................................ 444

<English Keyboard Layout>

................................................................................................................................ 448

<Timer/Energy Settings>

................................................................................................................................... 449

<Network>

....................................................................................................................................................... 453

<External Interface>

.......................................................................................................................................... 467

<Accessibility>

.................................................................................................................................................. 468

<Adjustment/Maintenance>

.................................................................................................................................. 469

<Adjust Image Quality>

..................................................................................................................................... 470

<Maintenance>

................................................................................................................................................ 484

<Function Settings>

.............................................................................................................................................. 485

<Common>

...................................................................................................................................................... 486

V

<Copy>

............................................................................................................................................................ 491

<Printer>

......................................................................................................................................................... 493

<Send>

............................................................................................................................................................ 536

<Receive/Forward>

........................................................................................................................................... 547

<Store/Access Files>

.......................................................................................................................................... 553

<Secure Print>

.................................................................................................................................................. 561

<Set Destination>

.................................................................................................................................................. 562

<Management Settings>

....................................................................................................................................... 563

<User Management>

........................................................................................................................................ 564

<Device Management>

...................................................................................................................................... 565

<License/Other>/<Remote UI Settings/Update Firmware>

..................................................................................... 568

<Data Management>

........................................................................................................................................ 570

<Security Settings>

........................................................................................................................................... 572

Maintenance

................................................................................................................................................. 575

Regular Cleaning

.................................................................................................................................................. 577

Cleaning the Exterior

........................................................................................................................................ 578

Cleaning the Platen Glass

.................................................................................................................................. 579

Cleaning the Feeder

.......................................................................................................................................... 580

Cleaning the Fixing Assembly

............................................................................................................................. 583

Cleaning the Transfer Belt (ITB)

.......................................................................................................................... 584

Replacing the Toner Cartridge

............................................................................................................................... 585

Checking the Remaining Amount of Consumables

.................................................................................................. 590

Relocating the Machine

......................................................................................................................................... 591

Adjusting Print Quality

.......................................................................................................................................... 593

Adjusting Gradation

.......................................................................................................................................... 594

Correcting "Print Color Mismatch"

...................................................................................................................... 599

Adjusting Values for Text Color Reproducibility in Color Documents

........................................................................ 600

Adjusting Print Position

..................................................................................................................................... 602

Viewing the Counter Value

.................................................................................................................................... 604

Printing Reports and Lists

..................................................................................................................................... 606

Consumables

........................................................................................................................................................ 611

Troubleshooting

......................................................................................................................................... 614

Common Problems

................................................................................................................................................ 616

Installation/Settings Problems

........................................................................................................................... 617

Copying/Printing Problems

................................................................................................................................ 621

Faxing/Telephone Problems

............................................................................................................................... 624

When You Cannot Print Properly

............................................................................................................................ 626

Printing Results Are Not Satisfactory

................................................................................................................... 628

Paper Creases or Curls

...................................................................................................................................... 639

Paper Is Fed Incorrectly

..................................................................................................................................... 642

A Message or a Number Starting with "#" (an Error Code) Is Displayed

.................................................................... 643

Countermeasures for Each Message

................................................................................................................... 644

VI

Countermeasures for Each Error Code

................................................................................................................ 658

Clearing Paper Jams

.............................................................................................................................................. 668

Paper Jams in the Feeder

................................................................................................................................... 670

Paper Jams in the Main Unit

............................................................................................................................... 672

Paper Jams in a Paper Source

............................................................................................................................. 675

When a Problem Cannot Be Solved

......................................................................................................................... 680

Appendix

........................................................................................................................................................... 683

Third Party Software

............................................................................................................................................. 685

Feature Highlights

................................................................................................................................................ 686

Going Green and Saving Money

......................................................................................................................... 687

Improving Efficiency

......................................................................................................................................... 689

Going Digital

.................................................................................................................................................... 691

So Much More

.................................................................................................................................................. 693

Specifications

....................................................................................................................................................... 695

Main Unit

........................................................................................................................................................ 696

Feeder

............................................................................................................................................................ 700

Available Paper

................................................................................................................................................ 701

Cassette Feeding Module-AF

.............................................................................................................................. 705

Copy Card Reader-F

.......................................................................................................................................... 706

Fax Function

.................................................................................................................................................... 707

Scan Function

.................................................................................................................................................. 708

Printer Functions

.............................................................................................................................................. 709

Management Functions

..................................................................................................................................... 711

System Environment

......................................................................................................................................... 714

Network Environment

....................................................................................................................................... 716

Options

................................................................................................................................................................ 717

Optional Equipment

.......................................................................................................................................... 718

System Options

................................................................................................................................................ 720

Manuals and Their Contents

.................................................................................................................................. 722

Using User's Guide

................................................................................................................................................ 723

Screen Layout of User's Guide

............................................................................................................................ 724

Viewing User's Guide

........................................................................................................................................ 727

Basic Windows Operations

.................................................................................................................................... 728

Menu Route Map

................................................................................................................................................... 736

Notice

.................................................................................................................................................................. 737

VII

Setting Up

Setting Up

Setting Up

............................................................................................................................................................... 3

Main Functions

...................................................................................................................................................... 4

Preparations Required Before Use

....................................................................................................................... 5

Preventing Unauthorized Access

.......................................................................................................................... 7

Setting Up Using the Setup Guide

........................................................................................................................ 9

Setting the Date/Time

......................................................................................................................................... 11

Setting Up the Network Environment

............................................................................................................... 13

Selecting Wired LAN or Wireless LAN

.............................................................................................................. 15

Connecting to a Wired LAN

............................................................................................................................. 16

Connecting to a Wireless LAN

......................................................................................................................... 17

Setting Up Connection Using WPS Push Button Mode

............................................................................. 19

Setting Up Connection Using WPS PIN Code Mode

.................................................................................. 21

Setting Up Connection by Selecting a Wireless Router

............................................................................. 23

Setting Up Connection by Specifying Detailed Settings

............................................................................ 26

Checking the SSID and Network Key

........................................................................................................ 29

Setting IP Addresses

....................................................................................................................................... 30

Setting IPv4 Address

................................................................................................................................ 31

Setting IPv6 Addresses

............................................................................................................................ 34

Viewing Network Settings

............................................................................................................................... 37

Configuring Settings for Communication with a Computer

............................................................................ 39

Configuring Printing Protocols and WSD Functions

................................................................................. 40

Configuring Printer Ports

......................................................................................................................... 43

Setting Up Print Server

............................................................................................................................ 47

Configuring the Machine for Your Network Environment

............................................................................... 50

Configuring Ethernet Settings

................................................................................................................. 51

Changing the Maximum Transmission Unit

............................................................................................. 53

Setting a Wait Time for Connecting to a Network

.................................................................................... 54

Configuring DNS

...................................................................................................................................... 55

Configuring SMB

...................................................................................................................................... 59

Configuring WINS

.................................................................................................................................... 61

Registering LDAP Servers

......................................................................................................................... 63

Monitoring and Controlling the Machine with SNMP

............................................................................... 68

Other Network Settings

........................................................................................................................... 72

Installing Drivers

................................................................................................................................................. 77

Configuring Initial Settings for Fax Functions

................................................................................................... 78

Deciding Which Fax Receive Mode to Use

....................................................................................................... 79

1

Setting Up

Registering the Fax Number and Unit Name

.................................................................................................. 80

Selecting the Receive Mode

............................................................................................................................ 81

Connecting the Telephone Line

...................................................................................................................... 82

Configuring Scan Settings

................................................................................................................................... 83

Preparing to Use the Machine as a Scanner

................................................................................................... 84

Procedure for Setting to Send E-Mail/Send and Receive I-Fax

......................................................................... 85

Configuring Basic E-Mail Settings

............................................................................................................ 86

Configuring E-Mail/I-Fax Communication Settings

................................................................................... 89

Procedure for Setting a Shared Folder as a Save Location

.............................................................................. 93

Setting a Shared Folder as a Save Location

.............................................................................................. 94

Procedure for Setting a FTP Server as a Save Location

................................................................................... 97

2

Setting Up

Setting Up

1647-006

Before using the functions of the machine, the environmental conditions must be set in advance. To begin with, check

the sequences of flow required to complete the setup, and then perform the actual settings. Preparations Required

Before Use(P. 5)

● The functions installed on the machine vary depending on the model you purchased. Before using the

machine, see Main Functions(P. 4) and check the available functions.

Configuring Initial Settings of the Machine (Setup Guide)

● You can easily configure the initial settings required to use the machine, such as date, time, and network

settings, by following the on-screen guidance. Setting Up Using the Setup Guide(P. 9)

3

Setting Up

Main Functions

1647-0H2

This manual covers all the functions of the model series you purchased. Before getting started, check which functions are available on the model you purchased.

: With function : Without function

Function MF735Cdw MF733Cdw MF731Cdw MF634Cdw MF632Cdw

Copy

Fax

Print

Scan

Feeder 2-sided scanning

2-sided printing

Wireless LAN

NFC

Default System Manager ID

Default System Manager PIN

Application Library

Cassette Feeding Module-AF *

Copy Card Reader-F *

Barcode Printing Kit *

Send PDF Security Feature Set *

7654321 Not specified Not specified 7654321 Not specified

7654321 Not specified Not specified 7654321 Not specified

*

This is an optional item.

● For the available driver types, see the User Software DVD-ROM supplied with the machine, or see the Canon website (http://www.canon.com/).

LINKS

Viewing User's Guide(P. 727)

4

Setting Up

Preparations Required Before Use

1647-007

Set up the machine following steps 1 to 5 in order. For more information about a particular step, click on the link to go

to the corresponding section. In addition, to use the machine safely, also check Preventing Unauthorized

Access(P. 7) .

Step 1

Setting Up Using the Setup Guide(P. 9)

Step 2

Setting Up the Network Environment(P. 13)

● Configure the network settings that are not included in the Setup Guide. If you do not need to use the Setup Guide, configure the network settings from here.

Step 3

Installing Drivers(P. 77)

Step 4

Configuring Initial Settings for Fax Functions(P. 78)

Step 5

Configuring Scan Settings(P. 83)

5

Setting Up

Setting from the Remote UI

● When the network environment settings are complete, you can efficiently set the machine from a computer

using Remote UI. Starting Remote UI(P. 419)

Importing data from another machine to save time

● As long as the model is the same, you can save setting data registered on another Canon printer/

multifunction machine to a computer (export) and load the setting data to this machine (import).

Importing/Exporting the Setting Data(P. 434)

6

Setting Up

Preventing Unauthorized Access

1647-008

This section describes the security measures on how to prevent unauthorized access from the external network. This is a must-read for all users and administrators before using this machine, other printers, and multifunction machines connected to the network. In recent years, a printer/multifunction machine connected to the network can offer you a variety of useful functions, such as printing from a computer, operating from a computer using the remote function, and sending scanned documents via the Internet. On the other hand, it is essential to take security measures to reduce the security risk for information leakage, as a printer/multifunction machine has become more exposed to threats, such as unauthorized access and theft, when it is connected to the network. This section explains necessary settings you need to specify to prevent unauthorized access before using a printer/multifunction machine connected to the network.

Security Measures to Prevent Unauthorized Access from the External Network

Assigning a Private IP Address(P. 7)

Using Firewall to Restrict Transmission(P. 8)

Specifying the TLS Encrypted Communication (P. 8)

Setting PIN to Manage Information Stored in the Multifunction Machine(P. 8)

Assigning a Private IP Address

An IP address is a numerical label assigned to each device participating in a computer network. A "global IP address" is used for the communication connecting to the Internet, and a "private IP address" is used for the communication within a local area network, such as a LAN in the company. If a global IP address is assigned, your printer/ multifunction machine is open to the public and can be accessed via the Internet. Thus, the risk of information leakage due to unauthorized access from external network increases. On the other hand, if a private IP address is assigned, your printer/multifunction machine is closed to a local area network and can be accessed by only users on your local area network, such as a LAN in the company.

Global IP Address

Can be accessed from the external network

Private IP Address

Can be accessed from the users within a local area network

Basically, assign a private IP address to your printer/multifunction machine. Make sure to confirm the IP address, assigned to the printer/multifunction machine you are using, is a private IP address or not. A private IP address is found in one of the following ranges.

Ranges for Private IP addresses

● From 10.0.0.0 to 10.255.255.255

● From 172.16.0.0 to 172.31.255.255

● From 192.168.0.0 to 192.168.255.255

For information on how to confirm the IP address, see Setting IPv4 Address(P. 31) .

● If a global IP address is assigned to a printer/multifunction machine, you can create a network environment to reduce the risk of unauthorized access by installing security software, such as a firewall that prevents

7

Setting Up access from the external networks. If you want to assign a global IP address to and use a printer/ multifunction machine, contact your network administrator.

Using Firewall to Restrict Transmission

A firewall is a system that prevents unauthorized access from the external networks and protects against attacks/ intrusions to a local area network. You can use a firewall on your network environment to block access from the external network that appears to be dangerous, by restricting communication from specified IP address of the external network. The function installed to a Canon printer/multifunction machine enables you to set up the IP

address filter. For information on how to set up an IP address filter, see Specifying IP Addresses for Firewall

Settings(P. 371) .

Specifying the TLS Encrypted Communication

For information on the TLS Encrypted Communication, see Configuring the Network Security Settings(P. 368) ,

and on the procedures to specify, see Configuring the Key and Certificate for TLS(P. 380) .

Setting PIN to Manage Information Stored in the Multifunction Machine

If a malicious third party attempts to gain unauthorized access to a printer/multifunction machine, setting PIN to information stored in the machine will reduce the risk of information leakage. Canon printer/multifunction machine enables you to protect various type of information by setting PIN.

Setting PIN to Each Function

● Setting PIN for Using Remote UI

For more information, see Setting a Remote UI PIN(P. 362) .

● Setting PIN for the System Manager Settings

For more information, see Setting the System Manager ID and PIN(P. 354) .

● Address Book PIN

For more information on setting a PIN, see Restricting Use of the Address Book(P. 405) .

Listed above are some examples of security measures for preventing unauthorized access. For more information on

the other security measures, see Managing the Machine(P. 351) and take necessary security measures for

preventing unauthorized access to suit your environment.

8

Setting Up

Setting Up Using the Setup Guide

1647-009

When the machine is turned on ( Turning ON the Machine(P. 116) ) for the first time, the Setup Guide starts up to

assist you to configure the initial settings of the machine by following the on-screen guidance. In the Setup Guide, the setting screens are displayed in the following order.

Step 1 Setting the Display Language and the Country or Region

Set the language to be displayed on the operation panel screen or in reports, as well as the country or region where the machine will be used.

1

Select a language.

2

Select <Yes>.

3

Select a country or region.

Step 2 Setting the Date and Time

Adjust the machine's date/time.

1

Select a time zone.

Step 3

What is UTC?

● Coordinated Universal Time (UTC) is the primary time standard by which the world regulates clocks and time. The correct UTC time zone setting is required for Internet communications.

2

Enter the date and time, and select <Apply>.

Performing the Color Adjustment

To achieve good copy quality, adjust the gradation.

1

Select <Yes>.

● If you select <No>, color adjustment is not performed, and the Setup Guide proceeds to step 4.

2

Check that the size and type of paper displayed on the screen is loaded in the machine, and select <OK>.

3

Confirm the procedure, and select <Start>.

An adjustment image is printed.

4

Open the feeder after the screen displayed during printing is closed.

5

Place the adjustment image on the platen glass.

● Place the adjustment image with the print side facing down while checking that the black stripe is placed on the back side of the machine.

9

Setting Up

Step 4

Step 5

6

Gently close the feeder.

7

Select <Start Scanning>.

Adjustment starts.

● When adjustment is complete, remove the adjustment image from the platen glass.

Setting the Wireless LAN

Configure the settings to connect to the network using the wireless LAN.

1

Select <Yes>.

● If you select <No>, wireless LAN is not set, and the Setup Guide proceeds to step 5.

2

Select <OK>.

3

Select the setting method.

For more information about the wireless LAN settings, see Connecting to a

Wireless LAN(P. 17) .

Viewing Application Library

The one-touch button referred to as "Application Library" is provided in the Home screen. You can read the description of each function.

1

To finish the Setup Guide, select <End>.

When the Setup Guide is complete, the Home screen appears.

10

Setting Up

Setting the Date/Time

1647-00A

Set the date and time for the machine. The date and time are used as the reference for the functions specifying the time, therefore, they need to be set accurately.

Setting the Time Zone(P. 11)

Setting the Current Date and Time(P. 11)

Setting the Daylight Saving Time(P. 12)

Setting the Time Zone

If the time zone setting is changed, the values set in <Current Date/Time Settings> are also changed accordingly.

1

Select <Menu> in the Home screen. Home Screen(P. 122)

2

Select <Preferences> <Timer/Energy Settings> <Date/Time Settings> <Time

Zone>.

3

Select the time zone.

What is UTC?

● Coordinated Universal Time (UTC) is the primary time standard by which the world regulates clocks and time. Time differences exist depending on the country or area the machine is used. The correct UTC time zone setting is required for Internet communications.

Setting the Current Date and Time

1

Select <Menu> in the Home screen. Home Screen(P. 122)

2

Select <Preferences> <Timer/Energy Settings> <Current Date/Time Settings>.

3

Enter the date and time.

● Tap the entry field, and enter the date and time.

11

Setting Up

4

Select <Apply>.

● Set <Time Zone> before setting the current date and time. If the <Time Zone> setting is changed later, the current date and time are also changed accordingly.

● The display format of the date and time can be changed, respectively.

<Date Format>(P. 450)

<Time Format>(P. 450)

Setting the Daylight Saving Time

If daylight saving time is enabled, specify the dates from which and to which daylight saving time is in effect.

1

Select <Menu> in the Home screen. Home Screen(P. 122)

2

Select <Preferences> <Timer/Energy Settings> <Date/Time Settings> <Daylight

Saving Time Settings>.

3

Select <Off> or <On> in <Daylight Saving Time>.

● When you select <On>, select <Start Date> and <End Date>, and set the month and day for each item. To set the day, specify "what day of which week."

4

Select <Apply>.

12

Setting Up

Setting Up the Network Environment

1647-00C

When connecting the machine to a wired or wireless local area network (LAN), you need to set an IP address unique to the selected network. Select "wired" or "wireless" depending on your communication environment and networking devices. For specific IP address settings, contact your Internet service provider or Network Administrator.

● If the machine is connected to an unsecured network, your personal information might be leaked to a third party.

● The machine cannot connect to both wired and wireless LANs at the same time.

● The machine does not come with a LAN cable or router. Have them ready as necessary.

● For more information about your networking devices, see the instruction manuals for the devices or contact your manufacturer.

Before You Start

Follow these steps to connect the machine to a network.

Check your computer settings.

● Make sure that the computer is correctly connected to the network. For more information, see the instruction manuals for the devices you are using, or contact the device manufacturers.

● Make sure that the network settings have been completed on the computer. If the network has not been set up properly, you will not be able to use the machine on the network, even if you perform the rest of the procedure below.

● Depending on the network, you may need to change settings for the communication

method or the Ethernet type ( Configuring Ethernet Settings(P. 51) ). For more

information, contact your Internet service provider or Network Administrator.

● To check the MAC address of the machine.

Viewing the MAC Address for Wired LAN(P. 37)

Viewing the MAC Address and Information for Wireless LAN(P. 38)

13

Setting Up

To connect to an IEEE 802.1X network, see Configuring IEEE 802.1X

Authentication Settings(P. 398) .

Select wired or wireless LAN.

Selecting Wired LAN or Wireless LAN(P. 15)

Connect to a wired or wireless LAN.

● Proceed to the section that corresponds to the setting you selected in step 2.

Connecting to a Wired LAN(P. 16)

Connecting to a Wireless LAN(P. 17)

Set the IP address as necessary.

● At the time of purchase, the machine is set to automatically acquire an IP address.

Change this setting if you want to use a specific IP address. Setting IP

Addresses(P. 30)

LINKS

Configuring Settings for Communication with a Computer(P. 39)

Configuring the Machine for Your Network Environment(P. 50)

14

Setting Up

Selecting Wired LAN or Wireless LAN

1647-00E

After you decide on wired or wireless LAN to connect the machine to the computer, select wired LAN or wireless LAN using the operation panel. Note that if you change the setting from <Wired LAN> to <Wireless LAN> or vice versa, you will need to uninstall the drivers installed on your computer and then reinstall them. For more information, see the manuals for the relevant drivers on the online manual website.

1

Select <Menu> in the Home screen. Home Screen(P. 122)

2

Select <Preferences> <Network>.

If the login screen appears, enter the correct ID and PIN. Logging in to the Machine(P. 133)

3

Select <Select Wired/Wireless LAN>.

4

Select <Wired LAN> or <Wireless LAN>.

LINKS

Setting Up the Network Environment(P. 13)

Connecting to a Wired LAN(P. 16)

Connecting to a Wireless LAN(P. 17)

15

Setting Up

Connecting to a Wired LAN

Connect the machine to a computer via a router. Use a LAN cable to connect the machine to the router.

1647-00F

1

Connect a LAN cable.

● Connect the machine to a router by using a LAN cable.

● Push the connector in until it clicks into place.

2

Wait for several minutes.

The IP address is set automatically.

You can set the IP address manually. Setting IP Addresses(P. 30)

LINKS

Setting Up the Network Environment(P. 13)

16

Setting Up

Connecting to a Wireless LAN

1647-00H

Wireless routers (or access points) connect the machine to a computer via radio waves. If your wireless router is equipped with Wi-Fi Protected Setup (WPS), configuring your network is automatic and easy. If your networking devices do not support automatic configuration, or if you want to specify authentication and encryption settings in detail, you need to manually set up the connection. Make sure that your computer is correctly connected to the network.

Setting Up Connection Using WPS(P. 17)

Manually Setting Up Connection(P. 18)

Risk of information leak

● Use wireless LAN connection at your own discretion and at your own risk. If the machine is connected to an unsecured network, your personal information might be leaked to a third party because radio waves used in wireless communication can go anywhere nearby, even beyond walls.

Wireless LAN security

● The wireless LAN function of this machine supports WEP, WPA-PSK, and WPA2-PSK. For the wireless security compatibility of your wireless router, see the instruction manuals for your networking devices or contact your manufacturer.

Required devices for wireless LAN connection

● The machine does not come with a wireless router. Have the router ready as necessary.

Setting Up Connection Using WPS

When using WPS, two modes are available: push button mode and PIN code mode.

Push Button Mode

Find the WPS mark shown below on the package of your wireless router. Also make sure that there is a WPS button on

your networking device. Setting Up Connection Using WPS Push Button Mode(P. 19)

17

Setting Up

PIN Code Mode

Some WPS routers do not support the push button mode. If WPS PIN code mode is mentioned on the package or in

the instruction manuals of your networking device, set up the connection by entering the PIN code. Setting Up

Connection Using WPS PIN Code Mode(P. 21)

● If the wireless router is set to use WEP authentication, you may not be able to set up connection using WPS.

Manually Setting Up Connection

When manually setting up a wireless connection, you can either select a wireless router or manually enter the required information. Regardless of the method, make sure that you have the required setup information, including the SSID

and network key. Checking the SSID and Network Key(P. 29)

Selecting a Wireless Router

Select this setup option if you need to manually set up the connection but want to complete the setup as easily as

possible. Setting Up Connection by Selecting a Wireless Router(P. 23)

Manually Entering the Setup Information

If you want to specify security settings in detail, such as authentication and encryption settings, manually enter the

SSID and network key to set up the connection. Setting Up Connection by Specifying Detailed Settings(P. 26)

LINKS

Setting Up the Network Environment(P. 13)

Selecting Wired LAN or Wireless LAN(P. 15)

18

Setting Up

Setting Up Connection Using WPS Push Button Mode

1647-00J

If your wireless router supports WPS push button mode, you can easily set up a connection with a WPS button.

● How to operate the wireless router may vary on each device. See the instruction manuals for your networking device for help.

1

Select <Menu> in the Home screen. Home Screen(P. 122)

2

Select <Preferences> <Network>.

If the login screen appears, enter the correct ID and PIN. Logging in to the Machine(P. 133)

3

Select <Wireless LAN Settings>.

● If the <Do you want to enable the wireless LAN?> message is displayed, select <Yes>.

4

Read the message that is displayed, and select <OK>.

5

Select <WPS Push Button Mode>.

6

Select <Yes>.

7

Press and hold the WPS button on the wireless router.

● The button must be pressed within 2 minutes after selecting <Yes> in step 6.

● Depending on the networking device, you may need to press and hold the button for 2 seconds or longer.

See the instruction manuals for your networking device for help.

If an error message is displayed during setup

● Select <Close> and return to step 5.

8

Wait until message <Connected.> is displayed.

19

Setting Up

9

Select <Close>.

Wait several minutes until the IP address and other items are set automatically.

Signal strength

● When more than one wireless router is available for connection, the machine connects to the device with the strongest signal. Signal strength is measured using RSSI (Received Signal Strength Indication).

You can set the IP address manually. Setting IP Addresses(P. 30)

● While the machine is connected to the wireless LAN, the Wi-Fi icon is displayed in the Home screen or

the Basic Features screen of each function. Basic Screens(P. 121)

Reducing power consumption

● You can set the machine to enter <Power Save Mode> based on signals emitted from the wireless router.

<Power Save Mode>(P. 454)

If the IP address of the machine has changed

● In a DHCP environment, the IP address of the machine may be changed automatically. If this happens, the connection is maintained as long as the machine and the computer belong to the same subnet.

LINKS

Connecting to a Wireless LAN(P. 17)

20

Setting Up

Setting Up Connection Using WPS PIN Code Mode

1647-00K

If your wireless router supports WPS PIN code mode, generate a PIN code with the machine and register the code to the networking device.

● How to operate the wireless router may vary on each device. See the instruction manuals for your networking device for help.

From a Computer

1

Access your wireless router from a computer and display the screen for entering a

WPS PIN code.

● For more information, see the instruction manuals for your networking device.

From the Operation Panel

2

Select <Menu> in the Home screen. Home Screen(P. 122)

3

Select <Preferences> <Network>.

If the login screen appears, enter the correct ID and PIN. Logging in to the Machine(P. 133)

4

Select <Wireless LAN Settings>.

● If the <Do you want to enable the wireless LAN?> message is displayed, select <Yes>.

5

Read the message that is displayed, and select <OK>.

6

Select <WPS PIN Code Mode>.

7

Select <Yes>.

The PIN code is generated and shown on the display.

From a Computer

8

Register the generated PIN code to the wireless router.

● Register the PIN code on the setup screen displayed in step 1.

21

Setting Up

● The PIN code must be registered within 10 minutes after selecting <Yes> in step 7.

If an error message is displayed during setup

● Select <Close> and return to step 6.

From the Operation Panel

9

Wait until the message <Connected.> is displayed.

10

Select <Close>.

Wait several minutes until the IP address and other items are set automatically.

Signal strength

● When more than one wireless router is available for connection, the machine connects to the device with the strongest signal. Signal strength is measured using RSSI (Received Signal Strength Indication).

You can set the IP address manually. Setting IP Addresses(P. 30)

● While the machine is connected to the wireless LAN, the Wi-Fi icon is displayed in the Home screen or

the Basic Features screen of each function. Basic Screens(P. 121)

Reducing power consumption

● You can set the machine to enter <Power Save Mode> based on signals emitted from the wireless router.

<Power Save Mode>(P. 454)

If the IP address of the machine has changed

● In a DHCP environment, the IP address of the machine may be changed automatically. If this happens, the connection is maintained as long as the machine and the computer belong to the same subnet.

LINKS

Connecting to a Wireless LAN(P. 17)

22

Setting Up

Setting Up Connection by Selecting a Wireless Router

1647-00L

You can search the wireless routers (or access points) available for connection and select one from the display of the machine. For the network key, enter a WEP key or PSK. Before selecting a wireless router, check and write down the

required setup information, including the SSID and network key ( Checking the SSID and Network Key(P. 29) ).

Security settings

● If the wireless connection is set up by selecting a wireless router, the WEP authentication method is set to

<Open System> or the WPA/WPA2 encryption method is set to <Auto> (AES-CCMP or TKIP). If you want to select <Shared Key> for WEP authentication or <AES-CCMP> for WPA/WPA2 encryption, you need to set up

the connection using <Enter Manually>. Setting Up Connection by Specifying Detailed Settings(P. 26)

1

Select <Menu> in the Home screen. Home Screen(P. 122)

2

Select <Preferences> <Network>.

If the login screen appears, enter the correct ID and PIN. Logging in to the Machine(P. 133)

3

Select <Wireless LAN Settings>.

● If the <Do you want to enable the wireless LAN?> message is displayed, select <Yes>.

4

Read the message that is displayed, and select <OK>.

5

Select <SSID Settings>.

6

Select <Select Access Point>.

The machine starts searching for available wireless routers.

If a message is displayed telling that access point cannot be found, see Countermeasures for Each

Message(P. 644) .

7

Select a wireless LAN router.

● Select the router whose SSID matches the one that you have written down, and select <Next>.

23

Setting Up

To view details of security settings

● Select the wireless LAN router, and select <Details>. To return to the original screen, select .

If your wireless router is not found

Check whether the machine is properly installed and ready to connect to the network. Installation/

Settings Problems(P. 617)

8

Enter the network key that you have written down.

● Enter the network key, and select <Apply>.

On how to enter text, see Entering Text(P. 131) .

9

Select <Yes>.

If an error message is displayed during setup

● Select <Close>, check whether the network key is correct, and return to step 5.

10

Wait until message <Connected.> is displayed.

11

Select <Close>.

Wait several minutes until the IP address and other items are set automatically.

Signal strength

● When more than one wireless router is available for connection, the machine connects to the device with the strongest signal. Signal strength is measured using RSSI (Received Signal Strength Indication).

You can set the IP address manually. Setting IP Addresses(P. 30)

● While the machine is connected to the wireless LAN, the Wi-Fi icon is displayed in the Home screen or

the Basic Features screen of each function. Basic Screens(P. 121)

Reducing power consumption

● You can set the machine to enter <Power Save Mode> based on signals emitted from the wireless router.

<Power Save Mode>(P. 454)

24

Setting Up

If the IP address of the machine has changed

● In a DHCP environment, the IP address of the machine may be changed automatically. If this happens, the connection is maintained as long as the machine and the computer belong to the same subnet.

LINKS

Connecting to a Wireless LAN(P. 17)

25

Setting Up

Setting Up Connection by Specifying Detailed Settings

1647-00R

If you want to specify the security settings in detail or cannot establish the wireless connection using the other procedures, manually enter all the required information for the wireless LAN connection. Before specifying detailed settings, check and write down the required information, including the SSID, network key, and wireless security

protocols. Checking the SSID and Network Key(P. 29)

1

Select <Menu> in the Home screen. Home Screen(P. 122)

2

Select <Preferences> <Network>.

If the login screen appears, enter the correct ID and PIN. Logging in to the Machine(P. 133)

3

Select <Wireless LAN Settings>.

● If the <Do you want to enable the wireless LAN?> message is displayed, select <Yes>.

4

Read the message that is displayed, and select <OK>.

5

Select <SSID Settings> <Enter Manually>.

6

Enter the SSID that you have written down.

● Enter the SSID, and select <Apply>.

On how to enter text, see Entering Text(P. 131) .

7

Specify the security settings based on the information that you have written down.

● If you do not need to specify the security settings, select <None>.

Using WEP

1

Select <WEP>.

2

Select an authentication method.

26

Setting Up

<Open System>

Sets open system authentication, which is also called "open authentication."

<Shared Key>

Uses the WEP key as a password.

When <Open System> is selected

● When connecting to a wireless LAN, the machine experiences an authentication error if the shared key authentication is set on the wireless router. If this happens, the machine automatically changes the setting to <Shared Key> and retries the connection.

3

Select the WEP key you want to edit.

● Select the WEP key (1 to 4), and select <Edit>.

● Up to four WEP keys can be registered.

4

Enter the network key that you have written down.

● Enter the network key, and select <Apply>.

5

Select the desired WEP key.

● Select the WEP key you have edited, and select <Register>.

Using WPA-PSK or WPA2-PSK

1

Select <WPA/WPA2-PSK>.

2

Select an encryption method.

<Auto>

Sets the machine to automatically select AES-CCMP or TKIP to match the setting of the wireless router.

<AES-CCMP>

Sets AES-CCMP as the encryption method.

3

Enter the network key that you have written down.

● Enter the network key, and select <Apply>.

27

Setting Up

8

Select <Yes>.

If an error message is displayed during setup

● Select <Close>, check whether the specified settings are correct, and return to step 5.

9

Wait until message <Connected.> is displayed.

10

Select <Close>.

Wait several minutes until the IP address and other items are set automatically.

Signal strength

● When more than one wireless router is available for connection, the machine connects to the device with the strongest signal. Signal strength is measured using RSSI (Received Signal Strength Indication).

You can set the IP address manually. Setting IP Addresses(P. 30)

● While the machine is connected to the wireless LAN, the Wi-Fi icon is displayed in the Home screen or

the Basic Features screen of each function. Basic Screens(P. 121)

Reducing power consumption

● You can set the machine to enter <Power Save Mode> based on signals emitted from the wireless router.

<Power Save Mode>(P. 454)

If the IP address of the machine has changed

● In a DHCP environment, the IP address of the machine may be changed automatically. If this happens, the connection is maintained as long as the machine and the computer belong to the same subnet.

LINKS

Connecting to a Wireless LAN(P. 17)

28

Setting Up

Checking the SSID and Network Key

1647-00S

When manually setting up a wireless connection, you need to specify the SSID and network key of your wireless router.

The SSID and network key may be indicated on these networking devices. Check your devices and write down the necessary information before setting up the connection. For more information, see the instruction manuals for your networking devices or contact your manufacturer.

SSID

Network Key

Wireless Security Protocols

(Authentication/Encryption)

A name given for identifying a specific wireless LAN. Some other terms used for SSID include

"access point name" and "network name."

A keyword or password used for encrypting data or authenticating a network. Some other terms used for network key include "encryption key," "WEP key," "WPA/WPA2 passphrase," and "preshared key (PSK)."

When manually setting up a wireless connection by specifying detailed settings, you need to specify security settings. Check the following information:

● Security types (WEP/WPA-PSK/WPA2-PSK)

● Authentication method (Open System/Shared Key)

● Encryption method (TKIP/AES-CCMP)

LINKS

Connecting to a Wireless LAN(P. 17)

Setting Up Connection by Selecting a Wireless Router(P. 23)

Setting Up Connection by Specifying Detailed Settings(P. 26)

29

Setting Up

Setting IP Addresses

1647-00U

Connecting the machine to a network requires a unique network IP address. Two versions of IP addresses are available: IPv4 and IPv6. Configure these settings depending on the network environment. To use IPv6 addresses, you need to properly configure the IPv4 address settings.

Setting IPv4 Address(P. 31)

Setting IPv6 Addresses(P. 34)

30

Setting Up

Setting IPv4 Address

1647-00W

The machine's IPv4 address can be either assigned automatically by a dynamic IP addressing protocol, such as DHCP, or entered manually. When connecting the machine to a wired LAN, make sure that the connectors of the LAN cable are firmly

inserted into the ports ( Connecting to a Wired LAN(P. 16) ). You can test the

network connection if necessary.

Setting IPv4 Address(P. 31)

Testing the Network Connection(P. 32)

Setting IPv4 Address

1

Select <Menu> in the Home screen. Home Screen(P. 122)

2

Select <Preferences> <Network>.

If the login screen appears, enter the correct ID and PIN. Logging in to the Machine(P. 133)

3

Select <TCP/IP Settings> <IPv4 Settings> <IP Address Settings>.

4

Configure IP address settings.

<Auto Acquire>

Select to automatically assign an IP address via DHCP protocol. When <On> is displayed, automatic addressing is enabled.

<Manually Acquire>

Select to configure the IP address settings by manually entering an IP address. In order to select this option, the automatic acquirement must be set to <Off>.

<Check Settings>

Select when you want to view the current IP address settings.

Automatically assigning an IP address

1

Select <Auto Acquire>.

2

Select <On> in <Auto Acquire>, and select <Select Protocol>.

3

Select <DHCP>.

31

Setting Up

If you do not want to use DHCP/BOOTP/RARP to assign an IP address

● Select <Off>. If you select <DHCP> when these services are unavailable, the machine will waste time and communications resources searching the network for these services.

4

Check that <Auto IP> is set to <On>.

● If <Off> is selected, change the setting to <On>.

5

Select <Apply>.

● IP addresses assigned via DHCP override the address obtained via Auto IP.

Manually entering an IP address

1

Select <Auto Acquire>, and select <Off> <Apply> in <Auto Acquire>.

2

Select <Manually Acquire>.

3

Enter <IP Address>, <Subnet Mask>, and <Gateway Address>, and select <Apply>.

5

Restart the machine.

● Turn OFF the machine, wait for at least 10 seconds, and turn it back ON.

Checking whether the settings are correct

Make sure that the Remote UI screen can be displayed with your computer ( Starting Remote UI(P. 419) ).

If a computer is not available, you can check the connection by using the operation panel ( Testing the

Network Connection(P. 32) ).

When you have changed the IP address after installing the printer driver

● When the MFNP port is used, the connection is maintained as long as the machine and the computer belong to the same subnet; therefore, you do not need to add a new port. When the standard TCP/IP port is used,

you need to add a new port. Configuring Printer Ports(P. 43)

*

If you do not know which port is used, see Checking the Printer Port(P. 733) .

Testing the Network Connection

1

Select <Menu> in the Home screen. Home Screen(P. 122)

2

Select <Preferences> <Network>.

If the login screen appears, enter the correct ID and PIN. Logging in to the Machine(P. 133)

3

Select <TCP/IP Settings> <IPv4 Settings> <PING Command>.

32

Setting Up

4

Enter the IPv4 address of another device on the network, and select <Apply>.

If a proper connection has been established, <Received response from the host.> is displayed.

LINKS

Setting IPv6 Addresses(P. 34)

Viewing Network Settings(P. 37)

Configuring WINS(P. 61)

33

Setting Up

Setting IPv6 Addresses

1647-00X

The IPv6 addresses of the machine can be configured via the Remote UI. Before

setting IPv6 addresses, check the IPv4 address settings ( Viewing IPv4

Settings(P. 37) ). You need to set the correct IPv4 settings to use IPv6 addresses.

Note that the scan function that uses the scanner driver or MF Scan Utility is not available in an IPv6 environment. The machine can use the following multiple IPv6 addresses:

Type

Link-local address

Manual address

Stateless address

Stateful address

Description

An address that is only valid within a subnet or link and cannot be used to communicate with devices beyond a router. A link-local address is automatically set when the IPv6 function of the machine is enabled.

An address that is entered manually. When using this address, specify the prefix length and default router address.

An address that is generated automatically using the MAC address of the machine and the network prefix that is advertised by the router. Stateless addresses are discarded when the machine is restarted (or turned ON).

An address obtained from a DHCP server using DHCPv6.

● For more information about the basic operations to be performed when setting the machine from the

Remote UI, see Setting Up Menu Options from Remote UI(P. 427) .

1

Start the Remote UI and log in to System Manager Mode. Starting Remote

UI(P. 419)

2

Click [Settings/Registration] on the Portal page. Remote UI Screen(P. 420)

3

Select [Network Settings] [IPv6 Settings].

4

Click [Edit].

5

Select the [Use IPv6] check box and configure the required settings.

34

Setting Up

[Use IPv6]

Select the check box to enable IPv6 on the machine. When not using IPv6, clear the check box.

[Stateless Address 1]

Select the check box when using a stateless address. When not using a stateless address, clear the check box.

[Use Manual Address]

When you want to manually enter an IPv6 address, select the check box and enter the IP address, prefix length, and default router address in the corresponding text boxes.

[IP Address]

Enter an IPv6 address. Addresses that start with "ff" (or multicast address) cannot be entered.

[Prefix Length]

Enter a number that indicates how many bits are available for the network address.

[Default Router Address]

Specify the IPv6 address of the default router as necessary. Addresses that start with "ff" (or multicast address) cannot be entered.

[Use DHCPv6]

Select the check box when using a stateful address. When not using DHCPv6, clear the check box.

6

Click [OK].

7

Restart the machine.

● Turn OFF the machine, wait for at least 10 seconds, and turn it back ON.

Checking whether the settings are correct

● Make sure that the Remote UI screen can be displayed with your computer by using the IPv6 address of the

machine. Starting Remote UI(P. 419)

35

Setting Up

Selecting settings from the operation panel

IPv6 settings can also be accessed from <Menu> in the Home screen. <IPv6 Settings>(P. 457)

When you have changed the IP address after installing the printer driver

You need to add a new port. Configuring Printer Ports(P. 43)

LINKS

Setting IPv4 Address(P. 31)

Viewing Network Settings(P. 37)

36

Setting Up

Viewing Network Settings

Viewing IPv4 Settings(P. 37)

Viewing IPv6 Settings(P. 37)

Viewing the MAC Address for Wired LAN(P. 37)

Viewing the MAC Address and Information for Wireless LAN(P. 38)

1647-00Y

● The IP address is not correctly configured if it is displayed as "0.0.0.0".

● Connecting the machine to a switching hub or bridge may result in a connection failure even when the IP address is correctly configured. This problem can be solved by setting a certain interval before the machine

starts communicating. Setting a Wait Time for Connecting to a Network(P. 54)

You can print a list of the current network settings. User Data List/System Manager Data List(P. 608)

Viewing IPv4 Settings

<Status Monitor> <Network Information> <IPv4> Select the setting to view Check the settings

Viewing IPv6 Settings

<Status Monitor> <Network Information> <IPv6> Select the setting to view Check the settings

Viewing the MAC Address for Wired LAN

1

Select <Menu> in the Home screen. Home Screen(P. 122)

2

Select <Preferences> <Network>.

If the login screen appears, enter the correct ID and PIN. Logging in to the Machine(P. 133)

3

Select <Ethernet Driver Settings>.

MAC address is displayed.

37

Setting Up

Viewing the MAC Address and Information for Wireless LAN

1

Select <Menu> in the Home screen. Home Screen(P. 122)

2

Select <Preferences> <Network>.

If the login screen appears, enter the correct ID and PIN. Logging in to the Machine(P. 133)

3

Select <Wireless LAN Settings>.

4

Read the message that is displayed, and select <OK>.

5

Select <Connection Information>.

6

Select the setting to view.

Viewing security information

● To view WEP and WPA/WPA2-PSK information, select <Security Settings>.

Viewing from the <Status Monitor> screen

● <Wireless LAN Status> and <Latest Error Information> can be viewed from <Status Monitor>.

<Status Monitor> <Network Information> <Network Connection Type> Select the setting to view

LINKS

Connecting to a Wireless LAN(P. 17)

Setting IPv4 Address(P. 31)

Setting IPv6 Addresses(P. 34)

Configuring DNS(P. 55)

38

Setting Up

Configuring Settings for Communication with a

Computer

1647-010

Specify the protocol and port when operating the machine from a computer via the network. Before configuring the machine for printing or faxing from a computer, perform the basic setup procedures. For more information, see the manuals for the relevant drivers on the online manual website.

Configuring Printing Protocols and WSD Functions(P. 40)

Configuring Printer Ports(P. 43)

Setting Up Print Server(P. 47)

● Protocols explained here are rules for delivering document data between a computer and the machine, and can be selected according to intended purposes or the network environment.

● Ports are gateways for passing data between network devices. If a communication failure occurs in the network connection, the port settings may be the cause of the problem.

39

Setting Up

Configuring Printing Protocols and WSD Functions

1647-011

Configure the protocols that are used for printing documents from a networked computer.

● For more information about the basic operations to be performed when setting the machine from the

Remote UI, see Setting Up Menu Options from Remote UI(P. 427) .

1

Start the Remote UI and log in to System Manager Mode. Starting Remote

UI(P. 419)

2

Click [Settings/Registration] on the Portal page. Remote UI Screen(P. 420)

3

Click [Network Settings].

4

Configure printing protocols.

Configuring LPD or RAW

1

Select [LPD Settings] or [RAW Settings] [Edit].

2

Configure the settings as necessary.

[Use LPD Printing]

Select the check box to print via LPD. When not using LPD printing, clear the check box.

[Use RAW Printing]

Select the check box to print via RAW. When not using RAW printing, clear the check box.

[RX Timeout]

Set a value as the restart wait time for data reception. If data reception does not resume within the set time, printing is canceled.

3

Click [OK].

40

Configuring WSD

1

Select [WSD Settings] [Edit].

2

Configure the settings as necessary.

Setting Up

[Use WSD Printing]

Select the check box to print via WSD. When not using WSD printing, clear the check box.

[Use WSD Browsing]

Select the check box to obtain information about the machine from a computer via WSD. This check box is automatically selected when the [Use WSD Printing] check box is selected.

[Use WSD Scanning]

WSD scanning enables you to scan documents to a computer without installing the scanner driver. Select the check box to scan documents via WSD. When not using WSD scanning, clear the check box.

[Use Computer Scanning]

Select the check box to use WSD scanning by operating the machine with the operation panel. This check box can only be selected when the [Use WSD Scanning] check box is selected. To perform scanning, select

<Scan> in the Home screen and specify a WSD-connected computer as a scan destination ( Scanning

and Saving to a Computer(P. 285) ).

[Use Multicast Discovery]

Select the check box to set the machine to reply to multicast discovery messages. If the check box is cleared, the machine stays in sleep mode even when multicast discovery messages are flowing on the network.

3

Click [OK].

5

Restart the machine.

● Turn OFF the machine, wait for at least 10 seconds, and turn it back ON.

Selecting settings from the operation panel

● LPD, RAW, and WSD, settings can also be accessed from <Menu> in the Home screen.

<LPD Settings>(P. 459)

<RAW Settings>(P. 459)

<WSD Settings>(P. 460)

Setting up WSD network devices

The WSD network devices can be added from the printer folder. Open the printer folder ( Displaying the

Printer Folder(P. 728) ) click [Add a device] or [Add a printer] and follow the on-screen instructions. For

41

Setting Up more information about how to install the driver for the WSD network, see the manuals for the relevant drivers on the online manual website.

To change the port number

● The same port number used for the machine and a computer must be used for printing protocol.

Configuring Printer Ports(P. 43)

Changing Port Numbers(P. 377)

LINKS

Configuring Printer Ports(P. 43)

42

Setting Up

Configuring Printer Ports

1647-012

Printing errors can occur when the IP address of the machine has been changed, or when a printer has been added via the Windows printer folder. These errors are typically caused by incorrect printer port settings. For example, an incorrect port number or port type may have been specified. In such situations, your attempt to print fails because the document data cannot reach the machine. To fix this type of problem, configure the printer port settings on the computer.

● To perform the following procedure, log in to your computer with an administrator account.

1

Open the printer folder. Displaying the Printer Folder(P. 728)

2

Right-click the driver icon for this machine, and click [Printer properties] or

[Properties].

3

Click the [Ports] tab and configure the required settings.

Adding a port

If you have changed the IP address of the machine or you have selected an incorrect port while installing a driver from the Windows printer folder, add a new port. There are two types of port: "MFNP Port" and

"Standard TCP/IP Port." Select the port type according to your environment.

MFNP Port

(only for IPv4 environment)

This is a port that allows the IP address of the machine to be detected automatically.

Even if the IP address of the machine is changed, the connection is maintained, provided that the machine and the computer are in the same subnet. You do not need to add a new port every time the IP address is changed. If you are using the machine in an IPv4 environment, you should normally select this type of port.

● You can add an MFNP port only when you installed the driver from the provided

DVD-ROM, or when you downloaded and installed the printer driver or the fax driver from the Canon website.

43

Standard TCP/IP Port

Setting Up

This is a standard Windows port. When you use this type of port, you need to add a new port every time that the IP address of the machine is changed. Select this type of port when you are using the machine in an IPv6 environment and when you cannot add an MFNP port.

Adding an MFNP port

1

Click [Add Port].

2

Select [Canon MFNP Port] in [Available port types] and click [New Port].

3

Select [Auto Detect] and select the machine when it is detected, and then click [Next].

If the machine is not detected

● Click [Refresh]. If the problem persists, select [IP address] or [MAC address], enter the IP address or

MAC address of the machine ( Viewing Network Settings(P. 37) ) and then click [Next].

4

Click [Add] [Finish].

5

Click [Close].

Adding a standard TCP/IP port

1

Click [Add Port].

2

Select [Standard TCP/IP Port] in [Available port types] and click [New Port].

3

Click [Next].

4

Enter the IP address or the DNS name of the machine, and click [Next].

● The [Port Name] is entered automatically. If necessary, you can change it.

44

Setting Up

● When the next screen is displayed, follow the instructions on the screen.

*

When you select the [Device Type], select [Canon Network Printing Device with P9100] under [Standard].

5

Click [Finish].

6

Click [Close].

Changing the port type or number

If the printing protocol (LPD or RAW) has been changed on the machine side ( Configuring Printing

Protocols and WSD Functions(P. 40) ) or the port number has been changed ( Changing Port

Numbers(P. 377) ), the corresponding settings on the computer must also be configured. This operation is

not needed for WSD ports.

MFNP port

1

Click [Configure Port].

2

Under [Protocol Type], select [RAW] or [LPR], and change the [Port Number].

3

Click [OK].

Standard TCP/IP port

1

Click [Configure Port].

2

Under [Protocol], select [Raw] or [LPR].

45

Setting Up

● If you selected [Raw], change the [Port Number].

● If you selected [LPR], enter "lp" in [Queue Name].

3

Click [OK].

4

Click [Close].

LINKS

Setting Up Print Server(P. 47)

46

Setting Up

Setting Up Print Server

1647-013

With a print server, you can reduce the load on the computer that you print from. The print server also enables each computer to install the drivers over the network, which saves you the trouble of installing the drivers on each computer by using the provided DVD-ROM. To set up a computer on the network as a print server, configure the settings for sharing the printer.

● To perform the following procedure, log in to your computer with an administrator account.

● You may be unable to install drivers over the network depending on the operating system and the bit architecture (32-bit or 64-bit) of the print server and client computers.

● When implementing a print server in a domain environment, consult your Network Administrator.

To carry out Department ID Management when using a print server

● "Canon Driver Information Assist Service" must be added during the printer driver installation. For more information, see the manuals for the relevant drivers on the online manual website.

1

Open the printer folder. Displaying the Printer Folder(P. 728)

2

Right-click the printer driver icon for this machine and click [Printer properties] or

[Properties].

3

Click the [Sharing] tab, select [Share this printer], and enter the share name of the machine.

● Click the [Change Sharing Options] button if displayed.

4

Install additional drivers as necessary.

● This operation is required if you want to install the drivers in other computers running a different bit architecture via the print server.

47

Setting Up

1

Click [Additional Drivers].

2

Select the check box for the bit architecture that other computers are running, and click [OK].

● Select additional drivers from the following, according to the operating system of the print server.

Print server

32-bit operating systems

64-bit operating systems

Select the check box for

[x64]

[x86] under [Processor]

If you do not know whether your Windows operating system is a 32-bit or 64-bit version, see

Checking the Bit Architecture(P. 731) .

3

Insert the provided DVD-ROM into the drive on the computer, click [Browse] to specify the folder that contains the drivers, and then click [OK].

● If the print server runs a 32-bit operating system, select [intdrv] [UFRII] [us_eng] [x64]

[Driver] folders on the provided DVD-ROM.

● If the print server runs a 64-bit operating system, select [intdrv] [UFRII] [us_eng] [32bit]

[Driver] folders on the provided DVD-ROM.

4

Follow the on-screen instructions to install additional drivers.

5

Click [OK].

Installing the Drivers on a Computer via the Print Server

1

Locate the shared printer in the print server. Displaying Shared Printers in the

Print Server(P. 729)

2

Double-click the shared printer.

48

Setting Up

3

Follow the on-screen instructions to install the drivers.

LINKS

Printing from a Computer(P. 258)

49

Setting Up

Configuring the Machine for Your Network

Environment

1647-014

The configuration of a network varies depending on the purpose of the network. The machine has been designed to be compatible with as many network configurations as possible, and it is equipped with a variety of technologies.

Consult your Network Administrator and set a configuration to suit your network environment.

Configuring Ethernet Settings(P. 51)

Changing the Maximum Transmission Unit(P. 53)

Setting a Wait Time for Connecting to a Network(P. 54)

Configuring DNS(P. 55)

Configuring SMB(P. 59)

Configuring WINS(P. 61)

Registering LDAP Servers(P. 63)

Monitoring and Controlling the Machine with SNMP(P. 68)

Other Network Settings(P. 72)

50

Setting Up

Configuring Ethernet Settings

1647-015

Ethernet is a standard for communicating data in a local area network (LAN). You can set the communication mode and the Ethernet type. In general, the machine can be

used without changing the defaults ( <Ethernet Driver Settings>(P. 463) ), but you

can change these settings to suit your network environment.

1

Select <Menu> in the Home screen. Home Screen(P. 122)

2

Select <Preferences> <Network>.

If the login screen appears, enter the correct ID and PIN. Logging in to the Machine(P. 133)

3

Select <Ethernet Driver Settings>.

4

Select whether to configure Ethernet settings automatically or manually.

● If auto-detection is enabled, the machine detects and automatically sets the Ethernet communication mode and the type that can be used.

Configuring Ethernet settings automatically

Select <On> in <Auto Detect>.

Configuring Ethernet settings manually

1

Select <Off> in <Auto Detect>.

2

<Communication Mode> select the communication mode.

<Half Duplex>

Alternately sends and receives communication data. Select when the machine is connected to a networking device using half duplex.

51

Setting Up

<Full Duplex>

Simultaneously sends and receives communication data. Use this setting for most environments.

3

<Ethernet Type> select the Ethernet type.

4

Select <Apply>.

5

Restart the machine.

● Turn OFF the machine, wait for at least 10 seconds, and turn it back ON.

LINKS

Changing the Maximum Transmission Unit(P. 53)

Setting a Wait Time for Connecting to a Network(P. 54)

52

Setting Up

Changing the Maximum Transmission Unit

1647-016

In most Ethernet networks, the maximum size of a packet that can be sent is 1500 bytes. A packet refers to a chunk of data into which the original data is divided before being sent. The maximum transmission unit (MTU) may vary on each network. Change the settings of the machine as necessary. For more information, contact your Network Administrator.

1

Select <Menu> in the Home screen. Home Screen(P. 122)

2

Select <Preferences> <Network>.

If the login screen appears, enter the correct ID and PIN. Logging in to the Machine(P. 133)

3

Select <TCP/IP Settings> <MTU Size>.

4

Select the MTU.

5

Restart the machine.

● Turn OFF the machine, wait for at least 10 seconds, and turn it back ON.

LINKS

Configuring Ethernet Settings(P. 51)

Setting a Wait Time for Connecting to a Network(P. 54)

53

Setting Up

Setting a Wait Time for Connecting to a Network

1647-017

When a network is designed to enjoy redundant connectivity with multiple switching hubs or bridges, it must have a mechanism to prevent packets from looping. One effective solution is to define the role of each switch port. However, communication may still be disrupted for several tens of seconds immediately after you change the way that network devices are connected, or if you add a new device. If this type of problem occurs, set a wait time for connecting to the network.

1

Select <Menu> in the Home screen. Home Screen(P. 122)

2

Select <Preferences> <Network>.

If the login screen appears, enter the correct ID and PIN. Logging in to the Machine(P. 133)

3

Select <Waiting Time for Connection at Startup>.

4

Enter the waiting time required to start a communication with the network, and select <Apply>.

LINKS

Configuring Ethernet Settings(P. 51)

Changing the Maximum Transmission Unit(P. 53)

54

Setting Up

Configuring DNS

1647-018

DNS (Domain Name System) provides a service for name resolution that associates a host (or domain) name with an IP address. Configure the DNS, mDNS, or DHCP option settings as necessary. Note that the procedures for configuring

DNS are different for IPv4 and IPv6.

● For more information about the basic operations to be performed when setting the machine from the

Remote UI, see Setting Up Menu Options from Remote UI(P. 427) .

1

Start the Remote UI and log in to System Manager Mode. Starting Remote

UI(P. 419)

2

Click [Settings/Registration] on the Portal page. Remote UI Screen(P. 420)

3

Click [Network Settings].

4

Configure DNS settings.

Configuring IPv4 DNS

1

Select [IPv4 Settings] [Edit].

2

Configure IPv4 DNS settings.

55

Setting Up

[DHCP Option Settings]

[Acquire Host Name]

Select the check box to enable Option 12 to obtain the host name from the DHCP server.

[DNS Dynamic Update]

Select the check box to enable Option 81 to dynamically update the DNS records through the DHCP server.

[Acquire DNS Server Address]

Select the check box to enable Option 6 to obtain a DNS server address from the DHCP server.

[Acquire Domain Name]

Select the check box to enable Option 15 to obtain a domain name from the DHCP server.

[Acquire WINS Server Address]

Select the check box to enable Option 44 to obtain a WINS server address from the DHCP server.

[Acquire SMTP Server Address]

Select the check box to enable Option 69 to obtain an SMTP server address from the DHCP server.

[Acquire POP Server Address]

Select the check box to enable Option 70 to obtain a POP3 server address from the DHCP server.

[DNS Settings]

[Primary DNS Server Address]

Enter the IP address of a DNS server.

[Secondary DNS Server Address]

Enter the IP address of a secondary DNS server, if any.

[Host Name]

Enter alphanumeric characters for the host name of the machine that is to be registered to the DNS server.

[Domain Name]

Enter alphanumeric characters for the name of the domain the machine belongs to, such as

"example.com."

[DNS Dynamic Update]

Select the check box to dynamically update the DNS records whenever the machine's IP address is changed. When specifying the interval between updates, enter the time in hours in the [DNS

Dynamic Update Interval] text box.

56

Setting Up

[mDNS Settings]

[Use mDNS]

Adopted by Bonjour, mDNS (multicast DNS) is a protocol for associating a host name with an IP address without using DNS. Select the check box to enable mDNS and enter the mDNS name in the

[mDNS Name] text box.

3

Click [OK].

Configuring IPv6 DNS

1

Select [IPv6 Settings] [Edit].

2

Configure IPv6 DNS settings.

The [Use IPv6] check box must be selected to configure the settings. Setting IPv6 Addresses(P. 34)

[DHCP Option Settings]

[Acquire DNS Server Address]

Select the check box to enable Option 23 to obtain a DNS server address from the DHCP server.

[Acquire Domain Name]

Select the check box to enable Option 24 to obtain a domain name from the DHCP server.

[DNS Settings]

[Primary DNS Server Address]

Enter the IP address of a DNS server. Addresses that start with "ff" (or multicast address) cannot be entered.

[Secondary DNS Server Address]

Enter the IP address of a secondary DNS server, if any. Addresses that start with "ff" (or multicast address) cannot be entered.

[Use Same Host Name/Domain Name as IPv4]

Select the check box to use the same host and domain names as in IPv4.

[Host Name]

Enter alphanumeric characters for the host name of the machine that is to be registered to the DNS server.

[Domain Name]

57

Setting Up

Enter alphanumeric characters for the name of the domain the machine belongs to, such as

"example.com."

[DNS Dynamic Update]

Select the check box to dynamically update the DNS records whenever the machine's IP address is changed. To specify the type(s) of addresses you want to register to the DNS server, select the check box for [Register Manual Address], [Register Stateful Address], or [Register Stateless

Address]. To specify the interval between updates, enter the time in hours in the [DNS Dynamic

Update Interval] text box.

[mDNS Settings]

[Use mDNS]

Adopted by Bonjour, mDNS (multicast DNS) is a protocol for associating a host name with an IP address without using DNS. Select the check box to enable mDNS.

[Use Same mDNS Name as IPv4]

Select the check box to use the same mDNS name as in IPv4. To set a different name, clear the check box and enter the mDNS name in the [mDNS Name] text box.

3

Click [OK].

5

Restart the machine.

● Turn OFF the machine, wait for at least 10 seconds, and turn it back ON.

Selecting settings from the operation panel

DNS settings can also be accessed from <Menu> in the Home screen. <DNS Settings>(P. 458)

LINKS

Setting IPv4 Address(P. 31)

Setting IPv6 Addresses(P. 34)

Viewing Network Settings(P. 37)

58

Setting Up

Configuring SMB

1647-019

Server Message Block (SMB) is a protocol for sharing resources, such as files and printers, with more than one device in a network. The machine uses SMB to store scanned documents into a shared folder. Depending on your network, you may have to set the NetBIOS name and workgroup name.

NetBIOS Name

In a Windows network that uses NetBIOS, NetBIOS names are used for identifying network-connected computers as well as for file sharing and other network services. Most computers use the computer name as the NetBIOS name.

Workgroup Name

Workgroup name is a name for grouping multiple computers so that basic network functions, such as file sharing, become available in a Windows network. Specify the workgroup name to identify the group that the machine belongs to.

● For more information about the basic operations to be performed when setting the machine from the

Remote UI, see Setting Up Menu Options from Remote UI(P. 427) .

1

Start the Remote UI and log in to System Manager Mode. Starting Remote

UI(P. 419)

2

Click [Settings/Registration] on the Portal page. Remote UI Screen(P. 420)

3

Select [Network Settings] [SMB Settings].

4

Click [Edit].

5

Specify the required settings.

59

Setting Up

[NetBIOS Name]

Enter alphanumeric characters for the NetBIOS name of the machine.

[Workgroup Name]

Enter alphanumeric characters for the name of the workgroup that the machine belongs to.

● NetBIOS names or workgroup names that start with an asterisk (

*

) cannot be registered to a WINS server.

6

Click [OK].

7

Restart the machine.

● Turn OFF the machine, wait for at least 10 seconds, and turn it back ON.

LINKS

Configuring WINS(P. 61)

60

Setting Up

Configuring WINS

1647-01A

Windows Internet Name Service (WINS) is a name resolution service that associates a NetBIOS name (a computer or printer name in an SMB network) with an IP address. To enable WINS, the WINS server must be specified.

In order to specify WINS server settings, NetBIOS name and workgroup name are required to be set.

Configuring SMB(P. 59)

● The function is not available in an IPv6 network.

● For more information about the basic operations to be performed when setting the machine from the

Remote UI, see Setting Up Menu Options from Remote UI(P. 427) .

1

Start the Remote UI and log in to System Manager Mode. Starting Remote

UI(P. 419)

2

Click [Settings/Registration] on the Portal page. Remote UI Screen(P. 420)

3

Select [Network Settings] [WINS Settings].

4

Click [Edit].

5

Select the [WINS Resolution] check box, and specify the required settings.

[WINS Resolution]

Select the check box to use WINS for name resolution. When not using WINS, clear the check box.

[WINS Server Address]

Enter the IP address of the WINS server.

61

Setting Up

● If the IP address of the WINS server is obtained from a DHCP server, the obtained IP address overrides the

IP address entered in the [WINS Server Address] text box.

6

Click [OK].

7

Restart the machine.

● Turn OFF the machine, wait for at least 10 seconds, and turn it back ON.

Selecting settings from the operation panel

WINS settings can also be accessed from <Menu> in the Home screen. <WINS Settings>(P. 459)

LINKS

Setting IPv4 Address(P. 31)

62

Setting Up

Registering LDAP Servers

1647-01C

If an LDAP server is implemented in the network, you can search the server for fax numbers or e-mail addresses, and then specify them as destinations or register

them in the Address Book. Note also that if send function authentication ( LDAP

Server Authentication(P. 364) ) is enabled, you must register the server used for

authentication. You can register a maximum of five LDAP servers each for searching and for authentication to the machine. Register LDAP servers via the Remote UI.

● For more information about the basic operations to be performed when setting the machine from the

Remote UI, see Setting Up Menu Options from Remote UI(P. 427) .

1

Start the Remote UI and log in to System Manager Mode. Starting Remote

UI(P. 419)

2

Click [Settings/Registration] on the Portal page. Remote UI Screen(P. 420)

3

Click [LDAP Server Settings].

4

Click [Register New Server] for [LDAP Server (For Search)] or [LDAP Server (For

Authentication)].

● LDAP server registration is separated, with registration either for searching or for authentication. To use an

LDAP server for searching for fax and e-mail destinations, register if for searching, and to use it for authenticating sending of e-mail or faxes, register it for authenticating.

To edit registered server information

● Click a text link under [Server Name] for the edit screen.

To delete registered server information

● Click [Delete] on the right of the server name you want to delete click [OK].

5

Register the LDAP server.

Register the server used for searches

Register the server for searching for fax, e-mail destinations.

63

Setting Up

[Server Name]

Enter the name to be assigned to the LDAP server.

[Server Address]

Enter the IP address of the LDAP server or enter alphanumeric characters for the host name of the server

(example: ldap.example.com).

[Server Address] and DNS

● To prevent errors from occurring when searching for destinations, make sure to check the following:

- If the host name is entered for [Server Address], make sure that a DNS server is available in the network.

- If the IP address is entered for [Server Address], check whether the DNS server supports only forward lookup. If the server supports only forward lookup, select [Do Not Use] or [Use] for [Login Information]. If you select [Use (Security Authentication)], make sure that the DNS server supports reverse lookup.

[Position to Start Search]

Specify the node in the directory information tree (DIT) that you want to start search from. Leaving the text box blank sets the machine to start search from an arbitrary node selected automatically.

● When specifying the node, enter "DC=," followed by a host name (a dot-delimited character string in the

Active Directory domain name), and separate each of the entries with a comma. If the domain name is

"john.example.com," for example, enter "DC=john,DC=example,DC=com."

[Use TLS]

Select the check box to encrypt communication with the LDAP server using TLS.

● This is enabled only when [Use] or [Use (Security Authentication)] is selected in [Login

Information].

[Port Number]

Enter the port number used for communicating with the LDAP server.

[Search Timeout]

64

Setting Up

Specify how long the machine searches.

[Login Information]

Select [Do Not Use], [Use], or [Use (Security Authentication)] depending on the type of authentication implemented by the LDAP server. When [Use] or [Use (Security Authentication)] is selected, the user name and password must be specified.

[Do Not Use]

[Use]

Select not to authenticate the machine using the login information.

Select to authenticate the machine using the login information.

[Use (Security Authentication)]

Select to use data obtained by Kerberos, a network authentication protocol, for the authentication password. If this setting is selected, the clock of the machine needs to be synchronized with that of the LDAP server.

[Display Authentication Screen When Searching]

Select the check box to require the user to enter the user name and password when a search is requested. If the

[Use Same Authentication Information as When Send Operation Started] check box is selected, the user name and password used for authentication when sending faxes or scans are also used here. If the check box is cleared, authentication is carried out using the information entered in [User Name] and [Password].

[Use Same Authentication Information as When Send Operation Started]

Set whether the authentication information when the fax or scan function was used is also used when searching. This check box is normally displayed selected; however, it is only valid when the [Display

Authentication Screen When Searching] check box is selected.

[User Name]

Enter the user name of the machine that was registered to the LDAP server.

● When [Use] is selected for [Login Information], enter the user name in the form "(domain name)\(user name)" (example: domain1\user1).

● When [Use (Security Authentication)] is selected, enter the user name only (example: user1).

[Set/Change Password]

To specify or change the password, select the check box and enter alphanumeric characters in the [Password] text box.

[Domain Name]

When [Use (Security Authentication)] is selected for [Login Information], enter alphanumeric characters for the directory tree name in Active Directory (example: example.com).

[Confirm TLS Certificate for LDAP Server Access]

Select the check box to verify the certificate when encrypting communication with the LDAP server using TLS.

Also, select the [Add CN to Verification Items] check box as necessary.

Registering the authentication server

If the use of the fax and scan functions is restricted, register the server used for authentication.

65

Setting Up

[Server Name]

Enter the name to be assigned to the LDAP server.

[Server Address]

Enter the IP address of the LDAP server or enter alphanumeric characters for the host name of the server

(example: ldap.example.com).

[Server Address] and DNS

● To prevent errors from occurring when searching for destinations, make sure to check the following:

- If the host name is entered for [Server Address], make sure that a DNS server is available in the network.

- If the IP address is entered for [Server Address], check whether the DNS server supports only forward lookup. If the server supports only forward lookup, select [Use] for [Login Information]. If you select [Use

(Security Authentication)], make sure that the DNS server supports reverse lookup.

[Position to Start Search]

Specify the node in the directory information tree (DIT) that you want to start search from. Leaving the text box blank sets the machine to start search from an arbitrary node selected automatically.

● When specifying the node, enter "DC=," followed by a host name (a dot-delimited character string in the

Active Directory domain name), and separate each of the entries with a comma. If the domain name is

"john.example.com," for example, enter "DC=john,DC=example,DC=com."

[Use TLS]

Select the check box to encrypt communication with the LDAP server using TLS.

● This is enabled only when [Use] is selected in [Login Information].

[Port Number]

Enter the port number used for communicating with the LDAP server.

[Authentication/Attribute Acquisition Timeout]

Specify how long authentication and attribute acquisition can continue.

66

Setting Up

[User Name Attribute]

Enter the attribute name, to be compared with a user name entered during authentication, of alphanumeric characters (Example: "sAMAccountName").

● Not required if [Use (Security Authentication)] is selected in [Login Information].

[E-Mail Address Attribute]

Enter the attribute name, to be used for obtaining an e-mail address from the authentication server, of alphanumeric characters (Example: "mail").

[Login Information]

Select [Use] or [Use (Security Authentication)] depending on the type of authentication implemented by the

LDAP server.

[Use] Select to authenticate the machine using the System Manager ID.

[Use (Security Authentication)]

Select to use data obtained by Kerberos, a network authentication protocol, for the authentication password. If this setting is selected, the clock of the machine needs to be synchronized with that of the LDAP server.

[Use System Manager ID]

If [Use] is selected in [Login Information], this specifies whether authentication using the system manager ID is used. To use the system manager ID, select the check box and specify the user name and password for used for authentication. If you deselect the check box, login is anonymous (no user name).

[User Name]

Enter the user name of the machine that was registered to the LDAP server in the form "(domain name)\(user name)" (example: domain1\user1).

[Set/Change Password]

To specify or change the password, select the check box and enter alphanumeric characters in the [Password] text box.

[Domain Name]

When [Use (Security Authentication)] is selected for [Login Information], enter alphanumeric characters for the directory tree name in Active Directory (example: example.com).

[Confirm TLS Certificate for LDAP Server Access]

Select the check box to verify the certificate when encrypting communication with the LDAP server using TLS.

Also, select the [Add CN to Verification Items] check box as necessary.

6

Click [OK].

LINKS

Configuring SNTP(P. 72)

Basic Operations for Sending Faxes(P. 217)

Basic Operations for Scanning Originals(P. 284)

LDAP Server Authentication(P. 364)

67

Setting Up

Monitoring and Controlling the Machine with SNMP

1647-01E

Simple Network Management Protocol (SNMP) is a protocol for monitoring and controlling communication devices in a network by using Management Information Base (MIB). The machine supports SNMPv1 and security-enhanced

SNMPv3. You can check the status of the machine from a computer when you print documents or use the Remote UI.

You can enable either SNMPv1 or SNMPv3, or both at the same time. Specify the settings for each version to suit your network environment and the purpose of use.

SNMPv1

SNMPv1 uses information called "community" to define the scope of SNMP communication. Because this information is exposed to the network in plain text, your network will be vulnerable to attacks. If you want to ensure network security, disable SNMPv1 and use SNMPv3.

SNMPv3

With SNMPv3, you can implement network device management that is protected by robust security features.

Note that TLS must be enabled for the Remote UI before configuring SNMPv3 ( Configuring the Key and

Certificate for TLS(P. 380) ).

● The machine does not support the trap notification feature of SNMP.

To change the port number of SNMP, see Changing Port Numbers(P. 377) .

● SNMP management software, when installed on a computer on the network, enables you to configure, monitor, and control the machine remotely from the computer. For more information, see the instruction manuals for your management software.

● For more information about the basic operations to be performed when setting the machine from the

Remote UI, see Setting Up Menu Options from Remote UI(P. 427) .

1

Start the Remote UI and log in to System Manager mode. Starting Remote

UI(P. 419)

2

Click [Settings/Registration] on the Portal page. Remote UI Screen(P. 420)

3

Select [Network Settings] [SNMP Settings].

4

Click [Edit].

68

Setting Up

5

Specify SNMPv1 settings.

● If you do not need to change SNMPv1 settings, proceed to the next step.

[Use SNMPv1]

Select the check box to enable SNMPv1. You can specify the rest of SNMPv1 settings only when this check box is selected.

[Use Community Name 1]/[Use Community Name 2]

Select the check box to specify a community name. If you do not need to specify a community name, clear the check box.

[Community Name]

Enter alphanumeric characters for the name of the community.

[MIB Access Permission]

For each community, select [Read/Write] or [Read Only] for the access privileges to MIB objects.

[Read/Write]

[Read Only]

Permits both viewing and changing the values of MIB objects.

Permits only viewing the values of MIB objects.

[Use Dedicated Community]

Dedicated Community is a preset community, intended exclusively for Administrators using Canon software, such as imageWARE Enterprise Management Console. Select the check box to use Dedicated Community, and specify [MIB Access Permission]. If you do not need to use Dedicated Community, clear the check box.

6

Specify SNMPv3 settings.

● If you do not need to change SNMPv3 settings, proceed to the next step.

69

Setting Up

[Use SNMPv3]

Select the check box to enable SNMPv3. You can specify the rest of SNMPv3 settings only when this check box is selected.

[Enable User]

Select the check box to enable [User Settings 1]/[User Settings 2]/[User Settings 3]. To disable user settings, clear the corresponding check box.

[User Name]

Enter alphanumeric characters for the user name.

[MIB Access Permission]

Select [Read/Write] or [Read Only] for the access privileges to MIB objects.

[Read/Write]

[Read Only]

Permits both viewing and changing the values of MIB objects.

Permits only viewing the values of MIB objects.

[Security Settings]

Select [Authentication On/Encryption On], [Authentication On/Encryption Off], or [Authentication Off/

Encryption Off] for the desired combination of authentication and encryption settings.

[Authentication Algorithm]

Click the [Authentication On/Encryption On] or [Authentication On/Encryption Off] for [Security Settings] for the algorithm that corresponds to your environment.

[Encryption Algorithm]

Click the [Authentication On/Encryption On] for [Security Settings] for the algorithm that corresponds to your environment.

[Set/Change Password]

To set or change the password, select the check box and enter alphanumeric characters for the password in the [Authentication Password] or [Encryption Password] text box. For confirmation, enter the same password in the [Confirm] text box. Passwords can be set independently for authentication and encryption algorithms.

7

Specify Printer Management Information Acquisition Settings.

70

Setting Up

● With SNMP, the printer management information, such as printing protocols and printer ports, can be monitored and obtained regularly from a computer on the network.

[Acquire Printer Management Information from Host]

Select the check box to enable monitoring of the printer management information of the machine via SNMP.

To disable monitoring of the printer management information, clear the check box.

8

Click [OK].

9

Restart the machine.

● Turn OFF the machine, wait for at least 10 seconds, and turn it back ON.

Disabling SNMPv1

● If SNMPv1 is disabled, some of the functions of the machine become unavailable, such as obtaining machine information via the printer driver.

Using the operation panel

You can enable or disable the SNMP settings from <Menu>. <SNMP Settings>(P. 461)

Enabling Both SNMPv1 and SNMPv3

● If both versions of SNMP are enabled, it is recommended that MIB access permission in SNMPv1 be set to

[Read Only]. MIB access permission can be set independently in SNMPv1 and SNMPv3 (and for each user in

SNMPv3). Selecting [Read/Write] (full access permission) in SNMPv1 negates the robust security features that characterize SNMPv3 because most of the machine settings can then be controlled with SNMPv1.

LINKS

Configuring the Key and Certificate for TLS(P. 380)

71

Setting Up

Other Network Settings

1647-01F

Configure the following items according to your network environment.

Configuring FTP PASV Mode(P. 72)

Configuring SNTP(P. 72)

Monitoring the Machine from the Device Management Systems(P. 73)

Configuring FTP PASV Mode

PASV is an FTP communication mode used for file transfer. To connect to an FTP server through a firewall, you must use PASV mode. First check that the PASV mode is set on the FTP server.

● Whether PASV mode is used for FTP depends on your network environment and the settings on the FTP server to which data is being sent. For more information, contact your Network Administrator.

<Menu> <Preferences> <Network> <TCP/IP Settings> <Use FTP PASV Mode> <On>

Restart the machine

Configuring SNTP

Simple Network Time Protocol (SNTP) enables you to adjust the system clock by using the time server on the network.

If SNTP is used, the time server is checked at the specified intervals; therefore, the correct time can always be maintained. The time is adjusted based on Coordinated Universal Time (UTC), so specify the time zone setting before

configuring SNTP ( Setting the Date/Time(P. 11) ). SNTP settings can be specified via the Remote UI.

● The SNTP of the machine supports both NTP (version 3) and SNTP (versions 3 and 4) servers.

● For more information about the basic operations to be performed when setting the machine from the

Remote UI, see Setting Up Menu Options from Remote UI(P. 427) .

1

Start the Remote UI and log in to System Manager Mode. Starting Remote

UI(P. 419)

2

Click [Settings/Registration] on the Portal page. Remote UI Screen(P. 420)

3

Select [Network Settings] [SNTP Settings].

4

Click [Edit].

72

Setting Up

5

Select the [Use SNTP] check box and specify the required settings.

[Use SNTP]

Select the check box to use SNTP for synchronization. If you do not want to use SNTP, clear the check box.

[NTP Server Name]

Enter the IP address of the NTP or the SNTP server. If DNS is available on the network, you can enter a host name (or FQDN) of alphanumeric characters instead (example: ntp.example.com).

[Polling Interval]

Specify the interval between one synchronization and the next.

6

Click [OK].

7

Restart the machine.

● Turn OFF the machine, wait for at least 10 seconds, and turn it back ON.

Testing communication with the NTP/SNTP server

● You can view communication status with the registered server by clicking [Settings/Registration] [Network

Settings] [Check NTP Server] in [SNTP Settings]. If a proper connection has been established, the result is displayed as shown below. Note that this operation does not adjust the system clock.

Monitoring the Machine from the Device Management Systems

You can facilitate the collection and management of various information about networked devices by implementing device management software, such as imageWARE Enterprise Management Console

*

, into the network. Information such as device settings, and error logs is retrieved and distributed via the server computer. If the machine is connected to such a network, imageWARE Enterprise Management Console searches the network for the machine by using protocols such as Service Location Protocol (SLP) to gather information from the machine, such as power supply

73

Setting Up status information. SLP settings can be specified via the Remote UI. This section also describes the procedure to configure settings for communication between the machine and plug-ins for imageWARE Enterprise Management

Console.

*

For more information about imageWARE Enterprise Management Console, contact your local authorized Canon dealer.

To use imageWARE Enterprise Management Console plug-ins

● You need to enable the settings of the dedicated port and the SNMP settings. As for the SNMP settings, set

[MIB Access Permission] to [Read/Write] for both SNMPv1 and SNMPv3.

<Use Dedicated Port>(P. 462)

Monitoring and Controlling the Machine with SNMP(P. 68)

Remote UI Operations

● For more information about the basic operations to be performed when setting the machine from the

Remote UI, see Setting Up Menu Options from Remote UI(P. 427) .

Configuring SLP Communication with Device Management Software

1

Start the Remote UI and log in to System Manager Mode. Starting Remote

UI(P. 419)

2

Click [Settings/Registration] on the Portal page. Remote UI Screen(P. 420)

3

Click [Network Settings].

4

Specify SLP settings.

Specifying multicast device discovery

1

Select [Multicast Discovery Settings] [Edit].

2

Select the [Respond to Discovery] check box and specify the required settings.

[Respond to Discovery]

Select the check box to set the machine to respond to device management software multicast discovery packets and enable monitoring by device management software.

74

Setting Up

To change the port number for multicast discovery, see Changing Port Numbers(P. 377) .

[Scope Name]

To include the machine into a specific scope, enter alphanumeric characters for the scope name.

3

Click [OK].

Notifying a device management software of the power status of the machine

1

Select [Sleep Mode Notification Settings] [Edit].

2

Select the [Notify] check box and specify the required settings.

[Notify]

Select the check box to notify a device management software of the power status of the machine. When

[Notify] is selected, you can expect the machine to avoid unnecessary communication during sleep mode and reduce the total power consumption.

[Port Number]

Change the port number for this function according to the network environment.

[Number of Routers to Traverse]

Specify how many routers the notification packets can pass.

[Notification Interval]

Specify how often the machine notifies a device management software of its power status.

3

Click [OK].

5

Restart the machine.

● Turn OFF the machine, wait for at least 10 seconds, and turn it back ON.

Configuring Settings for Communication between the Machine and Plug-ins

You can specify the settings to enable communication between the machine and imageWARE Enterprise Management

Console plug-ins. Use of plug-ins allows you to manage the machine's settings from imageWARE Enterprise

Management Console.

75

Setting Up

<Menu> <Preferences> <Network> <Device Settings Management> <On>

76

Setting Up

Installing Drivers

Install the various drivers and associated software on your computer.

1

Make the necessary preparation before proceeding with the installation.

Install the optional devices on the main unit in advance. Optional Equipment(P. 718)

● If the machine is supplied with a DVD-ROM, insert the DVD-ROM into the drive on the computer.

● You can download drivers and software you are going to use from the Canon website (http:// www.canon.com/).

1647-01K

● When new versions of drivers and software become available, they will be uploaded to the Canon website.

You can download them as necessary after checking their system requirements.

● Depending on your machine or environmental conditions, some functions may not be available.

● Some of the drivers are not supported depending on the OS. For more information about the supported status of the latest OS, see the Canon website.

2

Proceed with the installation.

● For more information about the installation procedure, see the manuals for the drivers and software you are going to use.

● Installation of drivers is impossible if sending and receiving of the IP address are not permitted in [Firewall

Settings]. For more information, see Specifying IP Addresses for Firewall Settings(P. 371) .

● If sending and receiving of the IP address of the computer on which drivers are installed become disabled by

[Firewall Settings], it is no longer possible to perform printing or send faxes from that printer.

77

Setting Up

Configuring Initial Settings for Fax Functions

1647-01L

Follow steps 1 to 4 described below to configure the fax settings. First, determine which receive mode best suits your intended use, and then follow the on-screen instructions to configure the settings. For more information about a particular step, click on the link to go to the corresponding section.

Step 1

Deciding Which Fax Receive Mode to Use(P. 79)

Step 2

Registering the Fax Number and Unit Name(P. 80)

Step 3

Selecting the Receive Mode(P. 81)

Step 4

Connecting the Telephone Line(P. 82)

78

Setting Up

Deciding Which Fax Receive Mode to Use

1647-01R

Before configuring the fax settings, determine which receive mode best suits your intended use.

Intended use

Use fax only/Never use telephone

Receive mode

<Auto>

This setting is for when you want to use the machine exclusively for receiving faxes, and you do not want to use the telephone.

Mostly use telephone/Almost never use fax <Manual>

Connect your telephone to the machine. This setting is for when you mostly want to use the telephone. You can receive incoming faxes manually.

Use both fax and telephone Use answering machine <Answering Machine>

Connect your answering machine. Callers can record a message if they call while you are away from the telephone.

The machine automatically receives incoming faxes.

Use standard telephone <Fax/Tel (Auto Switch)>

Connect your telephone. The machine automatically receives incoming faxes, and the telephone rings for incoming calls.

● Depending on the type of telephone connected to it, the machine may not be able to send or receive faxes properly.

● If you have subscribed to a Distinctive Ring Pattern Detection (DRPD) service provided by your telephone company, <DRPD> is also available for the receiving mode.

Receiving Faxes(P. 226)

»

Continue to Registering the Fax Number and Unit Name(P. 80)

LINKS

Receiving Faxes(P. 226)

79

Setting Up

Registering the Fax Number and Unit Name

1647-01S

Register the fax number and unit name of your machine. This information is printed at the top of each page sent from the machine.

1

Select <Menu> in the Home screen. Home Screen(P. 122)

2

Select <Function Settings> <Common> <Fax Setup Guide>.

3

Select <Set Up Now>.

4

Select <Next>.

5

Enter the fax number, and select <Apply>.

6

Select <Next>.

7

Enter the unit name (such as a user name or company name), and select <Apply>.

On how to enter text, see Entering Text(P. 131) .

When the unit name has been registered, the RX mode setting screen is displayed.

»

Continue to Selecting the Receive Mode(P. 81)

LINKS

Receiving Faxes(P. 226)

80

Setting Up

Selecting the Receive Mode

Select the receive mode that suits your intended use beforehand ( Deciding Which Fax Receive Mode to

Use(P. 79) ).

1

Select <Next>.

2

Select the receive mode.

● Select <Yes> or <No> to select the receive mode for the operations you intend to carry out.

1647-01U

● If you have subscribed to a Distinctive Ring Pattern Detection (DRPD) service provided by your telephone

company, <DRPD> is also available for the receiving mode. Receiving Faxes(P. 226)

To set the receive mode to <Auto>

Select <No>.

To set the receive mode to <Answering Machine>

Select <Yes> <Yes>.

To set the receive mode to <Fax/Tel (Auto Switch)>

Select <Yes> <No> <Yes>.

To set the receive mode to <Manual>

Select <Yes> <No> <No>.

3

Select <Apply>.

When the RX mode has been set, the telephone line connection method is displayed.

»

Continue to Connecting the Telephone Line(P. 82)

LINKS

Receiving Faxes(P. 226)

81

Setting Up

Connecting the Telephone Line

1647-01W

Connect the telephone line to the machine.

1

Connect the telephone line to the machine.

● Connect the included telephone cable to the telephone line jack on the machine ( ) and the telephone line jack on the wall.

● If you are using a telephone or answering machine, connect it to the external telephone jack ( ).

● If you are connecting an external telephone with fax functions, set up the telephone to receive faxes manually.

2

Select <End> after the telephone line has been connected.

3

Select <Yes>.

If the machine does not automatically set the type of telephone line

Follow the procedure below to set the type of telephone line. If you are not sure of the type of phone line you are using, contact your local telephone company.

<Menu> <Function Settings> <Send> <Fax Settings> <Set Line> <Select Line Type>

Select the type of telephone line

LINKS

Basic Operations for Sending Faxes(P. 217)

Receiving Faxes(P. 226)

82

Setting Up

Configuring Scan Settings

1647-01X

To send scanned originals directly by e-mail or I-Fax or save them to shared folders or FTP server, you need to configure the network. The Send Function Setting Tool, an application that is included with the machine, will assist you with the required setup. Set the necessary configuration depending on your purpose and network environment.

Saving to a Computer

Preparing to Use the Machine as a Scanner(P. 84)

Scanning to E-mail or I-Fax

Procedure for Setting to Send E-Mail/Send and Receive I-Fax(P. 85)

Scanning to Shared Folders

Procedure for Setting a Shared Folder as a Save Location(P. 93)

Saving to FTP Server

Procedure for Setting a FTP Server as a Save Location(P. 97)

LINKS

System Environment(P. 714)

Scan Function(P. 708)

83

Setting Up

Preparing to Use the Machine as a Scanner

1647-0FY

To use this machine as a scanner, you must complete preparations in advance, including installation of software to a computer. For more information, see the manuals for the relevant drivers on the online manual website. In Windows, when connecting this machine to a computer via a wireless or wired LAN, you need to register this machine in "MF

Network Scanner Selector" using the following procedure. This procedure is not required if the machine and your computer are connected via USB.

● The scan function is not available if the machine and your computer are connected in an IPv6 environment.

Use IPv4 or a USB connection.

1

Click in the system tray.

2

Select the check box for the machine, and click [OK].

84

Setting Up

Procedure for Setting to Send E-Mail/Send and Receive

I-Fax

1647-01Y

Before configuring the machine for scanning to e-mail, check the setup flow shown below.

Make sure that the machine and the computer are correctly connected.

Connecting to a Wireless LAN(P. 17)

Connecting to a Wired LAN(P. 16)

Make sure that you have the following information:

The IP address of the machine. Viewing Network Settings(P. 37)

● An e-mail address to be registered as a destination.

● Information about the e-mail server, including the SMTP server name, port numbers, whether authentication is required, and the user name and password for authentication.

● For more information about the e-mail server settings, contact your Internet service provider or Network Administrator.

Make sure that the computer meets the system requirements for the Send

Function Setting Tool (sending e-mail).

System requirements for the Send Function Setting Tool System

Environment(P. 714)

● Also make sure that <Use HTTP> and <Use Remote UI> are set to <On>.

Disabling HTTP Communication(P. 414)

Disabling Remote UI(P. 415)

Set the machine configuration.

Configuring Basic E-Mail Settings Configuring Basic E-Mail Settings(P. 86)

Configuring I-Fax Receiving Settings Configuring E-Mail/I-Fax

Communication Settings(P. 89)

● Configuring Detailed E-Mail/I-Fax Communication Settings (Authentication,

Encryption, etc.) Configuring E-Mail/I-Fax Communication Settings(P. 89)

85

Setting Up

Configuring Basic E-Mail Settings

1647-020

This section describes how to configure the e-mail settings by using the Send Function Setting Tool. With the Send

Function Setting Tool, you can also register e-mail addresses to the Address Book.

● The Send Function Setting Tool helps you configure the basic settings for sending e-mails. Instead of the

Send Function Setting Tool, you can use the Remote UI to configure more detailed settings such as the

settings for POP authentication before sending or for encrypted communication. Configuring E-Mail/I-

Fax Communication Settings(P. 89)

1

Start the Send Function Setting Tool.

Using a Web browser

Enter "http://<the IP address of the machine>/sendsupport_login.html" in the address field of a Web browser, and press the [ENTER] key.

Using the DVD-ROM

1

Insert the provided DVD-ROM into the drive on the computer.

● Select a language and click [OK] if you are prompted to do so.

2

Click [Start Software Programs].

If the [Software Programs/Manuals Setup] screen is not displayed, see Displaying the [Software

Programs/Manuals Setup] Screen(P. 729) .

● If [AutoPlay] is displayed, click [Run MInst.exe].

3

Click [Start] for [Send Function Setting Tool].

4

Click [Next].

● If you want to view "Send Setting Guide," click [How to Set].

● If the screen that cancels the Windows firewall is displayed, click [Yes].

5

Select the machine from [Device List] and click [Next].

86

Setting Up

If the machine is not displayed in [Device List]

● Click [Search Again]. If the problem persists, click [Search by IP Address], enter the IP address of the machine, and then click [OK].

6

Confirm the settings and click [OK].

2

Click [Start].

● If the login screen is displayed, enter the appropriate ID and PIN in the corresponding text boxes, and then click [Logon].

3

Click [Send to E-mail Settings].

● If the screen prompting you to enter the Address Book PIN is displayed, enter the PIN for the Address Book,

and click [OK]. Restricting Use of the Address Book(P. 405)

4

Specify the required settings.

[Registration]

[Favorites Number]

87

Setting Up

With the Send Function Setting Tool, you can register an e-mail address into <Favorites> in the Address

Book. Select a number from the drop-down list.

[Name for Favorites Number]

Enter the name for identifying the destination to be registered. Set a name that will be easy for you to find later in the Address Book.

[Send Destination Settings]

[Destination E-mail Address]

Enter the e-mail address that you want to send your scanned originals to.

[SMTP Server Settings]

[SMTP Server]

Enter the SMTP server name.

[SMTP Authentication]

Click the [Not Set] or [Set] radio button to match the authentication settings of the SMTP server. When

[Set] is selected, enter the user name in the [User Name] text box and password in the [Password] text box.

Authentication methods for sending e-mails

● To prevent e-mail transmissions by unauthorized users, the machine supports SMTP authentication (SMTP

AUTH) and POP before SMTP. For more information about the required authentication method, contact your Internet service provider or Network Administrator.

POP before SMTP authentication can only be configured by using the Remote UI. Configuring E-Mail/I-

Fax Communication Settings(P. 89)

5

Click [Next].

6

Confirm the settings and click [Register].

7

Restart the machine.

● Turn OFF the machine, wait for at least 10 seconds, and turn it back ON.

Additional settings may be required depending on the network you are using. For more information, contact your Internet service provider or Network Administrator.

To enable TLS for e-mailing, see Configuring E-Mail/I-Fax Communication Settings(P. 89) .

To change port numbers, see Changing Port Numbers(P. 377) .

LINKS

Procedure for Setting to Send E-Mail/Send and Receive I-Fax(P. 85)

Specifying E-Mail Settings(P. 316)

Registering Destinations(P. 182)

88

Setting Up

Configuring E-Mail/I-Fax Communication Settings

1647-021

Use the Remote UI to configure the detailed send and receive settings, such as the settings for using the machine to send and receive I-Faxes and the settings for POP authentication and encryption of communication before you send email or I-Faxes. Contact your provider or network administrator for the required settings.

● For more information about the basic operations to be performed when setting the machine from the

Remote UI, see Setting Up Menu Options from Remote UI(P. 427) .

1

Start the Remote UI and log in to System Manager Mode. Starting Remote

UI(P. 419)

2

Click [Settings/Registration] on the Portal page. Remote UI Screen(P. 420)

3

Select [TX Settings] [Network Settings - E-Mail/I-Fax Settings].

4

Click [Edit].

5

Specify the required settings.

[SMTP Server]

Enter alphanumeric characters as the SMTP server name (or IP address) for sending e-mail and I-Faxes.

[E-Mail Address]

Enter alphanumeric characters for the e-mail address that you want to use for the machine.

[POP Server]

Enter alphanumeric characters as the SMTP server name or IP address for sending e-mail and I-Faxes.

[User Name]

Enter alphanumeric characters as the user name for the specified e-mail account when a POP3 server is used.

[Set/Change Password]

To set or change the password when a POP3 server is used, select the check box and enter alphanumeric characters in [Password].

89

Setting Up

Specify the settings required for I-Fax reception

[POP RX]

Select the check box to receive I-Faxes.

[POP Interval]

This sets the interval (in minutes) used for automatically connecting to the POP3 server. If there are any I-Fax documents on the server, they are automatically received and printed.

To disable automatic reception

Set [POP Interval] to [0]. When [0] is set, you receive I-Faxes manually. Receiving I-Faxes

Manually(P. 255)

Configuring Pop Authentication before Sending

POP before SMTP authentication prevents unauthorized users from using e-mail and I-Faxes by performing user authentication on the POP3 server.

[Use POP Authentication Before Sending]

To use the POP3 server for authentication before you send e-mail or I-Faxes, select the check box.

[Use APOP Authentication]

Select the check box to use APOP to encrypt the password during the authentication process.

Configuring SMTP authentication

If you configure SMTP authentication (SMTP AUTH), user identification by user name and password is performed at the time of sending e-mail or I-Fax.

90

Setting Up

[Use SMTP Authentication (SMTP AUTH)]

To enable authentication on the SMTP server, select the check box and enter alphanumeric characters in the

[User Name] text box.

[Set/Change Password]

To specify or change the password, enter alphanumeric characters in the [Password] text box.

Configuring encrypted communication

You can configure encryption of communication with an SMTP or POP3 server.

[Use TLS for SMTP]

Select the check box to use TLS for encrypting communication with the SMTP server. Select the check box for

[Verify Certificate] or [Add CN to Verification Items] depending on your needs.

[Use TLS for POP]

Select the check box to encrypt communication with the POP3 server using TLS. Select the [Verify Certificate] and [Add CN to Verification Items] check boxes as required.

6

Click [OK].

7

Restart the machine.

● Turn OFF the machine, wait for at least 10 seconds, and turn it back ON.

91

Setting Up

Depending on the network you are using, you may need to change the SMTP or POP3 port setting (

Changing Port Numbers(P. 377) ). For more information, contact your Internet service provider or Network

Administrator.

LINKS

Procedure for Setting to Send E-Mail/Send and Receive I-Fax(P. 85)

Configuring Basic E-Mail Settings(P. 86)

Basic Operations for Scanning Originals(P. 284)

Using Internet Fax (I-Fax)(P. 247)

92

Setting Up

Procedure for Setting a Shared Folder as a Save

Location

Before configuring the machine for scanning to shared folders, check the setup flow shown below.

Make sure that the machine and the computer are correctly connected.

Connecting to a Wireless LAN(P. 17)

Connecting to a Wired LAN(P. 16)

1647-022

Make sure that you have the following information:

The IP address of the machine. Viewing Network Settings(P. 37)

The name of the computer where the shared folder is located. Checking the

Computer Name(P. 732)

● Path to and the name of the shared folder (If access restrictions are set to the folder, the user name and password information is also needed).

● For instructions on how to create a new shared folder, see "Send Setting Guide"

(included with the provided DVD-ROM).

Make sure that the computer meets the system requirements for the Send

Function Setting Tool.

System requirements for the Send Function Setting Tool System

Environment(P. 714)

● Also make sure that <Use HTTP> and <Use Remote UI> are set to <On>.

Disabling HTTP Communication(P. 414)

Disabling Remote UI(P. 415)

Set the machine configuration. Setting a Shared Folder as a Save

Location(P. 94)

93

Setting Up

Setting a Shared Folder as a Save Location

1647-023

The feature of scanning to shared folders is also called "Scan to SMB" because the feature uses Server Message Block

(SMB), a Windows-specific technology. SMB is a protocol for sharing resources, such as files and printers, with more

than one device in a network ( Configuring SMB(P. 59) ). To configure the machine for saving your scanned

documents into a shared folder in the network via SMB, specify the location of the shared folder from a computer in advance. This section describes how to specify the save location by using the Send Function Setting Tool.

● You can also use the Remote UI to specify the location of the shared folder as save destination by registering the folder to the Address Book. Registering Destinations in the Address Book from Remote UI.

Registering Destinations from Remote UI(P. 430)

1

Start the Send Function Setting Tool.

Using a Web browser

Enter "http://<the IP address of the machine>/sendsupport_login.html" in the address field of a Web browser, and press the [ENTER] key.

Using the DVD-ROM

1

Insert the provided DVD-ROM into the drive on the computer.

● Select a language and click [OK] if you are prompted to do so.

2

Click [Start Software Programs].

If the [Software Programs/Manuals Setup] screen is not displayed, see Displaying the [Software

Programs/Manuals Setup] Screen(P. 729) .

● If [AutoPlay] is displayed, click [Run MInst.exe].

3

Click [Start] for [Send Function Setting Tool].

4

Click [Next].

● If you want to view "Send Setting Guide," click [How to Set].

● If the screen that cancels the Windows firewall is displayed, click [Yes].

5

Select the machine from [Device List] and click [Next].

94

Setting Up

If the machine is not displayed in [Device List]

● Click [Search Again]. If the problem persists, click [Search by IP Address], enter the IP address of the machine, and then click [OK].

6

Confirm the settings and click [OK].

2

Click [Start].

● If the login screen is displayed, enter the appropriate ID and PIN in the corresponding text boxes, and then click [Logon].

3

Click [Store to Shared Folder Settings].

● If the screen prompting you to enter the Address Book PIN is displayed, enter the PIN for the Address Book,

and click [OK]. Restricting Use of the Address Book(P. 405)

4

Specify the required settings.

[Registration]

95

Setting Up

[Favorites Number]

With the Send Function Setting Tool, you can register a shared folder for saving scanned documents into <Favorites> in the Address Book. Select a number from the drop-down list.

[Name for Favorites Number]

Enter the name for identifying the destination to be registered. Set a name that will be easy for you to find later in the Address Book.

[Store Destination Settings]

[Protocol]

The protocol that is used for sending scanned documents to a shared folder is displayed.

[Computer Name of Store Destination]

Enter the name or the IP address of the computer where the shared folder is located.

[Shared Folder Name on Store Destination Computer]

Enter the name of (or path to) the shared folder. For example, if the shared folder is a subfolder named

"share" and is contained in the [Public] folder in drive C (path: C:\users\public\share), enter

"users\public\share."

[Status of Settings for Shared Folder]

[Access Restriction to Shared Folder]

Click the [Not Set] or [Set] radio button to match the access restrictions set to the shared folder. When

[Set] is selected, enter the user name in the [Registered User Name] text box and password in the

[Password to Access] text box.

5

Click [Next].

6

Confirm the settings and click [Register].

7

Restart the machine.

● Turn OFF the machine, wait for at least 10 seconds, and turn it back ON.

LINKS

Procedure for Setting a Shared Folder as a Save Location(P. 93)

Basic Operations for Scanning Originals(P. 284)

96

Setting Up

Procedure for Setting a FTP Server as a Save Location

1647-024

Before configuring the machine for scanning to FTP Server, check the setup flow shown below.

Make sure that the machine and the computer are correctly connected.

Connecting to a Wireless LAN(P. 17)

Connecting to a Wired LAN(P. 16)

Make sure that you have the following information:

The IP address of the machine. Viewing Network Settings(P. 37)

● FTP server name.

● Path to the FTP server and folder name.

● User name, password (only if set).

● If the path, folder name, user name, password, etc. for the FTP server are unknown, contact you Network Administrator.

To change the FTP port number. Changing Port Numbers(P. 377)

Check whether you need to use PASV mode.

● If a firewall is installed between the machine and the FTP server, you must set

PASV mode. Configuring FTP PASV Mode(P. 72)

● Also make sure that <Use HTTP> and <Use Remote UI> are set to <On>.

Disabling HTTP Communication(P. 414)

Disabling Remote UI(P. 415)

Register the FTP server address.

Registering Destinations from Remote UI(P. 430)

97

Basic Operations

Basic Operations

Basic Operations

............................................................................................................................................ 100

Parts and Their Functions

................................................................................................................................. 103

Front Side

..................................................................................................................................................... 104

Insert a USB Memory Device

.................................................................................................................. 106

Back Side

...................................................................................................................................................... 108

Interior

......................................................................................................................................................... 109

Feeder

.......................................................................................................................................................... 110

Multi-Purpose Tray

....................................................................................................................................... 111

Paper Drawer

............................................................................................................................................... 112

Operation Panel

........................................................................................................................................... 114

Turning ON the Machine

................................................................................................................................... 116

Turning OFF the Machine

............................................................................................................................. 117

Powering OFF at a Fixed Time

................................................................................................................ 118

Using the Operation Panel

............................................................................................................................... 120

Basic Screens

................................................................................................................................................ 121

Home Screen

......................................................................................................................................... 122

<Status Monitor> Screen

........................................................................................................................ 125

Message Display

.................................................................................................................................... 127

Basic Operation

............................................................................................................................................ 128

Entering Text

................................................................................................................................................ 131

Logging in to the Machine

................................................................................................................................ 133

Placing Originals

............................................................................................................................................... 135

Loading Paper

.................................................................................................................................................... 139

Loading Paper in the Paper Drawer

.............................................................................................................. 141

Loading Paper in the Multi-Purpose Tray

...................................................................................................... 149

Loading Envelopes

....................................................................................................................................... 154

Loading Preprinted Paper

............................................................................................................................ 157

Specifying Paper Size and Type

.................................................................................................................... 159

Specifying Paper Size and Type in the Paper Drawer

............................................................................. 160

Specifying Paper Size and Type in the Multi-Purpose Tray

..................................................................... 162

Registering Default Paper Settings for the Multi-Purpose Tray

.............................................................. 164

Registering a Custom Paper Size

........................................................................................................... 166

Limiting the Paper Sizes Displayed

........................................................................................................ 168

Automatically Selecting an Appropriate Paper Source for Each Function

............................................... 169

Customizing the Display

................................................................................................................................... 170

98

Basic Operations

Customizing the Home Screen

..................................................................................................................... 171

Registering Frequently Used Settings

........................................................................................................... 174

Changing the Default Settings for Functions

.................................................................................................. 176

Setting Sounds

................................................................................................................................................... 178

Entering Sleep Mode

......................................................................................................................................... 180

Registering Destinations

.................................................................................................................................. 182

Registering Destinations in the Address Book

.............................................................................................. 184

Registering Multiple Destinations as a Group

........................................................................................ 187

Editing the Registered Destinations in the Address Book

...................................................................... 189

99

Basic Operations

Basic Operations

1647-025

This chapter describes basic operations, such as how to use the operation panel or how to load the paper, that are frequently performed to use the functions of the machine.

Parts and Their Functions

This section describes the exterior and interior parts of the machine and their functions, as well as how to use the keys

on the operation panel and how to view the display. Parts and Their Functions(P. 103)

Turning ON the Machine

This section describes how to turn the machine ON and OFF. Turning ON the Machine(P. 116)

Using the Operation Panel

This section describes how to use the display for tasks such as selecting items and adjusting settings. Also, it describes

how to enter characters and numbers. Using the Operation Panel(P. 120)

Logging in to the Machine

This section describes how to log in when a login screen is displayed. Logging in to the Machine(P. 133)

100

Basic Operations

Placing Originals

This section describes how to place originals on the platen glass and in the feeder. Placing Originals(P. 135)

Loading Paper

This section describes how to load the paper into the paper drawer and multi-purpose tray. Loading Paper(P. 139)

Customizing the Display

This section describes how to rearrange buttons or create shortcut buttons in order to make it easier to use the screen

shown in the display. Customizing the Display(P. 170)

Changing the Default Settings for Functions

This section describes how to change the setting that is displayed initially when a function is selected. Changing the

Default Settings for Functions(P. 176)

101

Basic Operations

Setting Sounds

This section describes how to adjust the volume of various machine sounds, such as those produced when fax sending

is complete or when an error occurs. Setting Sounds(P. 178)

Entering Sleep Mode

This section describes how to set the sleep mode. Entering Sleep Mode(P. 180)

Registering Destinations

This section describes how to register destinations for sending faxes or scanned documents. Registering

Destinations(P. 182)

102

Basic Operations

Parts and Their Functions

1647-026

This section describes the parts of the machine (exterior, front and back side, and interior) and how they function. In addition to describing the parts of the machine used for such basic operations as loading paper and replacing the toner cartridges, this section also describes the keys on the operation panel and display. Read this section for tips on how to use the machine properly.

Front Side(P. 104)

Back Side(P. 108)

Interior(P. 109)

Feeder(P. 110)

Multi-Purpose Tray(P. 111)

Paper Drawer(P. 112)

Operation Panel(P. 114)

103

Front Side

Basic Operations

1647-027

Feeder

Automatically feeds originals into the machine for scanning. When two or more sheets are loaded in the

feeder, originals can be scanned continuously. Feeder(P. 110)

USB port (for USB device connection)

Use this port to connect a third-party USB memory device or USB keyboard. Connecting a USB memory device allows you to print data from the memory device or store scanned originals on the memory device.

Insert a USB Memory Device(P. 106)

Printing from a USB Memory Device (Memory Media Print)(P. 270)

Sending Data by E-Mail/Saving Data to a Shared Folder or FTP Server(P. 291)

Paper stopper

Open the paper stopper when you want to prevent paper from falling out of the output tray.

Speaker

Emits sounds produced by the machine, such as fax tones and warning tones.

104

Basic Operations

Lift handles

Hold the lift handles when carrying the machine. Relocating the Machine(P. 591)

Operation panel

The operation panel consists of keys such as Home key, Stop key, a display, and status indicators. You can perform all the operations and specify settings from the operation panel.

Operation Panel(P. 114)

Basic Screens(P. 121)

Output tray

Printed paper is output to the output tray.

Power switch

Turns the power ON or OFF. To restart the machine, turn OFF the machine, wait for at least 10 seconds, and turn it back ON.

Front cover

Open the front cover when replacing toner cartridges.

Procedure for Replacing the Toner Cartridge(P. 586)

Paper drawer

Load the type of paper you frequently use into the paper drawer. Loading Paper in the Paper

Drawer(P. 141)

Multi-purpose tray/Manual feed slot

Load the paper into the multi-purpose tray when you want to temporarily use a type of paper different from

that which is loaded in the paper drawer. Loading Paper in the Multi-Purpose Tray(P. 149)

● In the User's Guide, "manual feed slot," if it does not need to be distinguished from "multi-purpose tray," is collectively referred to as "multi-purpose tray."

Platen Glass

When scanning books, thick originals, thin originals, and other originals that cannot be scanned using the

feeder, place them on the platen glass. Placing Originals(P. 135)

Ventilation slots

Air from inside the machine is vented out to cool down the inside of the machine. Note that placing objects in front of the ventilation slots prevents ventilation.

105

Basic Operations

Insert a USB Memory Device

1647-0H0

Insert a USB memory into the USB port on the front side of the machine. You can directly print data from a USB memory or directly save scanned originals on a USB memory.

Before using a USB memory device

● The supported formats of USB memory device are FAT16 and FAT32.

It is necessary to set <Use Scan Function> and <Use Print Function> to <On>. <Memory Media

Settings>(P. 559)

The following devices and uses are not supported:

● USB memory devices that have security functions installed

● USB memory devices that do not meet the USB standards

● Memory card readers connected via a USB

● USB memory devices that are used with extension cables

● USB memory devices used via a USB hub

Handling of USB memory devices

● Make sure that the USB memory device is correctly oriented before inserting it. If you attempt to insert it in incorrect orientation, the memory device and the machine may be damaged.

● Do not remove, bump or otherwise move the USB memory device while data is being imported or exported.

Also, do not turn OFF the machine while processing is in progress.

● You may not be able to save data properly on some USB memory devices.

Remove the USB Memory Device

● Always use the following procedure when removing USB memory devices. Using other methods to remove

USB memory devices may result in damage to the device and the machine.

1

Select <Status Monitor>.

2

Select <Rmv. Mem. Media>.

Wait until the <The memory media can be safely removed.> message is displayed.

3

Disconnect the USB memory device.

106

Basic Operations

LINKS

Printing from a USB Memory Device (Memory Media Print)(P. 270)

Saving Data to a USB Memory Device(P. 287)

107

Back Side

Basic Operations

1647-028

Rear cover

Open the rear cover when clearing paper jams. Clearing Paper Jams(P. 668)

Rating label

The label shows the serial number, which is needed when making inquiries about the machine. When a

Problem Cannot Be Solved(P. 680)

Power socket

Connect the power cord.

USB port (for USB device connection)

Use this port to connect devices such as a third-party USB keyboard.

USB port (for computer connection)

Connect a USB cable when connecting the machine and a computer.

LAN port

Connect a LAN cable when connecting the machine to a wired LAN router, etc. Connecting to a Wired

LAN(P. 16)

External telephone jack

Connect your telephone or answering machine. Connecting the Telephone Line(P. 82)

Telephone line jack

Connect a telephone cable when connecting the machine to a telephone line. Connecting the Telephone

Line(P. 82)

108

Basic Operations

Interior

1647-029

Toner cartridge tray

Install the toner cartridges. Load the Y (yellow), M (magenta), C (cyan), and K (black) toner cartridges in the

slots from the rear to the front respectively. Procedure for Replacing the Toner Cartridge(P. 586)

LINKS

Replacing the Toner Cartridge(P. 585)

109

Basic Operations

Feeder

1647-02A

Feeder cover

Open when clearing paper jams. Paper Jams in the Feeder(P. 670)

Slide guides

Adjust this guide to match the width of original.

Original supply tray

Automatically feeds originals into the machine for scanning. When two or more sheets are loaded in the

feeder, originals can be scanned continuously. Placing Originals(P. 135)

Original output tray

Scanned originals are output here.

Document feed scanning area

Originals loaded in the feeder are automatically fed to the scanning area to be scanned.

● Do not place any objects in the original output area. Doing so may cause damage to the originals.

Regularly clean the feeder and platen glass in order to obtain proper print results. Regular

Cleaning(P. 577)

110

Basic Operations

Multi-Purpose Tray

MF735Cdw / MF733Cdw / MF731Cdw MF634Cdw / MF632Cdw

1647-02C

Paper guides

Adjust the paper guides to exactly the width of the loaded paper to ensure that paper is fed straight into the machine.

For MF735Cdw / MF733Cdw / MF731Cdw

● Press the lock release levers that are marked with arrows in the illustrations to release the locks and slide the paper guides.

Paper tray

Pull out the paper tray when loading paper.

LINKS

Loading Paper in the Multi-Purpose Tray(P. 149)

111

Paper Drawer

MF735Cdw / MF733Cdw / MF731Cdw

Basic Operations

1647-02E

MF634Cdw / MF632Cdw

Paper guides

Adjust the paper guides to exactly the size of the loaded paper to ensure that paper is fed straight into the machine. Press the lock release levers that are marked with arrows in the illustrations to release the locks and slide the paper guides.

Lock release lever (for extending the paper drawer)

When loading Legal size paper, the paper drawer needs to be extended. Press this lever to release the lock and extend the length of the paper drawer.

When Legal size paper is loaded

● The front side of the paper drawer is not flush with the machine when the extended paper drawer is inserted. Place the legal dust cover over the open part of the paper drawer.

112

Basic Operations

MF735Cdw / MF733Cdw / MF731Cdw MF634Cdw / MF632Cdw

LINKS

Loading Paper in the Paper Drawer(P. 141)

113

Operation Panel

Basic Operations

1647-02F

● The angle of the operation panel can be adjusted. Adjust it to an angle that is most comfortable for

viewing the panel. Adjusting the Angle(P. 115)

Display

You can view the progress of the machine and error statuses. The display is also a touch panel, so you can specify settings by touching the screen directly.

Basic Screens(P. 121)

Basic Operation(P. 128)

Sound Volume key

Press to adjust volume. Setting Sounds(P. 178)

Energy Saver key

Press to put the machine into the sleep mode. The key lights up green when the machine is in the sleep

mode. Press the key again to exit sleep mode. Entering Sleep Mode(P. 180)

Data indicator

Blinks while operations such as sending or printing are being performed. Lights up when there are documents waiting to be processed.

Error indicator

Blinks or lights up when an error such as a paper jam occurs.

Home key

Press to display the Home screen, which provides access to the setting menu and functions such as copy and scan.

Home Screen(P. 122)

114

Customizing the Home Screen(P. 171)

Basic Operations

Stop key

Press to cancel printing and other operations.

NFC (Near Field Communication) mark

You can also use functions such as printing by waving a mobile device with Canon PRINT Business installed

over this mark. Connecting with Mobile Devices(P. 325)

Adjusting the Angle

When it is difficult to view the touch panel display, adjust the angle of the operation panel.

LINKS

Basic Operation(P. 128)

115

Basic Operations

Turning ON the Machine

This section describes how to turn ON the machine.

1

Make sure that the power plug is firmly inserted into a power outlet.

2

Press the power switch.

1647-02H

The Start screen appears. Operation Panel(P. 114)

You can select the screen that is displayed first after the machine is turned ON. <Default Screen After

Startup/Restoration>(P. 444)

LINKS

Turning OFF the Machine(P. 117)

116

Basic Operations

Turning OFF the Machine

This section describes how to turn OFF the machine.

1

Press the power switch.

1647-02J

● It may take some time for the machine to completely shut down. Do not unplug the power cord until the display turns off.

● To restart the machine, wait for at least 10 seconds after the machine is turned OFF.

● You can specify the time for each day of the week and configure a setting to automatically turn OFF the

machine. Powering OFF at a Fixed Time(P. 118)

117

Basic Operations

Powering OFF at a Fixed Time

1647-0HC

You can make a setting so that the power is automatically tuned OFF at a specified time on each day of the week. This allows you to avoid useless power consumption that may occur due to failure to turn OFF the power. By default, this function is disabled.

For information about the basic operation to set up the machine from Remote UI, see Setting Up Menu

Options from Remote UI(P. 427) .

1

Start the Remote UI and log in to System Manager Mode. Starting Remote

UI(P. 419)

2

Click [Settings/Registration] on the Portal page. Remote UI Screen(P. 420)

3

Select [Timer Settings] [Edit].

4

Select the check box for [Set Auto Shutdown Weekly Timer], and set the time to turn

OFF the power.

[Set Auto Shutdown Weekly Timer]

Selecting the check box allows you to set the time to turn OFF the power on each day of the week.

[Sunday] to [Saturday]

118

Basic Operations

Enter the desired time to turn OFF the power. For any day of the week, leaving the time field blank means that the auto shutdown function is disabled for that day.

5

Click [OK].

If the power is not turned OFF automatically at the specified time

*

● When the Data indicator is lit up or blinking

● When the menu screen or Check Counter screen is displayed

● When settings data is being imported/exported

● When the firmware is being updated

*

If the power cannot be turned OFF automatically at the specified time, a retry will be performed up to ten times at intervals of one minute. If the power cannot be turned OFF even after ten retries, auto shutdown will be impossible for that day.

119

Basic Operations

Using the Operation Panel

1647-02K

You can use the display and keys of the operation panel to configure machine settings or operate functions. This section describes basic usage of the display and keys.

Basic Screens(P. 121)

Basic Operation(P. 128)

Entering Text(P. 131)

If you want to invert the light and dark parts of the display: <Invert Screen Colors>(P. 468)

If you want to adjust the brightness of the display: <Brightness>(P. 468)

LINKS

Operation Panel(P. 114)

120

Basic Operations

Basic Screens

1647-02L

The Home screen or settings screen appears on the display, allowing you to initiate functions such as copy and scan.

You can also use the display to check information such as error messages and the machine's operation status. The screen is also a touch panel, so you can perform operations by touching the screen directly.

Home Screen(P. 122)

<Status Monitor> Screen(P. 125)

Message Display(P. 127)

● You can customize the Home screen by rearranging frequently used buttons for easier access to the

respective functions. Customizing the Display(P. 170)

To Know How to Operate

● On some screens, the <?> button allows you to view the descriptions of functions or how to operate.

121

Basic Operations

Home Screen

1647-0H3

The Home screen is displayed when the power is turned ON or by pressing on the operation panel. Use this screen to specify settings for and register functions.

Change page

Use this to view another page in the Home screen. You can also flick sideways to change pages.

<Check Counter>

Displays the totals for black and white and color printouts

separately. Viewing the Counter Value(P. 604)

<Log Out>

Use this button to log out from the machine.

<Status Monitor>

Press to check the printing status, to view the usage history, or to view the network settings such as the IP address of the machine. You can also check the status of the machine, such as the remaining amount of paper and the amount remaining in

the toner cartridges, or whether any errors occurred. <Status

Monitor> Screen(P. 125)

Wi-Fi icon

Displayed when the machine is connected to a wireless LAN.

<Copy>

Use this button to start copying. Copying(P. 191)

<Fax>

Use this button to send a fax from the machine.

Faxing(P. 213)

<Scan>

Scans an original and converts it into an electronic file. You can save scanned files on your computer or send them via e-mail.

Scanning(P. 279)

<Memory Media Print>

Prints files stored in a USB memory device. Printing from a

USB Memory Device (Memory Media Print)(P. 270)

122

Basic Operations

Application Library button

Use this button to perform convenient functions by a one-touch operation. For more information, see the manual on Application

Library on the online manual website.

<Secure Print>

Use this function to print a secure document. Printing a

Document Secured by a PIN (Secure Print)(P. 266)

<Menu>

<Function Settings>, <Preferences>, and many other machine

settings start from this button. Setting Menu List(P. 442)

<Address Book>

Use this to register or edit the destinations for e-mails and faxes. You can also display a registered destination when

sending an e-mail or fax. Registering Destinations(P. 182)

<Paper Settings>

This button is also used for specifying the size and type of paper loaded in the paper drawer and multi-purpose tray.

Specifying Paper Size and Type(P. 159)

<Mobile Portal>

Use this to establish a connection to a mobile device.

Connecting with Mobile Devices(P. 325)

<Home Screen Settings>

Allows you to change the order that Home screen buttons are

displayed in. Customizing the Home Screen(P. 171)

<Update Firmware>

Allows you to update the firmware via the Internet. Updating

the Firmware(P. 437)

<ID Card Copy>

Use this function to copy the front and back sides of a driver's

license or other card onto the same side of a page. Making

ID Card Copies(P. 211)

123

LINKS

Customizing the Home Screen(P. 171)

Basic Operations

<Operation Guide>

Press to view operation guidance and error causes/solutions.

Shortcut buttons

Display "Favorite Settings" that are registered to Copy, Fax, and

Scan. Adding Buttons to the Home Screen(P. 171)

124

Basic Operations

<Status Monitor> Screen

1647-0H4

When you select <Status Monitor>, a screen appears in which you can check the progress of documents as well as the status of the machine (amount remaining in the toner cartridges, etc.) and network settings such as the machine's IP address.

<Error Information/Notification>

Displays the details of any errors that occurred. Countermeasures for Each Message(P. 644)

<Device Information>

Displays the status of the machine, such as the amount of paper or the amount remaining in the toner cartridges.

<Paper Information>

Displays whether paper is loaded in each paper source.

<Cartridge Information>

Displays the amount remaining in the toner cartridges. Other internal parts may reach the end of their lifetime before the toner runs out.

<Check Counter>

Displays the separate totals for black and white and color printouts. Viewing the Counter Value(P. 604)

<Secure Print Memory Usage>

Displays the amount of memory currently used for storing secured document data. Printing a

Document Secured by a PIN (Secure Print)(P. 266)

<Version Information>

Displays firmware version information.

<Serial Number>

Displays the serial number.

125

Basic Operations

Status and logs of copied, printed, and sent/received documents

Displays the current status of the selected item. The <Copy/Print Job> screen is shown below as an example.

<Network Information>

Displays the network settings such as the IP address of the machine and status such as the condition of

wireless LAN communications. Viewing Network Settings(P. 37)

<Rmv. Mem. Media>

Used to safely remove a USB memory device. This is only displayed when a USB memory device is connected

to the machine. Remove the USB Memory Device(P. 106)

126

Basic Operations

Message Display

1647-0H5

Messages are displayed on the screen in situations such as when paper runs out or when the expiration of the toner

cartridge lifetime is reached. Countermeasures for Each Message(P. 644)

When an Error Occurs

In some cases when an error occurs, instructions on how to respond to the error are displayed. Follow the onscreen instructions to solve the problem. The screen displayed when a paper jam occurs is shown below as an example.

127

Basic Operations

Basic Operation

The display is a touch panel, allowing you to operate directly on the screen.

Avoid the following actions.

● The display may misfunction or be damaged.

- Pressing forcefully

- Pressing with pointed objects (fingernails, ballpoint pen, pencil, etc.)

- Operating with wet/soiled hands

- Operating the display while an object is placed on it

● Before using the touch panel display, peel off the protective film from the display.

Tap

Touch the screen lightly and quickly. Use for selecting or finalizing items.

1647-02R

Flick

Flick with the finger on the display. The effect of flicking varies depending on the screen. For instance, flicking in the Home screen moves you one page in the direction of the flick.

Selecting Items

Tap an item name or button to make a selection.

128

Basic Operations

If an item is mistakenly touched

● Slide your finger away then release it from the screen to cancel the selection.

To return to the previous screen

● Tap to return to the previous screen.

Scrolling the Screen

The scroll bar appears on the screen when there is still information that is undisplayed. If the scroll bar is displayed, flick the screen to scroll in the direction of the flick. Note that the scroll bar only appears while the screen is being touched.

Changing the Setting Value

Tap <+>/<-> to adjust the setting on the scale. You can also adjust a setting by flicking the slider left or right.

129

Basic Operations

You can change a variety of display-related settings, such as the display language: <Display

Settings>(P. 444)

● You can change the screen that is automatically displayed when the machine remains idle for a specified

length of time: <Function After Auto Reset>(P. 451)

You can change various settings about the operability such as screen brightness: <Accessibility>(P. 468)

130

Basic Operations

Entering Text

1647-02S

When entering text or a number, use the keyboard displayed on the screen. The numeric keys are displayed on the screen to enter only numbers.

Switching the Type of Text

Tap <a 1/#> to switch the type of text that is entered.

● To enter upper case characters, tap .

Deleting Text

One character is deleted each time characters.

is tapped. Holding down allows you to delete successive

Moving the Cursor (Entering a Space)

Tap or to move the cursor. To enter a space, move the cursor to the end of the text, and tap .

When the Numeric Keys are Displayed

When only the numeric value is entered, the numeric keys are displayed on the screen. Tap numeric keys to enter the numeric value.

Value range

● Values in ( ) displayed the entry box are the enterable value range.

131

Basic Operations

When buttons other than the numeric keys are displayed

● When <+>/<-> or / are displayed, you can tap the buttons and increase or decrease the numeric value or move the cursor.

Entering Characters Using a USB Keyboard

You can connect a keyboard to the USB port for USB devices on the Front Side(P. 104) or Back Side(P. 108) and

enter text from the keyboard. While connecting the keyboard, you can enter text from the operation panel.

● Some keys on the USB keyboard, such as the [Backspace], [Home] and [End] keys, cannot be used. When keys that cannot be used are pressed, nothing is entered or changed.

● To delete text, press the [Delete] key.

● Pressing the [RETURN/ENTER] key completes text entry in the same way as selecting <Apply>.

You can specify the type of keyboard layout (US layout or UK layout). <English Keyboard Layout>(P. 448)

● You can disconnect the USB keyboard from the machine at any time. No special operation is required to disconnect it.

● Depending on the display language, you may not be able to enter some characters correctly.

● The USB keyboard may not operate correctly depending on the type of keyboard.

132

Basic Operations

Logging in to the Machine

1647-02U

If Department ID Management is enabled or System Manager IDs are enabled, you must log in before using the machine. You also need to log in if use of the fax and scan functions is restricted.

Department ID Management Login(P. 133)

Logging in to Authorized Send(P. 133)

Department ID Management Login

When the login screen appears, use the procedure below to enter the Department ID and PIN.

When <Insert the card.> is displayed, see Copy Card Reader-F(P. 718) .

1

Enter the ID.

1

Select <Department ID> or <System Manager ID>.

2

Enter the ID.

● If no PIN is registered, proceed to step 3.

2

Enter the PIN.

1

Select <PIN>.

2

Enter the PIN.

3

Select <Log In>.

The login screen will be changed to the Home screen.

● After you finish using the machine, select <Log Out> to display the login screen.

Logging in to Authorized Send

If the Send function authorization setting ( LDAP Server Authentication(P. 364) ) is enabled, the Authorized Send

login screen appears when the fax or scan function is used.

133

Basic Operations

1

Enter your user name.

1

Select <User Name>.

2

Enter your user name using the numeric keys.

On how to enter text, see Entering Text(P. 131) .

2

Enter the password.

1

Select <Password>.

2

Enter the password using the numeric keys.

3

Select <Server Name>, and select the server for your authentication.

● Select the LDAP server where your user name and password are registered.

4

Select <Log In>.

The login screen switches to the fax or scan function Home screen.

● After you finish using the machine, select <Log Out> to display the login screen.

If the <Select Logout Type> screen appears

● If you are logged in to both Authorized Send and Department ID Management, a dialog box appears in which you can select the items you want to log out of. In the case where you want to log out of Authorized

Send (fax or scan function) while remaining logged in to Department ID Management, select <Log Out from Authenticated Sending>. In any other cases, select <Log Out from All Authenticated Functions>.

LINKS

Setting the Department ID Management(P. 356)

Setting the System Manager ID and PIN(P. 354)

134

Basic Operations

Placing Originals

1647-02W

Place originals on the platen glass or in the feeder. Use the platen glass when scanning thick or bound documents such as books. You can load two or more sheets of originals in the feeder so that they can be scanned continuously.

For information on loadable sizes, etc., see Main Unit(P. 696) or Feeder(P. 700) .

Placing Originals on the Platen Glass(P. 136)

Placing Originals in the Feeder(P. 136)

Use originals that are completely dry

● When placing originals, make sure that any glue, ink, or correction fluid on the originals has completely dried.

To avoid paper jams

● Do not place the following types of originals in the feeder as this may cause paper jams:

- Wrinkled or creased paper

- Carbon paper

- Curled or rolled paper

- Coated paper

- Torn paper

- Onion skin or thin paper

- Stapled or clipped originals

- Paper printed by a thermal transfer printer

- Transparencies

To scan originals more accurately

● Originals placed in the feeder are scanned while being fed into the machine. On the other hand, originals placed on the platen glass remain in a fixed position while they are scanned. To ensure more accurate scanning results, placing originals on the platen glass is recommended.

To scan tracing paper or transparencies

● To scan transparent originals (for example, tracing paper or transparencies), place them on the platen glass.

135

Basic Operations

Placing Originals on the Platen Glass

1

Open the feeder.

2

Place the original face down on the platen glass.

● Align the corner of the original with the top-left corner of the platen glass.

● To scan transparent originals (for example, tracing paper or transparencies), cover them with plain white paper.

3

Gently close the feeder.

The machine is ready to scan the document.

When scanning is complete

● Remove the original from the platen glass.

Placing Originals in the Feeder

1

Open the original supply tray.

136

Basic Operations

2

Spread the slide guides apart.

● Slide the slide guides outward until they are slightly farther apart than the actual original width.

3

Fan the original stack and align the edges.

● Fan the original stack in small batches, and align the edges by lightly tapping the stack on a flat surface a few times.

4

Place the original(s) face up in the feeder.

● Make sure that the original stack does not exceed the load limit lines ( ).

● Do not load originals of various sizes at the same time.

● If originals are loaded so that they exceed the load limit line, scanning may stop or a paper jam may occur.

5

Align the slide guides against the edges of the original.

● Slide the slide guides inward until they are aligned securely against the edges of the original.

The machine is ready to scan the original.

137

Basic Operations

Align the slide guides securely against the edges of the original

● Slide guides that are too loose or too tight can cause misfeeds or paper jam.

While originals are being scanned

● Do not add or remove originals.

When scanning is complete

● Remove the scanned originals from beneath the feeder to prevent paper jams.

138

Basic Operations

Loading Paper

1647-02X

You can load the paper into the paper drawer or multi-purpose tray. Load the paper you usually use into the paper drawer. The paper drawer is convenient when using large amounts of paper. Use the multi-purpose tray when you

temporarily use size or type of paper that is not loaded in the paper drawer. See Available Paper(P. 701) for

available paper sizes and types.

About Paper

Precautions for Paper(P. 139)

Storing the Paper Printed with the Machine(P. 140)

How to Load Paper

Loading Paper in the Paper Drawer(P. 141)

Loading Paper in the Multi-Purpose Tray(P. 149)

Loading Envelopes(P. 154)

Loading Preprinted Paper(P. 157)

Configuring the Settings for the Loaded Paper

Specifying Paper Size and Type(P. 159)

Precautions for Paper

Do not use the following types of paper:

● A paper jam or printing error may occur.

- Wrinkled or creased paper

- Curled or rolled paper

- Torn paper

- Damp paper

- Very thin paper

- Thin coarse paper

- Paper printed by a thermal transfer printer

- Back side of paper printed by a thermal transfer printer

- Highly textured paper

- Glossy paper

Notes on use of paper

● Only use paper that has fully acclimatized to the environment in which the machine is installed. Using paper that has been stored under different temperature or humidity may cause paper jams or result in poor print quality.

139

Basic Operations

Paper handling and storage

● It is recommended that you use paper as soon as possible after unwrapping. Paper remaining unused should be covered with the original wrapping paper and stored on a flat surface.

● Keep the paper wrapped in its original package to protect the paper from moisture or dryness.

● Do not store the paper in such a way that may cause it to curl or fold.

● Do not store the paper vertically or stack too much paper.

● Do not store the paper in direct sunlight, or in a place subject to high humidity, dryness, or drastic changes in temperature or humidity.

When printing on paper that has absorbed moisture

● Steam may emit from the paper output area, or water droplets may form around the paper output area.

There is nothing unusual about any of these occurrences, which occur when the heat generated from fixing toner on the paper causes moisture in the paper to evaporate (most likely to occur at low room temperatures).

Storing the Paper Printed with the Machine

When handling/storing the paper printed with the machine, take the following precautions.

How to Store the Printed Paper

● Store on a flat surface.

● Do not store together with articles made of PVC (polyvinyl chloride) such as clear folders. Toner may melt, resulting in the paper's sticking to PVC articles.

● Take care that the paper gets folded or creased. Toner may peel off.

● To store over a long period of time (two years or longer), store in binders or equivalent.

● When the paper is stored over a long period of time, it may become discolored and thus the print may seem to have undergone a change of color.

● Do not store in a place where the temperature is high.

Precautions When Applying Adhesive

● Always use insoluble adhesive.

● Before applying adhesive, perform a test using a printout no longer required.

● When putting adhesive-applied paper sheets one over another, make sure that the adhesive is completely dried out.

LINKS

Registering a Custom Paper Size(P. 166)

140

Basic Operations

Loading Paper in the Paper Drawer

1647-02Y

Load the paper that you usually use in the paper drawer. When you want to print on paper that is not loaded in the

paper drawer, load the paper in the multi-purpose tray. Loading Paper in the Multi-Purpose Tray(P. 149)

Loading Regular Size Paper(P. 141)

Loading Custom Size Paper(P. 145)

When using A5 size paper, see Loading Custom Size Paper(P. 145) and load it in the landscape

orientation. When loading paper in the portrait orientation, follow the steps shown in Loading Regular

Size Paper(P. 141) .

Landscape orientation Portrait orientation

● Follow the procedure below when loading paper into the optional cassette feeding module.

Loading Regular Size Paper

To load paper whose size is found in the paper size markings on the paper drawer, use the following procedure. For

paper whose size is not found in the paper size markings, see Loading Custom Size Paper(P. 145) .

1

Pull out the paper drawer.

MF735Cdw / MF733Cdw / MF731Cdw MF634Cdw / MF632Cdw

● Make sure to hold the paper drawer with both hands, and pull it out gently. Otherwise, you may damage the paper drawer by dropping it, if it slides out too easily.

141

Basic Operations

2

Adjust the positions of the paper guides to the paper size you want to use.

MF735Cdw / MF733Cdw / MF731Cdw

● While pressing the lock release lever, move the paper guide to align the projection to the appropriate paper size marking.

MF634Cdw / MF632Cdw

1

Slide the paper guide located on the side, and align the projection to the appropriate paper size markings.

2

While pressing the lock release lever, move the front side paper guide to align the projection to the appropriate paper size marking..

142

Basic Operations

When loading Legal size paper

● Press the lock release lever, and extend the paper drawer.

3

Load the paper so that the edge of the paper stack is aligned against the paper guide on the front side of the paper drawer.

● Load the paper with the print side face up.

● Fan the paper stack well, and tap it on a flat surface to align the edges.

Do not exceed the load limit line when loading paper

● Make sure that the paper stack does not exceed the load limit line ( ). Loading too much paper can cause paper jams.

143

Basic Operations

When loading paper with a logo, see Loading Preprinted Paper(P. 157) .

4

Insert the paper drawer into the machine.

● When you insert the paper drawer with <Notify to Check Paper Settings> set to <On>, a confirmation screen

is displayed. <Notify to Check Paper Settings>(P. 567)

When Legal size paper is loaded

● The front side of the paper drawer is not flush with the machine when the extended paper drawer is inserted. Place the legal dust cover over the open part of the paper drawer.

MF735Cdw / MF733Cdw / MF731Cdw

MF634Cdw / MF632Cdw

»

Continue to Specifying Paper Size and Type in the Paper Drawer(P. 160)

When changing the paper size or type

● The factory default settings for paper size and type are <LTR> and <Plain 2>, respectively. If you load a different size or type of paper into the machine, make sure to change the settings. If you do not change the settings, the machine cannot print properly.

Printing on the Back Side of Printed Paper (Manual 2-Sided Printing)

● You can print on the back side of printed paper. Flatten any curls on the printed paper and insert it into the

paper drawer or multi-purpose tray ( Loading Paper in the Multi-Purpose Tray(P. 149) ), with the side to

print face up (previously printed side face down).

- When using the multi-purpose tray, load one sheet of paper each time you print.

144

Basic Operations

- You can use only the paper printed with this machine.

- You cannot print on the side that has previously been printed on.

- If the printouts look faded, set the target paper source to <On> in <Manual Back Side Print (2-Sided Only)>.

<Manual Back Side Print (2-Sided Only)>(P. 472)

- If you are using A5 size paper, the reverse side may not be printed correctly.

Loading Custom Size Paper

To load custom size paper or other paper whose size is not found in the paper size markings on the paper drawer, use the following procedure.

1

Pull out the paper drawer.

MF735Cdw / MF733Cdw / MF731Cdw MF634Cdw / MF632Cdw

● Make sure to hold the paper drawer with both hands, and pull it out gently. Otherwise, you may damage the paper drawer by dropping it, if it slides out too easily.

2

Spread the paper guides apart.

● Press the lock release lever to slide the paper guides outward. On the MF634Cdw / MF632Cdw, there is no lock release lever for the side paper guides.

When loading longer paper than A4 size

● Press the lock release lever, and extend the paper drawer.

145

Basic Operations

3

Load the paper so that the edge of the paper stack is aligned against the rear side of the paper drawer.

● Load the paper with the print side face up.

● Fan the paper stack well, and tap it on a flat surface to align the edges.

Do not exceed the load limit line when loading paper

● Make sure that the paper stack does not exceed the load limit line ( ). Loading too much paper can cause paper jams.

When loading envelopes or paper with a logo, see Loading Preprinted Paper(P. 157) .

4

Align the paper guides against the edges of the paper.

● Press the lock release lever and slide the paper guides inward until they are aligned securely against the edges of the paper.

146

Basic Operations

Align the paper guides securely against the edges of the paper

● Paper guides that are too loose or too tight can cause misfeeds or paper jams.

5

Insert the paper drawer into the machine.

● When you insert the paper drawer with <Notify to Check Paper Settings> set to <On>, a confirmation screen

is displayed. <Notify to Check Paper Settings>(P. 567)

When loading longer paper than A4 size

● The front side of the paper drawer is not flush with the machine when the extended paper drawer is inserted. Place the legal dust cover over the open part of the paper drawer.

MF735Cdw / MF733Cdw / MF731Cdw

MF634Cdw / MF632Cdw

»

Continue to Specifying Paper Size and Type in the Paper Drawer(P. 160)

When changing the paper size or type

● The factory default settings for paper size and type are <LTR> and <Plain 2>, respectively. If you load a different size or type of paper into the machine, make sure to change the settings. If you do not change the settings, the machine cannot print properly.

Printing on the Back Side of Printed Paper (Manual 2-Sided Printing)

147

Basic Operations

● You can print on the back side of printed paper. Flatten any curls on the printed paper and insert it into the

paper drawer or multi-purpose tray ( Loading Paper in the Multi-Purpose Tray(P. 149) ), with the side to

print face up (previously printed side face down).

- When using the multi-purpose tray, load one sheet of paper each time you print.

- You can use only the paper printed with this machine.

- You cannot print on the side that has previously been printed on.

- If the printouts look faded, set the target paper source to <On> in <Manual Back Side Print (2-Sided Only)>.

<Manual Back Side Print (2-Sided Only)>(P. 472)

- If you are using A5 size paper, the reverse side may not be printed correctly.

LINKS

Available Paper(P. 701)

148

Basic Operations

Loading Paper in the Multi-Purpose Tray

1647-030

When you want to print on paper that is not loaded in the paper drawer, load the paper in the multi-purpose tray.

Load the paper that you usually use in the paper drawer. Loading Paper in the Paper Drawer(P. 141)

For the MF735Cdw / MF733Cdw / MF731Cdw(P. 149)

For the MF634Cdw / MF632Cdw(P. 151)

For the MF735Cdw / MF733Cdw / MF731Cdw

Make sure to insert the paper drawer

● The machine only prints when the paper drawer is inserted, even if paper is loaded in the multi-purpose tray. An error message is displayed if you attempt to print without inserting the paper drawer.

When loading A5 size paper

When setting the paper size, make sure the current paper orientation. Specifying Paper Size and Type in

the Multi-Purpose Tray(P. 162)

Landscape orientation Portrait orientation

1

Open the cover.

● Hold the both sides of the cover to open it.

2

Pull out the paper tray.

149

Basic Operations

3

Spread the paper guides apart.

● Press the lock release lever to slide the paper guides outward.

4

Insert the paper into the multi-purpose tray until the paper stops.

● Load the paper with the print side face up.

● Fan the paper stack well, and tap it on a flat surface to align the edges.

Do not exceed the load limit line when loading paper

● Make sure that the paper stack does not exceed the load limit line ( ). Loading too much paper can cause paper jams.

150

Basic Operations

When loading envelopes or paper with a logo, see Loading Envelopes(P. 154) or Loading Preprinted

Paper(P. 157) .

5

Align the paper guides against the edges of the paper.

● Slide the paper guides inward until they are aligned securely against the edges of the paper.

Align the paper guides securely against the edges of the paper

● Paper guides that are too loose or too tight can cause misfeeds or paper jams.

»

Continue to Specifying Paper Size and Type in the Multi-Purpose Tray(P. 162)

Printing on the Back Side of Printed Paper (Manual 2-Sided Printing)

● You can print on the back side of printed paper. Flatten any curls on the printed paper and insert it into the

paper drawer ( Loading Paper in the Paper Drawer(P. 141) ) or multi-purpose tray, with the side to print

face up (previously printed side face down).

- When using the multi-purpose tray, load one sheet of paper each time you print.

- You can use only the paper printed with this machine.

- You cannot print on the side that has previously been printed on.

- If the printouts look faded, set the target paper source to <On> in <Manual Back Side Print (2-Sided Only)>.

<Manual Back Side Print (2-Sided Only)>(P. 472)

- If you are using A5 size paper, the reverse side may not be printed correctly.

For the MF634Cdw / MF632Cdw

Make sure to insert the paper drawer

● The machine only prints when the paper drawer is inserted, even if paper is loaded in the manual feed slot.

An error message is displayed if you attempt to print without inserting the paper drawer.

Load only one sheet of paper at a time

● Only one sheet of paper can be loaded each time you print.

151

Basic Operations

When loading A5 size paper

When setting the paper size, make sure the current paper orientation. Specifying Paper Size and Type in

the Multi-Purpose Tray(P. 162)

Landscape orientation Portrait orientation

1

Spread the paper guides apart.

● Slide the paper guides outward.

2

Insert the paper and align the paper guides against the width of the paper.

● Load the paper with the print side face up.

● Insert the paper 3/8" to 3/4" (10 to 20 mm) into the manual feed slot, and then slide the paper guides inward until they are aligned securely against the edges of the paper.

Align the paper guides securely against the edges of the paper

● Paper guides that are too loose or too tight can cause misfeeds or paper jams.

3

Insert the paper slowly into the rear of the manual feed slot.

● The paper is pulled slightly into the machine when inserted into the slot.

152

Basic Operations

When loading envelopes or paper with a logo, see Loading Envelopes(P. 154) or Loading Preprinted

Paper(P. 157) .

»

Continue to Specifying Paper Size and Type in the Multi-Purpose Tray(P. 162)

Printing on the Back Side of Printed Paper (Manual 2-Sided Printing)

● You can print on the back side of printed paper. Flatten any curls on the printed paper and insert it into the

paper drawer ( Loading Paper in the Paper Drawer(P. 141) ) or manual feed slot, with the side to print

face up (previously printed side face down).

- You can use only the paper printed with this machine.

- You cannot print on the side that has previously been printed on.

- If the printouts look faded, set the target paper source to <On> in <Manual Back Side Print (2-Sided Only)>.

<Manual Back Side Print (2-Sided Only)>(P. 472)

- If you are using A5 size paper, the reverse side may not be printed correctly.

LINKS

Available Paper(P. 701)

153

Basic Operations

Loading Envelopes

1647-031

Make sure to flatten any curls on envelopes before loading them. Also pay attention to the orientation of envelopes and which side is face up.

Before Loading Envelopes(P. 154)

In the Paper Drawer(P. 155)

In the Multi-Purpose Tray(P. 155)

● This section describes how to load envelopes in the orientation you want, as well as procedures that you need to complete before loading envelopes. For a description of the general procedure for loading

envelopes in the paper drawer or multi-purpose tray, see Loading Paper in the Paper Drawer(P. 141) or

Loading Paper in the Multi-Purpose Tray(P. 149) .

Before Loading Envelopes

Follow the procedure below to prepare the envelopes before loading.

● On the MF634Cdw / MF632Cdw, only one envelope at a time can be loaded in the manual feed slot. Follow steps 1 to 3 in the procedure below to prepare the envelope for loading.

1

Close the flap of each envelope.

2

Flatten them to release any remaining air, and make sure that the edges are pressed tightly.

3

Loosen any stiff corners of the envelopes and flatten any curls.

154

Basic Operations

4

Align the edges of the envelope on a flat surface.

In the Paper Drawer

Load the envelopes Monarch, COM10, DL, or ISO-C5 in portrait orientation (with the long edges on either side), with the non-glued side (front side) face up. You cannot print on the reverse side of envelopes.

● Load the envelopes so that the edge with the flap is toward the left side as shown in the illustration.

In the Multi-Purpose Tray

Load the envelopes Monarch, COM10, DL, or ISO-C5 in portrait orientation (with the short edge toward the machine), with the non-glued side (front side) face up. You cannot print on the reverse side of envelopes.

● Load the envelopes so that the edge with the flap is toward the left side as shown in the illustration.

MF735Cdw / MF733Cdw / MF731Cdw MF634Cdw / MF632Cdw

155

Basic Operations

156

Basic Operations

Loading Preprinted Paper

1647-032

When you use paper that has been preprinted with a logo, pay attention to the orientation of the paper when loading.

Load the paper properly so that printing is performed on the correct side of the paper with a logo.

Making 1-Sided Printouts on Paper with Logos(P. 157)

Making 2-Sided Printouts on Paper with Logos(P. 157)

● This section mainly describes how to load preprinted paper with the proper facing and orientation. For a

description of the general procedure for loading paper in the paper drawer or multi-purpose tray, see

Loading Paper in the Paper Drawer(P. 141) or Loading Paper in the Multi-Purpose Tray(P. 149) .

Making 1-Sided Printouts on Paper with Logos

Load the paper with the logo side (the side to print the document) face up.

Printing on Paper with Logos in Portrait Orientation

Printing on Paper with Logos in Landscape Orientation

Making 2-Sided Printouts on Paper with Logos

Load the paper with the front logo side (the side to print the first page of the document) face down.

157

Basic Operations

Printing on Paper with Logos in Portrait Orientation

Printing on Paper with Logos in Landscape Orientation

The <Switch Paper Feed Method> setting

● When you print on preprinted paper, you need to change the facing of the paper to load each time you perform 1-sided and 2-sided printing. However, if <Switch Paper Feed Method> is set to <Print Side Priority>, the facing that you use for loading preprinted paper for 2-sided printing (logo side face down) can also be used for 1-sided printing. This setting is especially useful if you frequently perform both 1-sided and 2-sided

printing. <Switch Paper Feed Method>(P. 487)

158

Basic Operations

Specifying Paper Size and Type

1647-033

You must specify the paper size and type settings to match the paper that is loaded. Make sure to change the paper settings when you load the paper that is different from the previously loaded paper.

Specifying Paper Size and Type in the Paper Drawer(P. 160)

Specifying Paper Size and Type in the Multi-Purpose Tray(P. 162)

Registering Default Paper Settings for the Multi-Purpose Tray(P. 164)

Registering a Custom Paper Size(P. 166)

Limiting the Paper Sizes Displayed(P. 168)

Automatically Selecting an Appropriate Paper Source for Each Function(P. 169)

● If the setting does not match the size and type of loaded paper, a paper jam or printing error may occur.

159

Basic Operations

Specifying Paper Size and Type in the Paper Drawer

1647-034

1

Select <Paper Settings> in the Home screen. Home Screen(P. 122)

2

Select the target paper drawer.

● is displayed only when the optional cassette feeding module is installed.

3

Select the paper size in the <Frequently Used Sizes> tab.

● If the loaded paper size is not displayed, select <Other Sizes> tab.

When loading custom size paper

1

Select <Custom>.

2

Specify the length of the <X> side and <Y> side.

● Select <X> or <Y>, and enter the length of each side using <+>/<->, with / to move the cursor between the digits for inputting whole numbers and fractions.

● If you register the paper size you use frequently on buttons <S1> to <S3>, you can call them up with

one touch. Registering a Custom Paper Size(P. 166)

3

Select <Apply>.

160

Basic Operations

When loading A5 size paper

● In the landscape orientation, select <A5>. In the portrait orientation, select <A5R>.

Landscape orientation Portrait orientation

4

Select the paper type.

LINKS

Loading Paper in the Paper Drawer(P. 141)

Limiting the Paper Sizes Displayed(P. 168)

Available Paper(P. 701)

<Notify to Check Paper Settings>(P. 567)

161

Basic Operations

Specifying Paper Size and Type in the Multi-Purpose

Tray

1647-035

The screen shown here is displayed when paper is loaded in the multi-purpose tray. Follow the on-screen instructions to specify settings that match the size and type of the loaded paper.

If the screen shown above is not displayed when paper is loaded

● If you always load the same paper in the multi-purpose tray, you can skip the paper setting operations by registering the paper size and type as the default setting. When the default setting is registered, however,

the screen shown above is not displayed. To display the screen, select <Specify When Loading Paper> (

Registering Default Paper Settings for the Multi-Purpose Tray(P. 164) ).

1

Select the paper size in the <Frequently Used Sizes> tab.

● If the loaded paper size is not displayed, select <Other Sizes> tab.

When loading custom size paper

1

Select <Custom>.

2

Specify the length of the <X> side and <Y> side.

● Select <X> or <Y>, and enter the length of each side using <+>/<->, with / to move the cursor between the digits for inputting whole numbers and fractions.

162

Basic Operations

● If you register the paper size you use frequently on buttons <S1> to <S3>, you can call them up with

one touch. Registering a Custom Paper Size(P. 166)

3

Select <Apply>.

When loading A5 size paper

● In the landscape orientation, select <A5>. In the portrait orientation, select <A5R>.

Example for MF735Cdw / MF733Cdw / MF731Cdw:

Landscape orientation Portrait orientation

2

Select the paper type.

LINKS

Loading Paper in the Multi-Purpose Tray(P. 149)

Limiting the Paper Sizes Displayed(P. 168)

Available Paper(P. 701)

163

Basic Operations

Registering Default Paper Settings for the Multi-

Purpose Tray

1647-036

You can register default paper settings for the multi-purpose tray. Registering default settings can save yourself the effort of having to specify the settings each time you load the same paper into the multi-purpose tray.

● After the default paper setting is registered, the paper setting screen is not displayed when paper is loaded, and the same setting is always used. If you load a different paper size or type without changing the paper settings, the machine may not print properly. To avoid this problem, select <Specify When Loading Paper> in step 3, and then load the paper.

1

Select <Paper Settings> in the Home screen. Home Screen(P. 122)

2

Select multi-purpose tray.

3

Select the paper size in the <Frequently Used Sizes> tab.

● If the loaded paper size is not displayed, select <Other Sizes> tab.

Registering a custom paper size

1

Select <Custom>.

2

Specify the length of the <X> side and <Y> side.

● Select <X> or <Y>, and enter the length of each side using <+>/<->, with / to move the cursor between the digits for inputting whole numbers and fractions.

164

Basic Operations

● If you register the paper size you use frequently on buttons <S1> to <S3>, you can call them up with

one touch. Registering a Custom Paper Size(P. 166)

3

Select <Apply>.

When loading A5 size paper

● In the landscape orientation, select <A5>. In the portrait orientation, select <A5R>.

Example for MF735Cdw / MF733Cdw / MF731Cdw:

Landscape orientation Portrait orientation

4

Select the paper type.

LINKS

Loading Paper in the Multi-Purpose Tray(P. 149)

Limiting the Paper Sizes Displayed(P. 168)

Available Paper(P. 701)

165

Basic Operations

Registering a Custom Paper Size

You can register up to three frequently used custom paper sizes.

1

Select <Paper Settings> in the Home screen. Home Screen(P. 122)

2

Select <Register Custom Paper>.

3

Select the registration number.

1647-037

Deleting a setting

● Select <Delete> <Yes>.

4

Specify the length of the <X> side and <Y> side.

● Select <X> or <Y>, and enter the length of each side using <+>/<->, with / to move the cursor between the digits for inputting whole numbers and fractions.

● If you register the paper size you use frequently on buttons <S1> to <S3>, you can call them up with one touch.

5

Select <Apply>.

Setting to the registered custom size

The paper sizes that are registered in the procedure above can be called when <Custom> is selected on the paper size selection screen for the paper drawer or multi-purpose tray.

166

Basic Operations

LINKS

Loading Paper in the Paper Drawer(P. 141)

Loading Paper in the Multi-Purpose Tray(P. 149)

167

Basic Operations

Limiting the Paper Sizes Displayed

1647-038

You can ensure that only frequently used paper sizes are shown in the <Frequently Used Sizes> tab of the screen for selecting the paper size setting.

1

Select <Paper Settings> in the Home screen. Home Screen(P. 122)

2

Select <Select Frequently Used Paper Sizes>.

3

Select the paper source you want to limit the paper sizes to be displayed for.

4

Clear the check boxes for paper sizes you do not want displayed.

● Ensure that only the check boxes for frequently used paper sizes are selected.

● Paper sizes that are not selected can be viewed by selecting <Other Sizes> tab in the paper size setting selection screen.

5

Select <Apply>.

LINKS

Specifying Paper Size and Type in the Paper Drawer(P. 160)

Specifying Paper Size and Type in the Multi-Purpose Tray(P. 162)

Registering Default Paper Settings for the Multi-Purpose Tray(P. 164)

168

Basic Operations

Automatically Selecting an Appropriate Paper Source for Each Function

1647-0HE

Enable or disable the automatic paper source selection feature for each paper source. If this feature is set to <On>, the machine automatically selects a paper source that is loaded with paper of the appropriate size for each print job. Also, when the paper in the selected paper source runs out, this feature enables continuous printing by switching from that paper source to another that is loaded with the same paper size.

1

Select <Menu> in the Home screen. Home Screen(P. 122)

2

Select <Function Settings> <Common> <Paper Feed Settings>.

3

Select <Paper Source Auto Selection>.

4

Select the target function.

● When the target function is report/list printing or memory media print, select <Other>.

5

For each paper source to which you want to apply the automatic paper source selection feature, select <On>.

● <Drawer 2> is displayed only when the machine is equipped with the cassette feeding module (option).

● Always specify <On> for at least <Drawer 1> or <Drawer 2>. If you specify <Off> for the both, then you cannot finish the setting procedure.

6

Select <Apply>.

169

Basic Operations

Customizing the Display

1647-039

In order to make the Home screen easier to use, you can customize. In addition, you can work more efficiently by registering your favorite settings to the Basic Features screen for each function.

Customizing the Home Screen

You can rearrange buttons that are displayed in the Home screen. In addition, you can customize the Home

screen to make it easier to select functions by adding shortcut buttons. Customizing the Home

Screen(P. 171)

Registering "Favorite Settings"

To make it possible to quickly call up the same settings for Copy, Fax, and Scan, you can register them as your favorite settings. You can add registered setting combinations to the Home screen as shortcut buttons.

Registering Frequently Used Settings(P. 174)

170

Basic Operations

Customizing the Home Screen

1647-03A

You can add/delete shortcut buttons displayed in the Home screen according to your application or a preferred arrangement. You can also change the order that they are displayed in.

Adding Buttons to the Home Screen(P. 171)

Changing the Arrangement of Buttons(P. 172)

Adding Buttons to the Home Screen

You can add shortcut buttons to the Home screen for frequently used functions such as <Copy>, <Fax>, and <Scan>.

For example, you can carry out tasks more quickly and efficiently by assigning a sequence of settings (e.g. "Scan both sides of an original, save it as a highly compressed PDF file and send it via e-mail") to a single button.

● The settings to be added as a shortcut button must be registered beforehand as Favorite Settings.

Registering Frequently Used Settings(P. 174)

1

Select <Home Screen Settings> in the Home screen. Home Screen(P. 122)

If the login screen appears, enter the correct ID and PIN. Logging in to the Machine(P. 133)

2

Select <Select Button to Display>.

3

Select the function with the Favorite Settings you want to add as a button.

4

Select the check box for all settings to be displayed in the Home screen and select

<Apply>.

Removing registered buttons

171

Basic Operations

● Clear the check box for the name of the button you want to remove and then select <Apply>. Once you remove a registered button, a space appears where the button was displayed in the Home screen. If necessary, delete the space.

5

Read the message that is displayed, and select <OK>.

A button for the newly selected settings is added to the Home screen.

● If the Home screen is full and no more settings can be registered, Delete registered buttons and spaces in <Home Screen Settings>.

Changing the Arrangement of Buttons

To make the buttons easier to use, you can rearrange the buttons however you like. For instance, you can put the most frequently used functions first, or arrange the function buttons together with shortcut buttons for Favorite Settings.

You can also insert a blank (space) instead of a button to make it easier to view the Home screen.

1

Select <Home Screen Settings> in the Home screen. Home Screen(P. 122)

If the login screen appears, enter the correct ID and PIN. Logging in to the Machine(P. 133)

2

Select <Set Display Order>.

3

Select the button to move.

● The selected button is highlighted. Tap the selected button again to deselect it.

4

Select <Move Left> or <Move Right>.

● The button moves as many times as you tapped.

● Long touching <Previous>/<Next> to move the button continuously.

Inserting a blank

● When <Insert Blank> is selected, a blank is inserted into the left side of the selected button.

● If the button at the end is selected, a blank is inserted even if <Move Right> is selected.

Deleting a blank

● Select the blank to be deleted, and select <Del. Blank>.

172

5

Select <Apply>.

LINKS

Basic Operation(P. 128)

Basic Operations

173

Basic Operations

Registering Frequently Used Settings

1647-03C

If you register your frequently used settings as "favorite settings," you can quickly call up the same settings every time you make copies, send a fax, or scan. In addition, if you register complicated settings as "favorite settings," you can quickly call them up for ease of operation. You can also assign registered setting combinations to a shortcut button displayed in the Home screen. This section describes how to register frequently used settings and how to call them up when making a copy.

Registering Settings(P. 174)

Recalling Registered Settings(P. 175)

● You can also register a fax or scan destination in the frequently used settings, however, it cannot be changed once it is registered. To change a destination, delete the settings and then register them again.

Registering Settings

1

Select <Copy> in the Home screen. Home Screen(P. 122)

2

Change the values for the settings you want to register. Basic Copy

Operations(P. 195)

3

Select <Other Settings> <Favorite Settings>.

4

Select unregistered settings, and select <Register>.

● To change the content of a registered setting, select that setting and select <Edit>.

5

Check the details of the settings to be registered, and select <Register>.

● To change the value of a setting to be registered, select the setting.

To rename the setting, select <Name>. On how to enter text, see Entering Text(P. 131) .

174

Basic Operations

6

Select whether to register the settings as a shortcut button.

● If you select <Yes>, a message appears. Check the message and then select <OK>. The registered setting combination is added to the Home screen as a shortcut button.

● If the Home screen is full and the shortcut button cannot be added, use <Home Screen Settings> to delete

registered buttons or blanks. Customizing the Home Screen(P. 171)

● Registered settings are retained even when the machine is turned OFF.

● If you want to delete a registered setting, select <Copy> <Other Settings> <Favorite Settings> select the settings, and select <Delete> <Yes>.

Recalling Registered Settings

Simply select the setting combination that suit your purpose from the favorite settings.

<Copy> <Other Settings> <Favorite Settings> Select the setting combination to be recalled, and select <Apply>

● Once you have recalled the setting combination, you can also change the copy settings as needed.

LINKS

Basic Copy Operations(P. 195)

Basic Operations for Sending Faxes(P. 217)

Basic Operations for Scanning Originals(P. 284)

175

Basic Operations

Changing the Default Settings for Functions

1647-03E

The default settings are the settings that are displayed whenever you turn ON the machine, or when you select

<Reset>. If you change these default settings to match the operations that you perform frequently, you can eliminate the need to specify the same settings every time you perform an action.

Copy

For information about changeable setting items, see <Change Default Settings (Copy)>(P. 491) .

<Menu> <Function Settings> <Copy> <Change Default Settings (Copy)> Select the setting

Change the default value of the selected item <Apply>

FAX

For information about changeable setting items, see <Fax Settings>(P. 541) .

<Menu> <Function Settings> <Send> <Fax Settings> <Change Default Settings (Fax)>

Select the setting Change the default value of the selected item <Apply>

Memory Media Print

For information about changeable setting items, see <Access Stored Files Settings>(P. 554) .

<Menu> <Function Settings> <Store/Access Files> <Common Settings> <Access Stored

Files Settings> <Change Default Settings (Memory Media Print)> Select the setting Change the default value of the selected item <Apply>

USB Memory

For information about changeable setting items, see <USB Memory Settings>(P. 553) .

<Menu> <Function Settings> <Store/Access Files> <Common Settings> <Scan and Store

Settings> <USB Memory Settings> <Change Default Settings (USB Memory)> Select the setting Change the default value of the selected item <Apply>

E-Mail

For information about changeable setting items, see <E-Mail Settings>(P. 537) .

176

Basic Operations

<Menu> <Function Settings> <Send> <Scan and Store Settings> <E-Mail Settings>

<Change Default Settings (E-Mail)> Select the setting Change the default value of the selected item <Apply>

I-Fax

For information about changeable setting items, see <I-Fax Settings>(P. 539) .

<Menu> <Function Settings> <Send> <Scan and Store Settings> <I-Fax Settings>

<Change Default Settings (I-Fax)> Select the setting Change the default value of the selected item <Apply>

Shared Folder/FTP Server

For information about changeable setting items, see <File Settings>(P. 540) .

<Menu> <Function Settings> <Send> <Scan and Send Settings> <File Settings> <Change

Default Settings (File)> Select the setting Change the default value of the selected item

<Apply>

● If you select <Initialize> on each setting screen, you can restore the default settings.

LINKS

Basic Copy Operations(P. 195)

Basic Operations for Sending Faxes(P. 217)

Printing from a USB Memory Device (Memory Media Print)(P. 270)

Basic Operations for Scanning Originals(P. 284)

177

Basic Operations

Setting Sounds

1647-03K

The machine produces sounds in a variety of situations, such as when fax sending is complete or when a paper jam or error occurs. You can set the volume of each of these sounds individually.

Adjusting <Fax Volume>

1

Press the ( ) key.

2

Adjust the volume, select <Apply>.

● To mute the sound, move the cursor all the way to the left.

Adjusting <Other Volume Set.>

1

Press the ( ) key.

● For the model without fax functionality, proceed to step 3.

2

Select <Other Volume Set.>.

3

Select a setting.

Setting

<Ring Tone>

<TX Done Tone>

<RX Done Tone>

<Scanning Done Tone>

Description

Sound produced when an incoming fax is received

Sound produced when fax sending is complete

Sound produced when fax receiving is complete

Sound produced when fax original scanning is complete

Go to step 4.

Procedure

178

Basic Operations

<Entry Tone>

Setting

<Invalid Entry Tone>

<Restock Supplies Tone>

<Warning Tone>

Description Procedure

Confirmation sound each time a key on the operation panel or button on the display is pressed

Select <On> (produce a tone) or

<Off> (not produce a tone).

Sound produced when an invalid key operation is performed, such as when you enter a number outside the valid setting range

Sound produced when a toner cartridge is almost empty

Sound produced when a paper jam or other error occurs

<Job Done Tone>

<Energy Saver Alert>

Sound produced when an operation such as copying or scanning is complete

Sound produced when the machine enters or exits sleep mode

<Original in Feeder Detection Tone> Sound produced when an original is loaded in the feeder

4

Adjust the volume, select <Apply>.

● To mute the sound, move the cursor all the way to the left.

End sound only for error

In <Sound Only When Error Occurs>, select <On>, and select <Apply>.

179

Basic Operations

Entering Sleep Mode

1647-03L

The sleep mode function reduces the amount of power consumed by the machine by disabling power flow to the operation panel. If no operations will be performed on the machine for a while, such as during a lunch break, you can save power simply by pressing on the operation panel.

When in sleep mode

● When the machine enters sleep mode, lights up yellow green.

Situations in which the machine does not enter sleep mode

● When the machine is in operation

● When the Data indicator is lit up or blinking

● When the machine is performing an operation such as adjustment or cleaning

● When a paper jam occurs

● When the receiver of the external telephone is off the hook

● When the machine is set such that the fax incoming ring will not sound

● When receiving a fax, the ring tone is set not to sound.

● When the menu screen is displayed

● When a job is waiting to be scanned to a USB memory device or to a computer

● When an error message is displayed on the screen (There are some exceptions. The machine sometimes enters sleep mode when error messages are displayed.)

● When the machine is communicating with an LDAP server, etc.

● When the SSID/network key screen for Direct Connection is displayed

● When settings are being imported or exported

Changing the Auto Sleep Time Value

Auto Sleep Time is a function that automatically puts the machine into the sleep mode if it remains idle for a

specified length of time. We recommend using the factory default settings ( <Timer/Energy

Settings>(P. 449) ) to reduce power usage. If you want to change the amount of time that elapses before the

machine enters the auto sleep mode, perform the procedure below.

180

Basic Operations

<Menu> <Preferences> <Timer/Energy Settings> <Auto Sleep Time> Set the amount of time that elapses before the machine automatically enters sleep mode <Apply>

Changing the Sleep Mode Setting to the Specified Time

You can configure a setting so that the machine is placed into the sleep mode at the specified time. You can also configure a setting so that the sleep mode is released at the specified time.

<Menu> <Preferences> <Timer/Energy Settings> Select <Auto Sleep Daily Timer> or <Sleep

Mode Exit Time Settings> Select <On> in <Set This Function>, and enter the time <Apply>

Exiting Sleep Mode

You can press or any other key on the operation panel to exit the sleep mode.

● You can also tap the display to exit sleep mode.

● If an external telephone is connected, the machine exits sleep mode when you take the receiver off the hook.

181

Basic Operations

Registering Destinations

1647-03R

You can register frequently used fax/scan destinations in the Address Book and

easily select them when needed ( Registering Destinations in the Address

Book(P. 184) ). Destinations can be searched alphabetically, from lists in the Address

Book, or by entering three-digit numbers (coded dial numbers). You can also specify destinations more quickly by using the following features.

Favorites

Registering a lot of addresses in the Address Book makes it difficult to find the destination you need. To avoid this situation, register frequently used destinations as Favorites. Destinations registered in Favorites can be searched from the < > in the Address Book.

Group Dial

You can select multiple destinations that have already been registered and register them together as a group. You can send faxes or e-mails to multiple destinations at the same time. Groups can also be registered in Favorites.

Registering Multiple Destinations as a Group(P. 187)

Index

The registered destinations are classified into indexes depending on the initial character or the type of address.

Changing indexes allows you to perform a destination search quickly. Tap / or flick the target index sideways to change the display.

<All>

Displays all the destinations registered in the Address Book.

< >

Displays a list of destinations registered in Favorites.

<A-Z>/<0-9>/<ABC> to <YZ>

Displays destinations with recipient names whose first characters correspond to the characters of the selected index.

< >

Displays destinations for faxes.

< >

Displays destinations for e-mails.

< >

182

Basic Operations

Displays destinations for I-Faxes.

< >

Displays destinations for shared folders and FTP servers. Registration of destinations is performed from the computer.

Setting a Shared Folder as a Save Location(P. 94)

Registering Destinations from Remote UI(P. 430)

< >

Displays a list of destinations registered in Group Dial.

● Use the computer to register a shared folder or FTP server as the destination for scans.

Setting a Shared Folder as a Save Location(P. 94)

Registering Destinations from Remote UI(P. 430)

● You can save the Address Book as a file on your computer (although you cannot use the computer to edit

the Address Book). You can also import a saved Address Book from the computer to the machine.

Importing/Exporting the Setting Data(P. 434)

You can print a list of destinations registered in the Address Book. Address Book List(P. 608)

● If your office has an LDAP server installed, you can make search to find user information on the server and register it in the Address Book. You need to specify the settings for connecting to an LDAP server

beforehand. Registering LDAP Servers(P. 63)

183

Basic Operations

Registering Destinations in the Address Book

1647-03S

This section describes how to register destinations from the operation panel. You can also use the Remote UI to

register destinations. Registering Destinations from Remote UI(P. 430)

1

Select <Address Book> in the Home screen. Home Screen(P. 122)

2

Select <Register Dest.>

● If a screen appears prompting you to enter a PIN, enter the PIN for the Address Book and select <Apply>.

Restricting Use of the Address Book(P. 405)

3

Select type of address to register.

Registering destinations with the LDAP server

If your office has an LDAP server installed, you can make search to find user information on the server and register it in the Address Book.

● To make registration from the LDAP server, you need to specify the settings for connecting to the LDAP

server beforehand. Registering LDAP Servers(P. 63)

1

Select <LDAP Server>.

2

Select the LDAP server you are using.

3

Select conditions for user information to be searched.

● Name, fax numbers, e-mail addresses, organization names, and organization unit are available criteria for searching destinations.

4

Enter the search target character string, and select <Apply>.

On how to enter text, see Entering Text(P. 131) .

● To specify multiple search criteria, repeat steps 3 and 4.

5

Select <Search Method>.

184

Basic Operations

6

Select conditions to display the search result.

<Using All Conditions Below>

Searches and displays the users that meet all the search criteria specified in steps 3 and 4.

<Using Some Conditions Below>

If users that meet even one of the criteria specified in steps 3 and 4 are found, displays all those users.

7

Select <Start Search>.

The users meeting your search criteria are displayed.

● If the authentication screen appears when you select <Start Search>, enter the user name of the

machine and the password registered in the LDAP server, and select <Apply>. Registering LDAP

Servers(P. 63)

8

Select a user you want to register in the Address Book.

9

Select <Apply>.

The user name and the fax number or e-mail address registered on the LDAP server of the selected user are registered in the Address Book.

Registering destinations from recall settings

If recall settings are provided, you can select <Recall Settings> and register the destinations.

4

Select <Name>.

● Registering <Name> is optional. If you register <Name>, the destination can be searched alphabetically.

5

Enter the name, and select <Apply>.

On how to enter text, see Entering Text(P. 131) .

6

Select <Fax Number>, <E-Mail Address>, or <I-Fax Address>.

7

Enter the destination, and select <Apply>.

Making detailed settings (only when registered for fax)

After selecting <Set Details>, a screen similar to the following is displayed.

185

Basic Operations

<ECM TX>

If an error occurs in an image that is being sent, the error is checked and corrected to prevent an improper image from being sent when setting <On>.

<TX Speed>

If it takes time for transmissions to start, such as when there is a poor telephone connection, you can adjust the transmission start speed downward.

<Long Distance>

Specify <International (1)> to <International (3)> according to the transmission conditions when registering overseas fax numbers.

● You can also specify <ECM TX> and <TX Speed> from <Menu> <Function Settings> <Send>

<Fax Settings>. However, settings made from <Address Book> are enabled for the detailed settings of destinations registered in the Address Book.

8

Select <Register As>.

9

Select <Favorites> or <Coded Dial>.

● If you select <Coded Dial>, select the destination number, or select <Use Numeric Keys> and enter the destination number.

10

Select <Apply>.

● You can make a group of destinations already registered in the Address Book and register it as one

destination. For more information, see Registering Multiple Destinations as a Group(P. 187) .

● When you want to change or delete items of information about destinations registered in the Address Book,

see Editing the Registered Destinations in the Address Book(P. 189) .

186

Basic Operations

Registering Multiple Destinations as a Group

1647-03U

You can select multiple destinations that have already been registered and register them together as a group. This section describes how to register a group from the operation panel. You can also use the Remote UI to register a

group. Registering Destinations from Remote UI(P. 430)

● Only destinations of the same type of address can be registered in the same group.

● Shared folders or FTP servers cannot be registered in a group as destinations.

1

Select <Address Book> in the Home screen. Home Screen(P. 122)

2

Select <Register Dest.> <Group>.

● If a screen appears prompting you to enter a PIN, enter the PIN for the Address Book and select <Apply>.

Restricting Use of the Address Book(P. 405)

3

Select <Name>.

● Registering <Name> is optional. If you register <Name>, the destination can be searched alphabetically.

4

Enter the name, and select <Apply>.

On how to enter text, see Entering Text(P. 131) .

5

Select <Destination>.

6

Select <Add>.

7

Select the index containing the destination you want to register. Index(P. 182)

8

Select the destination.

187

Basic Operations

9

Repeat steps 6 to 8 until you have registered all of the destinations that you want to register, and then select <Apply>.

To view information about the destination

● Select the target destination, and select <Details>.

To remove a destination from the group

● Select the destination that you want to remove from the group, and select <Delete> <Yes>.

10

Select <Register As>.

11

Select <Favorites> or <Coded Dial>.

● If you select <Coded Dial>, select the destination number, or select <Use Numeric Keys> and enter the destination number.

12

Select <Apply>.

188

Basic Operations

Editing the Registered Destinations in the Address

Book

1647-03W

You can change your settings, such as changing a registered fax number or name, changing the type of destination registered as a fax number to an e-mail destination, changing a coded dial number, and adding or deleting group destinations. You can also delete destinations or groups.

If you delete a destination from the Address Book, it is also deleted from the favorite settings. Registering

Frequently Used Settings(P. 174)

1

Select <Address Book> in the Home screen. Home Screen(P. 122)

2

Select the index containing the destination you want to edit. Index(P. 182)

3

Select the destination, and select <Edit>.

● If you select <Details>, you can view information about the destination.

● To delete the destination, select <Delete> <Yes>.

● If a screen appears prompting you to enter a PIN, enter the PIN for the Address Book and select <Apply>.

Restricting Use of the Address Book(P. 405)

4

After editing the necessary items, select <Apply>.

189

Copying

Copying

Copying

................................................................................................................................................................ 191

Copy Basic Features Screen

.............................................................................................................................. 193

Basic Copy Operations

...................................................................................................................................... 195

Canceling Copies

.......................................................................................................................................... 200

Checking the Copying Status and Log

.......................................................................................................... 201

Enhancing and Adjusting Copy Quality

............................................................................................................ 203

Selecting the Type of Original for Copying

................................................................................................... 204

Adjusting Sharpness for Copying (Sharpness)

.............................................................................................. 205

Erasing Dark Borders When Copying (Erase Frame)

..................................................................................... 206

Adjusting the Color

....................................................................................................................................... 207

Useful Copy Functions

....................................................................................................................................... 208

Copying Multiple Documents onto One Sheet (N on 1)

................................................................................. 209

Collating Copies by Page

.............................................................................................................................. 210

Making ID Card Copies

................................................................................................................................. 211

190

Copying

Copying

1647-03X

This chapter describes basic copy operations and various other useful functions, such as color balance adjustment and

ID card copy.

Using Basic Operations

Copy Basic Features Screen(P. 193)

Basic Copy Operations(P. 195)

Canceling Copies(P. 200)

Checking the Copying Status and Log(P. 201)

Enhancing Quality Enhancing and Adjusting Copy Quality(P. 203)

Selecting the Type of Original for

Copying(P. 204)

Adjusting Sharpness for Copying

(Sharpness)(P. 205)

Erasing Dark Borders When

Copying (Erase Frame)(P. 206)

Adjusting the Color(P. 207)

191

Copying

Using Useful Copy Functions Useful Copy Functions(P. 208)

Copying Multiple Documents onto

One Sheet (N on 1)(P. 209)

Collating Copies by Page(P. 210)

Making ID Card Copies(P. 211)

192

Copying

Copy Basic Features Screen

When you select <Copy> in the Home screen, the Copy Basic Features screen appears.

1647-03Y

Current setting status and setting buttons

The setting status, such as copy ratio, copy paper, and number of copies, are displayed. To copy correctly, be sure to check the settings displayed here. When you want to change a setting, select the desired setting item.

Basic Copy Operations(P. 195)

<2-Sided>

You can select a combination of 1-sided copying and 2-sided copying for the original and printout paper.

Specify the detailed settings from

<Other Settings>. Basic Copy Operations(P. 195)

Scans one side of an original and prints the scanned data on one side of the paper.

Scans one side of an original and prints the scanned data on both sides of the paper.

Scans both sides of an original and prints the scanned data on both sides of the paper.

Scans both sides of an original and prints the scanned data on one side of the paper.

<N on 1>

You can select an "N on 1" pattern to arrange multi-page originals on the same side of one sheet. Specify the detailed settings from

<Other Settings>. Copying Multiple Documents onto One Sheet (N on 1)

(P. 209)

Does not apply N on 1.

Prints data for two consecutive pages on one side of a sheet of original.

Prints data for four consecutive pages on one side of a sheet of original.

<Other Settings>

You can call the detailed settings or favorite settings that are not displayed in the Copy Basic Features screen.

193

Copying

<Reset>

You can collectively restore the default settings.

<Start>

Use this button to start copying. Selecting <Black & White> starts black and white copying. Selecting <Color> starts color copying.

194

Basic Copy Operations

1647-040

This section describes the basic operation procedure used to copy an original.

1

Place the original(s). Placing Originals(P. 135)

2

Select <Copy> in the Home screen. Home Screen(P. 122)

3

Select <Number of Copies> in the Copy Basic Features screen. Copy Basic Features

Screen(P. 193)

4

Enter the number of copies, and select <Close>.

● If you have entered an incorrect value, use to clear it.

5

Specify the copy settings as necessary.

Adjusting Density

2-Sided Copying

Enlarging or Reducing

Selecting Copy Paper

Adjusting Density

Copying

Adjust the density of the scan if the text or images in an original are excessively light

or dark. For example, you can sharpen text and lines written using a pencil.

Adjusting Entire Density(P. 195)

Adjust the background density. You can make a clear copy of originals with colored backgrounds, or originals such as a newspaper that is printed on thin paper on

which text or images on the other side are visible through the paper. Adjusting

the Background Density(P. 196)

Adjusting Entire Density

<Density> Adjust the density <Close>

195

Copying

Adjusting the Background Density

<Density> <Background Density> <Adjust (Manual)> Adjust the background density <Apply> <Close>

● Depending on the original color, portions other than the background may be affected.

● If you select <Density by Color>, you can adjust the background density for each color.

2-Sided Copying

You can copy two pages of an original on both sides of the paper. You can also copy a 2-sided original on both sides of the paper, or on two separate pages.

<2-Sided> may not be available with some sizes and types of paper. Available Paper(P. 701)

<Other Settings> <2-Sided> Select the type of 2-sided copying <Apply>

Types of 2-sided copying

The illustration below shows the types of 2-sided copying.

<1-Sided->2-Sided>

<2-Sided->2-Sided>

<2-Sided->1-Sided>

196

Copying

<Orig./Fin. Type>

Specify the original orientation, opening type, and finishing type.

Enlarging or Reducing

You can enlarge or reduce copies by using a preset copy ratio such as <STMT->LTR>, or by setting a custom copy ratio in increments of 1 %.

● If you make a setting for <N on 1> after setting the copy ratio, the setting of reduction ratio in <N on

1> takes priority.

<Copy Ratio> Select the copy ratio

Preset copy ratio

Select a copy ratio.

Numeric keys

You can set any copy ratio from 25 to 400% in 1% increments.

Selecting Copy Paper

Specify the paper source that contains the paper to use for printing out copies.

● You must first specify the size and type of paper that is loaded in the paper source.

Specifying Paper Size and Type(P. 159)

197

Copying

Loading Paper(P. 139)

<Paper> Select the paper source or <Auto Select Paper (LTR/LGL)> <Close>

Uses the paper that is loaded in the multi-purpose tray to make copies.

Uses the paper that is loaded in the paper drawer (Drawer 1) of the machine to make copies.

Uses the paper that is loaded in the optional cassette feeding module (Drawer 2) to make copies.

Automatically selects the Letter or Legal size paper depending on the original size loaded in the feeder.

● <Auto Select Paper (LTR/LGL)> may not be displayed depending on the model you are using.

● <Auto Select Paper (LTR/LGL)> is not available when no original is loaded in the feeder.

● <Auto Select Paper (LTR/LGL)> is not available when using <N on 1>, <Erase Frame>, or <ID Card

Copy>.

For information about other copy settings, see Enhancing and Adjusting Copy Quality(P. 203) or

Useful Copy Functions(P. 208) .

6

Select <Start>.

Copying starts.

If you want to cancel, select <Cancel> <Yes>. Canceling Copies(P. 200)

When placing originals in the feeder in step 1

The original is automatically scanned.

When placing originals on the platen glass in step 1

For 2-sided copying or N on 1 copying, the screen prompting you to load the next original is displayed.

1

Place the next original on the platen glass, and select <Scan Next>.

● You can also specify <Density>, <Original Type>, and <Color Balance> separately for each original.

198

Copying

● Repeat this step until you finish scanning the entire original.

2

Select <Start Printing>.

● When the <Paper Settings and Loaded Size Mismatch> or <The memory is full. Scanning will be canceled.

Do you want to print?> message is shown in the display. Countermeasures for Each Message(P. 644)

When copying originals with text or images that extend to the edges of the page

The edges of the original might not be copied. For more information about the scan margins, see Main

Unit(P. 696) .

If you always want to make copies with the same settings: Changing the Default Settings for

Functions(P. 176)

If you want to register a combination of settings to use when needed: Registering Frequently Used

Settings(P. 174)

LINKS

Checking the Copying Status and Log(P. 201)

199

Copying

Canceling Copies

1647-045

If you want to cancel copying immediately after selecting <Start>, select <Cancel> on the screen or press on the operation panel. You can also cancel copying after checking the copy status.

Select <Cancel> on the Screen That is Displayed While Copying

Press to Cancel

If the Screen Displays a List of Documents When is Pressed

Originals have been scanned and are waiting to be printed. Select a copy document to be canceled, and select

<Cancel> <Yes>.

Check the copy job status before canceling

<Status Monitor> <Copy/Print Job> Select the copy document in the <Copy/Print Job Status> tab <Cancel> <Yes>

LINKS

Basic Copy Operations(P. 195)

200

Copying

Checking the Copying Status and Log

You can check the current copy statuses and the logs for copied documents.

1647-046

When <Display Job Log> is set to <Off>, you cannot check the copy job log. <Display Job Log>(P. 566)

Useful in the Following Cases

● When some long time has already passed after scanning of your original to be copied but printing of the document has not started yet, you may want to see the waiting list of the documents waiting to be printed.

● When you cannot find your printouts that you thought had been copied, you may want to see whether an error has occurred.

1

Select <Status Monitor>.

2

Select <Copy/Print Job>.

3

Check the copy statuses and logs.

To check the copy statuses

1

Select the document whose status you want to check in the <Copy/Print Job Status> tab.

Displays detailed information about the document.

To check the copy logs

1

Select the document whose log you want to check in the <Copy Job Log> tab.

● <OK> is displayed when a document was copied successfully, and <Error> is displayed when a document failed to be copied because it was canceled or there was some error.

201

Copying

Displays detailed information about the document.

When a three-digit number is shown in the case of <Error>

This number represents an error code. Countermeasures for Each Error Code(P. 658)

LINKS

Basic Copy Operations(P. 195)

Canceling Copies(P. 200)

202

Copying

Enhancing and Adjusting Copy Quality

1647-047

You can improve the copy quality by specifying more detailed settings, such as adjusting the brightness, erasing unnecessary shadows, etc.

Selecting the Type of Original for

Copying(P. 204)

Adjusting Sharpness for Copying

(Sharpness)(P. 205)

Erasing Dark Borders When

Copying (Erase Frame)(P. 206)

Adjusting the Color(P. 207)

203

Copying

Selecting the Type of Original for Copying

1647-048

You can select the optical image quality for the copy depending on the original type, such as text-only documents, documents with charts and graphs, or magazine photos.

<Copy> <Other Settings> <Original Type> Select the original type

<Text/Photo/Map (Speed)>

<Text/Photo/Map>

<Text/Photo/Map (Quality)>

<Printed Image>

Priority is given to speed over image quality. This setting is only effective when selected for color copying.

Suitable when copying originals that contain both text and photos, or originals that include detailed lines, such as maps.

Priority is given to image quality over speed. You can also adjust the level of priority given to the quality of the text or photos. Adjust the setting on the scale, and select <Apply>.

Suitable when making a clear copy of originals that contain printed photos (photos made of halftone dots), such as magazines or pamphlets.

LINKS

Basic Copy Operations(P. 195)

204

Copying

Adjusting Sharpness for Copying (Sharpness)

1647-049

You can adjust sharpness of the copied image. Increase the sharpness to sharpen blurred text and lines, or decrease the sharpness to improve the appearance of magazine photos.

<Copy> <Other Settings> <Sharpness> Adjust the sharpness <Apply>

Example:

If you want to sharpen text and lines written in pencil

Example:

If you want to improve the appearance of magazine photos

LINKS

Basic Copy Operations(P. 195)

Adjusting the Color(P. 207)

205

Copying

Erasing Dark Borders When Copying (Erase Frame)

1647-04A

When copying originals that are smaller than the output paper size, frame lines may appear around the edges in the copied image. When copying facing pages from thick book, dark borders may appear. <Erase Frame> enables you to erase these frame lines and dark borders.

● The width of the frame to erase is increased or decreased relative to the <Copy Ratio> setting.

● <Erase Frame> is not available when using <N on 1>.

<Copy> <Other Settings> <Erase Frame> <On> Specify the width of the frame to erase

<Apply> Select the original size on the <Scan Size> screen

Example:

If you want to erase the dark borders and frame lines

LINKS

Basic Copy Operations(P. 195)

206

Copying

Adjusting the Color

Adjust the levels of yellow, magenta, cyan, or black.

<Copy> <Other Settings> <Color Balance> Select the color, and adjust the color level

<Apply>

Example:

If you want to make a copy with colors that more closely match the original

1647-04C

Example:

If you want to make a copy with brighter colors than the original

● If you select <Fine Adjust>, you can adjust the levels of the three density areas for each color.

LINKS

Basic Copy Operations(P. 195)

Adjusting Sharpness for Copying (Sharpness)(P. 205)

207

Copying

Useful Copy Functions

1647-04E

You can copy multiple sheets onto one page, or copy by grouping sheets into complete sets in sequential page order.

Also, there is a function to copy both sides of a card, etc. onto one page.

Copying Multiple Documents onto

One Sheet (N on 1)(P. 209)

Collating Copies by Page(P. 210)

Making ID Card Copies(P. 211)

208

Copying

Copying Multiple Documents onto One Sheet (N on 1)

1647-04F

You can reduce the size of a multiple-page original and arrange all pages on one side of the paper. You can save the number of sheets as the document can be copied on fewer pages than those of the original.

● Using <N on 1> reduces the copy ratio automatically (the copy ratio is displayed on the screen). If the copying process has not started, you can further reduce the image size by lowering the numeric value that is automatically displayed. But the edges of the original might not be copied if you increase it.

● <N on 1> is not available when using <Erase Frame>.

● When you copy multiple originals onto one page, margins may be created in the copied image.

<Copy> <Other Settings> <N on 1> Select the number of pages to be combined, and select

<Next> Select the original size on the <Scan Size> On the <Output Size> screen, select the paper source that contains the paper you want to use

Number of pages to be combined

Select the number of pages to be combined on one side of paper. For example, <4 on 1> means that "a fourpage original can be combined on a single sheet."

<Layout>

Specify how to arrange the originals on the page.

LINKS

Basic Copy Operations(P. 195)

209

Copying

Collating Copies by Page

1647-04H

When preparing multiple copies of multi-page originals, set <Collate> to <On> to collate copies in sequential page order. This function is useful when preparing handouts for meetings or presentations.

<Copy> <Other Settings> <Collate> <On>

<Off>

The copies are grouped by page and not collated. For example, if you are making three copies of a five-page original, the printouts will be arranged in the following page order: 1, 1, 1, 2, 2, 2, 3, 3, 3, 4, 4, 4, 5, 5, 5.

<On>

The copies are grouped into complete sets in sequential page order. For example, if you are making three copies of a five-page original, the printouts will be arranged in the following page order: 1, 2, 3, 4, 5, 1, 2, 3, 4, 5,

1, 2, 3, 4, 5.

LINKS

Basic Copy Operations(P. 195)

210

Copying

Making ID Card Copies

1647-04J

You can use <ID Card Copy> to copy the front and back sides of a card onto the same side of a page. This function is useful when copying a driver's license or ID card.

● <Copy Ratio> is automatically set to <100%>.

Place the card on the platen glass <ID Card Copy> <Start> Turn the card over <Scan Next>

LINKS

Basic Copy Operations(P. 195)

211

Faxing

Faxing

Faxing

................................................................................................................................................................... 213

Fax Basic Features Screen

................................................................................................................................. 216

Basic Operations for Sending Faxes

................................................................................................................. 217

Canceling Sending Faxes

.............................................................................................................................. 225

Receiving Faxes

................................................................................................................................................. 226

Useful Functions When Sending

....................................................................................................................... 230

Recalling Previously Used Settings for Sending (Recall Settings)

.................................................................. 231

Sending a Fax after a Phone Call (Manual Sending)

...................................................................................... 234

Saving a Copy of a Sent Original

................................................................................................................... 236

Various Receiving Methods

.............................................................................................................................. 237

Saving Received Documents into the Machine (Memory Reception)

............................................................. 238

Forwarding the Received Documents Automatically

...................................................................................... 240

Checking Status and Log for Sent and Received Documents

......................................................................... 242

Sending Faxes from Your Computer (PC Fax)

.................................................................................................. 244

Sending PC Faxes

......................................................................................................................................... 245

Using Internet Fax (I-Fax)

................................................................................................................................. 247

Sending I-Faxes

............................................................................................................................................ 248

Receiving I-Faxes

.......................................................................................................................................... 255

212

Faxing

Faxing

1647-04K

This chapter describes fax settings, basic fax operations and various other useful functions to suit your needs, such as

PC Fax to send documents directly from computers, Address Book to specify destinations easily, and Forwarding to receive faxes even when you are out of the office.

You need to complete some procedures before using fax functions. Configuring Initial Settings for Fax

Functions(P. 78)

You need to register destinations in the Address Book before using this feature. Registering

Destinations(P. 182)

Using Basic Operations

Fax Basic Features Screen(P. 216)

Basic Operations for Sending Faxes(P. 217)

Canceling Sending Faxes(P. 225)

Receiving Faxes(P. 226)

Checking Status and Log for Sent and Received Documents(P. 242)

Using Useful Functions When Sending Useful Functions When Sending(P. 230)

Recalling Previously Used

Settings for Sending (Recall

Settings)(P. 231)

Sending a Fax after a Phone Call

(Manual Sending)(P. 234)

Saving a Copy of a Sent

Original(P. 236)

213

Faxing

Receiving According to Your Purposes Various Receiving Methods(P. 237)

Saving Received Documents into the Machine (Memory Reception)(P. 238)

Forwarding All the Received Documents

Forwarding the Received Documents Automatically(P. 240)

Sending Faxes Directly from Your Computer

Sending Faxes from Your Computer (PC Fax)(P. 244)

214

Faxing

Sending and Receiving Faxes via the Internet

Using Internet Fax (I-Fax)(P. 247)

215

Faxing

Fax Basic Features Screen

1647-04L

Selecting <Fax> in the Home screen displays the FAX Basic Features screen that appears when you sending faxes.

<Enter Dest.> tab

Select this tab to directly enter a destination.

<Specify Destination> tab

Select this tab to search for an LDAP server, enter a coded dial, or specify a destination using the recall settings.

Basic Operations for Sending Faxes(P. 217)

Recalling Previously Used Settings for Sending (Recall Settings)(P. 231)

<TX/RX Settings> tab

Select this tab to specify the scanning settings. You can change the RX mode ( Deciding Which Fax

Receive Mode to Use(P. 79) ) of the machine.

<Confirm Destination>

You can check or change the name and fax number of the specified destination as well as the number of destinations.

<Address Book>

Specify destinations registered in the Address Book.

<Reset>

You can collectively restore the default settings.

<Start>

Use this button to start faxing.

216

Faxing

Basic Operations for Sending Faxes

This section describes the basic operation procedure used to fax an original.

1647-04R

You need to complete some procedures before using fax functions. Configuring Initial Settings for Fax

Functions(P. 78)

1

Place the original(s). Placing Originals(P. 135)

2

Select <Fax> in the Home screen. Home Screen(P. 122)

If the login screen appears, specify the user name, the password, and the authentication server. Logging

in to Authorized Send(P. 133)

3

Select <Reset> in the Fax Basic Features screen. Fax Basic Features Screen(P. 216)

● If the destinations set by the previous user are still selected, this can cause transmission errors. Always reset the settings before sending.

4

Specify the destination.

Specifying from Address Book

Specifying from Coded Dial Numbers

Entering Destinations Directly

Specifying Destinations in an LDAP Server

Specifying from Address Book

The Address Book enables you to specify a destination by selecting from a list of registered destinations or by searching by name for destinations with recipient names.

You need to register destinations in the Address Book before using this feature. Registering

Destinations(P. 182)

1

Select <Address Book>.

217

2

Select an index. Index(P. 182)

Faxing

3

Select the check box for the desired destination, and select <Apply>.

● If a destination is selected from <Address Book> in the Home screen, the Fax Basic Features screen can be displayed while the selected destination remains being specified.

Specifying from Coded Dial Numbers

Three-digit numbers (coded dial numbers) are assigned to addresses in the Address

Book. You can specify an address simply by entering its coded dial number.

To use coded dial numbers, the destination must be registered in the Address Book beforehand.

Registering Destinations(P. 182)

1

Select <Coded Dial> in the <Specify Destination> tab.

2

Enter a three-digit number.

● If you have entered an incorrect value, use to clear it.

If a confirmation screen appears

● When <Confirm When Coded Dial TX> is set to <On>, a screen is displayed that shows the destination and the name for the number. (For Group Dial, the destination name and the number of destinations are

218

Faxing shown.) Check the contents and if everything is correct, select <OK>. To specify a different destination,

select <Cancel> and then re-enter the three-digit coded dial number. Displaying Destinations in

Address Book(P. 407)

Entering Destinations Directly

For a destination that is not registered in the Address Book, specify it by entering a fax number.

1

Enter the fax number in the <Enter Dest.> tab.

● If you have entered an incorrect value, use to clear it.

Adding a destination

● To enter a second or subsequent destination, select <Next Dest.>.

If a confirmation screen appears

● When <Confirm Entered Fax Number> is set to <On>, the input screen reappears so that you can

confirm the destination ( Confirming the Entered Fax Number(P. 409) ). Enter the destination

again.

Sending a fax abroad

● Enter the international access code, the country code, and the fax number to specify the destination.

If you are not able to successfully connect to a recipient, select <Pause> and insert a pause between numbers.

Specifying Destinations in an LDAP Server

If your office has an LDAP server installed, you can specify a destination using user information in the server. Access the LDAP server via the machine to search for the appropriate user information and specify it as destination.

You need to specify the settings for connecting to an LDAP server beforehand. Registering LDAP

Servers(P. 63)

1

Select <LDAP Server> in the <Specify Destination> tab.

2

Select the LDAP server you are using.

3

Select conditions for user information to be searched.

219

Faxing

● Name, fax numbers, e-mail addresses, organization names, and organization unit are available criteria for searching destinations.

4

Enter the search target character string, and select <Apply>.

On how to enter text, see Entering Text(P. 131) .

● To specify multiple search criteria, repeat steps 3 and 4.

5

Select <Search Method>.

6

Select conditions to display the search result.

<Using All Conditions Below>

Searches and displays the users that meet all the search criteria specified in steps 3 and 4.

<Using Some Conditions Below>

If users that meet even one of the criteria specified in steps 3 and 4 are found, displays all those users.

7

Select <Start Search>.

The users meeting your search criteria are displayed.

● If the authentication screen appears when you select <Start Search>, enter the user name of the machine

and the password registered in the LDAP server, and select <Apply>. Registering LDAP Servers(P. 63)

8

Select the check box for the user that you want to specify as destination, and select

<Apply>.

Adding a destination

● To send faxes to multiple destinations at a time (sequential broadcast), repeat the appropriate steps to enter all destinations.

You can also recall previously used destinations. Recalling Previously Used Settings for Sending

(Recall Settings)(P. 231)

220

Faxing

To delete destinations

If you specified multiple destinations, you can delete destinations as necessary.

1

Select <Confirm Destination>.

2

Select the check box for the destination to be deleted, and select <Remove from Dest.>.

● If you select the Group Dial check box, you can view the destinations registered in the group by selecting <Details> <Destination>.

3

Select <Yes>.

5

Specify the scanning settings as necessary.

Adjusting Image Quality

Scanning 2-Sided Originals

Adjusting Image Quality

You can select the resolution suitable for your original type. The higher the resolution is, the clearer the image becomes, but the longer it takes to send.

Selecting Resolution(P. 221)

You can adjust the density of the fax if the text or images in an original are too light

or dark. Adjusting Density(P. 221)

You can adjust the sharpness of the image. Increase the sharpness to sharpen blurred text and lines, or decrease the sharpness to improve the appearance of

magazine photos. Adjusting Sharpness(P. 222)

Selecting Resolution

Select <Resolution> in the <TX/RX Settings> tab Select the resolution

Adjusting Density

Select <Density> in the <TX/RX Settings> tab Adjust the density <Apply>

221

Faxing

Adjusting Sharpness

Select <Sharpness> in the <TX/RX Settings> tab Adjust the sharpness <Apply>

Example:

If you want to sharpen text and lines written in pencil

Example:

If you want to improve the appearance of magazine photos

Scanning 2-Sided Originals

The machine can automatically scan the front and back sides of originals in the feeder.

● The machine cannot scan both sides of originals automatically when the originals are placed on the platen glass or when the machine is set to Manual Sending.

222

Faxing

Select <2-Sided Original> in the <TX/RX Settings> tab Select <Book Type> or <Calendar Type>

<Book Type>

Select for originals whose images on the front and back sides face the same direction.

<Calendar Type>

Select for originals whose images on the front and back sides face in opposite directions.

6

Select <Start>.

● If the <Confirm Destination> screen is displayed, check whether the destination is correct, and then select

<Start Scanning>.

Scanning of the original starts.

If you want to cancel, select <Cancel> <Yes>. Canceling Sending Faxes(P. 225)

When placing originals in the feeder in step 1

When scanning is complete, the faxes are sent.

When placing originals on the platen glass in step 1

When scanning is complete, follow the procedures below.

1

Select the original size.

● When there is only one page to be scanned, proceed to step 3.

2

Place the next original on the platen glass, and select <Scan Next>.

● Repeat this step until you finish scanning all of the pages.

3

Select <Start Sending>.

The faxes are sent.

If you always want to send faxes with the same settings: Changing the Default Settings for

Functions(P. 176)

If you want to register a combination of settings to use when needed: Registering Frequently Used

Settings(P. 174)

If you want to sound an alarm when the handset is off the hook: <Off-Hook Alarm>(P. 542)

LINKS

Canceling Sending Faxes(P. 225)

223

Faxing

Useful Functions When Sending(P. 230)

Checking Status and Log for Sent and Received Documents(P. 242)

224

Faxing

Canceling Sending Faxes

1647-052

If you want to cancel sending faxes immediately after selecting <Start>, select <Cancel> on the display or press on the operation panel. You can also cancel sending faxes after checking the fax status.

Select <Cancel> on the screen during fax transmission

Press to cancel

If the screen displays a list of documents when is pressed

Originals have been scanned and are waiting to be processed. Select the document to cancel, and select

<Cancel> <Yes>.

Check the transmission status before canceling

<Status Monitor> <TX Job> Select the document in the <TX Job Status> tab <Cancel> <Yes>

LINKS

Basic Operations for Sending Faxes(P. 217)

Checking Status and Log for Sent and Received Documents(P. 242)

225

Faxing

Receiving Faxes

1647-053

This section describes the methods for receiving faxes and how to set up the machine to receive faxes. You need to

complete some procedures for using fax functions before specifying the receiving settings. Configuring Initial

Settings for Fax Functions(P. 78)

● The machine can print received fax documents on A4 or Letter size paper. If received fax documents are printed on other paper sizes, a portion of the page may not be printed or a page may be printed on two separate sheets of paper.

Methods for Receiving Faxes

The machine provides the following receiving methods. Select the method that best suits your needs and then set it up

by following the procedures in Setting Up the Machine to Receive Faxes(P. 227) .

<Auto>

Dedicated to receiving faxes

The machine receives faxes automatically. Even if someone makes a call to you, you cannot talk to the caller.

<Fax/Tel (Auto

Switch)>

When the call is a fax

The machine receives the fax automatically.

When the call is a telephone call

An incoming call rings. Pick up the handset to answer the call.

● You need to connect your telephone to the machine beforehand.

When the call is a fax

An incoming call rings. Pick up the handset. If you hear a beep, select <Fax> <Start

Receiving> to receive faxes.

<Manual>

When the call is a telephone call

An incoming call rings. Pick up the handset and start your conversation.

● You need to connect your telephone to the machine beforehand.

226

<Answering

Machine>

Faxing

● You can set the machine to automatically receive faxes when an incoming call rings within a

specified timeframe. <Switch to Auto RX>(P. 550)

When the call is a fax

After an incoming call rings, the machine receives the fax automatically.

When the call is a telephone call

The answering machine activates, enabling the caller to leave a message. If you pick up the handset before the answering machine starts recording a message, you can talk with the caller.

<DRPD>

● You need to connect your answering machine to the machine beforehand.

● Set the answering machine to answer after a few rings.

● We recommend that you add approximately 4 seconds of silence at the beginning of the message or set the maximum recording time to 20 seconds.

If you have subscribed to a Distinctive Ring Pattern Detection (DRPD) service provided by your telephone company, this receiving mode is available. This service assigns two or more telephone numbers with distinctive ring patterns to a single telephone line. You can use one of these numbers for faxes and one for telephone calls.

When the machine receives a call, it automatically recognizes the ring pattern and your telephone rings differently depending on whether the call is a fax or telephone call. If the ring pattern is for a fax, the machine automatically receives the fax.

● For more information about this service, contact your telephone company.

● You need to connect your telephone to the machine beforehand.

● Depending on the type of telephone connected to it, the machine may not be able to send or receive faxes properly.

● If you are connecting an external telephone with fax functions, set the telephone to not receive faxes automatically.

● If you pick up the telephone handset and hear a beep, the call is a fax. You can receive the fax just by using

the telephone to enter a specific ID number. Using a Telephone to Receive Faxes (Remote Reception)

(P. 228)

Setting Up the Machine to Receive Faxes

1

Select <Fax> in the Home screen. Home Screen(P. 122)

If the login screen appears, specify the user name, the password, and the authentication server. Logging

in to Authorized Send(P. 133)

2

Select <RX Mode> in the <TX/RX Settings> tab of the Fax Basic Features screen. Fax

Basic Features Screen(P. 216)

227

Faxing

3

Select the receiving method.

When selecting <Fax/Tel (Auto Switch)>

Specify the following three settings as necessary. When the setting is complete, select <Apply>.

<Ring Start Time>

Enables you to specify the duration during which the machine determines whether an incoming call is a fax or a telephone call.

<Incoming Ring Time>

Enables you to specify the duration during which an incoming call rings for a telephone call.

<Action After Ring>

Enables you to specify how the machine operates if you do not pick up the handset while an incoming call is ringing. Select <End> to disconnect the call or <Receive> to receive an incoming fax.

When selecting <DRPD>

Select the ring pattern that your telephone company assigned to your fax number.

If you want to print received documents on both sides of paper: <Print on Both Sides>(P. 549)

● If you want to print information, such as reception date and time, at the bottom of received documents:

<Print RX Page Footer>(P. 552)

If you want to continue printing even when the amount remaining in the toner cartridge is low: <Continue

Print. When Amount in Cart. Low>(P. 547)

Using a Telephone to Receive Faxes (Remote Reception)

When you pick up the telephone and get a fax signal, you do not need to go to the machine to receive the fax. Just enter a specific ID number with the telephone, and you can start receiving the fax.

● When the telephone is not directly connected with the machine, the remote reception function is not available.

1

When an incoming call rings, pick up the telephone handset.

2

If you hear a beep, enter the ID number for Remote Reception with the telephone.

For more information about setting the ID number, see <Remote RX>(P. 550) .

228

Faxing

3

Hang up the handset.

LINKS

Checking Status and Log for Sent and Received Documents(P. 242)

Various Receiving Methods(P. 237)

229

Faxing

Useful Functions When Sending

1647-054

This section describes how to forward a fax again to a previously specified destination, how to send a fax after a phone call, and how to save a copy of a fax document.

Recalling Previously Used

Settings for Sending (Recall

Settings)(P. 231)

Sending a Fax after a Phone Call

(Manual Sending)(P. 234)

Saving a Copy of a Sent

Original(P. 236)

230

Faxing

Recalling Previously Used Settings for Sending (Recall

Settings)

1647-055

You can recall the destinations specified in the past. When you specify a previously used destination, the machine also sets the same fax settings such as density you used the last time you sent documents to that destination.

When <Restrict Resending from Log> is set to <On>, you cannot use this feature. Disabling Use of

Previously Used Destinations(P. 407)

● Turning OFF the machine or setting <Restrict New Destinations> to <On> deletes the past destinations, and

disables this feature. Restricting New Destinations that Can Be Specified(P. 407)

The destinations in Manual Sending are not available for this feature. Sending a Fax after a Phone Call

(Manual Sending)(P. 234)

● When you specify a destination using this feature, any destinations that you have already specified are deleted.

1

Place the original(s). Placing Originals(P. 135)

2

Select <Fax> in the Home screen. Home Screen(P. 122)

If the login screen appears, specify the user name, the password, and the authentication server. Logging

in to Authorized Send(P. 133)

3

Select <Reset> in the Fax Basic Features screen. Fax Basic Features Screen(P. 216)

● If the destinations set by the previous user are still selected, this can cause transmission errors. Always reset the settings before sending.

4

Select <Recall Settings> in the <Specify Destination> tab.

5

Select the destination.

● When you transmit to multiple destinations, only the address specified for the first transmission is displayed in the log, but all the destinations are specified.

231

Faxing

The selected destination and the fax settings used at the time are specified. You can also change the settings before sending.

To delete destinations

When you transmitted to multiple destinations, you can delete destinations as necessary.

1

Select <Confirm Destination>.

2

Select the check box for the destination to be deleted, and select <Remove from Dest.>.

● If you select the Group Dial check box, you can view the destinations registered in the group by selecting <Details> <Destination>.

3

Select <Yes>.

6

Specify the scanning settings as necessary. Basic Operations for Sending

Faxes(P. 217)

7

Select <Start>.

● If the <Confirm Destination> screen is displayed, check whether the destination is correct, and then select

<Start Scanning>.

Scanning of the original starts.

If you want to cancel, select <Cancel> <Yes>. Canceling Sending Faxes(P. 225)

When placing originals in the feeder in step 1

When scanning is complete, the faxes are sent.

When placing originals on the platen glass in step 1

When scanning is complete, follow the procedures below.

1

Select the original size.

● When there is only one page to be scanned, proceed to step 3.

2

Place the next original on the platen glass, and select <Scan Next>.

● Repeat this step until you finish scanning all of the pages.

232

3

Select <Start Sending>.

The faxes are sent.

LINKS

Basic Operations for Sending Faxes(P. 217)

Faxing

233

Faxing

Sending a Fax after a Phone Call (Manual Sending)

1647-056

You can send faxes manually at the end of a phone conversation. When you hear a beep over the phone, it means the recipient is trying to receive your faxes. Select

<Start> to send your faxes.

● You need to connect your telephone to the machine beforehand.

1

Place the original(s). Placing Originals(P. 135)

● The machine cannot automatically scan both sides of the originals in Manual Sending.

● When the original is placed on the platen glass, only one page can be sent.

2

Select <Fax> in the Home screen. Home Screen(P. 122)

If the login screen appears, specify the user name, the password, and the authentication server. Logging

in to Authorized Send(P. 133)

3

Select <Reset> in the Fax Basic Features screen. Fax Basic Features Screen(P. 216)

● If the destinations set by the previous user are still selected, this can cause transmission errors. Always reset the settings before sending.

4

Specify the scanning settings as necessary. Basic Operations for Sending

Faxes(P. 217)

5

Dial the recipient's fax number.

6

Ask the recipient to set their fax machine to receive your faxes.

● If you hear a beep, proceed to step 7.

7

Select <Start>.

● If you place the original on the platen glass, select the original size.

Scanning of the original starts.

If you want to cancel, select <Cancel> <Yes>. Canceling Sending Faxes(P. 225)

8

Hang up the handset.

234

Faxing

LINKS

Basic Operations for Sending Faxes(P. 217)

Canceling Sending Faxes(P. 225)

Checking Status and Log for Sent and Received Documents(P. 242)

235

Faxing

Saving a Copy of a Sent Original

1647-057

In addition to the address specified when the fax is sent, you can also send faxed documents to a preset storage address for archiving. This is useful for keeping a log of what has been sent. You can specify a fax number, an e-mail address, a shared folder on the computer, an FTP server or an I-Fax as the storage address.

● Only destinations in the Address Book can be specified as a storage address. To use the Address Book, the

destination must be registered beforehand. Registering Destinations(P. 182)

<Menu> <Function Settings> <Send> <Fax Settings> <Archive TX Document> Select

<On> and select <Archive Address> Select the check box for the target archive destination in the

Address Book, and select <Apply> <Apply>

236

Faxing

Various Receiving Methods

1647-058

You can store received faxes in the machine's memory without printing them. You can reduce fax paper waste by checking the detailed information of fax documents and only printing necessary documents.

Saving Received Documents into the Machine (Memory Reception)(P. 238)

237

Faxing

Saving Received Documents into the Machine (Memory

Reception)

1647-059

You can store received faxes into memory of the machine, and then print them later.

This feature can prevent unauthorized persons from seeing confidential documents unintentionally.

Storing Documents into Memory(P. 238)

Printing Documents in Memory(P. 238)

Checking/Forwarding/Deleting Documents in Memory(P. 239)

Storing Documents into Memory

To store received documents into memory, set <Use Memory Lock> to <On>. You can also specify optional settings such as a security setting that makes a password necessary to unlock the feature and a time setting that specifies a period of time during the day in which received documents are stored in memory.

<Menu> <Function Settings> <Receive/Forward> <Common Settings> <Set Fax/I-Fax

Inbox> <Fax Memory Lock Settings> Select <On> in <Use Memory Lock> Specify each setting

<Apply>

<Report Print>

Enables you to print RX Result reports every time documents are stored into memory. To print reports, select

<On>. You also need to set <RX Result Report> to <On>. RX Result Report(P. 608)

<Memory Lock Time>

Specify a period of time during the day in which received documents are stored in memory. If you do not set a period of time, the machine stores every document into memory when Memory Reception is turned on.

Printing Documents in Memory

To print received documents in memory, set <Use Memory Lock> to <Off>. All the documents in memory are printed.

● You cannot select a specific document for printing.

● If a time for the feature to deactivate has been specified, the documents are automatically printed at the specified time.

238

Faxing

<Menu> <Function Settings> <Receive/Forward> <Common Settings> <Set Fax/I-Fax

Inbox> <Fax Memory Lock Settings> Select <Off> in <Use Memory Lock> <Apply>

Checking/Forwarding/Deleting Documents in Memory

You can check an outline of each document stored in memory, including sender fax numbers and number of pages sent. You can also select and forward a document stored in memory, and delete an unnecessary document, if any.

1

Select <Status Monitor>.

2

Select <RX Job>.

3

In the <RX Job Status> tab, select the document you want to check/forward/delete.

Displays detailed information about the document.

● To forward the document, select <Forward>, and specify the appropriate destination.

● To delete the document, select <Delete> <Yes>.

LINKS

Receiving Faxes(P. 226)

Checking Status and Log for Sent and Received Documents(P. 242)

239

Faxing

Forwarding the Received Documents Automatically

1647-05A

The machine can forward all the received documents to specified destinations. Even if you are out of the office, you can receive fax information anytime, anywhere.

Specifying Settings for Documents to be Forwarded Automatically(P. 240)

Printing Documents to be Forwarded(P. 240)

Printing/Resending/Deleting Documents that Failed to be Forwarded(P. 240)

Specifying Settings for Documents to be Forwarded Automatically

While the Forwarding feature is activated, all the documents to be received are automatically forwarded.

<Menu> <Function Settings> <Receive/Forward> <Fax Settings> <Forwarding Settings>

<Forwarding Function> Select <On> in <Use Forwarding Function> <Forwarding Destination>

Select the check box for the target forwarding destination in the Address Book, and select

<Apply> <Apply>

Printing Documents to be Forwarded

If you want to check the documents to be forwarded for yourself, you can set the machine to print the documents whenever they are forwarded, or to print only the documents that failed to be forwarded.

<Menu> <Function Settings> <Receive/Forward> <Fax Settings> <Forwarding

Settings> <Print Images> Select <On> or <Only When Error Occurs>

Printing/Resending/Deleting Documents that Failed to be Forwarded

You can store documents that failed to be forwarded in memory, and print, resend, or delete them later.

Storing Documents that Failed to be Forwarded in Memory

<Menu> <Function Settings> <Receive/Forward> <Fax Settings> <Forwarding Settings>

<Store Images in Memory> <Only When Error Occurs>

Printing/Resending/Deleting Documents Stored in Memory

1

Select <Status Monitor>.

240

Faxing

2

Select <Fax Forwarding Errors>.

3

Select the document you want to print/resend/delete.

Displays detailed information about the document.

● To print the document, select <Print> <Yes>.

● To resend the document, select <Forward>, select the check box for the target destination, and then select <Apply>.

● To delete the document, select <Delete> <Yes>.

LINKS

Receiving Faxes(P. 226)

Checking Status and Log for Sent and Received Documents(P. 242)

241

Faxing

Checking Status and Log for Sent and Received

Documents

1647-05C

The statuses and communication logs for sent and received fax and I-Fax documents can be checked separately for sending and receiving.

When <Display Job Log> is set to <Off>, you cannot check the communication logs. <Display Job

Log>(P. 566)

1

Select <Status Monitor>.

2

Select <TX Job> or <RX Job>.

3

Check the statuses and communication logs for sent and received documents.

To check the statuses for sent and received documents

1

Select the document whose status you want to check in the <TX Job Status> or <RX Job Status> tab.

Displays detailed information about the document.

● If you specified multiple destinations, the number of specified destinations is displayed on the screen. To check the details of specified multiple destinations, select <Destination>.

To check the communication logs for sent and received documents

1

Select the document whose log you want to check in the <TX Job Log> or <RX Job Log> tab.

● <OK> is displayed when a document was sent or received successfully, and <Error> is displayed when a document failed to be sent or received because it was canceled or there was some error.

Displays detailed information about the document.

242

Faxing

When a three-digit number is shown in the case of <Error>

This number represents an error code. Countermeasures for Each Error Code(P. 658)

LINKS

Basic Operations for Sending Faxes(P. 217)

Canceling Sending Faxes(P. 225)

Receiving Faxes(P. 226)

Sending I-Faxes(P. 248)

Receiving I-Faxes(P. 255)

Printing Reports and Lists(P. 606)

243

Faxing

Sending Faxes from Your Computer (PC Fax)

1647-05E

You can send fax documents created on your computer application directly from your computer. This feature

eliminates the need to print documents for faxing and saves paper. You need to specify the basic fax settings (

Configuring Initial Settings for Fax Functions(P. 78) ) and install the fax driver on your computer. For more

information about how to install the fax driver, see the manuals for the relevant drivers on the online manual website.

Sending PC Faxes(P. 245)

● Depending on the operating system and the version of the fax driver you are using, the fax driver screens in this manual may differ from your screens.

About the Fax Driver Help

● Clicking [Help] on the fax driver screen displays the Help screen. On this screen you can see information that is not in the User's Guide, including information about driver features such as registering frequently used settings and how to set up those features.

244

Faxing

Sending PC Faxes

1647-05F

When <Allow Fax Driver TX> is set to <Off> on the machine, you cannot send faxes from computers.

Restricting Fax Sending from a Computer(P. 409)

● You need to enable Department ID Management on the fax driver you are using if Department ID

Management is enabled on the machine. For more information, click [Help] on the fax driver screen.

Setting the Department ID Management(P. 356)

1

Open a document in an application and display the print dialog box.

● How to display the print dialog box differs for each application. For more information, see the instruction manual for the application you are using.

2

Select the fax driver for this machine, and click [Print].

3

Specify the destination.

To specify only one destination

1

Click the [Enter Destination] tab.

2

Set the communication mode and fax number (or URI).

To specify multiple destinations at once

1

Click the [Select Destination] tab.

2

Click [Add Destination].

3

Set the communication mode and fax number (or URI), and click [OK].

245

Faxing

4

Repeat steps 2 and 3 to add concurrent destinations.

● You can also add a destination by clicking [Add Next Destination] in step 3.

● If you need to specify a number to dial an outside line, select [Detailed Settings] [Add Outside Dialing

Prefix to G3/G4/IP Fax Number] and enter the number in [Outside Dialing Prefix]. The specified number is added to the beginning of the fax number when the machine dials.

● To make it easier to specify destinations using the Address Book.

● Selecting [Store Sent Fax Information and Image] enables you to store the logs for sending documents and check detailed information of a sent document along with its image, including destinations and number of pages. For more information, click [Help] on the fax driver screen.

● When the [Confirm Fax Number] or [Confirm URI] field is active, also enter the appropriate number in the field. The setting of whether to confirm entered numbers can be changed in the fax driver screen. For more information, click [Help] on the fax driver screen.

4

Click [Send] to send the document.

When sending from the Windows Store app in Windows 8/10/Server 2012

● Display the charms on the right side of the screen and use the procedure shown below.

Windows 8/Server 2012

Tap or click [Devices] The fax driver for this machine [Print]

Windows 8.1/Server 2012 R2

Tap or click [Devices] [Print] The fax driver for this machine [Print]

Windows 10

Tap or click [ ] [Print]

- If you send faxes using this method, only a limited number of fax functions are available.

- If the message [The printer requires your attention. Go to the desktop to take care of it.] is displayed, go to the desktop and proceed to step 3 to specify the destination. This message appears when the machine is set to display the user name when sending a fax and similar instances.

246

Faxing

Using Internet Fax (I-Fax)

1647-05H

The Internet Fax (I-Fax) function allows you to send and receive faxes over the Internet. Originals are sent attached as

TIFF images files to e-mail. Since a telephone connection is not used, you can send faxes to distant locations and send documents with many pages without worrying about communications charges. Some advance preparation is required,

such as specifying the mail server settings. Procedure for Setting to Send E-Mail/Send and Receive I-Fax(P. 85)

Sending I-Faxes(P. 248)

Receiving I-Faxes(P. 255)

247

Faxing

Sending I-Faxes

1647-05J

To send a fax to a computer or another I-Fax-compatible device, specify an e-mail address instead of a fax number as the destination. If you send an I-Fax to a computer, it is sent as an e-mail attachment in TIFF format. And in the same way as when you send e-mail to a computer, you can specify multiple destinations and specify Cc and Bcc destinations.

1

Place the original(s). Placing Originals(P. 135)

2

Select <Scan> in the Home screen. Home Screen(P. 122)

If the login screen appears, specify the user name, the password, and the authentication server. Logging

in to Authorized Send(P. 133)

3

Select <I-Fax> in the Scan Basic Features screen. Scan Basic Features Screen(P. 281)

4

Specify the destination.

Specifying from Address Book

Specifying from Coded Dial Numbers

Entering Destinations Directly

Specifying Destinations in an LDAP Server

Specifying from Address Book

The Address Book enables you to specify a destination by selecting from a list of registered destinations or by searching by name for destinations with recipient names.

You need to register destinations in the Address Book before using this feature. Registering

Destinations(P. 182)

1

Select <Address Book> in the <Specify Destination> tab.

2

Select <To>.

3

Select an index. Index(P. 182)

248

Faxing

4

Select the check box for the desired destination, and select <Apply>.

● If a destination is selected from <Address Book> in the Home screen, the Basic Features screen for I-Fax sending can be displayed while the selected destination remains being specified.

Specifying from Coded Dial Numbers

Three-digit numbers (coded dial numbers) are assigned to addresses in the Address

Book. You can specify an address simply by entering its coded dial number.

To use coded dial numbers, the destination must be registered in the Address Book beforehand.

Registering Destinations(P. 182)

1

Select <Coded Dial> in the <Specify Destination> tab.

2

Select <To>.

3

Enter a three-digit number.

● If you have entered an incorrect value, use to clear it.

If a confirmation screen appears

249

Faxing

● When <Confirm When Coded Dial TX> is set to <On>, a screen is displayed that shows the destination and the name for the number. (For Group Dial, the destination name and the number of destinations are shown.) Check the contents and if everything is correct, select <OK>. To specify a different destination,

select <Cancel> and then re-enter the three-digit coded dial number. Displaying Destinations in

Address Book(P. 407)

Entering Destinations Directly

For a destination that is not registered in the Address Book, specify it by entering an I-Fax address.

1

Select <Use Keyboard> in the <Specify Destination> tab.

2

Enter the I-Fax address, and select <Apply>.

On how to enter text, see Entering Text(P. 131) .

Specifying Destinations in an LDAP Server

If your office has an LDAP server installed, you can specify a destination using user information in the server. Access the LDAP server via the machine to search for the appropriate user information and specify it as destination.

You need to specify the settings for connecting to an LDAP server beforehand. Registering LDAP

Servers(P. 63)

1

Select <LDAP Server> in the <Specify Destination> tab.

2

Select the LDAP server you are using.

3

Select conditions for user information to be searched.

● Name, fax numbers, e-mail addresses, organization names, and organization unit are available criteria for searching destinations.

250

Faxing

4

Enter the search target character string, and select <Apply>.

On how to enter text, see Entering Text(P. 131) .

● To specify multiple search criteria, repeat steps 3 and 4.

5

Select <Search Method>.

6

Select conditions to display the search result.

<Using All Conditions Below>

Searches and displays the users that meet all the search criteria specified in steps 3 and 4.

<Using Some Conditions Below>

If users that meet even one of the criteria specified in steps 3 and 4 are found, displays all those users.

7

Select <Start Search>.

The users meeting your search criteria are displayed.

● If the authentication screen appears when you select <Start Search>, enter the user name of the machine

and the password registered in the LDAP server, and select <Apply>. Registering LDAP Servers(P. 63)

8

Select the check box for the user that you want to specify as destination, and select

<Apply>.

If a screen on which a destination is already specified appears

● You can only send to your own e-mail address. To send to other destinations, you must configure the send function authentication settings so that e-mail transmission is not restricted. Contact your administrator

for details. LDAP Server Authentication(P. 364) .

Specifying destinations from the transmission records

You can also recall previously used destinations. Recalling Previously Used Settings for Sending/

Saving (Recall Settings)(P. 313)

5

Specify multiple destinations, including Cc/Bcc destinations, as necessary.

● Select the method used to specify destinations in the <Specify Destination> tab, and then specify the destination.

251

Faxing

● If you selected <LDAP Server> or <Specify Myself as Destination>, the destination is specified in the <To> field.

● <Cc> and <Bcc> addresses can only be selected using <Address Book> or <Coded Dial>.

To delete destinations

If you specified multiple destinations, you can delete destinations as necessary.

1

Select <Confirm Destination>.

2

Select the check box for the destination to be deleted, and select <Remove from Dest.>.

● If you select the Group check box, you can view the destinations registered in the group by selecting

<Details> <Destination>.

3

Select <Yes>.

6

Specify the scanning settings as necessary.

For more information about each setting, see Sending Data by E-Mail/Saving Data to a Shared Folder or

FTP Server(P. 291) or Scanning Clearly(P. 303) .

7

Specify the subject, message, and reply-to address for the e-mail as necessary.

To specify subject/message

1

Select <Subject/Message> in the <Send Settings> tab.

2

Select <Subject>

3

Enter the subject, and select <Apply>.

4

Select <Message>.

5

Enter the message, and select <Apply>.

6

Select <Apply>.

To specify reply-to address

Specify the reply-to address when you want to notify the recipient of an e-mail address different from that of the machine as the reply-to address. Select the target reply-to address from the destinations registered in the

252

Faxing

Address Book, and specify it. If the destination has not been registered in the Address Book, see

Registering Destinations(P. 182) .

1

Select <Reply To> in the <Send Settings> tab.

2

Select <Specify from Address Book>.

3

Select the check box for the desired reply-to address, and select <Apply>.

● The reply-to address that can be specified is always one of the e-mail addresses registered in the

Address Book.

8

Select <Start>.

● If the <Confirm Destination> screen is displayed, check whether the destination is correct, and then select

<Start Scanning>.

Scanning of the original starts.

If you want to cancel, select <Cancel> <Yes>. Canceling Sending Faxes(P. 225)

When placing originals in the feeder in step 1

When scanning is complete, the I-Faxes are sent.

When placing originals on the platen glass in step 1

When scanning is complete, follow the procedures below.

1

If there are additional pages of originals to be scanned, place the next original on the platen glass, and select <Scan Next>.

● Repeat this step until you finish scanning all of the pages.

● When there is only one page to be scanned, proceed to the next step.

2

Select <Start Sending>.

The I-Faxes are sent.

If the <SMTP Authentication> screen appears

● Enter the user name and password, and select <Apply>.

If a Send Error Occurs

Error notifications are sometimes sent to the e-mail address set to the machine. If you leave it as-is, it may result in an insufficient remaining capacity of mailbox depending on your mail server. It is recommended that you clear the mailbox periodically.

To clear the mailbox

● When the mailbox is cleared, all e-mail in the server mailbox is deleted. When you specify the e-mail account that you use usually, you should first check whether any e-mail in the mailbox needs to be kept.

1

Start the Remote UI and log in to System Manager Mode. Starting Remote UI(P. 419)

253

Faxing

2

Click [Settings/Registration] on the Portal page. Remote UI Screen(P. 420)

3

Select [TX Settings] [Network Settings - E-Mail/I-Fax Settings].

4

Click [Clear] in [Clear Mail Box].

5

Read the message that is displayed, and click [OK].

E-mail is deleted from the mailbox.

If you always want to send with the same settings: Changing the Default Settings for Functions(P. 176)

If you want to register a combination of settings to use when needed: Registering Frequently Used

Settings(P. 174)

If you want to specify the I-Fax sender name: <Register Unit Name>(P. 537)

LINKS

Checking Status and Log for Sent and Received Documents(P. 242)

254

Faxing

Receiving I-Faxes

1647-05K

When an I-Fax Arrives

When an I-Fax arrives, the Data indicator on the operation panel blinks. After the I-Fax is completely received, the document is printed out automatically and the indicator goes out.

● To cancel reception, select <Status Monitor> <RX Job> select a document in the <RX Job Status> tab

<Delete> <Yes>.

Receiving I-Faxes Manually

If you want to connect to the server before receiving I-Faxes automatically, or if you want to configure the machine so that it does not receive I-Faxes automatically, use the method below to receive I-Faxes manually. If there is a document on the server, printing begins.

<Status Monitor> <RX Job> <Check I-Fax RX>

Printout Paper

Regardless of the received document size, incoming I-Faxes are printed at the size specified in <RX Print Size>. <RX

Print Size>(P. 548)

● If paper of the size specified in <RX Print Size> is not loaded in the paper drawer, the <No Paper> error

message is displayed. Countermeasures for Each Message(P. 644)

If you want to print received documents on both sides of paper: <Print on Both Sides>(P. 548)

If you want to continue printing even when the amount remaining in the toner cartridge is low: <Continue

Print. When Amount in Cart. Low>(P. 547)

LINKS

Checking Status and Log for Sent and Received Documents(P. 242)

255

Printing

Printing

Printing

................................................................................................................................................................ 257

Printing from a Computer

................................................................................................................................ 258

Canceling Prints

........................................................................................................................................... 261

Checking the Printing Status and Log

........................................................................................................... 263

Various Printing Methods

................................................................................................................................. 265

Printing a Document Secured by a PIN (Secure Print)

................................................................................... 266

Printing via Secure Print

........................................................................................................................ 267

Printing from a USB Memory Device (Memory Media Print)

......................................................................... 270

256

Printing

Printing

1647-05L

There are many ways to use the machine as a printer. You can print documents on your computer by using the printer driver or print image files from a USB memory device. Make full use of the print functions to suit your needs.

Printing from a Computer

You can print a document made on your computer by using the printer driver.

Printing from a Computer(P. 258)

Useful Functions When Printing

You can assign a PIN to the print data to enhance security or directly print files stored in a USB memory device.

Various Printing Methods(P. 265)

Printing from Mobile Devices

● Linking mobile devices such as smartphones or tablets to this machine provides a quick and easy way to print photos and web pages. The machine also supports Google Cloud Print™.

Linking with Mobile Devices(P. 324)

Using Google Cloud Print(P. 346)

257

Printing

Printing from a Computer

1647-05R

You can print a document made with an application on your computer by using the printer driver. There are useful settings on the printer driver, such as enlarging/reducing and 2-sided printing, that enable you to print your documents in various ways. Before you can use this function, you need to complete some procedures, such as installing the printer driver on your computer. For more information, see the manuals for the relevant drivers on the online manual website.

About the Printer Driver Help(P. 258)

To Use the Optional Items(P. 258)

Basic Printing Operations(P. 258)

About the Printer Driver Help

Clicking [Help] on the printer driver screen displays the Help screen. On this screen, you can see the detailed descriptions that are not in the User's Guide.

To Use the Optional Items

If the optional cassette feeding module is attached to the machine, perform the following operation on the printer driver.

● To perform the following procedure, log in to your computer with an administrator account.

Open the printer folder ( Displaying the Printer Folder(P. 728) ) Right-click the printer driver

icon for this machine [Printer Properties] or [Properties] [Device Settings] tab Select the [550

Sheet Drawer] check box [OK]

Basic Printing Operations

This section describes how to print a document on your computer by using the printer driver.

Paper settings on the machine

● Normally, it is necessary to specify the paper size and type for the paper loaded in each paper source before proceeding to printing.

258

Printing

● By setting <Prioritize Driver Settings When Printing> to <On>, you can print from the paper source specified

in the printer driver, regardless of the paper settings on the machine. <Prioritize Driver Settings When

Printing>(P. 493)

1

Open a document in an application and display the print dialog box.

2

Select the printer driver for this machine, and click [Preferences] or [Properties].

3

Specify the print settings as necessary, and click [OK].

● Switch the tab according to the settings.

4

Click [Print] or [OK].

Printing starts.

If you want to cancel printing, see Canceling Prints(P. 261) .

When printing from the Windows Store app in Windows 8/10/Server 2012

● Display the charms on the right side of the screen and use the procedure shown below.

Windows 8/Server 2012

Tap or click [Devices] The printer driver for this machine [Print]

Windows 8.1/Server 2012 R2

Tap or click [Devices] [Print] The printer driver for this machine [Print]

Windows 10

Tap or click [ ] [Print]

- f you print using this method, only a limited number of print settings are available.

259

Printing

- If the message [The printer requires your attention. Go to the desktop to take care of it.] is displayed, go to the desktop and follow the instructions in the displayed dialog box. This message appears when the machine is set to display the user name during printing and similar instances.

LINKS

Checking the Printing Status and Log(P. 263)

260

Printing

Canceling Prints

You can cancel printing from your computer or on the operation panel of the machine.

From a Computer(P. 261)

From the Operation Panel(P. 262)

From a Computer

You can cancel printing from the printer icon displayed on the system tray on the desktop.

1

Double-click the printer icon.

1647-05U

When the printer icon is not displayed

Open the printer folder ( Displaying the Printer Folder(P. 728) ), right-click the printer driver icon for

this machine, and click [See what's printing] (or double-click the icon of the printer driver for this machine).

2

Select the document you want to cancel, and click [Document] [Cancel].

3

Click [Yes].

Printing of the selected document is canceled.

● Several pages may be output after you cancel printing.

Canceling from the Remote UI

You can cancel printing from the [Job Status] page on the Remote UI: Checking Current Status of Print

Documents(P. 422)

Canceling from an application

● On some applications, a screen like shown below appears. You can cancel printing by clicking [Cancel].

261

Printing

From the Operation Panel

Cancel printing using or <Status Monitor>.

Press to Cancel

If the Screen Displays a List of Documents When is Pressed

Select the document you want to cancel, and select <Cancel> <Yes>.

Check the Print Job Status Before Canceling

<Status Monitor> <Copy/Print Job> Select the document in the <Copy/Print Job Status> tab

<Cancel> <Yes>

● Several pages may be output after you cancel printing.

LINKS

Basic Printing Operations(P. 258)

Checking the Printing Status and Log(P. 263)

262

Printing

Checking the Printing Status and Log

You can check the current print statuses and the logs for printed documents.

1647-05W

When <Display Job Log> is set to <Off>, you cannot check the print logs. <Display Job Log>(P. 566)

Useful in the Following Cases

● When your documents are not printed for a long time, you may want to see the waiting list of the documents waiting to be printed.

● When you cannot find your printouts that you thought had been printed, you may want to see whether an error has occurred.

1

Select <Status Monitor>.

2

Select <Copy/Print Job>.

3

Check the print statuses and logs.

To check the print statuses

1

Select the document whose status you want to check in the <Copy/Print Job Status> tab.

Displays detailed information about the document.

To check the print logs

1

Select the document whose log you want to check in the <Print Job Log> tab.

● <OK> is displayed when a document was printed successfully, and <Error> is displayed when a document failed to be printed because it was canceled or there was some error.

263

Printing

Displays detailed information about the document.

● The displayed document name or user name may not reflect the actual document or user name.

When a three-digit number is shown in the case of <Error>

This number represents an error code. Countermeasures for Each Error Code(P. 658)

LINKS

Basic Printing Operations(P. 258)

Canceling Prints(P. 261)

264

Printing

Various Printing Methods

1647-05X

This section describes how to print a document by adding a PIN, and how to print a file stored on a USB memory device without using the printer driver.

Printing a Document Secured by a PIN (Secure

Print)(P. 266)

Printing from a USB Memory Device (Memory

Media Print)(P. 270)

265

Printing

Printing a Document Secured by a PIN (Secure Print)

1647-05Y

By setting a PIN to a document when printing from a computer, the document is held in the memory of the machine, and is not printed until the correct PIN is entered on the operation panel of the machine. This function is called "Secure

Print," and the document that is protected by a PIN is called a "secured document." Using Secure Print keeps printouts of confidential documents from being left unattended.

Printing via Secure Print(P. 267)

266

Printing

Printing via Secure Print

1647-061

This section describes how to print a document from an application as a secured document. The first part of this section describes how to send a secured document to the machine, and the second part of this section describes how to print the secured document on the machine.

Sending a Secured Document from a Computer to the Machine(P. 267)

Printing Out Secured Documents(P. 268)

Changing the Valid Time Period for Secured Documents(P. 269)

Sending a Secured Document from a Computer to the Machine

1

Open a document in an application and display the print dialog box.

2

Select the printer driver for this machine, and click [Preferences] or [Properties].

3

Select [Secured Print] in [Output Method].

The [Information] pop-up screen is displayed. Check the message, and click [Yes] or [No].

4

Specify the print settings as necessary, and click [OK].

● Switch the tab according to the settings.

5

Click [Print] or [OK].

After the secured document is sent to the machine, it is held in the memory of the machine waiting to be printed.

267

Printing

Printing Out Secured Documents

Prints secured documents sent to the machine. After a valid time period ( Changing the Valid Time Period for

Secured Documents(P. 269) ) has elapsed, the secured document will be deleted from the memory of the machine

and can no longer be printed.

● If secured documents are left unprinted, they occupy the memory and may prevent the machine from printing even ordinary (not secured) documents. Make sure that you print your secured documents as soon as you can.

● You can check how much memory is being used for secured documents.

<Status Monitor> <Device Information> <Secure Print Memory Usage>

1

Select <Secure Print> in the Home screen. Home Screen(P. 122)

● You cannot proceed to the next step if the <Remote Scanner> screen shown below is displayed. In this case, select to close the screen, and select <Secure Print>.

2

Select the check box for the secured document to print, and select <Start>.

● You can select multiple documents that have the same PIN.

If a screen for user selection is displayed

● If secured documents from two or more users are stored in memory, the screen for user selection is displayed prior to the screen for file selection. Select your user name.

Deleting a secured document

● You can collectively delete multiple documents. Select the check box for the secured document to delete, and select <Delete>.

3

Enter the PIN, and select <Apply>.

● When you select multiple documents with different PINs in step 2, a message is displayed. Select <Close>, and select the secured documents again in step 2.

Printing starts.

● If you want to cancel printing, select <Cancel> <Yes>.

268

Printing

Changing the Valid Time Period for Secured Documents

You can change the valid time period from the time secured document data is sent to the machine until the time it is deleted within a certain period of time.

1

Select <Menu> in the Home screen. Home Screen(P. 122)

2

Select <Function Settings>.

3

Select <Secure Print>.

If the login screen appears, enter the correct ID and PIN. Logging in to the Machine(P. 133)

4

Select <Secure Print Deletion Time>.

When <Secure Print Deletion Time> cannot be selected

● Set <Use Secure Print> to <On>.

Disabling Secure Print

● Set <Use Secure Print> to <Off>, and then restart the machine.

5

Specify how long the machine holds secured documents, and select <Apply>.

● The secured document is deleted from the memory of the machine unless it is printed before the time specified here elapses.

6

Select <Apply>.

7

Restart the machine.

● Turn OFF the machine, wait for at least 10 seconds, and turn it back ON.

LINKS

Checking the Printing Status and Log(P. 263)

Restricting Printing from a Computer(P. 411)

269

Printing

Printing from a USB Memory Device (Memory Media

Print)

1647-062

You can print files directly by connecting a USB memory device to the machine. Using this function, you can print without using a computer. For more information about the available USB memory devices and how to insert/remove

the USB memory device, see Insert a USB Memory Device(P. 106) .

1

Select <Memory Media Print> in the Home screen. Home Screen(P. 122)

2

Select the check box for the file to print.

● You can select multiple files.

● To clear a selection, select the file you have selected ( ) again.

● Selecting a folder displays its contents. To return to the folder in the upper level, select .

● Folders and files lower than the fifth directory are not displayed.

● When you move to another folder, the previous file selections will be cleared.

To select all files

1

Select <Select All>.

● To clear all selections, select <Clear Selection>.

2

If file types are mixed, select <JPEG/TIFF Files> or <PDF Files>.

To change the file display method

You can select the file display method from "Preview"/"Details."

Preview

Details

270

Printing

● You cannot view the contents of a PDF file.

You can specify the file display method used to display the <Memory Media Print> screen. <Default

Display Settings>(P. 558)

To change the file sort order

You can change the sort order of the files in a USB memory device.

● You can specify a sort setting such as <Name (Ascending)> or <Date/Time (Ascending)> as the default

setting for the file sort order. <File Sort Default Settings>(P. 559)

1

Select <Sort Files>.

2

Select the criteria for file sorting.

● When you select <Date/Time (Ascending)> or <Date/Time (Descending)>, files are sorted based on the modification dates and time of the files.

3

Select <Apply>.

4

Specify the print settings as necessary.

● You can select <Reset> to restore all the default print settings.

<Paper>

Select the paper source that contains the paper to use for printing.

271

Printing

Uses the paper that is loaded in the multi-purpose tray to print files.

Uses the paper that is loaded in the paper drawer (Drawer 1) of the machine to print files.

Uses the paper that is loaded in the optional cassette feeding module (Drawer 2) to make copies.

● When specifying other print settings, select <Close>.

<Brightness>

You can adjust the brightness of images.

● When specifying other print settings, select <Close>.

<Number of Copies>

Enter the number of copies.

● When specifying other print settings, select <Close>.

<2-Sided Printing>

You can select 1-sided printing or 2-sided printing.

Prints on one side of paper.

Prints on both sides of paper in such a way that the printed pages are opened horizontally when bound.

272

Printing

Prints on both sides of paper in such a way that the printed pages are opened vertically when bound.

<2-Sided Printing> may not be available with some sizes or types of paper. Available Paper(P. 701)

<N on 1>

● <N on 1> is not available for printing TIFF files.

You can select an "N on 1" pattern to print multiple pages of image data on one side of a sheet of paper.

(PDF only)

Does not apply N on 1.

Prints two pages of image data on one side of a sheet of paper.

Prints four pages of image data on one side of a sheet of paper.

Prints eight pages of image data on one side of a sheet of paper.

● For a PDF file, you can print 9 or 16 pages of image data on one side of a sheet of paper by using <N on 1> under <Set PDF Details>.

<Set JPEG/TIFF Details>

You can change the print settings for JPEG and TIFF images.

273

Printing

<2-Sided Printing>

You can make 2-sided printouts. Select the binding position.

<N on 1>

(JPEG files only)

Prints data for multiple pages of image data on the same side of a sheet of paper. You can specify the number of pages to print on one side of a sheet of paper. For example, to print four pages on one side of a sheet of paper, select <4 on 1>.

<Original Type>

You can select the type of original depending on the image to print.

<Photo Priority>

Gives priority to printing photo images smoothly.

<Text Priority>

Gives priority to printing text clearly.

<Halftones>

You can select the printing method used to reproduce halftones (the intermediate range between the lighter and darker areas of an image) for optimal image quality.

<Gradation>

Prints images with fine gradation, such as digital camera images, with a smooth finish.

<Error Diffusion>

Prints images with small text or fine lines with a clear finish.

<Set PDF Details>

You can change the print settings for PDFs.

274

Printing

<2-Sided Printing>

You can make 2-sided printouts. Select the binding position.

<N on 1>

Prints data for multiple pages of image data on the same side of a sheet of paper. You can specify the number of pages to print on one side of a sheet of paper. For example, to print four pages on one side of a sheet of paper, select <4 on 1>.

<Print Range>

Specify pages you want to print.

<All Pages>

Prints all pages.

<Specified Pages>

Specify the range of pages you want to print. Enter the desired value in each of <Start Page> and <End Page>, and select <Apply>.

● When the specified page range does not match any of the pages of the PDF file, printing is not performed.

<Enlarge/Reduce to Fit Paper Size>

Specify whether to enlarge or reduce the original according to the print range of paper. Note that size enlargement/reduction will not affect the aspect ratio of the original.

<Enlarge Print Area>

Specify whether to extend the print range to the paper size.

● If you set to <On>, part of print data may not be printed in edge areas or paper may be partly smudged depending on the document.

<Print Comments>

This setting specifies whether to print annotations in the PDF file.

275

Printing

<Off>

Prints no annotations.

<Auto>

Prints only those annotations that are specified to be printed in the PDF file.

<Password to Open Document>

You can print password protected PDF files by entering the password required to open them. Enter the password, and select <Apply>.

<Other Settings>

<Halftones>

You can select the printing method used to reproduce halftones (the intermediate range between the lighter and darker areas of an image) for optimal image quality. You can make this setting for each of the types of

image contained in one document. See <Halftones>(P. 528) for the description of the setting.

<Pure Black Text>

You can print black text of which color information is "R=G=B=0%," "C=M=Y=100%," or "C=M=Y=0%/K=100%,"

using only the K (black) toner. See <Pure Black Text>(P. 524) for the description of the setting.

<Black Overprint>

Specify the printing method used when black text overlaps a colored background or figure. See <Black

Overprint>(P. 524) for the description of the setting.

<RGB Source Profile>

Select the source profile for color matching to print RGB data, according to the monitor you are using. See

<RGB Source Profile>(P. 525) for the description of the setting.

<CMYK Simulation Profile>

This setting allows you to specify the simulation target to print the CMYK (Cyan Magenta Yellow blacK) data.

The machine converts CMYK data into a device dependent CMYK color model based on this simulation. See

<CMYK Simulation Profile>(P. 526) for the description of the setting.

<Use Grayscale Profile>

Specify whether to convert gray data to CMYK (cyan, magenta, yellow, and black) data using the grayscale

profile of the machine. See <Use Grayscale Profile>(P. 526) for the description of the setting.

<Output Profile>

Select the appropriate profile for print data. This option can be specified for each image type in one

document. See <Output Profile>(P. 527) for the description of the setting.

<Matching Method>

Select the element to be prioritized when making color adjustment in <RGB Source Profile>. See

<Matching Method>(P. 528) for the description of the setting.

<Composite Overprint>

Specify whether to overprint CMYK data, with overprint specified, as composite output. See <Composite

Overprint>(P. 530) for the description of the setting.

<Grayscale Conversion>

Specify the way of printing color data in black and white. See <Grayscale Conversion>(P. 530) for the

description of the setting.

<Print Quality>

<Density>

Adjust the toner density to be used for printing. See <Density>(P. 495) for the description of the setting.

<Toner Save>

276

Printing

Selecting <On> prints in toner saving mode. Select <On> when you want to check the layout or other

appearance characteristics before proceeding to final printing of a large job. See <Toner Save>(P. 496)

for the description of the setting.

<Gradation>

Specify the processing method used to reproduce gradation. <High 2> gives finer gradation than <High

1>. See <Gradation>(P. 496) for the description of the setting.

<Density Fine Adjustment>

When fine lines or small text are faded, increase the density to give less faded print. See <Density Fine

Adjustment>(P. 496) for the description of the setting.

<Resolution>

Specify the resolution to process print data. See <Resolution>(P. 497) for the description of the setting.

<Special Smoothing Mode>

Specify the mode to print data with a smooth finish. If the quality of the printout is not acceptable in

<Mode 1> (default), try another mode. See <Special Smoothing Mode>(P. 497) for the description of

the setting.

<Toner Volume Correction>

When the toner volume for text or lines exceeds the limit value of the machine, make a correction so that

the toner volume does not exceed the limit value. See <Toner Volume Correction>(P. 498) for the

description of the setting.

<Line Control>

Specify the processing method used to reproduce lines. See <Line Control>(P. 498) for the description

of the setting.

<Width Adjustment>

Configure a setting to print text or fine lines in bold. See <Width Adjustment>(P. 499) for the

description of the setting.

<Advanced Smoothing>

Configure the smoothing setting to print the outline of graphics (e.g., illustrations created using applications) or text with a smooth finish. <Level 2> applies a stronger smoothing effect than <Level 1>.

You can apply the setting separately for text and graphics. See <Advanced Smoothing>(P. 499) for the

description of the setting.

<Gradation Smoothing>

Configure the smoothing setting to print the gradation (color density) of graphics (e.g., illustrations created using applications) or bit map images with a smooth finish. <Level 2> applies a stronger smoothing effect than <Level 1>. You can apply the setting separately for graphics and images. See

<Gradation Smoothing>(P. 500) for the description of the setting.

5

Select <Start Printing>.

Printing starts.

● If you want to cancel printing, select <Cancel> <Yes>.

If you always want to print with the same settings: Memory Media Print(P. 176)

LINKS

<Store/Access Files>(P. 553)

277

Scanning

Scanning

Scanning

.............................................................................................................................................................. 279

Scan Basic Features Screen

............................................................................................................................... 281

Basic Operations for Scanning Originals

......................................................................................................... 284

Scanning and Saving to a Computer

............................................................................................................. 285

Saving Data to a USB Memory Device

........................................................................................................... 287

Sending Data by E-Mail/Saving Data to a Shared Folder or FTP Server

......................................................... 291

Canceling Sending Documents

..................................................................................................................... 300

Checking Status and Log for Scanned Originals

........................................................................................... 301

Scanning Clearly

................................................................................................................................................ 303

Adjusting Image Quality

............................................................................................................................... 304

Adjusting Density

......................................................................................................................................... 305

Adjusting Sharpness When Scanning (Sharpness)

........................................................................................ 306

Useful Scanning Functions

............................................................................................................................... 308

Enhancing the Security of Electronic Files

..................................................................................................... 309

Adjusting Balance between File Size and Image Quality

............................................................................... 312

Recalling Previously Used Settings for Sending/Saving (Recall Settings)

....................................................... 313

Specifying E-Mail Settings

............................................................................................................................. 316

Using Your Computer to Scan (Remote Scan)

.................................................................................................. 319

Scanning Documents from an Application

.................................................................................................... 320

Using ScanGear MF

...................................................................................................................................... 322

278

Scanning

Scanning

1647-063

You can scan original documents by using the operation panel of the machine or an application on a computer.

Whichever way you use, the scanned originals are converted into electronic file formats such as PDFs. Use the scan function to convert large-volume paper documents into files so that you can organize them easily.

● To use this machine as a scanner, you must complete preparations in advance, including installation of software to a computer. For more information, see the manuals for the relevant drivers or software on the online manual website. To connect the machine to your computer via a network, you must register the

machine to the installed software. Preparing to Use the Machine as a Scanner(P. 84)

● Depending on the operating system and the version of the scanner driver or applications you are using, the screens in this manual may differ from your screens.

Using Basic Operations

You can scan and save originals to your computer by using the operation panel of the machine. You can also save originals to a USB memory device or send them as e-mail attachments.

Scan Basic Features Screen(P. 281)

Basic Operations for Scanning Originals(P. 284)

Canceling Sending Documents(P. 300)

Checking Status and Log for Scanned

Originals(P. 301)

Enhancing Quality

You can find instructions on how to resolve problems such as "blurry photos" or "text unreadable due to too deep color of the paper."

Scanning Clearly(P. 303)

Efficiently, Reliably

You can find instructions on how to enhance efficiency when sending data and descriptions of useful settings.

279

Scanning

Useful Scanning Functions(P. 308)

Scanning from a Computer

You can scan originals placed on the machine from a computer. The scanned originals are saved to the computer. You can scan using MF Scan Utility (included with the machine), or with other applications such as an image-processing or word-processing application.

Using Your Computer to Scan (Remote Scan)(P. 319)

Scanning from Mobile Devices

● Linking mobile devices such as smartphones or tablets to this machine provides a quick and easy way to

scan originals set on this machine. Linking with Mobile Devices(P. 324)

280

Scanning

Scan Basic Features Screen

When you select <Scan> in the Home screen, the Scan Basic Features screen appears.

1647-064

<Computer>

Saves the scanned data to a computer. Basic Features Screen for Computer Scanning(P. 281)

<Remote Scanner>

Puts the machine into the online status when originals are scanned from a computer. Using Your

Computer to Scan (Remote Scan)(P. 319)

<USB Memory>

Saves the scanned data to a USB memory device. Basic Features Screen for USB Scanning(P. 282)

<E-Mail>

Sends the scanned data by e-mail. Basic Features Screen for E-Mail Sending/I-Fax Sending/File

Saving(P. 282)

<I-Fax>

Sends the scanned data by I-Fax. Basic Features Screen for E-Mail Sending/I-Fax Sending/File

Saving(P. 282)

<File>

Saves the scanned data to a shared folder or FTP server. Basic Features Screen for E-Mail Sending/I-Fax

Sending/File Saving(P. 282)

Basic Features Screen for Computer Scanning

Scan type

Select the scan setting. Scanning and Saving to a Computer(P. 285)

281

Scanning

<Start>

Use this button to start scanning.

Basic Features Screen for USB Scanning

Send Settings

The original is scanned based on the settings specified here.

<Reset>

You can collectively restore the default settings.

<Start>

Use this button to start scanning. Selecting <B&W> starts black and white scanning. Selecting <Color> starts color scanning.

Basic Features Screen for E-Mail Sending/I-Fax Sending/File Saving

E-Mail Sending I-Fax Sending File Saving

<Specify Destination> tab

Select this tab to search for a destination in the Address Book or an LDAP server, enter a coded dial, or specify a destination using the recall settings.

Sending Data by E-Mail/Saving Data to a Shared Folder or FTP Server(P. 291)

Recalling Previously Used Settings for Sending/Saving (Recall Settings)(P. 313)

<Send Settings> tab

Select this tab to specify the scanning settings.

282

Scanning

<Confirm Destination>

You can check or change the name and address of the specified destination as well as the number of destinations.

<Reset>

You can collectively restore the default settings.

<Start>

Use this button to start scanning. Selecting <B&W> starts black and white scanning. Selecting <Color> starts color scanning.

283

Scanning

Basic Operations for Scanning Originals

This section describes the basic procedures for scanning originals.

Scanning

1647-065

Scanning and Saving to a

Computer(P. 285)

Saving Data to a USB Memory

Device(P. 287)

Sending Data by E-Mail/Saving

Data to a Shared Folder or FTP

Server(P. 291)

Operating Jobs

Canceling Sending Documents(P. 300)

Checking Status and Log for Scanned Originals(P. 301)

284

Scanning

Scanning and Saving to a Computer

1647-0H6

The sequence of "scanning an original and saving it to a computer" can only be done when scanning from the machine. Scan while specifying what computer originals will be saved to; whether to scan originals in color or black and white; whether to save originals as PDFs or JPEGs; and other settings. Incidentally, if you want to specify a computer connected to the network as the destination, you must register the machine with the computer in advance

( Preparing to Use the Machine as a Scanner(P. 84) ).

1

Place the original(s). Placing Originals(P. 135)

2

Select <Scan> in the Home screen. Home Screen(P. 122)

If the login screen appears, specify the user name, the password, and the authentication server. Logging

in to Authorized Send(P. 133)

3

Select <Computer> in the Scan Basic Features screen. Scan Basic Features

Screen(P. 281)

● If only a computer connected to the machine via USB is used, proceed to step 5.

4

Select the destination computer.

5

Select the scan type in the Computer Scan Basic Features screen. Basic Features

Screen for Computer Scanning(P. 281)

● The scan types and settings that are displayed can be confirmed and changed by using MF Scan Utility. For more information, click [Instructions] on MF Scan Utility.

● If you are a macOS user, see the manuals for the relevant drivers or software on the online manual website.

6

Select <Start>.

Scanning of the original starts.

If you want to cancel, select <Cancel> <Yes>. Canceling Sending Documents(P. 300)

● You cannot scan while the ScanGear MF is displayed. Close the screen before scanning.

285

Scanning

When placing originals in the feeder in step 1

When scanning is complete, the save destination folder is displayed on the computer.

When placing originals on the platen glass in step 1

When scanning is complete, follow the procedures below (except if you selected JPEG as a file format).

1

If there are additional pages of originals to be scanned, place the next original on the platen glass, and select <Scan Next>.

● Repeat this step until you finish scanning all of the pages.

● When there is only one page to be scanned, proceed to the next step.

2

Select <Finish>.

The save destination folder is displayed on the computer.

About the save destination folder

● By default, the scanned data is saved to the My Documents folder. A subfolder named with the scanning date is created, and the data is saved to that folder.

● You can change the save destination from the MF Scan Utility. For more information, click [Instructions] on

MF Scan Utility.

286

Scanning

Saving Data to a USB Memory Device

This section describes how to scan the original and save the scanned data to a USB memory device.

1647-0H7

● Before saving data to a USB memory device, insert a USB memory device into the USB port. For information

about the available USB memory devices and how to insert and remove a USB memory device, see Insert

a USB Memory Device(P. 106) .

1

Place the original(s). Placing Originals(P. 135)

2

Select <Scan> in the Home screen. Home Screen(P. 122)

If the login screen appears, specify the user name, the password, and the authentication server. Logging

in to Authorized Send(P. 133)

3

Select <USB Memory> in the Scan Basic Features screen. Scan Basic Features

Screen(P. 281)

4

Specify the scanning settings as necessary.

Specifying the Scanning Size of the Original

Selecting a File Format

Specifying Orientation of Your Original

Scanning 2-Sided Originals

Specifying the Scanning Size of the Original

You can specify the scanning size of your original.

<Scan Size> Select the original size

287

Scanning

Selecting a File Format

You can select the file format to which originals are scanned from PDF/JPEG/TIFF.

For PDF, you can select Compact PDF that reduces the data size or the PDF format that enables a text search by including text data scanned with OCR (optical character recognition). You can also create a PDF file with enhanced security by

encrypting data or adding the signature. Enhancing the Security of

Electronic Files(P. 309)

<File Format> Select a file format

● If you select JPEG in <File Format> and try to scan a original from the platen glass, you can only scan one page. To scan a multiple-page original all at once, use the feeder. Each page of the original is saved as a separate file. If you select TIFF or PDF, you can scan multiple-page originals either from the platen glass or from the feeder. In this case, whether the original is to be saved as a single file or each

page as separate files can be specified in Dividing a PDF file by Page(P. 288) or Dividing a TIFF

File by Page(P. 288) .

● <PDF (Compact)> and <PDF (Compact/OCR)> compress photos and illustrations on originals more than <PDF> and <PDF (OCR)>. The file will be smaller, but the image quality of some originals or the number of originals that can be scanned at once may be lower.

● In <PDF (Compact/OCR)> and <PDF (OCR)> you can configure the settings so that the machine automatically detects the original direction during scanning based on the direction of the text read by

the OCR function. <OCR (Text Searchable) Settings>(P. 490)

Dividing a PDF file by Page

Specify whether to convert the original with multiple pages into a single PDF file or create a separate PDF file for each page. This setting can be configured for each PDF format.

<File Format> <Set PDF Details> Select the PDF format <Divide into Pages> Select <Off> or

<On>

Dividing a TIFF File by Page

Specify whether to convert the original with multiple pages into a single TIFF file or create a separate TIFF file for each page.

<File Format> <Set TIFF Details> <Divide into Pages> Select <Off> or <On>

288

Scanning

Specifying Orientation of Your Original

You can specify portrait or landscape orientation.

<Original Orientation> Select the original orientation

Scanning 2-Sided Originals

The machine can automatically scan the front and back sides of originals in the feeder.

● The machine cannot scan both sides of originals automatically when the originals are placed on the platen glass.

<2-Sided Original> Select <Book Type> or <Calendar Type>

<Book Type>

Select for originals whose images on the front and back sides face the same direction.

<Calendar Type>

Select for originals whose images on the front and back sides face in opposite directions.

For information about other scan settings, see Scanning Clearly(P. 303) or Adjusting Balance

between File Size and Image Quality(P. 312) .

5

Select <Start>.

Scanning of the original starts.

289

Scanning

If you want to cancel, select <Cancel> <Yes>. Canceling Sending Documents(P. 300)

When placing originals in the feeder in step 1

When scanning is complete, the saving process starts.

When placing originals on the platen glass in step 1

When scanning is complete, follow the procedures below (except if you selected JPEG as a file format).

1

If there are additional pages of originals to be scanned, place the next original on the platen glass, and select <Scan Next>.

● Repeat this step until you finish scanning all of the pages.

● When there is only one page to be scanned, proceed to the next step.

2

Select <Finish>.

The saving process starts.

● A new folder is created on the USB memory device, and the scanned document is stored in that folder. The file name of a scanned document is automatically assigned based on the following format: the characters

SCAN followed by a four-digit number.file extension name.

If you always want to scan with the same settings: Changing the Default Settings for Functions(P. 176)

If you want to register a combination of settings to use when needed: Registering Frequently Used

Settings(P. 174)

290

Scanning

Sending Data by E-Mail/Saving Data to a Shared Folder or FTP Server

1647-0H8

This section describes the procedures for scanning originals and sending the scanned data directly from the machine by attaching it to an e-mail or saving it to a shared folder or FTP server.

● Before you can send the data directly by e-mail, you need to complete certain procedures, such as specifying

the e-mail server settings. Procedure for Setting to Send E-Mail/Send and Receive I-Fax(P. 85)

● Before you can save the data to a shared folder or FTP server, you need to complete certain procedures, such as specifying the location to save the scanned originals to.

Procedure for Setting a Shared Folder as a Save Location(P. 93)

Procedure for Setting a FTP Server as a Save Location(P. 97)

1

Place the original(s). Placing Originals(P. 135)

2

Select <Scan> in the Home screen. Home Screen(P. 122)

If the login screen appears, specify the user name, the password, and the authentication server. Logging

in to Authorized Send(P. 133)

3

Select <E-Mail> or <File> in the Scan Basic Features screen. Scan Basic Features

Screen(P. 281)

4

Specify the destination.

Specifying from Address Book

Specifying from Coded Dial Numbers

Entering Destinations Directly (E-Mail Sending)

Specifying Destinations in an LDAP Server

Specifying from Address Book

The Address Book enables you to specify a destination by selecting from a list of registered destinations or by searching by name for destinations with recipient names.

You need to register destinations in the Address Book before using this feature. Registering

Destinations(P. 182)

291

Scanning

● Register the shared folder or FTP server address from a computer.

Setting a Shared Folder as a Save Location(P. 94)

Registering Destinations from Remote UI(P. 430)

1

Select <Address Book> in the <Specify Destination> tab.

2

Select <To>.

3

Select an index. Index(P. 182)

4

Select the check box for the desired destination, and select <Apply>.

● If a destination is selected from <Address Book> in the Home screen, the Basic Features screen for e-mail sending or file saving can be displayed while the selected destination remains being specified.

Specifying from Coded Dial Numbers

Three-digit numbers (coded dial numbers) are assigned to addresses in the Address

Book. You can specify an address simply by entering its coded dial number.

To use coded dial numbers, the destination must be registered in the Address Book beforehand.

Registering Destinations(P. 182)

● Register the shared folder or FTP server address from a computer.

Setting a Shared Folder as a Save Location(P. 94)

Registering Destinations from Remote UI(P. 430)

1

Select <Coded Dial> in the <Specify Destination> tab.

2

Select <To>.

292

Scanning

3

Enter a three-digit number.

● If you have entered an incorrect value, use to clear it.

If a confirmation screen appears

● When <Confirm When Coded Dial TX> is set to <On>, a screen is displayed that shows the destination and the name for the number. (For Group Dial, the destination name and the number of destinations are shown.) Check the contents and if everything is correct, select <OK>. To specify a different destination,

select <Cancel> and then re-enter the three-digit coded dial number. Displaying Destinations in

Address Book(P. 407)

Entering Destinations Directly (E-Mail Sending)

For a destination that is not registered in the Address Book, specify it by entering an e-mail address.

1

Select <Use Keyboard> in the <Specify Destination> tab.

2

Enter the e-mail address, and select <Apply>.

On how to enter text, see Entering Text(P. 131) .

Specifying Destinations in an LDAP Server

If your office has an LDAP server installed, you can specify a destination using user information in the server. Access the LDAP server via the machine to search for the appropriate user information and specify it as destination.

You need to specify the settings for connecting to an LDAP server beforehand. Registering LDAP

Servers(P. 63)

1

Select <LDAP Server> in the <Specify Destination> tab.

293

Scanning

2

Select the LDAP server you are using.

3

Select conditions for user information to be searched.

● Name, fax numbers, e-mail addresses, organization names, and organization unit are available criteria for searching destinations.

4

Enter the search target character string, and select <Apply>.

On how to enter text, see Entering Text(P. 131) .

● To specify multiple search criteria, repeat steps 3 and 4.

5

Select <Search Method>.

6

Select conditions to display the search result.

<Using All Conditions Below>

Searches and displays the users that meet all the search criteria specified in steps 3 and 4.

<Using Some Conditions Below>

If users that meet even one of the criteria specified in steps 3 and 4 are found, displays all those users.

7

Select <Start Search>.

The users meeting your search criteria are displayed.

● If the authentication screen appears when you select <Start Search>, enter the user name of the machine

and the password registered in the LDAP server, and select <Apply>. Registering LDAP Servers(P. 63)

8

Select the check box for the user that you want to specify as destination, and select

<Apply>.

294

Scanning

If a screen on which a destination is already specified appears

● You can only send to destinations that are not restricted. To send to other destinations, you must configure the send function authentication settings in such a way that transmission is not restricted.

Contact your administrator for details. LDAP Server Authentication(P. 364)

Specifying destinations from the transmission records

You can also recall previously used destinations. Recalling Previously Used Settings for Sending/

Saving (Recall Settings)(P. 313)

Saving the data to a shared folder or FTP server

● Only one destination can be specified.

5

When sending an e-mail, specify multiple destinations, including Cc/Bcc destinations, as necessary.

● Select the method used to specify destinations in the <Specify Destination> tab, and then specify the destination.

● If you selected <LDAP Server> or <Specify Myself as Destination>, the destination is specified in the <To> field.

● <Cc> and <Bcc> addresses can only be selected using <Address Book> or <Coded Dial>.

To delete destinations

If you specified multiple destinations, you can delete destinations as necessary.

1

Select <Confirm Destination>.

2

Select the check box for the destination to be deleted, and select <Remove from Dest.>.

● If you select Group, select <Details> <Destination>; you can view the destinations registered in the group.

3

Select <Yes>.

6

Specify the scanning settings as necessary.

Specifying the Scanning Size of the Original

Selecting a File Format

Specifying Orientation of Your Original

Scanning 2-Sided Originals

295

Scanning

Specifying the Scanning Size of the Original

You can specify the scanning size of your original.

Select <Scan Size> in the <Send Settings> tab Select the original size

Selecting a File Format

You can select the file format to which originals are scanned from PDF/JPEG/TIFF. For

PDF, you can select Compact PDF that reduces the data size or the PDF format that enables a text search by including text data scanned with OCR (optical character recognition). You can also create a PDF file with enhanced security by encrypting

data or adding the signature. Enhancing the Security of Electronic Files(P. 309)

Select <File Format> in the <Send Settings> tab Select a file format

● If you select JPEG in <File Format> and try to scan a original from the platen glass, you can only scan one page. To scan a multiple-page original all at once, use the feeder. Each page of the original is saved as a separate file. If you select TIFF or PDF, you can scan multiple-page originals either from the platen glass or from the feeder. In this case, whether the original is to be saved as a single file or each

page as separate files can be specified in Dividing a PDF file by Page(P. 296) or Dividing a TIFF

File by Page(P. 297) .

● <PDF (Compact)> and <PDF (Compact/OCR)> compress photos and illustrations on originals more than <PDF> and <PDF (OCR)>. The file will be smaller, but the image quality of some originals or the number of originals that can be scanned at once may be lower.

● In <PDF (Compact/OCR)> and <PDF (OCR)> you can configure the settings so that the machine automatically detects the original direction during scanning based on the direction of the text read by

the OCR function. <OCR (Text Searchable) Settings>(P. 490)

Dividing a PDF file by Page

Specify whether to convert the original with multiple pages into a single PDF file or create a separate PDF file for each page. This setting can be configured for each PDF format.

296

Scanning

Select <File Format> <Set PDF Details> Select the PDF format <Divide into Pages> Select

<Off> or <On> in the <Send Settings> tab

Dividing a TIFF File by Page

Specify whether to convert the original with multiple pages into a single TIFF file or create a separate TIFF file for each page.

Select <File Format> <Set TIFF Details> <Divide into Pages> Select <Off> or <On> in the

<Send Settings> tab

Specifying Orientation of Your Original

You can specify portrait or landscape orientation.

Select <Orig. Orientation> in the <Send Settings> tab Select the original orientation

Scanning 2-Sided Originals

The machine can automatically scan the front and back sides of originals in the feeder.

● The machine cannot scan both sides of originals automatically when the originals are placed on the platen glass.

Select <2-Sided Original> in the <Send Settings> tab Select <Book Type> or <Calendar Type>

297

Scanning

<Book Type>

Select for originals whose images on the front and back sides face the same direction.

<Calendar Type>

Select for originals whose images on the front and back sides face in opposite directions.

For information about other scan settings, see Scanning Clearly(P. 303) or Adjusting Balance

between File Size and Image Quality(P. 312) .

For e-mail, you can specify the subject, message, reply-to address, and priority as necessary. Specifying

E-Mail Settings(P. 316)

7

Select <Start>.

● If the <Confirm Destination> screen is displayed, check whether the destination is correct, and then select

<Start Scanning>.

Scanning of the original starts.

If you want to cancel, select <Cancel> <Yes>. Canceling Sending Documents(P. 300)

When placing originals in the feeder in step 1

When scanning is complete, the sending/saving process starts.

When placing originals on the platen glass in step 1

When scanning is complete, follow the procedures below (except if you selected JPEG as a file format).

1

If there are additional pages of originals to be scanned, place the next original on the platen glass, and select <Scan Next>.

● Repeat this step until you finish scanning all of the pages.

● When there is only one page to be scanned, proceed to the next step.

2

Select <Start Sending>.

The sending/saving process starts.

If the <File Authentication> or <SMTP Authentication> screen appears

● Enter the user name and password, and select <Apply>.

File name of the sent document

● The file name of a sent document is automatically assigned based on the following format: communication management number (four digits)_sent date and time_document number (three digits).file extension name.

298

Scanning

If an E-Mail Send Error Occurs

Error notifications are sometimes sent to the e-mail address set to the machine. If you leave it as-is, it may result in an insufficient remaining capacity of mailbox depending on your mail server. It is recommended that you clear the mailbox periodically.

To clear the mailbox

● When the mailbox is cleared, all e-mail in the server mailbox is deleted. When you specify the e-mail account that you use usually, you should first check whether any e-mail in the mailbox needs to be kept.

1

Start the Remote UI and log in to System Manager Mode. Starting Remote UI(P. 419)

2

Click [Settings/Registration] on the Portal page. Remote UI Screen(P. 420)

3

Select [TX Settings] [Network Settings - E-Mail/I-Fax Settings].

4

Click [Clear] in [Clear Mail Box].

5

Read the message that is displayed, and click [OK].

E-mail is deleted from the mailbox.

If you always want to scan with the same settings: Changing the Default Settings for Functions(P. 176)

If you want to register a combination of settings to use when needed: Registering Frequently Used

Settings(P. 174)

299

Scanning

Canceling Sending Documents

1647-06J

If you want to cancel sending documents immediately after selecting <Start>, select <Cancel> on the display or press

. You can also cancel sending documents after checking the sending status.

Select <Cancel> to cancel

Press to cancel

If the screen displays a list of documents when is pressed

Originals have been scanned and are waiting to be processed. Select the document to cancel, and select

<Cancel> <Yes>.

Check the transmission status before canceling

<Status Monitor> <TX Job> Select the document in the <TX Job Status> tab <Cancel> <Yes>

LINKS

Basic Operations for Scanning Originals(P. 284)

Checking Status and Log for Scanned Originals(P. 301)

300

Scanning

Checking Status and Log for Scanned Originals

You can check the status and log for scanned originals sent directly from the machine.

1647-06K

When <Display Job Log> is set to <Off>, you cannot check the logs for sent documents. <Display Job

Log>(P. 566)

1

Select <Status Monitor>.

2

Select <TX Job>.

3

Check the statuses and logs for sent documents.

To check the statuses for sent documents

1

Select the document whose status you want to check in the <TX Job Status> tab.

Displays detailed information about the document.

● If you specified multiple destinations, the number of specified destinations is displayed on the screen. To check the details of specified multiple destinations, select <Destination>.

To check the logs for sent documents

1

Select the document whose log you want to check in the <TX Job Log> tab.

● <OK> is displayed when a document was sent successfully, and <Error> is displayed when a document failed to be sent because it was canceled or there was some error.

Displays detailed information about the document.

When a three-digit number is shown in the case of <Error>

301

Scanning

This number represents an error code. Countermeasures for Each Error Code(P. 658)

LINKS

Basic Operations for Scanning Originals(P. 284)

Canceling Sending Documents(P. 300)

Printing Reports and Lists(P. 606)

302

Scanning

Scanning Clearly

1647-06L

When creating files for brochures that contain many pictures or reports written in pencil, you can adjust density and brightness to achieve clearer image quality.

Adjusting Image Quality(P. 304)

Adjusting Density(P. 305)

Adjusting Sharpness When

Scanning (Sharpness)(P. 306)

303

Scanning

Adjusting Image Quality

1647-06R

You can select the image quality for the scan depending on the original type, such as text-only originals, originals with charts and graphs, or magazine photos.

Saving Data to a USB Memory Device

<Scan> <USB Memory> <Original Type> Select the original type.

Sending Data by E-Mail/I-Fax or Saving Data to the Server

<Scan> Specify destinations in <E-Mail>/<I-Fax>/<File> Select <Original Type> in the <Send

Settings> tab Select the original type

LINKS

Basic Operations for Scanning Originals(P. 284)

Sending I-Faxes(P. 248)

304

Scanning

Adjusting Density

1647-06S

You can adjust the density of the scan if the text or images in a original are too light or dark.

Saving Data to a USB Memory Device

<Scan> <USB Memory> <Density> Adjust the density <Apply>

Sending Data by E-Mail/I-Fax or Saving Data to the Server

<Scan> Specify destinations in <E-Mail>/<I-Fax>/<File> Select <Density> in the <Send Settings> tab Adjust the density <Apply>

LINKS

Basic Operations for Scanning Originals(P. 284)

Sending I-Faxes(P. 248)

Adjusting Sharpness When Scanning (Sharpness)(P. 306)

305

Scanning

Adjusting Sharpness When Scanning (Sharpness)

1647-06U

You can adjust the sharpness of the image. Increase the sharpness to sharpen blurred text and lines, or decrease the sharpness to improve the appearance of magazine photos.

Saving Data to a USB Memory Device

<Scan> <USB Memory> <Sharpness> Adjust the sharpness <Apply>

Sending Data by E-Mail/I-Fax or Saving Data to the Server

<Scan> Specify destinations in <E-Mail>/<I-Fax>/<File> Select <Sharpness> in the <Send

Settings> tab Adjust the sharpness <Apply>

Example:

If you want to sharpen text and lines written in pencil

Example:

If you want to improve the appearance of magazine photos

306

LINKS

Basic Operations for Scanning Originals(P. 284)

Sending I-Faxes(P. 248)

Adjusting Density(P. 305)

Scanning

307

Scanning

Useful Scanning Functions

1647-06W

The machine is equipped with useful functions such as those that can create secure PDF files to prevent them from being tampered with, and that can send data again to previously specified destinations.

Enhancing the Security of

Electronic Files(P. 309)

Adjusting Balance between File

Size and Image Quality(P. 312)

Recalling Previously Used

Settings for Sending/Saving (Recall

Settings)(P. 313)

Specifying E-Mail Settings(P. 316)

308

Scanning

Enhancing the Security of Electronic Files

1647-06X

Digital files are vulnerable in terms of security because they can be easily viewed or tampered with leaving no trace. When scanning important documents, you can take appropriate measures such as encrypting data and adding a device signature to enhance security.

Encrypting a PDF File(P. 309)

Adding a Device Signature(P. 310)

● Encryption and device signature are only available for PDF files.

● Both the encryption and device signature can be used at the same time.

Encrypting a PDF File

You can encrypt and send/save a PDF file by setting a password when scanning originals. The password setting helps reduce the risk of the PDF file being viewed or edited by others.

1

Select <Scan> in the Home screen. Home Screen(P. 122)

If the login screen appears, specify the user name, the password, and the authentication server. Logging

in to Authorized Send(P. 133)

2

Select <USB Memory>, <E-Mail>, or <File> in the Scan Basic Features screen. Scan

Basic Features Screen(P. 281)

● If you select <USB Memory>, proceed to step 4.

3

Specify the destination, and specify the scanning settings as necessary. Basic

Operations for Scanning Originals(P. 284)

4

Proceed to <Set PDF Details>.

Saving data to a USB memory device

● Select <File Format> <Set PDF Details>.

Sending e-mail/saving data to a shared folder or FTP server

● Select <File Format> <Set PDF Details> in the <Send Settings> tab.

5

Select the type of PDF format.

● You can specify whether to enable encryption for each PDF format.

309

6

Select <Encryption>.

7

Select the encryption level.

Scanning

<Acrobat 7.0 or Later/128-bit AES>

Encrypt the file in the 128-bit environment, which can be opened by Adobe Acrobat 7.0 or later.

<Acrobat 10.0 or Equivalent/256-bit AES>

Encrypt the file in the 256-bit environment, which can be opened by Adobe Acrobat 10.0.

● <Acrobat 10.0 or Equivalent/256-bit AES> can be changed to <Acrobat 9.0 or Equivalent/256-bit AES> with a

different compatible version. <256-bit AES Set. (Encrypt. PDF)>(P. 490)

8

Enter the encryption password, and select <Apply>.

On how to enter text, see Entering Text(P. 131) .

9

Enter the password, and select <Apply>.

Adding a Device Signature

Convert the scanned original into a PDF file with a device signature. The device signature serves the same purpose as sealing or signing a document; it can be used to check where the file was created and whether the document has been tampered with or falsified after the signature was appended. To assign the device signature to a PDF file, you need to

generate the key and certificate for the device signature in advance. Generating a Device Signature Key(P. 417)

1

Select <Scan> in the Home screen. Home Screen(P. 122)

If the login screen appears, specify the user name, the password, and the authentication server. Logging

in to Authorized Send(P. 133)

2

Select <USB Memory>, <E-Mail>, or <File> in the Scan Basic Features screen. Scan

Basic Features Screen(P. 281)

● If you select <USB Memory>, proceed to step 4.

3

Specify the destination, and specify the scanning settings as necessary. Basic

Operations for Scanning Originals(P. 284)

310

Scanning

4

Proceed to <Set PDF Details>.

Saving data to a USB memory device

● Select <File Format> <Set PDF Details>.

Sending e-mail/saving data to a shared folder or FTP server

● Select <File Format> <Set PDF Details> in the <Send Settings> tab.

5

Select the type of PDF format.

● You can specify whether to enable encryption for each PDF format.

6

Select <Digital Signatures>.

7

Select <Top Left>.

311

Scanning

Adjusting Balance between File Size and Image Quality

1647-06Y

You can specify the file compression ratio when converting scanned originals into the JPEG format. <Small: Memory Priority> makes the compression ratio higher than normal to create smaller files with lower image quality. On the other hand, <Large:

Image Quality Priority> makes the compression ratio lower than normal larger files with higher image quality.

Saving Data to a USB Memory Device

<Scan> <USB Memory> <Data Size> Specify the setting

Sending Data by E-Mail or Saving Data to the Server

<Scan> Specify destinations in <E-Mail>/<File> Select <Data Size> in the <Send Settings> tab

Specify the setting

LINKS

Basic Operations for Scanning Originals(P. 284)

312

Scanning

Recalling Previously Used Settings for Sending/Saving

(Recall Settings)

1647-070

You can select a destination from among the past destinations. When you specify a previously used destination, the machine also sets the same scan settings such as density you used the last time you sent documents to that destination.

When <Restrict Resending from Log> is set to <On>, you cannot use this feature. Disabling Use of

Previously Used Destinations(P. 407)

● Turning OFF the machine or setting <Restrict New Destinations> to <On> deletes the past destinations, and

disables this feature. Restricting New Destinations that Can Be Specified(P. 407)

● When you specify a destination using this feature, any destinations that you have already specified are deleted.

1

Place the original(s). Placing Originals(P. 135)

2

Select <Scan> in the Home screen. Home Screen(P. 122)

If the login screen appears, specify the user name, the password, and the authentication server. Logging

in to Authorized Send(P. 133)

3

Select <E-Mail>, <I-Fax>, or <File> in the Scan Basic Features screen. Scan Basic

Features Screen(P. 281)

4

Select <Recall Settings> in the <Specify Destination> tab.

5

Select the destination.

● When you transmit to multiple destinations, only the address specified for the first transmission is displayed in the log, but all the destinations are specified.

313

Scanning

The selected destination and its scan settings are specified. You can also change the settings before sending.

To delete destinations (e-mail/I-Fax)

If you specified multiple destinations, you can delete destinations as necessary.

1

Select <Confirm Destination>.

2

Select the check box for the destination to be deleted, and select <Remove from Dest.>.

● If you select the Group check box, you can view the destinations registered in the group by selecting

<Details> <Destination>.

3

Select <Yes>.

6

Select <Start>.

● If the <Confirm Destination> screen is displayed, check whether the destination is correct, and then select

<Start Scanning>.

Scanning of the original starts.

If you want to cancel, select <Cancel> <Yes>. Canceling Sending Documents(P. 300)

When placing originals in the feeder in step 1

When scanning is complete, the sending/saving process starts.

When placing originals on the platen glass in step 1

When scanning is complete, follow the procedures below (except if you selected JPEG as a file format).

1

If there are additional pages of originals to be scanned, place the next original on the platen glass, and select <Scan Next>.

● Repeat this step until you finish scanning all of the pages.

● When there is only one page to be scanned, proceed to the next step.

2

Select <Start Sending>.

The sending/saving process starts.

If the <File Authentication> or <SMTP Authentication> screen appears

● Enter the user name and password, and select <Apply>.

LINKS

Basic Operations for Scanning Originals(P. 284)

314

Sending I-Faxes(P. 248)

Scanning

315

Scanning

Specifying E-Mail Settings

When attaching a scanned originals to an e-mail, you can specify the subject, message, reply-to address, and priority for the e-mail before sending it.

1647-071

1

Place the original(s). Placing Originals(P. 135)

2

Select <Scan> in the Home screen. Home Screen(P. 122)

If the login screen appears, specify the user name, the password, and the authentication server. Logging

in to Authorized Send(P. 133) .

3

Select <E-Mail> in the Scan Basic Features screen. Scan Basic Features

Screen(P. 281)

4

Specify the destination, and configure the scan settings as necessary. Basic

Operations for Scanning Originals(P. 284)

5

Specify the subject, message, reply-to address, and priority for the e-mail.

To specify subject/message

1

Select <Subject/Message> in the <Send Settings> tab.

2

Select <Subject>.

3

Enter the subject, and select <Apply>.

On how to enter text, see Entering Text(P. 131) .

4

Select <Message>.

5

Enter the message, and select <Apply>.

6

Select <Apply>.

To specify reply-to address

Specify the reply-to address when you want to notify the recipient of an e-mail address different from that of the machine as the reply-to address. Select the target reply-to address from the destinations registered in the

316

Scanning

Address Book, and specify it. If the destination has not been registered in the Address Book, see

Registering Destinations(P. 182) .

1

Select <Reply To> in the <Send Settings> tab.

2

Select <Specify from Address Book>.

3

Select the check box for the desired reply-to address, and select <Apply>.

To specify priority

1

Select <Priority> in the <Send Settings> tab.

2

Select a priority level.

6

Select <Start>.

● If the <Confirm Destination> screen is displayed, check whether the destination is correct, and then select

<Start Scanning>.

Scanning of the original starts.

If you want to cancel, select <Cancel> <Yes>. Canceling Sending Documents(P. 300)

When placing originals in the feeder in step 1

When scanning is complete, the e-mails are sent.

When placing originals on the platen glass in step 1

When scanning is complete, follow the procedures below (except if you selected JPEG as a file format).

1

If there are additional pages of originals to be scanned, place the next original on the platen glass, and select <Scan Next>.

● Repeat this step until you finish scanning all of the pages.

● When there is only one page to be scanned, proceed to the next step.

2

Select <Start Sending>.

The e-mails are sent.

If the <SMTP Authentication> screen appears

● Enter the user name and password, and select <Apply>.

If you always want to scan with the same settings: Changing the Default Settings for Functions(P. 176)

If you want to register a combination of settings to use when needed: Registering Frequently Used

Settings(P. 174)

If you want to specify the e-mail sender name: <Register Unit Name>(P. 537)

317

Scanning

LINKS

Checking Status and Log for Scanned Originals(P. 301)

318

Scanning

Using Your Computer to Scan (Remote Scan)

1647-072

To scan from a computer, you can use MF Scan Utility or an application such as an image processing or word processing application. If you use ScanGear MF supplied with the machine, you can configure advanced scan settings

( Using ScanGear MF(P. 322) ).

When using the machine with a USB connection, exit sleep mode before scanning. Entering Sleep

Mode(P. 180)

Scanning Using MF Scan Utility

MF Scan Utility is an application included with the machine that enables you to scan documents or images to a computer. You can forward the scanned data to a specified application, or attach it to an e-mail message. For more information, click [Instructions] on MF Scan Utility.

● If you are a macOS user, see the manuals for the relevant drivers or software on the online manual website.

Scanning Using an Application

You can scan images by using an application such as a word-processing or image-processing application, and load the images directly into the application.

You do not need to start another application to scan. Scanning Documents

from an Application(P. 320)

319

Scanning

Scanning Documents from an Application

1647-074

You can scan originals from applications such as image-processing or wordprocessing software. The scanned image is directly loaded in the application, allowing you to edit or process the image immediately. The following procedure varies depending on the application.

● The application must be compatible with TWAIN or WIA

*

. For more information, see the instruction manual for your application.

*

TWAIN is a standard for connecting image input devices, such as scanners, with computers. WIA is a function that is an integrated standard in Windows.

1

Place the original(s). Placing Originals(P. 135)

● The second or subsequent originals may not be scanned, or an error message may be displayed depending on the application. In such a case, place and scan one original at a time.

● When <Auto Online> is set to <Off>, you must select <Scan> <Remote Scanner> in the Home screen to

bring the machine online. <Auto Online>(P. 488)

2

From the application, select the start scan command.

● The procedure for selecting the start scan command varies depending on the application. For more information, see the instruction manual for your application.

3

Select the scanner driver for this machine.

● Select ScanGear MF or WIA. If you select ScanGear MF, you can configure advanced scan settings.

4

Specify the scanning settings as necessary.

5

Click [Scan].

Scanning of the original starts.

● When scanning is complete, the scanned image is forwarded to an application.

How to use ScanGear MF

● Click on the ScanGear MF screen, and see the Help.

320

LINKS

Using ScanGear MF(P. 322)

Scanning

321

Scanning

Using ScanGear MF

1647-073

ScanGear MF is a scanner driver included with the machine. You can use ScanGear

MF to configure advanced scan settings when you scan. The way of starting ScanGear MF differs depending of the way of scanning from the computer.

Starting from MF Scan Utility

When scanning from MF Scan Utility, click [ScanGear] to start ScanGear MF. For more information, click

[Instructions] on MF Scan Utility.

● If you are a macOS user, see the manuals for the relevant drivers or software on the online manual website.

Starting from an application

To scan from applications such as image-processing or word-processing software, select ScanGear MF as

scanner driver. Scanning Documents from an Application(P. 320)

Functions of ScanGear MF

● Previewing the image before scanning

● Specifying the scanning area

● Adjusting the detailed image quality

How to use ScanGear MF

● Click on the ScanGear MF screen, and see the Help.

322

Linking with Mobile Devices

Linking with Mobile Devices

Linking with Mobile Devices

.................................................................................................................... 324

Connecting with Mobile Devices

...................................................................................................................... 325

Connecting via a Wireless LAN Router (LAN Connection)

.............................................................................. 326

Connecting Directly (Access Point Mode)

...................................................................................................... 328

Utilizing the Machine through Applications

.................................................................................................... 332

Using AirPrint

.................................................................................................................................................... 333

Printing with AirPrint

.................................................................................................................................... 338

Scanning with AirPrint

.................................................................................................................................. 341

Faxing with AirPrint

...................................................................................................................................... 343

If AirPrint Cannot Be Used

............................................................................................................................ 345

Using Google Cloud Print

.................................................................................................................................. 346

Managing the Machine by the Remote Control

.............................................................................................. 348

323

Linking with Mobile Devices

Linking with Mobile Devices

1647-075

Linking the machine with mobile devices such as smart phones and tablets enables you to use an appropriate application to perform printing, or other operation with ease. In addition, you can operate the machine from mobile devices via remote control to confirm printing status and change the settings of the machine.

Connecting with Mobile Devices(P. 325)

Connecting Directly (Access Point Mode)(P. 328)

Utilizing the Machine through Applications(P. 332)

Using AirPrint(P. 333)

Using Google Cloud Print(P. 346)

Managing the Machine by the Remote Control(P. 348)

● Depending on your mobile device, the machine may not operate correctly.

324

Linking with Mobile Devices

Connecting with Mobile Devices

1647-076

There are two methods used to connect a mobile device with the machine: connecting via a wireless LAN router, and communicating wirelessly and directly with the machine. Select a connection method in accordance with the communication environment and the device you are using. Perform communication with mobile devices from <Mobile

Portal> ( Home Screen(P. 122) ).

Connecting via a Wireless LAN Router

Just as connecting a computer to the machine, connect a mobile device to the machine via a wireless LAN router.

Connecting via a Wireless LAN Router (LAN Connection)(P. 326)

Connecting Directly

Directly connect a mobile device to the machine wirelessly without using wireless LAN. It is possible to immediately

connect to the machine wirelessly even outside of a wireless LAN environment. Connecting Directly (Access Point

Mode)(P. 328)

325

Linking with Mobile Devices

Connecting via a Wireless LAN Router (LAN Connection)

1647-077

If a wireless LAN router is connected to the network connected to the machine, you can establish a communication with a mobile device via the wireless LAN router in the same way for a computer. For information about how to connect a mobile device to your wireless LAN router, see the instruction manuals for your networking devices or

contact your manufacturer. Connect the machine to a router via the wired or wireless LAN. Setting Up the Network

Environment(P. 13)

To perform the procedures below, use the IPv4 address. Setting IPv4 Address(P. 31)

● Select <LAN Connection> and proceed with the procedure, if the <Direct Connection> screen is displayed after <Mobile Portal> is selected in the procedure below.

● For information about the operating systems compatible with Canon PRINT Business, the detailed setting procedure, and the operating procedure, please see the application's Help or the Canon website (http:// www.canon.com/gomp/).

Connecting Manually

1

Select <Mobile Portal> in the Home screen. Home Screen(P. 122)

2

Connect from the mobile device to the IP address that appears on the screen.

Connecting Using a QR Code

1

Select <Mobile Portal> in the Home screen. Home Screen(P. 122)

2

Select <QR Code>.

3

Launch Canon PRINT Business on the mobile device. Utilizing the Machine through

Applications(P. 332)

4

Read the QR code displayed on the screen using the mobile device.

326

Linking with Mobile Devices

Connecting Using the NFC (Android)

Before using the NFC, check whether <Use NFC> is set to <On>. <Use NFC>(P. 566)

1

Launch Canon PRINT Business on the mobile device. Utilizing the Machine through

Applications(P. 332)

2

Enable the NFC settings of the mobile device.

3

Move the mobile device closer to the NFC mark of the machine. Operation

Panel(P. 114)

327

Linking with Mobile Devices

Connecting Directly (Access Point Mode)

1647-078

Even in an environment without a wireless LAN router, using "Access Point Mode," which can directly connect a mobile device to the machine wirelessly, enables you to connect the mobile device on hand to the machine without difficult settings.

Preparing for Direct Connection (Access Point Mode)(P. 328)

Connecting Directly(P. 329)

Preparing for Direct Connection (Access Point Mode)

Establish a connection by using Access Point Mode in the following order.

Check the network settings of the machine.

Set the IPv4 address. Setting IPv4 Address(P. 31)

Preparing the mobile device

● Configure settings to connect the mobile device to Wi-Fi.

Put the machine into the connection standby status.

● <Menu> <Preferences> <Network> <Direct Connection Settings> set

<Use Direct Connection> to <On>.

Specifying the value for time until auto termination

● You can specify the time to automatically establish a disconnection when the direct connection is enabled.

<Direct Connection Termination>(P. 455)

Connecting multiple mobile devices at the same time

Configure the machine's SSID and network key arbitrarily. <Access Point Mode Settings>(P. 455)

328

Linking with Mobile Devices

Canon PRINT Business

● For information about the operating systems compatible with Canon PRINT Business, the detailed setting procedure, and the operating procedure, please see the application's Help or the Canon website (http:// www.canon.com/gomp/).

Connecting Directly

● It may take time until connection of the machine and the mobile device is established.

Connecting Manually

1

Select <Mobile Portal> in the Home screen. Home Screen(P. 122)

● When any mobile device is already connected, proceed to step 3.

2

Select <Start>.

3

Configure the Wi-Fi settings from the mobile device using the SSID and network key information that appears on the screen.

4

When the target operation is completed, select <Disconnect>.

Connecting Using a QR Code

1

Select <Mobile Portal> in the Home screen. Home Screen(P. 122)

● When any mobile device is already connected, proceed to step 3.

2

Select <Start>.

3

Select <QR Code>.

4

Launch Canon PRINT Business on the mobile device. Utilizing the Machine through

Applications(P. 332)

5

Read the QR code displayed on the screen using the mobile device.

329

Linking with Mobile Devices

6

When the target operation is completed, then select <Disconnect>.

Connecting Using the NFC (Android)

Before using the NFC, check whether <Use NFC> is set to <On>. <Use NFC>(P. 566)

1

Select <Mobile Portal> in the Home screen. Home Screen(P. 122)

● When any mobile device is already connected, proceed to step 3.

2

Select <Start>.

3

Launch Canon PRINT Business on the mobile device. Utilizing the Machine through

Applications(P. 332)

4

Enable the NFC settings of the mobile device.

5

Move the mobile device closer to the NFC mark of the machine. Operation

Panel(P. 114)

6

When the target operation is completed, then select <Disconnect>.

● Select <Connection Information> on the <Direct Connection> screen to check the connected mobile device.

● While connecting via direct connection, you may not be able to connect to the Internet depending on the mobile device you are using.

● If wireless connection from the mobile device is not performed within 5 minutes while the SSID and network key are displayed, the connection waiting state terminates.

330

Linking with Mobile Devices

● If the status without data transmission between a mobile device and the machine continues during communication by direct connection, the communication may end.

● Power saving performance of sleep mode degrades while connecting via direct connection.

● If the machine is used with a wireless LAN, you need to keep the machine connected to the wireless LAN when using direct connection. When the machine is not connected to a wireless LAN or the connection process is not complete yet, the direct connection process cannot begin. If the connection between the machine and the wireless LAN is lost during communication through direct connection, the communication may end.

● When you finish the desired operation, be sure to terminate the connection between the machine and the mobile device. If they remain connected, power saving performance of sleep mode degrades.

● If you use the direct connection, do not set the IP address manually on the mobile device. Doing so may prevent proper communication after using the direct connection.

331

Linking with Mobile Devices

Utilizing the Machine through Applications

1647-07A

Perform printing and other operations from the mobile device connected to the machine using applications. Various applications including those exclusive to Canon are supported. Use properly in accordance with your device, the application, and the situation.

Using Canon PRINT Business

This application is used to perform printing and other operations from mobile devices that support iOS/Android. When printing, it is not necessary to perform operations on the machine. For more information on supported operating systems, detailed setting methods, and operations, see the application's Help or the Canon website (http:// www.canon.com/gomp/).

● You can download Canon PRINT Business for free, but you will be charged the Internet connection fee.

Printing with Canon Print Service

You can easily print from the menu of applications that support the Android print subsystem. For more information on supported operating systems and detailed settings and procedures, see the Canon website (http://www.canon.com/).

Printing by Mopria™

The machine also supports Mopria™. Using Mopria™ enables you to print from mobile devices that support Android using common operations and settings, even if manufacturers and models differ. For example, if you are using printers supporting Mopria™ made by multiple manufacturers or a printer supporting Mopria™ that is located in a place you are visiting, you can print without installing an application exclusive for each manufacturer or model. For more information on supporting models or operation environments, see http://www.mopria.org.

Confirming Mopria™ Settings

Log in to the Remote UI with Administrator privileges ( Starting Remote UI(P. 419) ) [Settings/

Registration] [Network Settings] [Mopria Settings] [Edit] Check that the [Use Mopria] check box is selected [OK]

Printing with Google Cloud Print

You can use applications and services which support Google Cloud Print to print from a computer or mobile device

without using a printer driver. Using Google Cloud Print(P. 346)

332

Linking with Mobile Devices

Using AirPrint

1647-07C

This section describes the settings required to use AirPrint and the procedures to be performed using Apple devices.

AirPrint Settings

Configuring AirPrint Settings(P. 333)

Displaying the Screen for AirPrint(P. 336)

Functions of the AirPrint

Printing with AirPrint(P. 338)

Scanning with AirPrint(P. 341)

Faxing with AirPrint(P. 343)

Troubleshooting

If AirPrint Cannot Be Used(P. 345)

Configuring AirPrint Settings

You can register information, including the name of the machine and installation location, that is used for identifying the machine. You can also disable the AirPrint function of the machine. Use the Remote UI to change these settings.

● For more information about the basic operations to be performed when setting the machine from the

Remote UI, see Setting Up Menu Options from Remote UI(P. 427) .

1

Start the Remote UI and log in to System Manager Mode. Starting Remote

UI(P. 419)

2

Click [Settings/Registration] on the Portal page. Remote UI Screen(P. 420)

● If you are using a mobile device, such as an iPad, iPhone, or iPod touch, read "click" as "tap" in this section.

3

Select [Network Settings] [AirPrint Settings].

4

Click [Edit].

333

Linking with Mobile Devices

5

Specify the required settings.

[Use AirPrint]

Select the check box to enable AirPrint. To disable AirPrint, clear the check box.

[Printer Name]

Enter the name of the machine. If an mDNS name has already been registered in [mDNS Settings] (

Configuring DNS(P. 55) ), the registered name is displayed.

[Location]

Enter the location of the machine. If a location has already been registered in [Device Information Settings]

([Device Management] in [Management Settings] (Settings/Registration)), the registered name is displayed.

[Latitude]

Enter the latitude of the location where the machine is installed.

[Longitude]

Enter the longitude of the location where the machine is installed.

6

Click [OK].

If you select [Use AirPrint], the following settings in <Network> are set to <On>.

● Use HTTP

● IPP Print Settings

● IPv4 Use mDNS

● IPv6 Use mDNS

● Use Network Link Scan

● If you change [Printer Name] that you have once specified, you may be unable to print any more from the

Mac that has been able to be used for printing so far. This phenomenon occurs because <mDNS Name> (

Configuring DNS(P. 55) ) of IPv4 is also changed automatically. In this case, add the machine to the Mac

again.

● Entering the printer name makes it easier to identify multiple printers that support AirPrint.

334

Linking with Mobile Devices

Changing the Setting of Functions Available with AirPrint

If you want to disable functions that you are not going to use with AirPrint or encrypt communications, configure the necessary setting using the operation panel.

Changing Print and Fax Settings

To perform printing or fax sending with AirPrint, IPP protocol is used.

Turning the Function On/Off

You can specify whether to perform printing and fax sending with AirPrint. The factory default setting is <On>.

<Menu> <Preferences> <Network> <TCP/IP Settings> <IPP Print Settings> Set <Use

IPP Printing> to <Off> or <On> <Apply>

Changing the TLS Setting

You can specify whether to encrypt communications using TLS when performing printing or sending faxes with

AirPrint. The factory default setting is <Off>.

<Menu> <Preferences> <Network> <TCP/IP Settings> <IPP Print Settings> Set <Use

TLS> to <Off> or <On> <Apply>

Changing the Scan Setting

Configure the scan setting using AirPrint.

Set the Function to Enable or Disable

You can turn on/off the scan function available with AirPrint. The factory default setting is <On>.

<Menu> <Preferences> <Network> <TCP/IP Settings> <Network Link Scan Settings>

Set <Use Network Link Scan> to <Off> or <On> <Apply>

Change TLS Settings

You can specify whether or not to encrypt TLS communications when scanning data using AirPrint. The factory default setting is <Off>.

<Menu> <Preferences> <Network> <TCP/IP Settings> <Network Link Scan Settings>

Set <Use TLS> to <Off> or <On> <Apply>

335

Linking with Mobile Devices

Displaying the Screen for AirPrint

You can display the screen for AirPrint, on which you can not only access the AirPrint Settings but also view information about consumables, such as paper and toner cartridge. Further, you can configure security function settings.

1

Select [System Preferences] [Printers & Scanners], then add the machine to the Mac you are using.

● If the machine has already been added, this operation is not required.

2

Select this machine from the list of printers in [Printers & Scanners].

3

Click [Options & Supplies].

4

Click [Show Printer Webpage].

5

Logging in to the Remote UI.

● To change the AirPrint settings, it is necessary to log in as an administrator.

AirPrint-Dedicated Page

When you log in with administrator privileges, the AirPrint-dedicated page is displayed as shown below.

336

Linking with Mobile Devices

[AirPrint Settings]

Enables you to check the values entered in the AirPrint settings, such as the name and location of the machine. You can click [Edit] to change the settings.

[Other Settings]

[Print Security Settings]

Configure the print security settings using TLS or authentication.

[Scan Security Settings]

Configure the scan security settings using TLS.

[TLS Settings]

Enables you to change the key and certificate used for TLS. Configuring the Key and Certificate for

TLS(P. 380)

[Key and Certificate Settings]

Enables you to generate and install a key and certificate, or request a certificate to be issued.

Configuring the Key and Certificate for TLS(P. 380)

[Consumables Information]

Enables you to check the information of each paper source and consumables of the machine and the device version.

Trademarks

Apple, Bonjour, iPad, iPhone, iPod touch, Mac, macOS, OS X and Safari are trademarks of Apple Inc., registered in the

U.S. and other countries. AirPrint and the AirPrint logo are trademarks of Apple Inc.

337

Linking with Mobile Devices

Printing with AirPrint

You can print from an iPad, iPhone, iPod touch, or Mac without using a printer driver.

Printing from an iPad, iPhone, or iPod touch(P. 338)

Printing from a Mac(P. 339)

System Requirements

One of the following Apple devices is required to print with AirPrint.

● iPad (all models)

● iPhone (3GS or later)

● iPod touch (3rd generation or later)

● Mac (Mac OS X 10.7 or later)

*

*

OS X v10.9 or later when using a USB connection

Network Environment

One of the following environments is required.

● An environment where an Apple device and the machine are connected to the same LAN

● An environment where an Apple device and the machine are connected directly

● An environment where a Mac is connected to the machine via USB

For printing, it is required to set <Use IPP Printing> to <On>. Changing the Setting of Functions

Available with AirPrint(P. 335)

Printing from an iPad, iPhone, or iPod touch

1

Make sure that the machine is turned ON and connected to the Apple device.

For how to make sure of this, see Setting Up the Network Environment(P. 13) .

For information on the Direct Connection, see Connecting Directly (Access Point Mode)(P. 328) .

2

From the application on your Apple device, tap to display the menu options.

338

1647-07E

Linking with Mobile Devices

3

Tap [Print].

4

Select this machine from [Printer].

● The printers connected to the network are displayed here. Select this machine in this step.

● The screen for selecting this machine in [Printer] is not displayed on applications that do not support

AirPrint. You cannot print by using those applications.

5

Specify the print settings as necessary.

● The available settings and paper sizes differ depending on the application you are using.

6

Tap [Print].

Printing starts.

Checking the print status

● During printing, press the Home button of the Apple device twice tap [Print].

Printing from a Mac

1

Make sure that the machine is turned ON and connected to the Mac.

For how to make sure of this, see Setting Up the Network Environment(P. 13) .

2

Add the machine to the Mac from [System Preferences] [Printers & Scanners].

● If the machine has already been added, this operation is not required.

3

Open a document in an application and display the print dialog box.

● How to display the print dialog box differs for each application. For more information, see the instruction manual or Help for the application you are using.

4

Select the machine in the print dialog box.

● The printers connected to the Mac are displayed. Select this machine in this step.

5

Specify the print settings as necessary.

339

Linking with Mobile Devices

● The available settings and paper sizes differ depending on the application you are using.

6

Click [Print].

Printing starts.

340

Linking with Mobile Devices

Scanning with AirPrint

You can use AirPrint to transfer the data scanned by the machine directly to a Mac.

1647-07F

System Requirements

To scan with AirPrint, you need a Mac with OS X 10.9 or later installed. To scan using TLS, you need a Mac with

OS X 10.11 or later installed.

Network Environment

One of the following environments is required.

● An environment where an Apple device and the machine are connected to the same LAN

● An environment where a Mac is connected to the machine via USB

For scanning, it is required to set <Use Network Link Scan> to <On>. Changing the Setting of Functions

Available with AirPrint(P. 335)

Before scanning, it is required to put the machine into online state. When the auto online function ( <Auto

Online>(P. 488) ) is set to <Off>, first put the machine into online state by selecting <Scan> <Remote

Scanner>, then start the procedure for scanning.

● You cannot scan while settings for operations are being made, or while the machine is performing any operation whatsoever.

Scanning from a Mac

1

Make sure that the machine is turned ON and connected to the Mac.

For how to make sure of this, see Setting Up the Network Environment(P. 13) .

2

Add the machine to the Mac from [System Preferences] [Printers & Scanners].

● If the machine has already been added, this operation is not required.

3

Select this machine from the list of printers in [Printers & Scanners].

4

Click [Scan].

341

Linking with Mobile Devices

5

Click [Open Scanner].

The [Scanner] screen is displayed.

6

Configure the scan settings as necessary.

7

Click [Scan].

The original is scanned, and the image is displayed.

342

Linking with Mobile Devices

Faxing with AirPrint

You can send faxes from a Mac in almost the same way as when you print from a Mac.

1647-07H

System Requirements

To send faxes with AirPrint, you need a Mac with OS X 10.9 or later installed.

Network Environment

One of the following environments is required.

● An environment where an Apple device and the machine are connected to the same LAN

● An environment where a Mac is connected to the machine via USB

For faxing, it is required to set <Use IPP Printing> to <On>. Changing the Setting of Functions

Available with AirPrint(P. 335)

Faxing from a Mac

1

Make sure that the machine is turned ON and connected to the Mac.

For how to make sure of this, see Setting Up the Network Environment(P. 13) .

2

Add the machine to the Mac from [System Preferences] [Printers & Scanners].

● If the machine has already been added, this operation is not required.

3

Open a document in an application and display the print dialog box.

● How to display the print dialog box differs for each application. For more information, see the instruction manual for the application you are using.

4

Select this machine in the print dialog box.

The printers connected to the Mac are displayed. Select the fax driver of this machine in this step.

5

Specify the destination.

343

6

Click [Fax].

Fax sending starts.

Linking with Mobile Devices

344

Linking with Mobile Devices

If AirPrint Cannot Be Used

1647-07J

If AirPrint cannot be used, try taking the following solutions.

● Make sure that the machine is turned ON. If the machine is turned ON, first turn it OFF, then wait for at least 10 seconds and then turn it back ON to check if the problem is solved.

● Make sure that no error messages are displayed on the machine.

● Make sure that Apple devices and the machine are connected to the same LAN. If the machine is turned ON, it may take several minutes before the machine is ready for communication.

● Make sure that Bonjour on your Apple device is enabled.

● Make sure that the machine is configured to enable execution of jobs from a computer even when no department

ID and password are entered. Blocking Jobs When Department ID Is Unknown(P. 360)

● For printing, make sure that the paper is loaded in the machine and that the machine contains a sufficient amount

remaining in the toner cartridges. Displaying the Screen for AirPrint(P. 336)

For scanning, make sure that the machine's setting for Network Link Scan is <On>. Changing the Setting of

Functions Available with AirPrint(P. 335)

345

Linking with Mobile Devices

Using Google Cloud Print

1647-07K

Google Cloud Print is a service that enables a user with a Google account to print from a smartphone, tablet, or computer connected to the Internet using applications compatible with Google Cloud Print. Unlike conventional printing from a computer, it does not require a printer driver.

Checking the Settings of the Machine(P. 346)

Registering the Machine with Google Cloud Print(P. 346)

● An environment in which you can connect to the internet is required when registering the machine and when printing using Google Cloud Print. In addition, the customer is responsible for any fees regarding internet connection.

● Google Cloud Print may not be available, depending on your country or region.

● Google Cloud Print does not support printing from an IPv6 address.

● A Google account is required to use Google Cloud Print. If you do not have a Google account, create one on the Google website.

Checking the Settings of the Machine

Check the following before configuring cloud printing.

● Make sure that the IPv4 address is specified for the machine, and that the machine is able to communicate with computers on a network.

Connecting to a Wired LAN(P. 16)

Connecting to a Wireless LAN(P. 17)

Check whether the date and time of the machine are specified correctly. Setting the Date/Time(P. 11)

● If Department ID Management is set, make sure that you can print from a computer without entering a Department

ID or PIN. Blocking Jobs When Department ID Is Unknown(P. 360)

Registering the Machine with Google Cloud Print

Registering the machine with Google Cloud Print enables you to print from anywhere using the service.

346

Linking with Mobile Devices

● For more information about the basic operations to be performed when setting the machine from the

Remote UI, see Setting Up Menu Options from Remote UI(P. 427) .

1

Start the Remote UI and log in as an administrator. Starting Remote UI(P. 419)

2

Click [Settings/Registration] on the Portal page. Remote UI Screen(P. 420)

3

Select [Network Settings] [Google Cloud Print Settings].

4

Click [Edit] for [Basic Settings].

5

Select the [Use Google Cloud Print] check box [OK].

6

Click [Register] in [Registration Status].

Re-Registering the Machine

● To re-register the machine, delete its registration before registering it again.

7

Click the URL link displayed for [URL for Registration].

8

Follow the instructions on the screen to register the machine.

Printing can now be performed from applications that support Google Cloud Print, such as Google

Chrome™.

● For information on the latest applications that support Google Cloud Print, check the Google Cloud

Print home page.

Configuring Settings on the Operation Panel

You can also enable or disable the Cloud Print function from <Menu> in the Home screen. <Google Cloud

Print Settings>(P. 465)

Registering from a Mobile Device or Google Chrome

● You can register the machine from a mobile device or Google Chrome. The machine's display shows the following confirmation screen before completion of the registration. Press <Yes> to complete the registration.

● For information on registration methods, see the manual of your device or the Google Cloud Print website.

347

Linking with Mobile Devices

Managing the Machine by the Remote Control

You can use the Remote UI from a smart phone or tablet Web browser. You can confirm the machine status or perform various settings from a mobile device.

1647-07L

Supported Web Browsers

Web browsers supporting the Remote UI for mobile devices are the following.

Android OS

● Chrome

iOS

● Safari

Starting the Remote UI from Mobile Devices

Enter the IP address of the machine on the Web browser to start the Remote UI. Prior to operation, confirm the IP

address set for the machine ( Viewing Network Settings(P. 37) ). If it is unknown, ask your network administrator.

1

Start the Web browser of the mobile device.

2

Enter "http://< the IP address of the machine>/" in the address entry column.

● If you want to use an IPv6 address, enclose the IPv6 address with brackets.

Example

: http://[fe80:2e9e:fcff:fe4e:dbce]/

● For a "Smartphone Version" of the Remote UI, a portion of items displayed are omitted. If you want to confirm all of the items, see the "PC Version."

LINKS

Managing the Machine from a Computer (Remote UI)(P. 418)

348

Managing the Machine

Managing the Machine

Managing the Machine

............................................................................................................................... 351

Setting Access Privileges

.................................................................................................................................. 353

Setting the System Manager ID and PIN

...................................................................................................... 354

Setting the Department ID Management

..................................................................................................... 356

Setting a Remote UI PIN

............................................................................................................................... 362

LDAP Server Authentication

.......................................................................................................................... 364

Configuring the Network Security Settings

.................................................................................................... 368

Restricting Communication by Using Firewalls

............................................................................................. 370

Specifying IP Addresses for Firewall Settings

......................................................................................... 371

Specifying MAC Addresses for Firewall Settings

..................................................................................... 374

Changing Port Numbers

............................................................................................................................... 377

Setting a Proxy

............................................................................................................................................. 378

Configuring the Key and Certificate for TLS

.................................................................................................. 380

Generating the Key and Certificate for Network Communication

.......................................................... 383

Generating a Key and Certificate Signing Request (CSR)

........................................................................ 386

Registering the Key and Certificate for Network Communication

.......................................................... 389

Configuring IPSec Settings

........................................................................................................................... 391

Configuring IEEE 802.1X Authentication Settings

......................................................................................... 398

Restricting the Machine's Functions

................................................................................................................ 402

Restricting Access to Address Book and Sending Functions

......................................................................... 404

Restricting Use of the Address Book

...................................................................................................... 405

Limiting Available Destinations

.............................................................................................................. 407

Restricting the Fax Sending Functions

................................................................................................... 409

Restricting Printing from a Computer

........................................................................................................... 411

Restricting USB Functions

............................................................................................................................. 412

Disabling HTTP Communication

................................................................................................................... 414

Disabling Remote UI

..................................................................................................................................... 415

Increasing the Security of Documents

............................................................................................................. 416

Generating a Device Signature Key

............................................................................................................... 417

Managing the Machine from a Computer (Remote UI)

................................................................................... 418

Starting Remote UI

....................................................................................................................................... 419

Checking the Status and Logs

....................................................................................................................... 422

Setting Up Menu Options from Remote UI

................................................................................................... 427

Registering Destinations from Remote UI

.................................................................................................... 430

Importing/Exporting the Setting Data

.......................................................................................................... 434

349

Managing the Machine

Updating the Firmware

..................................................................................................................................... 437

Initializing Settings

........................................................................................................................................... 439

350

Managing the Machine

Managing the Machine

1647-07R

To reduce the various risks associated with the use of this machine, such as leaks of personal information or unauthorized use by third parties, constant and effective security measures are required. An administrator should manage important settings, such as access privileges and security settings, to ensure that the machine is used safely.

Configuring the Basic Management System

Setting Access Privileges(P. 353)

Configuring the Network Security Settings(P. 368)

Preparing for Risks from Negligence or Misuse

Restricting the Machine's Functions(P. 402)

Ensuring Effective Management

Increasing the Security of Documents(P. 416)

Managing the Machine from a Computer (Remote UI)(P. 418)

351

Managing the Machine

Managing the System Configuration and Settings

Updating the Firmware(P. 437)

Initializing Settings(P. 439)

352

Managing the Machine

Setting Access Privileges

1647-07S

Protect the machine from unauthorized access by only allowing users with access privileges to use the machine.

Access privileges are set separately for system administrators, general users, and the Remote UI. When privileges are set, the user must enter an ID and PIN to print or change settings.

Set up an account with full access privileges called "System Manager ID" for a system manager. Registering an account called "Department ID" allows you to manage general users. Using a Department ID, you can set a PIN for using this machine as well as keep track of the number of pages printed for each department ID. And by setting a Remote UI

Access PIN, you can restrict use of the Remote UI.

System Manager ID

System Manager ID is an account with full access privileges. If you specify a System Manager ID, you need to log on to the machine using the System Manager ID information in order to access items that requires administrator privileges such as <Network> and <Management Settings>. We recommend that you set and register the System Manager ID. Otherwise, anyone will be able to change the machine settings. Only one

System Manager ID can be registered. Setting the System Manager ID and PIN(P. 354)

Department ID (Department ID Management)

You can specify access privileges for a user (or group of users) by registering a Department ID. You can register multiple Department IDs. If a user tries to operate the machine when Department IDs are enabled, a login screen is displayed, and the user must enter their own Department ID and PIN to use the machine. Information

such as how many pages have been printed for each Department ID can be compiled. Setting the

Department ID Management(P. 356)

Remote UI PIN (Remote UI Access PIN)

This is a PIN for using the Remote UI. Only users who know the PIN can access the Remote UI. Setting a

Remote UI PIN(P. 362)

Authentication Settings for Send Function (Authorized Send)

If your system has an LDAP server installed, you can set LDAP server authentication to be carried out when the

fax or scan function is used. LDAP Server Authentication(P. 364)

353

Managing the Machine

Setting the System Manager ID and PIN

1647-07U

Set the system manager account, "System Manager ID." You can also set a PIN for the System Manager ID. If the

System Manager ID is specified, you can access items that require administrator privileges, for example, <Network> and <Management Settings>, only when the System Manager ID and PIN have been entered correctly. The System

Manager ID settings information is critical to the security of the machine, so make sure that only Administrators know the System Manager ID and PIN.

1

Select <Menu> in the Home screen. Home Screen(P. 122)

2

Select <Management Settings>.

If the System Manager ID has already been set

If the login screen appears, enter the correct ID and PIN. Logging in to the Machine(P. 133)

3

Select <User Management> <System Manager Information Settings>.

4

Select <System Manager ID and PIN>.

5

Specify the System Manager ID and PIN.

● Specify the <System Manager ID> <System Manager PIN>.

● Enter the number in each item, and select <Apply>.

● The Confirm screen is displayed. Enter the PIN once again to confirm.

● You cannot register an ID or PIN that consists only of zeros, such as "00" or "0000000."

● To cancel the System Manager ID and PIN settings, clear the information you entered in

<Apply> with the fields blank.

Setting the System Manager Name

1

Select <System Manager Name>.

2

Enter the System Manager Name, and select <Apply>.

On how to enter text, see Entering Text(P. 131) .

and select

354

Managing the Machine

● Do not forget your PIN. If you forget your PIN, contact your local authorized Canon dealer or the Canon help line.

Configuring settings via the Remote UI

● Start the Remote UI and log in to System Manager Mode. Click [Settings/Registration] [User Management]

[System Manager Information] [Edit] and specify the necessary settings on the displayed screen.

● By using the Remote UI, you can register a variety of information, including contact information,

Administrator comments, the installation location of the machine, as well as to the settings that you can register by using the operation panel. The registered information can be viewed on the [Device Information]

page of the Remote UI. Checking System Manager Information(P. 424)

Logging in to the machine

● If you try to access items that require administrator privileges, for example, <Network> and <Management

Settings>, when the System Manager ID is specified, the Login screen is displayed. Logging in to the

Machine(P. 133)

● You must also enter the System Manager ID and PIN to log in using the Remote UI in System Manager

Mode. Starting Remote UI(P. 419)

LINKS

Setting Access Privileges(P. 353)

Setting the Department ID Management(P. 356)

355

Managing the Machine

Setting the Department ID Management

1647-07W

You can control access to the machine by using multiple IDs for multiple users or groups. If a user tries to operate the machine when Department ID Management is enabled, a login screen is displayed, and the user must enter their own

Department ID and PIN to use the machine. When Department ID Management is enabled, usage of functions, such as printing, is recorded for each Department ID. To configure Department ID Management, register department IDs as necessary and then enable Department ID Management function. When you want to enable Department ID

Management for jobs from a computer, you need to configure additional settings on the computer side.

Registering/Editing Department ID and PIN(P. 356)

Enabling the Department ID Management(P. 358)

Enabling the Department ID Management for Jobs from a Computer(P. 359)

Blocking Jobs When Department ID Is Unknown(P. 360)

● For more information about the basic operations to be performed when setting the machine from the

Remote UI, see Setting Up Menu Options from Remote UI(P. 427) .

Registering/Editing Department ID and PIN

Register a Department ID and set a PIN for it. Register all the department IDs to be managed.

1

Start the Remote UI and log in to System Manager Mode. Starting Remote

UI(P. 419)

2

Click [Settings/Registration] on the Portal page. Remote UI Screen(P. 420)

3

Select [User Management] [Department ID Management].

4

Register or edit Department IDs.

Registering a Department ID

1

Click [Register New Department].

2

Specify the required settings.

356

Managing the Machine

[Department ID]

Enter the Department ID number to be registered.

[Set PIN]

To set a PIN, select the check box and enter the same number both in the [PIN] and [Confirm] text boxes.

[Restrict Functions]

You can restrict the number of pages to print and the available functions for departments to be registered. To restrict the number of pages to print, select the check box for the target type, and enter the appropriate number of pages in [Number of Pages]. Select the check box for the target functions to restrict functions.

● If the [Restrict Scan] check box is selected, the Save to USB Memory Device, Send E-mail, and Save to

Shared Folder or FTP Server functions are all restricted. You can also restrict other methods that scan documents by importing them to a computer, but in that case you cannot block access for each

Department ID ( Blocking Jobs When Department ID Is Unknown(P. 360) ).

3

Click [OK].

Editing the settings of the registered Department ID

1

Click the corresponding text link under [Department ID] to edit.

2

Change the settings as necessary and click [OK].

Deleting a Department ID

● Click [Delete] on the right of the Department ID you want to delete click [OK].

[Department ID Page Total]

● You can check the total number of pages for jobs that have been executed to date on a department ID basis.

357

Managing the Machine

● If you want to return the counts to zero, click the corresponding text link under [Department ID] and click

[Clear Count] [OK]. If you want to return the counts of all Department IDs to zero, click [Clear All Counts]

[OK].

Using control cards

● When the optional Copy Card Reader-F is attached to the machine, Department IDs will be registered automatically.

● Do not delete the registered department IDs. The control cards that correspond to the deleted department

IDs will become unavailable.

● You cannot use [Restrict Functions] to restrict the allowable number of pages to print.

Enabling the Department ID Management

After you register as many Department IDs as necessary, enable Department ID Management.

1

Start the Remote UI and log in to System Manager Mode. Starting Remote

UI(P. 419)

2

Click [Settings/Registration] on the Portal page. Remote UI Screen(P. 420)

3

Select [User Management] [Department ID Management].

4

Click [Edit].

5

Select the [Department ID Management] check box.

[Department ID Management]

358

Managing the Machine

Select the check box to enable Department ID Management. If you do not want to use Department ID

Management, clear the check box.

● For information about the [Allow Print Jobs with Unknown IDs]/[Allow Scan Jobs with Unknown IDs]/[Allow

Black & White Copy Jobs] check boxes, see Blocking Jobs When Department ID Is Unknown(P. 360) .

6

Click [OK].

Using the operation panel

You can also switch Department ID Management On/Off from <Menu> in the Home screen. <Department

ID Management>(P. 564)

Logging in to the machine

● When you try to operate the machine when Department ID Management is enabled, the login screen is

displayed. Logging in to the Machine(P. 133)

Enabling the Department ID Management for Jobs from a Computer

When you want to enable Department ID Management for jobs from a computer, you need to specify the department

ID and PIN using the driver pre-installed on each computer.

● To perform the following procedure, log in to your computer with an administrator account.

1

Open the printer folder. Displaying the Printer Folder(P. 728)

2

Right-click the driver icon for this machine, and click [Printer properties] or

[Properties].

3

Click the [Device Settings] tab.

4

Enable the Department ID Management function.

Printer driver

Select the [Use Department ID Management] check box.

Fax driver

Select [Department ID Management] under [User Management].

5

Click [Settings] found to the right.

359

Managing the Machine

6

Specify the settings as necessary and click [OK].

[Allow PIN Setting]

Select the check box to enable the PIN setting.

[Department ID]

Enter the Department ID number.

[PIN]

Enter the PIN corresponding to the Department ID as necessary.

[Verify]

Click to verify that the correct ID and PIN are entered. This function is not available if the machine and the computer are connected via a USB or WSD (Web Services on Devices) port.

[Confirm Department ID/PIN When Printing]/[Confirm Department ID/PIN When Sending Faxes]

Select the check box to display the [Confirm Department ID/PIN] pop-up screen each time you send job from a computer.

[Do Not Use Department ID Management When B&W Printing]

Select the check box to send black and white print data as an unknown ID job.

[Authenticate Department ID/PIN at Device]

Select the check box if the machine and the computer are connected via a USB or WSD port.

7

Click [OK].

Logging in to the machine

● When you try to send job from a computer when Department ID

Management is enabled, the following pop-up screen is displayed

(unless the [Confirm Department ID/PIN When Printing]/[Confirm

Department ID/PIN When Sending Faxes] check box is cleared):

Blocking Jobs When Department ID Is Unknown

If you do not change the default settings, any user can print from a computer, scan (via <Computer> and <Remote

Scanner>), send a PC fax from a computer, or make black and white copies without entering an ID and PIN even when

Department ID Management is enabled for the machine. You can change the default settings so that the machine cannot be used for these functions without a correct ID and PIN.

1

Start the Remote UI and log in to System Manager Mode. Starting Remote

UI(P. 419)

360

Managing the Machine

2

Click [Settings/Registration] on the Portal page. Remote UI Screen(P. 420)

3

Select [User Management] [Department ID Management].

4

Click [Edit].

5

Clear the check boxes as necessary.

[Allow Print Jobs with Unknown IDs]

In order to send job from a computer when Department ID Management is enabled, you need to enter the

correct ID and PIN ( Enabling the Department ID Management for Jobs from a Computer(P. 359) ).

However, if the check box is selected for this setting, jobs are executed even when the ID and PIN are not entered. When you want to configure a setting so that no jobs are executed unless the correct department ID and PIN are entered, clear the check box.

[Allow Scan Jobs with Unknown IDs]

If the check box is selected, you can select <Computer> or <Remote Scanner> on the main screen and scan documents into a computer anytime. If the check box is cleared, you cannot scan documents into a computer if Department ID Management is enabled. It is not possible to restrict scanning of documents into a computer for individual department IDs.

[Allow Black & White Copy Jobs]

If the check box is selected when Department ID Management is enabled, you can copy in black and white without entering the correct ID and PIN. Clear the check box to require entering an ID and PIN.

6

Click [OK].

LINKS

Setting Access Privileges(P. 353)

Setting the System Manager ID and PIN(P. 354)

361

Managing the Machine

Setting a Remote UI PIN

You can set a PIN for access to the Remote UI. All users use a common PIN.

1647-07X

When Department ID Management is enabled, setting here is not required. Setting the Department ID

Management(P. 356)

● For more information about the basic operations to be performed when setting the machine from the

Remote UI, see Setting Up Menu Options from Remote UI(P. 427) .

1

Start the Remote UI and log in to System Manager Mode. Starting Remote

UI(P. 419)

2

Click [Settings/Registration] on the Portal page. Remote UI Screen(P. 420)

3

Select [License/Other] [Remote UI Settings].

4

Click [Edit].

5

Select the [Use Remote UI Access PIN] check box and set the PIN.

[Use Remote UI Access PIN]

If you select the check box, you must enter a PIN to access the Remote UI.

[Set/Change PIN]

To set or change a PIN, select the check box and enter the same number both in the [PIN] and [Confirm] text boxes.

6

Click [OK].

362

Managing the Machine

Using the operation panel

Remote UI Access PIN settings can also be accessed from <Menu> in the Home screen. <Remote UI

Settings>(P. 568)

If <Management Settings> are initialized

The Remote UI Access PIN is also initialized. After an initialization, reset the PIN. <Initialize Menu>(P. 571)

LINKS

Setting Access Privileges(P. 353)

Setting the System Manager ID and PIN(P. 354)

363

Managing the Machine

LDAP Server Authentication

1647-07Y

If your system has an LDAP server installed, you can ensure that LDAP server authentication is carried out when the send function is used. This enables you to prevent unauthorized use by third parties and information disclosure. Once the authorization settings are enabled, the Authorized Send screen appears when the fax or scan function is used and operation can only continue if it is correctly authorized by the LDAP server. Use the settings described here to configure LDAP server authentication. For more information about registering the server to be used for

authentication, see Registering LDAP Servers(P. 63) .

● For more information about the basic operations to be performed when setting the machine from the

Remote UI, see Setting Up Menu Options from Remote UI(P. 427) .

1

Start the Remote UI and log in to System Manager Mode. Starting Remote

UI(P. 419)

2

Click [Settings/Registration] on the Portal page. Remote UI Screen(P. 420)

3

Select [TX Settings] [Authentication Settings for Send Function].

4

Click [Edit].

5

Select the [Display Authentication Screen When Sending Operation Starts] check box and select whether a confirmation screen is displayed at logout.

[Display Authentication Screen When Sending Operation Starts]

Select the check box to display the Authorized Send login screen when the fax or scan function is used (LDAP server authentication).

[Display Confirmation Screen When Logging Out]

Select the check box to display a screen that allows you to selectively log out when you are logged on for both Authorized Send and Department ID Management. If you clear this check box, no selection screen is displayed when you log out and you are logged out from both Authorized Send and Department ID

Management.

364

Managing the Machine

6

Configure the settings for sending e-mail/I-Faxes.

[E-Mail/I-Fax Sending]

Select whether to allow sending e-mail and I-Faxes.

[Do Not Allow] Blocks sending e-mail and I-Faxes. <E-Mail> and <I-Fax> in the scan function can no longer be used.

[Allow] Permits outgoing e-mail and I-Faxes.

[Only Allow Sending to Myself] Blocks all outgoing e-mail and I-Faxes other than those to users with authorized email addresses. The e-mail addresses of authorized users must be registered on the

LDAP server.

[Authentication Method]

When [Allow] or [Only Allow Sending to Myself] is selected in [E-Mail/I-Fax Sending], this allows you to specify whether an authentication screen is shown on the SMTP server when e-mail is sent.

[Display the authentication screen using the same user name as when the sending operation started]

Displays the authentication screen showing the same user name and password entered in the Authorized Send login screen.

[Display the authentication screen without any authentication information]

Displays the authentication screen with the user name and password fields blank.

[Use device-specific authentication information and do not display the authentication screen]

No authentication screen is displayed when e-mail or I-Faxes are sent. Authorization on the SMTP server is carried out using the user name and password set in [E-Mail/I-Fax Settings]

Configuring E-Mail/I-Fax Communication Settings(P. 89) .

[Specify Authentication User Destination as Sender]

Select the check box when the e-mail address of an authorized user will be set as the sender. The e-mail addresses of authorized users must be registered on the LDAP server. If you clear this check box, the e-mail address set in the [E-Mail/I-Fax Settings] is set as the sender.

7

Configure the file transfer settings (for saving to shared folders and FTP servers).

365

Managing the Machine

[File Sending]

Select whether to allow saving to shared folders and FTP servers.

[Do Not Allow]

[Allow]

[Only Allow Sending to Myself or

Specified Folder]

Blocks saving to shared folders and FTP servers. <File> in the scan function can no longer be used.

Saving to shared folders and FTP servers is not blocked.

Blocks all saving to shared folders and FTP servers other than specified folders. The data is saved to folders registered on the LDAP server or to the folder specified in [Specify Destination Folder].

When [Allow] is specified in [File Sending]

[Authentication Method]

Allows you to specify whether an authentication screen is shown on the server when sending.

[Display the authentication screen using the same authentication information as when the sending operation started]

[Display the authentication screen without any authentication information]

[Use the authentication information from the address book and do not display the authentication screen]

Displays the authentication screen showing the same user name and password entered in the Authorized Send login screen.

Displays the authentication screen with the user name and password fields blank.

No authentication screen is displayed when sending.

Authentication is carried out on the server using the user name and password set in the Address Book.

When [Only Allow Sending to Myself or Specified Folder] is specified in [File Sending]

[Authentication Method]

Allows you to specify whether an authentication screen is shown on the server when sending.

[Use the same authentication information as when the sending operation started]

[Display the authentication screen without any authentication information]

Carries out authorization on the server using the user name and password entered in the Authorized Send login screen. Selecting the

[Display Authentication Screen When Sending] check box displays the authentication screen with this user name and password already entered when you send the data.

Displays the authentication screen with the user name and password fields blank.

366

Managing the Machine

[Specify Destination Folder]

Selecting this check box allows you to specify the folder where the data is saved. If the check box is not selected, the save destination is set based on authorized user information registered on the LDAP server.

[Host Name]

[Folder Path]

Enter a host name for the shared folder or FTP server.

Enter a path name for the save destination folder (excluding the host name). When the [Add

User Name] check box is selected, the user name and path used for LDAP authentication are added.

8

Configure the settings for sending faxes.

[Fax Sending]

Select whether to allow sending faxes. [Do Not Allow] prevents the user from sending faxes from the machine.

9

Click [OK].

LINKS

Registering LDAP Servers(P. 63)

367

Managing the Machine

Configuring the Network Security Settings

1647-080

Authorized users may incur unanticipated losses from attacks by malicious third parties, such as sniffing, spoofing, and tampering of data as it flows over a network. To protect your important and valuable information from these attacks, the machine supports the following features to enhance security and secrecy.

Firewall Settings

Unauthorized access by third parties, as well as network attacks and intrusions, can be blocked by limiting

communication only to devices that have a specific IP address or MAC address. Restricting Communication

by Using Firewalls(P. 370)

Changing Port Numbers

A protocol that is used to exchange information with other devices is assigned port numbers that are predetermined according to the type of protocol. The port number must be the same for all communication

devices; therefore, changing it to an arbitrary number is important to prevent hacking from outside.

Changing Port Numbers(P. 377)

Proxy Settings

When the client devices are connected to an external network, communication is established through the proxy server. When the proxy server is used, websites can be browsed more safely, therefore, security can be

expected to be enhanced. Setting a Proxy(P. 378)

TLS Encrypted Communication

TLS is a protocol for encryption for data sent over a network and is often used for communication via a Web browser or an e-mail application. TLS enables secure network communication when you access the machine

from a computer via the Remote UI. Configuring the Key and Certificate for TLS(P. 380)

368

Managing the Machine

IPSec Communication

While TLS only encrypts data used on a specific application, such as a Web browser or an e-mail application,

IPSec encrypts the whole (or payloads of) IP packets. This enables IPSec to offer a more versatile security system

than TLS. Configuring IPSec Settings(P. 391)

IEEE 802.1X Authentication

IEEE 802.1X is a standard and mechanism for blocking unauthorized access to the network by collectively managing user authentication information. If a device tries to connect to the 802.1X network, the device must go through user authentication in order to prove that the connection is made by an authorized user.

Authentication information is sent to and checked by a RADIUS server, which permits or rejects communication to the network depending on the authentication result. If authentication fails, a LAN switch (or an access point) blocks access from the outside of the network. The machine can connect to an 802.1X network as a client

device. Configuring IEEE 802.1X Authentication Settings(P. 398)

369

Managing the Machine

Restricting Communication by Using Firewalls

1647-081

Without proper security, unauthorized third parties can access computers and other communication devices that are connected to a network. To prevent this unauthorized access, specify the settings for packet filter, a feature that restricts communication to devices with specified IP addresses or MAC addresses.

Specifying IP Addresses for Firewall Settings(P. 371)

Specifying MAC Addresses for Firewall Settings(P. 374)

370

Managing the Machine

Specifying IP Addresses for Firewall Settings

1647-082

You can either limit communication to only devices with specified IP addresses, or block devices with specified IP addresses but permit other communications. You can specify a single IP address or a range of IP addresses.

● For more information about the basic operations to be performed when setting the machine from the

Remote UI, see Setting Up Menu Options from Remote UI(P. 427) .

1

Start the Remote UI and log in to System Manager Mode. Starting Remote

UI(P. 419)

2

Click [Settings/Registration] on the Portal page. Remote UI Screen(P. 420)

3

Select [Network Settings] [Firewall Settings].

4

Click [Edit] for the target IP address filter.

● Select the filter that matches the target IP address. To restrict data sent from the machine to a computer, select [Outbound Filter]. To restrict data received from a computer, select [Inbound Filter].

5

Specify the settings for packet filtering.

● Select the default policy to allow or reject the communication of other devices with the machine, and then specify IP addresses for exceptions.

371

Managing the Machine

1

Select the [Use Filter] check box and click the [Reject] or [Allow] radio button for the [Default Policy].

[Use Filter]

Select the check box to restrict communication. Clear the check box to disable the restriction.

[Default Policy]

Select the precondition to allow or reject the communication of other devices with the machine.

[Reject]

[Allow]

Select to pass communication packets only when they are sent to or received from devices whose IP addresses are entered in [Exception Addresses]. Communications with other devices are prohibited.

Select to block communication packets when they are sent to or received from devices whose IP addresses are entered in [Exception Addresses]. Communications with other devices are permitted.

2

Specify address exceptions.

● Enter the IP address (or the range of IP addresses) in the [Address to Register] text box and click

[Add].

Check for entry errors

● If IP addresses are incorrectly entered, you may be unable to access the machine from the Remote UI, in which case you need to set <IPv4 Address Filter> or <IPv6 Address Filter> to <Off>.

<IPv4 Address Filter>(P. 464)

<IPv6 Address Filter>(P. 465)

Entry form for IP addresses

Description

IPv4:

Delimit numbers with periods.

Example

192.168.0.10

Entering a single address

IPv6:

Delimit alphanumeric characters with colons.

Insert a hyphen between the addresses.

fe80::10

Specifying a range of addresses 192.168.0.10-192.168.0.20

Specifying a range of addresses with a prefix

Enter the address, followed by a slash and a number indicating the prefix length.

192.168.0.32/27 fe80::1234/64

When [Reject] is selected for an outbound filter

● Outgoing multicast and broadcast packets cannot be filtered.

Deleting an IP address from exceptions

● Select an IP address and click [Delete].

372

Managing the Machine

3

Click [OK].

6

Restart the machine.

● Turn OFF the machine, wait for at least 10 seconds, and turn it back ON.

Using the operation panel

● You can also enable or disable IP address filtering from <Menu> in the Home screen.

<IPv4 Address Filter>(P. 464)

<IPv6 Address Filter>(P. 465)

LINKS

Specifying MAC Addresses for Firewall Settings(P. 374)

373

Managing the Machine

Specifying MAC Addresses for Firewall Settings

1647-083

You can limit communication to only devices with specified MAC addresses, or block devices with specified MAC addresses but permit other communications.

This function is unavailable when the machine is connected to a wireless LAN.

● For more information about the basic operations to be performed when setting the machine from the

Remote UI, see Setting Up Menu Options from Remote UI(P. 427) .

1

Start the Remote UI and log in to System Manager Mode. Starting Remote

UI(P. 419)

2

Click [Settings/Registration] on the Portal page. Remote UI Screen(P. 420)

3

Select [Network Settings] [Firewall Settings].

4

Click [Edit] for the target MAC address filter.

● To restrict data sent from the machine to a computer, select [Outbound Filter]. To restrict data received from a computer, select [Inbound Filter].

5

Specify the settings for packet filtering.

● Select the precondition (default policy) to allow or reject the communication of other devices with the machine, and then specify MAC addresses for exceptions.

374

Managing the Machine

1

Select the [Use Filter] check box and click the [Reject] or [Allow] radio button for the [Default Policy].

[Use Filter]

Select the check box to restrict communication. Clear the check box to disable the restriction.

[Default Policy]

Select the precondition to allow or reject other devices to communicate with the machine.

[Reject]

[Allow]

Select to pass communication packets only when they are sent to or received from devices whose MAC addresses are entered in [Exception Addresses].

Communications with other devices are prohibited.

Select to block communication packets when they are sent to or received from devices whose MAC addresses are entered in [Exception Addresses].

Communications with other devices are permitted.

2

Specify address exceptions.

● Enter the MAC address in the [Address to Register] text box and click [Add].

● You do not need to delimit the address with hyphens or colons.

Check for entry errors

● If MAC addresses are incorrectly entered, you may become unable to access the machine from the

Remote UI, in which case you need to set <MAC Address Filter> to <Off>. <MAC Address

Filter>(P. 465)

When [Reject] is selected for an outbound filter

● Outgoing multicast and broadcast packets cannot be filtered.

Deleting a MAC address from exceptions

● Select a MAC address and click [Delete].

375

Managing the Machine

3

Click [OK].

6

Restart the machine.

● Turn OFF the machine, wait for at least 10 seconds, and turn it back ON.

Using the operation panel

You can also enable or disable MAC address filtering from <Menu> in the Home screen. <MAC Address

Filter>(P. 465)

LINKS

Specifying IP Addresses for Firewall Settings(P. 371)

376

Managing the Machine

Changing Port Numbers

1647-084

Ports serve as endpoints for communicating with other devices. Typically, conventional port numbers are used for major protocols, but devices that use these port numbers are vulnerable to attacks because these port numbers are well-known. To enhance security, your Network Administrator may change the port numbers. When a port number has been changed, the new number must be shared with the communicating devices, such as computers and servers.

Specify the port number settings depending on the network environment.

To change the port number for proxy server, see Setting a Proxy(P. 378) .

To change the port number for LDAP server, see Registering LDAP Servers(P. 63) .

1

Select <Menu> in the Home screen. Home Screen(P. 122)

2

Select <Preferences> <Network>.

If the login screen appears, enter the correct ID and PIN. Logging in to the Machine(P. 133)

3

Select <TCP/IP Settings> <Port Number Settings>.

4

Selecting the protocol of which you want to change the port number.

Learning more about the protocols

<LPD>/<RAW>/<WSD Multicast Discovery> Configuring Printing Protocols and WSD Functions(P. 40)

<HTTP> Disabling HTTP Communication(P. 414)

<POP3>/<SMTP> Configuring E-Mail/I-Fax Communication Settings(P. 89)

<SNMP> Monitoring and Controlling the Machine with SNMP(P. 68)

<Multicast Discovery> Monitoring the Machine from the Device Management Systems(P. 73)

<FTP> Procedure for Setting a FTP Server as a Save Location(P. 97)

5

Enter the port number, and select <Apply>.

6

Restart the machine.

● Turn OFF the machine, wait for at least 10 seconds, and turn it back ON.

LINKS

Configuring Printer Ports(P. 43)

377

Managing the Machine

Setting a Proxy

1647-085

A proxy (or HTTP proxy server) refers to a computer or software that carries out HTTP communication for other devices, especially when communicating with resources outside the network, such as when browsing Web sites. The client devices connect to the outside network through the proxy server, and do not communicate directly to the resources outside. Setting a proxy not only facilitates management of traffic between in-house and outside networks but also blocks unauthorized access and consolidates anti-virus protection for enhanced security. When you use

Google Cloud Print to print over the Internet, you can enhance security by setting a proxy. When setting a proxy, make sure that you have the necessary proxy information, including the IP address, port number, and a user name and password for authentication.

● For more information about the basic operations to be performed when setting the machine from the

Remote UI, see Setting Up Menu Options from Remote UI(P. 427) .

1

Start the Remote UI and log in to System Manager Mode. Starting Remote

UI(P. 419)

2

Click [Settings/Registration] on the Portal page. Remote UI Screen(P. 420)

3

Select [Network Settings] [Proxy Settings].

4

Click [Edit].

5

Select the [Use Proxy] check box and specify the required settings.

[Use Proxy]

Select the check box to use the specified proxy server when communicating with an HTTP server.

[HTTP Proxy Server Address]

Enter the address of the proxy server. Specify the IP address or host name depending on the environment.

[HTTP Proxy Server Port Number]

378

Managing the Machine

Change the port number as necessary.

[Use Proxy within Same Domain]

Select the check box to also use the specified proxy server for communication with devices in the same domain.

[Use Proxy Authentication]

To enable authentication by the proxy server, select the check box and enter alphanumeric characters for the user name in the [User Name] text box.

[Set/Change Password]

To set or change the password for the proxy authentication, when it is enabled, select the check box and enter alphanumeric characters for the new password in the [Password] text box.

6

Click [OK].

LINKS

Using Google Cloud Print(P. 346)

379

Managing the Machine

Configuring the Key and Certificate for TLS

1647-086

You can encrypt communication between the machine and a Web browser on the computer by using Transport Layer

Security (TLS). TLS is a mechanism for encrypting data sent or received over the network. TLS must be enabled when the Remote UI is used for specifying settings for IPSec (Pre-Shared Key Method), IEEE 802.1X authentication (TTLS/

PEAP), or SNMPv3. To use TLS encrypted communication for the Remote UI, you need to specify a "key and certificate"

(server certificate) you want to use before enabling TLS. Generate or install the key and certificate for TLS before

enabling TLS ( Management Functions(P. 711) ).

● For more information about the basic operations to be performed when setting the machine from the

Remote UI, see Setting Up Menu Options from Remote UI(P. 427) .

1

Start the Remote UI and log in to System Manager Mode. Starting Remote

UI(P. 419)

2

Click [Settings/Registration] on the Portal page. Remote UI Screen(P. 420)

3

Select [Network Settings] [TLS Settings].

4

Click [Key and Certificate].

5

Click [Register Default Key] on the right of the key and certificate you want to use.

Viewing details of a certificate

● You can check the details of the certificate or verify the certificate by clicking the corresponding text link under [Key Name], or the certificate icon.

6

Select [License/Other] [Remote UI Settings].

380

Managing the Machine

7

Click [Edit].

8

Select the [Use TLS] check box and click [OK].

9

Restart the machine.

● Turn OFF the machine, wait for at least 10 seconds, and turn it back ON.

Using the operation panel

You can also enable or disable TLS encrypted communication from <Menu> in the Home screen. <Remote

UI Settings>(P. 568)

Starting the Remote UI with TLS

● If you try to start the Remote UI when TLS is enabled, a security alert may be displayed regarding the security certificate. In this case, check that the correct URL is entered in the address field, and then proceed

to display the Remote UI screen. Starting Remote UI(P. 419)

Using TLS to encrypt e-mail/I-Fax communication

● If the SMTP server and the POP3 server support TLS, you can enable TLS for communication with these

servers ( Configuring E-Mail/I-Fax Communication Settings(P. 89) ). For more information about the

SMTP server and the POP3 server, contact your Internet service provider or Network Administrator.

Limiting the TLS version

● Select [Allowed Versions] on the [TLS Settings] page of Remote UI, and specify the upper limit and lower limit.

381

Managing the Machine

LINKS

Generating the Key and Certificate for Network Communication(P. 383)

Generating a Key and Certificate Signing Request (CSR)(P. 386)

Registering the Key and Certificate for Network Communication(P. 389)

Configuring IPSec Settings(P. 391)

Configuring IEEE 802.1X Authentication Settings(P. 398)

Monitoring and Controlling the Machine with SNMP(P. 68)

Registering LDAP Servers(P. 63)

382

Managing the Machine

Generating the Key and Certificate for Network

Communication

1647-087

A key and certificate can be generated with the machine when it is required for encrypted communication via

Transport Layer Security (TLS). You can use TLS when accessing the machine via the Remote UI. Self-signed certificates are used with the key and certificate generated in "Network Communication."

● If you want to use a server certificate that has a CA signature, you can generate a CSR together with a key

instead of a certificate. Generating a Key and Certificate Signing Request (CSR)(P. 386)

● For more information about the basic operations to be performed when setting the machine from the

Remote UI, see Setting Up Menu Options from Remote UI(P. 427) .

1

Start the Remote UI and log in to System Manager Mode. Starting Remote

UI(P. 419)

2

Click [Settings/Registration] on the Portal page. Remote UI Screen(P. 420)

3

Select [Device Management] [Key and Certificate Settings].

4

Click [Generate Key].

Deleting a registered key and certificate

● Click [Delete] on the right of the key and certificate you want to delete click [OK].

● A key and certificate cannot be deleted if it is currently used for some purpose, such as when "[TLS]" or

"[IEEE 802.1X]" is displayed under [Key Usage]. In this case, disable the function or replace the other key and certificate before deleting it.

5

Select [Network Communication] and click [OK].

6

Specify settings for the key and certificate.

383

Managing the Machine

[Key Settings]

[Key Name]

Enter alphanumeric characters for naming the key. Set a name that will be easy for you to find later in a list.

[Signature Algorithm]

Select the signature algorithm from the drop-down list.

[Key Algorithm]

Select the key generation algorithm from [RSA] or [ECDSA], then select the key length from the dropdown list. In either case, the larger the number for the key length is, the higher the security level becomes. However, the communication speed becomes slower.

● When [SHA384] or [SHA512] is selected in [Signature Algorithm], [512-bit] cannot be selected as the key length when [RSA] is selected in [Key Algorithm].

[Certificate Settings]

[Validity Start Date (YYYY/MM/DD)]

Enter the validity start date of the certificate, in the order of: year, month, day.

[Validity End Date (YYYY/MM/DD)]

Enter the validity end date of the certificate, in the order of: year, month, day. A date earlier than

[Validity Start Date (YYYY/MM/DD)] cannot be set.

[Country/Region]

Click the [Select Country/Region] radio button and select the country/region from the drop-down list.

You can also click the [Enter Internet Country Code] radio button and enter a country code, such as "US" for the United States.

[State]/[City]

Enter alphanumeric characters for the location as necessary.

[Organization]/[Organization Unit]

Enter alphanumeric characters for the organization name as necessary.

[Common Name]

Enter alphanumeric characters for the common name of the certificate as necessary. "Common Name" is often abbreviated as "CN."

384

Managing the Machine

7

Click [OK].

● Generating a key and certificate may take some time.

● After the key and certificate is generated, it is automatically registered to the machine.

LINKS

Registering the Key and Certificate for Network Communication(P. 389)

Configuring the Key and Certificate for TLS(P. 380)

Configuring IPSec Settings(P. 391)

385

Managing the Machine

Generating a Key and Certificate Signing Request (CSR)

1647-089

Because certificates generated on the machine do not have a CA signature, a communication error may result depending on devices it communicates with. To have the certificate authority issue the certificate with the CA signature, you need to obtain data of CSR (Certificate Signing Request), which the administrator can generate from

Remote UI. When the certificate is issued, register it in the key with the CSR generated.

Generating a Key and CSR(P. 386)

Registering a Certificate to a Key(P. 388)

● For more information about the basic operations to be performed when setting the machine from the

Remote UI, see Setting Up Menu Options from Remote UI(P. 427) .

Generating a Key and CSR

1

Start the Remote UI and log in to System Manager Mode. Starting Remote

UI(P. 419)

2

Click [Device Management] on the Portal page. Remote UI Screen(P. 420)

3

Select [Device Management] [Key and Certificate Settings].

4

Click [Generate Key].

Deleting a registered key and certificate

● Click [Delete] on the right of the key and certificate you want to delete click [OK].

● A key and certificate cannot be deleted if it is currently used for some purpose, such as when "[TLS]" or

"[IEEE 802.1X]" is displayed under [Key Usage]. In this case, disable the function or replace the key and certificate before deleting it.

5

Select [Key and Certificate Signing Request (CSR)] and click [OK].

6

Specify settings for the key and CSR.

386

Managing the Machine

[Key Settings]

[Key Name]

Enter alphanumeric characters for naming the key. Set a name that will be easy for you to find later in a list.

[Signature Algorithm]

Select the signature algorithm from the drop-down list.

[Key Algorithm]

Select the key generation algorithm from [RSA] or [ECDSA], then select the key length from the dropdown list. In any case, the larger the number for the key length, the slower the communication.

However, the security is tighter.

● When [SHA384] or [SHA512] is selected in [Signature Algorithm], [512-bit] cannot be selected as the key length when [RSA] is selected in [Key Algorithm].

[Certificate Signing Request (CSR) Settings]

[Country/Region]

Click the [Select Country/Region] radio button and select the country/region from the drop-down list.

You can also click the [Enter Internet Country Code] radio button and enter a country code, such as "US" for the United States.

[State]/[City]

Enter alphanumeric characters for the location as necessary.

[Organization]/[Organization Unit]

Enter alphanumeric characters for the organization name as necessary.

[Common Name]

Enter alphanumeric characters for the common name of the certificate as necessary. "Common Name" is often abbreviated as "CN."

7

Click [OK].

● Generating a key and CSR may take some time.

387

Managing the Machine

8

Click [Store in File].

● A dialog box for storing the file appears. Choose where to store the file and click [Save].

The CSR file is stored on the computer.

9

Attach the stored file and submit the application to the certification authority.

Registering a Certificate to a Key

The key with the CSR generated cannot be used until the certificate issued from the certificate authority based on the

CSR is registered in the key. Once the certification authority has issued the certificate, register it using the procedure below.

1

Start the Remote UI and log in to System Manager Mode. Starting Remote

UI(P. 419)

2

Click [Settings/Registration] on the Portal page. Remote UI Screen(P. 420)

3

Select [Device Management] [Key and Certificate Settings].

4

Click [Key Name] or [Certificate] required to register the certificate.

5

Click [Register Certificate].

6

Click [Browse], specify the file for the certificate signing request, and click [Register].

LINKS

Configuring the Key and Certificate for TLS(P. 380)

Generating the Key and Certificate for Network Communication(P. 383)

Registering the Key and Certificate for Network Communication(P. 389)

Configuring IPSec Settings(P. 391)

388

Managing the Machine

Registering the Key and Certificate for Network

Communication

1647-088

You can obtain the key and certificate, and the CA certificate from a certification authority (CA) for use with the machine. Install and register the obtained key and certificate file and CA certificate file in this machine using Remote

UI. Check the key and certificate, and CA certificate conditions that are required for the machine in advance (

Management Functions(P. 711) ).

● For more information about the basic operations to be performed when setting the machine from the

Remote UI, see Setting Up Menu Options from Remote UI(P. 427) .

1

Start the Remote UI and log in to System Manager Mode. Starting Remote

UI(P. 419)

2

Click [Settings/Registration] on the Portal page. Remote UI Screen(P. 420)

3

Select [Device Management] [Key and Certificate Settings] or [CA Certificate

Settings].

● Click [Key and Certificate Settings] to install a key and certificate, or [CA Certificate Settings] to install a CA certificate.

4

Click [Register Key and Certificate] or [Register CA Certificate].

Deleting a registered key and certificate or CA certificate

● Click [Delete] on the right of the key and certificate or CA certificate you want to delete click [OK]. You cannot delete the preinstalled CA certificates.

● A key and certificate cannot be deleted if it is currently used for some purpose, such as when "[TLS]" or

"[IEEE 802.1X]" is displayed under [Key Usage]. In this case, disable the function or replace the key and certificate before deleting it.

Disabling or enabling the preinstalled CA certificates

● Click [Disable] on the right of the preinstalled CA certificate you want to disable. To enable the certificate again, click [Enable] on the right of the certificate.

5

Click [Install].

389

Managing the Machine

Deleting the key and certificate file or CA certificate file

● Click [Delete] on the right of the file you want to delete click [OK].

6

Click [Browse], specify the file to install, and click [Start Installation].

The key and certificate file or the CA certificate file is installed on the machine from a computer.

7

Register the key and certificate or CA certificate.

Registering a key and certificate

1

Click [Register] on the right of the key and certificate file you want to register.

2

Enter the name of the key and password.

[Key Name]

Enter alphanumeric characters for the name of the key to be registered.

[Password]

Enter alphanumeric characters for the password of the private key set for the file to be registered.

3

Click [OK].

Registering a CA certificate

Click [Register] on the right of the CA certificate file you want to register.

LINKS

Generating the Key and Certificate for Network Communication(P. 383)

Configuring the Key and Certificate for TLS(P. 380)

Configuring IPSec Settings(P. 391)

Configuring IEEE 802.1X Authentication Settings(P. 398)

390

Managing the Machine

Configuring IPSec Settings

1647-08A

Internet Protocol Security (IPSec or IPsec) is a protocol suite for encrypting data transported over a network, including

Internet networks. While TLS only encrypts data used on a specific application, such as a Web browser or an e-mail application, IPSec encrypts either whole IP packets or the payloads of IP packets, offering a more versatile security system. The IPSec of the machine works in transport mode, in which the payloads of IP packets are encrypted. With this feature, the machine can connect directly to a computer that is in the same virtual private network (VPN). Check

the system requirements ( Management Functions(P. 711) ) and set the necessary configuration on the computer

before you configure the machine.

Using IPSec with IP address filter

IP address filter settings are applied before the IPSec policies. Specifying IP Addresses for Firewall

Settings(P. 371)

Configuring IPSec Settings

Before using IPSec for encrypted communication, you need to register security policies (SP). A security policy consists of the groups of settings described below. After registering policies, specify the order in which they are applied.

Selector

Selector defines conditions for IP packets to apply IPSec communication. Selectable conditions include IP addresses and port numbers of the machine and the devices to communicate with.

IKE

IKE configures the IKEv1 that is used for key exchange protocol. Note that instructions vary depending on the authentication method selected.

[Pre-Shared Key Method]

This authentication method uses a common key word, called Shared Key, for communication between the

machine and other devices. Enable TLS for the Remote UI before specifying this authentication method (

Configuring the Key and Certificate for TLS(P. 380) ).

[Digital Signature Method]

The machine and the other devices authenticate each other by mutually verifying their digital signatures.

Generate or install the key and certificate beforehand ( Registering the Key and Certificate for Network

Communication(P. 389) ).

AH/ESP

Specify the settings for AH/ESP, which is added to packets during IPSec communication. AH and ESP can be used at the same time. You can also select whether or not to enable PFS for tighter security.

391

Managing the Machine

● For more information about the basic operations to be performed when setting the machine from the

Remote UI, see Setting Up Menu Options from Remote UI(P. 427) .

1

Start the Remote UI and log in to System Manager Mode. Starting Remote

UI(P. 419)

2

Click [Settings/Registration] on the Portal page. Remote UI Screen(P. 420)

3

Select [Network Settings] [IPSec Settings].

4

Click [Edit].

5

Select the [Use IPSec] check box and click [OK].

● If you want the machine to only receive packets that match one of the security policies that you define in the steps below, clear the [Receive Non-Policy Packets] check box.

6

Click [Register New Policy].

7

Specify the Policy Settings.

1

In the [Policy Name] text box, enter alphanumeric characters for a name that is used for identifying the policy.

2

Select the [Enable Policy] check box.

8

Specify the Selector Settings.

392

Managing the Machine

[Local Address]

Click the radio button for the type of IP address of the machine to apply the policy.

[All IP Addresses]

[IPv4 Address]

[IPv6 Address]

Select to use IPSec for all IP packets.

Select to use IPSec for all IP packets that are sent to or from the IPv4 address of the machine.

Select to use IPSec for all IP packets that are sent to or from an IPv6 address of the machine.

[Remote Address]

Click the radio button for the type of IP address of the other devices to apply the policy.

[All IP Addresses]

[All IPv4 Addresses]

[All IPv6 Addresses]

[IPv4 Manual Settings]

[IPv6 Manual Settings]

Select to use IPSec for all IP packets.

Select to use IPSec for all IP packets that are sent to or from IPv4 addresses of the other devices.

Select to use IPSec for all IP packets that are sent to or from IPv6 addresses of the other devices.

Select to specify a single IPv4 address or a range of IPv4 addresses to apply IPSec.

Enter the IPv4 address (or the range) in the [Addresses to Set Manually] text box.

Select to specify a single IPv6 address or a range of IPv6 addresses to apply IPSec.

Enter the IPv6 address (or the range) in the [Addresses to Set Manually] text box.

[Addresses to Set Manually]

If [IPv4 Manual Settings] or [IPv6 Manual Settings] is selected for [Remote Address], enter the IP address to apply the policy. You can also enter a range of addresses by inserting a hyphen between the addresses.

Entering IP addresses

Entering a single address

Description

IPv4:

Delimit numbers with periods.

393

Example

192.168.0.10

Managing the Machine

Description

IPv6:

Delimit alphanumeric characters with colons.

fe80::10

Specifying a range of addresses Insert a hyphen between the addresses.

Example

192.168.0.10-192.168.0.20

[Subnet Settings]

When manually specifying IPv4 address, you can express the range by using the subnet mask. Enter the subnet mask using periods to delimit numbers (example:"255.255.255.240").

[Prefix Length]

Specifying the range of IPv6 addresses manually also allows you to specify the range using prefixes. Enter a range between 0 and 128 as the prefix length.

[Local Port]/[Remote Port]

If you want to create separate policies for each protocol, such as HTTP or WSD, enter the appropriate port number for the protocol to determine whether to use IPSec.

IPSec is not applied to the following packets

● Loopback, multicast, and broadcast packets

● IKE packets (using UDP on port 500)

● ICMPv6 neighbor solicitation and neighbor advertisement packets

9

Specify the IKE Settings.

[IKE Mode]

The mode used for the key exchange protocol is displayed. The machine supports the main mode, not the aggressive mode.

[Authentication Method]

Select [Pre-Shared Key Method] or [Digital Signature Method] for the method used when authenticating the machine. You need to enable TLS for the Remote UI before selecting [Pre-Shared Key Method]. You need to

generate or install the key and certificate before selecting [Digital Signature Method]. Configuring the

Key and Certificate for TLS(P. 380)

[Valid for]

Specify how long a session lasts for IKE SA (ISAKMP SA). Enter the time in minutes.

[Authentication]/[Encryption]/[DH Group]

Select an algorithm from the drop-down list. Each algorithm is used in the key exchange.

394

[Authentication]

[Encryption]

[DH Group]

Managing the Machine

Select the hash algorithm.

Select the encryption algorithm.

Select the Diffie-Hellman group, which determines the key strength.

Authenticating a machine using a pre-shared key

1

Click the [Pre-Shared Key Method] radio button for [Authentication Method] and then click [Shared Key

Settings].

2

Enter alphanumeric characters for the pre-shared key and click [OK].

3

Specify the [Valid for] and [Authentication]/[Encryption]/[DH Group] settings.

Authenticating a machine using digital signature method

1

Click the [Digital Signature Method] radio button for [Authentication Method] and then click [Key and

Certificate].

2

Click [Register Default Key] on the right of the key and certificate you want to use.

Viewing details of a certificate

● You can check the details of the certificate or verify the certificate by clicking the corresponding text link under [Key Name], or the certificate icon.

3

Specify the [Valid for] and [Authentication]/[Encryption]/[DH Group] settings.

10

Specify the IPSec Network Settings.

[Use PFS]

Select the check box to enable Perfect Forward Secrecy (PFS) for IPSec session keys. Enabling PFS enhances the security while increasing the load on the communication. Make sure that PFS is also enabled for the other devices.

[Specify by Time]/[Specify by Size]

Set the conditions for terminating a session for IPSec SA. IPSec SA is used as a communication tunnel. Select either or both of the check boxes as necessary. If both check boxes are selected, the IPSec SA session is terminated when either of the conditions has been satisfied.

[Specify by Time]

[Specify by Size]

Enter a time in minutes to specify how long a session lasts.

Enter a size in megabytes to specify how much data can be transported in a session.

395

Managing the Machine

[Select Algorithm]

Select the [ESP], [ESP (AES-GCM)], or [AH (SHA1)] check box(es) depending on the IPSec header and the algorithm used. AES-GCM is an algorithm for both authentication and encryption. If [ESP] is selected, also select algorithms for authentication and encryption from the [ESP Authentication] and [ESP Encryption] dropdown lists.

[ESP Authentication]

[ESP Encryption]

To enable the ESP authentication, select [SHA1] for the hash algorithm. Select [Do Not

Use] if you want to disable the ESP authentication.

Select the encryption algorithm for ESP. You can select [NULL] if you do not want to specify the algorithm, or select [Do Not Use] if you want to disable the ESP encryption.

[Connection Mode]

The connection mode of IPSec is displayed. The machine supports transport mode, in which the payloads of

IP packets are encrypted. Tunnel mode, in which whole IP packets (headers and payloads) are encapsulated is not available.

11

Click [OK].

● If you need to register an additional security policy, return to step 6.

12

Arrange the order of policies listed under [Registered IPSec Policies].

● Policies are applied from one at the highest position to the lowest. Click [Up] or [Down] to move a policy up or down the order.

Editing a policy

● Click the corresponding text link under [Policy Name] for the edit screen.

Deleting a policy

● Click [Delete] on the right of the policy name you want to delete click [OK].

13

Restart the machine.

● Turn OFF the machine, wait for at least 10 seconds, and turn it back ON.

396

Managing the Machine

Using the operation panel

You can also enable or disable IPSec communication from <Menu> in the Home screen. <Use

IPSec>(P. 460)

LINKS

Configuring the Key and Certificate for TLS(P. 380)

IPSec Policy List(P. 609)

397

Managing the Machine

Configuring IEEE 802.1X Authentication Settings

1647-08C

The machine can connect to an 802.1X network as a client device. A typical 802.1X network consists of a RADIUS server

(authentication server), LAN switch (authenticator), and client devices with authentication software (supplicants). If a device tries to connect to the 802.1X network, the device must go through user authentication in order to prove that the connection is made by an authorized user. Authentication information is sent to and checked by a RADIUS server, which permits or rejects communication to the network depending on the authentication result. If authentication fails, a LAN switch (or an access point) blocks access from the outside of the network.

IEEE 802.1X Authentication Method

Select the authentication method from the options below. If necessary, install or register a key and certificate or

a CA certificate before configuring IEEE 802.1X authentication ( Registering the Key and Certificate for

Network Communication(P. 389) ).

TLS

The machine and the authentication server authenticate each other by mutually verifying their certificates. A key and certificate issued by a certification authority (CA) is required for the client authentication (when authenticating the machine). For the server authentication, a CA certificate installed via the Remote UI can be used in addition to a CA certificate preinstalled in the machine.

TTLS

This authentication method uses a user name and password for the client authentication and a CA certificate for the server authentication. MSCHAPv2 or PAP can be selected as the internal protocol. TTLS can be used

with PEAP at the same time. Enable TLS for the Remote UI before configuring this authentication method (

Configuring the Key and Certificate for TLS(P. 380) ).

PEAP

The required settings are almost the same as those of TTLS. MSCHAPv2 is used as the internal protocol.

Enable TLS for the Remote UI before configuring this authentication method ( Configuring the Key and

Certificate for TLS(P. 380) ).

● For more information about the basic operations to be performed when setting the machine from the

Remote UI, see Setting Up Menu Options from Remote UI(P. 427) .

1

Start the Remote UI and log in to System Manager Mode. Starting Remote

UI(P. 419)

398

Managing the Machine

2

Click [Settings/Registration] on the Portal page. Remote UI Screen(P. 420)

3

Select [Network Settings] [IEEE 802.1X Settings].

4

Click [Edit].

5

Select the [Use IEEE 802.1X] check box, and enter the login name in the [Login Name] text box.

[Use IEEE 802.1X]

Select the check box to enable IEEE 802.1X authentication.

[Login Name]

Enter alphanumeric characters for a name (EAP identity) that is used for identifying the user.

6

Configuring the required settings according to the specified authentication method.

Setting TLS

1

Select the [Use TLS] check box and click [Key and Certificate].

● You cannot use TLS with TTLS or PEAP.

2

Click [Register Default Key] on the right of the key and certificate you want to use for the client authentication.

Viewing details of a certificate

● You can check the details of the certificate or verify the certificate by clicking the corresponding text link under [Key Name], or the certificate icon.

399

Managing the Machine

Setting TTLS/PEAP

1

Select the [Use TTLS] or [Use PEAP] check box.

Internal protocol for TTLS

● You can select MSCHAPv2 or PAP.

2

Click [Change User Name/Password].

● To specify a user name other than the login name, clear the [Use Login Name as User Name] check box. Select the check box if you want to use the login name as the user name.

3

Set the user name/password.

[User Name]

Enter alphanumeric characters for the user name.

[Change Password]

To set or change the password, select the check box and enter alphanumeric characters for the new password both in the [Password] and [Confirm] text boxes.

4

Click [OK].

7

Click [OK].

8

Restart the machine.

● Turn OFF the machine, wait for at least 10 seconds, and turn it back ON.

400

Managing the Machine

Using the operation panel

You can also enable or disable IEEE 802.1X authentication from <Menu> in the Home screen. <Use IEEE

802.1X>(P. 464)

LINKS

Configuring the Key and Certificate for TLS(P. 380)

401

Managing the Machine

Restricting the Machine's Functions

1647-08E

Some of the functions of the machine may rarely be used or provide opportunities for misuse. For security purposes, the machine can be set to limit its capabilities by partially or completely disabling these functions.

Restricting Access to Address Book and Sending Functions

You can specify the PIN in the Address Book to disable a general user from modifying data or limit destinations that can be specified for fax sending. You can also disable a user from collectively sending a fax to multiple

destinations (Sequential Broadcast). Restricting Access to Address Book and Sending Functions(P. 404)

Restricting Printing from a Computer

You can limit "printing from computer" only to secure documents so that no print jobs can be executed unless

the PIN is entered on the machine side. Restricting Printing from a Computer(P. 411)

Restricting USB Functions

The USB connection allows an easy connection with peripheral devices, but it may cause a security risk such as an information leakage. You can restrict a USB connection with a computer or saving to a USB memory device.

Restricting USB Functions(P. 412)

Disabling HTTP Communication

When not performing operations via the network, for example, when using the machine via USB connection,

you can disable HTTP communication to prevent a hacking via the HTTP port. Disabling HTTP

Communication(P. 414)

402

Managing the Machine

Disabling Remote Management

When not using Remote UI, you can disable functions to prevent an unauthorized remote operation via Remote

UI. Disabling Remote UI(P. 415)

403

Managing the Machine

Restricting Access to Address Book and Sending

Functions

1647-08F

Some cases of information leakage can be prevented by limiting the available fax and e-mail destinations to those registered in the Address Book or LDAP servers, or by setting a PIN for the Address Book so that unauthorized users cannot add or edit Address Book entries. You can also avoid sending documents to unintended recipients if the machine is set to ask you to enter the fax number twice for confirmation.

Restricting Use of the Address Book(P. 405)

Limiting Available Destinations(P. 407)

Restricting the Fax Sending Functions(P. 409)

404

Managing the Machine

Restricting Use of the Address Book

1647-08H

The Address Book can be set to require users to enter a PIN in order to add new entries to the Address Book or edit existing entries. Setting a PIN to the Address

Book can reduce the risk of documents being sent to unintended recipients because changes to the Address Book can only be made by users who know the PIN.

1

Select <Menu> in the Home screen. Home Screen(P. 122)

2

Select <Set Destination>.

If the login screen appears, enter the correct ID and PIN. Logging in to the Machine(P. 133)

3

Select <Address Book PIN>.

4

Specify the PIN.

● Enter the number, and select <Apply>.

● The Confirm screen is displayed. Enter the PIN once again to confirm.

● You cannot set a PIN that consists only of zeros, such as "00" or "0000000".

● To cancel the PIN setting, clear the information you entered in and select <Apply> with the field blank.

In addition to setting the Address Book PIN, you can further enhance security by performing the following operations:

Restricting the addition of new destinations, see Restricting New Destinations that Can Be

Specified(P. 407) .

Disabling the PC fax function, see Restricting Fax Sending from a Computer(P. 409) .

LINKS

Registering Destinations(P. 182)

Registering Destinations from Remote UI(P. 430)

405

Managing the Machine

Configuring Basic E-Mail Settings(P. 86)

Setting a Shared Folder as a Save Location(P. 94)

406

Managing the Machine

Limiting Available Destinations

1647-08J

By limiting destinations that can be specified to those registered in the Address Book or LDAP servers, you can reduce the possibility of specifying unintended destinations and prevent users from leaking information. You can configure the setting to display the confirmation screen to prevent the user from misdialing when specifying a coded dial number in the Address Book.

Restricting New Destinations that Can Be Specified(P. 407)

Disabling Use of Previously Used Destinations(P. 407)

Displaying Destinations in Address Book(P. 407)

Checking Destinations when Sending Data(P. 408)

Restricting New Destinations that Can Be Specified

Restrict destinations that can be specified when sending faxes or scanned documents to "those already registered in the Address Book," "those previously used," or "those searchable from the LDAP servers." When this function is enabled, the machine prohibits users from entering destinations using the numeric keys, adding new entries to the

Address Book, and editing the existing Address Book entries.

<Menu> <Function Settings> <Send> <Common Settings> <Restrict New

Destinations> <On>

This function does not limit the available destinations for PC faxing. Restricting Fax Sending from a

Computer(P. 409)

Disabling Use of Previously Used Destinations

Prohibits the specification of destinations from the transmission records. Using this restriction prevents destinations being selected from the transmission records for "Send Fax," "Scan and Send as E-mail" and "Scan and Save to Shared

Folder or FTP Server."

<Menu> <Function Settings> <Send> <Common Settings> <Restrict Resending from

Log> <On>

Displaying Destinations in Address Book

When using coded dial numbers to specify destinations, you need to precisely remember whose destination (or what group) is registered in what coded dial number. If you do not remember all these numbers accurately, you may send your documents to unintended destinations. You can avoid sending data to unintended recipients by configuring the

407

Managing the Machine machine to display the details of the coded dial number you selected/entered as a sending destination on the screen before you send documents to that destination.

<Menu> <Function Settings> <Send> <Common Settings> <Confirm When Coded Dial

TX> <On>

Checking Destinations when Sending Data

You can configure a setting so that the destination confirmation screen is displayed when fax, e-mail, or I-Fax sending starts. If <Only for Sequential Broadcast> is selected, the confirmation screen is displayed only when multiple destinations are specified.

<Menu> <Function Settings> <Send> <Common Settings> <Confirm Dest. Before

Sending> Select <On> or <Only for Sequential Broadcast>

LINKS

Sending I-Faxes(P. 248)

Sending Data by E-Mail/Saving Data to a Shared Folder or FTP Server(P. 291)

Recalling Previously Used Settings for Sending/Saving (Recall Settings)(P. 313)

Restricting Use of the Address Book(P. 405)

Restricting the Fax Sending Functions(P. 409)

408

Managing the Machine

Restricting the Fax Sending Functions

1647-08K

You can set various restrictions for sending faxes, which can prevent information leakage to third parties or sending documents to unintended destinations.

Confirming the Entered Fax Number(P. 409)

Restricting Fax Sending from a Computer(P. 409)

Restricting Sequential Broadcasts(P. 409)

Confirming the Entered Fax Number

You can configure the setting to display the confirmation screen to prevent the user from misdialing when entering a destination fax number using the numeric keys.

<Menu> <Function Settings> <Send> <Fax Settings> <Confirm Entered Fax Number>

<On>

Restricting Fax Sending from a Computer

You can prohibit users from PC faxing (faxing from a computer).

<Menu> <Function Settings> <Send> <Fax Settings> <Allow Fax Driver TX> <Off>

Restricting Sequential Broadcasts

You can prohibit a function that collectively sends a fax to multiple destinations (Sequential Broadcast).

<Menu> <Function Settings> <Send> <Fax Settings> <Restrict Sequential

Broadcast> <Off>

LINKS

Basic Operations for Sending Faxes(P. 217)

Recalling Previously Used Settings for Sending (Recall Settings)(P. 231)

409

Managing the Machine

Sending Faxes from Your Computer (PC Fax)(P. 244)

Enabling the Department ID Management for Jobs from a Computer(P. 359)

Restricting Use of the Address Book(P. 405)

Limiting Available Destinations(P. 407)

410

Managing the Machine

Restricting Printing from a Computer

1647-08U

You can drastically reduce information leakage risks by limiting the documents printable from a computer to the

Secure Print documents ( Printing a Document Secured by a PIN (Secure Print)(P. 266) ).

<Menu> <Function Settings> <Secure Print> <Restrict Printer Jobs> <On> Restart the machine

411

Managing the Machine

Restricting USB Functions

1647-08W

USB is a convenient way of connecting peripheral devices and storing or relocating data, but USB can also be a source of information leakage if it is not properly managed. Be especially careful when handling USB memory devices. This section describes how to restrict connection via the USB port of the machine and how to prohibit use of USB memory devices.

Restricting the USB Connection with a Computer(P. 412)

Restricting the Scan to USB Function(P. 412)

Restricting the USB Print Function(P. 412)

Restricting the USB Connection with a Computer

You can disable the computer connection USB port located on the back side of the machine. If this port is disabled, the machine cannot communicate with a computer via USB. This setting does not affect the front USB port, which is for attaching USB memory devices.

<Menu> <Preferences> <External Interface> <USB Settings> Select <Off> in <Use as USB

Device> <Apply> Restart the machine

Restricting the Scan to USB Function

You can disable storing scanned original data into a USB memory device.

<Menu> <Function Settings> <Store/Access Files> <Memory Media Settings> Select <Off> in <Use Scan Function> <Apply> Restart the machine

Restricting the USB Print Function

You can disable printing data from a USB memory device. The data in the USB memory device cannot be printed.

<Menu> <Function Settings> <Store/Access Files> <Memory Media Settings> Select <Off> in <Use Print Function> <Apply> Restart the machine

LINKS

412

Managing the Machine

Basic Operations for Scanning Originals(P. 284)

Printing from a USB Memory Device (Memory Media Print)(P. 270)

413

Managing the Machine

Disabling HTTP Communication

1647-08X

HTTP is used for communications over the network, such as when you access the machine via the Remote UI. If you are using a USB connection or are otherwise not using HTTP, you can disable HTTP to block malicious third-party intrusions via the unused HTTP port.

● Disabling HTTP disables some of the network capabilities, such as the Remote UI, WSD printing, and printing with Google Cloud Print.

<Menu> <Preferences> <Network> <TCP/IP Settings> <Use HTTP> <Off> <Yes>

LINKS

Managing the Machine from a Computer (Remote UI)(P. 418)

Changing Port Numbers(P. 377)

Configuring Printing Protocols and WSD Functions(P. 40)

Using Google Cloud Print(P. 346)

414

Managing the Machine

Disabling Remote UI

1647-08Y

The Remote UI is useful because the machine settings can be specified by using a Web browser on a computer. To use the Remote UI, the machine must be connected to a computer over the network. If the machine is connected to a computer via USB, or if you do not need to use the Remote UI, you might want to disable the Remote UI to reduce the risk of having your machine controlled remotely over the network by malicious third parties.

<Menu> <Management Settings> <License/Other>/<Remote UI Settings/Update

Firmware> <Remote UI Settings> Select <Off> in <Use Remote UI> Restart the machine

LINKS

Managing the Machine from a Computer (Remote UI)(P. 418)

Disabling HTTP Communication(P. 414)

415

Managing the Machine

Increasing the Security of Documents

1647-090

The machine is equipped with security functions designed to prevent documents from being leaked or tampered with.

Device Signature

The digital signature is added to scanned documents using a key and certificate mechanism in order to prove to the recipient that the document has been created on the machine. The recipient can verify "the device that created the document" and "whether the document has been tampered with." Before adding a device signature, you need to generate a key and certificate (device certificate) that is used for the device signature

using the machine. Generating a Device Signature Key(P. 417)

416

Managing the Machine

Generating a Device Signature Key

1647-091

You can generate a key and certificate for the device signature that show a document was scanned on the machine.

The certificate is appended when an document is scanned and converted into a PDF file.

● Only one key and certificate for the device signature can be generated. It cannot be deleted.

An optional Send PDF Security Feature Set is required. System Options(P. 720)

● Key and certificate for the device signature are valid for five years. Renew them when required.

● For more information about the basic operations to be performed when setting the machine from the

Remote UI, see Setting Up Menu Options from Remote UI(P. 427) .

1

Start the Remote UI and log in to System Manager Mode. Starting Remote

UI(P. 419)

2

click [Settings/Registration] on the Portal page. Remote UI Screen(P. 420)

3

Select [Device Management] [Key and Certificate Settings].

4

Click [Generate Key].

5

Select the [Device Signature] check box, and click [OK].

A key and certificate for the device signature is generated.

Renewing the Device Signature Key and the Key and Certificate

1

Click [Update] at the right of the key and certificate for the device signature.

2

Click [OK].

417

Managing the Machine

Managing the Machine from a Computer (Remote UI)

1647-092

Using a Web browser to operate the machine remotely, you can check the documents waiting to be printed or the status of the machine. You can also make various settings. You can do this without leaving your desk, making system

management easier. For more information about the system requirements for the Remote UI, see System

Environment(P. 714) .

Functions of the Remote UI

Checking the Status and Logs(P. 422)

Setting Up Menu Options from Remote UI(P. 427)

Registering Destinations from Remote UI(P. 430)

Importing/Exporting the Setting Data(P. 434)

Basics of the Remote UI

Starting Remote UI(P. 419)

418

Managing the Machine

Starting Remote UI

1647-093

To operate remotely, you need to input the IP address of the machine into a Web browser and start the Remote UI.

Check the IP address set to the machine in advance ( Viewing Network Settings(P. 37) ). If you have any questions,

ask your Network Administrator.

1

Start the Web browser.

2

Enter "http://<the IP address of the machine>/" in the address field, and press the

[ENTER] key.

● If you want to use an IPv6 address, enclose the IPv6 address with brackets (example: http://

[fe80::2e9e:fcff:fe4e:dbce]/).

If a security alert is displayed

A security alert may be displayed when the Remote UI communication is encrypted ( Configuring the

Key and Certificate for TLS(P. 380) ). When certificate settings or TLS settings have no errors, continue

browsing the Web site.

3

Log in to the Remote UI.

When the Department ID Management is disabled

Select [System Manager Mode] or [General User Mode], and enter a value in [Remote UI Access PIN] as necessary.

[System Manager Mode]

You can perform all the Remote UI operations and settings. Enter the appropriate ID in [System Manager ID]

and PIN in [System Manager PIN]. Setting the System Manager ID and PIN(P. 354)

[General User Mode]

You can check the status of documents or the machine, and you can also change some of the settings. When you want to check if a specific document of yours is in the print queue or cancel the printing of a document of yours in the print queue, enter the user name of the document in [User Name]. The user name is automatically set to print documents based on information such as your computer name or computer login name.

[Remote UI Access PIN]

419

Managing the Machine

If [Remote UI Access PIN] is set, enter the PIN. Setting a Remote UI PIN(P. 362)

When the Department ID Management is enabled

Enter the appropriate ID in [Department ID] and PIN in [PIN]. Setting the Department ID

Management(P. 356)

4

Click [Log In].

The Portal page (main page) will be displayed. Remote UI Screen(P. 420)

Remote UI Screen

When you log in to the Remote UI, the following Portal page appears. This section describes the items displayed on the Portal page and the basic operations.

[Device Basic Information]

Displays the current status of the machine and error information. If an error has occurred, the link to the

Error Information page will be displayed.

[Consumables Information]

Displays paper information and the amount remaining in the toner cartridges.

420

Managing the Machine

[Support Link]

Displays the support link specified in [Support Link] under [License/Other].

Refresh Icon

Refreshes the currently displayed page.

[Language]

Selects the display language used for the Remote UI screens.

[Log Out]

Logs off from the Remote UI. The Login page will be displayed.

[Mail to System Manager]

Displays a window for creating an e-mail to the system manager specified in [System Manager Information] under [User Management].

[Status Monitor/Cancel]

Displays the [Status Monitor/Cancel] page. For any of the waiting documents, you can check the status/ history or cancel the processing.

[Settings/Registration]

Displays [Settings/Registration] page. When you have logged in to System Manager Mode, you can change

the settings items and save/load the registered data. Setting Up Menu Options from Remote UI(P. 427)

[Address Book]

Displays the coded dial numbers and the Favorites list registered in the Address Book. You can also register

or edit the Address Book when you have logged in to System Manager Mode. Registering Destinations

from Remote UI(P. 430)

[Application Library]

Displays the Application Library setting page.

421

Managing the Machine

Checking the Status and Logs

Checking Current Status of Print Documents(P. 422)

Checking History of Documents(P. 423)

Checking Error Information(P. 423)

Checking Consumables(P. 423)

Checking Device Specifications(P. 424)

Checking System Manager Information(P. 424)

Checking Print Total Counter(P. 425)

Checking History of Toner Cartridges(P. 425)

1647-095

● A file name of a document may not be displayed in full. The printed application name may be added to the file name.

Checking Current Status of Print Documents

The list of the documents currently printing or waiting to be printed is displayed.

Log in to the Remote UI ( Starting Remote UI(P. 419) ) [Status Monitor/Cancel] [Job Status]

● You can delete a document job by clicking [Cancel].

● Regardless of the Department ID Management setting, all the print documents currently printing and waiting to be printed will be listed.

● If you entered your user name when you logged on in General User Mode, your user name will only be displayed on the documents that you printed.

● Click [Job Number] on the paused documents and secure documents to display detailed information.

You can check the user name and the page count of the printed document.

422

Managing the Machine

Checking History of Documents

The history of print, copy, sending faxes/e-mails (TX), or receiving faxes (RX) is displayed.

Log in to the Remote UI ( Starting Remote UI(P. 419) ) [Status Monitor/Cancel] [Job Log]

Checking Error Information

When an error occurs, this page will be displayed by clicking the message displayed under [Error Information] on the

Portal page (main page). Remote UI Screen(P. 420)

Log in to the Remote UI ( Starting Remote UI(P. 419) ) [Status Monitor/Cancel] [Error

Information]

Checking Consumables

Paper size and paper type for the paper source, toner cartridge model number, etc. are displayed. You can also click

[Check Consumables Details] in the Portal page (main page) to display this page ( Remote UI Screen(P. 420) ).

Log in to the Remote UI ( Starting Remote UI(P. 419) ) [Status Monitor/Cancel]

[Consumables]

423

Managing the Machine

Checking Device Specifications

The maximum print speed and machine features are displayed.

Log in to the Remote UI ( Starting Remote UI(P. 419) ) [Status Monitor/Cancel] [Device

Features]

Checking System Manager Information

Information about the machine and the system manager is displayed. The device name and other system manager information displayed here correspond to the settings in [System Manager Information] on the [User Management] page or in [Device Information Settings] on the [Device Management] page.

Log in to the Remote UI ( Starting Remote UI(P. 419) ) [Status Monitor/Cancel] [Device

Information]

424

Managing the Machine

Checking Print Total Counter

The total number of pages that have been printed by the copy, print, and fax functions is displayed.

Log in to the Remote UI ( Starting Remote UI(P. 419) ) [Status Monitor/Cancel] [Check

Counter]

Checking History of Toner Cartridges

You can check the usage logs of toner cartridges and other logs. The display can be changed for each color of the toner cartridge.

Log in to the Remote UI ( Starting Remote UI(P. 419) ) [Status Monitor/Cancel] [Cartridge

Log]

425

LINKS

Remote UI Screen(P. 420)

Managing the Machine

426

Managing the Machine

Setting Up Menu Options from Remote UI

1647-096

You can change the various machine settings by using the Remote UI. Most of the settings can be set also on the machine, but some settings can only be set using the Remote UI. This section describes the basic flow of changing the settings of the machine using the Remote UI.

● Some settings can only be changed when you have logged in to System Manager Mode.

● Some settings may require operations that differ from the procedure described here.

1

Start the Remote UI. Starting Remote UI(P. 419)

2

Click [Settings/Registration] on the Portal page. Remote UI Screen(P. 420)

3

Click the setting you want to configure in the menu on the left side of the screen.

4

Click the link to display the desired page as necessary.

427

5

Click [Edit].

6

Specify the required settings.

Managing the Machine

7

Click [OK].

428

Managing the Machine

8

Restart the machine as necessary.

● Turn OFF the machine, wait for at least 10 seconds, and turn it back ON.

● For information about whether you need to restart the machine, view the message on the edit screen.

429

Managing the Machine

Registering Destinations from Remote UI

You can use the computer to register destinations in the Address Book of the machine and edit information of registered destinations. Specify the shared folder or FTP server destination here.

1647-097

● You can change the settings only when you have logged in to System Manager Mode.

1

Start the Remote UI. Starting Remote UI(P. 419)

2

Click [Address Book] on the Portal page. Remote UI Screen(P. 420)

If the enter PIN page is displayed

● The Address Book is protected by a PIN. Enter the [PIN] and click [OK].

3

Click [Coded Dial].

You can also register destinations in Favorites. In this case, click [Favorites] instead of [Coded Dial].

Favorites(P. 182)

4

Click the text link under [Number], [Type], or [Name] for an item named "Not

Registered."

● You can edit a registered item by clicking the corresponding text link under [Number], [Type] or [Name].

● You can delete a registered destination by clicking the corresponding [Delete] button.

● If you delete a destination from the Address Book, it is also deleted from the favorite settings.

Registering Frequently Used Settings(P. 174)

5

Select [Destination Type to Register] and click [OK].

● To register the shared folder or FTP server destination, select [File].

430

Managing the Machine

6

Specify the destination.

To register the fax destination

[Name]

Enter the name of the destination.

[Fax Number]

Enter the fax number of the destination.

[ECM TX]

Select the check box to make the following possible: if an error occurs in an image that is being sent, the error is checked and corrected to prevent an improper image from being sent.

[Speed]

If it takes time for transmissions to start, such as when there is a poor telephone connection, you can adjust the transmission start speed downward.

[Long Distance]

Specify [International (1)] to [International (3)] according to the transmission conditions when registering overseas fax numbers.

You can also specify [ECM TX] and [Speed] from <Fax Settings> ( <Send>(P. 536) ) on the operation panel.

However, settings made from <Address Book> are enabled for the detailed settings of destinations registered in the Address Book.

431

Managing the Machine

To register the e-mail or I-Fax destination

[Name]

Enter the name of the destination.

[E-Mail Address]/[I-Fax Address]

Enter the e-mail address of the destination.

To register the shared folder or FTP server destination

[Name]

Enter the name for the destination.

[Protocol]

Select the protocol for the destination.

[Windows (SMB)]

[FTP]

Select this when registering a shared folder as a destination.

Select this when registering an FTP server as a destination.

[Host Name]

● For a shared folder

Enter the computer name or IP address. You can include a path to the shared folder with the computer name or IP address (e.g. "\\swan\share" or "\\192.168.2.100\share").

● For an FTP server

Enter the IP address of the FTP server (e.g. "192.168.2.100").

Using a DNS server

● You can also enter the host name (or FQDN) instead of the computer name or IP address (e.g. for a shared folder: "\\swan.organization.company.com\share").

432

Managing the Machine

[Folder Path]

Enter the location of the folder to which the data will be sent.

● For a shared folder

Use "\" as a separator. Specify the level that follows the path specified in [Host Name].

● For an FTP server

Use "/" as a separator. The path is an absolute path when a "/" is placed at its top, otherwise a relative path with respective to the current directory of the user who has logged in.

[User Name]

Enter the user name set for the shared folder or FTP server.

[Set Password]

To set a password for the shared folder or FTP server, select the check box and enter a [Password].

Ensure that the same display language is selected on both the computer and the

Remote UI.

● [Host Name] and [Folder Path] may not be displayed correctly or may not be referenceable.

7

Click [OK].

LINKS

Remote UI Screen(P. 420)

Importing/Exporting the Setting Data(P. 434)

Address Book List(P. 608)

433

Managing the Machine

Importing/Exporting the Setting Data

1647-098

Address Book and machine settings data can be saved in your computer (export). Data that is saved on your computer can also be registered in the machine (import). You can easily copy the destinations in the Address Book to multiple machines.

*

To use these features, it is required that you have logged in to System Manager Mode.

*

Depending on the model, you cannot import the Address Book data that exported from the machine. If using the same model, you can import/export machine settings data.

Exporting the Setting Data(P. 434)

Importing the Setting Data(P. 435)

Do not turn OFF the machine until the import or export process is complete

● It may take a few minutes to complete the process. If the machine is turned OFF during the process, it may result in damage to data or the machine.

Do not operate the machine during the import or export process

● Before importing/exporting, check that no operation such as printing documents is currently processing.

For the settings that cannot be imported/exported, see Setting Menu List(P. 442) .

● You can also import/export settings data via a USB memory device by using the operation panel of the

machine. <Import/Export>(P. 570)

● For more information about the basic operations to be performed when setting the machine from the

Remote UI, see Setting Up Menu Options from Remote UI(P. 427) .

Exporting the Setting Data

You can export Address Book and machine settings data, and save them on a computer. It is recommended that you regularly back up important settings.

1

Start the Remote UI and log in to System Manager Mode. Starting Remote

UI(P. 419)

2

Click [Settings/Registration] on the Portal page. Remote UI Screen(P. 420)

3

Select [Data Management] [Export].

4

Select the settings to export, and specify the encryption password.

434

Managing the Machine

[Address Book]

Select the check box to export Address Book data.

[Address Book PIN]

If the Address Book is code-protected, enter the code for the Address Book. Restricting Use of the

Address Book(P. 405)

[Settings/Registration]

Select the check box to export machine settings data.

[Encryption Password]

Enter a password to encrypt the export data using alphanumeric characters. Enter the same password in

[Confirm]. To export the data, you must set an encryption password.

The password is required when exported data is imported. Importing the Setting Data(P. 435)

5

Click [Start Exporting].

6

Follow the on-screen instructions to specify the location where the exported setting data is saved.

The setting data will be saved.

Importing the Setting Data

Load (import) data that was exported from the machine. You can also import machine settings data from another machine to your machine if the models are the same.

1

Start the Remote UI and log in to System Manager Mode. Starting Remote

UI(P. 419)

2

Click [Settings/Registration] on the Portal page. Remote UI Screen(P. 420)

3

Select [Data Management] [Import].

4

Specify the file, enter the password, and select the settings to import.

435

Managing the Machine

[File Path]

Click [Browse] and select the file.

[Decryption Password]

Enter the password set when the settings were exported.

[Address Book]

Select the check box to import Address Book data.

● Importing Address Book data will overwrite the Address Book entries currently registered on the machine.

[Address Book PIN]

If the Address Book is code protected, enter the code for the Address Book. Restricting Use of the

Address Book(P. 405)

[Settings/Registration]

Select the check box to import machine settings data.

5

Click [Start Importing].

6

Click [OK].

The selected settings data is loaded into the machine.

7

Click [OK].

If the [Settings/Registration] check box is selected in step 4, the machine automatically restarts.

436

Managing the Machine

Updating the Firmware

1647-09C

For the firmware, select the method of update depending on the installation condition of the machine. There are two methods of update: the one is to access the latest firmware version on the Internet from the machine and perform the update if the version currently installed in the machine is not the latest, and the other is to access the latest firmware version on the Internet from a computer and perform the update from the computer if the version currently installed in the machine is not the latest. In an environment where connection to the Internet cannot be established via a wireless LAN, establish connection via a wired LAN or USB and perform the update from the computer.

Installation Condition of the Machine

Wireless LAN connection

Wired LAN connection

USB connection

How to Install the Update

Updating via the Internet(P. 437)

Updating via the Internet(P. 437)

Updating from a Computer(P. 438)

Updating from a Computer(P. 438)

● If you are in an IPv6 environment, you cannot perform firmware update. Use USB to re-establish connection, and perform the update from the computer.

Checking the firmware version

● You can check the firmware version from the operation panel of the machine. After completion of the

firmware update operation, make sure that the update was performed correctly. Checking the Firmware

Version(P. 438)

Updating via the Internet

You can access the Canon server from the machine to update the firmware to the latest version.

1

Select <Update Firmware> in the Home screen. Home Screen(P. 122)

A check for existence of the latest firmware is performed.

● If the <This is the latest firmware version.> message is displayed, there is no need to update the firmware.

2

When a license screen appears, select <Accept>.

3

Select <OK>.

When the firmware update is complete, the machine restarts automatically.

437

Managing the Machine

● Do not turn OFF the machine while the restart is in progress.

Updating from a Computer

When you have downloaded the latest firmware version from the Canon website, use "User Support Tool" utility software to update the firmware from a computer. For how to perform firmware update from a computer, see the

"User Support Tool Operation Guide" included with the firmware.

To Put the Machine into a Firmware Update Waiting State

<Menu> <Management Settings> <License/Other>/<Remote UI Settings/Update

Firmware> <Update Firmware> <Via PC> <Yes>

Checking the Firmware Version

1

Select <Menu> in the Home screen. Home Screen(P. 122)

2

Select <Management Settings>.

If the login screen appears, enter the correct ID and PIN. Logging in to the Machine(P. 133)

3

Select <License/Other>/<Remote UI Settings/Update Firmware> <Update

Firmware>.

4

Select <Version Information>.

The current firmware version is displayed.

438

Managing the Machine

Initializing Settings

You can restore the following settings:

1647-09E

Initializing Menu(P. 439)

Initializing Key and Certificate(P. 439)

Initializing Address Book(P. 440)

Initializing All Data/Settings(P. 440)

Initializing Menu

You can restore the settings of the machine ( Setting Menu List(P. 442) ). Depending on the settings selected, you

may need to restart the machine after initialization.

<Menu> <Management Settings> <Data Management> <Initialize Menu> Select the item you want to initialize <Yes> Restart the machine if necessary

● You can restore the settings only for <Network> in <Preferences>.

<Menu> <Preferences> <Network> <Initialize Network Settings> <Yes> Restart the machine

Initializing Key and Certificate

You can restore the settings of the key and certificate and the CA certificate. Note that all the keys and certificates and

CA certificates that you registered in the machine (except the preinstalled keys and CA certificates) will be deleted after initializing.

● After initializing, functions that require a key and certificate such as TLS encrypted communication and IKE of IPSec communication are not available. To use these functions, configure the settings for the key and certificate and activate the functions again.

<Menu> <Management Settings> <Data Management> <Initialize Key and

Certificate> <Yes>

439

Managing the Machine

Initializing Address Book

You can restore the settings of the Address Book. Note that all the information registered in the Address Book will be deleted after initializing.

<Menu> <Management Settings> <Data Management> <Initialize Address

Book> <Yes>

Initializing All Data/Settings

This enables restoration of all data and machine settings, including logs, to the factory default values. This prevents sensitive data from being leaked when replacing or disposing of the machine. When the initialization process finishes, the machine automatically restarts.

● Before initializing, make sure that there are no documents being processed or waiting to be processed.

These documents will be deleted when initialization is performed.

● To use the machine after initializing it, you need to configure all settings from the beginning.

<Menu> <Management Settings> <Initialize All Data/Settings> <Yes> <Yes>

LINKS

Configuring the Key and Certificate for TLS(P. 380)

Registering Destinations(P. 182)

Registering Destinations from Remote UI(P. 430)

440

Setting Menu List

Setting Menu List

Setting Menu List

........................................................................................................................................... 442

<Preferences>

.................................................................................................................................................... 443

<Display Settings>

........................................................................................................................................ 444

<English Keyboard Layout>

.......................................................................................................................... 448

<Timer/Energy Settings>

.............................................................................................................................. 449

<Network>

.................................................................................................................................................... 453

<External Interface>

..................................................................................................................................... 467

<Accessibility>

.............................................................................................................................................. 468

<Adjustment/Maintenance>

............................................................................................................................. 469

<Adjust Image Quality>

................................................................................................................................ 470

<Maintenance>

............................................................................................................................................. 484

<Function Settings>

.......................................................................................................................................... 485

<Common>

................................................................................................................................................... 486

<Copy>

......................................................................................................................................................... 491

<Printer>

...................................................................................................................................................... 493

<Send>

......................................................................................................................................................... 536

<Receive/Forward>

....................................................................................................................................... 547

<Store/Access Files>

..................................................................................................................................... 553

<Secure Print>

.............................................................................................................................................. 561

<Set Destination>

.............................................................................................................................................. 562

<Management Settings>

................................................................................................................................... 563

<User Management>

.................................................................................................................................... 564

<Device Management>

................................................................................................................................. 565

<License/Other>/<Remote UI Settings/Update Firmware>

........................................................................... 568

<Data Management>

.................................................................................................................................... 570

<Security Settings>

....................................................................................................................................... 572

441

Setting Menu List

Setting Menu List

1647-09F

You can customize the machine based on your environment and needs by configuring settings described in this

chapter. To start configuration, select <Menu> on the Home screen ( Home Screen(P. 122) ). This section describes

what each item in the setting menu can configure.

Refer to the PDF file included in the User's Guide that summarizes the setting menu. Menu Route

Map(P. 736)

<Preferences>(P. 443)

This section describes the display and network settings.

<Adjustment/Maintenance>(P. 469) This section describes how to adjust print image quality and the cleaning functions of the

machine.

<Function Settings>(P. 485)

<Set Destination>(P. 562)

<Management Settings>(P. 563)

This section describes the settings for the individual functions.

This section describes the Address Book settings.

This section describes the user and hardware information management, security settings, etc.

You can print the setting menu in list form to check the current settings: Printing Lists of Settings(P. 608)

442

Setting Menu List

<Preferences>

1647-09H

Item

<Display Settings>(P. 444)

Description

This section describes the settings related to viewing of the display.

<English Keyboard Layout>(P. 448) This section describes the USB keyboard settings.

<Timer/Energy Settings>(P. 449)

This section describes the timer settings and energy settings.

<Network>(P. 453)

<External Interface>(P. 467)

<Accessibility>(P. 468)

This section describes the network settings.

This section describes the USB settings and other relevant settings.

This section describes settings for improving accessibility, such as inverting the screen colors and message display time.

443

Setting Menu List

<Display Settings>

1647-09J

All the settings related to viewing of the display are listed with descriptions. Default settings are marked with a dagger

( ).

<Default Screen After Startup/Restoration>(P. 444)

<Home Screen Button Display Settings>(P. 444)

<Language>(P. 445)

<Remote UI Language>(P. 445)

<Notify to Clean Original Scanning Area>(P. 446)

<Millimeter/Inch Entry Switch>(P. 446)

<Gram/Pound Switch>(P. 446)

<Display Timing for Cart. Prep.>(P. 446)

Asterisks (

*

)

● Settings marked with "

*1

" may not be displayed depending on the model you are using, options, or other setting items.

● Settings marked with "

*2

" cannot be imported or exported.

● Settings marked with "

*3

" may be unavailable or vary or have different defaults depending on your country or region.

<Default Screen After Startup/Restoration>

By default, the Home screen is displayed immediately after the machine is turned ON or when the Auto Reset function is performed. Specify the setting to change the default screen and display the main screen of a different function.

<Home>

<Copy>

<Fax>

*1

<Scan>

<Secure Print>

<Status Monitor>

<Menu> <Preferences> <Display Settings> <Default Screen After Startup/

Restoration> Select a function to display the desired screen

<Home Screen Button Display Settings>

*2

Configure the settings for the buttons displayed in the Home screen. You can select the settings that will be displayed

as shortcut buttons, rearrange the order in which the buttons appear, and insert or remove spaces. Customizing

the Home Screen(P. 171)

<Select Button to Display>

444

Setting Menu List

<Favorite Copy Settings>

<Favorite Fax Settings>

*1

<Favorite Scan Settings>

<Set Display Order>

<Language>

*3

Select the display language used for the display, reports, and lists.

<English>

<日本語>

<Français>

<Español>

<Deutsch>

<Italiano>

<Português>

<中文(简体)>

<中文(繁體)>

<한국어>

<Menu> <Preferences> <Display Settings> <Language> Select a language <Yes>

<Remote UI Language>

*3

Select the display language used for the Remote UI screens.

<English>

<Japanese>

<French>

<Spanish>

<German>

<Italian>

<Portuguese>

<Chinese (Simplified)>

<Chinese (Traditional)>

<Korean>

<Menu> <Preferences> <Display Settings> <Remote UI Language> Select a language

445

Setting Menu List

<Notify to Clean Original Scanning Area>

Specify whether to display a message when stains are detected in the document feed scanning area.

<Off>

<On>

<Menu> <Preferences> <Display Settings> <Notify to Clean Original Scanning Area> Select

<Off> or <On>

<Millimeter/Inch Entry Switch>

*3

Select the unit of measurement.

<Millimeter>

<Inch>

<Menu> <Preferences> <Display Settings> <Millimeter/Inch Entry Switch> Select

<Millimeter> or <Inch>

<Gram/Pound Switch>

Select the unit of measurement for the basis weight. This setting is available when <Select Country/Region> is set to

<United States (US)>.

<Gram>

<Pound>

<Menu> <Preferences> <Display Settings> <Gram/Pound Switch> Select <Gram> or

<Pound>

<Display Timing for Cart. Prep.>

Set the display timing for the message notifying you that the amount remaining in the toner cartridges is low.

<Auto>

<Off>

<Custom>

446

Setting Menu List

<On>

<Menu> <Preferences> <Display Settings> <Display Timing for Cart. Prep.> Select <Off> in

<Auto> Enter toner level in <Custom> <Apply>

447

Setting Menu List

<English Keyboard Layout>

1647-09K

Specify the layout of an USB keyboard if connected to the machine. The factory default settings differ depending on the country or region where the machine was purchased.

<USA Layout>

<UK Layout>

<Menu> <Preferences> <English Keyboard Layout> Select <USA Layout> or <UK Layout>

448

Setting Menu List

<Timer/Energy Settings>

1647-09L

All the settings related to the timer and energy are listed with descriptions. Default settings are marked with a dagger

( ).

<Current Date/Time Settings>(P. 449)

<Date/Time Settings>(P. 449)

<Date Format>(P. 450)

<Time Format>(P. 450)

<Auto Reset Time>(P. 451)

<Function After Auto Reset>(P. 451)

<Auto Sleep Time>(P. 452)

<Auto Sleep Daily Timer>(P. 452)

<Sleep Mode Exit Time Settings>(P. 452)

Asterisks (

*

)

● Settings marked with "

*1

" cannot be imported or exported.

● Settings marked with "

*2

" may be unavailable or vary or have different defaults depending on your country or region.

<Current Date/Time Settings>

*1

Set the current date and time. Setting the Date/Time(P. 11)

● Set <Time Zone> before setting the current date and time. If the <Time Zone> setting is changed, the current date and time are also changed accordingly.

● The current date and time cannot be changed for 1 hour after daylight saving time is in effect.

<Date/Time Settings>

Specify the date and time standard of the region in which the machine is to be installed.

449

Setting Menu List

<Time Zone>

*2

Select the time zone. If the time zone setting is changed, the values set in <Current Date/Time Settings> are also

changed accordingly. Setting the Date/Time(P. 11)

<(UTC-12:00) International Date Line West> to <(UTC-05:00) Eastern Time (US & Canada)> to <(UTC

+14:00) Kiritimati Island>

UTC

● Coordinated Universal Time (UTC) is the primary time standard by which the world regulates clocks and time. The correct UTC time zone setting is required for Internet communications.

<Daylight Saving Time Settings>

Enable or disable daylight saving time. If daylight saving time is enabled, specify the dates from which and to which daylight saving time is in effect.

<Off>

<On>

Start: Month, Week, Day

End: Month, Week, Day

<Menu> <Preferences> <Timer/Energy Settings> <Date/Time Settings> <Daylight Saving

Time Settings> Select <On>, and specify the dates <Apply>

<Date Format>

*2

Select the date format (order of year, month, and day).

<YYYY MM/DD>

<MM/DD/YYYY>

<DD/MM YYYY>

<Menu> <Preferences> <Timer/Energy Settings> <Date Format> Select the date format

<Time Format>

Select the 12- or 24-hour clock display setting.

<12 Hour (AM/PM)>

450

Setting Menu List

<24 Hour>

<Menu> <Preferences> <Timer/Energy Settings> <Time Format> Select the display setting

<Auto Reset Time>

If a key is not pressed for a specified period of time, the screen and the settings are initialized to display the default screen (Auto Reset). Specify the interval at which the Auto Reset is performed. The Auto Reset is not performed in the following cases:

● The setting menu is displayed.

● The machine is processing data, such as when printing documents or sending or receiving faxes.

● An error message is displayed and the Error indicator is blinking (However, Auto Reset is performed when the error does not prevent the user from continuing to use a function.)

<Set This Function>

<Off>

<On>

<Set Time>

1 to 2 to 9 (min.)

<Menu> <Preferences> <Timer/Energy Settings> <Auto Reset Time> Select <On> in <Set

This Function> Enter the time in <Set Time> <Apply>

● The screen displayed after the Auto Reset is performed can be selected in <Function After Auto Reset>.

<Function After Auto Reset>

Select whether to return the display to the default screen after the Auto Reset is performed. If <Default Function> is

selected, the main screen of the function selected in <Default Screen After Startup/Restoration> is displayed (

<Default Screen After Startup/Restoration>(P. 444) ). If <Selected Function> is selected, the display returns to the

main screen of the function that was selected.

<Default Function>

<Selected Function>

451

Setting Menu List

<Menu> <Preferences> <Timer/Energy Settings> <Function After Auto Reset> Select

<Default Function> or <Selected Function>

<Auto Sleep Time>

If the machine has not been operated or has had no data to process for a specified period of time, the machine enters sleep mode to save energy consumption (Auto Sleep). Specify the period of time after which auto sleep is performed.

Auto Sleep is not performed when the setting menu is displayed. We recommend using the factory default settings to

save the most power. Entering Sleep Mode(P. 180)

5 to 240 (min.)

<Auto Sleep Daily Timer>

You can specify the time when the machine is automatically set to the sleep mode. Entering Sleep Mode(P. 180)

<Set This Function>

<Off>

<On>

(0:00 to 23:59)

<Sleep Mode Exit Time Settings>

Specify the time when the machine is recovered from the sleep mode. Entering Sleep Mode(P. 180)

<Set This Function>

<Off>

<On>

(0:00 to 23:59)

452

Setting Menu List

<Network>

1647-09R

All the settings related to the network are listed with descriptions. Default settings are marked with a dagger ( ).

<Select LAN>(P. 453)

<Wireless LAN Settings>(P. 453)

<Direct Connection Settings>(P. 455)

<TCP/IP Settings>(P. 456)

<SNMP Settings>(P. 461)

<Use Dedicated Port>(P. 462)

<Dedicated Port Authentication Method>(P. 463)

<Waiting Time for Connection at Startup>(P. 463)

<Ethernet Driver Settings>(P. 463)

<Use IEEE 802.1X>(P. 464)

<Firewall Settings>(P. 464)

<Google Cloud Print Settings>(P. 465)

<Device Settings Management>(P. 466)

<Monitoring Service>(P. 466)

<RMT-SW>(P. 466)

<Initialize Network Settings>(P. 466)

Asterisks (

*

)

● Settings marked with "

*1

" cannot be imported or exported.

● Settings marked with "

*2

" may not be displayed depending on the model you are using, options, or other setting items.

<Select LAN>

When switching the machine from Wireless LAN to Wired LAN, you need to specify the setting. Conversely, when switching the machine from Wired LAN to Wireless LAN, you do not need to specify this setting (You can switch using

the following <Wireless LAN Settings>). Selecting Wired LAN or Wireless LAN(P. 15)

<Wired LAN>

<Wireless LAN>

<Wireless LAN Settings>

Specify settings for connecting the machine to a wireless LAN. You can also view the current settings or specify the setting for saving power consumption.

<SSID Settings>

Select to configure a wireless connection by specifying information including an SSID or a network key by inputting manually from the operation panel.

453

Setting Menu List

<Select Access Point>

Wireless LAN routers that can access the machine are automatically located, so you can select from the list.

You must manually enter a network key, such as a WEP key or a PSK. Setting Up Connection by Selecting

a Wireless Router(P. 23)

<Enter Manually>

Select to configure a wireless connection by manually entering an SSID. By using this method, you can specify

authentication and encryption settings in detail. Setting Up Connection by Specifying Detailed

Settings(P. 26)

<Security Settings>

<None>

<WEP>

<Open System>

WEP Key 1 to 4

<Shared Key>

WEP Key 1 to 4

<WPA/WPA2-PSK>

<Auto>

<AES-CCMP>

<WPS Push Button Mode>

Select to automatically configure a wireless connection by using the button on a WPS wireless router. Setting

Up Connection Using WPS Push Button Mode(P. 19)

<WPS PIN Code Mode>

Select to configure a wireless connection by entering a PIN code for a WPS wireless router. Setting Up

Connection Using WPS PIN Code Mode(P. 21)

<Power Save Mode>

Select whether or not the machine enters Power Save Mode based on signals emitted from the wireless router.

<Off>

<On>

<Menu> <Preferences> <Network> <Wireless LAN Settings> Read the displayed message <OK> <Power Save Mode> Select <Off> or <On>

<Connection Information>

*1

Select to view the current wireless LAN settings. Viewing Network Settings(P. 37)

<MAC Address>

<Wireless LAN Status>

<Latest Error Information>

<Channel>

<SSID Settings>

<Security Settings>

<Power Save Mode>

454

Setting Menu List

<Direct Connection Settings>

Set whether to connect directly. By enabling this function, connecting directly with the machine is possible even in an

environment without an access point or wireless LAN router. Connecting Directly (Access Point Mode)(P. 328)

<Use Direct Connection>

<Off>

<On>

<Direct Connection Termination>

Specify the time to automatically disconnect after Direct Connection is established.

<Automatically Terminate Session>

<Off>

<On>

<Time Until Session Terminates>

1 to 60 (min.)

<Menu> <Preferences> <Network> <Direct Connection Settings> <Direct Connection

Termination> Select <On> in <Automatically Terminate Session> and enter the time <Apply>

<Apply>

<Access Point Mode Settings>

Configure the SSID/network key arbitrarily. If you want to connect multiple mobile devices to the machine at the same time, you need to configure both SSID and network key arbitrarily.

<Use Custom SSID>

<Off>

<On>

<SSID>

<Use Custom Network Key>

<Off>

<On>

<Network Key>

<Menu> <Preferences> <Network> <Direct Connection Settings> <Access Point Mode

Settings> Select <On> for each item and select <SSID>/<Network Key> Enter the SSID/network key <Apply> <Apply> <Apply>

455

Setting Menu List

<TCP/IP Settings>

Specify settings for using the machine in a TCP/IP network, such as IP address settings.

<IPv4 Settings>

Specify settings for using the machine in an IPv4 network.

<IP Address Settings>

Configure the IP address, which is used for identifying devices, such as computers and printers, on a TCP/IP

network. Setting IPv4 Address(P. 31)

<Auto Acquire>

<Auto Acquire>

<Off>

<On>

<Select Protocol>

<Off>

<DHCP>

<Auto IP>

<Off>

<On>

<Manually Acquire>

*2

<IP Address>: 0.0.0.0

<Subnet Mask>: 0.0.0.0

<Gateway Address>: 0.0.0.0

<Check Settings>

<DHCP Option Settings>

If DHCP is enabled, use these settings to select whether to use the DHCP optional functions to acquire the

DNS server address or the domain name. Configuring DNS(P. 55)

<Acquire Host Name>

<Off>

<On>

<DNS Dynamic Update>

<Off>

<On>

<Acquire DNS Server Address>

<Off>

<On>

<Acquire Domain Name>

<Off>

<On>

<Acquire WINS Server Address>

<Off>

456

Setting Menu List

<On>

<Acquire SMTP Server Address>

<Off>

<On>

<Acquire POP Server Address>

<Off>

<On>

<PING Command>

Select to check that the machine is connected to a computer over a network. Testing the Network

Connection(P. 32)

<IPv6 Settings>

Specify settings for using the machine in an IPv6 network. Setting IPv6 Addresses(P. 34)

<Use IPv6>

<Off>

<On>

<Check IPv6 Settings>

You can check the link-local address that is automatically acquired.

<Stateless Address Settings>

Enable or disable stateless addresses.

<Stateless Address Settings>

<Off>

<On>

<Check Settings>

<Stateless Address>

<Prefix Length>

<DHCPv6 Settings>

Enable or disable the stateful address that is acquired via DHCPv6.

<Use DHCPv6>

<Off>

<On>

<Check Settings>

<Stateful Address>

<Prefix Length>

<DHCP Option Settings>

If DHCP is enabled, use these settings to select whether to use the DHCP optional functions to acquire the

DNS server address or the domain name. Configuring DNS(P. 55)

<Acquire DNS Server Address>

<Off>

<On>

457

Setting Menu List

<Acquire Domain Name>

<Off>

<On>

<DNS Settings>

Specify settings for Domain Name System (DNS), which provides a host name for IP address resolutions.

Configuring DNS(P. 55)

<IPv4 DNS Server Address Settings>

Specify the IP address of the DNS server in the IPv4 environment.

<Primary DNS Server>: 0.0.0.0

<Secondary DNS Server>: 0.0.0.0

<DNS Host/Domain Name Settings>

Specify the host name of the machine to be registered in the DNS server as well as the name of the domain to which the machine belongs.

<IPv4>

<Host Name>

<Domain Name>

<IPv6>

<Use IPv4 Host/Domain>

<Off>

<Host Name>

<Domain Name>

<On>

<DNS Dynamic Update Settings>

Select whether to dynamically update the DNS records whenever the machine's IP address is changed.

<IPv4>

<DNS Dynamic Update>

<Off>

<On>

<DNS Dynamic Update Interval>

0 to 24 to 48 (hr.)

<IPv6>

<DNS Dynamic Update>

<Off>

<On>

<Register Manual Address>

<Off>

<On>

<Register Stateful Address>

<Off>

<On>

<Register Stateless Address>

<Off>

458

Setting Menu List

<On>

<DNS Dynamic Update Interval>

0 to 24 to 48 (hr.)

<mDNS Settings>

Specify settings for using DNS functions without DNS servers.

<IPv4>

<Use mDNS>

<Off>

<On>

<mDNS Name>

<IPv6>

<Use mDNS>

<Off>

<On>

<Use Same mDNS Name as IPv4>

<Off>

<mDNS Name>

<On>

<WINS Settings>

Specify settings for Windows Internet Name Service (WINS), which provides a NetBIOS name for IP address

resolutions in a mixed network environment of NetBIOS and TCP/IP. Configuring WINS(P. 61)

<WINS Resolution>

<Off>

<On>

<WINS Server Address>: 0.0.0.0

<LPD Settings>

Enable or disable LPD, a printing protocol that can be used on any hardware platform or operating system. You can also set the reception timeout period after which printing is canceled if print data reception is interrupted.

Configuring Printing Protocols and WSD Functions(P. 40)

<Use LPD Printing>

<Off>

<On>

<RX Timeout>

1 to 5 to 60 (min.)

<RAW Settings>

Enable or disable RAW, a Windows specific printing protocol. You can also set the reception timeout period after

which printing is canceled if print data reception is interrupted. Configuring Printing Protocols and WSD

Functions(P. 40)

<Use RAW Printing>

<Off>

<On>

459

Setting Menu List

<RX Timeout>

1 to 5 to 60 (min.)

<WSD Settings>

Enable or disable automatic browsing and acquiring information for the printer or scanner by using the WSD

protocol. Configuring Printing Protocols and WSD Functions(P. 40)

<Use WSD Printing>

<Off>

<On>

<Use WSD Browsing>

<Off>

<On>

<Use WSD Scanning>

<Off>

<On>

<Use Computer Scanning>

<Off>

<On>

<Use Multicast Discovery>

<Off>

<On>

<Use FTP PASV Mode>

Specify whether to use PASV mode for FTP. If you are connecting to an FTP server through a firewall, you must

select PASV mode. Configuring FTP PASV Mode(P. 72)

<Off>

<On>

<Use HTTP>

Enable or disable HTTP, which is required for communications with a computer, such as when using the Remote

UI, WSD printing, or printing with Google Cloud Print. Disabling HTTP Communication(P. 414)

<Off>

<On>

<Use IPSec>

*1

Select whether to perform encrypted communication by establishing a virtual private network (VPN) via IPSec.

Configuring IPSec Settings(P. 391)

<Off>

<On>

<Menu> <Preferences> <Network> <TCP/IP Settings> <Use IPSec> Select <Off> or

<On> Restart the machine

460

Setting Menu List

<Port Number Settings>

Change port numbers for protocols according to the network environment. Changing Port Numbers(P. 377)

<LPD>

1 to 515 to 65535

<RAW>

1 to 9100 to 65535

<WSD Multicast Discovery>

1 to 3702 to 65535

<HTTP>

1 to 80 to 65535

<Multicast Discovery>

1 to 427 to 65535

<POP3>

1 to 110 to 65535

<SMTP>

1 to 25 to 65535

<FTP>

1 to 21 to 65535

<SNMP>

1 to 161 to 65535

<MTU Size>

Select the maximum size of packets the machine sends or receives. Changing the Maximum Transmission

Unit(P. 53)

<1300>

<1400>

<1500>

<SNMP Settings>

Specify the settings for monitoring and controlling the machine from a computer running SNMP-compatible software.

Monitoring and Controlling the Machine with SNMP(P. 68)

<SNMPv1 Settings>

Enable or disable SNMPv1. When enabling SNMPv1, specify a community name and access privileges to

Management Information Base (MIB) objects.

<Off>

<On>

461

Setting Menu List

<Menu> <Preferences> <Network> <SNMP Settings> Select <Off> or <On> in <SNMPv1

Settings> <Apply> Restart the machine

<SNMPv3 Settings>

Enable or disable SNMPv3. Use the Remote UI to specify detailed settings that are applied when SNMPv3 is enabled.

<Off>

<On>

<Menu> <Preferences> <Network> <SNMP Settings> Select <Off> or <On> in <SNMPv3

Settings> <Apply> Restart the machine

<Acquire Printer Mngt. Info. from Host>

Enable or disable the monitoring of printer management information from a networked computer running

SNMP-compatible software.

<Off>

<On>

<Menu> <Preferences> <Network> <SNMP Settings> Select <Off> or <On> in <Acquire

Printer Mngt. Info. from Host> <Apply> Restart the machine

<Format Host Rsrcs. MIB to RFC2790>

Specify whether to conform to the advanced specifications (RFC2790) of the protocol when monitoring the machine status from the SNMP-compatible software.

<Off>

<On>

<Menu> <Preferences> <Network> <SNMP Settings> Select <Off> or <On> in <Format

Host Rsrcs. MIB to RFC2790> <Apply> Restart the machine

<Use Dedicated Port>

Enable or disable the dedicated port. The dedicated port is used when printing, faxing, or scanning uses MF Scan

Utility and when browsing or specifying the machine settings over the network.

462

Setting Menu List

<Off>

<On>

<Menu> <Preferences> <Network> <Use Dedicated Port> Select <Off> or <On> Restart the machine

<Dedicated Port Authentication Method>

Specify whether to limit the authentication method specifically to the secure one when using the dedicated port. If

<Mode 2> is selected, the authentication method is limited specifically to the secure one.

<Mode 1>

<Mode 2>

<Menu> <Preferences> <Network> <Dedicated Port Auth. Method> Select <Mode 1> or

<Mode 2> Restart the machine

● If <Mode 2> is selected, you cannot establish a connection from the device management software or driver in some cases.

<Waiting Time for Connection at Startup>

Specify a wait time for connecting to a network. Select the setting depending on the network environment. Setting a

Wait Time for Connecting to a Network(P. 54)

0 to 300 (sec.)

<Ethernet Driver Settings>

Select the Ethernet type (10BASE-T/100BASE-TX/1000BASE-T) and the communication mode of Ethernet (half-duplex/ full-duplex). You can also view the MAC address for wired LAN.

<Auto Detect>

Select whether to automatically detect or manually select the communication mode and the Ethernet type.

Configuring Ethernet Settings(P. 51)

<Off>

<Communication Mode>

<Half Duplex>

<Full Duplex>

<Ethernet Type>

463

Setting Menu List

<10BASE-T>

<100BASE-TX>

<1000BASE-T>

<On>

● When <Communication Mode> is set to <Half Duplex>, you cannot select <1000BASE-T>.

<MAC Address>

Check the MAC address of the machine, which is a number unique to each communication device. Viewing

the MAC Address for Wired LAN(P. 37)

<Use IEEE 802.1X>

*1*2

Enable or disable IEEE 802.1X authentication. Configuring IEEE 802.1X Authentication Settings(P. 398)

<Off>

<On>

<Menu> <Preferences> <Network> <Use IEEE 802.1X> Select <Off> or <On> Restart the machine

<Firewall Settings>

Without proper security, unauthorized third parties can access computers and other communication devices that are connected to a network. To prevent this unauthorized access, specify the settings for packet filter, a feature that restricts communication to devices with specified IP addresses or MAC addresses.

<IPv4 Address Filter>

Enable or disable settings for filtering packets sent to or received from devices with specified IPv4 addresses.

Specifying IP Addresses for Firewall Settings(P. 371)

<Outbound Filter>

<Off>

<On>

<Inbound Filter>

<Off>

<On>

<Menu> <Preferences> <Network> <Firewall Settings> <IPv4 Address Filter> Select

<Off> or <On> in <Outbound Filter> or <Inbound Filter> <Apply> Restart the machine

464

Setting Menu List

<IPv6 Address Filter>

Enable or disable settings for filtering packets sent to or received from devices with specified IPv6 addresses.

Specifying IP Addresses for Firewall Settings(P. 371)

<Outbound Filter>

<Off>

<On>

<Inbound Filter>

<Off>

<On>

<Menu> <Preferences> <Network> <Firewall Settings> <IPv6 Address Filter> Select

<Off> or <On> in <Outbound Filter> or <Inbound Filter> <Apply> Restart the machine

<MAC Address Filter>

Enable or disable settings for filtering packets sent to or received from devices with specified MAC addresses.

Specifying MAC Addresses for Firewall Settings(P. 374)

<Outbound Filter>

<Off>

<On>

<Inbound Filter>

<Off>

<On>

<Menu> <Preferences> <Network> <Firewall Settings> <MAC Address Filter> Select

<Off> or <On> in <Outbound Filter> or <Inbound Filter> <Apply> Restart the machine

<Google Cloud Print Settings>

Enable or disable Google Cloud Print. Registering the Machine with Google Cloud Print(P. 346)

<Use Google Cloud Print>

<Off>

<On>

<Google Cloud Print Regist. Status>

*1

465

Setting Menu List

<Device Settings Management>

Specify whether to use imageWARE Enterprise Management Console plug-ins to manage machine data such as settings and Address Book destinations. For detailed information on imageWARE Enterprise Management Console,

contact your nearest Canon dealer. Configuring Settings for Communication between the Machine and Plug-

ins(P. 75)

<Off>

<On>

<Monitoring Service>

*1*2

Enable communication with a remote monitoring server. Execution of this item enables information about the machine to be periodically sent to the remote monitoring server connected to the machine.

<Menu> <Preferences> <Network> <Monitoring Service> <Yes>

<RMT-SW>

Leave this switch set to <Off>. When the service representative remotely performs device maintenance, you may be asked to set the switch to <On>.

<Off>

<On>

<Menu> <Preferences> <Network> <RMT-SW> Select <Off> or <On> Restart the machine

<Initialize Network Settings>

Select to return the Network Settings to the factory defaults. <Initialize Menu>(P. 571)

466

Setting Menu List

<External Interface>

All the settings related to the USB are listed with descriptions. Default settings are marked with a dagger ( ).

1647-09S

<USB Settings>

Specify whether to enable or disable use of the USB port or a USB memory device.

<Use as USB Device>

Enable or disable the USB port that is used for connecting the machine to a computer. Restricting the USB

Connection with a Computer(P. 412)

<Off>

<On>

<Use USB Storage Device>

Specify whether to use a USB memory device.

<Off>

<On>

<Menu> <Preferences> <External Interface> <USB Settings> Select <Off> or <On> in <Use

USB Storage Device> <Apply> Restart the machine

467

Setting Menu List

<Accessibility>

1647-09U

All the settings related to accessibility, such as inverting the screen colors and message display time, are listed with descriptions. Default settings are marked with a dagger ( ).

<Invert Screen Colors>(P. 468)

<Brightness>(P. 468)

<Message Display Time>(P. 468)

<Invert Screen Colors>

Select <On> to invert the display colors. Select <On> if the display is hard to view even after the brightness was adjusted in <Brightness>.

<Off>

<On>

<Menu> <Preferences> <Accessibility> <Invert Screen Colors> Select <Off> or <On>

<Brightness>

Adjust the brightness of the display to suit the installation location of the machine.

Five Levels

<Menu> <Preferences> <Accessibility> <Brightness> Adjust the brightness <Apply>

<Message Display Time>

Specify the interval in seconds at which two different messages are alternately displayed.

1 to 2 to 5 (sec.)

<Menu> <Preferences> <Accessibility> <Message Display Time> Enter a number for the interval <Apply>

468

Setting Menu List

<Adjustment/Maintenance>

Item Description

<Adjust Image Quality>(P. 470) This section describes how to adjust image quality for printing.

<Maintenance>(P. 484)

This section describes how to use the cleaning functions.

1647-09W

469

Setting Menu List

<Adjust Image Quality>

1647-09X

All the settings related to image quality adjustment are listed with descriptions. Default settings are marked with a dagger ( ).

<Auto Adjust Gradation>(P. 470)

<Auto Correction Settings>(P. 470)

<Correct Print Color Mismatch>(P. 471)

<Black Text Processing for Color>(P. 471)

<Adjust Print Position>(P. 471)

<Special Processing>(P. 472)

<Remove Streaks from Orig. Scanning Area>(P. 483)

Asterisks (

*

)

● Settings marked with an asterisk (

*

) may not be displayed depending on the model you are using, options, or other setting items.

<Auto Adjust Gradation>

Adjust the gradation, density, and color in copies or printouts. Adjusting Gradation(P. 594)

<Full Adjust>

<Quick Adjust>

<Adjust Copy Image>

<Auto Correction Settings>

Select whether to automatically perform a quick gradation adjustment or color shift correction after the machine is turned ON.

<Auto Adjust Image Regularly>

Select when to make an automatic quick gradation adjustment. If <When Turning Main Power ON> is selected, quick adjustment is automatically made after the machine is turned ON. You can also perform this adjustment

manually ( Quick Adjust(P. 596) ).

<Off>

<When Turning Main Power ON>

<Menu> <Adjustment/Maintenance> <Adjust Image Quality> <Auto Correction

Settings> <Auto Adjust Image Regularly> Select <Off> or <When Turning Main Power

ON>

470

Setting Menu List

<Correct Print Color Mismatch>

Select the timing at which the Correct Print Color Mismatch function is to be performed automatically after the

machine is turned ON. You can also perform this adjustment manually ( Correcting "Print Color

Mismatch"(P. 599) ).

<After Printing First Job>

<When Turning Main Power ON>

<Menu> <Adjustment/Maintenance> <Adjust Image Quality> <Auto Correction

Settings> <Correct Print Color Mismatch> Select <After Printing First Job> or <When Turning

Main Power ON>

<Correct Print Color Mismatch>

Use this function if color shift has blurred the image. Correcting "Print Color Mismatch"(P. 599)

<Black Text Processing for Color>

Adjust the threshold value to determine whether to print black text in color originals by using only black toner or by

using a mixture of black and color toners. You can set values for the feeder and the platen glass separately.

Adjusting Values for Text Color Reproducibility in Color Documents(P. 600)

<Feeder>

Seven Levels

<Platen Glass>

Seven Levels

<Adjust Print Position>

Adjust the print position for each paper source. The print position can be adjusted in the range from -0.20" to +0.20"

(-5.0 to +5.0 mm) in increments of 0.01" (0.1 mm). Adjusting Print Position(P. 602)

<Multi-Purpose Tray>

<Adjust Vertically (Front Side)>

-0.20" to 0.00" to + 0.20" (-5.0 to 0.0 to + 5.0 (mm))

<Adjust Horizontally (Front Side)>

-0.20" to 0.00" to + 0.20" (-5.0 to 0.0 to + 5.0 (mm))

<Adjust Vertically (Back Side)>

-0.20" to 0.00" to + 0.20" (-5.0 to 0.0 to + 5.0 (mm))

<Adjust Horizontally (Back Side)>

-0.20" to 0.00" to + 0.20" (-5.0 to 0.0 to + 5.0 (mm))

<Drawer 1>

<Adjust Vertically (Front Side)>

-0.20" to 0.00" to + 0.20" (-5.0 to 0.0 to + 5.0 (mm))

471

Setting Menu List

<Adjust Horizontally (Front Side)>

-0.20" to 0.00" to + 0.20" (-5.0 to 0.0 to + 5.0 (mm))

<Adjust Vertically (Back Side)>

-0.20" to 0.00" to + 0.20" (-5.0 to 0.0 to + 5.0 (mm))

<Adjust Horizontally (Back Side)>

-0.20" to 0.00" to + 0.20" (-5.0 to 0.0 to + 5.0 (mm))

<Drawer 2>

*

<Adjust Vertically (Front Side)>

-0.20" to 0.00" to + 0.20" (-5.0 to 0.0 to + 5.0 (mm))

<Adjust Horizontally (Front Side)>

-0.20" to 0.00" to + 0.20" (-5.0 to 0.0 to + 5.0 (mm))

<Adjust Vertically (Back Side)>

-0.20" to 0.00" to + 0.20" (-5.0 to 0.0 to + 5.0 (mm))

<Adjust Horizontally (Back Side)>

-0.20" to 0.00" to + 0.20" (-5.0 to 0.0 to + 5.0 (mm))

<Special Processing>

If the print results on special types of paper are not satisfactory, the following settings may improve the quality of the printouts.

<Special Paper Processing>

When printing on the back side of printed paper, rough paper, or envelopes, the print results may be improved by adjusting the following settings.

<Manual Back Side Print (2-Sided Only)>

If printouts on the back side of printed paper are too light, select <On>. You can specify this setting separately for each paper source.

<Multi-Purpose Tray>

<Off>

<On>

<Drawer 1>

<Off>

<On>

<Drawer 2>

*

<Off>

<On>

<Menu> <Adjustment/Maintenance> <Adjust Image Quality> <Special

Processing> <Special Paper Processing> <Manual Back Side Print (2-Sided Only)> Select

<On> in the paper source to be set <Apply> <Yes>

472

Setting Menu List

● If you set to <On>, image quality may be affected or a paper jam may occur when a certain length of time elapses after printing on the front side or depending on the ambient humidity.

<Rough Surface Paper Mode>

When printing on rough paper, especially when color images are printed too light, select <On>. You can specify the settings separately for each paper source.

<Multi-Purpose Tray>

<Off>

<On>

<Drawer 1>

<Off>

<On>

<Drawer 2>

*

<Off>

<On>

<Menu> <Adjustment/Maintenance> <Adjust Image Quality> <Special

Processing> <Special Paper Processing> <Rough Surface Paper Mode> Select <On> in the paper source to be set <Apply> <Yes>

● If you set to <On>, the printing speed may be slower or image quality may be affected.

<Env. Flap Closing Prevention>

If envelope flaps cling to the envelope bodies when printing, select <On>.

<Off>

<On>

<Menu> <Adjustment/Maintenance> <Adjust Image Quality> <Special

Processing> <Special Paper Processing> <Env. Flap Closing Prevention> <On> <Yes>

● If you set to <On>, toner may not be fixed sufficiently, resulting in faded printouts.

<Paper Wrinkle Correction>

Printouts may wrinkle depending on the paper to use. In this case, setting this item may solve the problem.

The improvement effect is stronger with <Mode 2> than with <Mode 1>.

<Off>

<Mode 1>

<Mode 2>

473

Setting Menu List

<Menu> <Adjustment/Maintenance> <Adjust Image Quality> <Special

Processing> <Special Paper Processing> <Paper Wrinkle Correction> Select the mode <Yes>

MF735Cdw / MF733Cdw / MF731Cdw

● This setting is effective for plain paper and thin paper.

● Setting a greater improvement effect may result in faded printouts or slower printing speed.

MF634Cdw / MF632Cdw

● <Mode 1> is effective for envelopes, and <Mode 2>, for envelopes and thin paper.

● When <Mode 1> or <Mode 2> is specified, printed images may be blurry.

<Paper Curl Correction>

If the printed paper curls, set this item. The improvement effect is stronger with <Mode 2> than with <Mode

1>. First try with <Mode 1>.

<Off>

<Mode 1>

<Mode 2>

<Menu> <Adjustment/Maintenance> <Adjust Image Quality> <Special

Processing> <Special Paper Processing> <Paper Curl Correction> Select the mode <Yes>

● Setting a greater improvement effect may result in faded printouts or slower printing speed.

<Reduce Ppr. Sticking at Output>

When performing 2-sided printing in color, paper may stick together at the output. Setting to <On> will slow down the printing speed of prints that may easily stick together, to reduce sticking.

MF735Cdw / MF733Cdw / MF731Cdw

<Off>

<On>

MF634Cdw / MF632Cdw

<Off>

<On>

474

Setting Menu List

<Menu> <Adjustment/Maintenance> <Adjust Image Quality> <Special

Processing> <Reduce Ppr. Sticking at Output> <On> <Yes>

<High Humidity Mode>

Print density may be uneven when the machine is used in an environment with high humidity. In this case, setting this item to <On> may solve the problem.

<Off>

<On>

<Menu> <Adjustment/Maintenance> <Adjust Image Quality> <Special Processing> <High

Humidity Mode> <On> <Yes>

● If you set to <On> and use the machine in an environment with low humidity, printed images and text may be blurry.

<Low Humidity Mode>

When using the machine in an environment with low humidity, printed images and text may be blurry. In this case, setting this item to <On> may solve the problem.

<Off>

<On>

<Menu> <Adjustment/Maintenance> <Adjust Image Quality> <Special Processing> <Low

Humidity Mode> <On> <Yes>

● If you set to <On>, print density may be lower or uneven when the machine is used in an environment with high humidity.

<Reduce Ghosting 1>

*

If the printout reveals a ghost of an image in the same page, setting this item to <On> may solve the problem.

<Off>

<On>

475

Setting Menu List

<Menu> <Adjustment/Maintenance> <Adjust Image Quality> <Special

Processing> <Reduce Ghosting 1> <On> <Yes>

● If you set to <On>, toner may not be fixed sufficiently, resulting in faded printouts.

<Reduce Ghosting 2>

If continuous printing involves generation of ghost images, setting this item to <On> may solve the problem.

<Off>

<On>

<Menu> <Adjustment/Maintenance> <Adjust Image Quality> <Special

Processing> <Reduce Ghosting 2> <On> <Yes>

● If you set to <On>, print density may be uneven.

<Regularly Clean Fix. Assembly>

*

If the fixing assembly is dirty, edges of the paper may get smudged. In this case, changing the setting of this item may solve the problem. The higher level you specify, the higher frequency of regular cleaning is performed.

<Auto>

<Level 1>

<Level 2>

<Level 3>

<Menu> <Adjustment/Maintenance> <Adjust Image Quality> <Special

Processing> <Regularly Clean Fix. Assembly> Select the level <Yes>

● If a higher level is specified, the printing speed may be slower.

476

Setting Menu List

<Rdc. Condens. (1-Sd->2-Sd Prt)>

*

When performing 2-sided printing after 1-sided printing, the printed images may be faint due to moisture condensation. In this case, setting to <On> may solve the problem.

<Off>

<On>

<Menu> <Adjustment/Maintenance> <Adjust Image Quality> <Special Processing> <Rdc.

Condens. (1-Sd->2-Sd Prt)> <On> <Yes>

● If you set to <On>, the printing speed may be slower.

<Rdc Condens. (Consec 2-Sd Prt)>

If the printed images are faint due to moisture condensation when performing 2-sided printing, setting to other than <Off> may solve the problem.

MF735Cdw / MF733Cdw / MF731Cdw

<Off>

<Mode 1>

<Mode 2>

MF634Cdw / MF632Cdw

<Off>

<On>

<Menu> <Adjustment/Maintenance> <Adjust Image Quality> <Special Processing> <Rdc

Condens. (Consec 2-Sd Prt)> Select the item <Yes>

● For MF735Cdw / MF733Cdw / MF731Cdw, the improvement effect is stronger with <Mode 2> than

<Mode 1>.

● If you set to other than <Off>, the print may be faded or the printing speed may be slower.

<Correct Uneven Gloss>

*

When gloss unevenness occurs in the leading edge of paper, setting to <On> may solve the problem.

<Off>

<On>

477

Setting Menu List

<Menu> <Adjustment/Maintenance> <Adjust Image Quality> <Special

Processing> <Correct Uneven Gloss> <On> <Yes>

● If you set to <On>, toner may not be fixed sufficiently, resulting in faded printouts.

<Corr. Void on Paper Back Side>

*

When performing 2-sided printing on thin paper, void may occur on the back side of paper in the leading edge.

In this case, setting this item to <On> may solve the problem.

<Off>

<On>

<Menu> <Adjustment/Maintenance> <Adjust Image Quality> <Special Processing> <Corr.

Void on Paper Back Side> <On> <Yes>

● If you set to <On>, print quality may be affected.

<Correct Void>

*

If printing on thin paper produces void in the leading edge of the paper, setting this item to <On> may solve the problem.

<Off>

<On>

<Menu> <Adjustment/Maintenance> <Adjust Image Quality> <Special Processing>

<Correct Void> <On> <Yes>

● If you set to <On>, printouts may be faded.

<Drop Pattern Reduction Mode>

If print density is uneven in a way that the print looks like a water drops pattern, setting this item to <On> may solve the problem.

<Off>

478

Setting Menu List

<On>

<Menu> <Adjustment/Maintenance> <Adjust Image Quality> <Special Processing> <Drop

Pattern Reduction Mode> <On> <Yes>

● If you set to <On>, print quality may be affected.

<Correct Image Corrupted by Ppr Dust>

*

Using paper containing much paper dust may result in a faded or streaky printout. In this case, setting this item to <On> may solve the problem.

<Off>

<On>

<Menu> <Adjustment/Maintenance> <Adjust Image Quality> <Special

Processing> <Correct Image Corrupted by Ppr Dust> <On> <Yes>

● If you set to <On>, the printing speed may be slower.

<Correct Blurry Image>

*

When performing 2-sided printing, the image may be blurry on the back side of paper in the trailing edge. In this case, setting this item to <On> may solve the problem.

<Off>

<On>

<Menu> <Adjustment/Maintenance> <Adjust Image Quality> <Special

Processing> <Correct Blurry Image> <On> <Yes>

● If you set to <On>, the printing speed may be slower.

<Prevent Fogging>

If white areas are lightly colored, setting this item to <On> may solve the problem.

479

Setting Menu List

<Off>

<On>

<Menu> <Adjustment/Maintenance> <Adjust Image Quality> <Special

Processing> <Prevent Fogging> <On> <Yes>

● If you set to <On>, print density may be lighter.

<Correct Color Mismatch>

*

If color mismatch occurs, setting to <On> may solve the problem.

<Off>

<On>

<Menu> <Adjustment/Maintenance> <Adjust Image Quality> <Special

Processing> <Correct Color Mismatch> <On> <Yes>

● If you set to <On>, the printing speed may be slower.

<Reduce Drum Streak>

If streaks appear on printouts, setting to <On> may solve the problem.

<Off>

<On>

<Menu> <Adjustment/Maintenance> <Adjust Image Quality> <Special

Processing> <Reduce Drum Streak> <On>

<Reduce Toner Flaking>

*

Toner may peel off the printed page depending on the paper type or the environmental conditions. In this case, setting this item may solve the problem. The improvement effect is stronger with <Mode 2> than <Mode 1>.

First try with <Mode 1>.

<Off>

<Mode 1>

<Mode 2>

480

Setting Menu List

<Menu> <Adjustment/Maintenance> <Adjust Image Quality> <Special

Processing> <Reduce Toner Flaking> Select the mode <Yes>

● Setting a greater improvement effect may result in curled printouts or slower printing speed.

<Fix. Roller Contam. Reduction>

*

When toner stain (spotted stain) appears on the printed paper, the problem may not be solved even if you cleaning the fixing assembly. In this case, setting this item to <On> may solve the problem.

<Off>

<On>

<Menu> <Adjustment/Maintenance> <Adjust Image Quality> <Special Processing> <Fix.

Roller Contam. Reduction> <On> <Yes>

● If you set to <On>, the printing speed may be slower.

<Reduce Toner Fixing Stain 2>

*

When the machine is used in an environment with high humidity, faded or curled printouts may be output. In this case, changing the setting of this item may solve the problem.

<Auto>

<Mode 1>

<Mode 2>

<Menu> <Adjustment/Maintenance> <Adjust Image Quality> <Special

Processing> <Reduce Toner Fixing Stain 2> Select the item <Yes>

<Auto>

Automatically adjusts toner fixing.

481

<Mode 1>

If printouts are curled, set to this option.

<Mode 2>

If printouts are faded, set to this option.

Setting Menu List

● If you set to <Mode 1>, printouts may be faded.

● If you set to <Mode 2>, printouts may be curled.

<Auto Detect B&W/Color Original>

When black and white print data is mixed with color data, specify whether to prioritize the print speed or to reduce the toner usage of the cyan, magenta, and yellow toner cartridges when printing data.

<Mode 1>

<Mode 2>

<Menu> <Adjustment/Maintenance> <Adjust Image Quality> <Special Processing> <Auto

Detect B&W/Color Orig.> Select the mode <Yes>

<Mode 1>

Prioritizes the print speed when printing.

<Mode 2>

Reduces the toner usage of toner cartridges when printing.

<Rdc. Faint Print After Rplc. Cart.>

Printouts may be faded immediately after replacement of toner cartridges with new ones. In this case, setting this item to <On> may solve the problem.

<Off>

<On>

<Menu> <Adjustment/Maintenance> <Adjust Image Quality> <Special Processing> <Rdc.

Faint Print After Rplc. Cart.> <On> <Yes>

482

Setting Menu List

● If you set to <On>, the setting will become effective with next replacement of toner cartridges.

● Immediately after cartridge replacement, a certain amount of time is required for toner to be evenly distributed inside the cartridge.

<Remove Streaks from Orig. Scanning Area>

You can configure a setting to prevent stains from being scanned when they are detected in the document feed scanning area. Selecting <On> removes streaks generated by the edge of the original.

<Off>

<On>

<Menu> <Adjustment/Maintenance> <Adjust Image Quality> <Remove Streaks from Scan

Area> Select <Off> or <On>

● When streaks are removed, areas with stains are not scanned. Clean the original scanning area so that the original is scanned satisfactorily.

483

Setting Menu List

<Maintenance>

1647-0A0

The cleaning functions are listed with descriptions. Default settings are marked with a dagger ( ).

<Clean Fixing Assembly>(P. 484)

<Clean ITB>(P. 484)

<Clean Feeder>(P. 484)

<Control Condensation>(P. 484)

<Clean Fixing Assembly>

Clean the fixing assembly after a toner cartridge is replaced or if black streaks appear on printouts. Cleaning the

Fixing Assembly(P. 583)

<Clean ITB>

Clean the transfer belt inside the machine to prevent the print quality from deteriorating. Cleaning the Transfer

Belt (ITB)(P. 584)

<Clean Feeder>

Clean the feeder rollers if originals become dirty after being fed through the feeder. Cleaning the Feeder(P. 580)

<Control Condensation>

When the temperature changes rapidly in the environment where the machine is installed, condensation occurs, which may cause fading or bleeding in images and text. Select <On> to remove dew condensation in the machine. When selecting <On>, specify whether to restrict jobs.

<Off>

<On>

<Use Fax Memory Lock> /<Allow Job Printing During Process>

<Use Fax Memory Lock + Do Not Allow Job Printing During Process>/<Do Not Allow Job Printing During

Process>

<Menu> <Adjustment/Maintenance> <Maintenance> <Control Condensation> <On>

Check the message <OK> Select the item <Yes>

● While condensation removal is being performed, printing may not be performed properly and blank paper may be output.

● If you set to <On>, you need to keep the machine turned ON to maintain the effect of condensation removal.

484

Setting Menu List

<Function Settings>

Item

<Common>(P. 486)

<Copy>(P. 491)

<Printer>(P. 493)

Description

This section describes settings common to each function.

This section describes how to specify the copy settings.

This section describes how to specify printer settings.

<Send>(P. 536)

This section describes how to specify settings for sending faxes and scanned originals.

<Receive/Forward>(P. 547) This section describes how to specify settings for receiving faxes and e-mails.

<Store/Access Files>(P. 553) This section describes the settings for scanning originals and printing stored files.

<Secure Print>(P. 561)

This section describes the settings for the Secure Print.

1647-0A1

485

Setting Menu List

<Common>

1647-0A2

All the items related to settings common to each function are listed with descriptions. Default settings are marked with a dagger ( ).

<Paper Feed Settings>(P. 486)

<Scan Settings>(P. 488)

<Generate File>(P. 489)

<Fax Setup Guide>(P. 490)

Asterisks (

*

)

● Settings marked with "

*1

" may not be displayed depending on the model you are using, options, or other setting items.

● Settings marked with "

*2

" cannot be imported or exported.

<Paper Feed Settings>

Configure paper feed settings.

<Paper Source Auto Selection>

Enable or disable the automatic drawer selection feature for the paper sources. If automatic drawer selection is set to <On> when printing documents, the machine automatically selects a paper source that is loaded with the appropriate paper size. Also, when the paper runs out, this setting enables continuous printing by switching

from one paper source to another that is loaded with the same paper size. Automatically Selecting an

Appropriate Paper Source for Each Function(P. 169)

<Copy>

<Multi-Purpose Tray>

<Off>

<On>

<Drawer 1>

<Off>

<On>

<Drawer 2>

*1

<Off>

<On>

<Printer>

<Multi-Purpose Tray>

<Off>

<On>

<Drawer 1>

<Off>

<On>

<Drawer 2>

*1

<Off>

486

Setting Menu List

<On>

<Receive/Fax >/<Receive>

<Multi-Purpose Tray>

<Off>

<On>

<Drawer 1>

<Off>

<On>

<Drawer 2>

*1

<Off>

<On>

<Other>

<Multi-Purpose Tray>

<Off>

<On>

<Drawer 1>

<Off>

<On>

<Drawer 2>

*1

<Off>

<On>

<Switch Paper Feed Method>

Specify this setting when you print a document on paper with logos. In general use, to print on paper with logos, you need to change how the paper loaded in the paper source is facing depending on whether you are performing 1- or 2-sided printing. However, if you change the setting to <Print Side Priority>, you can just load the paper with the logo side facing down for 1-sided printing in the same way as for 2-sided printing. For more

information, see Loading Preprinted Paper(P. 157) .

<Multi-Purpose Tray>

<Speed Priority>

<Print Side Priority>

<Drawer 1>

<Speed Priority>

<Print Side Priority>

<Drawer 2>

*1

<Speed Priority>

<Print Side Priority>

<Menu> <Function Settings> <Common> <Paper Feed Settings> <Switch Paper Feed

Method> Select the paper source Select <Speed Priority> or <Print Side Priority>

487

Setting Menu List

Paper Sources

Select the paper source that you want to change the setting for.

<Speed Priority>

When using paper that has been preprinted with a logo, you need to change how it is facing when you perform 1-sided and 2-sided printing.

● We recommend selecting <Speed Priority> if you do not need to consider which side to print on.

<Print Side Priority>

To print on a specific side of paper, you do not need to flip over paper in the paper source whether 1- or 2sided printing is selected.

● If <Print Side Priority> is set for a paper source that is loaded with paper you cannot use for 2-sided printing

( Available Paper(P. 701) ), <Speed Priority> is applied to the paper source instead. In this case, you need

to load the paper in the same way as when <Speed Priority> is selected ( Loading Preprinted

Paper(P. 157) ).

● 1-sided printing speed may be slower when <Print Side Priority> is selected.

<Scan Settings>

Configure scan settings.

<Auto Online>

When scanning from the computer, use this to specify whether to automatically go online for remote scanning

(scan standby mode) without using the operation panel.

<Off>

<On>

<Menu> <Function Settings> <Common> <Scan Settings> <Auto Online> Select <Off> or

<On>

488

Setting Menu List

<Auto Offline>

If scan is not performed within a specified period of time after the screen below is displayed (the machine is set online for scanning), the machine automatically becomes offline. Specify the time period at which the machine becomes offline.

<Set This Function>

<Off>

<On>

<Set Time>

1 to 5 to 60 (min.)

<Menu> <Function Settings> <Common> <Scan Settings> <Auto Offline> Select <On> in

<Set This Function> Enter the time in <Set Time> <Apply>

<Generate File>

Configure file generation settings.

<Output File Image Settings>

Specify settings for the gamma value for converting scanned originals into files.

<YCbCr TX Gamma Value>

Select the gamma value used when converting scanned color originals into the specified file format. You can specify the same gamma value as that of the monitor which is to be used for viewing the converted files. The files are displayed with brightness that is true to the original documents.

<Gamma 1.0>

<Gamma 1.4>

<Gamma 1.8>

<Gamma 2.2>

<Menu> <Function Settings> <Common> <Generate File> <Output File Image Settings>

<YCbCr TX Gamma Value> Select the gamma value

● For the gamma value of a monitor display, see the instruction manual included with the display.

489

Setting Menu List

<OCR (Text Searchable) Settings>

To run OCR (Optical Character Recognition) on a text original to create a "searchable PDF," specify whether the machine determines the original's text direction and detects the original direction.

<Smart Scan>

<Off>

<On>

<Menu> <Function Settings> <Common> <Generate File> <OCR (Text Searchable)

Settings> Select <Off> or <On> in <Smart Scan> <Apply>

<256-bit AES Set. (Encrypt. PDF)>

*1

When generating an encrypted PDF, the PDF encryption level can be set to "128-bit" or "256-bit." If "256-bit" is selected, the version compatible with Acrobat can be changed.

<Acrobat 9.0 or Equivalent>

<Acrobat 10.0 or Equivalent>

<Menu> <Function Settings> <Common> <Generate File> <256-bit AES Set. (Encrypt.

PDF)> Select <Acrobat 9.0 or Equivalent> or <Acrobat 10.0 or Equivalent>

<Fax Setup Guide>

*1*2

Select to display on-screen instructions for specifying settings, including the fax number and the RX mode.

Configuring Initial Settings for Fax Functions(P. 78)

490

Setting Menu List

<Copy>

All the settings related to the copy are listed with descriptions. Default settings are marked with a dagger ( ).

1647-0A3

Asterisks (

*

)

● Settings marked with an asterisk (

*

) may not be displayed depending on the model you are using, options, or other setting items.

<Change Default Settings (Copy)>

You can change the default settings about copy. The selected settings are used as the default settings of the copy

function. Changing the Default Settings for Functions(P. 176)

<Number of Copies>

1 to 999

<Paper Source>

<Multi-Purpose Tray>

<Drawer 1>

<Drawer 2>

*

<Auto Select Paper (LTR/LGL)>

<Density>

Nine Levels

<Background Density>

<Auto>

<Adjust (Manual)>

Nine Levels

<Density by Color>

<Red>: Nine Levels

<Green>: Nine Levels

<Blue>: Nine Levels

<Copy Ratio>

Custom Ratio

<100% Direct>

<400% Max>

<200%>

<129% STMT->LTR>

<78% LGL->LTR>

<64% LTR->STMT>

<50%>

<25% Min>

<2-Sided>

491

<Off>

<1-Sided->2-Sided>

<2-Sided->2-Sided>

*

<2-Sided->1-Sided>

*

<Orig./Fin. Type>

<N on 1>

<Off>

<2 on 1>

<4 on 1>

<Layout>

<Original Type>

<Text/Photo/Map (Speed)>

<Text/Photo/Map>

<Text/Photo/Map (Quality)>

<Printed Image>

<Text>

<Collate>

<Off>

<On>

<Erase Frame>

<Off>

<On>

<Sharpness>

Seven Levels

<Color Balance>

Yellow/Magenta/Cyan/Black

17 Levels

<Fine Adjust>

<Yellow>/<Magenta>/<Cyan>/<Black>

<High>: 17 Levels

<Medium>: 17 Levels

<Low>: 17 Levels

Setting Menu List

492

Setting Menu List

<Printer>

1647-0A4

All the settings related to the printer are listed with descriptions. Default settings are marked with a dagger ( ).

<Printer Settings>(P. 493)

<PDL Selection (Plug and Play)>(P. 534)

Asterisks (

*

)

● Settings marked with "

*1

" may not be displayed depending on the model you are using, options, or other setting items.

● Settings marked with "

*2

" may be unavailable or vary or have different defaults depending on your country or region.

● Settings marked with "

*3

" cannot be imported or exported.

Priority of settings

● If a print setting is specified both from the printer driver and the operation panel of the machine, the specification from the printer driver overrides that from the operation panel. The specification from the operation panel becomes effective in some specific cases, such as when performing PS/PCL printing and printing from UNIX or other operating system that does not support printer drivers.

<Printer Settings>

Configure settings about printing and printer operations.

<Prioritize Driver Settings When Printing>

Select whether printing is performed in accordance with the printer driver's settings for paper size and type taking priority over the settings made for each paper source under <Paper Settings> in the Home screen. By selecting <On>, you can print from the paper source specified in the printer drive, regardless of the paper settings on the machine. An error message can be set to display if the loaded paper size is largely different from that set in the printer driver.

<Multi-Purpose Tray>

<Prioritize Driver Settings>

<Off>

<On>

<Action When Size Mismatch>

<Force Output>

<Display Error>

<Drawer 1>

<Prioritize Driver Settings>

<Off>

493

<On>

<Action When Size Mismatch>

<Force Output>

<Display Error>

<Drawer 2>

*1

<Prioritize Driver Settings>

<Off>

<On>

<Action When Size Mismatch>

<Force Output>

<Display Error>

Setting Menu List

<Menu> <Function Settings> <Printer> <Printer Settings> <Prioritize Driver Settings When

Printing> Select the paper source Select <On> in <Prioritize Driver Settings> <Action When

Size Mismatch> Select <Force Output> or <Display Error> <Apply>

<Force Output>

Continue printing even when the paper size setting in the printer driver and the loaded paper are largely different.

<Display Error>

When the paper size setting in the printer driver and the loaded paper are largely different, an error message is displayed and printing is stopped.

● If the printer driver's settings do not match the size and type of loaded paper with <On> selected, a paper jam or printing error may occur.

<Copies>

Set the number of copies to print.

1 to 999

<Menu> <Function Settings> <Printer> <Printer Settings> <Copies> Set the number of copies to print <Apply>

494

<2-Sided Printing>

Select whether to make 2-sided printouts.

<Off>

<On>

Setting Menu List

<Menu> <Function Settings> <Printer> <Printer Settings> <2-Sided Printing> Select

<Off> or <On>

<Default Paper>

Use this item to specify the paper size and type. Available Paper(P. 701)

<Menu> <Function Settings> <Printer> <Printer Settings> <Default Paper> Select the paper size Select the paper type

<Paper Size Override>

Select whether to switch between printing on A4 and Letter size paper if one of these paper sizes is loaded but the other is not. When you select <On>, if you specify A4 size paper to print from the computer but A4 size paper is not loaded in the machine, it will print your document on Letter size paper.

<Off>

<On>

<Menu> <Function Settings> <Printer> <Printer Settings> <Paper Size Override> Select

<Off> or <On>

● You can specify print settings, such as the number of copies or 1-sided/2-sided printing, from an application or the printer driver. However, the <Paper Size Override> setting can only be specified on the machine.

<Print Quality>

You can change settings related to print quality.

<Density>

*1

Adjust the toner density.

Yellow/Magenta/Cyan/Black

17 Levels

495

Setting Menu List

<Fine Adjust>

<Yellow>/<Magenta>/<Cyan>/<Black>

<High>/<Medium>/<Low>

17 Levels

<Menu> <Function Settings> <Printer> <Printer Settings> <Print

Quality> <Density> Adjust the density of each color <Apply>

● You can use <Fine Adjust> to adjust the toner density of each color to three density levels: high density, medium density, and low density.

● When <Toner Save> is set to <On>, you cannot set this item.

<Toner Save>

You can save toner consumption. Select <On> when you want to check the layout or other appearance characteristics before proceeding to final printing of a large job.

<Off>

<On>

<Menu> <Function Settings> <Printer> <Printer Settings> <Print Quality> <Toner

Save> Select <Off> or <On>

<Gradation>

Specify the processing method used to reproduce gradation. <High 2> gives finer gradation than <High 1>.

<High 1>

<High 2>

<Menu> <Function Settings> <Printer> <Printer Settings> <Print

Quality> <Gradation> Select <High 1> or <High 2>

● This setting is only available when <Resolution> is set to <600 dpi>.

<Density Fine Adjustment>

When fine lines or small text are faded, increase the density to give less faded print.

Five Levels

496

Setting Menu List

<Menu> <Function Settings> <Printer> <Printer Settings> <Print Quality> <Density Fine

Adjustment> Adjust the adjustment value <Apply>

● A change in the density affects objects other than text or lines and the color balance.

● This setting is only available when <Resolution> is set to <1200 dpi>.

<Resolution>

Specify the resolution to be used for print data processing.

<1200 dpi>

<600 dpi>

<Menu> <Function Settings> <Printer> <Printer Settings> <Print

Quality> <Resolution> Select <1200 dpi> or <600 dpi>

<Special Smoothing Mode>

Specify the mode to print data with a smooth finish. If the quality of the printout is not acceptable in <Mode

1> (default), try another mode.

<Mode 1>

<Mode 2>

<Mode 3>

<Mode 4>

<Mode 5>

<Mode 6>

<Menu> <Function Settings> <Printer> <Printer Settings> <Print Quality> <Special

Smoothing Mode> Select the mode

<Mode 1>

Prints an outline of dark text or a figure with a smooth finish. This is the optimal mode for various types of printing.

<Mode 2>

Prints figure outline and internal halftones with a smooth finish.

<Mode 3>

497

Setting Menu List

Prints dark text or lines on an area with a colored background with a smooth finish.

<Mode 4>

Prints an image such as a photo or an outline of a figure or text with a smooth finish.

<Mode 5>

Prints an image and halftones with an even balance.

<Mode 6>

Prints the entire image with a smooth finish.

● When <Error Diffusion> is set to <On> in <Halftones>, printing in modes other than <Mode 5> all produces the same results.

● When <Resolution> is set to <1200 dpi>, all settings other than <Mode 6> produce the same result.

<Toner Volume Correction>

When the toner volume for text or lines exceeds the limit value of the machine, make a correction so that the toner volume does not exceed the limit value.

<Standard>

<Gradation Priority>

<Text Priority>

<Menu> <Function Settings> <Printer> <Printer Settings> <Print Quality> <Toner

Volume Correction> Select the item

<Standard>

Adjusts the toner supply amount so that proper resolution is ensured for text and lines, and that proper color tone is ensured for other types of print data.

<Gradation Priority>

Adjusts the toner supply amount so that proper color tone is ensured for all types of print data.

<Text Priority>

Adjusts the toner supply amount so that proper resolution is ensured for all types of print data.

<Line Control>

Specify the processing method used to reproduce lines.

<Resolution Priority>

<Gradation Priority>

498

Setting Menu List

<Menu> <Function Settings> <Printer> <Printer Settings> <Print Quality> <Line

Control> Select <Resolution Priority> or <Gradation Priority>

<Resolution Priority>

Draws lines with the same resolution as for text.

<Gradation Priority>

Draws lines while maintaining color and gradation.

<Width Adjustment>

Configure a setting to print text or fine lines in bold.

<Off>

<On>

<Text>

<Line>

<Text and Line>

<Menu> <Function Settings> <Printer> <Printer Settings> <Print Quality> <Width

Adjustment> <On> Select the target

● If you set to <On>, the printing speed may be slower or image quality may be affected.

● Even if you set to <On>, bold printing may not be possible depending on the printing application.

<Advanced Smoothing>

Configure the smoothing setting to print the outline of graphics (e.g., illustrations created using applications) or text with a smooth finish.

<Advanced Smoothing>

Select whether to perform smoothing processing. <Level 2> prints an outline with a smoother finish than

<Level 1>. First try with <Level 1>.

<Off>

<Level 1>

<Level 2>

499

Setting Menu List

<Menu> <Function Settings> <Printer> <Printer Settings> <Print Quality> <Advanced

Smoothing> <Advanced Smoothing> Select the item

<Apply to Graphics>

*1

Specify whether to apply smoothing processing to graphics when <Advanced Smoothing> is set to <Level

1> or <Level 2>.

<Off>

<On>

<Menu> <Function Settings> <Printer> <Printer Settings> <Print Quality> <Advanced

Smoothing> <Apply to Graphics> Select <Off> or <On>

<Apply to Text>

*1

Specify whether to apply smoothing processing to the text when <Advanced Smoothing> is set to <Level

1> or <Level 2>.

<Off>

<On>

<Menu> <Function Settings> <Printer> <Printer Settings> <Print Quality> <Advanced

Smoothing> <Apply to Text> Select <Off> or <On>

● The settings of <Apply to Graphics> and <Apply to Text> are only effective when [Advanced Smoothing] is set to [Printer Default] in the printer driver.

<Gradation Smoothing>

Configure the smoothing setting to print the gradation (color density) of graphics (e.g., illustrations created using applications) or bit map images with a smooth finish.

<Gradation Smoothing>

Select whether to perform smoothing processing. <Level 2> prints an outline with a smoother finish than

<Level 1>. First try with <Level 1>.

<Off>

<Level 1>

<Level 2>

500

Setting Menu List

<Menu> <Function Settings> <Printer> <Printer Settings> <Print Quality> <Gradation

Smoothing> <Gradation Smoothing> Select the item

<Apply to Graphics>

*1

Specify whether to apply smoothing processing to graphics when <Gradation Smoothing> is set to <Level

1> or <Level 2>.

<Off>

<On>

<Menu> <Function Settings> <Printer> <Printer Settings> <Print Quality> <Gradation

Smoothing> <Apply to Graphics> Select <Off> or <On>

<Apply to Images>

*1

Specify whether to apply smoothing processing to images when <Gradation Smoothing> is set to <Level

1> or <Level 2>.

<Off>

<On>

<Menu> <Function Settings> <Printer> <Printer Settings> <Print Quality> <Gradation

Smoothing> <Apply to Images> Select <Off> or <On>

● [Gradation Smoothing] in the printer driver applies only to graphics data. The setting configured here applies to smoothing processing for image data.

<Layout>

Specify the page layout settings such as binding position and margin values.

<Binding Location>

If you are binding the printouts with a binding tool such as a stapler, use this item to specify whether to bind on the long or short edge. Specify the setting of this item in combination with <Gutter>, which specifies the binding margin to apply to the binding position.

<Long Edge>

<Short Edge>

<Menu> <Function Settings> <Printer> <Printer Settings> <Layout> <Binding

Location> Select <Long Edge> or <Short Edge>

501

Setting Menu List

<Long Edge>

Specify this to bind on the long edge of paper.

<Short Edge>

Specify this to bind on the short edge of paper.

<Gutter>

Shift the print position to adjust the binding margin to apply to the binding edge specified by <Binding

Location>. The value "0.00" exerts no effect on the binding margin.

-1.90 to 0.00 to +1.90 (inches) or -50.0 to 00.0 to +50.0 (mm)

<Menu> <Function Settings> <Printer> <Printer Settings> <Layout> <Gutter> Specify the binding margin <Apply>

Entering the setting value

Specify the print position shift direction and shift width. Whether the setting value is a "+" or "-" value determines the binding edge along which to adjust the binding margin. The margin width can be adjusted in

0.01" (0.5 mm) increments. Basic Operation(P. 128)

Setting Value

A value with a "+" sign

Long Edge Short Edge

Left edge of paper Top edge of paper

A value with a "-" sign Right edge of paper Bottom edge of paper

502

Setting Value

Setting Menu List

Long Edge Short Edge

<Offset Short Edge/Offset Long Edge>

Irrespective of the paper source, you can shift the print position in units of "0.01" (0.5 mm)" for all print jobs.

-2.00 to 0.00 to +2.00 (inches) or -50.0 to 00.0 to +50.0 (mm)

<Menu> <Function Settings> <Printer> <Printer Settings> <Layout> Select the combination of adjustment direction and printing side Specify the offset value <Apply>

<Offset Short Edge (Front)>/<Offset Long Edge (Front)>

Shifts the print position on the side of paper facing up.

<Offset Short Edge (Back)>/<Offset Long Edge (Back)>

Shifts the print position on the side of paper facing down.

Entering the setting value

For <Offset Short Edge (Front)>/<Offset Short Edge (Back)>, specify a value with a "+" sign to shift the print position in the left-to-right direction. For <Offset Long Edge (Front)>/<Offset Long Edge (Back)>, specify a value with a "+" sign to shift the print position in the up-to-down direction. To shift in the reverse direction,

specify a value with a "-" sign. Basic Operation(P. 128)

<Offset Short Edge (Front)>

<Offset Short Edge (Back)>

<Offset Long Edge (Front)>

<Offset Long Edge (Back)>

503

Setting Menu List

<Auto Skip Error>

Printing stops if a certain error occurs in the process. However, if you set this item to <On>, the certain error will be skipped and printing can continue. Normally, set this item to <Off>.

<Off>

<On>

<Menu> <Function Settings> <Printer> <Printer Settings> <Auto Skip Error> Select

<Off> or <On>

<Timeout>

Set the time period after which the current print job is automatically canceled in the case of a print data reception interruption.

5 to 15 to 300 (sec.)

<Menu> <Function Settings> <Printer> <Printer Settings> <Timeout> Set the time period <Apply>

<Personality>

Specify the mode in which the machine should operate when the format of document data is unknown.

<Auto>

<PS>

*1

<PCL>

*1

<PDF>

<XPS>

<Imaging>

<Menu> <Function Settings> <Printer> <Printer Settings> <Personality> Select the

Personality mode

<Color Mode>

Select whether to print data in color or black and white.

<Auto (Color/B&W)>

<Black & White>

504

Setting Menu List

<Menu> <Function Settings> <Printer> <Printer Settings> <Color Mode> Select <Auto

(Color/B&W)> or <Black & White>

<Compressed Image Output>

Specify the operation that is to be performed when the image quality has degraded due to insufficient memory during printing.

<Output>

<Display Error>

<Menu> <Function Settings> <Printer> <Printer Settings> <Compressed Image Output>

Select <Output> or <Display Error>

<Output>

Continues printing regardless of how much the image quality has degraded.

<Display Error>

If the image quality has degraded significantly, an error message is displayed, and printing is stopped.

<UFR II>

You can change the settings that become effective when printing from the UFR II printer driver.

<Halftones>

You can select the printing method used to reproduce halftones (the intermediate range between the lighter and darker areas of an image) for optimal image quality.

<Error Diffusion>

Produces finer printing results than using <Resolution/Gradation>. This option is suitable for printing sharp outlines of the text or fine-line data.

<Off>

<On>

<Menu> <Function Settings> <Printer> <Printer Settings> <UFR II> <Halftones>

<Error Diffusion> Select <Off> or <On>

505

Setting Menu List

● This setting is only available when <Resolution> is set to <600 dpi>.

<Resolution/Gradation>

*1

Select a method used to reproduce halftones, if <Error Diffusion> is set to <Off>. This option can be specified for each image type in any one document.

<Text>

<Resolution>

<Gradation>

<Graphics>

<Resolution>

<Gradation>

<Image>

<Resolution>

<Gradation>

<Menu> <Function Settings> <Printer> <Printer Settings> <UFR

II> <Halftones> <Resolution/Gradation> Select the type of image Select <Resolution> or

<Gradation>

Type of image

Select the object for which to change the setting. <Text> represents letters and characters, <Graphics> represents lines and figures, and <Image> represents photos and images.

Setting value

<Resolution>

Produces a fine print with clear edges of text. It is suitable for printing characters and fine lines.

<Gradation>

Produces a print with smooth gradation or smooth edges. It is suitable for printing figures or graphs containing gradation areas.

<Matching Method>

Specify the processing method used to correct the color.

<General>

<Perceptual>

<Colorimetric>

<Vivid Photo>

506

Setting Menu List

<Menu> <Function Settings> <Printer> <Printer Settings> <UFR II> <Matching

Method> Select the item

<General>

Performs processing so that the color tone is suitable for printing general papers such as photos or documents.

<Perceptual>

Performs processing so that the color tone is suitable for printing bitmap images. When this item is selected, an image is printed in the colors closest to those displayed on the monitor.

<Colorimetric>

Minimizes a color variance that occurs when RGB data is converted to CMYK data.

<Vivid Photo>

Performs processing so that the color tone is deeper and more vivid than <General>.

<Gray Compensation>

Configures a setting so that black or gray data of which color information is "R = G = B" is printed using only the K (black) toner. If <Off> is selected, data is printed using the toner of four colors: CMYK. This option can be specified for each image type in any one document.

<Text>

<Off>

<On>

<Graphics>

<Off>

<On>

<Image>

<Off>

<On>

<Menu> <Function Settings> <Printer> <Printer Settings> <UFR II> <Gray

Compensation> Select the type of image Select <Off> or <On>

<Paper Save>

Specify whether to disable a blank page in print data from being output.

<Off>

<On>

507

Setting Menu List

<Menu> <Function Settings> <Printer> <Printer Settings> <UFR II> <Paper

Save> Select <Off> or <On>

<PCL>

*1

Specify the PCL printing settings such as page layout and print quality.

<Paper Save>

Select whether to save paper by not outputting blank pages in documents. By selecting <On>, the machine will not output blank pages. To output all your document data when printing, including any blank pages that you have inserted in your document, select <Off>.

<Off>

<On>

<Menu> <Function Settings> <Printer> <Printer Settings> <PCL> <Paper Save> Select

<Off> or <On>

<Orientation>

Select <Portrait> (vertical orientation) or <Landscape> (horizontal orientation) for the page orientation.

<Portrait>

<Landscape>

<Menu> <Function Settings> <Printer> <Printer Settings> <PCL> <Orientation> Select

<Portrait> or <Landscape>

<Font Number>

Specify the font to use by selecting a corresponding font ID number. You can print the PCL font list with font samples from the operation panel.

0 to 104

<Menu> <Function Settings> <Printer> <Printer Settings> <PCL> <Font

Number> Select the font number <Apply>

<Point Size>

Set the font size in points, adjustable in 0.25 increments. You can specify this setting only when a proportionally-spaced scalable font is selected in <Font Number>.

508

4.00 to 12.00 to 999.75 (point)

Setting Menu List

<Menu> <Function Settings> <Printer> <Printer Settings> <PCL> <Point Size> Specify the point size <Apply>

<Pitch>

Set the font pitch, or cpi (characters per inch), adjustable in 0.01 increments. You can specify this setting only when a fixed-pitch scalable font or a bitmap font is selected in <Font Number>.

0.44 to 10.00 to 99.99 (cpi)

<Menu> <Function Settings> <Printer> <Printer Settings> <PCL> <Pitch> Specify the pitch value <Apply>

<Form Lines>

*2

Set the number of lines printed on one page from 5 to 128. This setting is automatically changed according to the settings specified in <Default Paper Size> and <Orientation>.

5 to 60 to 128 (lines)

<Menu> <Function Settings> <Printer> <Printer Settings> <PCL> <Form

Lines> Specify the number of lines <Apply>

<Character Code>

Select the character code that is most suited for the computer you send print data from. The specified setting is ignored when the character code is controlled by the font specified in <Font Number>.

<ARABIC8>

<DESKTOP>

<GREEK8>

<HEBREW7>

<HEBREW8>

<ISO4>

<ISO6>

<ISO11>

<ISO15>

<ISO17>

<ISO21>

<ISO60>

<ISO69>

<ISOCYR>

<ISOGRK>

<ISOHEB>

<PC8>

<PC850>

<PC851>

<PC852>

<PC858>

<PC862>

<PC864>

<PC866>

<PC8DN>

<PC8GRK>

<PC8TK>

<PC1004>

<PIFONT>

<PSMATH>

<PSTEXT>

<ROMAN8>

509

<ISOL1>

<ISOL2>

<ISOL5>

<ISOL6>

<ISOL9>

<LEGAL>

<MATH8>

<MCTEXT>

<MSPUBL>

<PC775>

<ROMAN9>

<VNINTL>

<VNMATH>

<VNUS>

<WIN30>

<WINARB>

<WINBALT>

<WINCYR>

<WINGRK>

<WINL1>

<WINL2>

<WINL5>

Setting Menu List

<Menu> <Function Settings> <Printer> <Printer Settings> <PCL> <Character

Code> Select the character code

<Custom Paper>

Select whether to set a custom paper size. Select <On> to set the dimensions of the paper in <X dimension> and <Y dimension>.

<Off>

<On>

<Menu> <Function Settings> <Printer> <Printer Settings> <PCL> <Custom

Paper> Select <Off> or <On>

<Unit of Measure>

*2

Select the unit of measurement to use to set a custom paper size.

<Millimeter>

<Inch>

<Menu> <Function Settings> <Printer> <Printer Settings> <PCL> <Unit of

Measure> Select <Millimeter> or <Inch>

<X dimension>

Specify the horizontal dimension (short edge) of the custom paper.

3 to 8 1/2 (inches) or 77 to 215 (mm)

510

Setting Menu List

<Menu> <Function Settings> <Printer> <Printer Settings> <PCL> <X dimension> Specify the dimension <Apply>

<Y dimension>

Specify the vertical dimension (long edge) of the custom paper.

5 to 14 (inches) or 127 to 355 (mm)

<Menu> <Function Settings> <Printer> <Printer Settings> <PCL> <Y dimension> Specify the dimension <Apply>

<Append CR to LF>

Select whether to append a carriage return (CR) when the machine receives a line feed code (LF). If <Yes> is selected, the print position moves to the beginning of the next line when the machine receives an LF code. If

<No> is selected, the print position moves to the next line, just under the received LF code.

<Yes>

<No>

<Menu> <Function Settings> <Printer> <Printer Settings> <PCL> <Append CR to

LF> Select <Yes> or <No>

<Enlarge A4 Print Width>

Select whether to expand the width of the printable area of A4 size paper in portrait orientation to that of

Letter size.

<Off>

<On>

511

Setting Menu List

<Menu> <Function Settings> <Printer> <Printer Settings> <PCL> <Enlarge A4 Print

Width> Select <Off> or <On>

<Halftones>

You can select the printing method used to reproduce halftones (the intermediate range between the lighter and darker areas of an image) for optimal image quality.

<Error Diffusion>

Produces finer printing results than using <Resolution/Gradation>. This option is suitable for printing sharp outlines of the text or fine-line data.

<Off>

<On>

<Menu> <Function Settings> <Printer> <Printer Settings> <PCL> <Halftones> <Error

Diffusion> Select <Off> or <On>

● This setting is only available when <Resolution> is set to <600 dpi>.

<Resolution/Gradation>

*1

Select a method used to reproduce halftones, if <Error Diffusion> is set to <Off>. This option can be specified for each image type in any one document.

<Text>

<Resolution>

<Gradation>

<Graphics>

<Resolution>

<Gradation>

<Image>

<Resolution>

<Gradation>

<Menu> <Function Settings> <Printer> <Printer Settings> <PCL> <Halftones>

<Resolution/Gradation> Select the type of image Select <Resolution> or <Gradation>

512

Setting Menu List

Type of image

Select the object for which to change the setting. <Text> represents letters and characters, <Graphics> represents lines and figures, and <Image> represents photos and images.

Setting value

<Resolution>

Produces a fine print with clear edges of text. It is suitable for printing characters and fine lines.

<Gradation>

Produces a print with smooth gradation or smooth edges. It is suitable for printing figures or graphs containing gradation areas.

<Matching Method>

Specify the processing method used to correct the color.

<General>

<Perceptual>

<Colorimetric>

<Vivid Photo>

<Menu> <Function Settings> <Printer> <Printer Settings> <PCL> <Matching

Method> Select the item

<General>

Performs processing so that the color tone is suitable for printing general papers such as photos or documents.

<Perceptual>

Performs processing so that the color tone is suitable for printing bitmap images. When this item is selected, an image is printed in the colors closest to those displayed on the monitor.

<Colorimetric>

Minimizes a color variance that occurs when RGB data is converted to CMYK data.

<Vivid Photo>

Performs processing so that the color tone is deeper and more vivid than <General>.

513

Setting Menu List

<Gray Compensation>

Configures a setting so that black or gray data of which color information is "R = G = B" is printed using only the K (black) toner. If <Off> is selected, data is printed using the toner of four colors: CMYK. This option can be specified for each image type in any one document.

<Text>

<Off>

<On>

<Graphics>

<Off>

<On>

<Image>

<Off>

<On>

<Menu> <Function Settings> <Printer> <Printer Settings> <PCL> <Gray

Compensation> Select the type of image Select <Off> or <On>

<BarDIMM>

*1

This setting enables you to print bar codes supported by the Barcode Printing Kit. If <Enable> is selected, the machine will generate bar codes when it receives bar code commands from the host computer. If <Disable> is selected, bar codes will not be generated, even if bar code commands are sent from the host computer.

<Enable>

<Disable>

<Menu> <Function Settings> <Printer> <Printer Settings> <PCL> <BarDIMM> Select

<Enable> or <Disable>

● To enable the BarDIMM menu, it is necessary to activate the Barcode Printing Kit. When you are not printing bar codes, make sure to disable the BarDIMM menu. Otherwise, the processing speed of regular print jobs may be reduced.

● The default setting is <Disable>. If you activate the Barcode Printing Kit, it changes to <Enable>.

<FreeScape>

Specify the AEC (Alternate Escape Code) to be used for bar code commands when the host computer does not support the standard Escape Code.

514

Setting Menu List

<Off>

<~>

<\>

<?>

<{>

<}>

<">

<#>

<$>

</>

<|>

<Menu> <Function Settings> <Printer> <Printer Settings> <PCL> <FreeScape> Select an escape code

● This setting is available only when <BarDIMM> is enabled.

<PS>

*1

Specify the PS printing settings such as page layout and print quality.

<Job Timeout>

This setting enables you to specify the amount of time before a job times out. If a job has not finished within the set time limit, the job automatically cancels.

0 to 3600 (sec.)

<Menu> <Function Settings> <Printer> <Printer Settings> <PS> <Job Timeout>

Specify the seconds for job timeout <Apply>

<Print PS Errors>

This setting determines whether an error page is printed when an error is encountered.

<Off>

<On>

<Menu> <Function Settings> <Printer> <Printer Settings> <PS> <Print PS Errors>

Select <Off> or <On>

515

Setting Menu List

<Pure Black Text>

Configures a setting so that black text of which color information is "R = G = B = 0%," "C = M = Y = 100%," or "C

= M = Y = 0%/K = 100%" is printed using only the K (black) toner. When <Off> is selected, text is printed based on the <Output Profile> setting.

<Off>

<On>

<Menu> <Function Settings> <Printer> <Printer Settings> <PS> <Pure Black Text>

Select <Off> or <On>

<Black Overprint>

*1

Specify the printing method used when black text overlaps a colored background or figure. This option is not displayed when <Pure Black Text> is set to <Off>.

<Off>

<On>

<Menu> <Function Settings> <Printer> <Printer Settings> <PS> <Black Overprint>

Select <Off> or <On>

<Off>

Outlines black text from a colored background or figure first, then prints black text in the outlined part.

Printouts may be faded much more than <On>, or text may be outlined.

<On>

Prints all the colored backgrounds and figures, and overlaps black text on these backgrounds and figures using only the black (K) toner, then prints.

<RGB Source Profile>

Select the profile for RGB data according to the monitor you are using.

516

Setting Menu List

<sRGB>

<Gamma 1.5>

<Gamma 1.8>

<Gamma 2.4>

<None>

<Menu> <Function Settings> <Printer> <Printer Settings> <PS> <RGB Source Profile>

Select the profile

<sRGB>

Sets the image quality to the industry standard for general Windows computer monitors. If the monitor supports sRGB, data can be printed in the color tones closest to the displayed colors.

<Gamma 1.5> to <Gamma 2.4>

Adjusts the brightness of the print result to prevent the image quality of the brightest and darkest parts from being degraded. The greater the gamma value is, the darker the printed text or image becomes.

<None>

Carries out color separation from RGB data to CMYK data without applying an RGB source profile.

<CMYK Simulation Profile>

Select a simulation target to print the CMYK data. The machine converts CMYK data into a device dependent

CMYK color model based on the simulation.

<JapanColor(Canon)>

<U.S. Web Coated v1.00(Canon)>

<Euro Standard v1.00(Canon)>

<None>

<Menu> <Function Settings> <Printer> <Printer Settings> <PS> <CMYK Simulation

Profile> Select the profile

<JapanColor(Canon)>

Set a JapanColor profile. Data is printed in the color tones closest to those of the Japanese printing standard.

<U.S. Web Coated v1.00(Canon)>

517

Setting Menu List

Set a U.S. Web Coated profile. Data is printed in the color tones closest to those of the U.S. printing standard.

<Euro Standard v1.00(Canon)>

Set a Euro Standard profile. Data is printed in the color tones closest to those of the European printing standard.

<None>

Prints CMYK data by using a device-dependent CMYK color model without applying the CMYK simulation profile.

● When <None> is selected, the dark color gradation may become uneven depending on data.

<Use Grayscale Profile>

Specify whether to convert gray data to CMYK data using the grayscale profile of the machine.

<Off>

<On>

<Menu> <Function Settings> <Printer> <Printer Settings> <PS> <Use Grayscale Profile>

Select <Off> or <On>

● Even if <On> is selected, data is printed using only the K (black) toner depending on the setting of <Output

Profile> or <Pure Black Text>.

<Output Profile>

Select the appropriate profile for the print data. This option can be specified for each image type in any one document.

<Text>

<Normal>

<Photo>

<TR Normal>

<TR Photo>

<Graphics>

<Normal>

<Photo>

<TR Normal>

<TR Photo>

<Image>

<Normal>

<Photo>

<TR Normal>

<TR Photo>

<Menu> <Function Settings> <Printer> <Printer Settings> <PS> <Output Profile>

Select the type of image Select the profile

518

Setting Menu List

Type of image

Select the object for which to change the setting. <Text> represents letters and characters, <Graphics> represents lines and figures, and <Image> represents photos and images.

Setting value

<Normal>

Prints data by adjusting it to the color tones closest to those displayed on the monitor.

<Photo>

Prints data by adjusting it to photo-like color tones.

<TR Normal>

Prints data by adjusting it to the color tones closest to those displayed on the monitor and using only the K

(black) toner to reproduce black and gray elements.

<TR Photo>

Prints data by adjusting it to photo-like color tones and using only the K (black) toner to reproduce black and gray elements.

The setting of this item is unavailable when one of the following settings is selected.

● <RGB Source Profile> is set to <None>

● <CMYK Simulation Profile> is set to <None>

● <Use Grayscale Profile> is set to <Off>

<Matching Method>

Select the element to be prioritized when carrying out color matching in <RGB Source Profile>.

<Perceptual>

<Saturation>

<Colorimetric>

<Menu> <Function Settings> <Printer> <Printer Settings> <PS> <Matching Method>

Select the item

519

Setting Menu List

<Perceptual>

Provides the color tone that is suitable for printing photos or bit map images.

<Saturation>

Provides the color tone that is suitable for printing artworks, graphs, and other images used for presentation materials.

<Colorimetric>

Set this option when you want to reproduce the RGB color value in the color reproduction range of the machine as accurately as possible.

● The setting of this item is unavailable when <RGB Source Profile> is set to <None>.

<Halftones>

You can select the printing method used to reproduce halftones (the intermediate range between the lighter and darker areas of an image) for optimal image quality.

<Error Diffusion>

Produces finer printing results than using <Resolution/Gradation>. This option is suitable for printing sharp outlines of the text or fine-line data.

<Off>

<On>

<Menu> <Function Settings> <Printer> <Printer Settings> <PS> <Halftones> <Error

Diffusion> Select <Off> or <On>

● This setting is only available when <Resolution> is set to <600 dpi>.

<Resolution/Gradation>

*1

Select a method used to reproduce halftones, if <Error Diffusion> is set to <Off>. This option can be specified for each image type in any one document.

<Text>

<Resolution>

<Gradation>

<Graphics>

<Resolution>

<Gradation>

<Image>

<Resolution>

<Gradation>

520

Setting Menu List

<Menu> <Function Settings> <Printer> <Printer

Settings> <PS> <Halftones> <Resolution/Gradation> Select the type of image Select

<Resolution> or <Gradation>

Type of image

Select the object for which to change the setting. <Text> represents letters and characters, <Graphics> represents lines and figures, and <Image> represents photos and images.

Setting value

<Resolution>

Produces a fine print with clear edges of text. It is suitable for printing characters and fine lines.

<Gradation>

Produces a print with smooth gradation or smooth edges. It is suitable for printing figures or graphs containing gradation areas.

<Brightness>

*1

Adjust the brightness of the entire image in increments of 5%. The lower the setting value is, the brighter the image or text becomes. The greater the setting value is, the darker the image or text becomes.

85 to 100 to 115 (%)

<Menu> <Function Settings> <Printer> <Printer Settings> <PS> <Brightness> Adjust the brightness

<Composite Overprint>

Specify whether to overprint CMYK data, with overprint specified, as composite output.

<Off>

<On>

<Menu> <Function Settings> <Printer> <Printer Settings> <PS> <Composite

Overprint> Select <Off> or <On>

521

Setting Menu List

● Overprinting using special colors is not permitted.

<Grayscale Conversion>

*1

Specify the way of printing color data in black and white.

<sRGB>

<NTSC>

<Uniform RGB>

<Menu> <Function Settings> <Printer> <Printer Settings> <PS> <Grayscale Conversion>

Select the type of grayscale conversion

<sRGB>

Prints in black and white with emphasis on color differences so that a smooth gradation is achieved.

<NTSC>

Prints in black and white so that the resulting image looks like a black and white television picture (of the NTSC system).

<Uniform RGB>

Prints in black and white so that R, G, and B are uniformly converted to the same gray level by using only brightness as the reference.

● This section describes the settings to convert the color data into grayscale data.

● This setting is invalid for black-and-white data.

<Imaging Settings>

You can change the print settings that will apply when printing image files (JPEG/TIFF).

<Halftones>

You can change the printing method used to reproduce halftones (the intermediate range between the lighter and darker areas of an image) for optimal image quality.

<Gradation>

<Error Diffusion>

522

Setting Menu List

<Menu> <Function Settings> <Printer> <Printer Settings> <Imaging

Settings> <Halftones> Select <Gradation> or <Error Diffusion>

<Gradation>

Prints images with fine gradation, such as digital camera images, with a smooth finish.

<Error Diffusion>

Prints images with small text or fine lines with a clear finish.

<PDF>

You can change settings for PDF files.

<Enlarge/Reduce to Fit Paper Size>

Specify whether to enlarge or reduce the original according to the print range of paper. Note that size enlargement/reduction will not affect the aspect ratio of the original.

<Off>

<On>

<Menu> <Function Settings> <Printer> <Printer Settings> <PDF> <Enlarge/Reduce to Fit

Paper Size> Select <Off> or <On>

<Enlarge Print Area>

Specify whether to extend the print range to the paper size.

<Off>

<On>

<Menu> <Function Settings> <Printer> <Printer Settings> <PDF> <Enlarge Print Area>

Select <Off> or <On>

● If you specify <On>, it may occur that edge-adjacent portions of page are not printed or that printouts come out partially smudged depending on the original.

523

Setting Menu List

<N on 1>

Specify whether to shrink multiple pages and print them on one page in such arrangement that the first page is positioned at top left. For example, to print 4 pages onto a single sheet, select <4 on 1>.

<Off>

<2 on 1>

<4 on 1>

<6 on 1>

<8 on 1>

<9 on 1>

<16 on 1>

<Menu> <Function Settings> <Printer> <Printer Settings> <PDF> <N on 1> Select the number of pages to be combined

<Print Comments>

Specify whether to print comments. If you specify <Auto>, comments in PDF files will be printed.

<Off>

<Auto>

<Menu> <Function Settings> <Printer> <Printer Settings> <PDF> <Print Comments>

Select <Off> or <Auto>

<Pure Black Text>

Configures a setting so that black text of which color information is "R = G = B = 0%," "C = M = Y = 100%," or "C

= M = Y = 100%" is printed using only the K (black) toner. When <Off> is selected, text is printed based on the

<Output Profile> setting.

<Off>

<On>

<Menu> <Function Settings> <Printer> <Printer Settings> <PDF> <Pure Black Text>

Select <Off> or <On>

<Black Overprint>

*1

Specify the printing method used when black text overlaps a colored background or figure. This option is not displayed when <Pure Black Text> is set to <Off>.

<Off>

<On>

524

Setting Menu List

<Menu> <Function Settings> <Printer> <Printer Settings> <PDF> <Black Overprint>

Select <Off> or <On>

<Off>

Outlines black text from a colored background or figure first, then prints black text in the outlined part.

Printouts may be faded much more than <On>, or text may be outlined.

<On>

Prints all the colored backgrounds and figures, and overlaps black text on these backgrounds and figures using only the black (K) toner, then prints.

<RGB Source Profile>

Select the profile for RGB data according to the monitor you are using.

<sRGB>

<Gamma 1.5>

<Gamma 1.8>

<Gamma 2.4>

<None>

<Menu> <Function Settings> <Printer> <Printer Settings> <PDF> <RGB Source Profile>

Select the profile

<sRGB>

Sets the image quality to the industry standard for general Windows computer monitors. If the monitor supports sRGB, data can be printed in the color tones closest to the displayed colors.

525

Setting Menu List

<Gamma 1.5> to <Gamma 2.4>

Adjusts the brightness of the print result to prevent the image quality of the brightest and darkest parts from being degraded. The greater the gamma value is, the darker the printed text or image becomes.

<None>

Carries out color separation from RGB data to CMYK data without applying an RGB source profile.

<CMYK Simulation Profile>

Select a simulation target to print the CMYK data. The machine converts CMYK data into a device dependent

CMYK color model based on the simulation.

<JapanColor(Canon)>

<U.S. Web Coated v1.00(Canon)>

<Euro Standard v1.00(Canon)>

<None>

<Menu> <Function Settings> <Printer> <Printer Settings> <PDF> <CMYK Simulation

Profile> Select the profile

<JapanColor(Canon)>

Set a JapanColor profile. Data is printed in the color tones closest to those of the Japanese printing standard.

<U.S. Web Coated v1.00(Canon)>

Set a U.S. Web Coated profile. Data is printed in the color tones closest to those of the U.S. printing standard.

<Euro Standard v1.00(Canon)>

Set a Euro Standard profile. Data is printed in the color tones closest to those of the European printing standard.

<None>

Prints CMYK data by using a device-dependent CMYK color model without applying the CMYK simulation profile.

● When <None> is selected, the dark color gradation may become uneven depending on data.

<Use Grayscale Profile>

Specify whether to convert gray data to CMYK data using the grayscale profile of the machine.

<Off>

<On>

<Menu> <Function Settings> <Printer> <Printer Settings> <PDF> <Use Grayscale

Profile> Select <Off> or <On>

526

Setting Menu List

● Even if <On> is selected, data is printed using only the K (black) toner depending on the setting of <Output

Profile> or <Pure Black Text>.

<Output Profile>

Select the appropriate profile for the print data. This option can be specified for each image type in any one document.

<Text>

<Normal>

<Photo>

<TR Normal>

<TR Photo>

<Graphics>

<Normal>

<Photo>

<TR Normal>

<TR Photo>

<Image>

<Normal>

<Photo>

<TR Normal>

<TR Photo>

<Menu> <Function Settings> <Printer> <Printer Settings> <PDF> <Output Profile>

Select the type of image Select the profile

Type of image

Select the object for which to change the setting. <Text> represents letters and characters, <Graphics> represents lines and figures, and <Image> represents photos and images.

Profile

<Normal>

Prints data by adjusting it to the color tones closest to those displayed on the monitor.

<Photo>

Prints data by adjusting it to photo-like color tones.

<TR Normal>

Prints data by adjusting it to the color tones closest to those displayed on the monitor and using only the K

(black) toner to reproduce black and gray elements.

527

Setting Menu List

<TR Photo>

Prints data by adjusting it to photo-like color tones and using only the K (black) toner to reproduce black and gray elements.

The setting of this item is unavailable when one of the following settings is selected.

● <RGB Source Profile> is set to <None>

● <CMYK Simulation Profile> is set to <None>

● <Use Grayscale Profile> is set to <Off>

<Matching Method>

Select the element to be prioritized when carrying out color matching in <RGB Source Profile>.

<Perceptual>

<Saturation>

<Colorimetric>

<Menu> <Function Settings> <Printer> <Printer Settings> <PDF> <Matching Method>

Select the item

<Perceptual>

Provides the color tone that is suitable for printing photos or bit map images.

<Saturation>

Provides the color tone that is suitable for printing artworks, graphs, and other images used for presentation materials.

<Colorimetric>

Set this option when you want to reproduce the RGB color value in the color reproduction range of the machine as accurately as possible.

● The setting of this item is unavailable when <RGB Source Profile> is set to <None>.

<Halftones>

You can select the printing method used to reproduce halftones (the intermediate range between the lighter and darker areas of an image) for optimal image quality.

<Error Diffusion>

Produces finer printing results than using <Resolution/Gradation>. This option is suitable for printing sharp outlines of the text or fine-line data.

<Off>

<On>

528

Setting Menu List

<Menu> <Function Settings> <Printer> <Printer Settings> <PDF> <Halftones> <Error

Diffusion> Select <Off> or <On>

● This setting is only available when <Resolution> is set to <600 dpi>.

<Resolution/Gradation>

*1

Select a method used to reproduce halftones, if <Error Diffusion> is set to <Off>. This option can be specified for each image type in any one document.

<Text>

<Resolution>

<Gradation>

<Graphics>

<Resolution>

<Gradation>

<Image>

<Resolution>

<Gradation>

<Menu> <Function Settings> <Printer> <Printer

Settings> <PDF> <Halftones> <Resolution/Gradation> Select the type of image Select

<Resolution> or <Gradation>

Type of image

Select the object for which to change the setting. <Text> represents letters and characters, <Graphics> represents lines and figures, and <Image> represents photos and images.

Setting value

<Resolution>

Produces a fine print with clear edges of text. It is suitable for printing characters and fine lines.

<Gradation>

529

Setting Menu List

Produces a print with smooth gradation or smooth edges. It is suitable for printing figures or graphs containing gradation areas.

<Brightness>

*1

Adjust the brightness of the entire image in increments of 5%. The lower the setting value is, the brighter the image or text becomes. The greater the setting value is, the darker the image or text becomes.

85 to 100 to 115 (%)

<Menu> <Function Settings> <Printer> <Printer Settings> <PDF> <Brightness> Adjust the brightness

<Composite Overprint>

Specify whether to overprint CMYK data, with overprint specified, as composite output.

<Off>

<On>

<Menu> <Function Settings> <Printer> <Printer Settings> <PDF> <Composite

Overprint> Select <Off> or <On>

● Overprinting using special colors is not permitted.

<Grayscale Conversion>

*1

Specify the way of printing color data in black and white.

<sRGB>

<NTSC>

<Uniform RGB>

<Menu> <Function Settings> <Printer> <Printer Settings> <PDF> <Grayscale

Conversion> Select the type of grayscale conversion

<sRGB>

Prints in black and white with emphasis on color differences so that a smooth gradation is achieved.

530

Setting Menu List

<NTSC>

Prints in black and white so that the resulting image looks like a black and white television picture (of the NTSC system).

<Uniform RGB>

Prints in black and white so that R, G, and B are uniformly converted to the same gray level by using only brightness as the reference.

<XPS>

You can change settings for XPS files.

<Matching Method>

Specify the processing method used to correct the color.

<General>

<Perceptual>

<Colorimetric>

<Vivid Photo>

<Menu> <Function Settings> <Printer> <Printer Settings> <XPS> <Matching Method>

Select the item

<General>

Performs processing so that the color tone is suitable for printing general papers such as photos or documents.

<Perceptual>

Performs processing so that the color tone is suitable for printing bitmap images. When this item is selected, an image is printed in the colors closest to those displayed on the monitor.

<Colorimetric>

Minimizes a color variance that occurs when RGB data is converted to CMYK data.

<Vivid Photo>

Performs processing so that the color tone is deeper and more vivid than <General>.

<Halftones>

You can select the printing method used to reproduce halftones (the intermediate range between the lighter and darker areas of an image) for optimal image quality.

<Error Diffusion>

Produces finer printing results than using <Resolution/Gradation>. This option is suitable for printing sharp outlines of the text or fine-line data.

<Off>

<On>

531

Setting Menu List

<Menu> <Function Settings> <Printer> <Printer Settings> <XPS> <Halftones> <Error

Diffusion> Select <Off> or <On>

● This setting is only available when <Resolution> is set to <600 dpi>.

<Resolution/Gradation>

*1

Select a method used to reproduce halftones, if <Error Diffusion> is set to <Off>. This option can be specified for each image type in any one document.

<Text>

<Resolution>

<Gradation>

<Graphics>

<Resolution>

<Gradation>

<Image>

<Resolution>

<Gradation>

<Menu> <Function Settings> <Printer> <Printer

Settings> <XPS> <Halftones> <Resolution/Gradation> Select the type of image Select

<Resolution> or <Gradation>

Type of image

Select the object for which to change the setting. <Text> represents letters and characters, <Graphics> represents lines and figures, and <Image> represents photos and images.

Setting value

<Resolution>

Produces a fine print with clear edges of text. It is suitable for printing characters and fine lines.

<Gradation>

532

Setting Menu List

Produces a print with smooth gradation or smooth edges. It is suitable for printing figures or graphs containing gradation areas.

<Gray Compensation>

Configures a setting so that black or gray data of which color information is "R = G = B" is printed using only the K (black) toner. If <Off> is selected, data is printed using the toner of four colors: CMYK. This option can be specified for each image type in any one document.

<Text>

<Off>

<On>

<Graphics>

<Off>

<On>

<Image>

<Off>

<On>

<Menu> <Function Settings> <Printer> <Printer Settings> <XPS> <Gray

Compensation> Select the type of image Select <Off> or <On>

<Grayscale Conversion>

*1

Specify the way of printing color data in black and white.

<Text>

<sRGB>

<NTSC>

<Uniform RGB>

<Graphics>

<sRGB>

<NTSC>

<Uniform RGB>

<Image>

<sRGB>

<NTSC>

<Uniform RGB>

<Menu> <Function Settings> <Printer> <Printer Settings> <XPS> <Grayscale

Conversion> Select the type of image Select the type of grayscale conversion

533

Setting Menu List

Type of image

Select the object for which to change the setting. <Text> represents letters and characters, <Graphics> represents lines and figures, and <Image> represents photos and images.

Type of grayscale conversion

<sRGB>

Prints in black and white with emphasis on color differences so that a smooth gradation is achieved.

<NTSC>

Prints in black and white so that the resulting image looks like a black and white television picture (of the

NTSC system).

<Uniform RGB>

Prints in black and white so that R, G, and B are uniformly converted to the same gray level by using only brightness as the reference.

<Paper Save>

Specify whether to disable a blank page in print data from being output.

<Off>

<On>

<Menu> <Function Settings> <Printer> <Printer Settings> <XPS> <Paper Save> Select

<Off> or <On>

<PDL Selection (Plug and Play)>

Select a page description language so that the machine is detected as a printer that is compatible with that language when it is connected to a computer by using Plug and Play.

<Network>

*3

Select a page description language so that the machine is detected as a printer that is compatible with that language when it is detected over the network.

<FAX>

*1

<UFR II>

<UFR II (V4)>

<PCL6>

*1

<PS>

*1

534

Setting Menu List

<USB>

Select a page description language so that the machine is detected as a printer that is compatible with that language when it is connected to a computer via USB.

<UFR II>

<UFR II (V4)>

<PCL6>

*1

<PS>

*1

<Menu> <Function Settings> <Printer> <PDL Selection (Plug and Play)> Select <Network> or <USB> Select a page description language Restart the machine

<FAX>

Detects and connects the machine as a fax device.

<UFR II>

Detects and connects the machine as a UFR II printer.

<UFR II (V4)>

Detects and connects the machine as a UFR II printer that is compatible with XML Paper Specification (XPS).

<PCL6>

Detects and connects the machine as a PCL6 printer.

<PS>

Detects and connects the machine as a PS printer.

535

Setting Menu List

<Send>

1647-0A5

All the settings related to sending faxes and scanned originals are listed with descriptions. Default settings are marked with a dagger ( ).

<Common Settings>(P. 536)

<Scan and Send Settings>(P. 537)

<Fax Settings>(P. 541)

Asterisks (

*

)

● Settings marked with "

*1

" may not be displayed depending on the model you are using, options, or other setting items.

● Settings marked with "

*2

" may be unavailable or vary or have different defaults depending on your country or region.

● Settings marked with "

*3

" cannot be imported or exported.

<Common Settings>

Configure the settings to restrict destinations at the time of sending faxes, e-mails, or I-Faxes, and specify the confirmation method to prevent transmission to wrong destinations.

<Restrict New Destinations>

Select whether to limit the fax numbers and e-mail/I-Fax addresses that can be specified as destinations to

those already registered in the Address Book. Restricting New Destinations that Can Be Specified(P. 407)

<Off>

<On>

<Restrict Resending from Log>

Select whether to prevent a destination from being selected from the sent job logs. Disabling Use of

Previously Used Destinations(P. 407)

<Off>

<On>

<Confirm When Coded Dial TX>

Select whether to display the details of an entered coded dial number when it is selected as a destination.

Displaying Destinations in Address Book(P. 407)

<Off>

<On>

<Confirm Dest. Before Sending>

Specify whether to display the destination confirmation screen when sending faxes, e-mails, or I-Faxes. If <Only for Sequential Broadcast> is selected, the confirmation screen is displayed only when multiple destinations are

specified. Checking Destinations when Sending Data(P. 408)

<Off>

536

Setting Menu List

<On>

<Only for Sequential Broadcast>

<Scan and Send Settings>

You can change and register the settings for sending faxes or scanned documents.

<Register Unit Name>

Register the sender name for e-mails and I-Faxes. The registered name is displayed in e-mails, along with the email address. If the sender name is not registered, only the e-mail address is displayed.

<Menu> <Function Settings> <Send> <Scan and Send Settings> <Register Unit

Name> Enter the sender name <Apply>

<E-Mail Settings>

Change the default settings used for scanning originals to send as e-mails.

<Change Default Settings (E-Mail)>

You can change the default settings used for scanning originals to send as e-mails. The selected settings are

used as the default settings when scanning originals. Changing the Default Settings for

Functions(P. 176)

<Scan Size>

<LTR>

<LGL>

<STMT>

<EXEC>

<FOOLSCAP/FOLIO>

<OFICIO>

<LETTER (Government)>

<LEGAL (Government)>

<LEGAL (India)>

<FOOLSCAP (Australia)>

<OFICIO (Brazil)>

<OFICIO (Mexico)>

<A4>

<A5R>

<B5>

<File Format>

<PDF>

<PDF (Compact)>

<PDF (Compact/OCR)>

<PDF (OCR)>

<Set PDF Details>

<PDF>/<PDF (Compact)>/<PDF (Compact/OCR)>/<PDF (OCR)>

<Encryption>

<None>

537

Setting Menu List

<Acrobat 7.0 or Later/128-bit AES>

<Acrobat 9.0 or Equivalent/256-bit AES>

*1

<Acrobat 10.0 or Equivalent/256-bit AES>

*1

<Digital Signatures>

<None>

<Top Left>

<Divide into Pages>

<Off>

<On>

<JPEG>

<TIFF>

<Set TIFF Details>

<Divide into Pages>

<Off>

<On>

<Density>

Nine Levels

<Original Orientation>

<Portrait>

<Landscape>

<Original Type>

<Text>

<Text/Photo>

<Photo>

<2-Sided Original >

<Off>

*1

<Book Type>

<Calendar Type>

<Sharpness>

Seven Levels

<Data Size>

<Small: Memory Priority>

<Standard>

<Large: Image Quality Priority>

<Subject/Message>

<Subject>

<Message>

<Reply To>

<None>

<Specify from Address Book>

<Priority>

<Low>

538

Setting Menu List

<Standard>

<High>

<I-Fax Settings>

Specify the basic settings for using the machine as an I-Fax device.

<Change Default Settings (I-Fax)>

You can change the default settings used for sending I-Fax. The selected settings are used as the default

settings when scanning originals. Changing the Default Settings for Functions(P. 176)

<Scan Size>

<LTR>

<LGL>

<STMT>

<EXEC>

<FOOLSCAP/FOLIO>

<OFICIO>

<LETTER (Government)>

<LEGAL (Government)>

<LEGAL (India)>

<FOOLSCAP (Australia)>

<OFICIO (Brazil)>

<OFICIO (Mexico)>

<A4>

<A5R>

<B5>

<Density>

Nine Levels

<Original Type>

<Text>

<Text/Photo>

<Photo>

<2-Sided Original >

<Off>

*1

<Book Type>

<Calendar Type>

<Sharpness>

Seven Levels

<Subject/Message>

<Subject>

<Message>

<Reply To>

<None>

<Specify from Address Book>

539

Setting Menu List

<TX Terminal ID>

Information such as the date and time of transmission and the e-mail address of the machine (sender information) can be added as a header in transmitted documents. This information tells the recipient when the I-Fax was sent and who sent it.

<Add TX Terminal ID>

<Off>

<On>

<Print Position>

<Inside Image Area>

<Outside Image Area>

<Menu> <Function Settings> <Send> <Scan and Send Settings> <I-Fax Settings> <TX

Terminal ID> Select <On> in <Add TX Terminal ID> <Print Position> Select <Inside Image

Area> or <Outside Image Area> <Apply>

<File Settings>

Change the default settings used when originals are saved to a shared folder or FTP server.

<Change Default Settings (File)>

You can change the default settings used when originals are saved to a shared folder or FTP server. The

selected settings are used as the default settings when scanning. Changing the Default Settings for

Functions(P. 176)

<Scan Size>

<LTR>

<LGL>

<STMT>

<EXEC>

<FOOLSCAP/FOLIO>

<OFICIO>

<LETTER (Government)>

<LEGAL (Government)>

<LEGAL (India)>

<FOOLSCAP (Australia)>

<OFICIO (Brazil)>

<OFICIO (Mexico)>

<A4>

<A5R>

<B5>

<File Format>

<PDF>

<PDF (Compact)>

<PDF (Compact/OCR)>

<PDF (OCR)>

<Set PDF Details>

540

Setting Menu List

<PDF>/<PDF (Compact)>/<PDF (Compact/OCR)>/<PDF (OCR)>

<Encryption>

<None>

<Acrobat 7.0 or Later/128-bit AES>

<Acrobat 9.0 or Equivalent/256-bit AES>

*1

<Acrobat 10.0 or Equivalent/256-bit AES>

*1

<Digital Signatures>

<None>

<Top Left>

<Divide into Pages>

<Off>

<On>

<JPEG>

<TIFF>

<Set TIFF Details>

<Divide into Pages>

<Off>

<On>

<Density>

Nine Levels

<Original Orientation>

<Portrait>

<Landscape>

<Original Type>

<Text>

<Text/Photo>

<Photo>

<2-Sided Original>

<Off>

*1

<Book Type>

<Calendar Type>

<Sharpness>

Seven Levels

<Data Size>

<Small: Memory Priority>

<Standard>

<Large: Image Quality Priority>

<Fax Settings>

*1

Specify the basic settings for using the machine as a fax device.

541

Setting Menu List

<Change Default Settings (Fax)>

You can change the default settings used for sending faxes. The selected settings are used as the default

settings when scanning originals. Changing the Default Settings for Functions(P. 176)

<Resolution>

<200 x 100 dpi (Normal)>

<200 x 200 dpi (Fine)>

<200 x 200 dpi (Photo)>

<200 x 400 dpi (Superfine)>

<400 x 400 dpi (Ultrafine)>

<Density>

Nine Levels

<2-Sided Original >

<Off>

<Book Type>

<Calendar Type>

<Sharpness>

Seven Levels

<Off-Hook Alarm>

Select whether the machine makes an alert sound when the handset of a telephone connected to the machine is not properly set on the cradle. You can also adjust the volume of the alert sound.

0 to 3

<Menu> <Function Settings> <Send> <Fax Settings> <Off-Hook Alarm> Select the volume of the alert sound <Apply>

<ECM TX>

Enable or disable error correction mode (ECM). ECM checks for fax data errors and corrects them. To reduce

errors on received faxes, see <ECM RX>(P. 549) .

<Off>

<On>

<Menu> <Function Settings> <Send> <Fax Settings> <ECM TX> <On>

● ECM must be enabled on both the machine and the other fax device because error checks are performed on both the sending and receiving devices.

542

Setting Menu List

● Even when ECM is enabled, errors may occur due to telephone line conditions.

● It may take a longer time than usual to process data when ECM is enabled because the error checks and corrections are performed while the data is transmitted.

<Set Pause Time>

For example, when you make calls by dialing "0 - (pause) - (telephone number)," 0 is dialed first and then a few seconds later, the telephone number. When sending faxes overseas, you need to specify destinations by dialing

"(international access code) - (country code) - (area code) - (fax number)" but consecutive numbers that are input without pauses may not be recognized correctly. In this case, try adding a pause after the international access code or the fax number. If the code or the number is still not recognized correctly, change the duration

of the pause. For instructions on how to enter a pause, see step 4 on Basic Operations for Sending

Faxes(P. 217) .

1 to 2 to 15 (sec.)

<Menu> <Function Settings> <Send> <Fax Settings> <Set Pause Time> Specify the duration of pause <Apply>

<Auto Redial>

Specify settings for Auto Redial, a function that automatically redials the fax number after several minutes if the first attempt fails because the line is busy. You can specify how many times the machine redials and the interval between redials.

<Use Auto Redial>

<Off>

<On>

<Number of Times to Redial>

1 to 2 to 10 (time(s))

<Redial Interval>

2 to 99 (min.)

<Redial When Error Occurs>

<Off>

<On>

<Menu> <Function Settings> <Send> <Fax Settings> <Auto Redial> Select <On> in <Use

Auto Redial> Specify the settings <Apply>

<Number of Times to Redial>

Specifies how many times the machine redials. Enter a number, and select <Apply>.

543

Setting Menu List

<Redial Interval>

Specifies the interval between redials. Enter a number for the interval, and select <Apply>.

<Redial When Error Occurs>

When set to <On>, specifies to redial when a transmission error occurs.

<Check Dial Tone Before Sending>

*2

Select whether to check the dial tone before a fax number is dialed.

<Off>

<On>

<Menu> <Function Settings> <Send> <Fax Settings> <Check Dial Tone Before

Sending> <On>

<Set Line>

Specify a fax number, unit name, and line type.

<Register Unit Telephone Number>

Register the fax number for the machine. Registering the Fax Number and Unit Name(P. 80)

<Register Unit Name>

Register the name of a company or person ( Registering the Fax Number and Unit Name(P. 80) ). The

registered name is sent as sender information to the destination ( <TX Terminal ID>(P. 545) ).

<Select Line Type>

Select the telephone line type used for fax transmission. Connecting the Telephone Line(P. 82)

<Pulse>

<Tone>

<TX Start Speed>

If it takes a long time to start sending a fax, such as when there is a poor connection, you can adjust the communication start speed downward incrementally.

<33600 bps>

<14400 bps>

<9600 bps>

<7200 bps>

<4800 bps>

<2400 bps>

<Menu> <Function Settings> <Send> <Fax Settings> <TX Start Speed> Select the communication start speed

544

Setting Menu List

<Archive TX Document>

*3

In addition to the destination specified when the fax is sent, you can specify whether faxed documents are

also sent to a preset storage address for archiving. Saving a Copy of a Sent Original(P. 236)

<Archive TX Document>

<Off>

<On>

<Archive Address>

<Confirm Entered Fax Number>

Select whether to display the details of an entered coded dial number when it is selected as a destination.

Confirming the Entered Fax Number(P. 409)

<Off>

<On>

<Allow Fax Driver TX>

Enable or disable PC faxing (sending faxes from a computer). Restricting Fax Sending from a

Computer(P. 409)

<Off>

<On>

<Restrict Sequential Broadcast>

Select whether to prohibit sequential broadcasting, a feature that sends faxes to multiple destinations in

succession. Restricting Sequential Broadcasts(P. 409)

<Off>

<On>

<TX Terminal ID>

Specify settings for adding the sender information, including the fax number and the name of the machine, to the fax header. The recipient can check who sent the fax by looking at the added information.

<Add TX Terminal ID>

<Off>

<On>

<Print Position>

<Inside Image Area>

<Outside Image Area>

<Mark Number As>

<Fax>

<Tel>

<Menu> <Function Settings> <Send> <Fax Settings> <TX Terminal ID> Select <On> in

<Add TX Terminal ID> Specify the settings <Apply>

545

Setting Menu List

<Print Position>

Specifies the position to print the terminal ID information in the sent fax. Select <Inside Image Area> to print the information inside the image area, or <Outside Image Area> to print the information outside the image area.

<Mark Number As>

Adds the "Fax" or "Tel" mark in front of the fax number registered for the machine ( Registering the Fax

Number and Unit Name(P. 80) ). Select <Tel> to indicate that the notified number is a telephone number.

546

Setting Menu List

<Receive/Forward>

1647-0A6

All the settings related to receiving faxes and e-mails are listed with descriptions. Default settings are marked with a dagger ( ).

<Common Settings>(P. 547)

<I-Fax Settings>(P. 548)

<Fax Settings>(P. 549)

Asterisks (

*

)

● Settings marked with "

*1

" may not be displayed depending on the model you are using, options, or other setting items.

● Settings marked with "

*2

" cannot be imported or exported.

<Common Settings>

Specify operations that are to be performed when faxes are received in memory and when the amount remaining in the toner cartridge is low.

<Set Fax/I-Fax Inbox>

*1

Configure settings for receiving faxes in memory.

<Fax Memory Lock Settings>

Select whether to store received faxes without immediately printing them. Stored fax documents can be

printed at any time by changing the setting to <Off>. Saving Received Documents into the Machine

(Memory Reception)(P. 238)

<Use Memory Lock>

<Off>

<On>

<Report Print>

<Off>

<On>

<Memory Lock Time>

<Set This Function>

<Off>

<On>

<Memory Lock Start Time>

<Memory Lock End Time>

<Continue Print. When Amount in Cart. Low>

If receiving faxes when the amount remaining in a toner cartridge is low, the machine holds them in memory instead of printing. However, if this function is enabled, the machine continues printing. In addition to fax reception, this is true with I-Fax reception.

<Off>

<On>

547

Setting Menu List

<Menu> <Function Settings> <Receive/Forward> <Common> <Continue Print. When

Amount in Cart. Low> <On>

● When this function is enabled, faxes may fade or blur. Because received documents are not stored, you need to ask the sender to resend the document.

<I-Fax Settings>

Configure settings to print received I-Fax documents.

<Print on Both Sides>

Specify settings for printing received documents on both sides of paper.

<Off>

<On>

<Menu> <Function Settings> <Receive/Forward> <I-Fax Settings> <Print on Both Sides>

<On>

<RX Print Size>

Specify the paper size to be used for printing.

<LTR>

<LGL>

<FOOLSCAP/FOLIO>

<OFICIO>

<LETTER (Government)>

<LEGAL (Government)>

<LEGAL (India)>

<FOOLSCAP (Australia)>

<OFICIO (Brazil)>

<OFICIO (Mexico)>

<A4>

<Menu> <Function Settings> <Receive/Forward> <I-Fax Settings> <RX Print Size> Select the paper size

548

Setting Menu List

<Fax Settings>

*1

Configure settings for receiving and forwarding faxes.

<Print on Both Sides>

Specify settings for printing received documents on both sides of paper.

<Off>

<On>

<Menu> <Function Settings> <Receive/Forward> <Fax Settings> <Print on Both

Sides> <On>

<ECM RX>

Enable or disable error correction mode (ECM). ECM checks for fax data errors and corrects them. To reduce

errors on sent faxes, see <ECM TX>(P. 542) .

<Off>

<On>

<Menu> <Function Settings> <Receive/Forward> <Fax Settings> <ECM RX> <On>

● ECM must be enabled on both the machine and the other fax device because error check is performed on both the sending and receiving devices.

● Even when ECM is enabled, errors may occur due to telephone line conditions.

● It may take a longer time than usual to process data when ECM is enabled because the error check and corrections are performed while the data is transmitted.

<Incoming Ring>

Specify settings for sounding a ring to notify you of incoming faxes. This feature is only available when <Auto> or <Fax/Tel (Auto Switch)> is selected for the receive mode. Specify how many times the incoming call rings when the machine receives a fax call. You can also disable the settings to prevent the incoming call from ringing.

<Use Incoming Ring>

<Off>

<On>

<Number of Rings>

1 to 2 to 99 (time(s))

549

Setting Menu List

<Menu> <Function Settings> <Receive/Forward> <Fax Settings> <Incoming Ring> Select

<On> in <Use Incoming Ring> Enter the desired number in <Number of Rings> <Apply>

● When <On> is specified, you need to connect your telephone to the machine beforehand.

● When <Off> is specified, the machine does not enter sleep mode.

<Remote RX>

Specify settings for receiving a fax by operating a telephone that is connected to the machine (Remote

Reception). When a fax is sent to the machine, you can receive it just by picking up the handset of the telephone and entering a specific ID number by using the telephone. This feature can save you the trouble of going all the

way to the machine. For instructions on how to use Remote Reception, see Using a Telephone to Receive

Faxes (Remote Reception)(P. 228) .

<Use Remote RX>

<Off>

<On>

<Remote RX ID>

00 to 25 to 99

<Menu> <Function Settings> <Receive/Forward> <Fax Settings> <Remote RX> Select

<On> in <Use Remote RX> Enter the ID number in <Remote RX ID> <Apply>

<Switch to Auto RX>

Specify settings for automatically receiving a fax after the machine has rung for a specified time period. This feature is only available when <Manual> is selected for the receive mode. By using this feature, faxes can be received even when no one is available to pick up the handset.

<Use Switch to Auto RX>

<Off>

<On>

<Ring Time Until Auto RX>

1 to 15 to 99 (sec.)

<Menu> <Function Settings> <Receive/Forward> <Fax Settings> <Switch to Auto

RX> Select <On> in <Use Switch to Auto RX> Enter the desired number of seconds in <Ring

Time Until Auto RX> <Apply>

550

Setting Menu List

<RX Start Speed>

If it takes a long time to start receiving a fax, such as when there is a poor connection, you can adjust the communication start speed downward incrementally.

<33600 bps>

<14400 bps>

<9600 bps>

<7200 bps>

<4800 bps>

<2400 bps>

<Menu> <Function Settings> <Receive/Forward> <Fax Settings> <RX Start Speed> Select the communication start speed

<Use Reduce RX Size>

Specify settings for reducing the image size of a received document. You can select an automatic reduction ratio that reduces the received document to size of the loaded paper. You can also select a ratio from a list.

<Use Reduce RX Size>

<Off>

<On>

<Reduction Ratio>

<Auto>

<97%>

<95%>

<90%>

<75%>

<Reduction Direction>

<Vertical/Horizontal>

<Vertical Only>

<Menu> <Function Settings> <Receive/Forward> <Fax Settings> <Use Reduce RX

Size> Select <On> in <Use Reduce RX Size> Specify each setting item <Apply>

<Reduction Ratio>

<Auto> reduces the image by a ratio that is based on the size of the loaded paper. <97%>, <95%>, <90%>, or

<75%> reduce the image by the corresponding ratio.

<Reduction Direction>

551

Setting Menu List

Select <Vertical/Horizontal> to reduce the image both vertically and horizontally. Select <Vertical Only> to reduce only vertically.

<Print RX Page Footer>

Select whether to print information, including date and time of reception and page numbers, on the bottom of received faxes.

<Off>

<On>

<Menu> <Function Settings> <Receive/Forward> <Fax Settings> <Print RX Page

Footer> <On>

<Forwarding Settings>

Specify settings for forwarding faxes.

<Forwarding Function>

*2

Select whether to forward all the received fax documents to a specified destination. In addition to a fax number, you can also specify an e-mail address or a shared folder in a computer, etc. as the forwarding

destination. Forwarding the Received Documents Automatically(P. 240)

<Use Forwarding Function>

<Off>

<On>

<Forwarding Destination>

<Print Images>

Select whether to print forwarded fax documents. You can set the machine to print forwarded documents

only when an error occurs. Printing Documents to be Forwarded(P. 240)

<Off>

<On>

<Only When Error Occurs>

<Store Images in Memory>

Select whether to store fax documents in memory when they are not successfully forwarded. You can resend

or print the documents later as necessary. Printing/Resending/Deleting Documents that Failed to be

Forwarded(P. 240)

<Off>

<Only When Error Occurs>

552

Setting Menu List

<Store/Access Files>

1647-0A7

All the settings related to saving the scanned document to a USB memory device or printing stored files are listed with descriptions. Default settings are marked with a dagger ( ).

<Common Settings>(P. 553)

<Memory Media Settings>(P. 559)

Asterisks (

*

)

● Settings marked with an asterisk (

*

) may not be displayed depending on the model you are using, options, or other setting items.

<Common Settings>

Change the settings for file saving or memory media print.

<Scan and Store Settings>

Configure settings for saving the scanned document to a USB memory device.

<USB Memory Settings>

You can change the settings used when data is saved to a USB memory device.

<Change Default Settings (USB Memory)>

You can change the default settings used for saving scanned originals to a USB memory device. The

selected settings are used as the default settings when scanning originals. Changing the Default

Settings for Functions(P. 176)

<Scan Size>

<LTR>

<LGL>

<STMT>

<EXEC>

<FOOLSCAP/FOLIO>

<OFICIO>

<LETTER (Government)>

<LEGAL (Government)>

<LEGAL (India)>

<FOOLSCAP (Australia)>

<OFICIO (Brazil)>

<OFICIO (Mexico)>

<A4>

<A5R>

<B5>

<File Format>

<PDF>

<PDF (Compact)>

553

Setting Menu List

<PDF (Compact/OCR)>

<PDF (OCR)>

<Set PDF Details>

<PDF>/<PDF (Compact)>/<PDF (Compact/OCR)>/<PDF (OCR)>

<Encryption>

<None>

<Acrobat 7.0 or Later/128-bit AES>

<Acrobat 9.0 or Equivalent/256-bit AES>

*

<Acrobat 10.0 or Equivalent/256-bit AES>

*

<Digital Signatures>

<None>

<Top Left>

<Divide into Pages>

<Off>

<On>

<JPEG>

<TIFF>

<Set TIFF Details>

<Divide into Pages>

<Off>

<On>

<Density>

Nine Levels

<Original Orientation>

<Portrait>

<Landscape>

<Original Type>

<Text>

<Text/Photo>

<Photo>

<2-Sided Original>

<Off>

*

<Book Type>

<Calendar Type>

<Sharpness>

Seven Levels

<Data Size>

<Small: Memory Priority>

<Standard>

<Large: Image Quality Priority>

<Access Stored Files Settings>

You can change the settings to print files in a USB memory device and the method for displaying them.

554

Setting Menu List

<Change Default Settings (Memory Media Print)>

You can change the default settings associated with memory media print. The settings configured here are

used as the default settings of the memory media print function. Changing the Default Settings for

Functions(P. 176)

<Paper>

<Multi-Purpose Tray>

<Drawer 1>

<Drawer 2>

*

<Number of Copies>

1 to 999

<2-Sided>

<Off>

<Book Type>

<Calendar Type>

<Set JPEG/TIFF Details>

<Brightness>

Five Levels

<N on 1>

<Off>

<2 on 1>

<4 on 1>

<Original Type>

<Photo Priority>

<Text Priority>

<Halftones>

<Gradation>

<Error Diffusion>

< Set PDF Details>

<Brightness>

Seven Levels

<N on 1>

<Off>

<2 on 1>

<4 on 1>

<6 on 1>

<8 on 1>

<9 on 1>

<16 on 1>

<Print Range>

<All Pages>

<Specified Pages>

<Enlarge/Reduce to Fit Paper Size>

<Off>

<On>

<Enlarge Print Area>

555

Setting Menu List

<Off>

<On>

<Print Comments>

<Off>

<Auto>

<Other Settings>

<Halftones>

<Error Diffusion>

<Off>

<On>

<Resolution/Gradation>

*

<Text>

<Resolution>

<Gradation>

<Graphics>

<Resolution>

<Gradation>

<Image>

<Resolution>

<Gradation>

<Pure Black Text>

<Off>

<On>

<Black Overprint>

*

<Off>

<On>

<RGB Source Profile>

<sRGB>

<Gamma 1.5>

<Gamma 1.8>

<Gamma 2.4>

<None>

<CMYK Simulation Profile>

<JapanColor(Canon)>

<U.S. Web Coated v1.00(Canon)>

<Euro Standard v1.00(Canon)>

<None>

<Use Grayscale Profile>

<Off>

<On>

<Output Profile>

<Text>

<Normal>

<Photo>

<TR Normal>

<TR Photo>

<Graphics>

<Normal>

556

Setting Menu List

<Photo>

<TR Normal>

<TR Photo>

<Image>

<Normal>

<Photo>

<TR Normal>

<TR Photo>

<Matching Method>

<Perceptual>

<Saturation>

<Colorimetric>

<Composite Overprint>

<Off>

<On>

<Grayscale Conversion>

<sRGB>

<NTSC>

<Uniform RGB>

<Print Quality>

<Density>

*

Yellow/Magenta/Cyan/Black

17 Levels

<Fine Adjust>

<Yellow>/<Magenta>/<Cyan>/<Black>

<High>/<Medium>/<Low>

17 levels

<Toner Save>

<Off>

<On>

<Gradation>

<High 1>

<High 2>

<Density Fine Adjustment>

Five Levels

<Resolution>

<1200 dpi>

<600 dpi>

<Special Smoothing Mode>

<Mode 1>

<Mode 2>

<Mode 3>

<Mode 4>

<Mode 5>

<Mode 6>

<Toner Volume Correction>

<Standard>

<Gradation Priority>

557

Setting Menu List

<Text Priority>

<Line Control>

<Resolution Priority>

<Gradation Priority>

<Width Adjustment>

<Off>

<On>

<Advanced Smoothing>

<Advanced Smoothing>

<Off>

<Level 1>

<Level 2>

<Apply to Graphics>

*

<Off>

<On>

<Apply to Text>

*

<Off>

<On>

<Gradation Smoothing>

<Gradation Smoothing>

<Off>

<Level 1>

<Level 2>

<Apply to Graphics>

*

<Off>

<On>

<Apply to Images>

*

<Off>

<On>

<Default Display Settings>

Select Preview/Details as the method for displaying files in a USB memory device.

<Preview>

<Details>

<Menu> <Function Settings> <Store/Access Files> <Common> <Access Stored Files

Settings> <Default Display Settings> Select the method for displaying

<Preview>

558

Setting Menu List

Displays a preview image.

<Details>

Displays file names and dates in list form.

<File Sort Default Settings>

Select whether to display files in a USB memory device in ascending or descending order of file name or date.

<Name (Ascending)>

<Name (Descending)>

<Date/Time (Ascending)>

<Date/Time (Descending)>

<Menu> <Function Settings> <Store/Access Files> <Common> <Access Stored Files

Settings> <File Sort Default Settings> Select the order of files that are displayed

<File Name Display Format>

Select whether to display short or long text for file names that are stored in a USB memory device.

<Short File Name>

<Long File Name>

<Menu> <Function Settings> <Store/Access Files> <Common> <Access Stored Files

Settings> <File Name Display Format> Select <Short File Name> or <Long File Name>

<Short File Name>

Shortens a file name to as few as eight characters. To distinguish files that have similar names, numbers such as

"

~

1" or "

~

2" are added at the end of the file names.

<Long File Name>

Displays a file name up to 40 characters.

● The number of characters described above does not include the characters in file extensions, such as ".jpg."

<Memory Media Settings>

Specify whether to enable or disable the functions of a USB memory device.

559

Setting Menu List

<Use Scan Function>

Select whether to permit storing scanned originals into a USB memory device. Restricting the Scan to USB

Function(P. 412)

MF735Cdw / MF634Cdw

<Off>

<On>

MF733Cdw / MF731Cdw / MF632Cdw

<Off>

<On>

<Use Print Function>

Select whether to permit printing data from a USB memory device when it is attached to the machine.

Restricting the USB Print Function(P. 412)

MF735Cdw / MF634Cdw

<Off>

<On>

MF733Cdw / MF731Cdw / MF632Cdw

<Off>

<On>

560

Setting Menu List

<Secure Print>

1647-0A8

Specify whether to enable or disable Secure Print ( Printing via Secure Print(P. 267) ). Default settings are marked

with a dagger ( ).

<Use Secure Print>

<Off>

<On>

<Restrict Printer Jobs>

<Off>

<On>

<Secure Print Deletion Time>

10 to 30 to 240 (min.)

561

Setting Menu List

<Set Destination>

1647-0A9

All the settings related to the address book are listed with descriptions.

<Address Book PIN>

Specify a PIN and require entering it to add new entries to or edit existing entries in the Address Book. Restricting

Use of the Address Book(P. 405)

562

Setting Menu List

<Management Settings>

1647-0AA

Item

<User Management>(P. 564)

Description

You can configure the settings for managing users of the machine.

<Device Management>(P. 565)

<License/Other>/<Remote UI Settings/Update

Firmware>(P. 568)

You can configure the settings related to the Remote UI and software available for the machine.

<Data Management>(P. 570)

You can manage information about the hardware and operations, as well as various data required when using the machine functions.

<Security Settings>(P. 572)

You can configure settings to utilize data such as machine settings data or perform data initialization.

You can configure the settings related to the user authentication function, password, and encryption.

<Initialize All Data/Settings>

Restores all data including logs and setting values to their default settings.

Initializing All Data/Settings(P. 440)

563

Setting Menu List

<User Management>

1647-0AC

All the settings related to user management of the machine are listed with descriptions. Default settings are marked with a dagger ( ).

<System Manager Information Settings>(P. 564)

<Department ID Management>(P. 564)

<System Manager Information Settings>

Specify the ID or PIN exclusively for Administrators who have access privileges to <Network> and <Management

Settings>. ID is <System Manager ID> and PIN is <System Manager PIN>. You can also register the name of an

Administrator. Setting the System Manager ID and PIN(P. 354)

<System Manager ID and PIN>

Enter a number for the System Manager ID and PIN.

<System Manager ID>

<System Manager PIN>

<System Manager Name>

Enter alphanumeric characters for the name of an Administrator.

<Department ID Management>

Select whether to use the Department ID Management, a feature that uses IDs as user accounts to specify access

privileges and maintain information on how the machine is used. Setting the Department ID Management(P. 356)

<Off>

<On>

<Menu> <Management Settings> <User Management> <Department ID

Management> Select <Off> or <On>

564

Setting Menu List

<Device Management>

1647-0AE

All the settings related to management of information for the hardware and operations, as well as about management of data required when using the machine functions are listed with descriptions. Default settings are marked with a dagger ( ).

<Device Information Settings>(P. 565)

<Select Country/Region>(P. 565)

<Display Job Log>(P. 566)

<Use NFC>(P. 566)

<Display Consumables Information (RUI/Toner Status)>(P. 566)

<Scan with Canon PRINT Business>(P. 567)

<Notify to Check Paper Settings>(P. 567)

Asterisks (

*

)

● Settings marked with "

*1

" cannot be imported or exported.

● Settings marked with "

*2

" may be unavailable or vary or have different defaults depending on your country or region.

● Settings marked with "

*3

" may not be displayed depending on the model you are using, options, or other setting items

<Device Information Settings>

Enter alphanumeric characters for the name and the installation location to identify the machine.

<Device Name>

<Location>

<Menu> <Management Settings> <Device Management> <Device Information

Settings> Select <Device Name> or <Location> Enter the device name or location ( Entering

Text(P. 131) ) <Apply>

<Select Country/Region>

*1 *2

Specify the country or region where the machine is used. The default setting may vary depending on the setting selected at initial power-on.

<United States (US)>

<Canada (CA)>

<Brazil (BR)>

<Mexico (MX)>

<Other>

565

Setting Menu List

<Menu> <Management Settings> <Device Management> <Select Country/Region> Select a country or region

<Display Job Log>

Select whether to display the copying, printing, faxing, and scanning logs on the display of the machine and in the

Communication Management Report.

<Off>

<On>

<Menu> <Management Settings> <Device Management> <Display Job Log> Select <Off> or <On> Restart the machine

<Use NFC>

*3

Select whether to allow printing by touching an NFC-capable mobile device to the NFC mark on the machine's operation panel.

<Off>

<On>

<Menu> <Management Settings> <Device Management> <Use NFC> Select <Off> or <On>

Restart the machine

<Display Consumables Information (RUI/Toner Status)>

Set whether to display a button in the Remote UI or Toner Status for accessing the Web site for purchasing toner cartridges. Also set whether to use Toner Status.

<Displ. Cnsmbls. Purch. Btn.(RUI)>

<Off>

<On>

<Toner Status Settings>

<Off>

<On>

<Displ. Consmbls. Purchase Btn.>

<Off>

566

Setting Menu List

<On>

<Menu> <Management Settings> <Device Management> <Display Consumables

Information (RUI/Toner Status)> Specify the settings

<Displ. Cnsmbls. Purch. Btn.(RUI)>

Select <Off> to prevent a button that accesses sites for purchasing toner cartridges from being displayed in the

Remote UI.

<Toner Status Settings>

If you do not want to use Toner Status, select <Off>. To prevent a button that accesses sites for purchasing toner cartridges from being displayed in Toner Status, select <On> and then <Off>.

<Scan with Canon PRINT Business>

Select whether to allow scanning from a mobile device using the Canon PRINT Business application.

<Off>

<On>

<Menu> <Management Settings> <Device Management> <Scan w/ Canon PRINT Business>

Select <Off> or <On> Restart the machine

<Notify to Check Paper Settings>

Specify whether to display a message prompting you to check paper settings when loading the paper drawer into the machine.

<Off>

<On>

<Menu> <Management Settings> <Device Management> <Notify to Check Paper Settings>

Select <Off> or <On> Restart the machine

567

Setting Menu List

<License/Other>/<Remote UI Settings/Update

Firmware>

1647-0AF

All the settings related to the software and system options available for the machine as well as about Register License are listed with descriptions. Default settings are marked with a dagger ( ).

<Register License>(P. 568)

<Remote UI Settings>(P. 568)

<Update Firmware>(P. 569)

Asterisks (

*

)

● Settings marked with "

*1

" cannot be imported or exported.

● Settings marked with "

*2

" may not be displayed depending on the model you are using, options, or other setting items.

<Register License>

*1*2

Enter the license key for a system option that can be used on the machine. License Registration(P. 720)

<Remote UI Settings>

*1

Configure settings for using the Remote UI. Using the Remote UI allows you to configure machine settings from a Web browser.

<Remote UI Settings>

Select whether to use the Remote UI ( Disabling Remote UI(P. 415) ). When using Remote UI, you can also

specify whether to use the TLS encrypted communication ( Configuring the Key and Certificate for

TLS(P. 380) ).

<Use Remote UI>

<Off>

<On>

<Use TLS>

<Off>

<On>

<Menu> <Management Settings> <License/Other>/<Remote UI Settings/Update

Firmware> <Remote UI Settings> <Remote UI Settings> Select <On> in <Use Remote UI>

Select <Off> or <On> in <Use TLS> <Apply> Restart the machine

568

Setting Menu List

<Restrict Access>

Specify so that entry of a PIN is required for access to the Remote UI. Set a PIN of up to 7 digits. All users use a

common PIN. Setting a Remote UI PIN(P. 362)

<Off >

<On>

<Remote UI Access PIN>

<Menu> <Management Settings> <License/Other>/<Remote UI Settings/Update

Firmware> <Remote UI Settings> <Restrict Access> <On> Enter the PIN <Apply>

Enter the PIN (Confirm) <Apply>

<Update Firmware>

*1

Select how to install the firmware update according to the environment of the machine. Updating the

Firmware(P. 437)

<Via PC>

<Via Internet>

<Version Information>

569

Setting Menu List

<Data Management>

1647-0AH

The settings for utilizing the machine settings and for initializing data are listed with descriptions. Default settings are marked with a dagger ( ).

<Import/Export>(P. 570)

<Enable Prod. Ext'd Survey Prog.>(P. 571)

<Initialize Key and Certificate>(P. 571)

<Initialize Address Book>(P. 571)

<Initialize Menu>(P. 571)

Asterisks (

*

)

● Settings marked with "

*

" cannot be imported or exported.

<Import/Export>

*

You can use a USB memory device to import and export data in the Address Book and various settings of the machine.

<Import>

<Export>

Import

<Menu> <Management Settings> <Data Management> <Import/Export> <Import>

<Yes> Enter the password <Apply>

Export

<Menu> <Management Settings> <Data Management> <Import/Export> <Export>

Enter the password <Apply> Enter the password (Confirm) <Apply>

If the <Address Book PIN> screen appears

● If a PIN has been set for the Address Book, the <Address Book PIN> screen appears during importing/ exporting. Enter the Address Book PIN and select <Apply>. Select <Skip> to cancel Address Book data importing/exporting.

When import is executed

● The machine automatically restarts after the import process has finished.

570

Setting Menu List

<Enable Prod. Ext'd Survey Prog.>

Enable or disable the Product Extended Survey Program (a program for the machine usage survey).

<Off>

<On>

<Menu> <Management Settings> <Data Management> <Enable Prod. Ext'd Survey

Prog.> Select <Off> or <On> Restart the machine

<Initialize Key and Certificate>

*

Select to restore [Key and Certificate Settings] and [CA Certificate Settings] to the factory defaults. Initializing Key

and Certificate(P. 439)

<Initialize Address Book>

*

Select to restore the Address Book settings to the factory defaults. Initializing Address Book(P. 440)

<Initialize Menu>

*

Select to restore the settings listed below to the factory defaults. You can restore all the settings listed below at once,

or you can restore individual settings separately. Initializing Menu(P. 439)

<Preferences>

<Adjustment/Maintenance>

<Function Settings>

<Set Destination>

<Management Settings>

<Initialize All>

571

Setting Menu List

<Security Settings>

1647-0AJ

All the settings related to the authentication function and encryption are listed with descriptions. Default Settings are marked with a dagger .

<Authentication/Password Settings>(P. 572)

<Encryption Settings>(P. 572)

<Authentication/Password Settings>

You can reinforce the security of the authentication function.

<Authentication Function Settings>

Configure the security functions for user authentication.

<Lockout>

When a user has failed user authentication, specify whether to disable the user from temporarily logging in to the machine (lockout). When <On> is selected, specify how many consecutive times failures are permitted before lockout is activated and also the time required before a user can log in again after lockout.

<Enable Lockout>

<Off>

<On>

<Lockout Threshold>

1 to 10 (time(s))

<Lockout Period>

1 to 60 (min.)

<Menu> <Management Settings> <Security Settings> <Authentication/Password Settings>

<Authentication Function Settings> <Lockout> Select <On> in <Enable Lockout> Specify each setting item <Apply> Restart the machine

● This option is not applied to login using the department ID.

<Encryption Settings>

Configure a setting for disabling a weak encryption or the key and certification using a weak encryption.

<Prohibit Use of Weak Encrypt.>

<Off>

<On>

<Prohibit Weak Encryp. Key/Cert.>

<Off>

<On>

572

Setting Menu List

<Menu> <Management Settings> <Security Settings> <Encryption Settings> Select <On> in <Prohibit Use of Weak Encrypt.> Select <Off> or <On> in <Prohibit Weak Encryp. Key/Cert.>

<Apply> Restart the machine

573

Maintenance

Maintenance

Maintenance

..................................................................................................................................................... 575

Regular Cleaning

............................................................................................................................................... 577

Cleaning the Exterior

.................................................................................................................................... 578

Cleaning the Platen Glass

............................................................................................................................. 579

Cleaning the Feeder

..................................................................................................................................... 580

Cleaning the Fixing Assembly

....................................................................................................................... 583

Cleaning the Transfer Belt (ITB)

.................................................................................................................... 584

Replacing the Toner Cartridge

......................................................................................................................... 585

Checking the Remaining Amount of Consumables

......................................................................................... 590

Relocating the Machine

.................................................................................................................................... 591

Adjusting Print Quality

..................................................................................................................................... 593

Adjusting Gradation

..................................................................................................................................... 594

Correcting "Print Color Mismatch"

................................................................................................................ 599

Adjusting Values for Text Color Reproducibility in Color Documents

............................................................ 600

Adjusting Print Position

................................................................................................................................ 602

Viewing the Counter Value

............................................................................................................................... 604

Printing Reports and Lists

................................................................................................................................ 606

Consumables

..................................................................................................................................................... 611

574

Maintenance

Maintenance

1647-0AK

This chapter describes upkeep of the machine, including how to clean the machine and adjustment of print quality.

Basic Cleaning

Replacing Consumables

Regular Cleaning(P. 577)

Replacing the Toner Cartridge(P. 585)

Checking the Remaining Amount of Consumables(P. 590)

Consumables(P. 611)

Adjusting and Managing the Machine

575

Relocating the Machine(P. 591)

Maintenance

Adjusting Print Quality(P. 593)

Viewing the Counter Value(P. 604)

Printing Reports and Lists(P. 606)

576

Maintenance

Regular Cleaning

1647-0AL

Regularly clean the machine to prevent deterioration in printing quality and to ensure that you use it safely and easily.

Where to Clean

Exterior of the machine and ventilation slots

Cleaning the Exterior(P. 578)

Feeder

Cleaning the Feeder(P. 580)

Internal fixing assembly and transfer belt

Cleaning the Fixing Assembly(P. 583)

Cleaning the Transfer Belt (ITB)(P. 584)

Platen glass and the underside of the feeder

Cleaning the Platen Glass(P. 579)

577

Maintenance

Cleaning the Exterior

1647-0AR

Regularly wipe the exterior of the machine, especially around the ventilation slots, to keep the machine in good condition.

1

Turn OFF the machine, and unplug the power cord from the AC power outlet.

● When you turn OFF the machine, data that is waiting to be printed is deleted. Fax documents that were received by using the Memory Reception function, faxes that are waiting to be sent, and reports that are automatically printed after sending and receiving faxes are not deleted.

2

Clean the exterior of the machine and the ventilation slots.

● Use a soft, well-wrung-out cloth dampened with water or a mild detergent diluted with water.

To locate the ventilation slots, see Front Side(P. 104) .

3

Wait for the exterior of machine to dry completely.

4

Reconnect the power cord and turn ON the machine.

578

Maintenance

Cleaning the Platen Glass

1647-0AS

Regularly wipe off the dust from the platen glass and the underside of the feeder to prevent smudges to be printed on originals or printouts.

1

Turn OFF the machine, and unplug the power cord from the AC power outlet.

● Turning the printer off erases any queued print data. Data such as documents received and held in memory, documents waiting to be sent, and reports that are automatically printed after sending or receiving faxes are not deleted.

2

Open the feeder.

3

Clean the platen glass and the underside of the feeder.

● Clean the areas with a cloth dampened with water. Then, wipe the area with a soft, dry cloth.

4

Wait for the cleaned area to dry completely.

5

Gently close the feeder.

6

Reconnect the power cord and turn ON the machine.

579

Maintenance

Cleaning the Feeder

1647-0AU

Graphite powder or dust on the rollers inside the feeder or on the document feed scanning area may cause smudges to appear on printouts. If this occurs or if a paper jam occurs frequently, clean the feeder. If the problem persists after cleaning the feeder, perform automatic feeder cleaning.

Cleaning the Feeder(P. 580)

Automatic Feeder Cleaning(P. 582)

Cleaning the Feeder

1

Turn off the machine and unplug it from the power outlet.

● Turning the printer off erases any queued print data. Data such as documents received and held in memory, documents waiting to be sent, and reports that are automatically printed after sending or receiving faxes are not deleted.

2

Open the original supply tray.

3

Open the feeder cover.

4

Wipe the rollers in the feeder.

● Wipe the rollers with a cloth that has been moistened with water and wrung out. Then wipe with a dry cloth.

580

Maintenance

● If the rollers and surrounding areas are very dirty, clean them out. To do this, wet a cloth with water and wring it out well, then wipe the dirty areas. Afterwards, wipe the areas with a soft and dry cloth.

5

Close the feeder cover and original supply tray.

6

Open the feeder.

7

Wipe the document feed scanning area.

● Wipe with a cloth that has been moistened with water and wrung out, and then wipe with a dry cloth.

8

Wait for the cleaned area to dry completely.

581

Maintenance

9

Gently close the feeder.

10

Plug the machine back into the power outlet and switch it on.

Automatic Feeder Cleaning

Automatic feeder cleaning uses paper loaded in the feeder. Set 10 sheets of plain A4 or US Letter size paper in the

feeder before starting automatic cleaning. Placing Originals(P. 135)

1

Select <Menu> in the Home screen. Home Screen(P. 122)

2

Select <Adjustment/Maintenance> <Maintenance>.

3

Select <Clean Feeder>.

4

Select <Start>.

Cleaning starts. When a message appears notifying that cleaning is complete, press to return to the

Home screen.

582

Maintenance

Cleaning the Fixing Assembly

1647-0AW

Dirt may adhere to the fixing assembly inside the machine and cause black streaks to appear on printouts. To clean the fixing assembly, perform the following procedure. Note that you cannot clean the fixing assembly when the machine has documents waiting to be printed. To clean the fixing assembly, you need plain A4 or Letter size paper. Set

the paper in the paper drawer or multi-purpose tray before performing the following procedure. Loading

Paper(P. 139)

● Cleaning consumes the toner cartridge. Make sure that there is sufficient toner cartridge remaining

beforehand. Checking the Remaining Amount of Consumables(P. 590)

1

Select <Menu> in the Home screen. Home Screen(P. 122)

2

Select <Adjustment/Maintenance> <Maintenance>.

3

Select <Clean Fixing Assembly>.

4

Check that the size and type of paper displayed on the screen is loaded in the machine, and select <OK>

5

Select <Start>.

Cleaning starts. When a message appears notifying that cleaning is complete, press to return to the

Home screen.

583

Maintenance

Cleaning the Transfer Belt (ITB)

1647-0AX

Dirt may adhere to the transfer belt inside the machine and cause the print quality to deteriorate. To clean the transfer belt, perform the following procedure. Note that you cannot clean the transfer belt when the machine has documents waiting to be printed.

1

Select <Menu> in the Home screen. Home Screen(P. 122)

2

Select <Adjustment/Maintenance> <Maintenance>.

3

Select <Clean ITB>.

4

Select <Start>.

Cleaning starts. When a message appears stating that cleaning is complete, press to return to the

Home screen.

584

Maintenance

Replacing the Toner Cartridge

1647-0AY

The machine displays a message when the amount remaining in the toner cartridge is low. Note that the print quality may suffer if you continue printing without resolving this issue. You can check the amount remaining in the toner

cartridges on the display ( Checking the Remaining Amount of Consumables(P. 590) ).

When a Message Appear(P. 585)

When Printouts are Poor in Quality(P. 586)

Procedure for Replacing the Toner Cartridge(P. 586)

When a Message Appear

The message that is displayed depends on the amount remaining in the toner cartridges. Depending on which

message is displayed, prepare a new toner cartridge ( Consumables(P. 611) ) or replace the current toner cartridge

with a new one ( Procedure for Replacing the Toner Cartridge(P. 586) ).

<Prepare cartridge.>

This message notifies you that a toner cartridge needs to be replaced soon. Make sure that you have a replacement toner cartridge ready. Replace the toner cartridge if you see this message before you start to print a large job.

When this message is displayed

● When copying or printing, you can continue printing the original.

● If a message is displayed for the black toner cartridge when the machine is receiving a fax or automatic report output is set, received faxes and reports will be stored in memory so that they do not appear faded after they are printed. To continue printing even if the amount remaining in toner

cartridge is running low, set <Continue Print. When Amount in Cart. Low> to <On>. <Continue

Print. When Amount in Cart. Low>(P. 547)

Specify when this message is displayed

● You can set any value as the percentage of the amount remaining in the toner cartridge that triggers

this message. <Display Timing for Cart. Prep.>(P. 446)

<End of Cartridge Lifetime>

This message, which appears with the toner cartridge color(s), notifies you that a toner cartridge has reached the end of its lifetime. It is recommended that you replace the cartridge with a new one. You can continue printing, but the print quality cannot be guaranteed.

585

Maintenance

<Display Cartridge Replacement Steps >

Displays the procedure for replacing a toner cartridge.

< Continue Printing (Quality Not Guaranteed) >

You can continue printing, but the machine may malfunction.

When Printouts are Poor in Quality

If your printouts begin to show any of the following features, one of your toner cartridges is consumed. Replace the

nearly empty toner cartridge even if no message is displayed. Procedure for Replacing the Toner

Cartridge(P. 586)

Streaks Appear/Printing is

Uneven

Partially faded

Uneven density

White Spots Appear

Toner smudges and splatters appear

Blank space of originals becomes grayish in printouts

Procedure for Replacing the Toner Cartridge

When you replace the toner cartridge, simple instructions on the replacement procedure are displayed on the screen.

See the on-screen instructions as well as the following procedure.

1

Open the front cover.

MF735Cdw / MF733Cdw / MF731Cdw MF634Cdw / MF632Cdw

586

Maintenance

2

Pull out the cartridge tray.

3

Pull the target toner cartridge straight up and out of the machine.

4

Remove the replacement toner cartridge from the packing material.

1

Pull the tab of the packing material on a flat place.

2

Pull out the toner cartridge.

587

Maintenance

5

Shake the toner cartridge 5 or 6 times as shown below to evenly distribute the toner inside the cartridge.

● Do not touch the surface of the drum on the bottom of the toner cartridge.

6

Install the toner cartridge.

● Each toner cartridge color has its own slot in the toner cartridge tray, and this tray is indicated with a corresponding color label ( ). Place the toner cartridge into the slot that corresponds to its color.

● The bottom surface of the toner cartridge is exposed; therefore, be careful not to bump the toner cartridge against the slot frame when inserting it into the slot.

7

Push the toner cartridge tray back in, and close the front cover.

588

Maintenance

Immediately after the front cover is closed, the quick adjustment ( Quick Adjust(P. 596) ) starts. To

perform adjustment for higher quality, perform full adjustment ( Full Adjust(P. 594) ).

LINKS

Consumables(P. 611)

589

Maintenance

Checking the Remaining Amount of Consumables

1647-0C1

Use the procedure below to check the amount remaining in the toner cartridges. It is particularly important to check whether you need to have a new toner cartridge ready before starting a large print job.

<Status Monitor> <Device Information> <Cartridge Information> Checking the amount remaining in the toner cartridges

Amount Remaining in Cartridge

Displays the amount remaining in the toner cartridges. Other internal parts may reach the end of their lifetime before the toner runs out.

● The displayed amount remaining in a toner cartridge can be used only as a guide and may differ from the actual amount.

LINKS

Replacing the Toner Cartridge(P. 585)

Consumables(P. 611)

590

Maintenance

Relocating the Machine

1647-0C2

The machine is heavy. Make sure to follow the procedures below when moving the machine to avoid injury.

1

Turn OFF the machine and computer.

● When you turn OFF the machine, data that is waiting to be printed is deleted. Fax documents that were received by using the Memory Reception function, faxes that are waiting to be sent, and reports that are automatically printed after sending and receiving faxes are not deleted.

2

Disconnect the cables and cord from the machine in numerical order as in the illustration below.

● Whether the cables with "

*

" are connected depends on your environment.

Power plug

Power cord

USB keyboard

*

USB cable

*

LAN cable

*

External telephone

*

Telephone cable

*

3

When transporting the machine across a long distance, remove the toner cartridges.

Procedure for Replacing the Toner Cartridge(P. 586)

4

Pull out the paper drawer.

MF735Cdw / MF733Cdw / MF731Cdw MF634Cdw / MF632Cdw

● Make sure to hold the paper drawer with both hands, and pull it out gently. Otherwise, you may damage the paper drawer by dropping it, if it slides out too easily.

591

Maintenance

5

Close all the open covers and multi-purpose tray, and move the machine to a new location.

The machine is heavy ( Main Unit(P. 696) ). If you are using MF735Cdw / MF733Cdw / MF731Cdw, make

sure to move the machine with two or more people.

● Hold the lift handles, and lift up the machine. If you have attached the optional cassette feeding module, leave the optional paper feeder on the floor and move it after moving the main unit of the machine.

MF735Cdw / MF733Cdw / MF731Cdw

MF634Cdw / MF632Cdw

6

Carefully place the machine at the new installation site.

For information about how to install the machine after relocating it, see "Getting Started." Manuals and

Their Contents(P. 722)

592

Maintenance

Adjusting Print Quality

1647-0C3

If the printing results are not satisfactory such as low image quality, poor reproducibility, or print color mismatch, try the adjustments below.

Auto Adjust Gradation

If the density or brightness of colors in printouts and originals are different, perform <Auto Adjust Gradation> to improve color reproducibility. There are three types of adjustments: <Full Adjust>, <Quick Adjust>, and <Adjust Copy

Image>. Adjusting Gradation(P. 594)

Correct Print Color Mismatch

If the colors in printouts become blurry, perform <Correct Print Color Mismatch>. This problem may be caused by a

color mismatch. Correcting "Print Color Mismatch"(P. 599)

Black Text Processing for Color

You can specify which cartridges to use to print black text in color printouts. Adjusting Values for Text Color

Reproducibility in Color Documents(P. 600)

Adjust Print Position

You can adjust the print position when the printed image is skewed or part of the image is outside the print range.

Adjusting Print Position(P. 602)

593

Maintenance

Adjusting Gradation

1647-0C4

Gradation refers to the dark to light continuum of shades of a color. The more shades in the gradations of colors that are printed, the more natural printouts seem. If color reproducibility becomes poor and the density and brightness of printouts differs markedly from the originals, perform the appropriate auto adjustment. There are three types of adjustments: "Full Adjust" for accurate adjustment, "Quick Adjust" for simple adjustment, and "Adjust Copy Image" for gradation adjustment, especially for copying.

Full Adjust(P. 594)

Quick Adjust(P. 596)

Adjust Copy Image(P. 596)

● Adjustments may not be performed effectively if there is not sufficient toner cartridge remaining. Check the amount remaining in the toner cartridges. If the amount remaining in the toner cartridge is low, it is

recommended that you replace the toner cartridge. Checking the Remaining Amount of

Consumables(P. 590)

Full Adjust

This adjustment optimizes reproducibility for color printing. When the machine performs full adjustment, it obtains information to optimize color reproducibility. The machine maintains this information until the next time you perform full adjustment. To make a full adjustment, repeat the operation, "print out the adjustment image and scan it," multiple times. Note that you cannot perform this adjustment while performing some functions, including, scanning, and printing.

1

Select <Menu> in the Home screen. Home Screen(P. 122)

2

Select <Adjustment/Maintenance> <Adjust Image Quality> <Auto Adjust

Gradation>.

3

Select <Full Adjust>.

4

Check that the size and type of paper displayed on the screen is loaded in the machine, and select <OK>.

5

Confirm the procedure, and select <Start>.

An adjustment image is printed.

594

Maintenance

6

Open the feeder after the screen displayed during printing disappears.

7

Place the adjustment image on the platen glass.

● Place the adjustment image with the print side facing down while checking that the black stripe is placed on the back side of the machine.

8

Gently close the feeder.

9

Select <Start Scanning>.

The placed adjustment image is scanned, and then the second adjustment image is printed.

10

Open the feeder, remove the first adjustment image, and then place the second adjustment image on the platen glass with the print side face down.

● In the same way as for the first adjustment image, place the adjustment image with the print side facing down while checking that the black stripe is placed on the back side of the machine.

11

Gently close the feeder.

12

Select <Start Scanning>.

The adjustment image is scanned and adjustment starts.

13

When a message appears notifying that adjustment is complete, open the feeder, and remove the adjustment image.

14

Gently close the feeder.

If the <Could not perform correction.> message is displayed

● Did you load the paper displayed in step 4 into the paper source?

595

Maintenance

● Did you place the adjustment image with the print side face down, with the black stripe toward the back side of the machine?

Has a paper jam occurred? Clearing Paper Jams(P. 668)

● Is the amount remaining in toner cartridge sufficient? If the amount remaining in the toner cartridge is low,

it is recommended that you replace the toner cartridge. Checking the Remaining Amount of

Consumables(P. 590)

Is the transfer belt inside the machine dirty? Cleaning the Transfer Belt (ITB)(P. 584)

Quick Adjust

This adjustment maintains the optimized status that was acquired by <Full Adjust>. If the result of this adjustment is not satisfactory, perform <Full Adjust>. This adjustment may be automatically performed after you replace a toner cartridge.

● Quick adjustment is not available while scanning or printing is performed.

You can set the machine to perform this adjustment automatically after the power is turned ON. <Auto

Correction Settings>(P. 470)

1

Select <Menu> in the Home screen. Home Screen(P. 122)

2

Select <Adjustment/Maintenance> <Adjust Image Quality> <Auto Adjust

Gradation>.

3

Select <Quick Adjust>.

4

Select <Start>.

The adjustment starts.

Adjust Copy Image

Use this adjustment when the appearance of copy is extremely different from that of the original. The adjustment operation is to "print out the adjustment image and scan it." Note that you cannot perform this adjustment while performing some functions such as scanning and printing.

1

Select <Menu> in the Home screen. Home Screen(P. 122)

2

Select <Adjustment/Maintenance> <Adjust Image Quality> <Auto Adjust

Gradation>.

3

Select <Adjust Copy Image>.

596

Maintenance

4

Check that the size and type of paper displayed on the screen is loaded in the machine, and select <OK>.

5

Confirm the procedure, and select <Start>.

An adjustment image is printed.

6

Open the feeder after the screen displayed during printing disappears.

7

Place the adjustment image on the platen glass.

● Place the adjustment image with the print side facing down while checking that the black stripe is placed on the back side of the machine.

8

Gently close the feeder.

9

Select <Start Scanning>.

The adjustment image is scanned and adjustment starts.

10

When a message appears notifying that adjustment is complete, open the feeder, and remove the adjustment image.

11

Gently close the feeder.

If the <Could not perform correction.> message is displayed

● Did you load the paper displayed in step 4 into the paper source?

● Did you place the adjustment image with the print side face down, with the black stripe toward the back side of the machine?

Has a paper jam occurred? Clearing Paper Jams(P. 668)

● Is the amount remaining in toner cartridge sufficient? If the amount remaining in the toner cartridge is low,

it is recommended that you replace the toner cartridge. Checking the Remaining Amount of

Consumables(P. 590)

597

Maintenance

Is the transfer belt inside the machine dirty? Cleaning the Transfer Belt (ITB)(P. 584)

598

Maintenance

Correcting "Print Color Mismatch"

1647-0C6

Print color mismatch refers to a shift in the positions of colors that may occur when printing one image with multiple toner cartridges. Print color mismatch can cause printouts to appear blurry. If print color mismatch occurs, perform the following procedure. This adjustment is sometimes performed automatically, such as when toner cartridges are replaced.

You can set the machine to perform this adjustment automatically after the power is turned ON. <Auto

Correction Settings>(P. 470)

1

Select <Menu> in the Home screen. Home Screen(P. 122)

2

Select <Adjustment/Maintenance> <Adjust Image Quality>.

3

Select <Correct Print Color Mismatch>.

4

Select <Start>.

The adjustment starts.

599

Maintenance

Adjusting Values for Text Color Reproducibility in Color

Documents

1647-0C7

If copy results of black or blackish text are not satisfactory, you can improve the color reproducibility with this adjustment.

The settings are applied to color copies when <Original Type> is set to <Text/Photo/Map> or <Text> (

Selecting the Type of Original for Copying(P. 204) ).

1

Select <Menu> in the Home screen. Home Screen(P. 122)

2

Select <Adjustment/Maintenance> <Adjust Image Quality>.

3

Select <Black Text Processing for Color>.

4

Adjust the value.

● This adjustment value can be set independently in the feeder and platen glass.

<Color Text Priority>

Makes black or blackish text in a copy match more closely with the original.

<Black Text Priority>

Enhances the clarity of black text.

600

5

Select <Apply>.

Maintenance

601

Maintenance

Adjusting Print Position

1647-0C5

If a document is printed off-center or out of the printable range, adjust the print position. You can adjust the print position for each paper source. You can adjust the print position in the range -0.20" to +0.20" (-5.0 to +5.0 mm) in increments of 0.01" (0.1 mm).

Checking the Direction and Distance to Adjust

When you adjust the print position, specify the direction using "+" and "-" and the distance using "mm." For

<Adjust Vertically (Front Side)>/<Adjust Vertically (Back Side)>, specify a value with a "+" sign to shift the print position in the up-to-down direction. For <Adjust Horizontally (Front Side)>/<Adjust Horizontally (Back Side)>, specify a value with a "+" sign to shift the print position in the left-to-right direction. To shift in the reverse direction, specify a value with a "-" sign.

<Adjust Vertically (Front Side)>/<Adjust Vertically

(Back Side)>

<Adjust Horizontally (Front Side)>/<Adjust

Horizontally (Back Side)>

1

Select <Menu> in the Home screen. Home Screen(P. 122)

2

Select <Adjustment/Maintenance> <Adjust Image Quality>.

3

Select <Adjust Print Position>.

4

Select the paper source.

5

Select the combination of adjustment direction and printing side.

602

Maintenance

6

Set an adjustment value.

7

Select <Apply>.

Adjusting the Print Position for All Print Jobs

● You can use <Function Settings> in the setting menu of the operation panel to adjust the print position for all print jobs, irrespective of the paper source. The print position can be adjusted in 0.01" (0.5 mm)

increments between -2.00" (-50.0 mm) and +2.00" (+50.0 mm). <Offset Short Edge/Offset Long

Edge>(P. 503)

603

Maintenance

Viewing the Counter Value

1647-0C8

You can check separate totals for the number of pages used for color printouts and black and white printouts. These totals include faxes, reports, and lists, in addition to copies and printouts of data from computers.

MF735Cdw / MF634Cdw

<Check Counter> Check the number of pages printed

<101: Total 1>

Displays the total number of pages for copying and printing.

<108: Total (Black & White 1)>

Displays the total number of pages for black and white copying and printing.

<230: Copy (Full Color + Single Color/Small)>

Displays the total number of pages for color copying.

<322: Print (Full Color + Single Color/Small)>

Displays the total number of pages for color printing.

● <Monitoring Service> enables communication with a remote monitoring server. Execution of this item enables information about the machine to be periodically sent to the remote monitoring server connected to the machine.

● <Check Dev. Config.> enables you to check the optional units installed on the machine.

MF733Cdw / MF731Cdw / MF632Cdw

<Status Monitor> <Device Information> <Check Counter> Check the number of pages printed

<101: Total 1>

Displays the total number of pages for copying and printing.

604

Maintenance

<108: Total (Black & White 1)>

Displays the total number of pages for black and white copying and printing.

<230: Copy (Full Color + Single Color/Small)>

Displays the total number of pages for color copying.

<322: Print (Full Color + Single Color/Small)>

Displays the total number of pages for color printing.

605

Maintenance

Printing Reports and Lists

1647-0C9

You can print reports and lists to check information such as the total volume of printouts for each <Department ID> and machine settings.

Printing a Report on the Total Volume of Printouts by Department ID(P. 606)

Setting Reports on the Communication Results(P. 606)

Printing Lists of Settings(P. 608)

Printing Reports and Lists on the Usage Status of the Machine(P. 609)

Printing a Report on the Total Volume of Printouts by Department ID

Department ID Management Report

When Department ID Management is enabled, you can check the total volume of printouts for each

<Department ID> by printing a Department ID Management Report. By checking the printout totals, you can better manage your paper and toner cartridge supplies.

<Menu> <Output Report> <Print List> <Department ID Management Report> Check that the size and type of paper displayed on the screen is loaded in the machine, and select

<Start>

Setting Reports on the Communication Results

You can print reports on the results of sending/receiving by e-mail, fax, and I-Fax, as well as results of saving to a shared folder or FTP server. Some reports can be printed automatically while others are only printed when an error occurs.

● If "Result" in a printed list contains "NG," you can check details of the error from a three-digit number

prefixed with "#" displayed in the next to the result. Countermeasures for Each Error Code(P. 658)

● Reports printed for e-mail/I-Fax indicate the transmission result between the machine and the mail server, not between the machine and the destination address.

Communication Management Report

You can check the fax and e-mail logs of sent and received documents by printing a Communication

Management Report. The report can be printed automatically after every 40 transmissions, or you can print it manually.

<Menu> <Output Report> <Report Settings> <Communication Management

Report> Configure report settings <Apply>

606

Maintenance

<Auto Print (40 Transmissions)>

Select <On> to print the report automatically after every 40 transmissions, or <Off> if you do not want to print the report automatically.

<Separate TX/RX>

Select <On> to print sent and received reports separately, or <Off> to print both reports on one sheet.

Print the report manually

<Menu> <Output Report> <Print List> <Communication Management Report> Check that the size and type of paper displayed on the screen is loaded in the machine, and select

<Start>

Fax TX Result Report

You can check the fax logs of sent documents by printing a Fax TX Result Report. The report can be printed either every time a transmission is completed or only when a sending error occurs.

<Menu> <Output Report> <Report Settings> <Fax TX Result Report> Select <On> or <Only

When Error Occurs> Select <Off> or <On> <Apply>

<Include TX Image>

When you select <On>, a part of a sent document can be included in the TX Result Report.

E-Mail/I-Fax/File TX Result Report

You can check the e-mail and I-Fax logs of sent documents as well as documents saved to a shared folder or FTP server by printing an E-Mail/I-Fax/File TX Result Report. The report can be printed either every time a transmission is completed or only when a sending error occurs.

<Menu> <Output Report> <Report Settings> <E-Mail/I-Fax/File TX Result Report> Select

<On> or <Only When Error Occurs>

607

Maintenance

Communication result

● If an error occurs during transmission by e-mail/I-Fax or saving to a shared folder/FTP server, the report does not show the error code. To check the error code, print a Communication Management

Report ( Communication Management Report(P. 606) ).

RX Result Report

You can check the logs of received fax and I-Fax documents by printing an RX Result Report. The report can be printed either every time a transmission is completed or only when a receiving error occurs.

<Menu> <Output Report> <Report Settings> <RX Result Report> Select <On> or <Only

When Error Occurs>

Printing Lists of Settings

You can print information and settings registered in the machine as a list.

Address Book List

You can check the list of destinations registered in the Address Book as <Coded Dial>, <Favorites>, and <Group> by printing an Address Book List.

<Menu> <Output Report> <Print List> <Address Book List> Select the setting you want to print out Check that the size and type of paper displayed on the screen is loaded in the machine, and select <Start>

User Data List/System Manager Data List

You can check the list of the settings ( Setting Menu List(P. 442) ) as well as the content that has been

registered in the machine by printing a User Data List or a System Manager Data List. Both lists include the firmware version, the paper size and type registered in the machine, and the print settings of Communication

Management Report, TX Result Report, and RX Result Report.

<Menu> <Output Report> <Print List> Select <User Data List> or <System Manager Data

List> Check that the size and type of paper displayed on the screen is loaded in the machine, and select <Start>

● The User Data List does not include certain settings such as Network Settings and Management

Settings. To check all the settings items, print the System Manager Data List.

608

Maintenance

IPSec Policy List

You can check the list of policy names and the IPSec settings registered in the machine by printing an IPSec

Policy List.

<Menu> <Output Report> <Print List> <IPSec Policy List> Check that the size and type of paper displayed on the screen is loaded in the machine, and select <Start>

Printing Reports and Lists on the Usage Status of the Machine

You can print the machine status report, the usage log of toner cartridges, and the list of fonts available in PCL or PS mode.

Eco Report

You can check the monthly total volume of printouts and the power consumption with a report. This report includes tips that are useful for saving paper and power consumption based on the usage status.

<Menu> <Output Report> <Print List> <Eco Report> Check that the size and type of paper displayed on the screen is loaded in the machine, and select <Start>

Consumables Status Report

You can check the consumables status installed in the machine with a report.

<Menu> <Output Report> <Print List> <Consumables Status Report> Check that the size and type of paper displayed on the screen is loaded in the machine, and select <Start>

PCL Font List

You can check the list of fonts available in PCL mode with a report.

<Menu> <Output Report> <Print List> <PCL Font List> Check that the size and type of paper displayed on the screen is loaded in the machine, and select <Start>

PS Font List

You can check the list of fonts available in PS mode with a report.

609

Maintenance

<Menu> <Output Report> <Print List> <PS Font List> Check that the size and type of paper displayed on the screen is loaded in the machine, and select <Start>

Cartridge Log Report

You can check the usage logs of toner cartridges with a report.

<Menu> <Output Report> <Print List> <Cartridge Log Report> Check that the size and type of paper displayed on the screen is loaded in the machine, and select <Start>

610

Maintenance

Consumables

The following is a guide to the estimated replacement time for the consumables used in this machine. Purchase consumables at your local authorized Canon dealer. Observe safety and health precautions when storing and handling consumables. For optimum print quality, using Canon genuine Toner, Cartridge and Parts is recommended.

1647-0CX

● To handle and store consumables, observe precautions in "Getting Started" provided for this product.

● Depending on the installation environment, printing paper size, or original type, you may need to replace consumables before the end of the estimated lifetime.

Toner Cartridges

Supplied Toner Cartridges

The average yields

*

of the toner cartridges that come with the machine are shown in the table below.

*

The average yield is based on "ISO/IEC 19798" (the global standard related to "Method for the determination of toner cartridge yield for monochromatic electrophotographic printers and multi-function devices that contain printer components" issued by ISO [International Organization for Standardization]) when printing A4 size paper with the default print density setting.

MF735Cdw / MF733Cdw / MF731Cdw

● Black: 2,200 sheets

● Y (Yellow), M (Magenta), and C (Cyan): 1,200 sheets

MF634Cdw / MF632Cdw

● Black: 1,400 sheets

● Y (Yellow), M (Magenta), and C (Cyan): 690 sheets

Replacement Toner Cartridges

For optimum print quality, using Canon genuine toner cartridges is recommended.

MF735Cdw / MF733Cdw / MF731Cdw

Canon Genuine Toner Cartridge

Average yield of toner cartridge

*

Canon Cartridge 046 Black

Canon Cartridge 046 Yellow

Canon Cartridge 046 Magenta

2,200 sheets

2,300 sheets

611

Maintenance

Canon Cartridge 046 Cyan

Canon Cartridge 046 H Black

6,300 sheets

Canon Cartridge 046 H Yellow

Canon Cartridge 046 H Magenta

5,000 sheets

Canon Cartridge 046 H Cyan

MF634Cdw / MF632Cdw

Canon Genuine Toner Cartridge

Average yield of toner cartridge

*

Canon Cartridge 045 Black

Canon Cartridge 045 Yellow

Canon Cartridge 045 Magenta

Canon Cartridge 045 Cyan

Canon Cartridge 045 H Black

1,400 sheets

1,300 sheets

2,800 sheets

Canon Cartridge 045 H Yellow

Canon Cartridge 045 H Magenta

2,200 sheets

Canon Cartridge 045 H Cyan

Be careful of counterfeit toner cartridges

● Please be aware that there are counterfeit Canon toner cartridges in the marketplace. Use of counterfeit toner cartridge may result in poor print quality or machine performance. Canon is not responsible for any malfunction, accident or damage caused by the use of counterfeit toner cartridge.

For more information, see canon.com/counterfeit.

When replacing toner cartridges, see Replacing the Toner Cartridge(P. 585) .

612

Troubleshooting

Troubleshooting

Troubleshooting

............................................................................................................................................. 614

Common Problems

............................................................................................................................................ 616

Installation/Settings Problems

..................................................................................................................... 617

Copying/Printing Problems

.......................................................................................................................... 621

Faxing/Telephone Problems

......................................................................................................................... 624

When You Cannot Print Properly

...................................................................................................................... 626

Printing Results Are Not Satisfactory

............................................................................................................ 628

Paper Creases or Curls

................................................................................................................................. 639

Paper Is Fed Incorrectly

................................................................................................................................ 642

A Message or a Number Starting with "#" (an Error Code) Is Displayed

........................................................ 643

Countermeasures for Each Message

............................................................................................................ 644

Countermeasures for Each Error Code

......................................................................................................... 658

Clearing Paper Jams

.......................................................................................................................................... 668

Paper Jams in the Feeder

.............................................................................................................................. 670

Paper Jams in the Main Unit

......................................................................................................................... 672

Paper Jams in a Paper Source

....................................................................................................................... 675

When a Problem Cannot Be Solved

.................................................................................................................. 680

613

Troubleshooting

Troubleshooting

When a problem occurs, check this chapter to find out solutions before contacting Canon.

Common Problems

This section describes how to take action when you suspect that the machine is malfunctioning. Common

Problems(P. 616)

1647-0CY

When You Cannot Print Properly

This section describes how to take action when printing results are not satisfactory or the paper creases or curls.

When You Cannot Print Properly(P. 626)

A Message or a Number Starting with "#" (an Error Code) is Displayed

This section describes how to take action when a message or error code (three digits) appears on the display. A

Message or a Number Starting with "#" (an Error Code) Is Displayed(P. 643)

Clearing Paper Jams

This section describes how to take action when a paper is jammed. Clearing Paper Jams(P. 668)

When a Problem Cannot Be Solved

If a problem persists, see When a Problem Cannot Be Solved(P. 680) to find out where to contact.

614

Troubleshooting

615

Troubleshooting

Common Problems

If you encounter problems when using the machine, check the items in this section before contacting us. If the problems persist, contact your local authorized Canon dealer or the Canon help line.

1647-0E0

Check the Following

Is the machine turned ON? Is the power cord connected?

● If the machine is turned ON but does not respond, turn it OFF, check whether the power cord is connected correctly, and turn it back ON. For information on connecting the power cord, see Getting Started.

Manuals and Their Contents(P. 722)

Are the phone cord, LAN cable and USB cable connected correctly?

● Check whether these cables are connected correctly. Use care not to mistake the phone cord's port for the other cables' ports.

Connecting the Telephone Line(P. 82)

Parts and Their Functions(P. 103)

Is sleep mode activated?

● If you leave the machine unattended for a specific period of time, it enters sleep mode for power conservation, not allowing you to operate it.

To cancel sleep mode, press .

Is any message displayed on the screen?

If a problem occurs, a message is displayed. Countermeasures for Each Message(P. 644)

If a problem persists even after checking

Click the link that corresponds to the problem.

Installation/Settings Problems(P. 617)

Copying/Printing Problems(P. 621)

Faxing/Telephone Problems(P. 624)

616

Troubleshooting

Installation/Settings Problems

See Common Problems(P. 616) also.

Problems with the Wireless/Wired LAN Connection(P. 617)

Problem with the USB Connection(P. 620)

Problem with the Print Server(P. 620)

Problems with the Wireless/Wired LAN Connection

1647-0E1

The wireless LAN and wired LAN cannot be connected at the same time.

● The wireless LAN and wired LAN cannot be connected at the same time. The following can be used at the same time: a USB cable and a wireless LAN, or a USB cable and a wired LAN.

Remote UI is not displayed.

● Are <Use HTTP> and <Use Remote UI> set to <On>?

Disabling HTTP Communication(P. 414)

Disabling Remote UI(P. 415)

● If the machine is connected to a wireless LAN, check that the Wi-Fi icon is displayed in the Home screen and that the IP address is set correctly, and then start the Remote UI again.

Home Screen(P. 122)

Viewing Network Settings(P. 37)

● If the machine is connected to a wired LAN, check that the cable is connected firmly and the IP address is set correctly, and then start the Remote UI again.

Connecting to a Wired LAN(P. 16)

Viewing Network Settings(P. 37)

● Are you using a proxy server? If so, add the machine's IP address to the [Exceptions] list (addresses that do not use the proxy server) in the Web browser's proxy settings dialog.

● Is communication not limited by the firewall on your computer? If IP addresses are or an MAC address is incorrectly entered, the Remote UI cannot be displayed. In that case, you need to use the operation panel to set <IPv4 Address Filter>, <IPv6 Address Filter>, or <MAC Address Filter> to <Off>.

Restricting Communication by Using Firewalls(P. 370)

<IPv4 Address Filter> (P. 464)

<IPv6 Address Filter> (P. 465)

<MAC Address Filter> (P. 465)

A connection to a network cannot be established.

● The IP address may not be set correctly. Set the IP address again.

Setting IP Addresses(P. 30)

● When you connect the machine to a computer via wireless LAN, check whether the machine is properly installed and ready to connect to the network.

When the Machine Cannot Connect to the Wireless LAN(P. 618)

617

Troubleshooting

You are unsure of the set IP address. Viewing Network Settings(P. 37)

The connection method cannot be switched between a wired LAN and a wireless LAN.

● Did you select a wired LAN or a wireless LAN on the operation panel on the machine as well? This selection is required to have the machine switch to your selection.

Selecting Wired LAN or Wireless LAN(P. 15)

The SSID of the wireless router to be connected is not displayed in the access point list.

● Check whether the SSID is correct.

Checking the SSID and Network Key(P. 29)

● If the SSID of the wireless router is hidden (using a stealth mode

*

), set the SSID to be visible on the wireless router.

*

A mode that disables the SSID auto-detection of other devices.

● Check whether the machine is properly installed and ready to connect to the network.

When the Machine Cannot Connect to the Wireless LAN(P. 618)

The machine dials up to an unintended connection destination (if a dialup router is connected to a network).

● If a dialup router does not need to pass broadcast packets, set the dialup router so that the broadcast packets will not pass. If the dialup router needs to pass broadcast packets, check whether the settings are correct.

● If a DNS server is located in an external network, set the IP address to be connected, not the host name, even if connecting to the devices that are on the network that is connected to the machine.

● If a DNS server is located on a network that is connected to the machine and the information about the devices that are connected to an external network is registered to the DNS server, check whether the settings are correct.

When the Machine Cannot Connect to the Wireless LAN

Check the status of your computer.

● Have the settings of the computer and the wireless router been completed?

● Are the cables of the wireless router (including the power cord and LAN cable) correctly plugged in?

● Is the wireless router turned on?

If the problem persists even after checking the above:

● Turn off the devices, and then turn them on again.

● Wait for a while, and try again to connect to the network.

618

Troubleshooting

Check whether the machine is turned ON.

● If the machine is turned ON, turn it OFF, and then turn it back ON.

Check the installation site of the machine and the wireless router.

● Is the machine too far from the wireless router?

● Are there any obstacles such as walls between the machine and the wireless router?

● Are there any appliances such as microwave ovens or digital cordless phones that emit radio waves near the machine?

Perform one of the following settings again.

Setting Up Connection Using WPS Push Button Mode(P. 19)

Setting Up Connection Using WPS PIN Code Mode(P. 21)

Setting Up Connection by Selecting a Wireless Router(P. 23)

Setting Up Connection by Specifying Detailed Settings(P. 26)

When you need to manually set up the connection

If the wireless router is set as described below, manually enter all the required information for the wireless LAN

connection ( Setting Up Connection by Specifying Detailed Settings(P. 26) ).

● ANY connection refusal

*

is activated.

● The WEP key that was automatically generated (hexadecimal) is selected.

● The stealth mode is activated.

*

A function in which the wireless router refuses the connection if the SSID on the device to be connected is set to "ANY" or is blank.

When you need to change the settings of the wireless router

If the wireless router is set as described below, change the settings of the router.

● The MAC address packet filtering is set.

● When only IEEE 802.11n is used for the wireless communication, WEP is selected or the WPA/WPA2 encryption method is set to TKIP.

619

Troubleshooting

Problem with the USB Connection

Cannot communicate.

● Change the USB cable. If you are using a long USB cable, replace it with a short one.

● If you are using a USB hub, connect the machine directly to your computer using a USB cable.

Problem with the Print Server

You cannot find the print server to connect to.

● Are the print server and computer connected correctly?

● Is the print server running?

● Do you have user rights to connect to the print server? If you are not sure, contact the server administrator.

● Is [Network discovery] enabled?

Enabling [Network discovery](P. 728)

You cannot connect to a shared printer.

● On the network, does the machine appear among the printers of the print server? If it is not displayed, contact the network or server administrator.

Displaying Shared Printers in the Print Server(P. 729)

620

Troubleshooting

Copying/Printing Problems

1647-0E3

See Common Problems(P. 616) also.

Printing/copy results are not satisfactory. Paper creases or curls. When You

Cannot Print Properly(P. 626)

You cannot print.

● Can you print a Windows test page? If you can print a Windows test page, there is no problem with the machine or the printer driver. Check the print settings of your application.

Printing a Test Page in Windows(P. 730)

If you cannot print a test page, check the following according to your environment.

Wireless LAN connection

● Check the connection status (signal strength) of the wireless LAN.

Viewing Network Settings(P. 37)

● If the connection is poor, try the following.

- Change the channel of your wireless LAN router. If you have more than one router, set the channels to be at least five channels apart.

- If you can change the radio output power of your wireless LAN router, raise the output power.

● If your computer is connected to a wireless LAN, are the computer and this machine using the same wireless LAN router SSID? If they are different, reset the wireless LAN connection settings of this machine.

Viewing Network Settings(P. 37)

Checking the SSID to Which Your Computer is Connected(P. 735)

Connecting to a Wireless LAN(P. 17)

When you reset wireless LAN connection settings

● As the wireless LAN router, select the one with the SSID to which the computer is connected.

● Have you selected the correct port? If there is no port to use, create a port.

Checking the Printer Port(P. 733)

Configuring Printer Ports(P. 43)

● Is communication not limited by the firewall on your computer? If IP addresses are incorrectly entered, you will be not able to access the machine. In that case, you need to use the operation panel to set <IPv4

Address Filter> or <IPv6 Address Filter> to <Off>.

Restricting Communication by Using Firewalls(P. 370)

<IPv4 Address Filter> (P. 464)

<IPv6 Address Filter> (P. 465)

● Disable security software and other resident software.

● Reinstall the printer driver.

Installing Drivers(P. 77)

621

Troubleshooting

● Can you print from other computers on the network? If you also cannot print from other computers, contact your local authorized Canon dealer or the Canon help line.

Wired LAN connection

● Have you selected the correct port? If there is no port to use, create a port.

Checking the Printer Port(P. 733)

Configuring Printer Ports(P. 43)

● Is communication not limited by the firewall on your computer? If IP addresses are or an MAC address is incorrectly entered, you will be not able to access the machine. In that case, you need to use the operation panel to set <IPv4 Address Filter>, <IPv6 Address Filter>, or <MAC Address Filter> to <Off>.

Restricting Communication by Using Firewalls(P. 370)

<IPv4 Address Filter> (P. 464)

<IPv6 Address Filter> (P. 465)

<MAC Address Filter> (P. 465)

● Disable security software and other resident software.

● Reinstall the printer driver.

Installing Drivers(P. 77)

● Can you print from other computers on the network? If you also cannot print from other computers, contact your local authorized Canon dealer or the Canon help line.

USB connection

● Have you selected the correct port? If there is no port to use or you are not sure, reinstall the printer driver. When you reinstall the printer driver, the correct port is created automatically.

Checking the Printer Port(P. 733)

Installing Drivers(P. 77)

● Is bidirectional communication enabled? Enable bidirectional communication, and restart the computer.

Checking Bidirectional Communication(P. 734)

● Disable security software and other resident software.

● Connect to another USB port on the computer.

● Can you print from a USB connection to another computer? If you also cannot print from other computers, contact your local authorized Canon dealer or the Canon help line.

Via print server

● Can you print from the print server? If you can print from the print server, check the connection between the print server and your computer.

Problem with the Print Server(P. 620)

● Disable security software and other resident software.

● Reinstall the printer driver.

Installing Drivers(P. 77)

● Can you print from other computers via the print server? If you also cannot print from other computers, contact your local authorized Canon dealer or the Canon help line.

● Has an error occurred? Check the job log.

Checking the Copying Status and Log(P. 201)

Checking the Printing Status and Log(P. 263)

Printing seems to be slow.

*

● Disabling Secure Print is recommended if you are not using it.

Changing the Valid Time Period for Secured Documents(P. 269)

622

Troubleshooting

*

When the free space in memory is running low, the processing speed of the machine becomes slow, just as a computer does. There is nothing abnormal.

You cannot print with Google Cloud Print. Using Google Cloud Print(P. 346)

It takes a long time before printing starts.

● Did you print to narrow width paper? After you print to narrow width paper, the machine may cool itself to maintain the print quality. As a result, it may take some time before the next job is printed. Wait until the machine is ready to print. Printing will resume when the temperature inside the machine has fallen.

623

Troubleshooting

Faxing/Telephone Problems

1647-0E4

See Common Problems(P. 616) also.

Sending Problems(P. 624)

Receiving Problems(P. 625)

Sending Problems

A fax cannot be sent.

● Is an external phone line busy? Wait until the line becomes free.

● Has an error occurred? Print and check a Communication Management Report.

Communication Management Report(P. 606)

● Is a telephone line set correctly?

Connecting the Telephone Line(P. 82)

● When sending the fax overseas, insert pauses in the fax number.

Basic Operations for Sending Faxes(P. 217)

A fax cannot be sent with a destination in the history specified.

● Did you turn OFF the machine? If so, the stored history was deleted.

● Did you set <Restrict New Destinations> to <On>? If so, the history before you set was deleted.

● Did you set <Restrict Resending from Log> to <On>? If so, the destinations in the history cannot be specified.

A fax cannot be sent on an optical fiber line.

● The machine is compliant with use on analog lines. When using an optical fiber line or IP phone line, the machine may not work correctly depending on the connection environment or connected devices. In such a case, contact the provider of the optical fiber line or IP phone.

The results of a sent fax are not satisfactory.

● Clean the platen glass or feeder. If cleaning does not improve the results, the recipient's fax machine may be a cause.

Cleaning the Platen Glass(P. 579)

Cleaning the Feeder(P. 580)

624

Troubleshooting

Receiving Problems

The results of received fax are not satisfactory. Paper creases or curls. When

You Cannot Print Properly(P. 626)

Telephone and fax cannot be switched automatically.

● Check that the receive mode is set to <Fax/Tel (Auto Switch)>, <Answering Machine>, or <DRPD>.

Selecting the Receive Mode(P. 81)

● Free space in memory may be running low. Print or delete data in memory.

Checking/Forwarding/Deleting Documents in Memory(P. 239)

Printing Documents in Memory(P. 238)

A fax cannot be received automatically.

● Check that the receive mode is set to <Fax/Tel (Auto Switch)>, <Auto>, <Answering Machine>, or <DRPD>.

Selecting the Receive Mode(P. 81)

● Free space in memory may be running low. Print or delete data in memory.

Checking/Forwarding/Deleting Documents in Memory(P. 239)

Printing Documents in Memory(P. 238)

A fax cannot be received on an optical fiber line.

● The machine is compliant with use on analog lines. When using an optical fiber line or IP phone line, the machine may not work correctly depending on the connection environment or connected devices. In such a case, contact the provider of the optical fiber line or IP phone.

625

Troubleshooting

When You Cannot Print Properly

1647-0E5

If printing results are not satisfactory, or paper creases or curls, try the following solutions. If the problems persist, contact your local authorized Canon dealer or the Canon help line.

Problems with Image Quality Printing Results Are Not Satisfactory(P. 628)

Smudge Marks Appear on the

Edge of Printouts(P. 628)

Smudges Appear on

Printouts(P. 628)

Afterimages Appear in Blank

Areas(P. 629)

Toner Smudges and Splatters

Appear(P. 630)

Printouts Are Faded(P. 631)

A Portion of the Page Is Not

Printed(P. 632)

Streaks Appear/Printing is

Uneven(P. 633)

Printouts Become Lightly

Colored(P. 635)

White Spots Appear(P. 636)

626

Troubleshooting

Spots Appear(P. 637)

Reverse Side of Paper is

Smudged(P. 638)

Problems with Printout Paper Paper Creases or Curls(P. 639)

Paper Creases(P. 639)

Paper Curls(P. 640)

Problems with Paper Feed Paper Is Fed Incorrectly(P. 642)

Printouts Are Skewed(P. 642) Paper Is Not Fed/Two or More Sheets Are Fed Together(P. 642)

627

Troubleshooting

Printing Results Are Not Satisfactory

Dirt inside the machine may affect printing results. Perform care and cleaning to the machine first. Regular

Cleaning(P. 577)

1647-0E6

Smudge Marks Appear on the Edge of Printouts

Are you using appropriate paper?

● Check the supported paper types and replace with an appropriate type. Also, set the paper size and type correctly.

Available Paper(P. 701)

Loading Paper(P. 139)

Specifying Paper Size and Type(P. 159)

Do you print data without margins?

● This symptom occurs if a margin is set to none in the printer driver. A margin of 1/4" (5 mm) or less around the edge of paper or 3/8" (10 mm) or less around the edge of envelopes is not printable with the machine. Make sure to have margins around the document to print.

[Finishing] tab [Advanced Settings] [Expand Print Region and Print] [Off]

Is the fixing unit dirty? (MF735Cdw / MF733Cdw / MF731Cdw)

● Change the setting of <Regularly Clean Fix. Assembly>. The higher level you specify, the higher frequency of regular cleaning is performed.

<Regularly Clean Fix. Assembly>(P. 476)

● If a higher level is specified, the printing speed may be slower.

Smudges Appear on Printouts

628

Troubleshooting

Are you using appropriate paper?

● Check usable paper, and replace with appropriate paper.

Available Paper(P. 701)

Loading Paper(P. 139)

Do smudges appear when using the machine in an environment with low humidity?

● Set <Low Humidity Mode> to <On>.

<Low Humidity Mode>(P. 475)

● If you set to <On>, print density may be lower or uneven when the machine is used in an environment with high humidity.

Is the machine installed in an environment where the temperature changes rapidly and drastically?

● When the temperature changes rapidly in the environment where the machine is installed, condensation occurs, which may cause fading or bleeding in images and text. If <Control Condensation> is set to <On>, condensation inside the machine will be removed. Condensation removal may be performed automatically due to temperature change.

<Control Condensation>(P. 484)

● While condensation removal is being performed, printing may not be performed properly and blank paper may be output.

● If you set to <On>, you need to keep the machine turned ON to maintain the effect of condensation removal.

Afterimages Appear in Blank Areas

Are you using appropriate paper?

● Check usable paper, and replace with appropriate paper.

Available Paper(P. 701)

Loading Paper(P. 139)

629

Troubleshooting

Is it time to replace the toner cartridge?

● Materials inside the toner cartridge may have deteriorated. Replace the toner cartridge.

Replacing the Toner Cartridge(P. 585)

Do ghost images appear in the same page? (MF735Cdw / MF733Cdw /

MF731Cdw)

● Change the setting for <Reduce Ghosting 1>. Setting to <On> may solve the problem.

<Reduce Ghosting 1>(P. 475)

● If you set to <On>, toner may not be fixed sufficiently, resulting in faded printouts.

Do ghost images appear when you perform continuous printing?

● Change the setting of <Reduce Ghosting 2>. Setting to <On> may solve the problem.

<Reduce Ghosting 2>(P. 476)

● If you set to <On>, print density may be uneven.

Toner Smudges and Splatters Appear

Are you using appropriate paper?

● Check usable paper, and replace with appropriate paper.

Available Paper(P. 701)

Loading Paper(P. 139)

Is the toner cartridges consumed?

● Check how much the amount remaining in toner cartridges is left, and replace the toner cartridges as necessary.

Replacing the Toner Cartridge(P. 585)

630

Printouts Are Faded

Troubleshooting

Is the amount remaining in toner cartridge running low?

● Check how much the amount remaining in toner cartridges is left, and replace the toner cartridges as necessary.

Replacing the Toner Cartridge(P. 585)

Are you using appropriate paper?

● Check usable paper, and replace with appropriate paper. Also, specify the paper size and type settings properly.

Available Paper(P. 701)

Loading Paper(P. 139)

Specifying Paper Size and Type(P. 159)

Are you using paper containing much paper dust? (MF735Cdw / MF733Cdw /

MF731Cdw)

● Using paper containing much paper dust may result in a faded or streaky printout. Setting <Corr. Img.

Corrup. by Ppr Dust> to <On> may solve the problem.

<Correct Image Corrupted by Ppr Dust>(P. 479)

● If you set to <On>, the printing speed may be slower.

Are printouts faded immediately after toner cartridge replacement?

● Printouts may be faded immediately after replacement of toner cartridges with new ones. In this case, setting <Rdc. Faint Print After Rplc. Cart.> to <On> may solve the problem.

<Rdc. Faint Print After Rplc. Cart.>(P. 482)

● If you set to <On>, the setting will become effective with next replacement of toner cartridges.

● Immediately after cartridge replacement, a certain amount of time is required for toner to be evenly distributed inside the cartridge.

631

Troubleshooting

Is the print faded or uneven in density depending on the paper type or the environmental conditions? (MF735Cdw / MF733Cdw / MF731Cdw)

● Change the setting for <Reduce Toner Flaking>. The improvement effect is stronger with <Mode 2> than

<Mode 1>. First try with <Mode 1>.

<Reduce Toner Flaking>(P. 480)

● Setting a greater improvement effect may result in curled printouts or slower printing speed.

Are you using the machine in an environment with high humidity?

(MF735Cdw / MF733Cdw / MF731Cdw)

● Setting <Reduce Toner Fixing Stain 2> to <Mode 2> may solve the problem.

<Reduce Toner Fixing Stain 2>(P. 481)

● If you set to <Mode 2>, printouts may be curled.

Is the machine installed in an environment where the temperature changes rapidly and drastically?

● When the temperature changes rapidly in the environment where the machine is installed, condensation occurs, which may cause fading or bleeding in images and text. If <Control Condensation> is set to <On>, condensation inside the machine will be removed. Condensation removal may be performed automatically due to temperature change.

<Control Condensation>(P. 484)

● While condensation removal is being performed, printing may not be performed properly and blank paper may be output.

● If you set to <On>, you need to keep the machine turned ON to maintain the effect of condensation removal.

A Portion of the Page Is Not Printed

632

Troubleshooting

Do you print data without margins?

● This symptom occurs if a margin is set to none in the printer driver. A margin of 1/4" (5 mm) or less around the edge of paper or 3/8" (10 mm) or less around the edge of envelopes is not printable with the machine. Make sure to have margins around the document to print.

[Finishing] tab [Advanced Settings] [Expand Print Region and Print] [Off]

Do the paper guides align with the edges of the paper?

● If the paper guides are too loose or too tight, part of a document may not be printed.

Loading Paper(P. 139)

Is the machine installed in an environment where the temperature changes rapidly and drastically?

● When the temperature changes rapidly in the environment where the machine is installed, condensation occurs, which may cause fading or bleeding in images and text. If <Control Condensation> is set to <On>, condensation inside the machine will be removed. Condensation removal may be performed automatically due to temperature change.

<Control Condensation>(P. 484)

● While condensation removal is being performed, printing may not be performed properly and blank paper may be output.

● If you set to <On>, you need to keep the machine turned ON to maintain the effect of condensation removal.

Streaks Appear/Printing is Uneven

Are you using appropriate paper?

● Check usable paper, and replace with appropriate paper.

Available Paper(P. 701)

Loading Paper(P. 139)

Is the platen glass dirty?

● Clean the platen glass and the underside of the feeder.

Cleaning the Platen Glass(P. 579)

633

Troubleshooting

Have you cleaned the fixing unit?

● Clean the fixing unit.

Cleaning the Fixing Assembly(P. 583)

Is the amount remaining in toner cartridge running low?

● Check how much the amount remaining in toner cartridges is left, and replace the toner cartridges as necessary.

Replacing the Toner Cartridge(P. 585)

Is it time to replace the toner cartridge?

● Materials inside the toner cartridge may have deteriorated. Replace the toner cartridge.

Replacing the Toner Cartridge(P. 585)

Is the print faded or uneven in density depending on the paper type or the environmental conditions? (MF735Cdw / MF733Cdw / MF731Cdw)

● Change the setting for <Reduce Toner Flaking>. The improvement effect is stronger with <Mode 2> than

<Mode 1>. First try with <Mode 1>.

<Reduce Toner Flaking>(P. 480)

● Setting a greater improvement effect may result in curled printouts or slower printing speed.

Are you using the machine in an environment with high humidity?

● Change the setting for <High Humidity Mode>. Setting this item to <On> may solve the problem.

<High Humidity Mode>(P. 475)

● If you set to <On> and use the machine in an environment with low humidity, printed images and text may be blurry.

Are you using paper containing much paper dust? (MF735Cdw / MF733Cdw /

MF731Cdw)

● Using paper containing much paper dust may result in a faded or streaky printout. Setting <Corr. Img.

Corrup. by Ppr Dust> to <On> may solve the problem.

<Correct Image Corrupted by Ppr Dust>(P. 479)

● If you set to <On>, the printing speed may be slower.

634

Troubleshooting

Is the machine installed in an environment where the temperature changes rapidly and drastically?

● When the temperature changes rapidly in the environment where the machine is installed, condensation occurs, which may cause fading or bleeding in images and text. If <Control Condensation> is set to <On>, condensation inside the machine will be removed. Condensation removal may be performed automatically due to temperature change.

<Control Condensation>(P. 484)

● While condensation removal is being performed, printing may not be performed properly and blank paper may be output.

● If you set to <On>, you need to keep the machine turned ON to maintain the effect of condensation removal.

Printouts Become Lightly Colored

Does the original have background color, is it stained, or are you copying an original such as a newspaper that is printed on thin paper so that text or images on the other side are visible through the paper?

● Check the original and then adjust the density to the correct settings.

Basic Copy Operations(P. 195)

Is the toner cartridges consumed?

● Check how much the amount remaining in toner cartridges is left, and replace the toner cartridges as necessary.

Replacing the Toner Cartridge(P. 585)

Are white areas lightly colored?

● Change the setting of <Prevent Fogging>. Setting to <On> may solve the problem.

<Prevent Fogging>(P. 479)

● If you set to <On>, print density may be lighter.

635

White Spots Appear

Troubleshooting

Are you using paper that has absorbed moisture?

● Replace with appropriate paper.

Loading Paper(P. 139)

Are you using appropriate paper?

● Check usable paper, and replace with appropriate paper.

Available Paper(P. 701)

Loading Paper(P. 139)

Is the amount remaining in toner cartridge running low?

● Check how much the amount remaining in toner cartridges is left, and replace the toner cartridges as necessary.

Replacing the Toner Cartridge(P. 585)

Is it time to replace the toner cartridge?

● Materials inside the toner cartridge may have deteriorated. Replace the toner cartridge.

Replacing the Toner Cartridge(P. 585)

When performing 2-sided printing, does void occur in the leading edge of paper? (MF735Cdw / MF733Cdw / MF731Cdw)

● When performing 2-sided printing on thin paper, void may occur on the back side of paper in the leading edge. Setting <Corr. Void on Paper Back Side> to <On> may solve the problem.

<Corr. Void on Paper Back Side>(P. 478)

● If you set to <On>, print quality may be affected.

Does void occur in the leading edge of paper? (MF634Cdw / MF632Cdw)

● When printing on thin paper, void may occur in the leading edge of paper. Setting <Correct Void> to <On> may solve the problem.

<Correct Void>(P. 478)

636

Troubleshooting

● If you set to <On>, printouts may be faded.

Does uneven print density occur in a way that the print looks like a water drops pattern?

● Setting <Drop Pattern Reduction Mode> to <On> may solve the problem.

<Drop Pattern Reduction Mode>(P. 478)

● If you set to <On>, print quality may be affected.

Is the machine installed in an environment where the temperature changes rapidly and drastically?

● When the temperature changes rapidly in the environment where the machine is installed, condensation occurs, which may cause fading or bleeding in images and text. If <Control Condensation> is set to <On>, condensation inside the machine will be removed. Condensation removal may be performed automatically due to temperature change.

<Control Condensation>(P. 484)

● While condensation removal is being performed, printing may not be performed properly and blank paper may be output.

● If you set to <On>, you need to keep the machine turned ON to maintain the effect of condensation removal.

Spots Appear

Have you cleaned the fixing unit?

● Clean the fixing unit.

Cleaning the Fixing Assembly(P. 583)

● If cleaning the fixing assembly does not solve the problem, setting <Fix. Roller Contam. Reduction> to

<On> may solve the problem.

<Fix. Roller Contam. Reduction>(P. 481)

● If you set to <On>, the printing speed may be slower.

637

Troubleshooting

Reverse Side of Paper is Smudged

Have you loaded paper that is smaller than the size of the print data?

● Check to make sure that the paper size matches the size of the print data.

Have you cleaned the fixing unit?

● Clean the fixing unit.

Cleaning the Fixing Assembly(P. 583)

Do smudges appear on 2-sided printed paper? (MF634Cdw / MF632Cdw)

● When performing 2-sided printing, the image may be blurry on the back side of paper in the trailing edge.

Setting <Correct Blurry Image> to <On> may solve the problem.

<Correct Blurry Image>(P. 479)

● If you set to <On>, the printing speed may be slower.

638

Paper Creases or Curls

Troubleshooting

Paper Creases

1647-0E7

Is paper loaded correctly?

● If paper is not loaded below the load limit line or is loaded obliquely, it may crease.

Loading Paper(P. 139)

Are you using paper that has absorbed moisture?

● Replace with appropriate paper.

Loading Paper(P. 139)

Are you using appropriate paper?

● Check usable paper, and replace with appropriate paper.

Available Paper(P. 701)

Loading Paper(P. 139)

Does this problem occur when printing on plain paper or thin paper?

(MF735Cdw / MF733Cdw / MF731Cdw)

● Change the setting of <Paper Wrinkle Correction>. The improvement effect is stronger with <Mode 2> than

<Mode 1>. First try with <Mode 1>.

<Paper Wrinkle Correction>(P. 473)

● Setting a greater improvement effect may result in faded printouts or slower printing speed.

Does this problem occur when printing on envelopes or thin paper?

(MF634Cdw / MF632Cdw)

● Change the setting of <Paper Wrinkle Correction>. <Mode 1> is effective for envelopes. <Mode 2> provides stronger improvement, and is effective for envelopes and thin paper. First try with <Mode 1>.

<Paper Wrinkle Correction>(P. 473)

639

Troubleshooting

● When <Mode 1> or <Mode 2> is specified, printed images may be blurry.

Paper Curls

Are you using appropriate paper?

● Check usable paper, and replace with appropriate paper. Also, specify the paper size and type settings properly.

Available Paper(P. 701)

Loading Paper(P. 139)

Specifying Paper Size and Type(P. 159)

● Change the setting of <Paper Curl Correction>. The improvement effect is stronger with <Mode 2> than

<Mode 1>. First try with <Mode 1>.

<Paper Curl Correction>(P. 474)

● Setting a greater improvement effect may result in faded printouts or slower printing speed.

● Reload the paper by changing the side to print on (front side/back side).

● In rare cases the symptom may become worse depending on the paper. If this occurs, change the side to print on back to the previous side.

Are you using paper that has absorbed moisture?

● Replace with appropriate paper.

Loading Paper(P. 139)

● Change the setting of <Paper Type> to a setting for thinner paper. For example, if the current setting is

<Plain 1>, change it to <Thin 1>.

Specifying Paper Size and Type(P. 159)

Available Paper(P. 701)

● Change the setting of <Paper Curl Correction>. The improvement effect is stronger with <Mode 2> than

<Mode 1>. First try with <Mode 1>.

<Paper Curl Correction>(P. 474)

● Setting a greater improvement effect may result in faded printouts or slower printing speed.

640

Troubleshooting

Are you using the machine in an environment with high humidity?

(MF735Cdw / MF733Cdw / MF731Cdw)

● Setting <Reduce Toner Fixing Stain 2> to <Mode 1> may solve the problem.

<Reduce Toner Fixing Stain 2>(P. 481)

● If you set to <Mode 1>, printouts may be faded.

641

Paper Is Fed Incorrectly

Troubleshooting

Printouts Are Skewed

1647-0E8

Do the paper guides align with the edges of the paper?

● If the paper guides are too loose or too tight, the printouts are skewed.

Loading Paper(P. 139)

Paper Is Not Fed/Two or More Sheets Are Fed Together

Is paper loaded correctly?

● Fan the paper stack thoroughly so that paper is not stuck together.

● Check whether paper is loaded correctly.

Loading Paper(P. 139)

● Check whether the number of sheets of paper loaded is appropriate and whether the appropriate paper is used.

Available Paper(P. 701)

Loading Paper(P. 139)

● Check whether mixed sizes and types of paper are loaded together.

642

Troubleshooting

A Message or a Number Starting with "#" (an Error

Code) Is Displayed

1647-0E9

When a message appears on the machine's display, or a number (error code) prefixed with "#" appears, see the following sections to check the solution.

Countermeasures for Each Message(P. 644)

Countermeasures for Each Error Code(P. 658)

643

Troubleshooting

Countermeasures for Each Message

1647-0EA

If you cannot send a fax or the memory is full, or you encounter operation problems, a message appears on the display. Find out more information about messages in the following list.

A counterfeit or non-Canon cartridge may be in use. The amount in the cartridge cannot be displayed correctly.

The toner cartridge used may not be a genuine Canon product.

● Only genuine Canon toner cartridges should be used as replacement toner cartridges.

Consumables(P. 611)

An error occurred during certificate verification.

The certificate has expired, or contains incorrect information.

● Install the correct CA certificate.

Registering the Key and Certificate for Network Communication(P. 389)

● Check the certificate for validity period and domain name in the DNS settings.

Black & White copying is restricted. Only Color copying is available.

Black and white copying is disabled in the Department ID Management.

● To copy in black and white, log in using a Department ID for which black and white copying is not restricted. For the Department ID and PIN, contact your Administrator.

Setting the Department ID Management(P. 356)

Black & White printing is restricted. Only Color printing is available.

Black and white printing is disabled in the Department ID Management.

● To print in black and white, log in using a Department ID for which black and white printing is not restricted. Contact your Administrator for the Department ID and PIN.

Setting the Department ID Management(P. 356)

Cannot analyze the authentication server certificate.

The authentication server certificate may be invalid, or the certificate may be in a format that the printer does not support.

● Check the authentication server certificate.

Configuring IEEE 802.1X Authentication Settings(P. 398)

644

Troubleshooting

Cannot change the destination type of destinations registered to a group.

A selected destination could not be edited because it was registered to Group Dial.

● To change the type of destination that is registered to Group Dial, first delete the registered destination from Group Dial. Next, change the destination type, and then register the destination to Group Dial again.

Cannot find the access point.

When automatic setting with WPS was attempted, a wireless router could not be detected within a specific period of time.

● Connect again paying attention to the time limit.

Setting Up Connection Using WPS Push Button Mode(P. 19)

Setting Up Connection Using WPS PIN Code Mode(P. 21)

An SSID or network key of a wireless router was entered manually, but the entry was incorrect.

● Check the SSID and network key, and enter the correct ones again.

Checking the SSID and Network Key(P. 29)

Setting Up Connection by Specifying Detailed Settings(P. 26)

A wireless router could not be detected due to setting problems of the network to be connected.

● Check whether the machine is properly installed and ready to connect to the network.

Installation/Settings Problems(P. 617)

● If the problem persists, check the security settings of the wireless router.

Cannot print RX data.

Received documents cannot be printed due to some specific situation.

● Check if there has occurred one of the following situations. If messages including causes and solutions appear on the display, check the contents.

A cover is open.

There is no paper loaded.

The paper is jammed.

The toner cartridge is consumed.

An error has occurred.

Cannot receive the fax. Make sure the fax was sent correctly by the sender.

The recipient's machine did not respond within 35 seconds.

● Ask the sender to send the fax again. If you hear a beep, select <Start Receiving> to receive the fax.

Receiving Faxes(P. 226)

645

Troubleshooting

Cannot send because more than one destination is specified.

Sending a fax to multiple destinations is disabled.

● To specify multiple destinations, you need to set <Restrict Sequential Broadcast> to <Off>. For more information, contact your Administrator.

Restricting Sequential Broadcasts(P. 409)

Cannot specify group destinations, or multiple destinations at the same time.

You specified multiple destinations or Group Dial after selecting <Hook>.

● After you select <Hook>, you cannot specify multiple destinations or Group Dial. Specify destinations without selecting <Hook>, and send fax documents.

Cannot specify group destinations when on-hook.

Group Dial was specified as a destination after selecting <Hook>.

● Once you select <Hook>, you cannot specify destinations in Group Dial. Specify destinations to send fax documents without selecting <Hook>.

Cannot use these settings. Sending to the specified destination is restricted.

The machine is set up so that the user currently logged in cannot send to the addresses registered in the selected <Favorite Settings>.

● Change the send restrictions for the logged in user.

Setting the Department ID Management(P. 356)

Cartridge Communication Error A counterfeit or non-Canon cartridge may be in use.

A toner cartridge may not be installed correctly or may be faulty.

● Re-install the toner cartridge. If re-installing the toner cartridge fails to clear the error message, the toner cartridge may be faulty. Contact the store where you purchased the toner cartridge or consult the Canon

Customer Help Center.

Procedure for Replacing the Toner Cartridge(P. 586)

The toner cartridge used may not be a genuine Canon product.

● Only genuine Canon toner cartridges should be used as replacement toner cartridges.

Consumables(P. 611)

646

Troubleshooting

Change the authentication password.

The password has expired.

● Set a new password.

Check the authentication settings.

The authentication method set on the machine does not match the authentication method set on the

RADIUS server.

● Check that the same authentication method is set on this machine and the RADIUS server, and set the correct authentication method.

Configuring IEEE 802.1X Authentication Settings(P. 398)

Color copying is restricted. Only Black & White copying is available.

Color copying is disabled in the Department ID Management.

● To copy in color, log in using a Department ID for which color copying is not restricted. Contact your

Administrator for the Department ID and PIN.

Setting the Department ID Management(P. 356)

Color printing is restricted. Only Black & White printing is available.

Color printing is disabled in the Department ID Management.

● To print in color, log in using a Department ID for which color printing is not restricted. Contact your

Administrator for the Department ID and PIN.

Setting the Department ID Management(P. 356)

Copying is restricted.

Copying is disabled in the Department ID Management.

● Log in with a Department ID for which copying is not disabled. For the Department ID and PIN, contact your Administrator.

Setting the Department ID Management(P. 356)

Could not connect.

Connection in Access Point Mode failed due to an error.

● Wait a few moments and try again. If you still cannot connect, try switching the machine off briefly.

Connecting Directly (Access Point Mode)(P. 328)

647

Troubleshooting

Could not connect. Check the PSK settings.

The network key (PSK) of a wireless router to be connected is not set to the machine correctly.

● Check the network key (PSK) of the wireless router, and set it to the machine again.

Checking the SSID and Network Key(P. 29)

Setting Up Connection by Selecting a Wireless Router(P. 23)

Setting Up Connection by Specifying Detailed Settings(P. 26)

● If the problem persists even after checking the network key, check whether the machine is properly installed and ready to connect to the network.

Installation/Settings Problems(P. 617)

Could not connect. The maximum number of devices that can connect to the access point has been reached.

The machine attempted to connect to a wireless LAN router to which the maximum number of devices were already connected.

● Decrease the number of devices (clients) that are connected to the wireless LAN router. For information on the maximum number of devices that can connect, see the instruction manual for the wireless LAN router or contact the manufacturer.

Could not connect using the wireless LAN. Turn the main power OFF and ON, then configure the settings again.

A connection failed due to an error while setting wireless LAN connection.

● Restart the machine and set again.

● If the problem persists even after restarting the machine, check whether the machine is properly installed and ready to connect to the network.

Installation/Settings Problems(P. 617)

● If the problem persists even after checking the wireless LAN connection, check the security settings of the wireless router.

Could not connect using WPS. Wait a moment, then configure the settings again.

When automatic setting with WPS was attempted, the connection failed due to an error.

● Wait for a while, and set again. If the problem persists, check whether the wireless router supports WPS.

If WPS is supported:

Check whether the machine is properly installed and ready to connect to the network.

Installation/Settings Problems(P. 617)

If WPS is not supported:

Set using another connecting method.

Connecting to a Wireless LAN(P. 17)

648

Troubleshooting

Could not detect any connections from wireless devices.

Mobile device detection was not possible within the predetermined length of time.

● Connect again paying attention to the time limit.

Connecting Directly (Access Point Mode)(P. 328)

Could not perform cleaning.

Paper jammed during cleaning.

● Remove the jammed paper, set paper correctly, and perform cleaning again.

Clearing Paper Jams(P. 668)

Cleaning the Feeder(P. 580)

Cleaning the Fixing Assembly(P. 583)

The amount remaining in toner cartridges required for cleaning the fixing assembly is insufficient.

● Cleaning requires sufficient toner cartridge remaining. Replace the toner cartridge, and perform the cleaning again.

Procedure for Replacing the Toner Cartridge(P. 586)

Could not perform correction.

Appropriate paper that is required for correction is not loaded in a paper drawer.

● Load the paper matching the paper specification displayed on the screen into the paper drawer.

Full Adjust(P. 594)

Adjust Copy Image(P. 596)

An adjustment image that is required for correction is not placed on the platen glass correctly.

● Place the adjustment image on the platen glass with the print side face down and the black stripe toward the back side of the machine.

Full Adjust(P. 594)

Adjust Copy Image(P. 596)

Paper jammed during correction.

● Remove the jammed paper, and perform correction again.

Clearing Paper Jams(P. 668)

The amount remaining in toner cartridges required for correction is insufficient.

● Corrections require sufficient toner cartridge remaining. Replace the toner cartridge, and perform correction again.

Procedure for Replacing the Toner Cartridge(P. 586)

The transfer belt inside the machine is dirty.

● Perform automatic cleaning of the transfer belt.

Cleaning the Transfer Belt (ITB)(P. 584)

649

Troubleshooting

Could not perform Open System authentication. Check the WEP settings.

The authentication method of the machine is set to <Open System>, but that of a wireless router is set to

"Shared Key."

● Connect again by manually changing the WEP authentication method to <Shared Key>.

Setting Up Connection by Specifying Detailed Settings(P. 26)

The MAC address of the machine is rejected because the MAC address filter is set at a wireless router.

● Set the wireless router to permit the MAC address of the machine and your computer. For more information about how to set, see the instruction manuals for your networking devices or contact your manufacturer. To check the MAC address of the machine, select <Menu> <Preferences>

<Network> <Wireless LAN Settings> <Connection Information>.

Viewing the MAC Address for Wired LAN(P. 37)

Could not perform Shared Key authentication. Check the WEP settings.

The network key (the WEP key) of a wireless router to be connected is not set to the machine correctly.

● Check the network key (the WEP key) of the wireless router, and set it to the machine again.

Checking the SSID and Network Key(P. 29)

Setting Up Connection by Specifying Detailed Settings(P. 26)

● Connect again by selecting a wireless router or by manually changing the WEP authentication method to

<Open System>.

Setting Up Connection by Selecting a Wireless Router(P. 23)

Setting Up Connection by Specifying Detailed Settings(P. 26)

The authentication method of the machine is set to <Shared Key>, but that of the wireless router is set to

"Open System."

● Change the WEP authentication method to "Shared Key" at the wireless router, and connect again. For more information about how to change, see the instruction manuals for your networking devices or contact your manufacturer.

Direct Connection terminated.

Connection with the mobile device was interrupted.

● Establish Direct Connection again.

Connecting Directly (Access Point Mode)(P. 328)

End of Cartridge Lifetime

The toner cartridge has reached the end of its lifetime.

● Select one of the settings on the display.

650

Troubleshooting

● To display the replacement method, select <Display Cartridge Replacement Steps> on the screen.

● If you select <Continue Printing (Quality Not Guaranteed)>, you can continue printing, but the machine may malfunction.

Faxing is restricted.

Faxing is disabled in the Department ID Management.

● Log in with a Department ID for which faxing is not disabled. For the Department ID and PIN, contact your

Administrator.

Setting the Department ID Management(P. 356)

Google Cloud Print Authentication Error

Cloud Print could not perform server authentication, or could not acquire information for registration.

● Check whether the date and time settings are correctly specified.

<Date/Time Settings>(P. 449)

Google Cloud Print Communication Error

Cloud Print is unavailable due to an error.

● Check whether the machine is correctly connected to a wireless LAN or wired LAN.

Connecting to a Wireless LAN(P. 17)

Connecting to a Wired LAN(P. 16)

● A port that is used for Cloud Print may be blocked by a firewall or other protection. Check whether the

5222 port is available with your computer.

● If a proxy server is used on the network, check whether the proxy settings on the machine and the server are correct. For details, contact your Network Administrator.

Setting a Proxy(P. 378)

Load paper.

Paper is not loaded in the paper drawer or the manual feed slot.

● Load the paper.

Loading Paper(P. 139)

Paper on which reports or lists can be printed is not loaded.

● Reports or lists can be printed on plain/recycled/color/thin paper of A4 or Letter size. Load appropriate paper, and make settings for paper size and paper type.

Loading Paper(P. 139)

Specifying Paper Size and Type(P. 159)

Paper on which received documents can be printed is not loaded.

651

Troubleshooting

● Load appropriate paper for printing the received document, and make settings for paper size and paper type.

Loading Paper(P. 139)

Specifying Paper Size and Type(P. 159)

Available Paper(P. 701)

● If you print received documents on paper other than A4 or Letter size, some portions of the image may be missing or the image may be divided and printed onto several sheets.

Memory Full (Secure Print)

Memory became full of secured documents that were not printed.

● Print the secured documents that are stored in memory.

Printing via Secure Print(P. 267)

Memory Full (Skip Error)

The memory became full of print data that could not be printed due to errors.

● Cancel printing of documents to which an error has occurred, or print the documents by selecting <Skip

Error> on the screen for checking the printing status.

Canceling Prints(P. 261)

Memory Media Print is restricted.

The function that prints files in a USB memory device is disabled.

● Set <Use Print Function> in <Memory Media Settings> to <On>.

Restricting the USB Print Function(P. 412)

No reply from the destination.

A network cable may be disconnected, or there may be a problem in a switch.

● Check the status of the network cables and switches.

No response from the host.

The machine is not connected to a network correctly.

● Check the machine and network settings, and connect again.

Setting Up the Network Environment(P. 13)

652

Troubleshooting

Paper jammed.

Paper jams.

● Remove the jammed paper, and print again (Printing may resume automatically).

Clearing Paper Jams(P. 668)

Paper Settings and Loaded Size Mismatch

The paper size setting on the operation panel does not match the loaded paper size.

● Match the paper size setting specified in <Paper Settings> and the size of the paper that is actually loaded.

To use the loaded paper

Change the setting of <Paper Settings> to match the loaded paper size.

Specifying Paper Size and Type(P. 159)

● If printing from a computer, check whether the paper size setting in the printer driver matches the loaded paper size.

To load paper without changing the settings

Load the paper with the size that is set to <Paper Settings>.

Loading Paper(P. 139)

● Check that the paper guides in the paper drawer are set in the correct position.

Loading Paper(P. 139)

Prepare cartridge.

Toner cartridge replacement time is near.

● Make sure that you have a replacement toner cartridge ready. Replace the toner cartridge if you see this message before you start to print a large job.

Consumables(P. 611)

Printing is restricted.

Printing is disabled in the Department ID Management.

● Log in with a Department ID for which printing is not disabled. For the Department ID and PIN, contact your Administrator.

Setting the Department ID Management(P. 356)<
