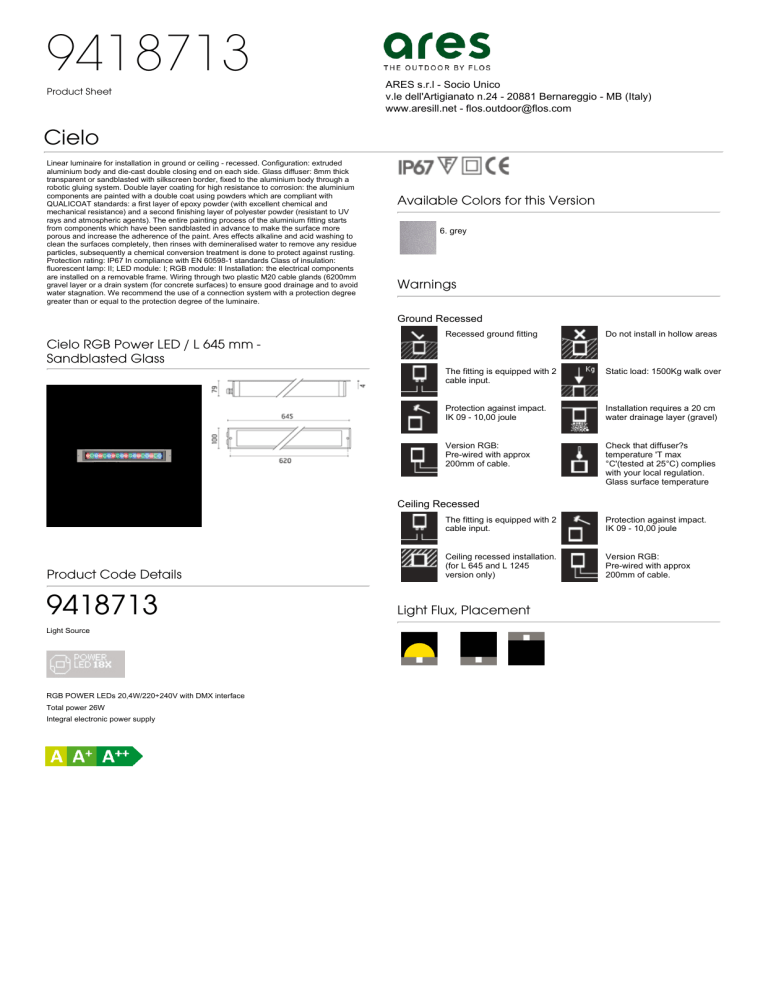

Product Sheet
ARES s.r.l - Socio Unico
v.le dell'Artigianato n.24 - 20881 Bernareggio - MB (Italy)
www.aresill.net - [email protected]
Cielo
Linear luminaire for installation in ground or ceiling - recessed. Configuration: extruded
aluminium body and die-cast double closing end on each side. Glass diffuser: 8mm thick
transparent or sandblasted with silkscreen border, fixed to the aluminium body through a
robotic gluing system. Double layer coating for high resistance to corrosion: the aluminium
components are painted with a double coat using powders which are compliant with
QUALICOAT standards: a first layer of epoxy powder (with excellent chemical and
mechanical resistance) and a second finishing layer of polyester powder (resistant to UV
rays and atmospheric agents). The entire painting process of the aluminium fitting starts
from components which have been sandblasted in advance to make the surface more
porous and increase the adherence of the paint. Ares effects alkaline and acid washing to
clean the surfaces completely, then rinses with demineralised water to remove any residue
particles, subsequently a chemical conversion treatment is done to protect against rusting.
Protection rating: IP67 In compliance with EN 60598-1 standards Class of insulation:
fluorescent lamp: II; LED module: I; RGB module: II Installation: the electrical components
are installed on a removable frame. Wiring through two plastic M20 cable glands (6200mm
gravel layer or a drain system (for concrete surfaces) to ensure good drainage and to avoid
water stagnation. We recommend the use of a connection system with a protection degree
greater than or equal to the protection degree of the luminaire.
Available Colors for this Version
6. grey
Warnings
Ground Recessed
Recessed ground fitting
Do not install in hollow areas
The fitting is equipped with 2
cable input.
Static load: 1500Kg walk over
Protection against impact.
IK 09 - 10,00 joule
Installation requires a 20 cm
water drainage layer (gravel)
Version RGB:
Pre-wired with approx
200mm of cable.
Check that diffuser?s
temperature 'T max
°C'(tested at 25°C) complies
with your local regulation.
Glass surface temperature
Cielo RGB Power LED / L 645 mm Sandblasted Glass
Ceiling Recessed
Product Code Details
9418713
Light Source
RGB POWER LEDs 20,4W/220÷240V with DMX interface
Total power 26W
Integral electronic power supply
The fitting is equipped with 2
cable input.
Protection against impact.
IK 09 - 10,00 joule
Ceiling recessed installation.
(for L 645 and L 1245
version only)
Version RGB:
Pre-wired with approx
200mm of cable.
Light Flux, Placement
Accessories
Code: 71
Box for installation
835 x 95 H 95 mm
Code: 81
Frame for recessed installation on ceiling
670 x 100 x H8 mm
Code: 142
DMX Controller
Dimmer switch for recessed box (60 mm hole
centres)
Code: 143
DMX Controller
Stand-alone/PC interface
Code: 187
DMX splitter
Eelectronic device to regenerate the DMX signal.
1 input and 7 output. 12÷24Vdc
Power supply to be ordered (87 or 175
recommended)
Code: 186
DMX cable
Shielded twisted pair with 110 Ohm constant
impedance
Code: 237
SPD: (Surge Protection Device) 275Vac
Maximum discharge current 10KA (8/20µs)
Maximum operating current 5A
Suitable for series connection - IP66
