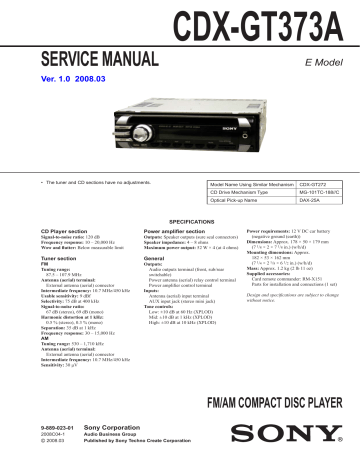

SERVICE MANUAL
SERVICE MANUAL
CDX-GT373A
E Model
Ver. 1.0 2008.03
• The tuner and CD sections have no adjustments.
Model Name Using Similar Mechanism
CDX-GT272
CD Drive Mechanism Type
MG-101TC-188//C
Optical Pick-up Name
DAX-25A
SPECIFICATIONS
CD Player section
Power amplifier section
Signal-to-noise ratio: 120 dB
Frequency response: 10 – 20,000 Hz
Wow and flutter: Below measurable limit
Outputs: Speaker outputs (sure seal connectors)
Speaker impedance: 4 – 8 ohms
Maximum power output: 52 W × 4 (at 4 ohms)
Tuner section
General
FM
Tuning range:
87.5 – 107.9 MHz
Antenna (aerial) terminal:
External antenna (aerial) connector
Intermediate frequency: 10.7 MHz/450 kHz
Usable sensitivity: 9 dBf
Selectivity: 75 dB at 400 kHz
Signal-to-noise ratio:
67 dB (stereo), 69 dB (mono)
Harmonic distortion at 1 kHz:
0.5 % (stereo), 0.3 % (mono)
Separation: 35 dB at 1 kHz
Frequency response: 30 – 15,000 Hz
AM
Tuning range: 530 – 1,710 kHz
Antenna (aerial) terminal:
External antenna (aerial) connector
Intermediate frequency: 10.7 MHz/450 kHz
Sensitivity: 30 μV
Outputs:
Audio outputs terminal (front, sub/rear
switchable)
Power antenna (aerial) relay control terminal
Power amplifier control terminal
Inputs:
Antenna (aerial) input terminal
AUX input jack (stereo mini jack)
Tone controls:
Low: ±10 dB at 60 Hz (XPLOD)
Mid: ±10 dB at 1 kHz (XPLOD)
High: ±10 dB at 10 kHz (XPLOD)
Power requirements: 12 V DC car battery
(negative ground (earth))
Dimensions: Approx. 178 × 50 × 179 mm
(7 1/8 × 2 × 7 1/8 in.) (w/h/d)
Mounting dimensions: Approx.
182 × 53 × 162 mm
(7 1/4 × 2 1/8 × 6 1/2 in.) (w/h/d)
Mass: Approx. 1.2 kg (2 lb 11 oz)
Supplied accessories:
Card remote commander: RM-X151
Parts for installation and connections (1 set)
Design and specifications are subject to change
without notice.
FM/AM COMPACT DISC PLAYER
9-889-023-01
Sony Corporation
2008C04-1
© 2008.03
Audio Business Group
Published by Sony Techno Create Corporation
CDX-GT373A
NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT
The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic break-down and also
use the procedure in the printed matter which is included in the
repair parts.
The flexible board is easily damaged and should be handled with
care.
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be focused
on the disc reflective surface by the objective lens in the optical
pickup block. Therefore, when checking the laser diode emission,
observe from more than 30 cm away from the objective lens.
This compact disc player is classified as a CLASS 1 LASER
product. The CLASS 1 LASER PRODUCT label is located on the
exterior.
This label is located on the bottom of the chassis.
• CD playback
You can play CD-DA (also containing CD TEXT) and CD-R/
CD-RW (MP3/WMA files).
Type of discs
Label on the disc
CD-DA
Notes on chip component replacement
• Never reuse a disconnected chip component.
• Notice that the minus side of a tantalum capacitor may be damaged by heat.
TEST DISCS
Please use the following test discs for the check on the CD section.
YDES-18 (Part No. 3-702-101-01)
PATD-012 (Part No. 4-225-203-01)
CAUTION
Use of controls or adjustments or performance of procedures other than
those specified herein may result in hazardous radiation exposure.
If the optical pick-up block is defective, please replace the whole
optical pick-up block.
Never turn the semi-fixed resistor located at the side of optical
pick-up block.
optical pick-up
MP3
WMA
UNLEADED SOLDER
Boards requiring use of unleaded solder are printed with the leadfree mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
• Unleaded solder melts at a temperature about 40 °C higher
than ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350 °C.
Caution: The printed pattern (copper foil) may peel away if the
heated tip is applied for too long, so be careful!
• Strong viscosity
Unleaded solder is more viscous (sticky, less prone to flow)
than ordinary solder so use caution not to let solder bridges
occur such as on IC pins, etc.
• Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.
semi-fixed resistor
SAFETY-RELATED COMPONET WARNING!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE
WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
2
CDX-GT373A
TABLE OF CONTENTS
1.
SERVICE NOTE ......................................................
2.
3
GENERAL
Location of Controls .......................................................
Connections ....................................................................
5
5
3.
DISASSEMBLY
3-1.
3-2.
3-3.
3-4.
3-5.
3-6.
3-7.
3-8.
3-9.
3-10.
3-11.
3-12.
Sub Panel Assy ...............................................................
CD Mechanism Block .....................................................
Main Board .....................................................................
Microphone (MIC901) ....................................................
Servo Board ....................................................................
Chassis (T) Sub Assy ......................................................
Roller Arm Assy..............................................................
Chassis (OP) Assy ...........................................................
Chucking Arm Sub Assy .................................................
Sled Motor Assy..............................................................
Optical Pick-up Section ..................................................
Optical Pick-up ...............................................................
4.
DIAGNOSIS FUNCTION ...................................... 14
5.
ELECTRICAL ADJUSTMENTS ......................... 16
7
8
8
9
9
10
10
11
11
12
13
13
6.
DIAGRAMS
6-1.
6-2.
6-3.
6-4.
6-5.
6-6.
6-7.
6-8.
Block Diagram –Main Section– .....................................
Block Diagram –Display Section– .................................
Printed Wiring Board –Main Section–............................
Schematic Diagram –Main Section (1/3)–......................
Schematic Diagram –Main Section (2/3)–......................
Schematic Diagram –Main Section (3/3)–......................
Printed Wiring Boards –Key Section– ............................
Schematic Diagram –Key Section– ................................
7.
EXPLODED VIEWS
17
18
19
20
21
22
23
24
7-1. Main Section ................................................................... 29
7-2. Front Panel Section ......................................................... 30
7-3. CD Mechanism Section (MG-101TC-188//C) ............... 31
8.
ELECTRICAL PARTS LIST ............................... 32
SECTION 1
SERVICE NOTE
EXTENSION CABLE AND SERVICE POSITION
When repairing or servicing this set, connect the jig (extension
cable) as shown below.
•
Connect the MAIN board (CN350) and the SERVO board
(CN2) with the extension cable (Part No. J-2502-076-1).
MAIN BOARD
CN350
J-2502-076-1
SERVO BOARD
CN2
3
CDX-GT373A
NOTE FOR REPLACEMENT OF THE AUX JACK (J901)
To replace the AUX jack requires alignment.
1. Insert the AUX jack into the KEY board.
2. Place the KEY board on the front panel.
3. Solder the three terminals of the jack.
KEY board
NOTE FOR REPLACEMENT OF THE SERVO BOARD
When repairing, the complete SERVO board (A-1201-631-A)
should be replaced since any parts in the SERVO board cannot be
repaired.
NOTE FOR THE 15-PIN CONNECTOR (CN901)
Do not use alcohol to clean the 15-pin connector (CN901) connecting the front panel with the main body.
Do not touch the connector directly with your bare hand. Poor contact may be caused.
AUX jack
front panel
NOTE FOR REPLACEMENT OF THE FRONT PANEL
AND BUTTONS
When any of the following parts have been replaced, apply the
HANARL SFL-9A (Part No.7-400-000-00) to the specified position.
• PANEL (SV) ASSY
• LAVEL (SEEK)
• BUTTON (SOURCE)
• BUTTON (MODE)
• LAVER (BASE)
• BUTTON (INNER)
please apply the HANARL SFL-9A
(Part No.7-400-000-00) to the
specified position.
4
CDX-GT373A
SECTION 2
GENERAL
This section is extracted
from instruction manual.
• LOCATION OF CONTROLS
Location of controls and basic operations
I MODE button page 8
To select the radio band (FM/AM).
Main unit
1 2 3
4
5
6
OFF
H SELECT
SOURCE
AUX
PUS
SEEK
SEEK
MODE
ALBUM
1
78 9
2
REP
SHUF
3
4
0
Card remote commander
RM-X151
1
2
qh
OFF
SOURCE
ATT
SEL
MODE
ql
w;
9
+
wa
–
qj
qk
SCRL
DSPL
1
2
3
4
5
6
ws
wd
+
VOL
–
qa
PAUSE
5
6
SCRL
EQ3
DSPL
qs qd
qf qg
This section contains instructions on the location
of controls and basic operations.
For details, see the respective pages.
The corresponding buttons on the card remote
commander control the same functions as those
on the unit.
A OFF button
To power off; stop the source.
B SOURCE button
To power on; change the source (Radio/CD/
AUX).
C Volume control dial/select
button page 8, 10
To adjust volume (rotate); select setup items
(press and rotate).
J RESET button (located behind the front
panel) page 4
K Number buttons
CD:
(1)/(2): ALBUM –/+ (during MP3/WMA
playback)
To skip albums (press); skip albums
continuously (press and hold).
(3): REP page 8
(4): SHUF page 8
(6): PAUSE
To pause playback. To cancel, press
again.
Radio:
To receive stored stations (press); store
stations (press and hold).
L EQ3 (equalizer) button page 10
To select an equalizer type (XPLOD,
VOCAL, EDGE, CRUISE, SPACE,
GRAVITY, CUSTOM or OFF).
M DSPL (display)/SCRL (scroll) button
page 8
To change display items (press); scroll the
display item (press and hold).
N Receptor for the card remote
commander
O AUX input jack page 11
To connect a portable audio device.
D Disc slot
Insert the disc (label side up), playback
starts.
The following buttons on the card remote
commander have also different buttons/functions
from the unit. Remove the insulation film before
use (page 4).
qh < (.)/, (>) buttons
To control CD/radio, the same as (SEEK)
+/– control on the unit.
Setup, sound setting, etc., can be operated by
< ,.
qj DSPL (display) button
To change display items.
qk VOL (volume) +/– button
To adjust volume.
ql ATT (attenuate) button
To attenuate the sound. To cancel, press
again.
w; SEL (select) button
The same as the select button on the unit.
wa M (+)/m (–) buttons
To control CD, the same as (1)/(2)
(ALBUM –/+) on the unit.
Setup, sound setting, etc., can be operated by
M m.
ws SCRL (scroll) button
To scroll the display item.
wd Number buttons
To receive stored stations (press); store
stations (press and hold).
Note
If the unit is turned off and the display disappears, it
cannot be operated with the card remote commander
unless (SOURCE) on the unit is pressed, or a disc is
inserted to activate the unit first.
E Display window
F Z (eject) button
To eject the disc.
G SEEK +/– control
CD:
To skip tracks (push up/down); skip tracks
continuously (push up/down, then push up/
down again within about 1 second and hold);
reverse/fast-forward a track (push up/down
and hold).
Radio:
To tune in stations automatically (push up/
down); find a station manually (push up/
down and hold).
H
6
(front panel release) button page 5
7
• CONNECTIONS
Connection example
Notes
• Be sure to connect the ground (earth) lead before connecting
the amplifier.
• The alarm will only sound if the built-in amplifier is used.
A
AUDIO OUT FRONT
Ejemplo de conexiones
AUDIO OUT REAR*
Notas
• Asegúrese de conectar primero el cable de conexión a masa
antes de realizar la conexión del amplificador.
• La alarma sonará únicamente si se utiliza el amplificador
incorporado.
* AUDIO OUT SUB/REAR
B
AUDIO OUT FRONT
AUDIO OUT REAR*
* AUDIO OUT SUB/REAR
5
CDX-GT373A
*1
*1 RCA pin cord (not supplied)
*2 AUDIO OUT can be switched SUB or REAR. For details,
see the supplied Operating Instructions.
*1 Cable con terminales RCA (no suministrado)
*2 AUDIO OUT (salida de audio) puede cambiarse a SUB
(altavoz potenciador de graves) o REAR (posterior). Para
obtener información, consulte el manual de instrucciones
suministrado.
*1
AUDIO OUT
FRONT
L
R
from car antenna (aerial)
desde la antena del automóvil
REAR FRONT
AUDIO OUT
AUDIO OUT
REAR*2
3
AMP REM
Fuse (10 A)
Fusible (10 A)
Blue/white striped
Con rayas azules y blancas
2
Max. supply current 0.3 A
Corriente máx. de alimentación de 0,3 A
White
Blanco
Left
Izquierdo
Black
Negro
1
White/black striped
Con rayas blancas y negras
Gray
Gris
Right
Derecho
Blue
Azul
Green
Verde
Left
Izquierdo
Red
Rojo
Green/black striped
Con rayas verdes y negras
Purple
Morado
Right
Derecho
Purple/black striped
Con rayas moradas y negras
Connection diagram
Diagrama de conexión
1 To a metal surface of the car
1 A una superficie metálica del automóvil
2 To the power antenna (aerial) control lead or
power supply lead of antenna (aerial) booster
amplifier
2 Al cable de control de la antena motorizada
First connect the black ground (earth) lead, then connect the
yellow, and red power supply leads.
Notes
• It is not necessary to connect this lead if there is no power
antenna (aerial) or antenna (aerial) booster, or with a
manually-operated telescopic antenna (aerial).
• When your car has a built-in FM/AM antenna (aerial) in
the rear/side glass, see “Notes on the control and power
supply leads.”
3 To AMP REMOTE IN of an optional power
amplifier
This connection is only for amplifiers. Connecting any other
system may damage the unit.
4 To the +12 V power terminal which is
energized in the accessory position of the
ignition key switch
Notes
• If there is no accessory position, connect to the +12 V
power (battery) terminal which is energized at all times.
Be sure to connect the black ground (earth) lead to a
metal surface of the car first.
• When your car has a built-in FM/AM antenna (aerial) in
the rear/side glass, see “Notes on the control and power
supply leads.”
5 To the +12 V power terminal which is
energized at all times
Be sure to connect the black ground (earth) lead to a metal
surface of the car first.
Notes on the control and power supply leads
• The power antenna (aerial) control lead (blue) supplies +12 V
DC when you turn on the tuner.
• When your car has built-in FM/AM antenna (aerial) in the rear/
side glass, connect the power antenna (aerial) control lead
(blue) or the accessory power supply lead (red) to the power
terminal of the existing antenna (aerial) booster. For details,
consult your dealer.
• A power antenna (aerial) without a relay box cannot be used
with this unit.
Memory hold connection
When the yellow power input lead is connected, power will
always be supplied to the memory circuit even when the ignition
switch is turned off.
Notes on speaker connection
• Before connecting the speakers, turn the unit off.
• Use speakers with an impedance of 4 to 8 ohms, and with
adequate power handling capacities to avoid its damage.
• Do not connect the speaker terminals to the car chassis, or
connect the terminals of the right speakers with those of the
left speaker.
• Do not connect the ground (earth) lead of this unit to the
negative (–) terminal of the speaker.
• Do not attempt to connect the speakers in parallel.
• Connect only passive speakers. Connecting active speakers
(with built-in amplifiers) to the speaker terminals may damage
the unit.
• To avoid a malfunction, do not use the built-in speaker leads
installed in your car if the unit shares a common negative (–)
lead for the right and left speakers.
• Do not connect the unit’s speaker leads to each other.
Note on connection
If speaker and amplifier are not connected correctly, “FAILURE”
appears in the display. In this case, make sure the speaker and
amplifier are connected correctly.
Conecte primero el cable de conexión a masa negro, y
después los cables amarillo y rojo de fuente de alimentación.
o al cable de fuente de alimentación del
amplificador de señal de la antena
Notas
• Si no se dispone de antena motorizada ni de amplificador
de antena, o se utiliza una antena telescópica accionada
manualmente, no será necesario conectar este cable.
• Si el automóvil incorpora una antena de FM/AM en el
cristal trasero o lateral, consulte “Notas sobre los cables
de control y de fuente de alimentación”.
3 A AMP REMOTE IN de un amplificador de
potencia opcional
Esta conexión es sólo para amplificadores. La conexión de
cualquier otro sistema puede dañar la unidad.
4 Al terminal de alimentación de +12 V que
recibe energía en la posición de accesorio
del interruptor de encendido
Notas
• Si no hay posición de accesorio, conéctelo al terminal de
alimentación (batería) de +12 V que recibe energía sin
interrupción.
Asegúrese de conectar primero el cable de conexión a
masa negro a una superficie metálica del automóvil.
• Si el automóvil incorpora una antena de FM/AM en el
cristal trasero o lateral, consulte “Notas sobre los cables
de control y de fuente de alimentación”.
5 Al terminal de alimentación de +12 V que
recibe energía sin interrupción
Asegúrese de conectar primero el cable de conexión a masa
negro a una superficie metálica del automóvil.
Notas sobre los cables de control y de fuente de
alimentación
• El cable de control de la antena motorizada (azul) suministrará
cc de + 12 V cuando conecte la alimentación del sintonizador.
• Si el automóvil dispone de una antena de FM/AM incorporada
en el cristal trasero o lateral, conecte el cable de control de
antena motorizada (azul) o el cable de fuente de alimentación
auxiliar (rojo) al terminal de alimentación del amplificador de
antena existente. Para obtener más información, consulte a su
distribuidor.
• Con esta unidad no es posible utilizar una antena motorizada
sin caja de relé.
Conexión para protección de la memoria
Si conecta el cable de fuente de alimentación amarillo, el circuito
de la memoria recibirá siempre alimentación, aunque apague el
interruptor de encendido.
Notas sobre la conexión de los altavoces
• Antes de conectar los altavoces, desconecte la alimentación
de la unidad.
• Utilice altavoces con una impedancia de 4 a 8 Ω con la
capacidad de potencia adecuada para evitar que se dañen.
• No conecte los terminales de altavoz al chasis del automóvil,
ni conecte los terminales del altavoz derecho con los del
izquierdo.
• No conecte el cable de conexión a masa de esta unidad al
terminal negativo (–) del altavoz.
• No intente conectar los altavoces en paralelo.
• Conecte solamente altavoces pasivos. Si conecta altavoces
activos (con amplificadores incorporados) a los terminales de
altavoz, puede dañar la unidad.
• Para evitar fallas de funcionamiento, no utilice los cables de
altavoz incorporados instalados en el automóvil si la unidad
comparte un cable negativo común (–) para los altavoces
derecho e izquierdo.
• No conecte los cables de altavoz de la unidad entre sí.
Nota sobre la conexión
Si el altavoz no está conectado correctamente, aparecerá
“FAILURE” en la pantalla. Si es así, compruebe la conexión del
altavoz.
6
ANT REM
Max. supply current 0.1 A
Corriente máx. de alimentación de 0,1 A
Gray/black striped
Con rayas grises y negras
Yellow
Amarillo
2
4
5
CDX-GT373A
SECTION 3
DISASSEMBLY
•
This set can be disassembled in the order shown below.
SET
3-1.
SUB PANEL ASSY
(Page 7)
3-5.
SERVO BOARD
(Page 9)
3-2.
CD MECHANISM BLOCK
(Page 8)
3-6.
CHASSIS (T) SUB ASSY
(Page 10)
3-7.
ROLLER ARM ASSY
(Page 10)
3-8.
CHASSIS (OP) ASSY
(Page 11)
3-9.
CHUCKING ARM SUB ASSY
(Page 11)
3-3.
3-4.
MAIN BOARD
(Page 8)
MICROPHONE (MIC901)
(Page 9)
3-10. SLED MOTOR ASSY
(Page 12)
3-11. OPTICAL PICK-UP SECTION
(Page 13)
3-12. OPTICAL PICK-UP
(Page 13)
Note: Follow the disassembly procedure in the numerical order shown below.
3-1.
SUB PANEL ASSY
two claws
two claws
two screws
(+PTT 2.6 × 6)
sub panel assy
7
CDX-GT373A
3-2.
CD MECHANISM BLOCK
CD mechanism block
bracket (CD)
two screws
(+PTT 2.6 × 4)
screw
(+PTT 2.6 × 6)
CN350
screw
(+PTT 2.6 × 6)
3-3.
MAIN BOARD
two screws
(+PTT 2.6 × 8)
two screws
(+P 2.6 × 8)
two screws
(+PTT 2.6 × 10)
screw
(+P 2.6 × 10)
three ground point screws
(+PTT 2.6 × 6)
screw
(+PTT 2.6 × 10)
heat sink
MAIN board
8
insulating sheet
CDX-GT373A
3-4.
MICROPHONE (MIC901)
holder (LED) upper
claw
claw
microphone (MIC901)
CN200 (2P)
MAIN board
screw
(+B P-tite M2)
3-5.
SERVO BOARD
WHT
RED
BLK
WHT
RED
BLK
RED
ORG
BLU
YEL
GRY
toothed lock screw
(M 1.7 × 2.5)
toothed lock screw
(M 1.7 × 2.5)
SERVO board
SERVO board
Remove the eleven solders.
optical pick-up (16 core)
(CN1)
claw
claw
9
CDX-GT373A
3-6.
CHASSIS (T) SUB ASSY
two precision screws
(+P 1.7 × 2.2)
two precision screws
(+P 1.7 × 2.2)
chassis (T) sub assy
claw
3-7.
ROLLER ARM ASSY
roller arm assy
gear (RA1)
spring (RAL)
washer
spring (RAR)
10
CDX-GT373A
3-8.
CHASSIS (OP) ASSY
chassis (OP) assy
tension spring (KF)
coil spring (damper) (natural)
coil spring (damper) (green)
slider (R)
lever (D)
gear (LE1)
3-9.
CHUCKING ARM SUB ASSY
chucking arm sub assy
spring
Note: Have this portion receive the chassis.
Note: Have this portion receive the chassis.
Note: Be careful not to touch the turn table.
11
CDX-GT373A
3-10. SLED MOTOR ASSY
three serration screws
(M 2 × 3)
sled motor assy
spring
turn table
spring
stand
Note:
Never remove these parts since they were adjusted.
stand
Note: Place the stand with care not to touch the turn table.
Note for Assembly
three serration screws
(M 2 × 3)
sled motor assy
Note: Take care to prevent the chassis from being bent
when tightening the three machine screws.
12
CDX-GT373A
3-11. OPTICAL PICK-UP SECTION
optical pick-up section
Note: Be careful not to touch the lens and hologram
terminal when removing the optical pick-up section.
3-12. OPTICAL PICK-UP
pan tapping screw
(M 1.4 × 2.5)
leaf spring (sub guide)
leaf spring (OP)
optical pick-up
lead screw assy
Notes for Assembly
Prevent the end of the
leaf spring (sub guide) from being
in contact with the OP slide base.
Prevent the end of the
leaf spring (sub guide) from being
in contact with the OP slide base.
There is space at the end of the
leaf spring (sub guide) to avoid
contact with the slide.
13
CDX-GT373A
SECTION 4
DIAGNOSIS FUNCTION
Description of the Diagnostics function:
4. Contents of each display mode
4-1. Reset count display mode
1. Setting the Diag display mode
With the power off, press the [4] button, [5] button, and [4]
button on the set body or the remote control (for more than 2
seconds) in turn.
Reset count
(in hexadecimal format)
Diag code
01: Reset count
2. Canceling the Diag display mode
During the Diag function mode, press the [OFF] button.
3. Initial display in the Diag display mode.
Just when the Diag mode is entered, “reset count” is displayed.
The display mode is switched by each rotation of [> SEEK
+] or [. SEEK –] keys.
Reset count display
99
Reset count by watchdog timer display
99
Number of connected units display
999
Operating hours display
9999
CD error information display
99
OFFSET/FAILURE error display
99999
99
4-2. Reset count by watchdog timer display mode
99
Reset count
(in hexadecimal format)
Diag cord
02: Number of resets by
watchdog timer
4-3. Number of connected units display mode
999
Show the number of connected units for
CD-C,MD-C and XM respectively from
the rightmost (in hexadecimal format).
Recency of information
1-3: 1 represents the latest.
Diag code
03: Number of connected unit.
The display mode is switched by each rotation of [2/ALBM+] or
[1/ALBM–] keys during the number of connected units display
mode.
No. of connected units history 1 (latest) display
999
No. of connected units history 2 display
999
No. of connected units history 3 display
999
4-4. Operating hours display mode
9999
Operating hours
(in hexadecimal format)
Diag code
04: Operating hours
14
CDX-GT373A
4-5. CD error information display mode
4-5-1. Error description
4-6. OFFSET/FAILURE error display mode
99999
99
Error description
(in hexadecimal
format)
Recency of information
1-3: 1 represents the
latest.
Diag code
05: CD error information
Error information
Indication
1X
3X
4X
5X
FX
Description
SERVO ERROR
LOADING ERROR
TRACK JUMP
TEXT ERROR
MECHA ERROR
The display mode is switched by each rotation of [2/ALBM+] or
[1/ALBM–] keys during the OFFSET/FAILURE error display
mode.
4-5-2. Disc type and operating hours
Disc type
99999
Operating hours
Disc type
Recency of information
1-3: 1 represets the
latest.
Diag code
05: CD error information
Indication
0
1
2
3
8
F
Operating hours
Error description
(0: OFFSET, 1: FAILURE)
Recency of information
1-3: 1 represets the latest
Diag code
06: OFFSET/FAILURE
Disc type
MP3
WMA
AAC
ATRAC
CD/DA
UNKNOWN
The display mode is switched by each rotation of [2/ALBM+] or
[1/ALBM–] keys during the CD error information display mode.
OFFSET/FAILURE error history 1 (latest) display
99999
OFFSET/FAILURE error history 2 display
99999
OFFSET/FAILURE error history 3 display
CD error info history 1 (latest)
Error description plus error details display
99999
99
CD error info history 1 (latest)
Disc type plus Operating hours display
99999
CD error info history 2
Error description plus error details display
99
CD error info history 2
Disc type plus Operating hours display
99999
CD error info history 3
Error description plus error details display
99
CD error info history 3
Disc type plus Operating hours display
99999
15
CDX-GT373A
SECTION 5
ELECTRICAL ADJUSTMENTS
MIC SENSITIVITY ADJUSTMENT
•Replace all of the follwing parts at the same time when
replacing the microphone (MIC901) or if there is any faulty
semi-fixed resistor (R290) .
: Part No. 1-542-689-41
: 6.8 kΩ t 3.3 kΩ, No. 1-218-859-11
: 47 kΩ t No mount
: No mount t 0 Ω, No. 1-216-864-11
: 0.1 μF, t 0.22 μF, Part No. 1-127-715-11
C213
R212
R211
R214
IC201
R290
S103
RESET
R291
16
MIC901
C211
R211
R203
C215
C214
C201
R264
R218
D200
R261
JW58
JW56
JW57
JW59
R292
C290
R250
R251
R263
C210
R215
1
R204
R217
R213 C203
R210
CN200
2
C212
R291
R260
R219
C216
R290
C211
JW52
JC270
JW60
C263
JW55
JW54
JC24
JW53
D502
JC17
R532
R533
R519
TH270
JW61
R205
R262
R206
JC262
C509
IC200
-MAIN BOARD-
R216
• MIC901
• R211
• R290
• R291
• C211
CDX-GT373A
SECTION 6
DIAGRAMS
6-1.
BLOCK DIAGRAM – MAIN Section –
ELECTRONIC VOLUME
IC401
L
SUBOUT L 21
SUBOUT R 22
R-CH
R-CH
1 BUS-RCH
2 BUS-LCH
R
L
R-CH
AUX
R-CH
MUTE
Q432
9 AUX-LCH
7 AUX-RCH
8 AUX GND
J1
(ANTENNA)
L-CH 4
R-CH 3
1 ANT
12 IN-FL
OUT-RL 23
11 IN-RL
R-CH
R-CH
OUT-FR 26
OUT-RR 24
4 TU-LCH
3 TU-RCH
TU-SCL 13
TU-SDA 14
AUDIO +8.3V
TU+5V
B.U +3.3V
E2P-SCL 16
E2P-SDA 17
I2C-SCL
I2C-SDA
MUTE
Q470
MUTE
CONTROL SWITCH
Q491,492
25 EEP_CKO
24 EEP_SIO
CD
MECHANISM
UNIT
(MG-101TC)
AU_LCH
22
24
26
16
5
7
UNI_SO
UNI_SI
UNI_CLK
Z_MUTE
CD_ON
CDM_ON
6
21
27
AU_RCH
SYS_RST
EJECT_OK
BUS_ON
A_ATT
BU_CHECK
D_+3.3V
A_+3.3V
BU_+3.3V
DR_+6V
I2C_SCK 33
I2C_SIO 34
I2C-SCL
I2C-SDA
BATT
BU+B 37
D493
AUDIO+B
SERVO+3.3V
MECHA+6V
PANEL+B
VOL ATT 9
F901
30
31
33
34
16
AMP-REM
ANT-REM
BATT
B.U+5V
AUDIO +8.3V
SERVO+3.3V
MECHA+6V
PANEL+B
16 BEEP
22 STB
25 DIAG
R-CH
D609
UNISO
UNISI
UNISCK
Z-MUTE
CD_ON
CDM_ON
BATTERY
CHECK
Q606,607
BUIN 54
D353
7
ACCESSORY CHECK
Q702
ACCIN 99
59
58
60
61
91
92
OVER VOLTAGE
CHECK
Q605,D602,D603
BU+3.3V
BATT
BU+3.3V REG
IC681
BU+5V
77 RESET
88 SYSRST
96 BUSON
BU+3.3V
TU+5V REG
Q3,D2
AUDIO +8.3V
• R-CH is omitted due to same as L-CH.
• Signal Path
: CD PLAY
SERVO +3.3V
: FM
RESET
IC602
BU_+3.3V
MECHA +6V
1 VOUT
VDD 2
: AM
: AUX
BU +3.3V
S103
RESET
CDX-GT373A
6
VP 35
VP1 20
VP2 6
TU+5V
9
25
18
19
8
1,2
5
ANT-REM 27
4 SCL
2 SDA
BEEP 5
AMPSTB 8
DIAG 7
11
15
4
FR+
12
FR–
3
RR+
11
RR–
AMP-REM 29
ATT 100
CN350
2
RL+
10
RL–
R-CH
SYSTEM CONTROL
IC501 (1/2)
EEP-SCL
EEP-SDA
OUT-RL+ 9
OUT-RL– 7
BATT
I2C-SCL
I2C-SDA
38 QUALITY
39 VSM
12 TU ATT
1
FL+
9
FL–
D491
I2C-SCL
I2C-SDA
QUALITY
VSM
TUATT
OUT-FL+ 5
OUT-FL– 3
R-CH
6 CD-LCH
5 CD-RCH
10 VCC (+8.3V)
11 TU-VDD (TU+5V)
15 E2P-VDD
QUALITY 5
S-METER 6
TU-MUTE 7
MUTE
Q440
R-CH (FRONT)
R-CH (REAR)
VOLATT
MUTE 28
SCL 29
SDA 30
R-CH
CN300
OUT-FL 25
TU1
(TUNER UNIT)
17
17
FRONT
I2C BUS CONTROLLED
POWER AMP/MULTIPLE
VOLTAGE REGULATOR
IC300
R-CH
J901
R
REAR
ACC
J652
AUDIO
OUT
CDX-GT373A
6-2.
BLOCK DIAGRAM – DISPLAY Section –
SYSTEM CONTROL
IC501 (2/2)
40 KEYIN1
KEY MATRIX
LSW901–910,
S901–904
41 KEYIN0
LCD DRIVE
IC901
LCD_SO 28
LCD_SCK 29
LCD_CE 27
S1
I
S33
48 DI
47 CL
46 CE
D503
DIMMER
52 KEY ACK
1
2
LIQUID
CRYSTAL
DISPLAY
PANEL
31 RE-IN0
32 RE-IN1
For Printed Wiring Boards.
For Schematic Diagrams.
Note:
• X : Parts extracted from the component side.
• Y : parts extracted from the conductor side.
•
a : Through hole.
•
: Pattern from the side which enables seeing.
(The other layers' patterns are not indicated.)
Note:
• All capacitors are in μF unless otherwise noted. (p: pF)
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ω and 1/4 W or less unless otherwise
specified.
•
f : internal component.
• C : panel designation.
Caution:
Pattern face side:
(SIDE B)
Parts face side:
(SIDE A)
PANEL+B
BACK
( LCDLIGHT
)
RE901
PUSH SELECT
(VOLUME)
RE-0
RE-1
LCD901
•
39
LED931
48 AD_ON
ROTARY
ENCODER
3
|
34
COM1 35
I
|
COM4 38
BACK LIGHT
KEY ACKNOWLEDGE
SWITCH
Q664
THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is printed in each block.)
LSW901–910,
LED861,862
871–874,
941,942,
951–954
KEY
ILLUMINATE
(
D997
Parts on the pattern face side seen from
the pattern face are indicated.
Parts on the parts face side seen from
the parts face are indicated.
• Indication of transistor.
C
)
Q
These are omitted.
Note: The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
•
•
•
•
B E
D998
LCD
BACK LIGHT
SWITCH
Q932
•
BC E
These are omitted.
LED(RED)
DRIVE
Q991
LED(BLUE)
DRIVE
Q992
BU+3.3V
X502
32.768kHz
X501
18.432MHz
REMOTE
CONTROL
SIGNAL
RECEIVER
IC971
•
•
EC B
These are omitted.
79 XIN
VOLTAGE
DETECT
IC270
80 XOUT
82 OSCIN
83 OSCOUT
47
CECURITY
DETECT
IC200
4 OUT
AMP
IC201
MIC901
IN+ 3
IN– 2
0.7 Vp-p
32.768 kHz
BU+3.3V
LED250
LED YELLOW 57
LED RED 46
IC501 J (XOUT)
SENS
SWITCH
Q200–202
SENS1 68
SENS2 69
SENS3 70
64 SIRCS
• Waveforms
– MAIN Board –
R290
62 NOSE_SW
0.5 V/DIV, 20 μsec/DIV
LED251
LED
DRIVE
SWITCH
Q250
IC501 JE (OSC OUT)
LED
DRIVE
SWITCH
Q251
1.8 Vp-p
18.432 MHz
0.5 V/DIV, 20nsec/DIV
CDX-GT373A
•
18
18
A : B+ Line.
B : B– Line.
H : adjustment for repair.
Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark : FM
(
) : AM
<
> : CD PLAY
* : Impossible to measure
Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal production
tolerances.
Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal production
tolerances.
Circled numbers refer to waveforms.
Signal path.
J
: CD PLAY
F
: FM
f
: AM
L : AUX
CDX-GT373A
Refer to the MIC SENSITIVITY ADJUSTMENT described on page 16 if
the microphone (MIC901) or any semi-fixed resistor (R290) is faulty.
6-3.
PRINTED WIRING BOARD – MAIN Section –
2
1
•
3
: Uses unleaded solder.
4
5
6
7
8
9
10
11
12
13
14
J652
AUDIO OUT
REAR
FRONT
R
-3
-4
R443 C443
C440
C452
JC29
D309
D311
RED
C701
L407
JW86
Q606
JC607
JW85
R555
C409
R615
JW87
JW84
C405
C417
C415
R915
C402
R265
JC200
R272
R204
R218
D200
C215
C214
R217
C213
R208
R203
IC200
R201
IC270 R271
R262
JC262
R261
JW59
JW57
JW58
R219
R215
R214
R212
Q250
R250
R251
2
TH270
R554
R532
JW56
C201
R264
R202
C200
R216
JW66
JW67
R600
R351
JC514 JC516
R526
JC515
L501
C510
JC513
JW55
R263
C210
R210
CN200
IC201
1-875-957-
(CHASSIS)
X501
CN370
S103
RESET
J
MIC901
A
KEY BOARD CN901
CDX-GT373A
C705
C702
JW95
C401
JW72
JW71
R540
R672
C516
R673
R213 C203
R290
R211
Q251
C212
1
LED250
(SECURITY(YELLOW))
Q202
C216
C263
R260
R200
JC270
JW60
R292
D113
LED251
(SECURITY(RED))
JC17
C211
C155
JW46
JW45
JC14
D112
D110
Q664
JW52
R517 JC511
JW62
JW61
C290
D104
D109
JC509
R570
D502
Q200
Q201
JW64
JC36
R519
X501
R533
C502
C519
JW65
R205
JW53
R671
JC508 R565
X502
JW69
JC353
JW63
R207
JW54
C514
D503
R206
JC24
R503
JC214
D106
JW4
C512
JC251
JC151
D105
JC100
JC510
C154
JW3
D152
R151
C151
JC110
JC112
D151
L151
D108
JC102
JW5
R155
JC109
JW1
JW2
D153
R154
R153
C157
C513
C501
JW38
C509
CD
MECHANISM
UNIT
(MG-101TC)
JW70
R916
JW119
JC601
C508
JC507
JW39
C153
C152
JW40
R505
JC512
C507
R511
R611
JW68
D353
R674
Ref. No.
R612
JC610
L406
IC602
JC602
R512
R523
R522
D609
R401
• Semiconductor Location
R603
D603
D602
L410
R510
R520
R521
JC506
JW6
C504
JW51
JW47
JW42
JW41
R152
I
JW43
R509
IC501
R525
JW10
JW9
JW8
JW7
H
JC504
R524
JW44
R544
JC505
R574
JC503
R917
R560
R571
JC13
C515
R558
R402
C418 C419
C363
C317
R557
R556
G
Q605
JC35
CN350
FMB4
R529
JW11
JW49
R561
JW12
R502
JW31
JW50
JW13
JW73
R550
R567
R7
JC606
JW74
JC501
R534
JW15
R504
JW14
Q607
JC34
R537
R302
C310
JW48
L4
JW19
JW16
JW75
R303
JC15
C7
R6
C8
JW17
C5
R13
JC502
JW32
JW76
R549
JW88
JC40
C403
JW78
R507
C319
JW90
L402
L401
JW77
C318
C704
L403
R604
R568
L409
JW79
JC12
JW33
F
JW21
JW20
L300
L405
JW81
R566
R301
D607
JW89
JW91
JC33
R563 JC18
JW80
C364
C2
JW18
D304
C412
JC1
JW82
R531
JW22
D2
D302
JW92
JW83
Q492
Q491
R636
C315
C316
C314
C682
C313
C683
C308
L901
R491
JW96
JW97
JW98
JW99
JC32
D491
JW26
C6
D303
JW93
D493
R12
C703
JW112
JW111
D307
D306
JW113
JW110
D308
JW109
JW108
JW106
D305
C681
JW101
JW100
JC9
JC8
YEL
R708
D301
JW94
C306
JW24
JW25
R707
D702
IC681
C491
JW27
Q3
C997
L902
R471
JW29
C494
R3
JW23
JC5
R10
L1
C3
R706
R705
C622
JW28
R5
D310
Q702
D312
JW30
C471
R430
JC424
JW107
C303
Q460
Q470
JC423
C461
R452
C493
R485
C15
R470
D998
C623
R460
IC401
R9
C472
R420
C361
JW103
C454
JW102
JW35
R461
R440
C312
C463
C462
JW36
C484
C362
JW117
JW104
C473
R472
JW37
JW118
C434
C320
R481
C360
JW34
R462
C485
C486
E
F901
C301
C304
JW105
JC422
C421
R449
C431
R4
IC300
C305
Q420
R448
R421
C451
R451
C441
Q432
R431
R2
CN300
YEL
C325
JW116 C330
JW115
C307
C442
Q440
R447
R442
Q452
D
R423
C309
R450
TU1
JC421
JC420
C432
C
C426
C423
JW114
R424
B
R445 JC31
C444
C445
D999
-2
C998
-1
L
JC30
R
C424
L
J1
(ANTENNA)
C302
A
(Page 23)
19
19
11
D2
D104
D105
D106
D108
D109
D110
D112
D113
D151
D152
D153
D200
D301
D302
D303
D304
D305
D306
D307
D308
D309
D310
D311
D312
D353
D491
D493
D502
D503
D602
D603
D607
D609
D702
Location
F-3
I-3
I-3
I-3
I-3
I-4
I-4
I-4
I-4
I-2
I-2
I-2
H-10
D-8
D-8
D-9
D-9
C-6
C-6
C-6
C-6
C-7
C-6
C-7
D-7
G-8
E-5
E-6
H-8
I-5
E-10
E-10
D-9
F-9
C-8
Ref. No.
Location
D998
D999
C-9
B-8
IC200
IC201
IC270
IC300
IC401
IC501
IC602
IC681
H-10
I-9
H-10
B-6
D-3
G-6
G-8
D-6
LED250 I-7
LED251 I-6
Q3
Q200
Q201
Q202
Q250
Q251
Q420
Q432
Q440
Q452
Q460
Q470
Q491
Q492
Q605
Q606
Q607
Q664
Q702
F-3
G-10
G-10
G-10
I-7
I-5
C-4
C-3
C-4
C-3
C-4
C-4
E-6
E-6
E-10
E-10
E-10
I-5
C-8
CDX-GT373A
6-4.
SCHEMATIC DIAGRAM – MAIN Section (1/3) –
• See page 25 for IC Block Diagrams.
C303
C302
JC29
JC30
C325
JC31
C301
C444
C424 C330
R445
R423
L902
C306
L901
C304
C308
C305
C309
C307
C317
C318
IC300
IC B/D
R301
C319
CN300
R302
C454
C434
JC33
D702
F901
C701
D607
JC607
C704
C705
L300
R707
D491
Q702
Q491
JC8
R491
R706
C702
C703
R708
IC602
Q492
JC610
R611
IC681
D493
C491
R612
JC1
C623
R600
Q607
R604
R531
D603
C622
JC601
Q606
R603
S103
Q605
D602
(Page22)
CDX-GT373A
C683 C682 C681
20
20
JC13
(Page 21)
C320
C312
C314
C313
D304
D303
D305
D306
D307
D308
D309
C997
D310
D311
D998
D312
R705
JC32
C998
C316
C315
D999
D302
D301
JC12
JC14
CDX-GT373A
6-5.
SCHEMATIC DIAGRAM – MAIN Section (2/3) –
• See page 26 for IC Block Diagrams.
J652
J1
C442
C440
R448
R447
C452
R449
C432
TU1
R450
JC420
C445
C443 R443
C3
JC421
R424
R4
C15 C361
C472
JC422
JC423
C362
C463
Q420
Q440
Q452
Q432
C5
R5
R3
R9
R451
R431
C7
JC5
D2
Q460
R442
R13
C421
Q470
C441
C451
R6
R7
C6
C462
R421
R12
R2
R558
Q3
C473
C8
C2
L4
C426 C423
C431
R10
JC9
R472
R462
L1
R471
R461
C471
C461
JC214 C151
IC B/D
C486
C152
IC401
C153
(Page 20)
R154
R151
JC151
R153 R152
C155
L151
R155
C154
C157
JC100
C484
R420
R440
C485
R460
R470
R452
R481
JC424
CN370
C360
JC112
JC110
R430
R485
JC109
C494 C493
C310
C364
R303
(Page 24)
JC102
(Page 22)
CDX-GT373A
21
21
D152
D153
D151
D105
D104
D106
D109
D108
D113
D112
D110
C363
CDX-GT373A
6-6.
SCHEMATIC DIAGRAM – MAIN Section (3/3) –
• See page 18 for waveforms. • See page 26 for IC Block Diagrams. • See page 27 for IC Pin Function Description of IC501.
(Page 20)
(Page 21)
JC602
D353
JC353 R916
R615
CN350
JC17
C412
L409
JC35
C519
C405
L403
R402
L410
C417
L405
C409
C507
R674
X502
C508
C419
C418
R401
C415
R519
JC513
L402
L401
L407
JC36
JC514
R561
R517
JC24
R672
L406
R351
R554
R568
R555
C509
C403
R529
R570
JC40
JC34
R533
R532
D502
D609
Q664
JC507
JC508
X501
R509
R540
C401
JC516
C402
JC510
R565
R567
JC509
JC515 L501
C510
C502
D503
R526
R917
R671
C514
R673
JC511
R505
R503
IC501
R502
C512
R504
C501
IC270
R208
R204
JC270
R915
JC606
C513
R203
IC200
JC18
TH270
R200
R201
R271
R202
R520
R523
R205
C200
C515
R636
Q200
R272
JC506
R524
R525
R563
R566
C516
JC503
JC504
R521
R522
R206
R556
R511
R510
Q201
C216
C215
C214
C213
C203
C201
C211
R260
R211
R210
C290
R292
R290
C210
R250
R213
R263
CN200
JC505
R571
R560
JC502
R544
R557
C212
R216
MIC901
JC15
JC501
R212
R264
JC512
JC262
IC B/D
IC201
R534
JC200
R215 R214
R512
C504
R207
R217
R549
R550
D200
R507
R537
Q202
IC B/D
R574
R219
R218
LED250
R262
R251
LED251
R265
R261
Q251
C263
Q250
JC251
Refer to the MIC SENSITIVITY ADJUSTMENT described on page 16 if
the microphone (MIC901) or any semi-fixed resistor (R290) is faulty.
CDX-GT373A
22
22
CDX-GT373A
6-7.
PRINTED WIRING BOARD – KEY Section –
2
1
•
3
: Uses unleaded solder.
4
5
6
7
8
9
10
11
12
13
14
A
OFF
LED942
LED862
S902
C862
S903
LE
73
C861
D9
51
D9
D8
LE
R902
LCD901
LIQUID CRYSTAL DISPLAY PANEL
LE
71
LED931
LSW901
SEEK+
L
LSW901
8
ED
53
SOURCE
B
LED931
(LCD BACK LIGHT)
LED871–874,951–954
(RING ILLUMINATION)
S903
LED941 LED861,941,
S901
;
S901
LED861
LSW902
SEEK–
R975
LSW902
LE
R901
D9
54
LE
D8
72
C971
S904
S904
MODE
LE
74
D9
D8
52
LE
R904
R905
C
1
37
D994
LED862,942,
S902
IC971
IC971
LSW903
D
LSW904
LSW905
LSW906
LSW907
LSW908
LSW909
4
LSW910
3
1
LSW903
LSW904
LSW905
LSW906
LSW907
LSW908
LSW909
LSW910
1/ALBUM–
2/ALBUM+
3/REP
4/SHUF
5
6/PAUSE
EQ3
DSPL/SCRL
2
11
1-875-958- (11)
(Page 19)
MAIN BOARD CN370
E
R911
R912
R910
R950
FB902
R933
R982
R981
R931
R974
R932
C901
J901
RE901
PUSH SELECT
(VOLUME)
J901
AUX
FB903
FB901
R941
D902
R861
D993
D991
FB904
D992
C993
R862
H
D981
1
R987
R934
C986
2
D901
D903
R921
R922
Q932
D998
D997
C981
C983
C988
R984
R868
IC901
R979
R978
R977
D982
R961
R962
C992
Q992
R903
R947
R867
C991
RE901
R871
R951 R872
R985
5
R913
R870
R952
C987
4
C995
FB991
R963
R964
3
CN901
R869
Q991
FB992
R863 R864
R883 R884
G
R881 R882
R944 R943
R949
R907
C984
R986
R906
R866
R988
R865
R948
R946 R945
F
R908
R909
A
R942
11
1-875-958-
I
• Semiconductor Location
Ref. No.
D901
D902
D903
D981
D982
D991
D992
D993
CDX-GT373A
Location
G-11
G-12
G-11
H-10
H-10
G-11
G-11
G-11
Ref. No.
Location
D994
D997
D998
C-14
G-10
G-10
IC901
IC971
G-7
D-14
LED861 A-14
Ref. No.
LED862
LED871
LED872
LED873
LED874
LED931
LED941
LED942
Location
A-2
B-5
C-4
B-3
C-4
C-13
A-14
A-1
23
Ref. No.
Location
LED951
LED952
LED953
LED954
B-4
C-5
B-3
C-3
Q932
Q991
Q992
G-10
G-5
G-5
23
(11)
CDX-GT373A
6-8.
SCHEMATIC DIAGRAM – KEY Section –
C861
R931
R932
R981
LED861
LED941
LSW904(2/2)
R949
R869
LED951
LED871
LED953
LED873
LED952
LED872
LED954
LED874
R975
R982
R933
LSW901(2/2)
R941
R861
R947
LSW910(2/2)
R867
LSW903(2/2)
LSW907(2/2)
LSW902(2/2)
LSW905(2/2)
IC971
C971
LED931
R942
R862
R945
R943
R934
LED862
LED942
LSW909(2/2)
LSW908(2/2)
R865
R961
LSW906(2/2)
R863
R951
R871
R881
R963
R883
C862
C981
R946
R866
R950
R870
R962
C988
R882
R948
R868
R952
R872
R884
R964
C986
R988
R864
D981
R944
D982
R987
C983
C984
R984
R985
R986
IC901
R977
R978
R979
C987
Q932
Q992
Q991
C991
C992
C995
FB992
FB991
D998
D997
S903
S902
D903
R903
R904
R905
LCD901
S904
R902
LSW902(1/2)
R901
S901
FB904
LSW901(1/2)
C901
CN901
R974
(Page 21)
RE901
D994
R906
J901
CDX-GT373A
R907
R908
R909
R910
R911
R912
R913
24
24
LSW910(1/2)
LSW909(1/2)
LSW908(1/2)
LSW907(1/2)
LSW906(1/2)
FB901
FB902
FB903
LSW905(1/2)
R921
LSW904(1/2)
C993
LSW903(1/2)
D992
D993
D901
D902
D991
R922
CDX-GT373A
• IC Block Diagrams
IC300 TDA8588AJ/N2/R1 (MAIN Board (1/3))
TAB 1
2 SDA
OUT–FL– 3
I2C BUS
4 SCL
FL
OUT–FL+ 5
6 VP2
OUT–RL– 7
RL
8 PGND1
OUT–RL+ 9
PROTECTION/
DIAGNOSTIC
IN–RR 15
12 IN–FL
14 IN–FR
MUTE
S–GND 13
10 SVR
MUTE
IN–RL 11
16 BEEP
VP
OUT–RR+ 17
18 PGND3
RR
OUT–RR– 19
20 VP1
OUT–FR+ 21
FR
OUT–FR– 23
STANDBY/
MUTE
22 STB
CHIP DETECT/
DIAGNOSTIC
24 PGND4
BATTERY
DETECTION
DIAG 25
TEMPERATURE
PROTECTION
ENABLE
LOGIC
26 RST
ANT–REM 27
SWITCH
AMP–REM 29
SWITCH
28 CRES
30 AUDIO+B
REGULATOR
SERVO3.3V 31
MECH6V 33
32 GND
34 PANEL+B
VP 35
REFERENCE
VOLTAGE
BU+B 37
REGULATOR
36 CBU
LOADDUMP
PROTECTION
BACK-UP
SWITCH
25
CDX-GT373A
IC401 BD3442FS-E2 (MAIN Board (2/3))
BUS-RCH 1
VCC2
32 FIL
100k
31 GND
BUS-LCH 2
INPUT
SELECTOR
100k
TU-RCH 3
INPUT
GAIN
VOLUME1
/MUTE
TREBLE
/BASS
/MIDDLE
VOLUME2
I2C
BUS
LOGIC
100k
TU-LCH 4
30 SDA
29 SCL
28 MUTE
100k
CD-RCH 5
VCC
27 VCC
100k
CD-LCH 6
FADER
26 OUT-FR
250k
FADER
25 OUT-FL
250k
FADER
24 OUT-RR
FADER
23 OUT-RL
100k
EFFECT
AUX-RCH 7
AUX-GND 8
AUX-LCH 9
DS3-L 10
250k
22 SUBOUT-R
DS1-L 11
FADER
DS2-L 12
LPF
21 SUBOUT-L
EBIAS 13
FADER
20 ADJ
DS2-R 14
19 SAOUT
SPECTRUM
ANALYZER
DS1-R 15
18 SADA
17 SACLK
DS3-R 16
IC201 NJM062V(TE2) (MAIN Board (3/3))
OUT A 1
8 V+
A
26
IC270 XC81CN1502NR (MAIN Board (3/3))
VOUT 1
VIN 2
IN A- 2
7 OUT B
IN A+ 3
6 IN B-
V- 4
5 IN B+
4 VSS
VREF
3 NC
CDX-GT373A
• IC Pin Function Description
MAIN BOARD IC501 MB90F045PF-G-9074-SPE1 (SYSTEM CONTROL)
Pin No.
Pin Name
I/O
Description
1
AREASEL0
I
Destination function setting pin 0
2
AREASEL1
I
Destination function setting pin 1
3
AREASEL2
I
Destination function setting pin 2
4
AREASEL3
I
Destination function setting pin 3
5
BEEP
O
BEEP signal output to power amplifier
6
NCO
O
Not used. (Open)
7
DIAG
I
Status signal input from power amplifier
8
AMPSTB
O
Stand-by signal output to power requlation
9
VOLATT
O
Electronic volume attenuate control signal output
10
NCO
O
Not used. (Open)
11
VSS
—
Ground pin
12
TUATT
O
Tuner mute control signal output
13
NSMASK
O
Noise mask signal output
14
NCO
O
Not used in this set. (Open)
15
NCO
O
Not used in this set. (Open)
16
ILLUMI SEL
I
Illumination voltage setting signal input
17
DIM_SEL
I
Dimmer select signal input
18 to 20
NCO
O
Not used. (Open)
21
COL_SEL
I
Illumination color select signal input
“H”: Two colors selection/initial slave, amber, “L”: Color/slave, amber
22
B OUT SEL
I
Black out with/without discrimination select signal input
Not used in this set. (Open)
“H”: 10.4 V, “L”: 9.0 V
“H”: No dimmer, “L”: Dimmer
23
VCC5
—
Power supply pin (+3.3V)
24
EEP_SIO
I/O
EEPROM bus serial data signal input/output
25
EEP_CKO
O
EEPROM bus serial clock signal output
26
RDS ON
O
RDS (radio data system) ON signal output
27
LCD_CE
O
Chip enable signal output to LCD driver
“H”: Black out
Not used in this set. (Open)
28
LCD_SO
O
Serial data signal output to LCD driver
29
LCD_SCK
O
Serial clock signal output to LCD driver
30
NCO
O
Not used. (Open)
31
RE-IN0
I
Rotary encoder signal input 0
32
RE-IN1
I
Rotary encoder signal input 1
33
I2C_SCK
O
I2C bus serial clock signal output
34
I2C_SIO
I/O
I2C bus serial data signal input/output
35
DAVDD
—
A/D converter power supply pin (+3.3V)
36
AVRH
—
A/D converter external reference power supply pin (+3.3V)
37
DAVSS
—
A/D converter Ground pin
38
QUALITY
I
Noise detect signal input
S-meter voltage detect signal input
39
VSM
I
40
KEYIN1
I
Key signal input 1
41
KEYIN0
I
Key signal input 0
42
VSS
—
43
RC_IN0
I
Ground pin
Rotary commander key signal input
Not used in this set. (Pull up)
44, 45
NCO
O
Not used. (Open)
46
LED_RED
O
Security-LED (Red) operation signal output
47
SECURITY_LED
I
Security detect signal input
48
AD_ON
O
A/D converter power supply control signal output
49
MD0
I
Operation mode setting pin 0 (Pull up)
50
MD1
I
Operation mode setting pin 1 (Pull up)
51
MD2
I
Operation mode setting pin 2 (Pull down)
52
KEYACK
I
Key acknowledgment detect signal input
53
TU_ATTIN
I
Tuner mute zero cross detect signal input
54
BUIN
I
Back-up power supply detect signal input
55
NCO
O
Not used. (Open)
56
DAVN
I
RDS data block synchronized detect signal input
Not used in this set. (Pull down)
Not used in this set. (Pull down)
27
CDX-GT373A
Pin No.
Pin Name
I/O
57
LED_YELLOW
O
Description
Security-LED (Yellow) operation signal output
58
UNISI
I
S-BUS data signal input
59
UNISO
O
S-BUS data signal output
60
UNISCK
O
S-BUS clock signal output
61
Z-MUTE
I
CD zero cross mute detect signal input
62
NOSE_SW
I
Front panel attachment detect signal input
“L”: Panel on, “H”: Panel off
63
FLASH_W
I
Memory mode select signal input
Normally “H” input: Single chip mode, after reset “L”: Flash write mode
64
SIRCS
I
Remote control signal input
65 to 67
NCO
O
Not used. (Open)
68
SENS1
O
Security level setting signal output 1
69
SENS2
O
Security level setting signal output 2
70
SENS3
O
Security level setting signal output 3
71
RC_IN1
I
Rotary commander shift key signal input
72 to 76
NCO
O
Not used. (Open)
77
RESET
I
System reset signal input
78
NCO
O
Not used. (Open)
79
XOUT
O
Low speed operation clock signal output (32.768 kHz)
80
XIN
I
Low speed operation clock signal input (32.768 kHz)
81
VSS1
—
82
OSCIN
I
Not used in this set. (Pull up)
Ground pin
High speed operation clock signal input (18.432 MHz)
83
OSCOUT
O
High speed operation clock signal output (18.432 MHz)
84
VCC3
—
Power supply pin (+3.3 V)
85
CYRIL_SEL
I
Cyril correspondence discrimination signal input
86
DEMOSEL
I
DEMO select signal input
87
NCO
O
Not used. (Open)
88
SYSRST
O
System reset signal output
89, 90
NCO
O
Not used. (Open)
91
CD_ON
I
CD mechanism servo power supply control request signal input
92
CDM_ON
I
CD mechanism deck power supply control request signal input
93 to 95
NCO
O
Not used. (Open)
96
BUSON
O
BUS ON signal output
97
TESTIN
I
Test mode detect signal input
98
TELATT
I
Telephone attenuate detect signal input
99
ACC_IN
I
Accessory power supply detect signal input
100
ATT
O
Audio mute control signal output
28
“L”: No correspondence
“H”: DEMO on, “L”: DEMO off
Not used in this set. (Pull up)
Not used in this set. (Pull down)
CDX-GT373A
SECTION 7
EXPLODED VIEWS
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
7-1.
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Color Indication of Appearance Parts Example:
KNOB, BALANCE (WHITE) . . . (RED)
R
R
Parts Color Cabinet’s Color
• Accessories are given in the last of the
electrical parts list.
The components identified by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specified.
MAIN SECTION
not supplied
"
MG-101TC-188//C
#2
7
not supplied
#3
MIC901
#5
LED251
LED250
#
F901
not supplied
#4
#6
#4
4
#1
#3
not supplied
"
not supplied
5
8
3
TU1
#1
6
not supplied
#
2
#1
not supplied
#1
1
Refer to the MIC SENSITIVITY ADJUSTMENT described on page 16 if
the microphone (MIC901) or any semi-fixed resistor (R290) is faulty.
Ref. No.
Part No.
Description
Remark
1
2
3
4
5
A-1444-834-A
2-583-939-01
X-2179-691-1
2-348-996-01
A-1444-833-A
PANEL ASSY, SUB
SCREW (+B 2X4)
LOCK ASSY
SCREW (+PTT 2.6X6), GROUND POINT
MAIN BOARD, COMPLETE
6
7
2-345-298-01
1-833-974-31
8
F901
LED250
3-250-543-91
1-532-877-11
8-719-084-27
PLATE (TU), GROUND
CONNECTION CORD FOR AUTOMOBILE
(POWER)
SCREW (+B P-TITE M2)
FUSE (BLADE TYPE) (AUTO FUSE) 10A
LED SLI-343YCT32WST
(SECURITY (YELLOW))
Ref. No.
Part No.
Description
Remark
LED251
MIC901
TU1
#1
#2
8-719-085-33
1-542-689-41
A-3220-961-B
7-685-792-09
7-685-790-01
LED SLI-343URCT32WST (SECURITY (RED))
MICROPHONE (MIC)
TUNER UNIT (TUX-032)
SCREW +PTT 2.6X6 (S)
SCREW +PTT 2.6X4 (S)
#3
#4
#5
#6
7-685-793-09
7-685-794-09
7-685-134-19
7-621-284-40
SCREW +PTT 2.6X8 (S)
SCREW +PTT 2.6X10 (S)
SCREW +P 2.6X8 TYPE2 NON-SLIT
SCREW +P 2.6X10
29
CDX-GT373A
7-2.
FRONT PANEL SECTION
Note: Refer to the “Note for replacement of the front panel and
buttons” descried on page 4 when replacing the parts
marked with v.
61
60
RE901
61
59
58
62
not supplied
not supplied
(KEY board)
J901
not supplied
LCD901
57
not supplied
53
56
not supplied
52
53
not supplied
not supplied
54
not supplied
63
51
55
Ref. No.
Part No.
Description
Part No.
Description
51
52
53
54
55
A-1444-835-A
X-2188-486-1
3-295-891-01
X-2188-485-1
X-2188-484-1
PANEL COMPLETE ASSY, FRONT
BUTTON ASSY (S)
CUSHION (LEVER)
PANEL (SV) ASSY, FRONT
KNOB (SV) ASSY
59
60
61
62
63
3-280-062-01
3-280-041-02
3-250-543-91
X-2186-697-1
3-251-320-01
ILLUMINATOR (LCD)
PANEL, BACK
SCREW (+B P-TITE M2)
CASE ASSY (for FRONT PANEL)
EMBLEM (NO. 2.5), SONY
56
57
58
3-318-203-01
2-349-626-01
1-780-605-11
SCREW (B 1.7X6), TAPPING
SPRING (RELEASE)
CONNECTOR (RUBBER)
J901
LCD901
RE901
1-820-624-11
1-802-616-11
1-479-902-22
SMALL TYPE JACK (VERTICAL) (AUX)
DISPLAY PANEL, LIQUID CRYSTAL
ENCODER, ROTARY (PUSH SELECT/VOLUME)
30
Remark
Ref. No.
Remark
CDX-GT373A
7-3.
CD MECHANISM SECTION
(MG-101TC-188//Q)
101
102
not supplied
not supplied
103
#7
#7
105
not supplied
not supplied
not supplied
not supplied
not supplied
104
not supplied
not supplied
not supplied
not supplied
107
106
106
Ref. No.
101
102
0 103
104
Part No.
Description
A-1283-704-A
A-1283-705-A
X-2149-672-1
2-626-869-21
MECHANICAL BLOCK ASSY (08)
DAXEV08//C
SERVICE ASSY, OP (DAX-25A)
SCREW (M2X3), SERRATION
Remark
Ref. No.
105
106
107
#7
Part No.
Description
3-348-998-31
3-352-758-31
A-1201-631-A
7-627-000-00
SCREW (M1.4X2.5), TAPPING, PAN
SCREW (M1.7X2.5), TOOTHED LOCK
SERVO BOARD, COMPLETE
SCREW, PRECISION +P 1.7X2.2 TYPE3
Remark
31
CDX-GT373A
SECTION 8
ELECTRICAL PARTS LIST
KEY
Note:
• Due to standardization, replacements in
the parts list may be different from the
parts specified in the diagrams or the components used on the set.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• CAPACITORS
uF: μF
• COILS
uH: μH
Ref. No.
Part No.
• RESISTORS
All resistors are in ohms.
METAL: Metal-film resistor.
METAL OXIDE: Metal oxide-film resistor.
F: nonflammable
• SEMICONDUCTORS
In each case, u: μ, for example:
uA. . : μA. . , uPA. . , μPA. . ,
uPB. . : μPB. . , uPC. . , μPC. . ,
uPD. . : μPD. .
Description
Remark
Ref. No.
Part No.
KEY BOARD
**********
1-780-605-11
3-280-062-01
When indicating parts by reference number, please include the board name.
The components identified by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specified.
Description
Remark
< IC >
IC901
IC971
CONNECTOR (RUBBER)
ILLUMINATOR (LCD)
6-710-047-01
6-600-629-01
IC LC75836WH-US-E
IC RS-470 (IR)
< JACK >
< CAPACITOR >
J901
C861
C862
C901
C971
C981
1-107-826-11
1-107-826-11
1-165-908-11
1-107-826-11
1-107-826-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1uF
0.1uF
1uF
0.1uF
0.1uF
10%
10%
10%
10%
10%
16V
16V
10V
16V
16V
C983
C984
C986
C987
C988
1-107-826-11
1-107-826-11
1-125-891-11
1-162-964-11
1-165-908-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1uF
0.1uF
0.47uF
0.001uF
1uF
10%
10%
10%
10%
10%
16V
16V
10V
50V
10V
C991
C992
C993
C995
1-107-826-11
1-107-826-11
1-165-908-11
1-165-908-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1uF
0.1uF
1uF
1uF
10%
10%
10%
10%
16V
16V
10V
10V
1-820-624-11
SMALL TYPE JACK (VERTICAL) (AUX)
< LIQUID CRYSTAL DISPLAY >
LCD901
1-802-616-11
DISPLAY PANEL, LIQUID CRYSTAL
< DIODE >
< CONNECTOR >
CN901
1-819-758-12
PLUG, CONNECTOR 15P
< DIODE >
D901
D902
D903
D981
D982
6-501-170-01
6-501-170-01
6-501-180-01
6-501-167-01
6-501-193-01
DIODE
DIODE
DIODE
DIODE
DIODE
UDZW-TE17-6.8B
UDZW-TE17-6.8B
UDZW-TE17-18B
UDZW-TE17-5.1B
1SS355WTE-17
D991
D992
D993
D994
D997
6-501-170-01
6-501-170-01
6-501-170-01
6-501-170-01
6-501-193-01
DIODE
DIODE
DIODE
DIODE
DIODE
UDZW-TE17-6.8B
UDZW-TE17-6.8B
UDZW-TE17-6.8B
UDZW-TE17-6.8B
1SS355WTE-17
D998
6-501-193-01
DIODE 1SS355WTE-17
< FERRITE BEAD >
FB901
FB902
FB903
FB904
FB991
1-216-864-11
1-216-864-11
1-216-295-11
1-500-245-11
1-500-245-11
SHORT CHIP
0
SHORT CHIP
0
SHORT CHIP
0
INDUCTOR, FERRITE BEAD
INDUCTOR, FERRITE BEAD
FB992
1-500-245-11
INDUCTOR, FERRITE BEAD
32
LED861
LED862
LED871
LED872
LED873
6-501-547-01
6-501-547-01
6-501-547-01
6-501-547-01
6-501-547-01
LED
LED
LED
LED
LED
CL-197HB1E-D-T (Z)
CL-197HB1E-D-T (OFF)
CL-197HB1E-D-T (RING ILLUMINATION)
CL-197HB1E-D-T (RING ILLUMINATION)
CL-197HB1E-D-T (RING ILLUMINATION)
LED874
LED931
LED941
LED942
LED951
6-501-547-01
6-501-339-01
8-719-053-09
8-719-053-09
8-719-053-09
LED
LED
LED
LED
LED
CL-197HB1E-D-T (RING ILLUMINATION)
NESW505CT-AST (LCD BACK LIGHT)
SML-310VTT86 (Z)
SML-310VTT86 (OFF)
SML-310VTT86 (RING ILLUMINATION)
LED952
LED953
LED954
8-719-053-09
8-719-053-09
8-719-053-09
LED SML-310VTT86 (RING ILLUMINATION)
LED SML-310VTT86 (RING ILLUMINATION)
LED SML-310VTT86 (RING ILLUMINATION)
< SWITCH >
LSW901 1-798-019-12
SWITCH, TACTILE (WITH LED)
LSW902 1-798-019-12
SWITCH, TACTILE (WITH LED)
LSW903 1-798-019-12
LSW904 1-798-019-12
LSW905 1-798-019-12
(.SEEK–)
SWITCH, TACTILE (WITH LED) (1/ALBUM –)
SWITCH, TACTILE (WITH LED) (2/ALBUM +)
SWITCH, TACTILE (WITH LED) (3/REP)
LSW906
LSW907
LSW908
LSW909
LSW910
SWITCH, TACTILE (WITH LED) (4/SHUF)
SWITCH, TACTILE (WITH LED) (5)
SWITCH, TACTILE (WITH LED) (6/PAUSE)
SWITCH, TACTILE (WITH LED) (EQ3)
SWITCH, TACTILE (WITH LED) (DSPL/SCRL)
(>SEEK+)
1-798-019-12
1-798-019-12
1-798-019-12
1-798-019-12
1-798-019-12
< TRANSISTOR >
Q932
Q991
Q992
6-551-444-01
6-551-856-01
6-551-856-01
TRANSISTOR RT1N436C-TP-1
TRANSISTOR LTC614TKFP8T146
TRANSISTOR LTC614TKFP8T146
CDX-GT373A
Ref. No.
Part No.
Description
Remark
< RESISTOR >
R861
R862
R863
R864
R865
1-216-815-11
1-216-817-11
1-216-815-11
1-216-814-11
1-216-815-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
330
470
330
270
330
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R866
R867
R868
R869
R870
1-216-814-11
1-216-815-11
1-216-814-11
1-216-815-11
1-216-814-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
270
330
270
330
270
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R871
R872
R881
R882
R883
1-216-815-11
1-216-814-11
1-216-818-11
1-216-817-11
1-216-818-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
330
270
560
470
560
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R884
R901
R902
R903
R904
1-216-817-11
1-216-820-11
1-216-821-11
1-216-821-11
1-216-822-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
470
820
1K
1K
1.2K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R905
R906
R907
R908
R909
1-216-823-11
1-216-820-11
1-216-821-11
1-216-821-11
1-216-822-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
1.5K
820
1K
1K
1.2K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R910
R911
R912
R913
R921
1-216-823-11
1-216-824-11
1-216-825-11
1-216-827-11
1-216-295-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
SHORT CHIP
1.5K
1.8K
2.2K
3.3K
0
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
R922
R931
R932
R933
R934
1-216-295-11
1-216-812-11
1-216-812-11
1-216-812-11
1-216-864-11
SHORT CHIP
METAL CHIP
METAL CHIP
METAL CHIP
SHORT CHIP
0
180
180
180
0
5%
5%
5%
1/10W
1/10W
1/10W
R941
R942
R943
R944
R945
1-216-813-11
1-216-813-11
1-216-812-11
1-216-811-11
1-216-812-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
220
220
180
150
180
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R946
R947
R948
R949
R950
1-216-811-11
1-216-812-11
1-216-811-11
1-216-812-11
1-216-811-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
150
180
150
180
150
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R951
R952
R961
R962
R963
1-216-812-11
1-216-811-11
1-216-812-11
1-216-811-11
1-216-812-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
180
150
180
150
180
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R964
R974
R975
R977
R978
1-216-811-11
1-216-809-11
1-216-809-11
1-216-809-11
1-216-809-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
150
100
100
100
100
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R979
R981
R982
R984
1-216-809-11
1-216-811-11
1-216-811-11
1-216-821-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100
150
150
1K
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
Ref. No.
R985
R986
R987
R988
Part No.
Description
1-216-821-11
1-216-821-11
1-216-857-11
1-216-840-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
KEY
MAIN
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
Remark
1K
1K
1M
39K
< ROTARY ENCODER >
RE901
1-479-902-22
ENCODER, ROTARY (PUSH SELECT/VOLUME)
< SWITCH >
S901
1-786-653-11 SWITCH, TACTILE (Z)
S902
1-786-653-11 SWITCH, TACTILE (OFF)
S903
1-786-653-11 SWITCH, TACTILE (SOURCE)
S904
1-786-653-11 SWITCH, TACTILE (MODE)
*************************************************************
A-1444-833-A
MAIN BOARD, COMPLETE
********************
3-250-543-91
7-621-284-40
7-685-134-19
7-685-794-09
SCREW (+B P-TITE M2)
SCREW +P 2.6X10
SCREW +P 2.6X8 TYPE2 NON-SLIT
SCREW +PTT 2.6X10 (S)
< CAPACITOR >
C2
C3
C5
C6
C7
1-126-947-11
1-162-970-11
1-126-947-11
1-162-970-11
1-162-970-11
ELECT
CERAMIC CHIP
ELECT
CERAMIC CHIP
CERAMIC CHIP
47uF
0.01uF
47uF
0.01uF
0.01uF
20%
10%
20%
10%
10%
35V
25V
35V
25V
25V
C8
C15
C151
C152
C153
1-162-970-11
1-107-826-11
1-126-960-11
1-126-960-11
1-126-963-11
CERAMIC CHIP
CERAMIC CHIP
ELECT
ELECT
ELECT
0.01uF
0.1uF
1uF
1uF
4.7uF
10%
10%
20%
20%
20%
25V
16V
50V
50V
50V
C154
C155
C157
C200
C201
1-137-712-11
1-137-712-11
1-162-964-11
1-162-970-11
1-107-826-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.0047uF
0.0047uF
0.001uF
0.01uF
0.1uF
20%
20%
10%
10%
10%
250V
250V
50V
25V
16V
C203
C210
C211
C212
C213
1-165-908-11
1-100-742-11
1-107-826-11
1-126-964-11
1-107-826-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT
CERAMIC CHIP
1uF
2.2uF
0.1uF
10uF
0.1uF
10%
20%
10%
20%
10%
10V
10V
16V
50V
16V
C214
C215
C216
C263
C290
1-124-261-00
1-100-742-11
1-165-908-11
1-162-970-11
1-162-927-11
ELECT
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
10uF
2.2uF
1uF
0.01uF
100PF
20%
20%
10%
10%
5%
50V
10V
10V
25V
50V
C301
C302
C303
C304
C305
1-115-340-11
1-162-970-11
1-128-551-11
1-115-340-11
1-162-970-11
CERAMIC CHIP
CERAMIC CHIP
ELECT
CERAMIC CHIP
CERAMIC CHIP
0.22uF
0.01uF
22uF
0.22uF
0.01uF
10%
10%
20%
10%
10%
25V
25V
63V
25V
25V
C306
C307
C308
C309
C310
1-124-261-00
1-162-970-11
1-124-261-00
1-115-340-11
1-216-864-11
ELECT
CERAMIC CHIP
ELECT
CERAMIC CHIP
SHORT CHIP
10uF
0.01uF
10uF
0.22uF
0
20%
10%
20%
10%
50V
25V
50V
25V
C312
C313
C314
1-115-340-11
1-162-970-11
1-124-261-00
CERAMIC CHIP 0.22uF
CERAMIC CHIP 0.01uF
ELECT
10uF
10%
10%
20%
25V
25V
50V
33
CDX-GT373A
MAIN
Ref. No.
Part No.
Description
Part No.
Description
C315
C316
C317
C318
C319
1-162-970-11
1-124-261-00
1-124-257-00
1-162-923-11
1-216-864-11
CERAMIC CHIP
ELECT
ELECT
CERAMIC CHIP
SHORT CHIP
0.01uF
10uF
2.2uF
47PF
0
10%
20%
20%
5%
25V
50V
50V
50V
C514
C515
C516
C519
C622
1-162-964-11
1-162-970-11
1-162-970-11
1-107-826-11
1-128-057-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT
0.001uF
0.01uF
0.01uF
0.1uF
330uF
10%
10%
10%
10%
20%
50V
25V
25V
16V
6.3V
C320
C325
C330
C360
C361
1-162-970-11
1-115-340-11
1-115-340-11
1-162-968-11
1-127-715-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.01uF
0.22uF
0.22uF
0.0047uF
0.22uF
10%
10%
10%
10%
10%
25V
25V
25V
50V
16V
C623
C681
C682
C683
C701
1-126-926-11
1-162-970-11
1-162-970-11
1-124-584-00
1-112-302-11
ELECT
CERAMIC CHIP
CERAMIC CHIP
ELECT
ELECT
1000uF
0.01uF
0.01uF
100uF
3300uF
20%
10%
10%
20%
20%
10V
25V
25V
10V
16V
C362
C363
C364
C401
C402
1-127-715-11
1-126-160-11
1-126-160-11
1-124-234-00
1-162-970-11
CERAMIC CHIP
ELECT
ELECT
ELECT
CERAMIC CHIP
0.22uF
1uF
1uF
22uF
0.01uF
10%
20%
20%
20%
10%
16V
50V
50V
16V
25V
C702
C703
C704
C705
C997
1-164-005-11
1-164-005-11
1-115-340-11
1-115-340-11
1-163-009-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.47uF
0.47uF
0.22uF
0.22uF
0.001uF
10%
10%
10%
25V
25V
25V
25V
50V
C403
C405
C409
C412
C415
1-124-584-00
1-124-234-00
1-124-261-00
1-162-970-11
1-162-970-11
ELECT
ELECT
ELECT
CERAMIC CHIP
CERAMIC CHIP
100uF
22uF
10uF
0.01uF
0.01uF
20%
20%
20%
10%
10%
10V
16V
50V
25V
25V
C998
1-163-009-11
CERAMIC CHIP 0.001uF
10%
50V
C417
C418
C419
C421
C423
1-162-970-11
1-162-966-11
1-162-966-11
1-126-964-11
1-165-908-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT
CERAMIC CHIP
0.01uF
0.0022uF
0.0022uF
10uF
1uF
10%
10%
10%
20%
10%
25V
50V
50V
50V
10V
C424
C426
C431
C432
C434
1-162-927-11
1-165-908-11
1-126-964-11
1-163-251-11
1-162-927-11
CERAMIC CHIP
CERAMIC CHIP
ELECT
CERAMIC CHIP
CERAMIC CHIP
100PF
1uF
10uF
100PF
100PF
5%
10%
20%
5%
5%
50V
10V
50V
50V
50V
C440
C441
C442
C443
C444
1-163-251-11
1-126-964-11
1-163-251-11
1-165-908-11
1-162-927-11
CERAMIC CHIP
ELECT
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
100PF
10uF
100PF
1uF
100PF
5%
20%
5%
10%
5%
50V
50V
50V
10V
50V
C445
C451
C452
C454
C461
1-165-908-11
1-126-964-11
1-163-251-11
1-162-927-11
1-126-964-11
CERAMIC CHIP
ELECT
CERAMIC CHIP
CERAMIC CHIP
ELECT
1uF
10uF
100PF
100PF
10uF
10%
20%
5%
5%
20%
10V
50V
50V
50V
50V
C462
C463
C471
C472
C473
1-165-908-11
1-165-908-11
1-126-964-11
1-165-908-11
1-165-908-11
CERAMIC CHIP
CERAMIC CHIP
ELECT
CERAMIC CHIP
CERAMIC CHIP
1uF
1uF
10uF
1uF
1uF
10%
10%
20%
10%
10%
10V
10V
50V
10V
10V
C484
C485
C486
C491
C493
1-107-826-11
1-126-933-11
1-126-964-11
1-124-589-11
1-162-967-11
CERAMIC CHIP
ELECT
ELECT
ELECT
CERAMIC CHIP
0.1uF
100uF
10uF
47uF
0.0033uF
10%
20%
20%
20%
10%
16V
16V
50V
16V
50V
C494
C501
C502
C504
C507
1-162-967-11
1-162-970-11
1-162-964-11
1-162-970-11
1-162-917-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.0033uF
0.01uF
0.001uF
0.01uF
15PF
10%
10%
10%
10%
5%
50V
25V
50V
25V
50V
C508
C509
C510
C512
C513
1-162-916-11
1-164-227-11
1-165-908-11
1-162-964-11
1-162-970-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
12PF
0.022uF
1uF
0.001uF
0.01uF
5%
10%
10%
10%
10%
50V
25V
10V
50V
25V
34
Remark
Ref. No.
Remark
< CONNECTOR >
CN200
CN300
CN350
CN370
1-564-704-41
1-774-701-21
1-820-611-11
1-819-773-14
PIN, CONNECTOR (SMALL TYPE) 2P
PIN, CONNECTOR 16P
CONNECTOR, BOARD TO BOARD 28P
SOCKET, CONNECTOR 15P
< DIODE >
D2
D104
D105
D106
D108
6-501-168-01
6-501-170-01
6-501-170-01
6-501-170-01
6-501-170-01
DIODE
DIODE
DIODE
DIODE
DIODE
UDZW-TE17-5.6B
UDZW-TE17-6.8B
UDZW-TE17-6.8B
UDZW-TE17-6.8B
UDZW-TE17-6.8B
D109
D110
D112
D113
D151
6-501-170-01
6-501-170-01
6-501-170-01
6-501-170-01
1-805-043-11
DIODE UDZW-TE17-6.8B
DIODE UDZW-TE17-6.8B
DIODE UDZW-TE17-6.8B
DIODE UDZW-TE17-6.8B
ABSORBER, CHIP SURGE
D152
D153
D200
D301
D302
1-805-043-11
6-501-170-01
8-719-058-24
6-501-362-01
6-501-362-01
ABSORBER, CHIP SURGE
DIODE UDZW-TE17-6.8B
DIODE RB501V-40TE-17
DIODE 1A4-TA26
DIODE 1A4-TA26
D303
D304
D305
D306
D307
6-501-362-01
6-501-362-01
6-501-362-01
6-501-362-01
6-501-362-01
DIODE
DIODE
DIODE
DIODE
DIODE
1A4-TA26
1A4-TA26
1A4-TA26
1A4-TA26
1A4-TA26
D308
D309
D310
D311
D312
6-501-362-01
6-501-362-01
6-501-362-01
6-501-362-01
6-501-362-01
DIODE
DIODE
DIODE
DIODE
DIODE
1A4-TA26
1A4-TA26
1A4-TA26
1A4-TA26
1A4-TA26
D353
D491
D493
D502
D503
6-501-656-01
6-501-193-01
6-501-654-01
8-719-060-48
6-501-193-01
DIODE
DIODE
DIODE
DIODE
DIODE
LBAT54ALT1G
1SS355WTE-17
LBAT54CLT1G
RB751V-40TE-17
1SS355WTE-17
D602
D603
D607
D609
D702
6-501-180-01
6-501-171-01
6-501-571-01
6-501-654-01
6-501-180-01
DIODE
DIODE
DIODE
DIODE
DIODE
UDZW-TE17-18B
UDZW-TE17-7.5B
1N5404-C311-3
LBAT54CLT1G
UDZW-TE17-18B
D998
6-501-180-01
DIODE UDZW-TE17-18B
CDX-GT373A
MAIN
Ref. No.
D999
Part No.
Description
6-501-180-01
DIODE UDZW-TE17-18B
Remark
< FUSE >
F901
1-532-877-11
FUSE (BLADE TYPE) (AUTO FUSE) 10A
< IC >
IC200
IC201
IC270
IC300
IC401
6-708-359-01
8-759-327-01
8-759-825-21
6-705-359-02
6-710-065-01
IC
IC
IC
IC
IC
NJU7141F
NJM062V(TE2)
XC61CN1502NR
TDA8588AJ/N2/R1
BD3442FS-E2
IC501
IC602
IC681
6-807-946-01
8-759-659-13
6-711-670-01
IC MB90F045PF-G-9074-SPE1
IC PST3428UL
IC XC6218P332PR
< JACK >
J1
J652
1-815-185-13
1-774-699-12
JACK (ANTENNA)
JACK, PIN 4P (AUDIO OUT REAR/FRONT)
Ref. No.
Part No.
Description
JC504
JC505
JC506
JC507
JC508
1-216-296-11
1-216-864-11
1-216-296-11
1-216-296-11
1-216-864-11
SHORT CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
Remark
JC509
JC510
JC511
JC512
JC513
1-216-864-11
1-216-296-11
1-216-864-11
1-216-296-11
1-414-595-11
SHORT CHIP
0
SHORT CHIP
0
SHORT CHIP
0
SHORT CHIP
0
INDUCTOR, FERRITE BEAD
JC514
JC515
JC516
JC601
JC602
1-216-864-11
1-216-864-11
1-216-864-11
1-216-864-11
1-216-296-11
SHORT CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
0
0
0
0
0
JC606
JC607
JC610
1-216-864-11
1-216-296-11
1-216-296-11
SHORT CHIP
SHORT CHIP
SHORT CHIP
0
0
0
0
0
0
0
0
< COIL >
< JUMPER RESISTOR >
JC1
JC5
JC8
JC9
JC12
1-216-296-11
1-216-296-11
1-216-296-11
1-216-864-11
1-216-296-11
SHORT CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
0
0
0
0
0
JC13
JC14
JC15
JC17
JC18
1-216-296-11
1-216-296-11
1-216-296-11
1-216-864-11
1-216-864-11
SHORT CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
0
0
0
0
0
JC24
JC29
JC30
JC31
JC32
1-216-821-11
1-216-296-11
1-216-296-11
1-216-296-11
1-216-296-11
METAL CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
1K
0
0
0
0
JC33
JC34
JC35
JC36
JC40
1-216-296-11
1-216-864-11
1-216-864-11
1-216-296-11
1-216-809-11
SHORT CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
METAL CHIP
0
0
0
0
100
JC100
JC102
JC109
JC110
JC112
1-216-296-11
1-216-296-11
1-216-296-11
1-216-296-11
1-216-296-11
SHORT CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
0
0
0
0
0
JC151
JC200
JC214
JC251
JC262
1-216-864-11
1-216-296-11
1-216-296-11
1-216-864-11
1-216-864-11
SHORT CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
0
0
0
0
0
JC270
JC353
JC420
JC421
JC422
1-216-864-11
1-216-296-11
1-216-864-11
1-216-864-11
1-216-864-11
SHORT CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
0
0
0
0
0
JC423
JC424
JC501
JC502
JC503
1-216-864-11
1-216-296-11
1-216-296-11
1-216-864-11
1-216-296-11
SHORT CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
0
0
0
0
0
5%
1/10W
L1
L4
L151
L300
L401
1-469-844-11
1-469-844-11
1-216-295-11
1-456-617-11
1-216-864-11
INDUCTOR
INDUCTOR
SHORT CHIP
COIL, CHOKE
SHORT CHIP
2.2uH
2.2uH
0
L402
L403
L405
L406
L407
1-216-295-11
1-216-295-11
1-216-864-11
1-500-245-11
1-216-864-11
SHORT CHIP
0
SHORT CHIP
0
SHORT CHIP
0
INDUCTOR, FERRITE BEAD
SHORT CHIP
0
L409
L410
L501
L901
L902
1-469-844-11
1-469-876-11
1-469-844-11
1-216-295-11
1-469-844-11
INDUCTOR
2.2uH
INDUCTOR, FERRITE BEAD
INDUCTOR
2.2uH
SHORT CHIP
0
INDUCTOR
2.2uH
0
< DIODE >
5%
LED250
8-719-084-27
LED SLI-343YCT32WST
LED251
8-719-085-33
(SECURITY (YELLOW))
LED SLI-343URCT32WST (SECURITY (RED))
1/10W
< MICROPHONE >
MIC901
1-542-689-41
MICROPHONE (MIC)
< TRANSISTOR >
Q3
Q200
Q201
Q202
Q250
6-551-431-01
8-729-027-43
8-729-027-43
8-729-027-43
6-551-856-01
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
2SC6027T100-QR
DTC114EKA-T146
DTC114EKA-T146
DTC114EKA-T146
LTC614TKFP8T146
Q251
Q420
Q432
Q440
Q452
6-551-856-01
6-551-856-01
6-551-856-01
6-551-856-01
6-551-856-01
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
LTC614TKFP8T146
LTC614TKFP8T146
LTC614TKFP8T146
LTC614TKFP8T146
LTC614TKFP8T146
Q460
Q470
Q491
Q492
Q605
8-729-027-44
8-729-027-44
8-729-027-23
8-729-027-43
8-729-027-43
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
DTC114TKA-T146
DTC114TKA-T146
DTA114EKA-T146
DTC114EKA-T146
DTC114EKA-T146
Refer to the MIC SENSITIVITY ADJUSTMENT described on page 16 if
the microphone (MIC901) or any semi-fixed resistor (R290) is faulty.
35
CDX-GT373A
MAIN
Ref. No.
Q606
Q607
Q664
Q702
Part No.
Description
8-729-038-28
8-729-620-07
8-729-027-23
8-729-620-07
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
Remark
RT1N441C-TP-1
2SC3052EF-T1-LEF
DTA114EKA-T146
2SC3052EF-T1-LEF
Ref. No.
Part No.
Description
R424
R430
R431
R440
R442
1-216-809-11
1-216-809-11
1-216-809-11
1-216-864-11
1-216-813-11
METAL CHIP
METAL CHIP
METAL CHIP
SHORT CHIP
METAL CHIP
100
100
100
0
220
5%
5%
5%
1/10W
1/10W
1/10W
Remark
5%
1/10W
R443
R445
R447
R448
R449
1-216-809-11
1-216-864-11
1-216-833-11
1-216-833-11
1-216-833-11
METAL CHIP
SHORT CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100
0
10K
10K
10K
5%
1/10W
5%
5%
5%
1/10W
1/10W
1/10W
R450
R451
R452
R460
R461
1-216-833-11
1-216-809-11
1-216-809-11
1-216-864-11
1-216-821-11
METAL CHIP
METAL CHIP
METAL CHIP
SHORT CHIP
METAL CHIP
10K
100
100
0
1K
5%
5%
5%
1/10W
1/10W
1/10W
5%
1/10W
R462
R470
R471
R472
R481
1-216-833-11
1-216-864-11
1-216-821-11
1-216-833-11
1-216-801-11
METAL CHIP
SHORT CHIP
METAL CHIP
METAL CHIP
METAL CHIP
10K
0
1K
10K
22
5%
1/10W
5%
5%
5%
1/10W
1/10W
1/10W
R485
R491
R502
R503
R504
1-218-883-11
1-216-805-11
1-216-809-11
1-216-809-11
1-218-871-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
33K
47
100
100
10K
0.5%
5%
5%
5%
0.5%
1/10W
1/10W
1/10W
1/10W
1/10W
R505
R507
R509
R510
R511
1-218-871-11
1-216-845-11
1-216-812-11
1-216-821-11
1-216-821-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
10K
100K
180
1K
1K
0.5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R512
R517
R519
R520
R521
1-216-821-11
1-216-841-11
1-216-845-11
1-216-809-11
1-216-825-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
1K
47K
100K
100
2.2K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R522
R523
R524
R525
R526
1-216-825-11
1-216-809-11
1-216-833-11
1-216-833-11
1-216-845-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
2.2K
100
10K
10K
100K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R529
R531
R532
R533
R534
1-216-809-11
1-216-845-11
1-216-845-11
1-216-845-11
1-216-833-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100
100K
100K
100K
10K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R537
R540
R544
R549
R550
1-216-845-11
1-216-845-11
1-216-809-11
1-216-845-11
1-216-845-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100K
100K
100
100K
100K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R554
R555
R556
R557
R558
1-216-845-11
1-216-845-11
1-216-845-11
1-216-809-11
1-216-833-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100K
100K
100K
100
10K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R560
R561
R563
R565
R566
1-216-845-11
1-216-845-11
1-216-845-11
1-216-845-11
1-216-845-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100K
100K
100K
100K
100K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
< RESISTOR >
R2
R3
R4
R5
R6
1-216-839-11
1-216-843-11
1-216-839-11
1-216-843-11
1-414-595-11
METAL CHIP
33K
METAL CHIP
68K
METAL CHIP
33K
METAL CHIP
68K
INDUCTOR, FERRITE BEAD
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
R7
R9
R10
R12
R13
1-414-595-11
1-216-843-11
1-216-821-11
1-216-811-11
1-216-811-11
INDUCTOR, FERRITE BEAD
METAL CHIP
68K
METAL CHIP
1K
METAL CHIP
150
METAL CHIP
150
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
R151
R152
R153
R154
R155
1-216-817-11
1-216-817-11
1-216-835-11
1-216-835-11
1-216-825-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
470
470
15K
15K
2.2K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R200
R201
R202
R203
R204
1-218-855-11
1-218-861-11
1-218-871-11
1-218-895-11
1-216-845-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
2.2K
3.9K
10K
100K
100K
0.5%
0.5%
0.5%
0.5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R205
R206
R207
R208
R210
1-216-821-11
1-216-821-11
1-216-821-11
1-216-864-11
1-218-855-11
METAL CHIP
METAL CHIP
METAL CHIP
SHORT CHIP
METAL CHIP
1K
1K
1K
0
2.2K
5%
5%
5%
1/10W
1/10W
1/10W
0.5%
1/10W
R211
R212
R213
R214
R215
1-218-867-11
1-216-864-11
1-218-843-11
1-218-859-11
1-216-864-11
METAL CHIP
SHORT CHIP
METAL CHIP
METAL CHIP
SHORT CHIP
6.8K
0
680
3.3K
0
0.5%
1/10W
0.5%
0.5%
1/10W
1/10W
R216
R217
R218
R219
R250
1-218-843-11
1-218-847-11
1-218-831-11
1-218-895-11
1-216-823-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
680
1K
220
100K
1.5K
0.5%
0.5%
0.5%
0.5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R251
R260
R261
R262
R263
1-216-823-11
1-216-864-11
1-216-864-11
1-216-864-11
1-218-887-11
METAL CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
METAL CHIP
1.5K
0
0
0
47K
5%
1/10W
0.5%
1/10W
R264
R265
R271
R272
R290
1-218-887-11
1-414-595-11
1-218-883-11
1-218-883-11
1-238-602-31
METAL CHIP
47K
INDUCTOR, FERRITE BEAD
METAL CHIP
33K
METAL CHIP
33K
RES, ADJ, CARBON
0.5%
1/10W
0.5%
0.5%
47K
1/10W
1/10W
R292
R301
R302
R303
R351
1-216-864-11
1-216-811-11
1-216-841-11
1-216-833-11
1-216-845-11
SHORT CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
0
150
47K
10K
100K
R401
R402
R420
R421
R423
1-216-821-11
1-216-821-11
1-216-864-11
1-216-813-11
1-216-864-11
METAL CHIP
METAL CHIP
SHORT CHIP
METAL CHIP
SHORT CHIP
1K
1K
0
220
0
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
5%
5%
1/10W
1/10W
5%
1/10W
Refer to the MIC SENSITIVITY ADJUSTMENT described on page 16 if
the microphone (MIC901) or any semi-fixed resistor (R290) is faulty.
36
CDX-GT373A
MAIN
Ref. No.
Part No.
Description
R567
R568
R570
R571
R574
1-216-845-11
1-216-849-11
1-216-809-11
1-216-845-11
1-216-845-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100K
220K
100
100K
100K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
Remark
R600
R603
R604
R611
R612
1-216-845-11
1-216-821-11
1-216-821-11
1-216-849-11
1-216-849-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100K
1K
1K
220K
220K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R615
R636
R671
R672
R673
1-216-864-11
1-216-845-11
1-216-809-11
1-216-809-11
1-216-833-11
SHORT CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
0
100K
100
100
10K
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
R674
R705
R706
R707
R708
1-216-845-11
1-249-425-11
1-216-841-11
1-216-841-11
1-216-829-11
METAL CHIP
CARBON
METAL CHIP
METAL CHIP
METAL CHIP
100K
4.7K
47K
47K
4.7K
5%
5%
5%
5%
5%
1/10W
1/4W
1/10W
1/10W
1/10W
R915
R916
R917
1-216-845-11
1-216-845-11
1-216-821-11
METAL CHIP
METAL CHIP
METAL CHIP
100K
100K
1K
5%
5%
5%
1/10W
1/10W
1/10W
< SWITCH >
S103
1-786-826-11
Ref. No.
Part No.
Description
SERVO
Remark
PARTS FOR INSTALLATION AND CONNECTIONS
**************************************
151
152
153
154
155
X-2179-430-1
3-280-059-01
3-246-011-01
A-1082-993-A
3-259-776-01
FRAME ASSY, FITTING
COLLAR
KEY (FRAME)
SCREW ASSY (BS4), FITTING
SCREW (+K 5X8 TP)
156
1-833-974-31
CONNECTION CORD FOR AUTOMOBILE
(POWER)
151
152
153
×2
154
155
×4
156
SWITCH, TACTILE (RESET)
< THERMISTOR >
TH270
1-804-045-11
THERMISTOR
< TUNER UNIT >
TU1
A-3220-961-B
TUNER UNIT (TUX-032)
< VIBRATOR >
X501
1-813-524-21 VIBRATOR, CERAMIC (18.432MHz)
X502
1-767-317-11 VIBRATOR, CRYSTAL (32.768kHz)
*************************************************************
A-1201-631-A
SERVO BOARD, COMPLETE
**********************
*************************************************************
MISCELLANEOUS
**************
7
1-833-974-31
CONNECTION CORD FOR AUTOMOBILE
(POWER)
0 103
X-2149-672-1 SERVICE ASSY, OP (DAX-25A)
*************************************************************
ACCESSORIES
************
1-479-077-13
2-548-729-01
3-287-414-11
3-287-415-11
REMOTE COMMANDER (RM-X151)
LID, BATTERY CASE (for RM-X151)
MANUAL, INSTRUCTION (ENGLISH,SPANISH)
MANUAL, INSTRUCTION, INSTALL (ENGLISH,
SPANISH)
X-2186-697-1 CASE ASSY (for FRONT PANEL)
*************************************************************
37
CDX-GT373A
REVISION HISTORY
Checking the version allows you to jump to the revised page.
Also, clicking the version at the top of the revised page allows you to jump to the next revised page.
Ver.
Date
1.0
2008.03
Description of Revision
New
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
