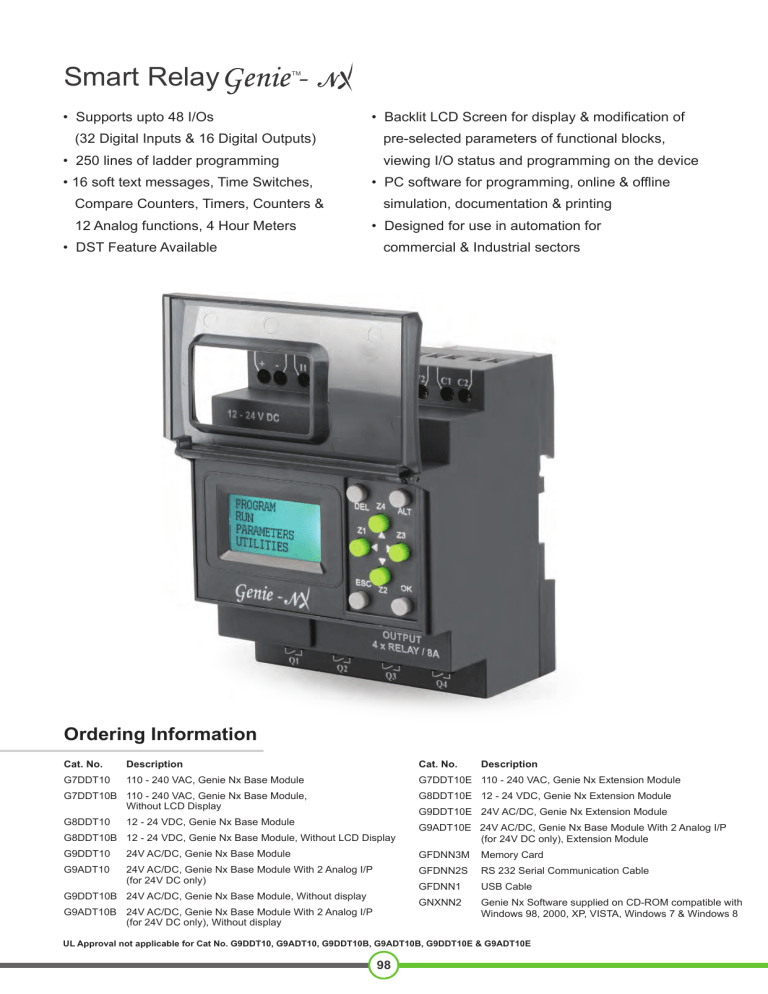

gic catalogue - Charter Controls
Smart Relay
TM
• Supports upto 48 I/Os
• Backlit LCD Screen for display & modification of
pre-selected parameters of functional blocks,
(32 Digital Inputs & 16 Digital Outputs)
viewing I/O status and programming on the device
• 250 lines of ladder programming
• 16 soft text messages, Time Switches,
• PC software for programming, online & offline
simulation, documentation & printing
Compare Counters, Timers, Counters &
12 Analog functions, 4 Hour Meters
• Designed for use in automation for
• DST Feature Available
commercial & Industrial sectors
Ordering Information
Cat. No.
Description
Cat. No.
G7DDT10
110 - 240 VAC, Genie Nx Base Module
G7DDT10E 110 - 240 VAC, Genie Nx Extension Module
G8DDT10E 12 - 24 VDC, Genie Nx Extension Module
G7DDT10B 110 - 240 VAC, Genie Nx Base Module,
Without LCD Display
G8DDT10
Description
G9DDT10E 24V AC/DC, Genie Nx Extension Module
12 - 24 VDC, Genie Nx Base Module
G8DDT10B 12 - 24 VDC, Genie Nx Base Module, Without LCD Display
G9ADT10E 24V AC/DC, Genie Nx Base Module With 2 Analog I/P
(for 24V DC only), Extension Module
G9DDT10
24V AC/DC, Genie Nx Base Module
GFDNN3M
G9ADT10
24V AC/DC, Genie Nx Base Module With 2 Analog I/P
(for 24V DC only)
GFDNN2S
RS 232 Serial Communication Cable
GFDNN1
USB Cable
GNXNN2
Genie Nx Software supplied on CD-ROM compatible with
Windows 98, 2000, XP, VISTA, Windows 7 & Windows 8
G9DDT10B 24V AC/DC, Genie Nx Base Module, Without display
G9ADT10B 24V AC/DC, Genie Nx Base Module With 2 Analog I/P
(for 24V DC only), Without display
Memory Card
UL Approval not applicable for Cat No. G9DDT10, G9ADT10, G9DDT10B, G9ADT10B, G9DDT10E & G9ADT10E
98
Smart Relay
TM
Cat. No.
G7DDT10
Parameters
Supply Voltage ( )
Supply Variation
Frequency
Power Consumption
Digital Input
Analog Input
Digital Input Range
Analog Input Range
Relay Output
Digital Contact Rating
Output Electrical Life
Mechanical Life
AC - 15
Utilization Category
DC - 13
I/O Extensions (Max.)
Power Reserve (For Clock Only)
Modbus Communication
DST
Lines for Ladder Programming
Timers
Counters
Time Switches
Function
Compare
Counters
Blocks
Analog Functions
Soft Text Messages
Auxiliary Relays
Hour Meter
110 - 240 VAC
12 - 24 VDC
-20% to +10% (of )
50/60 Hz
5W
6
8
2 (Can be used as Digital Inputs)
NA
(0 - 40 VAC) OFF, (80 - 265 VAC) ON
(0 - 4 VDC) OFF, (8 - 26.4 VDC) ON
0 to 10 VDC
NA
4 ‘NO’
8A @ 240 VAC / 5A @ 30 VDC (Resistive)
105
107
Rated Voltage (Ue): 120/240 V, Rated Current (Ie): 3.0/1.5 A
Rated Voltage (Ue): 24/125/250 V, Rated Current (Ie): 2.0/0.22/0.1 A
3
7 yrs. (at -10oC to 55oC)
Yes (RTU) (Slave)
Settable
250
16 (ON Delay, Interval, Cyclic ON-OFF, OFF Delay)
16 (Up / Down, Retentive selectable)
16 (Weekly / Daily)
16
NA
12
16 (Priority Driven)
64
4
Operating Temperature
Storage Temperature
Humidity (Non Condensing)
Enclosure
Dimension (W x H x D) (in mm)
Weight (unpacked) Approx.
Mounting
Degree of Protection
-10O C To + 55O C
-25O C To + 70O C
95% (Rh)
Flame Retardant UL 94-V0
72 X 90 X 65
230 g
Base / DIN Rail
IP 20 for Terminals, IP 40 for Enclosure
Certification
LISTED
EMI / EMC
Harmonic Current Emissions
ESD
Radiated Susceptibility
Electrical Fast Transients
Surges
Conducted Susceptibility
Voltage Dips & Interruptions (AC)
Voltage Dips & Interruptions (DC)
Conducted Emission
Radiated Emission
IEC 61000-3-2
IEC 61000-4-2
IEC 61000-4-3
IEC 61000-4-4
IEC 61000-4-5
IEC 61000-4-6
IEC 61000-4-11
IEC 61000-4-29
CISPR 14-1
CISPR 14-1
Environmental
Cold Heat
Dry Heat
Vibration
Repetitive Shock
Non-Repetitive Shock
IEC 60068-2-1
IEC 60068-2-2
IEC 60068-2-6
IEC 60068-2-27
IEC 60068-2-27
G8DDT10
RoHS Compliant
99
Smart Relay
TM
• Nx-Comm RS 485 Module
Ordering Information
Cat. No.
Description
G7XDTR4
110 - 240 VAC, RS 485 Communication Module
G8XDTR4
12 - 24 VDC, RS 485 Communication Module
100
Smart Relay
TM
Cat. No.
Parameters
Supply Voltage ( )
Input
Output
Number of Nodes
Isolation voltage
Baud Rate
Operating Temperature
Storage Temperature
Modbus Communication
LED Indications
G7XDTR4
G8XDTR4
110 - 240 VAC
12 - 24 VDC
TTL Level
RS 485 Protocol (Two wires, D +, D -)
32 Standard unit loads
2000 Vrms
300, 600, 1200, 2400, 4800, 9600
-10°C to + 55°C
-20°C to + 70°C
Yes (RTU) (Slave)
Red LED's for Tx & Rx. Green LED for Power indication.
Certification
RoHS Compliant
LISTED
84 g
80 g
Weight (unpacked)
Ø 4.2
72.0
90.0
68.0
45.0
100.0 C/C
90.0
45.0
100.0 C/C
1.5
MOUNTING DIMENSION (mm)
36.0
65.0
49.4
60.0
Ø 4.2
G7XDTR4, G8XDTR4
G7DDT10, G7DDT10B, G8DDT10, G8DDT10B, G7DDT10E, G8DDT10E
CONNECTION DIAGRAM
FUSE
L
FUSE 1
UP TO 3 EXTENSION
MODULES
EXT
ADDITIONAL
INPUTS
INPUTS
SUPPLY
L N
1
2
3
4
5
7
6
8
C1 C2
L
N
1
2
INPUT
4 5 6
3
7
8
INPUTS
N
AC
SUPPLY
C1 C2
INPUT
8 X AC
110 - 240 V AC
INPUT
8 X AC
110 - 240 V AC
INPUT
8 X AC
110 - 240 V AC
PROGRAM
RUN
PARAMETERS
UTILITIES
1
2
1
2
Z2
4
5
6
7
A
OP
Z3
3
PROGRAM
RUN
PARAMETERS
UTILITIES
X
8
IP
Z4
Z1
3
ALT
DEL
X
ALT
DEL
B
4
C
SEL
OK
ESC
Extension Module
MEMORY
CARD
SERIAL
INTERFACE
CABLE
GFDNN3M
GFDNN2S
OUTPUT
4 x RELAY / 8A
Q1
Q2
Q3
Q4
OUTPUT
4 x RELAY / 8A
OP1
OP2
OP3
D1 D2
TWO WIRE HALF
DUPLEX RS 485 BUS
OP4
ADDITIONAL
OUTPUTS
OUTPUTS
TERMINAL TORQUE & CAPACITY
Ø 3.5...5.0 mm
Torque - 1.1 N.m (10 Lb.in)
Terminal screw - M3.5
Solid Wire - 2 X 0.2...2.5 mm2
AWG
1 X 24 to 10
101
SERIAL
INTERFACE
CABLE
Q1
Q2
Q3
OUTPUTS
Q4
Smart Relay
TM
FEATURES
Programming:
Programming can be carried out independently using the keys on the Genie-NX base module with
the help of ladder diagram or on a PC, using "G-Soft NX." software.
LCD Backlighting:
Backlight of the LCD display is present for a minimum 15 seconds whenever the device is powered
ON or a key is pressed on the base module. The backlight can also be configured to be permanently
ON or permanently OFF by configuring the "Device Utilities" option in the device menu or by using
the G-Soft NX application software.
Memory Card:
Genie-NX has a Program Transfer feature, which allows programs to be transferred or copied into
another Genie-NX with the help of memory card. This feature enables quick copy of the programs
without the use of a laptop or a PC.
I/O Extensions:
User can connect a maximum of 3 Extension Modules to the Genie-NX base module & each
Extension Module has 8 inputs and 4 outputs, so we can expand up to 48 I/O extensions if
necessary via the Genie-NX. Expansions are made in daisy chain fashion.
Communication Module:
A module for communication on the Modbus network is available, which is called "NX-Comm "to
facilitate communication of the logic relay over a 2 wire half duplex RS 485 link. Modules are
powered by 110- 240 VAC or 12- 24 VDC power supplies. The base module can be connected to
this communication interface by means of the cable and the communication takes place via the
NX-Comm. on the RS 485 link.
APPLICATIONS
• HVAC Controls
• Machine Controls involving Motor, Pump and Valve
• Operational Monitoring systems like Access control,
Vehicle Control Monitoring, Baggage handling etc.
• Materials handling Equipments, Conveyor systems and Elevators
• Exhaust and Filtering Systems
• Water-treatment plants
• Printing and Packaging Machines
• Ancillary equipments in Textile and Plastic Industry
• Interior and Exterior Lighting Control
• Door, Gate, Shutter, Sun blinds and Awning control
• Irrigation Control Systems
• Automation of Compressors and Pumps for Air Conditioning requirements
102
