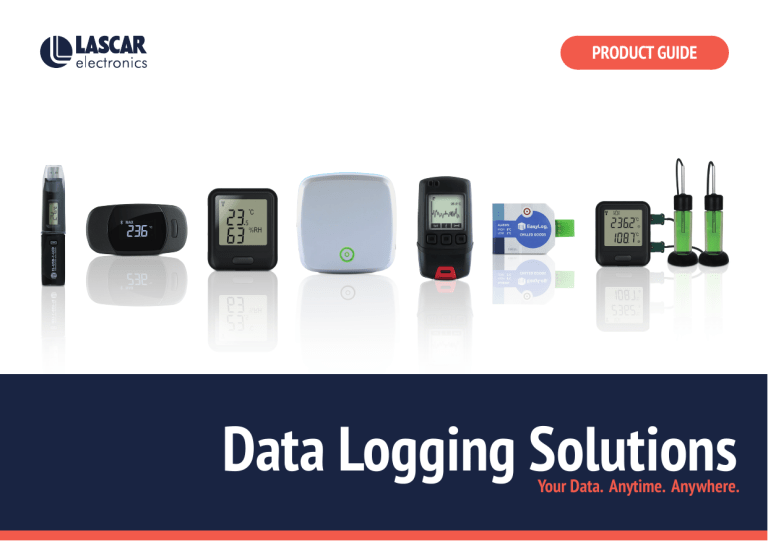

Data Logging Solutions

PRODUCT GUIDE

Data Logging Solutions

Your Data. Anytime. Anywhere.

WiFi sensors & remote monitoring

1

WiFi Sensors

The EL-WiFi range of temperature and humidity data loggers provides the capability to remotely monitor any environment. Data is uploaded using a standard WiFi network without the need to physically connect the units to a PC.

Each sensor features a rechargeable battery or can be permanently powered using a USB wall adapter.

The large LCD screen displays real-time data, while the button cycles through the maximum and minimum readings.

The range includes data loggers for monitoring temperature, using internal and external temperature probes, and humidity. Sensors are also available in single and dual channel formats.

www.lascarelectronics.com/data-loggers

In this range:

Temperature Temp/RH Thermocouple Thermistor

WiFi Communication

Software

Users can interface with their data loggers via a local PC, using Lascar’s free WiFi software or by subscribing to the FilesThruTheAir™ Cloudbased data hosting service which allows access to data from any internet enabled device such as tablet, smartphone or computer.

Both interfaces provide access to the stored data and real-time alerts of alarm conditions.

Users can also remotely change other device settings including sample rates, alarms and alert settings.

www.lascarelectronics.com/data-loggers

2

3

EL-MOTE

Remote, flexible data logging with years of battery life

The new EL-MOTE WiFi data logger range combines an unobtrusive, waterproof design with interchangeable measurement probes, up to two channels and up to 2 years of potential battery life.

In this range:

Temperature Temp/RH Thermistor

24/7 monitoring and alerts in a simple-to-use package

Wirelessly stream, record and view temperature and humidity

on the Cloud, using any web browser, smart phone or tablet

Simple device setup using our smartphone App

Single and dual channel temperature and humidity recording

using a choice of interchangeable probes

Configurable high and low alarms with on-board indicator

and sounder

Industry leading battery life of up to 2 years

Discreet design with waterproof enclosure

View and analyse multiple sensors, including graphing of historic data

www.lascarelectronics.com/data-loggers

Smart Probes

This two-channel device supports interchangeable probes.

Need to exchange your probe for a higher accuracy version? Your device will support both standard and + version probes. Simply purchase a new probe.

Smart probes are pre-calibrated. No need to take your data loggers out of action every twelve months for calibration checks. Simply fit a new probe in a few seconds.

3 Simple Steps

Connect your EL-MOTE to the Cloud using a simple step-by-step App or the PC and start monitoring data and alarms from any web-enabled device immediately.

1. Buy a EL-MOTE

Probe T & Probe T+

External temperature probe. Standard and higher accuracy options.

Probe TH & Probe TH+

External temp/humidity probe. Standard and higher accuracy options.

2. Choose your probe

EL-MOTE: Unobtrusive, waterproof design with up to 2 years battery life

Probe TP & Probe TP+

External thermistor probe. Standard and higher accuracy options.

3. Connect to the Cloud

www.lascarelectronics.com/data-loggers

4

Your Data. Anytime.

Anywhere.

The FilesThruTheAir™ Cloud makes data from your WiFi sensor universally accessible from any internet enabled device. You can manage your devices and make changes to any sensor setting remotely, including changing alarm levels.

This gives you the power to monitor and manage potentially hundreds of WiFi sensors in different countries completely remotely.

The system easily scales to meet your needs.

Perfect for compact systems with just a few measuring points, or corporate solutions with hundreds of sensors around the globe.

A Cloud account is created during the WiFi sensor set-up process. You can choose from three different Cloud account types depending on which features you need.

Features at a glance*

x x

5

Monitor sensors from multiple sites in one account

View data from any sensor on any web-enabled device

Receive email alerts to take action if required

Allow multiple users and assign variable account privileges

Store your data safely online in the Cloud

Export and print data for analysis & reporting

Optional security enhancements

*Features dependent on account type.

www.lascarelectronics.com/data-loggers

FilesThruTheAir

TM

Apps

With the new easy to use FilesThruTheAir™ Apps for Android and Apple iPhone and iPad, monitor and manage WiFi sensors on the go. Free to download, the new Apps include features such as:

Quick overview of any loggers in alarm

Ability to change devices settings on the go

Favorites tab for a quick view of the most vital sensors

View graphs and data

View and close events

www.lascarelectronics.com/data-loggers

6

Remote Monitoring

When using a PC or laptop to configure and download data just isn’t possible, then Lascar have a variety of remote options covering a multitude of communication platforms.

Select Bluetooth, NFC or SMS options for seamless, remote communication with your data logger, using one of Lascar’s easy to use Apps.

No need for a WiFi signal. Use your smartphone or tablet to configure your device. Let the unit log, before collecting saved data on the same device. Simple, easy, remote data logging options for smart phone and tablet users.

In this range:

7

Temperature Temp/RH

EL-BT-2 Android App

EL-BT-2

Bluetooth temperature and humidity data logging

The EL-BT-2 data logger measures and stores over half a million temperature and humidity readings.

The user can easily set up the logger and view downloaded data remotely on any suitable Android device via Bluetooth connection.

Downloaded data can then be saved, uploaded or emailed. The LCD screen on the device indicates

Bluetooth connection status as well as logger operation. The push button allows cycling of current, minimum and maximum recorded values.

The EL-BT-2 comes with rechargeable battery or can be used with a USB wall charger.

www.lascarelectronics.com/data-loggers

EL-NFC-1

Near field communication temperature data logger

NFC

The EL-NFC-1 is a small, waterproof temperature data logger that transmits data to an NFC enabled Android™ device. An App enables users to change the logger’s name, temperature scale and alarm levels.

Once the data has been downloaded, the App presents users with a graph of the session as well as summary details such as minimum, maximum and average values, mean kinetic temperature and time in any alarm conditions.

EL-SMS-2G-TP

Temperature monitor with SMS alerts

The battery operated EL-SMS-2G-TP is a temperature alert module communicating daily, weekly or monthly temperature summaries via

SMS. Perfect for applications where instant notifications of alarm breaches is vital, high and low level alarms are set using the free

Android

TM

or iOS Apps sending text messages to pre-selected phones when an alarm is triggered.

www.lascarelectronics.com/data-loggers

8

Standalone Data Logging

9

EasyLog USB

Simple & low-cost

Lascar’s standalone USB data loggers measure a number of parameters including temperature, humidity, voltage, current, 4-20mA, event/ count/state and carbon monoxide.

EasyLog USB data loggers connect directly into the USB port of a PC or laptop. The free Windows

TM software for set-up and data download is both streamlined and easy to use. Choose a logger name, sample rate, alarm levels and start mode before recording. After data has been collected, it can be graphed or exported to Excel, PDF, graph, data or summary report for further analysis.

Each data logger is supplied with a battery and features red/green LEDs to indicate data logging status. Some models include an LCD and pushbutton to show the most recent, maximum and minimum readings while logging. Most temperature and temperature & humidity data loggers also provide waterproof protection for outdoor use.

In this range:

Temperature Temp/RH Thermocouple Thermistor

www.lascarelectronics.com/data-loggers

Voltage Current Event, State, Count Carbon Monoxide

EasyLog USB software

Intuitive, powerful & free

Windows

TM control software

Lascar’s free data logging control software provides an intuitive and easy-to-use interface for communicating with the

EasyLog USB data logger ranges.

Compatible with all Windows

TM

operating systems, the software employs a wizard format to guide users through the set up and download process.

A powerful graphing module for analysing downloaded data, it also allows export of the data to Microsoft Excel, PDF and jpeg formats.

EL-DataPad

Handheld data collector & programmer

Designed to work with temperature, humidity, thermocouple and thermistor

USB data loggers, this touch-screen device allows users to download and analyse results as well as set up and restart data loggers in the field without the need for a PC.

The EL-DataPad can hold information from more than 500 full logging sessions and can be connected to a PC via a micro-USB cable to

download data at a later time.

EL-EnviroPad-TC

Thermometer with inbuilt data logging & graphing

The EL-EnviroPad-TC is a robust and easy to use device which records temperature with its attached K-type probe.

The unit has three modes: Data Logging when the unit is left to take and store temperature readings at pre-determined intervals for a desired length of time. Spot Measurement when it can be used as a thermometer to capture one-off temperature readings and lastly Checklist which allows users to create a customised list of measurement items using its accompanying free software.

www.lascarelectronics.com/data-loggers

10

11

EL-GFX-1

EasyLog GFX

Advanced data logging

The robust EasyLog GFX range brings a more advanced feature set to the monitoring of temperature and humidity.

EL-GFX products feature an increased memory capacity (250,000 readings per channel), 0.1 digit resolution across all parameters, LED and audible alarms, as well as a graphic display which shows real-time trend graphs and data summaries.

An on-screen menu provides the capability for users to start, stop and restart the data logger in the field.

EL-GFX-2 EL-GFX-DTC

Connecting to the PC via a micro-USB cable, the

EasyLog GFX range uses EasyLog USB software for set up and download with additional functions including conditional start mode, delayed alarm function and probe calibration.

The range also includes dual-channel data loggers for reduced cost per channel. www.lascarelectronics.com/data-loggers

EL-GFX-DTP

In this range:

Temperature Temp/RH

Thermocouple Thermistor

ALARMS:

HIGH

LOW

8°C

2°C

CHILLED GOODS

STATUS:

STATUS START

MARK STOP

CHILLED GOODS

EL-CC-1-001

EL-CC-1-002

EL-CC-1-003

EL-CC-2-001

EL-CC-2-002

EL-CC-2-003

EL-CC-2-004

EL-CC-2-005

EL-CC-2-006

EL-PDF-1-001

EL-PDF-1-002

EL-PDF-1-003

EasyLog Cold Chain

Lascar’s Cold Chain family of loggers provides users with cost effective, loggers for all stages of Cold Chain logistics. Available with pre-programmed sample rates and alarms for monitoring a variety of goods, simply press an on-board button to start logging.

Status LEDs indicate whether the unit is in logging mode, an alarm has been activated or the battery is low. Download data by inserting the logger into a PC or laptop to view a graph of the logging session as a CSV file or PDF.

EL-PDF-1 eliminates the need for software with Start and Stop Logging buttons on-board and an auto-generate PDF report when inserted into a USB port.

EL-CC-1: Temperature devices for monitoring Chilled Goods, Frozen Goods and Ripening Goods.

EL-CC-2: Temperature and humidity devices for monitoring Pharmaceutical and Food goods.

EL-PDF-1: Temperature devices for monitoring Chilled Goods,

Frozen Goods and Ripening Goods. No software required.

In this range:

Not quite the settings you were looking for?

We welcome requests for custom configurations.

Temperature Temp/RH

EL-SGD 43-ATP

EL-SGD 70-ATP

4-Channel, OEM data logging displays

EL-SGD 43-ATP and EL-SGD 70-ATP are four-channel temperature data loggers based on PanelPilotACE technology and ideal for anyone that needs to quickly add temperature monitoring to an existing panel or standalone product. Both the 4.3” or 7” panel mounted display modules include a four-channel thermistor temperature board and four compatible temperature probes.

Both displays are pre-loaded with an advanced logging application which shows real-time readings for all four temperature channels, live trend graphs and access to a suite of real-time data analysis information. The loggers can store up to 100,000 readings per channel at sample rates from 15 seconds to 12 hours.

In this range:

Thermistor

www.lascarelectronics.com/data-loggers

12

13

EL-Vaccination Range

The Lascar EL-Vaccination family of data loggers is a specialised series of USB and WiFi-enabled sensors allowing discrete and continuous temperature monitoring of vaccines.

Exceeding Center of Disease Control (CDC) guidelines on data loggers used in vaccination storage, these units are available with external thermistor glycol bottles and calibration certificates.

High/low alarms to alert out of range

temperatures

Display of current, min and max temperature

and reset button

Low battery indicator

Accuracy ±0.1°C / ±0.2°F

Over 250,000 readings stored

Data loops when memory is full

Detachable temperature buffered probe

User programmable logging rates

Integral magnet to affix logger to outside

of storage unit

In this range:

EL-WiFi-TP+-PROBE-G

The EL-WiFi-TP+-PROBE-G allows remote vaccine monitoring and data collection over a WiFi network, viewable from any internet enabled device including smartphone, tablet or PC using the FilesThruTheAir

TM

Cloud service. Set-up high and low alarms and receive instant email alerts when temperatures become too hot or cold in the fridge or freezer.

The logger can be battery powered or used with a

USB wall adapter.

Thermistor

www.lascarelectronics.com/data-loggers

EL-WiFi-DTP+-PROBE-G

The dual channel EL-WiFi-DTP+-PROBE-G can measure two areas at the same time - two areas of the same refrigerator, two refrigerators or perhaps a refrigerator and freezer.

The logger can be battery powered or used with a USB wall adapter.

EL-USB-TP-LCD-PROBE-G

This USB-based system allows continual temperature monitoring of refrigerated and frozen vaccines using a simple-to-use data logger and glycol bottle.

Simply name the device, choose samples rates and set high and low alarms using its free and easy-to-use software. Place the glycol bottle in the vaccine refrigerator and place the data logger on the outside of the fridge. View latest, highest and lowest logs from its integral LCD screen. An on-board red LED will flash if an alarm has been breached.

The logger is battery powered.

EL-GFX-DTP-PROBE-G

The EL-GFX-DTP-PROBE-G is a vaccination monitoring kit combining a high accuracy USB dual channel data logger with two glycol bottle probes allowing continuous measurement of two environments simultaneously.

The unit stores over 250,000 readings, has an on-screen display showing max, min and last log as well as an on-board graph of the data collected. Buttons allow the user to start, stop and restart the logger in the field and alarm breaches are registered with both LED and audible alarms.

The logger can be battery powered or used with a USB wall adapter.

www.lascarelectronics.com/data-loggers

14

15

21 CFR Compliance

Lascar’s latest software offering allows users to store data in compliance with the regulations of 21CFR Part 11. As well as the core offerings of Lascar’s existing

EasyLog software, individual users can now be assigned specific permissions.

The readings collected from the data logger are stored in an encrypted format which cannot be edited. EasyLog21CFR software provides a full audit trail of activities, with users able to add comments to specific readings before being approved by an authorised user. Electronic signatures are added to all of the reports to show who has started, stopped and approved the session data. The software is compatible with data loggers monitoring temperature, relative humidity and dew point.

EL-21CFR-1-LCD

EL-21CFR-2-LCD

EL-21CFR-2-LCD+

EL-21CFR-TP-LCD

EL-21CFR-TP-LCD+

EL-21CFR-TP-LCD-PROBE-G EL-21CFR-TC

EL-21CFR USB

EasyLog 21CFR software is compatible with seven standalone USB devices monitoring standard temperature, relative humidity and dew point; temperature using an external probe; temperature with an on-board sensor and temperature using a external K type thermocouple.

In this range:

Temperature Temp/RH Thermocouple Thermistor

www.lascarelectronics.com/data-loggers

EL-WiFi-21CFR-T

EL-WiFi-21CFR-TH

EL-WiFi-21CFR-TH+

EL-WiFi-21CFR-TP

EL-WiFi-21CFR-TP+

EL-WiFi-21CFR-DTP+

EL-21CFR WiFi

For users seeking a remote option, Lascar’s

EL-WiFi-21CFR Series provides WiFi-based sensors wirelessly capturing and storing data for access from any internet-enabled device. Available units measure temperature using an on-board sensor, temperature using an external thermistor or thermocouple probe and temperature, relative humidity and dewpoint.

In this range:

EL-WiFi-21CFR-TC

EL-WiFi-21CFR-DTC

Temperature Temp/RH Thermocouple Thermistor

www.lascarelectronics.com/data-loggers

EL-WiFi-21CFR-TP+-PROBE-G

EL-WiFi-21CFR-DTP+-PROBE-G

16

17

EL-WiFi range

EL-WiFi-T

Higher accuracy available: EL-WiFi-T+

WiFi Temperature data logging sensor

-20 to +60º (-4 to +140ºF) range

EL-WiFi-TH

Higher accuracy available: EL-WiFi-TH+

WiFi Temperature & humidity data logging sensor

-20 to +60ºC (-4 to +140ºF) & 0 to 100% RH range

EL-WiFi-TC

WiFi Thermocouple data logger

K type probe provided 0 to +200°C (+32 to +392°F)

-270 to +1300ºC (-454 to +2372ºF) (J, K, N & T-type)

EL-WiFi-DTC

WiFi Dual-channel thermocouple data logger

K type probe provided 0 to +200°C (+32 to +392°F)

-270 to +1300ºC (-454 to +2372ºF) (J, K, N & T-type)

EL-WiFi-TP

Higher accuracy available: EL-WiFi-TP+

WiFi Thermistor probe data logger

-40 to +125ºC (-40 to +257ºF) range

EL-WiFi-DTP+

Higher accuracy dual-channel thermistor probe data logger

-40 to +125ºC (-40 to +257ºF) range

EL-WiFi-ALERT

WiFi Sensor alert module with audible and visual alarm

EL-MOTE range

EL-MOTE-T

Higher accuracy available: EL-MOTE-T+

WiFi Temperature sensor with short external probe

Supplied with 1 probe -20 to +60º (-4 to +140ºF) range

EL-MOTE-TP

Higher accuracy available: EL-MOTE-TP+

WiFi Temperature sensor with external thermistor probe

Supplied with 1 probe -40 to +125ºC (-40 to +257ºF) range

EL-MOTE-TH

Higher accuracy available: EL- MOTE-TH+

WiFi Temperature and humidity sensor with external temp/RH probe

Supplied with 1 probe -20 to +60ºC (-4 to +140ºF) & 0 to 100% RH range

EL-MOTE-DTP

Higher accuracy: EL-MOTE-DTP+

Higher accuracy dual channel WiFi temperature sensor with x2 external thermistor probes

EL-MOTE-PROBE-T

Higher accuracy available: EL-MOTE-PROBE-T+

Short temperature probe

EL-MOTE-PROBE-2M-TH

Higher accuracy available: EL-MOTE-PROBE-2M-TH+

Temperature and humidity probe with 2 metre cable

EL-MOTE-PROBE-1M-25-TP / EL-MOTE-PROBE-3M-25-TP/

EL-MOTE-PROBE-3M-75-TP+

25mm or 75mm temperature probe with 1 or 3 metre cable

EL-MOTE WALL BRACKET

Wall mounting bracket for EL-MOTE transmitter

POWER-SUPPLY-14-004

EL-MOTE mains power adapter www.lascarelectronics.com/data-loggers

EL-USB range

EL-USB-1

USB Temperature

-35 to +80ºC (-31 to +176ºF) range

EL-USB-1-PRO

USB Industrial temperature

-40 to +125ºC (-40 to +257ºF) range

EL-USB-2

Higher accuracy available: EL-USB-2+

USB Temperature & relative humidity

-35 to +80ºC (-31 to +176ºF) & 0 to 100% RH range

EL-USB-3

USB Voltage

0 to 30V d.c. range

EL-OEM-3

Development kit inc EL-OEM-3: EL-OEM-TEST

OEM packaged voltage

0 to 2.4V d.c. measurement range

EL-USB-TC

USB Thermocouple

K type probe provided 0 to +200°C (+32 to +392°F)

-200 to +732ºC (-328 to +1350ºF) (J, K & T-type)

EL-USB-TP-LCD

Higher Accuracy Available: EL-USB-TP-LCD+

USB Thermistor probe with LCD

-40 to +125ºC (-40 to +257ºF) range

EL-EnviroPad-TC

Thermometer with inbuilt data logging, 3 data analysis modes

K type probe provided 0 to 200°C (+32 to +392°F)

-270 to +1300ºC (-454 to +2372ºF) (J, K, N & T-type)

EL-USB-RT

USB Real-time temperature, relative humidity and dew-point

-10 to +60ºC (-14 to +122ºF) & 0 to 100% RH range

EL-USB-1-LCD

USB Temperature with LCD

-35 to +80ºC (-31 to +176ºF) range

EL-USB-1-RCG

USB Temperature with rechargeable battery

-20 to +60ºC (-4 to +140ºF) range

EL-USB-2-LCD

Higher Accuracy Available: EL-USB-2-LCD+

USB Temperature & relative humidity with LCD

-35 to +80ºC (-31 to +176ºF) & 0 to 100% RH range

EL-USB-4

USB 4 - 20 mA Current

4-20mA d.c. measurement range

EL-USB-CO

Higher Accuracy Available: EL-USB-CO300

USB Carbon monoxide

0 to 1000ppm range

EL-USB-TC-LCD

USB Thermocouple with LCD

K type probe provided 0 to +200°C (+32 to +392°F)

-200 to +732ºC (-328 to +1350ºF) (J, K & T-type)

EL-USB-ACT

USB AC and DC Millivolt with current clamp input

0-707mV a.c. & -1000 to 1000mV d.c.

EL-USB-5

Higher accuracy available: EL-USB-5+

USB Event, count & state

Up to 100Hz

EL-USB-LITE

USB Low Cost temperature

-10 to +50ºC (+14 to +122ºF) range www.lascarelectronics.com/data-loggers

18

STATUS START

MARK STOP

CHILLED GOODS

19

Cold Chain range

(Custom configurations are available on request)

EL-CC-1-001

Temperature - Chilled Goods, +2 to +8ºC alarm threshold

-30 to +60°C (-22 to +140°F) range

EL-CC-1-002

Temperature - Frozen Goods, -20 to -16ºC alarm threshold

-30 to +60°C (-22 to +140°F) range

EL-CC-1-003

Temperature - Ripening Goods, +12 to +14ºC alarm threshold

-30 to +60°C (-22 to +140°F) range

STATUS START

MARK STOP

CHILLED GOODS

STATUS START

MARK STOP

CHILLED GOODS

STATUS START

MARK STOP

CHILLED GOODS

EL-CC-2-001 PK10 (Pack of 10)

Temp/RH - Chilled Goods, +2 to +8ºC alarm threshold

-30 to +60°C (-22 to +140°F) 0 to 100% RH range

EL-CC-2-002 PK10 (Pack of 10)

Temp/RH - Frozen Goods, -20 to -16°C alarm threshold

-30 to +60°C (-22 to +140°F) 0 to 100% RH range

EL-CC-2-003 PK10 (Pack of 10)

Temp/RH - Ripening Goods, +12 to +14°C alarm threshold

-30 to +60°C (-22 to +140°F) 0 to 100% RH range

EL-CC-2-004 PK10 (Pack of 10)

Temp/RH - Ambient Pharma, +8° to +25°C alarm threshold

-30 to +60°C (-22 to +140°F) 0 to 100% RH range

EL-CC-2-005 PK10 (Pack of 10)

Temp/RH - Blood Transportation, +1 to +10°C alarm threshold

-30 to +60°C (-22 to +140°F) 0 to 100% RH range

EL-CC-2-006 PK10 (Pack of 10)

Temp/RH - Platelets Transportation, +20 to +24°C alarm threshold

-30 to +60°C (-22 to +140°F) 0 to 100% RH range

EL-PDF-1-001

Temperature - Chilled Goods, +2 to +8ºC alarm threshold

-30 to +60°C (-22 to +140°F) range. No Software Required

EL-PDF-1-002

Temperature - Frozen Goods, -20 to -16ºC alarm threshold

-30 to +60°C (-22 to +140°F) range. No Software Required

EL-PDF-1-003

Temperature - Ripening Goods, +12 to +14ºC alarm threshold

-30 to +60°C (-22 to +140°F) range. No Software Required

EL-Vaccination range

www.lascarelectronics.com/data-loggers

EL-USB-TP-LCD-PROBE-G

Kit combining a USB data logger with a glycol thermistor probe

-40 to +125°C (-40 to +257°F) range

EL-GFX-DTP-PROBE-G

Kit combining a USB dual channel data logger with two glycol probes

-40 to +100°C (-40 to +212°F) range

EL-WiFi-TP+-PROBE-G

Kit combining a WiFi data logger with glycol thermistor probe

-40 to +125°C (-40 to +257°F) range

EL-WiFi-DTP+-PROBE-G

Kit combining a WiFi dual channel data logger & two glycol probes

-40 to +125°C (-40 to +257°F) range

Remote monitoring range

EL-BT-2

Bluetooth Temperature & humidity with App

-20 to +60ºC (-4 to +140ºF) & 0 to 100% RH range

EL-NFC-1

NFC Temperature with App

-20 to +60°C (-4 to +140ºF) range

EL-SMS-2G-TP

SMS Temperature alert module with App

-40 to +125°C (-40 to +257ºF) range

21CFR Compliant range

EL-21CFR-1-LCD

USB Temperature with LCD

-35 to +80ºC (-31 to +176ºF) range

EL-21CFR-2-LCD

Higher accuracy available: EL-21CFR-2-LCD+

USB Temperature & relative humidity with LCD

-35 to +80ºC (-31 to +176ºF) 0 to 100% RH range

EL-21CFR-TP-LCD

Higher accuracy available: EL-21CFR-TP-LCD+

USB Thermistor probe with LCD

-40 to +125ºC (-40 to +257ºF) range

EL-21CFR-TC

USB Thermocouple data logger

K type probe provided 0 to +200°C (+32 to +392°F)

-200 to +1350ºC (-328 to +2462ºF) range (J, K, N & T-type)

EL-21CFR-TP-LCD-PROBE-G

Kit combining a USB data logger and glycol bottle thermistor probe

-40 to +125°C (-40 to +257°F)

EL-WiFi-21CFR-T

WiFi Temperature data logging sensor

-20 to +60°C (-4 to +140° F) range

EL-WiFi-21CFR-TH

Higher accuracy available: EL-WiFi-21CFR-TH+

Temperature & relative humidity data logging sensor

-20 to +60°C (-4 to +140°F) range, 0 to 100% RH range www.lascarelectronics.com/data-loggers

EL-WiFi-21CFR-TP

Higher accuracy available: EL-WiFi-21CFR-TP+

WiFi Thermistor probe data logger with graphic screen

-40 to +125ºC (-40 to +257ºF) range

EL-WiFi-21CFR-DTP+

High accuracy dual channel WiFi thermistor probe data logger with graphic screen

-40 to +125°C / -40 to +257°F range

EL-WiFi-21CFR-TC

WiFi Thermocouple data logger with graphic screen

-200 to +1350ºC (-328 to +2462ºF) range (J, K, N & T-type)

EL-WiFi-21CFR-DTC

WiFi Dual-channel thermocouple data logger with graphic screen

K type probe provided 0 to 200°C (32 to 392°F)

-200 to +1350ºC (-328 to +2462ºF) range (J, K, N & T-type)

EL-WiFi-21CFR-TP+-PROBE-G

Kit combining a WiFi data logger and glycol bottle thermistor probe

-40 to +125°C (-40 to +257°F) range

EL-WiFi-21CFR-DTP+-PROBE-G

Kit combining a WiFi dual channel data logger and two glycol bottle probes

-40 to +125°C (-40 to +257°F) range

20

21

EL-GFX range

EL-GFX-1

USB Temperature with graphic screen

-30 to +80ºC (-22 to +176ºF) range

EL-GFX-2

Higher Accuracy Available: EL-GFX-2+

USB Temperature & relative humidity with graphic screen

-30 to +80ºC (-22 to +176ºF) & 0 to 100% RH range

EL-GFX-TC

USB Thermocouple with graphic screen

K type probe provided 0 to +200°C (+32 to +392°F)

-200 to +1350ºC (-328 to +2462ºF) (J, K & T-type)

EL-GFX-DTC

USB dual channel thermocouple with graphic screen

K type probe provided 0 to +200°C (+32 to +392°F)

-200 to +732ºC (-328 to +2462ºF) (J, K & T-type)

EL-GFX-DTP

USB dual channel thermistor with graphic screen

-40 to +125ºC (-40 to +257ºF) range

4-Channel range

EL-SGD 43-ATP

4.3” panel mounted display module with capacitive touch screen, a four-channel thermistor temperature board, x4 temperature probes

-40°C to +125°C (-40°F to +257°F) range

EL-SGD 70-ATP

7” panel mounted display module with capacitive touch screen, a four-channel thermistor temperature board, x4 temperature probes

-40°C to +125°C (-40°F to +257°F) range www.lascarelectronics.com/data-loggers

Accessories

EL-DataPad

Handheld programmer and data collector for EL-USB data loggers

PAD-BOOT-BLACK

Protective rubber casing for EL-DataPad and EL-EnviroPad-TC

EL-CC-BAG

Pack of 5 waterproof bags for use when reusing all EL-CC-1 data loggers

EL-USB-CASE

Protective metal case for EL-USB-1

USB-LINK-IR

USB to InfraRed converter

EL-WiFi-ALERT

WiFi Sensor alert module with audible and visual alarm

EL-WiFi WALL BRACKET

Spare wall mount bracket for EL-WiFi sensor units

BAT 3V6 1/2AA

Non-rechargeable 1/2 AA Lithium battery for use with most Lascar data loggers

BAT 3V6 2/3AA H TEMP

Non-rechargeable 2/3 AA Lithium battery for EL-USB-1-PRO

BATT 3VX5

Pack of 5 non-rechargeable Lithium coin cell battery for EL-USB-LITE

PSU-5VDC-USB-USA / PSU USB-UK / PSU USB-EU

Mains Power Adapter

USB-CAP-30V

Spare Cap for EL-USB-3

USB-CAP-4-20

Spare cap for EL-USB-4

USB-CAP-5

Spare Cap for the EL-USB-5

EL-PROBEA-3.0M-TP-GLY

High accuracy, 3m thermistor type A probe sealed in a Glycol filled bottle

K-TYPE PROBE 1M5

General purpose K-Type probe for use with all Lascar Thermocouple data loggers

T-TYPE SURFACE 1M5

T-Type thermocouple probe with rubber tip

EL-PROBE2-1.0M-TP

Basic type 2 thermistor probe for use with TP data loggers

EL-PROBEA-3.0M-TP+

Type A higher accuracy thermistor probe for use with all Lascar EasyLog

TP+ data loggers

EL-HIPROBE-SPIKE-1.0M-TCK

K Type Thermocouple probe for use with all Lascar Thermocouple data loggers

EL-PROBE-EXTENDER-1.5M / EL-PROBE-EXTENDER-3M /

EL-PROBE-EXTENDER-5M / EL-PROBE-EXTENDER-10M

1.5, 3, 5 or 10 metre probe extension cable www.lascarelectronics.com/data-loggers

22

Lascar Electronics Ltd UK

Module House

Whiteparish, Wiltshire

SP5 2SJ

United Kingdom

Sales Tel: +44 (0)1794 884567

Sales Fax: +44 (0)1794 884616

Sales Email: [email protected]

Skype: lascaruk

www.lascarelectronics.com/data-loggers

Issue 3 08/2017

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
