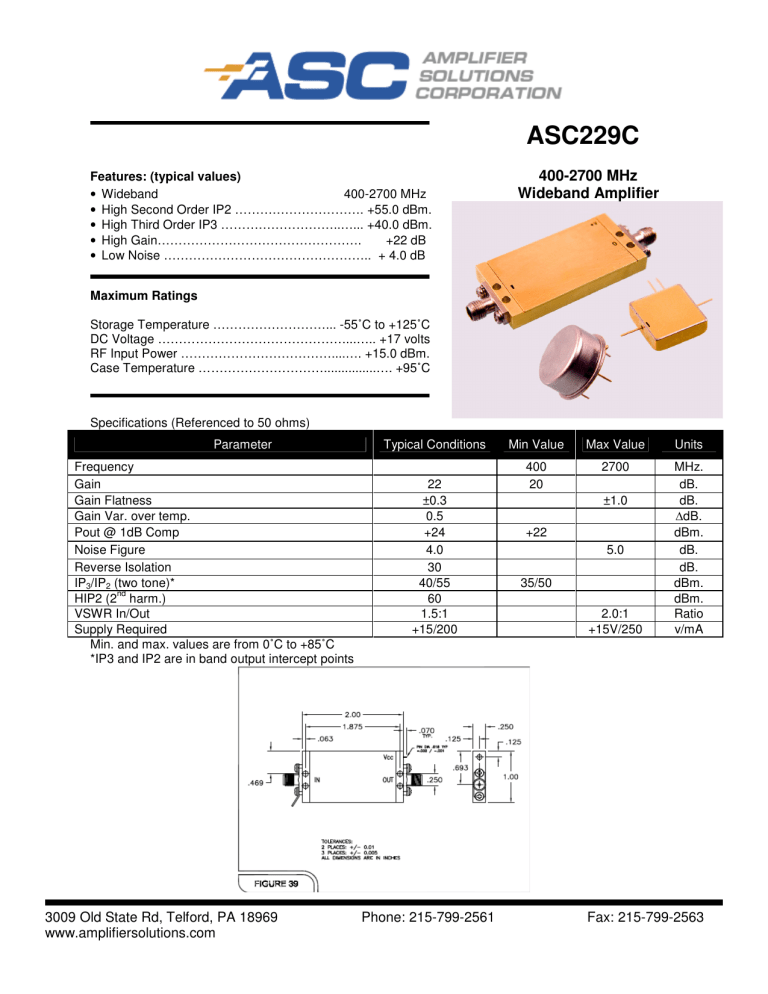

ASC229C - Amplifier Solutions
ASC229C
Features: (typical values)
• Wideband
400-2700 MHz
• High Second Order IP2 …………………………. +55.0 dBm.
• High Third Order IP3 ………………………..…... +40.0 dBm.
• High Gain………………………………………….
+22 dB
• Low Noise ………………………………………….. + 4.0 dB
400-2700 MHz
Wideband Amplifier
Maximum Ratings
Storage Temperature ………………………... -55˚C to +125˚C
DC Voltage ………………………………………...….. +17 volts
RF Input Power ………………………………....…. +15.0 dBm.
Case Temperature …………………………...............…. +95˚C
Specifications (Referenced to 50 ohms)
Parameter
Frequency
Gain
Gain Flatness
Gain Var. over temp.
Pout @ 1dB Comp
Noise Figure
Reverse Isolation
IP3/IP2 (two tone)*
nd
HIP2 (2 harm.)
VSWR In/Out
Supply Required
Min. and max. values are from 0˚C to +85˚C
*IP3 and IP2 are in band output intercept points
3009 Old State Rd, Telford, PA 18969
www.amplifiersolutions.com
Typical Conditions
22
±0.3
0.5
+24
4.0
30
40/55
60
1.5:1
+15/200
Phone: 215-799-2561
Min Value
Max Value
Units
400
20
2700
MHz.
dB.
dB.
dB.
dBm.
dB.
dB.
dBm.
dBm.
Ratio
v/mA
±1.0
+22
5.0
35/50
2.0:1
+15V/250
Fax: 215-799-2563
ASC229C
Typical Performance Curves @
- - - 0˚C
-
- +25˚C
-
- +85˚C
NF vs. Frequency
5.5
23
5
NF (dB.)
Gain (dB.)
Gain vs. Frequency
24
22
21
4
3.5
3
20
400
4.5
1000
1500
2000
400
2700
1000
1500
2000
2700
VSWR vs. Frequency
Input
Output
1.6
25
1.5
VSWR
Pout (dBm.)
26
Pout vs. Frequency
24
23
1.3
1.2
22
400
1.4
1.1
1000
1500
2000
2700
400
1000
1500
2000
2700
Intercepts (dBm.)
IP3/IP2 & HIP2 vs. Frequency
IP 3
IP 2
HIP 2
80
70
60
50
40
30
400
3009 Old State Rd, Telford, PA 18969
www.amplifiersolutions.com
1000
1500
2000
2700
Phone: 215-799-2561
Fax: 215-799-2563
