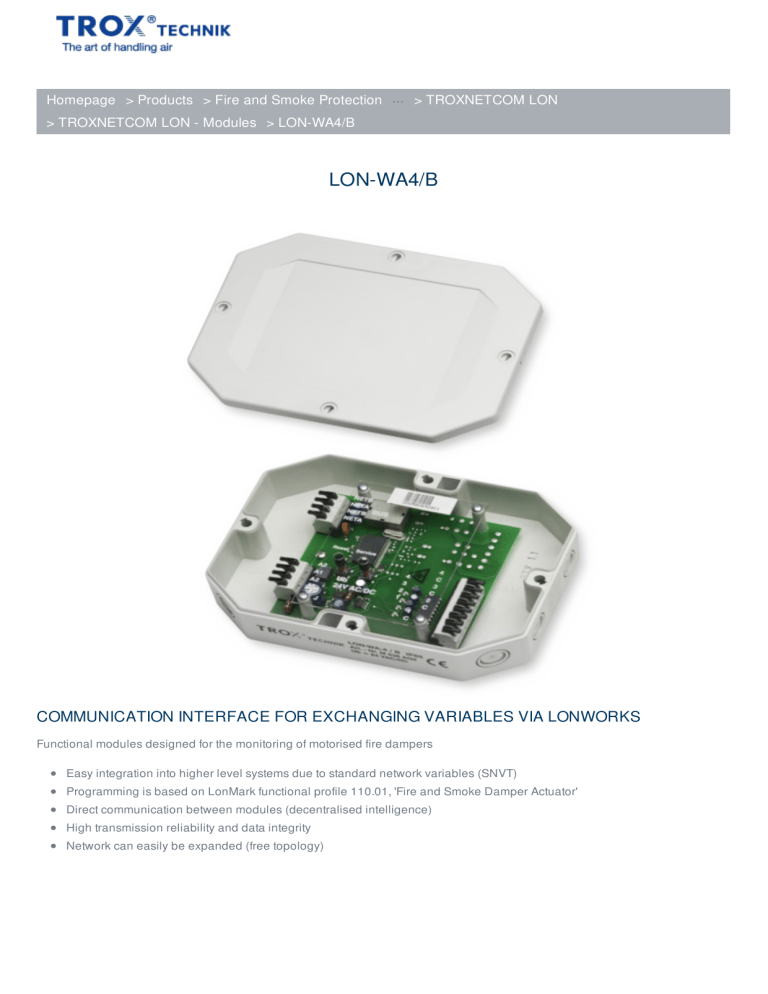

LON-WA4/B
COMMUNICATION INTERFACE FOR EXCHANGING VARIABLES VIA LONWORKS
Functional modules designed for the monitoring of motorised fire dampers
Easy integration into higher level systems due to standard network variables (SNVT)
Programming is based on LonMark functional profile 110.01, 'Fire and Smoke Damper Actuator'
Direct communication between modules (decentralised intelligence)
High transmission reliability and data integrity
Network can easily be expanded (free topology)
APPLICATION
Application
IO module with 4 digital inputs, used to capture the status of volt-free switches
Due to additional link options and alarm signalling particularly suitable for
monitoring fire dampers with electric limit switches
TECHNICAL INFORMATION
FUNCTION
Functional description
LON-WA4/B is used to control up to four fire dampers with one limit switch or two fire dampers with two limit switches
each.
The output variables of type SNVT_switch and SNVT_hvac_emerg signal the current damper blade position. They are
sent after the input condition has changed, at the end of the heartbeat time (nciDiHeartbeat), and after a module reset
(1s + node number [ms]).
If LON-WA4/B is used, the heartbeat function should be activated (for safety reasons).
If input variable nviDoHeartbeat has been set (100.1 1), then the output variables nvoDiValue[0...3] and nvoDiAllValues
are updated and sent in intervals set with configuration parameter nciDiHeartbeat. This ensures that the transmission
path is being monitored.
If there is a chain of modules (and hence fire dampers), the FireChain variables can transmit a signal from the first to the
last.
Variable nciInvertDiValue is used as a configuration parameter to invert the output values. The debounce time for digital
inputs can be configures with the nciDiDebounce variable.
LON-WA4/B
TECHNOLOGY
Supply voltage
20 – 28 V AC/DC ± 10 %, 50/60 Hz
Power consumption
Approx. 45 mA/24 V DC
Inputs
4 digital inputs for volt-free switches or voltage inputs; input voltage depends on jumper setting (J), either A1 (24 V AC/DC) or
A2 (GND)
Outputs
LON interface, standard network variables (SNVT)
LON interface
FT5000 free topolgy
Neuron
3120, 3 K EEPROM download-enabled
Protection level
IP 65
Operating
–5 to 55 °C
temperature
Terminals
Spring-loaded terminals for nominal diameter; 1.5 mm², one wire; 1.0 mm² ultra-fine wire; AWG 16
Cable glands
8 × M12 or M16 cable glands
Software application
xif/apb-files under www.trox.de
Dimensions
159 × 120 × 41.5 mm
(B × H × T)
Material
ASA (LURAN S KR 2867 C WU)
SPECIFICATION TEXT
Standard description (characteristics)
LON module with 4 digital inputs, used to capture the status of volt-free switches, provides additional link options and alarm
signalling for monitoring fire dampers with electric limit switches.
Input: 4 digital inputs, maximum load 5 mA/10 V or volt-free
Output: SNVT_switch and SNVT_hvac_emerg; transceiver: FT5000
Protection level: IP 65
Supply voltage: 20 – 28 V AC/DC
Homepage > Products > Fire and Smoke Protection ... > TROXNETCOM LON
> TROXNETCOM LON - Modules > LON-WA4/B
ORDER CODE
Module
LON-WA1/B3
Module for controlling up to two actuators
LON-WA1/B2-AD
Connection box for connecting the second actuator
LON-WA1/B2-AD230
LON-WA1/FT3
LON-WA4/B
Connection box with integral 24 V power supply unit for connecting the second actuator
Module for the control of up to four actuators
Module for capturing up to four damper end positions
