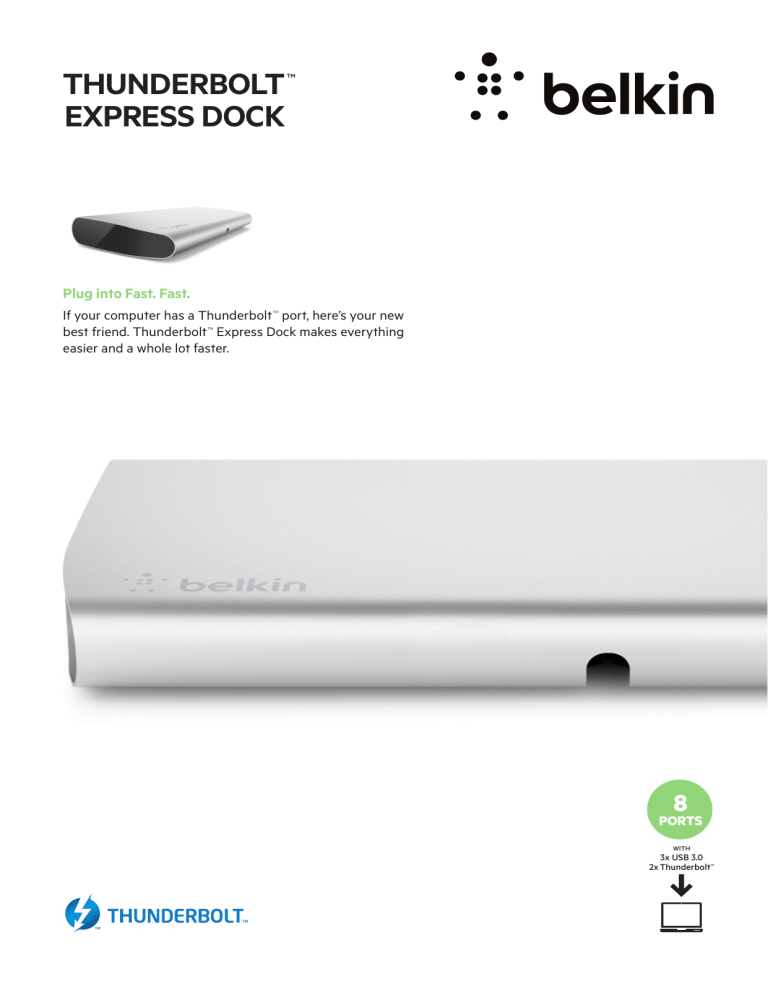

thunderbolttm express dock
THUNDERBOLT
EXPRESS DOCK
TM
Plug into Fast. Fast.
If your computer has a Thunderbolt port, here’s your new
best friend. Thunderbolt Express Dock makes everything
easier and a whole lot faster.
TM
TM
8
PORTS
WITH
3x USB 3.0
2x Thunderbolt
TM
THUNDERBOLT
EXPRESS DOCK
TM
Simple Is Smart
Connect up to 8 devices
With one cable to your computer
Aside from its sleek lines, the thing that
makes Thunderbolt Express Dock so
beautiful is its ease of use. There are no
drivers or software to install and no
updates to be on the lookout for. Just plug
everything in you want plugged in and get
down to some rapid fire doing.
1
1
1
1
1
3
1 Thunderbolt output port
TM
Thunderbolt input port
Gigabit Ethernet port
FireWire 800 port
3.5mm Output jack
3.5mm Audio Input jack
USB 3.0 ports*
TM
TM
*Max data transfer rate for USB 3.0
ports is 2.5Gbps
Thunderbolt Dock eliminates cable clutter by reducing up to
eight inputs down to one cable connection.
TM
Seriously fast technology made simple. Plug in and hang on.
ETHERNET
FIREWIRE
Just How Fast Is Thunderbolt
THUNDERBOLT ™
HEADPHONE
MIC
USB 3.0
POWER
TM
Thunderbolt technology is capable of data transfer speeds of up to 10Gbps. That’s 2x faster than
USB 3.0, 12x faster than FireWire 800 and 20x faster than USB 2.0. But how does that translate to
real-world data moving? With Thunderbolt you can:
TM
TM
• Download a full-length HD movie in 30 seconds
• Back up a years’ worth of continual-play MP3s in 10 min.
Daisy-chain up to 5 Thunderbolt technology-enabled devices
directly from the dock.
TM
Thunderbolt Through and Through
TM
The Belkin Thunderbolt Express Dock has two Thunderbolt ports, one in and one out. This
throughput allows the dock to fully leverage the speed of Thunderbolt technology. You can
connect up to five Thunderbolt technology-enabled devices in a daisy-chain of easily
accessible data and devices. This is especially useful working with large files or when engaging
in audio/video editing.
TM
TM
TM
© 2013 Belkin International, Inc. All rights reserved. All trade names are registered
trademarks of respective manufacturers listed. FireWire is a trademark of Apple
Inc., registered in the U.S. and other countries. Thunderbolt and the Thunderbolt
logo are trademarks of Intel Corporation in the U.S. and/or other countries.
12PB046
TM
TM
belkin.com
MR18586_CORE_Thunderbolt_Cheatsheet_A4_UK_FN
