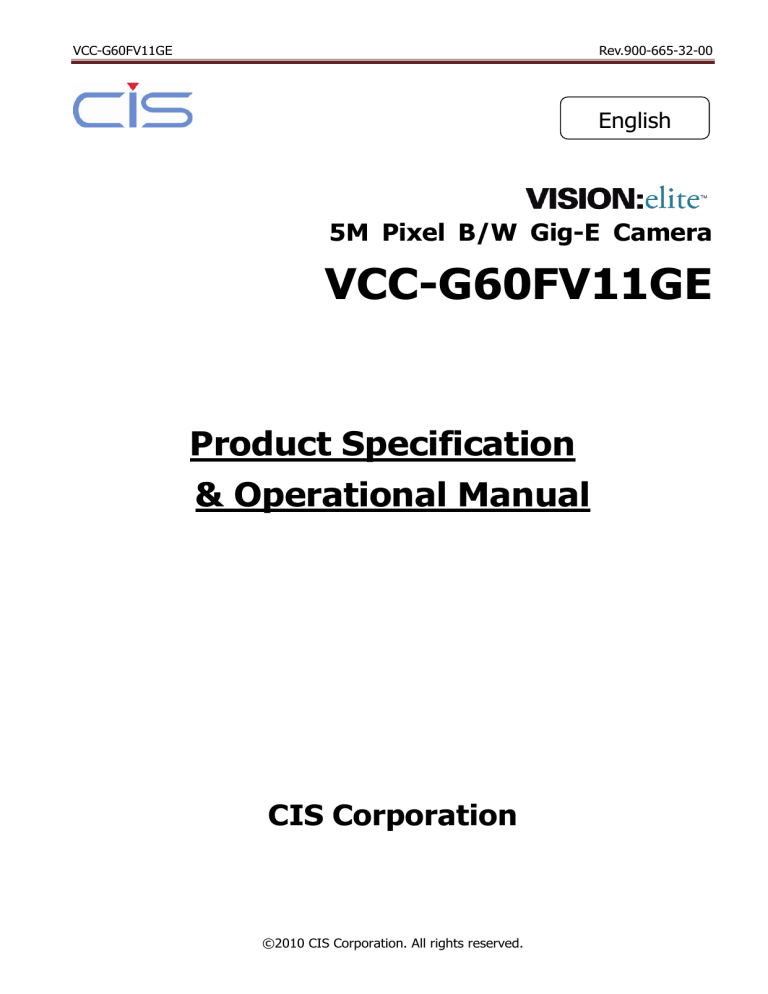

5M Pixel B/W Gig-E Camera
VCC-G60FV11GE
Product Specification
& Operational Manual
CIS Corporation
©2010 CIS Corporation. All rights reserved.
VCC-G60FV11GE
Rev.900-665-32-00
Table of Contents
1. Scope of Application.......................................................................................................................... 3
2. Handling Precautions ........................................................................................................................ 3
3. Product Outline................................................................................................................................. 4
4. Specification ..................................................................................................................................... 5
4.1. General Specification .................................................................................................................. 5
4.2. Camera Output Signal Specification.............................................................................................. 7
4.3. CCD Spectral Response (Representative Value) ............................................................................. 8
4.4. Image output format (Coyote Application Setting) ......................................................................... 8
5. Function Settings .............................................................................................................................. 9
6. External Connector Pin Assignment ...................................................................................................11
6.1. 12 pins Circular Connector HR10-10R-12PA (HIROSE) ..................................................................11
6.2. RJ-45 Gigabit Ethernet Connector MOD-YSJ88DA03C-CN+ (HONDA TSUSHIN KOGYO CO., LTD) .....12
7. Timing Chart....................................................................................................................................13
7.1. Horizontal Synchronous Signals Timing ........................................................................................13
7.2. Full Frame Scan Mode Timing .....................................................................................................13
7.3. Standard Trigger Mode Timing ....................................................................................................14
7.4. Pulse Width Trigger Timing .........................................................................................................15
8. Partial Scan Mode Details .................................................................................................................16
9. Remote Interface Function ...............................................................................................................17
10. Initial Settings ...............................................................................................................................18
11. CCD Optical Axis Accuracy ..............................................................................................................19
12. Dimensions....................................................................................................................................20
13. Cases for Indemnity (Limited Warranty) ...........................................................................................22
14. CCD Pixel Defect ............................................................................................................................23
15. Product Support .............................................................................................................................23
©2010 CIS Corporation. All rights reserved.
2
VCC-G60FV11GE
1.
Rev.900-665-32-00
Scope of Application
This is to describe VCC-G60FV11GE, 5M pixels Gig-E B/W CCD Camera.
All specifications contained herein
are subject to change without prior notice. Reproduction in whole or in part is prohibited.
2.
Handling Precautions
The camera must not be used for any nuclear equipments or aerospace equipments with which mechanical
failure or malfunction could result in serious bodily injury or loss of human life.
Our warranty does not apply
to damages or defects caused by irregular and/or abnormal use of the product.
Please observe all warnings and cautions stated below.
Our warranty does not apply to damages or malfunctions caused by neglecting these precautions.

Do not use or store the camera in the following extreme conditions:
 Extremely dusty or humid places.
 Extremely hot or cold places (operating temperature –5℃ to +40℃)
 Close to generators of powerful electromagnetic radiation such as radio or TV transmitters.
 Places subject to fluorescent light reflections.
 Places subject to unstable (flickering, etc.) lighting conditions.
 Places subject to strong vibration.

Remove dust or dirt on the surface of the lens with a blower.

Do not apply excessive force or static electricity that could damage the camera.

Do not shoot direct images that are extremely bright (e.g., light source, sun, etc.), and when camera
is not in use, put the lens cap on.

Follow the instructions in Chapter 6, “External connector pin assignment” for connecting the camera.
Improper connection may cause damages not only to the camera but also to the connected devices.
 Confirm the mutual ground potential carefully and then connect the camera to monitors or computers.
AC leaks from the connected devices may cause damages or destroy the camera.
 Do not apply excessive voltage.(Use only the specified voltage.)
Unstable or improper power supply
voltage may cause damages or malfunction of the camera.
 The voltage ripple of camera power DC +12V±10% shall be within ±50mV.
Improper power
supply voltage may cause noises on the video signals.

The rising time of camera power supply voltage shall be less than +10V, Max 60ms.
avoide noises like chattering when rising.
©2010 CIS Corporation. All rights reserved.
3
Please
VCC-G60FV11GE

Rev.900-665-32-00
2ch output, separated into right and left, CCD is utilized for VCC-G60FV11GE.
Image signals for
right half screen and left half screen are output via each independent circuit.
Therefore, differences
between right screen and left screen could be seen depending on the usage conditions (shooting
conditions /temeperature conditions and so on). CIS trys its best to adjust this differences but please
be noted it would not be perfect.
12
Power Supply Voltage [V]
11
10
9
8
7
10
20
30
40
50
60
70
Voltage Rising Time [ ms ]
In case of abnormal operation, contact the distributor from whom you purchased the product.
3.
Product Outline
VCC-G60FV11GE is a Gigabit Ethernet interfaced, high-resolution industrial black and white video camera
module utilizing a 2/3 type PS IT CCD.
sensitivity and high resolution.
5M pixels CCD image sensor with on-chip micro-lenses realizes high
At Full Frame Scan Mode, entire pixels can be read out within approx. 1/15s.
Features
□
High speed communication, maximum 108MB/s.
(Comform to 1000BASE-T)
□
The maximum transmission distance is approx. 100m with cable more than CAT5e.
□
Camera settings can be set via LAN.
□
Software trigger input via LAN or hardware trigger input via 12pin connector at rear is selectable.
□
Shutter speed can be set from 1/15sec ~ 1/30,000sec by 1H.
□
At partial scan mode, both capturing start position and capturing width can be set by 3H.
Bundled Items
□
Camera
□
iPORT Software Development Kit 2.4.1 build 921. ※
□
Gig-E Camera Control Software (CamCtlSetup.exe). ※
□
Start up manual ※
※
Please ask for the details or download it from our web.
©2010 CIS Corporation. All rights reserved.
4
VCC-G60FV11GE
4.
Rev.900-665-32-00
Specification
4.1.
General Specification
Item
Pickup device
Specification
Device Type
2/3 type Interline Transfer B/W CCD, Sony ICX625ALA
Effective Pixel Number 2456 (H) x 2058 (V)
Unit Cell Size
3.45μm (H) x 3.45μm (V)
Chip Size
9.93mm (H) x 8.70mm (V)
Videooutput frequency Pixel Clock
Sync. system
60 MHz
Horizontal Frequency
31.185 KHz
Pixel Clock: 1924CLK
Vertical Frequency
Full Frame Scan Mode: 2079 lines, approx 15.000Hz
Internal Sync. System
Video output standard Gigabit Ethernet (Comform to 1000BASE-T)
Trasferring speed: 108MB/s (max)
Resolution
2058 TV lines
Resolving power
8bit / 10bit (Note; Real time output is invalid at 10 bit output.)
Sensitivity
F 5.6 400 lx (Shutter speed 1/15s, Gain 0dB)
Minimum illumination
F 1.4 1 lx (Shutter speed 1/15s, Gain Max +18dB)
Dust or stains in
No dust or stain shall be detected on the testing screen with setting the camera
optical system
aperture at F16.
Power requirements
DC +12V ± 10% (Max voltage not to exceed +15V)
Power consumption
5.8 W (At DC +12V IN, normal mode, and full frame scan mode)
6.0W (At DC +12V IN, normal mode, and partial scan mode)
Dimension
Refer to overall dimension drawing (Clause 12)
55mm x 55mm x 60mm (excluding projection)
Mass
Approx. 190 g
Lens mount
C mount (Refer to overall dimension drawing)
Optical axis accuracy
Refer to drawing for CCD Optical Axis Accuracy (Clause 11)
Gain variable range
0~+12dB (Analog Gain; over 0dB~+6dB, Digital Gain; 0dB~+6dB)
Shutter speed
1/15s (Off) ~1/30000s
variable range
Trigger shutter mode
・Standard Trigger Mode ・Pulse Width Trigger Mode
©2010 CIS Corporation. All rights reserved.
5
VCC-G60FV11GE
Rev.900-665-32-00
Item
Specification
Safety/Quality
UL:
standards
RoHS: Conform to RoHS
CE:
Conform to UL Standard including materials and others.
EN 55022:2006 (Class A) for Emission
EN 61000-6-2:2005 for Immunity
FCC: To be applied to FCC Class A digital Device
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Vibration
Durability
Shock
Acceleration
98 m/s2 (10.0G)
Frequency
20~200 Hz
Direction
XYZ 3 directions
Testing time
120 min for each direction
No mulfunction shall be occurred with 980m/s2 (100G) for ±X,
±Y, and ±Z, 6 directions.
Temperature
(without package)
Performance guaranteed temperature: 0℃~+40℃
Camera operation guaranteed temeprature: -5℃~+45℃
※ All the specifications specified in this manual is guaranteed
under performance guaranteed temperature.
Operation environment
※All the camera functions operate normally under operation
guaranteed temperature
Storage environment
Humidity
RH 20~80% with no condensation
Temperature
-25℃ ~ +60℃
Humidity
RH 20~80% with no condensation
LAN Card
Intel PRO/1000 series
LAN Cable
MOD-YSP-A1AS-SP series (Honda Tsushin Kogyo)
Recommended System
MV series (CEI)
OS
Windows XP, Windows VISTA
Memory
Over 512 MB (over 1GB recommeded)
©2010 CIS Corporation. All rights reserved.
6
VCC-G60FV11GE
4.2.
Rev.900-665-32-00
Camera Output Signal Specification
Item
Video output
data
2456 (H) x 2058 (V)
Video out
Specification
At Full Frame Scan Mode
60MHz 2Tap output
LVAL output
LVTTL (3.3V Output)
HR10-10R-12PA
FVAL output
LVTTL (3.3V Output)
※ Output pin assignment is
Sync. Signal
DVAL output
LVTTL (3.3V Output)
set via iPort SDK.
I/O
SP (Exposure Signal)
LVTTL (3.3V Output)
refer to our VCC-G60/F60
Please
GE series startup manual,
section 5.7. Trigger Mode.
Trigger input
Polarity
POSI/NEGA
Selectable
Trigger Pulse width
Min. over 2 HD ~ Max. under 4158 HD
Hardware Trigger input
LVTTL (5.0V Tolerant)
Software Trigger input
RJ-45
White Clip Level
Digital 8bit
: FFh
Setup Level
Digital 8bit
: 08h±04h
Digital 8bit
: Under 08h for both horizontal and vertical
Video output Dark Shading
signal
(Conditions: Gain 0dB)
Leval differences
Digital 8 bit
: Under 03h (Conditions: Gain 0dB)
between right and left
5 secounds shall be waited after turning on power to get proper camera operation.
+3.3V
VCC
180Ω
220KΩ
6.6V
TTL In(a)
180Ω
TTL Out(b)
6.6V
※
HR10-10R-12PA
SN74LV125A(TI)
Vih : Vcc × 0.7(Min)
Vil : Vcc × 0.3(Max)
Voh : 2.48V(Min)
Vol : 0.44V(Max)
UDZS TE-17 6.2B
(ROHM)
※(a):0~3
(b):0~2
12 pins circular connector at rear GPIO interface
©2010 CIS Corporation. All rights reserved.
7
VCC-G60FV11GE
4.3.
Rev.900-665-32-00
CCD Spectral Response (Representative Value)
※ Lens charcteristics and luminous source charcteristics are not considered.
4.4. Image output format (Coyote Application Setting)
・ 2-Taps , Segmented, Dual Left + Right Inverted Output
・ Area of interest Width : 2456 Height : 2058 Offset X : 0 Offset
©2010 CIS Corporation. All rights reserved.
8
Y : 12
VCC-G60FV11GE
Rev.900-665-32-00
5. Function Settings
Camera functions can be set with serial communications.
Function
Gain
E-Shutter
Trigger Mode
Address
001
002
004
Data
0:
0 dB: Analog Fixed Gain
1:
+3 dB: Analog Fixed Gain
2:
+6 dB: Analog Fixed Gain
3:
+12 dB: Analog Gain (+6dB) + Digital Gain (+6dB)
4:
Manual Gain (Refer to Address 005, 006, 007, and 008)
0:
1/15s(Off)
1:
1/30s
2:
1/60s
3:
1/90s
4:
1/120s
5:
1/150s
6:
1/200s
7:
1/250s
8:
1/500s
9:
1/750s
10:
1/1000s
11:
1/2000s
12:
1/5000s
13:
1/10000s
14:
1/15000s
15:
1/30000s
16:
Manual Shutter (Refer to Address 009 & 010)
0:
Normal Mode (Trigger Mode Off)
1:
Standard Trigger Mode (Shutter speed can be set with address 002.)
2:
Pulse Width Trigger Mode (Shutter speed can be set with trigger pulse width.)
Manual Analog Gain (Right)
005&006 0~512:
Manual Analog Gain (Left)
007&008 0~512:
0: 0dB~512: over +12dB (Log Linear)
※ Set the address 001 data to 004.
0: 0dB~512: over +12dB (Log Linear)
※ Set the address 001 data to 004.
1/15s (Off)から1/36058s
※ Set the address 002 data to 016.
Manual Shutter Control
009&010 0~2078: Address 009 MSB and address 010 LSB makes total 16 bit.
Shutter speed = (2078-(009&010)) x 32.07μs + 27.73μs
Max data = 2078
Trigger Polarity
011
Output Data Select
013
Gamma Mode
014
Partial Scan Mode
015
0:
Positive Input
1:
Negative Input
0:
8bit Output Data
1:
10bit Output Data
0:
Gamma Off (1.0)
1:
Gamma On
0:
Full Frame Scan Mode
1:
Partial Scan Mode
©2010 CIS Corporation. All rights reserved.
9
VCC-G60FV11GE
Function
Rev.900-665-32-00
Address
Data
Set the address 015 data to 001.
Partial Scan Start Position
016&017 0~685:
Address 016 MSB and address 017 LSB makes total 16 bit.
Start Position: 3 H/step Min Data: 0 (0H)/Max Data : 685 (2055 H)
Start Position (016&017)+ Effective Line (019&020) <= 685
Set the address 015 data to 001.
Partial Scan Effective Line
019&020 0~684:
Address 019 MSB and address 020 LSB makes total 16 bit.
Effective Line: 3 H /step Min Data: 0 (3 H)/Max Data : 685 (2058 H)
Start Position (016&017)+ Effective Line (019&020) <= 685
Partial Scan Total Line
021&022 0~2078:
Manual Digital Gain (Right)
126&127
Manual Digital Gain (Left)
128&129
Data Save
255
256
512:
256
512:
Read Only
Total line number at Partial Scan Mode or Full Frame Scan Mode minus 1 is set
~ 256: x1(0dB)~512: x2(+6dB)
※ Set address 001 data to 004.
~ 256: x1(0dB)~512: x2(+6dB)
※ Set address 001 data to 004.
Input 083 or 053 to save the data in EEP-ROM.
Note: When setting the data with 2 Byte, High Byte shall be set first, then Low Byte to the next.
The camera rewrites the internal resister when receiving Low Byte.
©2010 CIS Corporation. All rights reserved.
10
VCC-G60FV11GE
6.
Rev.900-665-32-00
External Connector Pin Assignment
6.1. 12 pins Circular Connector HR10-10R-12PA (HIROSE)
Pin
No.
1
Signals which can be controlled by GigE
Camera Control Software
GND
2
Power In DC +12V
3
TTL In3
(LVTTL Input 5V Tolerant)
TTL Out2
(LVTTL 3.3V Output)
GND
Trigger Input
Trigger Input
11
TTL In2
(LVTTL input 5V Tolerant)
TTL Out1
(LVTTL 3.3V Output)
TTL In1
(LVTTL input 5V Tolerant)
TTL Out0
(LVTTL 3.3V Output)
TTL In0
(LVTTL Input 5V Tolerant)
NC
12
NC
4
5
6
7
8
9
10
LVAL, FVAL, DVAL ,SP(Exposure)
LVAL, FVAL, DVAL ,SP(Exposure)
Output
Output
Trigger Input
LVAL, FVAL, DVAL ,SP(Exposure)
Output
Trigger Input
TTL In(a) a:0~3・・・Trigger Input etc.
TTL Out(b) b:0~2・・・LVAL, FVAL, DVAL, SP, Pulse Generator etc.
※ Pin assignment and functions can be set arbitrarily via iPORT software.
Please refer to iPORT.Software.Coyote.pdf
in¥Program Files¥Pleora Technologies Inc¥iPORT
Software¥Documentation.
©2010 CIS Corporation. All rights reserved.
11
VCC-G60FV11GE
6.2.
Rev.900-665-32-00
RJ-45 Gigabit Ethernet Connector MOD-YSJ88DA03C-CN+ (HONDA TSUSHIN KOGYO CO., LTD)
LINK(Green LED)
LINK LED:
ACT LED:
ACT( Yellow LED)
Lighting-off
・・・Unconnected to LAN
Lighting-on
・・・Connected to LAN
Blinking
・・・Transmitting the data
Lighting-off
・・・Unconnected or connected with 10Mbps/100Mbps
Lighting-on
・・・Connected with 1000Mbps
©2010 CIS Corporation. All rights reserved.
12
VCC-G60FV11GE
7.
Rev.900-665-32-00
Timing Chart
7.1.
Horizontal Synchronous Signals Timing
1924 CLK
Video Output
1228 CLK
LVAL Output
696 CLK
DVAL Output
696 CLK
FVAL Output
1 CLK
CLK =60MHz
2 Tap Output
7.2.
Full Frame Scan Mode Timing
Video Output
2058 H
21 H
2058 H
(CCD Read Out Signal)
2075 2076 2077 2078 2079
1
2
3
4
5
6
7
8
9
10
11
12
21
22
23
LVAL Output
DVAL Output
FVAL Output
9H
12 H
Total = 2079H
©2010 CIS Corporation. All rights reserved.
13
24
VCC-G60FV11GE
7.3.
Rev.900-665-32-00
Standard Trigger Mode Timing
□ Trigger operation is CLK sync, V-Sync Reset.
Delay time, from detecting the trigger edge to the start of exposure, is 1.40μs at RAW mode.
□ Trigger input can be accepted even when the camera is outputting video signals.
However, a shutter
timing, to start the next video output before completion of transferring video output for the prior signals,
can not be worked.
To input trigger signals when the camera is outputting video signals for the prior
signals, it shall be synchronized with the down edge of camera LVAL output.
□ Trigger input during the execution of exposure (exposure time) shall be ignored.
(Refer to the “G” below.)
TTL IN(a)
(Trigger Input)
2058H
12H
Video Output
1
9
LVAL Output
(CCD Read
Out Signal)
22
DVAL Output
2079
FVAL Output
2070H
CLK60MHz
TTL IN(a)
a
(Trigger Input)
b
1.40μ s
nHD × 32.07μ s+27.73μ s
(Sub Pulse)
3
(CCD Read Out Signal)
81
※(a):0~3
CLK CLK
a
SP Output
Delay(Fixed)
(Exposure Signal)
b
Exposure Time
Standard Trigger Mode
TTL IN(a)
(Trigger Input)
Trigger Invalid
(E)
(F)
✖
(G)
(Exposure Time)
✖
SP Output
(Exposure Signal)
Video Output
(F)
Exposure Time (Register Set Value)
Exposure Time (Register Set Value)
(E)
(B)
DVAL Output
©2010 CIS Corporation. All rights reserved.
14
(B)
(F)
VCC-G60FV11GE
Rev.900-665-32-00
7.4. Pulse Width Trigger Timing
□ Trigger operation is CLK sync, V-Sync Reset.
Delay time, from detecting the trigger edge to the start of exposure, is 1.40μs.
Delay time, from
detecting the trigger edge to completion of exposure, is 29.13μs.
□ Trigger input can be accepted even when the camera is outputting video signals. However, a shutter
timing, to start the next video output before completion of transferring video output for the prior signals,
can not be worked.
Please refer to the “C” below.
To input trigger signals when the camera is
outputting video signals for the prior signals, it shall be synchronized with the down edge of camera LVAL
output.
TTL IN(a)
(Trigger Input)
12H
2058H
Video Output
1
9
LVAL Output
(CCD Read
Out Signal)
22
DVAL Output
2079
FVAL Output
2070H
CLK60MHz
a 1.40μ s
b 29.13μ s
TTL IN(a)
(Trigger Input)
(Sub Pulse)
※(a):0~3
3 81
(CCD Read Out Signal)
CLK CLK
a
1216 532
Delay(Fixed)
SP Output
CLK CLK
b
Delay(Fixed)
(Exposure Signal)
Exposure Time
Pulse Width Trigger Mode
Trigger Invalid
✖
TTL IN(a)
(Trigger Input)
(A)
(B)
(C)
SP Output
(D)
(Exposure Time)
(Exposure Signal)
(B)
Exposure Time
(Pulse Width)
Exposure Time
(Pulse Width)
Exposure Time
(Pulse Width)
(B)
(Video Output (C))
✖
Video Output
(A)
(B)
DVAL Output
©2010 CIS Corporation. All rights reserved.
15
(D)
VCC-G60FV11GE
8.
Rev.900-665-32-00
Partial Scan Mode Details
Capturing start position and capturing width can be set by 3H via LAN.
2079 H
2058 H
Video Output
(Normal Scan)
12 H
LVAL Output
(Normal Scan)
9H
VIDEO Output
(Partial Scan)
High Speed
Transmit Term
Y Offset
12H + Starting Position
(Address016&017)
LVAL Output
(Partial Scan)
High Speed
Transmit Term
Effective Line
(Address 019&020)×3+3H
9H
Total Line(Address 021&022) + 1H
Reading out position register (Address 016 & 017): 0(0H) ~ 685(2055H) 3H/step
Effective line register (Address 019 & 020): 0(3H) ~ 685(2058H) 3H/step
Total line register (Address 021 & 022): 706Lines + (Effective line register × 2) + 2 (Read Only)
Note: Reading out position and effective line shall meet the following condition.
Reading out position register + Effective line register = < 685
Otherwise, the value, 685 – reading out position register, will be set to the effective line register.
<Example 1> Conditions: Reading out position register (Address 016 & 017) = 000
Effective line register
Effective Lines
Total Lines register
(Address 019&020)
Frame rate
+ 1H
0
3H
709 H
44 fps
・
・
・
・
159
480 H
1027 H
30 fps
・
・
・
・
255
768 H
1219 H
26 fps
・
・
・
・
341
1026 H
1391 H
22 fps
・
・
・
・
399
1200 H
1507 H
21 fps
・
・
・
・
685
2058 H
2079 H
15 fps
©2010 CIS Corporation. All rights reserved.
16
VCC-G60FV11GE
Rev.900-665-32-00
9. Remote Interface Function
Through LAN, the camera can be controlled.
(1)
The settings for RS-232C
Baud rate
Data
Stop bit
Parity
XOn/XOff
(2)
:
:
:
:
:
9600bps
8bit
1bit
None
Not controlled
Control code
・ The total control code is 14 bits, which conforms to ASCII code.
・ The control code consists of camera No. process code, remote controller address, remote
controller data, and CR. Execute Read/Write through PC, and the camera will reply the data.
1
2
3
4
Camera No.
5
6
7th Byte
Process code
8
9
10
Remote controller
11
12
13
14
Remote controller data
CR
000~255
0 Dh
address
000000: fixed
“R” Read mode
Please refer to the
“W” Write mode
address table of
“C” Camera mode
Section 5. Function
Settings.
Camera No. is fixed with 6 bite numerical strings, “000000”.
Process code
Input any one of R, W, or C to the process code.
R (read mode) is to read the data of remote controller address.
Please be noted to set any dummy data (000~255) to 11th ~13th, since a command shall
consists of 14 bytes.
W (write mode) is to write the data to the remote controller address.
Please be noted that the data cannot be saved into EEPROM of the camera.
(Reboot the camera, and the data is reset to the initial setting.)
To save the data into EEPROM, please refer to Section 5. Function Settings.
C is the code to send the data back from the camera.
Note: Do not set code C when sending the data from PC side.
©2010 CIS Corporation. All rights reserved.
17
VCC-G60FV11GE
Rev.900-665-32-00
Remote controller address
Note: Do not write the data into the address other than specified, since it may cause
the damages or malfunction of the camera.
Remote controller data
Set the decimal number (000~255) for the remote controller data. Please be noted to set any
dummy data at read control mode.
CR
Be sure to input “CR” to confirm the end of the command.
※ Note: When setting the data with 2 Byte, High Byte shall be set first, then Low Byte to the next.
The camera rewrites the internal resister when receiving Low Byte.
10. Initial Settings
Function
Address
Data
Gain
001
0: 0dB
E-Shutter
002
0: 1/15s (Off)
Trigger Mode
004
0: Normal Mode
Trigger Polarity
011
0: Positive Input
Output Data Select
013
0: 8 bit Output Data
Partial Scan Mode
015
0: Full Frame Scan Mode
Partial Scan Total Lines
021 & 022
(Trigger Mode Off)
2078: Read Only
©2010 CIS Corporation. All rights reserved.
18
VCC-G60FV11GE
Rev.900-665-32-00
11. CCD Optical Axis Accuracy
55
11.1
60
27.5
±0.3
Under ±0.5°
(*)
55
90
°±
0.
2°
Inclination of optical
axis to datum plane B.
Inclination of optical
axis to datum plane A.
Datum Plane
A
Datum Plane B
The center of effective pixels
shall be within f 0.6? ?
to the center of lens mount.
5°
?±0.
Inclination of effective pixels ?
to datum plane A shall be
Datum plane A
?? ±0.5°
*)Dimensions from datum plane A to the center of lens mount.
910-003-00-00
(Unit:mm)
©2010 CIS Corporation. All rights reserved.
19
6.3
VCC-G60FV11GE
Rev.900-665-32-00
12. Dimensions
55
28±0.1
4-M3
Depth 4
11.1
60
6.3
GigE
un
Mo
0
F 29 -0.05
C
ACT
LINK
Under R1
52
4.5±0.1
4-M3
Depth 4
Product Name
Label Position
35±0.1
55
28±0.1
5 MEGA PIXEL
)
t (*
*1) C Mount screws comply with ANSI/ASME B1.1, 1-32UN(2B).
*2) Screw length from C mount lens surface shall be under 6mm. And protruding portion shall be
lesss than 10mm.
999-500-00-00(1/2)
(Unit:mm)
©2010 CIS Corporation. All rights reserved.
20
DC IN
Rev.900-665-32-00
(17)
(15)
VCC-G60FV11GE
(51)
(31)
(19)
(23)
5 MEGA PIXEL
MOD-YSP-A1AS-SP()+
(HONDA TSUSHIN KOGYO)
Cable Reference Drawing
999-500-00-00(2/2)
(Unit:mm)
©2010 CIS Corporation. All rights reserved.
21
CCXC-12PxxN
(SONY)
VCC-G60FV11GE
Rev.900-665-32-00
13. Cases for Indemnity (Limited Warranty)
We shall be exempted from taking responsibility and held harmless for damage or losses incurred by the user
in the following cases.
 In case damage or losses are caused by fire, earthquake, or other acts of God, acts by third party,
deliberate or accidental misuse by the user, or use under extreme operating conditions.
 In case indirect, additional, consequential damages (loss of business interests, suspension of
business activities) are incurred as result of malfunction or non-function of the equipment, we
shall be exempted from responsibility for such damages.
 In case damage or losses are caused by failure to observe the information contained in the
instructions in this product specification & operation manual.
 In case damage or losses are caused by use contrary to the instructions in this product specification
& operation manual.
 In case damage or losses are caused by malfunction or other problems resulting from use of
equipment or software that is not specified.
 In case damage or losses are caused by repair or modification conducted by the customer or any
unauthorized third party (such as an unauthorized service representative).
 Expenses we bear on this product shall be limited to the individual price of the product.
©2010 CIS Corporation. All rights reserved.
22
VCC-G60FV11GE
Rev.900-665-32-00
14. CCD Pixel Defect
CIS compensates the noticeable CCD pixel defects found at the shipping inspection prior to our shipment.
On very rare occasions, however, CCD pixel defects might be noted with time of usage of the products.
Cause of the CCD pixel defects is the characteristic phenomenon of CCD itself and CIS is exempted from
taking any responsibilities for them.
Should you have any questions on CCD pixel defects compensation, please contact us.
15. Product Support
When defects or malfunction of our products occur, and if you would like us to investigate on the cause
and repair, please contact your distributors you purchased from to consult and coordinate.
©2010 CIS Corporation. All rights reserved.
23
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
