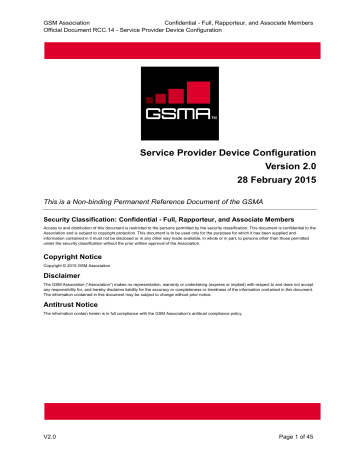

GSM Association
Confidential - Full, Rapporteur, and Associate Members
Official Document RCC.14 - Service Provider Device Configuration
Service Provider Device Configuration
Version 2.0
28 February 2015
This is a Non-binding Permanent Reference Document of the GSMA
Security Classification: Confidential - Full, Rapporteur, and Associate Members
Access to and distribution of this document is restricted to the persons permitted by the security classification. This document is confidential to the
Association and is subject to copyright protection. This document is to be used only for the purposes for which it has been supplied and
information contained in it must not be disclosed or in any other way made available, in whole or in part, to persons other than those permitted
under the security classification without the prior written approval of the Association.
Copyright Notice
Copyright © 2015 GSM Association
Disclaimer
The GSM Association (“Association”) makes no representation, warranty or undertaking (express or implied) with respect to and does not accept
any responsibility for, and hereby disclaims liability for the accuracy or completeness or timeliness of the information contained in this document.
The information contained in this document may be subject to change without prior notice.
Antitrust Notice
The information contain herein is in full compliance with the GSM Association’s antitrust compliance policy.
V2.0
Page 1 of 45
GSM Association
Confidential - Full, Rapporteur, and Associate Members
Official Document RCC.14 - Service Provider Device Configuration
Table of Contents
1
2
Introduction
1.1 Overview
1.2 Scope
1.3 Abbreviations
1.4 References
1.5 Conventions
HTTP Configuration
3
2.1 Overview
2.2 Configuration over cellular networks
2.2.1
Initial Request
2.2.2
Configuration server response
2.2.3
User Messages
2.2.4
Use Case Overview
2.2.5
Security considerations
2.3 HTTP(S) based client configuration mechanism over non-3GPP access
2.3.1
Overview
2.3.2
Non-cellular configuration
2.3.3
SMS format to receive the OTP value
2.3.4
Use cases review
2.3.5
Security considerations
2.4 HTTP(S) based client configuration mechanism with GBA Authentication
2.4.1
Overview
2.4.2
Use Case review
2.5 Configuration of additional devices sharing the same identity
2.5.1
First-time configuration
2.5.2
Error handling
2.5.3
Subsequent configuration attempts and life cycle
2.5.4
Error handling
2.5.5
Use cases review
2.5.6
Security considerations
2.6 Configuration of non-Cellular devices with a dedicated identity
2.6.1
Subsequent configuration attempts and life cycle
2.6.2
Error handling
Network requested configuration request
3.1 First time configuration initiated via SMS
3.2 Reconfiguration initiated via SMS
3.3 Interaction with the user during the network initiated reconfiguration
4 Configuration document formatting
4.1 Configuration Data
4.2 HTTP configuration XML structure
4.2.1
Configuration storage on the client
Annex A
Document Management
V2.0
4
4
4
4
5
6
6
6
7
9
11
13
15
19
20
20
21
26
27
29
29
29
29
32
32
35
36
36
37
37
37
40
40
41
41
42
42
43
43
43
44
45
Page 2 of 45
GSM Association
Confidential - Full, Rapporteur, and Associate Members
Official Document RCC.14 - Service Provider Device Configuration
A.1
A.2
V2.0
Document History
Other Information
45
45
Page 3 of 45
GSM Association
Confidential - Full, Rapporteur, and Associate Members
Official Document RCC.14 - Service Provider Device Configuration
1 Introduction
1.1
Overview
This document describes an Over The Air (OTA) mechanism that allows a Service Provider
to provision mobile and non-mobile devices with the necessary configurations to use their
services. It provides an alternative to the Open Mobile Alliance’s (OMA) Device Management
(DM) approach. For transport, the mechanism mainly relies on the Hyper-Text Transfer
Protocol (HTTP).
This configuration can be initiated both from the device and from the network. It allows
configuration both over Service Provider controlled access networks (e.g. cellular) and nonService Provider controlled networks (e.g. a 3rd party provided WLAN [Wireless Local Area
Network]). It also allows for the provision of messages from the Service Provider to the user
potentially requiring acceptance before the provided configuration can be used.
1.2
Scope
This document covers both the device and network aspects of the configuration. It only
describes the generic parts of the configuration. Service specific aspects need to be
described in documents relating to that service (for example PRD [Permanent Reference
Document] RCC.07 for RCS [Rich Communication Services] based services). It only covers
the UNI (User-Network Interface) aspects and does not deal with the internal network and
device aspects of the provisioning.
1.3
Abbreviations
Term
Description
AKA
Authentication and Key Agreement
APN
Access Point Name
AuC
Authentication Centre
BSF
Bootstrapping Server Function
B-TID
Bootstrapping Transaction Identifier
CA
Certification Authority
DM
Device Management
DNS
Domain Name System
GAA
Generic Authentication Architecture
GBA
Generic Bootstrapping Architecture
HPLMN
Home Public Land Mobile Network
HTTP
Hyper-Text Transfer Protocol
HTTPS
Hyper-Text Transfer Protocol Secure
IMEI
International Mobile Station Equipment Identity
IMPI
Internet Protocol Multimedia Subsystem Private Identity
IMS
Internet Protocol Multimedia Subsystem
IMSI
International Mobile Subscriber Identity
V2.0
Page 4 of 45
GSM Association
Confidential - Full, Rapporteur, and Associate Members
Official Document RCC.14 - Service Provider Device Configuration
Term
Description
IP
Internet Protocol
MCC
Mobile Country Code
MNC
Mobile Network Code
MSISDN
Mobile Subscriber Integrated Services Digital Network Number
OMA
Open Mobile Alliance
OMA-CP
Open Mobile Alliance Client Provisioning
OMA-DM
Open Mobile Alliance Device Management
OTA
Over The Air
OTP
One Time Password
PC
Personal Computer
PRD
Permanent Reference Document
PS
Packet Switched
RADIUS
Remote Authentication Dial In User Service
RCS
Rich Communication Services
SIM
Subscriber Identity Module
SIP
Session Initiation Protocol
SMS
Short Message Service
UCS2
2-byte Universal Character Set
UDH
User Data Header
UI
User Interface
UNI
User-Network Interface
URI
Uniform Resource Identifier
URL
Uniform Resource Locator
UX
User Experience
Wi-Fi
Trademark of Industry Consortium "Wi-Fi Alliance" used as synonym for WLAN
(Wireless Local Area Network)
WLAN
Wireless Local Area Network
XML
Extensible Markup Language
1.4
Ref
[1]
[2]
[3]
V2.0
References
Doc Number
[3GPP TS
23.003]
[3GPP TS
23.040]
[3GPP TS
24.109]
Title
3GPP TS 23.003 Release 10, 3rd Generation Partnership Project;
Numbering, addressing and identification
http://www.3gpp.org
3GPP TS 23.040 Release 10, 3rd Generation Partnership Project;
Technical realization of the Short Message Service (SMS)
http://www.3gpp.org
3GPP TS 24.109 Release 10, 3rd Generation Partnership Project;
Bootstrapping interface (Ub) and network application function interface
(Ua); Protocol details
Page 5 of 45
GSM Association
Confidential - Full, Rapporteur, and Associate Members
Official Document RCC.14 - Service Provider Device Configuration
Ref
Doc Number
Title
http://www.3gpp.org
[4]
[3GPP TS
33.220]
3GPP TS 33.220 Release 10, 3rd Generation Partnership Project;
Generic Authentication Architecture (GAA);Generic Bootstrapping
Architecture (GBA)
http://www.3gpp.org
[5]
[PRD-IR.67]
GSMA PRD IR.67 - “DNS/ENUM Guidelines for Service Providers &
GRX/IPX Providers” Version 8.0
22 November 2012
http://www.gsma.com/
[6]
[PRD-RCC.15]
GSMA PRD RCC.15 IMS Device Configuration and Supporting
Services, Version 1.0, xx October 2014
http://www.gsma.com
[7]
[RFC2119]
[8]
[RFC3310]
“Key words for use in RFCs to Indicate Requirement Levels”, S.
Bradner, March 1997. Available at http://www.ietf.org/rfc/rfc2119.txt
Hypertext Transfer Protocol (HTTP) Digest Authentication Using
Authentication and Key Agreement (AKA): Generic Syntax IETF RFC
http://tools.ietf.org/html/rfc3310
[9]
[RFC3986]
Uniform Resource Identifier (URI): Generic Syntax IETF RFC
http://tools.ietf.org/html/rfc3986
Provisioning Content, Approved Version 1.1 – 28 Jul 2009
[10]
[OMA CP Cont]
OMA-WAP-TS-ProvCont-V1_1-20090728-A
http://www.openmobilealliance.com
1.5
Conventions
“The key words “must”, “must not”, “required”, “shall”, “shall not”, “should”, “should not”,
“recommended”, “may”, and “optional” in this document are to be interpreted as described in
[RFC2119].”
2 HTTP Configuration
2.1
Overview
This mechanism is based on HTTP(S) (Hyper-Text Transfer Protocol Secure) requests sent
by a device to a Service Provider’s configuration server in order to receive the configuration
data.
The HTTP(S) configuration requests may be triggered in two different ways:


Client-triggered HTTP(S) configuration if a Service Provider supporting this
mechanism is detected by the client (e.g. SIM-based or by customization).
Network-triggered HTTP(S) configuration if a Service Provider is not detected by the
client. It is used to protect against negative charging impacts in networks that do not
support this type of configuration.
Client behaviour is as follows:
V2.0
Page 6 of 45
GSM Association
Confidential - Full, Rapporteur, and Associate Members
Official Document RCC.14 - Service Provider Device Configuration

If client-triggered configuration applies: when a device boots up (or when the
Subscriber Identity Module [SIM] is swapped without rebooting the device [hot swap])
and no valid configuration is available for the used identity, the device sends an initial
HTTP request toward the Service Provider’s configuration server to verify the current
configuration settings’ version.
o If a non-embedded mobile client or a Personal Computer (PC) client
without a SIM has no valid configuration for the used identity, this check
should be performed each time the client is started.

After receiving a Short Message Service (SMS) trigger as described in section ‎3,
there is an HTTP request sent to the Service Provider’s configuration server to verify
the current configuration settings’ version.
o If the version available on the client does not match the version on the
configuration server, the configuration server will include in its response to
the client’s HTTP request a configuration document in Extensible Markup
Language (XML) format containing all configuration settings.
NOTE1:


The configuration document is covered in detail in section ‎4 and is based on
the OMA Client Provisioning (OMA-CP) syntax (see [OMA CP Cont]).
In situations where it is necessary to force a reconfiguration of a device (e.g. SIM
card swap), the device resets the version value of its on-hand configuration settings
to 0. The server configuration shall therefore always provide a version value greater
than 0.
In scenarios where the Service Provider desires that for all functionality on a
device/client that is subject to configuration the device returns to its default state, the
HTTP response provided by the configuration server will carry an XML configuration
response that carries no configuration parameters and sets the version of the
configuration settings to 0, -1 or -2. That default state will be service dependent and
may be to simply disable the service. That will be defined in the service specific
documents for each service supporting this mechanism.
The details on the exchanges (e.g. the format employed for each requests) are provided in
sections ‎2.2.1, ‎2.2.2, ‎2.2.3, ‎2.2.4, ‎2.2.5 and ‎2.5 of this specification.
2.2
Configuration over cellular networks
This section describes configuration of a device carrying the SIM associated with the identity
to be used for the configured services over cellular networks and other Service Provider
controlled access networks that allow identifying the user’s identity based on the access.
The section also introduces the general principles of the HTTP based configuration
mechanism that are applicable for all access networks.
This HTTP configuration mechanism operates in these circumstances under the following
assumptions:
As a security measure and to ensure that a Service Provider is able to implement the
necessary procedures to resolve a user’s Mobile Subscriber Integrated Services Digital
Network Number (MSISDN) (that is Remote Authentication Dial In User Service (RADIUS)
V2.0
Page 7 of 45
GSM Association
Confidential - Full, Rapporteur, and Associate Members
Official Document RCC.14 - Service Provider Device Configuration
requests, header enrichment and so on), the configuration of devices/clients carrying the
SIM associated to a user’s main identity can only occur if the device is connected using a
mobile PS1 data network or by using the procedure in section 2.3.3.3 over other networks
and, therefore, the device should have the necessary Access Point Name (APN)
configuration available to perform the connection.
NOTE:

For other devices/clients the mechanisms defined in section ‎2.5 are used.
As some of the mechanisms presented in the previous bullet require an initial HTTP
request, an HTTP request is performed first:
o The device/client shall send an HTTP GET request towards the
configuration server’s qualified domain name. In this initial HTTP GET
request the GET parameters outlined in ‎Table 1 should not be included.
o As a result of successfully receiving and processing this request, the
configuration server returns an HTTP 200 OK response.
o Upon receiving that HTTP 200 OK response, the device shall perform a
second GET request towards the same Uniform Resource Locator (URL)
(i.e. the configuration server’s qualified domain name) using the HTTPS
protocol.
o The configuration server should be able to correlate both HTTP and
HTTPS requests from the same device. To achieve this, the configuration
server shall provide a cookie as part of the response to the initial HTTP
request (Set-Cookie header). The configuration server will expect the client
to provide that cookie in the subsequent HTTPS request (in the Cookie
header).

From a User Experience (UX) perspective, the customer is not aware of the autoconfiguration process (it is a background process with no pop-ups, alerts or
notifications shown to the user on the screen of the device) unless the provisioned
data includes a message for the end user.
1
Please note that if a device does not have a Packet Switched (PS) connection, the autoconfiguration can also happen over Wi-Fi. The decision to implement this mechanism is up to the
discretion of each Service Provider.
V2.0
Page 8 of 45
GSM Association
Confidential - Full, Rapporteur, and Associate Members
Official Document RCC.14 - Service Provider Device Configuration
2.2.1
Initial Request
Figure 1: HTTP configuration: Initial requests
Parameters: The following information is included as HTTP GET parameters using a query
string:
Parameter
vers
Description
This is either -3, -2, -1, 0 or a positive integer.
0 indicates that the configuration must be
updated (e.g. the configuration is damaged;
non-existent or an update is needed following
a SIM change). A positive value indicates the
version of the static parameters (those which
are not user dependent) so the server can
evaluate whether an update is required.
-1 indicates that the device/client has provides
the default behaviour for the services that
would be configured and has disabled the
autoconfiguration query performed at boot.
This may be used by the client/device to inform
the SP that the functionality was permanently
disabled from the device.
Mandatory
Format
Y
Int (-3, -2, -1, 0
or a positive
integer)
If available, the subscriber’s IMSI (International
Mobile Subscriber Identity) shall be sent as a
parameter.
N
String
if the OS
platform
allows it, it
shall be
included
(15 digits)
String that identifies the version of this
provisioning specification supported by the
client. It shall be set to “1.0” (without the
Y
String (4 max),
Case-Sensitive
-2 Indicates that for the services to be
configured the default behaviour needs to be
provided (including the disabling of the
configuration query at boot), but a
configuration query might be triggered on user
action.
IMSI
provisioning_ve
rsion
V2.0
Page 9 of 45
GSM Association
Confidential - Full, Rapporteur, and Associate Members
Official Document RCC.14 - Service Provider Device Configuration
quotes) for clients following this specification.
terminal_vendor
String that identifies the terminal OEM.
Y
String (4 max),
Case-Sensitive
terminal_model
String that identifies the terminal model.
Y
String
(10 max), CaseSensitive
terminal_sw_ve
rsion
String that identifies the terminal software
version.
Y
IMEI
If available, the subscriber’s International
Mobile Station Equipment Identity (IMEI) shall
be sent as a parameter. Those Service
Providers that support a comprehensive device
database can ignore the terminal_X
parameters and use the IMEI instead, if it was
available to the implementation.
N
String
if the OS
platform
allows it, it
shall be
included
(15 digits)
If provided by the user, a user friendly
identification for the device may be passed
along that can be used by the network when
presenting the user with an overview of their
devices.
N, only to be
provided if
provided by
the user
String
friendly_device_
name
String
(10 max), CaseSensitive
(30 max before
escaping),
Case-Sensitive
NOTE: this parameter needs to be included
only if required for one of the services to be
configured. In which case its mandatory
character will be documented in the relevant
service specific documents.
Table 1: HTTP configuration: HTTPS request GET parameters
NOTE: a service specific document could define additional parameters to be included
Please note that in case of Service Provider-specific clients, the terminal vendor, model and
version parameters format and values should be agreed with the associated Service
Provider prior to any device or client commercialization or update.


2
The configuration server URL shall be composed based on the home Service
Provider’s MCC (Mobile Country Code) and MNC (Mobile Network Code) using a
“config” subdomain of the domain reserved for RCS services in [PRD-IR.67]2. That is:
http://config.rcs.mnc<MNC>.mcc<MCC>.pub.3gppnetwork.org
whereby <MNC> and <MCC> shall be replaced by the respective values of the home
network in decimal format and with a 2-digit MNC padded out to 3 digits by inserting a
0 at the beginning (as defined in [PRD-IR.67]).
The client shall check the MCC and the MNC in the IMSI and compose the
configuration Server URL introduced in the previous bullet depending on the Home
Public Land Mobile Network (HPLMN).
The RCS domain is used for historic reasons
V2.0
Page 10 of 45
GSM Association
Confidential - Full, Rapporteur, and Associate Members
Official Document RCC.14 - Service Provider Device Configuration

2.2.2
If a device is employed by a Service Provider that does not support this configuration
mechanism, the configuration server URL will not be resolved. In that scenario the
application shall handle it as a “client configuration invalid” scenario.
Configuration server response
Figure 2: HTTP configuration: Server response
The configuration server (in response to the HTTPS request from a device) shall first
validate the client and terminal parameters and then check if the version provided by the
client matches the latest version of the configuration available on the server.
The response shall always contain the following parameters:
1. The configuration version
2. The validity of the configuration in seconds
3. The generated TOKEN (including value and validity as illustrated in ‎Table 2).
If the version matches (i.e. no new configuration settings required), the configuration XML
document shall be empty except for the version and the validity parameters:


The version parameter shall be set to the same value X (as illustrated in ‎Table 2)
provided by the client in the HTTPS request
The validity parameter shall be reset to a server configured value Y (as illustrated
in ‎Table 2)
<?xml version="1.0"?>
<wap-provisioningdoc version="1.1">
<characteristic type="VERS">
<parm name=”version” value=”X”/>
<parm name=”validity” value=”Y”/>
</characteristic>
<characteristic type="TOKEN">
<parm name=”token” value=”Z”/>
<parm name=”validity” value=”W”/>
</characteristic>
</wap-provisioningdoc>
Table 2: HTTP configuration XML: no configuration changes required
V2.0
Page 11 of 45
GSM Association
Confidential - Full, Rapporteur, and Associate Members
Official Document RCC.14 - Service Provider Device Configuration
The token shall be stored on the device so it can be used in subsequent configuration
requests over non-3GPP access (see section 2.3.2). This value shall be removed together
with the rest of the configuration when the device or client is reset.When the client is enabled
(i.e. last received configuration had a positive value for version and validity), a change by the
user in a device setting that that would result in a different value for one of the generic or
service specific parameters shall also trigger a configuration query.
If the Service Provider chooses to temporarily revert the configured functionality on the
device/client to its default behaviour, the response shall carry an XML document containing
only the version and validity, both set to 0 as illustrated in Table 3:
<?xml version="1.0"?>
<wap-provisioningdoc version="1.1”>
<characteristic type="VERS">
<parm name=”version” value=”0”/>
<parm name=”validity” value=”0”/>
</characteristic>
</wap-provisioningdoc>
Table 3: HTTP configuration XML: reset client
If the functionality is temporarily reverted to its default behaviour on a device, the device
should perform the configuration query each time it is booted up.
If the Service Provider chooses to permanently revert the configured functionality on a
device/client to default behaviour, the configuration query performed at start-up shall be
disabled. In this case the response shall carry an XML document containing only the version
and the validity, both set to -1 as illustrated in Table 4:
<?xml version="1.0"?>
<wap-provisioningdoc version="1.1”>
<characteristic type="VERS">
<parm name=”version” value=”-1”/>
<parm name=”validity” value=”-1”/>
</characteristic>
</wap-provisioningdoc>
Table 4: HTTP configuration XML: reset client and stop configuration query
If the SIM is swapped or the device is reset, the device shall again query for configuration
settings on each start-up assuming that client-triggered HTTP(S) configuration applies.
There shall be no other way for the user to trigger a new configuration query. As described in
section ‎3.1, the configuration client shall also be re-enabled when a SMS message is
received requesting a first time configuration.
If the Service Provider chooses to revert the functionality on a device/client to default
behaviour (including the disabling configuration query performed at start-up) until there is a
User Interface (UI) dependent user action triggering a new query, the response shall carry
an XML document containing only the version and the validity, both set to -2 as illustrated
in Table 5:
V2.0
Page 12 of 45
GSM Association
Confidential - Full, Rapporteur, and Associate Members
Official Document RCC.14 - Service Provider Device Configuration
<?xml version="1.0"?>
<wap-provisioningdoc version="1.1”>
<characteristic type="VERS">
<parm name=”version” value=”-2”/>
<parm name=”validity” value=”-2”/>
</characteristic>
</wap-provisioningdoc>
Table 5: HTTP configuration XML: reset client until user input and stop configuration
query
If the SIM is swapped or the device is reset, the device shall again query for configuration
settings on each start-up assuming that client-triggered HTTP(S) configuration applies. As
described in section ‎3.1, it shall also be re-enabled when a SMS message is received
requesting a first time configuration.
If the server has available an updated configuration for the client, the server response shall
contain a configuration XML document (i.e. Content-Type of text/xml) that the client shall
parse and apply:

The XML format of this document is based on the syntax used in OMA-CP (see
section ‎4 for the details) with a new parameter to include the version, the validity and
the message section.
Server responses that differ from those already described in this section (i.e. an HTTP error)
should trigger a device/client to try and retrieve configuration settings the next time the
device starts (or the client is started). In scenarios whereby the server response consists of a
403 Forbidden error, the device/client implementation shall also remove the current
configuration (i.e. as if it had received a response with both validity and version set to 0).
2.2.3
User Messages
Optionally (that is the tag may not be present), the XML configuration document may be
used to convey a user message associated with the result of the configuration server
response. The additional XML section is displayed in Table 6:
<?xml version="1.0"?>
<wap-provisioningdoc version="1.1”>
…
<characteristic type="MSG">
<parm name=”title” value=”Example”/>
<parm name=”message” value=”Hello world”/>
<parm name=”Accept_btn” value=”1”/>
<parm name=”Reject_btn” value=”0”/>
</characteristic>
…
</wap-provisioningdoc>
Table 6: HTTP configuration: User notification/message sample
The meaning of the different parameters is described as follows:

V2.0
Title: The window title where the user message is displayed.
Page 13 of 45
GSM Association
Confidential - Full, Rapporteur, and Associate Members
Official Document RCC.14 - Service Provider Device Configuration



Message: The message that is displayed to the user. Please note the message may
contain references to HTTP addresses (websites) that need to be highlighted and
converted into links by the device/client.
Accept_btn: This indicates whether an “Accept” button is shown with the message
on the device UI. The action associated with the Accept button on the device/client is
to clear the message box.
A value of 1 indicates that an “Accept” button has to be displayed.
A value of 0 indicates that no “Accept” button has to be displayed.
Reject_btn: This indicates whether the “Decline” button is shown with the message
on the device UI. The action associated with the Reject button on the device/client
side is to revert the configured services to their defined default behaviour.
A value of 1 indicates that a “Decline” button has to be displayed.
A value of 0 indicates that no “Decline” button has to be displayed.
This parameter is optional, when not provided a default value of 0 shall be assumed.
NOTE:
if a Reject_btn is not to be displayed (i.e. the corresponding parameter is set
to 0 or is not included), the configuration shall be enabled regardless of
whether the user actually presses the “Accept” button.
The MSG characteristic (i.e. the user message) is optional and will only be present for the
following types of configuration server responses:
1. The response containing the full configuration settings.
2. The response disabling configuration on the device (version and validity are set to 0
or a negative value).
The device should display the message and the relevant/configured buttons in the following
configuration server response scenarios:

After receiving the full configuration settings, only if:
o Working configuration was previously unavailable, including an unavailable
working configuration following a SIM change; or
o Following a terminal reset

After receiving the disabling configuration response.
The device/client shall send language/locale settings to the server to set the language/locale
of the user message. The client should therefore include the HTTP Accept-Language header
in all the requests and set the value of this header consistent with the device locale.
V2.0
Page 14 of 45
GSM Association
Confidential - Full, Rapporteur, and Associate Members
Official Document RCC.14 - Service Provider Device Configuration
Figure 3: Autoconfiguration server notification example
2.2.4
Use Case Overview
Although previously introduced, this section summarizes the different use cases to indicate
the corresponding device behaviour for each scenario:
1. First detection: This is the first time a user makes use of a device. If the process is
successful the device receives the correct configuration XML including the validity period
of associated configuration parameters. If the device has no issues (i.e. the device
receives no errors) during the registration process, the device refrains from contacting
the server again until the validity period has expired. As mentioned previously, this
process could require several retries to be attempted until the provisioning in IMS is
successfully performed.
Please note that for those devices not having successfully completed the configuration
process yet, any Service specific UX available on the device should follow that service’s
default behaviour (i.e. vanilla behaviour) until a valid configuration is successfully
received and processed.
2. Version checking, no changes: If the validity period has expired, or the client has been
instructed to retry the configuration process, the device sends a request to verify that it
has the correct configuration. If the device already has the latest version, the client
receives an XML configuration document containing only the same version as the one
that was provided by the client already with the validity period reset to a value specified
by the configuration server. This indicates that the configuration the device/client
currently has is correct and, as a result, the validity period is renewed as indicated by the
updated validity parameter value provided as part of the configuration server response.
3. Version checking, new version available: If the server has a new version of a subset of
the fixed configuration parameters (for example the registration Internet Protocol (IP)
address) or if the user has requested a reconfiguration through their Service Provider’s
Customer Care, the device/client receives a new configuration XML the next time the
device/client verifies its version
4. Validation process is not OK: If either the device/client or the subscriber is barred from
accessing one or more service, the device will either receive an XML with the
configuration version and validity attributes set to 0 or a document providing the
V2.0
Page 15 of 45
GSM Association
Confidential - Full, Rapporteur, and Associate Members
Official Document RCC.14 - Service Provider Device Configuration
5.
6.
7.
8.
configuration only for those services that would be allowed reverting to default behaviour
for the others.
Consequently, the device/client must remove the existing configuration and revert to
vanilla behaviour (that is any Service-specific UX on the device/client provides only the
default behaviour or is disabled).
SIM change: If the SIM changes, the previous working configuration should be backed up
by the device/client and the device/client should behave as if no configuration is
available (that is first-time configuration) and, follow the process described in ‎2.2.1.
Please note that if a working configuration backup associated with the new SIM available
on the device/client exists, the validity period should be checked and, if it is still valid, the
backup working configuration should be used instead of the device issuing a new
configuration request.
User with different devices. If a user uses multiple devices, the same configuration shall
be valid for all their devices. The described process shall ensure that the device the user
is currently using has the latest version.
User asks Customer Care to disable (i.e., opt out of) (some) services. In this case the
user will be un-provisioned from the network elements providing those services, and
when the application asks for a reconfiguration it will, depending on the status of other
services, either receive a XML configuration document with the version and validity set to
0 or a document that disables those services while configuring the others. The service
shall remain disabled until the user requests Customer Care to provision their device (i.e.
to opt in) for the service again. As a result of disabling a service, the capable
device/client shall remove the currently working configuration for that service and disable
the Service-specific UX (that is reverting to vanilla behaviour).
User changes settings that potentially affects service delivery. If the user changes a
setting that is relayed to the network as part of the (service-specific) HTTP GET
parameters and client-triggered HTTP(S) configuration applies, this shall trigger a new
configuration query with the new value of those parameters.
NOTE:




All scenarios described above comply with one of the following behaviours
of the application on the device:
First time device/client utilization: if the device/client does not have the correct
configuration (version 0 or it is unable to successfully complete the registration
process), the device will send a request at each boot sequence (or when the client is
restarted) if client-triggered HTTP(S) configuration applies.
If the configuration server returned a HTTP 511 NETWORK AUTHENTICATION
REQUIRED error response on the first time configuration request, the client shall start
the SMS based configuration flow as if it were using non-3GPP access (see
section ‎2.3.2).
The HTTP(S) configuration or re-configuration is triggered as described in section ‎3
If the device/client has received the proper configuration, then it shall not request for
a new version unless:
o The validity period has expired, or,
o It is not able to enable a configured service using the provided
configuration
V2.0
Page 16 of 45
GSM Association
Confidential - Full, Rapporteur, and Associate Members
Official Document RCC.14 - Service Provider Device Configuration
In these cases, the device/client shall immediately request for a new version and not wait
until the next reboot/restart.

If the response received from the configuration server by the client/device is 503
Retry-After, the device/client shall retry the request after the time specified in the
“Retry-After” header included as part of the configuration server response.
o If any other error occurs (for example being unable to resolve the URL or
getting an error from the configuration server) the device/client shall retry
the procedure during the next time reboot sequence;
o In the particular case of a client/device receiving a 403 Forbidden, the
existing configuration should be removed from the device/client.

In other error cases (e.g. a 500 Internal Error is issued by the configuration server or
the configuration server is unreachable), if a valid configuration is available then, the
device/client should keep using it, even if the configuration has expired.
The following is applicable to both 403 Forbidden and other configuration server error
responses:

o To include scenarios whereby a device migrates to a network without
support for this mechanism, the maximum number of unsuccessful
consecutive configuration retries allowed by a device (including
unsuccessful Domain Name System (DNS) lookup queries) shall be set to
5.
o If configuration errors persist, the default behaviour for the services to be
configured is provided by the client/device and the configuration sequence
performed during the boot sequence is disabled.
o If the SIM is changed or the device is reset, the device should again query
for configuration settings on every boot sequence if the client-triggered
HTTP(S) configuration applies.
‎Table 7 enumerates all possible configuration server response codes (including error cases):
Response
Use case
Client behaviour
200 OK
Initial HTTP request
response
The client sends the HTTPS request
including the cookie
503 Retry after
The server is processing
the request/provision
Retry after the time specified in the “RetryAfter” header
200 OK + XML with
full configuration
New or updated
configuration sent to the
device
Process the configuration, try to register and
if successful, do not try reconfiguration until
the validity period is expired or SIM is
changed
200 OK + XML with
version and validity
period only
No update needed
Retry only after validity period or SIM change
V2.0
Page 17 of 45
GSM Association
Confidential - Full, Rapporteur, and Associate Members
Official Document RCC.14 - Service Provider Device Configuration
200 OK + XML with
version and validity
period only and both
set to 0
Customer or device are
not valid or the customer
has been deprovisioned
from the services to be
configured
Retry only after next restart or SIM change
200 OK + XML with
version and validity
period only and both
set to -1
Customer or device are
not valid or the customer
has been deprovisioned
from the services to be
configured
The client shall no longer retry
autoconfiguration until SIM is changed or a
factory reset performed.
500 Internal Server
error (or any other
HTTP error except
403)
Internal error during
configuration/provisioning
Retry on next reboot/the next time the client
starts
401 Unauthorized with
WWW-Authenticate
header containing
realm with 3GPPbootstrapping
indication
The configuration server
instructs the client to use
HTTP digest
authentication based on a
bootstrapped security
association
The client invokes the digest authentication
with the configuration server as defined in
section ‎2.4. If no bootstrapped security
association exists the bootstrapping
procedure is invoked first.
401 Unauthorized in
result of a
configuration request
using a bootstrapped
security association
The configuration server
requests the renegotiation
of the bootstrapped
security association.
The client renegotiates the bootstrapped
security association with the procedure
defined in section ‎2.4.2.2. A new
configuration request shall be sent afterwards
using the new bootstrapped security
association.
403 Forbidden
Invalid request (e.g.
missing parameters,
wrong format)
The configuration is removed in the device
and version is set to 0.
A duplicate value was
provided for the
friendly_device_name
The user should be asked to provide another
value for the friendly_device_name
parameter and the configuration request
should be retried including the new value
409 Conflict
If a configuration was available, it shall be
removed from the client.
If a configuration was available, it shall be
removed from the client.
Retry on next reboot, the next time the client
starts
NOTE: this return code is only applicable to
the friendly_device_name as that is the only
parameter controlled by the user that could
generate a conflict
511 Network
Authentication
Required
Network-based
authentication is not
possible (e.g. in case of
non-PS access or security
enhanced configuration
mechanism over PS
access).
Client starts non-PS configuration flow as
defined in ‎2.3 including the cookie if
provided.
The configuration
server is unreachable
configuration server
missing or down
Retry on next reboot, the next time the client
starts
Table 7: Summary of autoconfiguration responses and scenarios
V2.0
Page 18 of 45
GSM Association
Confidential - Full, Rapporteur, and Associate Members
Official Document RCC.14 - Service Provider Device Configuration
2.2.5
Security considerations
For terminals carrying the SIM associated to the user’s main identity the connection is
carried out over the PS access network, therefore the current design reduces the risk of a
man-in-the-middle attack whereby a third party is able to impersonate the configuration
server.
To secure interoperability between Service Providers and to reduce complexity on the
device/client, the HTTP configuration server shall make use of public root certificates issued
by a recognized Certification Authority (CA), that is the root certificates are similar to those
used by standard webservers which are widely recognized by browsers and web-runtime
implementations both in PCs and devices.
To address security concerns due to mobile application system vulnerabilities (e.g.
provisioning of malicious applications that appear to the Configuration Server as “trusted”
applications), the security enhanced configuration mechanism could be implemented. In that
case, the procedures to resolve the user’s MSISDN (that is RADIUS requests, header
enrichment and so on) shall be used only for acquiring the user’s MSISDN and not for
verifying the user’s identity. Specifically, an HTTP 511 NETWORK AUTHENTICATION
REQUIRED response shall be generated by the configuration server that contains a cookie
as part of the response to the initial HTTP request (Set-Cookie header). The client shall then
initiate the SMS based configuration mechanism (see section ‎2.3.2) without requesting the
user to provide its MSISDN. The configuration server shall expect the client to provide that
cookie in the subsequent HTTPS request (in the Cookie header).
Figure 4: HTTP Configuration: Security enhanced
NOTE:
V2.0
The Service provider shall be able to select between the standard and
security enhanced configuration mechanism. It is up to the Service Provider
Page 19 of 45
GSM Association
Confidential - Full, Rapporteur, and Associate Members
Official Document RCC.14 - Service Provider Device Configuration
policy to select the most appropriate configuration mechanisms for particular
configuration requests.
2.3
HTTP(S) based client configuration mechanism over non-3GPP access
One of the main limitations of the HTTP configuration mechanism described in section ‎2.2 is
that it only can take place over PS access, as header enrichment is required to identify the
subscriber. As an alternative, based on the mechanism presented in section ‎2.5 to configure
additional devices based on an initial SMS exchange, the current section introduces the
process to get a primary device configured when 3GPP PS access is not available to the
client.
Finally, note that this mechanism shall only be used when it is not possible to perform the
configuration over a PS connection.
2.3.1
Overview
Depending on the specific solution, the client may be able to identify that it is not possible to
perform the configuration over PS access (e.g. because currently only Wi-Fi connections are
available). In that case the client can obtain the configuration by following the procedures in
section ‎2.3.2. For clients that are not aware of the connectivity section ‎2.3.1.1 provides a
specific procedure that can be used for the case where the client can guarantee that any
cellular connection in the path to the service provider’s configuration server is terminated
locally.
2.3.1.1
Clients not able to identify bearer of configuration request
There is a specific case where the solution is not able to identify whether or not configuration
is done over cellular access. In these circumstances a solution that is able to ensure that any
cellular connection in the path towards the configuration server is terminated on the device
itself (e.g. if Wi-Fi is used it is not tethered to a cellular PS connection), shall perform a first
request for configuration using the standard HTTP configuration mechanism described in
section ‎2.2:
Figure 5: HTTP configuration mechanism: Failed request due to missing header
enrichment
NOTE1:
V2.0
The use of another device’s PS connection (e.g. a Wi-Fi to cellular-PSrouter) may lead to an incorrect identification of the requesting device.
Page 20 of 45
GSM Association
Confidential - Full, Rapporteur, and Associate Members
Official Document RCC.14 - Service Provider Device Configuration
Therefore this request can only be sent reliably by clients that can be aware
that any PS connection in the path towards the configuration server is
provided by themselves.
NOTE2:
Most clients connected over Wi-Fi will not be able to verify that there is no
cellular connection used further down the path towards the configuration
server and should therefore start immediately with a HTTPS request as
described in section ‎2.3.2.
When this initial request is performed over a non-PS access network, the configuration
server is unable to successfully identify/verify the identity of the requester (i.e. RADIUS or
header enrichment is no longer an option). In this case, the configuration server shall reply
with an HTTP 511 NETWORK AUTHENTICATION REQUIRED error response and the client
should continue with the procedure described in section ‎2.3.2. Otherwise the procedure in
section ‎2.2 shall be followed.
2.3.2
Non-cellular configuration
When performing the configuration over non-cellular access (either because the access is
known to be non-cellular or as a result of the procedure in section ‎2.3.1.1), the client shall
follow the SMS based configuration mechanism as detailed below:
If the MSISDN is unavailable (e.g. a previous configuration procedure has not occurred
wherein a client is able to identify the MSISDN e.g. because it has been included or as part
of the Session Initiation Protocol (SIP) Uniform Resource Identifier (URI) provided in the
received XML configuration document) two situations exist:
1. The IMSI is not accessible or the client cannot handle SMS messages with a One-Time
Password (OTP) in the background as described in section ‎2.3.3. In this case, the client
shall prompt the user to provide a MSISDN (in E.164 format) for the current device
unless a valid cookie is provided from a previous configuration server response.
The device performs an HTTPS configuration request in the same manner as described
in section ‎2.2.1 (‎Table 1), plus three additional parameters (i.e. MSISDN, SMS_port and
token).
2. The IMSI is available and the client can handle SMS messages with the OTP in the
background. In this case, the client shall not prompt the user to provide a MSISDN, and
perform a HTTPS configuration request with just two additional parameters (i.e.
SMS_port and token).
V2.0
Page 21 of 45
GSM Association
Confidential - Full, Rapporteur, and Associate Members
Official Document RCC.14 - Service Provider Device Configuration
Parameter
vers
Description
This is either -3, -2, -1, 0 or a positive integer. 0
indicates that the configuration must be updated
(e.g. the configuration is damaged, non-existent
or an update is needed following a SIM change).
A positive value indicates the version of the
static parameters (those which are not user
dependent) so the server can evaluate whether
an update is required.
-1 indicates that the device/client is providing the
default behaviour for the services that would be
configured and has disabled the
autoconfiguration query performed at boot. This
may be used by the client/device to inform the
SP that the functionality was permanently
disabled from the device.
Mandatory
Format
Y
Int (-3, -2, -1, 0
or a positive
integer)
-2 Indicates that for the services to be
configured the default behaviour needs to be
provided (including the disabling of the
configuration query at boot), but a configuration
query might be triggered on user action.
IMSI
(International
Mobile
Subscriber
Identity)
If available, the subscriber’s IMSI shall be sent
as a parameter.
N
String
if the OS
platform
allows it, it
shall be
included
(15 digits)
provisioning_ve
rsion
String that identifies the version of this
provisioning specification supported by the
client. It shall be set to “1.0” (without the quotes)
for clients following this specification.
Y
String (4 max),
Case-Sensitive
terminal_vendor
String that identifies the device OEM.
Y
String (4 max),
Case-Sensitive
terminal_model
String that identifies the device model.
Y
String
(10 max),
Case-Sensitive
terminal_sw_ve
rsion
String that identifies the device software version.
IMEI
If available, the subscriber’s IMEI shall be sent
as a parameter. Those Service Providers that
support a comprehensive device database can
ignore the terminal_X parameters and use the
IMEI instead, if it was available to the
implementation.
V2.0
Y
String
(10 max),
Case-Sensitive
N
String
if the OS
platform
allows it, it
shall be
included
(15 digits)
Page 22 of 45
GSM Association
Confidential - Full, Rapporteur, and Associate Members
Official Document RCC.14 - Service Provider Device Configuration
msisdn
MSISDN, in E.164 format, of the primary SIM
which is used to derive the user’s main identity.
N, it is only
mandatory if
the IMSI is
not provided
E.164
(+4479000000
1) in
international
format
NOTE: In case
that msisdn
comes with a
plus sign, the
client shall
provide the
msisdn value
with the plus
sign encoded
as per
[RFC3986]
section 2.1.
SMS_port
This parameter sets the User Data Header
(UDH) port that has to be used for the SMS that
is to be employed to validate the requester
through an OTP.
N
Int (0-65355)
If set to 0, the client indicates the server that the
SMS UDH procedures are not supported either
by the client or the platform, so a standard SMS
(user visible) shall be used instead.
If not set, the default port value used shall be
37273.
token
If this is the first time the device is being
configured (or the validity of the token is
expired), this should be an empty string. If not,
the token obtained in the initial configuration
process shall be reused.
Y
String
friendly_device_
name
If provided by the user, a user friendly
identification for the device may be passed
along that can be used by the network when
presenting the user with an overview of their
devices.
N, only to be
provided if
provided by
the user
String
(30 max before
escaping),
Case-Sensitive
NOTE: this parameter needs to be included only
if required for one of the services to be
configured. In which case its mandatory
character will be documented in the relevant
service specific documents
Table 8: HTTP configuration for primary devices over non-PS access: HTTPS request
GET parameters
3. At this point the configuration server is able to identify whether this is a first time request:
a) If the token value is empty (i.e. first time to configure over a non-PS access
networkwith no previous configuration over 3GPP access, or if the previously
retrieved token has expired), the request is identified by the configuration server as a
V2.0
Page 23 of 45
GSM Association
Confidential - Full, Rapporteur, and Associate Members
Official Document RCC.14 - Service Provider Device Configuration
first time configuration. In this case, and provided the network allows configuring
devices using this mechanism, the configuration server responds with an HTTP 200
OK response that includes a new cookie (Set-Cookie header) to be used in the
subsequent HTTP(S) requests.
i.
NOTE:
Following the request, an SMS message shall be sent to the primary
device, i.e. the device using the SIM associated with the MSISDN or
IMSI sent in the HTTP request. This SMS message will contain an
OTP. The format of this SMS is covered in detail in section ‎2.3.3.
the configuration server provider may implement mechanisms on the server
to protect it from suspicious or potentially malicious transactions (e.g. a
client causing too many SMS messages)
ii. In parallel, if OTP handling that is transparent to the user is not
possible, the device performing the HTTP configuration prompts the
user for the OTP. Therefore, the user should manually enter the value
that was received via SMS.
NOTE:
to handle scenarios wherein it is not possible for the network to send an
SMS message in the format of section ‎2.3.3 to the device, a client should
always permit the user to enter the OTP, potentially after some initial delay
iii. The device performing the HTTP configuration makes a second HTTPS
request using the following parameters in the GET request:
Parameter
OTP
Description
This is the password received on the
primary device using the SIM associated
with the provided MSISDN/IMSI
Mandatory
Y
Format
String
Table 9: HTTP configuration for primary devices: Second and final HTTPS request
GET parameters
NOTE:
the second HTTPS request shall include the cookie obtained in step ‎3
(cookie header) so that the configuration server is able to correlate the initial
and subsequent HTTPS requests.
From this point the procedure is identical to the one described in sections ‎2.2.2
and ‎2.2.3. If the response includes a full XML configuration document however, the
generated token is added as a parameter to the configuration server’s 200 OK
response.
V2.0
Page 24 of 45
GSM Association
Confidential - Full, Rapporteur, and Associate Members
Official Document RCC.14 - Service Provider Device Configuration
Figure 6: HTTP configuration for primary devices over non-PS access with MSISDN:
empty token
Figure 7: HTTP configuration for primary devices over non-PS access with only IMSI:
empty token
b) If the token is valid (i.e. non-empty, and successfully verified by the configuration
server), then, from this point the procedure is identical to the one described in
sections ‎2.2.2 and ‎2.2.3. If the response includes a full XML configuration document
however, the generated token is added as a parameter to the configuration server’s
200 OK response.
V2.0
Page 25 of 45
GSM Association
Confidential - Full, Rapporteur, and Associate Members
Official Document RCC.14 - Service Provider Device Configuration
Figure 8: HTTP configuration for primary devices over non-PS access: Valid token
In order to incorporate the token in the configuration server responses, a new characteristic,
TOKEN, is provided at the same level at the VERS characteristic so it may be provided in all
other kinds of Configuration server responses (e.g. empty configuration XML [with and
without a message] and with a full configuration XML) and includes a validity for the token
specified in seconds:
<?xml version="1.0"?>
<wap-provisioningdoc version="1.1">
<characteristic type="VERS">
<parm name=”version” value=”X”/>
<parm name=”validity” value=”Y”/>
</characteristic>
<characteristic type="TOKEN">
<parm name=”token” value=”Z”/>
<parm name=”validity” value=”W”/>
</characteristic>
-- Rest of the XML if applicable
</wap-provisioningdoc>
Table 10: HTTPS configuration XML: Token characteristic
In both cases (i.e. bullets ‎a) and ‎b) above), the token and MSISDN shall be stored on the
device. Therefore it is not necessary to re-execute the entire procedure for future requests.
These values shall be removed together with the rest of the configuration when the device or
client is reset.
2.3.3
SMS format to receive the OTP value
In case of a primary device configuration, the device receiving the SMS containing the OTP
password shall match the device where the client is running, the preferred approach is that
the SMS is sent in a format that allows the client to intercept the OTP in a transparent
manner. In order to do so, the configuration server shall perform the following steps:
1. If the value for the SMS_port parameter included in the HTTPS request sent by the
device after receiving a HTTP 511 error response is a positive integer in the range
between 1 and 65535 and the configuration server supports the UDH handling procedure
(as per [3GPP TS 23.040]) to send a SMS to a specific port, then the following SMS
format convention shall be used:
o DataCodingScheme = 08 (UCS2)
o UserDataHeader = 06 05 04 4074 0000
V2.0
Page 26 of 45
GSM Association
Confidential - Full, Rapporteur, and Associate Members
Official Document RCC.14 - Service Provider Device Configuration
UDHL length fields=06 05 04,
Destination port: port provided by the client in HTTP request encoded in
hex. If not provided, 37273 (0x9199) shall be the default value.
Source Port: 0000 (0 in decimal)
o Content of the message shall be the OTP encoded in the same format the
Service Provider uses to transmit user readable SMS messages.
With this convention, an SMS sent to the device shall be routed to an application
listening for SMS on the port indicated by the client and shall be handled transparently to
the user.
2. If SMS_port is set to 0, the UDH procedures are not supported either by the client or the
platform/OS the client runs on. Consequently, the server shall send a standard SMS and
the user shall be prompted by the client to manually provide the OTP code to the client
(e.g. via a text box).
Where the Service Provider wants to send a standard SMS for the OTP code, the SMS_port
parameter shall be included in the HTTPS 200 OK response sent by the configuration server
just before the SMS that carries the OTP code (see HTTP flows presented in figures 9 and
10). The response shall carry an XML document containing the SMS_port parameter set to 0
as illustrated in Table 11:
<?xml version="1.0"?>
<wap-provisioningdoc version="1.1">
<characteristic type="POLICY">
<parm name="SMS_port" value="0"/>
</characteristic>
</wap-provisioningdoc>
Table 11: HTTPS configuration XML: SMS_port zero policy
In this case the OTP handling that is transparent to the user is not possible and the client
prompts the user to enter the OTP which is received via SMS.
NOTE:
2.3.4
The Service Provider should allow enough time prior to sending the SMS
with the OTP code so as to make sure that the client has received the
HTTPS 200 OK response that carries the XML with the SMS_port parameter
set to zero. This response shall be sent always considering the
provisioning_version parameter and thus ensuring backward compatibility. In
case that the Service Provider sets a different value to the SMS_port
parameter, this value shall be ignored by the client.
Use cases review
The error conditions and use case scenarios covered in section ‎2.2.4 also apply for
configuration over non-PS access, but in this case any disabling of the client shall be limited
to that specific non-PS network. Further configuration attempts shall thus be done when the
device connects to a cellular or another non-PS network. In addition to those errors, for the
process of performing a configuration over non-PS access networks the following specific
error conditions shall be taken into account and supported:
V2.0
Page 27 of 45
GSM Association
Confidential - Full, Rapporteur, and Associate Members
Official Document RCC.14 - Service Provider Device Configuration
1. In the scenario whereby a user has to be prompted to provide an MSISDN, the given
MSISDN may be invalid or unauthorized to retrieve the Service configuration. As a result,
the initial request shall be answered by the configuration server with an HTTP 403
FORBIDDEN error response. The client shall inform the user of the problem and may
offer to retry with a different MSISDN.
NOTE1:
if the MSISDN belongs to a SIM which is not currently available to the
capable device, the SMS sent by the configuration server will not be
received. Therefore in this scenario, the client should provide a timeout
mechanism and prompt the user after the timeout period has been reached,
to re-enter a MSISDN.
NOTE2:
the timeout mechanism utilized by the client is not in scope of this
specification.
2. In the scenario where only the IMSI is sent to the network, the network may not support
this type of configuration. In that case the Configuration Server shall answer to the initial
request with a HTTP 403 FORBIDDEN response. The client shall in this case request
the user for their MSISDN and perform the procedure including the MSISDN. This is
shown in the flow in ‎Figure 9:
Figure 9: HTTP configuration for primary devices over non-PS access with only IMSI:
Not supported by the network
3. The OTP password is invalid. As a result, the configuration server replies with an HTTP
511 NETWORK AUTHENTICATION REQUIRED error response. It is up to the client to
provide a user retry mechanism. When retrying, the client shall re-start the configuration
process from the beginning.
4. The token is invalid. As a result, the configuration server replies with an HTTP 511
NETWORK AUTHENTICATION REQUIRED error response. It is up to the client to
provide a user retry mechanism. When retrying, the client shall re-start the configuration
V2.0
Page 28 of 45
GSM Association
Confidential - Full, Rapporteur, and Associate Members
Official Document RCC.14 - Service Provider Device Configuration
process from the beginning. Consequently, if a valid token was previously stored, it shall
be removed from the device.
Security considerations
2.3.5
The same access security considerations described in section ‎2.2.5 for the standard
HTTP(S) configuration mechanism also apply in this case.
Service Providers may request the client to fall back to the client configuration mechanism
over non-3GPP access while requesting configuration in 3GPP access to secure the user
identification via header enrichment, as defined in section ‎2.2.5.
In addition, as a Service Provider Option, the configuration server is able to enforce a policy
for the OTP challenge on primary devices being always visible to the user, especially for the
case where the client would be able to apply it transparently by use of the SMS UDH
procedure. If the client receives a Configuration Response in HTTP 200 OK with a "SMS
port zero" policy (see section ‎2.3.3) then it shall expect the reception of the OTP via user
visible SMS. Thus it shall prompt the user to enter the OTP and continue processing with the
user input only.
2.4
HTTP(S) based client configuration mechanism with GBA Authentication
2.4.1
Overview
The General Bootstrapping Architecture (GBA) defined in [3GPP TS 33.220] provides
mechanisms for AKA based user authentication using the 3GPP Authentication Centre
(AuC) and the USIM or ISIM. The HTTP(s) based client configuration mechanism supports
the authentication of primary devices via GBA.
The Authentication Procedure consists of two parts. The basis for the user authentication
between the device and network applications is a bootstrapped security association. The
association provides the client with a Bootstrapping Transaction Identifier (B-TID) and key
material which can be used by clients of the device to authenticate the user with network
applications.
An application client will use the B-TID and the key material for the authentication with a
specific network application. For the Service Provider Device Configuration HTTP Digest
Authentication is used.
The end-to-end implementation of GBA is defined in [3GPP TS 33.220]. The protocol
extension of the client configuration protocol shall be implemented according to [3GPP TS
24.109].
2.4.2
2.4.2.1
Use Case review
HTTP Digest Authentication
Precondition for the use of this procedure for authentication within the HTTP(s) based client
configuration is the support of GBA as defined in [3GPP TS 33.220] on the device and in the
Service Provider network.
V2.0
Page 29 of 45
GSM Association
Confidential - Full, Rapporteur, and Associate Members
Official Document RCC.14 - Service Provider Device Configuration
The GBA Authentication can be applied independent from the access network type (3GPP or
non-3GPP). However, a client supporting GBA based HTTP digest authentication shall
invoke the client configuration mechanisms in accordance with the access network type, i.e.
in 3GPP access as defined in section ‎2.2, in non-3GPP access as defined in section ‎2.3.
When sending the secured configuration request the client supporting GBA shall indicate it
by the addition of a GBA product token in the User-Agent header as defined in [3GPP TS
24.109].
If the Service Provider's configuration server does not support GBA based HTTP digest
authentication it returns responses as defined in sections ‎2.2 and ‎2.3 respectively. Device
configuration commences as defined at the same place.
If the Service Provider's configuration server supports GBA based authentication then it
returns an HTTP 401 Authorization Required response with a WWW-Authenticate header
instructing the client to use HTTP digest Authentication with a bootstrapped security
association.
If the client has no bootstrapped security association in place it shall invoke the
bootstrapping procedure defined in section ‎2.4.2.2 to generate it.
If the client has a bootstrapped security association in place it shall use the stored key
material and the B-TID to generate keys specific to the configuration server as defined in
[3GPP TS 33.220]. With the key material and the B-TID it shall generate the Authorization
header to be sent in a new secured request for client configuration.
The configuration server will fetch the B-TID and key material from the Bootstrapping Server
Function (BSF) and complete the digest authentication. If successful, a 200 OK response
containing an Authentication-Info header and the configuration XML will be returned to the
client. The configuration server may request the client to renegotiate the bootstrapped
security association (e.g. due to expiry) by returning a 401 "Unauthorized" response. When
the client receives the 401 "Unauthorized" response it shall renegotiate the bootstrapped
security association with the procedure defined in section ‎2.4.2.2.
The client shall validate the Authentication-Info header information and apply the
configuration XML.
V2.0
Page 30 of 45
GSM Association
Confidential - Full, Rapporteur, and Associate Members
Official Document RCC.14 - Service Provider Device Configuration
UE User/Client A
SP Core NW
Device Logic Client Logic
HTTP request for
configuration with GBA
support indication
BSF
Config Server
HTTP REQUEST https
://co
nfig.rcs.mnc<MNC>.mcc
<MCC>.pub.3gppnetwo
(User-Agent: <User Age
rk.org?params
nt>; <GBA Product Toke
n>)
HTTP 401 Unauthorized
st realm; nonce)
(WWW-Authenticate: Dige
Client invokes the
bootstrapping procedure if
no bootstrapped security
association exists
BOOTSTRAPPING PROCEDURE
HTTP REQUEST
http://bsf.mnc<MN
C>.mcc<MCC>.pub.
(Authorization: Dig
3gppnetwork.org
est username=impi;
realm)
orized
HTTP 401 Unauth
ce)
e Digest realm; non
(WWW-Authenticat
Client generates the
challenge response and
session keys
Client generates and stores
the key material and B-TID
Client generates RCS config
server specific key material
and responds to its
challenge via request for
configuration
The server supports
GBA Authentication
and challenges the
client with 401 to
invoke the
bootstrapping
proecdure
HTTP REQUEST
http://bsf.mnc<MN
C>.mcc<MCC>.pub.
(Authorization: Dig
3gppnetwork.org
est username=impi;
realm; response)
(Bo
HTTP 200 OK
fo)
(Authentication-In
L with B-TID)
otstrapping Info XM
The BSF selects am
Authentication Vector
for the use in the
authentication
challenge
The BSF
authenticates the user
and generates the key
material
HTTPS REQUEST https
://config.rcs.mnc<MNC>
.mcc<MCC>.pub.3gppn
(Authorization Digest user
etwork.org?params
name=B-TID; realm; resp
onse)
Client verifies the
Authentication Info.
If successful the Config XML
is applied
HTTPS 200 OK
(Authentication-Info)
(config XML)
The server fetches key
material for the B-TID
from BSF. The user is
authenticated.
If successful the
response carries the
config XML
Figure 10: HTTP configuration for primary devices using GBA
2.4.2.2
Bootstrapping Procedure
The device will invoke the bootstrapping procedure with the service provider's BSF to
generate a bootstrapped security association as defined in [3GPP TS 24.109]. This section
provides an informative overview of the procedure.
The URI of the BSF is derived by the client from the IMSI or the user's private identity (IMPI)
as defined in [3GPP TS 23.003]. The client creates an HTTP GET request with an
authorization header as defined in [3GPP TS 24.109] and sends it to the BSF. The
authorization header contains the user's private identity (IMPI) as username. If the device is
not able to get the user's private identity (IMPI) from the SIM, it shall be constructed from the
IMSI as defined in [3GPP TS 23.003].
On receipt of the request for authentication the BSF retrieves and selects an Authentication
Vector for use in the authorisation challenge [3GPP TS 33.220]. It returns a HTTP 401
Authorization Required response to the client with a WWW-Authenticate header instructing
the client to authenticate itself.
V2.0
Page 31 of 45
GSM Association
Confidential - Full, Rapporteur, and Associate Members
Official Document RCC.14 - Service Provider Device Configuration
The client runs the AKA algorithm [RFC3310] to calculate the challenge response which is
sent back to the BSF in the Authorization header of a subsequent HTTP GET request. It also
calculates the session keys.
On reception of the GET request the BSF authenticates the user based on the challenge
response received from the client. It generates the B-TID for the IMPI and stores the session
keys. It informs the client about the success of the authentication in the Authentication-Info
header of the 200 OK response. The response contains also the bootstrapping XML with the
B-TID. The client generates the key material and stores it for subsequent authorisations.
2.5
Configuration of additional devices sharing the same identity
This section describes the process of autoconfiguration authentication for the scenario in
which the SIM associated with the identity to be used for the services requiring configuration
is not inserted in the device being provisioned.
2.5.1
First-time configuration
During first-time configuration, the device implementation/client will receive the credentials
associated with the primary SIM card of the user regardless of the type of connection they
are using (e.g. Wi-Fi, PS) to reach the Configuration server.
The process is as follows:
1. As an option, the device implementation/client will offer the possibility to the user to
perform manual provisioning
2. The user is prompted for the MSISDN or SIP URI of the primary device and the Service
Provider associated with the primary SIM. The account created is always associated with
this primary identity that the user has to input into the application. Please note that, as a
pre-condition, the aforementioned identity must already be provisioned using the
mechanism described in previous sections.
3. The device performs the HTTPS configuration as presented in section ‎2.2.1, however,
using the following GET parameters instead of the default ones:
V2.0
Page 32 of 45
GSM Association
Confidential - Full, Rapporteur, and Associate Members
Official Document RCC.14 - Service Provider Device Configuration
Parameter
vers
Description
This is either -3, -2, -1, 0 or a positive
integer. 0 indicates that the configuration
must be updated (e.g. the configuration is
damaged, non-existent or an update is
needed following a SIM change). A
positive value indicates the version of the
static parameters (those which are not
user dependent) so the server can
evaluate whether an update is required.
-1 indicates that the device/client is
providing the default behaviour for the
services that would be configured and has
disabled the autoconfiguration query
performed at boot. This may be used by
the client/device to inform the SP that the
functionality was permanently disabled
from the device.
Mandatory
Format
Y
Int (-3, -2, -1, 0
or a positive
integer)
N, Mandatory
if sip_uri not
provided
E.164
(+4479000000
1) in
international
format
-2 Indicates that for the services to be
configured the default behaviour needs to
be provided (including the disabling of the
configuration query at boot), but a
configuration query might be triggered on
user action.
msisdn
MSISDN, in E.164 format, of the primary
SIM which is used to derive the identity.
NOTE: In case
that msisdn
comes with a
plus sign, the
client shall
provide the
msisdn value
with the plus
sign encoded
as per
[RFC3986]
section 2.1.
sip_uri
provisioning_ver
sion
V2.0
SIP URI of the primary device
String that identifies the version of this
provisioning specification supported by
the client. It shall be set to “1.0” (without
the quotes) for clients following this
specification.
N, Mandatory
if msisdn is
not provided
String
Y
String (4 max),
Case-Sensitive
(50 max),
Caseinsensitive
Page 33 of 45
GSM Association
Confidential - Full, Rapporteur, and Associate Members
Official Document RCC.14 - Service Provider Device Configuration
token
device_type
If this is the first time the additional device
is being configured (or the validity of the
token is expired), this should be an empty
string. If not, the token obtained in the
initial configuration process shall be
reused here.
Y
This indicates the type of device where
the client is running.
Y
String
(24 max),
Case-Sensitive
Possible
values:
- Tablet
- PC
- Other
friendly_device_
name
If provided by the user, a user friendly
identification for the device may be
passed along that can be used by the
network when presenting the user with an
overview of their devices.
N, only to be
provided if
provided by
the user
String
(30 max before
escaping),
Case-Sensitive
NOTE: this parameter needs to be
included only if required for one of the
services to be configured. In which case
its mandatory character will be
documented in the relevant service
specific documents.
Table 12: HTTP configuration for additional devices: Initial HTTPS request GET
parameters
Please note that the initial HTTP request is not required in this case since the header
enrichment requirement is not applicable. Therefore, the device implementation/client will
directly perform the HTTPS request as presented in Figure 11.
4. As this is a first time request, the token value is empty; the request is then identified as a
first time configuration. In this case, and provided the network allows for configuring
additional devices using this mechanism, the HTTP server responds with a HTTP 200
OK response carrying a new cookie (Set-Cookie header) to be used in the subsequent
HTTP requests.
a) Following the request, an SMS message shall be sent to the primary device, i.e. the
phone carrying the SIM associated to the MSISDN the user introduced in step ‎2. This
SMS message will contain an OTP. This message shall be a standard SMS (i.e. no
UDH procedures required).
NOTE:
When used on IP Multimedia Subsystem (IMS) networks with IMS devices,
other ways may be provided to contact the primary device. Those are
covered in [PRD-RCC.15]
b) In parallel, the device performing the HTTP configuration prompts for the OTP.
Therefore, the user should manually introduce the code delivered via SMS to the
primary device.
c) Once the user enters the OTP, the device performing the HTTP configuration makes
a second HTTPS request using the following parameters in the GET request:
V2.0
Page 34 of 45
GSM Association
Confidential - Full, Rapporteur, and Associate Members
Official Document RCC.14 - Service Provider Device Configuration
Parameter
OTP
Description
This is the password received on the
device carrying the SIM associated with
the MSISDN introduced in step 2
‎
Mandatory
Y
Format
String (8 Max),
Case-Sensitive
Table 13: HTTP configuration for additional devices: Second and final HTTPS request
GET parameters
Please note this second HTTPS request shall carry the cookie obtained in step ‎4 (cookie
header) therefore the HTTP configuration server can correlate the initial and final HTTPS
requests.
d) From this point onwards the procedure is identical to the one described in
sections ‎2.2.2 and ‎2.2.3, however, with the token added as a parameter. If the
request is successful, one of the possible 200 OK responses described in
section ‎2.2.2 is provided.
Figure 11: HTTP configuration for additional devices: First time configuration
Please note the token shall be stored with the MSISDN so it is not necessary to repeat this
procedure for future requests. These values shall be removed together with the rest of the
configuration when the device or client is reset.
2.5.2
Error handling
In the process of performing a first time configuration for additional devices, there are three
possible error conditions that the client has to be aware of and handle:
1. The MSISDN used is not valid or it is not authorized (including the case the primary
MSISDN is not been provisioned yet to use the services being configured) to get the
V2.0
Page 35 of 45
GSM Association
Confidential - Full, Rapporteur, and Associate Members
Official Document RCC.14 - Service Provider Device Configuration
configuration/make use of the services. In this case, the initial request will be answered
with an HTTP 403 FORBIDDEN error and the client shall inform the user of the issue
and may offer to retry with a different MSISDN.
2. The OTP password introduced by the user is not valid. In this case, the HTTP
configuration server replies again with a HTTP 511 NETWORK AUTHENTICATION
REQUIRED error. It is up to the client implementation to offer the user to retry. If retrying,
the client shall start the first time configuration process from the beginning.
3. The HTTP server suffers an internal error (HTTP 5XX [except 511], response coming
from the server). In this case, the user shall be informed of the circumstance and offered
to retry. If retrying, the client shall start the first time configuration process from the
beginning.
2.5.3
Subsequent configuration attempts and life cycle
If the client has access to the token and the MSISDN used for the first time configuration,
has a value, the initial request is performed
1. An initial request like in the case of the first time configuration of additional devices is
made, this time including the token parameter set to the value received on the previous
successful configuration attempt
2. If successful, from this point onwards the procedure is identical to the one described in
sections ‎2.2.2 and ‎2.2.3, however, with the token added as a parameter. If the request is
successful, one of the possible 200 OK responses described in section ‎2.2.2 is provided.
Figure 12: HTTP configuration for additional devices: Subsequent attempts
If the token and/or the MSISDN are not available (for example the device is reset), then the
client shall start a first time configuration as described in section ‎2.5.1.
Please note the received token shall be stored with the MSISDN so it is not necessary to
repeat this procedure for future requests. These values shall be removed together with the
rest of the configuration when the device or client is reset.
2.5.4
Error handling
In the process of performing a subsequent configuration for additional devices, there are
three possible error conditions that the client has to be aware of and to handle:
1. The MSISDN used is not valid or it is not authorized to get the configuration/make use of
the services to be configured. In this case, the initial request will be answered with an
V2.0
Page 36 of 45
GSM Association
Confidential - Full, Rapporteur, and Associate Members
Official Document RCC.14 - Service Provider Device Configuration
HTTP 403 FORBIDDEN error and the client shall inform the user of the issue and may
offer to retry with a different MSISDN.
2. The token is no longer valid. In this case, the HTTP configuration server replies again
with a HTTP 511 NETWORK AUTHENTICATION REQUIRED error. From this moment,
the process is equivalent to the first time configuration process after the same error is
received.
3. The HTTP server suffers an internal error (HTTP 5XX response coming from the server).
In this case, the user shall be informed of the circumstance and offered to retry. If
retrying, the client shall start the subsequent configuration attempt procedure from the
beginning.
2.5.5
Use cases review
From the use cases presented in section ‎2.2.4, only the following scenarios apply to the
configuration of additional devices sharing the same identity:
1.
2.
3.
4.
2.5.6
First detection
Version checking
Validation process is not OK
User asks Customer Care to disable a service
Security considerations
The same security considerations described in section ‎2.2.5 for the standard HTTP(S)
configuration mechanism also apply in this case.
2.6
Configuration of non-Cellular devices with a dedicated identity
To configure clients on devices that do not carry a SIM, but have to function with a dedicated
own identity the following generic solution is provided:
1. The user obtains an OTP through means that are out of the scope of this specification
(e.g. from an operator website after authentication, delivered together with the device,
obtained through an operator’s retail outlet, etc.)
2. The user is prompted for the E.164 address or SIP URI to be used by the device and
their Service Provider. The account created is always associated with this primary
identity that the user has to input into the application.
3. The device performs the HTTPS configuration as presented in section ‎2.2.1, however,
using the following GET parameters instead of the default ones:
Parameter
V2.0
Description
Mandatory
Format
Page 37 of 45
GSM Association
Confidential - Full, Rapporteur, and Associate Members
Official Document RCC.14 - Service Provider Device Configuration
vers
This is either -3, -2, -1, 0 or a positive
integer. 0 indicates that the configuration
must be updated (e.g. the configuration is
damaged, non-existent or an update is
needed following a SIM change). A
positive value indicates the version of the
static parameters (those which are not
user dependent) so the server can
evaluate whether an update is required.
-1 indicates that the device/client is
providing the default behaviour for the
services that would be configured and has
disabled the autoconfiguration query
performed at boot. This may be used by
the client/device to inform the SP that the
functionality was permanently disabled
from the device.
Y
Int (-3, -2, -1, 0
or a positive
integer)
N, Mandatory
if sip_uri is
not provided
E.164
(+4479000000
1) in
international
format
-2 Indicates that for the services to be
configured the default behaviour needs to
be provided (including the disabling of the
configuration query at boot), but a
configuration query might be triggered on
user action.
msisdn
E.164 format of the provided identity
NOTE: In case
that msisdn
comes with a
plus sign, the
client shall
provide the
msisdn value
with the plus
sign encoded
as per
[RFC3986]
section 2.1.
sip_uri
provisioning_ve
rsion
V2.0
SIP URI of the device
String that identifies the version of this
provisioning specification supported by
the client. It shall be set to “1.0” (without
the quotes) for clients following this
specification.
N, Mandatory
if msisdn is
not provided
String
Y
String (4 max),
Case-Sensitive
(50 max),
Caseinsensitive
Page 38 of 45
GSM Association
Confidential - Full, Rapporteur, and Associate Members
Official Document RCC.14 - Service Provider Device Configuration
token
device_type
If this is the first time the primary device is
being configured (or the validity of the
token is expired), this should be an empty
string. If not, the token obtained in the
initial configuration process shall be
reused here.
Y
This indicates the type of device where
the client is running.
Y
String
(24 max),
Case-Sensitive
Possible
values:
- Tablet
- PC
- Other
OTP
This is the password provided to the user
in step 1. Set to an empty string in case a
non-empty token is provided
Y
String (8 Max),
Case-Sensitive
friendly_device_
name
If provided by the user, a user friendly
identification for the device may be
passed along that can be used by the
network when presenting the user with an
overview of their devices.
N, only to be
provided if
provided by
the user
String
(30 max before
escaping),
Case-Sensitive
NOTE: this parameter needs to be
included only if required for one of the
services to be configured. In which case
its mandatory character will be
documented in the relevant service
specific documents.
Table 14: HTTP configuration for non-cellular devices: Initial HTTPS request GET
parameters
Please note that the initial HTTP request is not required in this case since the header
enrichment requirement is not applicable. Therefore, the device implementation/client will
directly perform the HTTPS request as presented in Figure 13.
Figure 13: HTTP configuration for non-cellular devices with a dedicated identity: initial
request
4. As this is a first time request, the token value is empty; the request is then identified as a
first time configuration. In this case, and provided the network allows for configuring
V2.0
Page 39 of 45
GSM Association
Confidential - Full, Rapporteur, and Associate Members
Official Document RCC.14 - Service Provider Device Configuration
devices using this mechanism, the HTTP server responds with a HTTP 200 OK
response carrying a new cookie (Set-Cookie header) to be used in the subsequent HTTP
requests
From this point onwards the procedure is identical to the one described in sections ‎2.2.2
and ‎2.2.3, however, with the token added as a parameter. If the request is successful, one of
the possible 200 OK responses described in section ‎2.2.2 is provided.
Please note the token shall be stored with the identity so it is not necessary to repeat this
procedure for future requests. These values shall be removed together with the rest of the
configuration when the device or client is reset.
2.6.1
Subsequent configuration attempts and life cycle
If the client has access to the token and the identity used for the first time configuration, has
a value, the initial request is performed
1. An initial request like in the case of the first time configuration of the primary device is
made, this time including the token parameter set to the value received on the previous
successful configuration attempt
2. If successful, from this point onwards the procedure is identical to the one described in
sections ‎2.2.2 and ‎2.2.3, however, with the token added as a parameter. If the request is
successful, one of the possible 200 OK responses described in section ‎2.2.2 is provided.
Figure 1: HTTP configuration for non cellular devices: Subsequent attempts
If the token and/or the MSISDN are not available (for example the device is reset), then the
client shall start a first time configuration as described in section ‎2.5.1.
Please note the received token shall be stored with the MSISDN so it is not necessary to
repeat this procedure for future requests. These values shall be removed together with the
rest of the configuration when the device or client is reset.
2.6.2
Error handling
In the process of performing a subsequent configuration for additional devices, there are
three possible error conditions that the client has to be aware of and to handle:
1. The MSISDN used is not valid or it is not authorized to get the configuration/make use of
the services to be configured. In this case, the initial request will be answered with an
V2.0
Page 40 of 45
GSM Association
Confidential - Full, Rapporteur, and Associate Members
Official Document RCC.14 - Service Provider Device Configuration
HTTP 403 FORBIDDEN error and the client shall inform the user of the issue and may
offer to retry with a different MSISDN.
2. The token is no longer valid. In this case, the HTTP configuration server replies again
with a HTTP 511 NETWORK AUTHENTICATION REQUIRED error. From this moment,
the process is equivalent to the first time configuration process after the same error is
received.
3. The HTTP server suffers an internal error (HTTP 5XX response coming from the server).
In this case, the user shall be informed of the circumstance and offered to retry. If
retrying, the client shall start the subsequent configuration attempt procedure from the
beginning.
3 Network requested configuration request
There are use cases (e.g. customer support) where forcing a reconfiguration or a first
configuration is required.
The present section presents the enhancements that need to be implemented both on the
network side and on the client in order to support a network requested reconfiguration.
NOTE: The described mechanisms only cover reconfiguration requests related to primary
devices
3.1
First time configuration initiated via SMS
In this option, the mechanism that will trigger the configuration will be a network originated
SMS. Please note that this option is only available to platforms and clients that support the
application port addressing (UDH header handling as per [3GPP TS 23.040]).
Regarding the SMS format, the following configuration shall be used:


DataCodingScheme = 08 (UCS2)
UserDataHeader = 06 05 04 4074 0000
a) UDHL length fields=06 05 04,
b) Destination port: 0x9199 (37273 in decimal)
c) Source Port: 0x0000 (0 in decimal)

The SMS content shall be the IMSI associated to the SIM plus the word "rcscfg"3
preceded by the dash symbol i.e. ‘-‘. For example: If the IMSI is
214011001388741,
The value in the text shall be
214011001388741-rcscfg3
When the device receives such a request and the IMSI matches the one on the SIM the
following actions shall take place:
1. Start the HTTP configuration described in section ‎2.2 or ‎2.3 depending on current
connectivity
3
Includes rcs for historic reasons
V2.0
Page 41 of 45
GSM Association
Confidential - Full, Rapporteur, and Associate Members
Official Document RCC.14 - Service Provider Device Configuration
2. If already active, deactivate service(s) for which the settings have changed as specified
for those services.
3.2
Reconfiguration initiated via SMS
In this first option, the mechanism that will trigger the reconfiguration will be a network
originated SMS. Please note that this option is only available to platforms and clients that
support the application port addressing (UDH header handling as per [3GPP TS 23.040]).
Regarding the SMS format, the following configuration shall be used:


DataCodingScheme = 08 (UCS2)
UserDataHeader = 06 05 04 4074 0000
a) UDHL length fields=06 05 04,
a) Destination port: 0x9199 (37273 in decimal)
b) Source Port: 0x0000 (0 in decimal)


For devices on which no IMS-based service is enabled, the SMS content shall be the
IMSI associated to the SIM plus the word "rcscfg"4 preceded by the dash symbol i.e.
‘-‘. For example: If the IMSI is
214011001388741,
The value in the text shall be
214011001388741-rcscfg3
Otherwise the SMS content shall be the IMS Private User Identity
(Private_User_Identity parameter in the XML configuration) plus the word "rcscfg"3
preceded by the dash symbol i.e. ‘-‘. For example: If the private identity is
[email protected],
The value in the text shall be
[email protected]
When the device receives such a request and the IMPI matches the one in the existing
configuration, it shall take the following actions:
1. Perform a HTTP configuration (as per section ‎2.2 or ‎2.3 depending on current
connectivity) setting the version and validity parameters to 0 (i.e. like in the case of a
first-time configuration), so it is guaranteed a complete configuration XML is provided by
the HTTP configuration server.
2. If active, deactivate service(s) for which the settings have changed as specified for those
services and apply configuration.
3. After the configuration process is completed, the client shall activate the services using
the received settings.
3.3
Interaction with the user during the network initiated reconfiguration
When performing a network initiated reconfiguration and if the user is making use of the
service, he shall be notified that the process is taking place and that consequently the
service will not be available until the reconfiguration is completed.
4
Includes rcs for historic reasons
V2.0
Page 42 of 45
GSM Association
Confidential - Full, Rapporteur, and Associate Members
Official Document RCC.14 - Service Provider Device Configuration
4 Configuration document formatting
4.1
Configuration Data
The actual configuration data will be represented in an OMA-CP (see [OMA CP Cont]) like
XML structure as described in section ‎4.2. The use of this mechanism for the configuration
of a service therefore requires a definition of how its configuration parameters will be
represented in this structure. This may be done through the definition of a mapping from
existing Management Objects to this XML structure or by including a definition for such
representation in newly defined Management Objects specific to the service.
NOTE:
4.2
An example is provided in [PRD-RCC.15] providing a generic configuration
for IMS based services.
HTTP configuration XML structure
In addition to the parameters and characteristics type provided by the mapping or definition
of Management Objects as presented in the previous section, it is necessary to define the
following mandatory configuration XML elements5 where the different applications and their
parameters are thus to be specified in service specific documents:
<?xml version="1.0"?>
<wap-provisioningdoc version="1.1">
<characteristic type="VERS">
<parm name=”version” value=”1”/>
<parm name=”validity” value=”Z”/>
</characteristic>
<characteristic type="TOKEN">
<parm name=”token” value=”X”/>
<parm name=”validity” value=”Y”/>
</characteristic>
<characteristic type="MSG">
-- This section is OPTIONAL
<parm name=”title” value=”Example”/>
<parm name=”message” value=”Hello world”/>
<parm name=”Accept_btn” value=”X”/>
<parm name=”Reject_btn” value=”X”/>
</characteristic>
<characteristic type="APPLICATION">
<parm name=”AppID” value=”apU”/>
<parm name=”Name” value=”V”/>
<parm name=”AppRef” value=”W”/>
…
</characteristic>
<characteristic type="APPLICATION"> -- This is an example
<parm name=”AppID” value=”apR”/>
<parm name=”Name” value=”S”/>
<parm name=”AppRef” value=”T”/>
<characteristic type=”O”>
<parm name=”P” value=”Q”/>
…
</characteristic>
5
Please note the AppID’s used in the example are provided as example only as they have not been
reserved.
V2.0
Page 43 of 45
GSM Association
Confidential - Full, Rapporteur, and Associate Members
Official Document RCC.14 - Service Provider Device Configuration
<characteristic type=”M”>
…
</characteristic>
…
</characteristic>
</wap-provisioningdoc>
Table 15: Complete RCS HTTP configuration XML structure
4.2.1
Configuration storage on the client
The service configuration (including the token described in sections ‎2.3.2 and_‎2.5.1) should
be stored securely on the device and should not be accessible to the user.
If any of the required parameters for a service are not configured or configured with an
unexpected value, that service functionality should revert to default behaviour and not be
presented as such to the user. This default behaviour needs to be defined for the individual
services and might for example be to disable the service and its entry points. In this state,
the full service functionality can only be restored by completing the first-time configuration
procedure (see section ‎2).
If a configured device is reset, the client should securely back up the configuration in the
device together with the associated IMSI prior to the reset. Please note that this also applies
in the event of swapping SIM cards. The configuration associated with the old SIM should
then be securely backed up before triggering a first time registration.
The motivation behind the configuration backup is to facilitate the scenario where following a
reset or after a SIM swap, the original SIM card is re-introduced into the device. In that
instance instead of triggering a first-time configuration, the configuration is restored.
In those terminals where, as a consequence of the processes mentioned in the previous
paragraphs (reset, SIM card swap), the terminal also deletes the contacts (for example a
particular Service Provider is enforcing a policy where a SIM swap causes the deletion of the
contacts), the associated Service information (e.g. cached capabilities per contact) should
also be removed. In this case, the Service information associated with the contacts is not
backed up.
The number of configuration backups stored is left to the device’s implementation, but shall
be at least 2 (for the currently inserted and a previous SIM).
Clients functioning as secondary clients sharing the SIM identity used in a user’s main
device (see section ‎2.5) may offer multiple users the possibility to access the services (e.g.
by requiring selecting which user to serve when started). In that case the client shall store a
user’s configuration and service data (e.g. Chat histories and call logs) in local storage when
switching to another account. All private data shall not be accessible to other users. No new
configuration requests shall be performed for the stored accounts even when the validity of
their configuration expires. A new configuration request shall only be done when a stored
configuration is restored because a user has selected to use the account again. If no valid
token is available anymore, this may result in a complete first time configuration procedure.
When the first time configuration request is successful the stored service data for that user
will be made available again.
V2.0
Page 44 of 45
GSM Association
Confidential - Full, Rapporteur, and Associate Members
Official Document RCC.14 - Service Provider Device Configuration
Annex A
A.1
Document Management
Document History
Version
Date
Brief Description of Change
Approval
Authority
1.0
02
February
2015
initial version split of from RCC.07
v5.0 to allow for more generic use
PSMC
2.0
28
February
2015
Token characteristic in response
over 3GPP, clarifications in
response codes and description of
renegotiation of bootstrapped
security association
PSMC
A.2
Editor /
Company
Tom Van Pelt /
GSMA
Tom Van Pelt /
GSMA
Other Information
Type
Description
Document Owner
GSMA Network2020 Programme IP Communications Global
Specification Group
Editor / Company
Tom Van Pelt / GSMA
It is our intention to provide a quality product for your use. If you find any errors or omissions,
please contact us with your comments. You may notify us at [email protected]
Your comments or suggestions & questions are always welcome.
V2.0
Page 45 of 45
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
