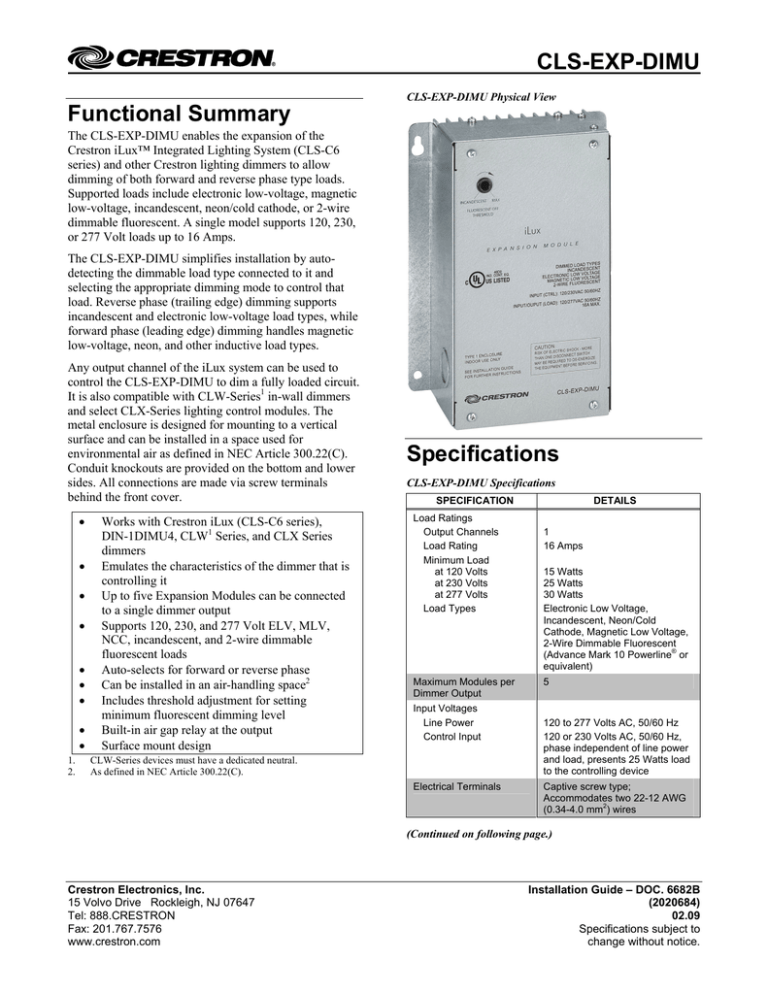

CLS-EXP-DIMU
CLS-EXP-DIMU Physical View
Functional Summary
The CLS-EXP-DIMU enables the expansion of the
Crestron iLux™ Integrated Lighting System (CLS-C6
series) and other Crestron lighting dimmers to allow
dimming of both forward and reverse phase type loads.
Supported loads include electronic low-voltage, magnetic
low-voltage, incandescent, neon/cold cathode, or 2-wire
dimmable fluorescent. A single model supports 120, 230,
or 277 Volt loads up to 16 Amps.
The CLS-EXP-DIMU simplifies installation by autodetecting the dimmable load type connected to it and
selecting the appropriate dimming mode to control that
load. Reverse phase (trailing edge) dimming supports
incandescent and electronic low-voltage load types, while
forward phase (leading edge) dimming handles magnetic
low-voltage, neon, and other inductive load types.
Any output channel of the iLux system can be used to
control the CLS-EXP-DIMU to dim a fully loaded circuit.
It is also compatible with CLW-Series1 in-wall dimmers
and select CLX-Series lighting control modules. The
metal enclosure is designed for mounting to a vertical
surface and can be installed in a space used for
environmental air as defined in NEC Article 300.22(C).
Conduit knockouts are provided on the bottom and lower
sides. All connections are made via screw terminals
behind the front cover.
•
•
•
•
•
•
•
•
•
1.
2.
Works with Crestron iLux (CLS-C6 series),
DIN-1DIMU4, CLW1 Series, and CLX Series
dimmers
Emulates the characteristics of the dimmer that is
controlling it
Up to five Expansion Modules can be connected
to a single dimmer output
Supports 120, 230, and 277 Volt ELV, MLV,
NCC, incandescent, and 2-wire dimmable
fluorescent loads
Auto-selects for forward or reverse phase
Can be installed in an air-handling space2
Includes threshold adjustment for setting
minimum fluorescent dimming level
Built-in air gap relay at the output
Surface mount design
Specifications
CLS-EXP-DIMU Specifications
SPECIFICATION
Load Ratings
Output Channels
Load Rating
Minimum Load
at 120 Volts
at 230 Volts
at 277 Volts
Load Types
Maximum Modules per
Dimmer Output
Input Voltages
Line Power
Control Input
CLW-Series devices must have a dedicated neutral.
As defined in NEC Article 300.22(C).
Electrical Terminals
DETAILS
1
16 Amps
15 Watts
25 Watts
30 Watts
Electronic Low Voltage,
Incandescent, Neon/Cold
Cathode, Magnetic Low Voltage,
2-Wire Dimmable Fluorescent
®
(Advance Mark 10 Powerline or
equivalent)
5
120 to 277 Volts AC, 50/60 Hz
120 or 230 Volts AC, 50/60 Hz,
phase independent of line power
and load, presents 25 Watts load
to the controlling device
Captive screw type;
Accommodates two 22-12 AWG
2
(0.34-4.0 mm ) wires
(Continued on following page.)
Crestron Electronics, Inc.
15 Volvo Drive Rockleigh, NJ 07647
Tel: 888.CRESTRON
Fax: 201.767.7576
www.crestron.com
Installation Guide – DOC. 6682B
(2020684)
02.09
Specifications subject to
change without notice.
iLux™ Expansion Module
Crestron CLS-EXP-DIMU
CLS-EXP-DIMU Specifications (continued)
SPECIFICATION
Enclosure
Environmental
Temperature
Humidity
Heat Dissipation
CLS-EXP-DIMU Specifications (continued)
DETAILS
SPECIFICATION
Surface mount module with (2)
integral mounting flanges,
galvanized steel w/gray matte
powder coat front panel,
extruded aluminum heat sink, ½”
and ¾” conduit knockouts
provided on bottom and lower
left & right sides
Dimensions
Height
Width
Depth
Weight
Compatible Control
Devices
CLS(I)-C6 Series
CLW-DIM Series
CLW-DIMXRF Series
CLX(I)-1DIM4
32° to 104°F (0° to 40°C)
10% to 90% RH
(non-condensing)
200 BTU/Hr at maximum load
CLX-1DIM8
(Continued on following column.)
CLX(I)-2DIM2
CLX(I)-2DIM8
DIN-1DIMU4
DETAILS
8.82 in (22.40 cm)
6.39 in (16.23 cm)
3.18 in (8.08 cm)
3.34 lbs (1.52 kg)
iLux Integrated Lighting System
Wall Dimmers
infiNet™ Wall Dimmers
Four Channel Dimmer Module,
Single Feed
Eight Channel Dimmer Module,
Single Feed
Two Channel Dimmer Module,
Two Feeds
Eight Channel Dimmer Module,
Two Feeds
DIN Rail Universal Dimmer
Industry Compliance
This product is Listed to applicable UL Standards and requirements by Underwriters Laboratories Inc. These devices have
been additionally evaluated to UL 2043, The Standard for Fire Test for Heat and Visible Smoke Release for Discrete
Products and Their Accessories Installed in Air-Handling Spaces.
(E103692)
As of the date of manufacture, the CLS-EXP-DIMU has been tested and found to comply with specifications for CE marking.
NOTE: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference and (2) this device must accept any interference received, including interference
that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
ƒ
Reorient or relocate the receiving antenna.
ƒ
Increase the separation between the equipment and receiver.
ƒ
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
ƒ
Consult the dealer or an experienced radio/TV technician for help.
2 • iLux™ Expansion Module: CLS-EXP-DIMU
Installation Guide – DOC. 6682B
Crestron CLS-EXP-DIMU
iLux™ Expansion Module
Application
The following diagram shows several CLS-EXP-DIMU modules in a typical application.
CLS-EXP-DIMU Modules in a Lighting Application
Installation Guide – DOC. 6682B
iLux Expansion Module: CLS-EXP-DIMU • 3
iLux™ Expansion Module
Crestron CLS-EXP-DIMU
Connectors, Controls & Indicators
#
Physical Description
This section provides information on the connections,
controls and indicators available on the CLS-EXP-DIMU.
CONNECTORS,
CONTROLS &
INDICATORS
1
FLUORESCENT
OFF THRESHOLD
(1) Recessed screwdriveradjustable trim pot, adjusts
minimum brightness level.
Covered by removable cap.
2
PHASE LED
(1) Yellow LED behind front
panel; illuminates when
operating in Reverse Phase
mode.
3
STATUS LED
(1) Red LED behind front
panel; illuminates when load
output is on.
4
POWER LED
(1) Green LED behind front
panel; indicates power is
applied to the HOT terminal.
5
S2
(1) Two-position DIP switch
behind front panel; used to
select the zero cross detection
filter.
For more information, refer to
“Zero Cross Detection Filter” on
page 6.
6
S1
(1) Two-position DIP switch
behind front panel; used to
select dimming mode.
For more information, refer to
“Dimming Mode” on page 6.
7
CTRL
8
NEUT (INPUT)
(1) Captive screw terminal, for
neutral connection for control
input.
9
DIM OUT
(1) Captive screw terminal for
dimmed output to the load.
10
HOT
11
NEUT (OUTPUT)
(1) Captive screw terminal,
neutral connection for line
power input and load.
12
GROUND
(1) Chassis ground bus bar.
CLS-EXP-DIMU Overall Dimensions
5.79 in
(14.71 cm)
3.18 in
(8.08 cm)
3.07 in
(7.80 cm)
Ø 0.19 in
(Ø 0.48 cm)
4.99 in
(12.67 cm)
8.31 in
(21.11 cm)
8.82 in
(22.40 cm)
1.64 in
(4.17 cm)
1.56 in
(3.96 cm)
2.02 in
(5.21 cm)
ON
Ø 0.25 in
(Ø 0.64 cm)
1 2
0.50 in
(1.27 cm)
1 2
ON
7.31 in
(18.57 cm)
6.39 in
(16.23 cm)
DESCRIPTION
1.64 in
(4.17 cm)
CLS-EXP-DIMU (cover removed)
7
8
9
ON
S1
1 2
S2
5
ON
4
1 2
PHASE
3
POWER
2
STATUS
1
10
6
11
*
(1) Captive screw terminal, for
control input from CLS-Series,
CLW-Series* dimmers,
CLX-DIM (all versions), or other
Crestron incandescent
dimmers.
(1) Captive screw terminal, for
line power input.
CLW-Series device must have a dedicated neutral.
12
4 • Terminal Block & Module: CLTI- & CLXI-2DIM8
Installation Guide – DOC. 6682B
Crestron CLS-EXP-DIMU
iLux™ Expansion Module
Hardware Hookup
Setup
Important Notes
Read before installation.
•
•
•
•
Permits: An electrical permit shall be obtained
prior to each installation.
Codes: Install in accordance with all local and
national electrical codes.
Wiring: Use 75°C copper wire only.
Not suitable for Hazardous/Classified areas.
WARNING: RISK OF SERIOUS PERSONAL
INJURY. Turn off power at the circuit breaker(s) prior to
installation. Installing with power on can result in serious
personal injury and damage to the device.
1.
Use a #2 Philips screwdriver to remove the cover
screws as shown in the following diagram and
remove the cover.
Remove Cover Screws
Installation
The CLS-EXP-DIMU can be installed vertically on a wall
and can also be installed in a space used for
environmental air as defined in NEC Article 300.22(C).
Refer to the following diagram when installing a
CLS-EXP-DIMU module.
COVER SCREWS
(x4)
Module Installation
MOUNTING SURFACE
CLS-EXP-DIMU MODULE
2.
MOUNTING SCREW, #8,
QTY 4 TOTAL
(NOT SUPPLIED)
Depending on the module’s application, select the
appropriate configuration from one of the wiring
diagrams on the next page and connect the CLS-C6
and load(s) as shown.
•
Do not connect wires of differing gauge to a
single terminal.
•
Wires should be stripped to 7/16” (11 mm)
•
Tighten terminal screws to 7 in-lbs (0.79 Nm)
NOTE: Dimmers controlling one or more
CLS-EXP-DIMU modules must not be wired to
control any other type of load.
To ensure proper ventilation:
•
The device must be installed vertically on a vertical
surface.
NOTE: To prevent potential heat damage to
drywall, do not mount the CLS-EXP-DIMU
directly onto drywall. Mount a piece of ½”
(minimum) thick plywood between the
CLS-EXP-DIMU and the drywall.
•
NOTE: When using a CLW-Series wall dimmer,
the wall dimmer must be wired with a dedicated
neutral wire.
NOTE: While these diagrams show a CLS-C6 as
the controlling source, other Crestron products
such as CLW-Series wall dimmers (Cresnet® and
infiNET™), DIN-1DIMU4, and CLX-Series
dimming modules can be used as well. Please refer
to the specific dimmer’s Installation Guide for
detailed information.
Install device with 6 inches (152 mm) of clearance
from the top and bottom of the device.
Installation Guide – DOC. 6682B
iLux™ Expansion Module: CLS-EXP-DIMU • 5
iLux™ Expansion Module
Crestron CLS-EXP-DIMU
CLS-EXP-DIMU Wiring with Dual Feeds
HOT
(120 to 277 VAC)
The dimming mode can be changed by adjusting the S1
DIP switches as detailed in the following table.
CLS-EXP-DIMU
NEUTRAL
NEUTRAL
CLS(I)-C6
HOT
DIM OUT
LOAD 1
HOT
NEUTRAL
LOAD 2
CONTROL
NEUTRAL
LOAD 3
HOT
(120 (230) VAC)
DIM OUT
Lighting
Loads
Switch Settings for S1 DIP Switch
SW. 1 SW. 2
DIMMING MODE
Off
Off
Auto Detect
(Default, recommended)
On
Off
Reverse Phase
Incandescent,
Electronic Low
Voltage
On
On
Forward Phase
Magnetic Low
Voltage, Neon/CC,
2-wire dimmable
Fluorescent
NEUTRAL
NEUTRAL
Multiple CLS-EXP-DIMU Modules
HOT
(120 to 277 VAC)
CLS-EXP-DIMU
NEUTRAL
NEUTRAL
DIM OUT
HOT
All
Lighting
Loads
NEUTRAL
CONTROL
NEUTRAL
DIM OUT
HOT
(120 to 277 VAC)
LOAD TYPES
Zero Cross Detection Filter
CLS-EXP-DIMU
NEUTRAL
NEUTRAL
The CLS-EXP-DIMU performs filtering to compensate
for noise on the incoming AC line. This filtering is useful
for eliminating flickering of the load caused by line noise.
If necessary, this filtering can be disabled.
DIM OUT
CLS(I)-C6
HOT
DIM OUT
HOT
LOAD 1
NEUTRAL
LOAD 2
HOT
(120 (230) VAC)
CONTROL
NEUTRAL
LOAD 3
Lighting
Loads
Disabling the zero cross detection filter should not be
necessary, and is not recommended unless suggested
by a Crestron technical support representative.
NEUTRAL
NEUTRAL
3.
Apply power to the line/load and turn on the
controlling device. The power indicator LED will
light indicating that power is supplied to the
module.
4.
Replace the cover and cover screws.
Dimming Mode
The CLS-EXP-DIMU is capable of automatically
detecting the attached load type, and setting itself for
forward-phase (leading edge) or reverse-phase (trailing
edge) dimming accordingly. In addition, the unit can be
forced to perform forward- or reverse-phase dimming by
overriding the automatic detection.
WARNING: RISK OF SERIOUS PERSONAL
INJURY. Turn off power at the circuit breaker(s) prior to
changing any switch settings. Changing settings with
power on can result in serious personal injury and damage
to the device.
The function of the zero cross detection filter is set using
the S2 DIP switch. Refer to the following table when
setting the zero cross detection filter.
Switch Settings for S2 DIP Switch
SW. 1
SW. 2
Off
Off
Enable zero cross detection filter
(Default, recommended). Provides
maximum filtering under various line
noise conditions.
On
Off
Disable zero cross detection filter.
Allows rapid tracking of the AC line.
Suitable when using generators for AC
line power.
Disabling the Auto Detect mode should not be
necessary, and is not recommended unless suggested
by a Crestron technical support representative.
WARNING: RISK OF SERIOUS PERSONAL
INJURY. Turn off power at the circuit breaker(s) prior to
changing any switch settings. Changing settings with
power on can result in serious personal injury and damage
to the device.
Set the Minimum Dimming Level
Certain types of loads can flicker when dimmed too low.
Adjust the FLUORESCENT OFF THRESHOLD to
prevent the CLS-EXP-DIMU from attempting to dim the
load below a certain level. To adjust:
1.
6 • iLux™ Expansion Module: CLS-EXP-DIMU
DESCRIPTION
Remove the cap from the FLUORESCENT OFF
THRESHOLD adjustment from the inside of the
cover (requires removal of cover as shown on
previous page).
Installation Guide – DOC. 6682B
Crestron CLS-EXP-DIMU
2.
Using a flat-head screwdriver, turn the
FLUORESCENT OFF THRESHOLD
adjustment counter-clockwise until it stops.
3.
Set the CLS-C6 so that the light output is on but is
below the desired minimum level.
4.
Turn the FLUORESCENT OFF THRESHOLD
adjustment clockwise until the light output is at the
desired minimum level.
5.
Replace the cap.
iLux™ Expansion Module
CLS-EXP-DIMU Troubleshooting (continued)
TROUBLE
POSSIBLE
CAUSE(S)
CORRECTIVE
ACTION
Audible noise
while dimming.
Load is being
dimmed in wrong
mode.
Refer to the list of
load types in the
table at the top of
page 6. Check the
PHASE LED to
ensure that the load
is being dimmed in
the proper way for
the attached load
type. If the unit is set
to Auto, and the
improper mode is
being used, follow
the instructions on
page 6 to override
the Auto setting and
force the unit to the
proper mode.
Some incandescent
loads can make
noise when dimmed
due to the size of the
filament. Try a
different lamp
manufacturer.
Refer to “Set the
Minimum Dimming
Level” on page 6.
Problem Solving
Troubleshooting
The following table provides corrective action for
possible trouble situations. If further assistance is
required, please contact a Crestron customer service
representative.
Large
incandescent
load.
CLS-EXP-DIMU Troubleshooting
TROUBLE
Load does not
turn on.
POSSIBLE
CAUSE(S)
Controller is not
working.
No power applied
to HOT terminal.
Load turns on
and off, but will
not dim.
Lights do not dim
properly.
Controlling unit is
either not a
dimmer, or has
been set to nondim.
FLUORESCENT
OFF
THRESHOLD has
been set too high.
Using an
incompatible
dimmer.
CORRECTIVE
ACTION
Make sure the
controller is
powered on, and is
one of the
compatible dimmers
listed in
“Specifications” on
page 1.
Check circuit
breaker. Check that
green POWER LED
on inside of unit is
lit.
Verify that dimmer is
compatible with the
CLS-EXP-DIMU
(refer to
“Specifications” on
page 1). Verify that
the controlling
channel has not
been programmed
as non-dim.
Refer to “Set the
Minimum Dimming
Level” on page 6.
Lights flicker
when at certain
dimming levels.
Lights cannot be
dimmed below a
certain level.
Some types of
loads cannot be
dimmed below a
certain level.
FLUORESCENT
OFF
THRESHOLD has
been set too high.
Refer to “Set the
Minimum Dimming
Level” on page 6.
Further Inquiries
If you cannot locate specific information or have
questions after reviewing this guide, please take
advantage of Crestron's award winning customer service
team by calling Crestron at 1-888-CRESTRON
[1-888-273-7876].
You can also log onto the online help section of the
Crestron website (www.crestron.com/onlinehelp) to ask
questions about Crestron products. First-time users will
need to establish a user account to fully benefit from all
available features.
Make sure that the
dimmer is one of
those listed in
“Specifications” on
page 1.
(Continued on following column.)
Installation Guide – DOC. 6682B
iLux™ Expansion Module: CLS-EXP-DIMU • 7
iLux™ Expansion Module
Crestron CLS-EXP-DIMU
Return and Warranty Policies
Merchandise Returns / Repair Service
1.
No merchandise may be returned for credit, exchange or service without prior authorization from
CRESTRON. To obtain warranty service for CRESTRON products, contact an authorized
CRESTRON dealer. Only authorized CRESTRON dealers may contact the factory and request an
RMA (Return Merchandise Authorization) number. Enclose a note specifying the nature of the
problem, name and phone number of contact person, RMA number and return address.
2.
Products may be returned for credit, exchange or service with a CRESTRON Return Merchandise
Authorization (RMA) number. Authorized returns must be shipped freight prepaid to
CRESTRON, 6 Volvo Drive, Rockleigh, N.J. or its authorized subsidiaries, with RMA number
clearly marked on the outside of all cartons. Shipments arriving freight collect or without an RMA
number shall be subject to refusal. CRESTRON reserves the right in its sole and absolute
discretion to charge a 15% restocking fee plus shipping costs on any products returned with an
RMA.
3.
Return freight charges following repair of items under warranty shall be paid by CRESTRON,
shipping by standard ground carrier. In the event repairs are found to be non-warranty, return
freight costs shall be paid by the purchaser.
CRESTRON Limited Warranty
CRESTRON ELECTRONICS, Inc. warrants its products to be free from manufacturing defects in materials and
workmanship under normal use for a period of three (3) years from the date of purchase from CRESTRON,
with the following exceptions: disk drives and any other moving or rotating mechanical parts, pan/tilt heads and
power supplies are covered for a period of one (1) year; touchscreen display and overlay components are
covered for 90 days; batteries and incandescent lamps are not covered.
This warranty extends to products purchased directly from CRESTRON or an authorized CRESTRON dealer.
Purchasers should inquire of the dealer regarding the nature and extent of the dealer's warranty, if any.
CRESTRON shall not be liable to honor the terms of this warranty if the product has been used in any
application other than that for which it was intended or if it has been subjected to misuse, accidental damage,
modification or improper installation procedures. Furthermore, this warranty does not cover any product that
has had the serial number altered, defaced or removed.
This warranty shall be the sole and exclusive remedy to the original purchaser. In no event shall CRESTRON
be liable for incidental or consequential damages of any kind (property or economic damages inclusive) arising
from the sale or use of this equipment. CRESTRON is not liable for any claim made by a third party or made by
the purchaser for a third party.
CRESTRON shall, at its option, repair or replace any product found defective, without charge for parts or labor.
Repaired or replaced equipment and parts supplied under this warranty shall be covered only by the unexpired
portion of the warranty.
Except as expressly set forth in this warranty, CRESTRON makes no other warranties, expressed or implied,
nor authorizes any other party to offer any warranty, including any implied warranties of merchantability or
fitness for a particular purpose. Any implied warranties that may be imposed by law are limited to the terms of
this limited warranty. This warranty statement supersedes all previous warranties.
Trademark Information
All brand names, product names and trademarks are the sole property of their respective owners. Windows is a registered trademark of
Microsoft Corporation. Windows95/98/Me/XP/Vista and WindowsNT/2000 are trademarks of Microsoft Corporation.
8 • iLux™ Expansion Module: CLS-EXP-DIMU
Installation Guide – DOC. 6682B
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
