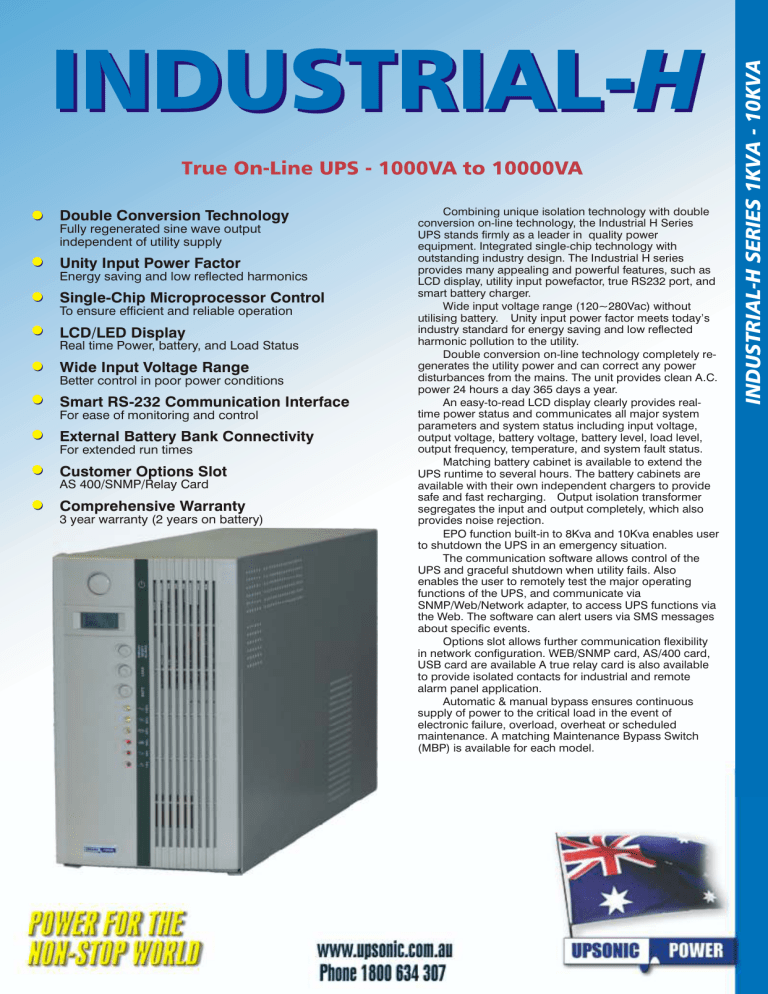

in dustr ia l -hser ie s 1 kva - 1 0 kva
True On-Line UPS - 1000VA to 10000VA
Double Conversion Technology
Fully regenerated sine wave output
independent of utility supply
Unity Input Power Factor
Energy saving and low reflected harmonics
Single-Chip Microprocessor Control
To ensure efficient and reliable operation
LCD/LED Display
Real time Power, battery, and Load Status
Wide Input Voltage Range
Better control in poor power conditions
Smart RS-232 Communication Interface
For ease of monitoring and control
External Battery Bank Connectivity
For extended run times
Customer Options Slot
AS 400/SNMP/Relay Card
Comprehensive Warranty
3 year warranty (2 years on battery)
Combining unique isolation technology with double
conversion on-line technology, the Industrial H Series
UPS stands firmly as a leader in quality power
equipment. Integrated single-chip technology with
outstanding industry design. The Industrial H series
provides many appealing and powerful features, such as
LCD display, utility input powefactor, true RS232 port, and
smart battery charger.
Wide input voltage range (120~280Vac) without
utilising battery. Unity input power factor meets today’s
industry standard for energy saving and low reflected
harmonic pollution to the utility.
Double conversion on-line technology completely regenerates the utility power and can correct any power
disturbances from the mains. The unit provides clean A.C.
power 24 hours a day 365 days a year.
An easy-to-read LCD display clearly provides realtime power status and communicates all major system
parameters and system status including input voltage,
output voltage, battery voltage, battery level, load level,
output frequency, temperature, and system fault status.
Matching battery cabinet is available to extend the
UPS runtime to several hours. The battery cabinets are
available with their own independent chargers to provide
safe and fast recharging. Output isolation transformer
segregates the input and output completely, which also
provides noise rejection.
EPO function built-in to 8Kva and 10Kva enables user
to shutdown the UPS in an emergency situation.
The communication software allows control of the
UPS and graceful shutdown when utility fails. Also
enables the user to remotely test the major operating
functions of the UPS, and communicate via
SNMP/Web/Network adapter, to access UPS functions via
the Web. The software can alert users via SMS messages
about specific events.
Options slot allows further communication flexibility
in network configuration. WEB/SNMP card, AS/400 card,
USB card are available A true relay card is also available
to provide isolated contacts for industrial and remote
alarm panel application.
Automatic & manual bypass ensures continuous
supply of power to the critical load in the event of
electronic failure, overload, overheat or scheduled
maintenance. A matching Maintenance Bypass Switch
(MBP) is available for each model.
INDUSTRIAL-H SERIES 1KVA - 10KVA
INDUSTRIAL-H
Model
INDUSTRIAL-H
CAPACITY
VA/W
INPUT
Voltage
IH 1000
IH 2000
IH 3000*
IH 5000
IH 6000
IH 10000
1KVA/0.7KW
2KVA/1.4KW
3KVA/2.1KW
5KVA/3.5KW
6KVA/4.2KW
10KVA/8KW
120 ~ 280VAC
120 ~280VAC
1¤160~280
3¤ 277~485
43 - 65Hz ± 10% (Auto Sensing)
Frequency
Phase
OUTPUT
1¤ or 3¤
Single
Power Factor
>0.98
Voltage
230/240
Voltage Regulation
220/230/240
±2%
Rated Power Factor
0.7 Lagging
Waveform
Sine Wave, <3% (no load to full load)
Frequency Stability
±0.5Hz (Free Running)
Transfer Time
0ms
Crest Factor
3:1
Efficiency (AC to AC)
>80%
Run Time (Full Load)**
>85%
7 min.
6 min.
DC Start
BATTERY
Yes
Type
Sealed Lead Acid Maintenance Free
Capacity
12 V 7AH
Quantity**
Voltage
12 V 7AH
12 V 7AH
3pcs
6pcs
10pcs
16pcs
16pcs
36VDC
72VDC
120VDC
192VDC
192VDC
Recharge Time
12 V 12AH
8 Hours to 90%
Recharge Current
0.6a
Supplementary Charger
DISPLAY
5 min.
Optional 200W / 500W / 1000W / 2000W chargers
LED
Utility, Battery Low, Inverter, Overload, Fault, Load/Battery,
LCD
Input Voltage, Output Voltage, Output Frequency, Load Percentage
Level and Fault conditions
Inner Ambient Temperature, Battery Voltage and Fault Details
(Error Code, ground fault, phase reverse, overload readouts for IH 10000)
Load Battery Level and Fault conditions
Self Diagnostics
Upon Power - On and Push Button
ALARMS
Audible and Visual
Line Failure, Battery Low, Transfer to Bypass, System Fault Conditions
PHYSICAL
Dimension 230VAC (WxDxH) (mm)
155x508x292 180x556x390 244x615x385
308x835x427
1¤ 400x730x841
3¤ 400x730x1112
Backup Outlets 230 VAC
WEIGHT
1IEC/2AUS
3IEC/2AUS
Hardwire 2 AUS
25kgs
42kgs
50kgs
Nett Weight 230V
MARKS
Hardwire
91kgs
1¤183 3¤253kgs
CE, cUL, UL
** External battery packs available for longer run times
*Requires 15 Amp Socket
System Block Diagram
Static Bypass
N.F.
Line Input
AC
DC
AC
DC
Power Factor
Correction
Inverter
AC
DC
Charger
+
UPS
Output
Normal
Operation
Mains
Fail
Battery
