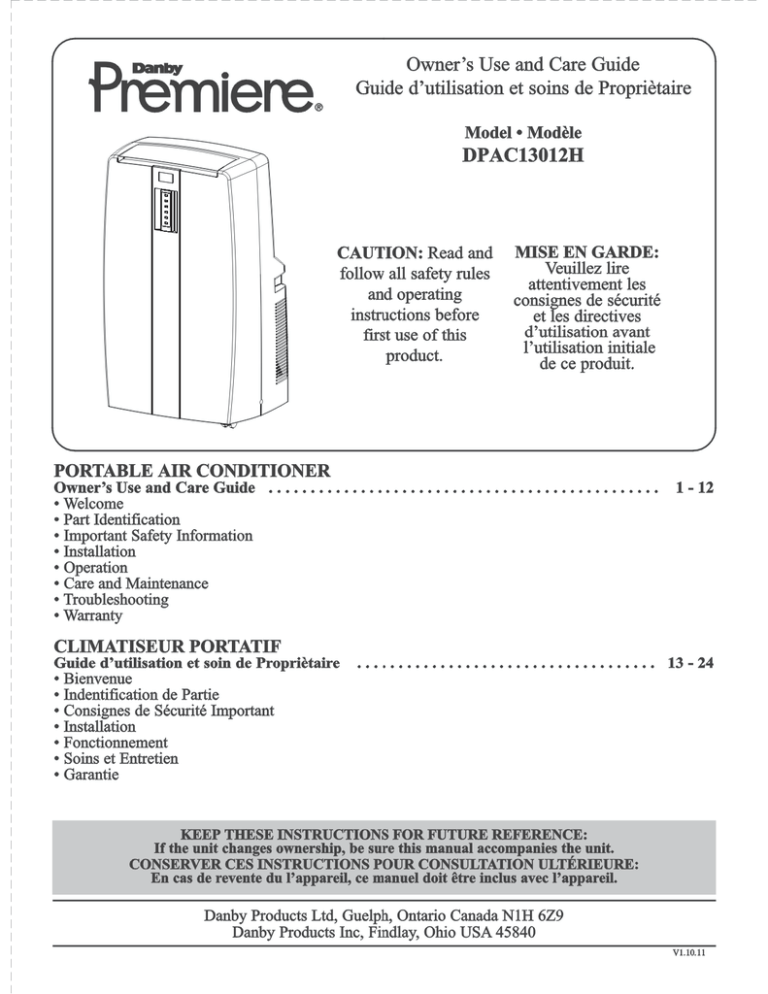

 Danby Owner’s Use and Care Guide
o
Premiere Guide d'utilisation et soins de Propriétaire
®
Model * Modeéle
DPAC13012H
q CAUTION: Read and MISE EN GAR DE:
euillez lire
1 follow all safety rules attentivement les
р and operating consignes de sécurité
instructions before et les directives
first use of this d’utilisation ayant
roduct l’utilisation initiale
Р ; de ce produit.
N 7
PORTABLE AIR CONDITIONER
Owner’s Use and Care Guide ..............sso0s0 ac 000000000000 000000000000 1-12
+ Welcome
* Part Identification
* Important Safety Information
* Installation
* Operation
* Care and Maintenance
* Troubleshooting
* Warranty
CLIMATISEUR PORTATIF
Guide d'utilisation et soin de Propriétaire ............ 0000000000000 ...0.000404 13-24
* Bienvenue
* Indentification de Partie
* Consignes de Sécurité Important
* Installation
* Fonctionnement
* Soins et Entretien
* Garantie
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE:
If the unit changes ownership, be sure this manual accompanies the unit.
CONSERVER CES INSTRUCTIONS POUR CONSULTATION ULTERIEURE:
En cas de revente du l’appareil, ce manuel doit être inclus avec l’appareil.
Danby Products Ltd, Guelph, Ontario Canada N1H 6Z9
Danby Products Inc, Findlay, Ohio USA 45840
V1.10.11
WELCOME
Thank you for choosing a Danby Premiere appliance to provide you and your family with all of the
“Home Comfort” requirements of your home, cottage, or office. This Owner’s Use and Care Guide
will provide you with valuable information necessary for the proper care and maintenance of your
new appliance. If properly maintained, your Danby appliance wi give you many years of trouble
free operation. Please take a few moments to read the instructions thoroughly and familiarize yourself
with all of the operational aspects of this appliance.
Your Danby Portable Air-Conditioner is a multi-functional room air-exchanging, air-processing
appliance, designed to offer you the functions of; Air Conditioning, Dehumidifing. and Independent
an. Each individual mode is featured with “oscillating” air swing capabilities. This unit can be
conveniently moved from room to room within your home and set up in just minutes. Imagine the
convenience of 4 Season Home Comfort at your fingertips, anywhere, anytime.
For easy reference, may we suggest you attach a copy of your sales slip/receipt to this page, along
with the following information, located on the manufacturers nameplate on the rear panel of the unit.
Model Number:
Serial Number:
Date of Purchase:
This information will be necessary if your unit requires servicing and/or for general inquiries. To contact a
Customer Service Representative, call Danby TOLL FREE: 1-800-26- Danby" (1-800-263-2629)
PART IDENTIFICATION
|
Air Outlet —
_
a) | |
Signal Receptor E \ Г
| В \ 9 JST
Control Panel | Air Intake +17 US 6 | Air Outlet Hose
== —
N IL
7 |
— Water Outlet Drain N
- Castor Power Supply Cord
IMPORTANT SAFETY INFORMATION
READ ALL SAFETY INFORMATION BEFORE USING
ELECTRICAL
SPECIFICATIONS
1) Check available power supply and resolve any wiring
problems BEFO ation and operation of this unit,
1 wiring must comply with local and national electrical
codes and be installed by a qualified electrician. If you have
any questions regarding the following instructions, contact a
ed electrician.
2) This appliance draws 10.8/12 nameplate amps under
Cooling/Heating Mode and may be used in any properly wired,
general purpose 15 amp household grounded receptacle.
3) For your safety and protection, this unit is grounded through
the power cord plug when plugged into a matching wall
outlet. If you are not sure whether the wall outlets in your
home. are properly grounded, please consult a qualified
electrician.
WARNING: improper connection of the groundin 2 pug can
result in risk of Fire, Electric Shock, and/or injury to Persons
associated with the appliance. Check with a qualified service
representative if in doubt that the appliance is properly grounded.
4) DO NOT USE PLUG ADAPTERS OR EXTENSION
CORDS WITH THIS UNIT. If it is necessary to use an
extension cord with this unit, use an approved “air
conditioner” extension cord only (available at most local
hardware stores).
5) To avoid the possibility of personal injury, alwa
disconnect the power Supply to the unit before installing
and/or servicing,
TABLE 1
Suggested Individual Branch Circuit
Nameplate Amps *AWG Wire Size
10.8(Cooling)/12(Heating) 16
AWG- American Wire Gauge
*Based on copper wire at 105°C temperature rating.
TABLE 2
Receptacle and Fuse Types
Rated Volts 125
Amps 15
Wall Outlet 00
Fuse Size 15
Time Delay Fuse Plug Type
(or Circuit Breaker)
CAUTION: Do not leave this unit
unattended in a space where people or
animals that cannot react to a failed unit
are located. A failed unit can cause
extreme overheating or death in such an
enclosed, unattended space.
IMPORTANT SAFETY INFORMATION
POWER The power cord supplied with this air conditioner contains a device that senses damage to
SUPPLY CORD the power cord. To test if your power cord is working properly, you must do the following:
| NOTE: The power cord supplied with this air
1) Connect the power supply cord to an electrical outlet, con ditioner contains a current e а detection device
2) The power ly cord has two buttons located on designed to reduce the risk of fire. e event the
ee orde One buno mau sn Si a damage, cannot paved
“TEST”. and the other is marked “RESET”. Press and must be replaced with a new cord from the product
the “TEST” button; you will hear a click as the — manufacturer.
RESET button pops out. + Under no circumstances should this device be used to
3) Press the “RESET” button; you will hear a click turn the unit on or off.
the butt
TEE * The “RESET” button must always be pushed in
4) The power supply cord is now energized and (engaged) for correct operation.
supplying electricity to the air conditioner (on
oducts this is also indicated bv a light * The power supply cord must be replaced if it fails to
the à plug head). $ 15 also indicated by a light on reset when the ST” button is pushed in.
< AVING TIPS Your Danby appliance is designed to be highly efficient in energy savings. Follow
these recommendations for greater efficiency.
1) Select a thermostat setting that suits your 4) Start your air conditioner before the outdoor air _
comfort needs and leave at that chosen setting. becomes hot and uncomfortable, to avoid an initial
period of discomfort while the unit is cooling off the
2) The air filter is very efficient in removing room. Use of the automatic start/stop programmable
airborne particles. Keep the air filter clean at all TIMER feature can be a major asset in this regard if
times. utilized to the fullest extent.
3) Use drapes, curtains or shades to keep direct 5) When outdoor temperatures are cool enough, turn the
sunlight from penetrating and heating room, but air conditioner off and use the FAN MODE on High,
do not allow drapes or curtains to obstruct the air Medium or Low. This circulates indoor air,providing
flow around the unit. some cooling comfort while utilizing less electricity.
INSTALLATION
ELECTRIC SHOCK HAZARD: To avoid
WARNING the possibility of personal injury, disconnect
power to the unit before installing or servicing.
INSTALLATION ACCESSORIES (FIG. 1)
Flexible Exhaust Hose (213cm) & Exhaust nozzle
connector (2 pcs)... from 21 2/2” (55cm) up to 66 3/2” (168cm)
Fig. 1 | Installation Accessories
Flexible Exhaust Hose
Exhaust nozzle
connector
(MON
NULO
D
Adjustable window door slider kit (3 pcs)..... from 28 —
!h”(72cm) up to 80” (203cm) C di
Fixture..... (1pc) \
Screws...(4 pcs) Screws \
NOTE: The exhaust/window kit must be installed at all 2333 — _
times when the unit is operating under AIR , ;
CONDITIONING mode. PN
O Water hose(79"/200cm)
J
IMPORTANT
There should be at least 11.8” (30cm) clearance between the unit and any other objects or building structures,
and should be installed on a level surface. The unit does not have to be vented outside during Dehumidifying
or Fan Only mode operation. 7 N
INSTRUCTIONS FOR ASSEMBLING THE WINDOW Fig. 2 Backof
ADAPTER KIT (FIG. 2). ~
a) Insert tube adapters through the back of the window panel. [ BL Ÿ
b) Secure each tube adapter with four screws through the == * В —
front of the window panel. 52
¢) Insert window panel extensions into the window panel.
Lightly tighten the screws in the window panel to hold the
extensions in place. Tube Adapters D
WINDOW KIT Your window kit has been designed to fit most standard “vertical”/ horizontal” windows up to
INSTALLATION * maximum height of 80” (203cm).For vertical window
provided on the edge of each slider section to secure each sliding section together.
lications, multi lock positions are
have access to an electrical outlet.
2) Install the flexible hose to the rear side of the
unit, Insert the hose collar on top of the exhaust
opening and twist to lock into position.
3) Install the adjustable Window Slider Kit as
e HORIZONTAL —
1) Select a suitable location, making sure you Fig. 3a Window der Kit Fig. 3b
Max.: 80” (203cm)
7
required (see Fig. 3a & 3b).
4) Install the opposite end of the flexible exhaust
hose into the window exhaust adapter.
5) Install the window exhaust adapter into the
opening in the slider section, making sure the
window slider sections are secure.
6) Plug the unit into a 115V/60Hz grounded
electrical outlet.
VERTICAL
Window Slider Kit:
Min: rit pom
те
\
OPERATION
FEATURES OF THE LCD Display
CONTROL PANEL /
G
©)
-) (©)
+
KEY PAD FUNCTIONS
| NOTE: By pressing both " + " / " - " buttons at
(O| POWER SWITCH: Turns unit ON/OFF the same time for more than 3 seconds, the display
О MODE: Allows you to scroll through and will toggle between Celsius and Fahrenheit.
select desired operating mode.
, “oo. Warning Light
© Zn : Select from В different fan settings; Condensed water may accumulate in the unit. If the
EN, , ; internal tank becomes full, the Warning signal in the
J] AUTO-TIMER LCD Display will light up and the unit will not
: operate until it has been drained.
AUTO-TIMER Adjust:
AUTO TURN OFF- With machine in running mode, LCD Display
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
press timer button to set timer control. Press " + " >< Cooling Mode
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
or” = "buttons to select number of hours you would Y Dehumidify Mode
like the unit to run before it automatically shuts off.
$ Fan Only Mode
AUTO TURN ON- With machine in stand by mode, 3% Heating mode
press timer button to set timer control. Press" +" ä High Fan Speed
or" - "buttons to select number of hours before the unit 2 Medium Fan Speed
automatically starts running under any one mode.
, 5 у 2 Low Fan Speed
NOTE: The time is adjustable between 1-24 hours. BB Display Set Temperature
088, Display Timer Setting of Auto Switch ON /
TEMPERATURE Adjust:
+ Used for adjusting the thermostat. , ‚
* The default display is room temperature. EMP Warning Light (the machine will stop
* In cooling mode, when" + "or" = "button is pressed,
the set temperature is displayed and may be adjusted.
After 15 seconds the display will revert back to room
temperature. Temperature is only adjustable in cool
mode.
NOTE: After switching the air conditioner off, you must wait 3 minutes before switching it back on again.
OPERATION (cont’d)
AIR CONDITIONING
NOTE: The exhaust hose must be properly vented outdoors during air
conditioning mode.
1) Press the POWER SWITCH key (Fig. A) to switch on the unit, and the
previous set temperature will be shown in the temperature display area of the
control panel.
2) Press the MODE key (Fig. B) until the COOL indicator light illuminates on the [82 |
control panel (Fig.C). Each depression of the MODE key will advance to a a
different mode setting (Cool- Dehumidifier-Fan-Heat). К
3) Press the appropriate increase " + " or decrease" = "buttons (Fig. D1 & D2) to
select a suitable operating temperature setting. Temperature settings are
adjustable between 16°C (61°F) to 32°C (89°F).
JL
4) Press the FAN key (Fig. E) to select the desired fan speed setting (High- A
Med.-Low). Your selection will appear on the control panel (each depression of
the fan key will advance to a different setting). —
* Cooling stops automatically when the set temperature is achieved. Cooling
resumes when the room temp. rises above the “set” temperature level.
DRAINING EXCESS WATER
1) Drain excess water from the tank by
placing a pan under the drain water outlet
(Fig.4)
2) Unscrew the drain cover and remove
the soft rubber stopper, let the water drain
into the pan. When the water stops draining
out, replace the soft rubber stopper, and
tighten the drain cover.
3) Remove the pan of water.
4) Operate the unit in Fan mode to dry the
interior of the unit.
OPERATION (cont’d)
DEHUMIDIFIER
Note: During dehumidifier mode, the exhaust hose does not have to be vented
outdoors.
1) Press the ON/OFF key pad to switch the unit on (Fig. G)
2) Press the MODE key (Fig. H) until the DRY indicator illuminates on the control
panel (Fig.I).Each press of the MODE key will advance to a different mode setting
(Cool-Dehumidifier-Fan-Heat).
IMPORTANT: There is no temperature adjustment during dehumidifier mode. If
the room temperature is greater than 77°F (25°C), the fan speed can be adjusted,
otherwise the fan speed is fixed at LOW speed.
IMPORTANT: The drain hose must be installedduring dehumidifier mode.
The function of continuous drain can be performed using the following steps:
1) To save having to periodically empty the water tank, this unit can be
configured for continuous drain. You can use the supplied drain hose to
connect to the continuous drain connector.
2) Unscrew and remove the drain cover at the rear of the unit (Fig.5).
3) Remove the soft rubber stopper, and place it in the water tank for safe
keeping (Fig.6).
4) Insert the drain hose through the hole of the drain cover (Fig. 7).
5) Ensure the rubber seal ring is properly seated in the end of the hose
as shown in Fig. 7.
6) Connect the drain hose to the drain port (Fig. 8).
7) Tighten the drain cover in clockwise direction onto the rear of the unit
(Fig. 8).
INSTALLING PVC DRAIN HOSE
When using the continuous drain function, the PVC hose must be placed
horizontally below the drainage hole. Avoid uneven ground and folding the hose.
NOTE: Should you damage or misplace the pvc drain hose, a standard garden
hose can be used.
Да Z
7
OPERATING INSTRUCTIONS (cont’d)
FAN
Note: During Fan Mode, the exhaust hose does not have to be vented outdoors.
1) Press the POWER SWITCH key to turn the unit on (Fig. J).
2) Press the MODE key (Fig. K) until the FAN indicator illuminates on the control
panel (Fig. L). Each press of the MODE key will advance to a different mode
setting (Cool-Dehumidifier-Fan-Heat).
3) Press the FAN Key (Fig. M) to select the desired FAN SPEED setting. Your
selection will appear on the control panel. Each press of the fan key will advance to
a different fan speed (High- Med- Low) as shown in Fig. N.
HEAT
Note: During Heat Mode, the exhaust hose does not have to be vented outdoors.
1) Press the POWER SWITCH key (Fig. J) to switch on the unit, and the previous set
temperature will be shown in the temperature display area of the control panel.
2) Press the MODE key (Fig. K) until the Heat indicator light illuminates on the control | Fig. L |
panel (Fig. O). Each depression of the MODE key will advance to a different mode
setting (Cool- Dehumidifier- Fan- Heat).
@>
3) Press the appropriate increase "+" or decrease "-" buttons (Fig P) to select a 6-3 —
suitable operating temperature setting. Temperature settings are adjustable between |
16°C (61°F) to 25°C (77°F).
4) Press the FAN key (Fig. M) to select the desired fan speed setting (High- Med.-
Low). Your selection will appear on the control panel (each depression of the fan
key will advance to a different setting)
Heating stops automatically when the set temperature is achieved. Heating resumes
when the room temperature rises above the “set” temperature level.
Fig. O | Fig. P2| I~ Fig. N | S
ом ина
U Media
9 “me
OPERATION (cont’d)
AUTO-TIMER The AUTO-TIMER feature offers a unique selection of multiple choice, fully automatic
on and/or off (start/stop) programs between 1-24 hours under any one mode of your Home
Comfort unit.
The programs are as follows:
a) Auto-Off: Pre-select a time that will turn off the b) Auto-On: Pre-select a time that will turn on the
unit automatically (between 1-24hrs). unit automatically (between 1-24hrs).
REMOTE i
CONTROL FEATURES
Control Buttons: (1) ( O)
1) Power Switch
2) Mode a
(+)
3) Fan Speed ©
4) On / Off Timer Г \
=
5) Time / Temperature Set
* Used for adjusting the timer and temperature.
* The default display on control panel is room temperature. © >
*When +" or” keyis pressed in cool mode, the set temperature is displayed —
and may be adjusted, After 5 seconds, the display will revert back to room (4) (©)
temperature.
* Timer setting is available from 1-24 hours by pressing "+" or " = " keys.
To operate the hand held remote control you will require two “AAA” Alkaline
batteries (included).
Batteries should be replaced when:
a) No signal (beep) is heard when attempting to program the main unit.
b) The main unit does not respond to a command issued by the remote control.
(5)
o |
Battery replacement: Replace batteries as a simultaneous set.
1) Shde the rear cover on the remote in the direction of the arrow. Continue pulling (gently) until the cover
separates completely from the unit.
2) Insert (2) batteries (AAA) following the same orientation (polarity) depicted inside the battery chamber (+ / -).
3) Re-install rear cover.
4) If the remote control will not be used for extended periods of time, batteries should be removed.
The remote operates within a range of 8 meters (26 ft.) from the receiver located inside the main unit. Any
obstruction between the receiver and remote may cause signal interference, limiting the ability to program the unit.
Notes:
1) Do not drop the remote control.
2) Do not place the remote control in a location exposed to direct sunlight.
3) The remote control should be placed about 1 meter or more away from TV, or any electrical appliances.
his Class B digital apparatus complies with canadian ICES-003.
CARE AND MAINTENANCE
CLEANING
THE UNIT
CAUTION: Before cleaning or servicing this unit, wiring insulation.
disconnect from any electrical supply outlet.
3) Unplug the unit,
1) DO NOT us oline, benzene, thinner, or any
other c hemice to clean this unit, a as these 4) Clean the unit by wiping off any dirt/dust with a
substances may cause damage to the finish and soft damp cloth or vacuum cleaner, then wipe dry
deformation of plastic parts. with a dry soft cloth.
2) Never attempt to clean the unit by pourin fo CAUTION: Always store the unit in vertical
directly over any of the surface areas, as position. DO NOT put heavy objects on top of the
cause deterioration of electrical components ad unit.
CLEANING THE CAUTION: Never operate this unit without the air filter in place, as this may result in
AIR FILTER — damage to the unit.
If the air filter becomes clog ed with dust/dirt, air flow is restricted, which reduces
cooling efficiency. The air filter should be cleaned every two (2) weeks. More
frequent cleaning may be necessary depending on indoor air quality.
NOTE: The air filter Le is located at the er rear side of the unit.
1) To remove the air filter: Pull ter cover upward in the direction of the
arrow (Fig. 4) and remove o air “El ter,
2) Dust/dirt clogged in the filter can be removed by vacuum cleaning the soiled
areas.
3) The filter can also be washed in lukew soapy water while rubbing it lightl
) The filter ca fr od) Y e rubbing ghtly
A mild detergent (diswashin is recommende
4) Rinse the filter well using clean water. Allow time to dry before reinstalling
into the unit.
5) Replace the air filter and cover.
6) Replacement air filter information is available by contacting the Customer Service
Department at: 1-800-26-Danby" (1-300-263-2629).
TROUBLESHOOTING
Occasionally, a problem may occur that is minor, and a service call may not be necessary. Use this
troubleshooting guide for a possible solution. If the unit continues to operate improperly, call an authorized
service depot for assistance, or Danby's Toll Free Number: 1-800-26- Danby"
PROBLEM POSSIBLE CAUSE SOLUTIONS
. Power 1s out. Wait f
The is not lugged in y, |; att for power to return.
1) Unit does not work ° The Ruffian icator is ORE Bank's > Removo drain water from the drain
t leaking or pressing test ‚tank. et button after resolvi
+ Curren on LCDI plug res] the reset button resolving
* Indoor set temperature has been Reset the temperature level.
2) Unit suddenly stops during operation. |, reached. time is * Reset the timer.
* The -tank indica or is ON: tank is * Remove drain water from the drain
full. tank.
* Malfunction. * Contact your dealer.
3) Unit runs intermittently * Surrounding temp. is too high/low. + |* This is normal.
» Exhaust duct hose is blocked. * Check the duct hose.
* Window or door is open in room.
. There à is a heat source or too many |* Close all windows/doors.
moving the unit.
4) Unit functions but the room is not ‚ реор! e in the room. * Move any heat sources from room.
cooled. intake grill is clogged. * Clean air Y intake
. * Filter 1 is too * Replace the filter.
* Temperature s is too high. * Lower temp. setting.
Condensed water spills out when . : . Remove drain plug on rear bottom
5) Cond er spill The tank is nearly full. Remove drain plug
у,
NOE
NAAA RR A ZEN ESE DESDE ENS
007 III III III II III RINA IIA NIN SS
E
INA Danby DA
6 miere LIMITED IN-HOME APPLIANCE WARRANTY 6
$ ® A
{rss RA
4 >
© This quality product is warranted to be free from manufacturer's defects in material and workmanship, provided that the unit is used under the normal operating ©
& conditions intended by the manufacturer. (6
NA This warranty is available only to the person to whom the unit was originally sold by Danby Products Limited (Canada) or Danby Products Inc. (U.S.A.) (hereafter DE
6 "Danby”) or by an authorized distributor of Danby, and is non-transferable. x)
NE TERMS OF WARRANTY SL
© Plastic parts, are warranted for thirty (30) days only from purchase date, with no extensions provided. ©
& о,
© First 24 Months During the first twenty four (24) months, any functional parts of this product found to be defective, will be repaired or replaced, at ©
(©) warrantor's option, at no charge to the ORIGINAL purchaser. 69)
> 4
6 To obtain Danby reserves the right to limit the boundavies of “In Home Service" to the proximity of an Authorized Service Depot. Any appliance Ó
x) Service requiring service outside the limited boundaries of “In Home Service” ‚It will be the consumer's responsibility to transport the appliance (at №
& their own expense) to the original retailer (point of purchase) or à service depot for repair. See “Boundaries of In Home Service” below. 6
x) Contact your dealer from whom your unit was purchased, or contact your nearest authorized Danby service depot, where service ©
& must be performed by a qualified service technician. eN
9 If service is performed on the unit by anyone other than an authorized service depot, or the unit is used for commercial application, all es
A ‘oo : : RO
6 obligations of Danby under this warranty shall be void. @
A $
CS Boundaries of If the appliance is installed in a location that is 100 kilometers (62 miles) or more from the nearest service center your unit must be CS
СХ) In Home Service delivered to the nearest authorized Danby Service Depot, as service must only be performed by a techniclan qualified and certiiedfor 9%
6 warranty service by Danby. Transportation charges to and from the service location are not protected by this warranty and are the 6
o responsibility of the purchaser. ©
2 >
© Nothing within this warranty shall imply that Danby will be responsible or liable for any spoilage or damage to food or other contents of this appliance, whether due ©
e) to any defect of the appliance, or its use, whether proper or improper. 69)
NX ©
© EXCLUSIONS ©
ANA, Save as herein provided, Danby, there are no other warranties, conditions, representations or guarantees, express or implied, made or intended by Danby orits A
6 authorized distributors and all other warranties, conditions, representations or guarantees, including any warranties, conditions, representations or guarantees 2)
y under any Sale of Goods Act or like legislation or statue is hereby expressly excluded. Save as herein provided, Danby shall not be responsible for any damages o
6 to persons or property, including the unit itself, howsoever caused or any consequential damages arising from the malfunction of the unit and by the purchase of 60)
(x) the unit, the purchaser does hereby agree to indemnify and hold harmless Danby from any claim for damages to persons or property caused by the unit. ©
A N
a GENERAL PROVISIONS ©
VEN a
&) No warranty or insurance herein contained or set out shall apply when damage or repair is caused by any of the following: x)
TS 1) Power failure. ve
(©) 2) Damage in transit or when moving the appliance. ©
6 3) Improper power supply such as low voltage, defective house wiring or inadequate fuses. €
y 4) Accident, alteration, abuse or misuse of the appliance such as inadequate air circulation in the room or abnormal operating conditions ©
&) (extremely high or low room temperature). x)
A 5) Use for commercial or industrial purposes (ie. If the appliance is not installed in a domestic residence). A
(©) 6) Fire, water damage, theft, war, riot, hostily, acts of God such as hurricanes, floods etc. ©
OS 7) Service calls resulting in customer education. OS
e) 8) Improper Installation (ie. Building-in of a free standing appliance or using an appliance outdoors that is not approved for outdoor application). ©
RS Proof of purchase date will be required for waranty claims; so, please retain bills of sale. In the event warranty service is required, present this document to our <>
(9) AUTHORIZED SERVICE DEPOT 160)
2 E
© ©
OD Warranty Service OS
6 In-home ©
ASAS, Danby Products Limited Danby Products Inc. — 25%
SS PO Box 1778, Guelph, Ontario, Canada NiH 629 1-800-263-2629 PO Box 669, Findlay, Ohio, U.S.A. 45840 6
x) Telephone: (519) 837-0920 FAX: (519) 837-0449 Telephone: (419) 425-8827 FAX: (419) 425-0629 — CA
LA
( Danby —, ÓN
Premiere.
Model * Modele
DPAC13012H
DVA
PORTABLE AIR CONDITIONER
The model number can be found on the serial plate located on the
back panel of the unit.
For service, contact your
nearest service depot or call: All repair parts are available for purchase or special order when you
visit your nearest service depot. To request service and/or the
1-800-26- Danby" location of the service depot nearest you, call the TOLL FREE
(1-800-263-2629) NUMBER.
to recommend a depot in When requesting service or ordering parts, always provide the
your area. following information:
Product Type
* Model Number
Part Number
* Part Description
CLIMATISEUR PORTATIF
Pour obtenir le service, Le numéro de modèle se trouve sur la plaque d'information sur le
consultez votre centre de panneau arrière de l'appareil.
service le plus rapproché ou | Toutes les pièces de rechange ou commandes spéciales sont
composez le: disponibles à votre centre de service régional autorisé.
1-200-26- “a servico regional. signalez le NUMÉRO D'APPEL. SANS FRAIS
(1-800-263-2629) service régional, signalez le SANS
vous recommendera un Ayez les renseignements suivants a la portée de la main lors de la
centre regional. commande de pièce ou service:
o Уре de produit
* Numéro de modéle
Numéro de piéce
+ Description de la pièce
= DD
Danby Products Ltd, Guelph, Ontario Canada N1H 6Z9
Danby Products Inc, Findlay, Ohio USA 45840
Printed in China (PR.C.)
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
