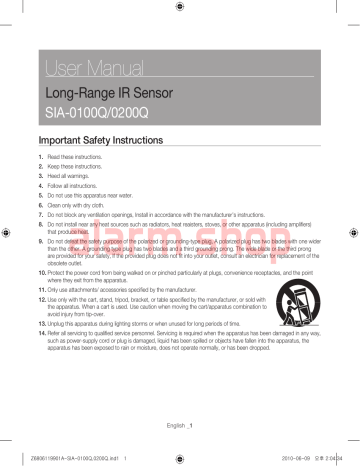

User Manual

Long-Range IR Sensor

SIA-0100Q/0200Q

Important Safety Instructions

1.

2.

Read these instructions.

Keep these instructions.

3.

Heed all warnings.

4.

5.

Follow all instructions.

Do not use this apparatus near water.

6.

7.

8.

9.

10.

Clean only with dry cloth.

Do not block any ventilation openings, Install in accordance with the manufacturer’s instructions.

Do not install near any heat sources such as radiators, heat reaisters, stoves, or other apparatus (including amplifi ers)

alarm shop

are provided for your safety, If the provided plug does not fi t into your outlet, consult an electrician for replacement of the obsolete outlet.

Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11.

Only use attachments/ accessories specifi ed by the manufacturer.

12.

Use only with the cart, stand, tripod, bracket, or table specifi ed by the manufacturer, or sold with the apparatus. When a cart is used. Use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13.

Unplug this apparatus during lighting storms or when unused for long periods of time.

14.

Refer all servicing to qualifi ed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

English

_1

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PROCUCT TO RAIN

OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR

OTHER OPENNINGS ON THE EQUIPMENT.

Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus

CAUTION

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN

CAUTION

: TO REDUCE THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

EXPLANATION OF GRAPHICAL SYMBOLS

alarm shop

may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

Class construction

An apparatus with CLASS construction shall be connected to a MAINS socket outlet with a protective earthing connection.

Battery

Batteries(battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

Disconnection Device

Disconnect the main plug from the apparatus, if it’s defected. And please call a repair man in your location.

English

_2

When used outside of the U.S., it may be used HAR code with fittings of an approved agency is employed.

CAUTION

These servicing instructions are for use by qualified service personnel only.

To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

Please read the following recommend safety precautions carefully.

y

Do not Place this apparatus on an uneven surface.

y

Do not install on a surface where it is exposed to direct sunlight, near heating equipment or heavy cold area.

y

Do not place this apparatus near.

y

Do not attempt to service this apparatus yourself.

y

Do not place a glass of water on the product.

y

Do not install near any magnetic sources.

y y y y

Do not block any ventilation openings.

Do not place heavy items on the product.

alarm shop

Reference: in case of providing information for helping of product’s usages

Notice: If there’s any possibility to occur any damages for the goods and human caused by not following the instruction

Ú Please read this manual for the safety before using of goods and keep it in the safe place.

English

_3

Product Features

This product is a long range IR sensor, designed for the advanced 4-beam system, which can separate intrusion by an unauthorized access from just a change to the ambient circumstances

Equipped with a high-power IR diode that is suitable for long-range detection.

A 4-channel frequency system prevents confusion or confl icts between sensors when used in a multi-sensor environment.

You can select one from beam powers of the transceiver that suits the distance.

In a poor detection area, the sensor can emit an additional signal to correct the detection inadequacy.

Automatic gain control adapts the reception sensitivity according to the fog, rain and moisture conditions.

The quick installation or repair guide is provided along with a proper setting of the signal sound to enable you to set your preference.

To display alarms for a longer duration for operational purposes, use memory setting.

If you want to link other sensors, or use two zones as one, use the re-transmitting function.

The sensor is also featured by “Monitor Output (AGC Output)”- a display of the setting value in voltage, level indicator that displays the settings in 5 levels, adjustment of the response time, and tamper output.

IR Sensor at a Glance

Mirror Lens (Upper)

View Finder

Upper Lens Adjustment

(Up/Down)

Terminal

Main Body Cover Bracket

alarm shop

Lens Level Fine-tuning

(Upper)

Blocking Film for Setting

Control Panel View Finder

Lower Lens Adjustment

(Up/Down)

Mirror Lens (Lower)

Lens Level Fine-tuning

(Lower)

English

_4

What’s Included

U-shaped Bracket (x4)

-shaped Bracket (x4)

4 x 25 screw (x8)

4 x 6 screw (x8)

Stainless Steel Bracket (x2) Control Volume (x2)

+

Screw (x4) User Manual/Warranty Card

alarm shop

Transmitter

Operation LED

Re-transmit LED

Power 12V DC

(nonpolar)

Channel Setting (1,2)

Re-transmitting

(link to other sensor)

Beam Power Adjustment (3)

Tamper

Re-transmitting Setting (4)

Tamper Switch

Re-transmitting: Connect to the output point of other sensor.

If the other sensor is set to N.C mode, connect to terminals #3 and #4 (N.C).

If the contact point of the linked sensor switches from N.C to N.O, the long-range IR sensor will stop emitting the infrared radiation, which plays an indirect notifi cation role to the receiver and lights up the “Re-transmit LED”.

English

_5

Receiver

Status Indicators (Memory/Alarm/Environment)

Strength in 5 Levels

Response Time Adjustable Button

Channel Setting (1,2)

Power 12V DC

(nonpolar)

Alarm Out

Signal Sound Setting (3)

Alarm Memory Setting (4)

Environment Out

Tamper

Level LED On/Off

Tamper Switch

Alarm Out: The sensor will operate in both N.C and N.O mode

Environment Out: This output triggers if normal operation is disabled due to an environmental phenomenon such as fog.

LED Out: Turns on the indicator in 5 levels according to the setting. The signal sound will be set in 3 levels by turning on the

1.

DIP switch #3. Once adjusted, you should turn off the DIP switch.

Installation

alarm shop

Attach the

ㄷ-shaped bracket to the main bracket.

Fix the ㄷ-shaped bracket by using screws (4x6).

The ㄷ-shaped bracket accepts any Φ38~Φ43 poles.

Pole Diameter

38mm ~ 43mm

2.

Insert the U-shaped bracket and insert the sensor bracket.

Insert the U-shaped bracket to the pole and use the screws (4x25) to fi x the inserted sensor bracket.

English

_6

3.

This is the completion of the bracket connection.

Rear View Side View

To mount on the wall

1.

Use the wall-mount screws (4x16) for this purpose.

Arrange the cables through the wiring hole, and mount the sensor onto the wall using the sensor screws as shown.

Wiring Hole

Sensor Fixing Bolt

To make adjustment using the view fi nder

This is the fi rst mandatory step for the beam adjustment that adjusts the sensor position roughly.

1.

Ensure that you can see the other sensor with the naked eye.

2.

Adjust the position so that the sensor is located at the center.

Up/Down Adjustable Bolt

Left/right Fine-Tuning Bolt

Left/Right Adjustable Dial

English

_7

To make adjustment using the signal sound

1.

Turn on the DIP Switch #3 of the receiver.

Select one of 3-sound level outputs.

Realign/Poor: Beep-beep-beep

Fair: Beep-beep-beep-beep-beep

Good/Excellent: Beep~~~~~~~~~~~~

2.

After the adjustment, make sure to turn off the switch.

To make adjustment using the voltmeter

1.

Make adjustment as necessary using the voltmeter.

Measure the output volt at DC 10V DC.

2.

Insert the test probe.

It is labeled in either “Monitor”.

alarm shop

Voltmeter

(10V DC)

3.

Check the product status according to the voltage.

Measured Voltage

2.5V or higher

0.5V ~ 2.4V

0.5V or lower

Alignment

Excellent

Good

Poor, to be adjusted

English

_8

To make adjustment using the level indicator

If you don’t have the voltmeter, you can use the 5-level indicator panel for fi ne-tuning. Note that as one indicator can displays

3 status levels (slow/fast/solid), actually the status can be separated in 15 levels.

Blink Slow Blink Fast Solid

IR Beam Width

The beam will be eradiated at about 1.4° angle in width. See the table below for details.

alarm shop

Distance (A)

100m

150m

200m

Width (B)

2.5m

3.7m

5.0m

Width (C)

2.7m

4.0m

5.2m

English

_9

Wiring

1) Normal 2) If two pairs are connected directly

3) If using both Alarm Out and Environment Out

4) If using the Re-transmitting function

alarm shop

5) Available range according to the wiring

Wire Gauge

AWG 22

AWG 20

AWG 18

AWG 14

Max Distance (meter)

12V DC

100

190

280

600

SIA-0100Q

24V DC

900

1,700

2,600

5,370

12V DC

90

160

250

500

SIA-0200Q

24V DC

800

1,500

2,200

4,570

English

_10

Adjusting the response time (beam blocking volume)

You can use the response time adjustable volume to adjust the time between 50ms and 700ms.

Where an intruder can move across an area quickly, adjust the settings to 50ms; in a fence where unauthorized access is slow, adjust the settings to 700ms.

Full-speed run – 50 msec

Fast walk – 150 msec

Normal walk – 250 msec

Slow walk – 550 msec

Jump over a fence or obstacle – 700 msec

Alarm Memory

Turn on the DIP switch #4 of the receiver to activate the alarm memory function.

If an alarm occurs, the detector will blink for 55 minutes after 5 minutes of standby. This can inform the patrol-guard that the sensor has been activated when they arrive on site.

alarm shop

Alarm occurrence

60 min (restart operation)

Memory LED

5 min

5 min

55 min (blinking)

M

If another alarm occurs while the alarm memory is functioning by the fi rst alarm, the alarm memory will consider the second one like it's the fi rst and extend the operation time duration accordingly.

English

_11

Troubleshooting

Problem

The power indicator of the transmitter does not turn on.

Reason

1.

2.

Make sure the power is applied.

Check whether there is any loose contact, disconnection or short-circuited.

1.

2.

Action

Apply the power.

Check if the cables are properly connected.

Even if I block the infrared light, the alarm indicator of the receiver does not turn on.

1.

2.

3.

4.

Make sure the power is applied.

Check whether there is any loose contact, disconnection or short-circuited.

Check whether the receiver takes IR signal input refl ected by any object.

Check whether 2 optical signal inputs are blocked simultaneously.

1.

2.

3.

4.

Turn on the sensor.

Check if the cables are properly connected.

Remove the interruption object, or change the installation site or the orientation of the optical axis.

Block two light sources simultaneously.

The alarm indicator of the receiver will not turn off.

1.

2.

3.

Check whether the optical axis is dislocated.

Check whether there is obstruction between the transceiver and receiver.

Check whether the transceiver/receiver cover is contaminated.

1.

2.

3.

Adjust the optical axis as necessary.

Remove the obstacle.

Wipe out the impurities with a soft cloth.

The alarm sounds intermittently.

1.

2.

3.

4.

5.

6.

Check whether the wiring is correct.

Check whether the voltage of power source is stable.

Check whether there is obstruction between

Check whether the transceiver/receiver is attached fi rmly.

Check whether the optical axis is dislocated.

1.

2.

3.

4.

5.

6.

7.

8.

Check the connection status again.

Regulate the power voltage.

Remove the obstacle.

Change the wiring path.

Secure the pole or support.

Adjust the optical axis as necessary again.

Wipe out the impurities with a soft cloth.

Set the response time longer.

7.

Check whether the transceiver/receiver cover is contaminated.

8.

Animals such as birds and cats may interrupt optical signal.

Scanning Type

4-channel adjustment

If you want to install multiple sensors in different ways, use the channel setting function to avoid confusion between sensors.

1) 1-Level Multi-Connection

<1 CH> <2 CH> <3 CH> <4 CH>

English

_12

2) 2-Level Connection 3) 2-Level Multi-Connection

4) 1-level Cubic-Connection 5) 2-level Cubic-Connection

alarm shop

Adjusting the power of the beam (DIP switch #3 of the transmitter)

If you install the sensor below the minimum effective scanning range, refl ection may occur. To avoid this refl ection, set the range to “LOW” in less than the minimum range and set it to “HIGH” in the effective range.

Model

SIA-0100Q

SIA-0200Q

LOW

60 m

120 m

HIGH

60~100 m

120~200 m

English

_13

Specifi cations

Item

Model

Power Voltage

Current Consumption

No. of channels

Scanning Range

Response Time

Alarm Output

Description

SIA-0100Q SIA-0200Q

DC 12V(±15%)

Receiver: 42mA, Transmitter: 35mA (max)

4 channels

100 m outside 200 m outside

50 msec ~ 700 msec

Dry contact relay: 1 c (COM, N.C/N.O)

Contact point operation time: Blocking time + 2 seconds

Point of contact capacity: AC/DC 30V 1A or lower

Output Environment Output

Dry contact relay: 1 b (COM, N.C)

Operation condition: Normal operation is hardly possible due to environmental condition

Point of contact capacity: AC/DC 30V 1A or lower

Tamper Output

Alarm LED

Memory LED

Dry contact relay: 1 b (COM, N.C)

Operation condition: When the cover is removed due to external force

Point of contact capacity: AC/DC 30V 0.1A or lower

Lights up if an alarm occurs under the proper memory setting Status

Level LED

Beam Angle Adjustment

5-level indication (Excellent, Good, Fair, Realign, Poor)

Left/Right: ±90°, Up/Down: ±10°

Features

Temperature

Work Environment

Material

Weight

Dustproof/Waterproof Rating

Setting by the sound

Adjust the beam power (low, high)

Programmed AGC

-25˚C ~ 60˚C

External

PC resin

2,500g

IP55

English

_14

Appearance

Sensor

95

103

95

Unit: mm

alarm shop

English

_15

alarm shop

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories

(e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government offi ce, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract.

This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Z6806119901A-00

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
