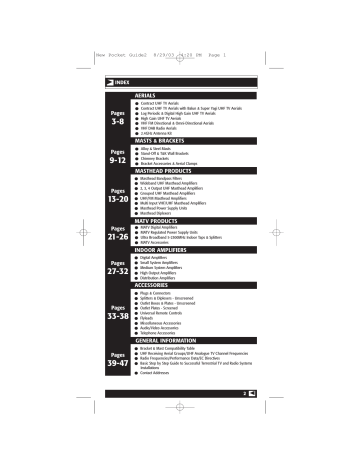

INDEX

Pages

3-8

Pages

9-12

Pages

13-20

Pages

21-26

Pages

27-32

Pages

33-38

Pages

39-47

AERIALS

● Contract UHF TV Aerials

● Contract UHF TV Aerials with Balun & Super Yagi UHF TV Aerials

● Log Periodic & Digital High Gain UHF TV Aerials

● High Gain UHF TV Aerials

● VHF FM Directional & Omni-Directional Aerials

● VHF DAB Radio Aerials

● 2.4GHz Antenna Kit

MASTS & BRACKETS

● Alloy & Steel Masts

● Stand-Off & T&K Wall Brackets

● Chimney Brackets

● Bracket Accessories & Aerial Clamps

MASTHEAD PRODUCTS

● Masthead Bandpass Filters

● Wideband UHF Masthead Amplifiers

● 2, 3, 4 Output UHF Masthead Amplifiers

● Grouped UHF Masthead Amplifiers

● UHF/FM Masthead Amplifiers

● Multi Input VHF/UHF Masthead Amplifiers

● Masthead Power Supply Units

● Masthead Diplexers

MATV PRODUCTS

● MATV Digital Amplifiers

● MATV Regulated Power Supply Units

● Ultra Broadband 5-2300MHz Indoor Taps & Splitters

● MATV Accessories

INDOOR AMPLIFIERS

● Digital Amplifiers

● Small System Amplifiers

● Medium System Amplifiers

● High Output Amplifiers

● Distribution Amplifiers

ACCESSORIES

● Plugs & Connectors

● Splitters & Diplexers - Unscreened

● Outlet Boxes & Plates - Unscreened

● Outlet Plates - Screened

● Universal Remote Controls

● Flyleads

● Miscellaneous Accessories

● Audio/Video Accessories

● Telephone Accessories

GENERAL INFORMATION

● Bracket & Mast Compatibility Table

● UHF Receiving Aerial Groups/UHF Analogue TV Channel Frequencies

● Radio Frequencies/Performance Data/EC Directives

● Basic Step by Step Guide to Successful Terrestrial TV and Radio Systems

Installations

● Contact Addresses

2

New Pocket Guide2 8/29/03 4:20 PM Page 2

UHF TV AERIALS

CONTRACT UHF TV AERIALS

MODEL

A1001/A

A1001/A37

A1001/B

A1001/C

A1001/E

A1001/W

DESCRIPTION

10 Element Group A

10 Element Group A/Ch37

10 Element Group B

10 Element Group C/D

10 Element Group E

10 Element Group WB

MODEL

A1003/A

A1003/A37

A1003/B

A1003/C

A1003/E

A1003/W

DESCRIPTION

18 Element Group A

18 Element Group A/Ch37

18 Element Group B

18 Element Group C/D

18 Element Group E

18 Element Group WB

A1002/A

A1002/A37

A1002/B

A1002/C

A1002/E

A1002/W

14 Element Group A

14 Element Group A/Ch37

14 Element Group B

14 Element Group C/D

14 Element Group E

14 Element Group WB

All models come complete with clamp and reflector (or rod reflector if required). Models

A1003/B, C & E also available rear mount.

A1002

A1001

A1003

The Maxview high quality 75ohm Contract UHF TV Aerials are available in either 10,

14 or 18 element grouped (A, A37, B, C/D, E) or wideband (WB) yagi configuration.

They are manufactured from high quality corrosion resistant aluminium and have radiused and flanged elements. Their compact construction results in reduced wind loading. The waterproof insulator housing has screw terminals for easy connection and installation.

All Contract UHF TV Aerials come complete with a good quality folded tubular dipole for the driven element, aerial clamp and a reflector. The 18 element models also have a centre mount for extra support and to allow centre or rear mounting. All models have been performance measured and tested in accordance with BS5640 Part 1:1984.

Group

A1001/A

A1001/A37

A1001/B

A1001/C

A1001/E

A1001/W

A

A37

B

C/D

E

W

Channel

Number

21-34

21-37

35-53

48-68

35-68

21-68

Elements

10

10

10

10

10

10

Forward

Gain

8.75dB

8.75dB

9.1dB

8.75dB

7.1dB

6dB

Front-Back

Ratio

18dB

18dB

20dB

22dB

21dB

20dB

24˚

25˚

26˚

29˚

Acceptance

Angle

20˚

20˚

A1002/A

A1002/A37

A1002/B

A1002/C

A1002/E

A1002/W

A

A37

B

C/D

E

W

Group

A1003/A

A1003/A37

A1003/B

A1003/C

A1003/E

A1003/W

A

A37

B

C/D

E

W

Group Channel

Number

21-34

21-37

35-53

48-68

35-68

21-68

Elements

14

14

14

14

14

14

Forward

Gain

9.7dB

9.7dB

10.2dB

9.75dB

8.1dB

7.3dB

Front-Back

Ratio

21dB

21dB

22dB

23dB

22.5dB

22dB

Acceptance

Angle

19˚

19˚

21˚

20˚

23˚

22.5˚

Channel

Number

21-34

21-37

35-53

48-68

35-68

21-68

Elements

18

18

18

18

18

18

Forward

Gain

10.5dB

10.5dB

10.6dB

10.5dB

9.2dB

8.6dB

Front-Back

Ratio

23dB

23dB

23dB

24dB

22dB

18dB

Acceptance

Angle

16˚

16˚

18˚

17˚

20.5˚

21˚

3

New Pocket Guide2 8/29/03 4:20 PM Page 3

UHF TV AERIALS

CONTRACT UHF TV AERIALS WITH BALUN - DIGITAL

MODEL

ADC10W

ADC14W

ADC18W

DESCRIPTION

10 Element Group WB with Balun

14 Element Group WB with Balun

18 Element Group WB with Balun

All models come complete with clamp and reflector.

The Maxview Contract UHF TV Aerials are also available with an integral balun to ensure optimum signal match and directivity for high quality UHF TV reception. They are available in either 10, 14 or 18 element wideband (WB) configuration.

Group

ADC10W

ADC14W

ADC18W

W

W

W

Channel

Number

21-68

21-68

21-68

Elements

10

14

18

Forward

Gain

7dB

7.9dB

8.9dB

Front-Back

Ratio

18dB

20dB

21dB

Acceptance

Angle

20˚

19˚

16˚

SUPER YAGI UHF TV AERIALS - DIGITAL

MODEL

ASY10A

ASY10B

ASY10C

ASY10W

ASY18A

ASY18B

ASY18C

ASY18W

DESCRIPTION

10 Element Super Yagi Group A

10 Element Super Yagi Group B

10 Element Super Yagi Group C/D

10 Element Super Yagi Group WB

18 Element Super Yagi Group A

18 Element Super Yagi Group B

18 Element Super Yagi Group C/D

18 Element Super Yagi Group WB

All models come complete with clamp and reflector.

ASY10

ASY18

The Maxview high quality 75ohm Super Yagi UHF TV aerials are available in either 10 or 18 element grouped (A, B, C/D) or wideband (WB) yagi configuration.

The range has been designed for high quality analogue and digital terrestrial UHF TV reception. They have an upward gain slope and 4 element rod reflector for enhanced front to back ratios. An integral balun ensures optimum signal match and directivity.

The 18 element models also have an extended centre mount for extra support for centre or rear mounting. All models have been performance measured and tested in accordance with BSS5640 Part 1:1984.

ASY10W

ASY18W

Group

W

W

Channel

Number

21-68

21-68

Elements

10

18

Forward

Gain

7.5dB

9.4dB

Front-Back

Ratio

21dB

23dB

Acceptance

Angle

19˚

15˚

4

New Pocket Guide2 8/29/03 4:20 PM Page 4

UHF TV AERIALS

LOG PERIODIC UHF TV AERIAL - DIGITAL

MODEL

ALP28W

DESCRIPTION

Log Periodic Group WB

Model comes complete with clamp.

ALP28W

The Maxview high quality 75ohm Log Periodic UHF TV Aerial is a medium gain wideband aerial ideal for strong signal areas. It has a compact, very robust construction with integral ‘F’ connector socket for simple rear mount installation.

It has a smooth frequency response, good impedance match and excellent front to back and side lobe rejection for same channel re-use in adjacent Digital Terrestrial

Television coverage areas.

The Log Periodic UHF TV Aerial has been performance measured and tested in accordance with BS5640 Part 1:1984.

ALP28W

Group

W

Channel

Number

21-68

Elements

28

Forward

Gain

7.8dB

Front-Back

Ratio

>22dB

Acceptance

Angle

30˚

HIGH GAIN UHF TV AERIALS - DIGITAL

MODEL

AHG48A

AHG48B

AHG48C

AHG48K

AHG48W

DESCRIPTION

48 Element High Gain Group A

48 Element High Gain Group B

48 Element High Gain Group C/D

48 Element High Gain Group K

48 Element High Gain Group WB

All models come complete with clamp and reflector.

AHG48

The Maxview high quality 75ohm High Gain UHF TV Aerial range has been optimised for reception of all analogue and digital terrestrial UHF TV signals. They are available in either grouped (A, B, C/D, K) or wideband (WB) configuration.

They have an optimum forward gain and 6 element rod reflector for very high front to back ratio. An integral balun ensures optimum signal match and directivity.

All models come complete with centre mount for extra support and to allow centre or rear mounting. All models have been performance measured and tested in accordance with BS5640 Part:1984.

AHG48A

AHG48B

AHG48C

AHG48K

AHG48W

A

B

C/D

K

W

Group Channel

Number

21-37

35-53

48-68

21-48

21-68

Elements

48

48

48

48

48

Forward

Gain

13.8dB

13.8dB

14dB

13dB

12dB

Front-Back

Ratio

>23dB

>23dB

>23dB

>23dB

>23dB

Acceptance

Angle

15.3˚

15˚

14.5˚

15˚

16˚

5

New Pocket Guide2 8/29/03 4:20 PM Page 5

UHF TV AERIALS

HIGH GAIN UHF TV AERIALS

MODEL

A1101/BP

A1102/BP

DESCRIPTION

23 Element High Gain Group WB

43 Element High Gain Group WB

All models come complete with clamp and reflector.

A1101/BP

A1102/BP

The Maxview high quality 75ohm High Gain UHF TV Aerials are wideband (WB) aerials available with 23 or 43 elements.

They have large grid reflectors to help reduce ghosting and crossed directive elements for improved directivity and front to back ratio. An integral printed balun optimises signal match to ensure maximum power transfer.

The waterproof insulator housing has saddle & clamp fixings for easy connection and installation. All models have been performance measured and tested in accordance with BS5640 Part 1:1984.

A1101/BP

A1102/BP

Group

W

W

Channel

Number

21-68

21-68

Elements

23

43

Forward

Gain

8.3dB

10.2dB

Front-Back

Ratio

20dB

22dB

Acceptance

Angle

21˚

18˚

6

New Pocket Guide2 8/29/03 4:20 PM Page 6

VHF FM AERIALS

DIRECTIONAL VHF FM AERIALS

MODEL

A1201

A1202

A1203

A1204

DESCRIPTION

Single Element Dipole FM Aerial

2 Element FM Aerial

3 Element FM Aerial

4 Element FM Aerial

A1205 6 Element FM Aerial

All models come complete with clamp.

A1201

A1202

A1203

A1204

A1205

The Maxview Directional 75ohm VHF/FM Aerials range from a relatively simple dipole aerial right through to very directional 4 and 6 element high performance beam aerials aimed at the enthusiast or keen DX’er. They are ideal for use in weak signal reception areas or larger VHF/FM signal distribution systems.

The single element dipole aerial is suitable for mounting vertically or horizontally as required. The high-gain multi-element models come complete with a good quality folded tubular dipole for the driven element and aerial clamp. All models have been performance measured and tested in accordance with BS5640 Part 1:1984.

A1201

A1202

A1203

A1204

A1205

Bandwidth

(MHz)

88-108

88-108

88-108

88-108

88-108

Elements

3

4

1

2

6

Forward

Gain

0dB

3dB

4dB

5.2dB

6.7dB

Front-Back

Ratio

0dB

13dB

16dB

17dB

18dB

36˚

29˚

26˚

Acceptance

Angle

84˚

60˚

OMNI-DIRECTIONAL VHF FM AERIAL

MODEL

A1301

DESCRIPTION

Circular Folded Dipole FM Aeria l

Model comes complete with clamp.

A1301

The Maxview VHF/FM Circular Folded Dipole Aerial is a compact model ideal for all round coverage. It is suitable for use in stronger signal areas and omni-directional reception.

The VHF/FM Circular Folded Dipole Aerial has been performance measured and tested in accordance with BS5640 Part 1:1984.

A1301

Bandwidth

(MHz)

88-108

Forward

Gain

-3dB

Front-Back

Ratio

0dB

Acceptance

Angle

360˚

7

New Pocket Guide2 8/29/03 4:20 PM Page 7

VHF DAB & 2.4GHz AERIALS

VHF DAB RADIO AERIALS

MODEL

A1401/BP

A1403/BP

DESCRIPTION

Single Dipole VHF DAB Radio Aerial

3 Element Beam VHF DAB Radio Aerial

Models come complete with clamp and facia bracket.

A1401/BP

A1403/BP

The high quality Maxview DAB Radio Aerials have been specifically designed for high quality VHF digital radio reception covering the band III frequency range

217.5-230MHz. An integral balun optimises signal match to ensure maximum power transfer.

The Single Dipole comes complete with facia bracket and clamp for vertical mounting.

The 3 Element Beam Aerial is ideal in weaker VHF signal reception area and comes complete with facia bracket, L crank mast and clamp.

Both models have been performance measured and tested in accordance with

BS5640 Part 1:1984.

A1401/BP

A1403/BP

Bandwidth

(MHz)

217.5-230

217.5-230

Elements

1

3

Forward

Gain

0dB

4dB

Front-Back

Ratio

0dB

16dB

Acceptance

Angle

85˚

35˚

2.4GHz ANTENNA KIT

MODEL

A1501

DESCRIPTION

2.4GHz Antenna Kit

A1501

The Maxview high quality 2.4GHz Antenna Kit is designed mainly for use with

2.4GHz wireless transmitters or receivers to extend transmit or receive range. It can be used in a twin antenna application along with 2.4GHz wireless transmitters and receivers in order to further extend range.

The 2.4GHz Antenna Kit is ideal for security (CCTV)/remote control monitoring and wireless LAN applications. It is complete with tilt fixing bracket for mast fixing and

50Ohm ‘N’ type male connector, with approximately 60cm of RG2130 coaxial cable.

A1501

Bandwidth

(GHz)

Gain

VSWR

2.4-2.485

13dBi

1.4 : 1

Front-

Back

Ratio

24dB

Cross

Polar

Ratio

24dB

Polarisation

Horizontal/

Vertical

Power

Rating

Ratio

300W

Impedance

Rating

Ratio

50 ohm

8

New Pocket Guide2 8/29/03 4:20 PM Page 8

MASTS

ALLOY & STEEL MASTS

MODEL

E5001

E5501/EC

E5501/LC

E5501/S

E5502/AC

E5502/EC

E5502/S

E5503/AC

E5503/EC

E5503/S

E5602

E5504/C

E5504/S

E5505

E5506

E5507

E5508

E5509

DESCRIPTION

3ft x 1in 18swg L Crank with Facia Bracket

3ft x 1in 18swg E Crank

3ft x 1in 18swg L Crank

3ft x 1in 18swg Straight

5ft x 1in 18swg A Crank

5ft x 1in 18swg E Crank

5ft x 1in 18swg Straight

6ft x 1in 18swg A Crank

6ft x 1in 18swg E Crank

6ft x 1in 18swg Straight

6ft x 1in 18swg Straight Steel

10ft x 2in 16swg Straight

12ft x 2in 16swg Straight

(910mm x 25mm)

(910mm x 25mm)

(910mm x 25mm)

(910mm x 25mm)

(1500mm x 25mm)

(1500mm x 25mm)

(1500mm x 25mm)

(1800mm x 25mm)

(1800mm x 25mm)

(1800mm x 25mm)

(1800mm x 25mm)

(1800mm x 32mm)

(1800mm x 32mm)

(2400mm x 32mm)

(2400mm x 38mm)

(3000mm x 38mm)

(3000mm x 51mm)

(3600mm x 51mm)

A Crank

E Crank L Crank

Straight

For a professional installation, we recommend that the masts are fitted in accordance with the latest CAI code of practice.

For information on which masts are compatible with which bracket, see table in the

General Information section on page 39.

9

New Pocket Guide2 8/29/03 4:20 PM Page 9

STAND-OFF WALL BRACKETS

MODEL

D4001/P

D4001/G

D4002/P

D4002/G

D4001

6in

(152mm)

DESCRIPTION

6in Stand-Off Wall Bracket Painted (152mm)

6in Stand-Off Wall Bracket Galvanised (152mm)

9in Stand-Off Wall Bracket Painted (228mm)

9in Stand-Off Wall Bracket Galvanised (228mm)

D4002

9in

(228mm)

(88mm)

6in

(152mm)

9in

(228mm)

MODEL

D4006/P

D4006/G

D4007/P

D4007/G

D4008/P

D4006

T&K WALL BRACKETS

DESCRIPTION

12in T&K Wall Bracket Painted (304mm)

12in T&K Wall Bracket Galvanised (304mm)

18in T&K Wall Bracket Painted (457mm)

18in T&K Wall Bracket Galvanised (457mm)

24in T&K Wall Bracket Painted (609mm)

12in

(304mm)

D4007

WALL BRACKETS

(165mm)

18in

(457mm)

20in

(500mm)

D4008

20in

(500mm)

24in

(609mm)

20in

(500mm)

The Maxview Stand-Off Wall Brackets and T&K Wall Brackets are designed to mount on walls or gable ends accordingly. The brackets are available either painted or galvanised for extra durability.

We recommend that these brackets are installed in accordance with the latest CAI code of practice. The use of mortar courses for fasteners should be avoided when mounting. The brackets should be fixed with at least four expansion type bolts, or through bolted.

For information on which masts are compatible with which bracket, see table in

General Information section on page 39.

10

New Pocket Guide2 8/29/03 4:20 PM Page 10

CHIMNEY BRACKETS

CHIMNEY BRACKETS

MODEL

D4101/P

D4102/P

D4104/P

D4101

DESCRIPTION

6in Pressed Chimney Bracket Plated (152mm)

6in Chimney Bracket Painted (152mm)

7

1

/

2 in Chimney Bracket Painted (190mm)

6in

(152mm)

D4104

D4102

6in

(152mm)

(106mm)

3in

(76mm) (82mm)

(190mm)

(114mm)

(88mm)

The Maxview Chimney Brackets are designed for mounting on the chimney corner using a Standard Lashing Kit (D4308). The brackets are available either painted or plated for extra durability.

Each Chimney Bracket description gives the length of contact to the chimney stack.

MODEL

D4106/P

D4106/G

D4108/P

D4106

(165mm)

DESCRIPTION

12in Cradle Chimney Bracket Painted (304mm)

12in Cradle Chimney Bracket Galvanised (304mm)

6in Double Lashing Chimney Bracket (152mm)

D4108

12in

(304mm)

6in

(152mm)

The Maxview Cradle Chimney Brackets are designed for mounting on the chimney corner using a Cradle Bracket Lashing Kit (D4309). The Double Lashing Chimney

Bracket is for use with a Double Lashing Kit (D4310). The brackets are available either painted or galvanised for durability.

The Cradle Chimney Bracket description gives the length of contact to the chimney stack. The Double Lashing Chimney Bracket description gives the distance that the brackets holds the mast from the chimney.

We recommend that these brackets are installed in accordance with the latest CAI code of practice. The top of the lashing bracket should be at least 3 courses of brickwork from the top or not less than 250mm from the top of the stack.

For information on which masts are compatible with which bracket, see table in

General Information section on page 39.

11

New Pocket Guide2 8/29/03 4:20 PM Page 11

BRACKET ACCESSORIES & AERIAL CLAMPS

BRACKET ACCESSORIES

MODEL

D4301

D4302

D4303

D4305

D4306

D4307

D4308

D4309

D4310

D4311

DESCRIPTION

4

1

/

2 in x 1 in J Bolt & Nut (114mm x 35mm)

Corner Plate

Plastic Eye

5m Lashing Wire

Standard Lashing Kit

(Bracket not included)

Cradle Bracket Lashing Kit

(Bracket not included)

Double Lashing Kit

(Bracket not included)

25kg Lashing Wire - 380m approx

D4301

D4302 D4303

D4305

J Bolts

V Bolts (44mm)

V Bolts (63mm)

Plastic Eyes

Corner Plates

Lashing Wire (5m)

D4306

2

3

1

-

2

D4308

2

2

3

1

-

2

D4309

2

D4307

4

6

2

-

2

D4310

4

AERIAL CLAMPS

MODEL

E5101

E5102

E5201

E5301

E5401

DESCRIPTION

Facia Bracket

1W 1U 1in to 2in

2W 2U 2in to 2in

15mm Contract Aerial Clamp

20mm Aerial Clamp

E5101

E5102

E5201 E5301/E5401

12

New Pocket Guide2 8/29/03 4:20 PM Page 12

SCREENED MASTHEAD FILTERS

MASTHEAD BANDPASS FILTERS

MODEL

MHF2137

MHF3553

MHF4868

MHF3568

MHF2142

MHF2168

DESCRIPTION

Group A Bandpass Filter

Group B Bandpass Filter

Group C/D Bandpass Filter

Group E Bandpass Filter

Part Group K Bandpass Filter

Group WB Bandpass Filter

The Maxview range of Masthead Bandpass Filters has been specifically designed for digital installations. They are available in grouped (A, B, C/D, E, Part K) or wideband

(WB) versions. All models are fully screened to EN50083-2 and are designed and optimised specifically for use as high performance passive front-end filters for both

MATV and domestic UHF TV systems. The filters have low insertion loss and sharp roll off outside the band edges. They are intended to greatly reduce any unwanted signals just below or above the wanted UHF TV group so as to provide clean interference free

(off air) analogue and digital UHF TV signals for the distribution network.

All of the Masthead Bandpass Filters are designed for indoor or outdoor use and for mounting close to the aerial. They are designed for mast fixing with the releasable cable tie provided or for wall fixing using the drill out tabs. The snap lock latches and cable guides on the weatherproof outer housing and ‘F’ type RF connectors on the diecast inner housing ensure a quick, easy and precise installation.

Group

Channel Number

Passband (MHz)

Insertion Loss

Typical Rejection

Below Bandpass

MHF2137

A

21-37

470-606

<1dB

-

-

25dB

440MHz

Typical Rejection

Above Bandpass

20dB

650MHz

30dB

860MHz

Input RLR

(75ohm)

Output RLR

(75ohm)

Earth Bonding

Connection

Operating Temp

Range

14dB

14dB

Screw

RF Connector Type

Fully Screened

-20 to

+50˚C

‘F’ Type

Yes

MHF3553

B

35-53

583-735

<1dB

30dB

470MHz

10dB

533MHz

10dB

785MHz

40dB

860MHz

14dB

14dB

Screw

-20 to

+50˚C

‘F’ Type

Yes

MHF4868

C/D

48-68

686-860

<1dB

10dB

900MHz

25dB

950MHz

10dB

646MHz

25dB

600MHz

14dB

14dB

Screw

-20 to

+50˚C

‘F’ Type

Yes

MHF3568

E

35-68

583-860

<1dB

30dB

470MHz

10dB

533MHz

10dB

900MHz

25dB

950MHz

14dB

14dB

Screw

-20 to

+50˚C

‘F’ Type

Yes

-

-

-

-

MHF2142

Part K

21-42

470-646

<1dB

25dB

440MHz

10dB

686MHz

14dB

14dB

Screw

-20 to

+50˚C

‘F’ Type

Yes

-

-

MHF2168

W

21-68

470-860

<1dB

25dB

440MHz

10dB

900MHz

20dB

950MHz

14dB

14dB

Screw

-20 to

+50˚C

‘F’ Type

Yes

13

New Pocket Guide2 8/29/03 4:20 PM Page 13

SCREENED MASTHEAD AMPLIFIERS

WIDEBAND UHF MASTHEAD AMPLIFIERS - DIGITAL

MODEL

MHA9U/S

MHA13U/S

MHA23U/S

DESCRIPTION

9dB Gain UHF Amplifier - Screened

13dB Gain UHF Amplifier - Screened

23dB Gain UHF Amplifier - Screened

The Maxview range of UHF wideband Masthead Amplifiers have been designed to improve signal performance in weak UHF TV signal areas. They are optimised for all analogue and digital terrestrial UHF TV system applications with low noise figures and good UHF input and output signal handling characteristics for a large dynamic range.

The ‘PRECISION’ models are fully screened to EN50083-2 and suitable for use in either professional MATV or domestic systems. They are designed for mast fixing with the releasable cable tie provided or for wall fixing using the drill out tabs. The snap lock latches and cable guides on the weatherproof outer housing and ‘F’ type RF connectors on the diecast inner housing ensure a quick, easy and precise installation.

All models are designed for indoor or outdoor use, and for mounting close to the aerial, requiring +12V d.c. line powering from a +12V d.c. Power Supply Unit such as the single output (MHP1, MHP1/S or MHPL1) or twin output (MHP2) Masthead Power

Supply Unit (PSU). For cascaded applications with power consumption greater than

50mA the MHPL1/350 single output high current regulated Power Supply Unit is suitable.

The 9dB amplifier with it’s flat frequency response, is ideal for compensating against excessive cable loss in either a domestic or MATV system. The medium gain 13dB gain amplifier provides excellent performance in domestic and all MATV systems. For longer cable runs in either small or larger systems, the high gain 23dB amplifier is ideally suited. The high gain amplifier is also provided with a cascade line power option for extremely weak signal or longer cable run installations.

N.B. Medium and high gain VHF/UHF wideband masthead amplifiers are available on request.

Inputs

Bandwidth (MHz)

Gain

Noise Figure

Max. O/P -46dB

Cross Mod

2 TV Channels

5 TV Channels

10 TV Channels

Input RLR (75ohm)

Output RLR (75ohm)

No. of Outputs

12V Requirements

Line Powering

RF Connector Type

Fully Screened

MHA9U/S

1 x UHF

470-860

9dB

3.5dB

MHA13U/S

1 x UHF

470-860

13dB

2.5dB

MHA23U/S

1 x UHF

470-860

23dB

2.5dB

MHA12W/S

1 x VHF/UHF

44-860

12dB

3dB

MHA22W/S

1 x VHF/UHF

44-860

22dB

3.5dB

111dBµV

106dBµV

101.5dBµV

12dB

12dB

1

25mA

No

‘F’ Type

Yes

114dBµV

108dBµV

104.5dBµV

12dB

8dB

1

25mA

No

‘F’ Type

Yes

110dBµV

104dBµV

100.5dBµV

12dB

8dB

1

40mA

Yes

‘F’ Type

Yes

109dBµV

103dBµV

10dB

10dB

1

15mA

No

‘F’ Type

Yes

109dBµV

103dBµV

12dB

12dB

1

35mA

Yes

‘F’ Type

Yes

14

New Pocket Guide2 8/29/03 4:20 PM Page 14

SCREENED MASTHEAD AMPLIFIERS

2, 3, 4 OUTPUT UHF MASTHEAD AMPLIFIERS - DIGITAL

MODEL

MHAS2U/S

MHAS3U/S

MHAS4U/S

DESCRIPTION

16dB Gain 2 Output UHF Amplifier -

Screened

14dB Gain 3 Output UHF Amplifier -

Screened

12dB Gain 4 Output UHF Amplifier -

Screened

The Maxview 2, 3 and 4 output UHF Masthead Amplifiers have been designed to improve signal performance to up to four outlets in weak UHF TV signals areas. They are optimised for all analogue and digital terrestrial UHF TV system applications with low noise figures and good UHF input and output signal handling characteristics for a large dynamic range. The ‘PRECISION’ models are fully screened to EN50083-2 and suitable for use in either professional MATV or domestic systems. They are designed for mast fixing with the releasable cable tie provided or for wall fixing using the drill out tabs. The snap lock latches and cable guides on the weatherproof outer housing and ‘F’ type RF connectors on the diecast inner housing ensure a quick, easy and precise installation.

They are designed for indoor or outdoor use and for mounting close to the aerial, requiring +12V d.c. line powering from a +12V d.c. Power Supply Unit such as the single output (MHP1, MHP1/S or MHPL1) or twin output (MHP2) Masthead Power

Supply Unit (PSU).

The medium gain amplifiers provide excellent performance in smaller systems utilising relatively short cable runs (approx <15m). The amplifiers have built in resistive splitting to ensure excellent output to output isolation and load tolerance. When used with the single output (MHP1, MHP1/S or MHPL1) Masthead Power Supply Units, the

MHAS4U/S provides UHF signal feeds for up to four UHF TV outlets. When used with the twin output (MHP2) Masthead Power Supply Unit up to five UHF TV outlets can be serviced.

MHAS2U/S

1 x UHF

470-860

16dB

2.5dB

MHAS3U/S

1 x UHF

470-860

14dB

2.5dB

MHAS4U/S

1 x UHF

470-860

12dB

2.5dB

Inputs

Bandwidth (MHz)

Gain per Outlet

Noise Figure

Max. O/P -46dB

Cross Mod

2 TV Channels

5 TV Channels

Input RLR (75ohm)

Output RLR (75ohm)

No. of Outputs

12V Requirements

Line Powering

RF Connector Type

Fully Screened

97dBµV

91dBµV

12dB

15dB

2

40mA

No

‘F’ Type

Yes

97dBµV

91dBµV

12dB

15dB

3

40mA

No

‘F’ Type

Yes

97dBµV

91dBµV

12dB

18dB

4

40mA

No

‘F’ Type

Yes

15

New Pocket Guide2 8/29/03 4:20 PM Page 15

SCREENED MASTHEAD AMPLIFIERS

GROUPED UHF MASTHEAD AMPLIFIERS - DIGITAL

MODEL

MHA12CD/S

MHA23CD/S

MHA25A/S

DESCRIPTION

12dB Gain Group C/D UHF Amplifier -

Screened

23dB Gain Group C/D UHF Amplifier -

Screened

25dB Gain Group A UHF Amplifier -

Screened

The Maxview medium and high gain grouped UHF Masthead Amplifiers are designed to improve signal performance in weak UHF TV signal areas. They are optimised for all analogue and digital terrestrial UHF TV system applications with low noise figures and good UHF input and output signal handling characteristics for a large dynamic range. The input filtering provides good rejection of out of group TV signals. The

‘PRECISION’ masthead amplifiers are fully screened to EN50083-2 and suitable for use in either professional MATV or domestic systems. They are designed for mast fixing with the releasable cable tie provided or for wall fixing using the drill out tabs.

The snap lock latches and cable guides on the weatherproof outer housing and ‘F’ type RF connectors on the diecast inner housing ensure a quick, easy and precise installation.

All models are designed for indoor or outdoor use, and for mounting close to the aerial, requiring +12V d.c line powering from a +12V d.c. Power Supply Unit such as the single output (MHP1, MHP1/S or MHPL1) or twin output (MHP2) Masthead

Power Supply Unit (PSU). For cascaded applications with power consumption greater than 50mA the MHPL1/350 single output high current regulated Power Supply Unit is suitable.

The medium gain Group C/D 12dB amplifier provides excellent performance in smaller systems utilising relatively short cable runs (approx.<15m). For longer cable runs in either small or larger systems, the higher gain amplifiers are ideally suited.

The high gain models also cater for extremely weak signals and are provided with a cascade line power option.

Inputs

Bandwidth (MHz)

Gain

Noise Figure

Max. O/P -46dB

Cross Mod

2 TV Channels

5 TV Channels

Input RLR (75ohm)

Output RLR (75ohm)

No. of Outputs

12V Requirements

Line Powering

RF Connector Type

Fully Screened

MHA12CD/S

1 x Group C/D

680-860

12dB

2.5dB

112dBµV

106dBµV

10dB

10dB

1

20mA

No

‘F’ Type

Yes

MHA23CD/S

1 x Group C/D

680-860

23dB

3dB

108dBµV

102dBµV

10dB

10dB

1

35mA

Yes

‘F’ Type

Yes

MHA25A/S

1 x Group A

470-606

25dB

2.5dB

108dBµV

101dBµV

8dB

8dB

1

35mA

Yes

‘F’ Type

Yes

16

New Pocket Guide2 8/29/03 4:20 PM Page 16

SCREENED MASTHEAD AMPLIFIERS

MULTI-INPUT UHF/FM MASTHEAD AMPLIFIERS - DIGITAL

MODEL

MHAS2UF/S

DESCRIPTION

UHF (12dB) & FM (14dB) Amplifier

- Screened

The Maxview UHF & FM Masthead Amplified Diplexer provides separate band-limited UHF TV and FM inputs. Both inputs have very low noise figure amplifiers designed to provide excellent signal performance in weak UHF TV and

FM Radio signal areas. The combination of separate amplifiers for each input and high performance output diplexer filtering ensures optimum signal handling characteristics and suitability for all analogue and digital terrestrial UHF TV system applications. The ‘PRECISION’ model is fully screened to EN50083-2 and suitable for use in either professional MATV or domestic systems. It is designed for mast fixing with the releasable cable tie provided or for wall fixing using the drill out tabs. The snap lock latches and cable guides on the weatherproof outer housing and ‘F’ type

RF connectors on the diecast inner housing ensure a quick, easy and precise installation.

It is designed for indoor or outdoor use and for mounting close to the aerials, requiring +12V d.c. line powering from a +12V d.c. Power Supply Unit such as the single output (MHP1, MHP1/S or MHPL1) or twin output (MHP2) Masthead Power

Supply Unit (PSU). For cascaded applications with power consumption greater than

50mA the MHPL1/350 single output high current regulated Power Supply Unit is suitable.

The medium gain amplifier on the UHF TV and FM inputs provides excellent performance in smaller systems utilising relatively short cable runs (approx.<15m).

For longer cable runs or for extremely weak signals a cascade line power option is provided.

MHAS2UF/S

Inputs

Bandwidth (MHz)

Gain

Noise Figure

Rejection

Max. O/P -46dB

Cross Mod

2 TV Channels

5 TV Channels

Input RLR (75ohm)

Output RLR (75ohm)

No. of Outputs

12V Requirements

Line Powering

RF Connector Type

Fully Screened

1 x FM

88-108

14dB

3.5dB

30dB

1 x UHF

470-860

12dB

2.7dB

30dB

107dBµV

101dBµV

10dB

10dB

1

45mA

114dBµV

108dBµV

No Yes

‘F’ Type

Yes

17

New Pocket Guide2 8/29/03 4:20 PM Page 17

SCREENED MASTHEAD AMPLIFIERS

MULTI-INPUT VHF/UHF MASTHEAD AMPLIFIERS

MODEL

MHA23UV/S

DESCRIPTION

UHF (23dB) & VHF (0dB) Amplifier - Screened

The Maxview UHF Masthead Amplifier with passive VHF Diplexer provides separate band-limited UHF and VHF inputs. The UHF input features a high gain low noise amplifier designed to provide excellent signal performance in weak UHF TV signal areas. The combination of separate UHF input high pass filters and high performance output diplexer filtering ensures optimum signal handling characteristics and suitability for all analogue terrestrial UHF TV systems and DAB radio applications.

The ‘PRECISION’ model is fully screened to EN50083-2 and suitable for use in either professional MATV or domestic systems. It is designed for mast fixing with the releasable cable tie provided or for wall fixing using the drill out tabs. The snap lock latches and cable guides on the weatherproof outer housing and ‘F’ type RF connectors on the diecast inner housing ensure a quick, easy and precise installation.

It is designed for indoor or outdoor use and for mounting close to the aerials, requiring +12V d.c. line powering from a +12V d.c. Power Supply Unit such as the single output (MHP1, MHP1/S or MHPL1) or twin output (MHP2) Masthead Power

Supply Unit (PSU). For cascaded applications with power consumption greater than

50mA the MHPL1/350 single output high current regulated PSU is suitable.

The high gain amplifier on the UHF input provides excellent performance in small or larger systems utilising longer cable runs (approx. <15m). For longer cable runs or extremely weak analogue UHF TV signals a cascade line power option is provided.

MHA23UV/S

1 x VHF

40-270

-0.5dB

N/A

25dB

1 x UHF

470-860

23dB

2.5dB

35dB

Inputs

Bandwidth (MHz)

Gain

Noise Figure

Rejection

Max. O/P -46dB

Cross Mod

2 TV Channels

5 TV Channels

Input RLR (75ohm)

Output RLR (75ohm)

No. of Outputs

12V Requirements

Line Powering

RF Connector Type

Fully Screened

N/A

N/A

18dB

No

12dB

1

40mA

110dBµV

104dBµV

12dB

Yes

‘F’ Type

Yes

18

New Pocket Guide2 8/29/03 4:20 PM Page 18

MASTHEAD POWER SUPPLY UNITS

MASTHEAD POWER SUPPLY UNITS

MODEL

MHP1

MHP2

MHP1/S

MHPL1

MHPL1/350

DESCRIPTION

Single Plug-in Power Supply Unit

Twin Plug-in Power Supply Unit

Single Power Supply Unit with Mains Lead & Plug - Fully Screened

Single Power Supply Unit with Mains Lead & Plug - Fully Screened

Single High Current Regulated Power Supply Unit - Fully Screened

MHP1

MHP1/S MHPL1/350

MHP2 MHPL1

The Maxview single output (MHP1, MHP1/S or MHPL1) and twin output (MHP2)

Masthead Power Supply Unit provide line power voltage of +12V d.c. at 50mA to power any of the Maxview Masthead Amplifiers, or any +12V d.c. powered Masthead

Amplifier requiring 50mA or less. The single output high current regulated Power

Supply Unit (MHPL1/350) provides +12V regulated d.c. voltage at up to 350mA of current.

The MHP1 or 2 are recommended for indoor domestic use only and plug directly into a convenient mains socket. The MHP1/S, MHPL1 and MHPL1/350 are fully screened and suitable for all MATV and domestic systems.

The MHP1/S and MHPL1 have a mains lead and plug. The MHPL1/350 is available as either a desktop version with mains lead and plug or as a plug top version, which plugs directly into a convenient socket.

The Twin Power Supply Unit incorporates signal splitting to provide an additional wideband (44-860MHz) TV output without the need for either a multi-output Masthead

Amplifier or an additional 2 way TV Splitter.

Bandwidth (MHz)

Mains Voltage

Loss per TV Outlet d.c. Output Voltage

Max Output Current

Isolation Between

O/P

Input RLR (75ohm)

Output RLR (75ohm)

No. of Outputs

RF Connector

Mains Connector

MHP1

44-860

230V+/-10%

0.5dB

12V

50mA

N/A

12dB

10dB

1

‘F’ Type

Plug-in

MHP2

44-860

230V+/-10%

4dB

12V

50mA

17dB

10dB

12dB

2

‘F’ Type

Plug-in

Fully Screened

No No

MHP1/S

40-860

230V+/-10%

0.5dB

12V

50mA

MHPL1

44-860

230V+/-10%

0.5dB

12V

50mA

MHPL1/350

44-860

230V+/-10%

0.5dB

12V

350mA

N/A

12dB

10dB

1

‘F’ Type

Mains Lead

& Plug

Yes

N/A

12dB

10dB

1

‘F’ Type

Mains Lead

& Plug

Yes

N/A

14dB

14dB

1

‘F’ Type

Mains Lead

& Plug or

Plug Top

Yes

19

New Pocket Guide2 8/29/03 4:20 PM Page 19

GROUPED MASTHEAD DIPLEXERS

MODEL

MHD35

MHD37

MHD39

MHD41

DESCRIPTION

Ch21-31 & Ch35-68 Masthead Diplexer

Ch21-33 & Ch37-68 Masthead Diplexer

Ch21-35 & Ch39-68 Masthead Diplexer

Ch21-37 & Ch41-68 Masthead Diplexer

MASTHEAD DIPLEXERS

The Maxview Grouped Masthead Diplexers provide separate high and low channel grouped UHF TV inputs. The high and low channel inputs are combined using very high performance diplexer filters. The frequency response on the low channel input extends down to Band I, making it ideally suited for precombined VHF FM signals.

The passive diplexers are designed for combining UHF TV signals from two different channel groups and are intended for indoor or outdoor domestic use, mounted close to the aerial. Through line powering from the output to either or both channels is available as an option thus allowing low noise amplification to be added for weak UHF

TV signal reception areas or installations with longer cable runs.

Low Channel (MHz)

High Channel (MHz)

MHD35

470-558

Ch 21-31

582-860

Ch 35-68

Insertion Loss

Band Edge

Mid-Band

Rejection

Through Line

Powering

<3.5dB

<1.5dB

>20dB typ

30dB

On both channels

MHD37

470-574

Ch 21-33

598-860

Ch 37-68

<3.5dB

<1.5dB

>20dB typ

30dB

On both channels

MHD39

470-588

Ch 21-35

614-860

Ch 39-68

<3.5dB

<1.5dB

>20dB typ

30dB

On both channels

MHD41

470-606

Ch 21-37

630-860

Ch 41-68

<3.5dB

<1.5dB

>20dB typ

30dB

On both channels

20

New Pocket Guide2 8/29/03 4:20 PM Page 20

MATV DIGITAL AMPLIFIERS

‘1V’ MATV DIGITAL AMPLIFIERS

MODEL

MAA32U

MAA38U

MAA22UV

MAA32UV

MAA38UV

MAA32V

DESCRIPTION

32dB UHF Amplifier

38dB UHF Amplifier

22dB Fixed Gain UHF Amplifier with VHF

Diplexer

32dB UHF Amplifier with VHF Diplexer

38dB UHF Amplifier with VHF Diplexer

32dB VHF/FM Amplifier with UHF Diplexer

The modular MATV amplifier range from Maxview has been designed and optimised specifically for use as high performance DTT and analogue split band signal amplifiers in small and medium sized VHF/UHF MATV systems, or as final high level head amplifiers in a channelised MATV system. The VHF and UHF amplifier products provide the combination of very low noise figures and high output signal handling together with 20dB of gain adjustment correctly located for DTT applications after the input stage. Because of the low noise figures and good signal handling characteristics, all the amplifiers have excellent input and output dynamic range, allowing them to be connected directly to the aerial. Alternatively, if the aerial is some distance away from the main headend distribution amplifier they can be connected via a low gain

Masthead Amplifier using the built in selectable +12V d.c. line power option.

All the VHF amplifiers can be cascaded, are fully screened to EN50083-2 and are designed for indoor use and require a +12V d.c. regulated power source from the associated PSU350 power supply. System flexibility is assured and costs minimised as both the MATV amplifier and +12V d.c. regulated power supply PSU350 are available as separate replacement items.

If a system requires more than one UHF headend amplifier e.g. dual trunk headend feeds to be employed, and the combined d.c. power consumption is less than 350mA at +12V, then an optional 2 way d.c. phono splitter lead is available.

For example:

A Single PSU350 Power Supply is capable of powering any of the following MATV

Amplifier modules/Masthead combinations.

1. Any Maxview 22dB, 32dB or 38dB Amplifier module + UHF Masthead requiring

130mA or less at +12V.

2. Any permutation of 2 x 32dB UHF or VHF amplifier modules + UHF Masthead requiring 50mA or less at +12V using the 2 way phono splitter lead BP4063

(separate PSU for each amplifier can also be used if desired).

3. 1 x 22dB, 32dB or 38dB UHF module + 1 x MAA32V VHF/UHF module +

MHA9U/S 9dB or MHA13U/S UHF Masthead (25mA) using the 2 way phono d.c.

splitter lead BP4063 (Separate PSU for each amplifier can also be used if desired).

N.B One PSU350 is not capable of powering 2 x 38dB Amplifier modules, two separate PSU350’s must be used.

MAA32U

MAA38U

MAA22UV

MAA32UV

MAA38UV

MAA32V

Yes

Yes

Yes

Yes

UHF

Input

Yes

Yes

Yes

Yes

Yes

Yes

VHF

Input

No

No

Yes

Yes

Yes

No

UHF Line

Powering

Yes

Yes

Gain

Control

Yes

Yes

No

Yes (UHF)

Yes (UHF)

Yes (VHF/FM)

No

No

No

No

Monitor

Point

Yes

Yes

Built in O/P

Diplexer

No

No

Yes (VHF)

Yes (VHF)

Yes (VHF)

Yes (UHF)

21

New Pocket Guide2 8/29/03 4:20 PM Page 21

‘1V’ MATV DIGITAL AMPLIFIERS

MATV DIGITAL AMPLIFIERS

1) Optimised for DTT and DAB signals with the gain control positioned after the first stage.

2) Supplied from Maxview PSU350 Regulated +12V d.c. Power Supply.

3) MAA22UV, MAA32UV and MAA38UV modules have built in VHF O/P Diplexer covering 5-270MHz.

4) MAA32V VHF/FM modules have built in UHF O/P Diplexer and externally selectable FM or full

VHF frequency band.

22

New Pocket Guide2 8/29/03 4:21 PM Page 22

MATV PRODUCTS

MATV REGULATED POWER SUPPLY UNITS

MODEL

PSU350L

PSU350M

DESCRIPTION

Plug top +12V d.c 350mA Regulated Power Supply Unit

Desk top +12V d.c 350mA Regulated Power Supply Unit

PSU350L

PSU350M

The MATV regulated Power Supply Units have been specifically designed to power one or more of the Maxview MATV amplifier modules and provide +12V d.c. voltage at up to 350mA of current. The Power Supply Units are available as either a desktop version with mains lead and plug or as a plug top version, which plugs directly into a convenient mains socket. They are intended for indoor use only and the 2m long d.c. lead enables optimum positioning of the associated MATV amplifier module. The PSU350M comes complete with mounting bracket.

The PSU350L and PSU350M are fully electronically interchangeable and mechanically compatible with the Maxview LPI350 Line Power Injector Unit. When these two units are used together they produce a fully screened single output high current regulated Power Supply Unit (MHPL1/350) which provides +12V regulated d.c. voltage at up to 350mA of current. For further information on the MHPL1/350 please refer to page 19.

Mains Input Voltage

Mains Connector d.c. Output Voltage d.c. Regulation d.c. Output Current

Output Ripple d.c. Connector d.c. Lead Length

Operating Temp Range

Safety

EMC

Dimensions

PSU350L (Plug Top)

230V+/- 10%

UK integral 3 pin plug

+12V

+5, -7% @350mA

350mA maximum

<100mV p-p

90˚ phono plug

2m

-10˚C to +50˚C

Designed and tested to

EN60742

Tested to EN50081-1

(Emissions)

EN50082-1 (Immunity)

80 x 56 x 46mm

PSU350M (Desk Top)

230V+/- 10%

Lead with UK 3 pin plug

+12V

+5, -7% @350mA

350mA maximum

<100mV p-p

90˚ phono plug

2m

-10˚C to +50˚C

Designed and tested to

EN60742

Tested to EN50081-1

(Emissions)

EN50082-1 (Immunity)

140 x 56 x 47mm incl mounting bracket

23

New Pocket Guide2 8/29/03 4:21 PM Page 23

MATV PRODUCTS

ULTRA BROADBAND 5-2300MHz DIGITAL INDOOR TAPS

MODEL

MAT110

MAT115

MAT120

MAT212

MAT220

MAT225

MAT412

MAT420

MAT425

DESCRIPTION

1 Way 10dB Tap

1 Way 15dB Tap

1 Way 20dB Tap

2 Way 12dB Tap

2 Way 20dB Tap

2 Way 25dB Tap

4 Way 12dB Tap

4 Way 20dB Tap

4 Way 25dB Tap

MAT110

MAT212

MAT412

The Maxview range of high performance indoor Taps has been specifically selected for use with digital satellite and digital terrestrial UHF TV systems (MATV,

SMATV, CATV and IRS).

All the Taps have a frequency range of 5-2300MHz and are housed in a die-cast fully screened alloy casting to EN50083-2 with ‘F’ type RF connectors and mounting lugs.

All models have an earth bond provision and are for indoor use only.

The taps are available in 1 Way, 2 Way, and 4 Way versions with a 10-25dB range of tap values. All taps have a low through loss with power pass on the trunk only. They have a good match on trunk and tap ports and good isolation on all ports.

MAT

110

MAT

115

MAT

120

MAT

212

MAT

220

MAT

225

All models 5-2300MHz

MAT

412

MAT

420

MAT

425

Frequency Range

Trunk Loss:

860MHz

2GHz

Tap Loss

860MHz

2GHz

Return Loss

Tap-Tap Isolation

Power Pass

Connector

Housing

Safety

Dimensions

1.0dB

2.5dB

1.0dB

2.0dB

1.0dB

2.0dB

2.0dB

2.5dB

1.0dB

2.5dB

1.0dB

2.5dB

3.5dB

4.5dB

1.0dB

2.0dB

0.5dB

1.0dB

10dB

12dB

>20dB

N/A b

16dB

16dB

>20dB

N/A b

20dB

21dB

>20dB

N/A

11dB

12dB

>14dB

30dB

20dB

21dB

>14dB

35dB

25dB

26dB

>14dB

35dB

12dB

14dB

>12dB

25dB

20dB

21dB

>15dB

25dB

All models feature Trunk IN to Trunk OUT only b b b b b b b

All models have fully screened die-cast housing

All models have an earth bonding provision

1 & 2 Way Taps: 58 x 58 x 26mm 4 Way Taps: 78 x 58 x 26mm

24dB

25dB

>15dB

25dB

24

New Pocket Guide2 8/29/03 4:21 PM Page 24

MATV PRODUCTS

ULTRA BROADBAND 5-2300MHz DIGITAL INDOOR SPLITTERS

MODEL

MAS2

MAS2PP

MAS4

DESCRIPTION

2 Way Splitter

2 Way Splitter with Power Pass to both Outputs

4 Way Splitter

MAS2

MAS4

The Maxview range of high performance indoor Splitters has been specifically selected for use with digital satellite and digital terrestrial UHF TV systems (MATV,

SMATV, CATV and IRS).

All the Splitters have a frequency range of 5-2300MHz and are housed in a die-cast fully screened alloy casting to EN50083-2 with ‘F’ type RF connectors and mounting lugs. All models have an earth bond provision and are for indoor use only.

The splitters are available in 2 and 4 way versions. The splitters have excellent output to output isolation and low insertion losses. The MAS2 and MAS4 have power pass on input to output port 1 only. The MAS2PP has power pass on input to both outputs.

Frequency Range

Insertion Loss:

470MHz

860MHz

2GHz

Return Loss

O/P to O/P Isolation

470MHz

860MHz

2GHz

Power Pass

Connector

Housing

Safety

MAS2

5-2300MHz

3.5dB

3.5dB

4.5dB

20dB

30dB

27dB

20dB

Input to 1 port only

‘F’ Type

Fully screened die-cast

Earth bonding provision

MAS4

5-2300MHz

7.5dB

8.0dB

8.5dB

18dB

25dB

20dB

20dB

Input to 1 port only

‘F’ Type

Fully screened die-cast

Earth bonding provision

25

New Pocket Guide2 8/29/03 4:21 PM Page 25

MATV PRODUCTS

MATV ACCESSORIES

MODEL

BP4063

LPI350

TDA6UK

DESCRIPTION

2 Way Phono d.c. Splitter Lead

Line Power Injector Unit

Terrestrial Digital/Analogue Signal Meter

BP4063

LPI350 TDA6UK

TDA6UK Terrestrial Digital/Analogue Signal Meter continually measures both Digital and Analogue terrestrial frequencies giving C/N and level measurements on both signals. The 1.1kg compact, easy to use meter comes complete with mains and vehicle charger/adaptor and removable side pocket for tools and accessories.

2 Way Phono d.c. Splitter Lead - If a system requires more than one MATV headend amplifier e.g dual trunk headend feeds to be employed, and the combined d.c. power consumption is less than 350mA at +12V, then an optional 2 way d.c. splitter lead is available.

Line Power Injector Unit - It is 5-2300MHz fully screened and can be used together with the PSU350L and PSU350M Power Supply Units to produce a single output high current regulated Power Supply Unit (MHPL1/350) which provides +12V regulated d.c.

voltage at up to 350mA of current.

26

New Pocket Guide2 8/29/03 4:21 PM Page 26

SMALL/MEDIUM SYSTEM AMPLIFIERS

HIGH GAIN SIGNAL BOOSTERS WITH SWITCHED GAIN

MODEL

HGB1

HGB2

HGB3

HGB4

DESCRIPTION

1 Room High Gain Signal Booster with Switched Gain

2 Room High Gain Signal Booster with Switched Gain

3 Room High Gain Signal Booster with Switched Gain

4 Room High Gain Signal Booster with Switched Gain

HGB

The Maxview HGB range of high gain signal boosters include 1, 2, 3 & 4 outlet models. The switched gain is located after the 1st gain stage making the amplifiers ideal for DTT applications, for boosting weak UHF TV and FM/DAB radio signals. The amplifiers are designed for continuous indoor use and are fitted with a mains lead and plug enabling them to be located away from the mains socket.

The amplifiers are fully screened, comply with the EU safety (LVD) and EMC

Directives and are suitable for professional MATV and domestic systems. For optimum screening performance all unused outputs should be fitted with 75ohm coaxial loads.

Bandwidth (MHz)

Noise Figure

Gain

Gain Control Range

Max O/P -46dB

Cross Mod

2 Channels

5 Channels

No of Outputs

Input RLR (75ohm)

Output RLR (75ohm)

O/P - O/P Isolation

RF Connector

Voltage Range

Mains Connector

HGB1

47-860

<4.5dB

18dB

6dB Switched

HGB2

47-860

<5dB

13dB

6dB Switched

HGB3

47-860

<5dB

13dB

6dB Switched

HGB4

47-860

<5dB

10dB

6dB Switched

>112dBµV

>106dBµV

1

12dB

12dB

N/A

Coax

230V+/-10%

Mains Lead &

Plug

>106dBµV

>100dBµV

2

12dB

12dB

14dB

Coax

230V+/-10%

Mains Lead &

Plug

>100dBµV

>104dBµV

3

12dB

12dB

20dB

Coax

230V+/-10%

Mains Lead &

Plug

>96dBµV

>90dBµV

4

12dB

12dB

20dB

Coax

230V+/-10%

Mains Lead &

Plug

27

New Pocket Guide2 8/29/03 4:21 PM Page 27

SMALL/MEDIUM SYSTEM AMPLIFIERS

DIGITAL SIGNAL BOOSTERS WITH RF/BASEBAND IR RETURN

PATH

MODEL

IRB2

IRB4

DESCRIPTION

2 Room Digital Signal Booster with RF/Baseband IR Return Path

4 Room Digital Signal Booster with RF/Baseband IR Return Path

IRB

The Maxview 2 and 4 way Digital Signal Boosters with RF/Baseband IR Return Path cover 85-860MHz in the forward direction making them ideal to boost UHF TV, FM and/or DAB VHF radio signals. The excellent signal handling allows reception to be optimised under most signal conditions.

The 5-65MHz return path on 2 outputs of the Digital Signal Booster is compatible with equipment returning an RF return path with d.c. powering and s/c protection such as

Sky Digi-Eye/Digi-Box installation. The baseband IR return path on 2 outputs provides full compatibility with most IR extender systems.

Forward Bandwidth (MHz)

Reverse Bandwidth (MHz)

Noise Figure

Forward Gain

Reverse Gain

Max O/P -46dB

Cross Mod

2 Channels

5 Channels

Forward Path Filtering

Rejection

Reverse Path Filtering

Rejection

No of Outputs

Input RLR (75ohm)

Output RLR (75ohm)

Output Line Power

RF Connector

Voltage Range

Mains Connector

IRB2

85-860

5-65

4dB

11dB

0dB

98dBµV

93dBµV

>40dB overall at 65MHz and below

>40dB overall at

85MHz and below

2

14dB

14dB

+9V d.c at 15mA max per output

Coax

230V+/-10%

Mains Lead & Plug

IRB4

85-860

5-65

5dB

8dB

0dB

95dBµV

90dBµV

>40dB overall at 65MHz and below

>40dB overall at

85MHz and below

4

14dB

14dB

+9V d.c at 15mA max per output

Coax

230V+/-10%

Mains Lead & Plug

28

New Pocket Guide2 8/29/03 4:21 PM Page 28

SMALL/MEDIUM SYSTEM AMPLIFIERS

DIGITAL SIGNAL BOOSTER

MODEL

DSB1

DESCRIPTION

1 Room Digital Signal Booster

DSB1

The Maxview DSB1 is a medium gain booster with a low noise figure, designed specifically to boost weak digital terrestrial UHF TV signals. It is ideal to use with a set top UHF TV aerial to supply digital terrestrial television signals to a TV not already receiving the digital signal from an external aerial. It is designed specifically for continuous indoor use and it comes complete with separate 12V regulated plug-in style power supply.

Bandwidth (MHz)

Noise Figure

Gain

Max O/P -46dB

Cross Mod

2 Channels

5 Channels

No of Outputs

Input RLR (75ohm)

Output RLR (75ohm)

RF Connector Type

Voltage Range

Mains Connector

DSB1

470-860

2.5dB

13dB

114dBµV

108dBµV

1

12dB

8dB

Coax

230V+/- 10%

Plug Top

29

New Pocket Guide2 8/29/03 4:21 PM Page 29

SMALL/MEDIUM SYSTEM AMPLIFIERS

VHF/UHF INDOOR AMPLIFIERS

MODEL

PSBL1

PSBL2

PSBL3

PSBL4

DESCRIPTION

1 Set Amplifier with Mains Lead and Plug

2 Set Amplifier with Mains Lead and Plug

3 Set Amplifier with Mains Lead and Plug

4 Set Amplifier with Mains Lead and Plug

PSBL1

PSBL3

PSBL2

PSBL4

The PSBL1, 2, 3, and 4 models are also available in plug-in format for plugging directly into a convenient mains socket.

The Maxview PSBL range of VHF/UHF amplifiers have fixed gains and provide excellent performance in smaller distribution systems utilising relatively short cable runs. The amplifiers are designed for indoor continuous use and come complete with mains power lead fitted with a moulded mains plug.

A broadband VHF/UHF response and built in low loss splitters make them perfect either to boost UHF TV, FM and/or DAB VHF radio signals up to four outlets or as building blocks in much larger networks. All models have low noise figures combined with good signal handling capability which aid excellent TV and radio reception. All the VHF/UHF amplifier models are fully screened, and comply with the EU Safety

(LVD) and EMC Directives and are suitable for use in professional MATV and domestic systems. For optimum screening performance all unused outputs should be fitted with

75ohm coaxial loads.

*On the PSBL3 the higher output is from the socket next to the aerial input.

Bandwidth (MHz)

Noise Figure

Gain

Max O/P -46dB

Cross Mod

2 Channels

5 Channels

No of Outputs

Input RLR (75ohm)

Output RLR (75ohm)

O/P - O/P Isolation

RF Connector

Voltage Range

Mains Connector

PSBL1

40-860

3.5dB

12.5dB

PSBL2

40-860

3.5dB

9.5dBx2

PSBL3

40-860

3.5dB

9.5dB*, 6dBx2

PSBL4

40-860

3.5dB

6dBx4

110dBµV

104dBµV

1

6dB

12dB

N/A

Coax

230V+/-10%

Mains Lead

& Plug

108dBµV

102dBµV

2

8dB

12dB

18dB

Coax

230V+/-10%

Mains Lead

& Plug

106dBµV

100dBµV

3

8dB

12dB

15dB

Coax

230V+/-10%

Mains Lead

& Plug

105dBµV

100dBµV

4

8dB

12dB

15dB

Coax

230V+/-10%

Mains Lead

& Plug

30

New Pocket Guide2 8/29/03 4:21 PM Page 30

SMALL/MEDIUM SYSTEM AMPLIFIERS

VARIABLE GAIN VHF/UHF INDOOR AMPLIFIERS

MODEL

VSB1CRG*

VSB2CRG

VSB3CRG

VSB4CRG

DESCRIPTION

1 Set High Output Variable Gain Amplifier

2 Set Variable Gain Amplifier

3 Set Variable Gain Amplifier

4 Set Variable Gain Amplifier

*The VSB1CRG is also available in two other power supply variants: mains/d.c. and d.c. only.

VSB2/3/4CRG

VSB1CRG

The Maxview high level, variable gain, VSB1-4 VHF/UHF distribution amplifier models provide excellent performance in small headend or domestic systems, or those systems utilising longer cable runs. The Variable Gain Amplifier models provide excellent performance in small and medium sized distribution systems. The Variable

Gain Amplifiers are broadband making them ideal to boost UHF TV, FM and/or DAB

VHF radio signals through up to four outlets. The combination of high gain with excellent signal handling together with built in precision 75ohm variable attenuator which provides up to 20dB of gain adjustment, allows reception to be optimised under very strong signal conditions.

They are designed for indoor continuous use and come complete with a power lead fitted with a moulded mains plug. The Variable Gain VHF/UHF Amplifiers are fully screened, comply with the EU Safety (LVD) and EMC Directives and are suitable for use in professional MATV and domestic systems. For optimum screening performance all unused outputs should be fitted with 75ohm coaxial loads.

*On the VSB3 the higher output is from the socket next to the aerial input.

Bandwidth (MHz)

Noise Figure

Gain

VSB1CRG

(1)

40-860

4.5dB

21dB

20dB

VSB2CRG

40-860

5dB

17.5dBx2

20dB

VSB3CRG

40-860

5dB

17.5dB*,

13dBx2dB

20dB

VSB4CRG

40-860

4.5dB

13dBx4

20dB

Gain Control Range

Max O/P -46dB

Cross Mod

2 Channels

115dBµV

109dBµV

106dBµV

100dBµV

5 Channels

109dBµV

103dBµV

No of Outputs

Input RLR (75ohm)

Output RLR (75ohm)

O/P - O/P Isolation

RF Connector

Voltage Range d.c. Supply

Requirements

(2)

Line Power O/P

Mains Connector

1

8dB

6dB

N/A

Coax or ‘F’ type

230V+/-10%

[email protected]

140mA max

[email protected] max

Mains Lead &

Plug, Mains/d.c, d.c. lead

2

6dB

12dB

14dB

Coax

230V+/-10%

N/A

N/A

Mains Lead

& Plug

110dBµV*,

106dBµVx2

104dBµV*,

100dBµVx2

3

8dB

10dB

16dB

Coax

230V+/-10%

N/A

N/A

Mains Lead

& Plug

4

8dB

8dB

16dB

Coax

230V+/-10%

N/A

N/A

Mains Lead

& Plug

1) The VSB1CRG model is supplied without either +12/24V d.c. input supply or

+9V d.c. line power output options.

2) d.c. supply requirements is applicable to d.c. and mains/d.c. versions only.

31

New Pocket Guide2 8/29/03 4:21 PM Page 31

DISTRIBUTION AMPLIFIERS

MULTI-OUTPUT VHF/UHF INDOOR DISTRIBUTION AMPLIFIERS

MODEL

PSB6CRG

PSB8CRG

DESCRIPTION

6 Set Distribution Amplifier

8 Set Distribution Amplifier

PSB6CRG PSB8CRG

The Maxview multi-output PSB6-8 VHF/UHF Distribution range provides excellent performance either as stand-alone units in small to medium sized distribution systems or as building blocks in much larger networks. The Distribution Amplifiers are broadband making them ideal to boost UHF TV, FM and/or DAB VHF radio signals.

Both models have good noise figures, provide good signal handling and the integral resistive splitters provide a flat frequency response and excellent output to output isolation which is independent of the loading on unused outputs. They are designed for indoor continuous use and come complete with a mains power lead fitted with a moulded mains plug.

The multi-output Distribution Amplifiers are fully screened, comply with the EU Safety

(LVD) and EMC Directives and are suitable for professional MATV and domestic systems. For optimum screening performance all unused outputs should be fitted with

75ohm coaxial loads.

PSB6CRG

40-860

4.5dB

7.5dBx6

PSB8CRG

40-860

4.5dB

6dBx8

Bandwidth (MHz)

Noise Figure

Gain

Max O/P -46dB

Cross Mod

2 Channels

5 Channels

No of Outputs

Input RLR (75ohm)

Output RLR (75ohm)

O/P-O/P Isolation

RF Connector

Voltage Range

Mains Connector

94dBµV

88dBµV

6

10dB

12dB

30dB

Coax

230V+/-10%

Mains Lead

& Plug

92dBµV

87dBµV

8

12dB

12dB

30dB

Coax

230V+/-10%

Mains Lead

& Plug

32

New Pocket Guide2 8/29/03 4:21 PM Page 32

ACCESSORIES

PLUGS & CONNECTORS

MODEL

BP4011

BP4012

BP4013

BP4017

BP4036

BP4037

BP4048

BP4065

BP4081

BP7009

DESCRIPTION

Alloy Coaxial Plug (screw type)

Plastic Coaxial Plug

Back to Back Coaxial Connector

Zinc Plated Coaxial Plug

‘F’ Female Socket to Coaxial Plug Adaptor

‘F’ Plug F100

Coaxial Socket to Male ‘F’ Plug Adaptor

‘F’ Female to ‘F’ Female Connector

Alloy Female Coaxial Plug

Fastfit Digital TV/FM Plastic Coaxial Plug

BP4011,

BP4017

BP4013

BP4048 BP4081

BP4037

BP4012

BP4036

BP4065

MODEL

BP4004

BP4006

BP4023

BP4024

H8040

SPLITTERS & DIPLEXERS - UNSCREENED

DESCRIPTION

‘Y’ Splitter

3 Way Splitter

TV/TV Splitter

TV/FM Diplexer

SAC Splitter

(Inductive)

(Inductive)

(Inductive)

BP7009

BP4004

Bandwidth (MHz)

Insertion Loss

Rejection

O/P - O/P Isolation

Input RLR (75ohm)

Output RLR (75ohm)

Line Powering

RF Connector Input

RF Connector Output

BP4006

BP4004

40-860

4dB

N/A

25dB

9dB

9dB

Possible

1 x Coax

2 x Coax

BP4023

BP4006

40-860

9dB

5dBx2

N/A

15dBx1

25dBx2

6dB

7dB

Possible

1 x Coax

3 x Coax

BP4023

40-860

4.5dB

N/A

20dB

8dB

7dB

Possible

1 x Coax

2 x Coax

BP4024

BP4024

88-108 FM

470-860 UHF

0.5dB FM/TV

>25dB FM/TV

10dB FM/TV

10dB

10dB

Possible

1 x Coax

2 x Coax

33

New Pocket Guide2 8/29/03 4:21 PM Page 33

OUTLET BOXES & PLATES - UNSCREENED

MODEL

BP4001

BP4002

BP4007

BP4008

BP4028

BP4041

BP4042

DESCRIPTION

Single Surface Outlet Box

Twin Surface Outlet Box

Single TV Outlet Plate

Twin TV Outlet Plate

TV & FM Diplexed Outlet Plate

Satellite & TV Outlet Plate

Satellite Outlet Plate

(Non isolated)

(Non isolated)

(Non isolated)

(Non isolated)

(Non isolated)

(Non isolated)

(Non isolated)

ACCESSORIES

BP4001

BP4002 BP4007 BP4008

BP4028 BP4041 BP4042

Bandwidth (MHz)

Insertion Loss

Rejection

O/P - O/P Isolation

Input RLR (75ohm)

Output RLR (75ohm)

Line Powering

RF Connector Input

RF Connector Output

BP4007

40-860

<0.5dB

N/A

N/A

14dB

BP4008

40-860

<1dB

N/A

40dB

10dB

14dB

Possible

1 x Saddle

& Clamp

1 x Coax

10dB

Possible

2 x Saddle

& Clamp

2 x Coax

BP4028

88-108 FM

40-860 TV

<1.5dB TV

<1.5dB FM

>25dB FM/TV

N/A

10dB FM

8dB TV

10dB

Possible

1 x Saddle

& Clamp

2 x Coax

BP4041

40-860 TV

40-2150 Sat

<0.5dB TV

<1.5dB Sat

N/A

40dB

15dB TV

8dB Sat

8dB

Possible

2 x Saddle

& Clamp

1 x ‘F’ Type

1 x Coax

BP4042

40-2150

<1.5dB

N/A

N/A

8dB

8dB

Possible

1 x Saddle

& Clamp

1 x ‘F’ Type

34

New Pocket Guide2 8/29/03 4:21 PM Page 34

ACCESSORIES

OUTLET PLATES - SCREENED

MODEL

BP7001

BP7002

BP7003

BP7004

BP7005

DESCRIPTION

Screened Single VHF/UHF Flush Coaxial Outlet Plate

Screened Twin VHF/UHF Flush Coaxial Outlet Plate

Screened Single Satellite Flush Outlet Plate

Screened Twin VHF/UHF & Satellite Flush Outlet Plate

Screened Twin Satellite Flush Outlet Plate

BP7001

BP7002

BP7003

BP7004

Frequency Range

Insertion Loss

Return Loss d.c. Power Pass

Input Connector

Output Connector

Screening Factor

BP7001

5-1000MHz

<0.5dB

>14dB (75ohm)

+12V d.c. at

500mA max

1 x Saddle

& Clamp

1 x Coax

Female Socket

EN50083-2

BP7005

BP7002

5-1000MHz

<0.5dB

>14dB (75ohm)

+12V d.c. at

500mA max

2 x Saddle

& Clamp

1 x Coax

Female Socket

EN50083-2

BP7003

5-2300MHz

<1.0dB

>10dB (75ohm)

+12V d.c. at

500mA max

1 x Saddle

& Clamp

1 x Type ‘F’

Female Socket

EN50083-2

Frequency Range

Insertion Loss

Return Loss d.c. Power Pass

Input Connector

Output Connector

Screening Factor

TV IN/TV OUT

BP7004

SAT IN/SAT OUT

5-1000MHz

<0.5dB

5-2300MHz

<1.0dB

>14dB (75ohm)

+12V d.c. at

500mA max

1 x Saddle

>10dB (75ohm)

+12V d.c. at

500mA max

1 x Saddle

& Clamp

1 x Coax

Female Socket

EN50083-2

& Clamp

1 x Type ‘F’

Female Socket

EN50083-2

BP7005

5-2300MHz

<1.0dB

>10dB (75ohm)

+12V d.c. at

500mA max

2 x Saddle

& Clamp

2 x Type ‘F’

Female Socket

EN50083-2

35

New Pocket Guide2 8/29/03 4:21 PM Page 35

ACCESSORIES

UNIVERSAL REMOTE CONTROLS

MODEL

URC1D

URC3D

URC5D

DESCRIPTION

Solo TV Remote Control

3 in 1 Universal Remote Control

5 in 1 Universal Remote Control with Learning

URC1D

FLYLEADS

MODEL

BP4021

BP4022

BP4025

BP4039

BP4040

BP4071

DESCRIPTION

2m Coaxial Flylead

4m Coaxial Flylead

10m Coaxial Flylead

2m ‘F’ to ‘F’ Flylead

4m ‘F’ to ‘F’ Flylead

10m ‘F’ to ‘F’ Flylead

URC3D URC5D

BP4021, BP4022, BP4025

BP4039, BP4040, BP4071

MISCELLANEOUS ACCESSORIES

MODEL

H8019

H8024

H8025

H8026

TDA6UK

DESCRIPTION

PVC Tape 19mm x 33mm

7mm TV Cable Clips White

7mm TV Cable Clips Brown

7mm TV Cable Clips Black

Terrestrial Digital/Analogue Signal Meter

H8024,

H8025, H8026

TDA6UK

36

New Pocket Guide2 8/29/03 4:21 PM Page 36

ACCESSORIES

AUDIO/VIDEO ACCESSORIES

BP4058

BP4059

BP4060

BP4061

BP4066

BP4067

BP4069

BP4070

BP4072

MODEL

BP4044

BP4045

BP4046

BP4047

BP4050

BP4051

BP4053

BP4054

BP4055

BP4057

DESCRIPTION

10m 13 Strand Speaker Cable

BP4044

Phono Socket to Phono Socket Adaptor (Mono)

6.3mm to 3.5mm Headphone Adaptor

3.5mm to 6.5mm Headphone Adaptor

5m Phono to Phono Lead (Stereo)

1.2m Phono to Phono Lead (Stereo)

BP4045 BP4046

5m Phono to Phono Extension Lead

0.8m Phono to Phono Lead with Gold Plugs

2m Universal A.C Mains Lead & Plug

3m Headphone Extension Lead

3.5mm Socket to 3.5mm Plug

1m Scart to Scart Lead 21 Pins connected

3m Scart to Scart Lead 21 Pins connected

5m Scart to 2 Phono Lead (Stereo)

BP4053

1.5m 3 Phono to Scart Lead

1.5m Scart to 4 Phono Lead

1.5m Scart to 6 Phono Lead with Gold Connectors

1.5m 3 Phono to 3 Phono Lead with Gold Plugs

1.5m 2 Phono to 3.5mm Stereo Jack Plug Lead with Gold Connectors

1.5m 4 Pin Mini Din to 4 Pin Mini Din S-VHS Lead

BP4047

BP4050,

BP4051

BP4054

BP4055

BP4057

BP4058, BP4059 BP4060 BP4061

BP4070

MODEL

BP0103

BP0105

BP0110

BP0115

BP0120

BP0205

BP0302

BP0303

BP0304

BP0305

BP0306

BP0307

BP0308

BP0309

BP4066 BP4067

TELEPHONE ACCESSORIES

BP4069

BP4072

DESCRIPTION

3m Telephone Extension Lead

5m Telephone Extension Lead

10m Telephone Extension Lead

15m Telephone Extension Lead

BP0103,

BP0105

20m Telephone Extension Lead

BP0110, BP0115, BP0120

5m Telephone Extension Lead with Double Adaptor

2.1m Telephone Handset Cord

3m Telephone Line Cord

3m Modem Cable

3m RJ11 Modem Cable

6m Telephone Handset Cord

6m Telephone Line Cord

BP0302,

BP0306

BP0205

8m RJ11 Modem Cable

10m Telephone Line Cord

BP0305, BP0308

BP0303, BP0304,

BP0307, BP0309

37

New Pocket Guide2 8/29/03 4:21 PM Page 37

ACCESSORIES

TELEPHONE ACCESSORIES

BP0724

BP0725

BP0726

BP0727

BP0728

BP0729

BP0730

BP0732

BP0533

BP0540

BP0541

BP0542

BP0720

BP0721

BP0722

BP0723

BP0733

BP0740

BP0750

BP0760

BP0761

BP0763

BP0780

BP0790

BP0795

MODEL

BP0310

BP0311

BP0312

BP0512

BP0513

BP0520

BP0521

BP0530

BP0531

BP0532

BP0800

TP210

TP215

TP220

TP225

TP230

TP711

TP731

DESCRIPTION

4.5m RJ11 Extension Lead

7.6m RJ11 Extension Lead

4.5m RJ11 Extension Lead with Double Adaptor

Telephone Small Surface Master Socket

Telephone Small Surface Extension Socket

Telephone Single Surface Master Socket

Telephone Single Surface Extension Socket

Telephone Single Flush Master Socket

Telephone Single Flush Extension Socket

Telephone Twin Flush Extension Socket

Telephone Twin Flush Master Socket

RJ11 Single Flush Wall Socket

RJ11 Twin Flush Wall Socket

RJ45 Single Flush Wall Socket

Telephone Double Adaptor

BP0310, BP0311

BP0312

BP0512,

BP0513

BP0520,

BP0521

RJ11/UK Plug Adaptor

RJ11 Double Adaptor

RJ11 Inline Coupler

RJ11 Inline Reverse Coupler

BP0542

RJ12 Telecom Network Inline Coupler

RJ12 Telecom Network Inline Reverse Coupler

RJ45 Computer Network Double Adaptor

BP0530,

BP0531,

BP0540

BP0721

BP0532,

BP0533,

BP0541

RJ45 Computer Network Inline Coupler

RJ45 Computer Network Inline Reverse Coupler

Telephone 3 Way Adaptor

UK/RJ11 Inline Adaptor

UK/RJ11 Inline Adaptor with Ringing Interface

Handset Swivel Adaptor

Telephone Cable Clips

Telephone Plug Kit

4 Way Telephone Plug (431A)

6 Way Telephone Plug (631A)

Telephone Junction Box

Telephone Double Priority Adaptor

BP0730

BP0722,

BP0727

TP731

BP0720

BP0723,

BP0724,

BP0725,

BP0726,

BP0728,

BP0729

Telephone/Modem Double Adaptor

Telephone Call Recorder Interface

10m Telephone Extension Kit

15m Telephone Extension Kit

20m Telephone Extension Kit

25m Telephone Extension Kit

30m Telephone Extension Kit

UK Telephone Plug Crimp Tool

Telephone 4 Way Adaptor

BP0740

BP0732, BP0733

BP0750

BP0760 BP0761 BP0763

BP0780

BP0790

BP0795 BP0800

TP800

TP210, TP215, TP220, TP225

TP711

TP230

38

New Pocket Guide2 8/29/03 4:21 PM Page 38

GENERAL INFORMATION

COMPATIBILITY TABLE

TABLE TO SHOW COMPATIBILITY OF MAXVIEW WALL & CHIMNEY BRACKETS

WITH ASSOCIATED MASTS

E5001

E5501

E5002

E5003

E5602

E5504

E5505

E5506

E5507

E5508

E5509

D4001 D4002 D4006 D4007 D4008 D4101 D4102 D4104 D4106 D4108

● ● ●

● ●

● ●

CODE

D4001

D4002

D4006

D4007

D4008

D4101

D4102

D4104

D4106

D4108

CODE

E5001

E5501

E5502

E5503

E5602

E5504

E5505

E5506

E5507

E5508

E5509

DESCRIPTION

6in Stand-Off Wall Bracket

9in Stand-Off Wall Bracket

12in T&K Wall Bracket

18in T&K Wall Bracket

24in T&K Wall Bracket

6in Pressed Chimney Bracket

6in Chimney Bracket

12in Cradle Chimney Bracket

6in Double Lashing Chimney Bracket

DESCRIPTION

3ft x 1in Mast

3ft x 1in Mast

5ft x 1in Mast

6ft x 1in Mast

6ft x 1in Mast

10ft x 2in Mast

12ft x 2in Mast

(910mm x 25mm)

(910mm x 25mm)

(1500mm x 25mm)

(1800mm x 25mm)

(1800mm x 25mm)

(1800mm x 25mm)

(2400mm x 32mm)

(2400mm x 38mm)

(3000mm x 38mm)

(3000mm x 51mm)

(3600mm x 51mm)

39

New Pocket Guide2 8/29/03 4:21 PM Page 39

GENERAL INFORMATION

INFORMATION TABLES

UHF RECEIVING AERIAL GROUPS AND COLOUR CODES

Group A

Group B

Group C/D

Group E

Group K

Group W

Channels

21-37

35-53

48-68

35-68

21-48

21-68

Bandwidth

470-606MHz

582-734MHz

686-860MHz

614-860MHz

470-694MHz

470-860MHz

UHF ANALOGUE TV CHANNEL FREQUENCIES

Group A Band IV

Carrier Frequencies (MHz)

Channel

Vision

21

471.25

22

479.25

23

487.25

24

495.25

25

503.25

26

511.25

27

519.25

28

527.25

29

535.25

30

543.25

31

551.25

32

559.25

33

567.25

34

575.25

35

583.25

36

591.25

37

599.25

533.25

541.25

549.25

557.25

565.25

573.25

581.25

589.25

597.25

605.25

Sound

477.25

485.25

493.25

501.25

509.25

517.25

525.25

Group B Band V

Carrier Frequencies (MHz)

Channel

Vision

35

583.25

36

591.25

37

599.25

38

607.25

39

615.25

40

623.25

41

631.25

42

639.25

43

647.25

44

655.25

45

663.25

46

671.25

47

679.25

48

687.25

49

695.25

50

703.25

51

711.25

52

719.25

53

727.25

Colour

Red

Yellow

Green

Brown

Grey

Black

645.25

653.25

661.25

669.25

677.25

685.25

693.25

701.25

Sound

589.25

597.25

605.25

613.25

621.25

629.25

637.25

709.25

717.25

725.25

733.25

Group C/D Band V

Carrier Frequencies (MHz)

Channel

Vision

48

687.25

49

695.25

50

703.25

51

711.25

52

719.25

53

727.25

54

735.25

55

743.25

56

751.25

57

759.25

58

767.25

59

775.25

60

783.25

61

791.25

62

799.25

63

807.25

749.25

757.25

765.25

773.25

781.25

789.25

797.25

805.25

813.25

Sound

693.25

701.25

709.25

717.25

725.25

733.25

741.25

Group C/D Band V (continued)

Carrier Frequencies (MHz)

Channel

Vision

Sound

64

815.25

821.25

65

823.25

829.25

66

831.25

837.25

67

839.25

845.25

68

847.25

853.25

40

New Pocket Guide2 8/29/03 4:21 PM Page 40

GENERAL INFORMATION

INFORMATION TABLES

RADIO FREQUENCIES

FM Radio

DAB (Digital Audio Broadcasting)

Frequency (MHz)

88-108

217.5-230

Band

II

III

RELATIONSHIP BETWEEN BROADCAST AND VIDEO, SATELLITE

RECEIVER CHANNELS

Transmitter

(n+9)

26

27

28

29

Channel

(n+5)

30

31

32

33

Video Channel

(n)

35 (583MHz)

36 (591MHz)

37 (599MHz)

38 (607MHz)

Transmitter

(n+9)

40

41

42

43

Channel

(n+5)

44

45

46

47

TYPICAL PERFORMANCE DATA FOR 75OHM TV CABLES

Overall

Diameter

Conductor

Size

Screening

Braid

Loss per 10m at

100MHz

400MHz

800MHz

Standard

TV Downlead

Low Loss

Air-Spaced

TV Downlead

Maxview Typical

Low Loss

TV Downlead

Maxview Typical

Satellite Cable

DS100

Standard

6.1mm

6.55mm

6.4mm

6.5mm

6.65mm

0.6mm

1mm

1mm

0.81mm

1mm

Single

Single

Single

Tape &

Braid

Tape &

Braid

1.1dB

0.7dB

1.1dB

0.8dB

2.25dB

1.61dB

1.65dB

1.65dB

0.64dB

1.3dB

3.2dB

2.35dB

2.35dB

2.30dB

1.80dB

EC DIRECTIVES

All products covered by the Low Voltage Directive are assessed and approved by independent test houses. All products covered by the EMC Directive are either approved and tested by a competent body/test house or tested in our own extensive in-house laboratory, which is independently assessed and monitored by an accredited world class test lab. In addition, the VSB1 products have been independently tested and type approved by the VCA to comply with the requirements of the Automotive

EMC Directive 95/54/EC.

All relevant products covered by the EC Directives are EC Conformity ‘CE’ marked accordingly. The CE marking covers not just one directive but all EC Directives which apply to the product group.

41

New Pocket Guide2 8/29/03 4:21 PM Page 41

GENERAL INFORMATION

BASIC STEP BY STEP GUIDE TO SUCCESSFUL TERRESTRIAL TV

AND RADIO SYSTEMS INSTALLATION

In order to achieve optimum performance and to provide the best interference free reception we recommend that these guidelines are followed when installing VHF/UHF

Domestic or MATV systems.

A. VHF AND UHF AERIALS

1. Mount the aerial combination as high as possible with a clear line of sight towards the transmitter.

2. Always place the largest aerial at the bottom, with the smallest at the top. This reduces bending forces and the stresses on the mast and will provide the best mechanical installation. See CAI Codes of Practice for SMATV/MATV Systems.

3. Place the lowest aerial on a mast at least half wavelength distance above the roof of the house. At Band I this distance is 1.6m, at Band 3 80cm, Group A 32cm and 17cm

Group D.

4. For multi aerial installations it is essential to maintain a minimum distance between two UHF aerials on a mast in order to minimise interaction between them. See table

‘Recommended minimum distances between aerials’, for further guidance. This does not apply to aerial arrays where two or more aerials of the same type are deliberately coupled together to improve reception problems in more difficult reception areas. If masthead amplifiers are used it may be necessary to increase the minimum distance accordingly.

RECOMMENDED MINIMUM DISTANCES BETWEEN AERIALS

Band 1 VHF TV

Band 2 FM

Band 3 VHF TV

Group A UHF TV

Band 1

VHF TV

320cm

180cm

180cm

100cm

Band 2

FM

180cm

140cm

100cm

100cm

Band 3

VHF TV

180cm

100cm

100cm

100cm

Group A

UHF TV

100cm

100cm

100cm

80cm

Group B-D

UHF TV

100cm

100cm

100cm

65cm

B. MASTHEAD FILTERING AND AMPLIFICATION

1. In order to minimise potential pick up, install the aerial combination and coaxial downleads away from mobile radio transmitting aerials or other sources of electrical interference such as overhead signal, telephone or power cables.

2. Use only fully screened masthead filters and amplifiers that comply with

EN50083-2.

3. The use of a high rejection masthead bandpass filter such as the MHF series, positioned close to the UHF aerial, before any other amplifiers or filters in the system, will minimise any unwanted out of band interference being picked up by the UHF aerial.

4. If the installation requires a masthead amplifier, for the best results fit the masthead amplifier no closer than 50cm and no more than 1m from the associated aerial.

5. In very weak analogue signal areas, masthead amplifiers can be cascaded. Ensure that there is a minimum of approx. 10-15m of cable between amplifiers connected in cascade.

42

New Pocket Guide2 8/29/03 4:21 PM Page 42

GENERAL INFORMATION

BASIC STEP BY STEP GUIDE TO SUCCESSFUL TERRESTRIAL TV

AND RADIO SYSTEMS INSTALLATION ....continued

C. DIGITAL TERRESTRIAL DOMESTIC AND MATV INSTALLATIONS

INTRODUCTION

Before commencing any DTT/Analogue MATV installations or system planning we strongly recommend that the reader is familiar with the essential DTT reception information contained in the following DTG publications: a) R-Book 2: Installing Digital Terrestrial Television - Domestic Systems b) R-Book 3: Installing Digital Terrestrial Television - MATV Systems c) R-Book 4: Installing Digital Television - Integrated Reception Systems

The DTT signals are typically transmitted 15-25dB below the power of the analogue signals from the same site, but in some circumstances, the difference in transmitted power level can be significantly greater.

N.B. Due to propagation effects etc, the difference in received power levels at the aerial may be higher or lower than the theoretical figures quoted for the transmitter.

The importance of correct DTT system planning cannot be over emphasised, the digital levels quoted are correct at the time of compiling this guide. However the levels and C/N may be subject to change.

1. LEVELS

The target figures below are taken from R-Book 4 and measured at the Output Plate.

Analogue Services

Analogue Terrestrial TV

FM Stereo Radio

Digital Services

Digital Terrestrial TV

Digital Radio (DAB)

Maximum

Level dBuV

80

74

65

70

Recommended

Level dBuV

70

60

50

40

Minimum

Level dBuV

60

54

45

30 a) If you have not got sufficient signal level or C/N when measured at the aerial output then the installation is not suitable for DTT reception. Either the size of the

UHF TV aerial and/or position of the aerial will need to be changed.

b) You MUST use a meter specifically designed and calibrated for DTT when measuring DTT levels and C/N. E.g. TDA6UK Terrestrial Digital/Analogue Signal

Meter available from Maxview. It is also very desirable to use a meter with a spectrum analyser display in order to check channel flatness and help identify interfering signals, overload effects and so on. Most meters are calibrated to read accurately when connected directly after the aerial. You will need to contact the meter supplier to obtain the correction factors when measuring C/N immediately after a masthead amplifier.

c) A useful indication of signal level and signal quality on a channel by channel basis can be obtained by using the set up menu of the DTT receiver.

43

New Pocket Guide2 8/29/03 4:21 PM Page 43

GENERAL INFORMATION

BASIC STEP BY STEP GUIDE TO SUCCESSFUL TERRESTRIAL TV

AND RADIO SYSTEMS INSTALLATION ....continued

2. CARRIER TO NOISE (C/N)

System

Analogue Services

Analogue Terrestrial TV

FM Stereo Radio

625 PAL 1

Stereo

Minimum Carrier/

Noise Ratio

43dB

45dB

Noise

Bandwidth

5.08MHz

0.18MHz

Digital Services

Digital Terrestrial TV

Digital Radio (DAB)

System

COFDM

Carrier/

Noise Radio

Less than 23dB

23dB-25dB

26dB and above*

Noise

Bandwidth

7.6MHz

1.55MHz

Fail**

Marginal**

Pass**

* When carrying out a site test for DTT we recommend that for systems a minimum

C/N of 30dB is required.

** The terms fail, marginal and pass indicate the likelihood of a reliable picture.

A pass should give reliable, fault free reception. A marginal C/N could produce a reliable picture much of the time, but break up (in the form of blocking) to no picture at all under adverse conditions. Fail indicates at best frequent disturbances to reception, or no service at all.

The C/N directly off the aerial can never be improved by adding an amplifier after the aerial, only the system C/N or the C/N at the outlet plate/STB can be improved. Consider the example of a Group C/D DTT signal and an installation with relatively high downlead cable loss.

Consider this example:

DTT Aerial Level

Cable and Flylead Loss

STB Level

STB C/N

40dBµV

6dB

34dBµV

22.4dB

Add 13dB gain 2.5dB NF MHA13U/S masthead near aerial. New figures are now.

Level

C/N

Aerial

40dBµV

36.4dB

After M/Head

53dBµV

33.6dB

STB Input

47dBµV

31.7dB

This calculation assumes that the STB is the 1st unit in the RF chain and that the STB

NF = 8dB, DTT bandwidth = 7.6MHz

If the TV aerial is some distance away from the main head-end distribution amplifier then cable losses between the aerial and MATV amplifier will degrade the system C/N.

In such situations we recommend the use of a low gain UHF Masthead Amplifier with high signal handling capabilities such as the 13dB Masthead MHA13U/S with 2ch

114dBuV O/P level.

44

New Pocket Guide2 8/29/03 4:21 PM Page 44

GENERAL INFORMATION

BASIC STEP BY STEP GUIDE TO SUCCESSFUL TERRESTRIAL TV

AND RADIO SYSTEMS INSTALLATION ....continued

3. DTT SYSTEM PLANNING AND COMPONENTS

Plan the amplifier gains, signal handling and system losses (cable downleads, taps etc.) to achieve the target DTT signal levels and C/N at each outlet plate in the system. One of the best and most cost effective ways to achieve the target levels and C/N at the outlet plate is to use wideband UHF Digital MATV amplifiers such as the MAA range.

It is advisable to plan the network step by step as follows:

a) Measure the levels and C/N at the aerial. If you have not got sufficient signal level or C/N at the aerial output then the installation is not suitable for DTT reception.

Either the size of the UHF TV aerial and/or position of the aerial will need to be changed.

b) Check the flatness of each DTT channel using a good spectrum type meter.

c) The aerial should have a balun and have good gain and directional properties.

d) In adjacent DTT coverage areas where the same channel number is used, it will be necessary to use an extremely directional aerial such as the ALP28W Log Periodic.

e) Use grouped equipment if ALL DTT and analogue channels are within the same

UHF group.

f) Use a high performance fully screened bandpass filter such as the Maxview MHF range after the aerial to remove unwanted out of band signals e.g. mobile radio,

Tetra signals etc.

g) Reduce the passive system loss either by using lower loss cable or multiple trunk cables with separate amplifiers, this will give improved C/N at the Outlet plates.

h) Use lower gain Digital MATV amplifiers designed for DTT systems with low NF that provide BOTH excellent INPUT and OUTPUT signal handling e.g. the Maxview MAA range.

i) De-rate amplifiers for more analogue channels using the 10 log (N-I) rule, e.g. for 5 channels de-rate output level by 6dB.

j) Use a low gain (<15dB), fully screened high signal handling Masthead to improve system C/N if losses between UHF aerial to headend are significant or if more system gain is required for larger MATV networks.

k) Use good quality screened cable that complies with BS EN 50117 for the coaxial downleads and to BS EN 60966 for the coaxial flyleads throughout the installation.

l) Typical Coax cable loss in dB/100m at 800MHz for DS81 = 23dB CT/DS100 = 18dB

CT125 = 15dB CT165 = 12dB.

m)Use fully screened outlet plates and accessories that comply with EN50083-2 n) Install broadband Taps or Splitters that operate up to 2.3GHz, such as the MAT and

MAS range. This and the correct coaxial trunk cable will help to ensure that the

MATV system is IRS ready.

Do not forget to keep the analogue levels between 60 and 80dBuV at the outlet plate.

At some outlet plates it may be necessary to fit an inline attenuator to prevent overloading the STB or iDTV if the analogue TV levels are above 80dBuV.

45

New Pocket Guide2 8/29/03 4:21 PM Page 45

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
