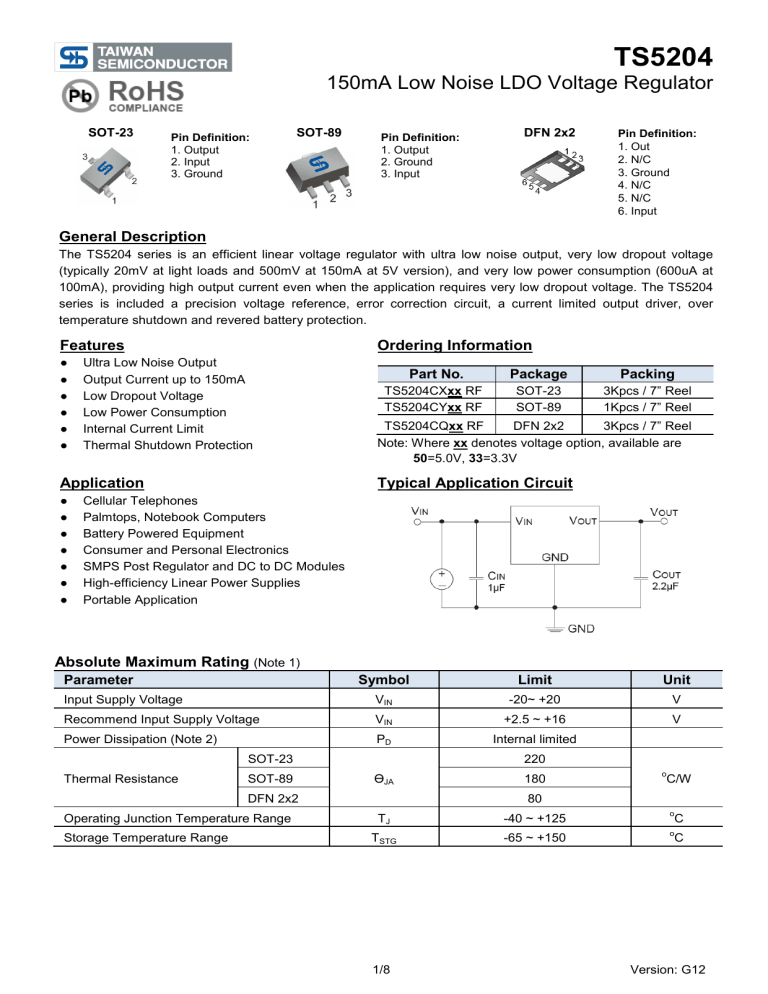

TS5204
150mA Low Noise LDO Voltage Regulator
SOT-23
Pin Definition:
1. Output
2. Input
3. Ground
SOT-89
Pin Definition:
1. Output
2. Ground
3. Input
DFN 2x2
Pin Definition:
1. Out
2. N/C
3. Ground
4. N/C
5. N/C
6. Input
General Description
The TS5204 series is an efficient linear voltage regulator with ultra low noise output, very low dropout voltage
(typically 20mV at light loads and 500mV at 150mA at 5V version), and very low power consumption (600uA at
100mA), providing high output current even when the application requires very low dropout voltage. The TS5204
series is included a precision voltage reference, error correction circuit, a current limited output driver, over
temperature shutdown and revered battery protection.
Features
●
●
●
●
●
●
Ordering Information
Ultra Low Noise Output
Output Current up to 150mA
Low Dropout Voltage
Low Power Consumption
Internal Current Limit
Thermal Shutdown Protection
Application
●
●
●
●
●
●
●
Part No.
Package
Packing
TS5204CXxx RF
TS5204CYxx RF
SOT-23
SOT-89
3Kpcs / 7” Reel
1Kpcs / 7” Reel
TS5204CQxx RF
DFN 2x2
3Kpcs / 7” Reel
Note: Where xx denotes voltage option, available are
50=5.0V, 33=3.3V
Typical Application Circuit
Cellular Telephones
Palmtops, Notebook Computers
Battery Powered Equipment
Consumer and Personal Electronics
SMPS Post Regulator and DC to DC Modules
High-efficiency Linear Power Supplies
Portable Application
Absolute Maximum Rating (Note 1)
Parameter
Symbol
Limit
Unit
Input Supply Voltage
VIN
-20~ +20
V
Recommend Input Supply Voltage
VIN
+2.5 ~ +16
V
Power Dissipation (Note 2)
PD
Internal limited
SOT-23
Thermal Resistance
SOT-89
220
ӨJA
DFN 2x2
Operating Junction Temperature Range
Storage Temperature Range
180
o
C/W
80
TJ
TSTG
1/8
-40 ~ +125
o
-65 ~ +150
o
C
C
Version: G12
TS5204
150mA Low Noise LDO Voltage Regulator
Electrical Specification (VIN=Vo+1V, Io=100uA, COUT=1uF, Vce≥2V, TJ =25oC, unless otherwise specified.)
Parameter
Output Voltage
Conditions
Min
VIN=Vo + 1V
0.97|Vo|
VIN=Vo + 1V, Io= 120mA
0.96|Vo|
Typ
VOUT
Max
Unit
1.03|Vo|
1.04|Vo|
V
o
Output Voltage Temp. Coefficient
(Note 4)
--
50
--
ppm/ C
Line Regulation
Vo+1V ≤ VIN ≤ 16V
--
0.1
0.5
%
Load Regulation (Note 5)
0.1mA ≤ Io ≤ 120mA
--
1
2
%
Io=100uA
--
20
--
Io=50mA
--
250
300
Io=120mA
--
350
400
Io=150mA (5V version)
--
450
500
Io=100uA
--
110
150
Io=50mA
--
500
1000
Io=120mA
--
2600
3100
Io=150mA (5V version)
--
3500
4200
Output Current Limit
VOUT=0V
--
200
--
mA
Power Supply Rejection Ratio
At f=100Hz, Io=100uA,
--
65
--
dB
--
0.05
--
%/W
--
260
--
nV√Hz
Dropout Voltage (Note 6)
Ground Pin Current (Note 7)
Thermal Regulation (Note 8)
Output Noise
Io=50mA, COUT =2.2uF,
mV
uA
Note:
1. Exceeding the absolute maximum rating may damage the device.
2. The maximum allowable power dissipation at any Ta is Pd(max) = [TJ(MAX) - Ta] + ӨJA. Exceeding the maximum
allowable power dissipation will result in excessive die temperature, and the regulator will go into thermal
shutdown.
3. The device is not guaranteed to function outside its operating rating.
4: Output voltage temperature coefficient is defined as the worst case voltage change divided by the total
temperature range.
5: Regulation is measured at constant junction temperature using low duty cycle pulse testing. Parts are tested for
load regulation in the load range from 1mA to 150mA (5V version) and 1mA to 120mA (VOUT <5V version).
Changes in output voltage due to heating effects are covered by the thermal regulation specification.
6: Dropout voltage is defined as the input to output differential at which the output voltage drops 2% below its
nominal value measured at 1V differential.
7: Ground pin current is the regulator quiescent current plus pass transistor base current. The total current drawn
from the supply is the sum of the load current plus the ground pin current.
8: Thermal regulation is defined as the change in output voltage at a time “t” after a change in power dissipation is
applied, excluding load or line regulation effects. Specifications are for a 150mA load pulse at VIN =16V for
t=10mS.
2/8
Version: G12
TS5204
150mA Low Noise LDO Voltage Regulator
Application Information
TS5204 series is designed to provide 150mA (5V version) of continuous current in a very small package.
Maximum power dissipation can be calculated based on the output current and the voltage drop across the part.
To determine the maximum power dissipation of the package, use the junction-ambient thermal resistance of the
device and the following basic equation:
PD(MAX) = [ TJ(MAX) – TA ] /ΘJA
o
Tj(max) is the maximum junction temperature of the die(125 C), and Ta is the ambient operating temperature.
ΘJA is layout dependent, the actual power dissipation of the regulator circuit can be determined using the
equation:
PD = (VIN – VOUT) * IOUT + VIN * IGND
Substituting Pd(max) for Pd and solving for the operating conditions that are critical to the application will give the
maximum operating conditions for the regulator circuit. For example, when operating the TS5204CX33 at room
temperature with a minimum footprint layout, the maximum input voltage for a set output current can be
determined as follows:
o
o
o
PD(MAX) = (125 C – 25 C) / 220 C/W
o
The junction to ambient thermal resistance for the minimum footprint is 220 C/W, the maximum power dissipation
must not be exceeded for proper operation. Using the output voltage of 3.3V and an output current of 120mA, the
maximum input voltage can be determined. From the electrical characteristics table, the maximum ground
current for 120mA output current is 2.5mA.
445mW = (VIN – 3.3V ) * 120mA + VIN * 2.5mA
445mW = VIN * 120mA – 3.3 * 120mA + VIN * 2.5mA
445mW = VIN * 120mA – 395mW + VIN * 2.5mA
840mW = VIN * 122.5mA
VIN (max) = 6.85V
Therefore, a 3.3V application at 120mA of output current can accept a maximum input voltage of 6.85V in a SOT23 package.
Input Capacitor Requirement
An input capacitor of 0.1uF or greater is recommended when the device is more than 10” away from the bulk AC
supply capacitance or when the supply is a battery.
Output Capacitor Requirement
The TS5204 series requires an output capacitor to maintain stability and improve transient response is necessary.
2.2uF minimum is recommended. Larger values improve the regulator’s transient response. The output capacitor
value may be increased without limit.
The output capacitor should have an ESR (effective series resistance) less than 5Ω and a resonant frequency
above 1MHz. Ultra low ESR capacitors can cause a low amplitude oscillation on the output and/or under damped
transient response. Most of tantalum or aluminum electrolytic capacitors are adequate; film types will work. Since
o
many aluminum electrolytic have electrolytes that freeze at about –30 C, solid tantalums are recommended for
o
operation below –25 C. At lower values of output current, less output capacitance is required for output stability.
The capacitor can be reduced to 0.47uF for current below 10mA or 0.33uF for currents below 1mA.
No Load Stability
The TS5204 series will remain stable and in regulation with no load, unlike many other voltage regulators. This is
especially important in CMOS RAM keep alive applications.
Dual Supply Operation
When used in dual supply systems where the regulator load is returned to a negative supply, the output voltage
must be diode clamped to ground.
3/8
Version: G12
TS5204
150mA Low Noise LDO Voltage Regulator
Electrical Characteristics Curve
Figure 1. Dropout Voltage vs. Output Current
Figure 2. Ground Current vs. Output Current
Figure 3. Dropout Voltage vs. Output Current
Figure 4. Short Circuit Current vs. Input Voltage
4/8
Version: G12
TS5204
150mA Low Noise LDO Voltage Regulator
SOT-23 Mechanical Drawing
DIM
A
A1
B
C
D
E
F
G
H
I
J
SOT-23 DIMENSION
MILLIMETERS
INCHES
MIN
MAX
MIN
MAX.
0.95 BSC
0.037 BSC
1.9 BSC
0.074 BSC
2.60
3.00
0.102
0.118
1.40
1.70
0.055
0.067
2.80
3.10
0.110
0.122
1.00
1.30
0.039
0.051
0.00
0.10
0.000
0.004
0.35
0.50
0.014
0.020
0.10
0.20
0.004
0.008
0.30
0.60
0.012
0.024
5º
10º
5º
10º
Marking Diagram
J = Device Code
X = Voltage Code
(5 = 5.0V, S = 3.3V)
Y = Year Code
M = Month Code
(A=Jan, B=Feb, C=Mar, D=Apl, E=May, F=Jun, G=Jul, H=Aug, I=Sep,
J=Oct, K=Nov, L=Dec)
L = Lot Code
5/8
Version: G12
TS5204
150mA Low Noise LDO Voltage Regulator
SOT-89 Mechanical Drawing
DIM
A
B
C
D
E
F
G
H
I
J
SOT-89 DIMENSION
MILLIMETERS
INCHES
MIN
MAX
MIN
MAX
4.40
4.60
0.173
0.181
1.40
1.75
0.055
0.069
2.40
2.60
0.094
0.102
0.36
0.48
0.014
0.018
1.40
1.60
0.054
0.063
2.90
3.10
0.114
0.122
0.89
1.20
0.035
0.047
-4.25
-0.167
1.40
1.60
0.055
0.068
0.38
0.43
0.014
0.017
Marking Diagram
Y
M
= Year Code
= Month Code
(A=Jan, B=Feb, C=Mar, D=Apl, E=May, F=Jun, G=Jul, H=Aug, I=Sep,
J=Oct, K=Nov, L=Dec)
L = Lot Code
XX = Voltage
(50 = 5.0V, 33 = 3.3V)
6/8
Version: G12
TS5204
150mA Low Noise LDO Voltage Regulator
DFN 2x2 Mechanical Drawing
DIM
A
A1
A3
b
D
D1
E
E1
L
e
Y
DFN 2x2 DIMENSION
MILLIMETERS
INCHES
MIN
MAX
MIN
MAX
0.45
0.55
0.017
0.021
0.005 (typ)
0.0002 (typ)
0.152 (typ)
0.006(typ)
0.20
0.40
0.008
0.016
1.90
2.10
0.075
0.083
1.80 (typ)
0.071 (typ)
1.9
2.1
0.075
0.083
1.00 (typ)
0.039 (typ)
0.25 (typ)
0.01 (typ)
0.50 (typ)
0.02 (typ)
-0.10
-0.04
Marking Diagram
J
X
Y
M
L
= Device Code
= Fixed Output Voltage Code
(5 =5.0V, S =3.3V)
= Year Code
= Month Code
(A=Jan, B=Feb, C=Mar, D=Apl, E=May, F=Jun, G=Jul, H=Aug,
I=Sep, J=Oct, K=Nov, L=Dec)
= Lot Code
7/8
Version: G12
TS5204
150mA Low Noise LDO Voltage Regulator
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors or inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied, to
any intellectual property rights is granted by this document. Except as provided in TSC’s terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or selling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
